New 48V 120Ah 100Ah 200Ah LiFePo4 Battery Pack Built-in BMS 51.2V 5.12kw 32 Parallel with CAN RS485 Lithium Ion Battery NO TAX

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery Pack Built-in BMS 51.2V 5.12kw 32 Parallel with CAN RS485 Lithium Ion Battery NO TAX

Regular price $1,722.16 USD
Regular price $2,043.24 USD Sale price $1,722.16 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

Weight: 42-45kg

Warranty: 10 years

Voltage: 51.2V

Type: Lifepo4

Support to OEM: Yes

Support to Dropshipping: Yes

Size: 470*444*154mm

Origin: Mainland China

Nominal Capacity: 100Ah 120Ah

Model Number: WL48V-120

Features 8: Support RS485/CAN communication port

Features 7: 48V 100Ah 120Ah 5KWH 6KWH LiFePO4 Battery

Features 6: 5120Wh high power energy

Features 5: Best choice for Solar energy storage system

Features 4: With Built-in 16S100A BMS

Features 3: 48V 100Ah 120Ah LiFePO4 Battery

Features 2: Made of 100Ah 120Ah grade a cells

Features 1: Suppor Max 32 parallel

Cycle Time: >6000 times

Certification: CE,RoHS,UL

Brand Name: WULILLS

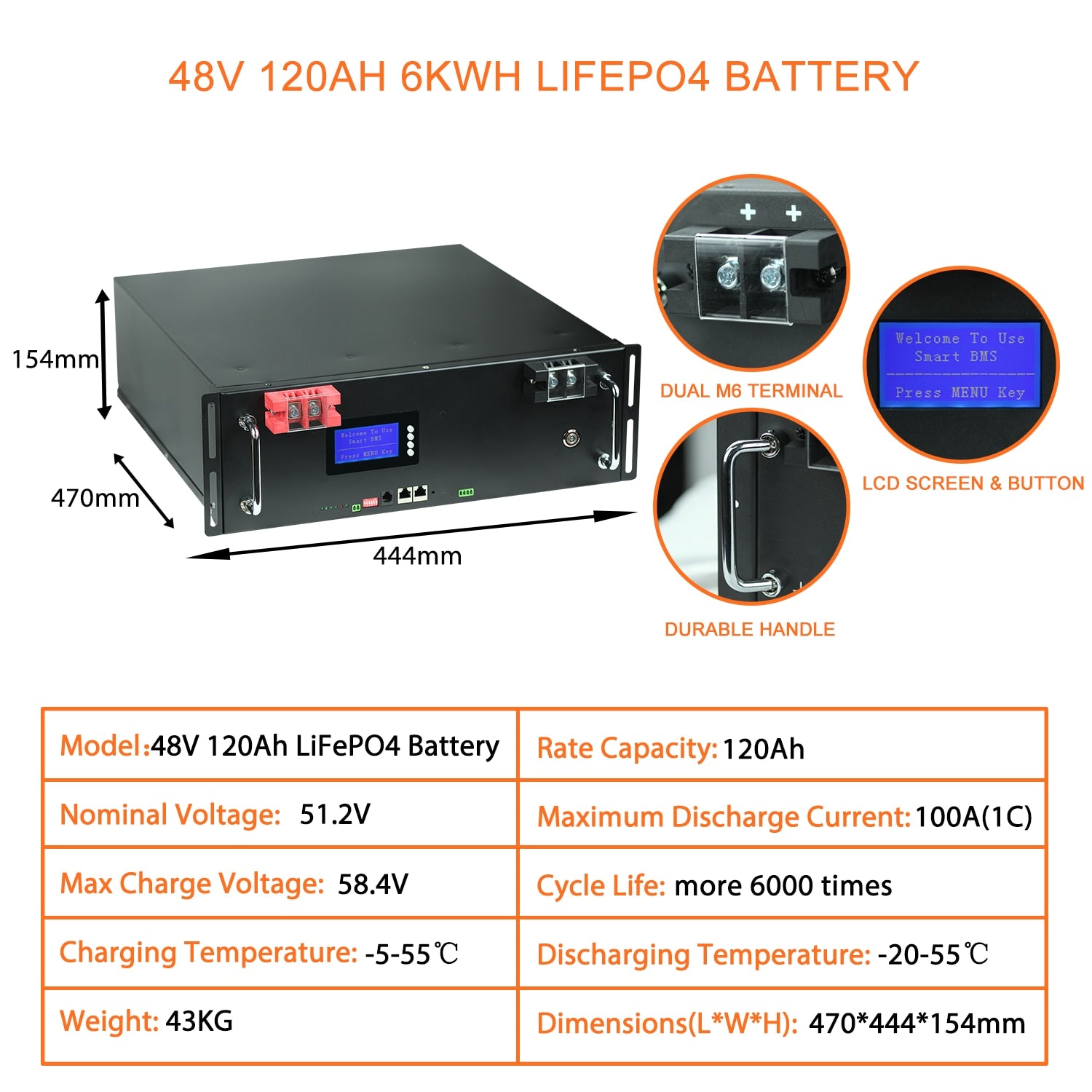

48V 120Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 120Ah 0.2C
Built-in BMS:16S100A
Communication Protocol: CAN RS485
Parallel : Max 32 Parallel
Energy: 6140Wh
Cycle Life: >6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Charger Current: 20A(0.2C)
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 470*444*154mm /
Weight: Approx. 45kg
Terminal Type: Dual M6

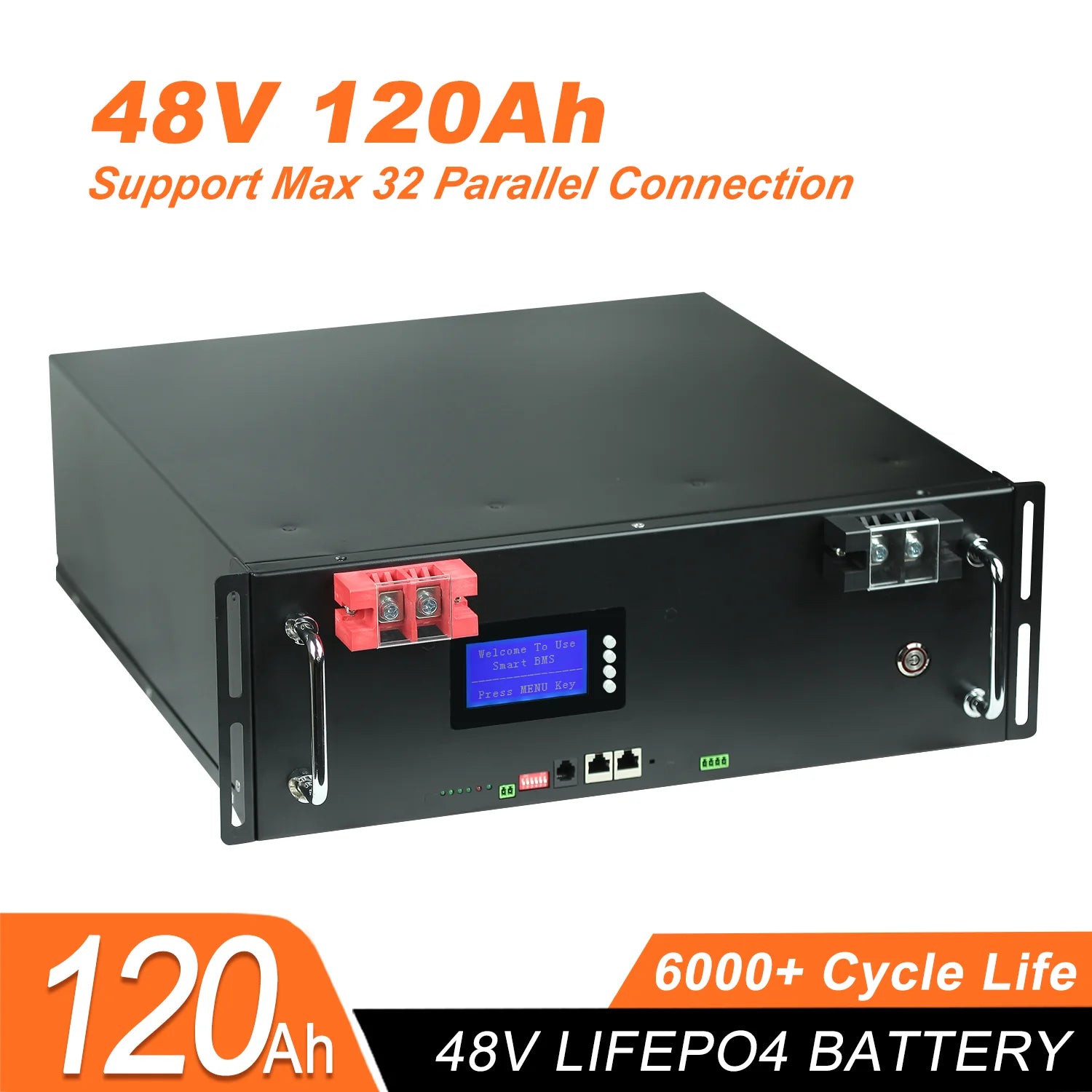

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, Lithium-ion battery pack with built-in BMS, 48V, 120Ah capacity, and CAN/RS485 connectivity.New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, High-capacity battery with 48V, 120Ah, suitable for large-scale applications, with long lifespan and compatibility with Velcore BRS systems.

Features 48V, 120Ah capacity, supports up to 32 parallel connections. Offers 6,000+ cycle life and Velcore BRS compatibility.

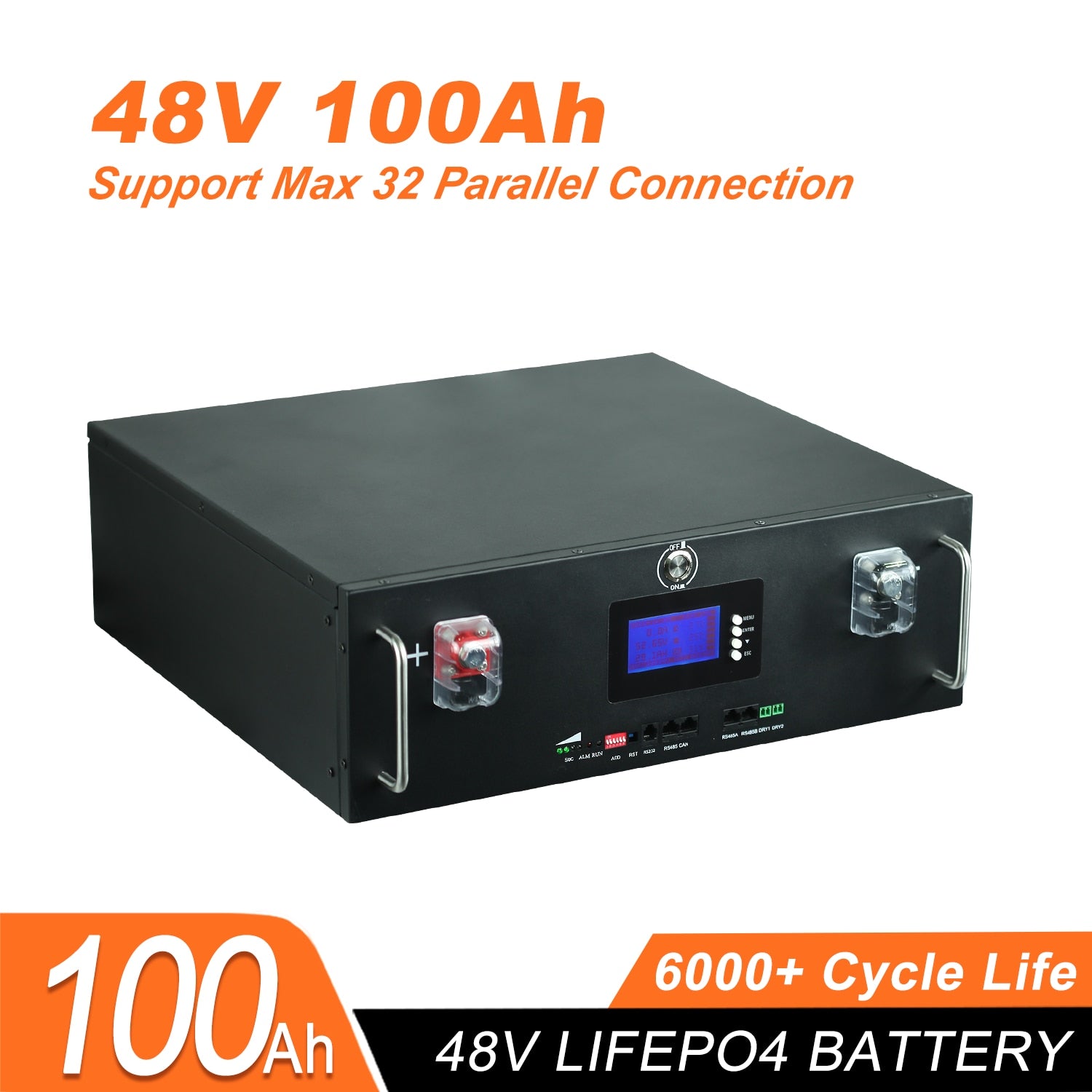

48V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Parallel : Max 32 Parallel
Energy: 5120Wh
Cycle Life: >6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Charger Current: 20A(0.2C)
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 42kg
Terminal Type: M8

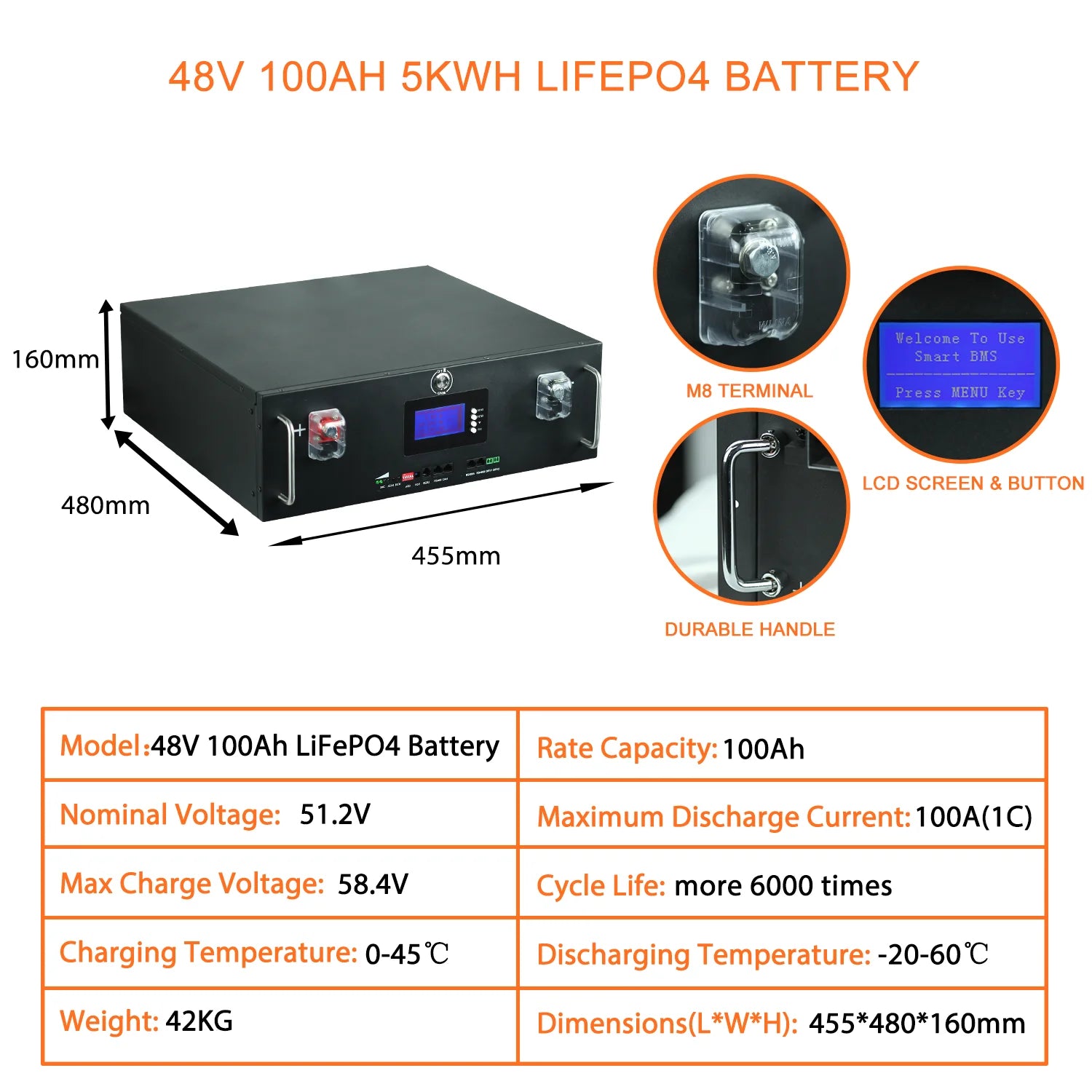

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, 48V LiFePO4 battery pack with built-in BMS, features 100Ah capacity and LCD display.

New 48V LiFePO4 Battery Pack with Built-in BMS (51.2V, 5.12kWh). Features: 100Ah capacity, parallel connection (32 units), CAN/RS485 communication, and LCD screen with buttons. Dimensions: 455mm x 480mm x 160mm. Weight: 42kg. Specifications: * Nominal Voltage: 51.2V * Maximum Discharge Current: 100A * Max Charge Voltage: 58.4V * Cycle Life: over 6000 times * Charging Temperature: 0-45°C * Discharging Temperature: -20-60°C

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, Reliable 48V LiFePo4 battery pack with built-in BMS, supports 32 parallel connections, 100Ah capacity, and 6,000+ cycles.

New 48V LiFePo4 battery pack with built-in BMS, supports up to 32 parallel connections, offering 100Ah capacity and 6000+ cycle life for reliable performance.

Match All Hybrid Inverters

Notice:tell us your inverter brand and model.we can provide you with the matching battery system.It is very important

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, Lithium ion battery pack with built-in BMS, 48V 120Ah capacity, suitable for industrial and commercial applications.

48V 120Ah LiFePO4 Battery Pack

With 16S 100A Built-in BMS protection
More 6000 cycle times
High power 6140Wh
10 yeard good quality warranty

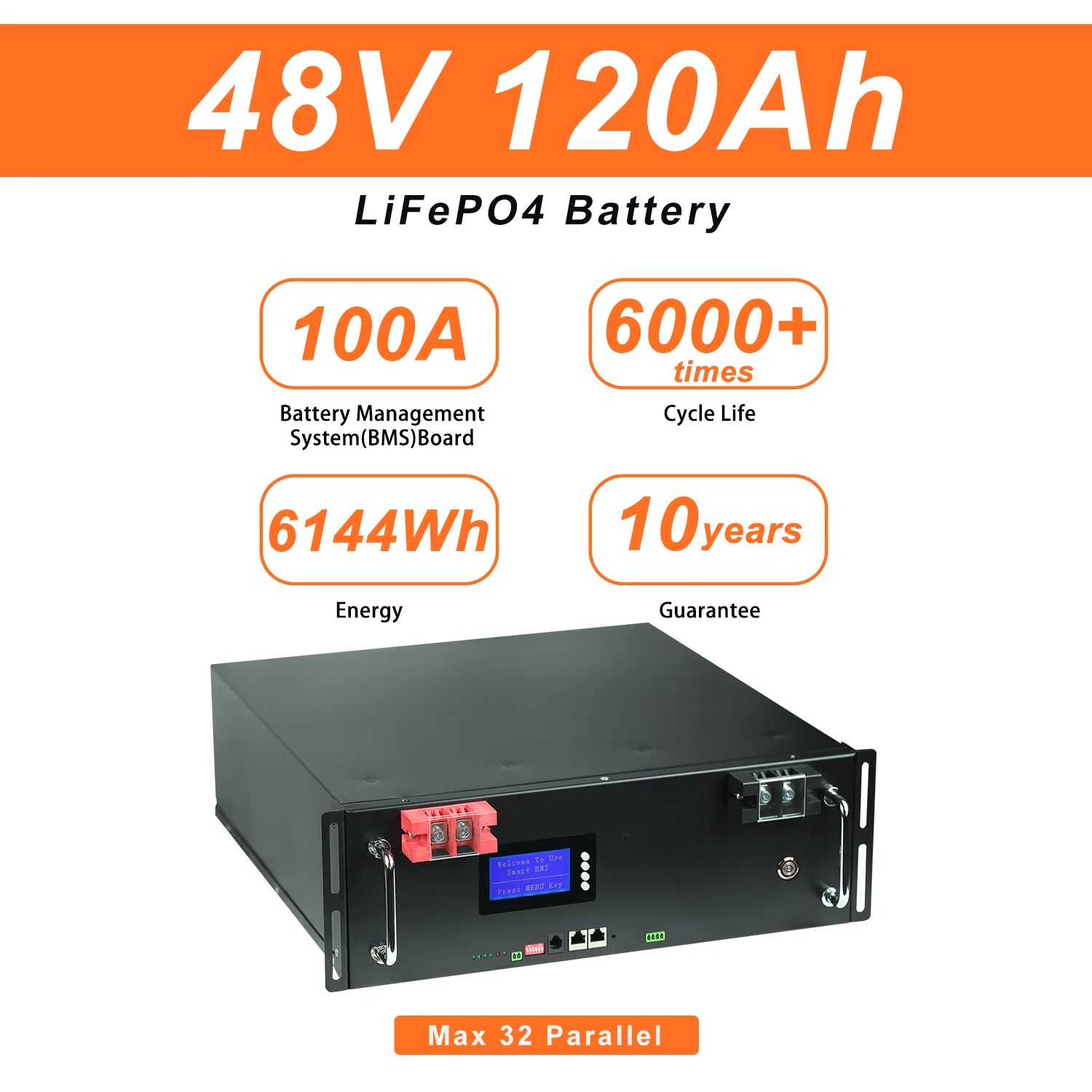

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, High-capacity LiFePO4 battery pack with built-in BMS, 6,144 Wh energy, and long cycle life.

New 48V 120Ah LiFePO4 battery pack features built-in BMS, 6,144 Wh energy guarantee, and up to 6000+ cycles. Compatible with CAN/RS485 communication and supports max 32 parallel connections.

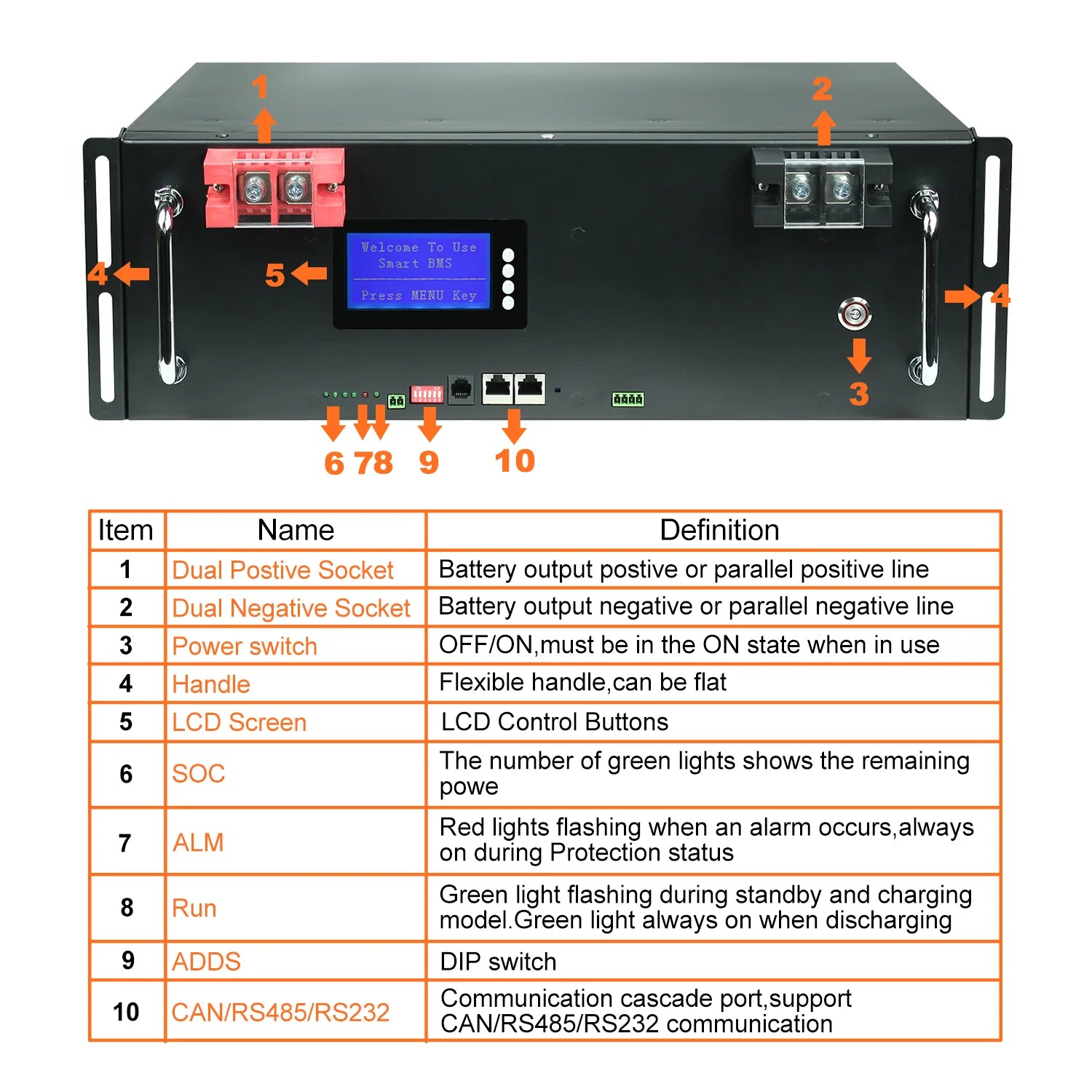

Products Button Definition

1.Dual Postive Socket:battery output positive or parallel positive line
2.Dual Negative Socket:battery output negative or parallel negative line
3.Power switch:OFF/ON must be in the ON state when in use
4.Handle:Flexible handle can be flat
5.LCD Screen:can control lcd screen
6.SOC:the number of green lights show the remaining power
7.ALM:red lights flashing when an alarm occurs,always on during portection status
8.Run:green lights flashing during standby and charging model.Green light always on when discharging
9.ADDS:Dip swtich
10.CAN/RS485/RS232:support CAN/RS485/RS232 communication cascade port

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, High-capacity lithium-ion battery pack with built-in BMS and CAN/RS485 connectivity.

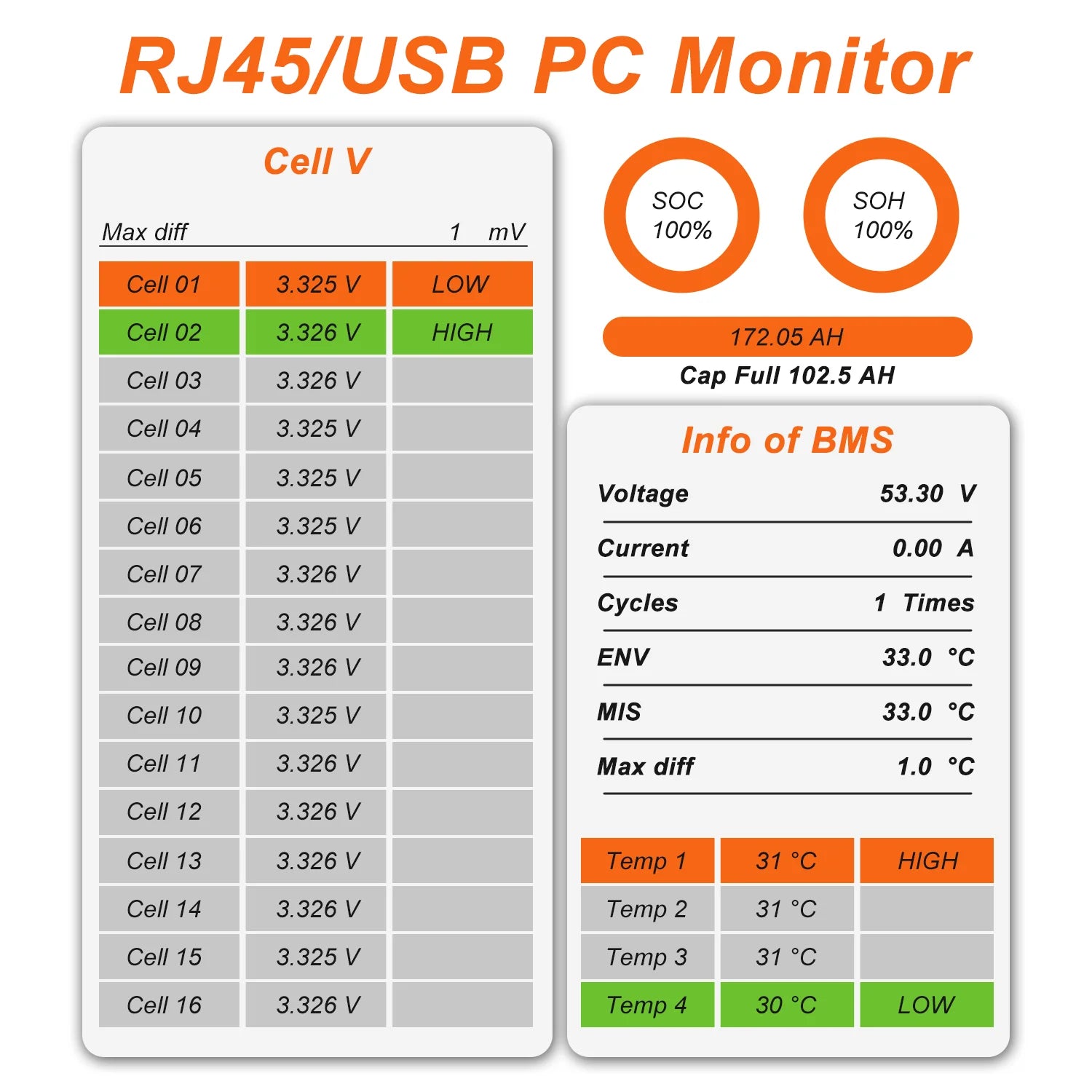

RJ45/USB PC Monitor

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, 42kg Terminal Type: M8, LiFePO4 Battery Pack with built-in BMS protection, 6140Wh capacity, and 10-year warranty.

With 48V 100A Built-in BMS

Overcharge protection
Over discharge protection
overload protection
short-circuit protection
high temperature protection
battery cell balancing

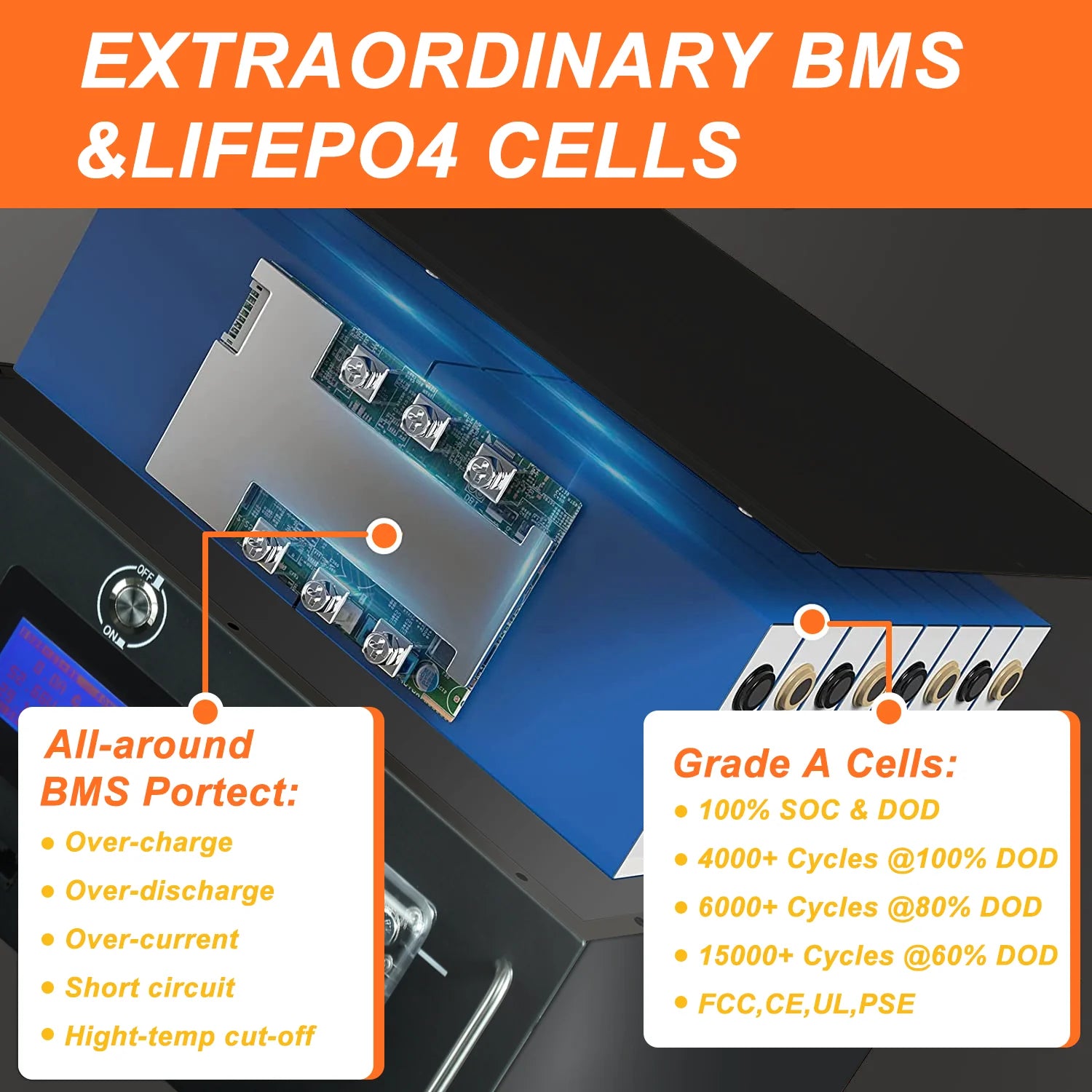

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, High-performance LiFePo4 battery pack with BMS protection and certifications, offering long cycle life.

Experience exceptional performance with our LiFePo4 battery pack, featuring Grade A cells and a built-in BMS (Battery Management System). The BMS provides protection against overcharge, deep discharge, overcurrent, and short circuits. With high-temperature cutoff and certifications from FCC, CE, UL, and PSE, this reliable battery offers 4000+ cycles at 100% depth of discharge, 6000+ cycles at 80%, 15,000+ cycles at 60%, and more.

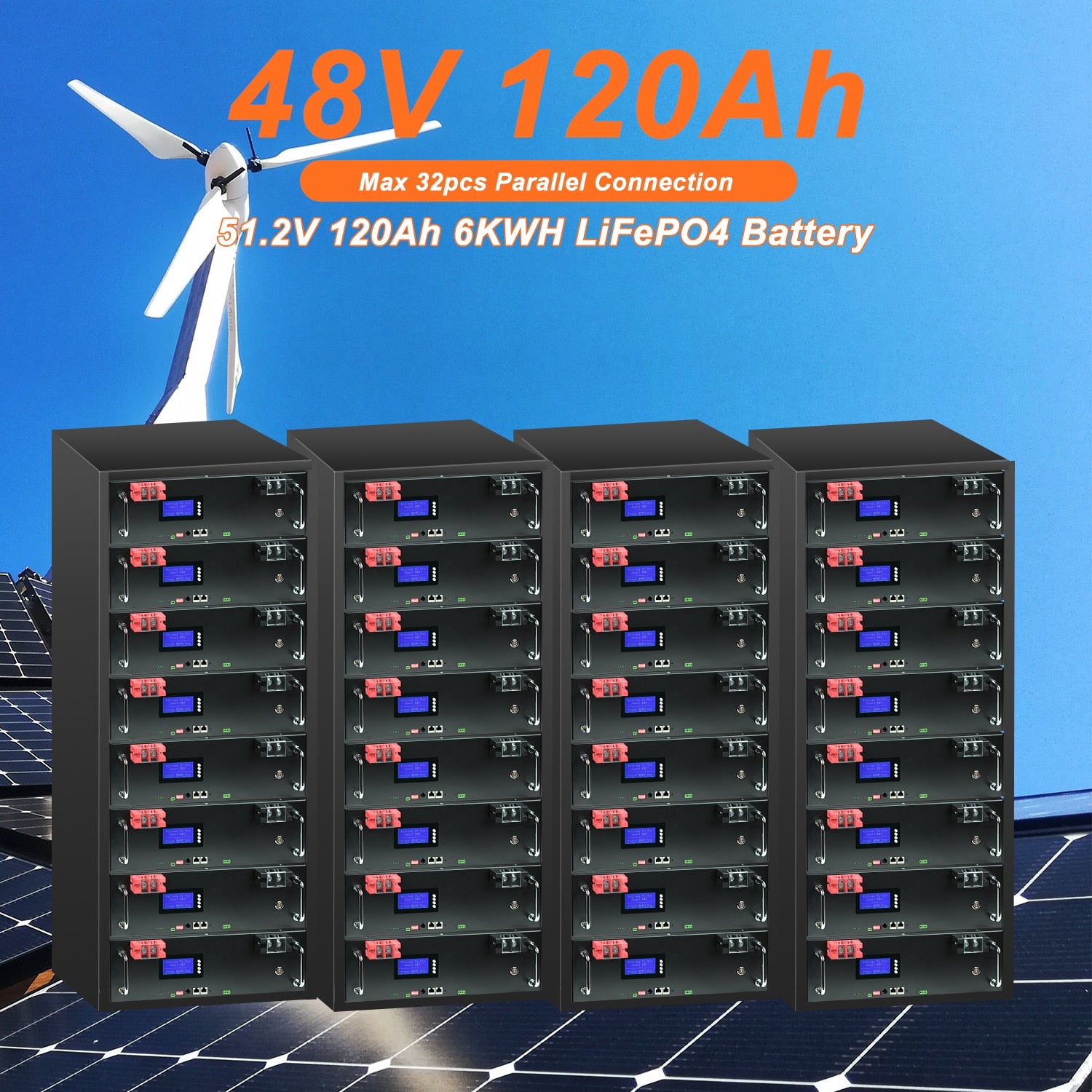

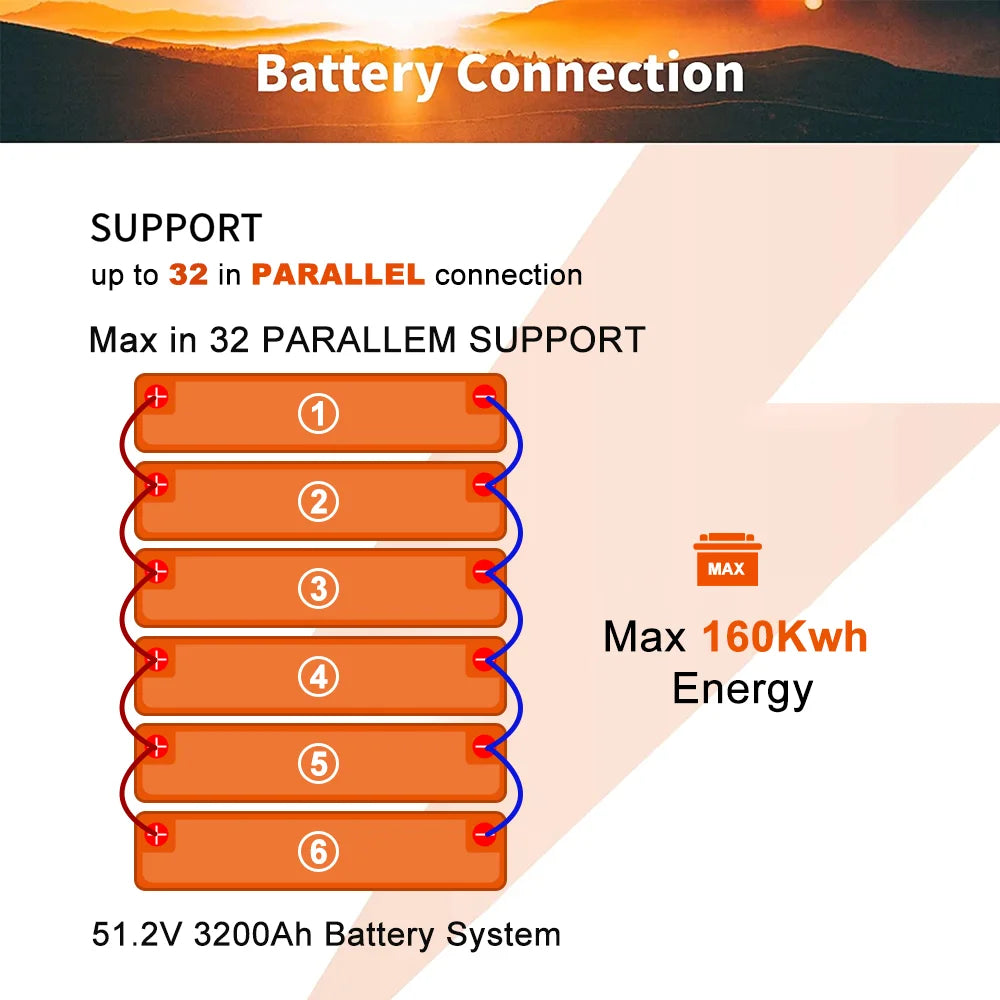

Max 32 In Parallel Connection

Support up to 32 in parallel connection
Max to make 51.V 3840Ah Battery System

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, High-capacity lithium iron phosphate battery supports up to 32 parallel connections.

Supports up to 32 parallel connections, max energy: 160KWh, voltage: 51.2V, and capacity: 3200Ah in our LiFePo4 battery system.

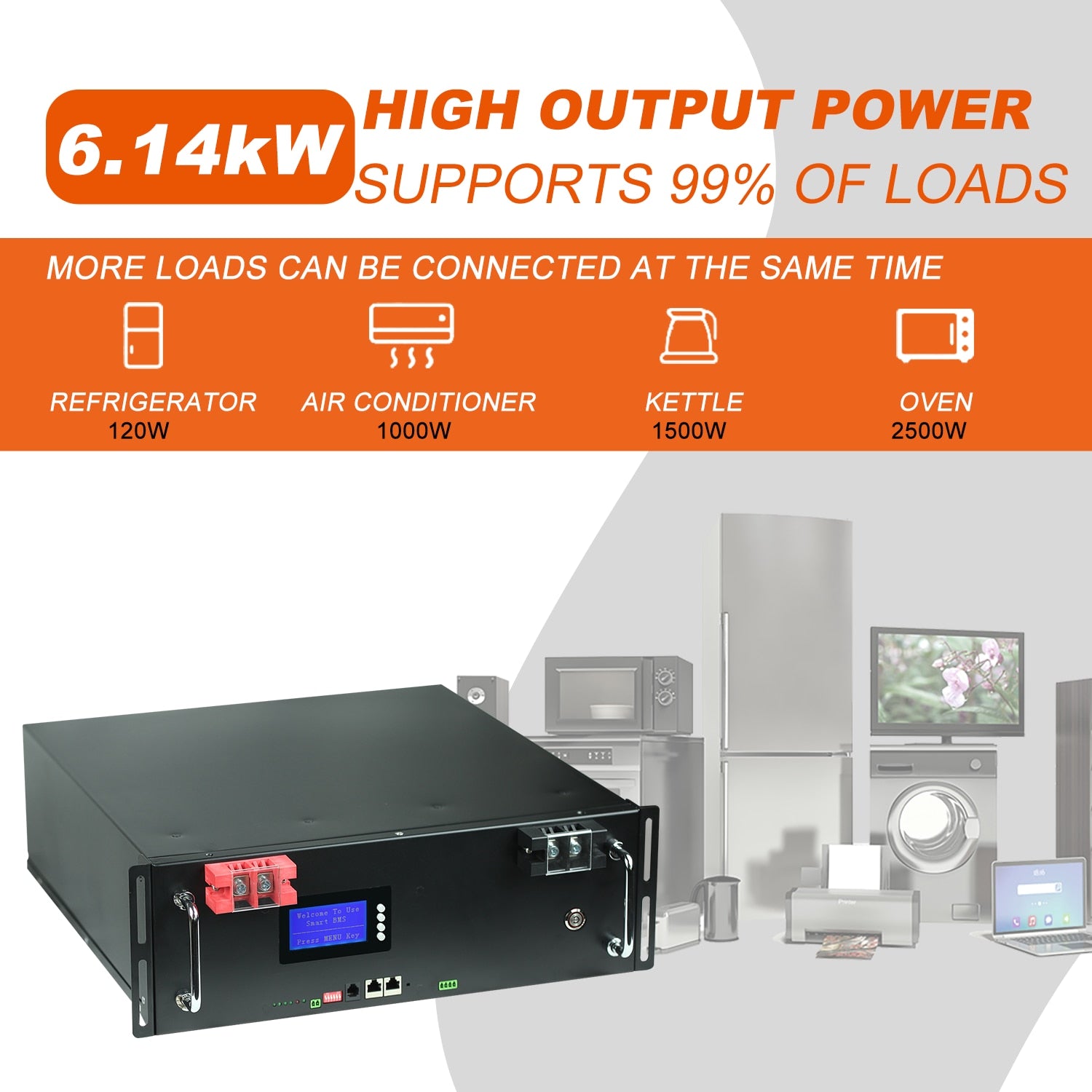

6.14kW High Output Power

More loads can be connected the same time with
total 6140W device

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, High power output: up to 6kW, supporting most household appliances.

High power output: up to 6kW. Supports 99% of loads, including refrigerators, air conditioners, kettles, ovens and other appliances with varying wattages (120W, 1000W, 1500W, 2500W).

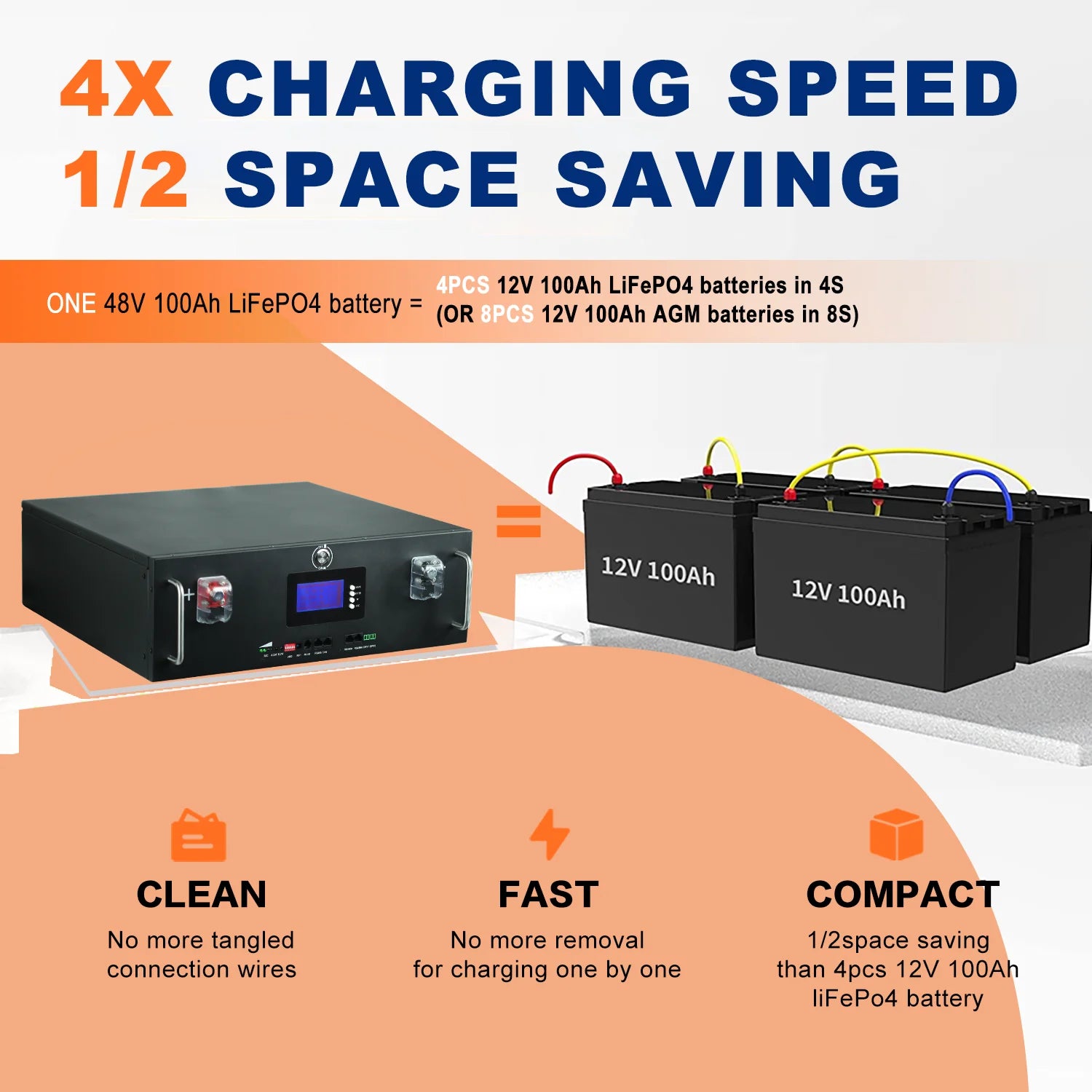

4X Charging Speed

4X Charging Spee
1/2 Space Saving

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, Parallel battery combination for fast charging, compact design, and easy connections.

Combine 4 x 12V 100Ah LiFePO4 batteries in parallel (48V 100Ah) for faster charging, reduced space usage, and simplified connections. This design eliminates tangled wires and allows for simultaneous charging of all four batteries at once.

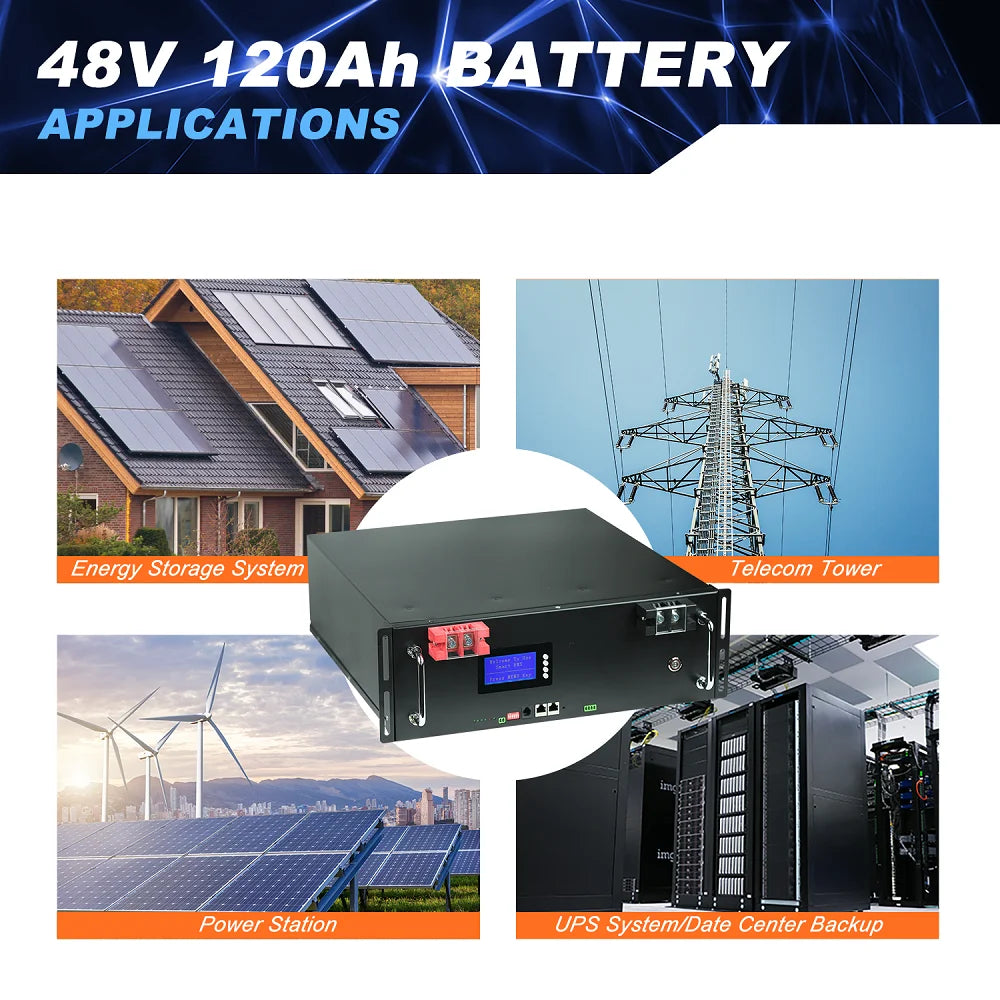

48V 120Ah LiFePO4 Battery

For energy storage system
For telecom tower
For power station
For UPS system

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, Reliable power backup for energy storage, telecom, power stations, UPS, and data centers.

Suitable for energy storage systems, telecom towers, power stations, UPS systems, and data center backups, this 48V 120Ah battery pack offers reliable power backup.

10-Year Quality Warranty

We provide 10-year good quality warranty
we support OEM and dropshiping

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, Reliable support and warranty: expert help, optimized usage, and replacement of faulty batteries.

10-year warranty offered for correct usage. Our dedicated team helps analyze and resolve customer issues, provides optimal usage methods and replaces defective batteries with new ones if needed.


New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, 48V lithium-ion battery pack with built-in BMS, 100Ah/200Ah capacity options.

New 48V 120Ah 100Ah 200Ah LiFePo4 Battery, Payment options: Western Union, Visa, Mastercard, Bank Transfer. Fast delivery: 48 hours or less.

Payment Methods: Western Union, Visa, Mastercard, Bank Transfer. Delivery Time: 48 hours or less. Quality Guaranteed. If you're satisfied with our products, please give us a 5-star review. We'll respond to all emails within 24 hours. Excellent communication, shipping speed, and product description.
