SPECIFICATIONS

rated power: 300W

Special Features: Car Power Inverter

Placement on Vehicle: other

Peak power: 500W

Output waveform: Modified sine wave

Output voltage range: 110V ± 10% / 220V ± 10%

Output voltage: 110V / 220V (Optional)

Other Part Number: Car Power Inverter

Origin: Mainland China

No load current: ≤ 0.7A

Material Type: ABS

Manufacturer Part Number: Car Power Inverter

Item Weight: 0.6kg

Inverter efficiency: 0.9

Interchange Part Number: Car Power Inverter

Input voltage range: 9.5V-15.5V

Input voltage: 12V

Frequency: 50Hz / 60Hz

Country/Region of Manufacture: China

Color: Black / Yellow (Optional)

Circuit topology: push and encourage type

Brand Name: GISAEV

Actual power: 4000W

Features:

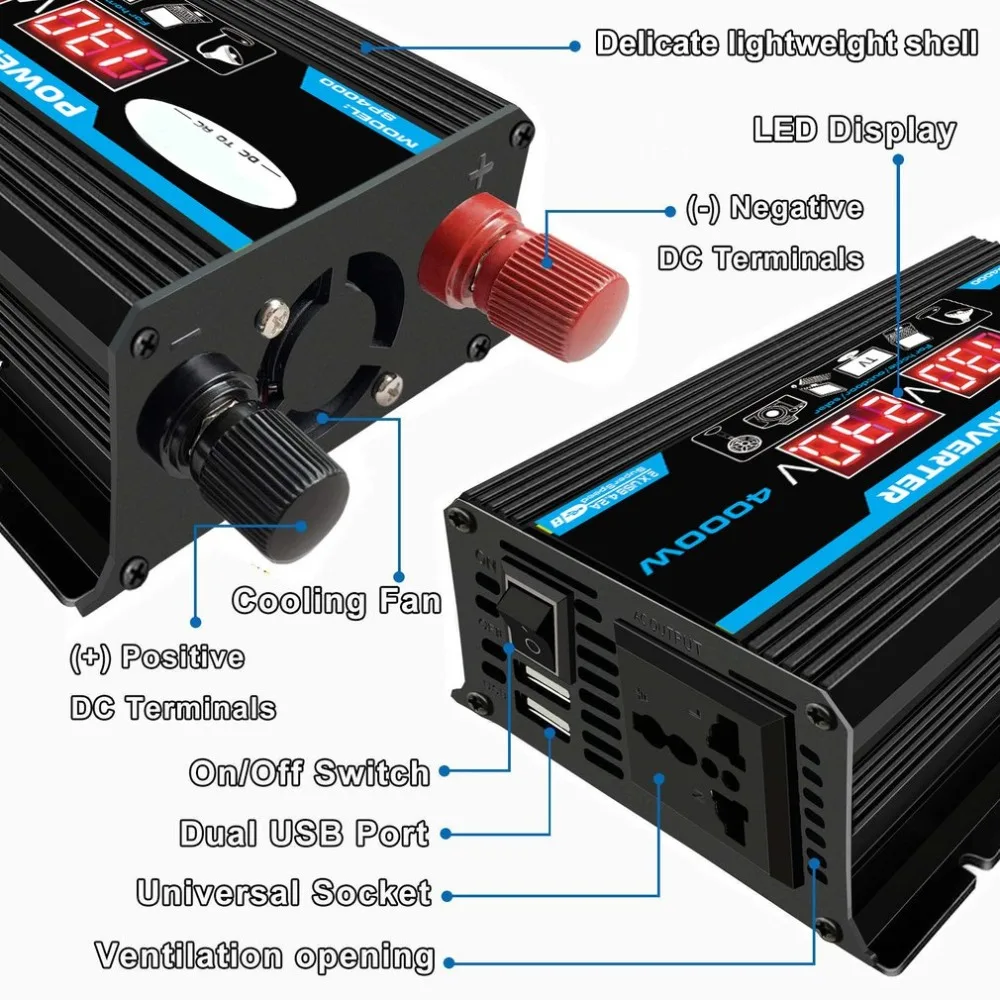

1. Dual LCD digital display enables you to hold the output voltage and battery voltage value at any time.

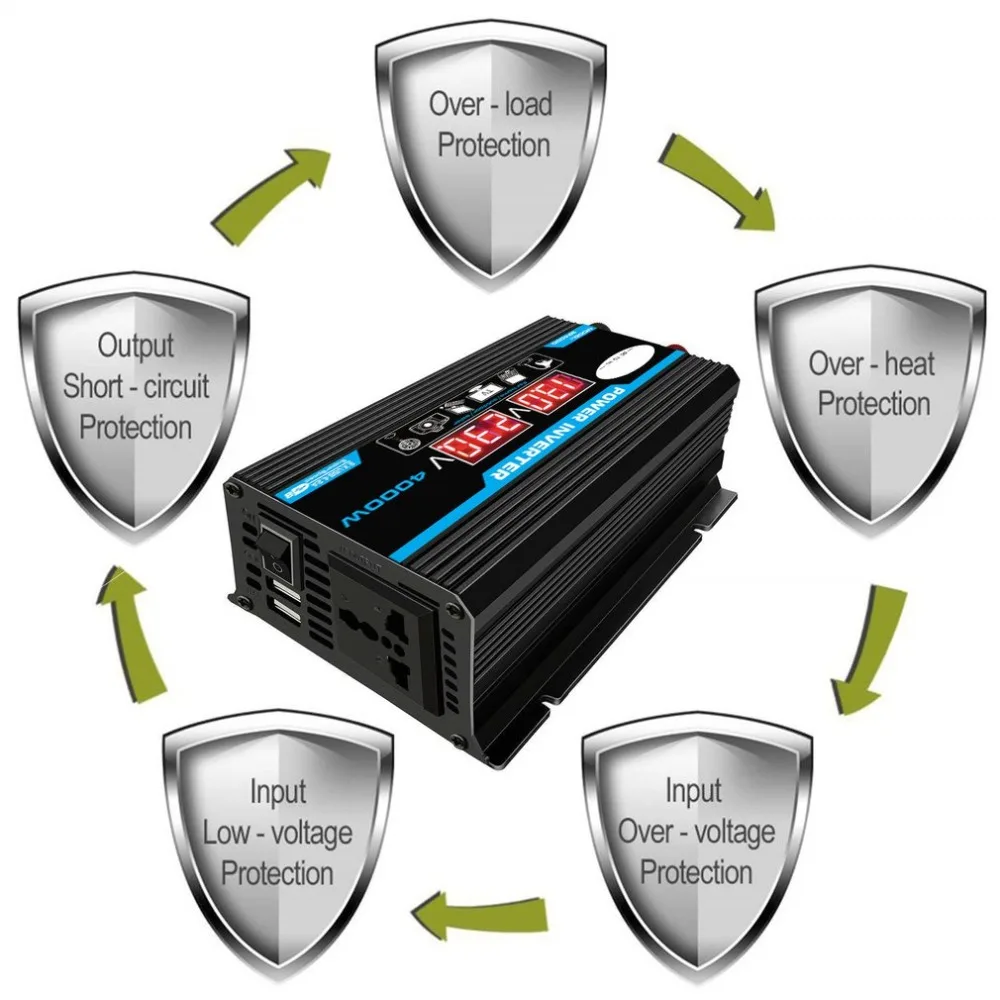

2. Fault prompt function. In addition to different sound prompts, it can also be displayed more intuitively from the display screen (for example, battery undervoltage, battery overvoltage, overload, high working temperature, output short circuit, etc.).

3. The overload delay closing function is added in the product to solve the sensitive problem of inverter protection when the soluble electrical appliance is started.

4. The small power non professional user market has increased the positive and negative pole return protection function.

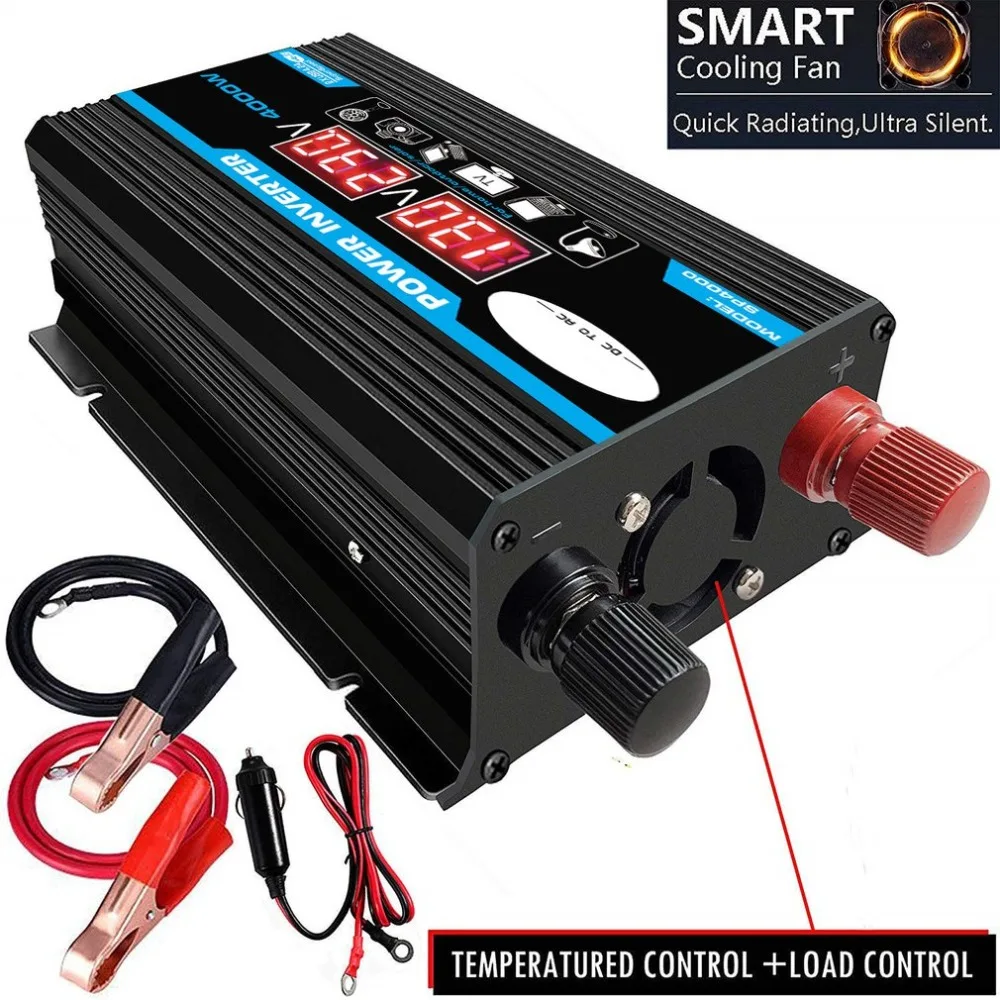

5. Intelligent temperature control oil sealing fan. When the inverter is working, it can work at a certain temperature, which is more energy-saving and quieter.

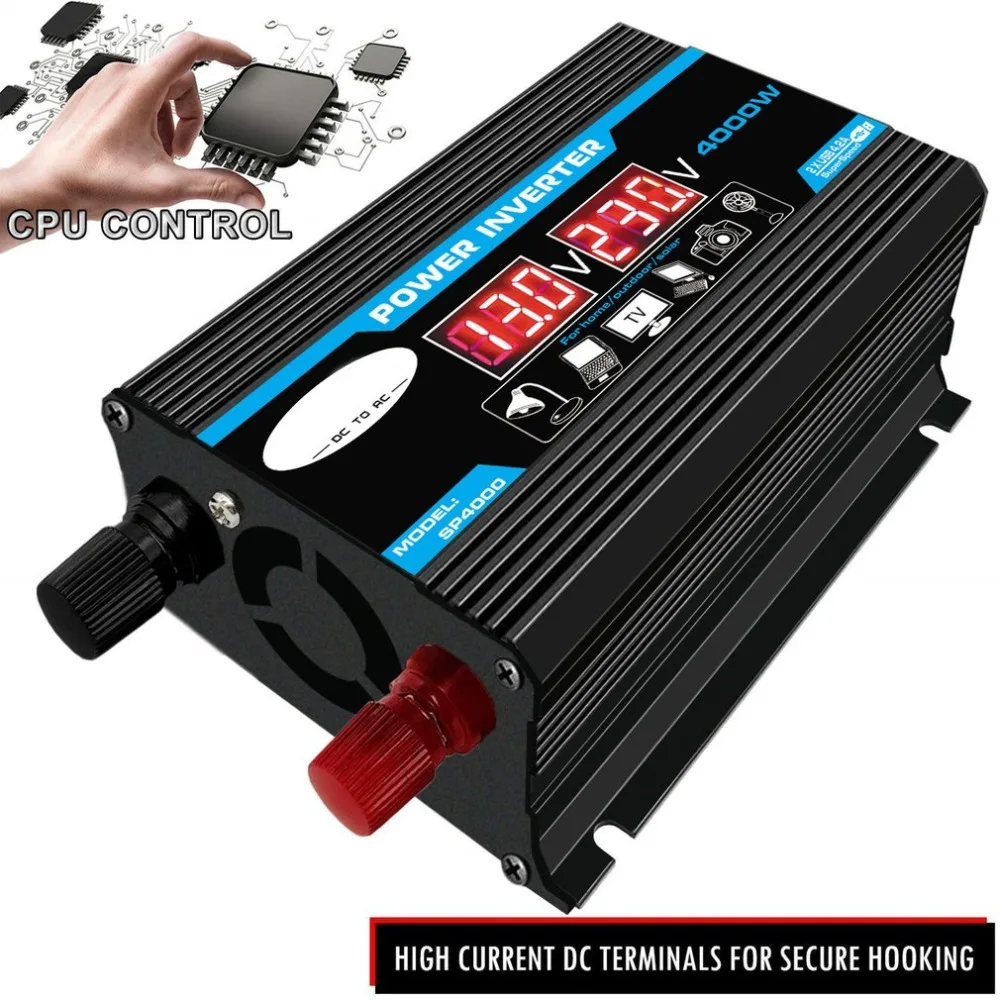

6. Digital MCU control, output wave type, more accurate frequency, accurate output voltage, fast response of protection circuit.



Descriptions:

1.This is a power inverter,using STM-chip technology and kinds of intelligent protection,high reliability.

2.Widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.



Specifications:

Color:Black / Yellow (Optional)

Output waveform:Modified sine wave

Actual power: 4000W

Peak power: 500W

Rated power:300W

Input voltage: 12V

Input voltage range: 9.5V-15.5V

Output voltage: 110V / 220V (Optional)

Output voltage range: 110V ± 10% / 220V ± 10%

Frequency: 50Hz / 60Hz

Inverter efficiency: 0.9

Circuit topology: push and encourage type

No load current: ≤ 0.7A

Low voltage protection: with a minimum protection voltage of 9.5V

High voltage protection: with a maximum protection voltage of 15.5V

Overload protection: Yes

Output short circuit protection: Yes

Reverse connection protection of positive and negative poles: Yes

Output voltage stabilization: Yes

Protection buzzer: Yes

USB interface: 2.1A x 2

Input terminal connection mode: terminal

Output interface: international general socket

Product size (mm):161mm/6.28in x 112mm/4.37in x 56mm/2.18in



Package informations:

Package Size:187x100x145mm/7.29x3.9x5.66in

Package weight:650g/1.43lb

General Box Package

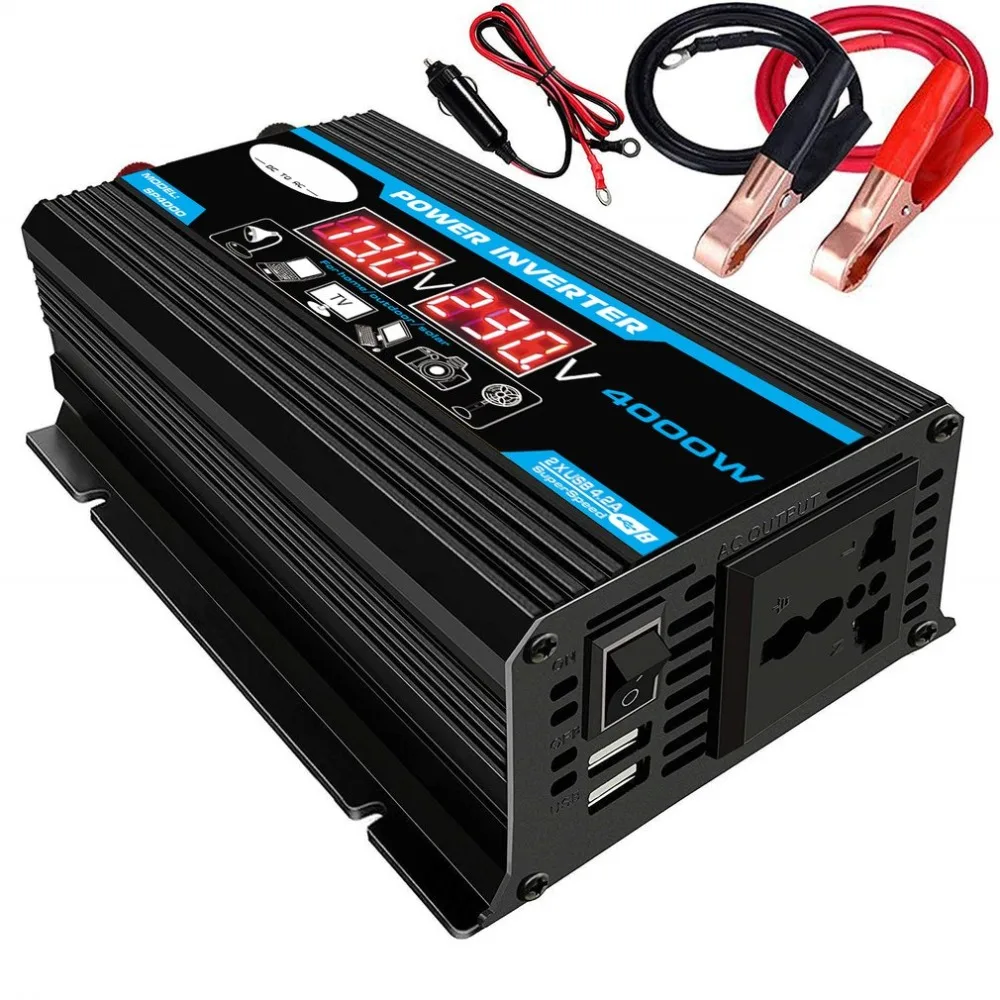

Package included:

1 x Power inverter

1 x Alligator clip

1 x Cigarette lighter



Noted:

1.Please allow 1-2mm errors due to manual measurement.

2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
