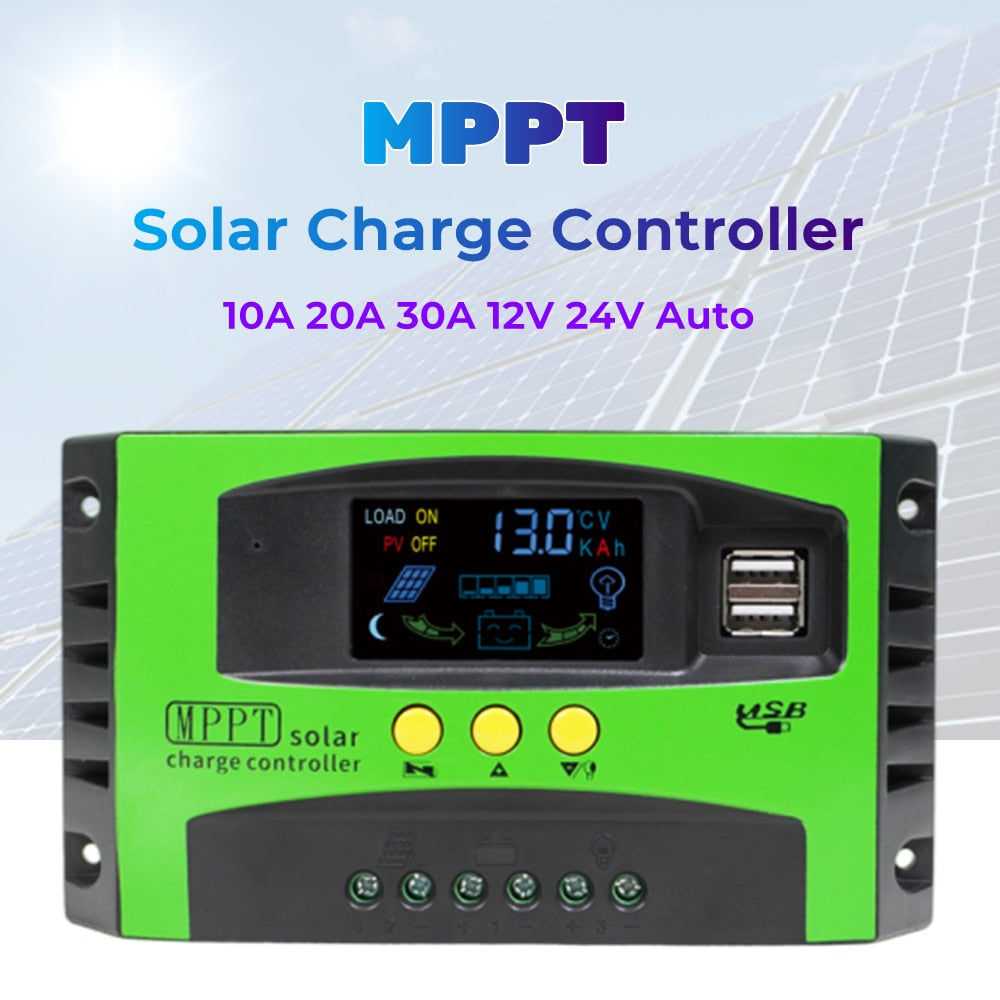

New Arrival 12V 24V Auto MPPT Solar Charge Controller 10A 20A 30A Solar Panel PV Regulator Color LCD Display 5V Output Dual USB

Feature:

● Build-in industrial micro controller

● Auto focus MPPT tracking charging

● Big color LCD display, all adjustable parameter

● Dual mosfet reverse current protection, low heat production

● Support lead-acid battery, dual USB charging function, floating charge, over-discharge, return voltage can be adjusted, a variety of batteries can be selected, power indicator.Support Apple's mobile phone charging

● Light control + delay function; it has protection against backflow, overcharge, overdischarge, lightning protection, overheating, output short circuit, etc., with memory function

● Suitable for solar green light, solar light boxes advertising board, solar insecticidal lights, housing solar power generation system, marine solar power generation system, outdoor survival solar power generation system

MPPT Solar Controller parameter

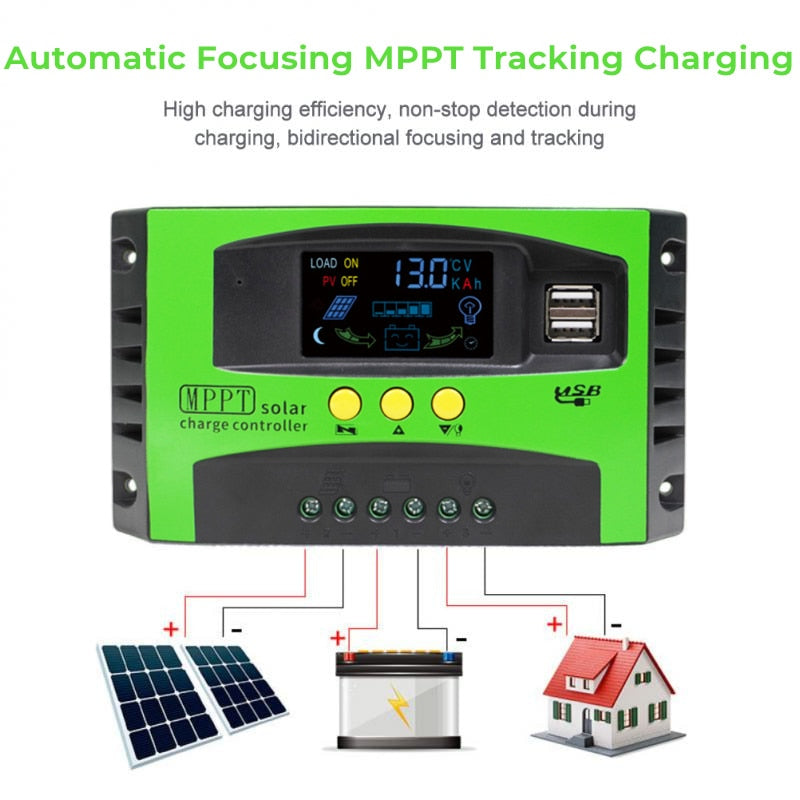

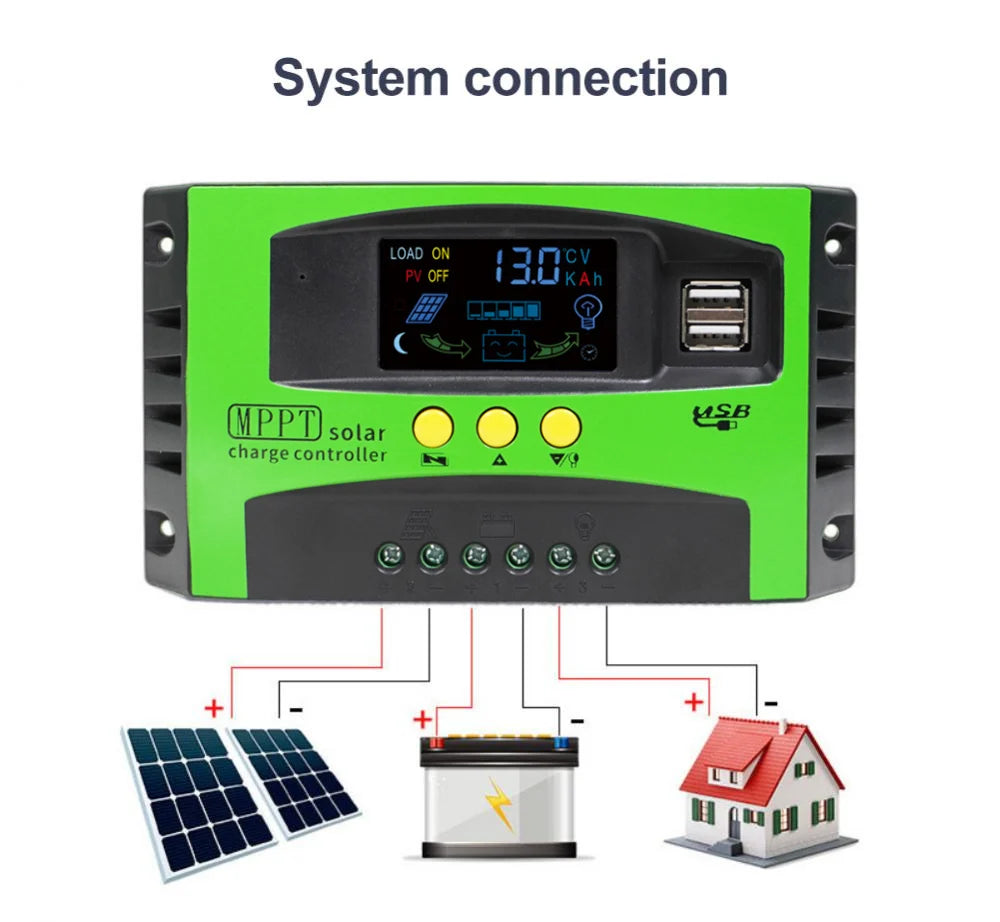

System Connection:

1.Connect the battery to the charge regulator-plus and minus.

2.Connect the photovoltaic module to the regulator-plus and minus.

3.Connect the consumer to the regulator-plus and minus.

NOTE: The reverse order applies when deinstalling, an improper sequence order can damage the controller

This is NEW MPPT Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically, There are optional 10A 20A 30A model.

10A:

-if your battery is 12V ,the max solar panel input is 25V 120W

-if your battery is 24V ,the max solar panel input is 50V 240W

20A:

-If your battery is 12V, the max solar panel input is 25V 240W

-if your battery is 24V, the max solar panel input is 50V 480W

30A
:

-if your battery is 12V ,the max solar panel input is 25V 360W

-if your battery is 24V ,the max solar panel input is 50V 720W

Safety Instruction:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation

2.The battery cable should be as short as possible to minimize loss

3.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator

Package Included:

1X MPPT Solar Charge Controller

1X User Manual

Notice:

1.Please allow slight deviation of measurement due to manual measurement.

2.Due to different producing batches, product details might be a little different.

3.Due to different monitors and different light, the picture may not reflect the actual color of the item.

4.Please consider the actual sizes shown in the listing as the pictures are generally enlarged to show detail.

5. Indoor use only: the working temperature of this controller is -35°C to 60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation.

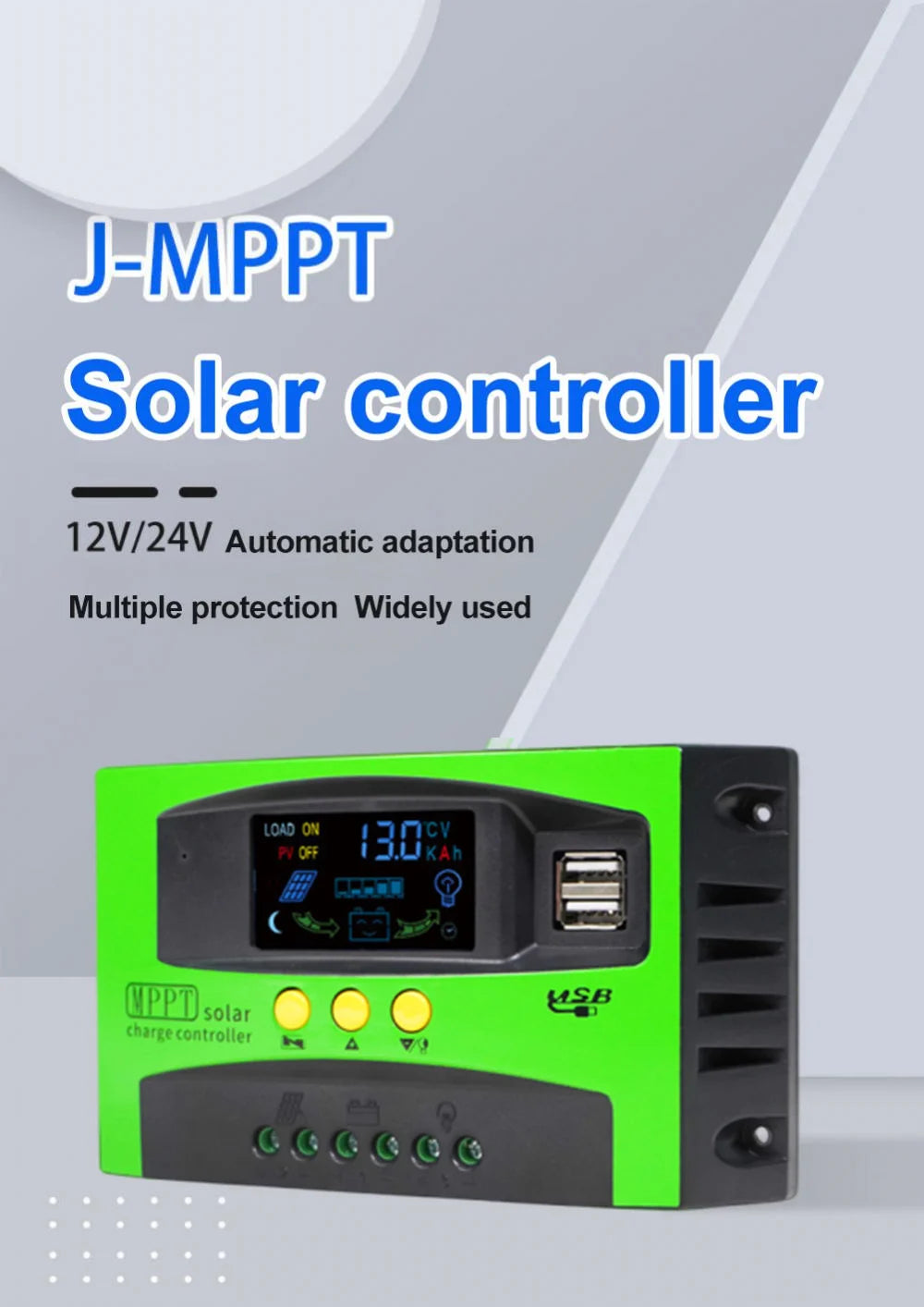

New MPPT solar charger controller adapts to 12V or 24V systems, featuring multiple protections and a wide range of applications. (Optical character recognition error)

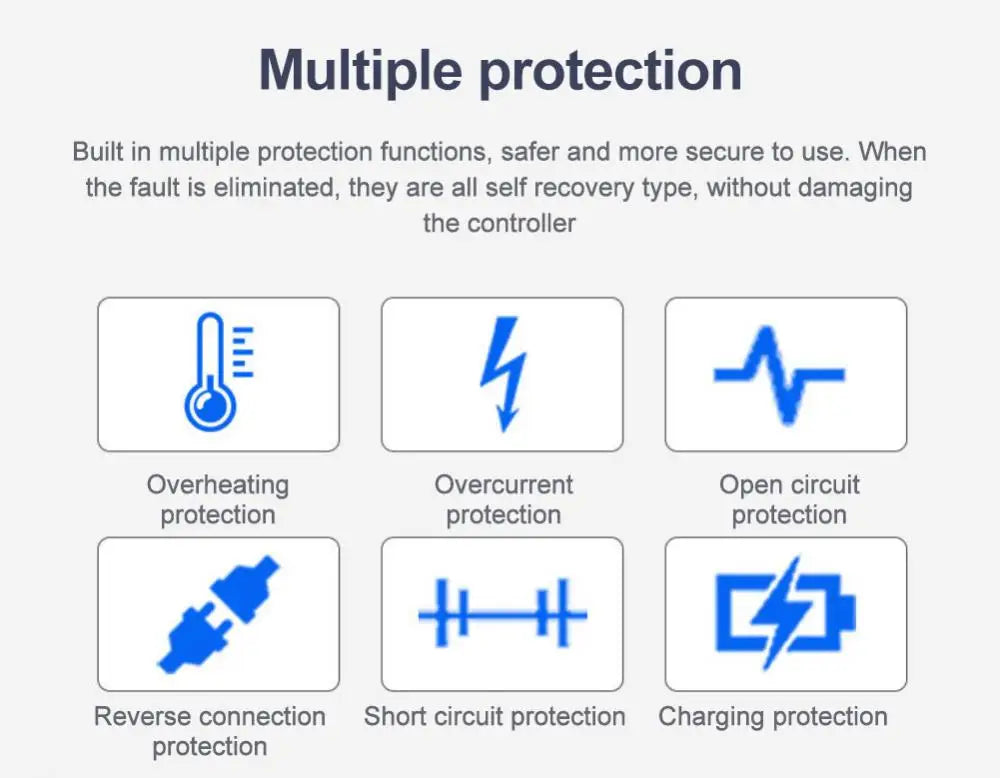

This MPPT solar charge controller features multiple built-in protections, including overheating, overcurrent, open-circuit, reverse-connection, short-circuit, and charging protection. It self-re recovers from faults without damaging the device.

Connect system to load, display 'ON' when charging. CV/MPPT/PV modes available with 'OFF' and 'KAH' functions for monitoring solar energy.

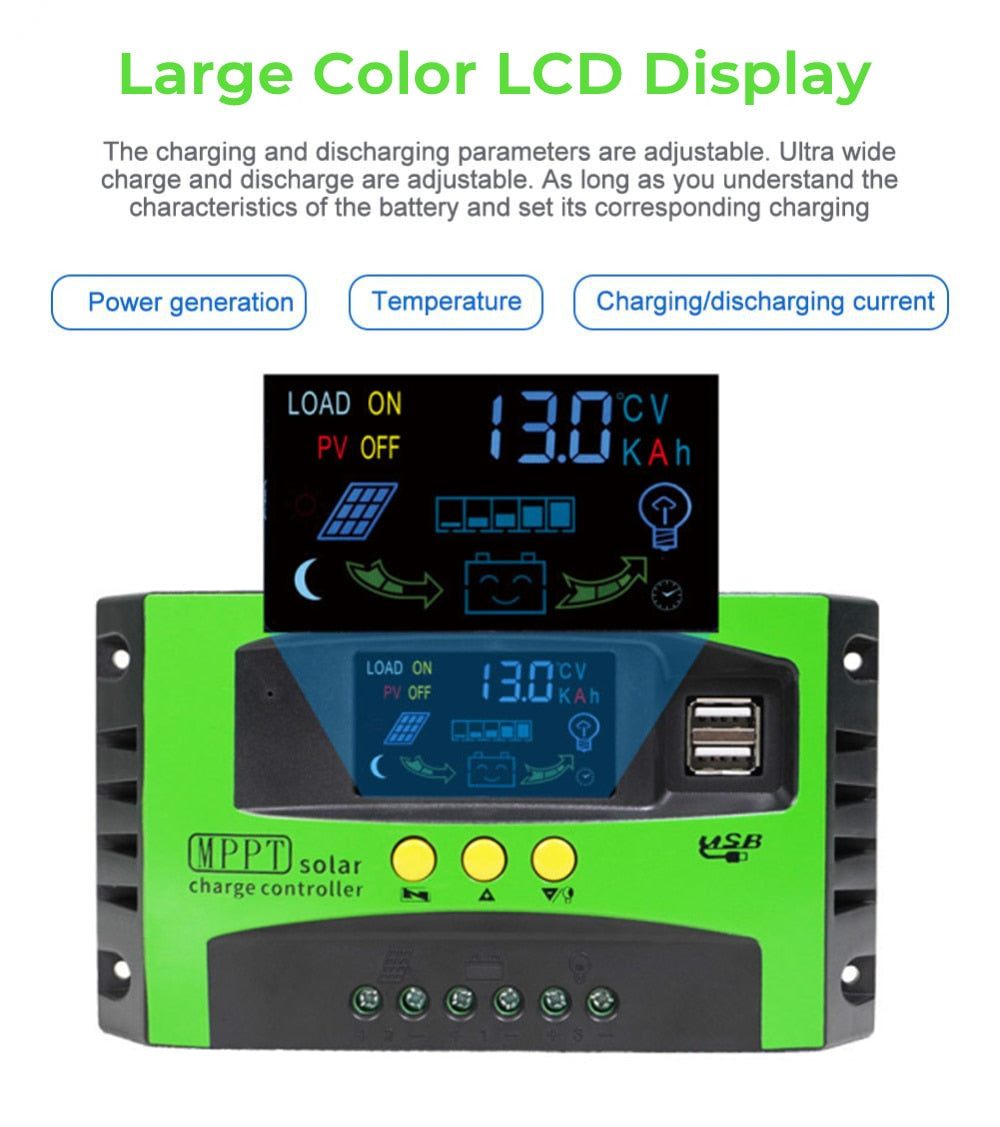

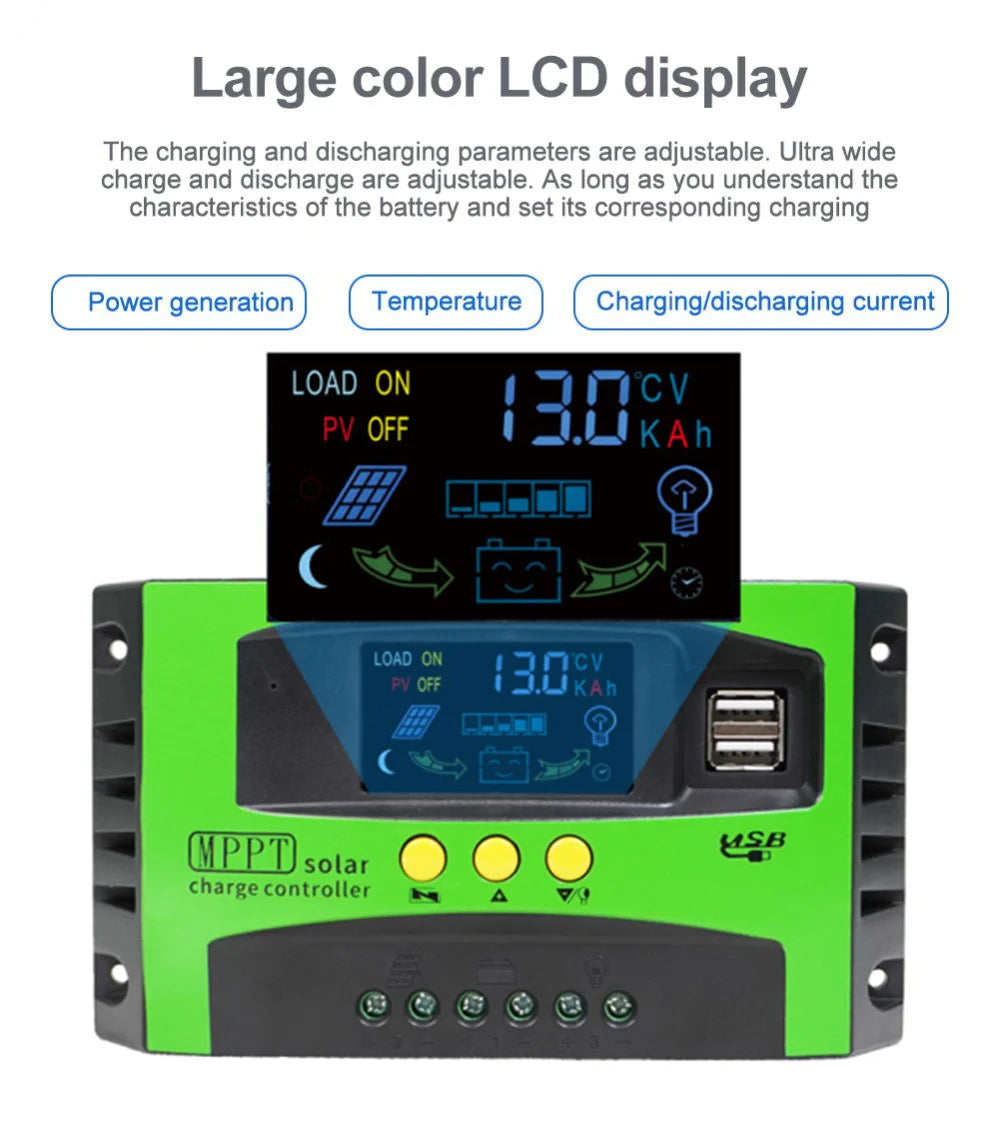

Features a large color LCD display for adjustable charging and discharging parameters, including ultra-wide input range. Simply set the battery characteristics to control power generation, temperature, and charging/discharge current.

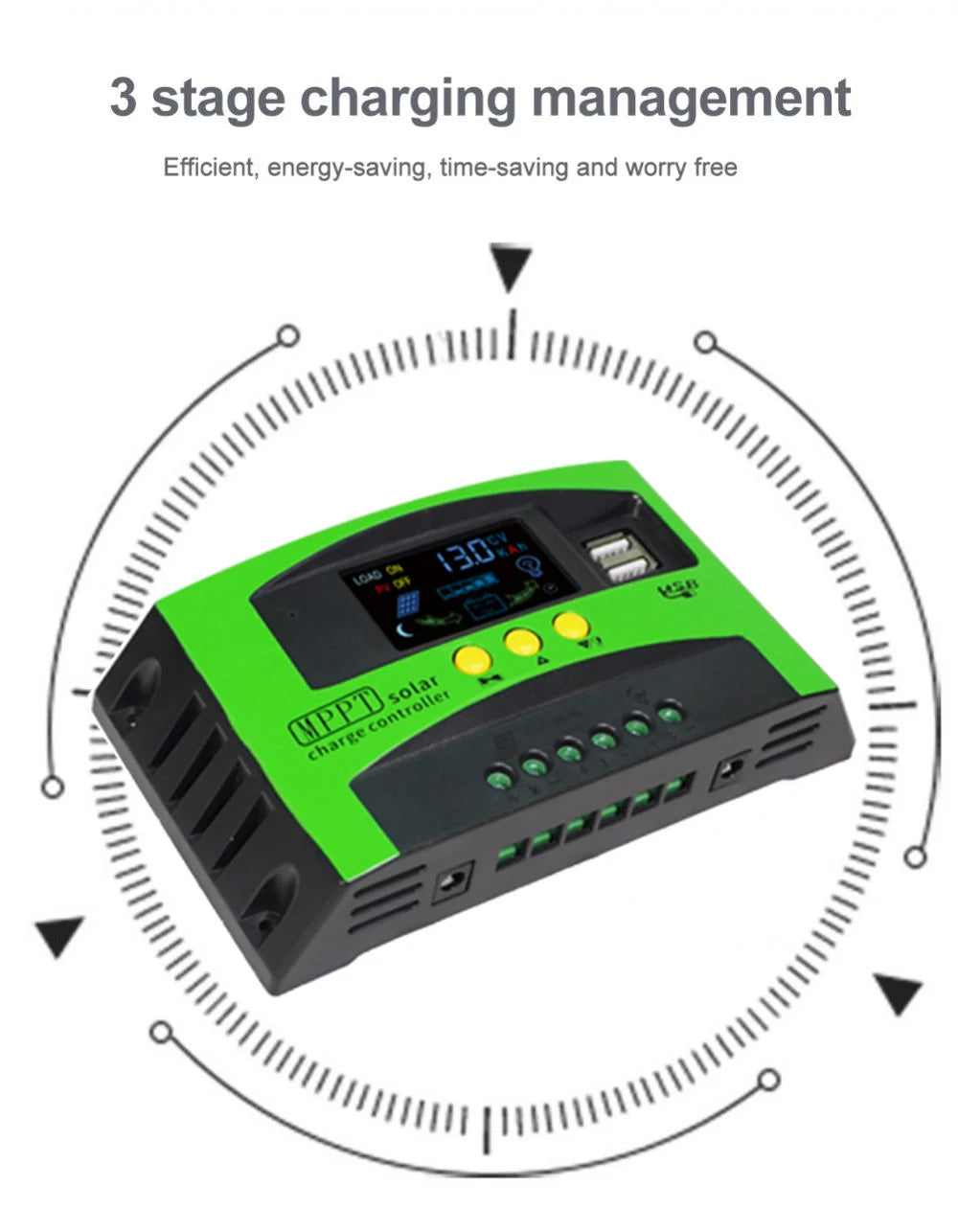

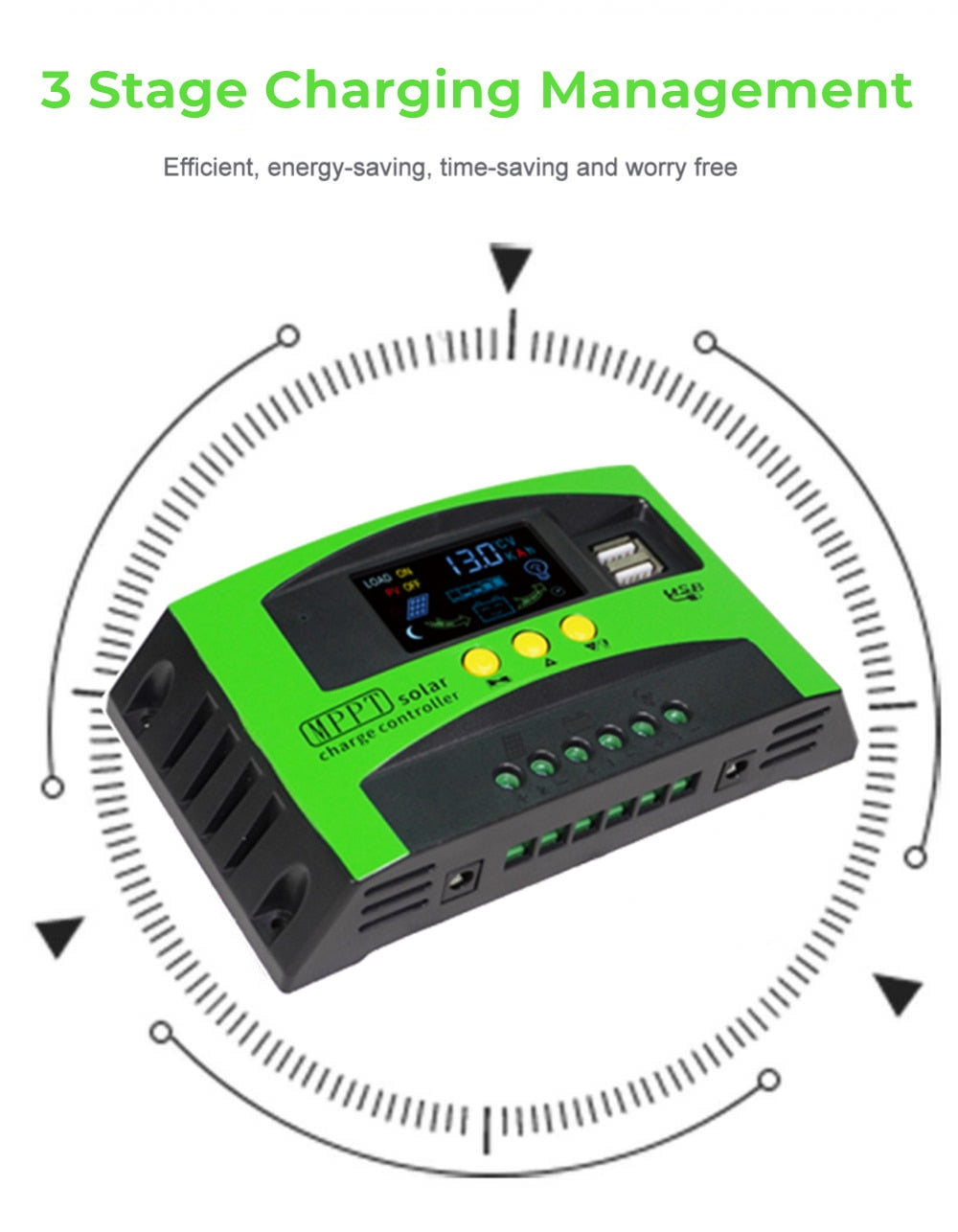

Three-stage charging management for efficient, energy-saving, and worry-free solar power regulation.

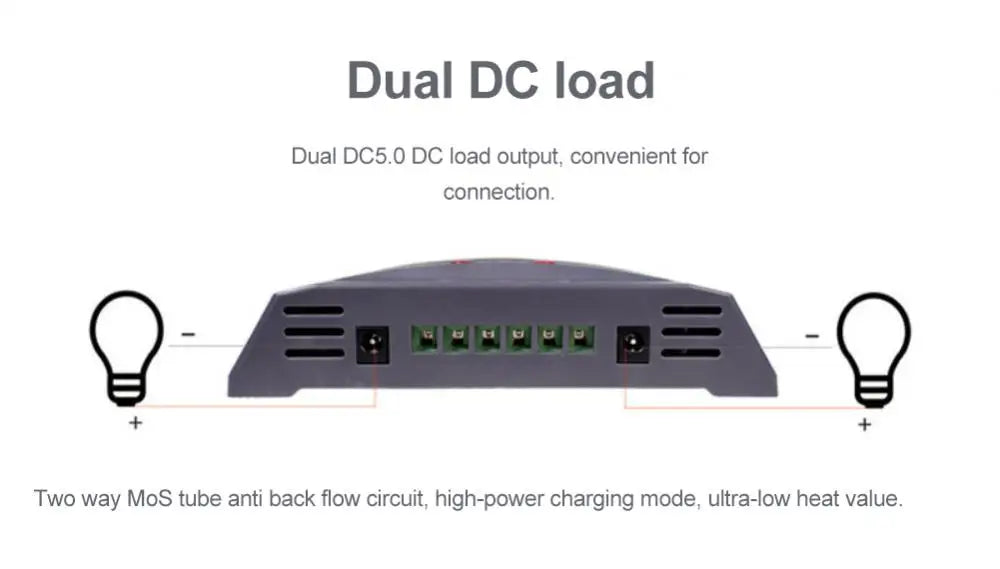

Features dual 5V USB outputs and an innovative MOS tube design to prevent reverse current flow, ideal for high-power charging with minimal heat generation.

Equipped with an industrial-grade master control chip, this solar charge controller features 16-bit AD sampling for precise monitoring of temperature, charging current, and power generation, displayed in real-time.

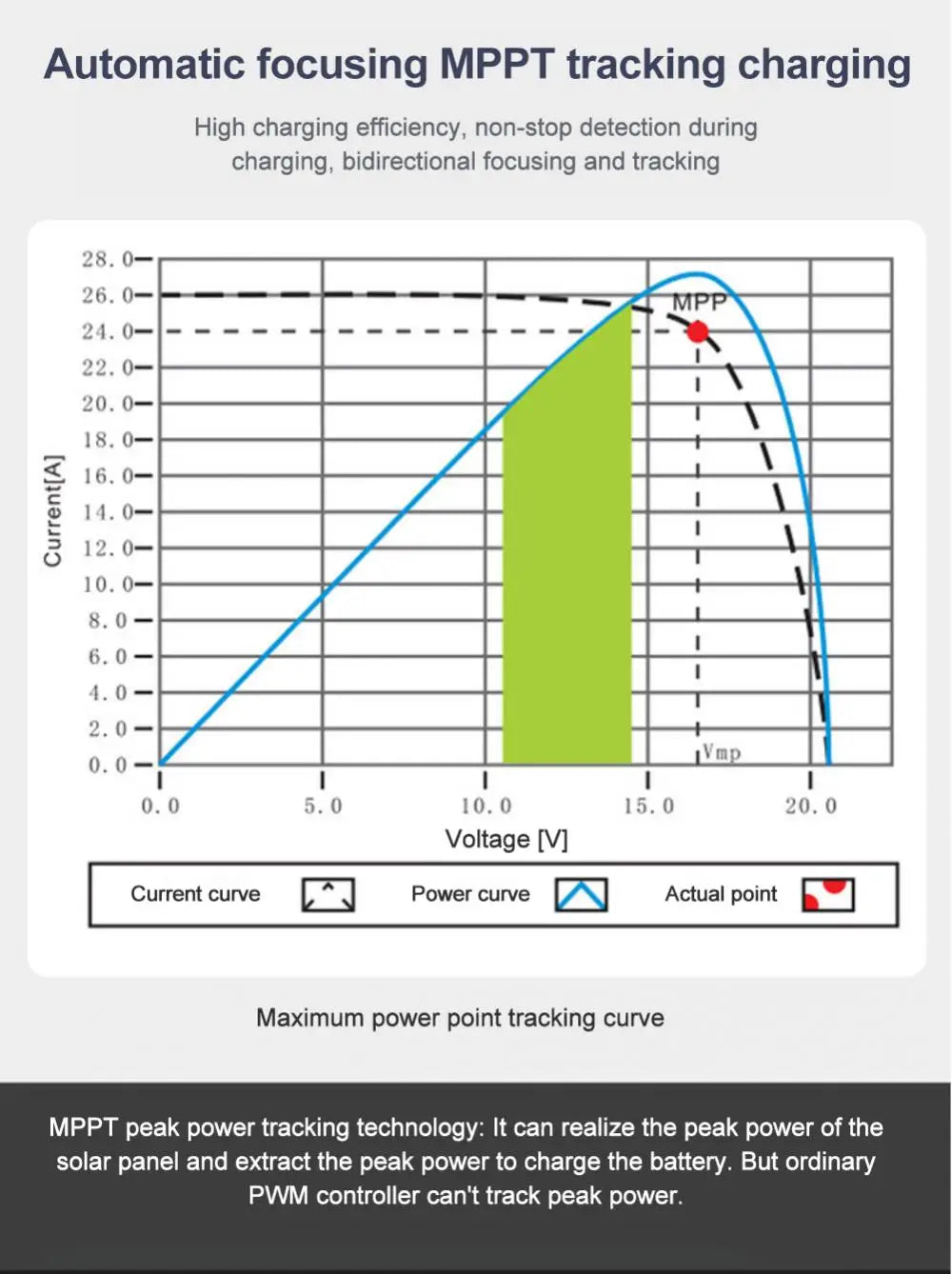

This 12V/24V MPPT solar charge controller features automatic focusing, high charging efficiency, and continuous monitoring. It tracks the maximum power point (MPP) of your solar panel, ensuring optimal energy harvesting. Unlike traditional PWM controllers, this device can identify the peak power output and extract it to recharge your battery efficiently.

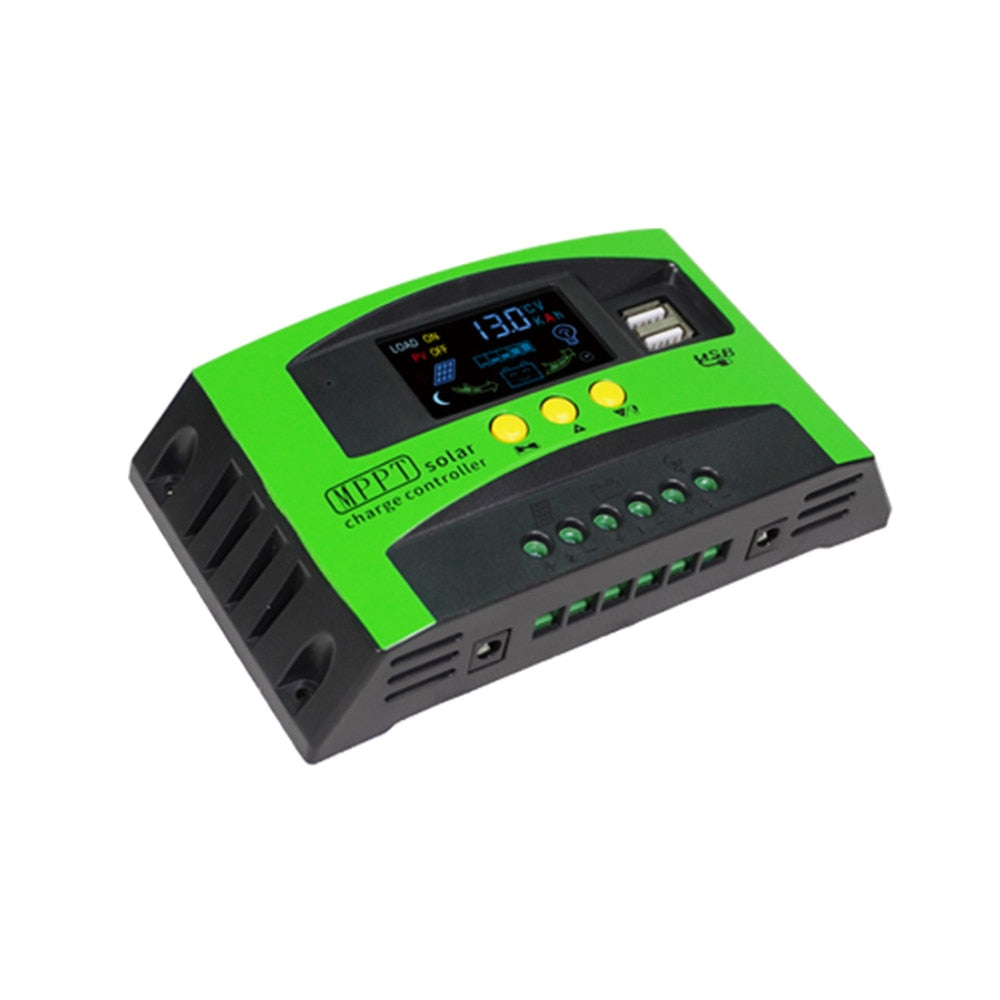

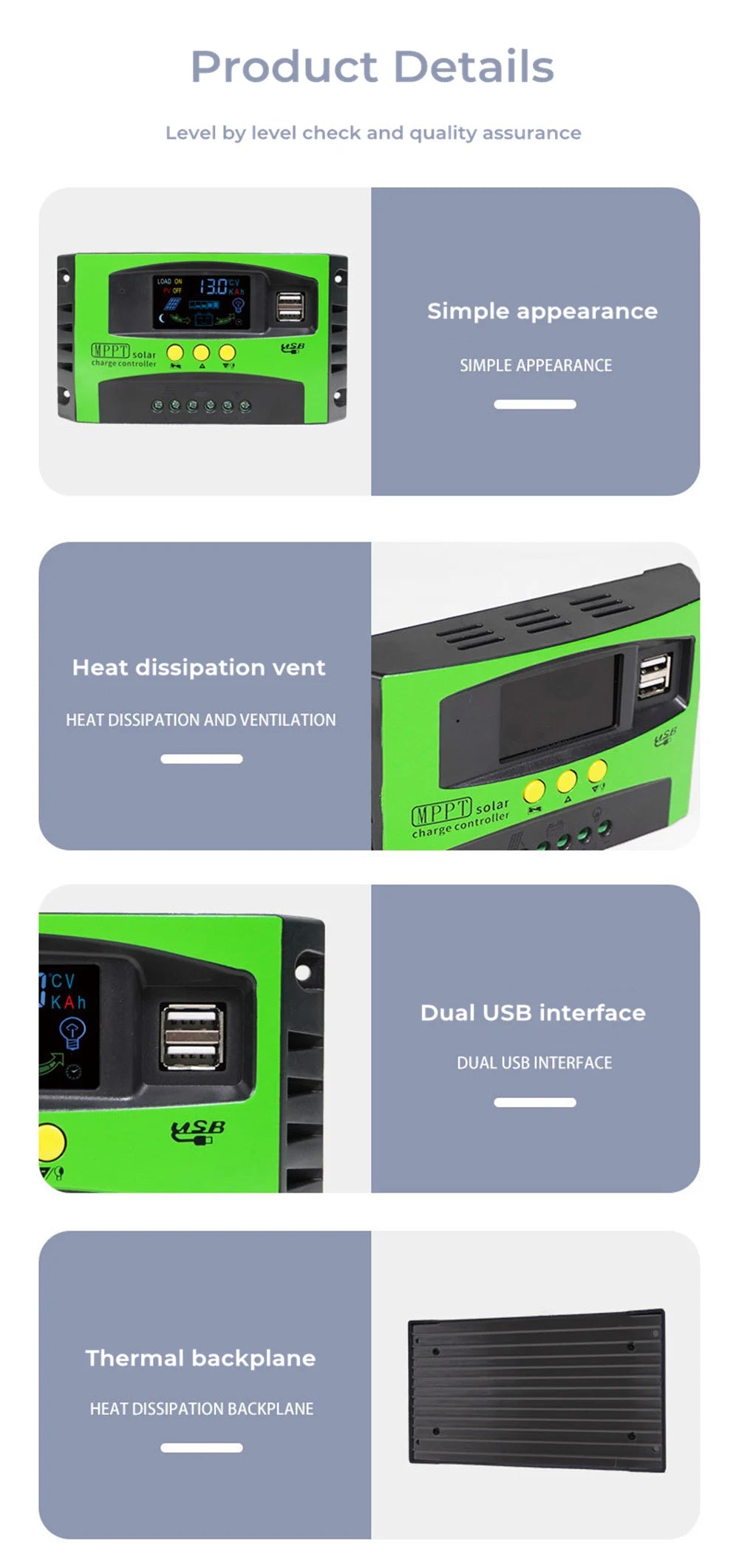

Product details: Level-tested and quality-assured, this MPPT solar charger controller features a simple design with heat dissipation vents for efficient cooling. It includes dual USB interfaces and a thermal backplane for reliable performance.

Suitable for various applications: solar-powered villas, outdoor RV systems, yachts, billboards, and street lamps - offering greater convenience and flexibility.
