Panel Regulador 12V 24V Auto Dual USB Lead Acid Battery 10A 20Amp 30A 40A 50A 60A PWM Solar Charge Controllers

Panel Regulador 12V 24V Auto Dual USB Lead Acid Battery 10A 20Amp 30A 40A 50A 60A PWM Solar Charge Controllers

Regular price $12.06 USD
Regular price Sale price $12.06 USD
Sale Sold out
Shipping calculated at checkout.
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Work Time (h): 24H

Voltage: 12V/24V Automatic recognition

USB: 2 USB

Type: PWM

Product name: Solar Controller

Origin: Mainland China

Model Number: PWM-E

Maximum Current: 10A 20A 30A

Max PV Power: 30A

Functions: time & light control

Full Protection: YES

Feature: Quick start instructions




Sustainable Power for Your Home: High-Efficiency Solar Charging Solution

Sustainable Power for Your Home: High-Efficiency Solar Charging Solution














Panel Regulador 12V 24V Auto Dual USB Lead Acid Battery 10A 20Amp 30A 40A 50A 60A PWM Solar Charge Controllers


Warmly Tips:


*The reverse order applies when deinstalling!

*An improper sequence order can damage the controller!

*All red color voltage X2 ,while using 24V system.

*This solar controller is not waterproof ,please install it indoor or out of the rain


Features:


1. Upgraded version of solar panel controller: Compatible with 12V 24V system. This solar charge controller helps you automatically manage the work of the solar panels and batteries in your solar system using a built-in industrial microcontroller. No need to reset when the battery runs out, because it remembers various parameters set by the user. You can also charge your phone, tablet, PC with dual USB outputs up to 5V/2.5A.


2. Safe to use: Equipped with overcurrent protection, short circuit protection, reverse connection protection, low voltage, overcharge protection, with full 3-stage PWM charging management. This 30A solar charge controller will help you safely increase system efficiency and extend battery life.


3. LCD Display: The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business.


4. Multiple electrical protections: Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.


5. Good heat dissipation: Double MOSFET reverse current protection, low heat generation, all electronic components will heat up during the working process, it is best to shade them for better heat dissipation, and avoid direct sunlight or humid places.


Descriptions:


The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business. Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.


MODEL

PWM-E-10A

PWM-E-20A

PWM-E-30A

PWM-E-40A

PWM-E-50A

PWM-E-60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

48V(for 24V battery) 24V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm

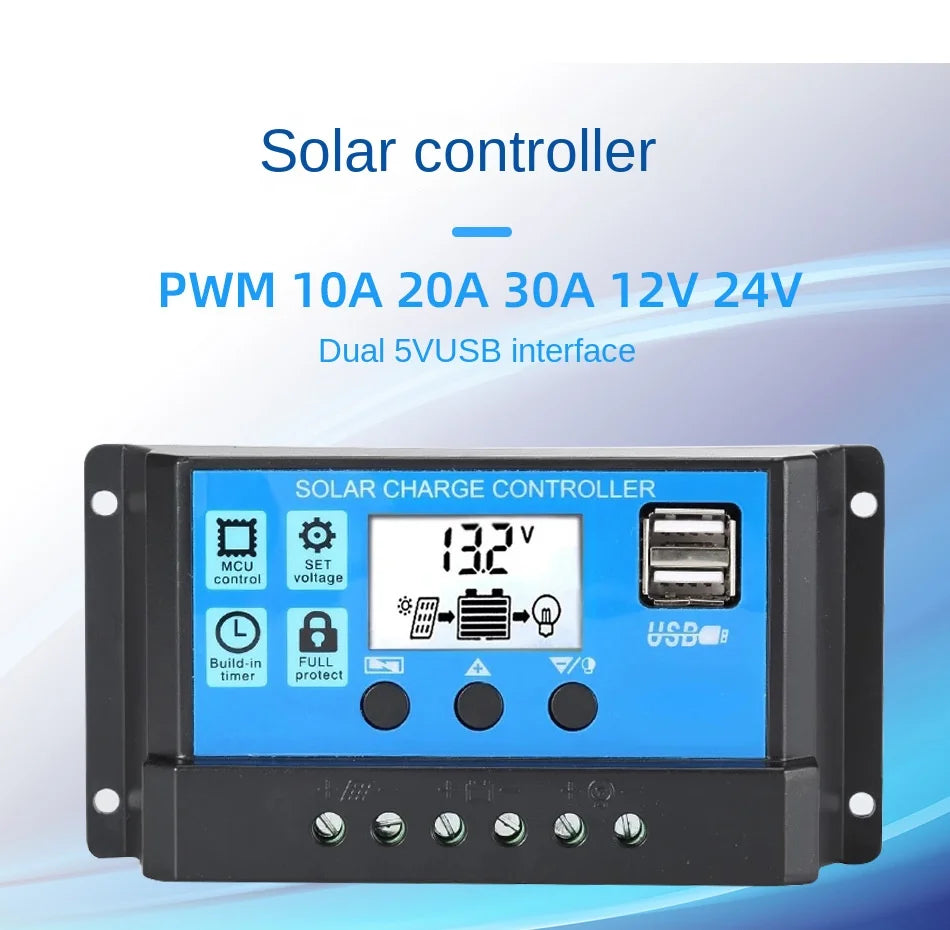

Advanced solar charge controller with PWM tech, supports high currents and voltages, and has dual USB ports.

Solar charge controller with PWM technology, supporting 10A to 60A current, 12V to 24V voltage, and dual USB interface for charging lead-acid batteries.

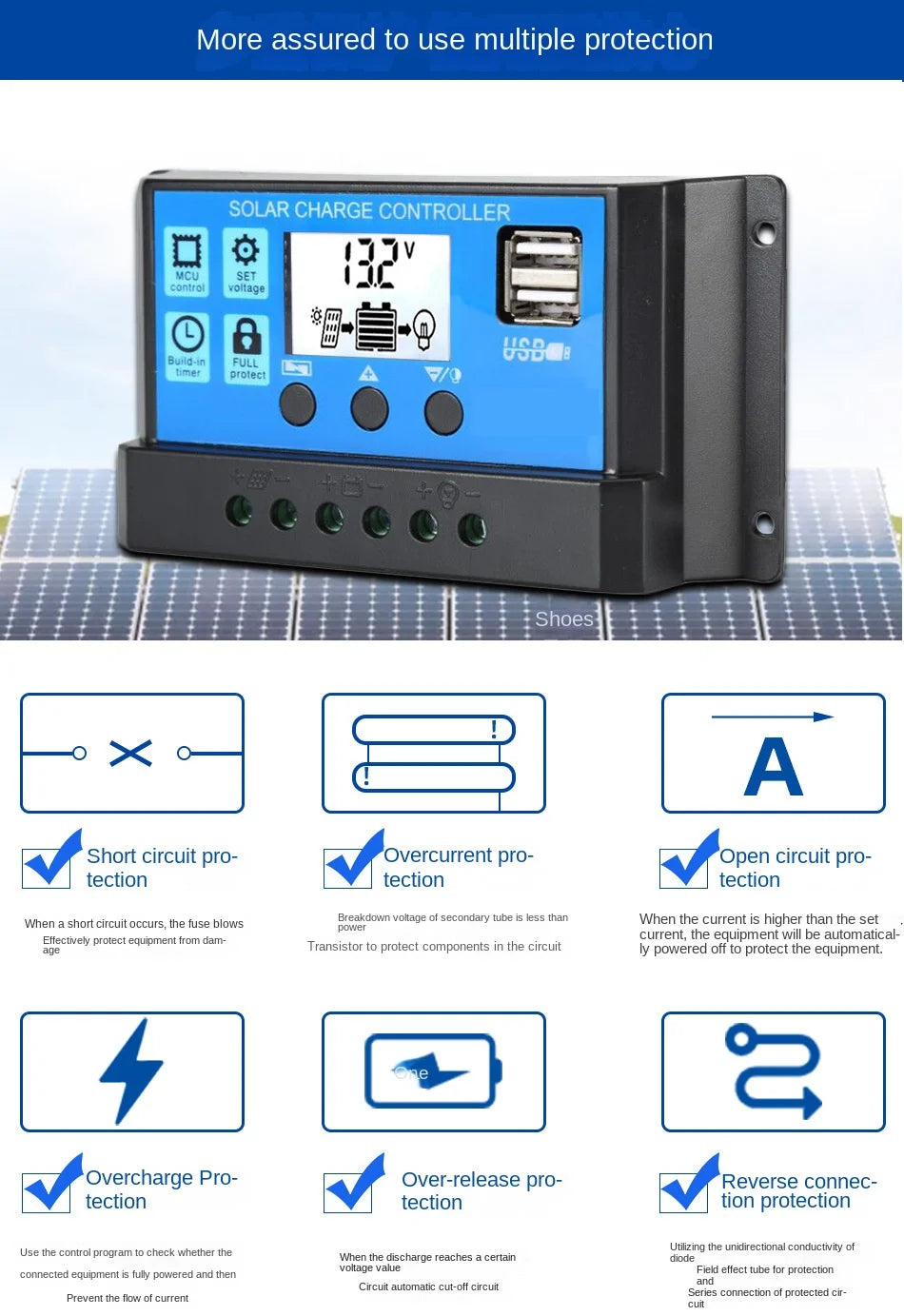

Solar charge controller with multiple protections: short-circuit, overcurrent, open-circuit, and more.

This solar charge controller features multiple protections, including short-circuit, overcurrent, open-circuit, and fuse-blow protection. When a short circuit occurs, the equipment automatically powers off to prevent damage. The controller also provides overcharge, over-discharge, and reverse-connection protection. It utilizes unidirectional conductivity and a control program to monitor the discharge voltage and prevent equipment damage.

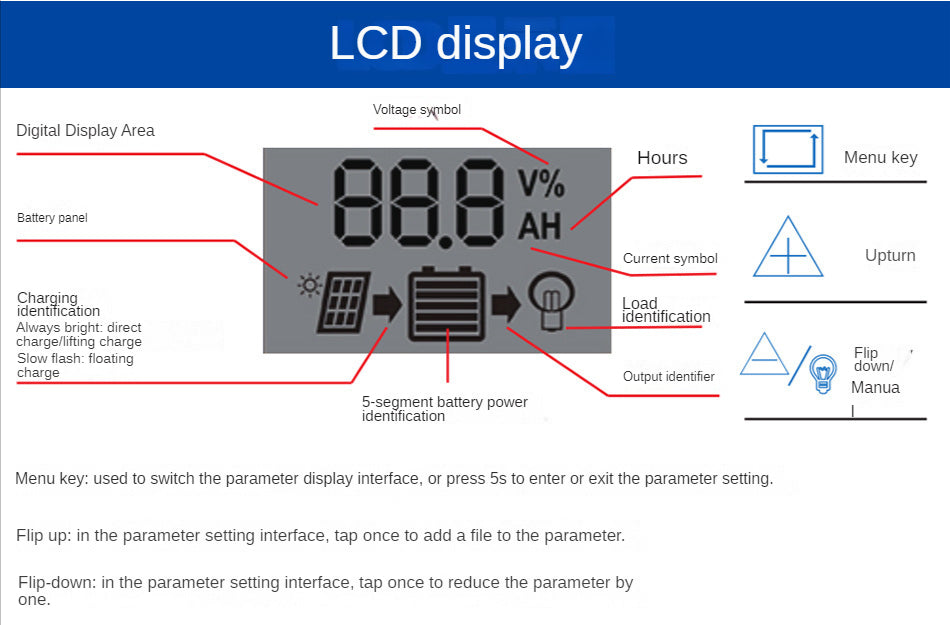

LCD display shows voltage and ampere-hour readouts with intuitive controls for easy adjustment.

Features include an LCD display with digital voltage and ampere-hour readouts. The menu key allows for easy switching between display modes or entering the settings menu. Parameters can be adjusted using the up/down arrow keys, with confirmation through a 5-segment battery power indicator. This intuitive interface ensures seamless control over your solar charge controller.

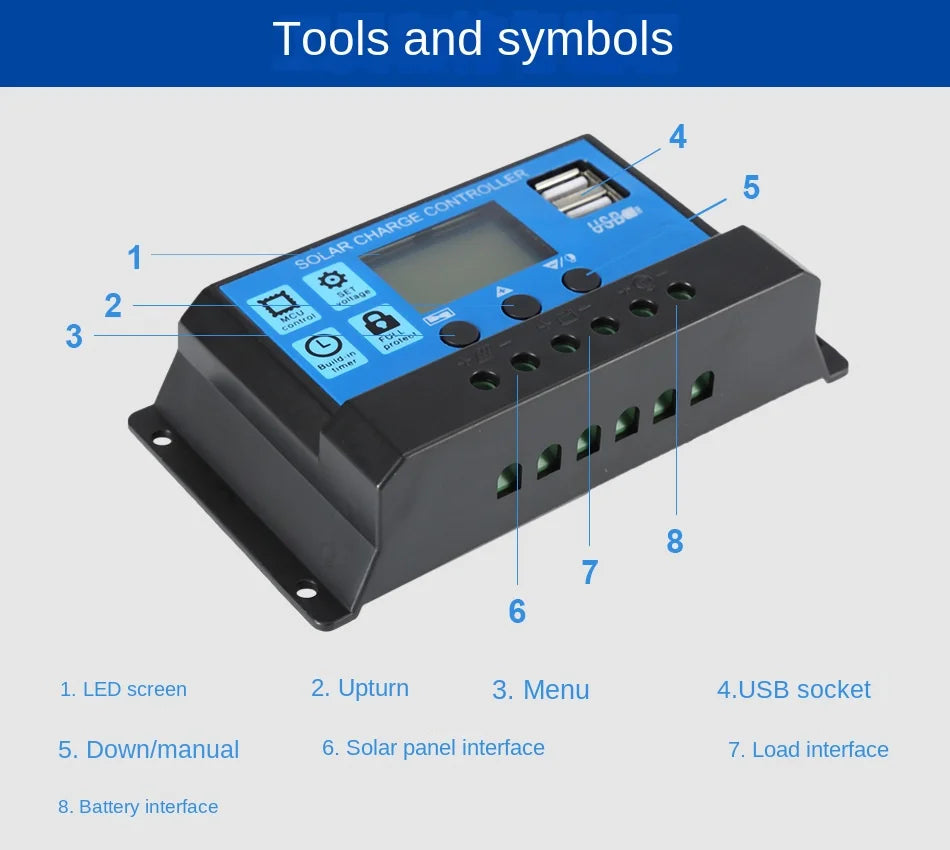

Smart energy monitor with LED display, USB, and multiple interface options.

Features: LED screen, USB port, and interfaces for solar panels, battery, and load. Includes menu navigation and manual download options.

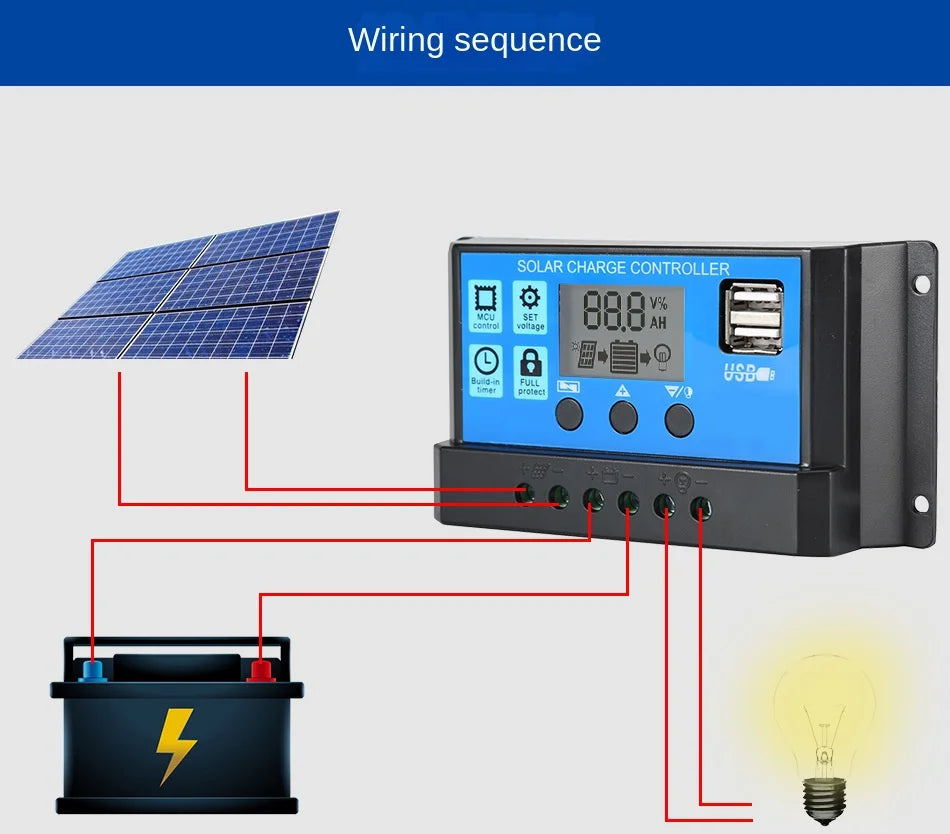

Charge controller for solar panels with dual USB outputs and adjustable charging current for 12V or 24V lead-acid batteries.

Solar charge controller: Dual USB output, compatible with 12V or 24V lead-acid batteries, 10A to 60A adjustable charging current.

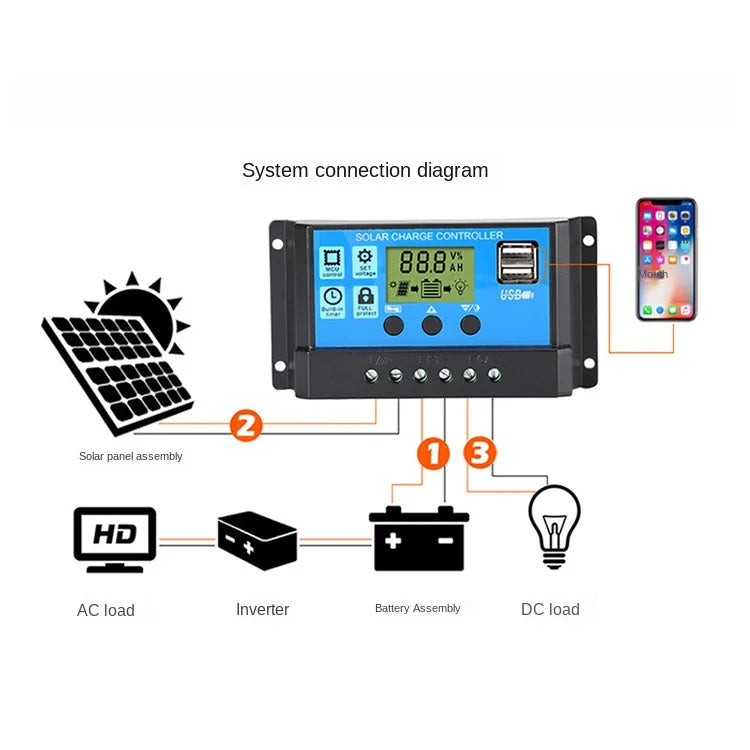

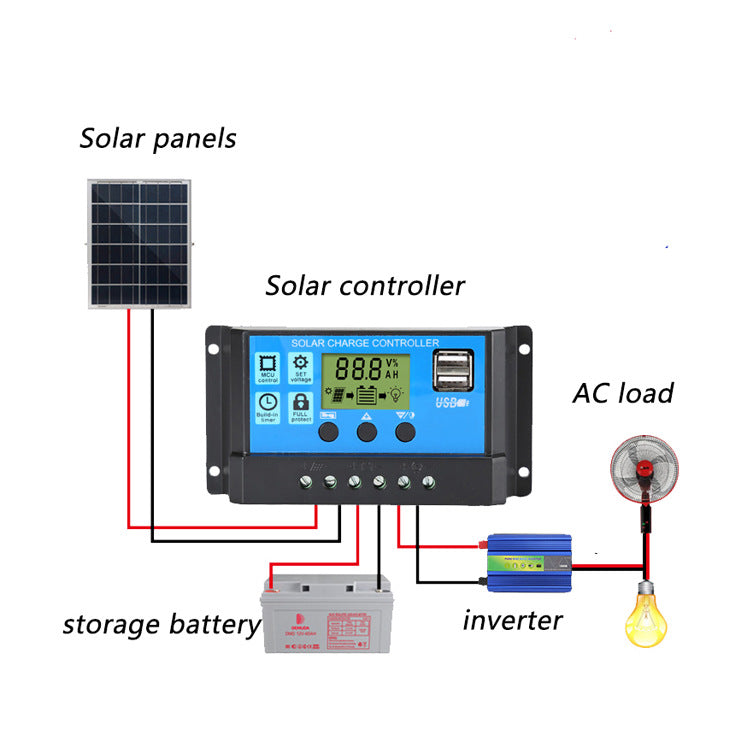

Solar power system component connects panels to batteries with charging options.

Solar charge controller connects solar panels to batteries, with options for USB charging, AC load, inverter, and battery assembly.



Charges lead-acid batteries with adjustable current limits and PWM solar charging control for 12V/24V systems.

Panel Regulator: Dual USB Lead-Acid Battery Charger with PWM solar charge control for 12V/24V systems, featuring adjustable current limits from 10A to 60A.

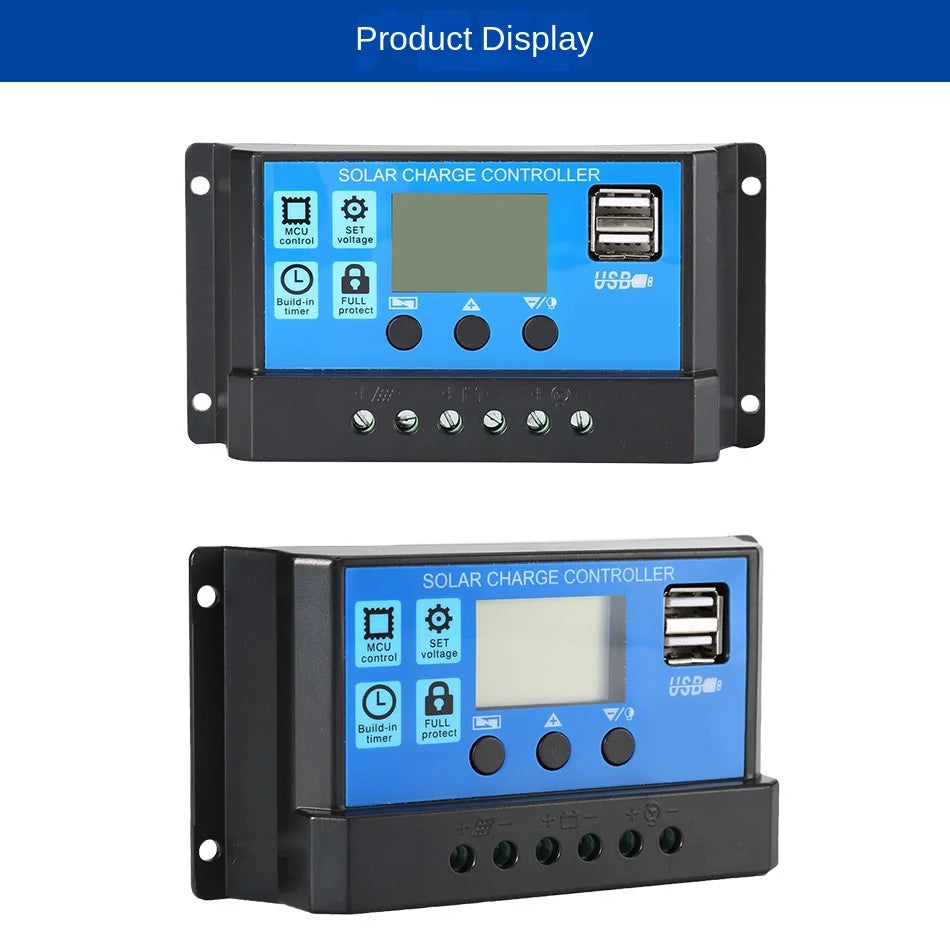

Solar charge controller with built-in protections for safe battery charging and dual USB output.

Solar Charge Controller with Built-in Full Protections: MCU-based controller for charging lead-acid batteries, supports dual USB output, and features overcharge protection, over-discharge protection, and short-circuit protection.

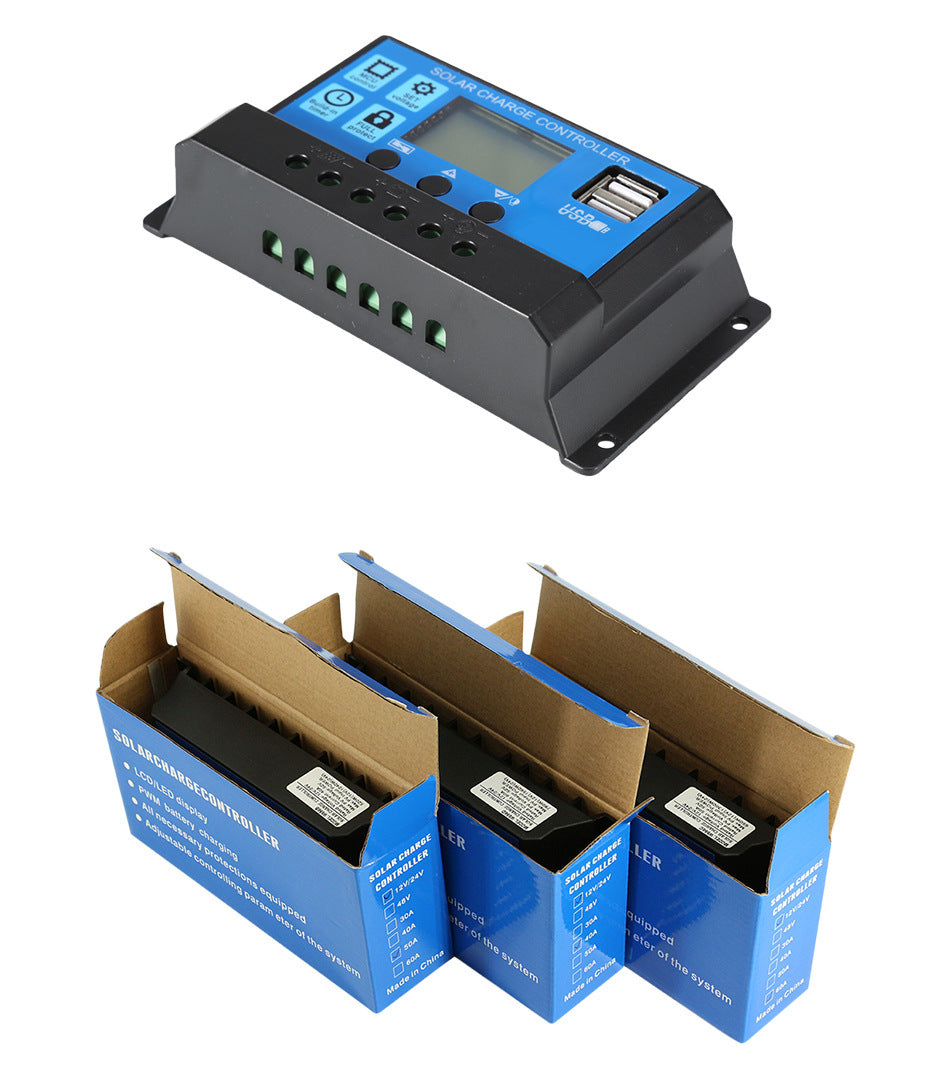

Solar Charge Controller with PWM control for lead-acid batteries, adjustable current settings up to 60A.

Solar Charge Controller - Dual USB Lead-Acid Battery Regulator. Features PWM control, suitable for auto systems with lead-acid batteries. Compatible with 12V and 24V systems. Adjustable current settings: 10A, 20A, 30A, 40A, 50A, and 60A.
