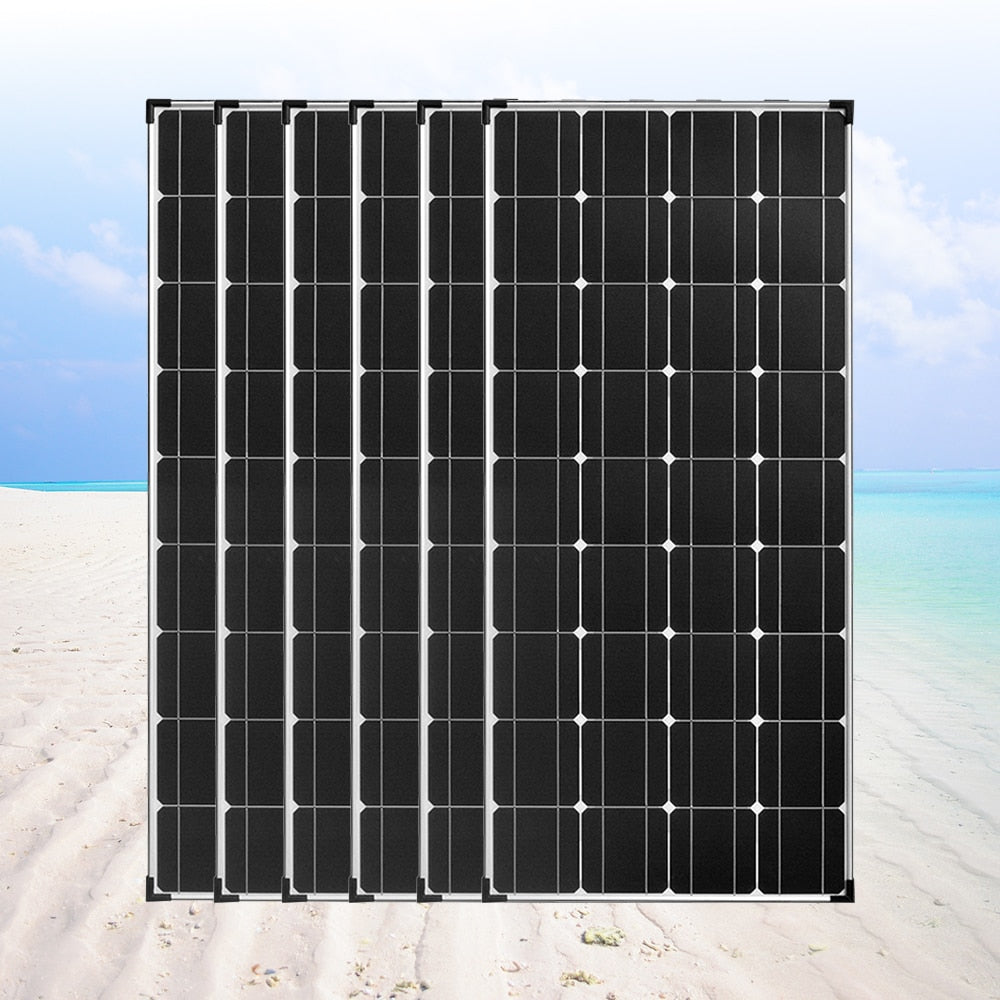

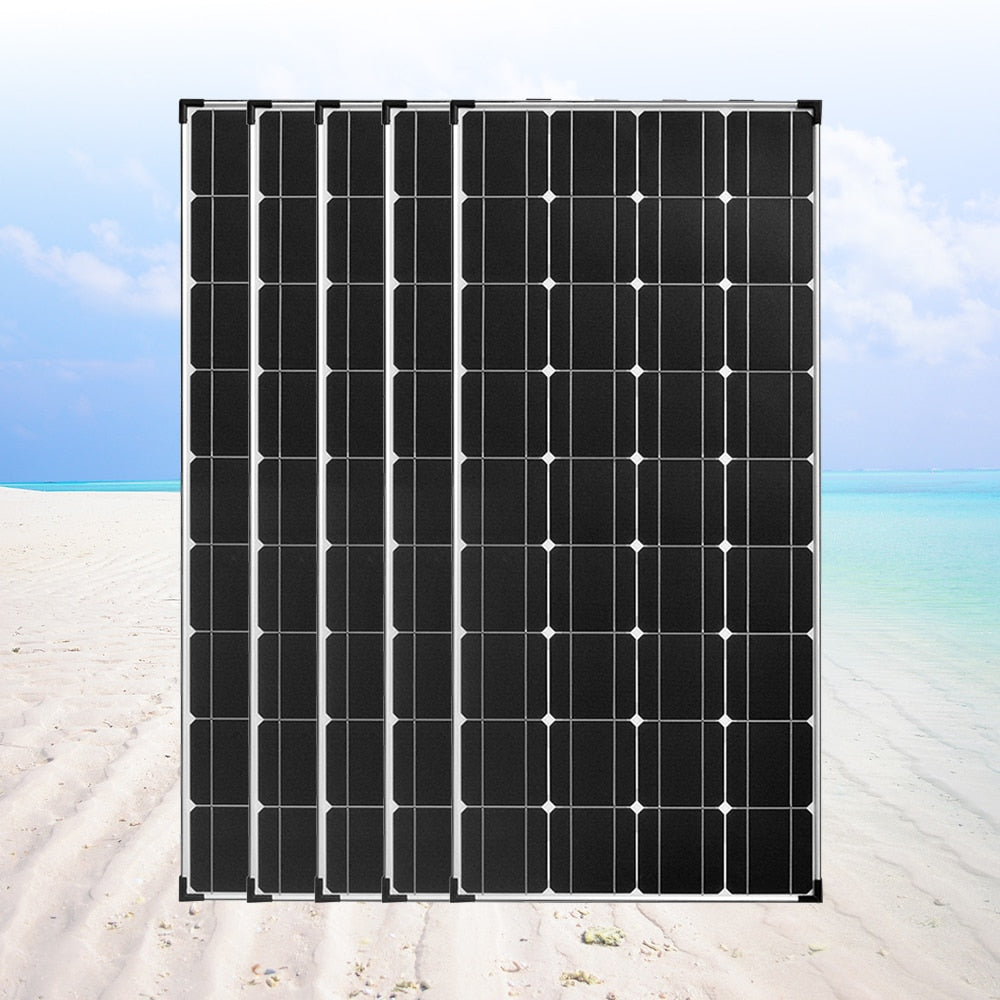

Photovoltaic Solar panel 120W 240W 480W 600W 720W 1200W for home RVs trailers boats sheds

Photovoltaic Solar panel 120W 240W 480W 600W 720W 1200W for home RVs trailers boats sheds

Regular price $1,455.62 USD
Regular price Sale price $1,455.62 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

feature2: waterproof

feature: aluminum frame for easy installation on roof

appliaction: car,boat,caravan,RV,house

Type: Solar Panel

Solar panel system power: 1000w solar panel -1200w solar panel

Size: 1160*530*25mm

Origin: Mainland China

Number of Panels: >20

Number of Cells: 36

Nominal Capacity: 120W / 240W /600W /720W/1200W

Module Efficien: 21.8%

Model Number: solar panel

Maximum system voltage: 700V DC

Maximum power current(Imp): 65A (10*6.5A)

Max. Power: 1200w

Material: Monocrystalline Silicon

Foldable Solar Panel: No

Flexible Solar Panel: No

Configure battery: 4~8 12V 100AH batteries

Certification: CE,FCC,RoHS,WEEE

Brand Name: xinpuguang

Photovoltaic Solar panel 120W 240W 480W 600W 720W 1200W for home RVs trailers boats sheds


Specification of 120w

Maximum power(Pmax) 120W

Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Maximum power voltage(Vmp) 18V

Short circuit current(Isc) 6.8 A

Maximum power current(Imp) 6.5A

Cell efficiency 21%

Operating temperature(NOCT) 45±2℃

Temperature range -40℃~+80℃

Number of cells 36pcs

Weight 3100g

Size 1160*530*25 mm
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

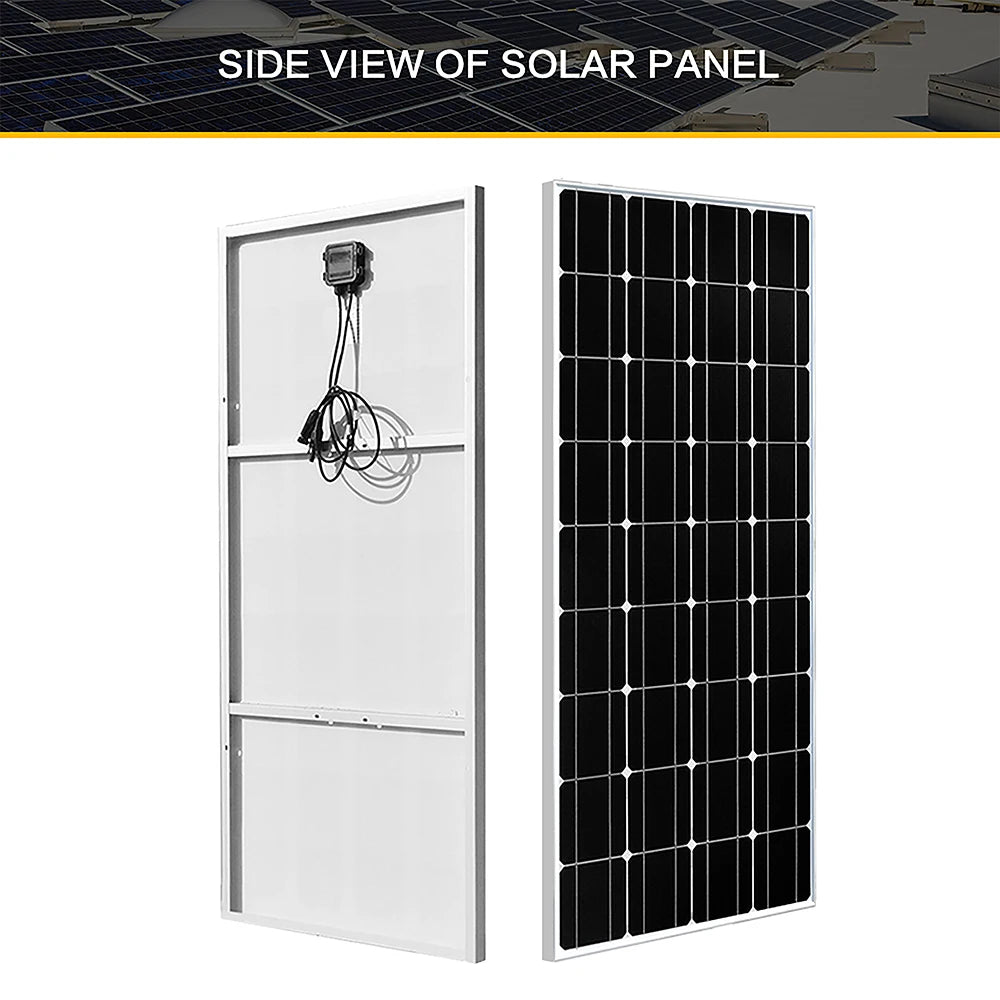

Photovoltaic Solar panel, Operating temperature range: -20°C to 80°C; use within this range to ensure optimal performance.Photovoltaic Solar panel, Aluminum frame cable with IP67 waterproofing, PV connector, and mounting eyelets.

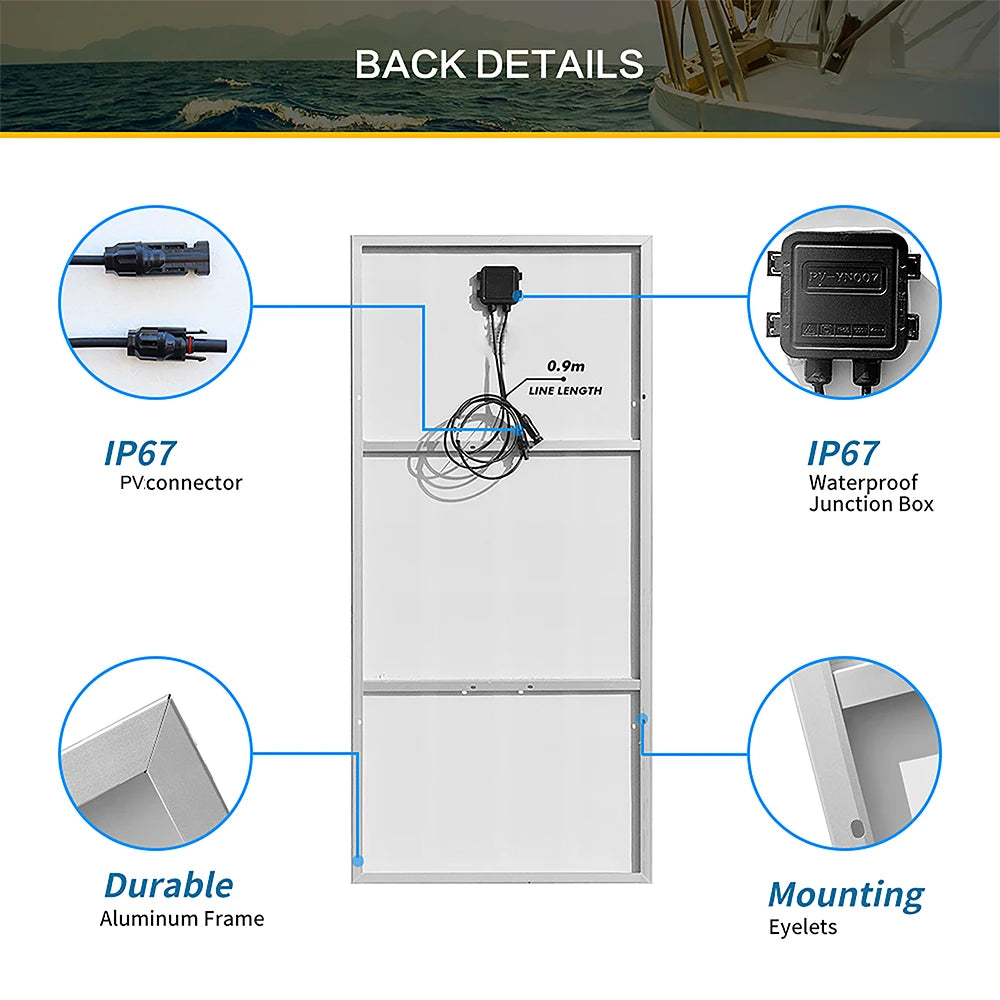

Back details include a 0.9m line length, IP67 waterproof rating, and features such as PV connector, junction box, durable aluminum frame, and eyelets for mounting.

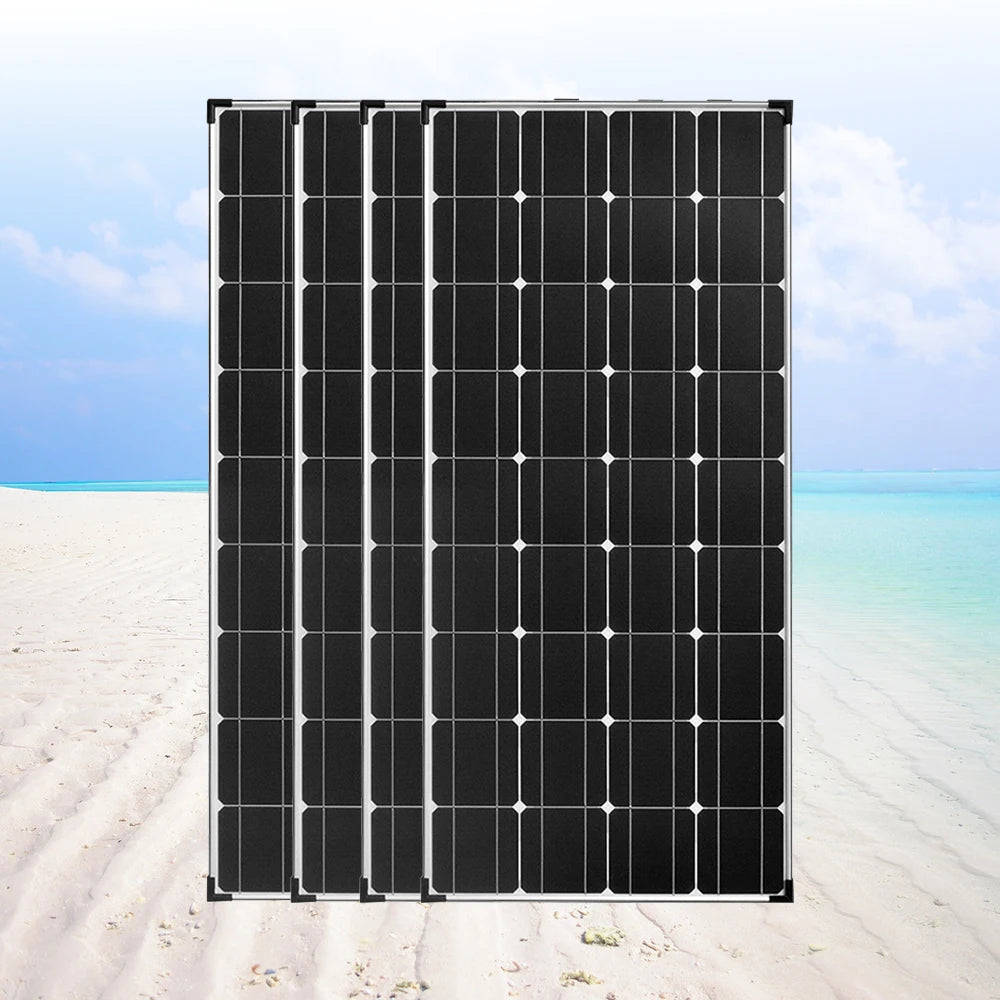

Photovoltaic Solar panel, Maximum input voltage limit for parallel connection with controller, preventing damage.Photovoltaic Solar panel, Handle with care: avoid connecting poles, submerging in water, or exposing to fire to prevent damage.Photovoltaic Solar panel, Outgoing cables for photovoltaic modules: PV cables transmit energy generated by solar panels.High-performance photovoltaic solar panels for homes, RVs, trailers, boats, and sheds, offering various power outputs.Photovoltaic Solar panel, Special PET surface treatment makes it wear-resistant and absorbs sunlight efficiently.
Photovoltaic Solar panel, Waterproof junction box with bypass diode, overcurrent protection, and reverse protection for safe and reliable power transmission.
Photovoltaic Solar panel, Dirt and scratches on solar panels reduce efficiency, potentially causing burnout.

Feature

a. High efficiency: cell efficiency is about 1.2 times that of conventional polycrystalline

b. Using the latest component packaging technology, thinner, lighter, softer and longer life.

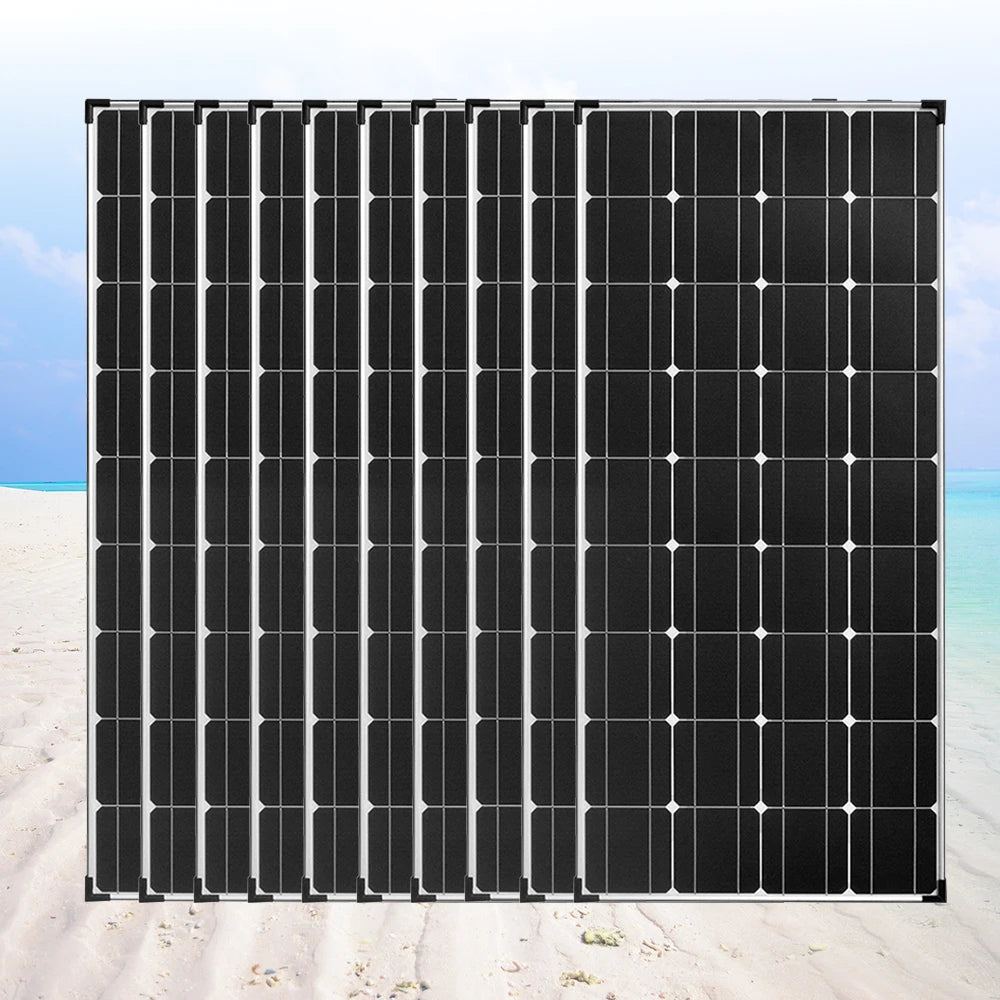

c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.

d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

e. The junction box has an IP67 waterproof design, which includes a bypass diode, and the circuit adopts input overcurrent protection and reverse protection design.

f. The PV cables for photovoltaic modules are used for outgoing cables. The outdoor use is safe, waterproof, high temperature resistance and weather resistance. pv connectors are easy to use, plug and play.

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in a variety of scenarios such as RVs, households, camping, yachts, street lights and solar power stations.

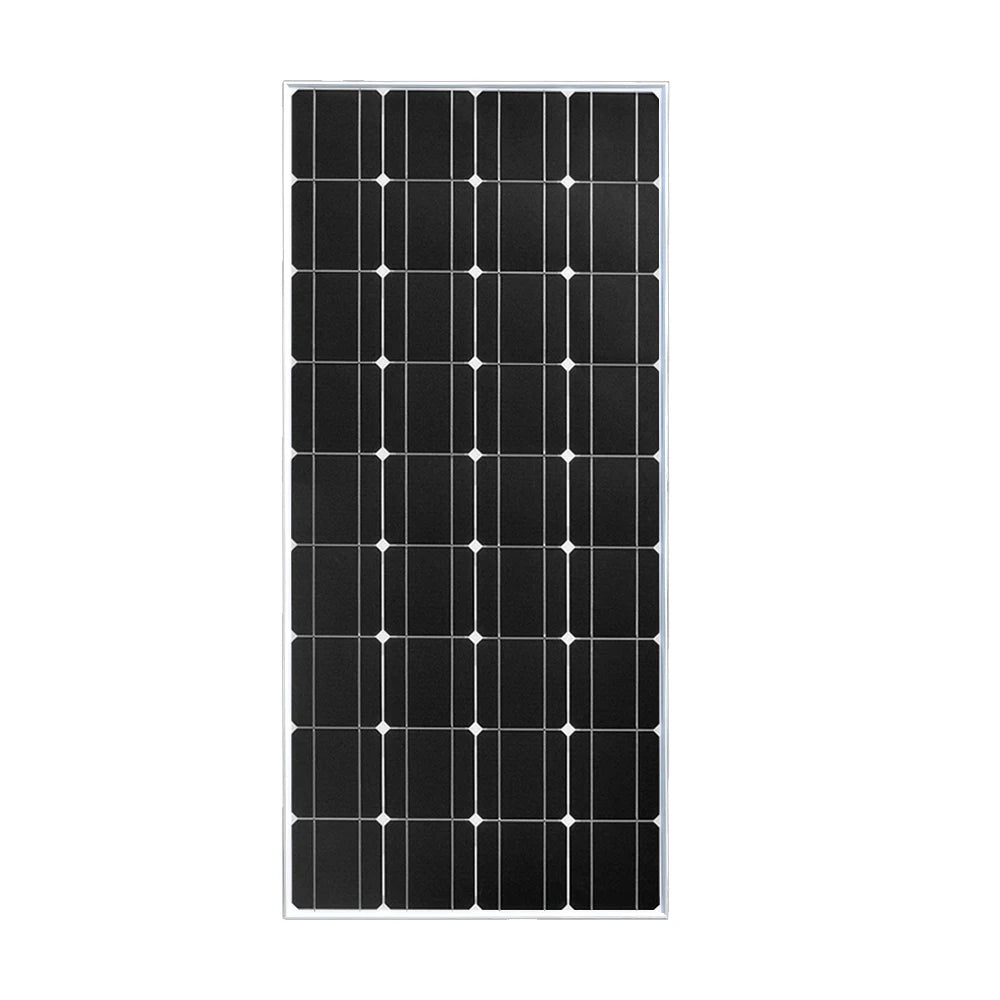

Photovoltaic Solar panel, Check polarity of controller and battery to ensure correct pairing.

easy to fit

2 holes of right and left side 6mm*9mm(oval)

Photovoltaic Solar panel, Waterproof camera housing features 0.9m line length, IP67 rating, and durable aluminum frame.

Waterproof details include 0.9m line length, IP67 rating, and durable aluminum frame with eyelets for secure mounting.

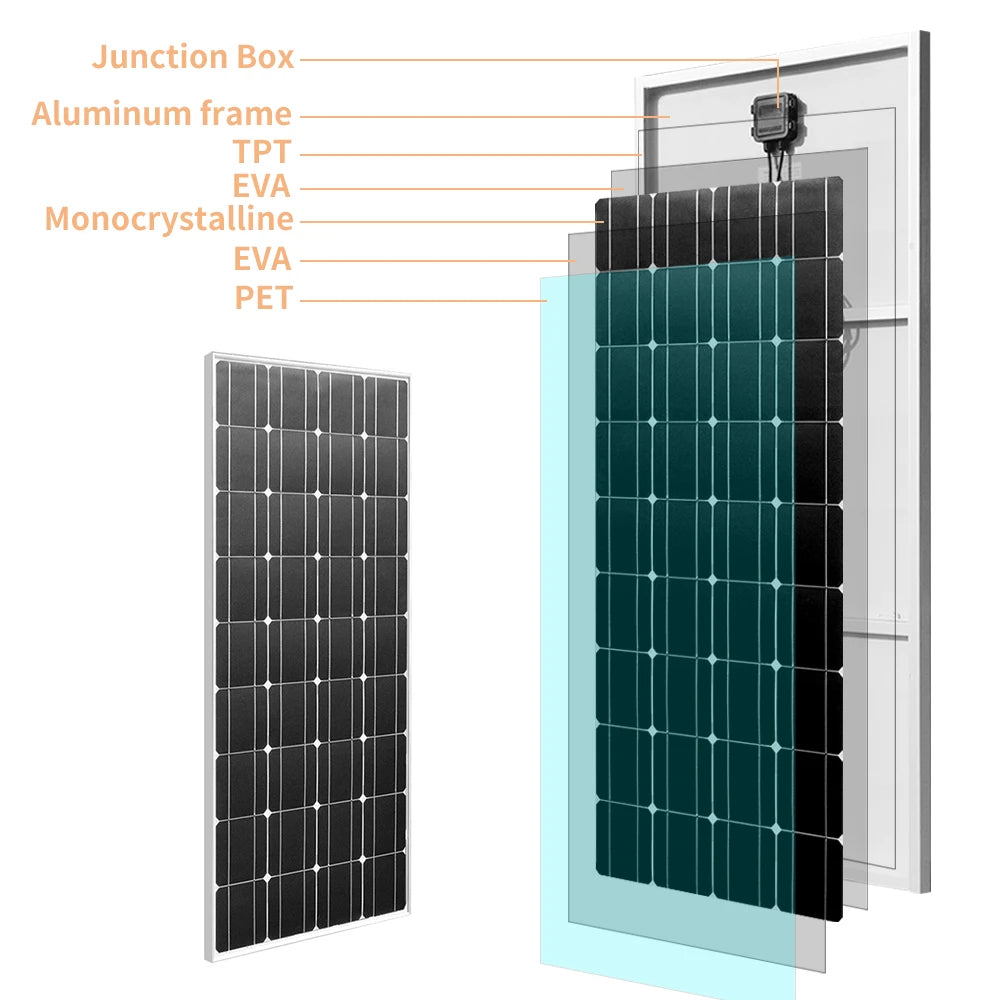

Photovoltaic Solar panel, Solar panel features: junction box, aluminum frame, tempered glass, and durable PET/ EVA materials.

Features include junction box, aluminum frame, tempered glass, monocrystalline silicon, and durable PET/EVA materials.

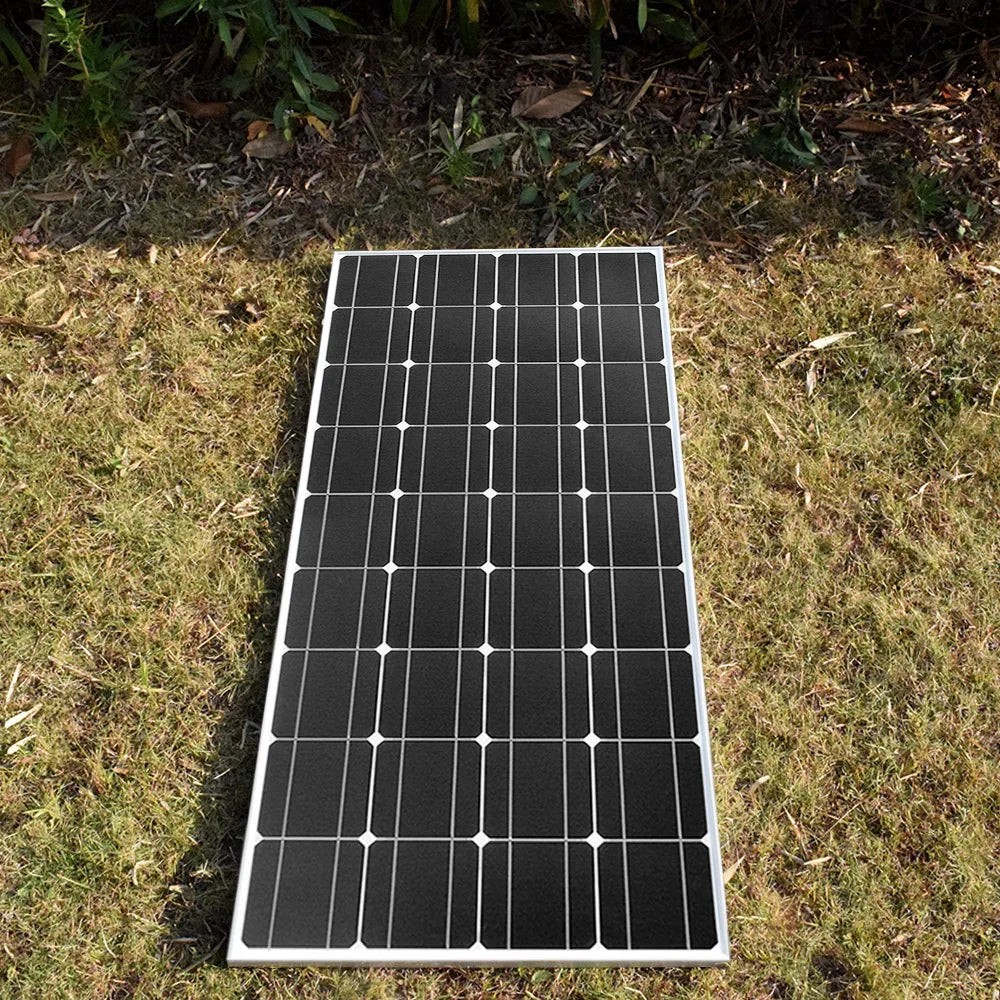

Photovoltaic Solar panel, Fast mounting with pre-drilled holes for secure installation.

Q: How long does it ship from China?

A:For this prodcut,we will ship to you by express delivery like Fedex,UPS,DHL,E-ems.TNT. normally you can receive it within 10-14 days. Attention: for remote area like island,there will be remote area fee.

Photovoltaic Solar panel, Maintain correct polarity when working with magnets; do not swap positive and negative poles.
Photovoltaic Solar panel, Multiple controllers connect to battery when single controller's power rating is insufficient to meet solar panel needs.

【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.

【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and snow loads (4000Pa)

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.

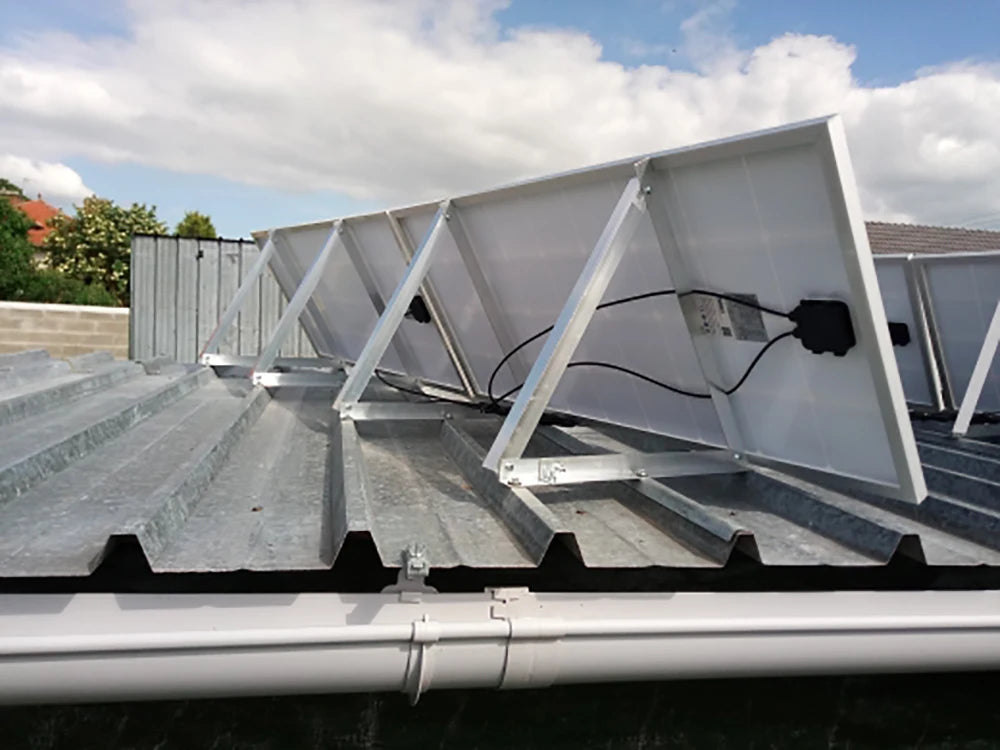

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.Optimum Operating Current (Imp): 5.29A

Attention

This product we set up warehouse in Spain,When you buy it,if you are in EU,we will ship to your country that you don't need to consider customs clearance and duties and it will be fast delivery.

However,

the zip code in Spain that starts with 07,35, 38, 51, 52.

the zip code in France 20001-20999,97100-97699,98400-98899.

the zip code in Italy that starts with 22,23,47,69. the zip code in Denmark 100-999,3900-3999.

the zip code in Portugal 9000-9900. Mont Athos in Greece.

the zip code in Finland 2200-2299

Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain.so we will ship from China to above zone.there sometime will need pay extra remote area fee. hope you can understand.


Solar system kit wiring method and precautions

1.The solar system kit connection is divided into parallel connection or serial connection. The controller must be first connect the battery , and then connect the solar panels.

2.When the solar panels are connected in series or in parallel, paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.

3.The total input power of the solar panel can't be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.

4.When the cable is connected to each component, the connection should be stable and there should be no looseness.

5.The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.

6.When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultaneously connected to the battery.

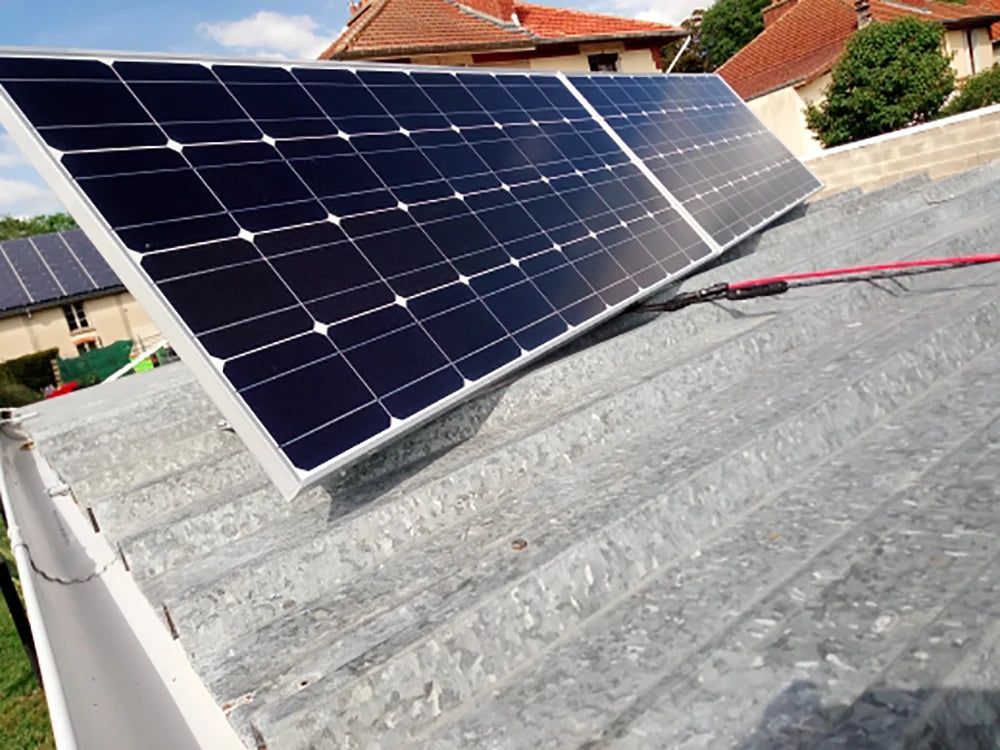

Rigorous testing for high-performance efficiency: laser cutting, cell sorting, welding, and quality control checks on photovoltaic solar panels.Photovoltaic solar panels for various uses, ranging from 120W to 1200W, meeting international standards and certifications.Photovoltaic Solar panel, Grounding pre-drilled holes for secure installation.Photovoltaic Solar panel, Inverter connects to battery, not controller, for optimal power flow.Photovoltaic Solar panel, Customizable waterproof solar panel with aluminum frame, suitable for car, boat, caravan, RV, and house applications.Photovoltaic Solar panel, Suitable ambient temperature range: -20°C to 80°C; do not exceed.Photovoltaic Solar panel, Parallel or serial connections explained, key to solar system kit setup

Notes for use:

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

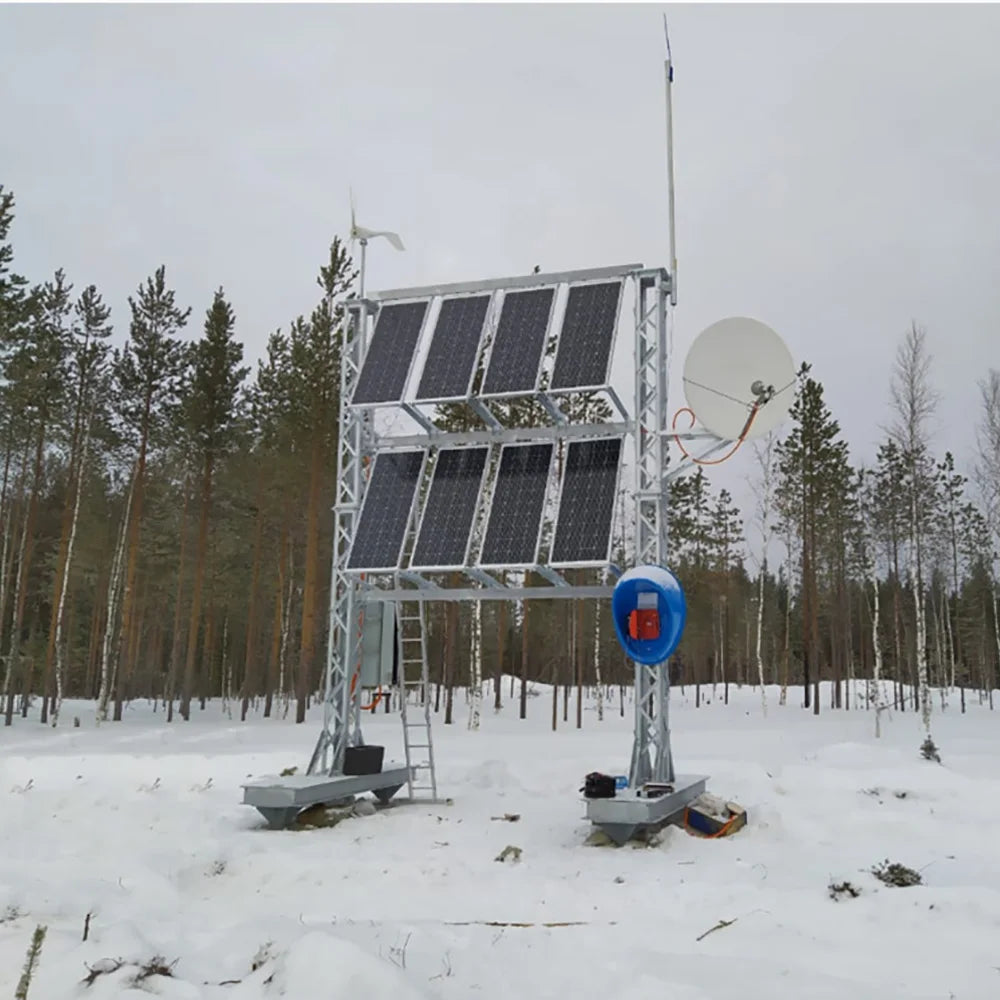

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.

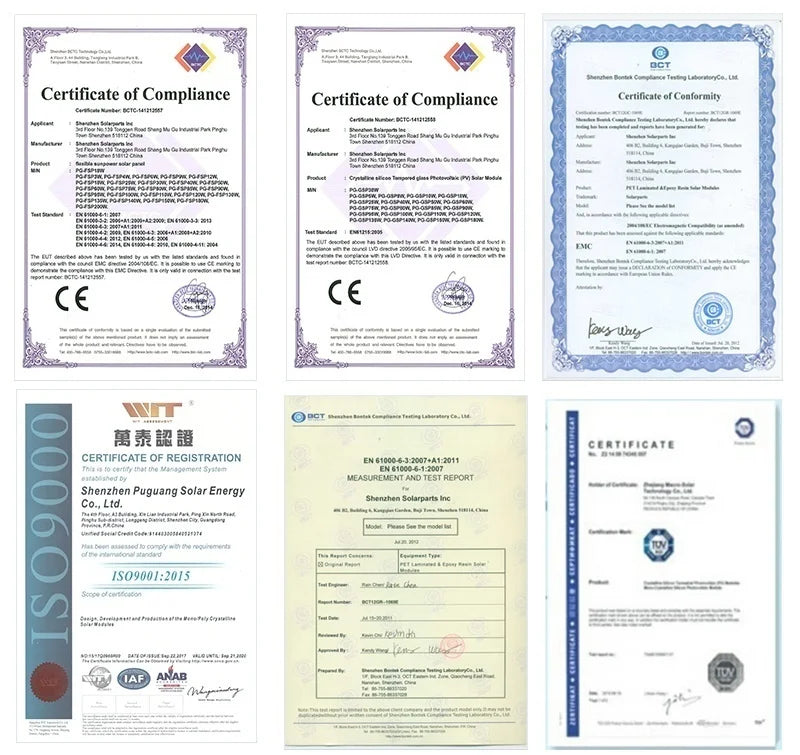

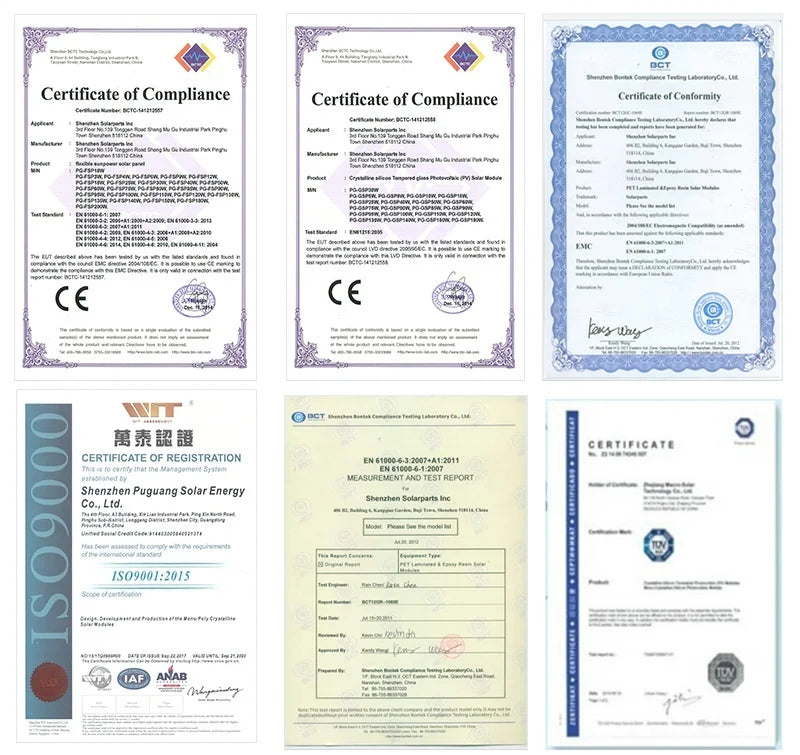

Photovoltaic Solar panel, Certificate confirming Shenzhen Puguang Solar Energy's compliance with EN 61215:2015 standards.
