PowMr 100A MPPT Solar Charge Controller Parameters
| Place of Origin: | Guangdong, China | Brand Name: | PowMr |
| Model Number: | POW-K48100A | Type: | MPPT, MPPT |
| Application: | Charger Controller, Wind Controller, Collector Controller, Water Heater Controller, Solar Working Station, Lighting Controller, Thermal Controller, Voltage Controller, Solar System Controller | Certificate: | CE |
| Warranty: | 2YEARS | Model: | POW-K48100A |
| Weight: | 4KG | Maximum power current: | 100A |
| Display: | Battery reverse discharge protection | Size: | 400*220*120(mm) |
| Load output power: | 40A | Brand: | PowMr |
| size: | 400*220*120(mm) | A key to restore the factory settings: | USB5V charge 2A |
PowMr 100A MPPT Solar Charge Controller Adavantages
This series MPPT Solar Charge Controller has such advantages:
※ various real-time data are displayed on one display to facilitate users to view
※ voltage input of maximum open-circuit voltage of different solar panels for different models of products;
※ the power supply adopts an ultra-low power chip to reduce static standby power consumption and energy
consumption
※ USB 5V output is used for mobile phone charging
※ support wired remote display (optional or standard), and follow the sales link instructions;
※ Application scenario: Household solar power generation system, monitoring system, base station, street lamp
the system, small power station, etc.
※ Function key: setting and saving, automatic storage and operation for ≥ 5 seconds; Humidity requirements:
≤90％, No condensation;
Temperature compensation: -4mV/Cell/℃ Operating
Temperature: -10℃~60℃; Storage Temperature: -30℃~70℃
PowMr 100A MPPT Solar Charge Controller Features
＊Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.
＊High-quality components, perfecting system performance, with a maximum conversion efficiency of 98%.
＊Ultra-fast tracking speed and guaranteed tracking efficiency.
＊Wide MPP operating voltage range.
＊12/24VDC automatically identifying system voltage.
＊LCD panel display design, dynamically displaying tool‟s operating data and working condition.
＊Support 6 charging lead-acid battery options: AGM, Sealed, Gel, Flooded, LifePO4.
＊Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs the service life of the
batteries.
＊Battery temperature compensation function.
＊Multiple load work modes
＊This solar charge controller with a three-time function.
A: time (night working) B: period (pause) C: time slot (dawn working)
General Safety Information
＊Mount the controller indoors. Prevent exposure to the elements and do not allow water to enter the controller.
＊Power connections must remain tight to avoid excessive heating from a loose connection.
＊It is suggested to install appropriate external fuses/breakers.＊If the system needs to connect the inverter, please connect the
inverter directly to the battery, and do not connect
with the load terminal of the controller.
＊If the display is not displayed for the first time, please cut off the fuse or circuit breaker immediately and check
whether the line is connected correctly

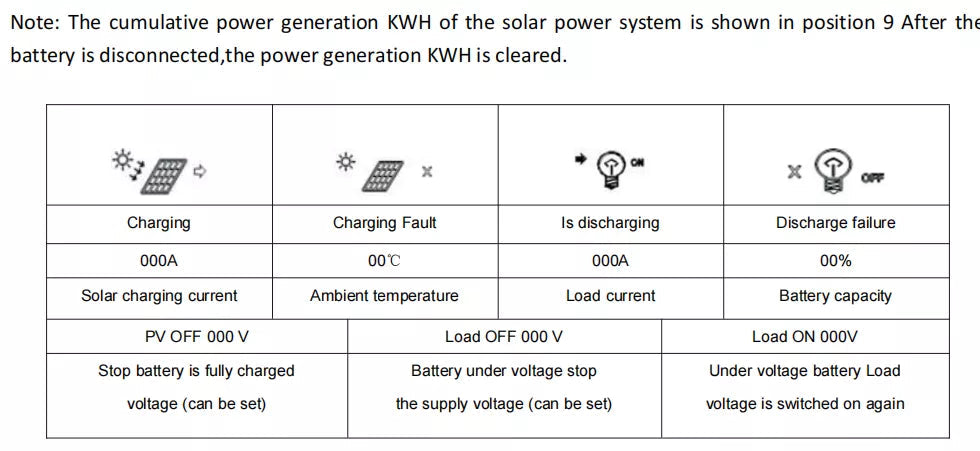

The PowMr 100A MPPT Solar Charge Controller displays cumulative power generation in kWh (reset to 0 when batteries are disconnected). It also shows charging/discharging status, ambient temperature, and load current. The controller automatically stops charging when the battery is full or under-voltage. Load voltage can be set and is switched on/off as needed. The device features a fault indicator for discharging failure and solar charging current display.
User Manual (POW-M60-PRO-Manual-20220512.pdf, 1,875 Kb) [Download]
