POW-M60-PRO - PowMr 60Amps MPPT Solar Charge Controller12V 24V 36V 48V 0 Layer

POW-M60-PRO - PowMr 60Amps MPPT Solar Charge Controller12V 24V 36V 48V 0 Layer

Regular price $100.00 USD
Regular price Sale price $100.00 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ



POW-M60-PRO Quick Info

Brand : PowMr

Lithium Battery Activation: No Lithium Batteries Activation

Battery Voltage: 12V, 24V, 36V, 48V

Battery Type : Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, AGM Batteries, User Mode

Charging Current: 60 Amps

Ground Type: Positive Ground

Solar Panel Max Input Voltage: 150V



POW-M60-PRO DataSheet

Please read the specification carefully before install: POW-M60-PRO

Technical Specification for Selection Guide
Models POW-M60-PRO
Charging mode MPPT Maximum power point tracking automatically
Charging 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
System type DC12V/24V/36V/48V Recognition automatically
System voltage automatic recognition 1 2V system (DC9V-DC15V)
24V system (DC18V-DC29V)
36V system (DC30V-DC39V)
48V system (DC40V〜DC60V)
Soft start time <1S
Dynamic response and recovery time >98.1 % (Voc is 1.5 or 2 times than battery, then it's the best efficiency)
PV utilization >99%
Input specification
VOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.) 12V system (DC20V〜DC80V)
24V system (DC37V-DC105V)
36V system (DC50V〜DC160V)
48V system (DC72V〜DC160V)
The maximum PV input voltage (Voc) DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.)
The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.) 12V system (720W)
24V system (1440W)
36V system (2100W)
48V system (2800W)
Output specification
Selectable battery type(default is Sealed) Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage Refer to Batteries charging reference
Floating Charging Voltage Refer to Batteries charging reference
Overcharging protection voltage 12V system (15V)
24V system (30V)
36V system (45V)
48V system (60V)
Rated output current 60A
Temperature Coefficient ±0.02%/ °C
Automatic temperature compensation 14.2V-(Max temperature-25 °C)*0.3
Output voltage ripple-peak 100mv
Output voltage accuracy <±1%
Input Anti-intrusion protection yes
Temperature Protection 75°C
Temperature increased protection Output power will reduce when it's more than 70 °C
Output power will be normal when it's less than 55 °C
Fan-on temperature >40 °C
Fan-off temperature <35 °C
Acoustic noise <40dB
Cooling way Forced air cooling
Components Imported materials, Accord to EU standards, Industrial grade range.
Environmental requirements Meet 2002/95/EC; No cadmium, hydrides, and fluorides
Security Level Accord to CE, PSE, FCC, EMC, EN60950
Electromagnetic Compatibility Accord to EN6W00, EN55022, EN55024
Enclosure IP21
Net weight(Kg) 1.3
Gross weight(Kg) 1.5

POW-M60-PRO Overview

POWMR 60Amps MPPT solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

It comes with a number of outstanding features, such as:

  • MPPT 30A/40A/50A/60A solar charge controller
  • 100% MPPT technology
  • 0 Layer, easy installation, easy setup
  • Built-in DSP controller with high performance
  • Automatic switch for 12V/24V/36V/48V battery bank
  • 3-stage charging optimizes battery performance
  • Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
  • Over-temperature protection
  • Troubleshooting promotion function.
  • Suitable for battery types such as sealed lead acid,  vented gel, and lithium battery,  etc
  • Easy to be mounted


POW-M60-PRO Photos

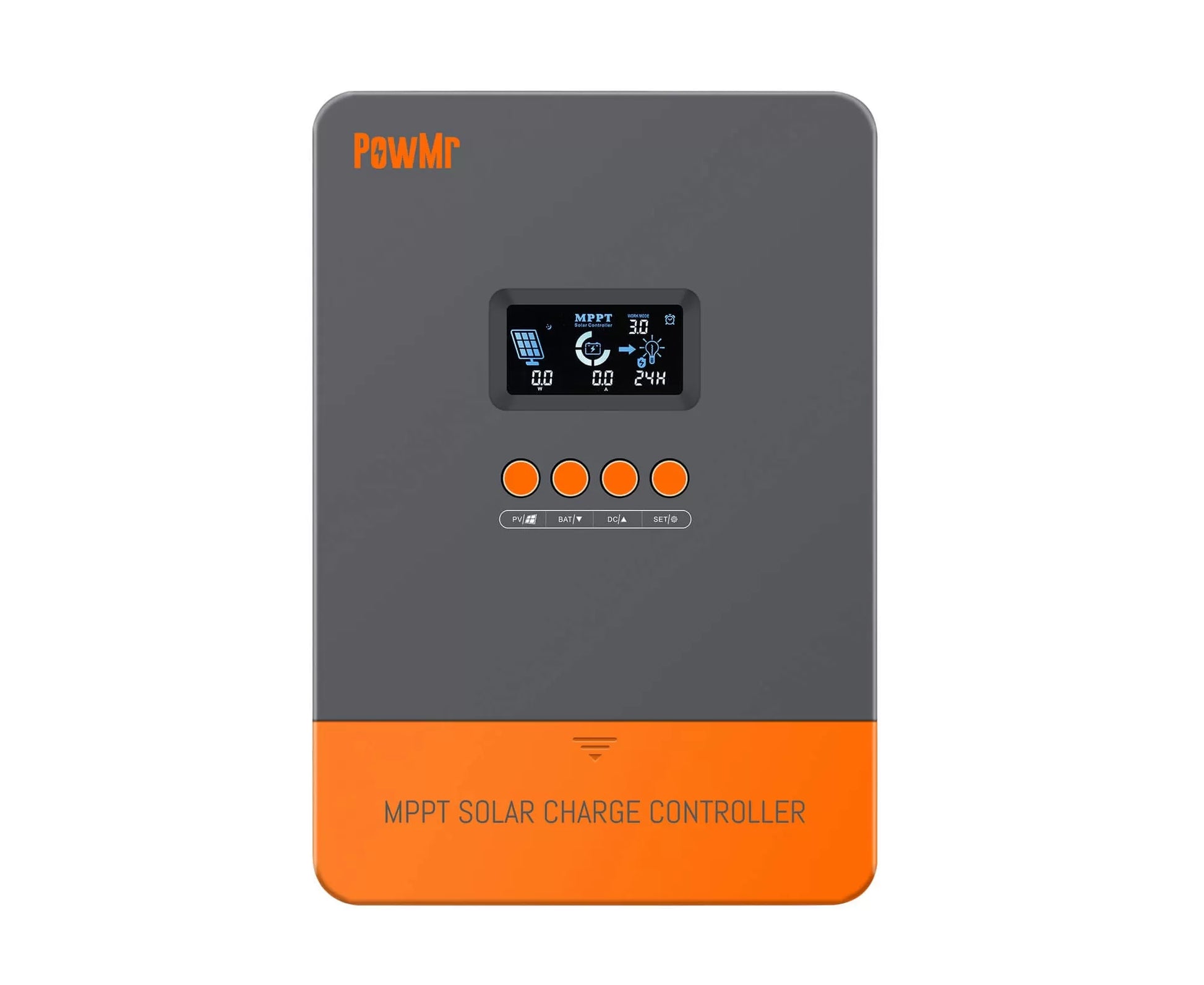

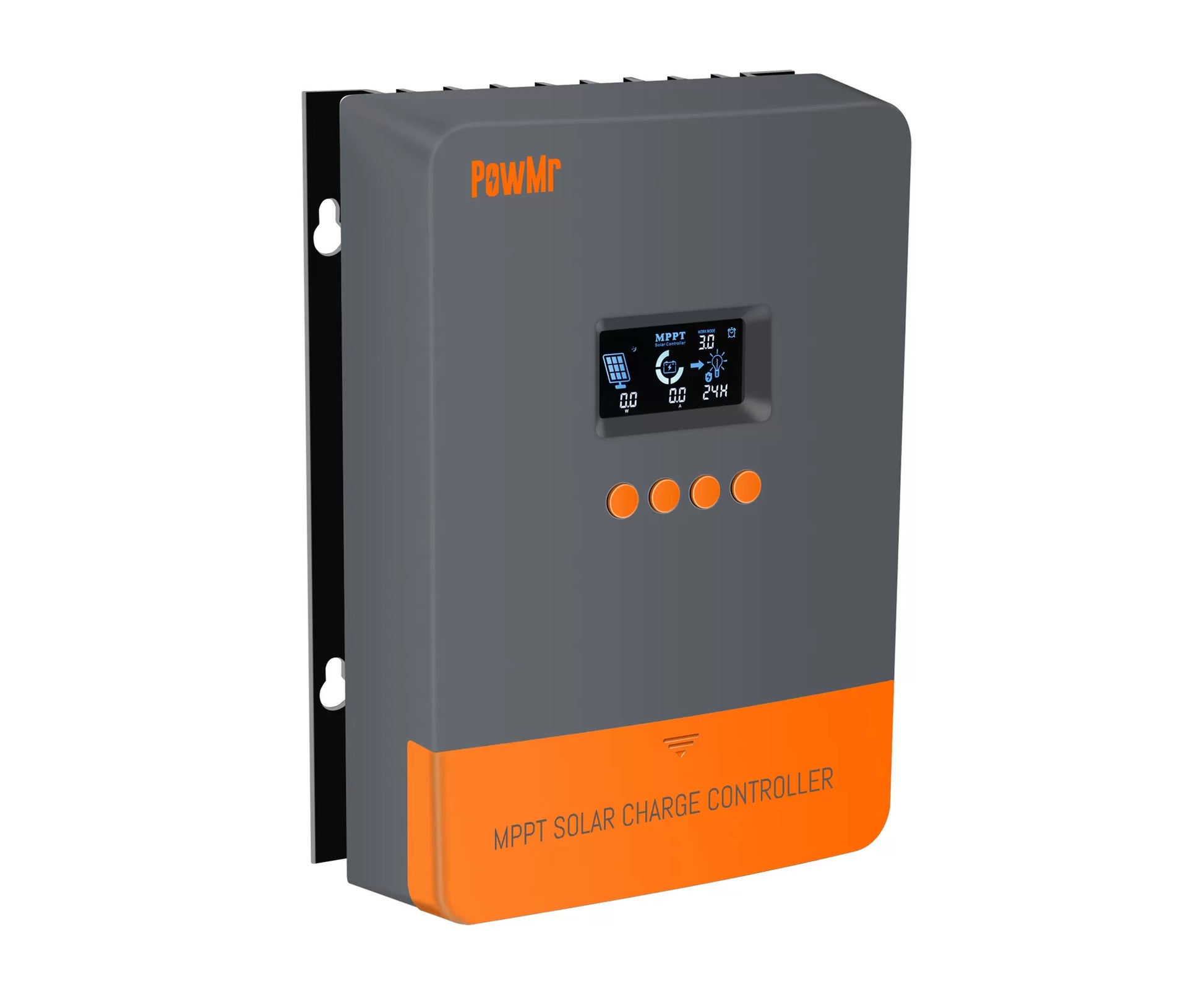

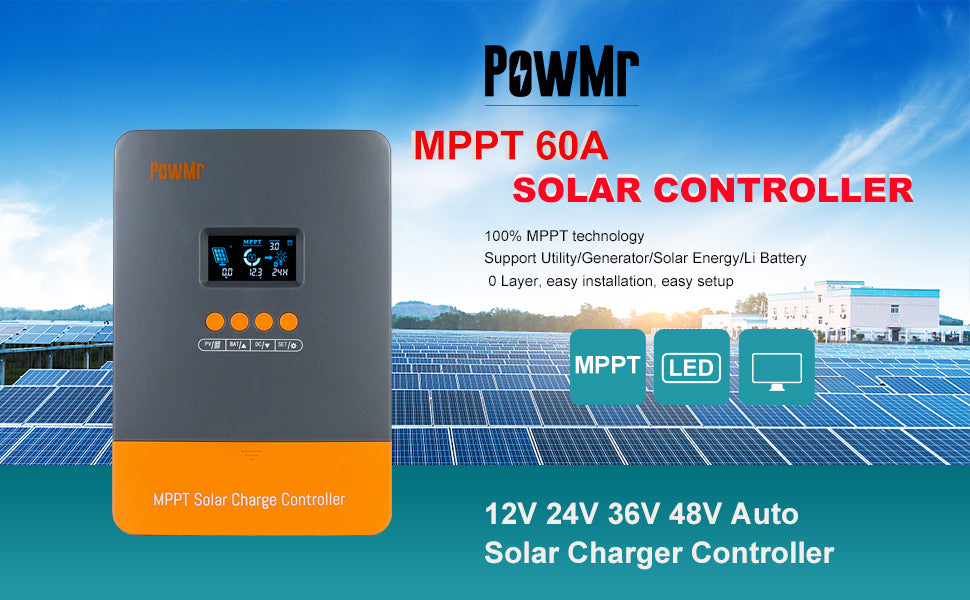

POW-M60-PRO, Solar charge controller with MPPT technology for utility and generator systems.

PowMr MPPT 60A Solar Charge Controller features 100% MPPT technology, supporting utility and generator systems. It's easy to install and set up, with an MCO LED display that charges solar panels at 12V, 24V, 36V, or 48V automatically.

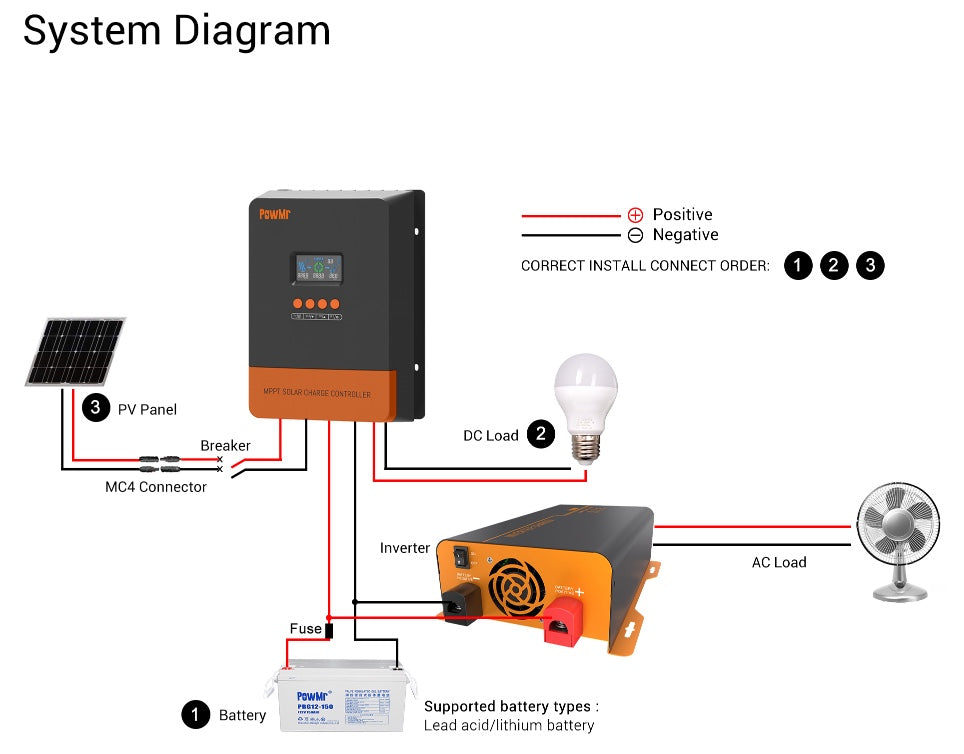

POW-M60-PRO, PowMr Solar Charge Controller system diagram with installation order and supported battery types.

System Diagram: PowMr 60Amps MPPT Solar Charge Controller. Install in order: PV Panel > DC Load Breaker > MC4 Connector > Inverter > AC Load. Supported battery types: Lead Acid/Lithium.

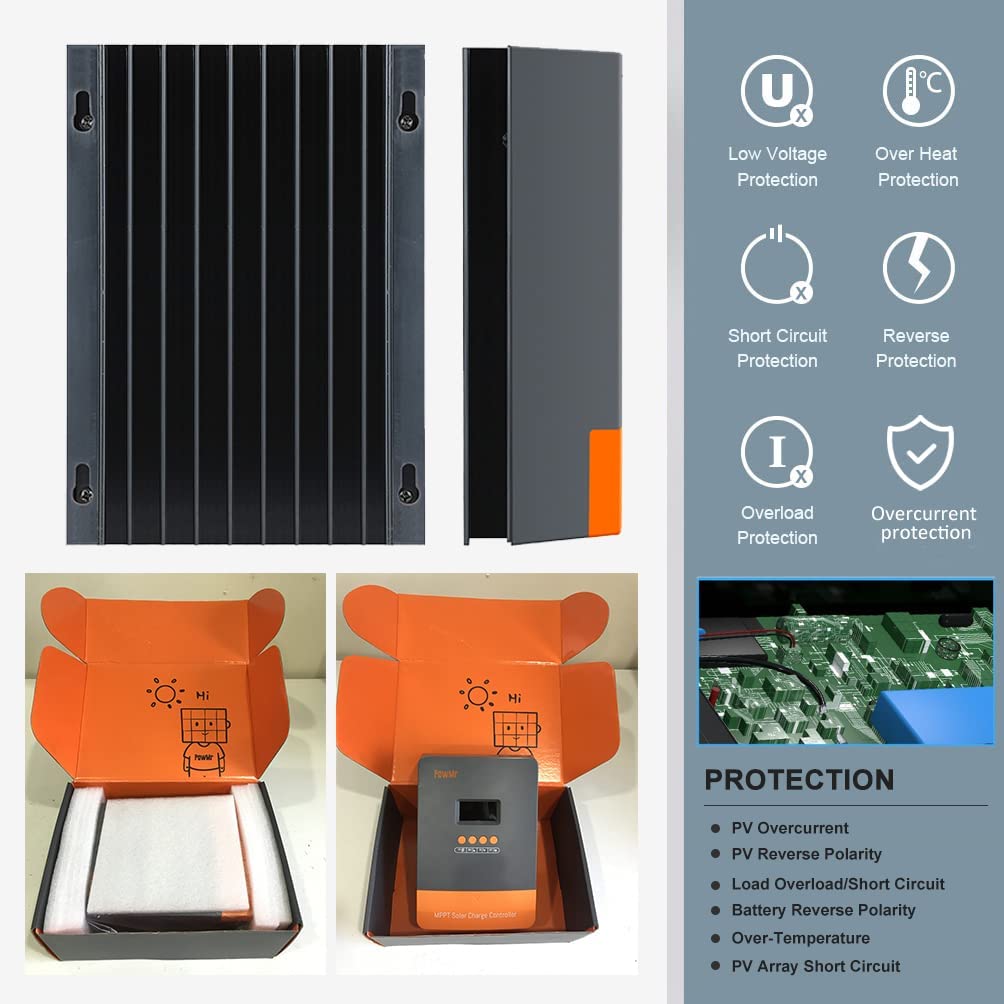

POW-M60-PRO, Multiple protections ensure safe and reliable solar charging with features like overheating, short circuit, and overload prevention.

This solar charge controller features multiple protections: overheat, short circuit, reverse polarity, overload, and overcurrent protection for safe and reliable charging. It also includes low-voltage disconnect and over-temperature PV array protection.

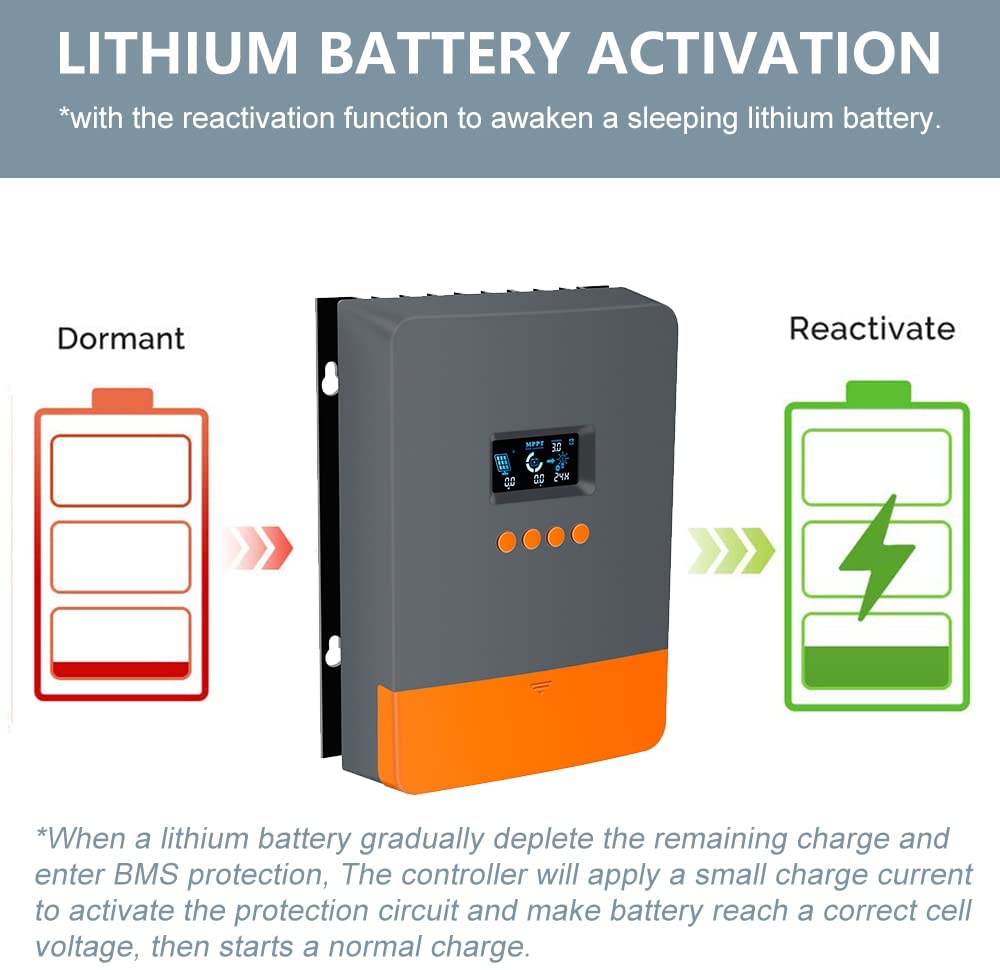

POW-M60-PRO, Lithium battery reactivator restores cell voltage and exits protection mode for proper charging.

Activates dormant lithium batteries with its reactivation function, which gradually charges the battery to restore cell voltage and exit BMS protection. This feature ensures a correct start for normal charging.

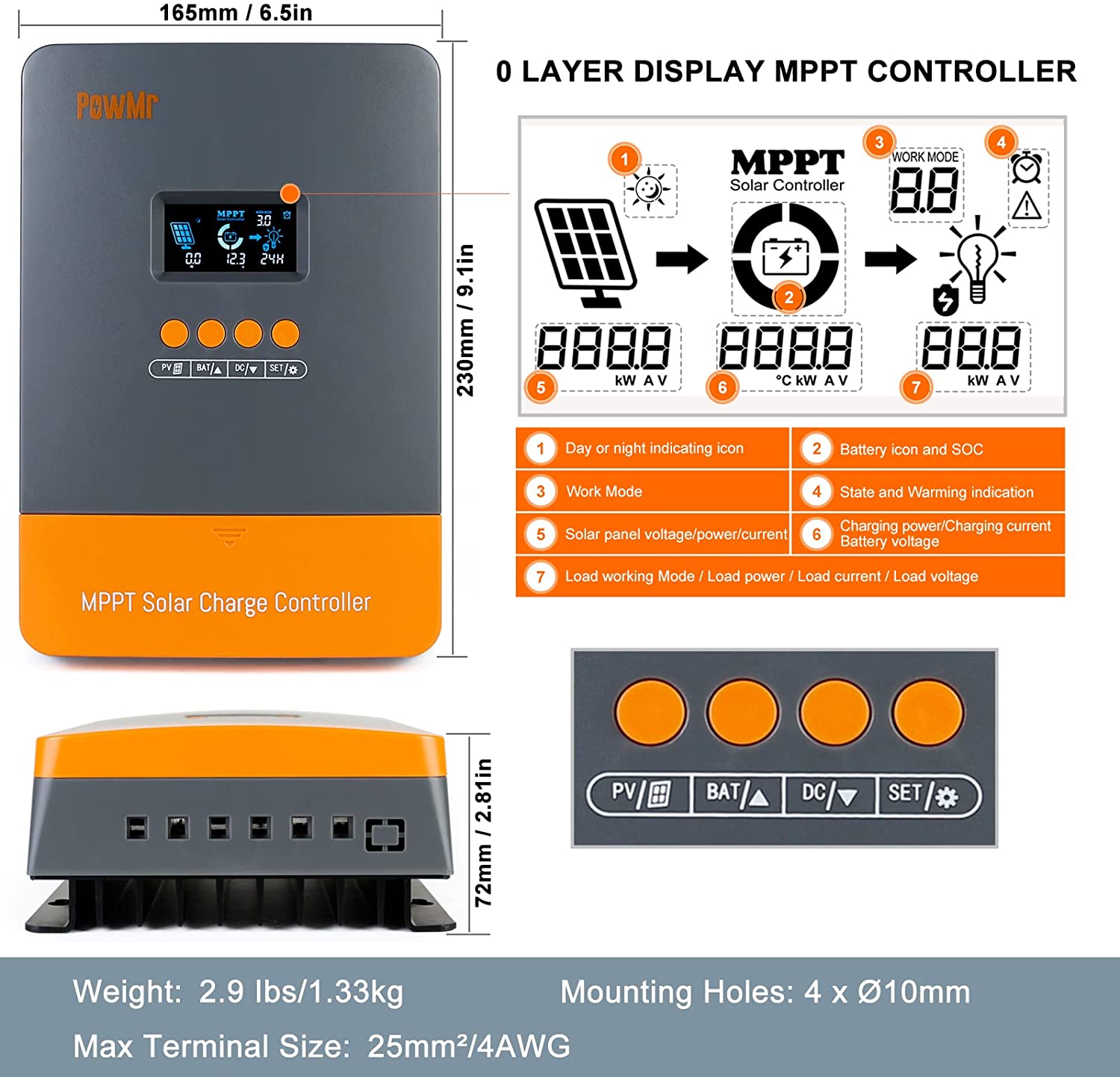

POW-M60-PRO, PowMr M60-PRO solar charge controller with display showing voltage, power, current, and battery state.

PowMr M60-PRO MPPT Solar Charge Controller features a 0-layer display, indicating solar panel voltage, power, and current. It also shows battery state of charge, work mode, and warming indication. The controller has multiple modes, including charging, loading, and monitoring. Dimensions: 165mm x 6.5in, weight: 2.9lbs/1.33kg. Mounting holes are available for secure installation.

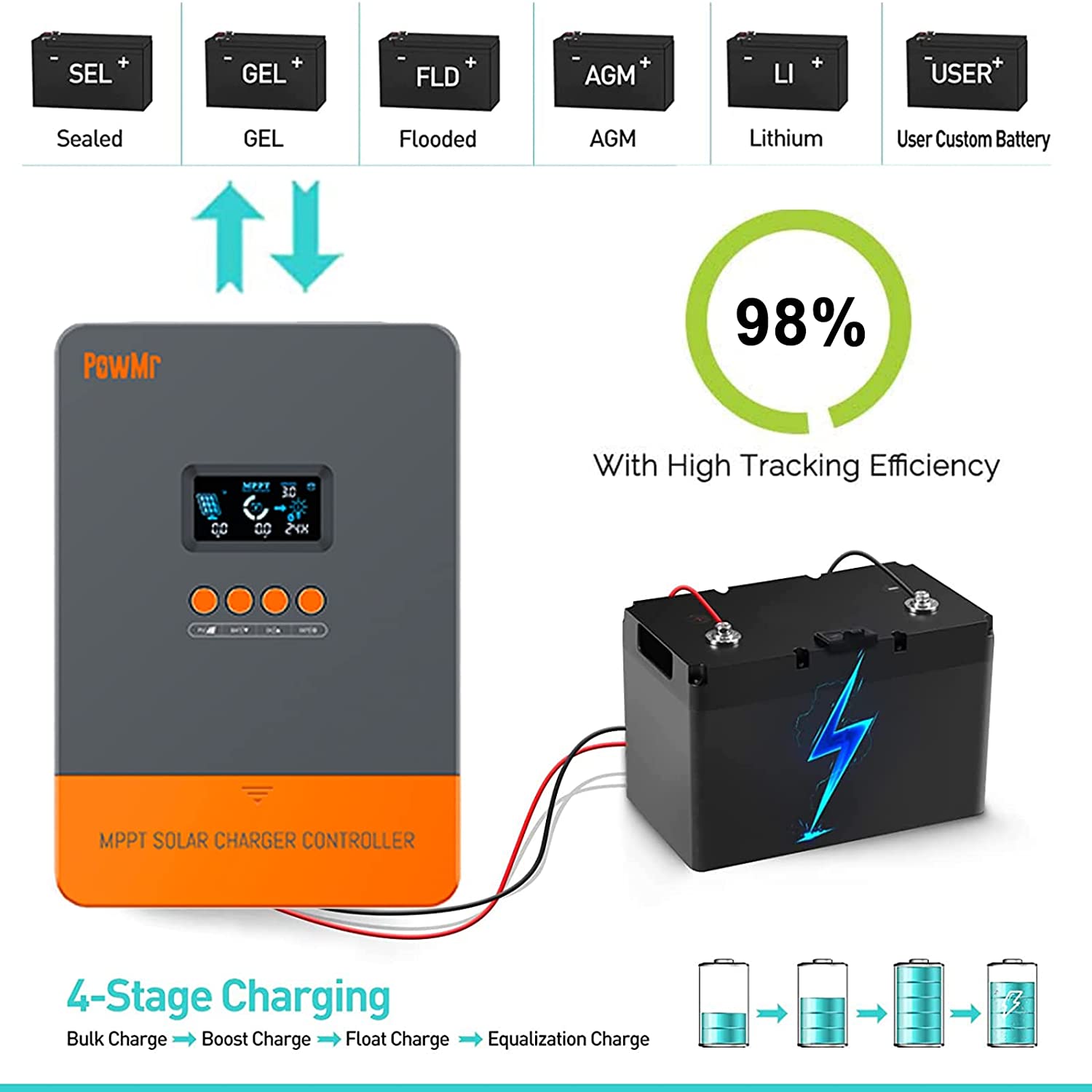

POW-M60-PRO, Solar charger with adjustable settings for various battery types.

PowMr M60 Pro MPPT solar charge controller supports user-defined batteries, including sealed gel, flooded AGM, and lithium types. It offers high tracking efficiency and features multiple charging modes: bulk, boost, float, and equalization.
