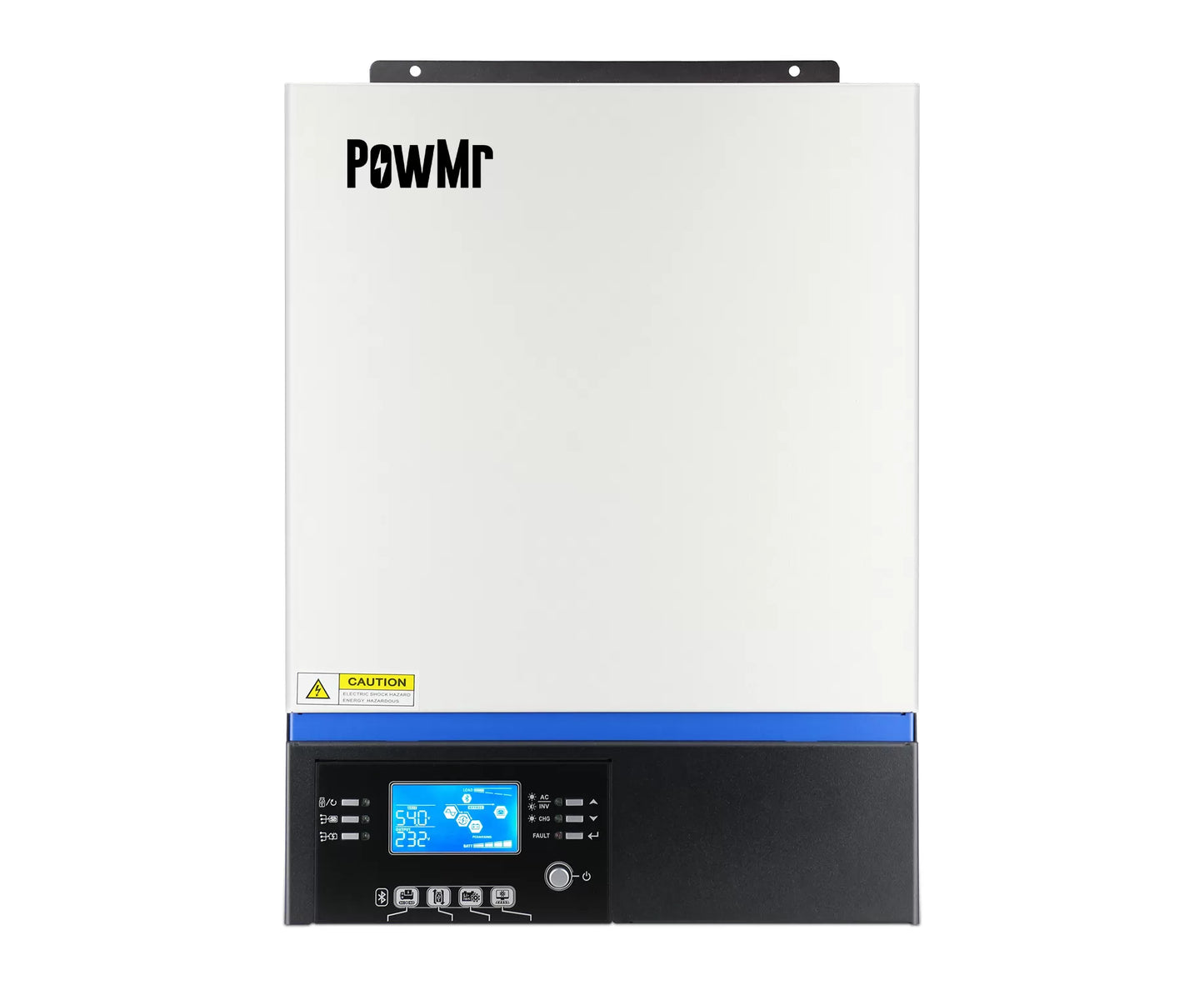

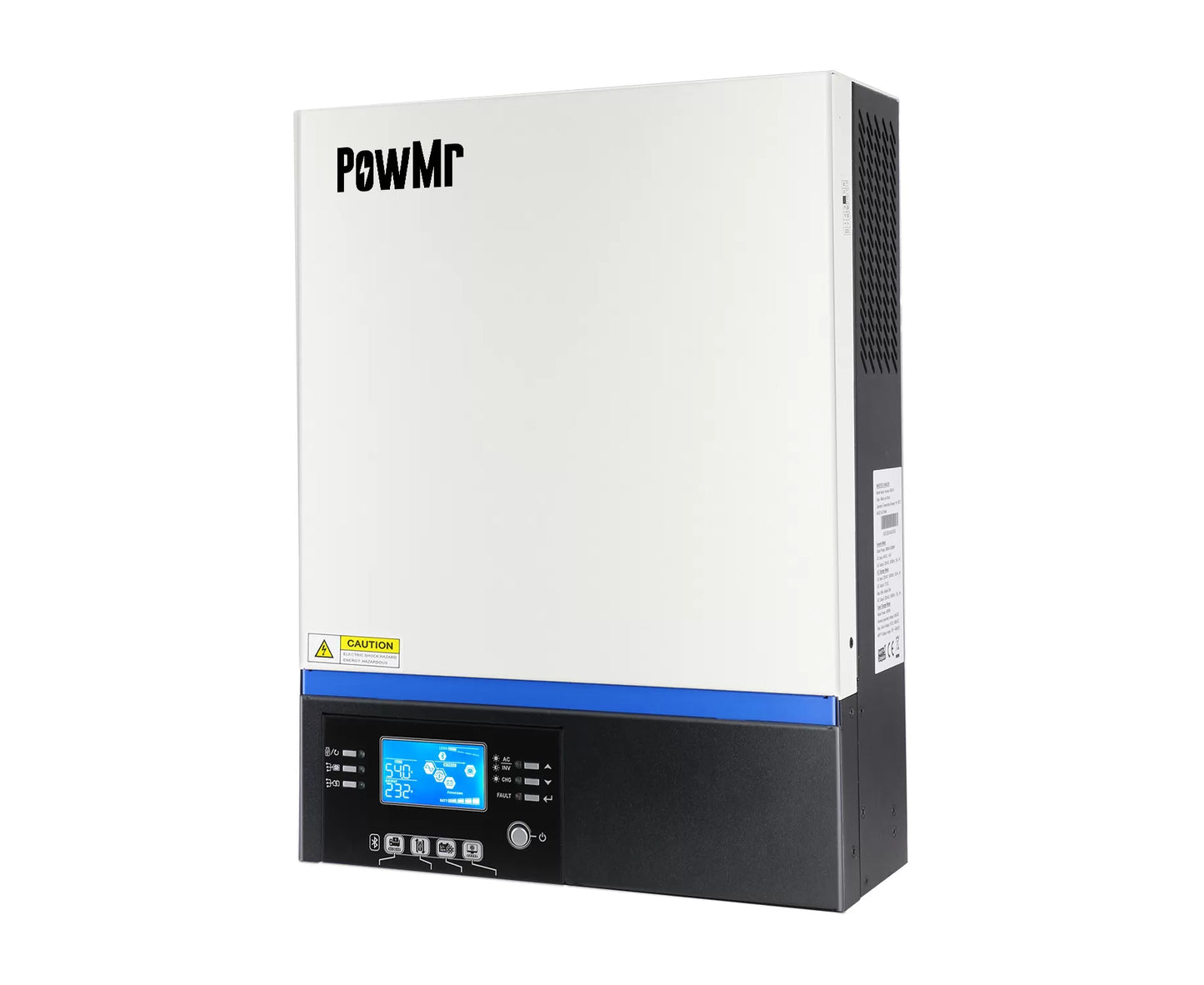

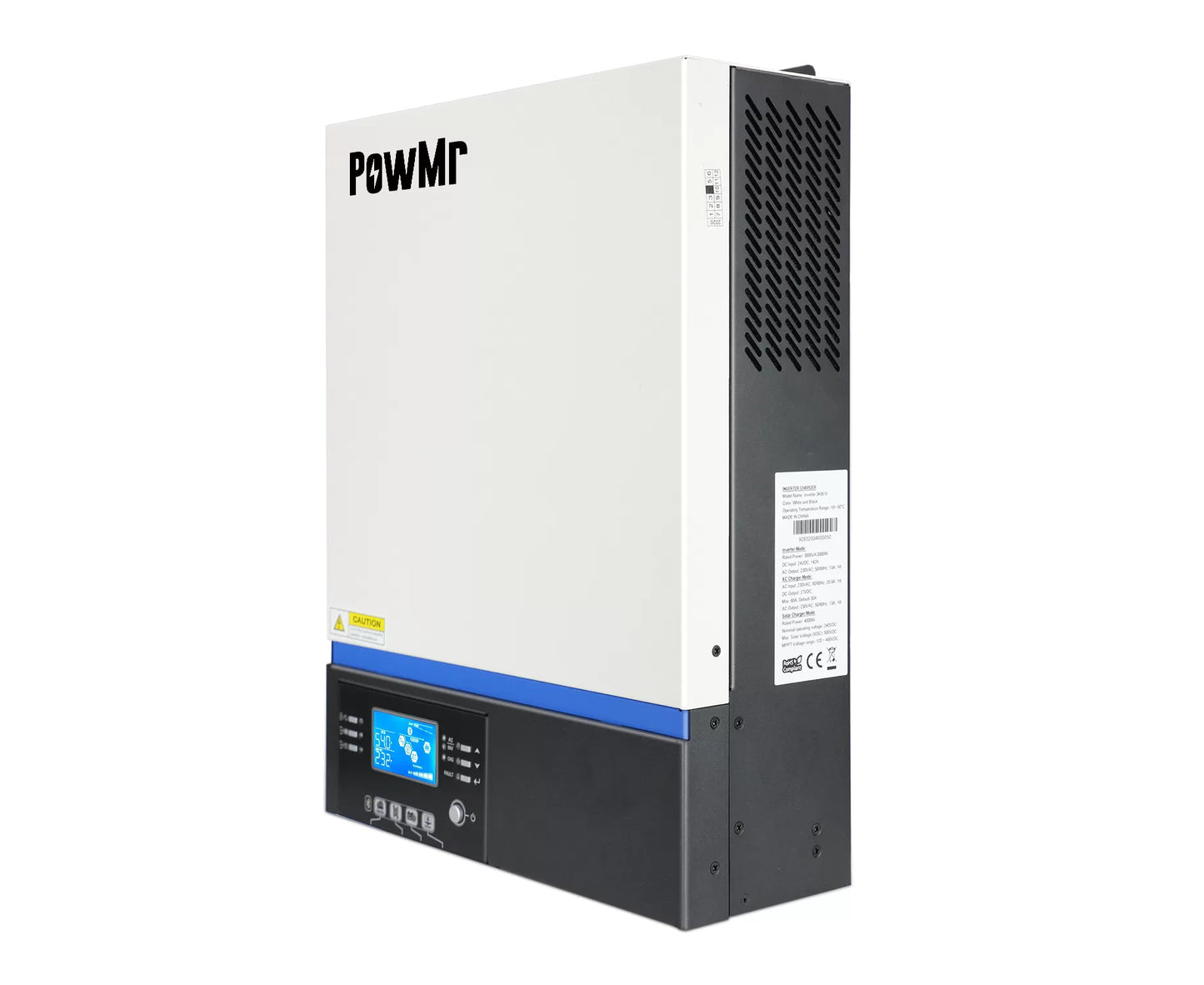

POW-VM3K-III - PowMr 3KW MPPT Inverter Off Grid All In One Solar Inverter Charger

PowMr 3KW MPPT Inverter Off Grid All In One Solar Inverter Charger 24V 80A MPPT Bluetooth with DC-Switch Hybrid Inverter Max PV Input

Brand: PowMr

Lithium Battery Activation: No Lithium Batteries Activation

Battery Voltage: 24V

Battery Type: Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, User Mode

Load workout with Battery: Yes

Inverter Type: High frequency Inverters

Phase: Single Phase

AC output: 230Vac±5%

Rated Load Power: 3000W

Max Panel Input Volt: 450V-500V

PV Terminal Charging: Modebuild-in MPPT Solar Charge Controller

Max Solar Panel Input Power: 4000W

AC Charging Current: 40 Amps

PV Charging Current: 100amps

AC+PV Charging Current: 100Amps

Wifi/Bluetooth Module: Wifi Module(Optional), Bluetooth Inside

Warehouse:GER Warehouse, USA Warehouse



This is a multi-function Pure sine wave inverter charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support in a single package.

Support 48V lead-acid, lithium battery and without battery

(Important NOTE: when inverter work without a battery, LCD will show error bP, this is ok, the inverter will operate normally. Don't worry! )

Features

• Configurable input voltage ranges for home appliances and personal computers via the LCD control panel
• Configurable AC/Solar Charger priority/battery charging current based on applications via the LCD control panel
• Compatible with utility mains or generator power
• Auto restart while AC is recovering
• Overload / Over temperature / short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

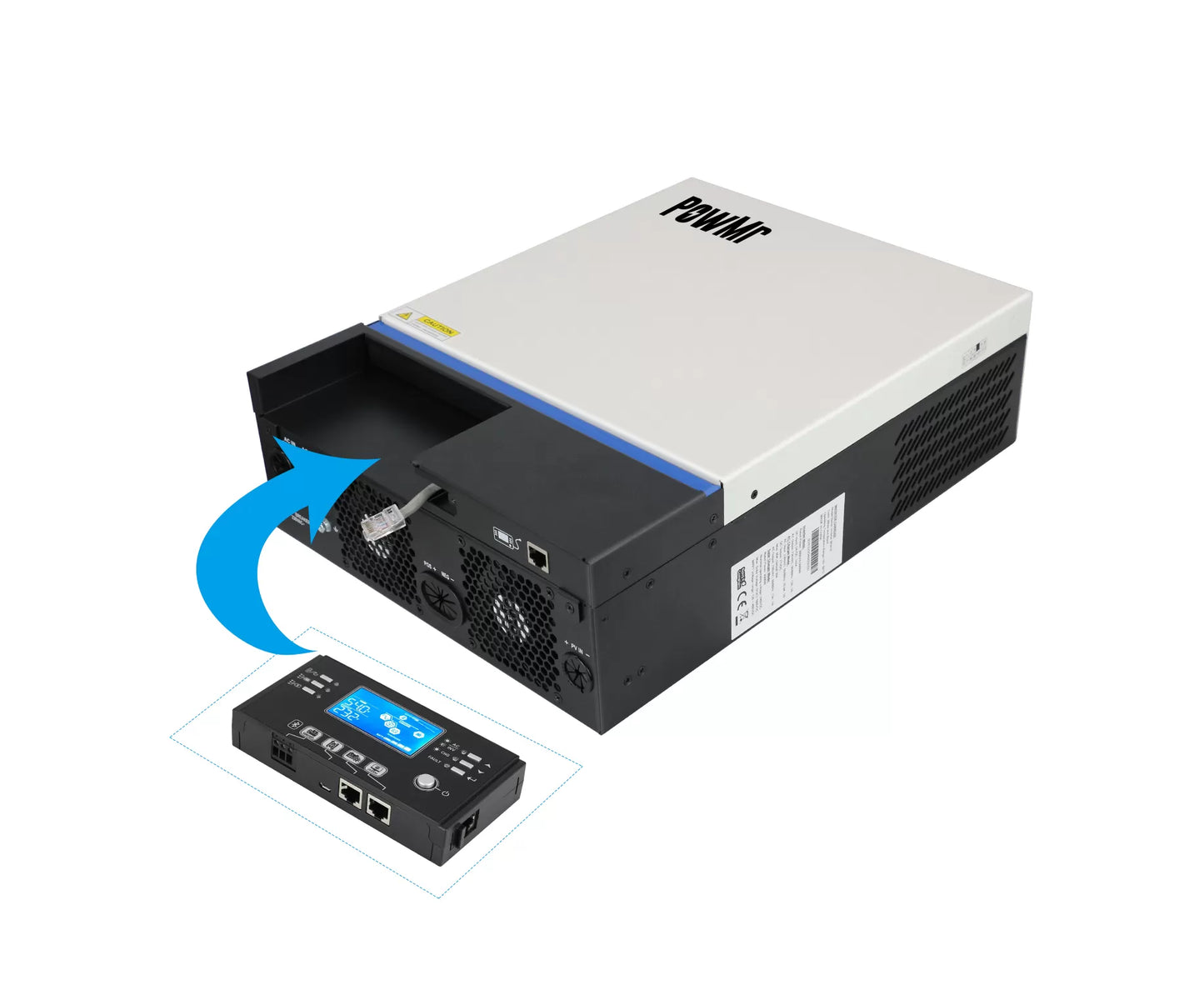

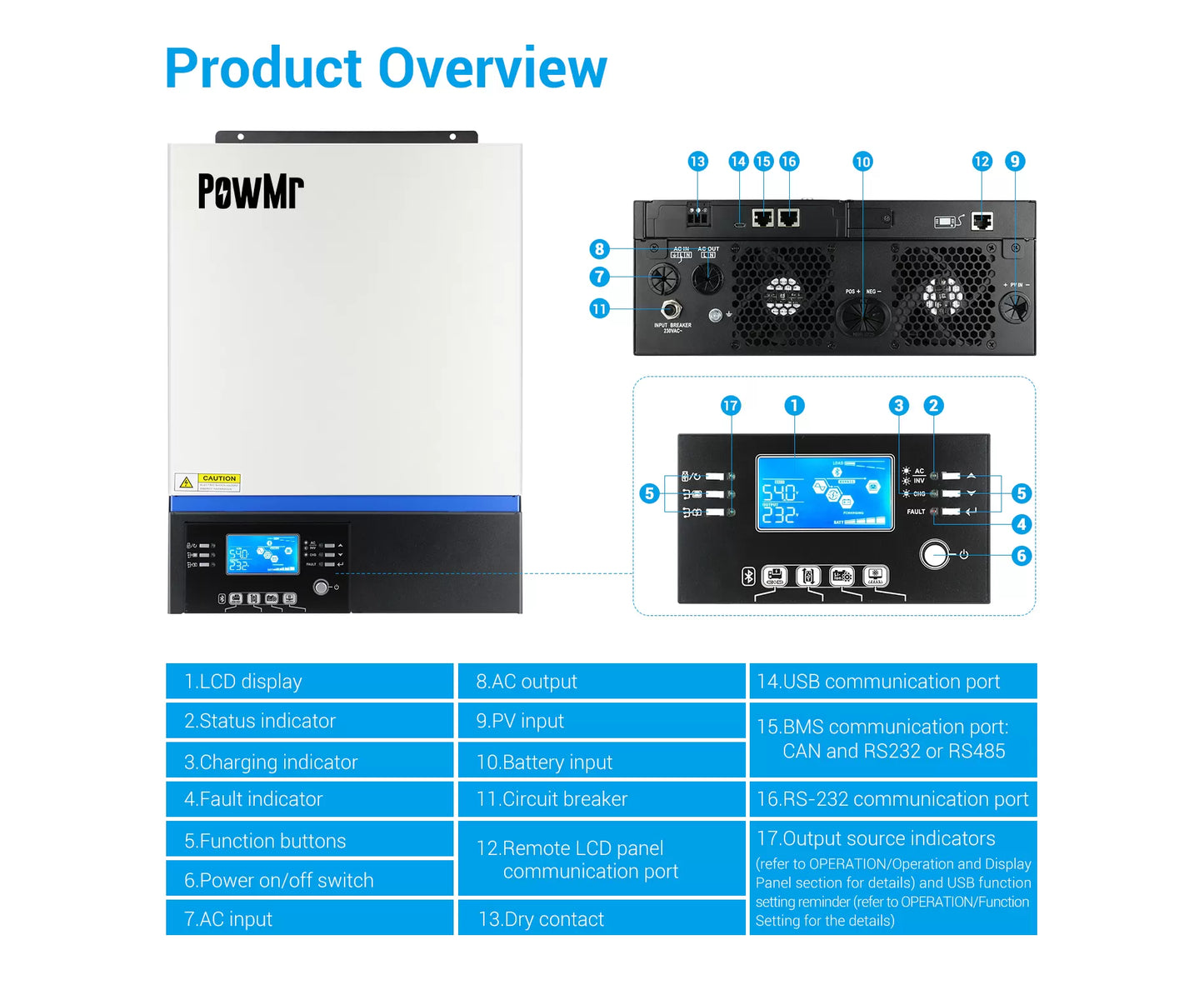

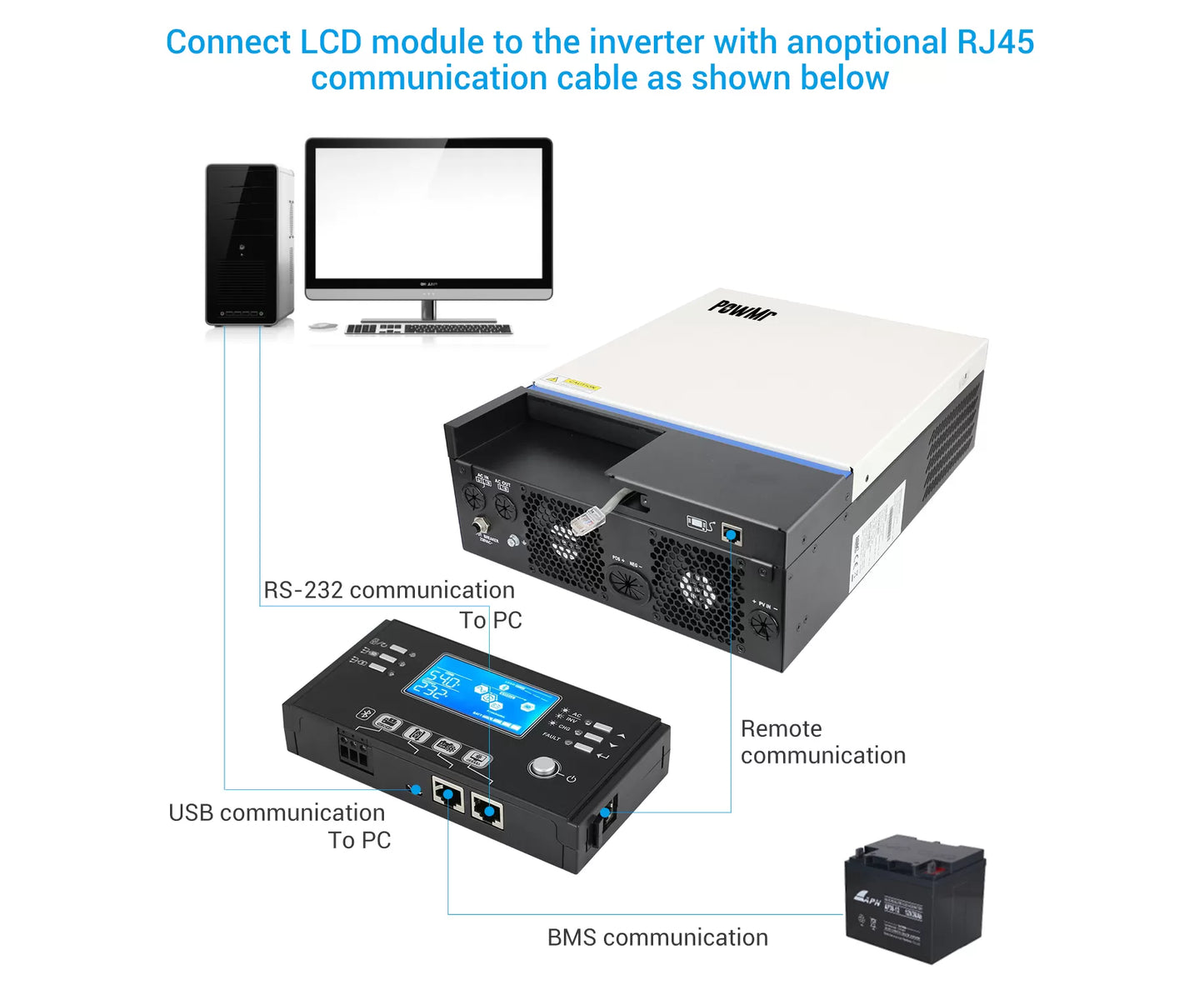

• The removable LCD control module
• Multiple communication ports for BMS (RS485, CAN-BUS, RS232)
• Built-in Bluetooth for mobile monitoring (Requires Android App), OTG USB function, dusk filters
• Configurable AC/PV Output usage timer and prioritization

Reminder: Only for US users

1. In the mains bypass mode, the device cannot be connected to two-phase 220V AC power, that is, L1-L2 cannot be connected to L-N.
2. In all in one inverter mode, after the device is connected to two-phase 220V, please do not select the mains priority as the output priority, so as to avoid potential safety hazards for the device.
3. Do not connect the AC output end of the device to an autotransformer, so as not to affect the normal service life of the device.

Charger source priority: To configure charger source priority

If this inverter/charger is working in Line, Standby, or Fault mode, the charger source can be programmed as below:

Solar first:

Solar energy will charge the battery as first priority. The utility will charge the battery only when solar energy is not available.

Solar and Utility (default)

Solar energy and utility will charge batteries at the same time.

Only Solar:

Solar energy will be the only charger source no matter utility is available or not.

If this inverter/charger is working in Battery mode, only solar energy can charge the battery. Solar energy will charge the battery if it's available and sufficient.

(Single phase 220V AC /A Hot Leg, NOT Support 110V !!! )

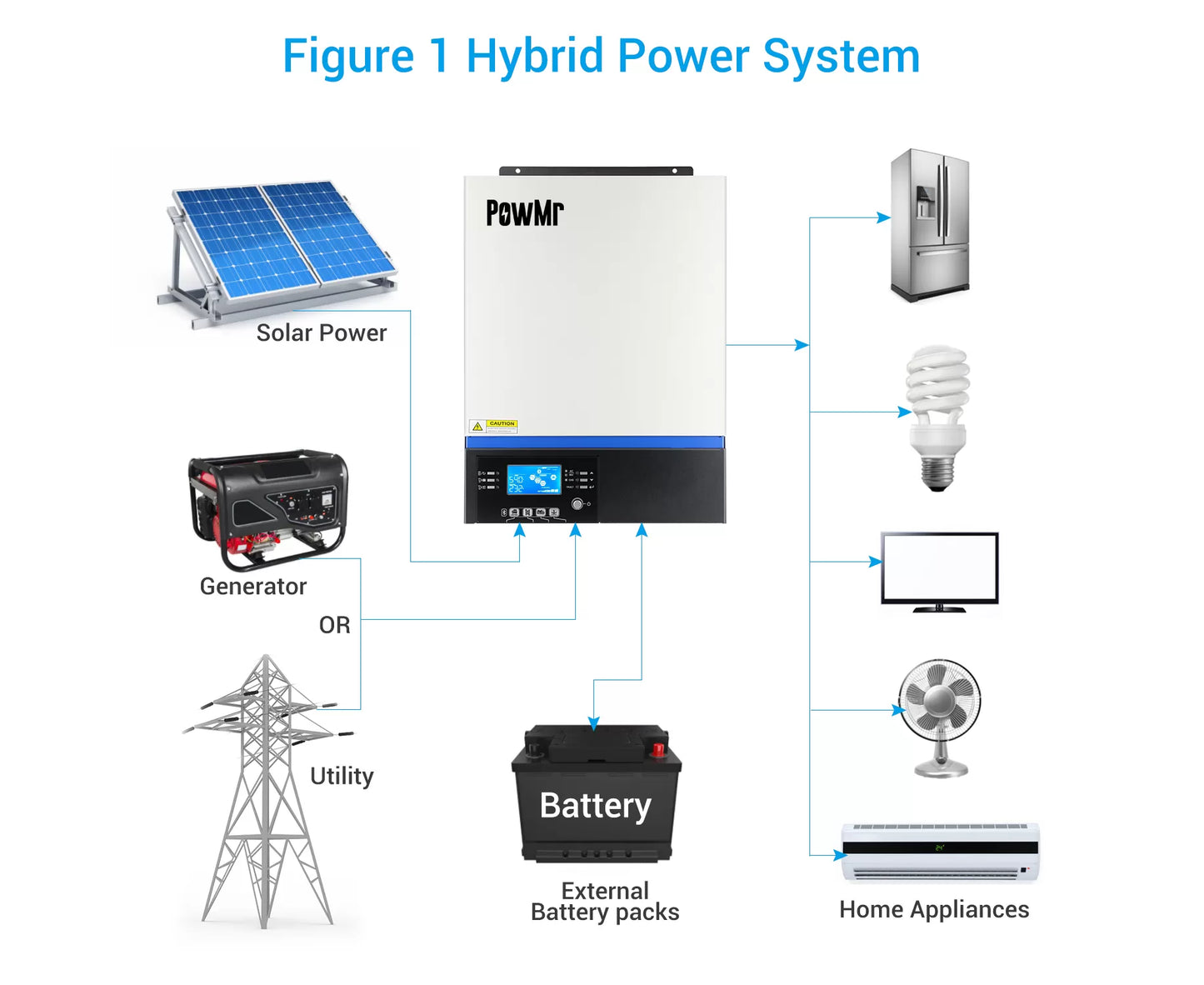

PowMr off-grid all-in-one solar hybrid inverter can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.

• (Single phase 220V AC /A Hot Leg, NOT Support 110V !!! )
• This PowMr off-grid solar inverter all-in-one does not support parallel operation, and does not support phase separation!

Line Mode Specifications and Inverter Mode Specifications

Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac
Low Loss Voltage	170Vac± 7V (UPS); 90Vac± 7V (Appliances)
Max AC Input Voltage	300Vac
Nominal Input Frequency	50Hz / 60Hz (Auto detection)
Output ShortCircuit Protection	Circuit Breaker

Charging Algorithm	3-Step
AC Charging Current (Max)	60Amp
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	230Vac± 5%
Output Frequency	50Hz
Surge Capacity	2* rated power for 5 seconds

PV (Solar) Charging

Max.PV open circuit voltage	500Vdc
Start-up Voltage	150Vdc +/- 10Vdc
MPPT voltage	150-450Vdc
Max. PV Array Power	4000W
Max input current	16A
Max Charging Current	80Amp (AC charger plus solar charger)
Recommended battery capacity	≥ 200Ah

battery cable size	2AWG/38mm²
PV/AC input wire diameter	12AWG
Weight (kg)	9
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature Range	-10°C to 50°C
Size (L*W*D)	115 x 300 x 400mm

(Single phase 220V AC /A Hot Leg, NOT Support 110V !!! )

PowMr 230V off-grid hybrid inverter support 48V lead-acid, lithium battery and without batter！

(Important NOTE: when inverter work without a battery, LCD will show error bP, this is ok, the inverter will operate normally. Don't worry! )

Start-up Voltage:150Vdc +/- 10Vdc

The Solar Panels must be connected in series, the max input current is 16A!

CAUTION!!

• Shock Hazard: Installation must be performed with care due to high battery voltage in series.
• Do not place anything between inverter terminals and the ring terminals. Otherwise, overheating may occur.
• Before making the final DC connection or closing DC breaker/disconnector, be sure that the positive (+) must be connected to positive (+) and negative (-) connected to the negative (-)
• Before connecting to the AC input power source, please install a separate AC breaker between the inverter and the AC input power source. The recommended spec of AC breaker is 32A for 3KW and 50A for 5KW.
• Never install the all-in-one solar charge inverter and lead-acid battery in the same confined space! Also do not install in a confined place where battery gas may collect.
• Ensure that there is enough air flowing through the heat sink, and space of at least 200m to the left and right air outlets of the inverter shall be left to ensure natural convection heat dissipation.



POW-VM3K-III  DataSheet

SPECIFICATIONS
Table 1 Line Mode Specifications
INVERTER MODEL	3KW	5KW
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac
Low Loss Voltage	170Vac±7V (UPS); 90Vac±7V (Appliances)
Low Loss Return Voltage	180Vac±7V (UPS);100Vac±7V (Appliances)
High Loss Voltage	280Vac±7V
High Loss Return Voltage	270Vac±7V
Max AC Input Voltage	300Vac
Nominal Input Frequency	50Hz / 60Hz (Auto detection)
Low Loss Frequency	40±1Hz
Low Loss Return Frequency	42±1Hz
High Loss Frequency	65±1Hz
High Loss Return Frequency	63±1Hz
Output Short Circuit Protection	Circuit Breaker
Efficiency (Line Mode)	>95% ( Rated R load, battery full charged )
Transfer Time	10ms typical (UPS); 20ms typical (Appliances)
Table 2 Inverter Mode Specifications
INVERTER MODEL	3KW	5KW
Rated Output Power	3KVA/3KW	5KVA/5KW
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	230Vac±5%
Output Frequency	50Hz
Peak Efficiency	93%
Overload Protection	5s@≥130% load; 10s@105%~130% load
Surge Capacity	2* rated power for 5 seconds
Nominal DC Input Voltage	24Vdc	48Vdc
Cold Start Voltage	23.0Vdc	46.0Vdc
Low DC Warning Voltage
@ load < 50%	23.0Vdc	46.0Vdc
@ load ≥ 50%	22.0Vdc	44.0Vdc
Low DC Warning Return Voltage
@ load < 50%	23.5Vdc	47.0Vdc
@ load ≥ 50%	23.0Vdc	46.0Vdc
Low DC Cut-off Voltage
@ load < 50%	21.5Vdc	43.0Vdc
@ load ≥ 50%	21.0Vdc	42.0Vdc
High DC Recovery Voltage	32Vdc	62Vdc
High DC Cut-off Voltage	33Vdc	63Vdc
No Load Power Consumption	<35W	<50W
Table 3 Charge Mode Specifications
Utility Charging Mode
INVERTER MODEL	3KW	5KW
Charging Algorithm	3-Step
AC Charging Current (Max)	60Amp (@VI/P=230Vac)
Bulk Charging Voltage
Flooded Battery	29.2	58.4
AGM / Gel Battery	28.2	56.4
Floating Charging Voltage	27V DC	54V DC
MPPT Solar Charging Mode
INVERTER MODEL	3KW	5KW
Max. PV Array Power	4000W	5000W
Nominal PV Voltage	240V DC	320V DC
Start-up Voltage	150V DC±10V DC
PV Array MPPT Voltage Range	120-450V DC
Max. PV Array Open Circuit Voltage	500V DC
Max Charging Current (AC charger plus solar charger)	80A
Table 4 General Specifications
INVERTER MODEL	3KW	5KW
Operating Temperature Range	-10°C to 50°C
Storage temperature	-15°C~ 60°C
Humidity	5% to 95% Relative Humidity (Non-condensing)
Dimension (D*W*H), mm	115 x 300 x 400
Net Weight, kg	9	10
