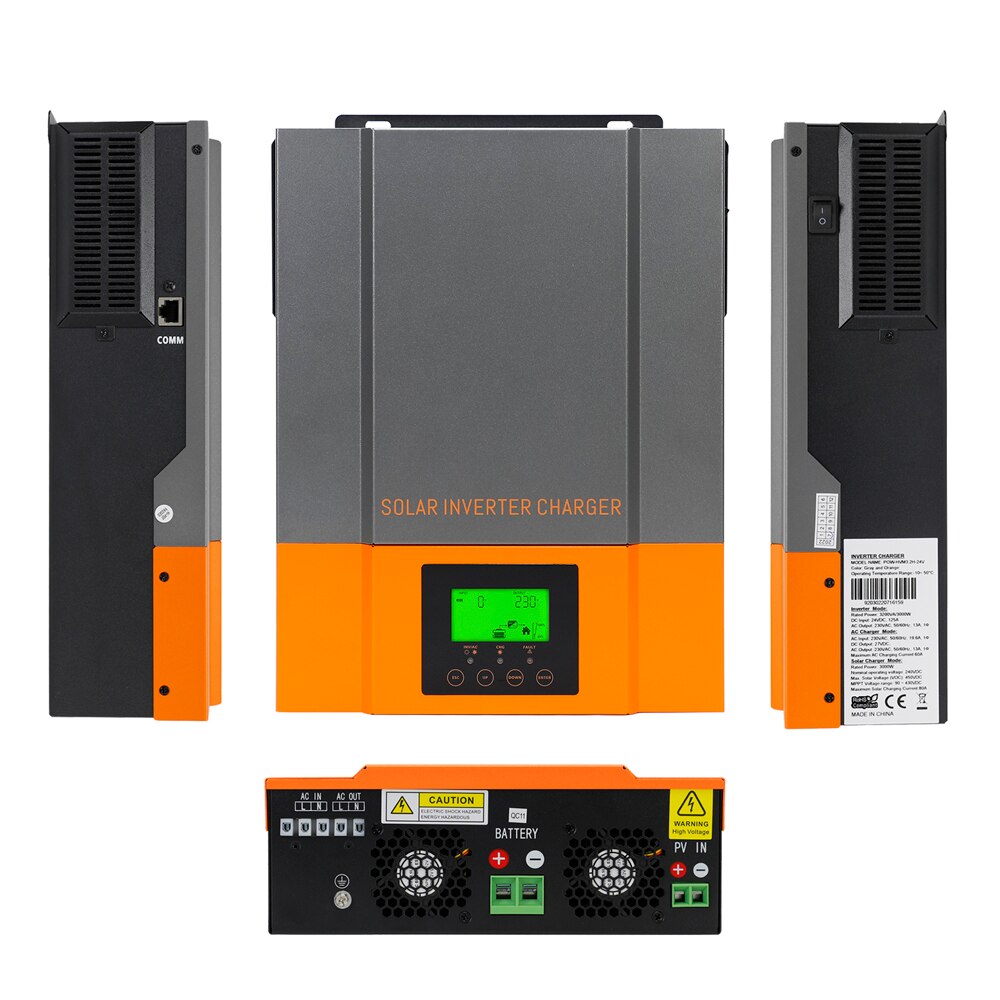

PowMr 1.5KW 2.4KW 3.2KW Hybrid Solar Inverter Charging 80A 12V/24V to 230V Photovoltaic Inversor & MPPT Solar Charge Controller
PowMr 1.5KW 2.4KW 3.2KW Hybrid Solar Inverter Charging 80A 12V/24V to 230V Photovoltaic Inversor & MPPT Solar Charge Controller
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Working efficiency: >95%
Work for: solar Panel/Photovoltaic Panel
Weight: 5.8KG
Size: 348x270x95 mm
Shipping 2: Within 3-7 days, the package arrive.
Shipping 1: EU customers purchase from China, and the system automatically sends packages from Europe.
Rated output power: 3200W/2400W/1500W
Product: hybrid solar inverter
Part of: solar system complete
PV operating voltage: 90VDC-430VDC
Output voltage range: 220VAC/230VAC/240VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ
Output Current: MPPT 80A
Origin: Mainland China
Model Number: POW-HVM H Series
Maximum PV input voltage: 450VDC
Maximum PV input power: 3000W/2000W
Maximum PV input current: 18A
Load type: Household appliances, farm tools, farm tools
Is Smart Device: YES
Feature: Support wifi module
Description: photovoltaic hybrid inverter
Charging: pure sine wave inverter
Certification: CE
Brand Name: PowMr
Battery voltage: 24V/12V
Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries
Applicable equipment: Factory equipment, commercial load, industrial machinery
Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)
Note:EU customers purchase from China, and the system automatically sends packages from Europe.Within 3-7 days, the package arrive.

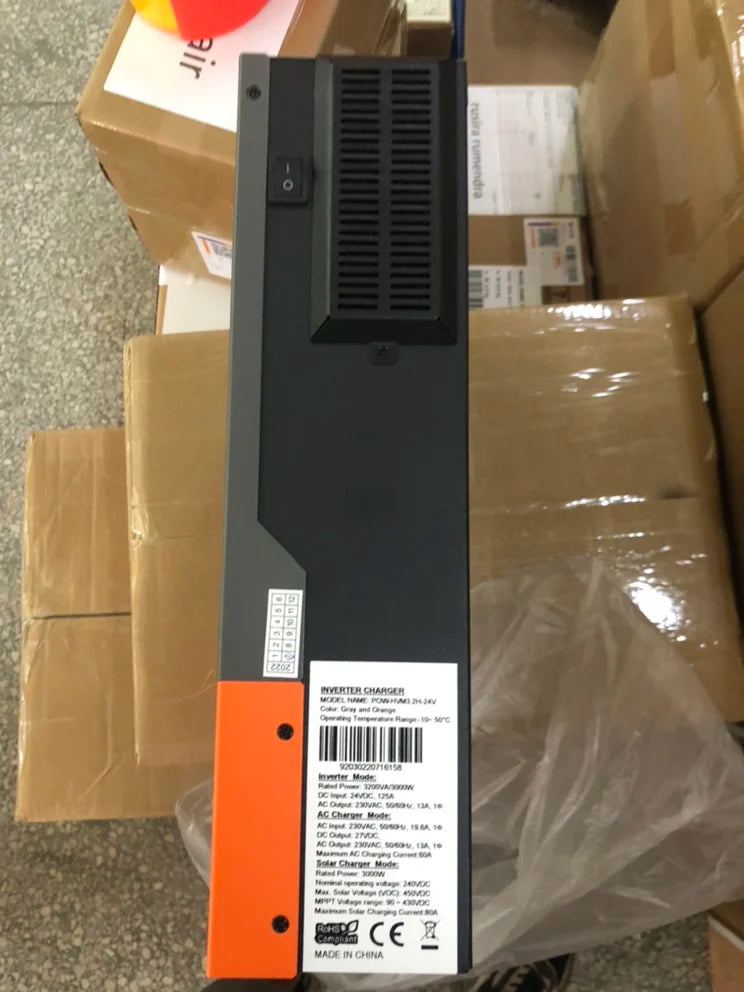

PowMr 1.5KW 2.4KW 3.2KW Hybrid Solar Inverter Charge 80A 12V/24V to 230V Photovoltaic Inversor With MPPT Solar Charge Controller Support Wifi Model
Overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
PowMr POW-HVM3.2H-24V hybrid inverter charges lithium batteries, supporting up to 80A max charge current. It features MPPT technology, with an output voltage of 230V (±5%) and a maximum PV array power of 3200W. The solar charger also supports lithium batteries and has a pure sine wave output at 50/60Hz.

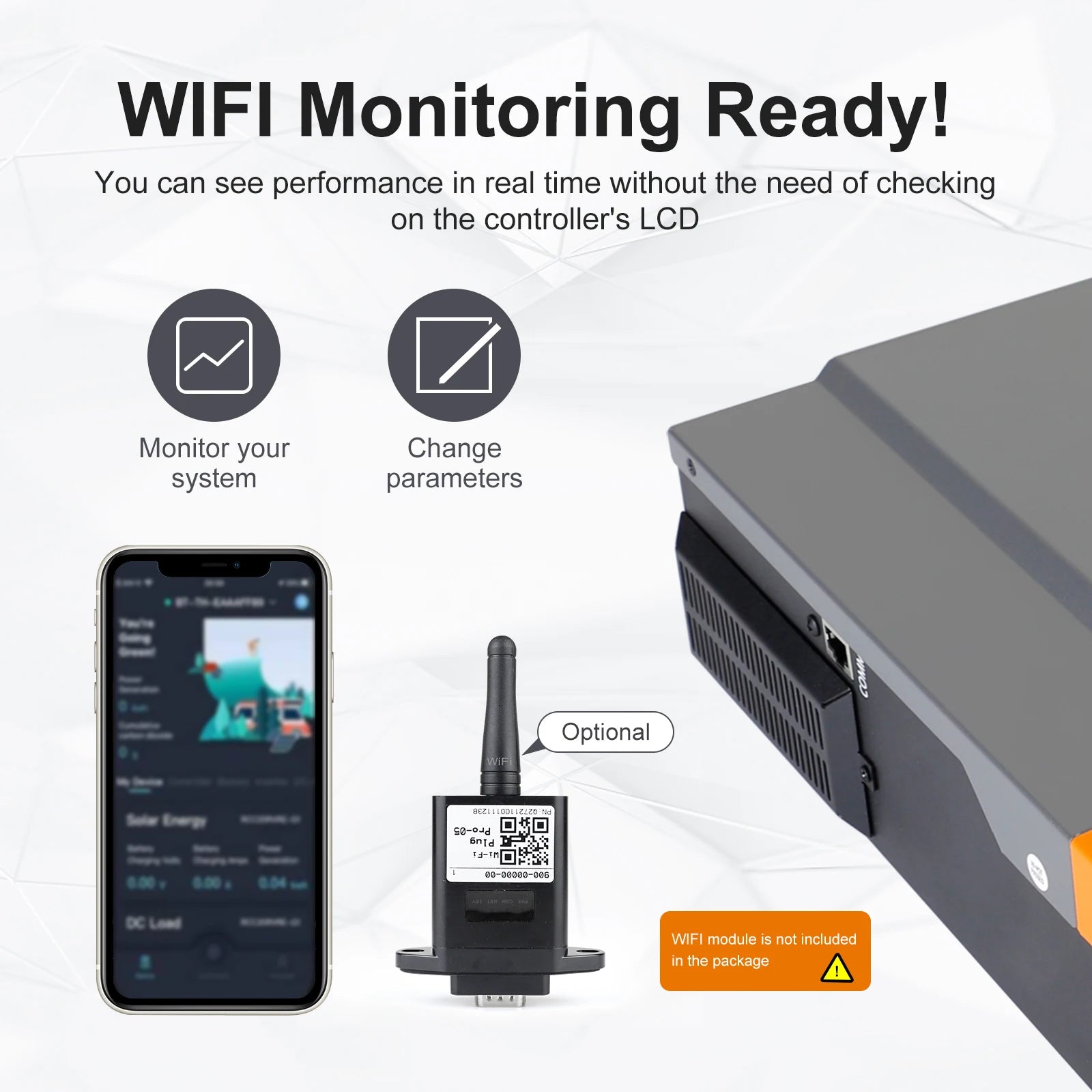

Monitor your solar system performance in real-time via WiFi, eliminating the need to check the LCD monitor. Optional parameters can be adjusted remotely. Please note that the WiFi module is not included in the package.
Features:
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS(Option)
• Can connect to lithium battery

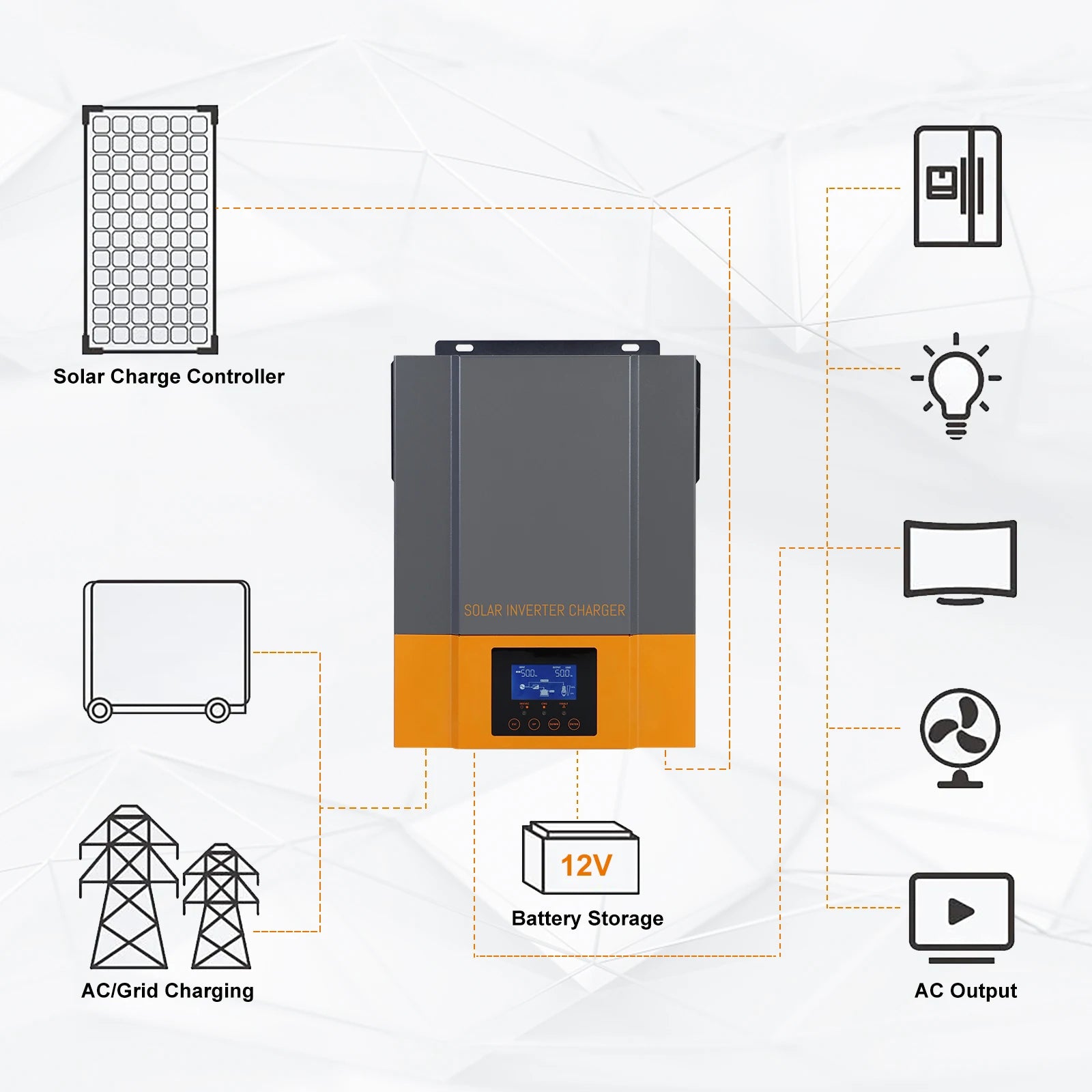

Solar charge controller with MPPT technology, suitable for 12V battery storage and AC grid charging, providing reliable DC-AC conversion.
Specifications:
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Rated Output Power |
1.5KW |
2.4KW |
3200VA/3000W |
Output Voltage Waveform |
Pure Sine Wave |
||
Output Voltage Regulation |
230Vac±5% |
||
Utility Charging Mode | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Charging Algorithm |
3-Step |
||
AC Charging Current (Max) |
60 Amp |
||
Bulk Charging Voltage | |||
Flooded Battery |
14.6 |
29.2 |
|
AGM / Gel Battery |
14.1 |
28.2 |
|
Floating Charging Voltage |
13.5Vdc |
27.0Vdc |
|
MPPT Solar Charging Mode | |||
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
|
Max. PV Array Power |
2000W |
3000W |
3000W |
Nominal PV Voltage |
240Vdc |
||
PV Array MPPT Voltage Range |
90~430Vdc |
||
Max. PV Array Open Circuit Voltage |
450Vdc |
||
Max Charging Current (AC charger+solar charger) |
80Amp |
||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Safety Certification |
CE |
||
Operating Temperature Range |
-10°C to 50°C |
||
Storage temperature |
-15°C~ 60° C |
||
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
||
Input Voltage Waveform |
Sinusoidal (utility or generator) |
||
Nominal Input Voltage |
230Vac |
||
Low Loss Voltage |
170Vac±7V (UPS)； 90Vac±7V (Appliances) |
||
Low Loss Return Voltage |
180Vac±7V (UPS); |
||
100Vac±7V (Appliances) | |||
High Loss Voltage |
280Vac±7V |
||
High Loss Return Voltage |
270Vac±7V |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Low Loss Frequency |
40±Hz |
||
Low Loss Return Frequency |
42±Hz |
||
High Loss Frequency |
65±Hz |
||
High Loss Return Frequency |
63±Hz |
||
Output Short Circuit Protection |
Circuit Breaker |
||
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
||
Transfer Time |
10ms typical (UPS); |
||
20ms typical (Appliances) | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Output Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Peak Efficiency |
91% |
94% |
|
Overload Protection |
5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad |
||
Surge Capacity |
2* rated power for 5 seconds |
||
Nominal DC Input Voltage |
12Vdc |
24Vdc |
|
Cold Start Voltage |
11.5Vdc |
23.0Vdc |
|
Low DC Warning Voltage | |||
@ Io ad < 50>% |
11.0Vdc |
22.0Vdc |
|
@ load >50% |
10.5Vdc |
21.0Vdc |
|
Low DC Warning Return Voltage | |||
@ load < 50% |
11.5Vdc |
22.5Vdc |
|
@ load >50% |
11.0Vdc |
22.0Vdc |
|
Low DC Cut off Voltage | |||
@ load < 50% |
10.2Vdc |
20.5Vdc |
|
@ load >50% |
9.6Vdc |
20.0Vdc |
|
High DC Recovery Voltage |
14.0Vdc |
32Vdc |
|
High DC Cut-off Voltage |
16.0Vdc |
33Vdc |
|
No Load Power Consumption |
<25W |
<30W |
<35W |
Photos:
PowMr's hybrid solar inverter charger converts DC 12V/24V to AC 220/230V, with an MPPT controller and 8A charging capacity. Ideal for home use, camping, RVs, or boats, this wide-application product supports solar, generator, and utility charging.

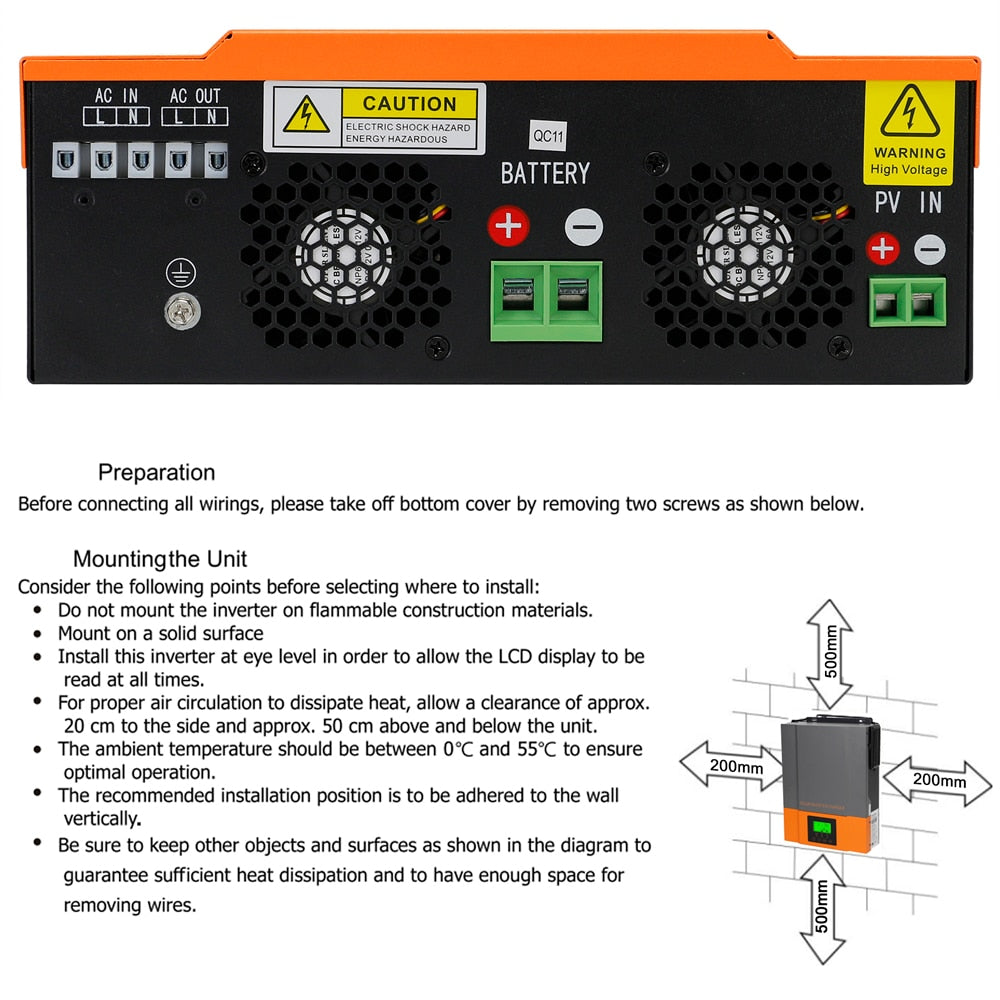

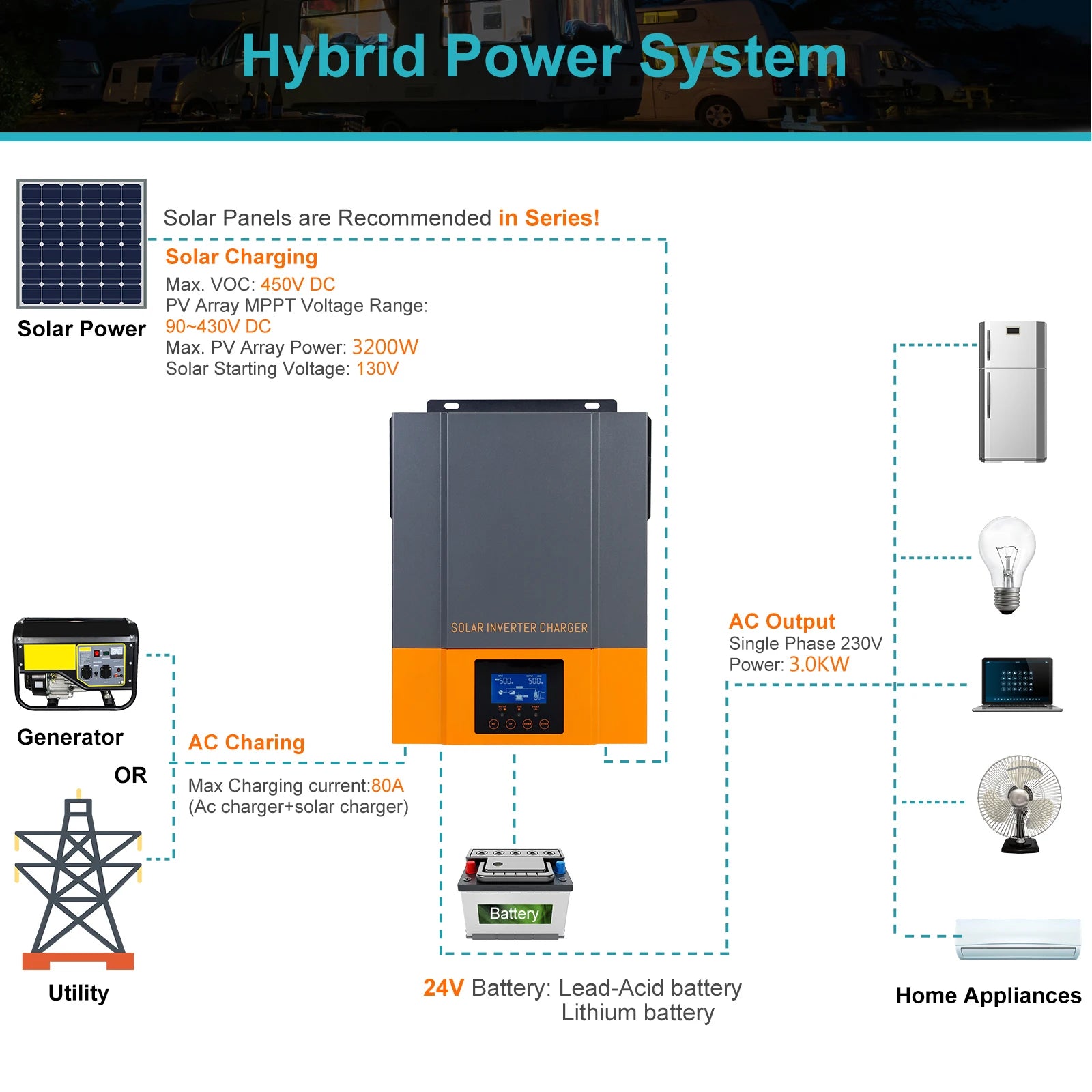

The PowMr hybrid solar inverter is designed for a series-connected photovoltaic (PV) array, supporting up to 3200W of power. The maximum voltage range is 90-430V DC, with a starting voltage of 130V. It features an MPPT charger that can handle 80A of current and outputs AC power at 230V, making it suitable for charging lead-acid or lithium-ion batteries.

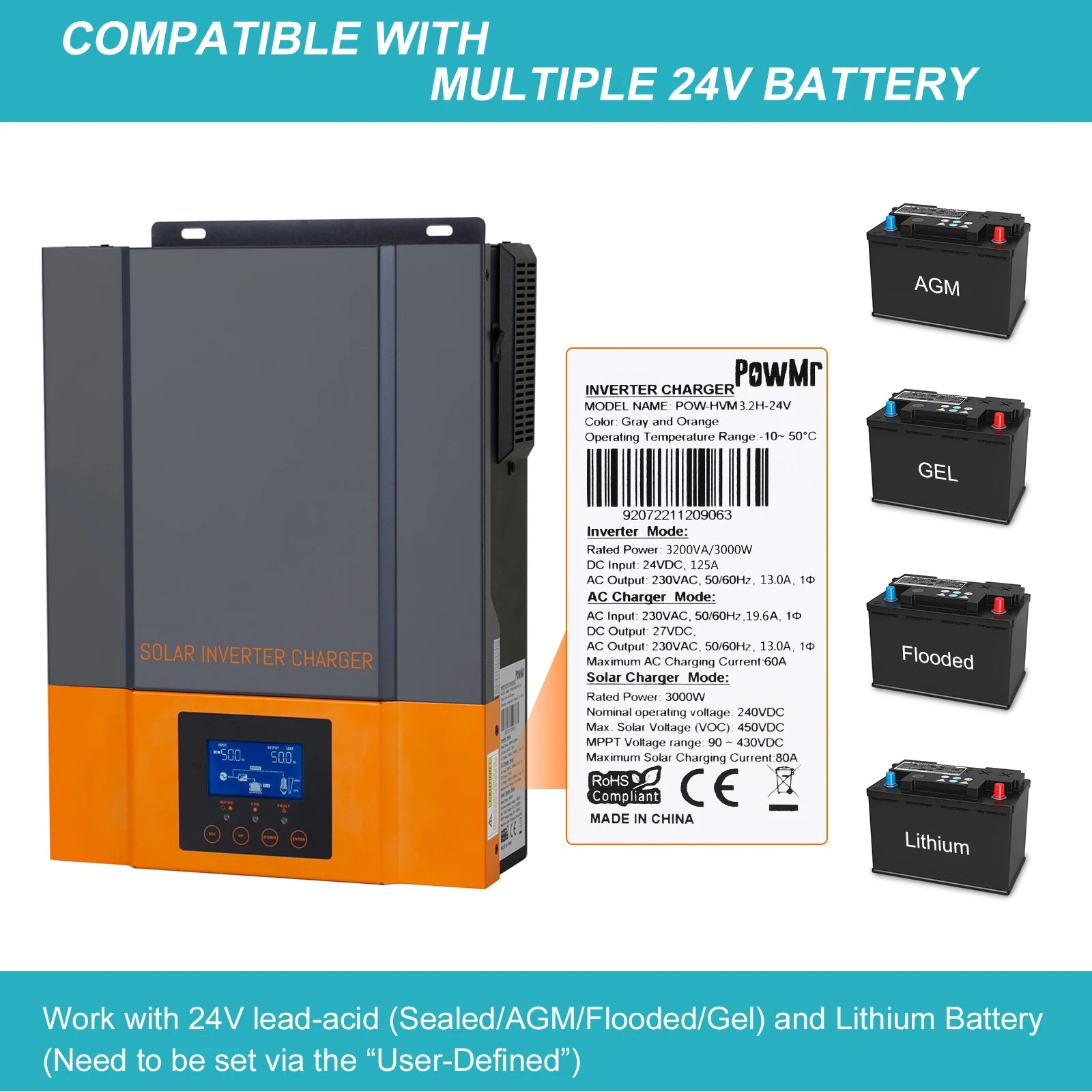

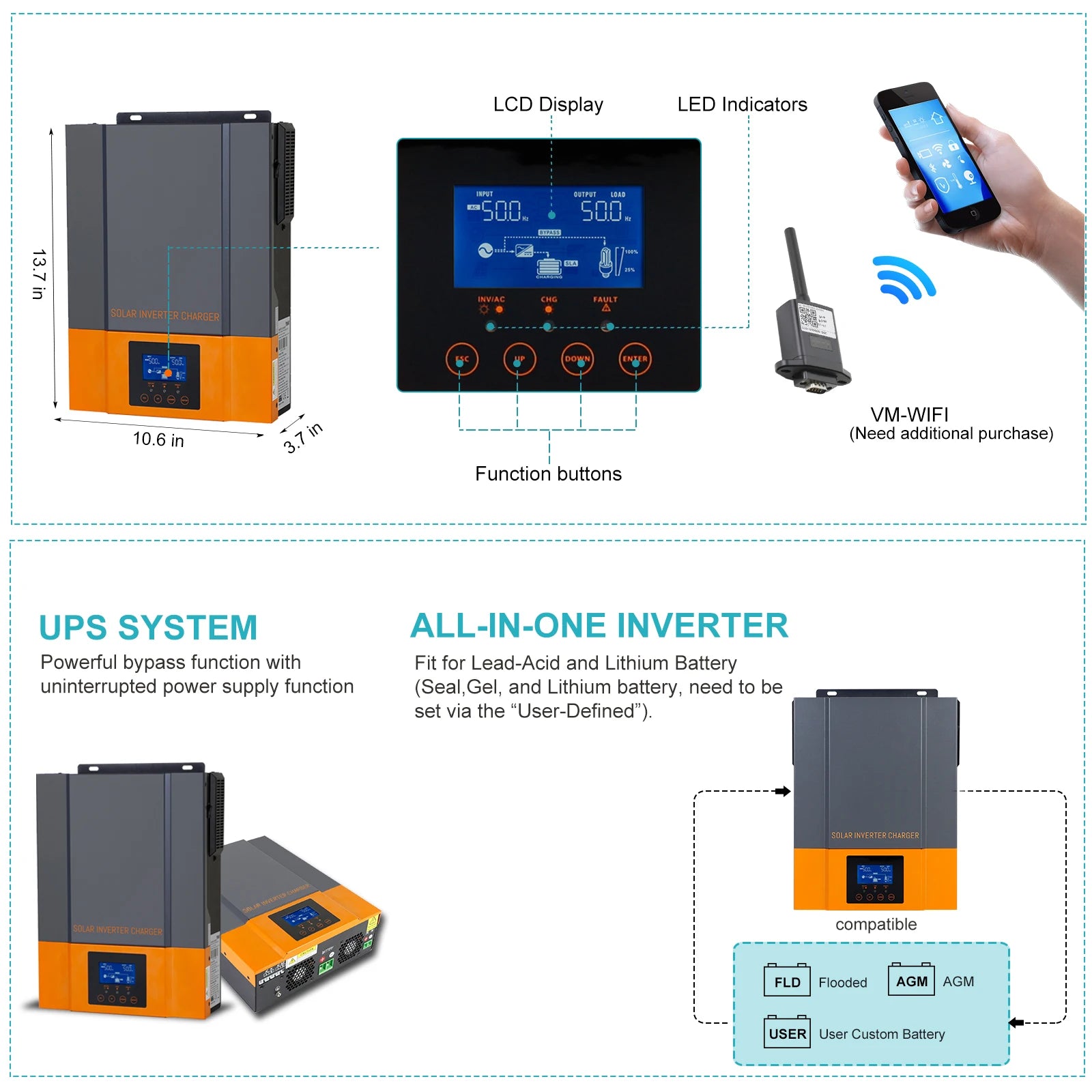

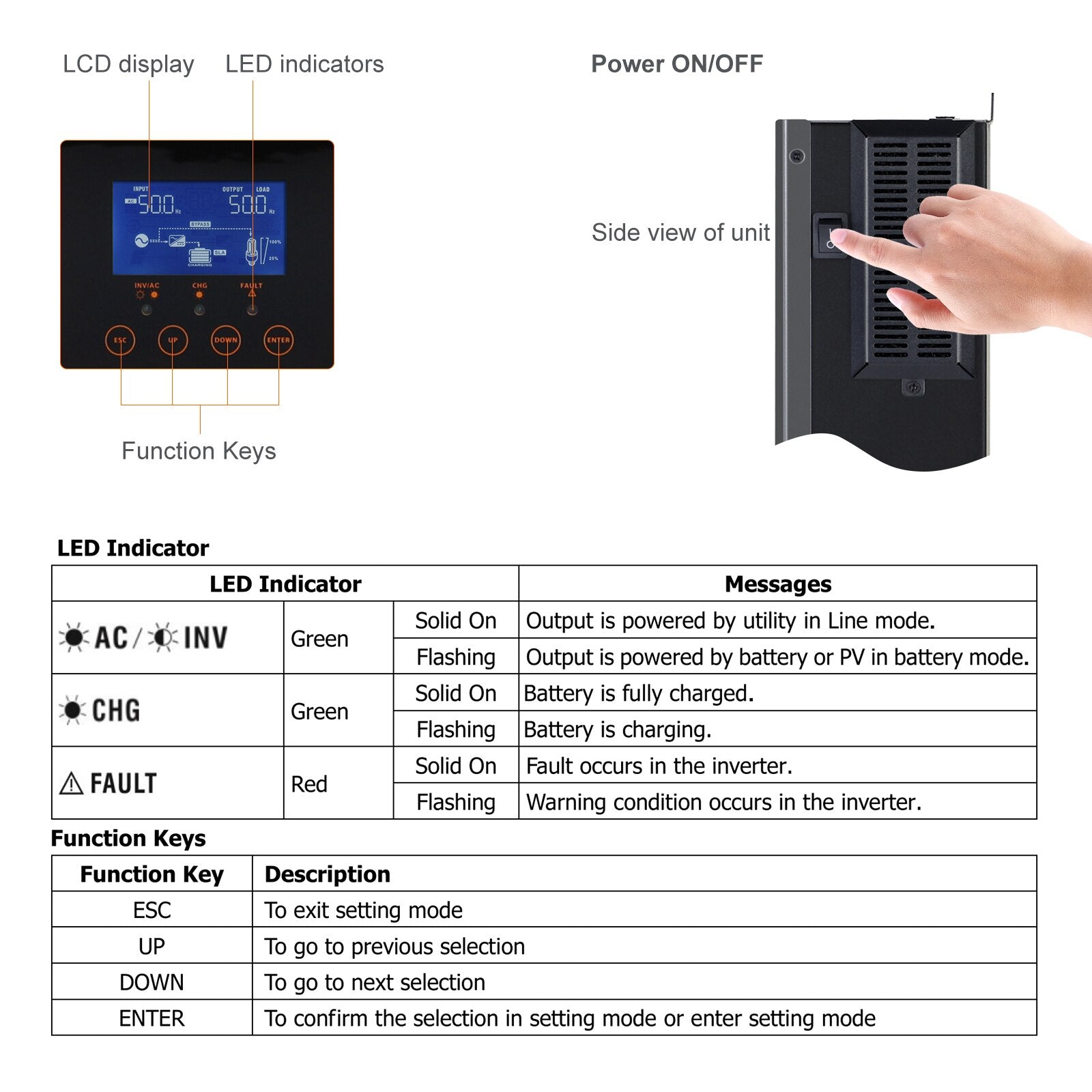

PowMr Solar Inverter Charging System: Hybrid solar inverter with LCD display and LED indicators, supporting 80A charge controllers for 12V/24V to 230V photovoltaic systems. Features include powerful bypass function, UPS system, and all-in-one inverter design suitable for lead-acid and lithium batteries (setting via user-defined settings required). Compatible with flooded, AGM, and lithium-ion battery types.

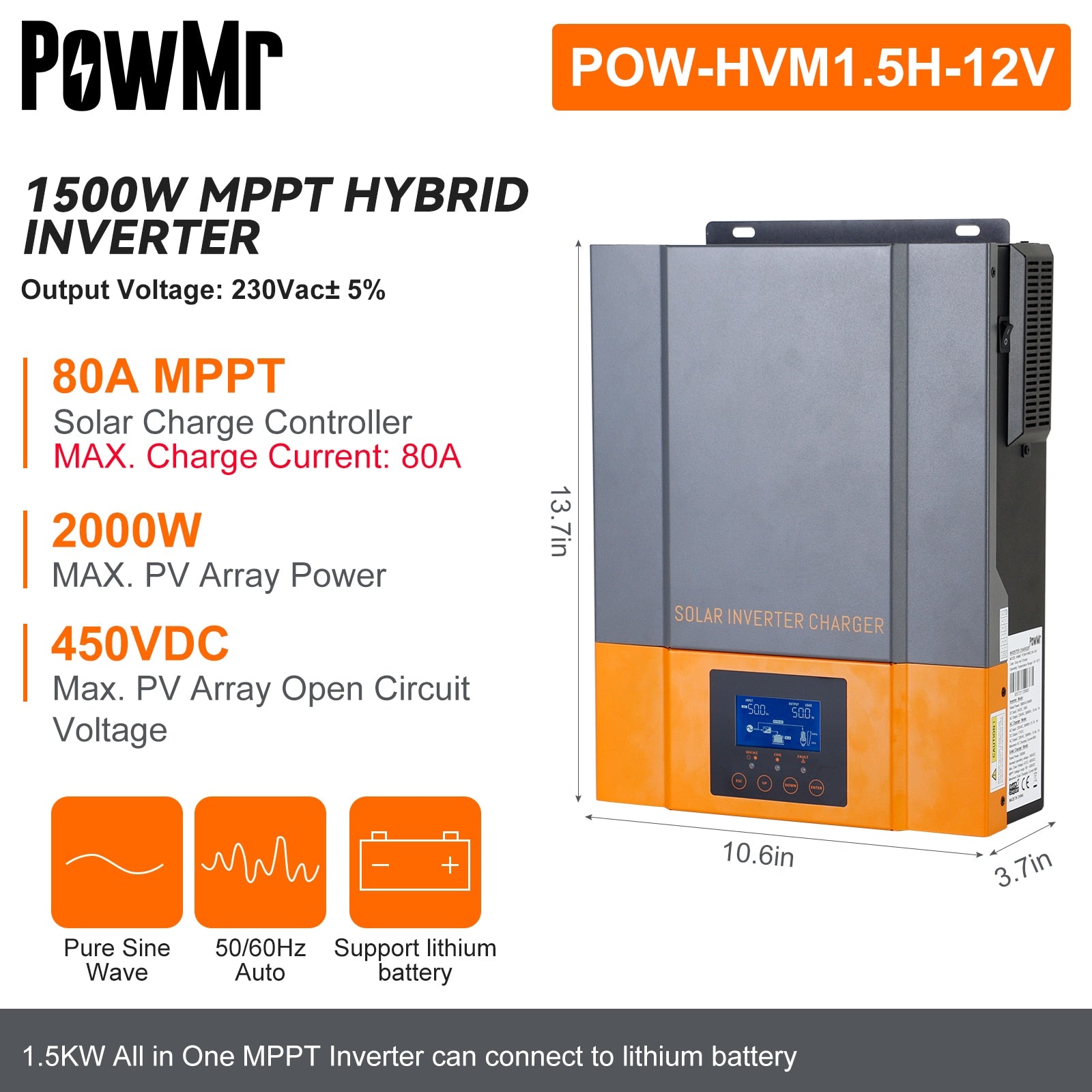

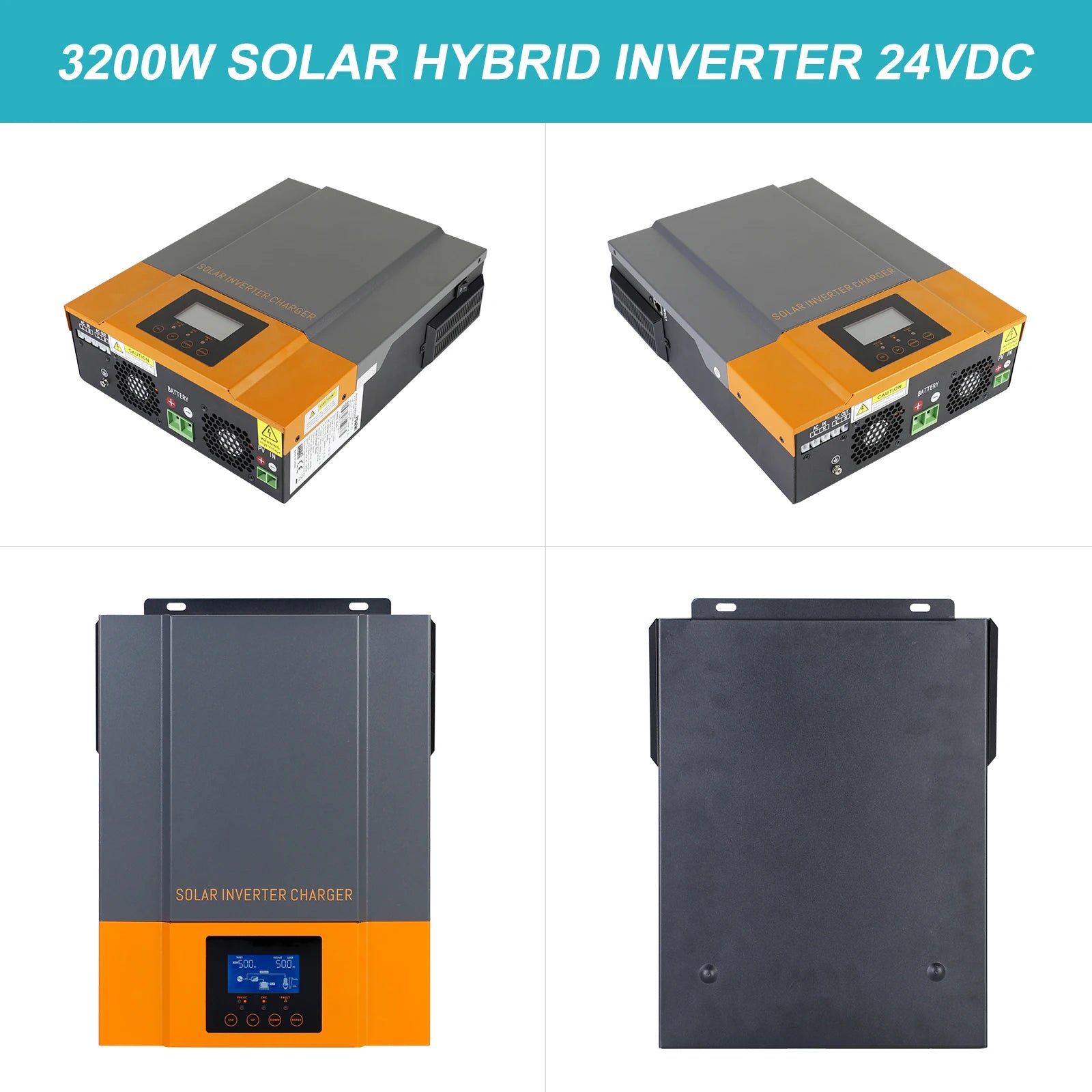

PowMr Solar Hybrid Inverter: A 1.5KW to 3.2KW inverter charger for 12V/24V solar panels, supporting up to 80A charging and MPPT technology.
PowMr Hybrid Solar Inverter Charger with MPPT technology for efficient energy conversion.

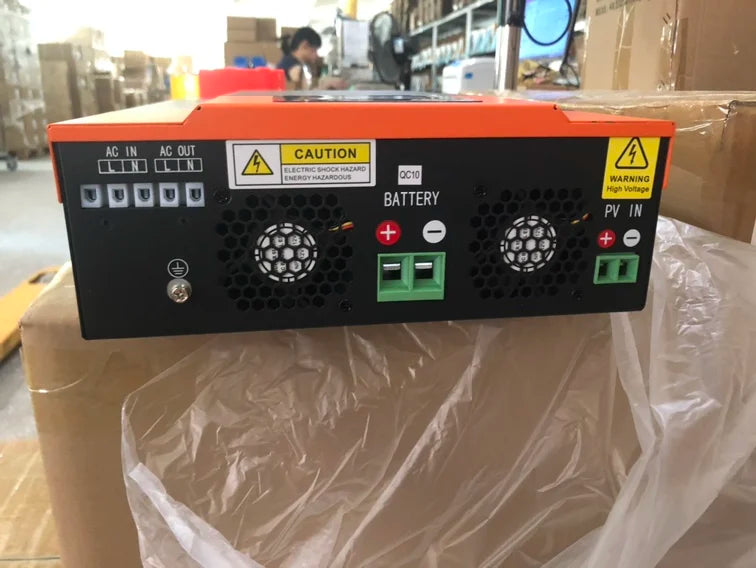

Warning: do not charge battery with solar panel if warning light is on.
