PowMr 100% MPPT 60A Solar Charge Controller 190V Plus Version DSP Regulator Work For Solar Battery 12V 24V 36V 48V Solar Panel

PowMr 100% MPPT 60A Solar Charge Controller 190V Plus Version DSP Regulator Work For Solar Battery 12V 24V 36V 48V Solar Panel

Regular price $117.65 USD
Regular price Sale price $117.65 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color
Current

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

battery type(default is Sealed): Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)

Warranty: 2 years

The maximum PV input voltage (Voc): 190VDC

Product name: MPPT 60A Solar Charge Controller

Output voltage ripple-peak: 100mv

Origin: Mainland China

Model Number: POW-M60-PRO

Maximum Current: 60A

Maximum Current: MPPT 60A

Item: 100% MPPT technology pure sine wave

Is Smart Device: YES

Ground Type: Positive Ground

Feature: 0 Layer, easy to install, easy setup,Restore all data with one click

Cooling way: Forced air cooling

Certification: CE

Brand Name: PowMr

Battery Voltage: 12V/24V/36V/48V Auto

Battery Types: Sealed lead acid, vented gel, and lithium battery, etc

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Application: Solar System Controller,Solar Working Station




PowMr MPPT 60A Solar Charge Controller 190V Plus Version DSP Regulator Work For Solar Battery 12V 24V 36V 48V Auto Solar Panel

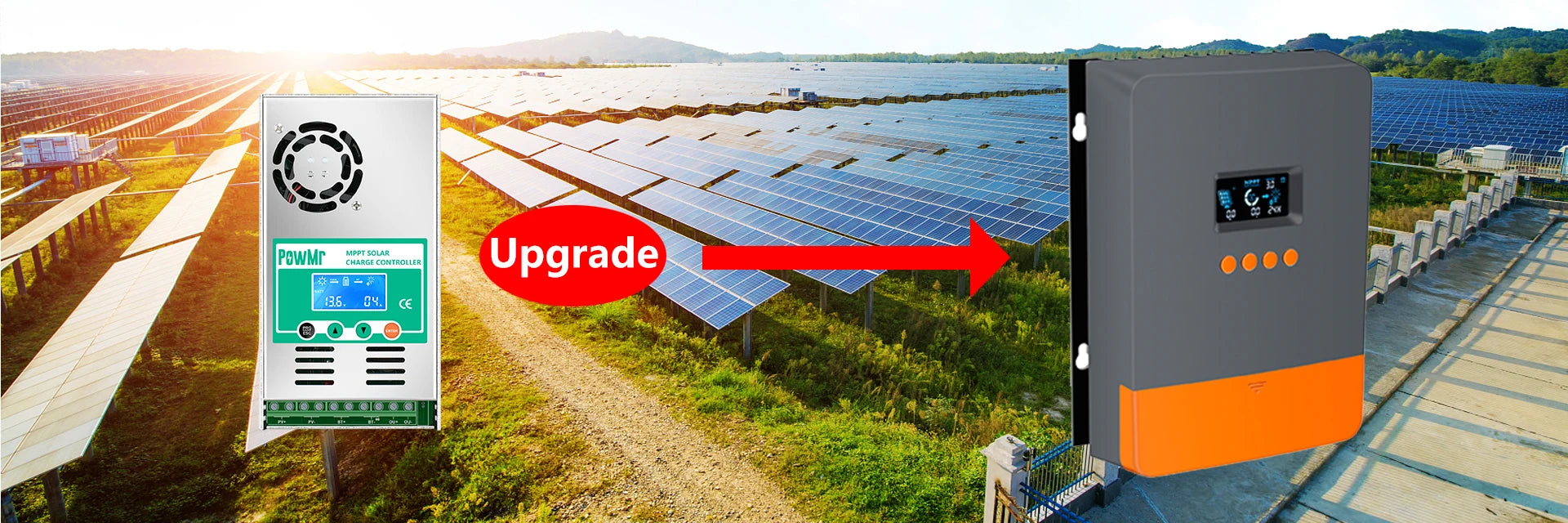

PowMr 100% MPPT 60A Solar Charge Controller, PowMr MPPT Solar Charge Controller for 12-48V solar panels with DSP regulation.

PowMr MPPT Solar Charge Controller (Upgraded Version): 60A, 190V, DSP Regulator for Solar Battery, suitable for 12V, 24V, 36V, and 48V solar panels.



Overview:

PowMR 60Amps MPPT solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

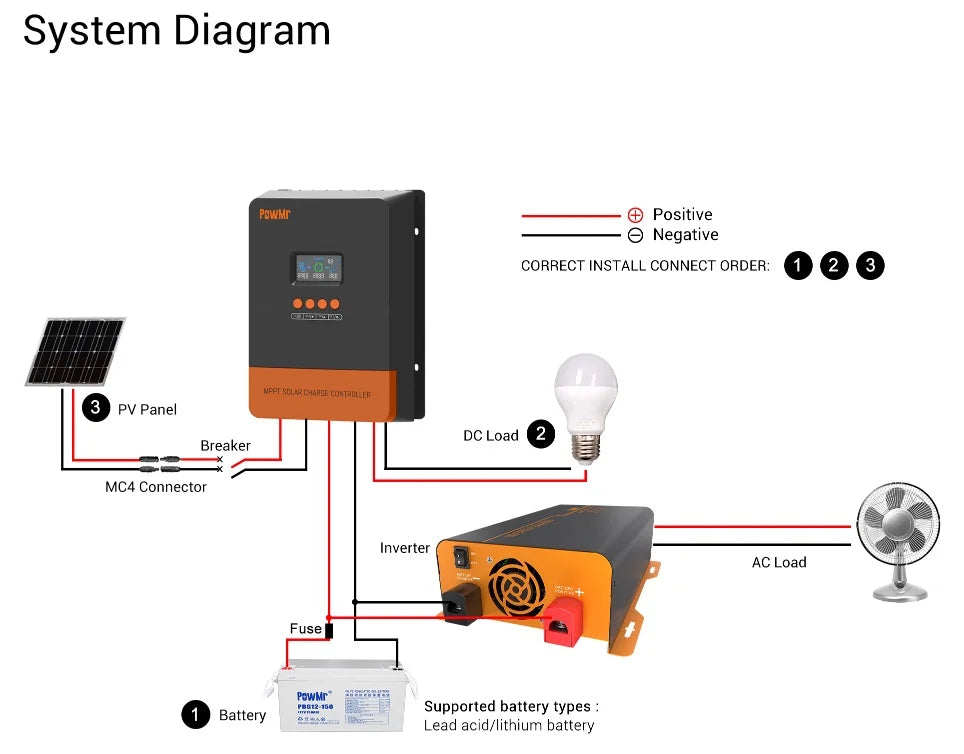

PowMr 100% MPPT 60A Solar Charge Controller, PowMr's system diagram: PV panel to inverter with compatible lead-acid or lithium batteries.

PowMr's system diagram illustrates the correct installation and connection process: PV panel → DC cable → breaker → MC4 connector → inverter → AC load. Compatible batteries include lead-acid and lithium types, all supported by PowMr.

Features:

●MPPT 30A/40A/50A/60A solar charge controller
●100% MPPT technology
●0 Layer, easy installation, easy setup
●Built-in DSP controller with high performance
●Automatic switch for 12V/24V/36V/48V battery bank
●3-stage charging optimizes battery performance
●Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
●Over-temperature protection
●Troubleshooting promotion function.
●Suitable for battery types such as sealed lead acid, vented gel, and lithium battery, etc
●Easy to be mounted

●Restore all data with one click

Product Details:


Technical Specification for Selection Guide
Models
POW-M60-PRO
Charging mode
MPPT Maximum power point tracking automatically
Charging
3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
System type
DC12V/24V/36V/48V Recognition automatically
System voltage automatic recognition
1 2V system (DC9V-DC15V)
24V system (DC18V-DC29V)
36V system (DC30V-DC39V)
48V system (DC40V〜DC60V)
Soft start time
<1S
Dynamic response and recovery time
>98.1 % (Voc is 1.5 or 2 times than battery, then it's the best efficiency)
PV utilization
>99%
Input specification
VOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.)
12V system (DC20V〜DC80V)
24V system (DC37V-DC105V)
36V system (DC50V〜DC160V)
48V system (DC72V〜DC160V)
The maximum PV input voltage (Voc)
DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.)
The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.)
12V system (720W)
24V system (1440W)
36V system (2100W)
48V system (2800W)
Output specification
Selectable battery type(default is Sealed)
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage
Refer to Batteries charging reference
Floating Charging Voltage
Refer to Batteries charging reference
Overcharging protection voltage
12V system (15V)
24V system (30V)
36V system (45V)
48V system (60V)
Rated output current
60A
Temperature Coefficient
±0.02%/ °C
Automatic temperature compensation
14.2V-(Max temperature-25 °C)*0.3
Output voltage ripple-peak
100mv
Output voltage accuracy
<±1%
Input Anti-intrusion protection
yes
Temperature Protection
75°C
Temperature increased protection
Output power will reduce when it's more than 70 °C
Output power will be normal when it's less than 55 °C
Fan-on temperature
>40 °C
Fan-off temperature
<35 °C
Acoustic noise
<40dB
Cooling way
Forced air cooling
Components
Imported materials, Accord to EU standards, Industrial grade range.
Environmental requirements
Meet 2002/95/EC; No cadmium, hydrides, and fluorides
Security Level
Accord to CE, PSE, FCC, EMC, EN60950
Electromagnetic Compatibility
Accord to EN6W00, EN55022, EN55024
Enclosure
IP21
Net weight(Kg)
1.3
Gross weight(Kg)
1.5

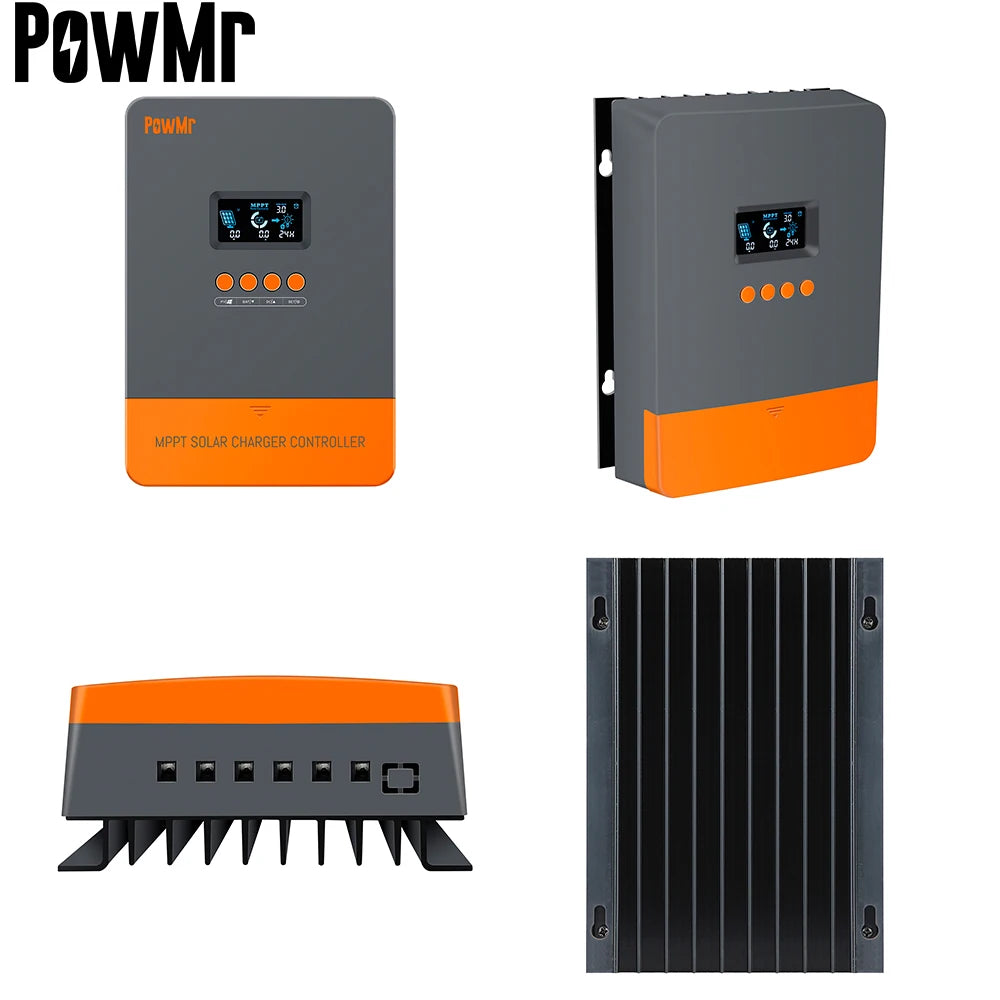

PowMr 100% MPPT 60A Solar Charge Controller, PowMr MPPT Solar Charger Controller for efficient charging of solar batteries.

PowMr MPPT Solar Charger Controller for efficient charging of solar batteries up to 190V.

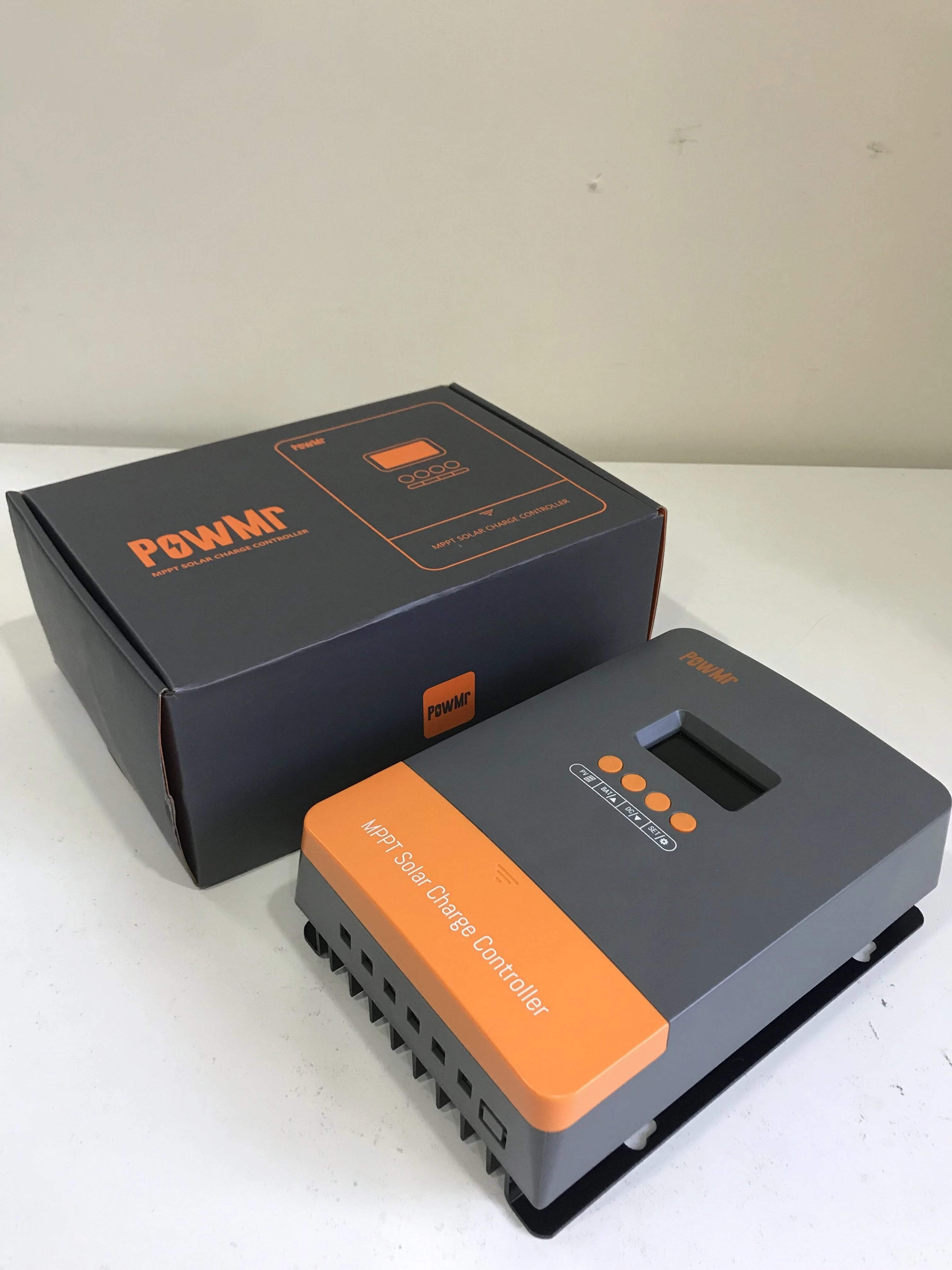

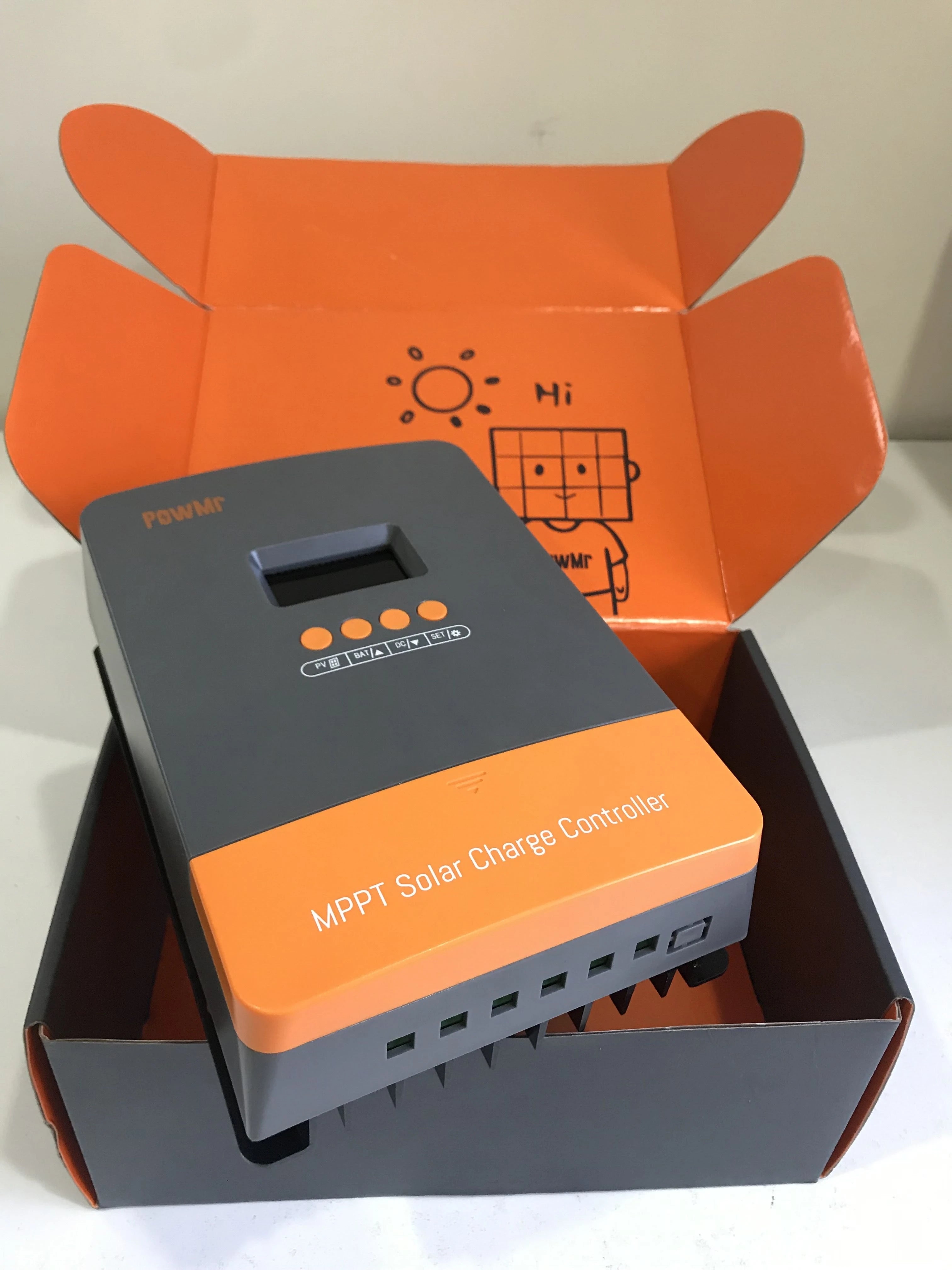

PowMr 100% MPPT 60A Solar Charge Controller, PowMr MPPT 60A Solar Charge Controller: advanced technology for efficient solar charging with customizable options.PowMr 100% MPPT 60A Solar Charge Controller, Supports various battery voltages (12V, 24V, 36V, 48V) for efficient solar charging.

PowMr's MPPT solar charge controller supports 12V, 24V, 36V, and 48V battery systems with high-efficiency regulation.

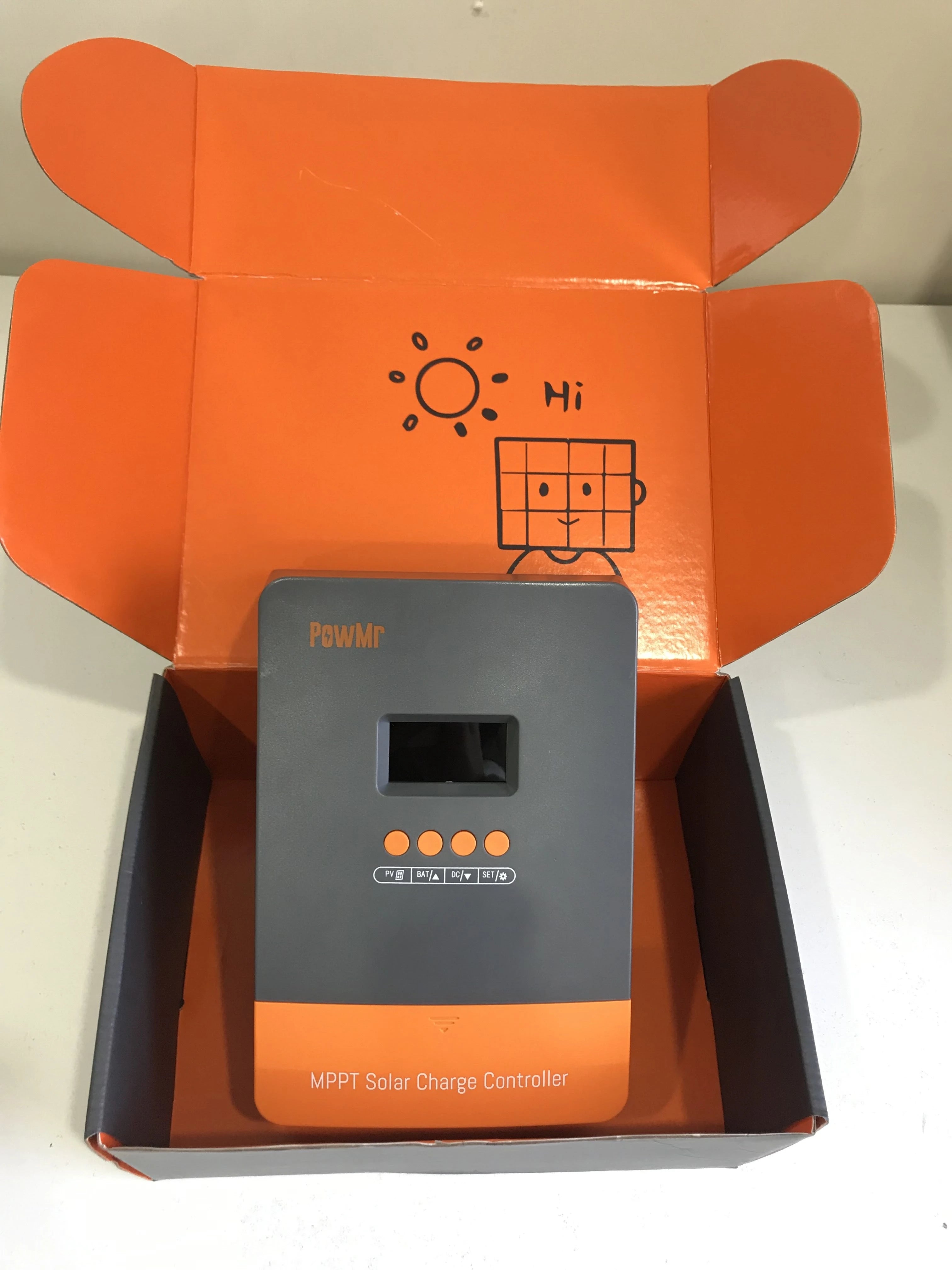

PowMr 100% MPPT 60A Solar Charge Controller, PowMr's Efficient Solar Charge Controller for 12V to 48V Batteries and Panels

Introducing PowMr's 100% efficient MPPT solar charge controller for 12V, 24V, 36V, or 48V batteries and panels.

PowMr 100% MPPT 60A Solar Charge Controller, Alternative Voltages: 12V, 24V, 36V, and 48V systems with maximum PV input voltage (Voc) DC190V.

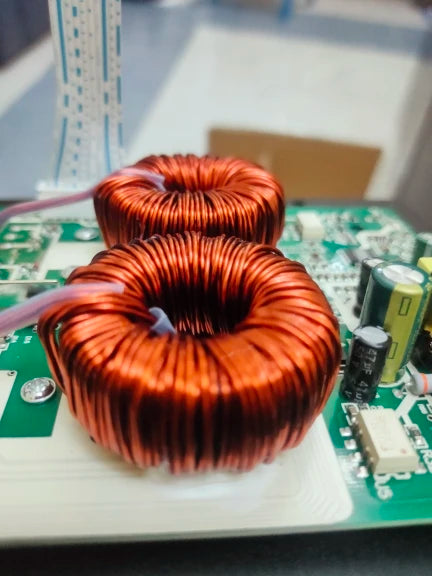

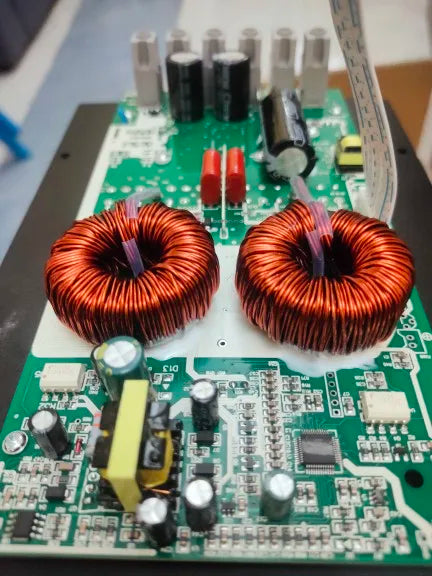

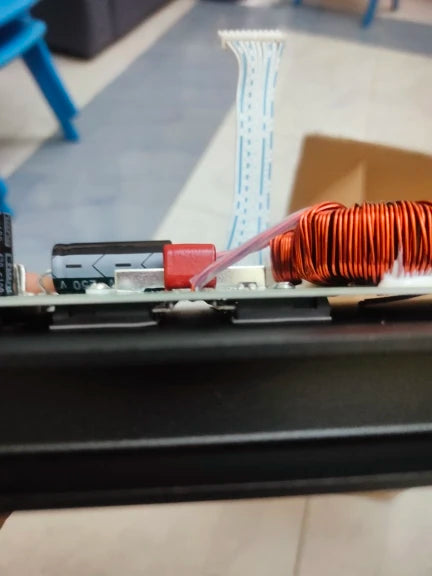

PowMr 100% MPPT 60A Solar Charge Controller, Environmental and safety compliance information for an electronic device.PowMr 100% MPPT 60A Solar Charge Controller, Voice coil (Voc) efficiency improves with voltage increases, becoming 1.5-2 times better than battery power.PowMr 100% MPPT 60A Solar Charge Controller 190V Plus Version DSP Regulator Work For Solar Battery 12V 24V 36V 48V Solar PanelPowMr 100% MPPT 60A Solar Charge Controller, Solar panel voltage range for 12V, 24V, 36V, and 48V systems.
