PowMr 10200W 8200W On Grid Inverter 48V 230V Hybrid Solar Inverter Off Grid Pure Sine Wave Inverter with MPPT 160A 180A Charger
PowMr 10200W 8200W On Grid Inverter 48V 230V Hybrid Solar Inverter Off Grid Pure Sine Wave Inverter with MPPT 160A 180A Charger
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 15KG
Type: Hybrid Solar Inverter
Size: 537*390*130mm
Output Voltage Waveform: Pure Sine Wave
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ
Output Current: MPPT 160A/180A
Origin: Mainland China
Model Number: POW-HVM8.2M/POW-HVM10.2M
Max.PV Array Power: 8200W/10200W
Max.PV Array Open Circuit Voltage: 500VDC
Feature: Daul PV Input
Certification: CE
Brand Name: PowMr
Feature:
1.Pure sine wave solar inverter（on Grid & off Grid）
2.Compatible to mains voltage or generator power
3.Output power factor 1.0
4.High PV input voltage range(90~500VDC)

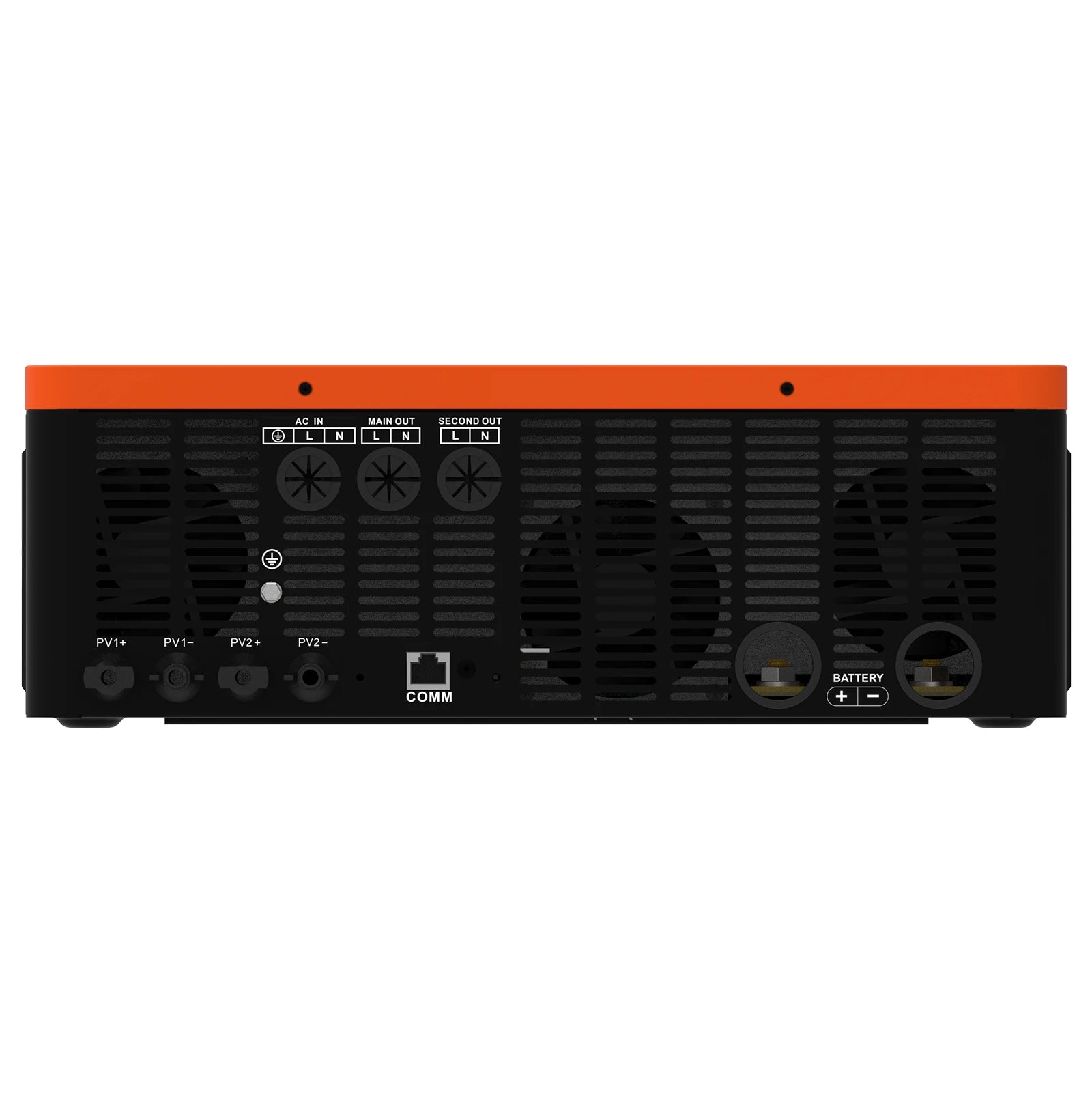

5.WIFI&GPRS available for IOS and Android
6.Built-in anti-dust kit for harsh environment
7.Built-in 160A（8.2KW）/180A（for 10.2KW）MPPT solar charge
8.Smart battery charge design to optimize battery life
9.One-click restoration to factory Settings
10.Dual output
11.Built-in Lithium battery automatic activation
12.Touch buttom
13.Auto restart while AC is recovering
14.Overload/ Over temperature/ short circuit protection
15.Cold start function
MODEL |
8.2KW |
10.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50Hz |
|
Peak Efficiency |
93% |
|
Nominal DC Input Voltage |
48Vdc |
|
High DC Recovery Voltage |
62Vdc |
|
High DC Cut-off Voltage |
63Vdc |
|
No Load Power Consumption |
70W |
75W |
Two Load Output Power | ||
Full Load |
8200W |
10200W |
Maximum Main Load |
8200W |
10200W |
Maximum Second Load(battery model) |
2733W |
3400W |
Main Load Cut Off Voltage |
44VDC |
|
Main Load Return Voltage |
48VDC |
|
Utility Charging Mode | ||
AC Charging Current(Max) |
140Amp |
160Amp |
Floating Charging Voltage |
54Vdc |
|
MPPT Solar Charging Mode | ||
Max.PV Array Power |
8200W |
10200W |
Nominal PV Voltage |
360Vdc |
|
PV Array MPPT Voltage Range |
90Vdc~500Vdc |
|
Max.PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current |
160Amp |
180Amp |
Grid-Tie Operation | ||
Nominal Output Voltage |
220/230/240VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Feed-in Grid Frequency Range |
49~51±1Hz/59~61±1Hz |
|
Nominal Output Current |
35.6A |
44.3A |
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency |
98% |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
-10℃ to 50℃ |
|
Storage temperature |
-15C~60℃ |
|
Humidity |
5%to 95% Relative Humidity(Non-condensing) |
|
Dimension(D*W*H),mm |
537*390*130 |
|
Net Weight,kg |
14.2 |
14.5 |

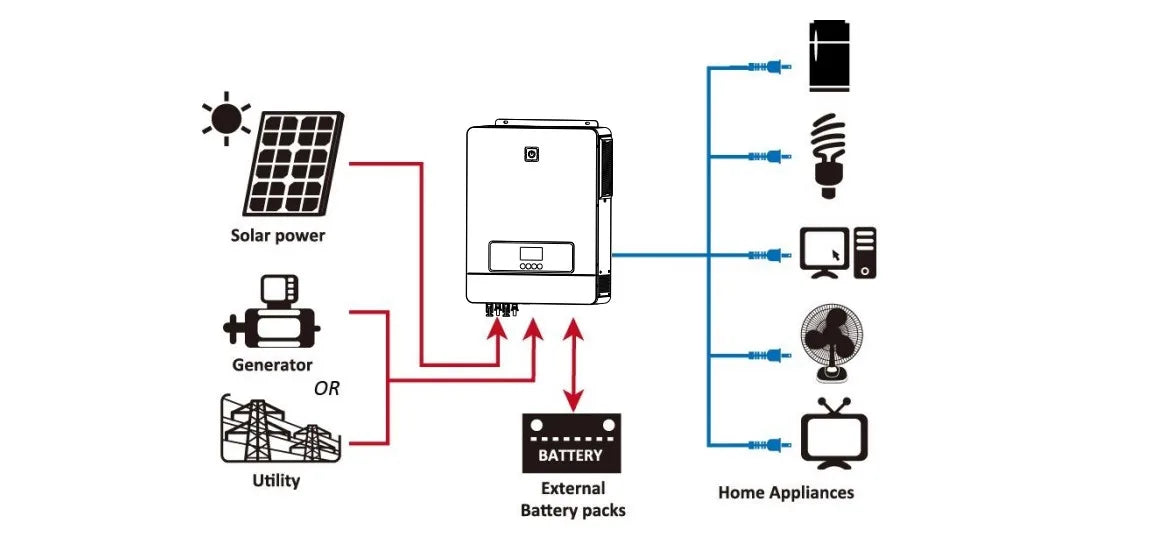

Suitable for solar-powered backup systems, charging batteries or powering home appliances like refrigerators and lights.

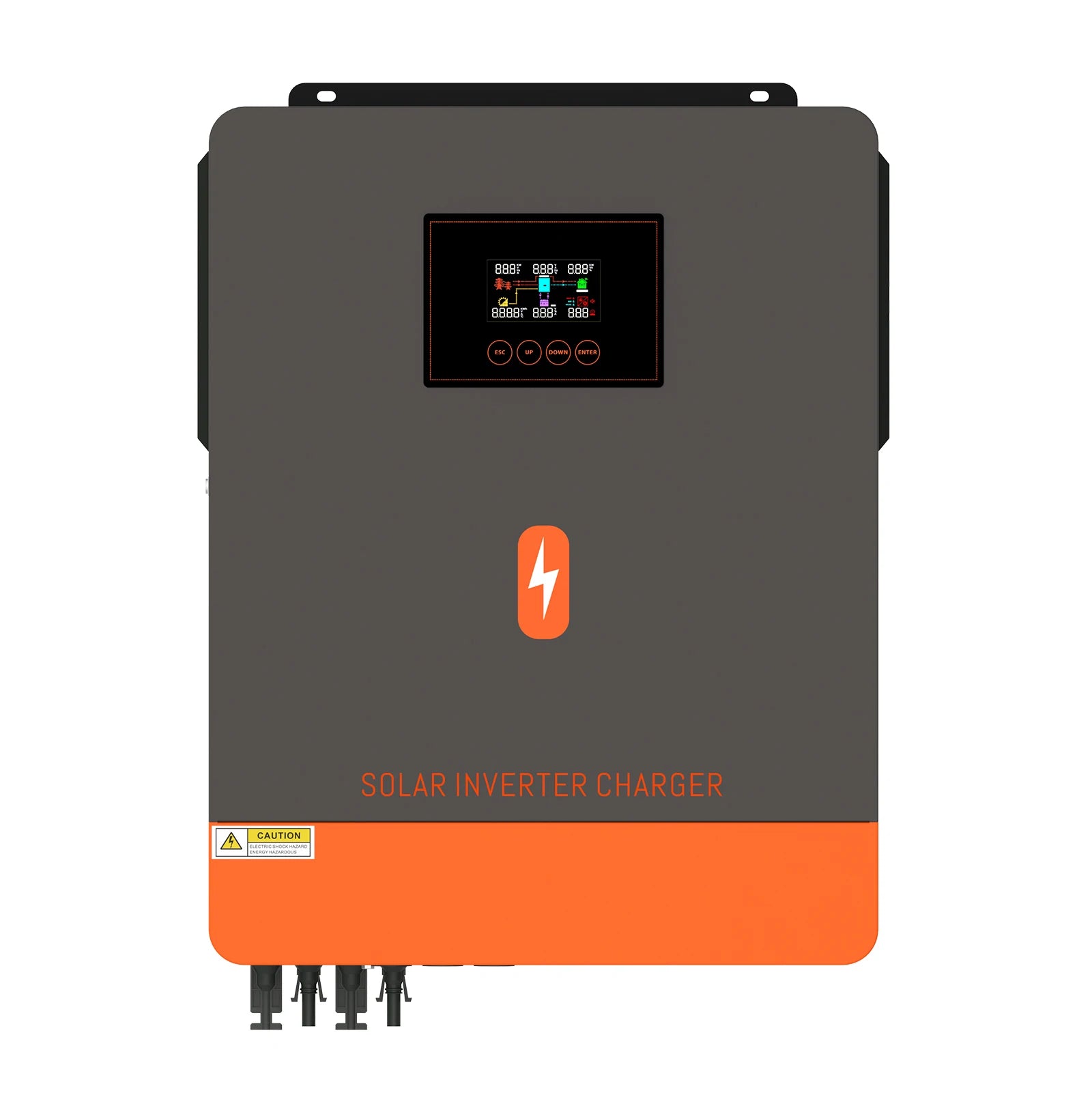

Warning: PowMr 10200W solar inverter charger is for professional use only. Read user manual carefully before installation and operation.

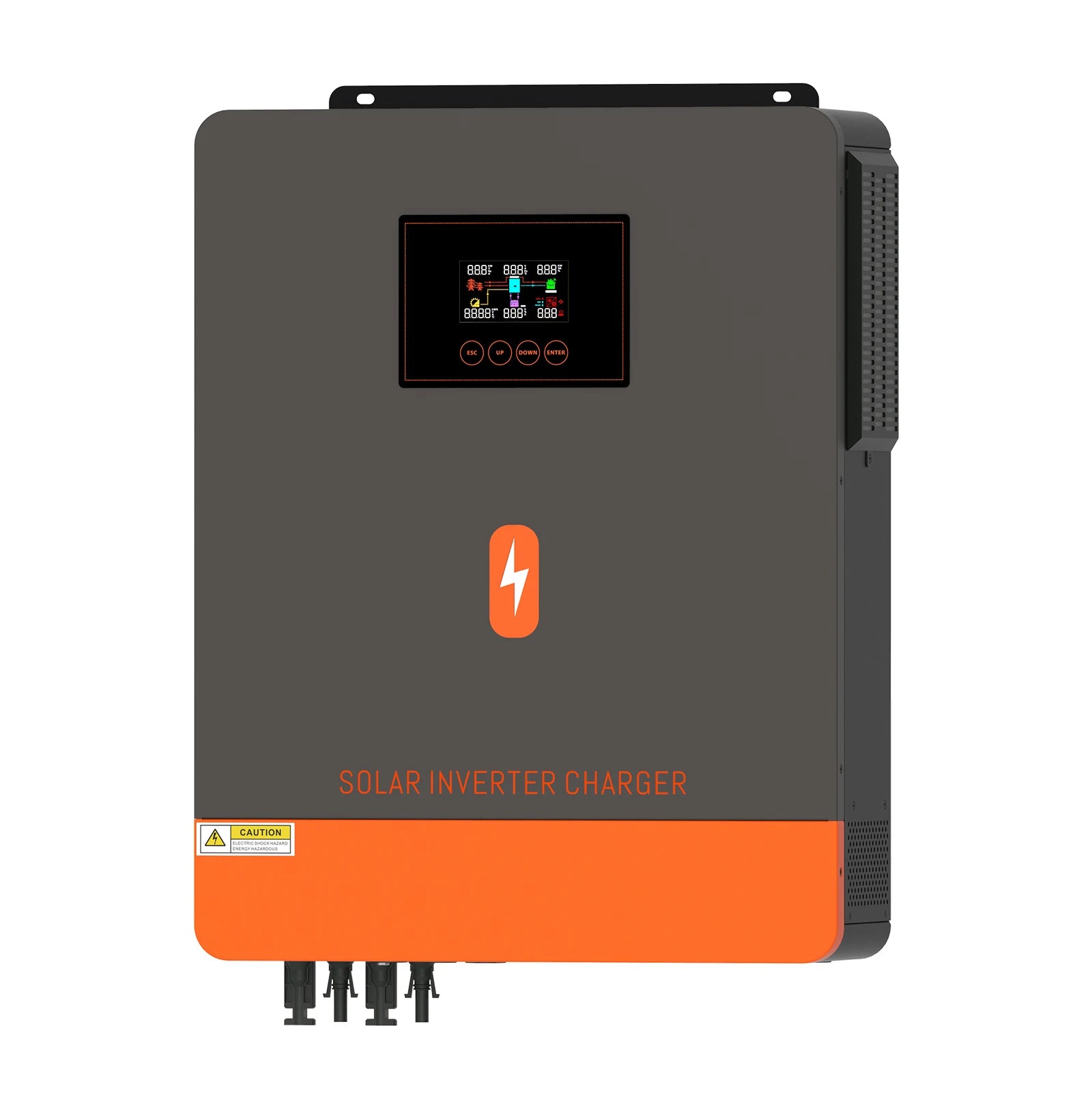

Caution: Do Not Open. Solar Inverter Charger by PowMr.

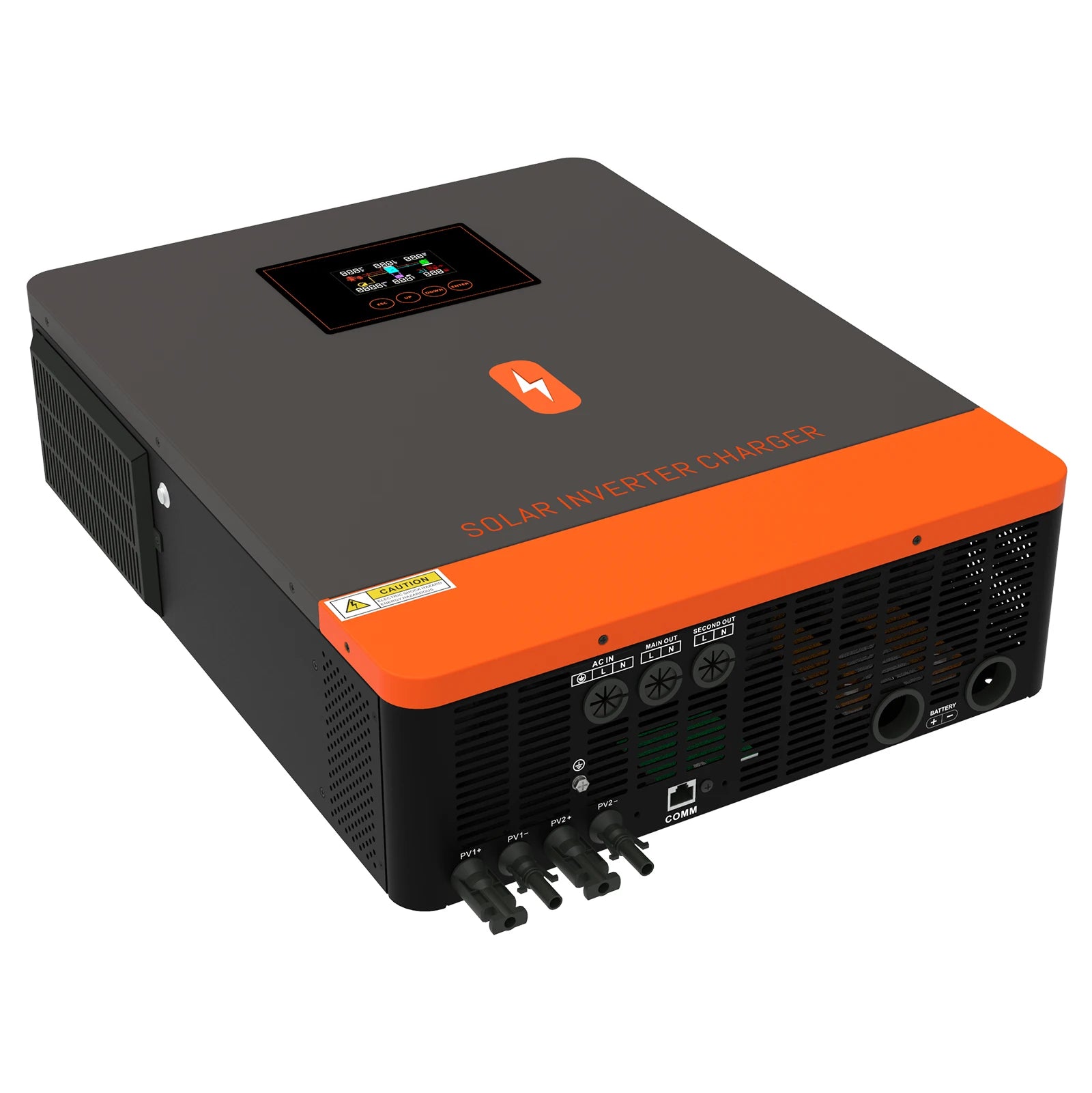

PowMr 10200W/8200W hybrid inverter for off-grid solar power, featuring 48V input, pure sine wave output, and MPPT charging with up to 160A capacity.
