PowMr 3.2KW Hybrid Solar Inverter 24V to 230V MPPT 80A Output Photovoltaic Hybrid Inverter Build-in MPPT Solar Charge Controller
PowMr 3.2KW Hybrid Solar Inverter 24V to 230V MPPT 80A Output Photovoltaic Hybrid Inverter Build-in MPPT Solar Charge Controller
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Working efficiency: >95%
Work for: solar Panel/Photovoltaic Panel
Weight: 5.8KG
Size: 348x270x95 mm
Shipping 2: Within 3-7 days, the package arrive.
Shipping 1: EU customers purchase from China, and the system automatically sends packages from Europe.
Rated output power: 3200W/2400W/1500W
Product: hybrid solar inverter
Part of: solar system complete
PV operating voltage: 90VDC-430VDC
Output voltage range: 220VAC/230VAC/240VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ
Output Current: MPPT 80A
Origin: Mainland China
Model Number: POW-HVM H Series
Maximum PV input voltage: 450VDC
Maximum PV input power: 3000W/2000W
Maximum PV input current: 18A
Load type: Household appliances, farm tools, farm tools
Item: solar inverter
Is Smart Device: YES
Feature: Support wifi module
Description: photovoltaic hybrid inverter
Charging: pure sine wave inverter
Certification: CE
Brand Name: PowMr
Battery voltage: 24V/12V
Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries
Applicable equipment: Factory equipment, commercial load, industrial machinery
Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)
Note:EU customers purchase from China, and the system automatically sends packages from Europe.Within 3-7 days, the package arrive.

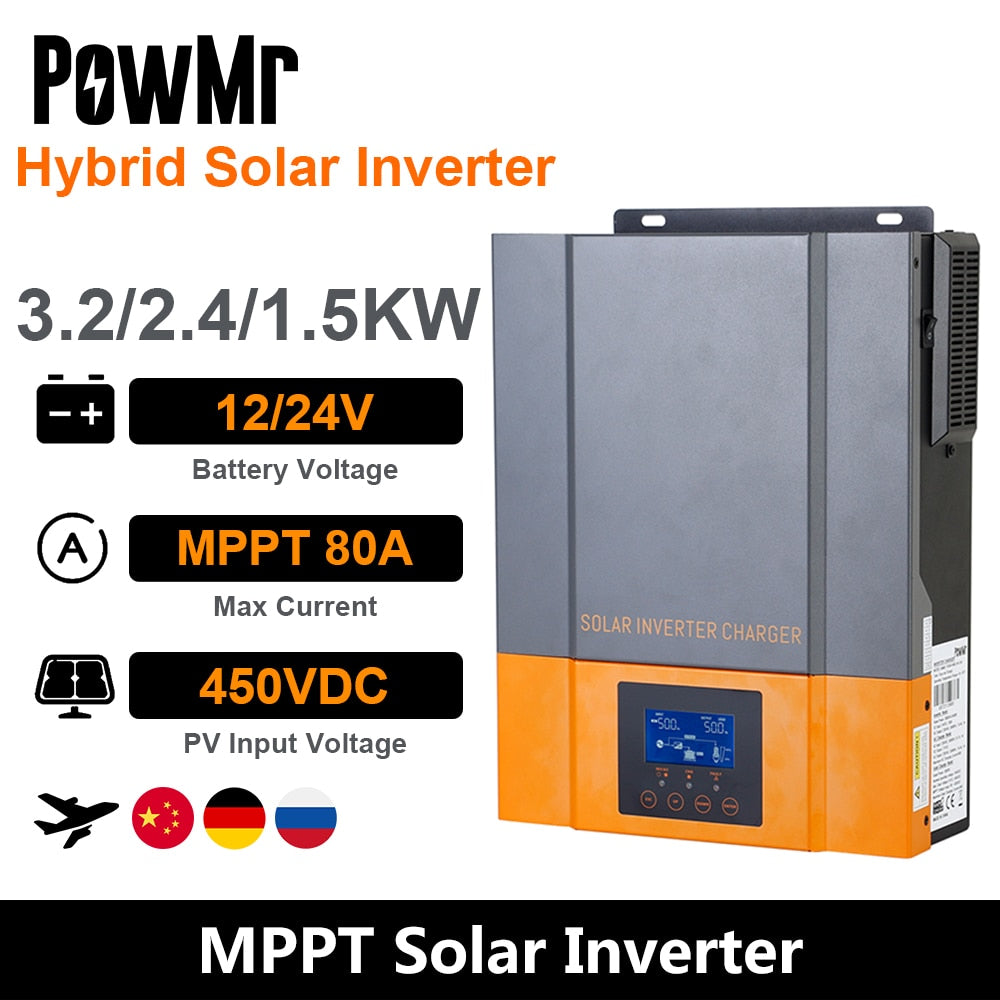

PowMr 3.2KW 2.4KW 1.5KW Hybrid Solar Inverter 12V/24V to 230V MPPT 80A Output Photovoltaic Hybrid Inverter Build-in MPPT Solar Charge Controller Support Wifi Model
Overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.

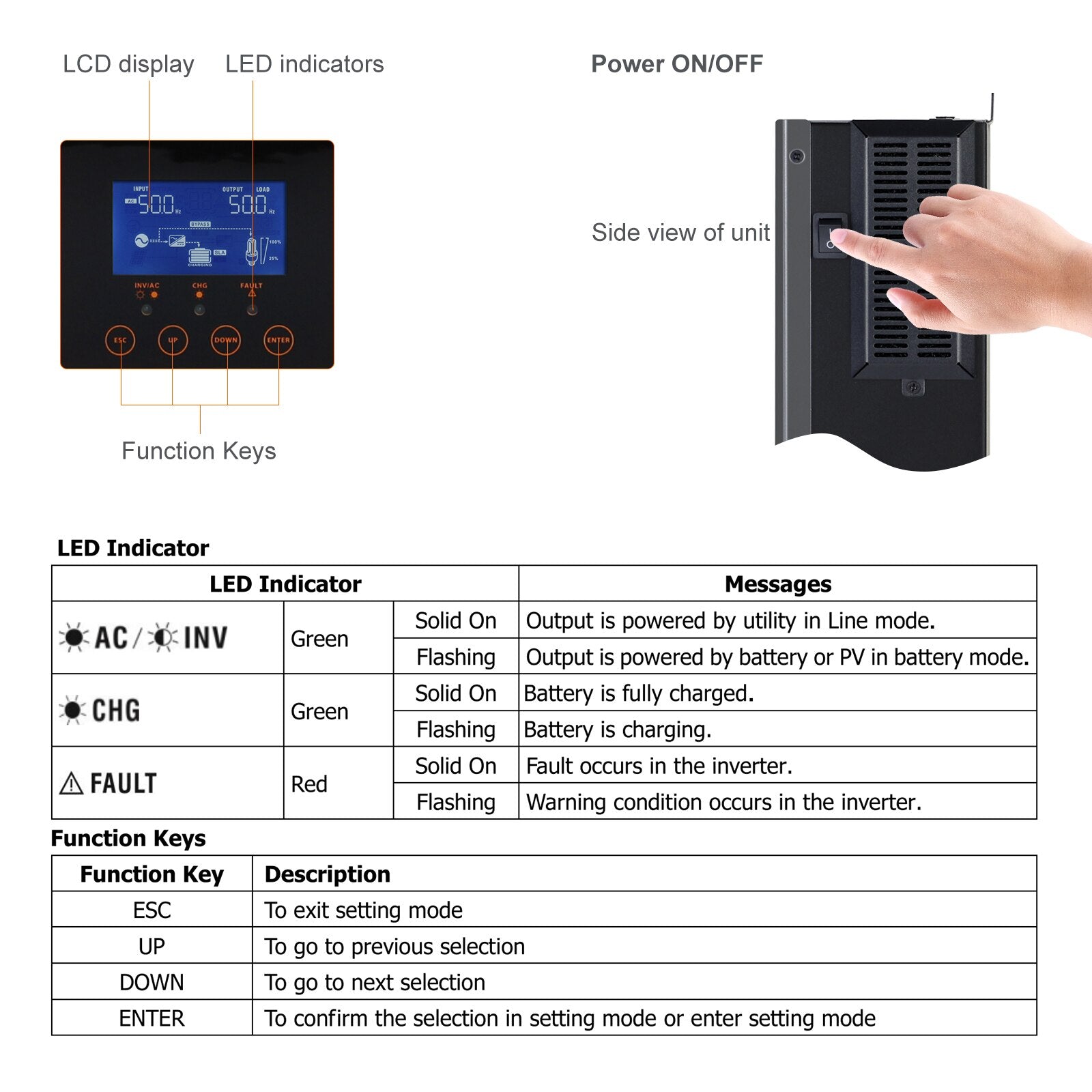

Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

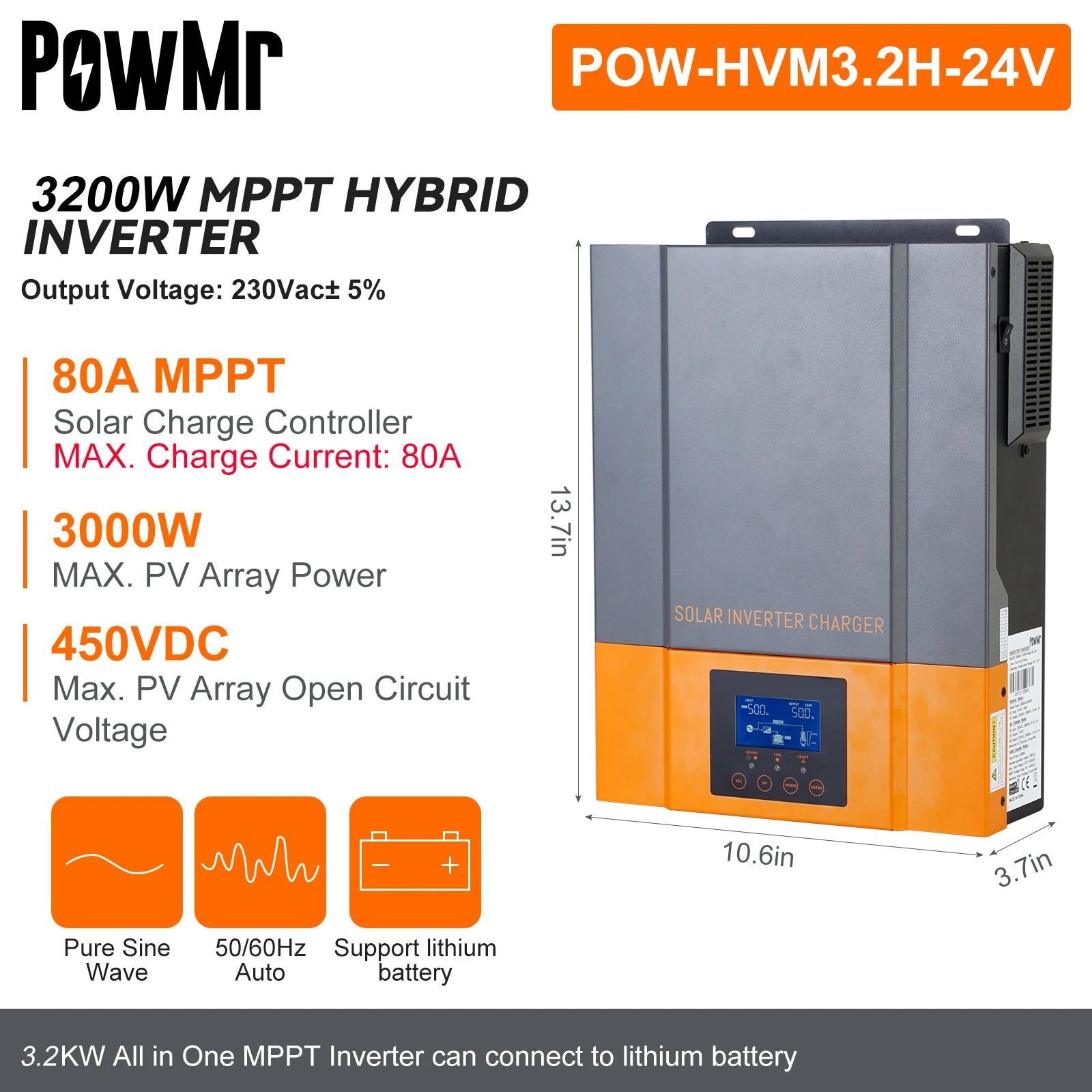

PowMr's POW-HVM3.2H-24V Hybrid Solar Inverter converts 24V DC power from solar panels to 230V AC, with an output capacity of 3200W. This MPPT (Maximum Power Point Tracking) hybrid inverter also functions as a solar charge controller, capable of charging lithium-ion batteries up to 3.7in. It supports auto battery recharge and has a maximum PV array power of 3000W.

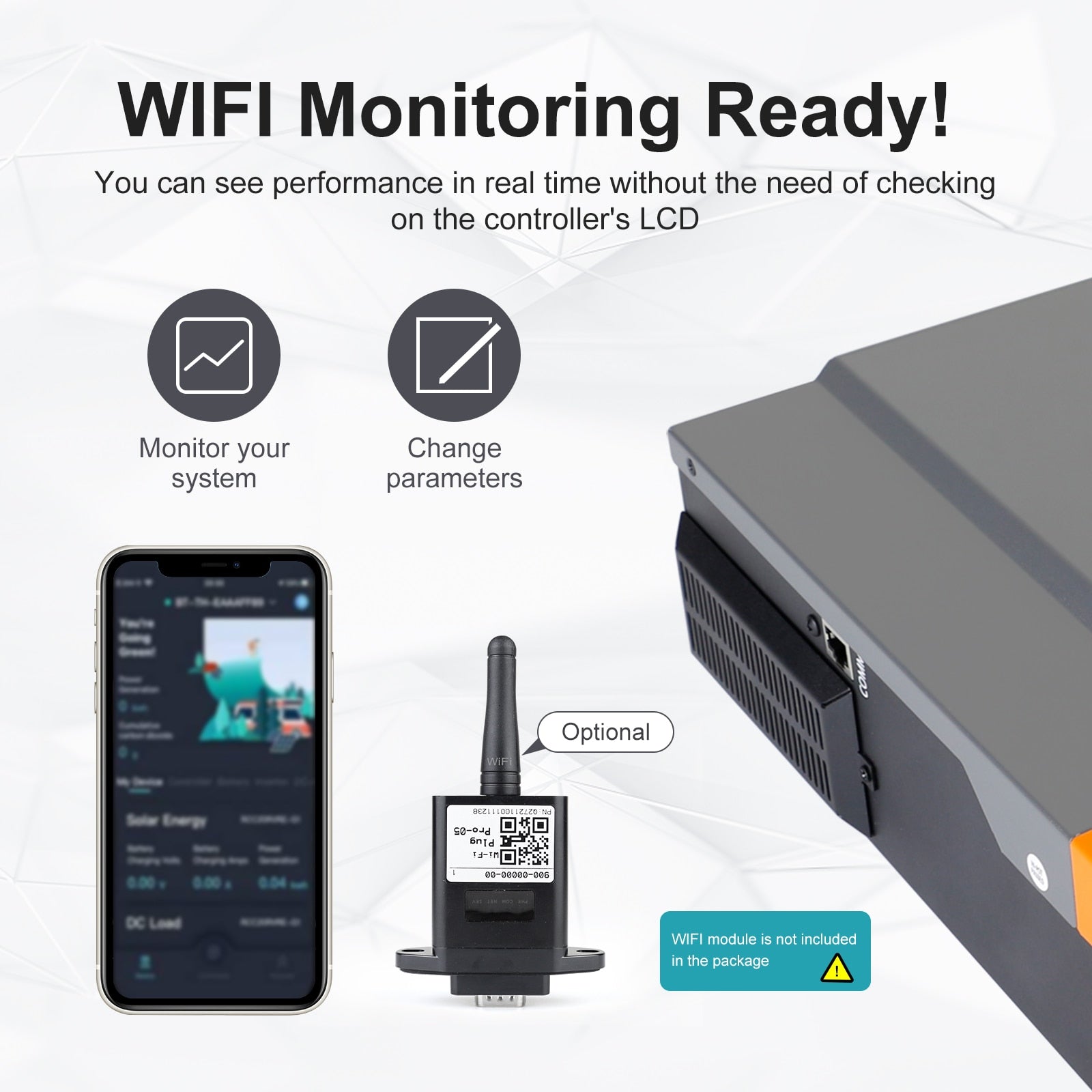

Monitor your system performance in real-time using WiFi connectivity, without needing to check the LCD monitor. Adjust system parameters as needed. Note: The WiFi module is not included in the package.
Features:
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS(Option)
• Can connect to lithium battery

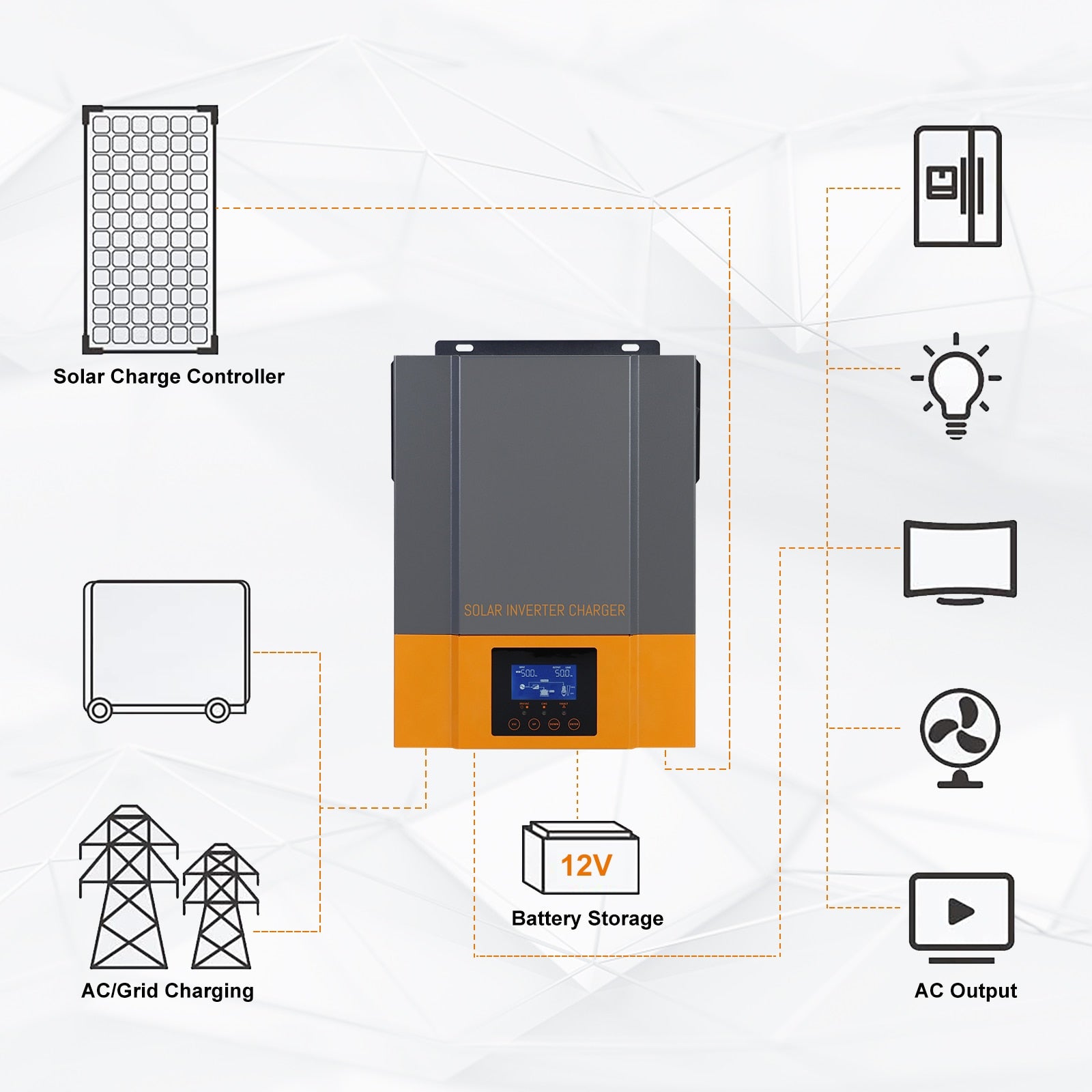

Hybrid solar inverter charges 12V batteries and provides AC output for grid-tied or off-grid systems.
Specifications:
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Rated Output Power |
1.5KW |
2.4KW |
3200VA/3000W |
Output Voltage Waveform |
Pure Sine Wave |
||
Output Voltage Regulation |
230Vac±5% |
||
Utility Charging Mode | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Charging Algorithm |
3-Step |
||
AC Charging Current (Max) |
60 Amp |
||
Bulk Charging Voltage | |||
Flooded Battery |
14.6 |
29.2 |
|
AGM / Gel Battery |
14.1 |
28.2 |
|
Floating Charging Voltage |
13.5Vdc |
27.0Vdc |
|
MPPT Solar Charging Mode | |||
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
|
Max. PV Array Power |
2000W |
3000W |
3000W |
Nominal PV Voltage |
240Vdc |
||
PV Array MPPT Voltage Range |
90~430Vdc |
||
Max. PV Array Open Circuit Voltage |
450Vdc |
||
Max Charging Current (AC charger+solar charger) |
80Amp |
||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |

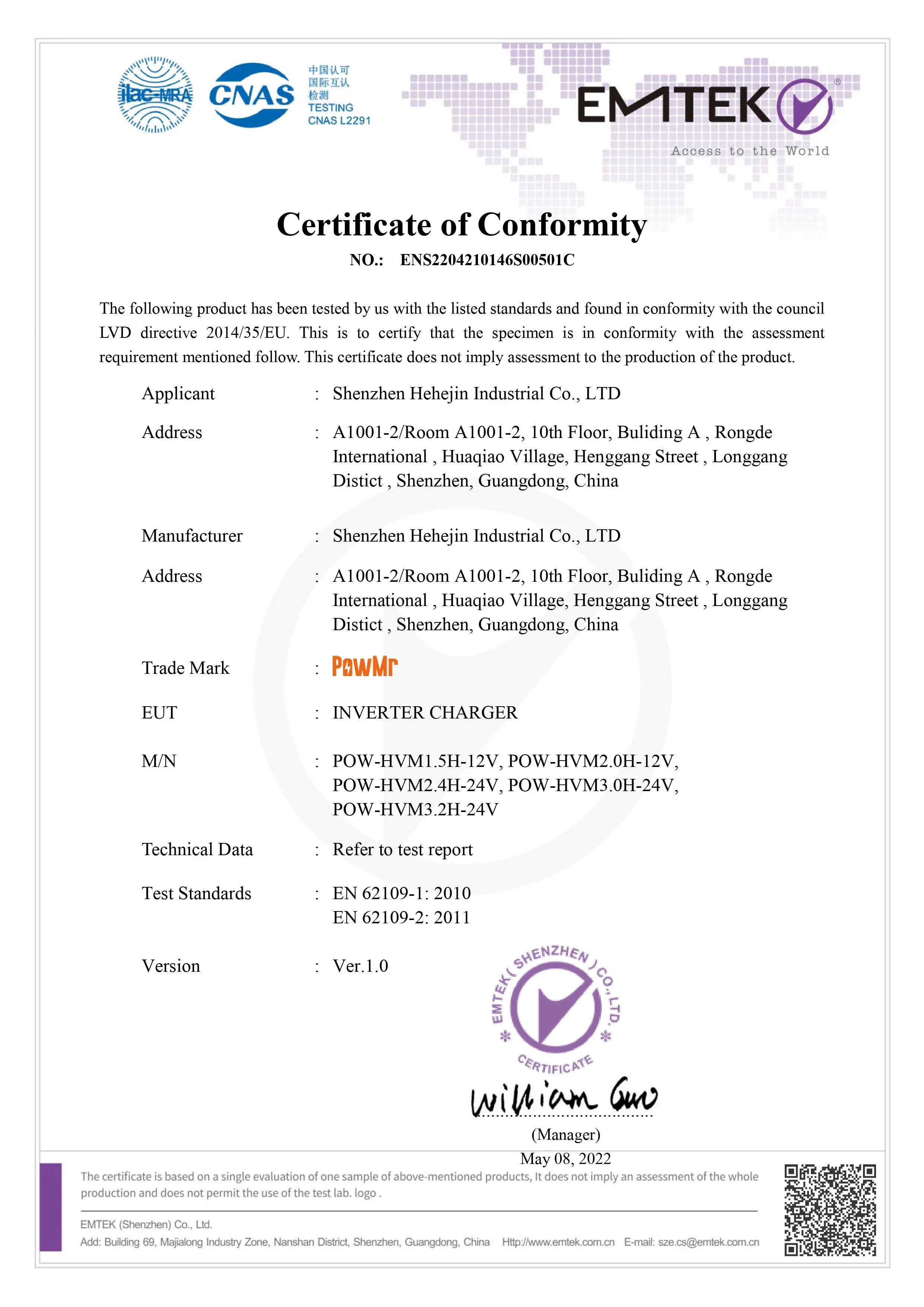

Safety Certification |
CE |
||
Operating Temperature Range |
-10°C to 50°C |
||
Storage temperature |
-15°C~ 60° C |
||
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
||
Input Voltage Waveform |
Sinusoidal (utility or generator) |
||
Nominal Input Voltage |
230Vac |
||
Low Loss Voltage |
170Vac±7V (UPS)； 90Vac±7V (Appliances) |
||
Low Loss Return Voltage |
180Vac±7V (UPS); |
||
100Vac±7V (Appliances) | |||
High Loss Voltage |
280Vac±7V |
||
High Loss Return Voltage |
270Vac±7V |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Low Loss Frequency |
40±Hz |
||
Low Loss Return Frequency |
42±Hz |
||
High Loss Frequency |
65±Hz |
||
High Loss Return Frequency |
63±Hz |
||
Output Short Circuit Protection |
Circuit Breaker |
||
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
||
Transfer Time |
10ms typical (UPS); |
||
20ms typical (Appliances) | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Output Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Peak Efficiency |
91% |
94% |
|
Overload Protection |
5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad |
||
Surge Capacity |
2* rated power for 5 seconds |
||
Nominal DC Input Voltage |
12Vdc |
24Vdc |
|
Cold Start Voltage |
11.5Vdc |
23.0Vdc |
|
Low DC Warning Voltage | |||
@ Io ad < 50>% |
11.0Vdc |
22.0Vdc |
|
@ load >50% |
10.5Vdc |
21.0Vdc |
|
Low DC Warning Return Voltage | |||
@ load < 50% |
11.5Vdc |
22.5Vdc |
|
@ load >50% |
11.0Vdc |
22.0Vdc |
|
Low DC Cut off Voltage | |||
@ load < 50% |
10.2Vdc |
20.5Vdc |
|
@ load >50% |
9.6Vdc |
20.0Vdc |
|
High DC Recovery Voltage |
14.0Vdc |
32Vdc |
|
High DC Cut-off Voltage |
16.0Vdc |
33Vdc |
|
No Load Power Consumption |
<25W |
<30W |
<35W |
Photos:
PowMr's hybrid solar inverter converts 24V DC to 230V AC, with MPPT (Maximum Power Point Tracking) technology. It supports charging from solar, generator, and utility sources, making it suitable for home, camping, RV, boat, and backup power applications.

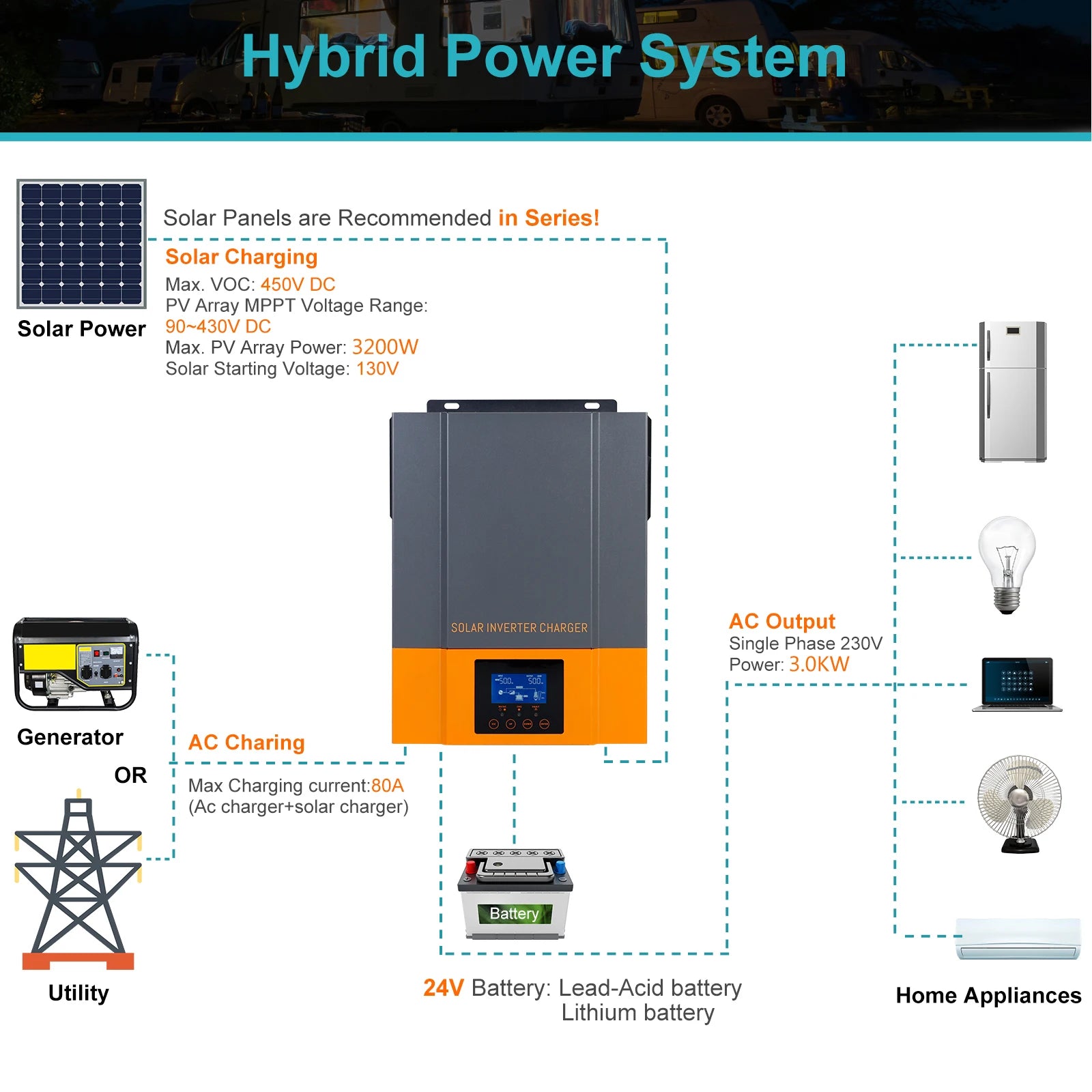

This hybrid solar inverter converts DC power from solar panels (90V-430V, max 3200W) into AC power (3.2kW) for home appliances and charging. It features MPPT technology, with a maximum charging current of 80A, and is suitable for use with lead-acid or lithium-ion batteries.

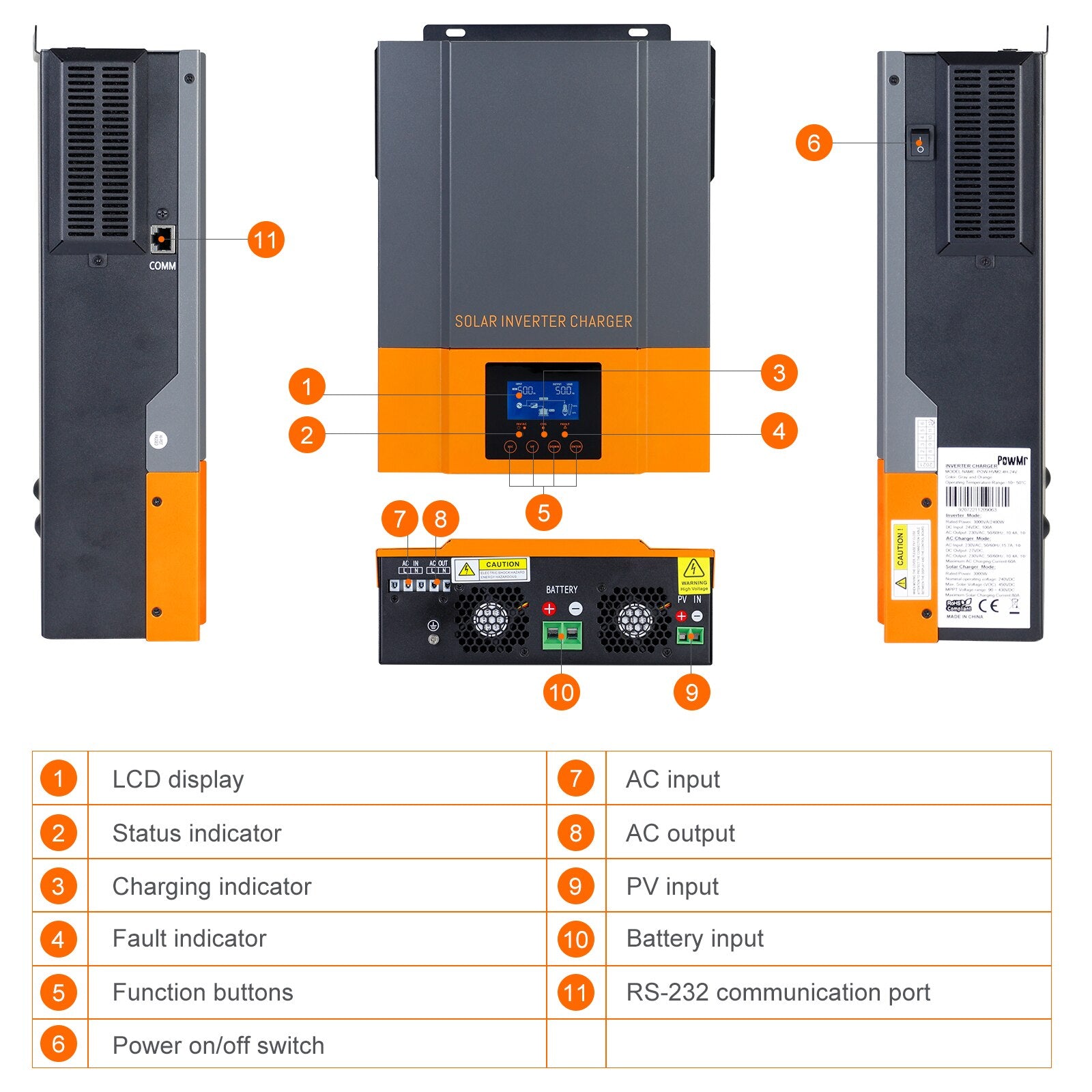

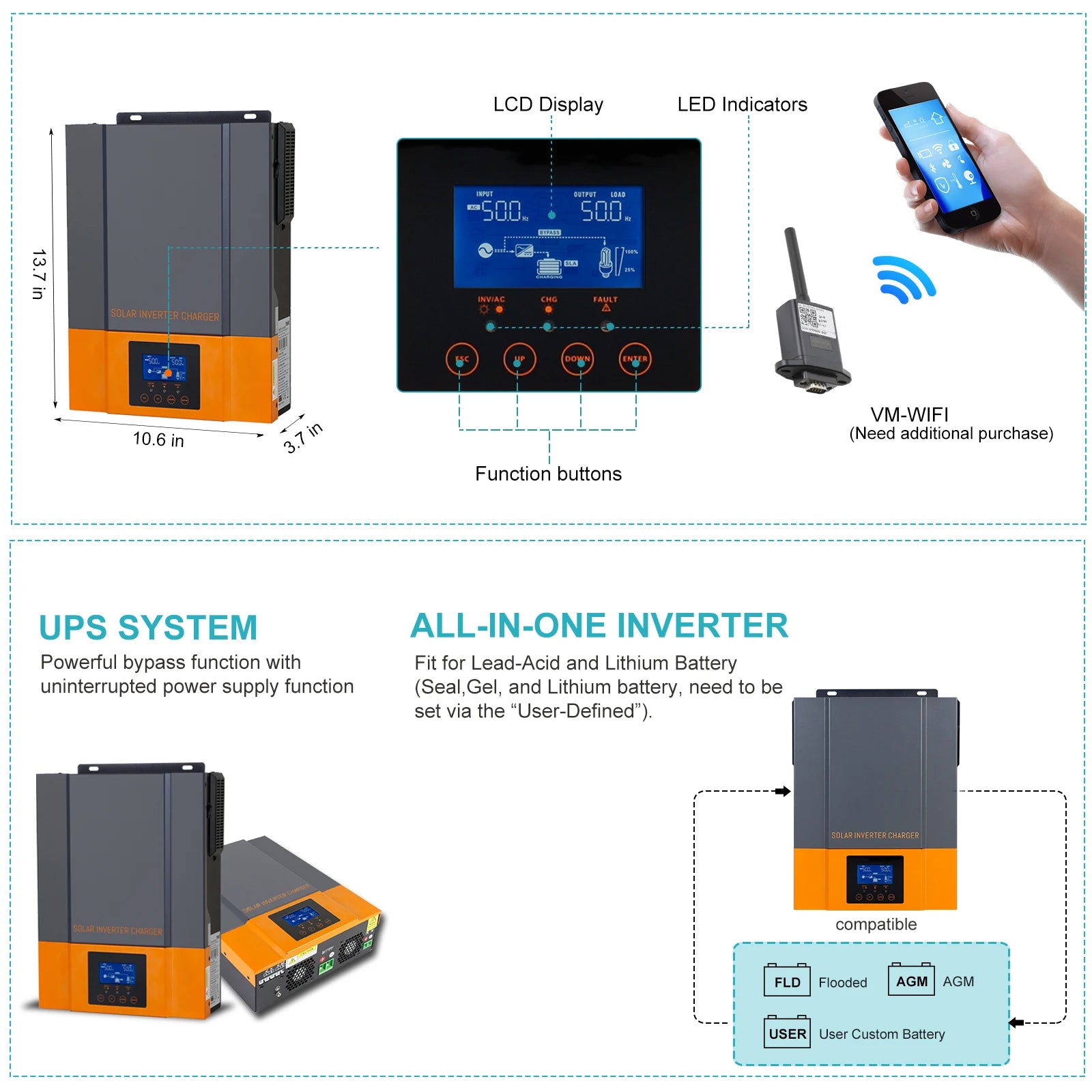

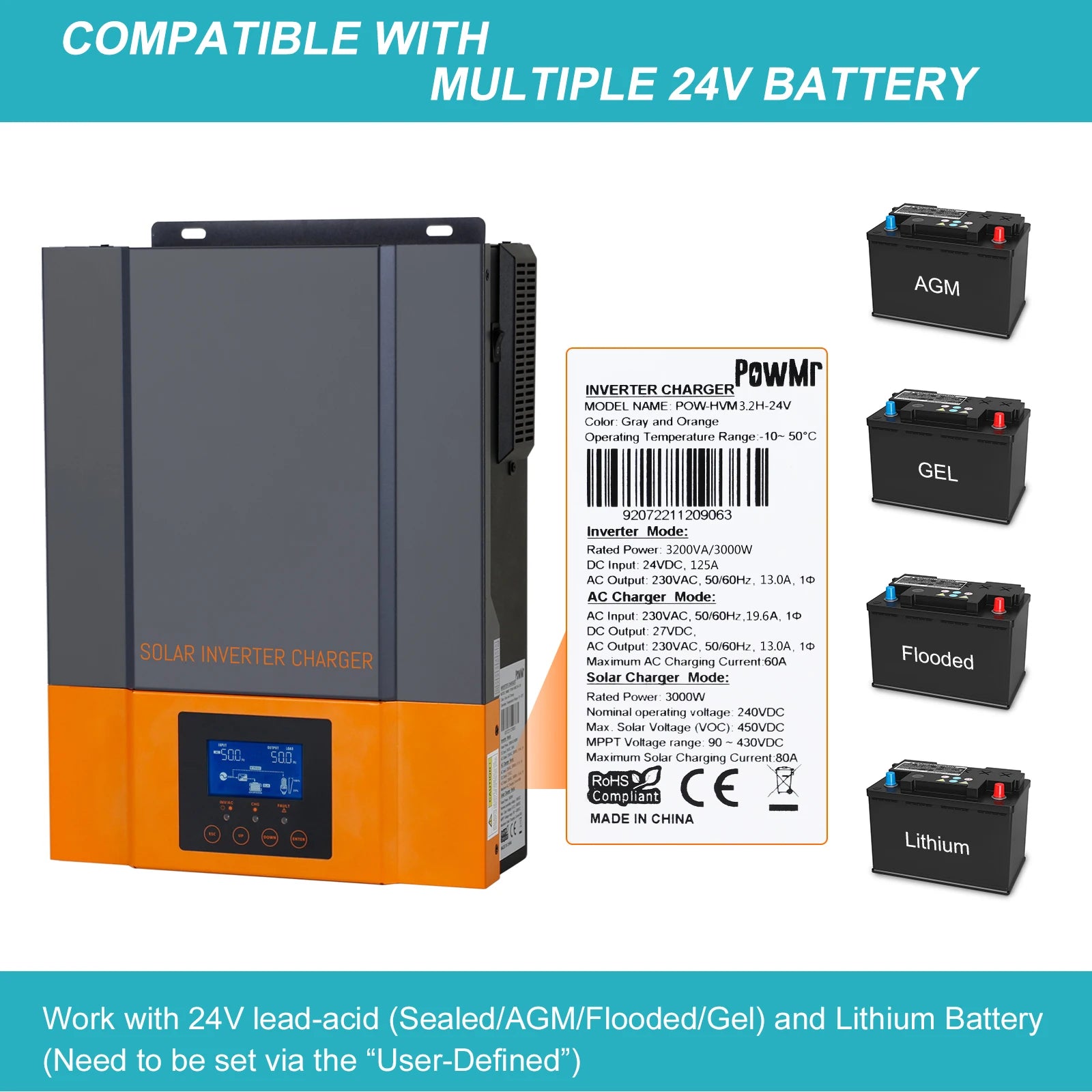

PowMr 3.2KW Hybrid Solar Inverter features an LCD display, LED indicators, and built-in MPPT solar charge controller. It has a powerful bypass function for uninterrupted power supply, compatible with lead-acid and lithium batteries. The user-defined settings allow customization for different battery types, including flooded AGM and sealed/gel batteries.

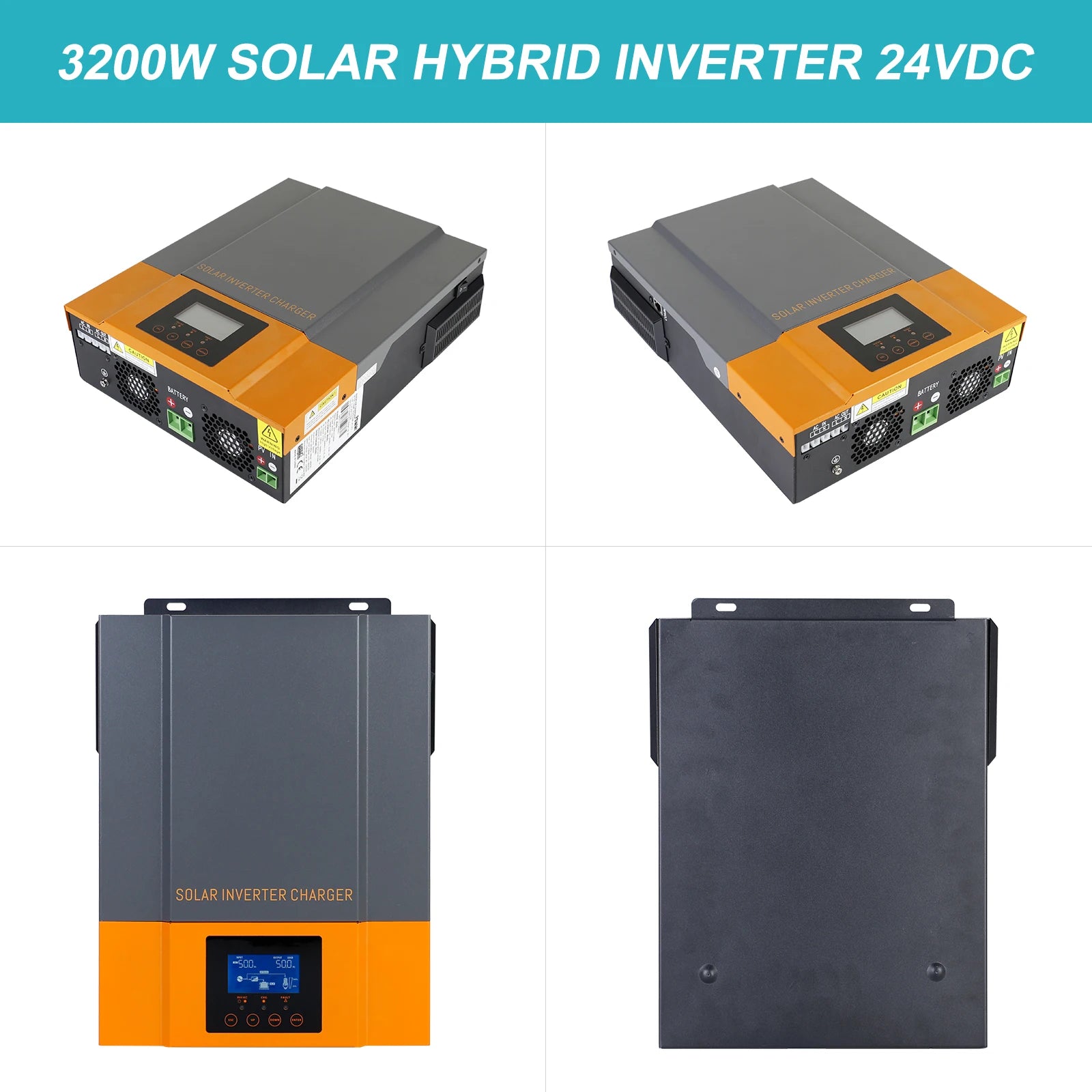

PowMr Hybrid Solar Inverter: Convert 24V DC to 230V AC, with MPPT solar charge controller and 80A output. A compact hybrid inverter for efficient energy conversion and storage.
PowMr Hybrid Solar Inverter, MPPT Charger for 24V to 230V Systems with 80A Output.

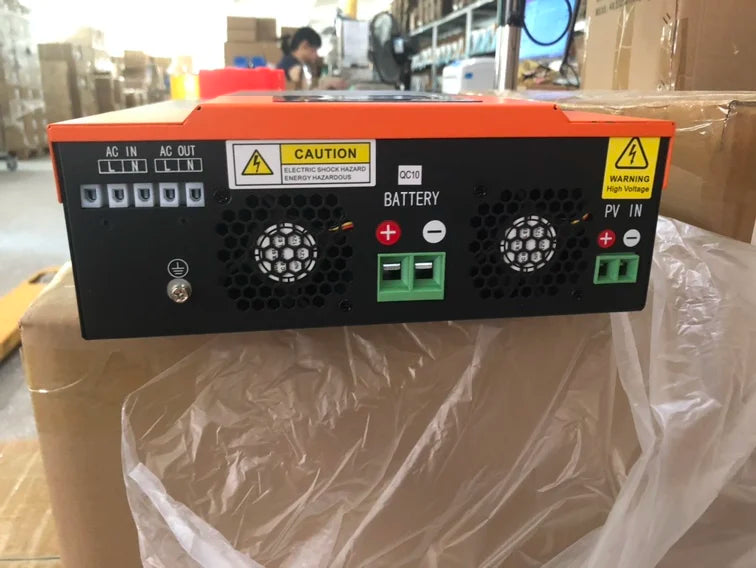

Warning: Do not connect to battery or PV inverter unless properly configured and sized for safe operation.
