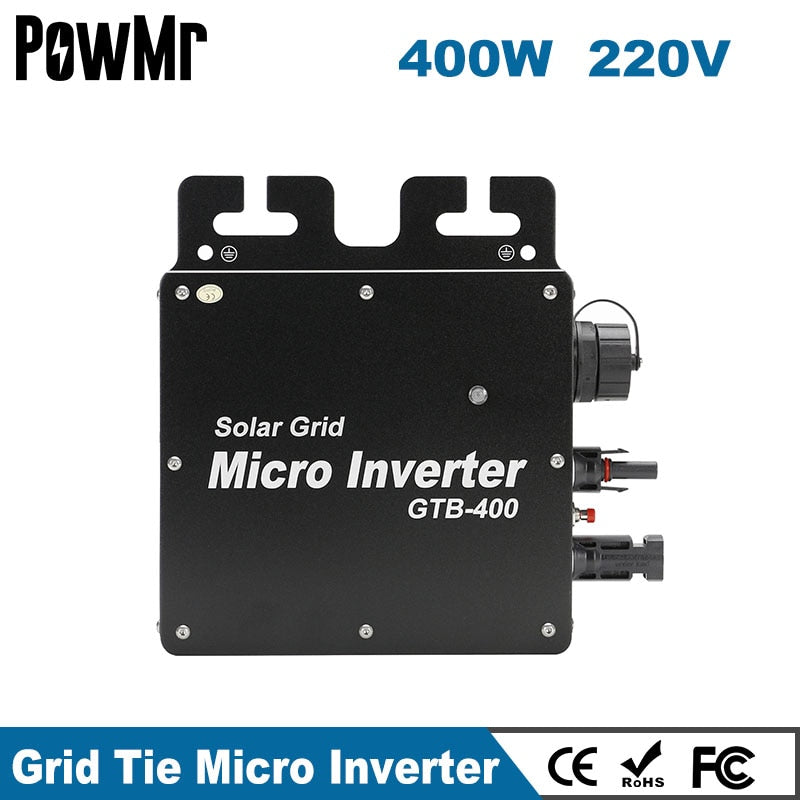

PowMr 400W 600W Micro Inverter Grid Tie Pure Sine Wave On Grid Micro Solar Inverter 220V WiFi Network Connection IP65 Waterproof
PowMr 400W 600W Micro Inverter Grid Tie Pure Sine Wave On Grid Micro Solar Inverter 220V WiFi Network Connection IP65 Waterproof
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 2KG
Type:: On Grid Off Grid
Size: 35*24*10CM
Output Type: single
Output Power: 401 - 600KW
Output Frequency: 48-51/58-61Hz
Origin: Mainland China
Model Number: GTB 400W 600W
Is Smart Device: YES
Certification: CE,FCC,RoHS
Brand Name: PowMr
PowMr LiFePo4 battery boasts high life characteristics, 428V high safety and reliability, and low temperature self-heating. Enjoy a long lifespan with PowMr, a reliable choice for your power needs.
Features:
1. High performance maximum power point tracking (MPPT)
2. Reverse power transmission
3. Input /output is fully isolated to protect the electrical safety
4. Multiple parallel stacking
5. Digital control system
6. Simplify maintenance (user serviceable)
7. Operation and maintenance costs low
8. Flexible installation
Grid-connected micro inverter for solar panels, featuring Wi-Fi connectivity, IP65 waterproofing, and pure sine wave output, suitable for small-scale residential applications.
Model |
GTB-400 |
GTB-600 |
||
Maximum input power |
400Watts |
600Watt |
||
Peak power tracking voltage |
22-50V |
|||
Min/Max Starting Voltage |
22-50V |
22-55V |
||
Maximum DC short-circuit |
20A |
30A |
||
Maximum input operating current |
13A |
27.2A |
||
Output Data |
120V |
230V |
120V |
230V |
Peak Power output |
400Watt |
600Watt |
||
Rated Output power |
400Watt |
600Watt |
||
Rated Output current |
3.3A |
1.7A |
5A |
2.6A |
Rated Voltage Range |
80-160VAC |
180-260VAC |
80-160VAC |
180-260VAC |
Rated Frequency range |
48-51/58-61Hz |
48-51/58-61Hz |
||
Power factor |
﹥99% |
﹥99% |
||
Max unit per branch circuit |
6pcs（single phase） |
12pcs（single phase） |
5pcs（single phase） |
10pcs（single phase） |
Output Efficiency |
120V |
230V |
120V |
230V |
Static MPPT efficiency |
99.50% |
99.50% |
||
Maximum output efficiency |
95% |
95% |
||
Night time power consumption |
﹤1W |
﹤1W |
||
THD |
﹤5% |
﹤5% |
||
Exterior&Feature | ||||
Ambient temperature range |
-40℃ to +60℃ |
|||
Dimensions（L*W*H） |
253mm*200mm*40mm |
280mm*200mm*40mm |
||
Waterproof rating |
IP65 |
|||
Cooling |
Self-cooing |
|||
Communication Mode |
WIFI mode |
|||
Power Transmission mode |
Reverse transfer，load priority |
|||
Monitoring system |
Mobile APP,PC browser |
|||
Electromagnetic Compatibility |
EN50081.part1 EN50082 Part1 |
|||
Grid disturbance |
EN61000-3-2 Safety EN62109 |
|||
Grid Detection |
DIN VDE 0126 |
|||
Single-phase grid tie connection for on-grid systems, compatible with GTB meter models GTB-4UL and GTB-0L, featuring blown (yellow and green) ground indicators.

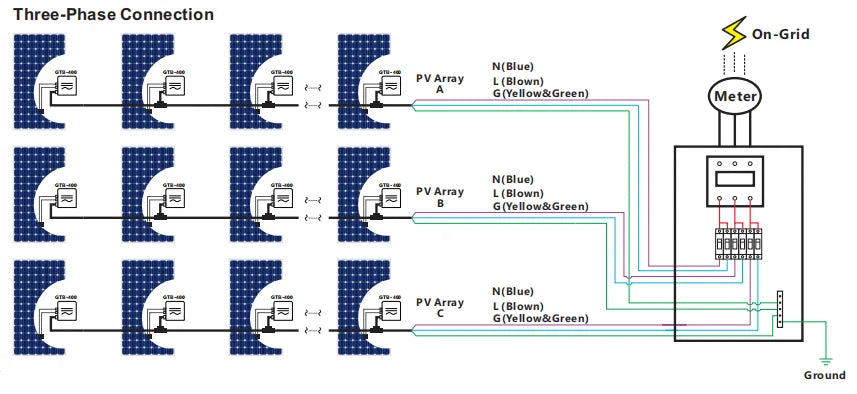

Connects to a three-phase on-grid solar array with blown fuses and grounds for safety.

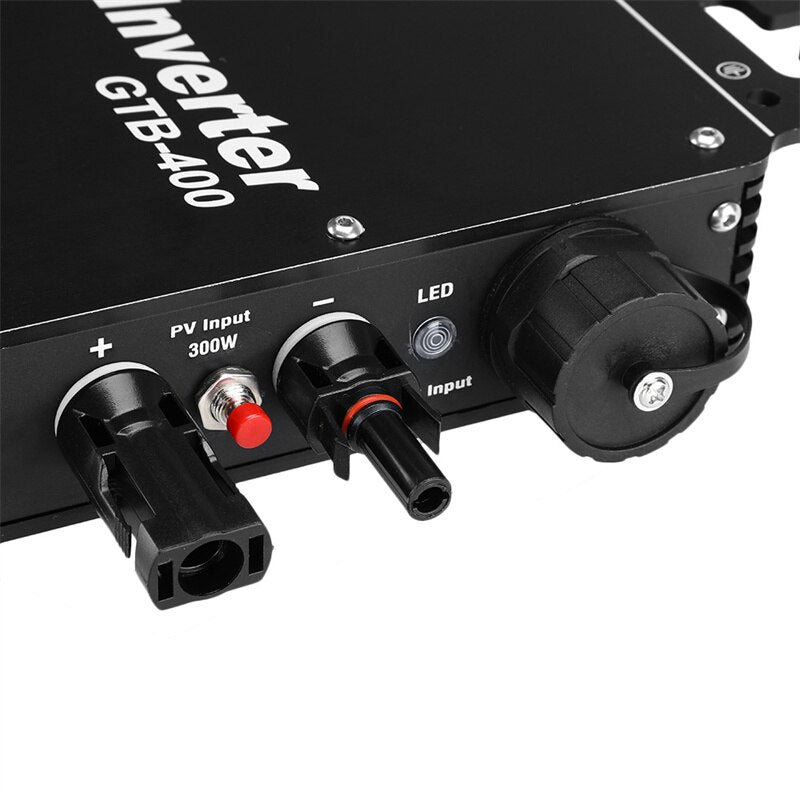

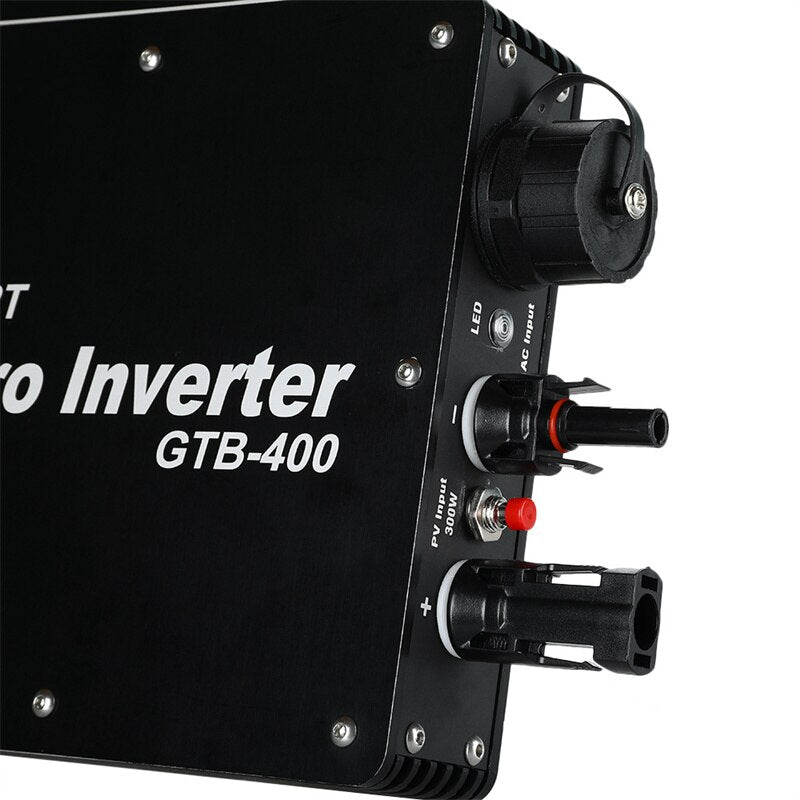

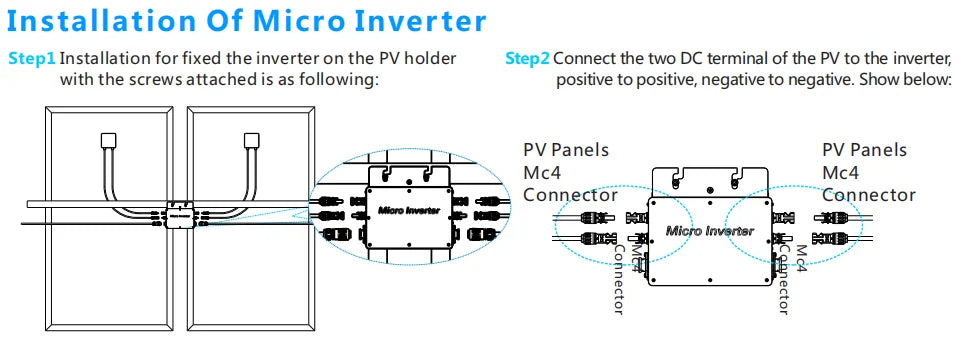

Install the micro inverter by following these steps: (1) Attach the inverter to the PV holder. (2) Connect the PV panels' DC terminals to the inverter, ensuring positive-positive and negative-negative connections, as shown below.

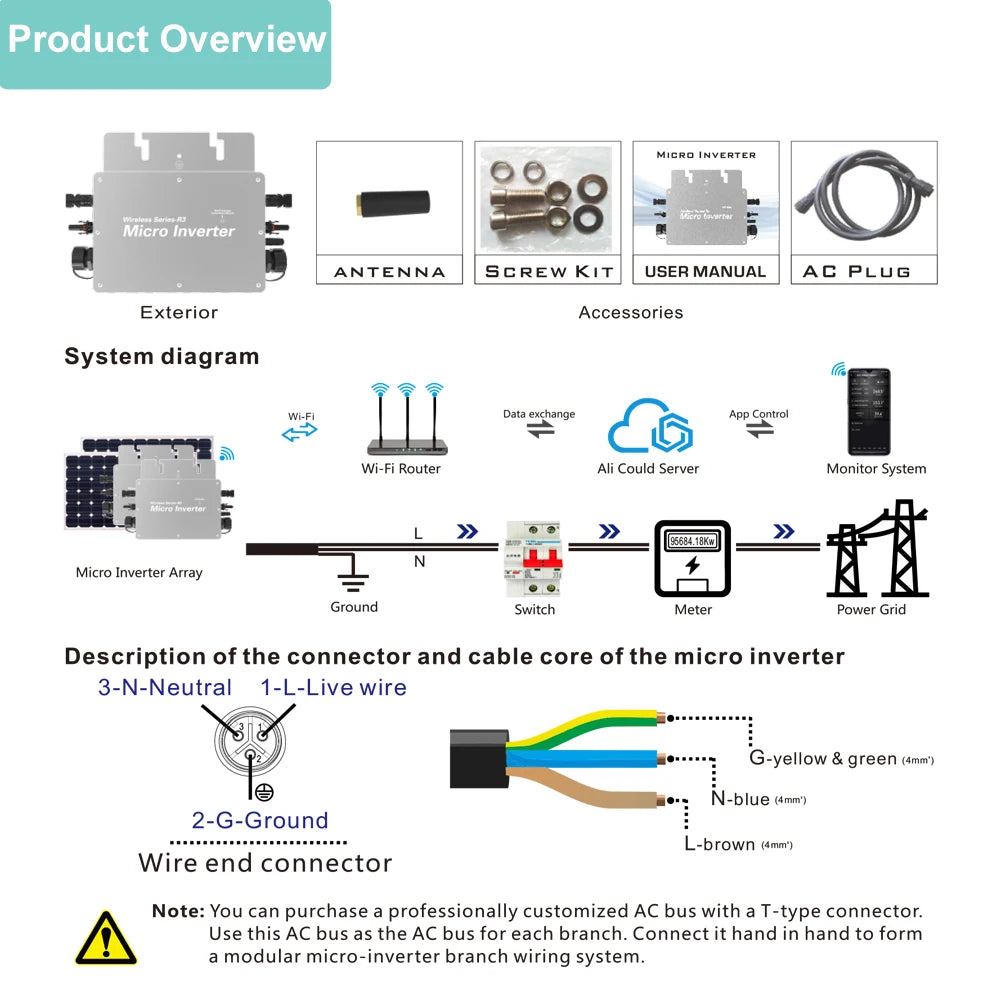

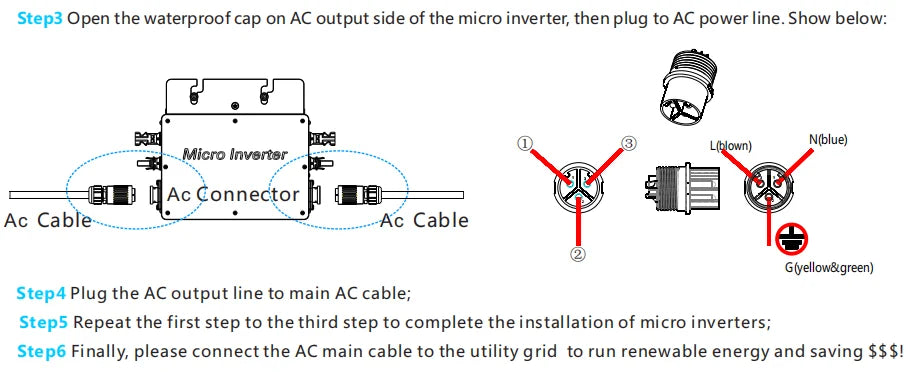

Install the PowMr micro inverter by opening the waterproof cap on the AC output side, then plugging it into an AC power line. Follow these steps: 1) Connect the yellow-green cable to the micro inverter's AC connector; 2) Plug the AC output line into your main AC cable; 3) Repeat steps 1-2 for each additional micro inverter; and 4) Finally, connect the AC main cable to the utility grid to start harnessing renewable energy and saving electricity.

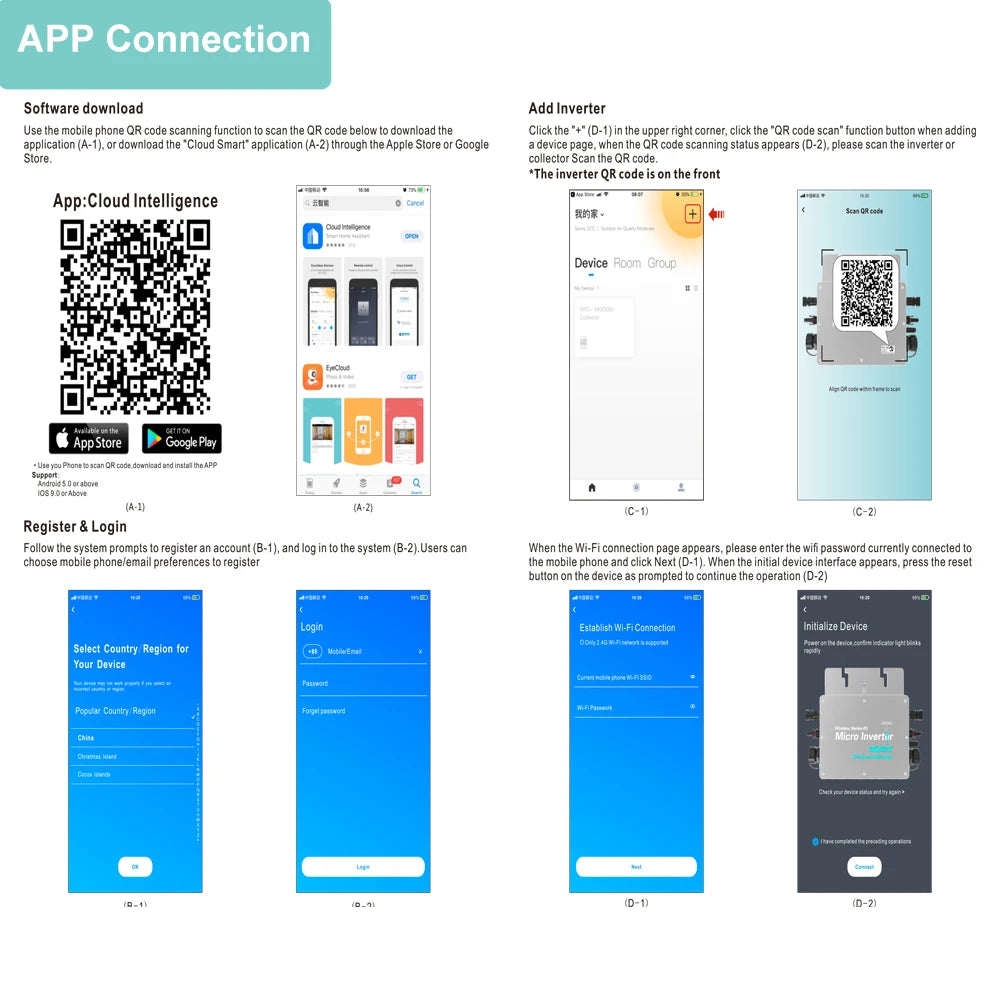

To download the APP Connection Software, scan the QR code below using your mobile phone's QR code scanning function. Alternatively, search for 'Cloud Smart' on Apple Store or Google Play and install the app. Once installed, follow the prompts to register an account, log in, and set up your device by entering your Wi-Fi password and selecting your country or region.

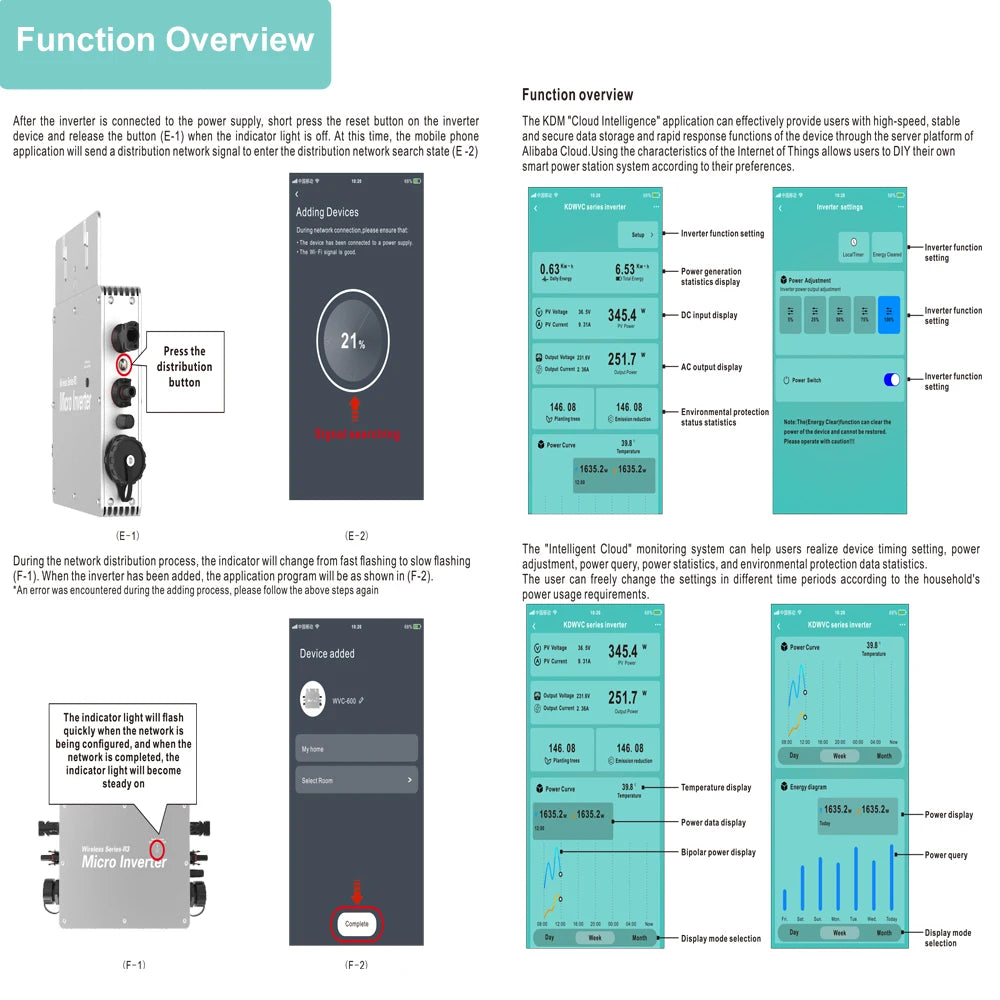

Function Overview: Connect the inverter to power supply. Press the reset button to enter cloud intelligence mode. The 'Cloud Intelligence' app provides high-speed device access, stable device release, and rapid response functions through server-based signal distribution. Users can DIY their own smart power station system using Alibaba Cloud's IoT features. The inverter displays DC input, AC output, and temperature data. When connected, the indicator light will flash quickly, then become steady when the network is complete.

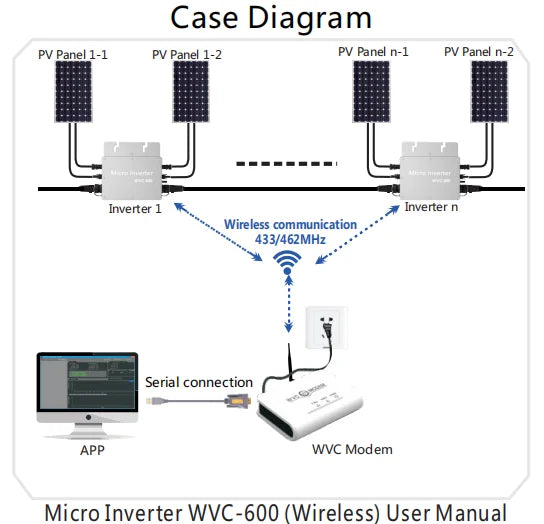

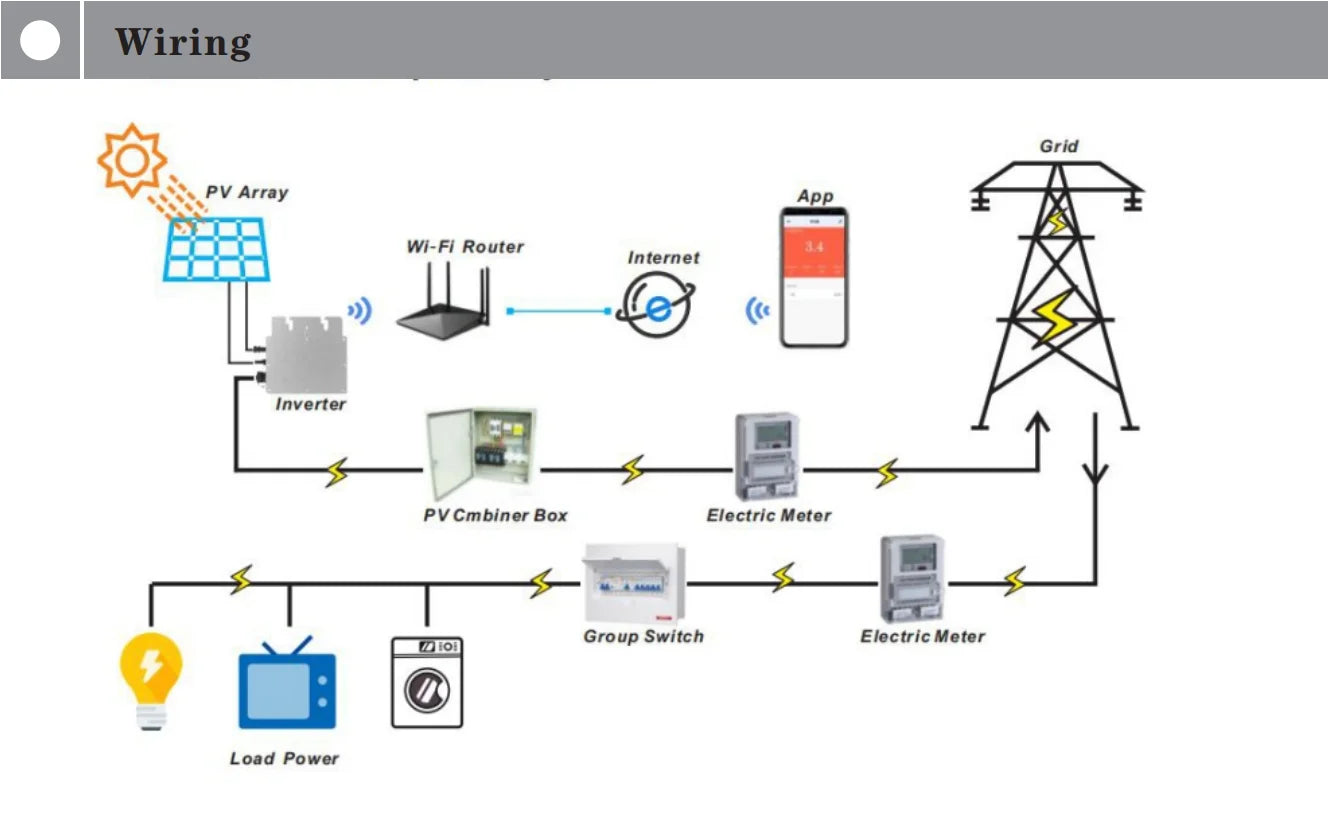

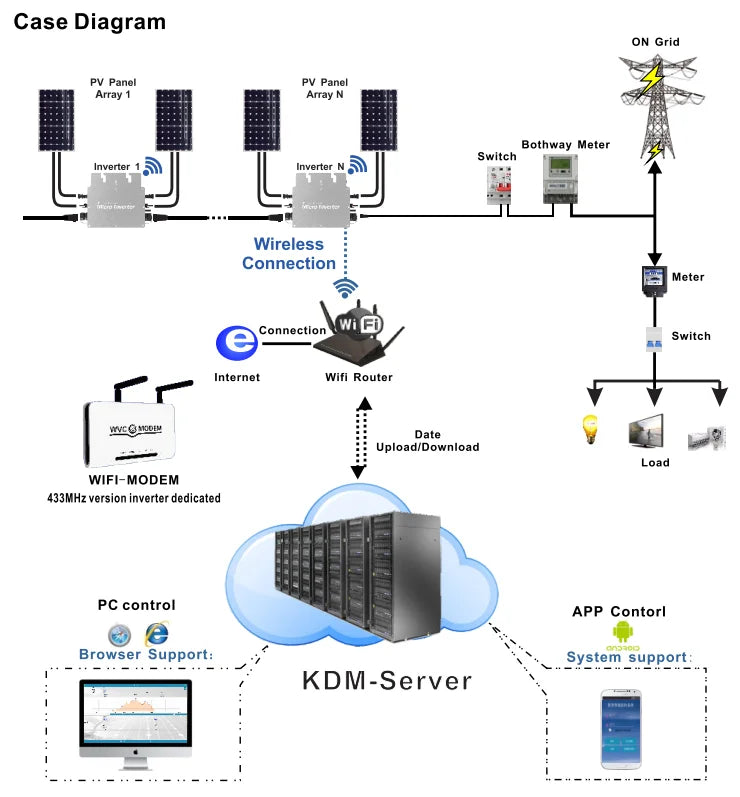

Connect multiple solar panels (up to 'n') to our micro inverter via wireless or serial connections. Monitor and control your system using the accompanying APP and Wi-Fi network.

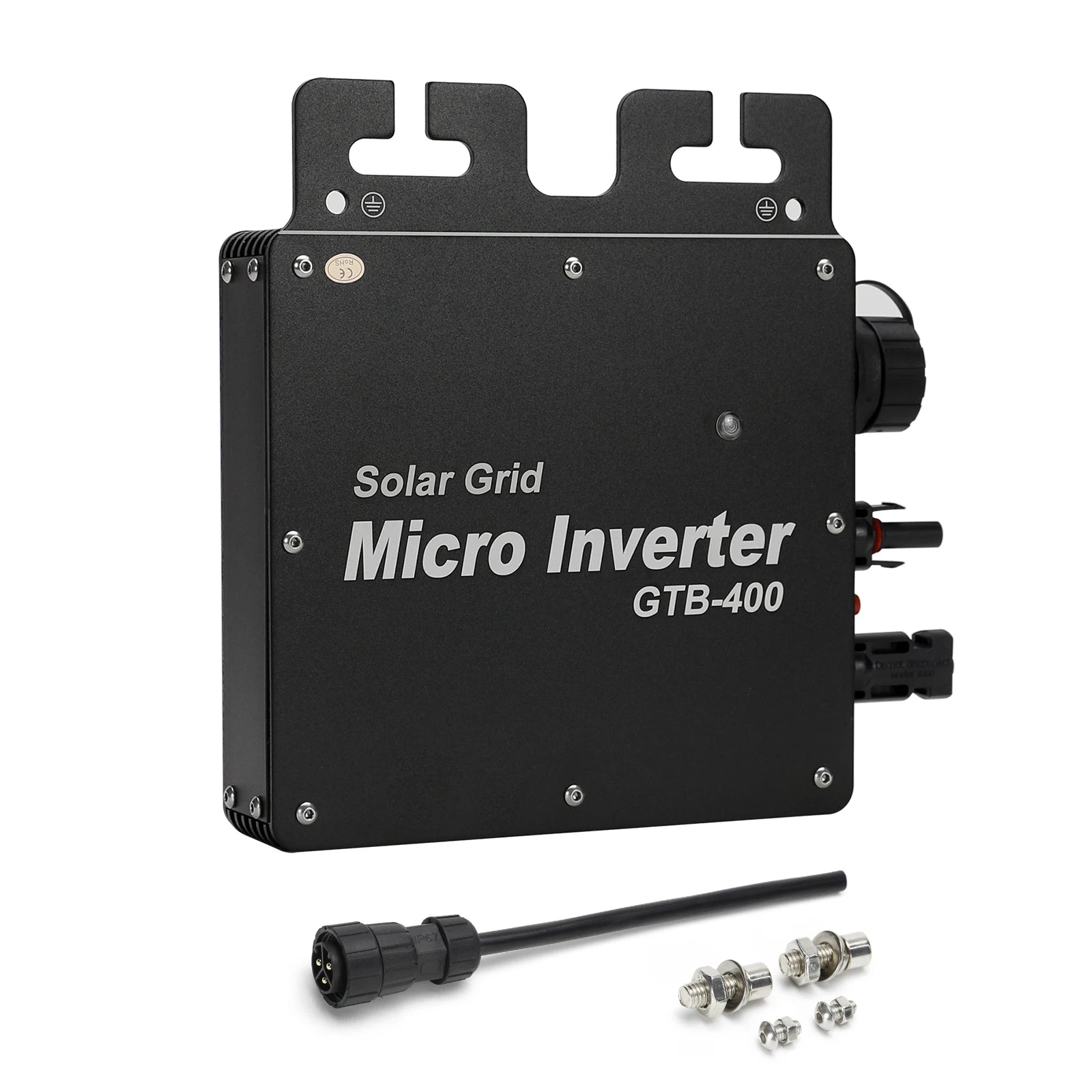

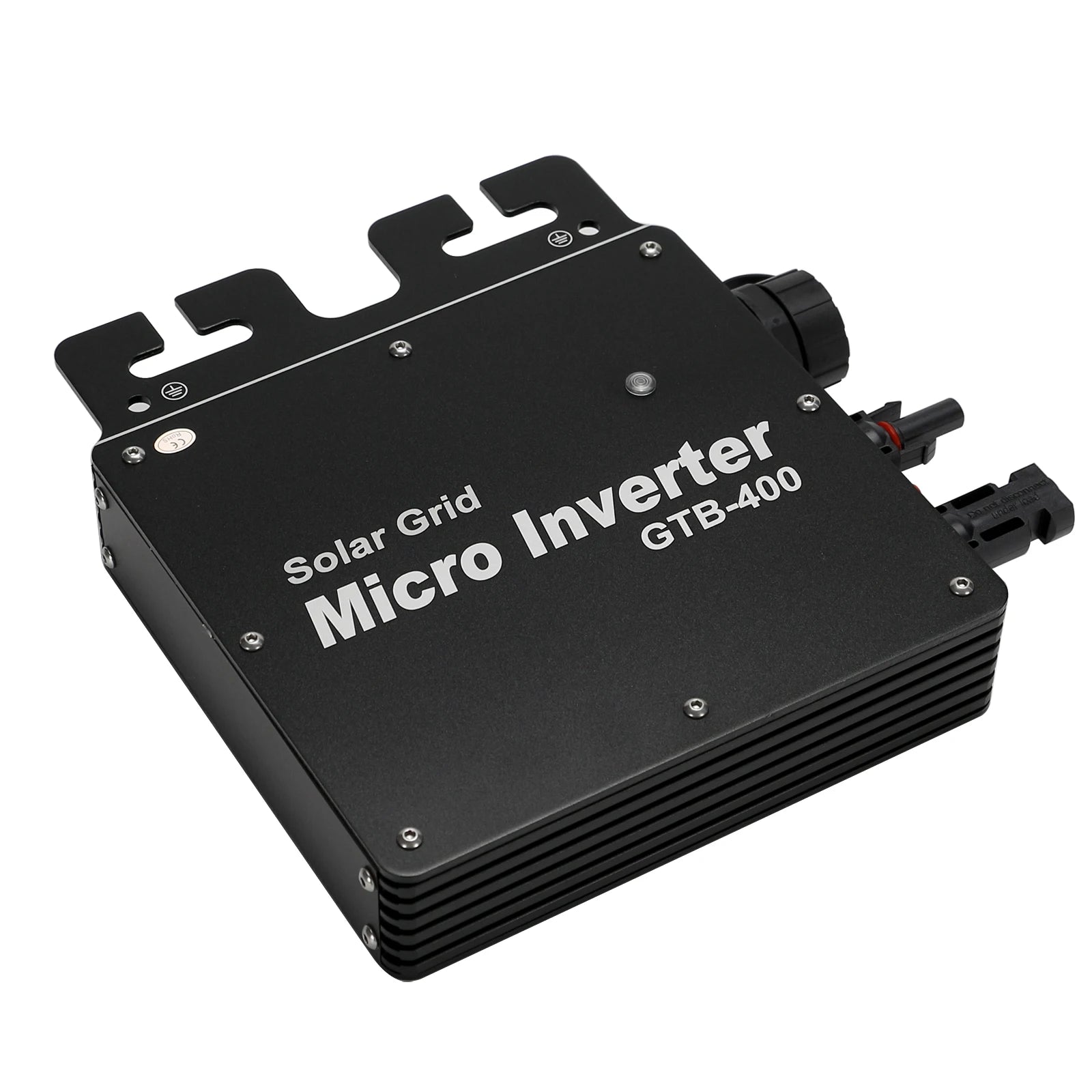

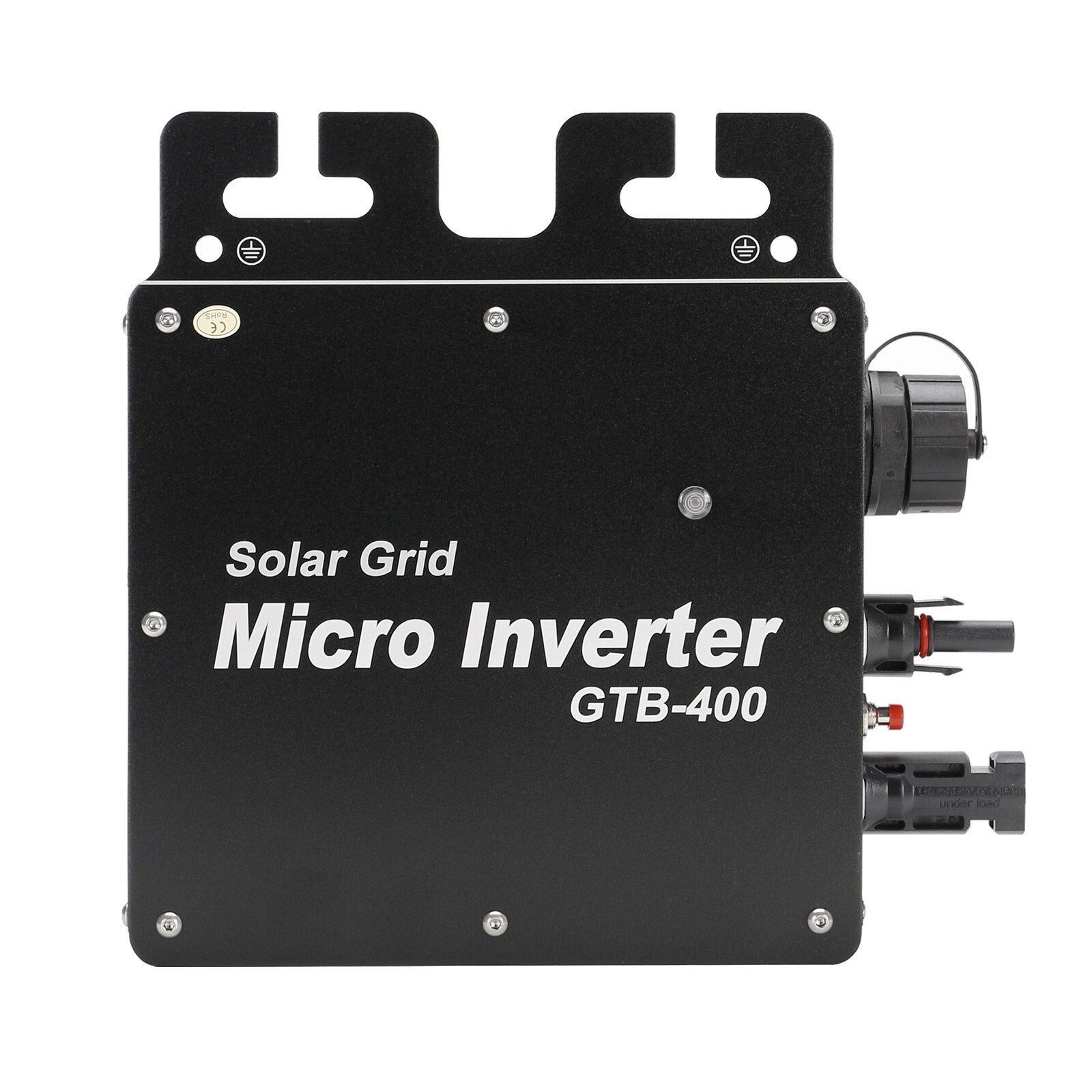

PowMr GTB-400: A micro inverter for grid-tied solar systems, producing pure sine wave output.
PowMr GTB-400 Micro Inverter for grid-tied solar systems with pure sine wave and IP65 waterproof rating.

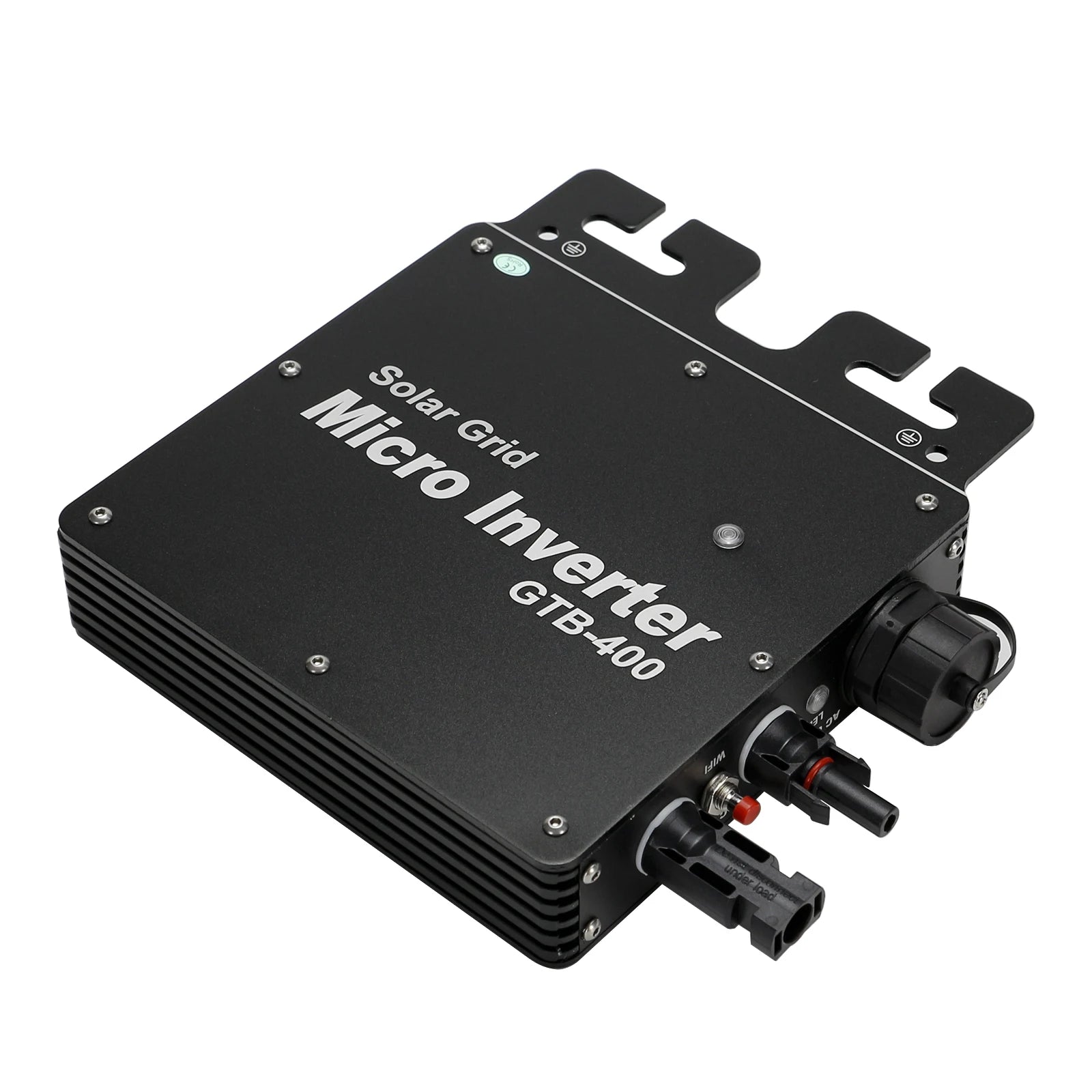

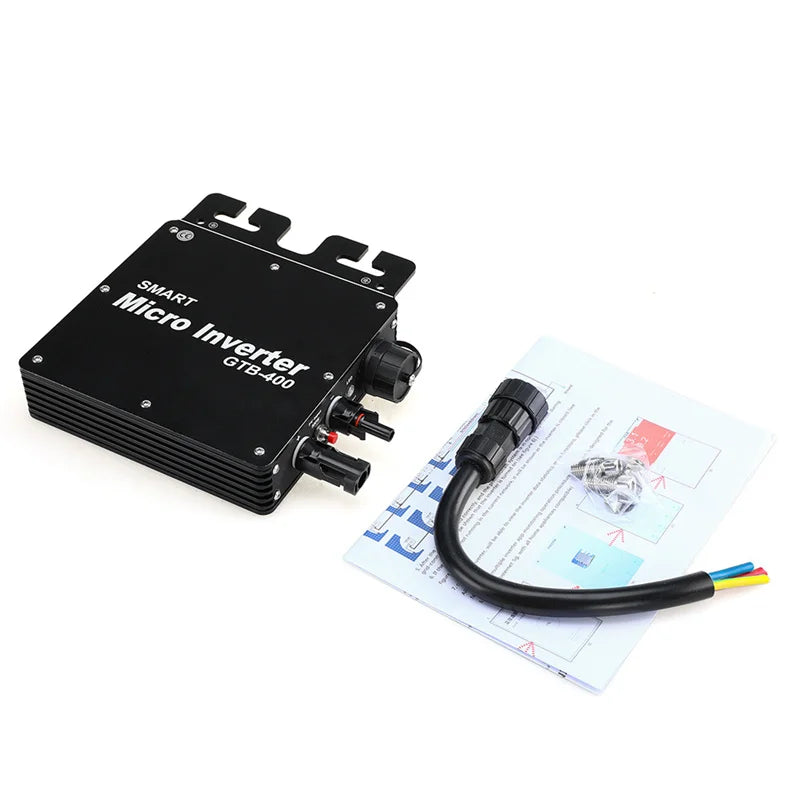

PowMr's 400W/600W Micro Inverter provides pure sine wave power for grid-tied solar systems, with WiFi connectivity and IP65 waterproof rating.
