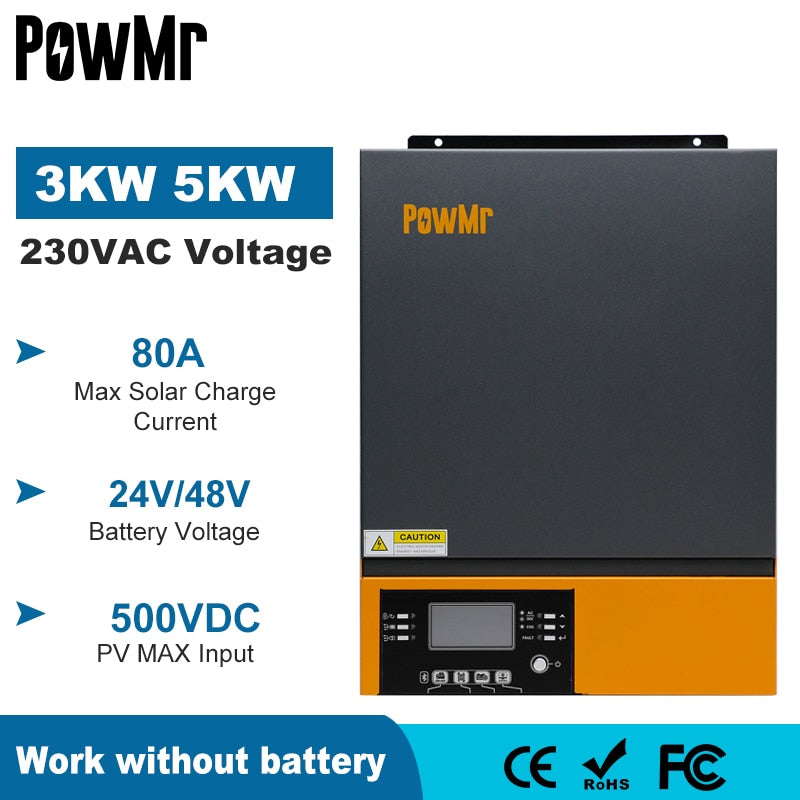

PowMr 5000W 3000W Hybrid Solar Inverter 48V 24V 220V Pure Sine Wave Inverter with MPPT 80A Solar Charger Max PV Input 500VDC
PowMr 5000W 3000W Hybrid Solar Inverter 48V 24V 220V Pure Sine Wave Inverter with MPPT 80A Solar Charger Max PV Input 500VDC
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 9KG/10KG
Usage B: Solar Inverter 24V 48V
Usage A: inverter 3000W 5000W
Solar Charging: MPPT 80A
Size: 115 x 300 x 400cm
Power: 3000W/5000W
Output Voltage: 230VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ/60HZ (Auto)
Output Current: MPPT 80A
Origin: Mainland China
Max Solar Panel Watts Input: 500W
Max Solar Panel Voltage Input: 500VDC
Is Smart Device: YES
Function 5: inversor hibrido mppt
Function 4: inversor hibrido
Function 3: Hybrid Inverter
Function 2: inverter 24v 220v
Function 1: inverter 48v 220v
Description 1: inverter charger
Communication Interface: USB/RS232/RS485/Dry-Contact
Communication: Bluetooth-compatible
Certification: CE
Brand Name: PowMr
Battery Voltage: 24V/48V
AC Charging: 60A
PowMr 5000W 3000W Hybrid Solar Inverter 48V 24V 220V Pure Sine Wave Inverter with MPPT 80A Solar Charger Max PV Input 500VDC
Features:
* Pure sine wave inverter
* Configurable input voltage range for home appliances and personal computers via LCD control pane
* Configurable battery charging current based on applications via LCD control panel
* Configurable AC/Solar Charger priority via LCD control panel
* Compatible to utility mains or generator power
* Auto restart while AC is recovering
* Overload/ Over temperature/ short circuit protection
* Smart battery charger design for optimized battery performance
* Cold start function
* Removable LCD Ccontrol module
* Multiple communication ports for BMS(RS485,CAN-BUS,RS232)
* Built-in Bluetooth-Compatible for mobile monitoring(Requires App),OTG USB function, dusk filters
* Configurable AC/PV Output usage timer and prioritization
Note:
This is a wide voltage hybrid inverter, the minimum of MPPT operating voltage should be 150V to make sure that the device start working, 360V is the best.

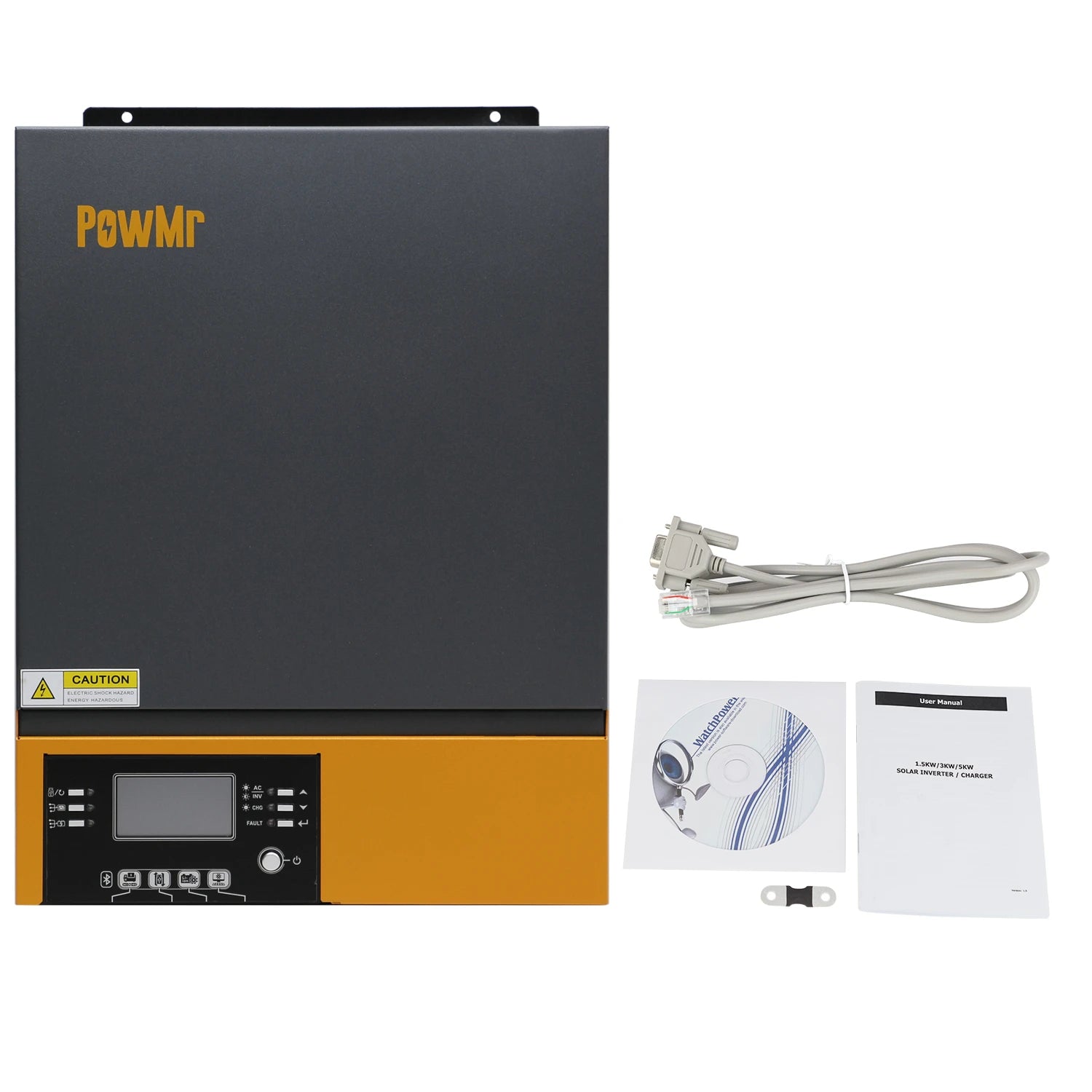

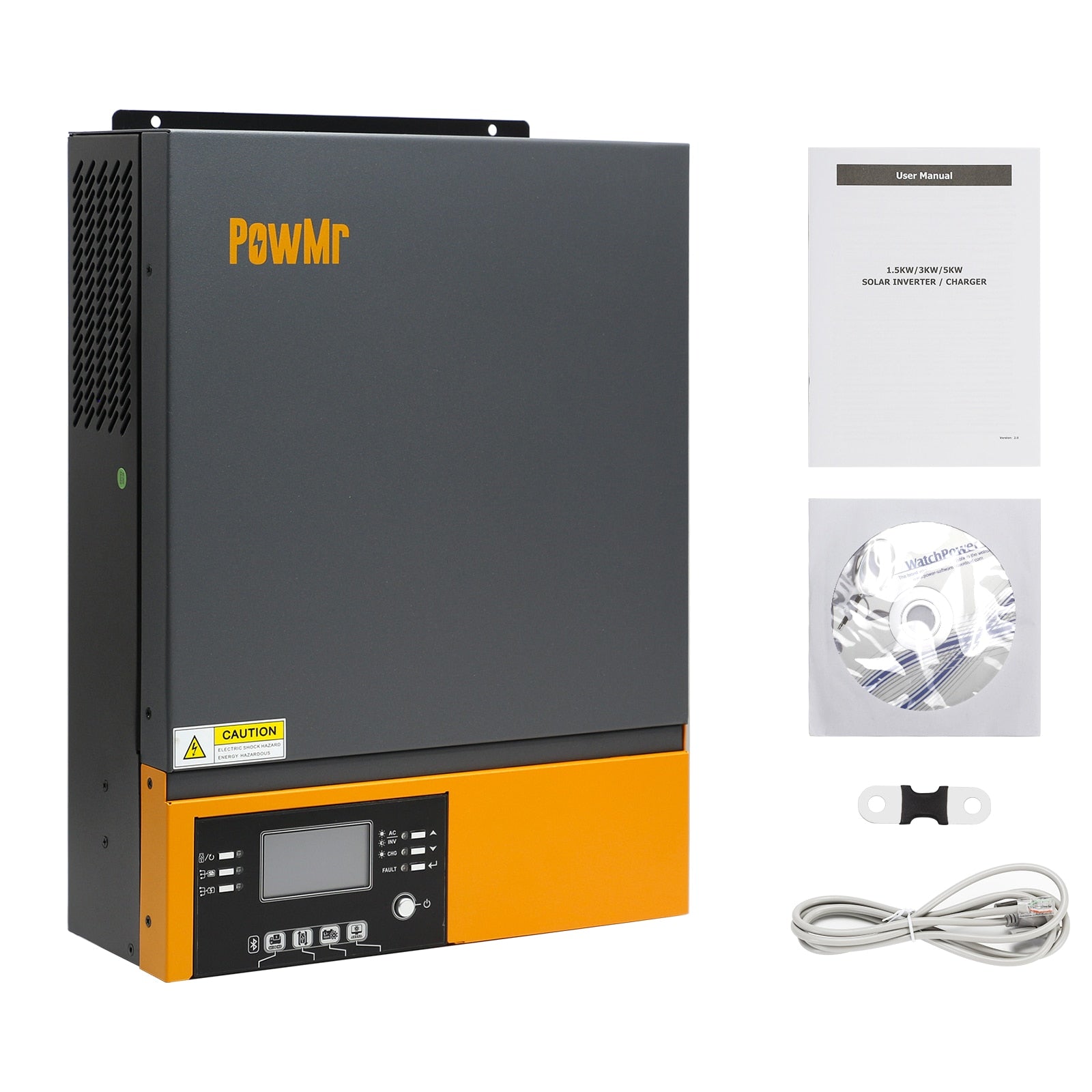

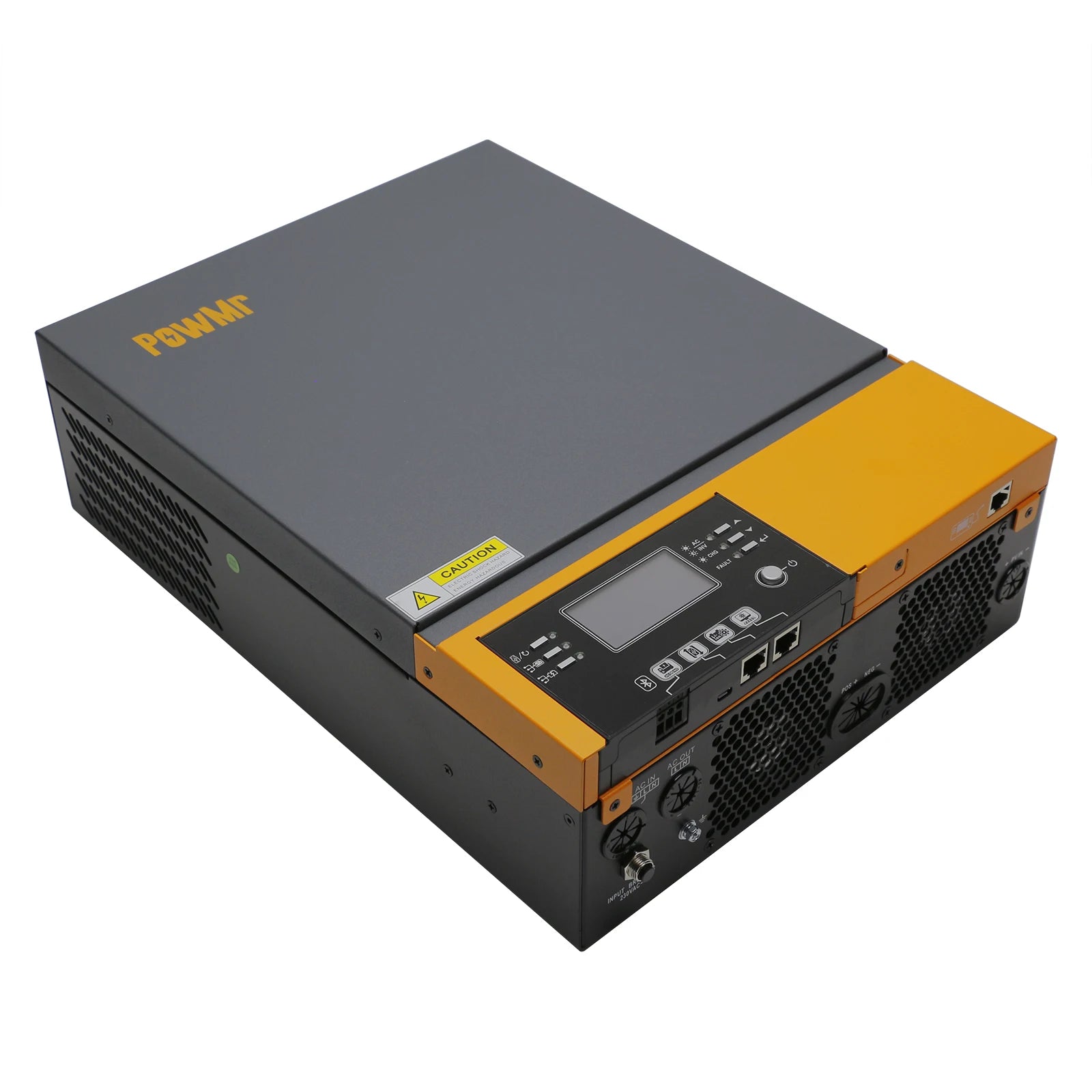

Packing list:
5KW/3KW MPPT Solar Inverter 48v x 1
User manual x 1
RS232 Communication cable x 1
DC Fuse x 1
PowMr 5000W Hybrid Solar Inverter produces pure sine waves, suitable for off-grid systems. It features an 80A MPPT controller and protections against overheating, overvoltage, short circuits, overload, and overcurrent.
Inverter Model |
POW-VM3K-III |
POW-VM5K-III |
|
Input voltage Waveform |
Sinusoidal(Utility or generator) |
||
Nominal Input Voltage |
230Vac |
||
Low Loss Voltage |
170Vac±7V(UPS)90Vac±7V(Appliances) |
||
Low Loss Return Voltage |
180Vac±7V(UPS)100Vac±7V(Appliances) |
||
High Loss Voltage |
280Vac±7V |
||
High Loss Return Voltage |
270Vac±7V |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/60Hz(Auto detection) |
||
Low Loss Frequency |
40±1Hz |
||
Low Loss Return Frequency |
42±1Hz |
||
High Loss Frequency |
65±1Hz |
||
High Loss Return Frequency |
63±1Hz |
||
Output Short Circuit Protection |
Circuit Breaker |
||
Efficiency(Line Mode) |
﹥95%(Rated R load,battery full charged) |
||
Transfer Time |
10ms typical (UPS);20ms typical(Appliances) |
||
Output Power derating: |
When AC input voltage drops to 170V,the output power will be derated;When AC input voltage to 90V, the output power will be 50% |
||
Rated Output Power |
3KVA/3KW |
5KVA/5KW |
|
Output Voltage Waveform |
Pure Sine Wave |
||
Output Voltage Regulation |
230Vac±5V |
||
Peak Efficiency |
93% |
||
Overload Protection |
5s@≧130%load;10s@105~130%load |
||
Surge Capacity |
2*rated power for 5 seconds |
||
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
|
Low DC Warning Voltage@load﹤50%@load≧50% |
23.0Vdc22.0Vdc |
46.0Vdc44.0Vdc |
|
Low DC Warning Return Voltage@load﹤50%@load≧50% |
23.5Vdc23.0Vdc |
47.0Vdc46.0Vdc |
|
Low DC Cut-off Voltage@oad﹤50%@oad≧50% |
21.5Vdc21.0Vdc |
43.0Vdc42.0Vdc |
|
High DC Recovery Voltage |
32 Vdc |
62 Vdc |
|
High DC Cut-off Voltage |
33Vdc |
63Vdc |
|
No Load Power Consumption |
﹤35W |
﹤50W |
|
Utility Charging Mode |
|||
Charge Algorithm |
3-Step |
||
AC Charge Current(Max) |
40Amp(@V i/p=230Vac) |
60Amp(@V i/p=230Vac) |
|
Bulk ChargingVoltage |
Flooded Battery |
29.2 |
58.4 |
AGM/GEL Battery |
28.2 |
56.4 |
|
Floating Charging Voltage |
27Vdc |
54Vdc |
|
MPPT Solar Charging Mode | |||
Max PV Array Power |
4000W |
5000W |
|
Nominal PV Voltage |
240Vdc |
320Vdc |
|
Start-up Voltage |
150Vdc±10Vdc |
||
PV Array MPPT Voltage Range |
120~450Vdc |
||
Max PV Array Open Circuit Voltage |
500Vdc |
||
Max Charge Current(AC Charger plus solar charger) |
80Amp |
||
Operating Temperature Range |
-10℃ to 50℃ |
||
Storage temperature |
-10℃ to 60℃ |
||
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
||
Dimension(D*W*H),mm |
115*300*400 |
||
Net Weight |
9kg |
10kg |

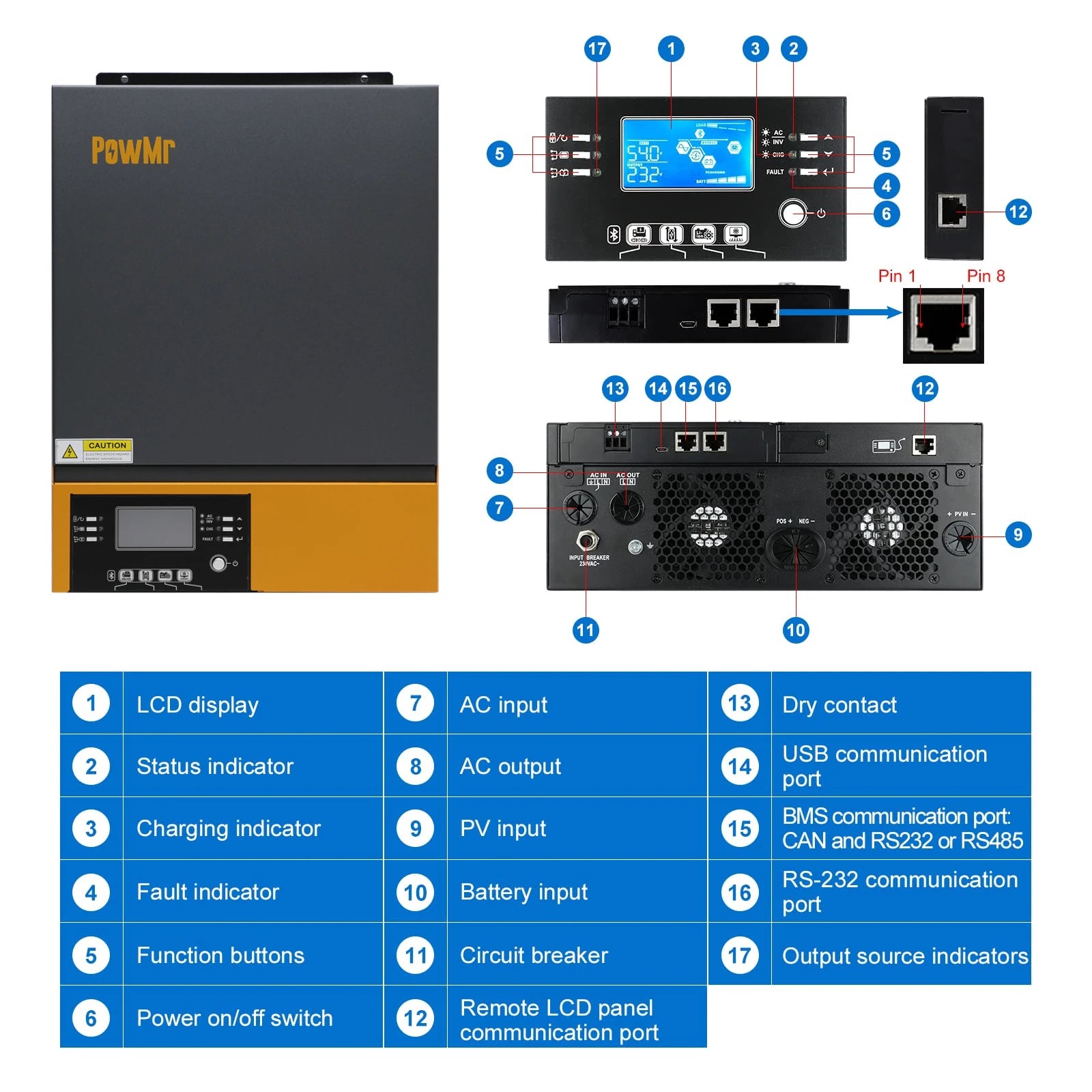

PowMr 5000W Hybrid Solar Inverter: A pure sine wave inverter with MPPT (Maximum Power Point Tracking) 80A solar charger. Features include LCD display, USB communication, status indicator, AC output port, battery input port, circuit breaker, and power on/off switch. Note: Fault indicators and CAN/RS232 or RS485 communication ports are also included.

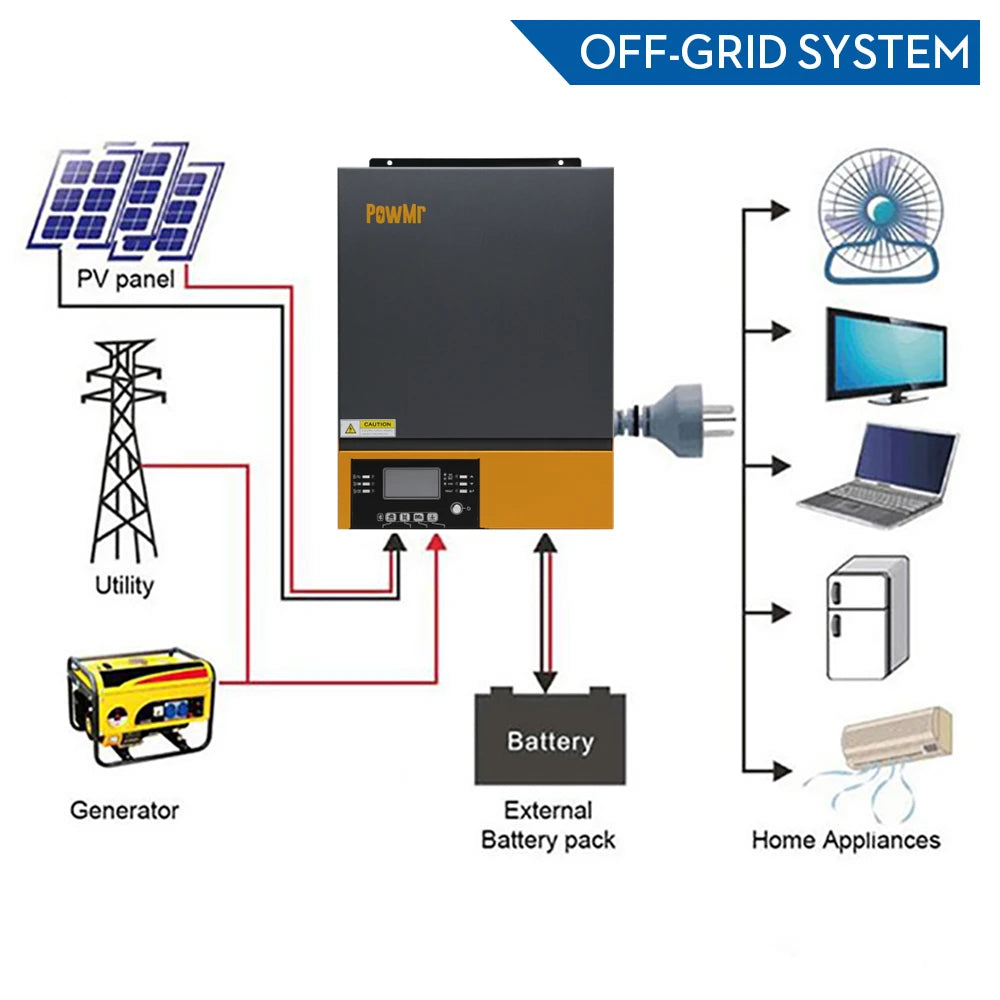

PowMr hybrid solar inverter for off-grid systems, suitable for home appliances and utility backup, supporting up to 500VDC input from PV panels.

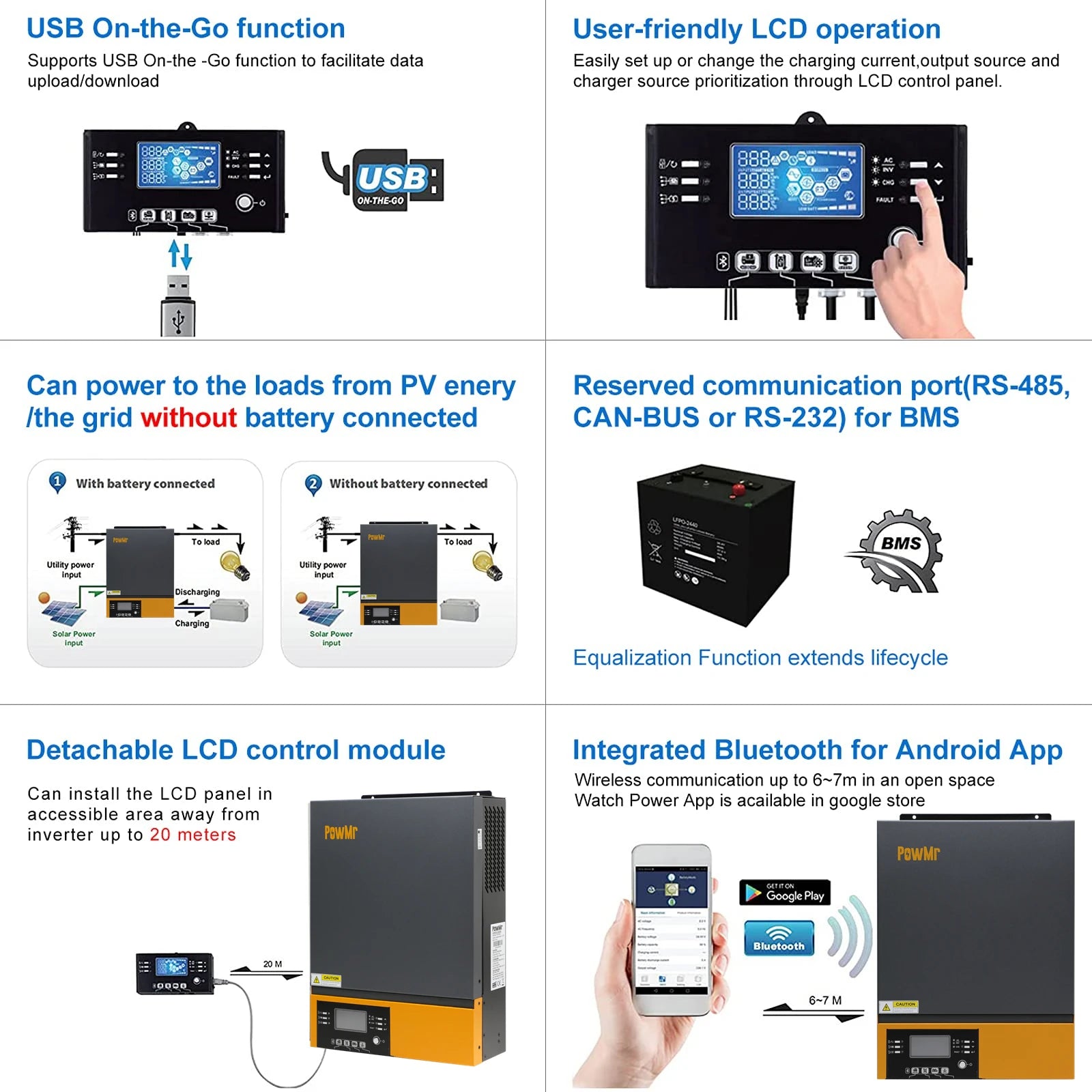

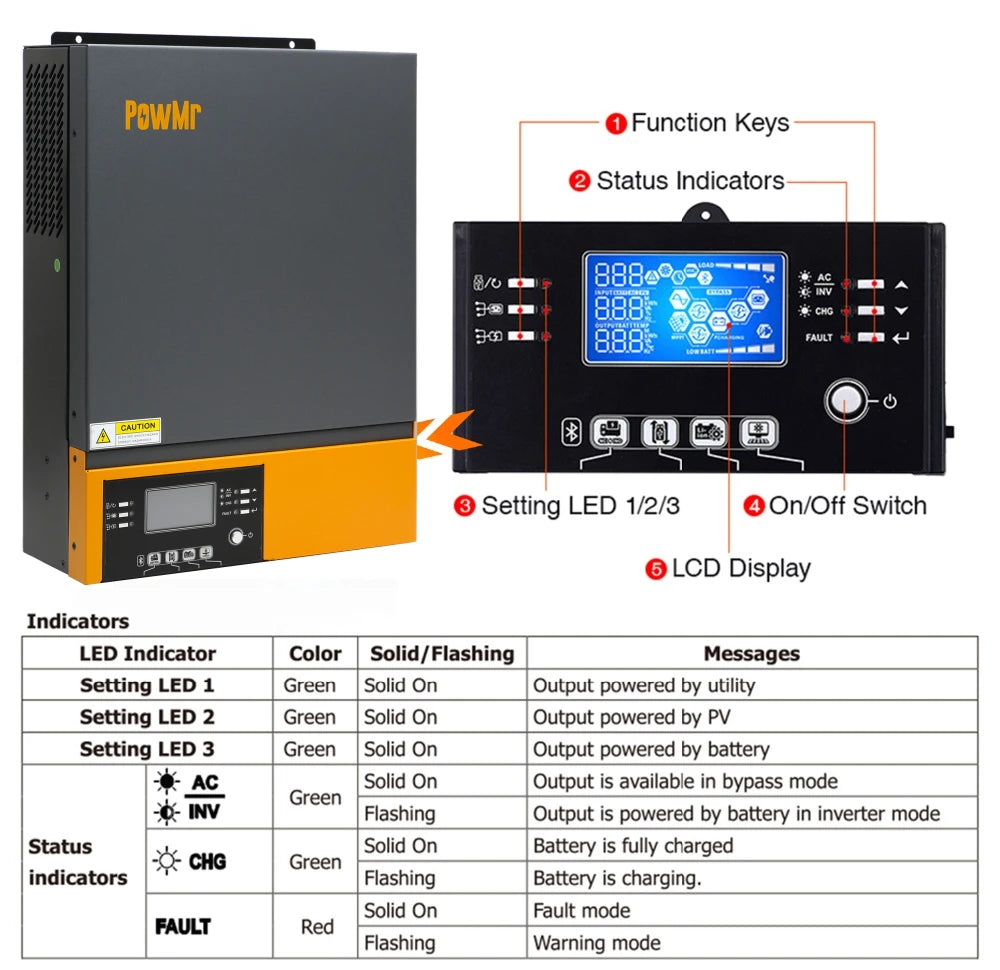

User-friendly LCD operation with USB On-the-Go function for easy setup and control. Monitor and adjust charging current, output sources, and prioritize charger sources via LCD panel. Supports RS-485, CAN-BUS, and RS-232 communication ports for battery management systems (BMS) connectivity. Also features equalization function to extend lifespan, detachable LCD module, and Bluetooth integration for Android wireless communication up to 6-7 meters.
PowMr 5000W Hybrid Solar Inverter: A pure sine wave inverter with MPPT solar charger, capable of handling up to 3000W and 48V/24V outputs. Max PV input is 500VDC. Ideal for residential and commercial applications.

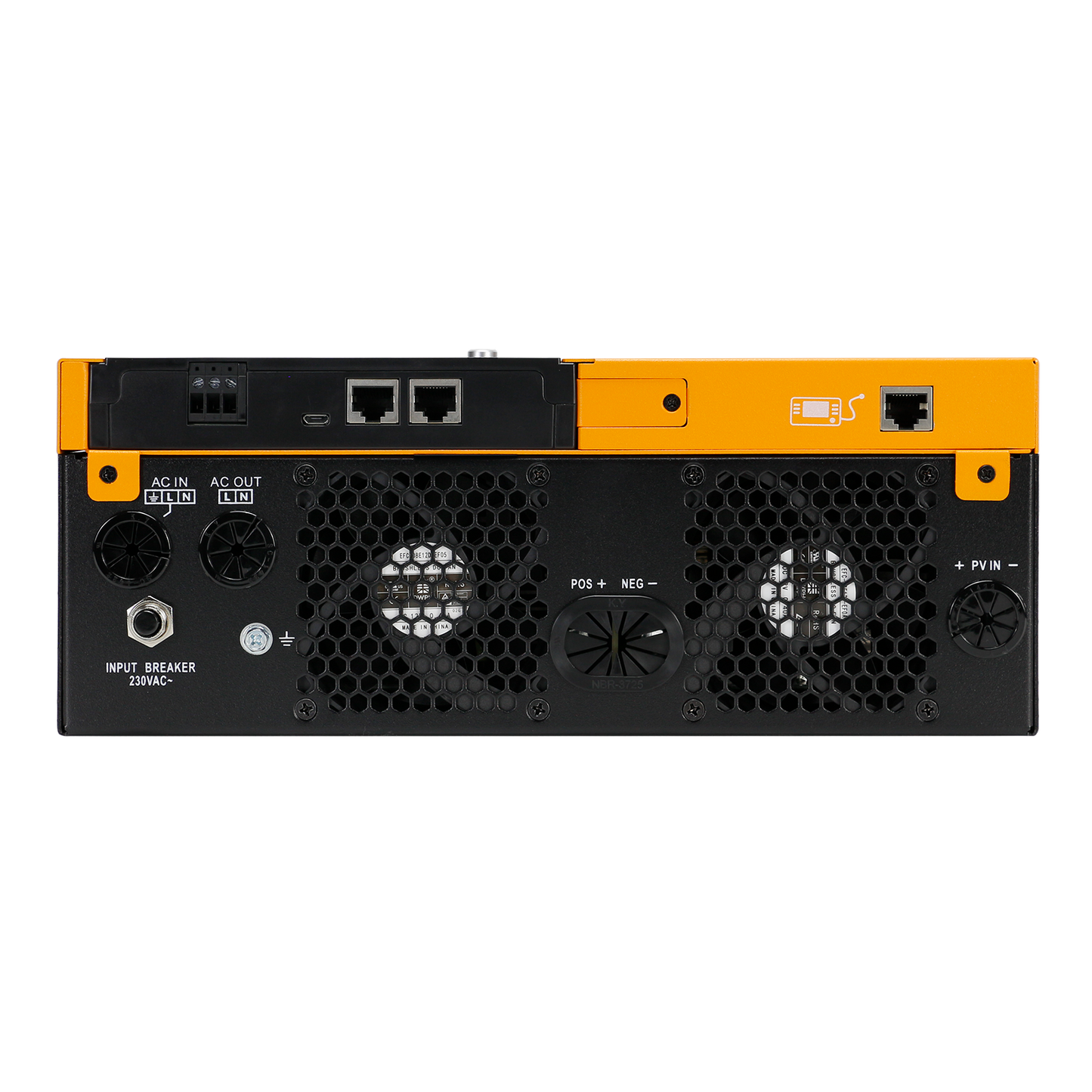

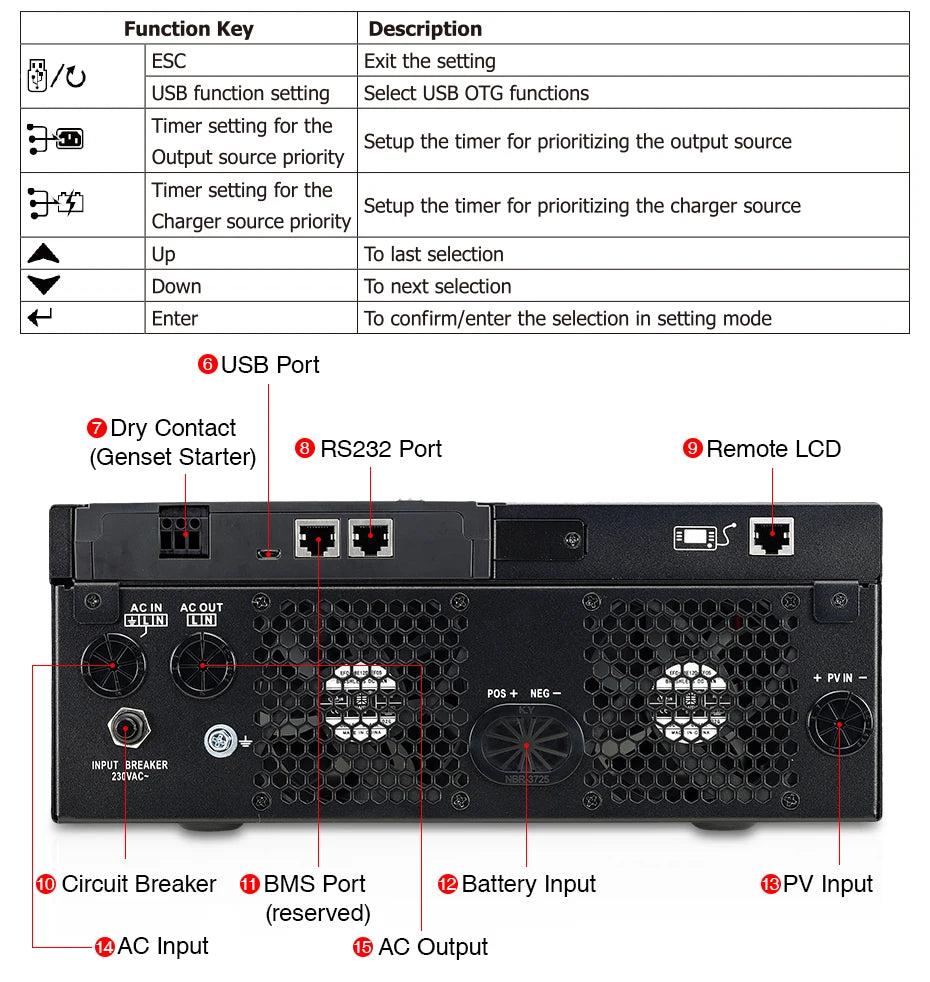

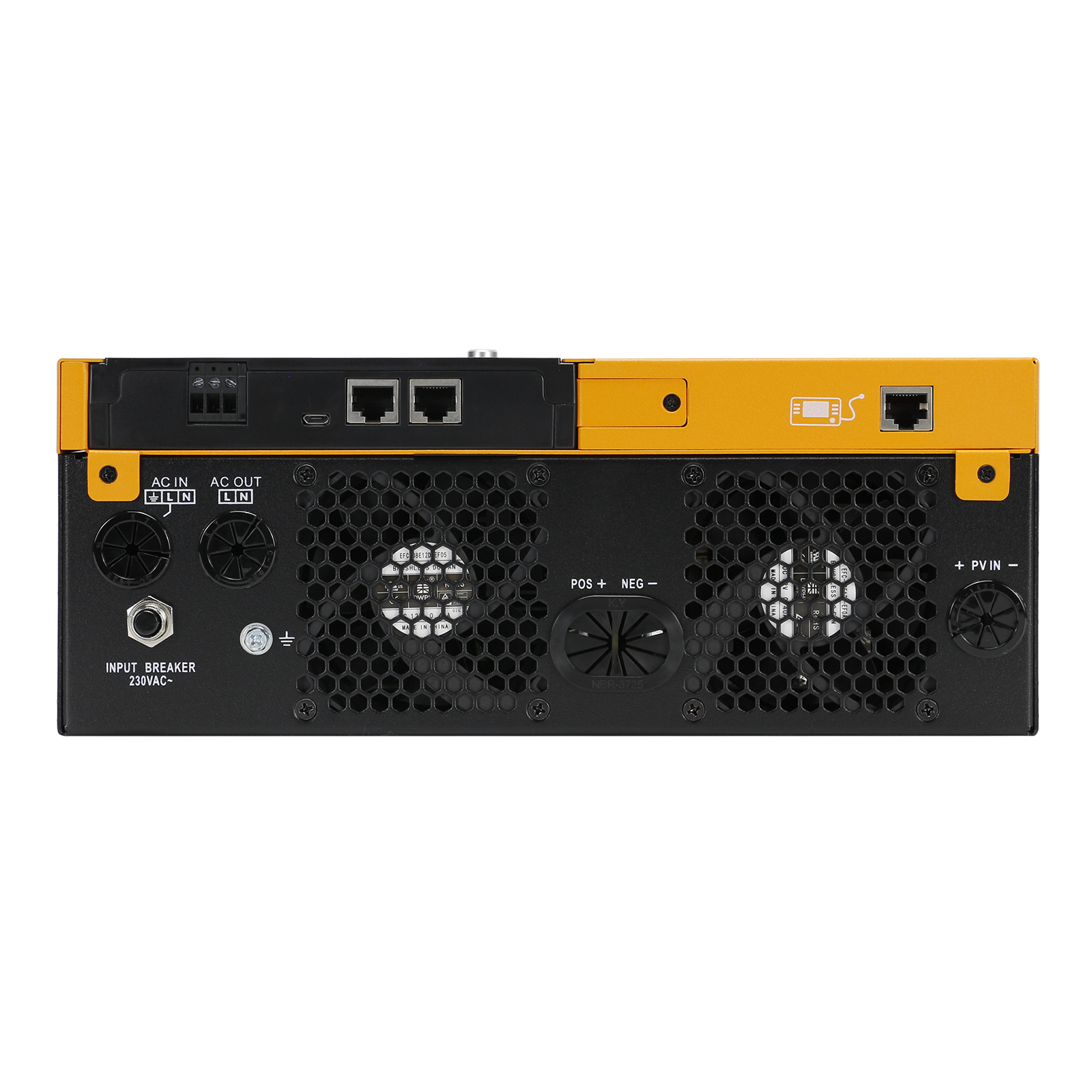

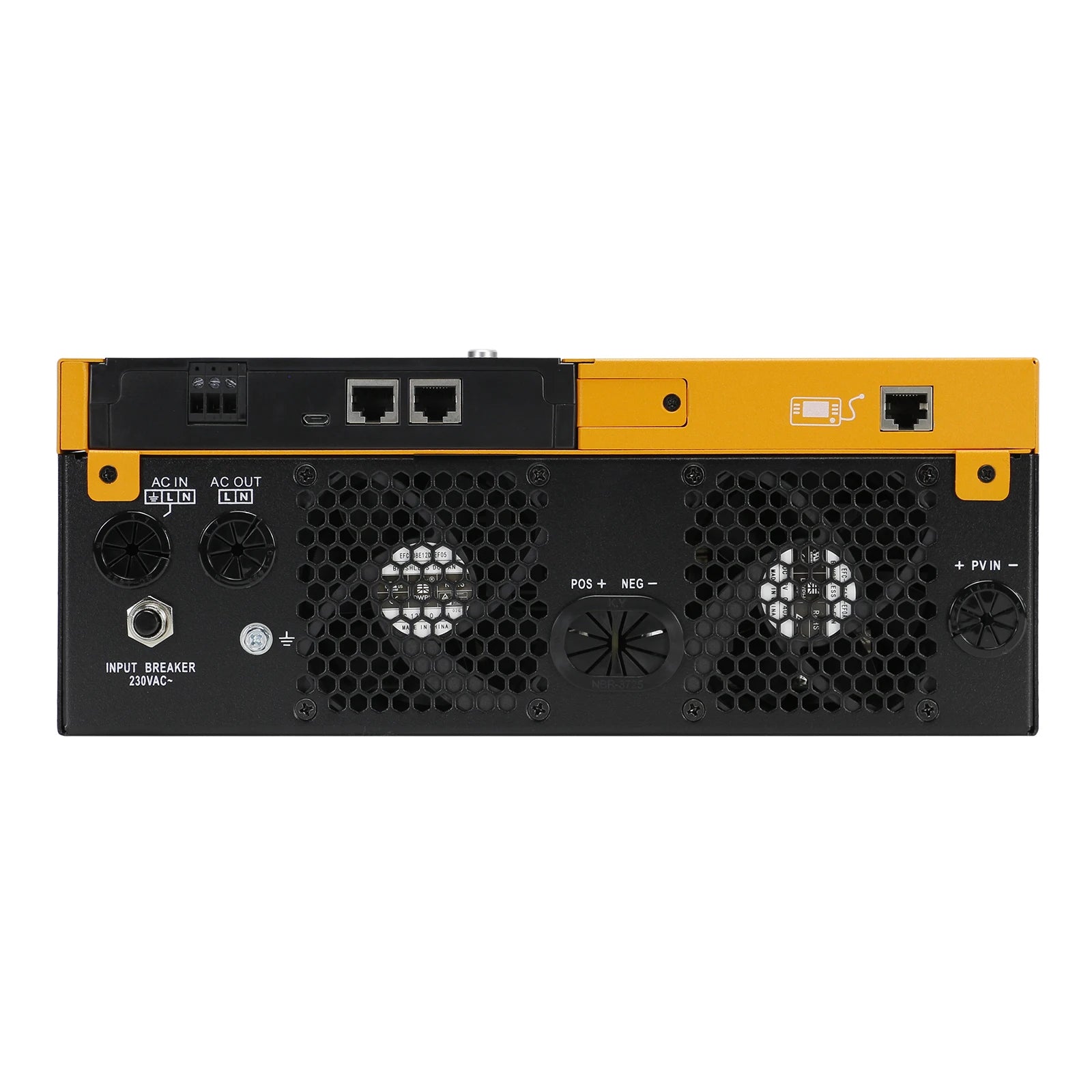

The PowMr 5000W hybrid solar inverter features a range of functions, including USB OTG, timer settings, output source priority, and charger source priority. The device also includes various ports and interfaces, such as USB, dry contact (Genset Starter), RS232, AC OUT, PV IN, POS NEG INPUT BREAKER, 230VAC circuit breaker, BMS port, battery input, PV input, and AC output key.
Photo:

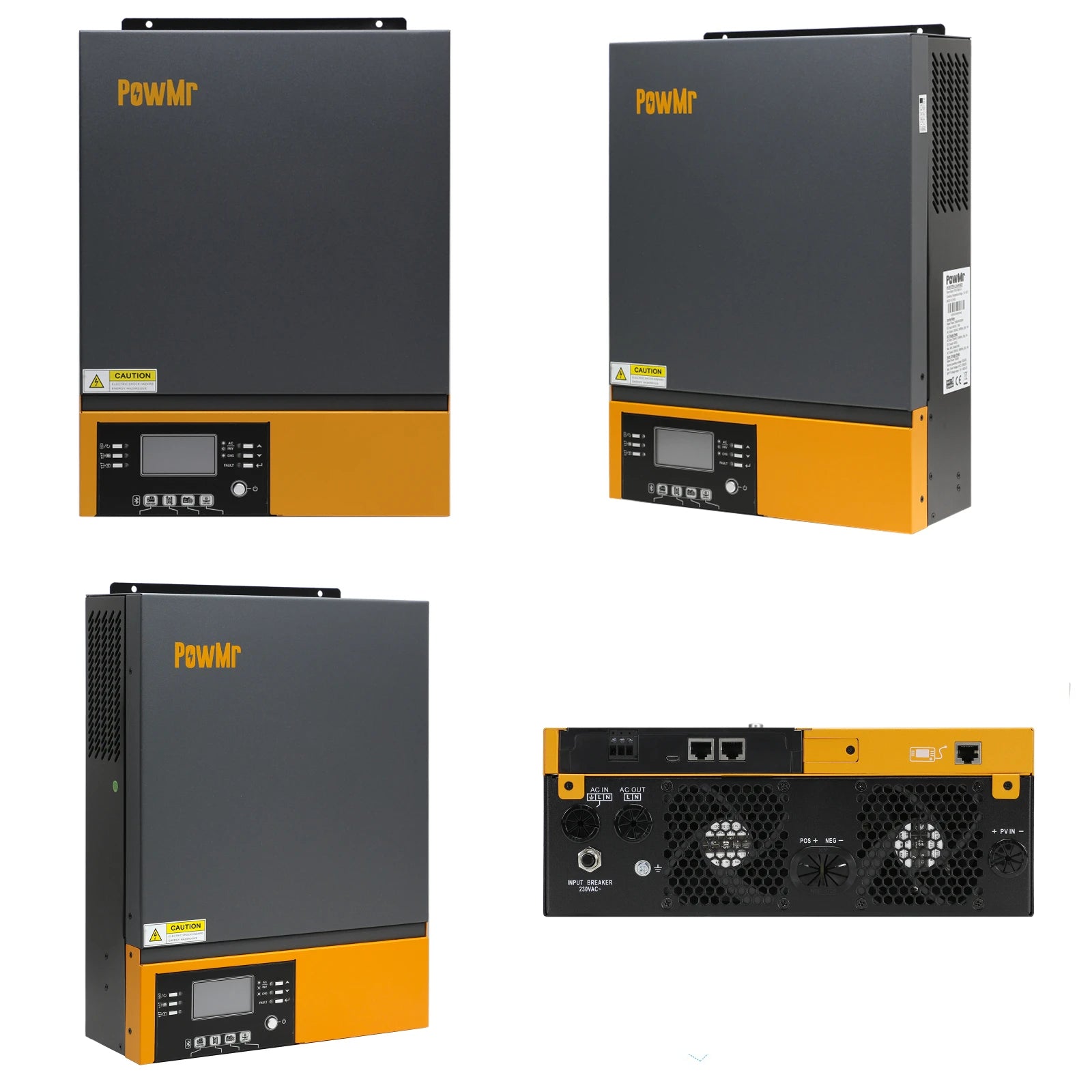

Warning: Do not exceed maximum PV input (500VDC) or negative input voltage. CAUTION: breaker may trip if input exceeds specified limits.

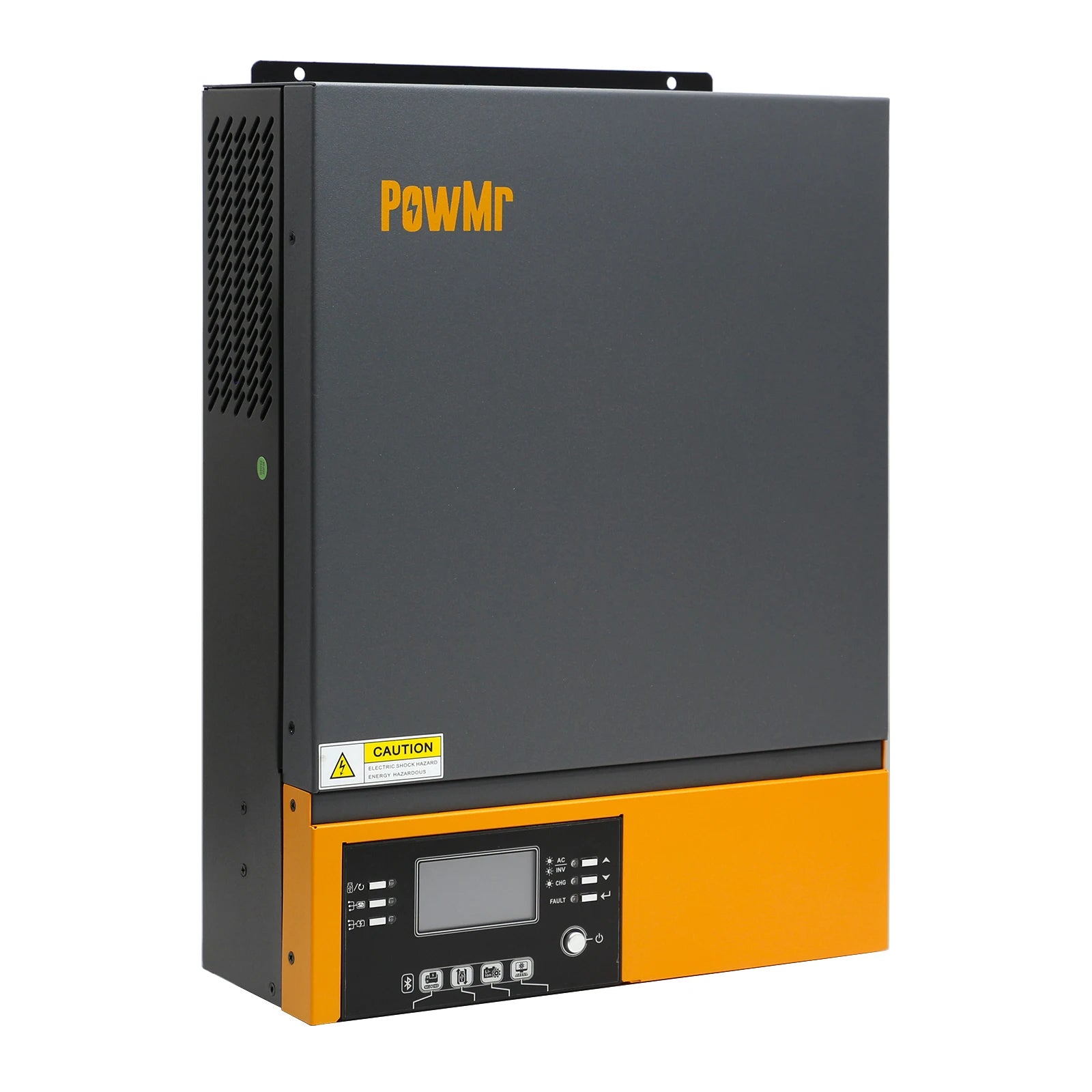

**Caution: High Voltage. May Cause Electric Shock.**

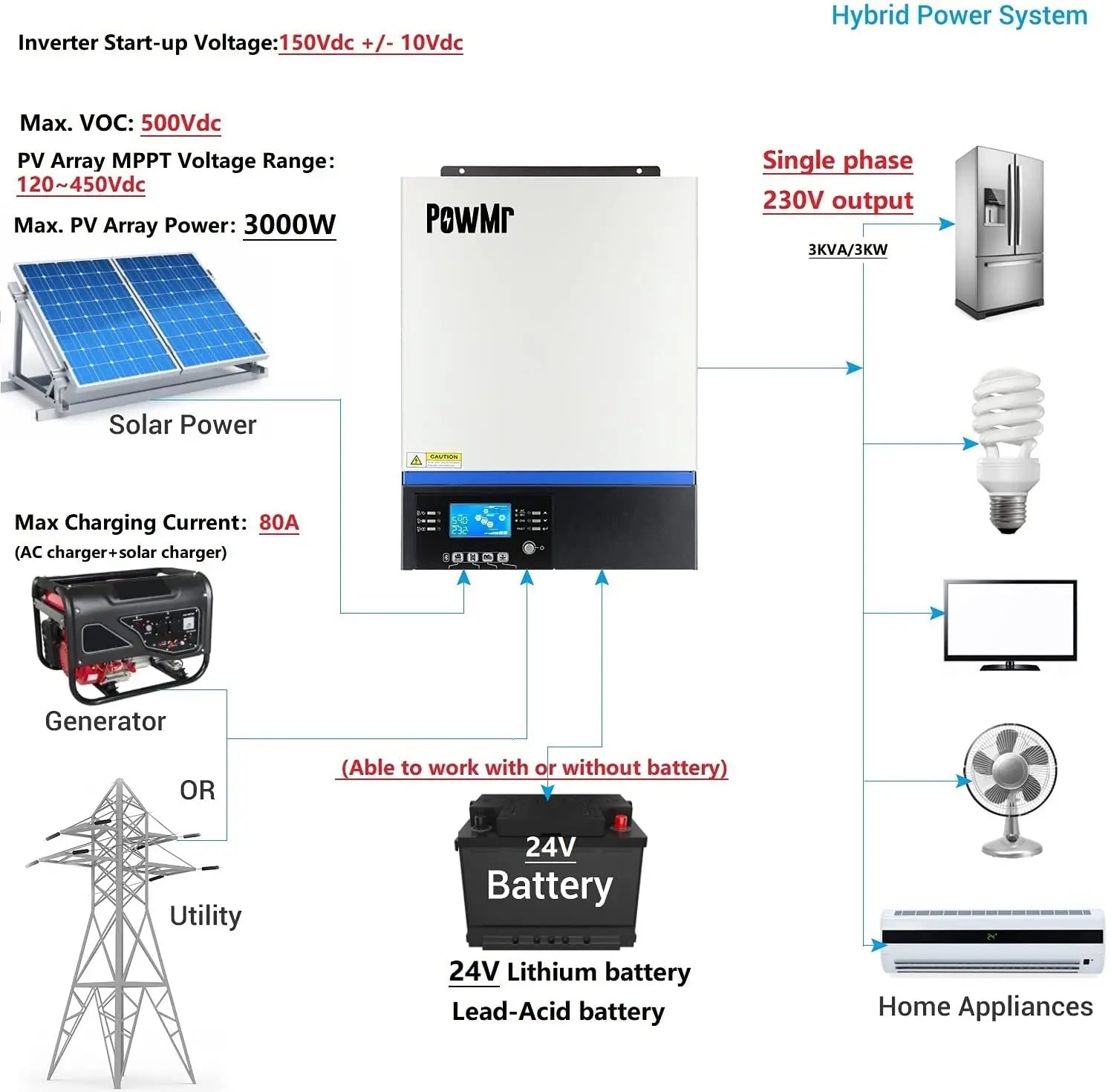

PowMr's hybrid solar inverter features a start-up voltage of SOVDC + L1OVDC. The maximum Voc is SO0VDC. It supports single-phase PV arrays with a voltage range of 120-450VDC and outputs up to 23V. The system can handle a maximum PV array power of 3000W, suitable for charging batteries or powering home appliances.

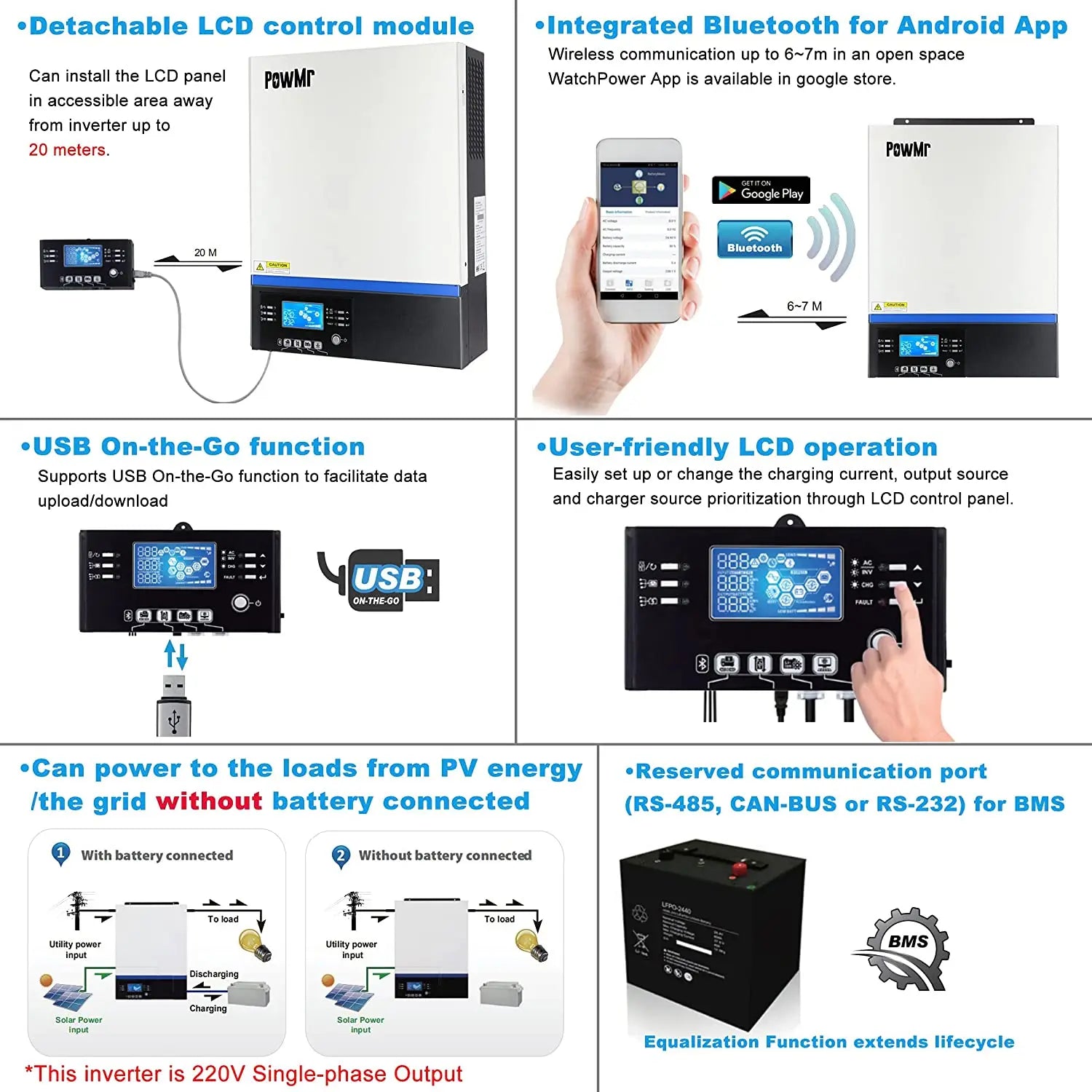

The PowMr 5000W hybrid solar inverter features an LCD control module with Bluetooth connectivity, enabling wireless communication up to 20 meters. The app, available on Google Play, allows for monitoring and control from any location. The inverter also supports USB On-the-Go function, enabling easy setup and configuration. Additionally, it has a reserved communication port (RS-485/ CAN-BUS/ RS-232) for integrating with battery management systems (BMS).

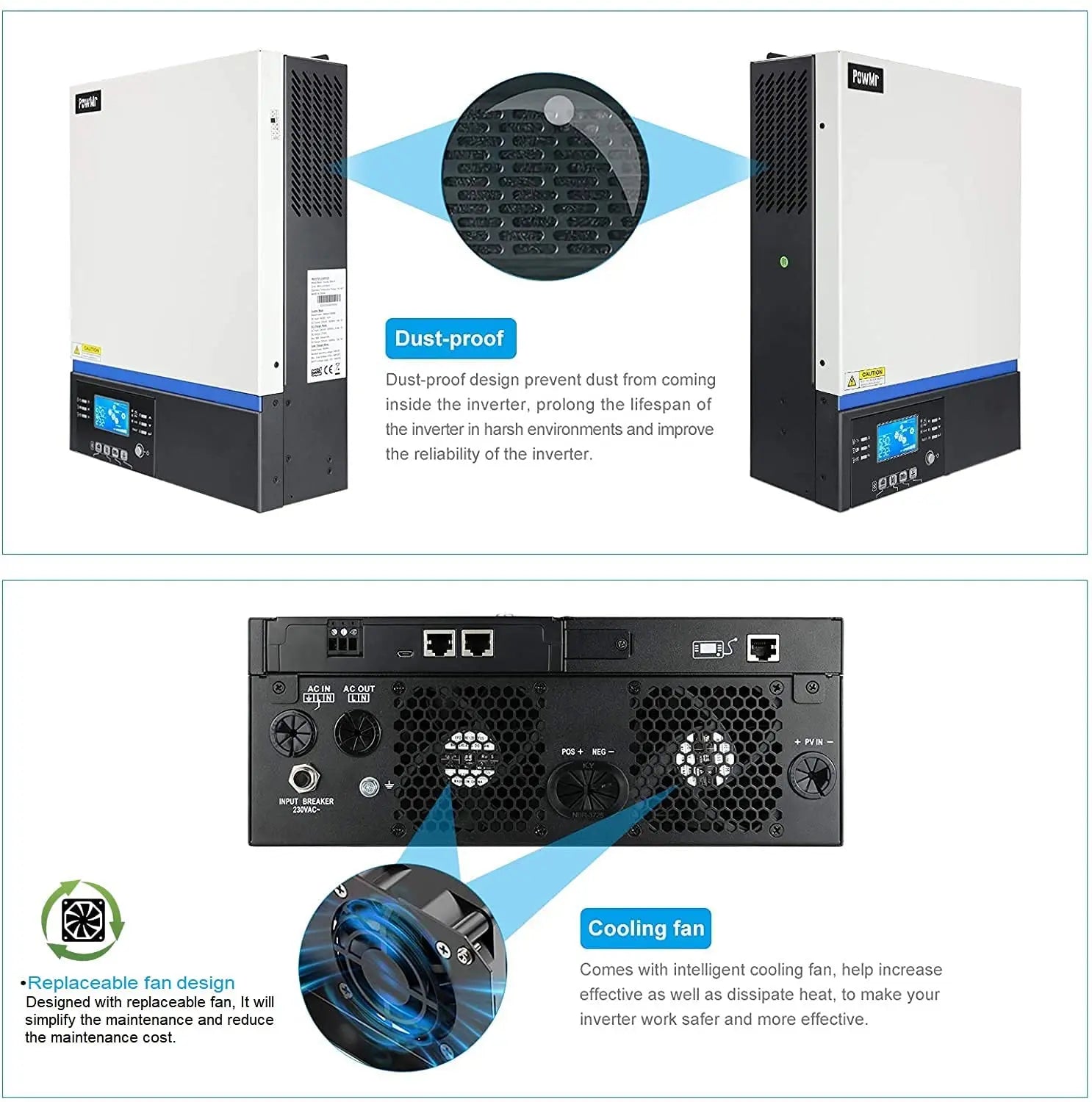

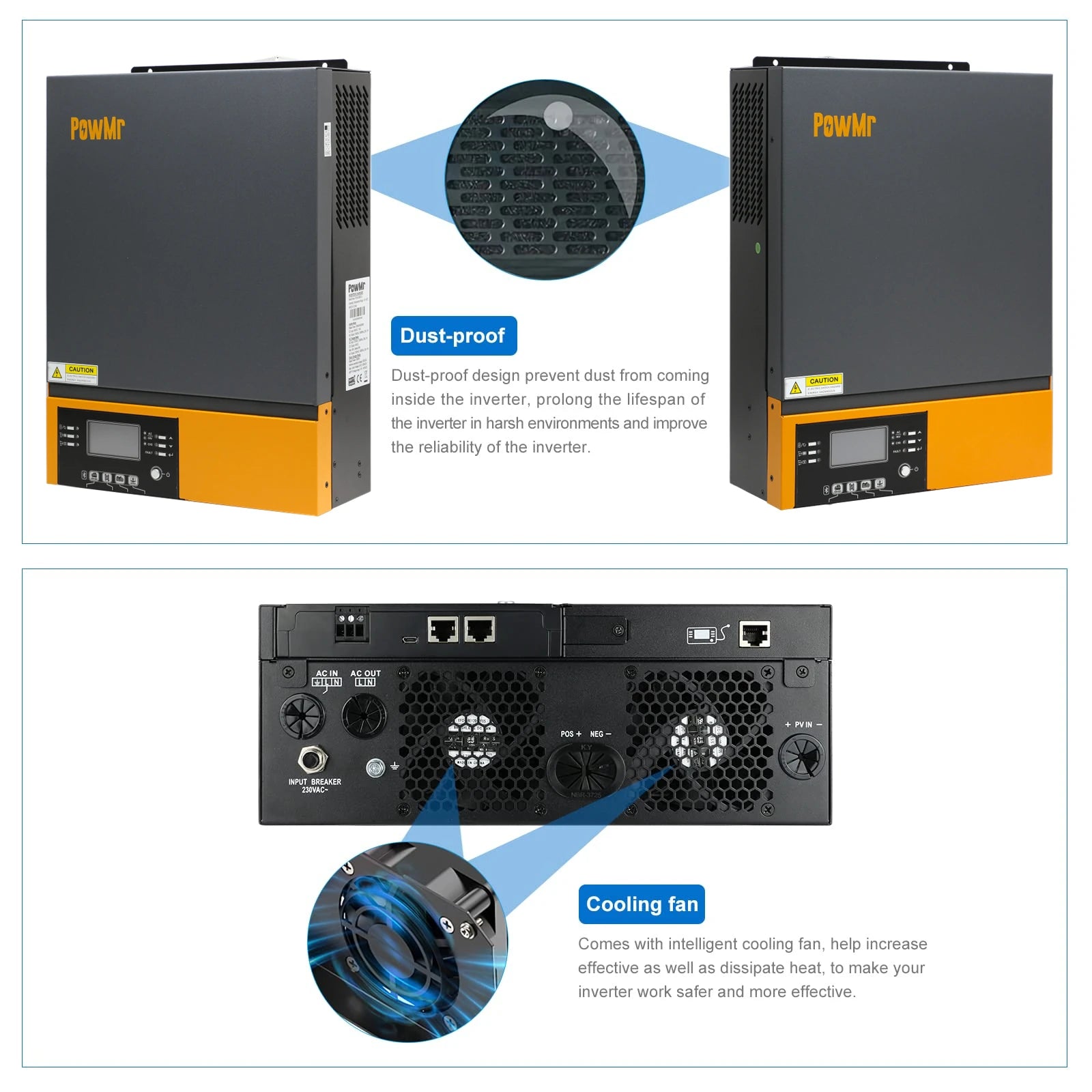

PowMr's 5000W hybrid solar inverter features a dust-proof design, prolonging lifespan and improving reliability. The intelligent cooling fan ensures efficient heat dissipation, simplifying maintenance and reducing costs. With replaceable fans, you can easily maintain your inverter for safe and effective operation.
