PowMr 6200W Grid Tied Inverter 48V 230VAC MPPT 80A Output With Max Solar Panel 500VDC Input Buid-in MPPT Solar Charge Controller
PowMr 6200W Grid Tied Inverter 48V 230VAC MPPT 80A Output With Max Solar Panel 500VDC Input Buid-in MPPT Solar Charge Controller
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
aximum PV input current: 18A
Working efficiency: >95%
Work for: solar panel/photovoltaic panel,Factory equipment, commercial load, industrial machinery
Weight: 10KG
Used for: Household appliances, farm tools, farm tools
Size: 444x300x100mm
Rated output power: 6200W
Product: hybrid solar inverter
Part of: solar system complete
PV operating voltage: 90VDC-500VDC
Output voltage range: 220VAC-240VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ
Output Current: MPPT 120A
Origin: Mainland China
Model Number: POW-HVM6.2M-48V
Maximum PV input power: 6500W
Item: grid tied inverter
Is Smart Device: YES
Feature: With movable screen
Description: photovoltaic hybrid inverter
Charging: pure sine wave inverter
Certification: CE
Brand Name: PowMr
Battery voltage: 48V
Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries
Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)
Inverter Use Note:
The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.
Contact the seller, get priority shipping rights, buy from China, ship from Germany, The price including tax and faster.

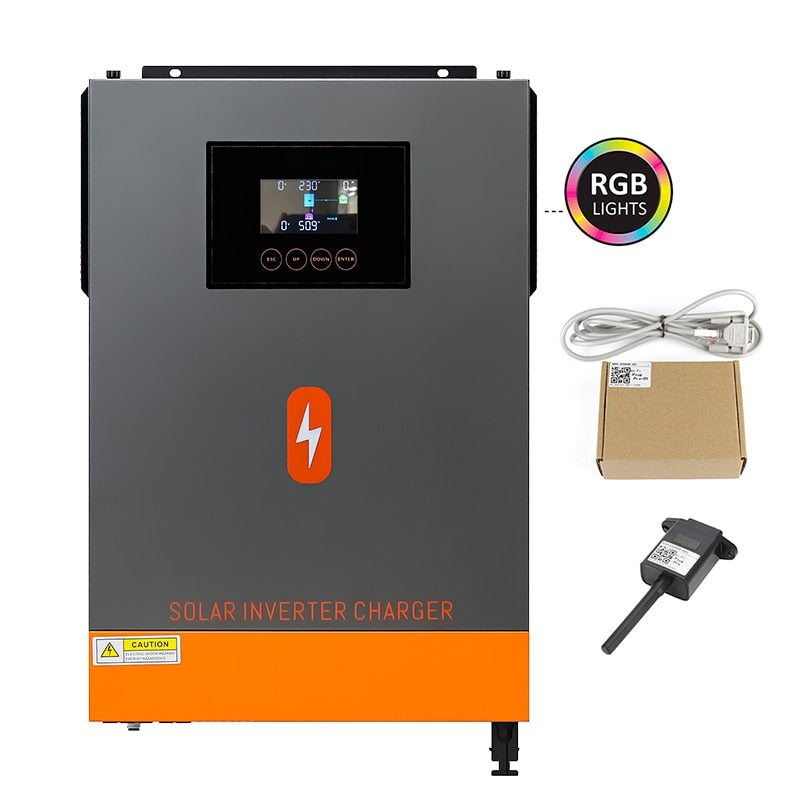

PowMr 6200W Grid Tied Inverter 48V 230VAC MPPT 80A Output With Max Solar Panel 500VDC Input Buid-in MPPT Solar Charge Controller With Movable Screen Support Wifi Module
Overviwe:
This is a new PowMr on-grid inverter, which can transfer excess power to the network. This inverter has a simple appearance, powerful functions and simple operation, which is very suitable for European families.

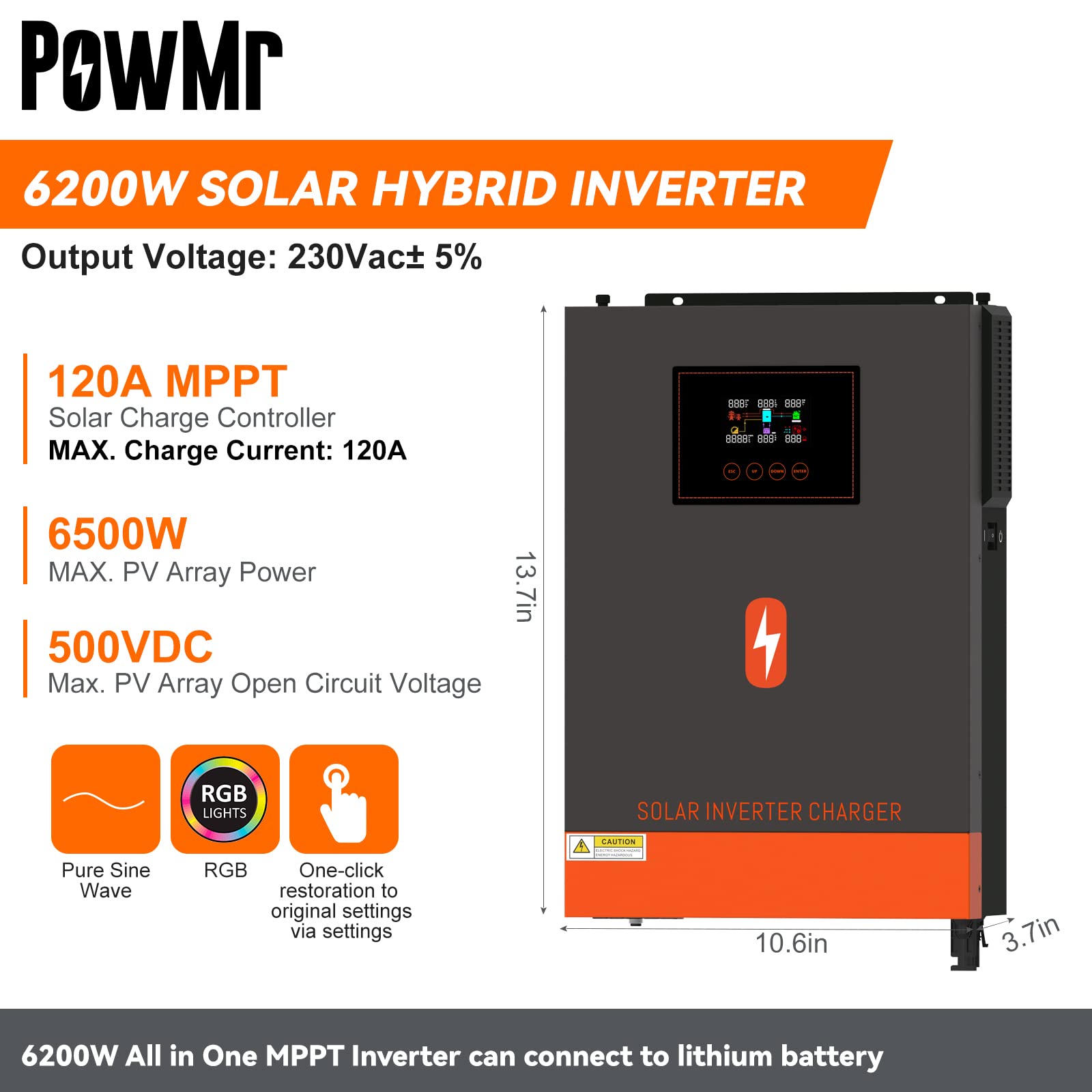

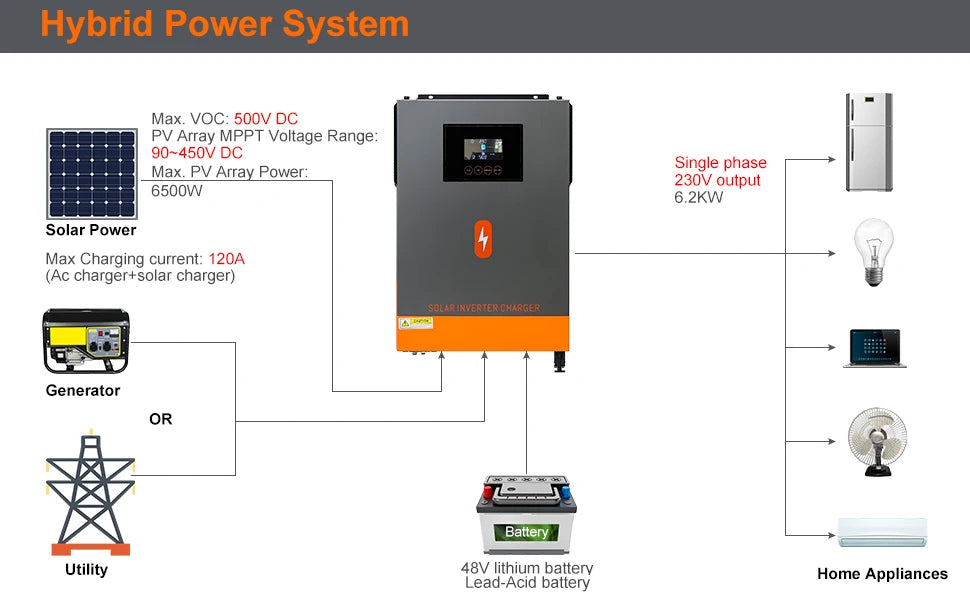

PowMr's 6200W grid-tied inverter charger features a 120A MPPT solar charge controller, converting 48V DC to 220/230V AC. It provides pure sine wave power for off-grid systems, ensuring reliable backup power during outages.

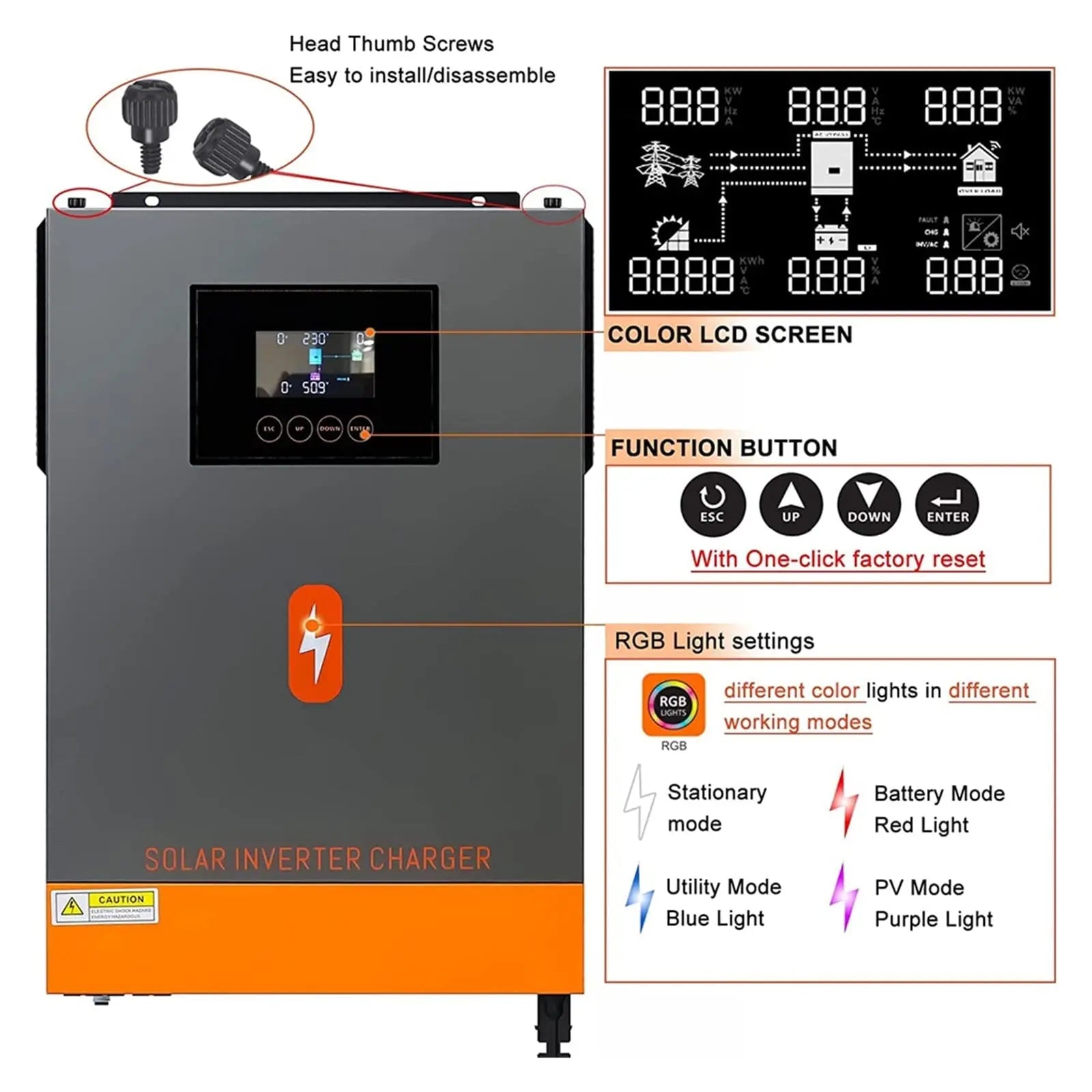

Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
When the MPPT input voltage of PV modules is within an acceptable range (see specification for the details), this inverter is able to generate power to feed the grid (utility) and charge the battery.
PowMr's grid-tied inverter supports up to 500V DC solar panels, with an output power of 6.2 kW and 230V AC. It features a maximum charging current of 80A and can charge batteries or power home appliances using utility-grade voltage.
Features:
1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible with mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function
10.For grid connection or off grid use
11.During grid connection, excess PV power can be transmitted to the grid safely.

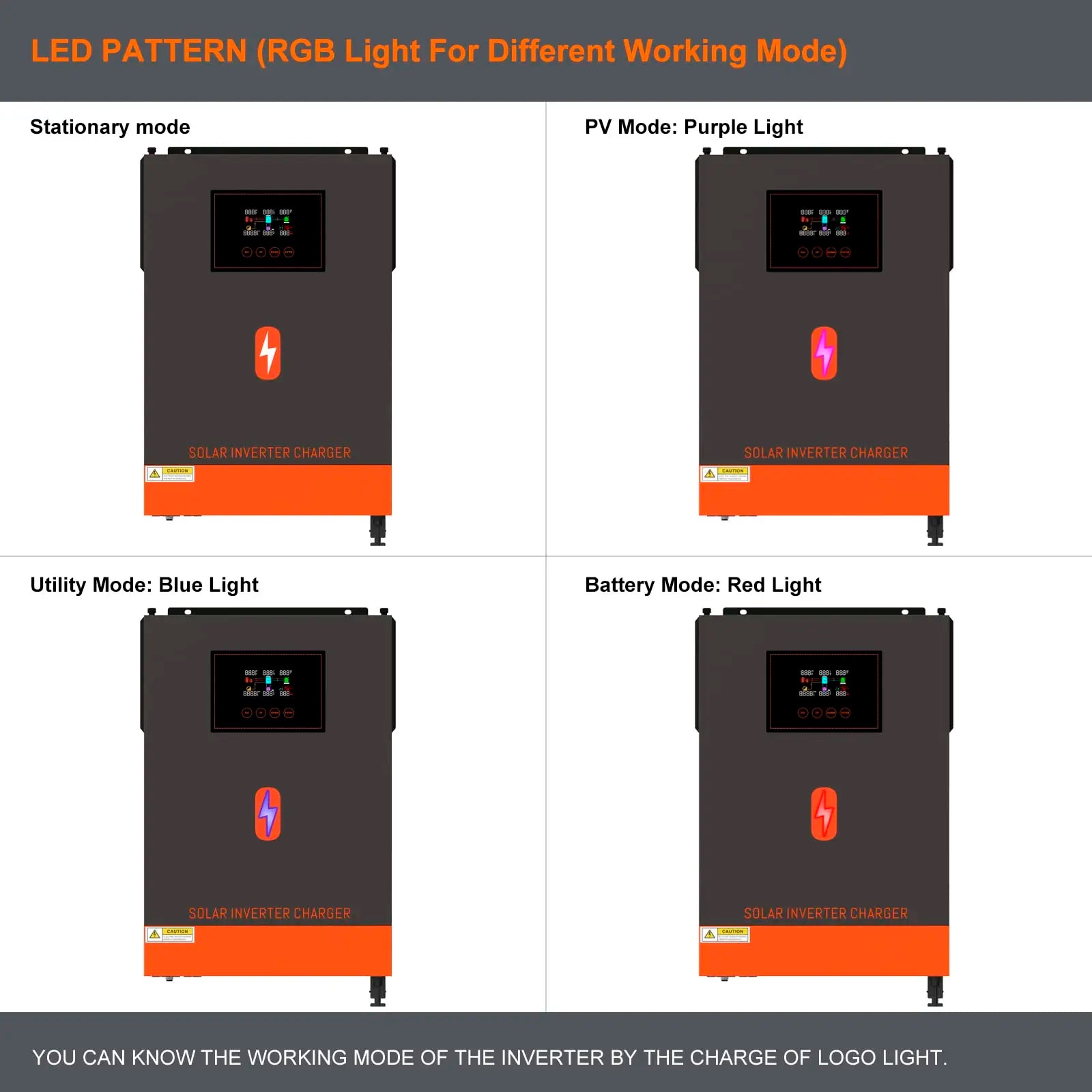

You can judge the working mode of the inverter by the color displayed on the inverter LED:
Stationary mode:White Light
PV Mode: Purple Light
Utility Mode: Blue Light
Battery Mode: Red Light
Specifications:
Model |
3.6KW |
4.2KW |
6.2KW |
Input Voltage Waveform |
Sinusoidal (utility or generator) |
||
Input Voltage Waveform |
230Vac |
||
Low Loss Voltage |
170Vac±7V (UPS); 90Vac±7V (Appliances) |
||
High Loss Voltage |
280Vac±7V |
||
High Loss Return Voltage |
270Vac±7V |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Low Loss Frequency |
40±lHz |
||
Low Loss Return Frequency |
42±lHz |
||
High Loss Frequency |
65±lHz |
||
Output Short Circuit Protection |
Circuit Breaker |
||
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
||
Transfer Time |
10ms typical (UPS); |
||
20ms typical (Appliances) | |||
Low DC Warning Voltage | |||
@ Io ad < 50>% |
22.0Vdc |
44.0Vdc |
|
@ load >50% |
21.0Vdc |
42.0Vdc |
|
Low DC Warning Return Voltage | |||
@ load < 50% |
22.5Vdc |
45Vdc |
|
@ load >50% |
22.5Vdc |
44Vdc |
|
Low DC Cut off Voltage | |||
@ load < 50% |
20.5Vdc |
41.5Vdc |
|
@ load >50% |
20.0Vdc |
40.0Vdc |
|
High DC Recovery Voltage |
32Vdc |
62Vdc |
|
High DC Cut-off Voltage |
33Vdc |
63Vdc |
|
AC Charging Current (Max) |
100Amp (@Vi/p=230Vac) |
||
Max. PV Array Power |
6200W |
||
Nominal PV Voltage |
240Vdc |
360Vdc |
|
PV Array MPPT Voltage Range |
90~450Vdc |
||
Max Charging Current (AC charger plus solar charger) |
120Amp |
140Amp |
120Amp |

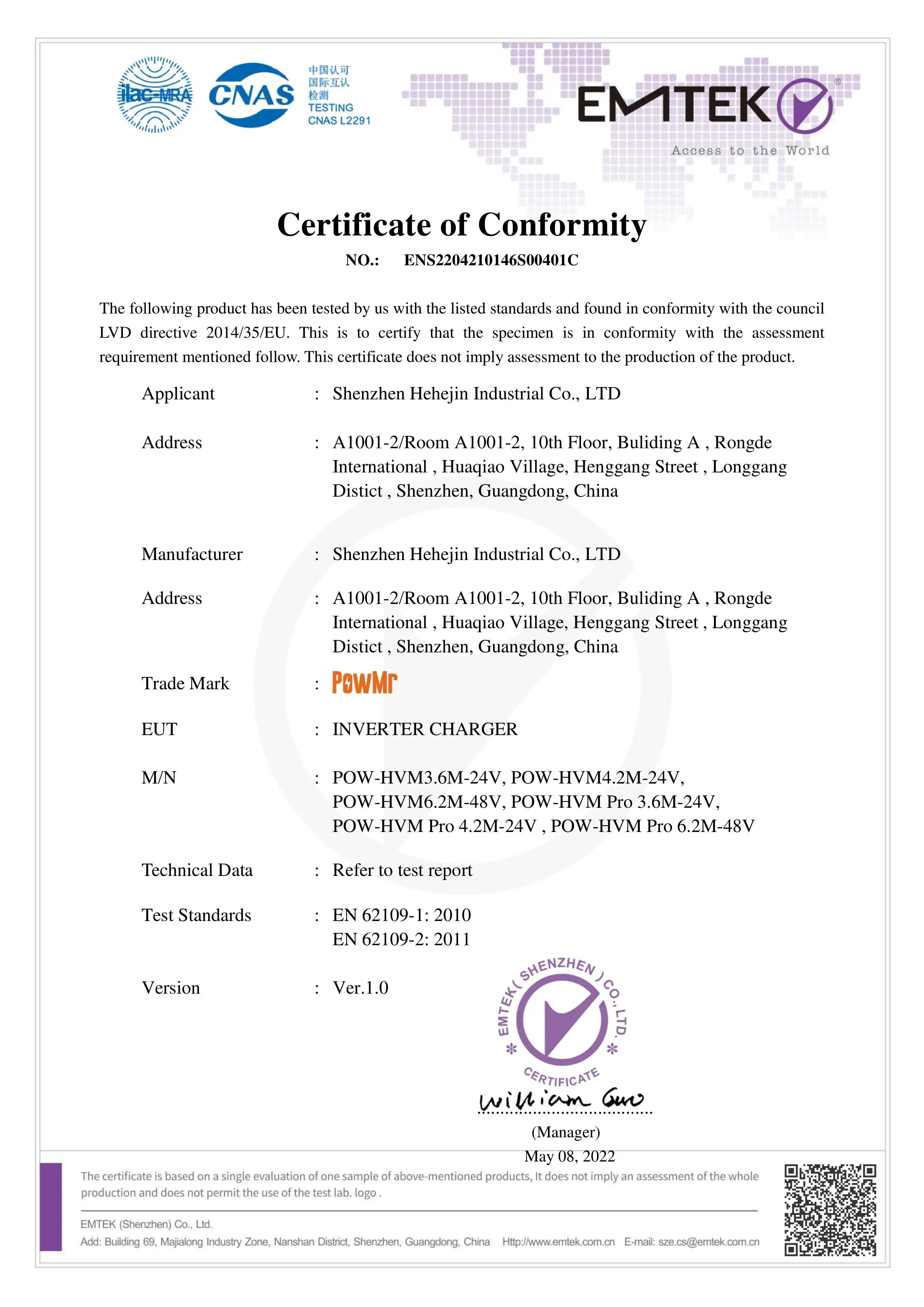

Safety Certification |
CE |
||

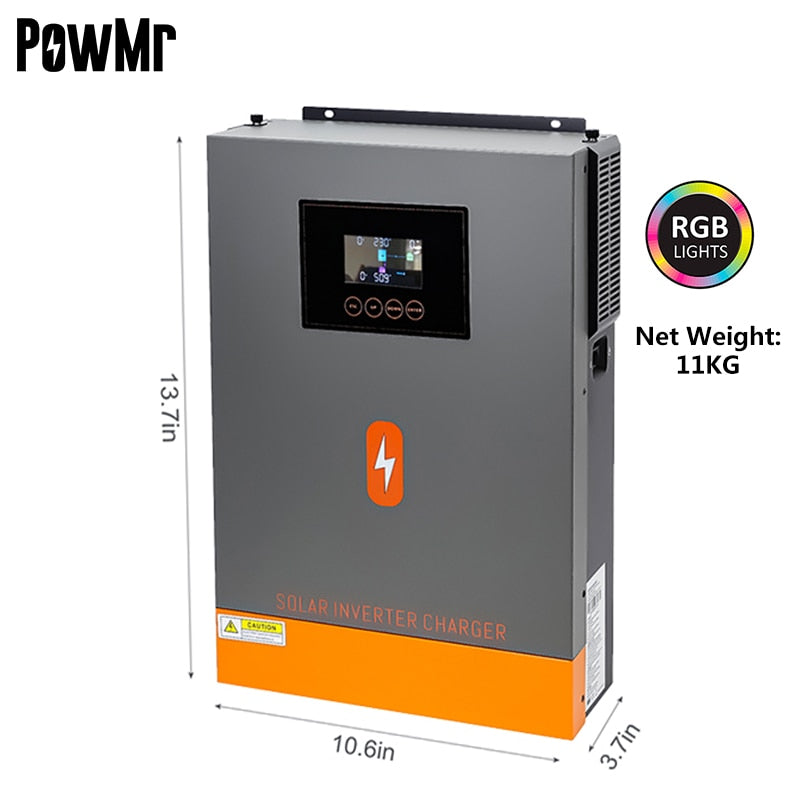

Dimension (D*W* H), mm |
100 x 300 x 444 |
||
Net Weight, kg |
10 |
10.5 |
11 |
Photos:

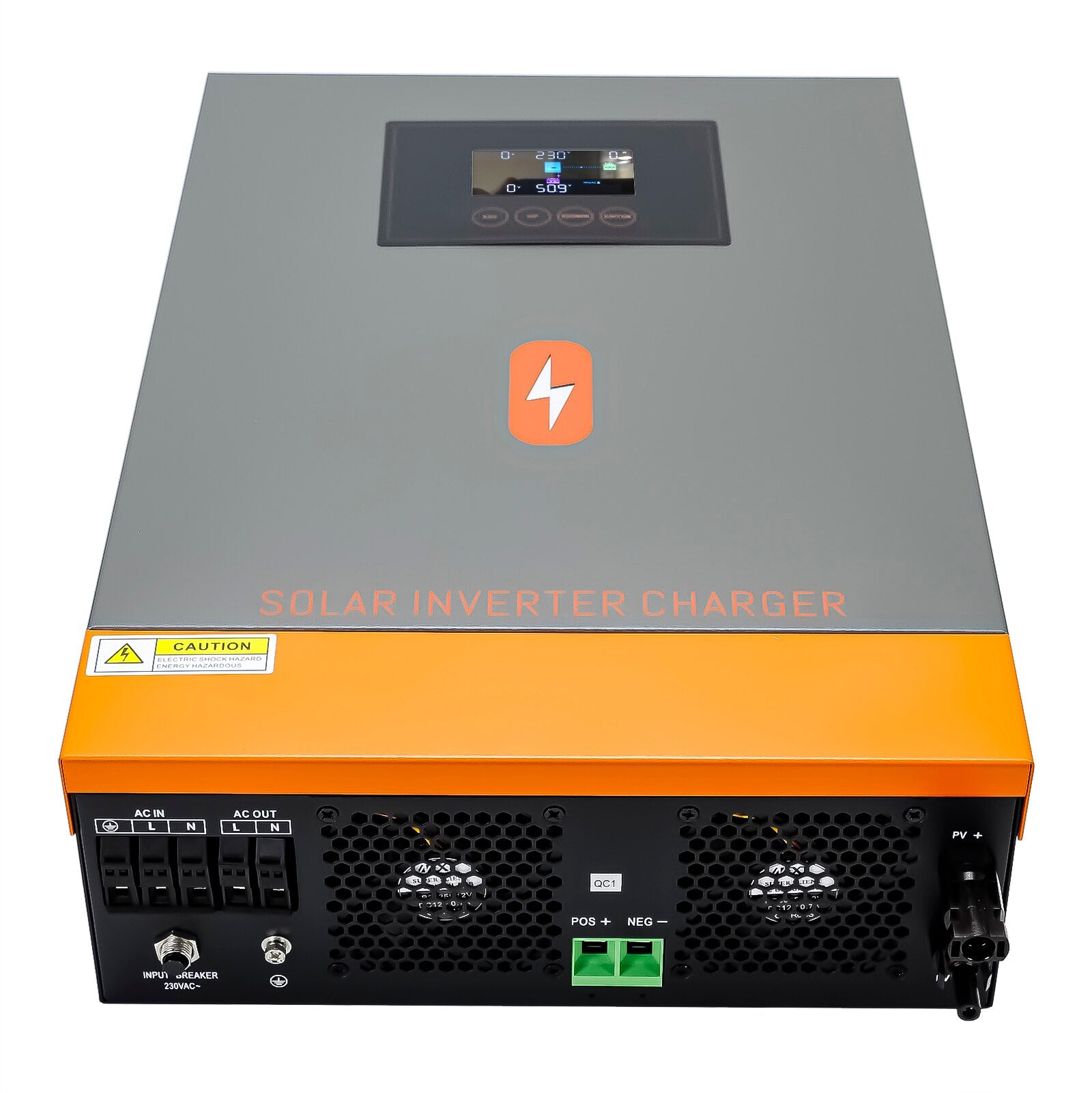

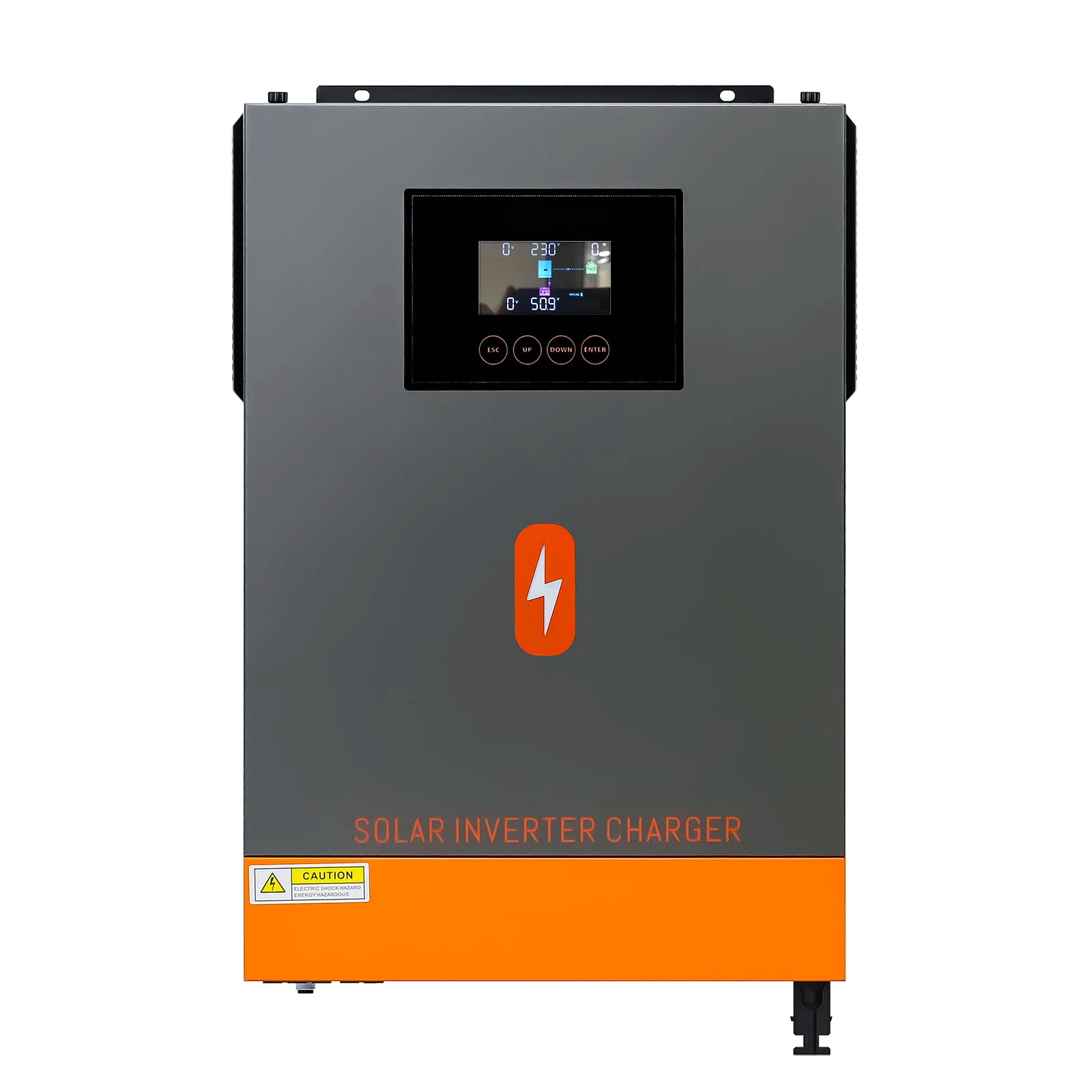

Grid-tied inverter with maximum solar panel input of 500V DC, outputting 230V AC at 80A. Includes built-in MPPT (Maximum Power Point Tracking) charge controller.

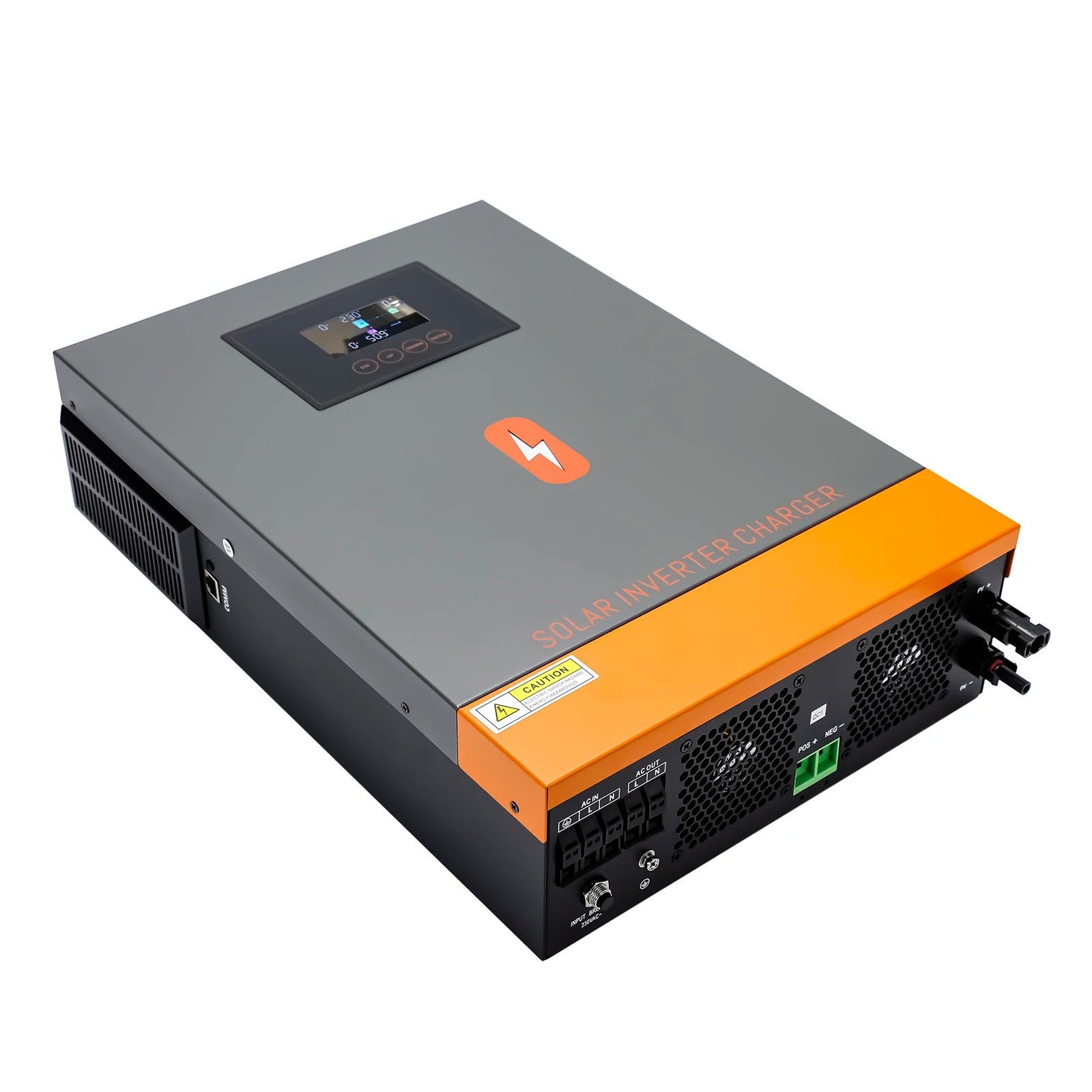

Caution: Solar Charger Inverter. Maximum input voltage: 500V DC. Output voltage: 230V AC.

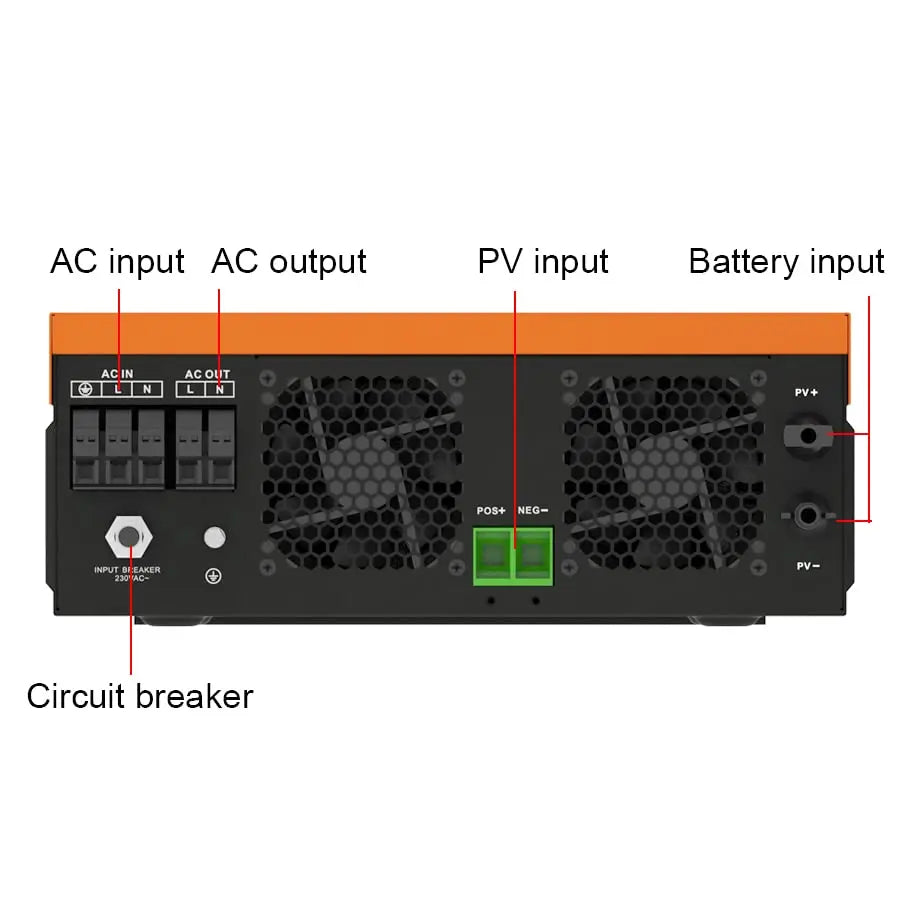

**Grid Tied Inverter**: Caution: Electric shock hazard. Maximum input voltage: 500VDC. Input circuit breaker: 230Vac. Output voltage: 230Vac. Rated output power: 80A. Grid tied inverter and solar charge controller built-in.

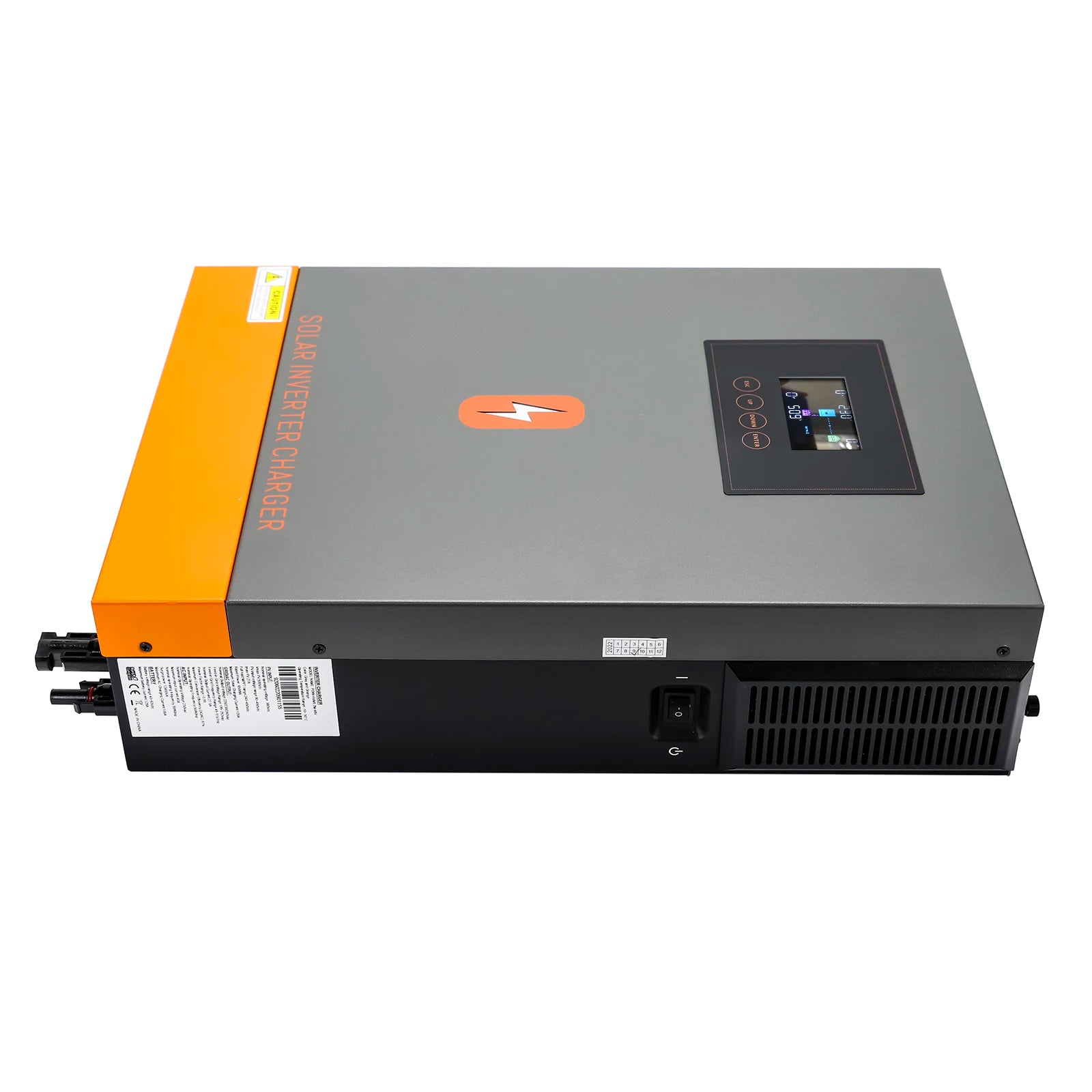

PowMr 6200W Grid Tied Inverter with MPPT solar charge controller for up to 500VDC input and 230VAC output.
