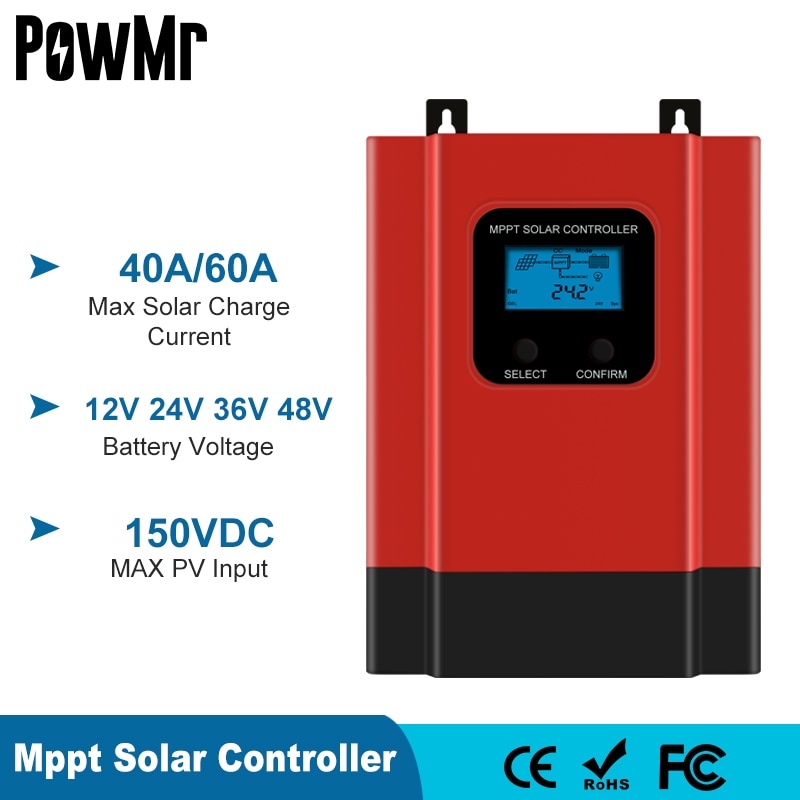

PowMr Esmart3 MPPT 60A 40A Solar Charge Controller 12V 24V 36V 48V Auto Solar Panel Regulator Max PV Input 150VDC RS485 Port
PowMr Esmart3 MPPT 60A 40A Solar Charge Controller 12V 24V 36V 48V Auto Solar Panel Regulator Max PV Input 150VDC RS485 Port
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Thermal methods:: fan cooling
Solar Type:: MPPT Solar Charge Controller
Ship:: Germany warehouse
Selectable Battery Types:: Flooded, Sealed lead acid, Gel Use
Rated PV power:: 780W(12V) 1560W(24V)2340W(36V)3120W(48V)
Protection:: yes
PC software:: RS485
Origin: Mainland China
Model Number: Esmart3-40A-II/Esmart3-60A-II
Maximum Current: MPPT 60A 40A
Max. PV input voltage(VOC):: 150V
Load control mode:: Time control mode, PV&Time control mode, On mode, Off mode, PV voltage
Is Smart Device: YES
Charge Mode:: MPPT
Certification: CE
Brand Name: PowMr
Battery:: DC12V/24V/36V/48V Automatic
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
Esmart3 60A 40A MPPT Solar Charge Controller 48V/36V/24V/12V Auto Back-light LCD Max 150VDC Input Energy Saving RS485 Port

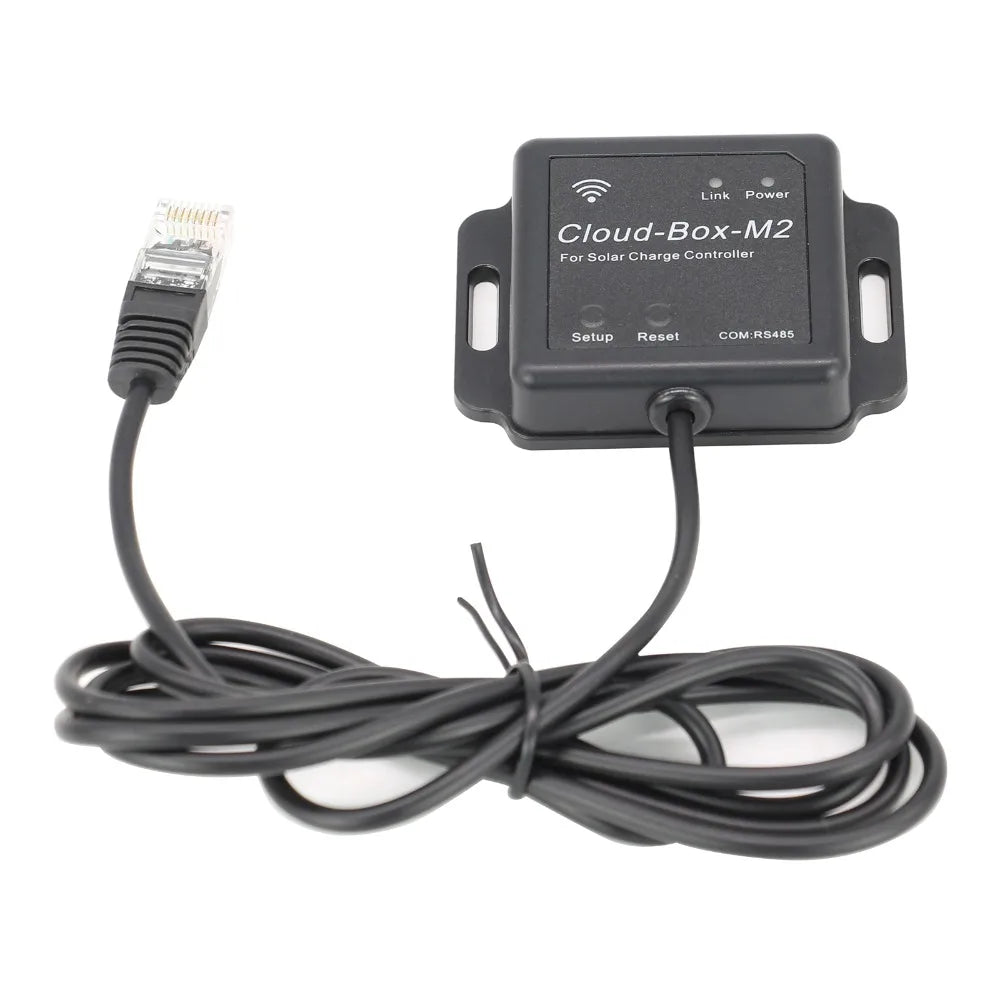

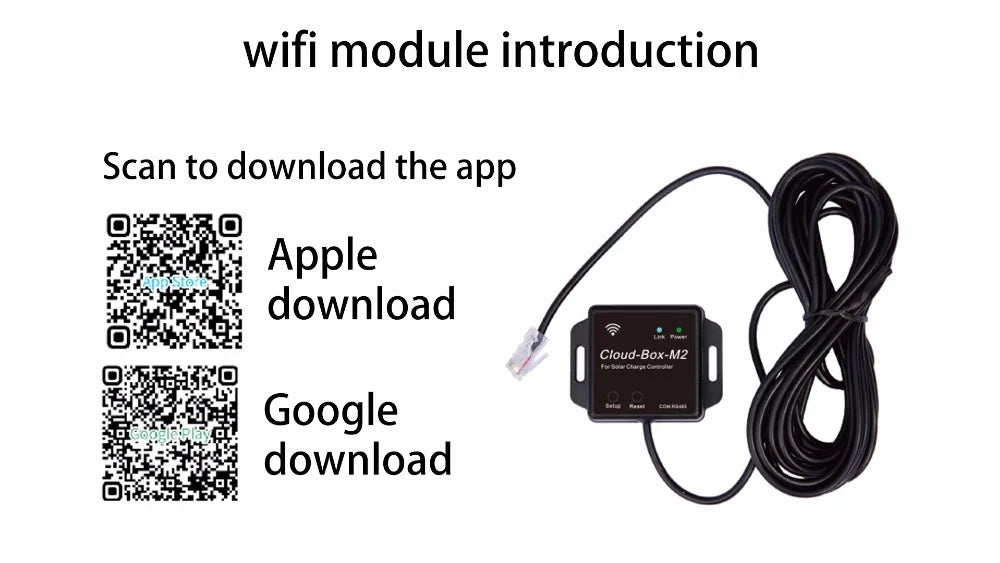

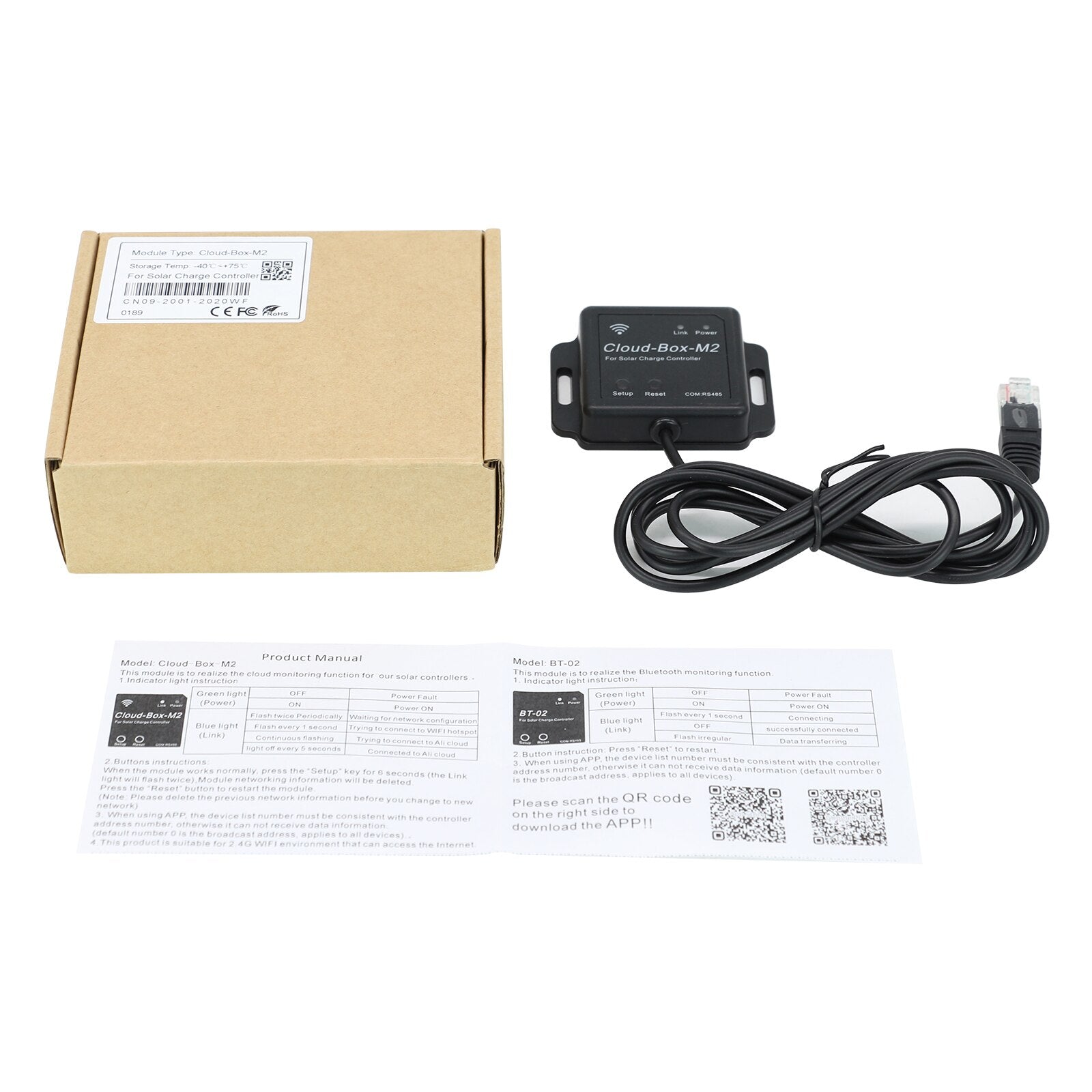

Wifi Module:https://www.aliexpress.com/item/32850852110.html
Module:https://www.aliexpress.com/item/1005002834802779.html
Description:
ESmart3 seriesis the third generation of eSmart mppt controller, combined with the second generation of high conversion efficiency, back-light LCD display, control mode, connect way, internal structure etc. features, also optimized the following points:
1.Increase all kinds of protection function to be used more reassuring.
2.Add the LOAD sampling to be used more clear of output load.
3.Wider PV Input voltage than eSmart2, so it suitable for more kinds of PV modules
4. Reduce the static standby self-consumption, energy saving and more simply for small system.
Choose ESmart3, more intelligent in life!
System Voltage:DC12V/24V/36V/48VAutomatic Recognition
Rated Current:40A/60A
Feature:
High efficiency MPPT control algorithm, MPPT efficiency ≥99.5%, whole Machine conversion efficiency upto 98%;
Charge mode: three stages (fast charge, constant charge, floating charge), improve boost voltage charge(activate the battery performance), it prolongs service life of the batteries;
Discharge mode: ON/OFF mode, PV voltage control mode, Dual Time control mode, PV&Time control mode;
Customers can choose battery types: (Flooded, Sealed lead acid, Gel battery) charging, Other types of the batteries can also be defined;

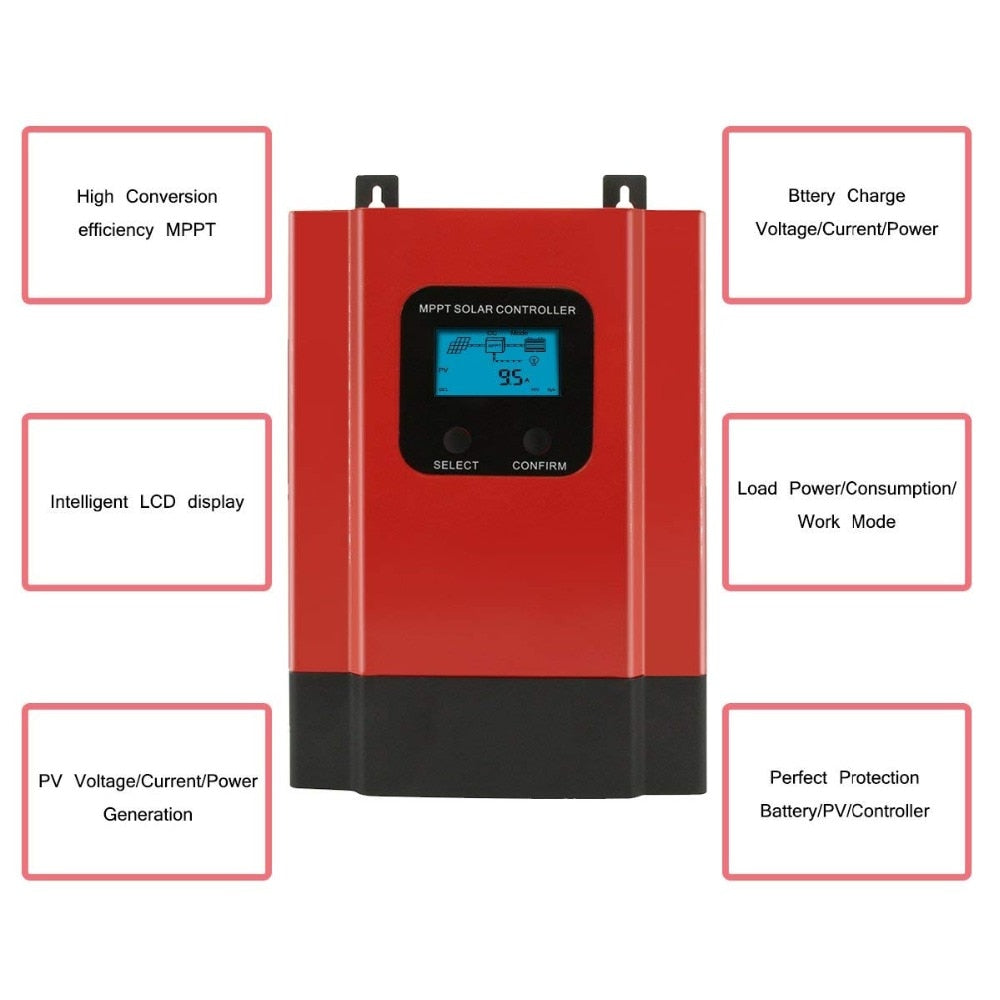

Most information could be provide by LCD like: System type, PV input voltage, PV input current, Day/Month/Total generated energy, battery type, battery voltage, charging current, charging power, Load current, Load power and so on;
RS485 communication, we can offer communication protocol also, it’s convenient for user’s integration management.
CE, RoHS, FCC certifications approved. We can help clients to approve other certifications

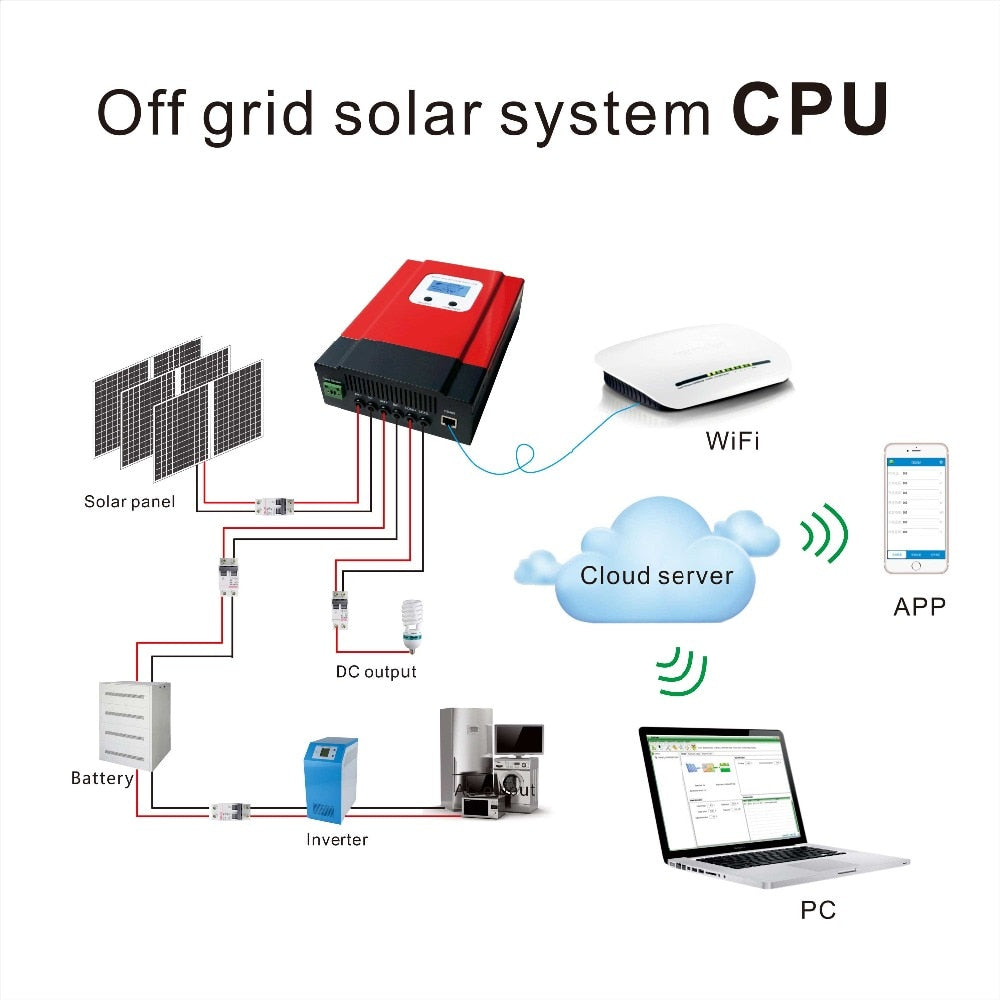

MPPT Controller connection diagram:
Parameters Display & Setting information:

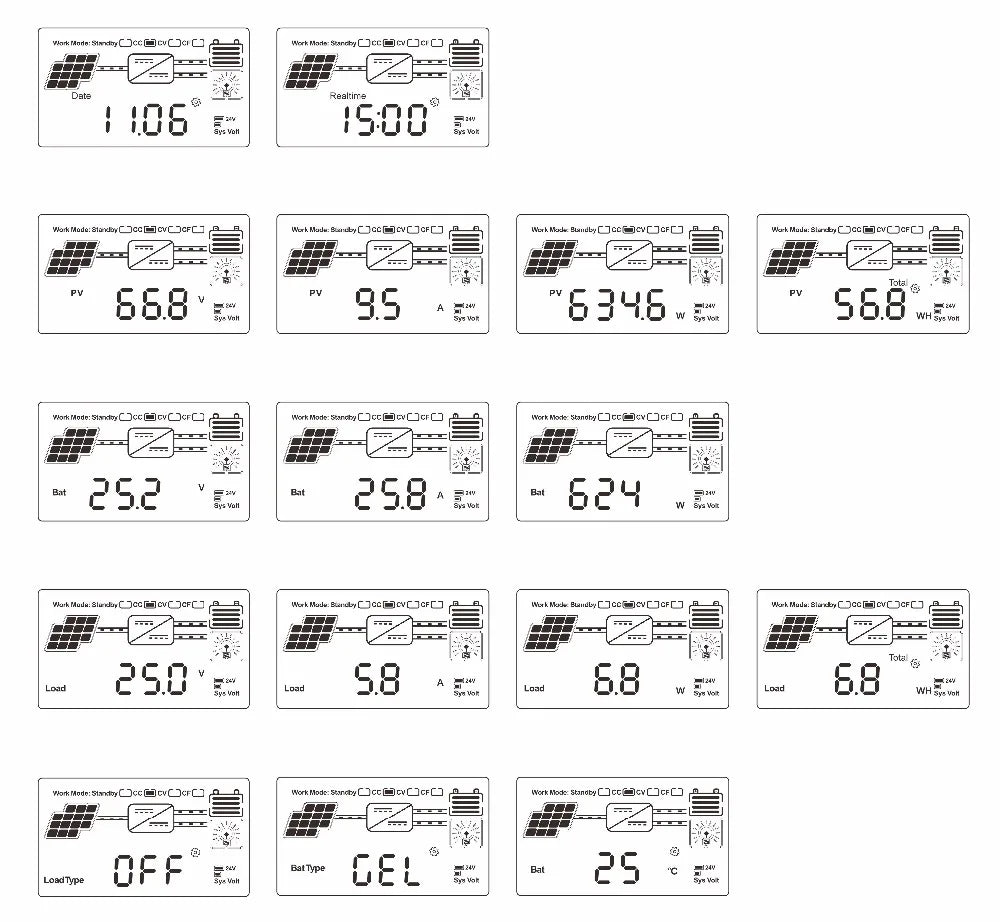

Browse Interface:

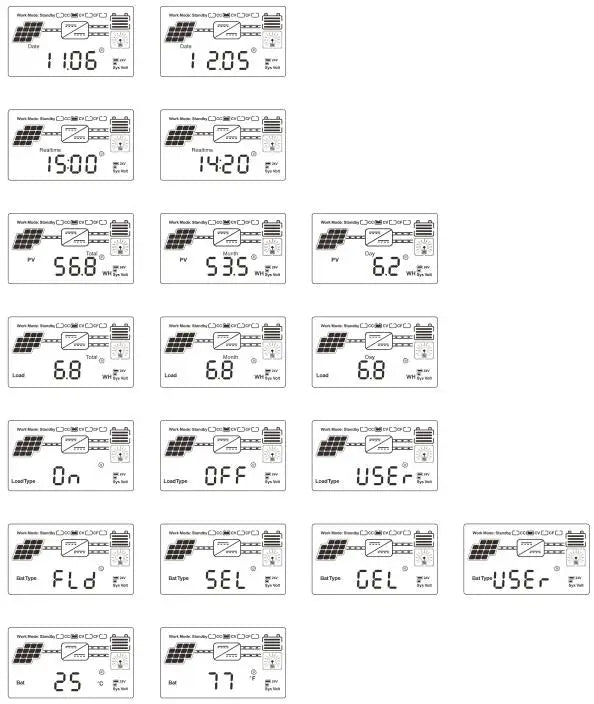

Setting Interface ( Press CONFIRM button )
Parameter:
MPPT eSmart3-12V/24V/36V/48V Series |
40A |
60A |
|
Charge Mode |
MPPT(Maximum Power Point Tracking) |
||
Charge Method |
Three stages:constant current(MPPT),constant voltage,float charge |
||
System type |
DC 12V/24V/36V/48V (Automatic reconition) |
||
System voltage |
12V system (DC9V~DC15V) |
||
24V system (DC18V~DC30V) | |||
36V system (DC32V~DC40V) | |||
48V system (DC42V~DC60V) | |||
MPPT efficiency |
>=99.5% |
||
Input Characteristics | |||
Max.PV input voltage (VOC) |
12V/24V/36V/48V system 150V |
||
Start the charge voltage point |
12V/24V/36V/48V system Hhigher than current battery voltage 5V |
||
Low input voltage protection point |
12V/24V/36V/48V system Higher than current battery voltage 3V |
||
Over voltage protection point |
12V/24V/36V/48V system 150V |
||
High voltage recovery point |
12V/24V/36V/48V system 145V |
||
Rated PV power |
12V system |
520W |
780W |
24V system |
1040W |
1560W |
|
36v system |
1560W |
2340W |
|
48v system |
2080W |
3120W |
|
Charge Characteriestics | |||
Selectable Battery Types (Defaut Gel battery) |
12V/24V/36V/48V system Flooded ,Sealed lead acid,Gel battery (other types of the batteries also can be defined ) |
||
Constant Votlage |
12V/24V/36V/48V system |
Please check the charge voltage according to the battery type form |
|
Float Voltage |
12V/24V/36V/48V system |
||
Rated charge Current |
12V/24V/36V/48V system |
40A |
60A |
Temmperature Compensation |
12V/24V/36V/48V system |
-3mV/°C/2V(default) |
|
Output Discharge Characteristics | |||
Low voltage output protection point |
Default 10.5V;Recovery 11V;It can be adjustable. |
||
Load rated current |
40A |
60A |
|
The ouput control |
On mode,Off mode,PV voltage conrol mode,PV&Time control mode,Time control mode |
||
Display | |||
LCD display |
System type,PV voltage ,Charge voltage,Charge current ,Charge power,temperatur |
||
PC software |
RS485 |
||
PC system for solareagle |
Windowns 7,8,10 |
||
Protection | |||
Low voltage input protection |
yes |
||
Over voltage input protection |
yes |
||
Over charge power protection |
yes |
||
Low voltage output protection |
yes |
||
Rated output current protection |
yes |
||
Temperature protection |
yes |
||
PV and Battery revserse connection protection |
yes |
||
Other Parameters | |||
Noise |
=<40dB |
||
Thermal heat-dissipating method |
Fan cooling |
||
Physical | |||
Measurement DxWxH(mm) |
240*168*66 |
270*180*85 |
|
Package size DxWxH(mm) |
289*204*101 |
306*210*120 |
|
Mechanical Protection |
IP21 |
||
Operating Temperature |
-20°C~+50°C |
||
Storage Temperature |
-40°C~+75°C |
Pictures:

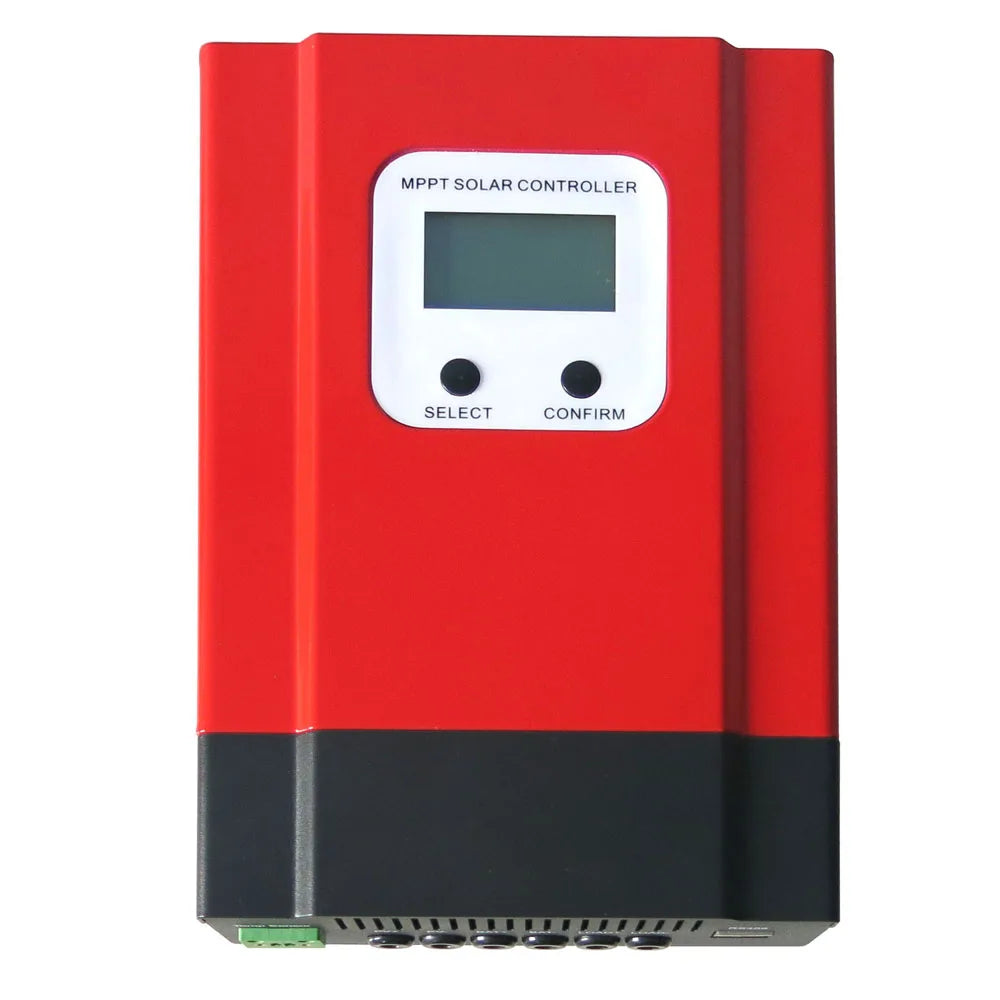

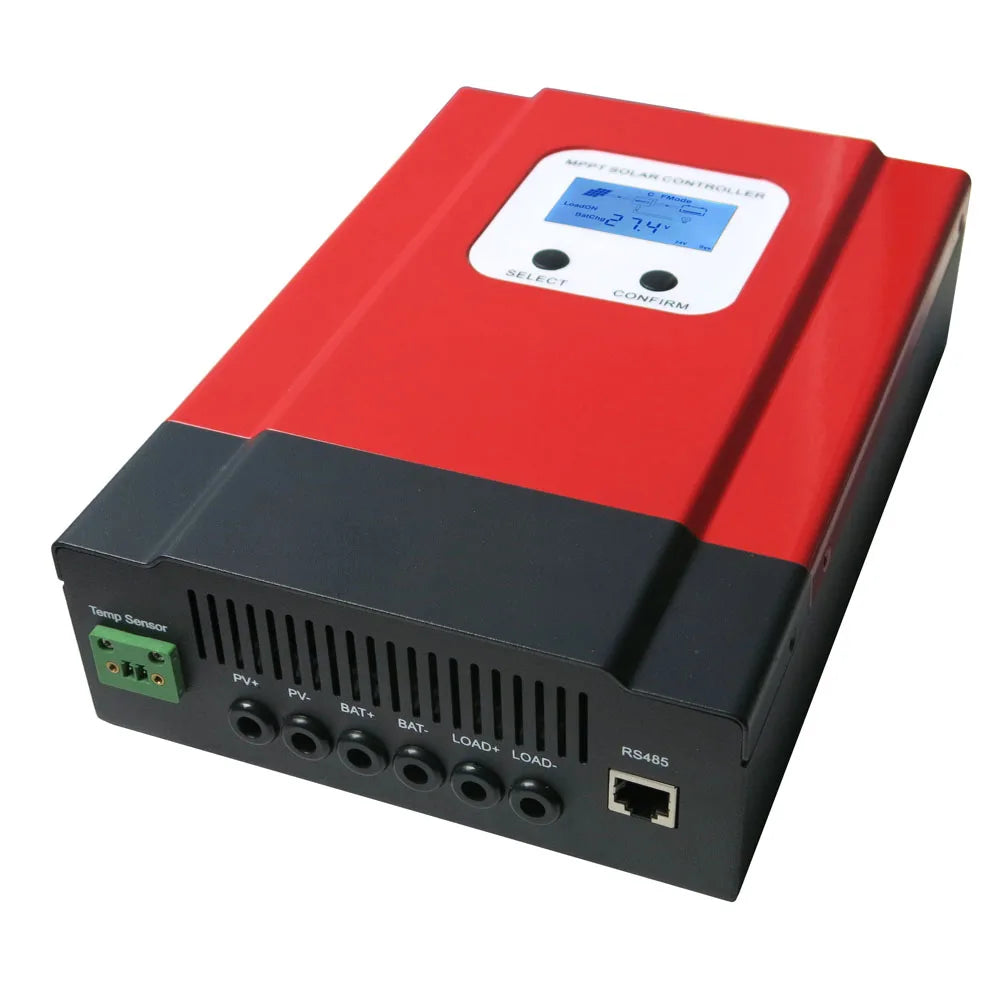

Solar Charge Controller with MPPT (Maximum Power Point Tracking) Technology for Efficient Solar Panel Charging.
