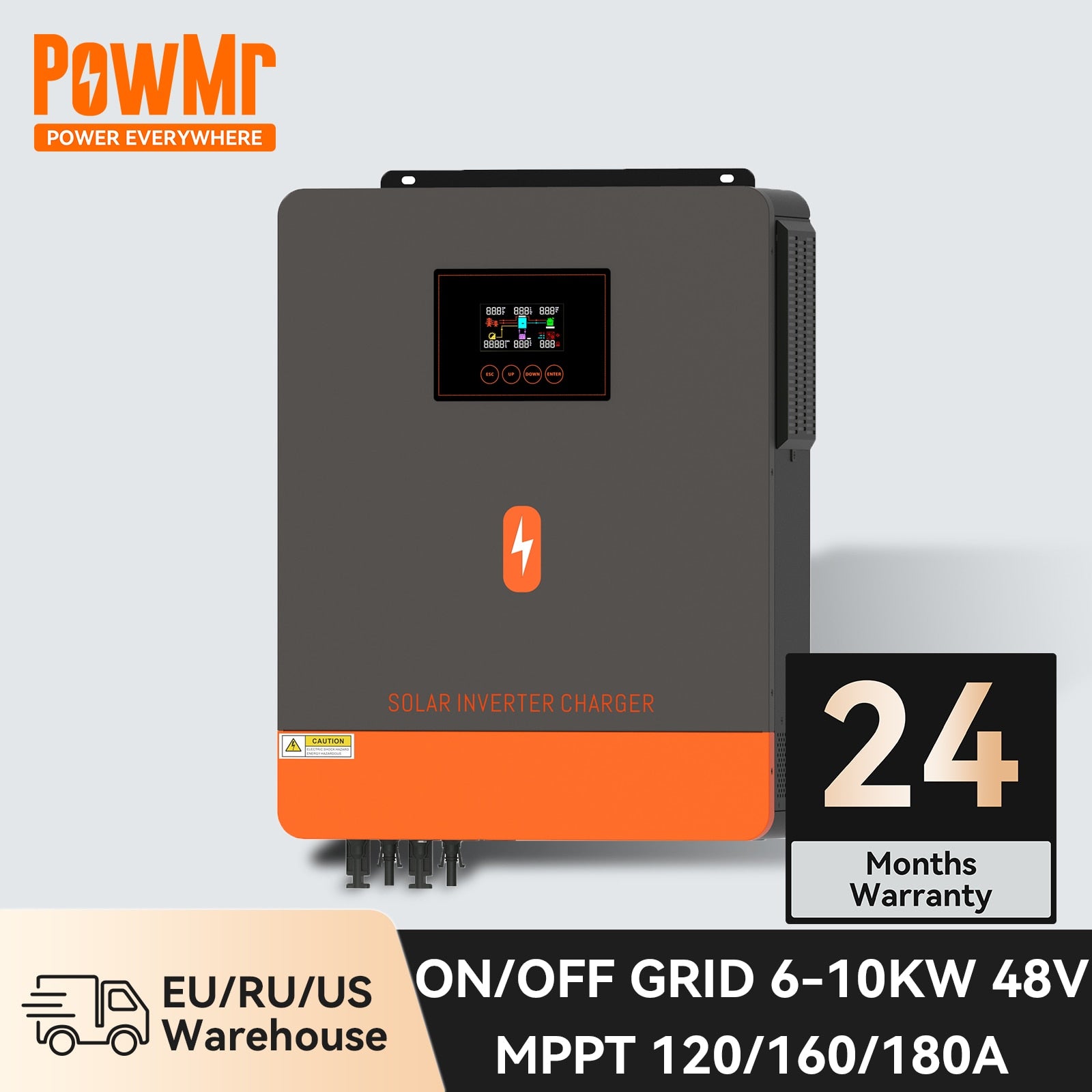

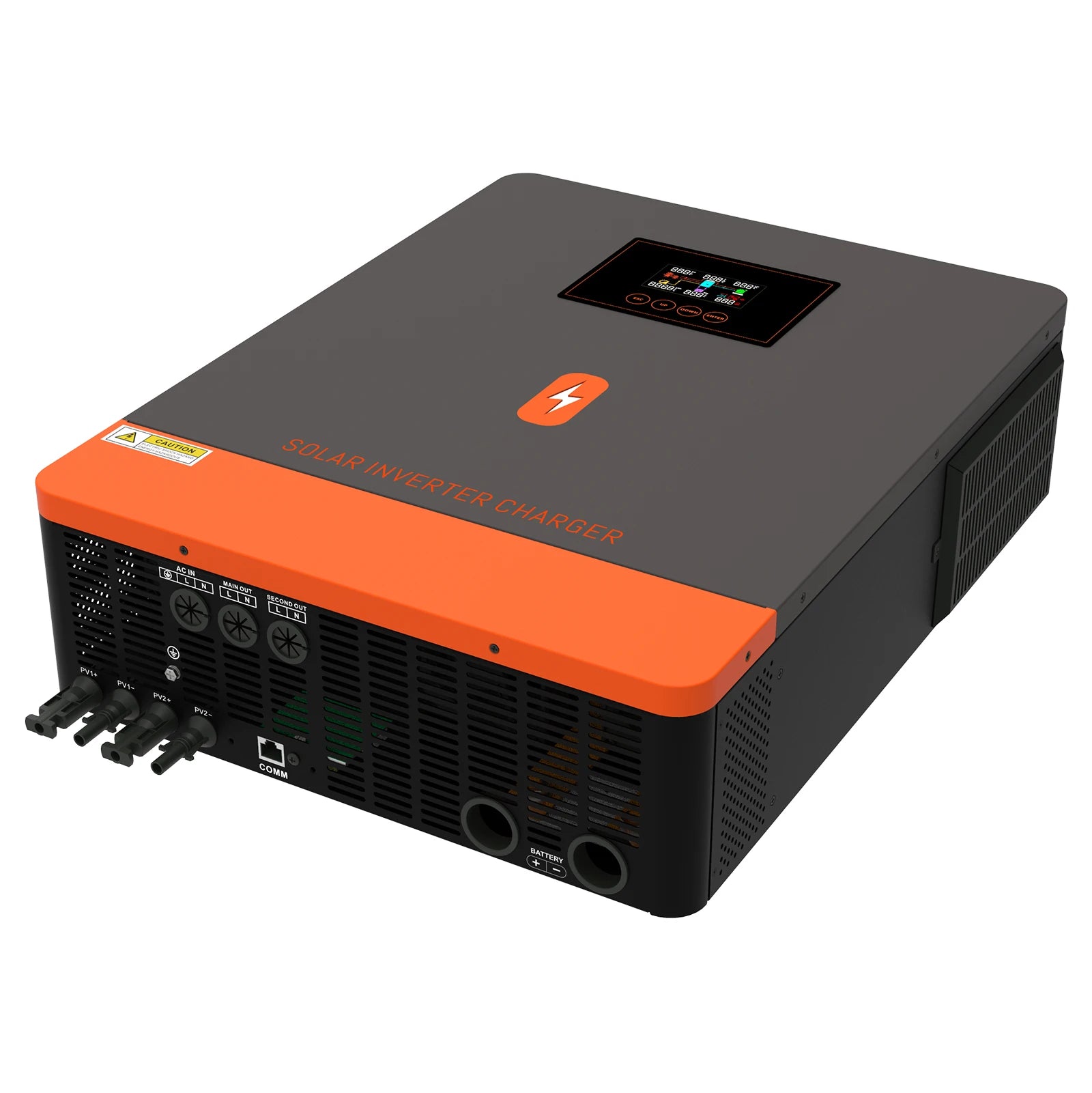

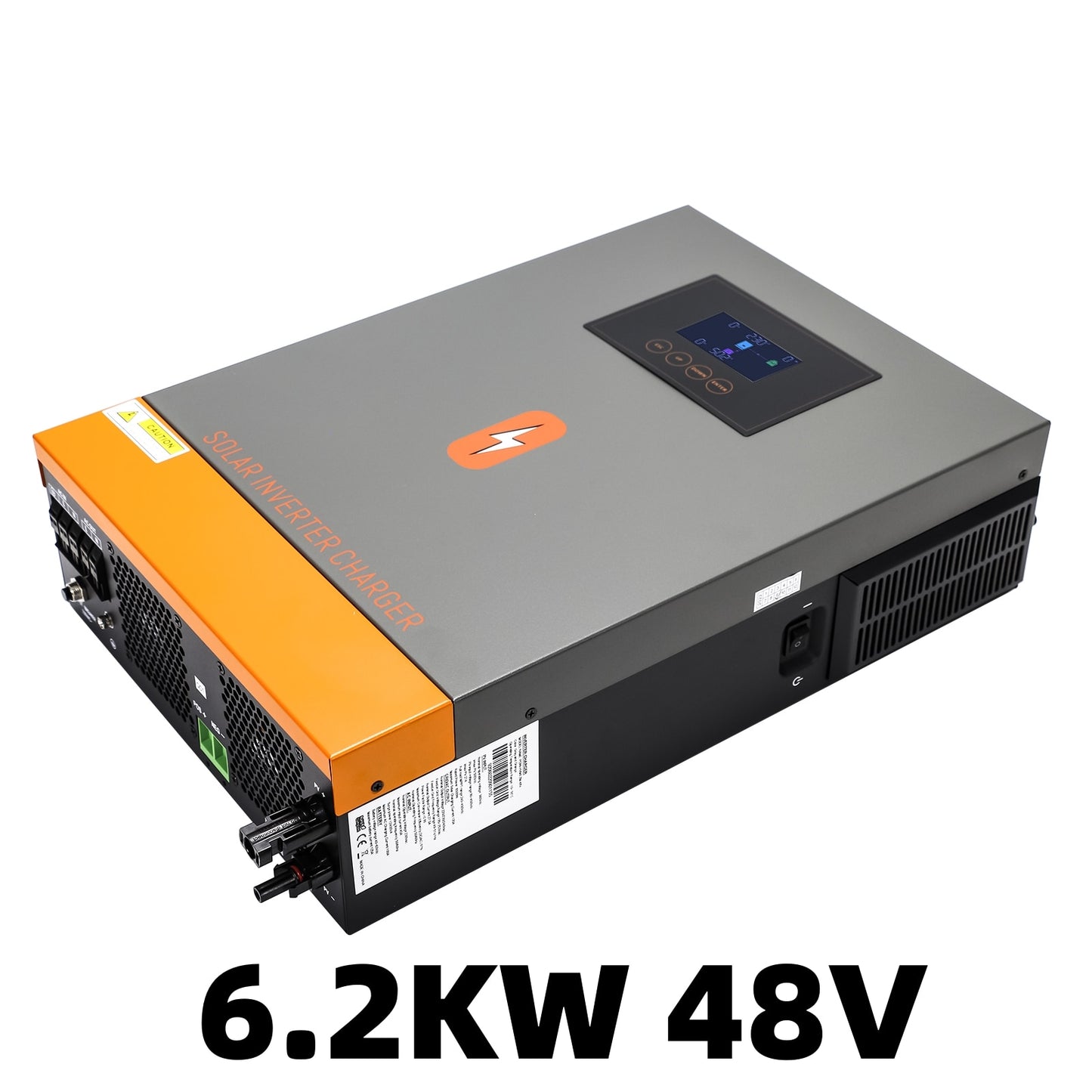

PowMr Grid Tie Inverter Hybrid 6KW 8KW 10KW MPPT Solar Inverter 48V 180A 160A 120A Daul PV In-Put and Second Output
PowMr Grid Tie Inverter Hybrid 6KW 8KW 10KW MPPT Solar Inverter 48V 180A 160A 120A Daul PV In-Put and Second Output
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50/60HZ
Output Current: 180A 160A 140A
Origin: Mainland China
Is Smart Device: YES
Grid Tie Inverter: ON Grid OFF Grid
Certification: CE,RoHS
Brand Name: PowMr
PowMr Hybrid Solar Inverter: 48V, max power 5.5kW, built-in MPPT charge controller (80A), supports up to 450Vdc parallel connection and optional WiFi connectivity. Buy now!
PowMr Grid-Tie Hybrid Solar Inverter is a new all-in-one inverter bulit in MPPT charge controller, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single device.
【Extend the life of loads】This solar hybrid inverter uses advanced pure sine wave technology that supplies electrical devices with high quality and stable AC current, protects electronic products or electrical appliances and extends the service life.
【LCD display and real-time monitoring】solar inverter has an LCD display that can display system data and operating status in real time. If you encounter a problem during use, the corresponding error code is displayed, which can help you fix the error easily. In addition, the inverter has LED indicators that let you know the operation of the inverter at a glance, which is very practical.

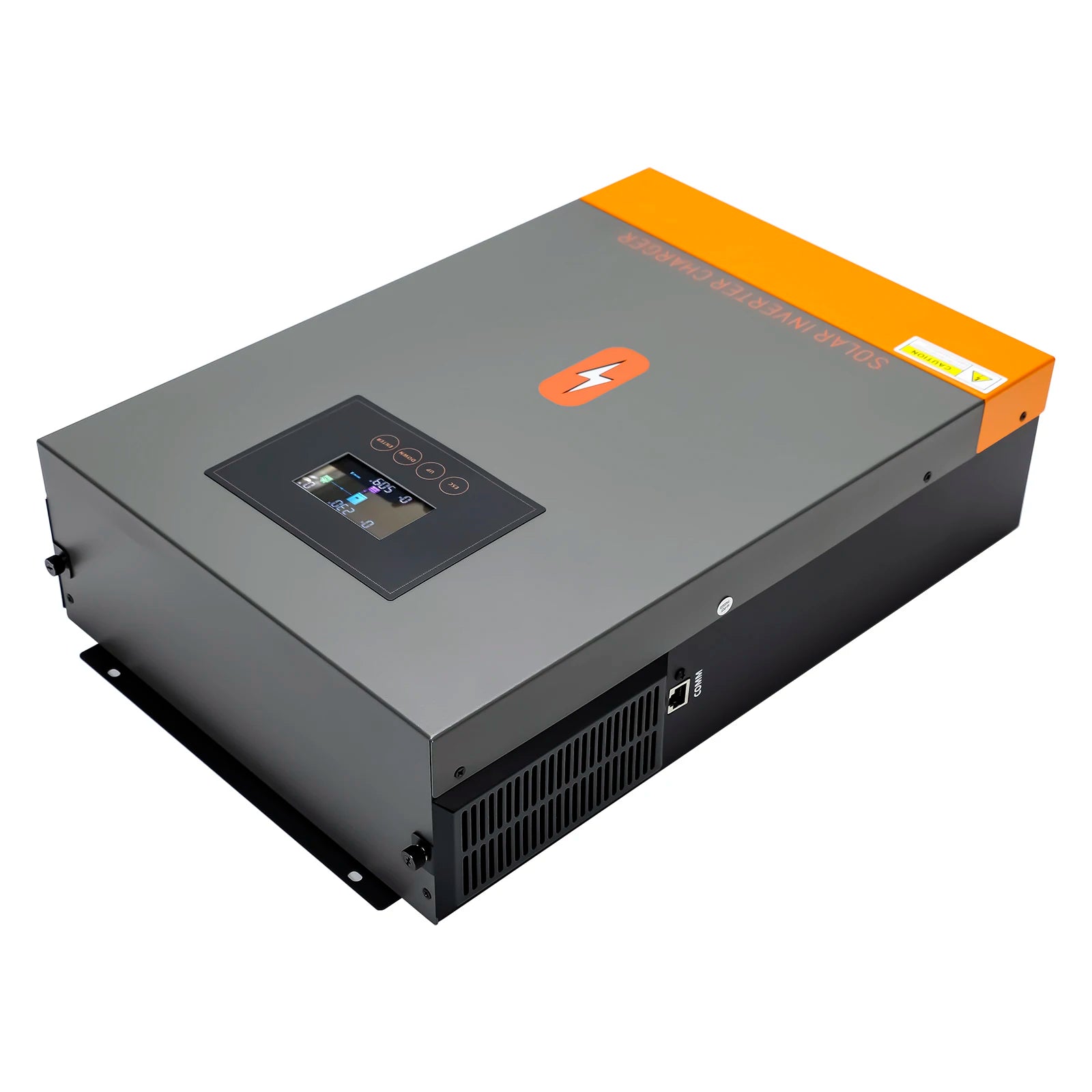

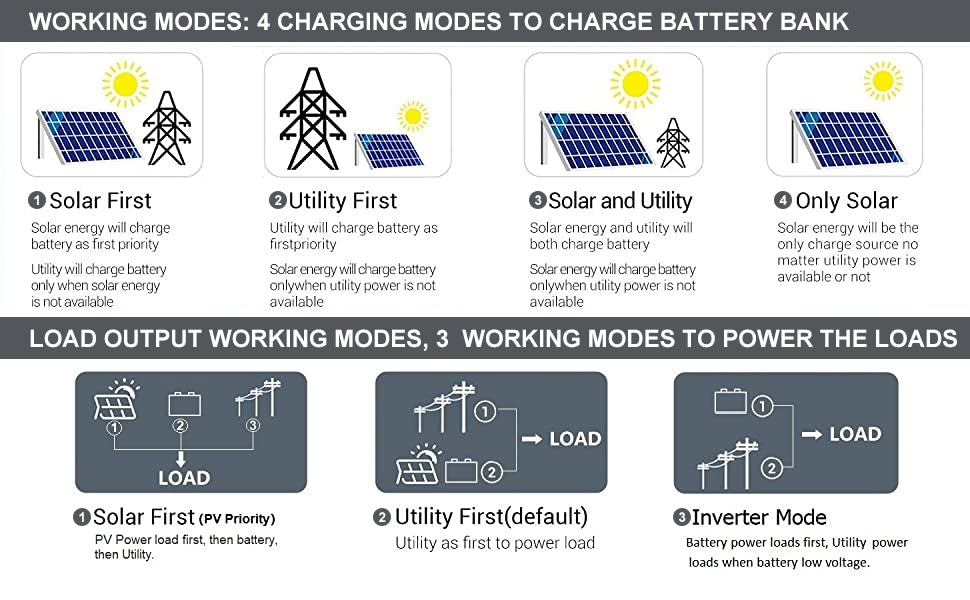

【4 Safe Charging Modes & Fan】4 charging modes are optional: Solar/Network Priority/Solar Priority/Network Hybrid Charging, which can meet different application requirements of users. In addition, the hybrid inverter has intelligent heat dissipation that turns on different heat dissipation effects depending on the device temperature
【Applications】This solar inverter can power all kinds of appliances in the home or office environment, including motor appliances such as tube light, fan, refrigerator and air conditioning.
【Can Work No Battery】

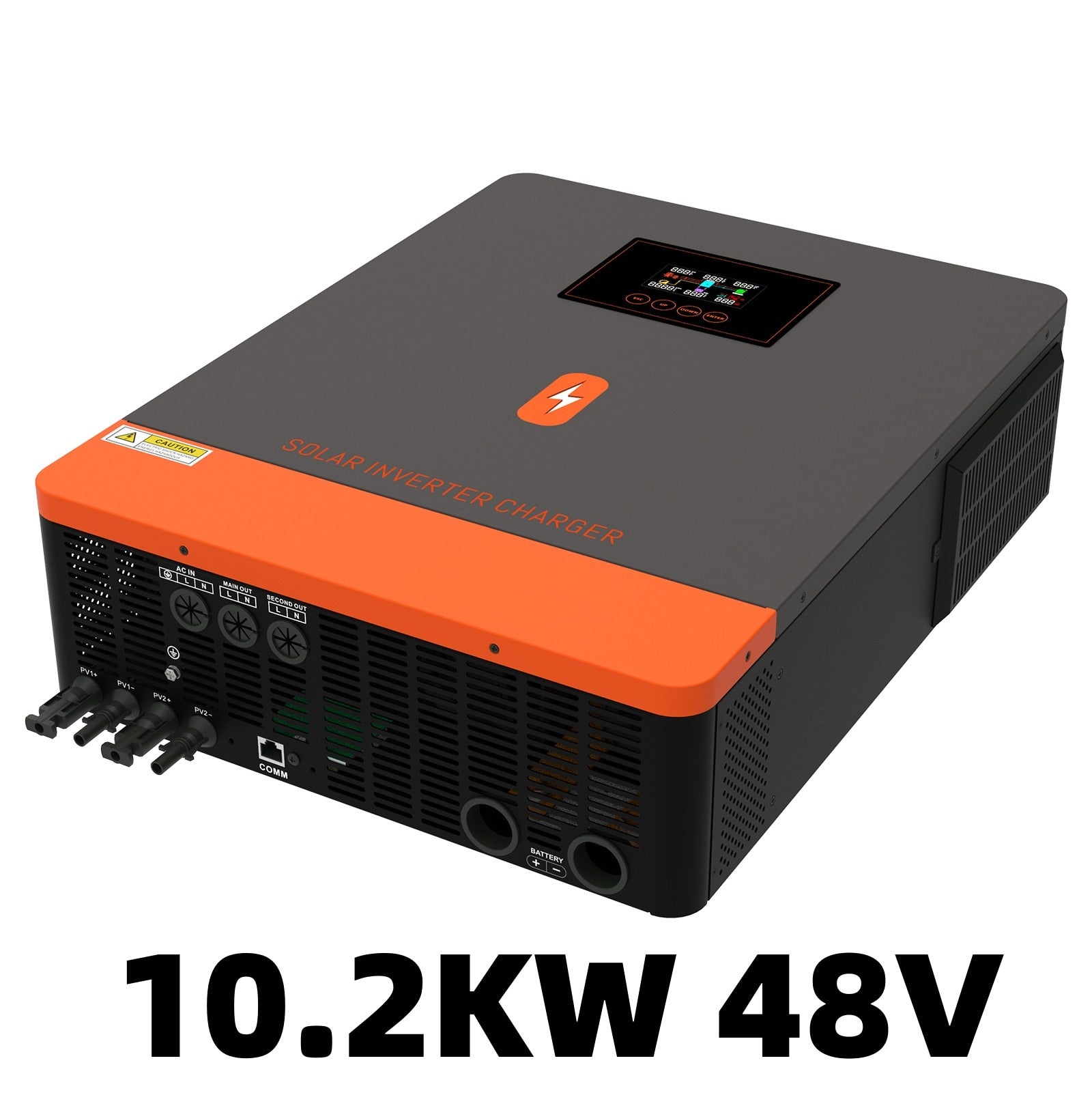

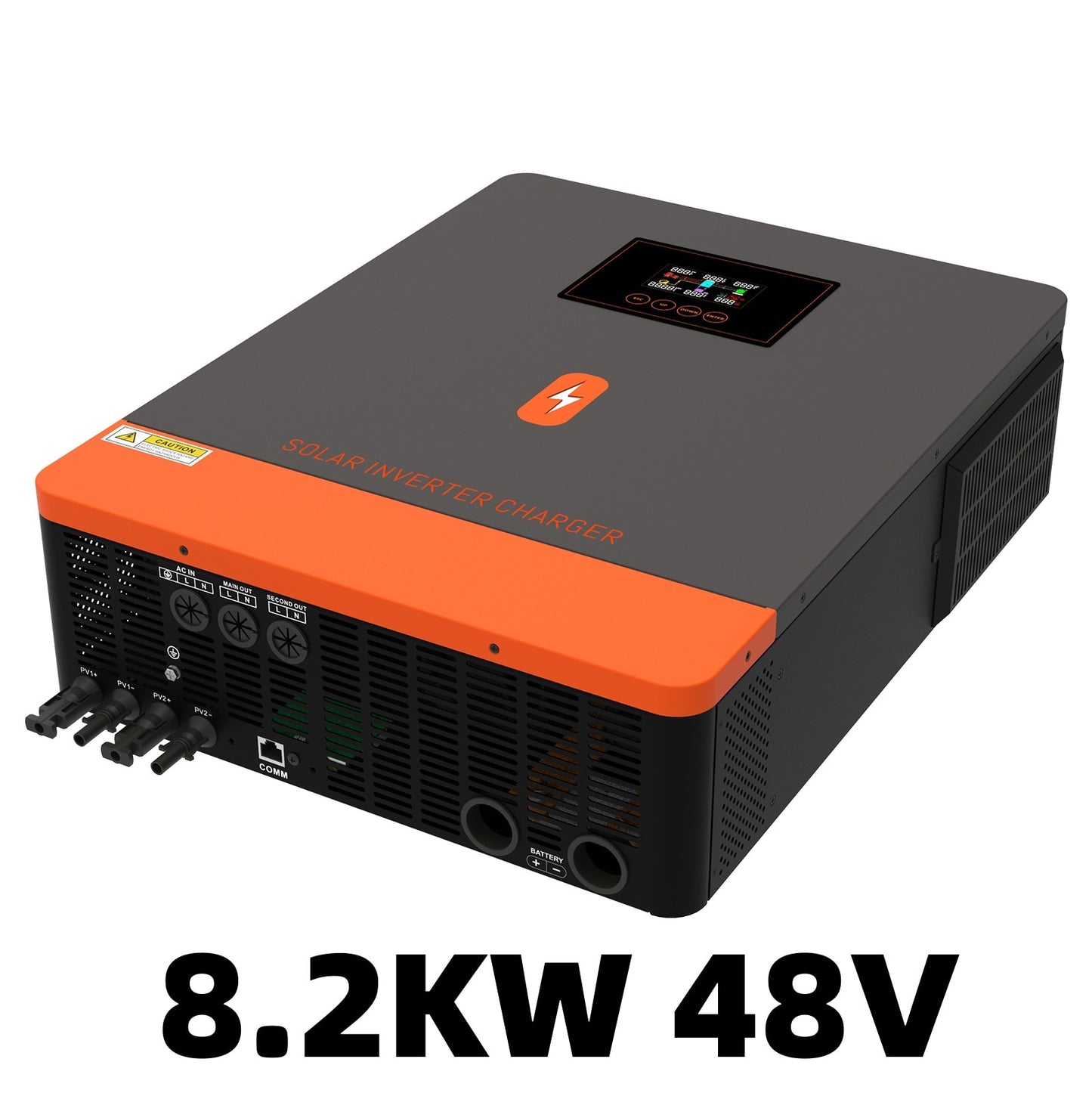

Speciality Only For 8.2KW & 10.2KW Hybrid Solar Inverter

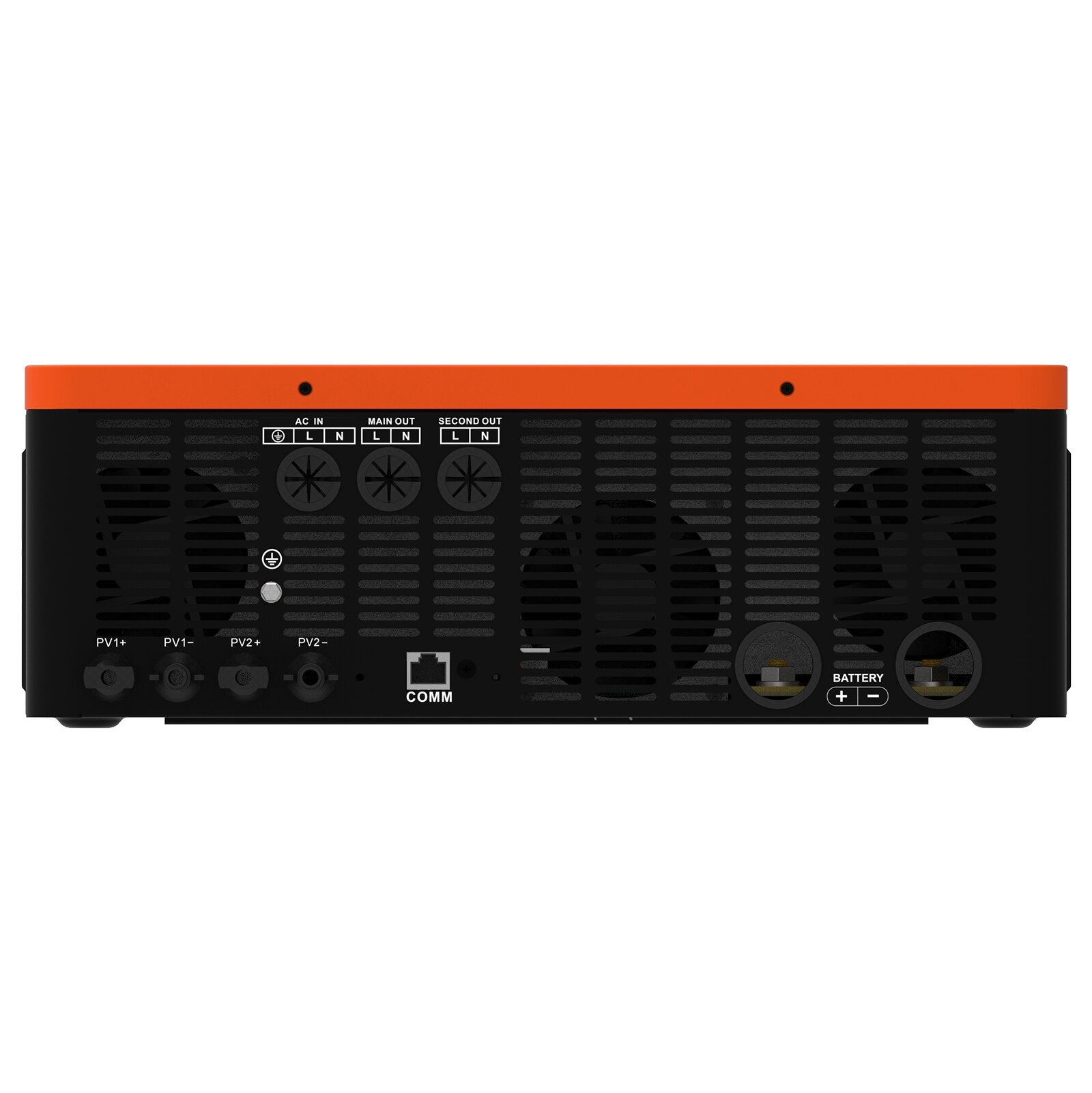

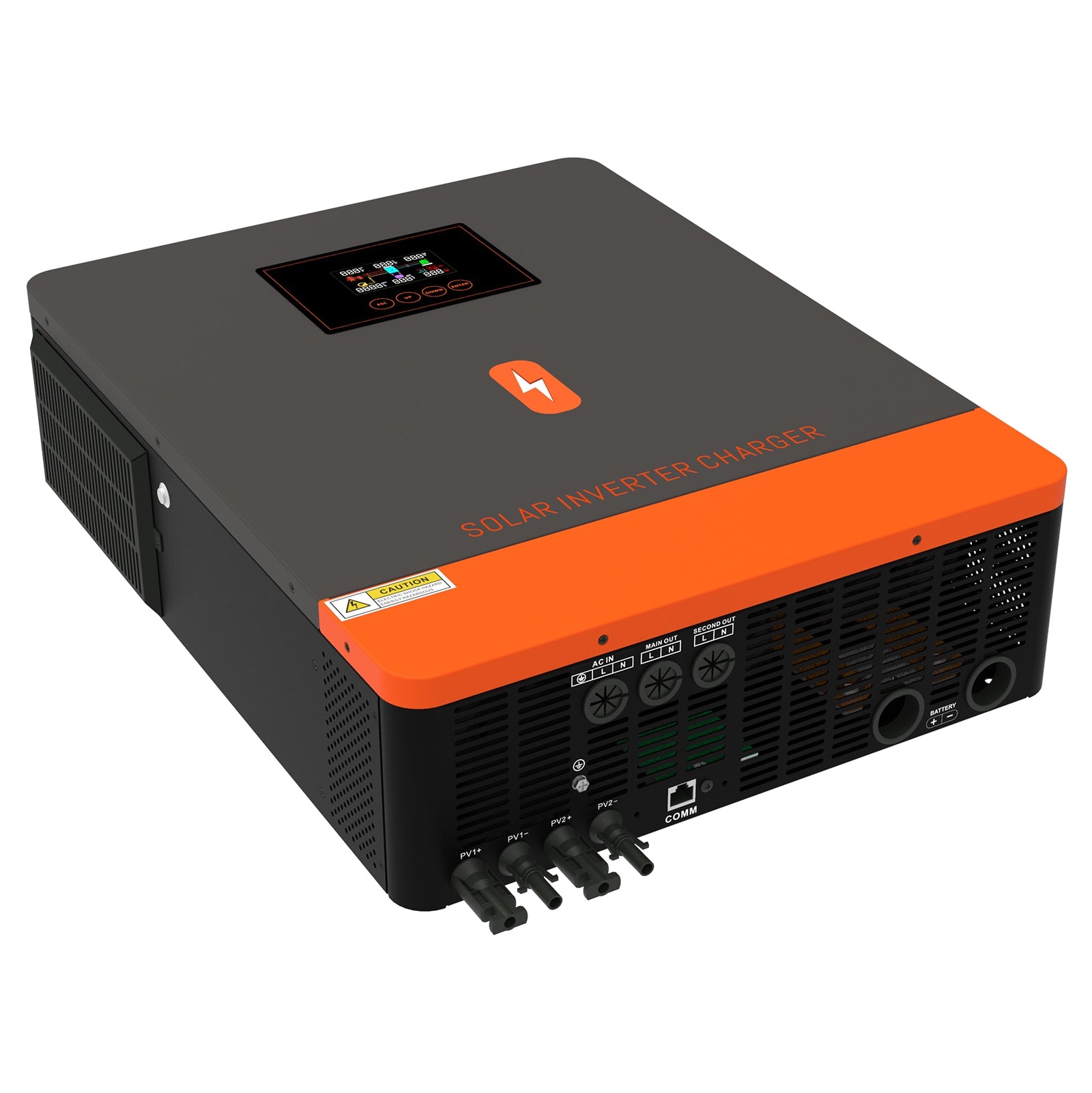

Daul PV In-Put and Second Output
Smart battery charge design to optimize battery life
Dual output
Built-in Lithium battery automatic activation
Specification
Table 1 Line Mode Specifications | |||
INVERTER MODEL |
6.2KW |
8.2KW |
10.2KW |
Input Voltage Waveform |
Pure Sine Wave(Utility or Generator) |
||
Nominal Input Voltage |
230Vac |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/60Hz(Auto detection) |
||
Efficiency(Line Mode) |
>95%( Rated R load,battery full charged) |
||
Transfer Time |
10ms typical(UPS);20ms typical(Appliances) |
||
Table 2 Inverter Mode Specifications | |||
INVERTER MODEL |
6.2KW |
8.2KW |
10.2KW |
Rated Output Power |
6.2KW |
8.2KW |
10.2KW |
Output Voltage Waveform |
Pure Sine Wave |
||
Output Voltage Regulation |
230Vac±5% |
||
Output Frequency |
50Hz |
||
Peak Efficiency |
0.93 |
||
Overload Protection |
3s@≥150% load;5s@101%~150% load |
||
Surge Capacity |
2* rated power for 5 seconds |
||
Nominal DC Input Voltage |
48Vdc |
||
Cold Start Voltage |
46.0Vdc |
||
No Load Power Consumption |
62W |
70W |
75W |
Table 3 Charge Mode Specifications | |||
Utility Charging Mode |
|||
INVERTER MODEL |
6.2KW |
8.2KW |
10.2KW |
Charging Algorithm |
3-Step |
||
AC Charging Current (Max) |
100A |
140A |
160A |
MPPT Solar Charging Mode |
|||
INVERTER MODEL |
6.2KW |
8.2KW |
10.2KW |
Max. PV Array Power |
6500W |
8200W |
10200W |
Nominal PV Voltage |
360Vdc |
||
PV Array MPPT Voltage Range |
90Vdc~450Vdc |
90Vdc~500Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
||
Max Charging Current(AC charger plus solar charger) |
120A |
160A |
180A |
Tabel 4 Grid-Tie Operation | |||
INVERTER MODEL |
6.2KW |
8.2KW |
10.2KW |
Nominal Output Voltage |
220/230/240VAC |
||
Feed-in Grid Voltage Range |
195-253VAC |
||
Feed-in Grid Frequency Range |
49-51±1Hz/59-61±1Hz |
||
Nominal Output Current |
26.9A |
35.6A |
44.3A |
Maximum Conversion Efficiency(DC/AC) |
97% |
98% |
|
Table 5 Two Load Output Power | |||
INVERTER MODEL |
6.2KW |
8.2KW |
10.2KW |
Full Load |
Not Support |
8200W |
10200W |
Maximum Main Load |
8200W |
10200W |
|
Maximum Second Load(battery model) |
2733W |
3400W |
|
Main Load Cut Off Voltage |
44VDC |
||
Main Load Return Voltage |
48VDC |
||
Important note:
Please do not select the mains priority as output priority after connecting the device to two-phase 220V/230V to avoid potential safety risks for the device. Do not connect the AC output end of the device to a saving transformer to not affect the normal life of the device.
Suitable for various applications: residential solar stations, hybrid energy systems, home usage, boat/marine, RV and more.
Tips:
What kind of inverter is suitable for your devices?
Electrical devices are divided into two categories: resistive load and inductive load.
If you need the inverter to operate the resistive load (e.g. Laptop, TV, electric stove), please choose the inverter with a continuous power higher than the rated power of the device, and best use 80% of the rated power.
If you use a microwave oven, water pump, air conditioning and other devices with motor or compressor, please choose the inverter whose continuous power is 3-10 times higher than your device.
NOTE :
The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult us.
PowMr Grid Tie Inverter Hybrid for solar power systems, 6-10kW capacity, 48V DC input, dual PV inputs and outputs with built-in charger.
PowMr Grid Tie Inverter Hybrid: A 6/8/10 kW solar inverter with MPPT, supporting dual PV inputs and two outputs. This charger supports up to 48V and 180A/160A/120A charging current.

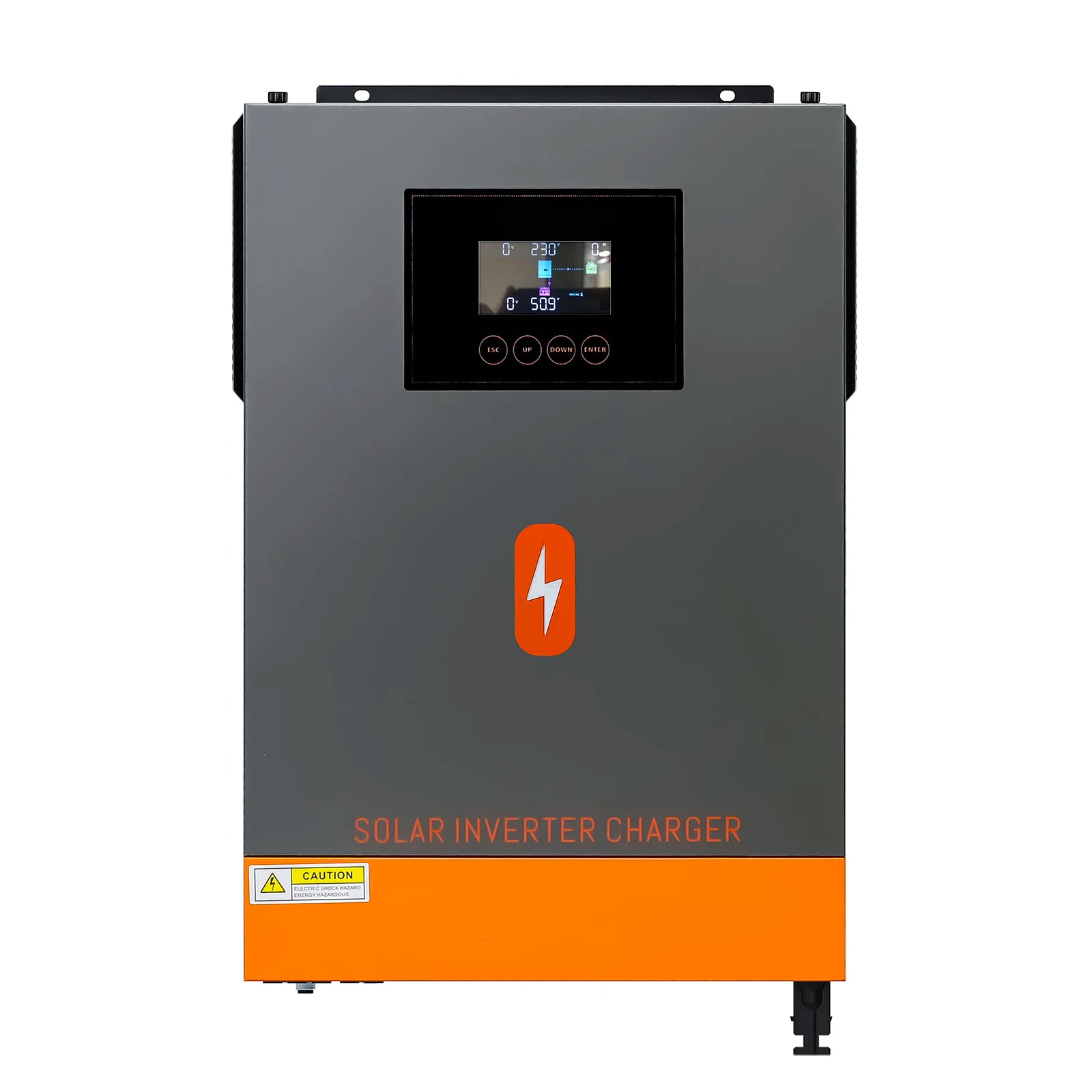

**Important Notice:** This solar inverter charger is for outdoor use only and contains electrical components that can be hazardous if not handled properly. Follow installation, maintenance, and safety guidelines carefully.

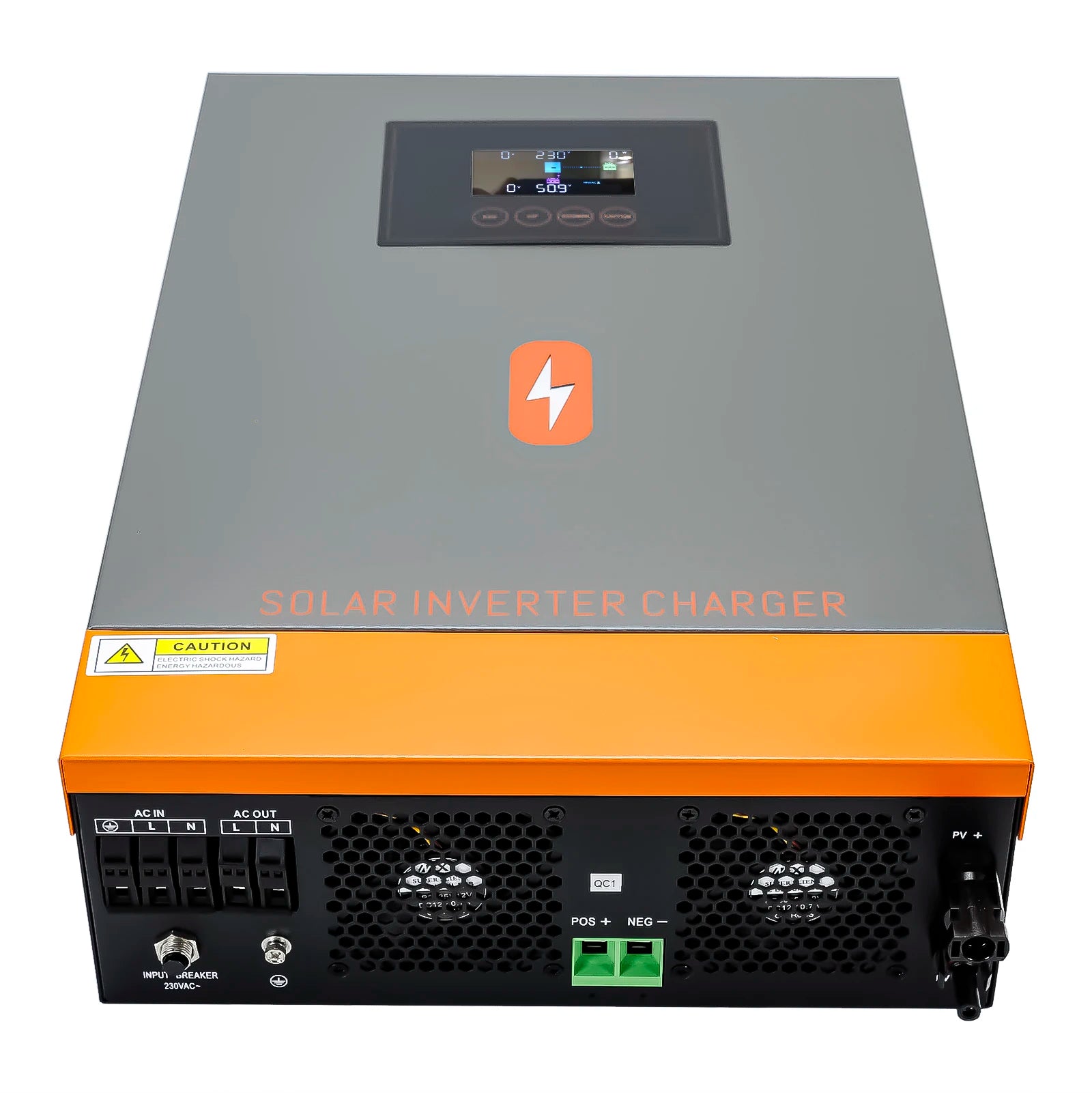

Solar Inverter Charger Warning: Electric Shock Hazard. High Voltage Output (AC) and Input (PV). Please Handle with Care.

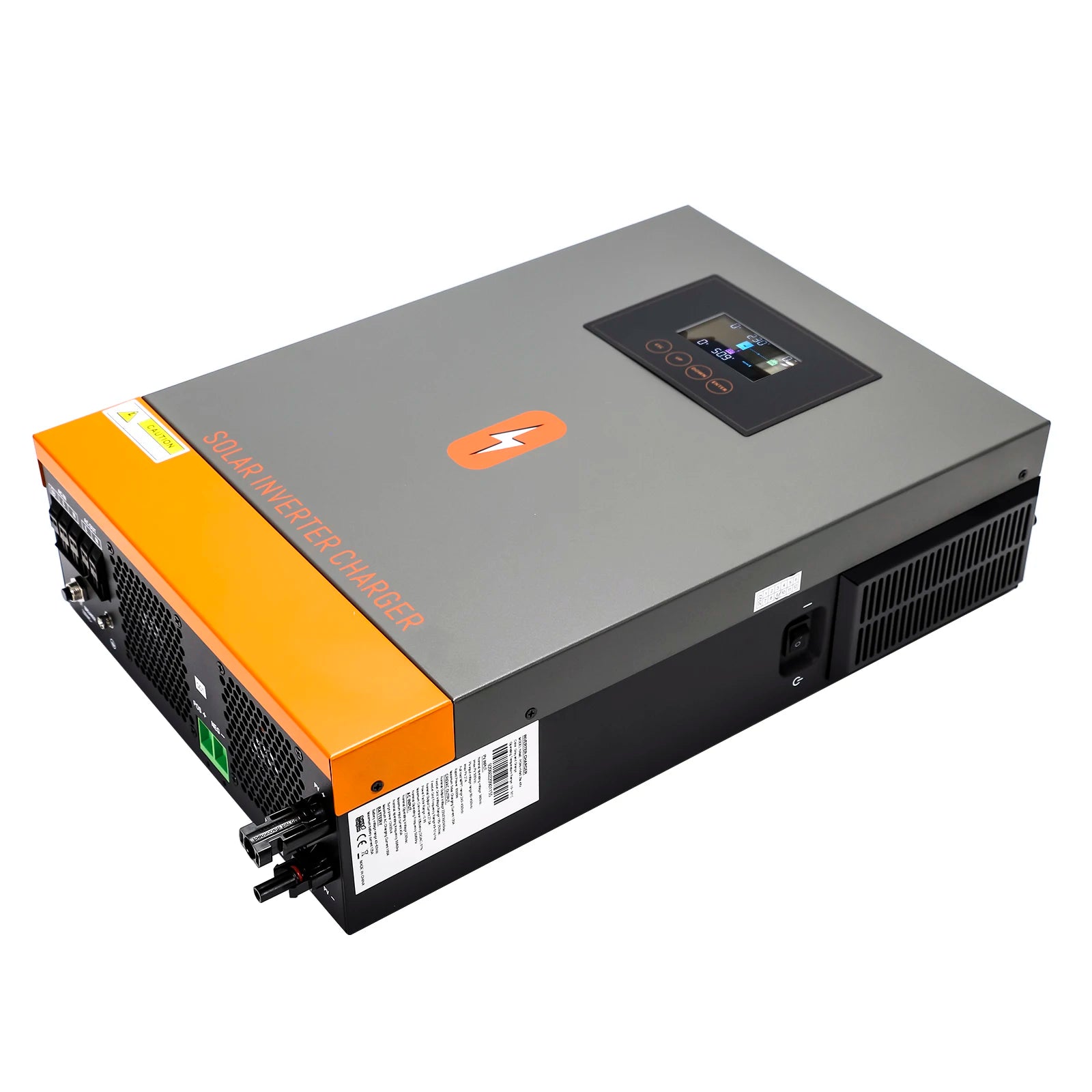

PowMr Grid Tie Inverter Hybrid offers solar power conversion with dual input/output and MPPT technology for efficient energy transfer.
