SPECIFICATIONS
is_customized: Yes
Working efficiency: >95%
Work for: solar Panel/Photovoltaic Panel
Weight: 5.8KG
Size: 348x270x95 mm
Shipping 2: Within 3-7 days, the package arrive.
Shipping 1:: EU customers purchase from China, and the system automatically sends packages from Europe.
Rated output power: 3200W/2400W/1500W
Product: hybrid solar inverter
Part of: solar system complete
PV operating voltage: 90VDC-430VDC
Output voltage range: 230VAC
Output Type: single
Output Frequency: 50HZ
Output Current: MPPT 80A
Origin: Mainland China
Model Number: POW-HVM H Series
Maximum PV input voltage: 450VDC
Maximum PV input power: 3000W/2000W
Maximum PV input current: 18A
Load type: Household appliances, farm tools, farm tools
Item: solar inverter
Is Smart Device: YES
Feature: Support wifi module
Description: photovoltaic hybrid inverter
Charging: pure sine wave inverter
Certification: CE
Brand Name: PowMr
Battery voltage: 24V/12V
Battery type:: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries
Applicable equipment: Factory equipment, commercial load, industrial machinery
Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)
PowMr Hybrid Solar Inverter 3.2KW 2.4KW 1.5KW 12V 24V Photovoltaic Hybrid Inverter 230VAC Max PV 450V Build in 80A MPPT Solar Charge Controller Support Wifi Model
Overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.

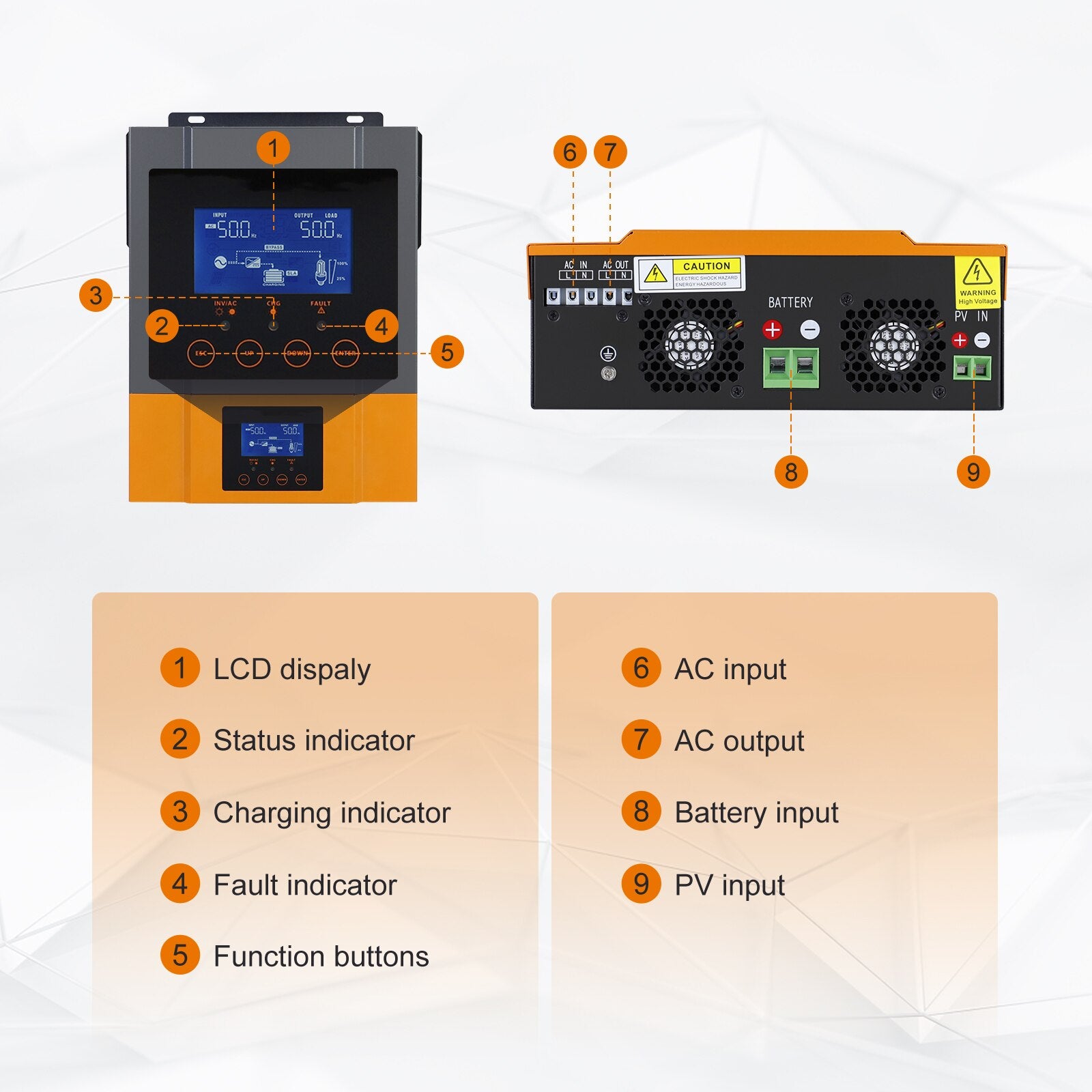

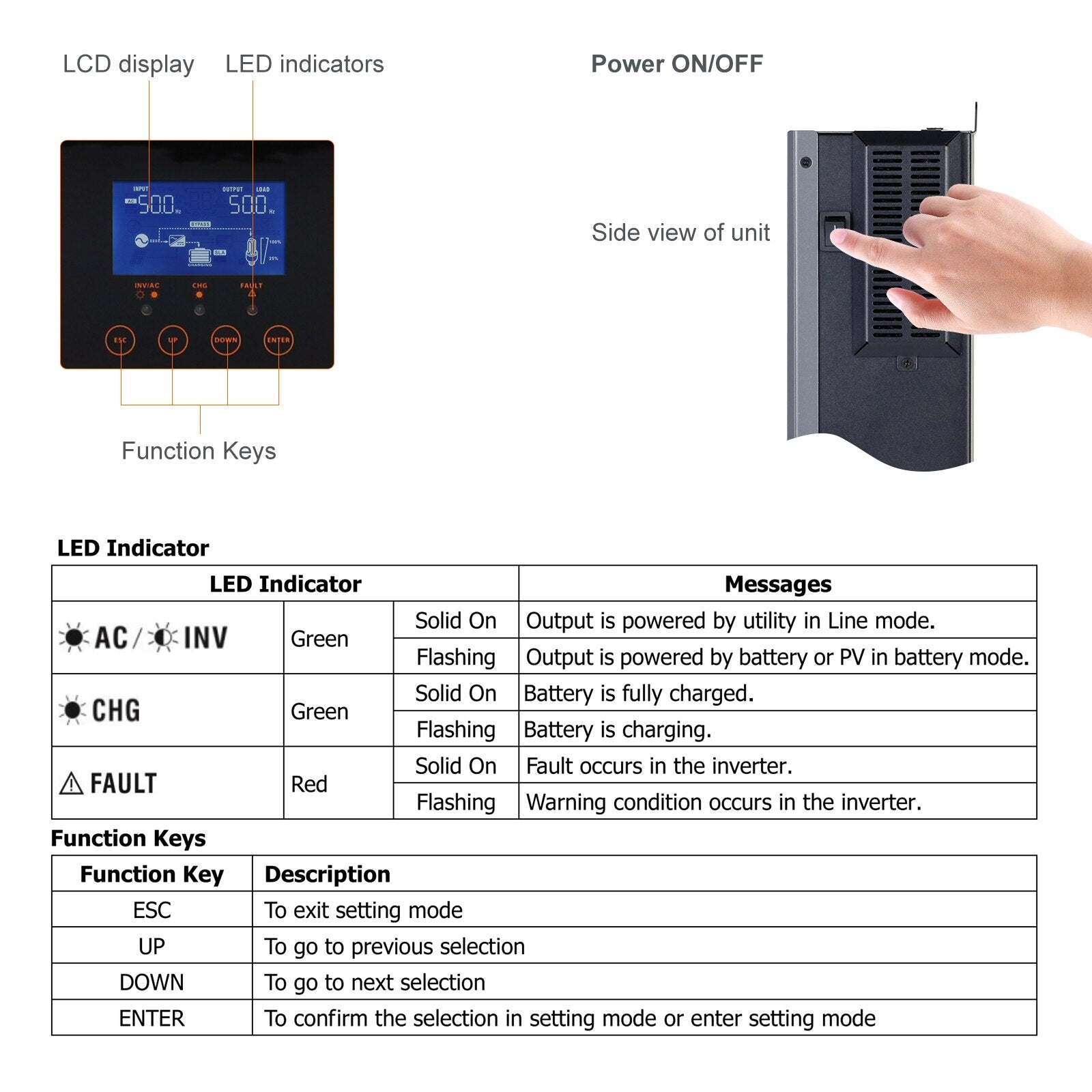

Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Introducing POWMr's Hybrid Solar Inverter, a 3.2kW all-in-one solution for photovoltaic systems. It features a maximum output voltage of 230V AC, with an MPPT charger capable of handling up to 80A and 3000W. The inverter supports lithium batteries and can operate at 50/60Hz frequencies. Its pure sine wave design makes it suitable for a range of applications.

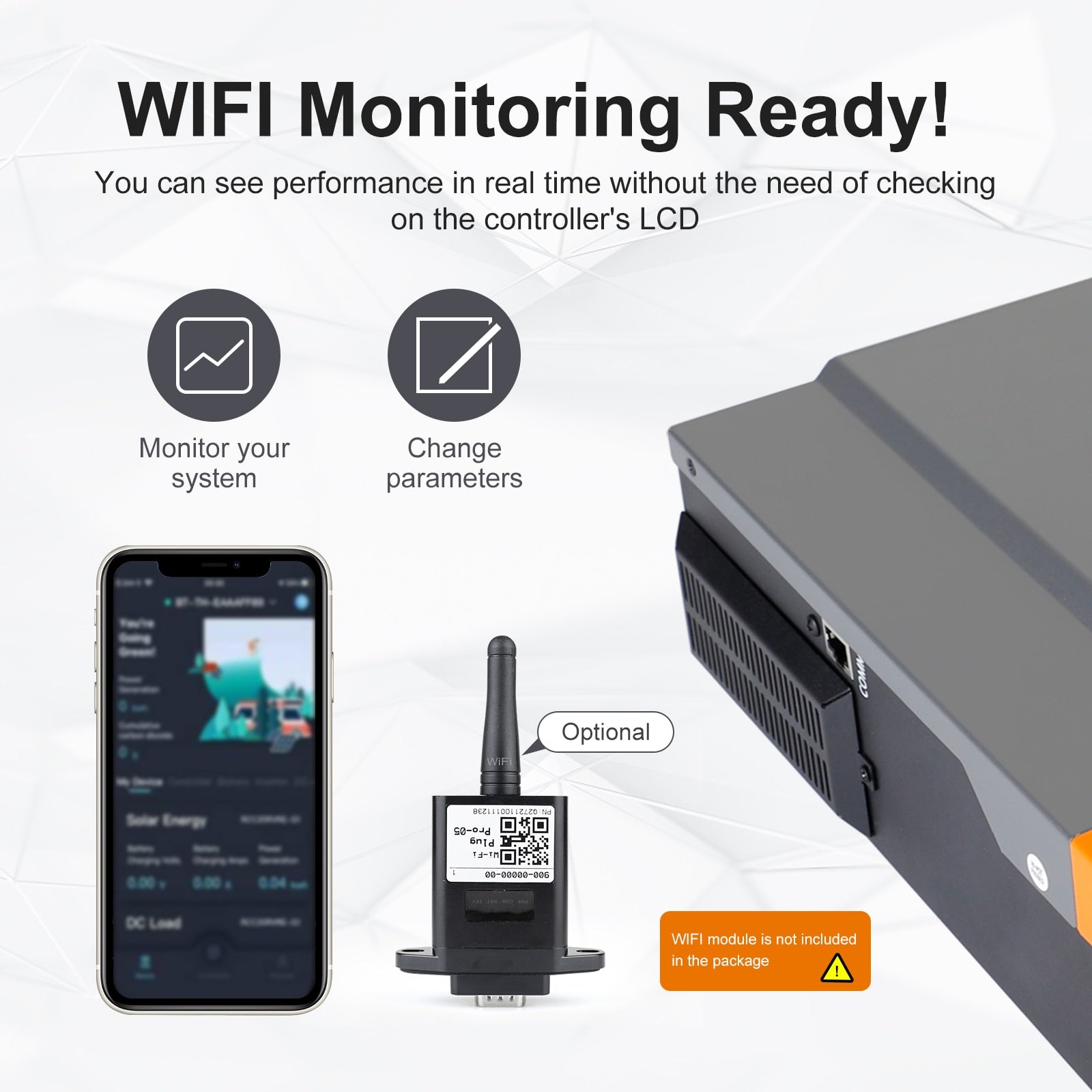

Monitor your system performance in real-time via WiFi, eliminating the need to check the controller's LCD screen. Make changes to system parameters as needed. Note: The WiFi module is not included with the package.
Features:
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS(Option)
• Can connect to lithium battery

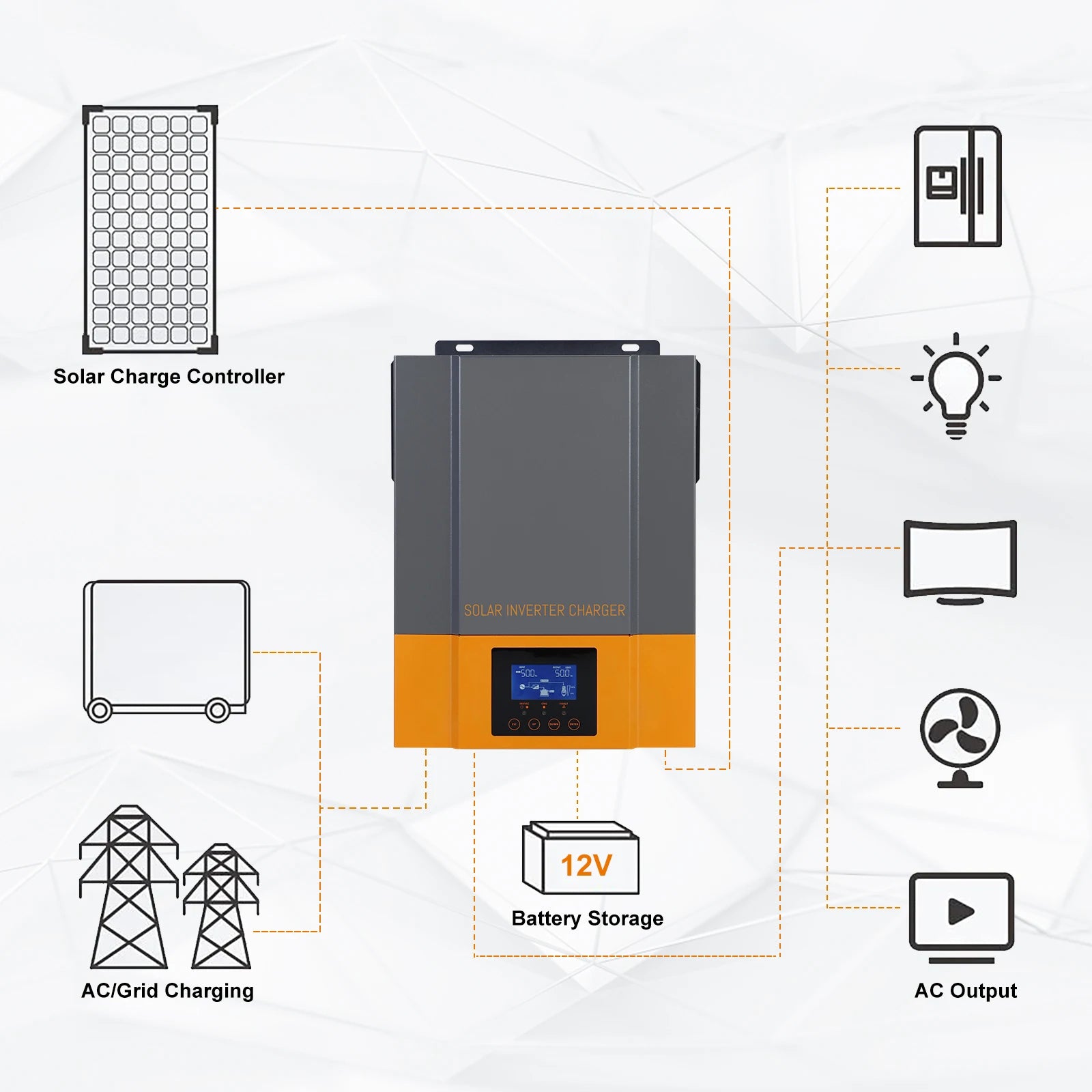

PowMr Hybrid Solar Inverter charges 12V/24V batteries and provides 230VAC max PV output, with built-in 80A MPPT charger and AC grid charging.
Specifications:
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Rated Output Power |
1.5KW |
2.4KW |
3200VA/3000W |
Output Voltage Waveform |
Pure Sine Wave |
||
Output Voltage Regulation |
230Vac±5% |
||
Utility Charging Mode | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Charging Algorithm |
3-Step |
||
AC Charging Current (Max) |
60 Amp |
||
Bulk Charging Voltage | |||
Flooded Battery |
14.6 |
29.2 |
|
AGM / Gel Battery |
14.1 |
28.2 |
|
Floating Charging Voltage |
13.5Vdc |
27.0Vdc |
|
MPPT Solar Charging Mode | |||
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
|
Max. PV Array Power |
2000W |
3000W |
3000W |
Nominal PV Voltage |
240Vdc |
||
PV Array MPPT Voltage Range |
90~430Vdc |
||
Max. PV Array Open Circuit Voltage |
450Vdc |
||
Max Charging Current (AC charger+solar charger) |
80Amp |
||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Safety Certification |
CE |
||
Operating Temperature Range |
-10°C to 50°C |
||
Storage temperature |
-15°C~ 60° C |
||
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
||
Input Voltage Waveform |
Sinusoidal (utility or generator) |
||
Nominal Input Voltage |
230Vac |
||
Low Loss Voltage |
170Vac±7V (UPS); 90Vac±7V (Appliances) |
||
Low Loss Return Voltage |
180Vac±7V (UPS); |
||
100Vac±7V (Appliances) | |||
High Loss Voltage |
280Vac±7V |
||
High Loss Return Voltage |
270Vac±7V |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Low Loss Frequency |
40±Hz |
||
Low Loss Return Frequency |
42±Hz |
||
High Loss Frequency |
65±Hz |
||
High Loss Return Frequency |
63±Hz |
||
Output Short Circuit Protection |
Circuit Breaker |
||
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
||
Transfer Time |
10ms typical (UPS); |
||
20ms typical (Appliances) | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Output Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Peak Efficiency |
91% |
94% |
|
Overload Protection |
5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad |
||
Surge Capacity |
2* rated power for 5 seconds |
||
Nominal DC Input Voltage |
12Vdc |
24Vdc |
|
Cold Start Voltage |
11.5Vdc |
23.0Vdc |
|
Low DC Warning Voltage | |||
@ Io ad < 50>% |
11.0Vdc |
22.0Vdc |
|
@ load >50% |
10.5Vdc |
21.0Vdc |
|
Low DC Warning Return Voltage | |||
@ load < 50% |
11.5Vdc |
22.5Vdc |
|
@ load >50% |
11.0Vdc |
22.0Vdc |
|
Low DC Cut off Voltage | |||
@ load < 50% |
10.2Vdc |
20.5Vdc |
|
@ load >50% |
9.6Vdc |
20.0Vdc |
|
High DC Recovery Voltage |
14.0Vdc |
32Vdc |
|
High DC Cut-off Voltage |
16.0Vdc |
33Vdc |
|
No Load Power Consumption |
<25W |
<30W |
<35W |
Photos:

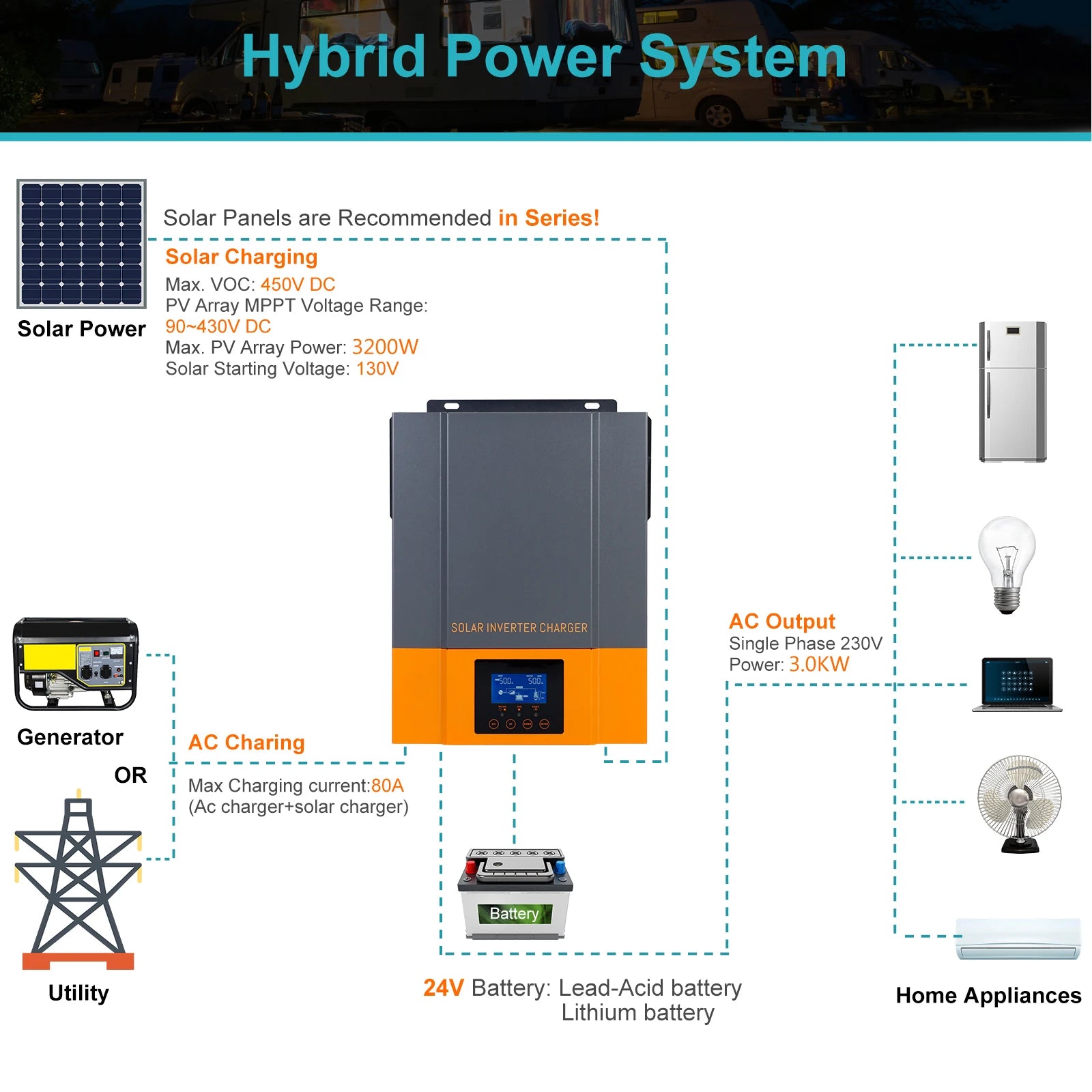

The PowMr Hybrid Solar Inverter is designed for hybrid power systems. It features a maximum PV array voltage of 450V DC, with an MPPT range of 90-430V DC and a maximum power output of 3.2KW. The inverter charger provides single-phase AC output at 230V, with a charging current of up to 80A. It is suitable for home appliances and batteries, including lead-acid and lithium-ion types.

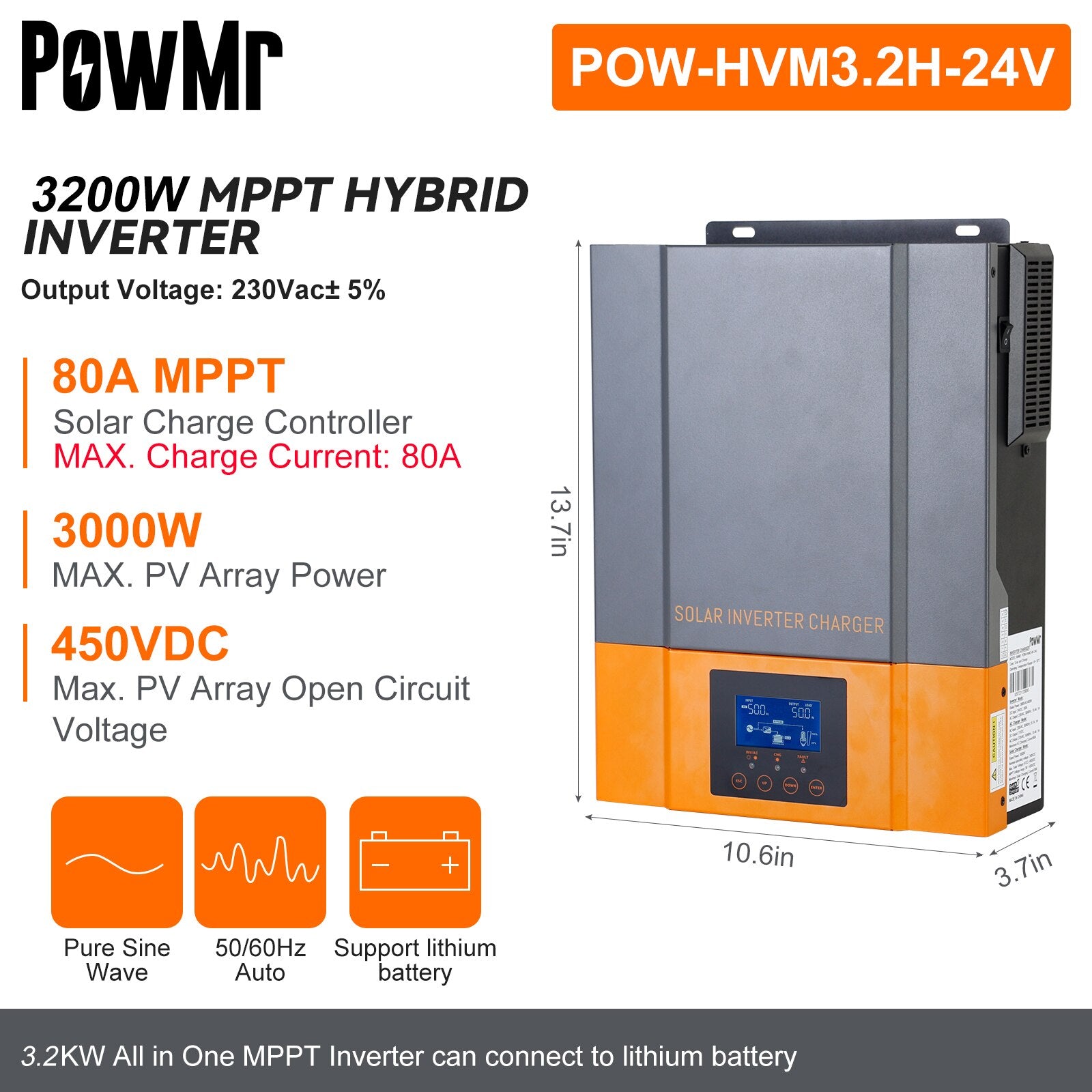

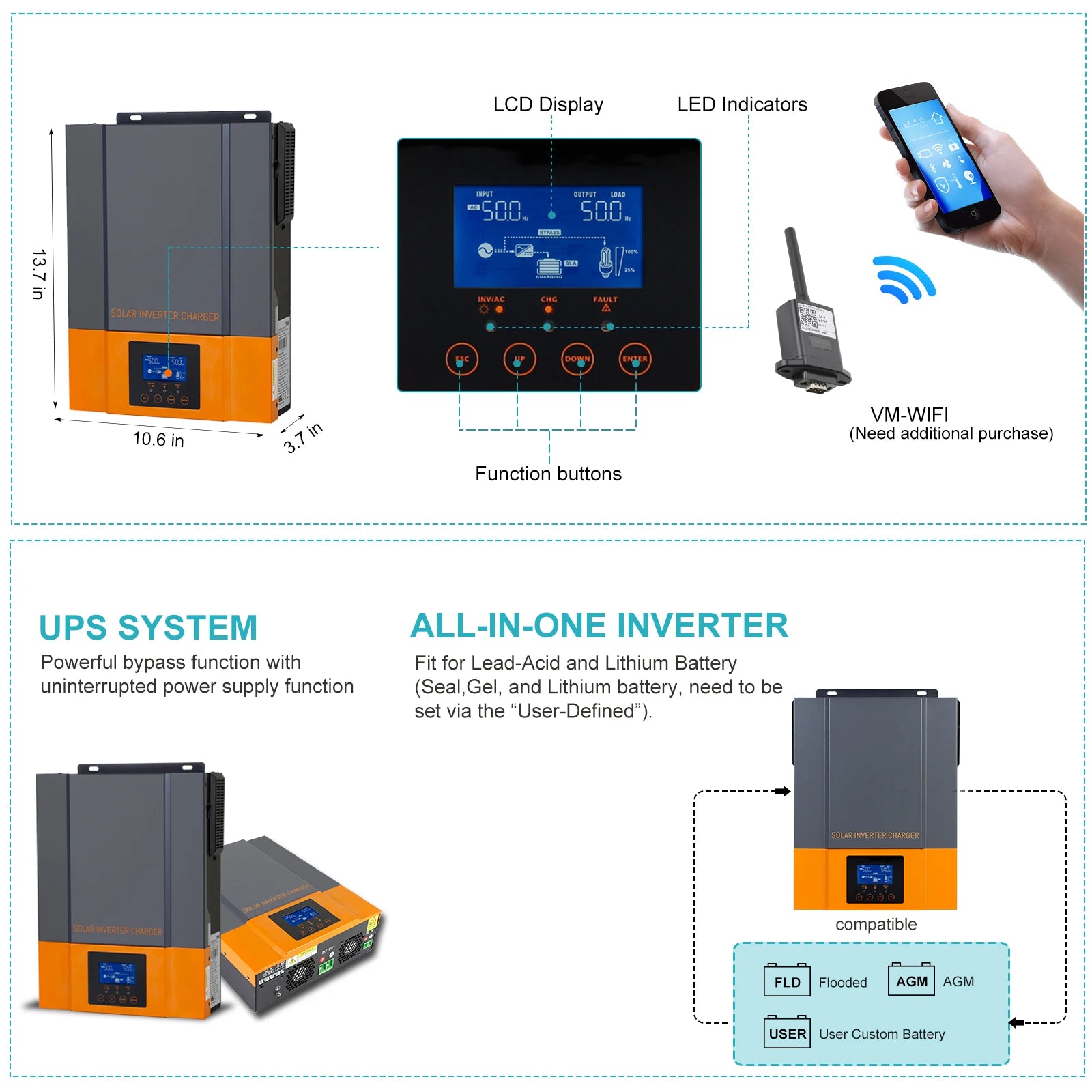

PowMr Hybrid Solar Inverter: A 3.2kW/2.4kW/1.5kW photovoltaic hybrid inverter with LCD display and LED indicators, featuring 80A MPPT charging, maximum PV input 230VAC, and a built-in 450V charger for lead-acid and lithium batteries (compatible with flooded, AGM, and gel batteries).

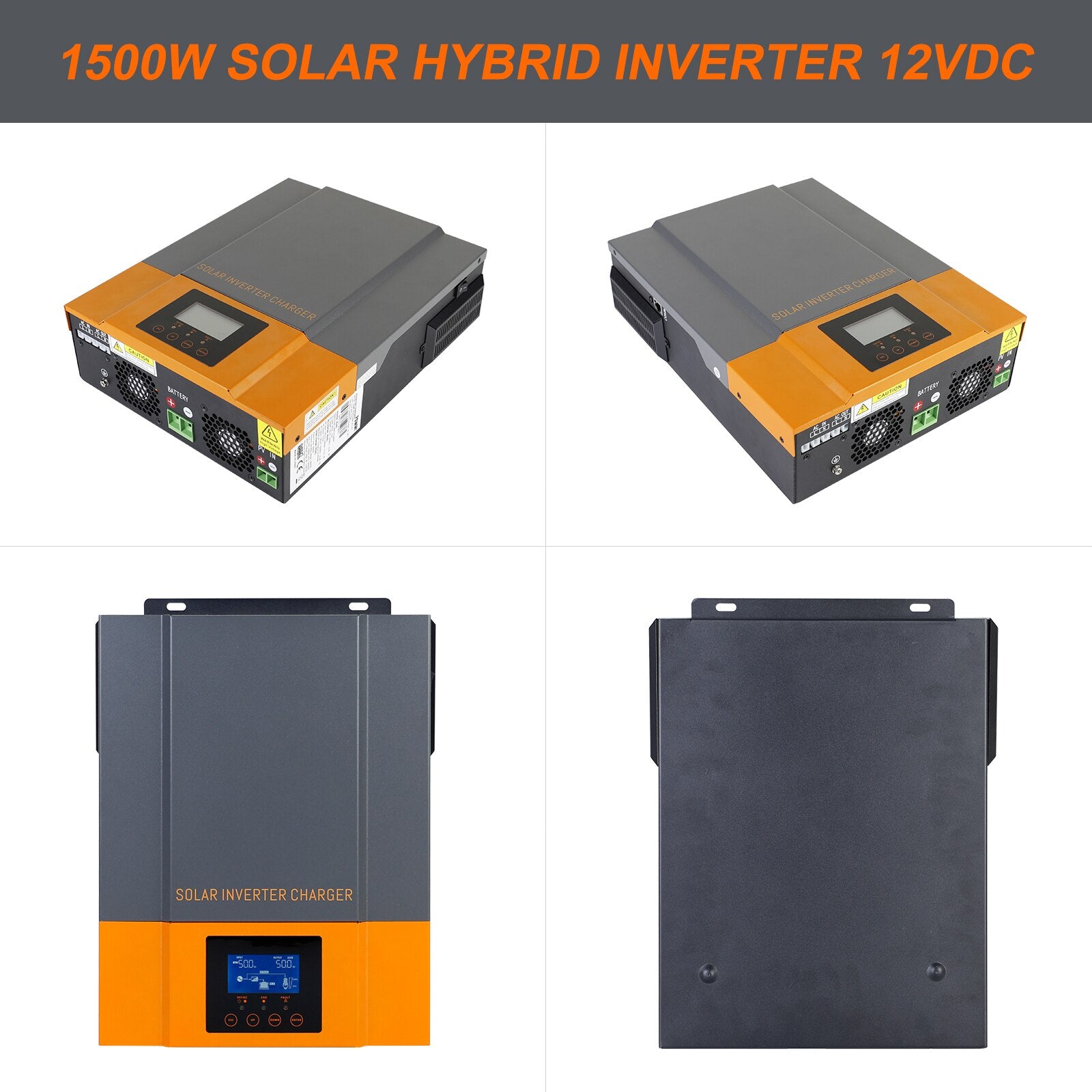

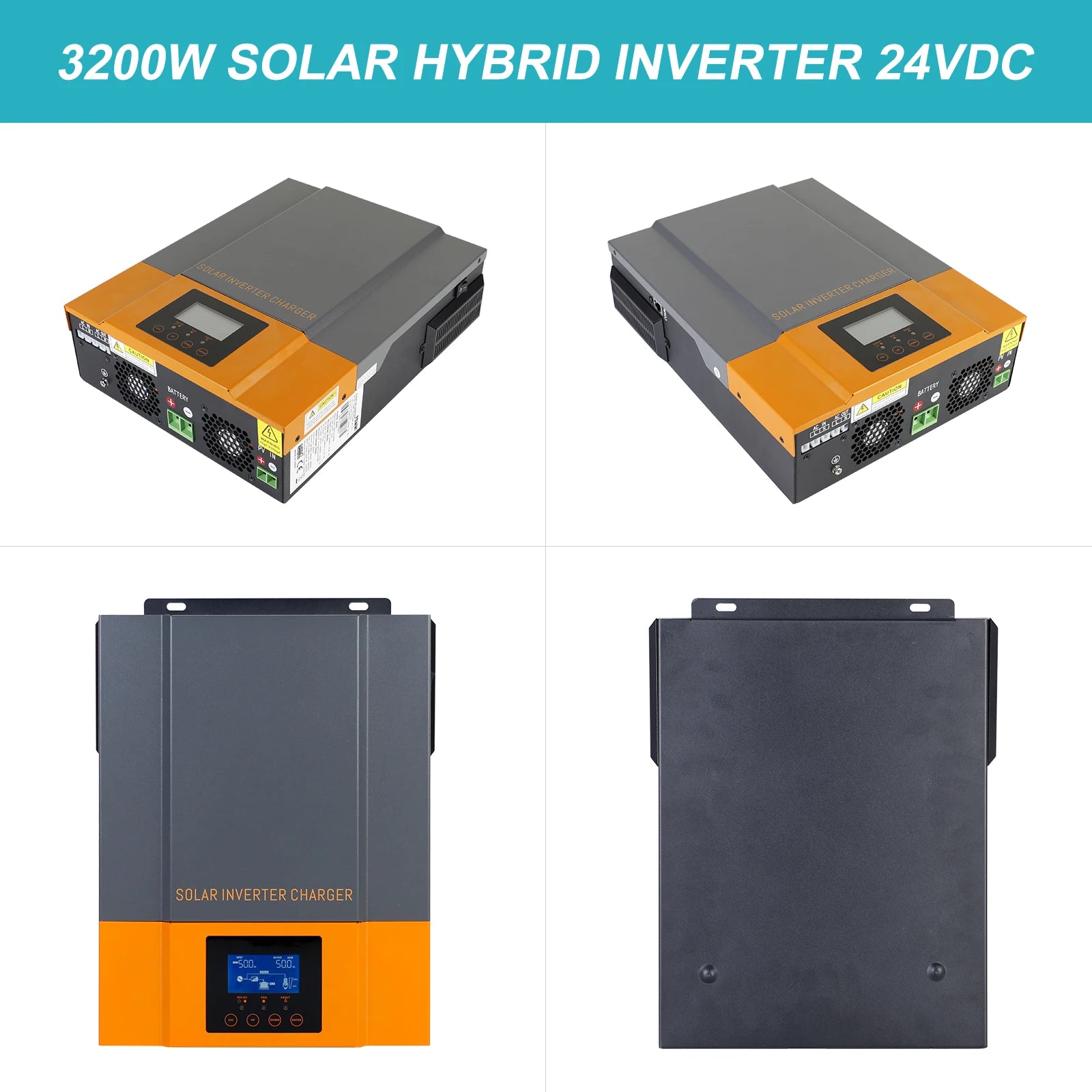

PowMr Hybrid Solar Inverter: A 3.2KW-1.5KW solar power converter that charges batteries and provides 230VAC output, suitable for 12V or 24V photovoltaic systems.

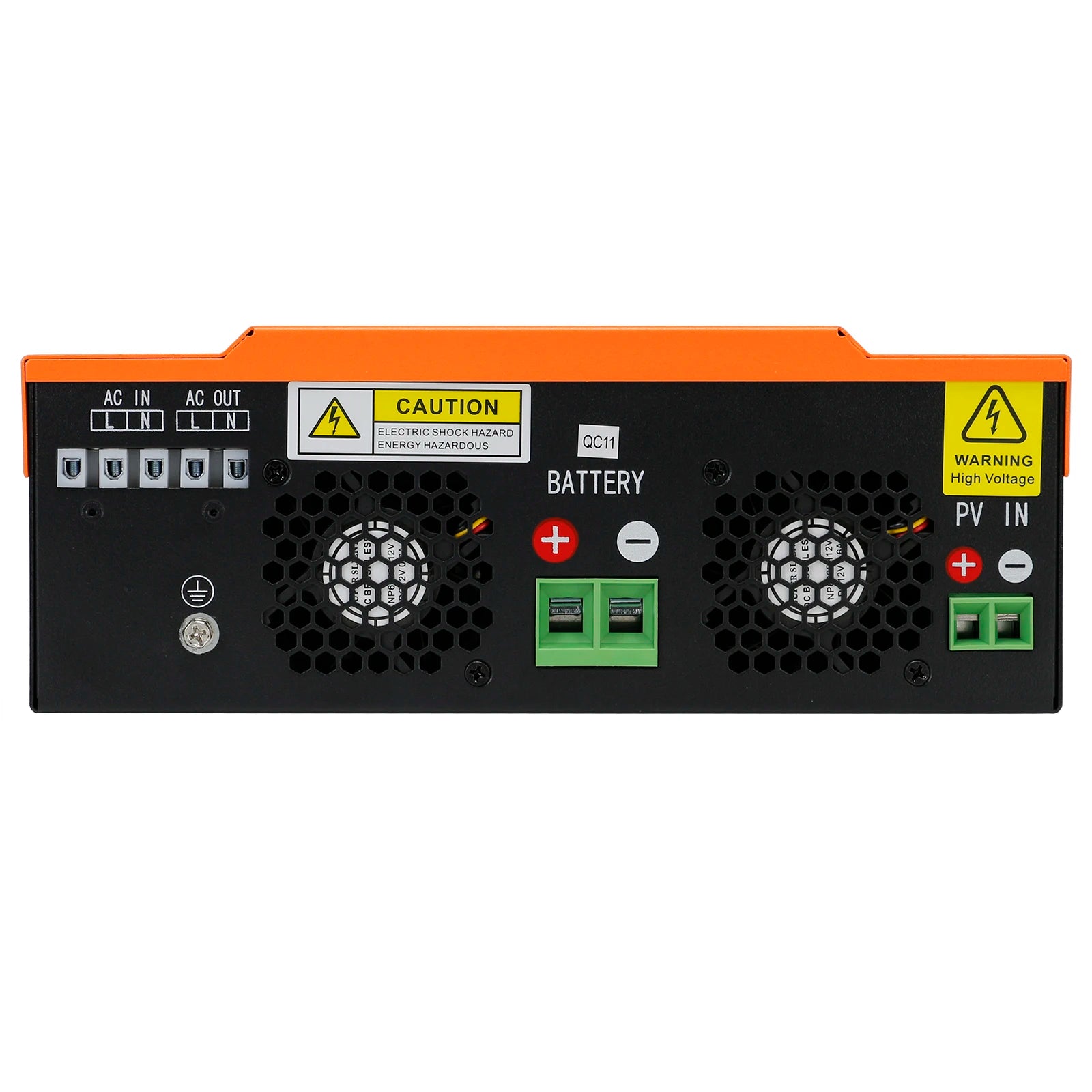

Caution: Electric shock hazard. High voltage warning. Battery not included. PV input, 230V AC output.

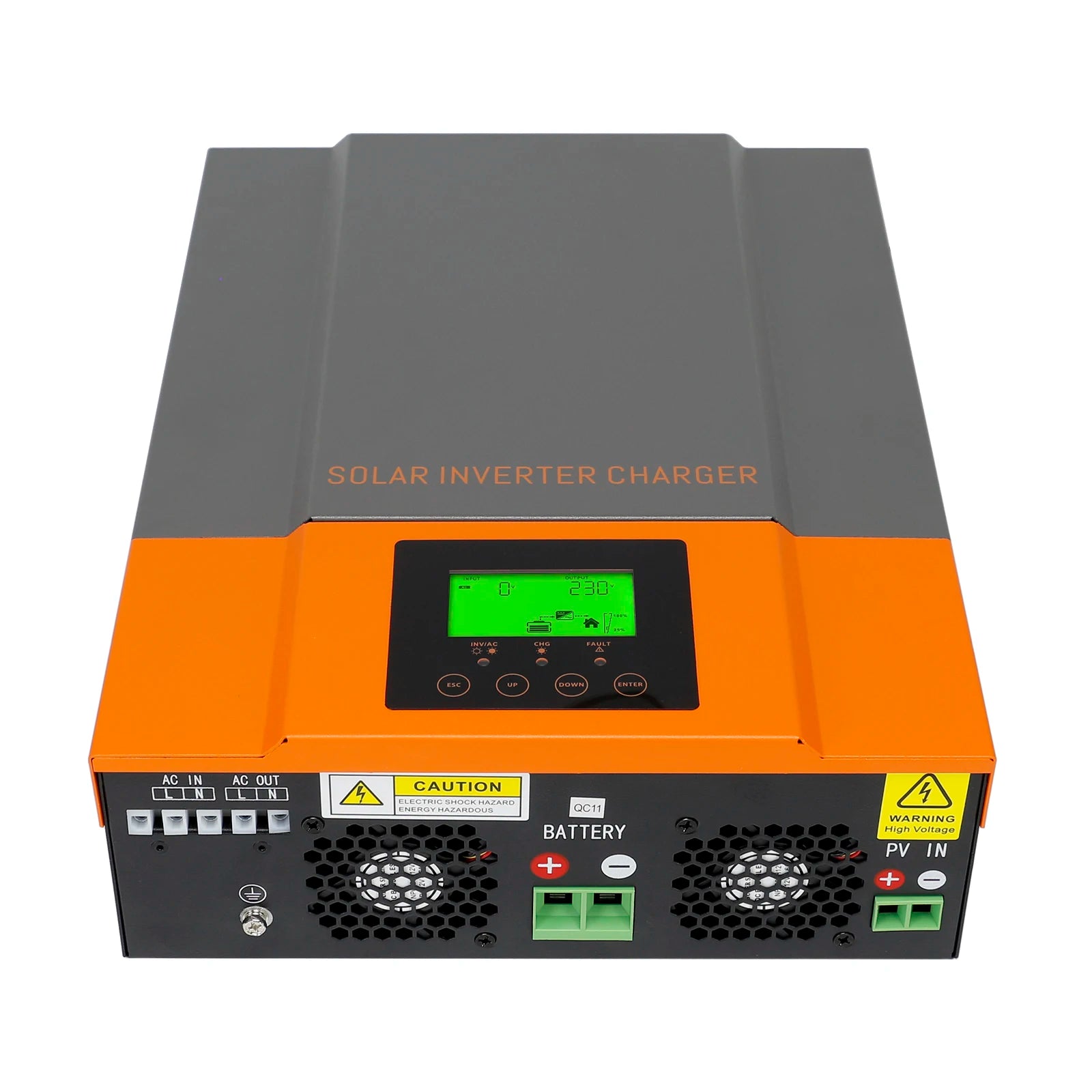

Caution: Solar Inverter Charger. High voltage and energy hazards inside. Electric shock possible. Warning: do not open or touch electrical components without proper training.
