PowMr Hybrid Solar Inverter 1500W 12V 230V PV Max 450V Built in 80A MPPT Solar Controller Pure Sine Wave Inversor 1.5KW
PowMr Hybrid Solar Inverter 1500W 12V 230V PV Max 450V Built in 80A MPPT Solar Controller Pure Sine Wave Inversor 1.5KW
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 6KG
Type: DC/AC Inverters
Type: Hybrid Solar Inverter
Size: 348*270*95mm
Rated Output Power: 1.5KW
Output Type: single
Output Short Circuit Protection: Circuit Breaker
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz(Auto sensing)
Output Current: MPPT 80A
Origin: Mainland China
Nominal Input Voltage: 230Vac
Model Number: POW-HVM1.5H-12V
Max. PV Array Open Circuit Voltage: 450Vdc
Max Charging Current (AC charger plus solar charger): 80Amp
Input Frequency: 50Hz/ 60Hz (Auto-detection)
DC Input Voltage: 12Vdc
Cold Start Voltage: 11.5Vdc
Certification: CE
Brand Name: PowMr
AC Charging Current (Max): 60 Amp
PowMr 1.5KVA 1500W Hybrid Solar Inverter 12V 230V PV Max 450V Built In 80A MPPT Solar Charge Controller Pure Sine Wave Inversor
Production：
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS(Option)
• Can connect to lithium battery
Basic System Architecture：

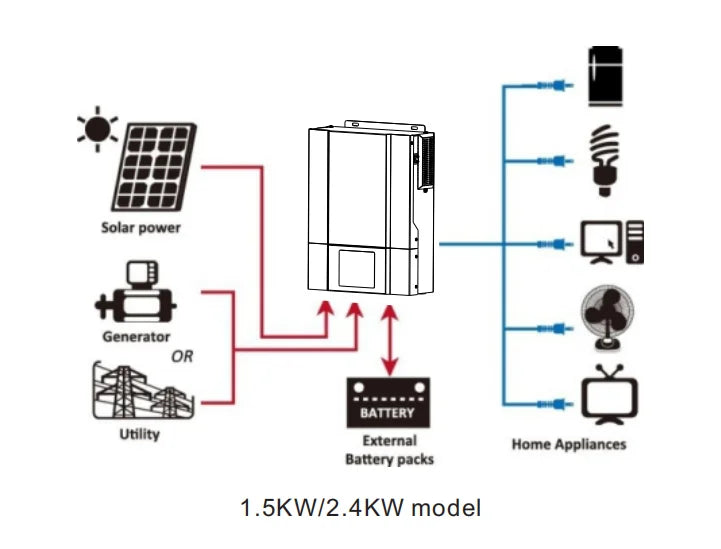

The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
• Generator or Utility.
• PV modules
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
Rated Output Power |
1.5KW |
2.4KW |
Input Voltage Waveform |
Sinusoidal (utility or generator) |
|
Nominal Input Voltage |
230Vac |
|
Output Voltage Waveform |
Pure Sine Wave |
|
Output Frequency |
50Hz |
|
Low Loss Voltage |
170Vac±7V (UPS)； 90Vac±7V (Appliances) |
|
Low Loss Return Voltage |
180Vac±7V (UPS); |
|
100Vac±7V (Appliances) | ||
High Loss Voltage |
280Vac±7V |
|
High Loss Return Voltage |
270Vac±7V |
|
Max AC Input Voltage |
300Vac |
|
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
|
Output Short Circuit Protection |
Circuit Breaker |
|
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
|
Transfer Time |
10ms typical (UPS); |
|
20ms typical (Appliances) | ||
Peak Efficiency |
91% |
|
Overload Protection |
5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
12Vdc |
24Vdc |
Cold Start Voltage |
11.5Vdc |
23.0Vdc |
High DC Recovery Voltage |
14.0Vdc |
32Vdc |
High DC Cut-off Voltage |
16.0Vdc |
33Vdc |
No Load Power Consumption |
<25W |
<30W |
Utility Charging Mode | ||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
Charging Algorithm |
3-Step |
|
AC Charging Current (Max) |
60 Amp |
|
Bulk Charging Voltage | ||
Flooded Battery |
14.6 |
29.2 |
AGM / Gel Battery |
14.1 |
28.2 |
Floating Charging Voltage |
13.5Vdc |
27.0Vdc |
MPPT Solar Charging Mode | ||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
Max. PV Array Power |
2000W |
3000W |
Nominal PV Voltage |
240Vdc |
240Vdc |
PV Array MPPT Voltage Range |
90~430Vdc |
90~430Vdc |
Max. PV Array Open Circuit Voltage |
450Vdc |
450Vdc |
Max Charging Current (AC charger plus solar charger) |
80Amp |
80Amp |
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
Safety Certification |
CE |
|
Operating Temperature Range |
-10°C to 50°C |
|
Storage temperature |
-15°C~ 60° C |
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
Dimension (D*W* H), mm |
348X270X95 |
|
Net Weight, kg |
10.5 |
10.5 |
Introducing the PowMr Hybrid Solar Inverter, a powerful device that converts DC power to AC power. With an output capacity of 1500W and support for solar, generator, and utility charging, this inverter is perfect for home, camping, RV, or boat use.

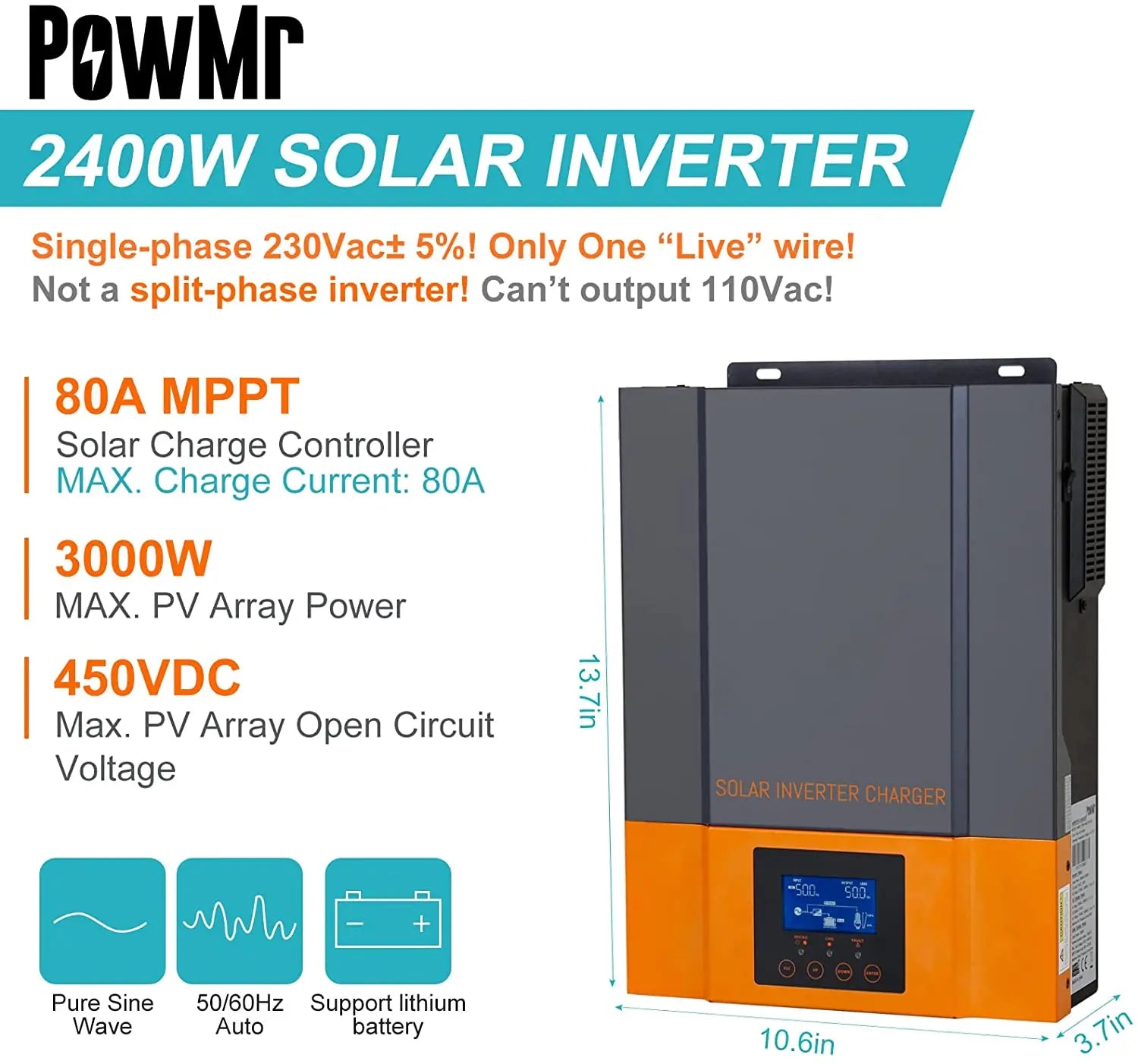

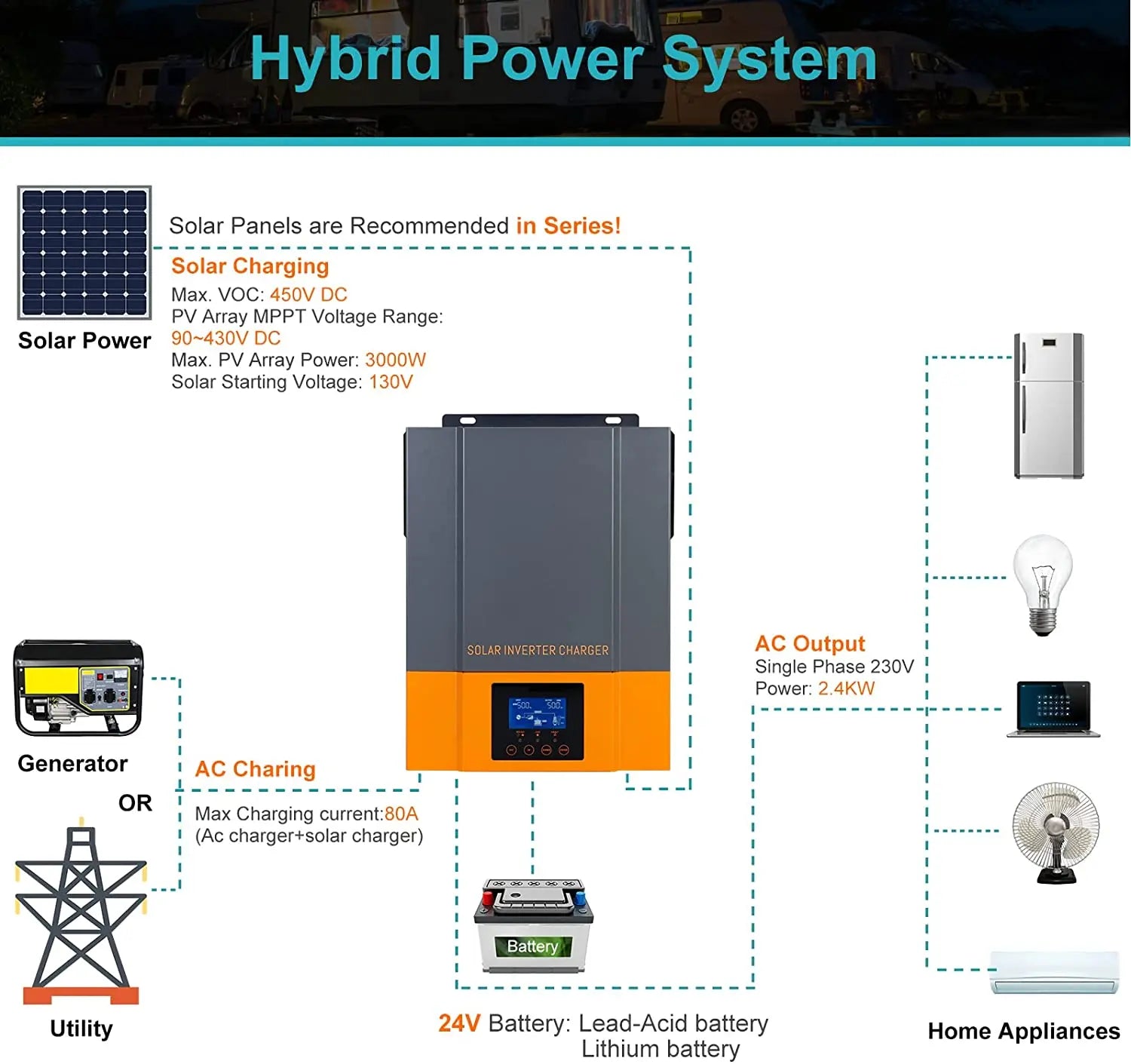

Recommended for hybrid power systems, this solar inverter features a maximum voltage of 450V DC and supports up to 3000W of PV array power. It also includes an MPPT controller with a voltage range of 90-430V DC. The AC output is single-phase at 230V, with a max power of 2.4kW and charging current of up to 80A.

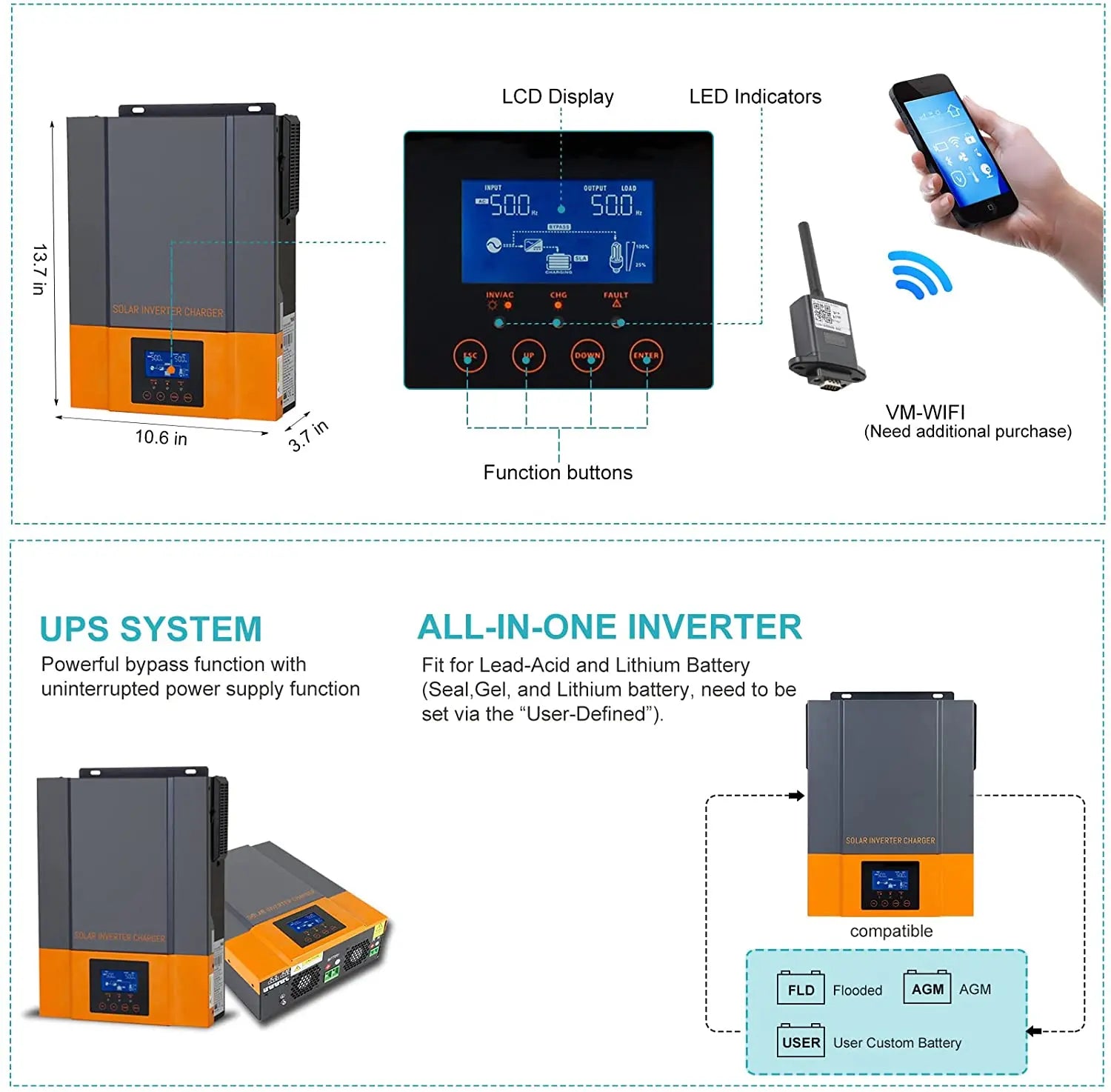

PowMr Hybrid Solar Inverter: A 1.5kW all-in-one inverter with built-in MPPT solar controller, producing pure sine waves. Features LCD display, LED indicators, and USB Wi-Fi connectivity (additional purchase required). Includes bypass function for uninterrupted power supply. Compatible with lead-acid and lithium batteries (set via

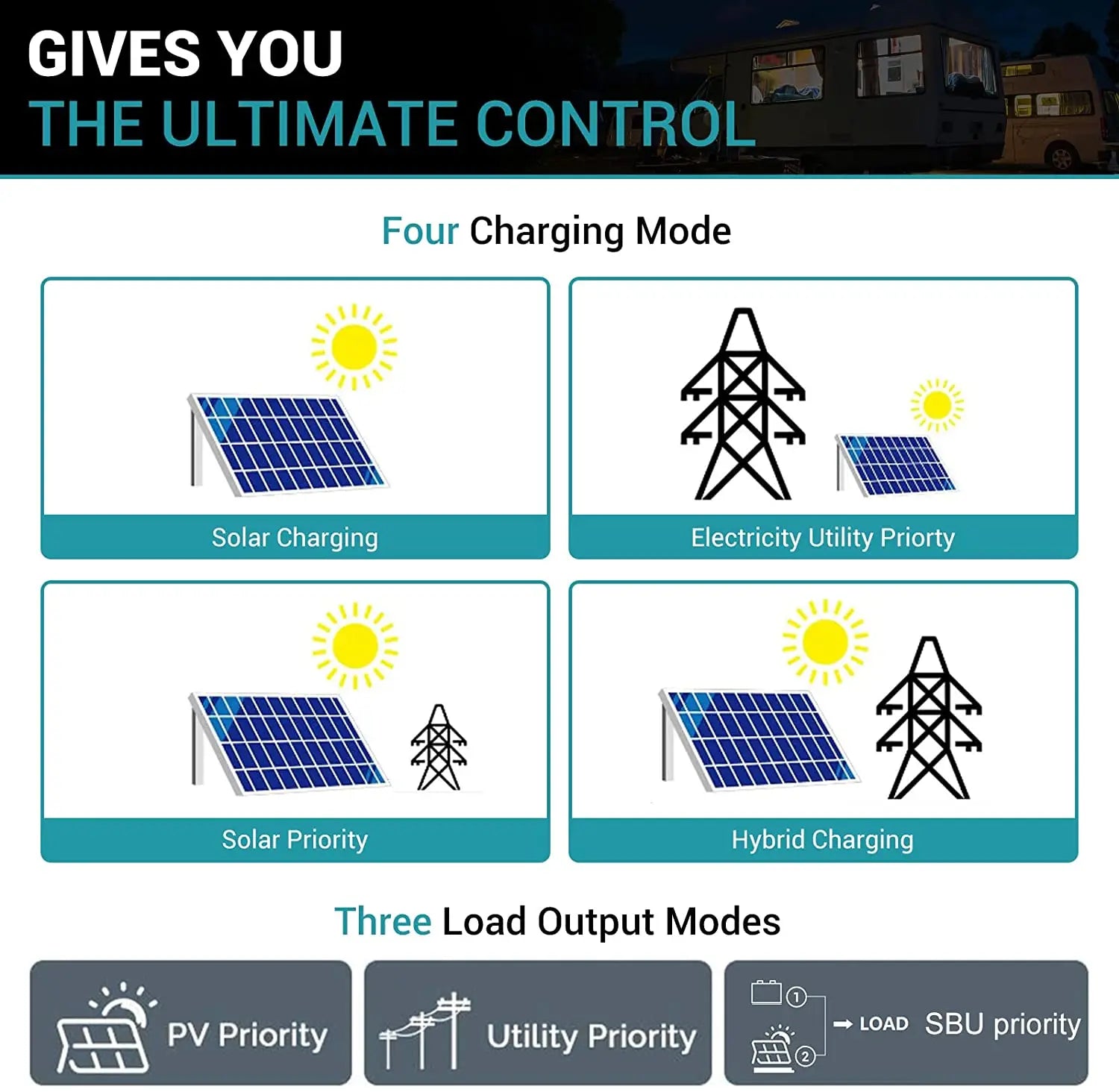

Enjoy ultimate control with four charging modes: solar, utility, hybrid, and priority. Plus, three load output modes: PV, utility, and SBU priority.
FAQ
Q 1.Would you accept to use our logo ?
A:All of our products are accepted to print your logo on the enclosure and package box, it depends on the amount, from 200pcs to 1000pcs.
Q 2.We want to know month capacity.
A:20000-30000PCS per Month.
Q 3.Where is your main market?
A:Our main market, United States,European and Australia.
Q 4. What kind of certificate you have ?
A:CE certificates.
Q 5.How long of the warranty or guaranty?
A:1 Year
Q 6.How to pay for solar controller?
A:We accept paypal, western union, T/T. If you have any good payment, we also can accept.
