PowMr Hybrid Solar Inverter MPPT 5.5KW&3.5KW 48V/24V 230VAC Pure Sine Inverter With 110A Battery Charger Work for Solar Panels
PowMr Hybrid Solar Inverter MPPT 5.5KW&3.5KW 48V/24V 230VAC Pure Sine Inverter With 110A Battery Charger Work for Solar Panels
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Working efficiency: >95%
Weight: 11.3kg
Size: 44X30X10CM
Rated output power: 5.5KW/5.5KVA; 3.5KW/3.5KVA
Output voltage range: 220VAC/230VAC/240VDC
Output Type: single
Output Power: 1 - 200KW
Output Current: 44X30X10CM
Origin: Mainland China
Model Number: POW-HVM-5.5H-48V/POW-HVM-3.5H-24V
Is Smart Device: YES
Features 2: Uniform charging function
Features 1: Set utility voltage
Communication Interface: USB/RS232/GPRS/WIFIOptional
Charging: pure sine wave inverter

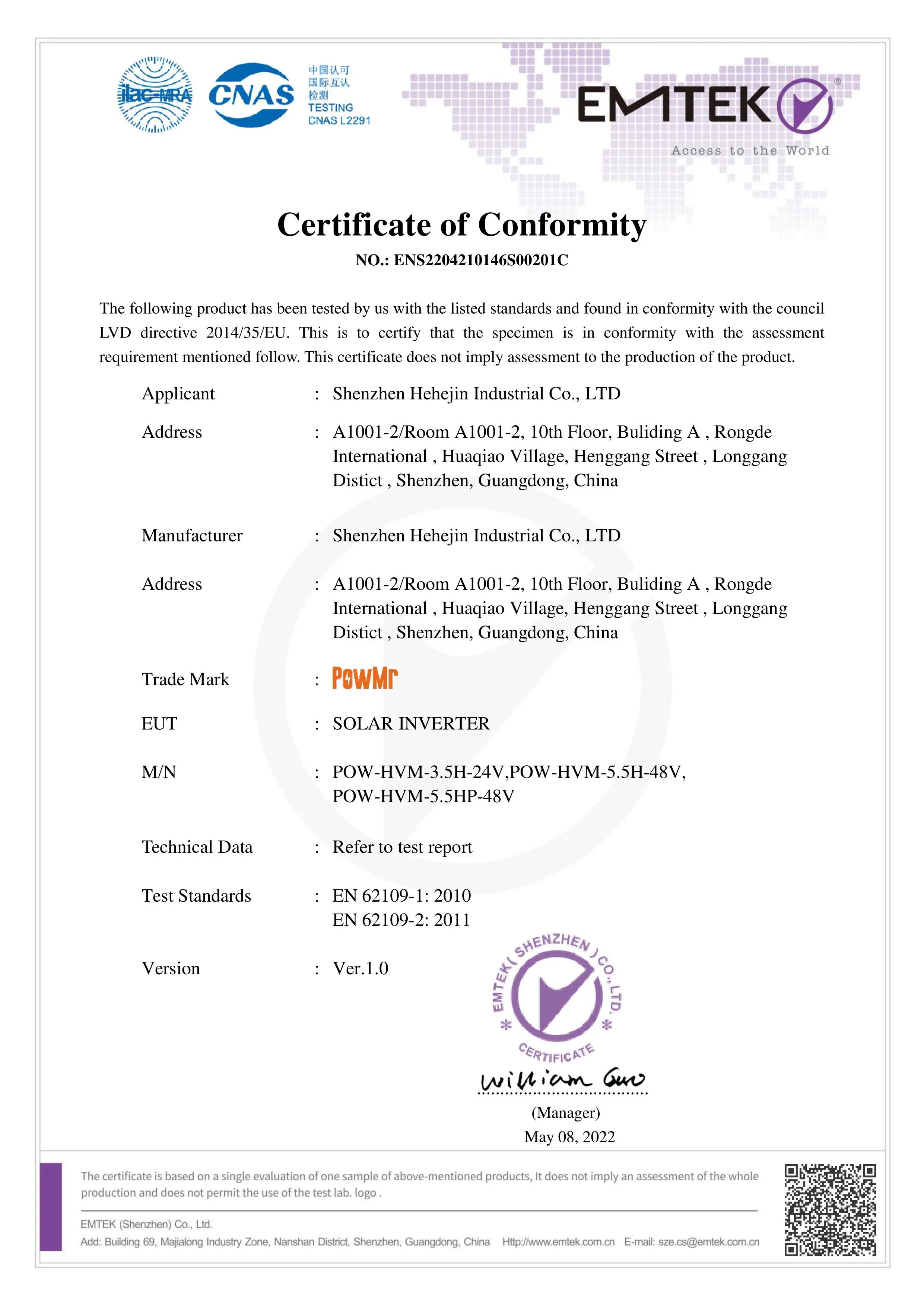

Certification: CE,FCC,RoHS
Brand Name: PowMr

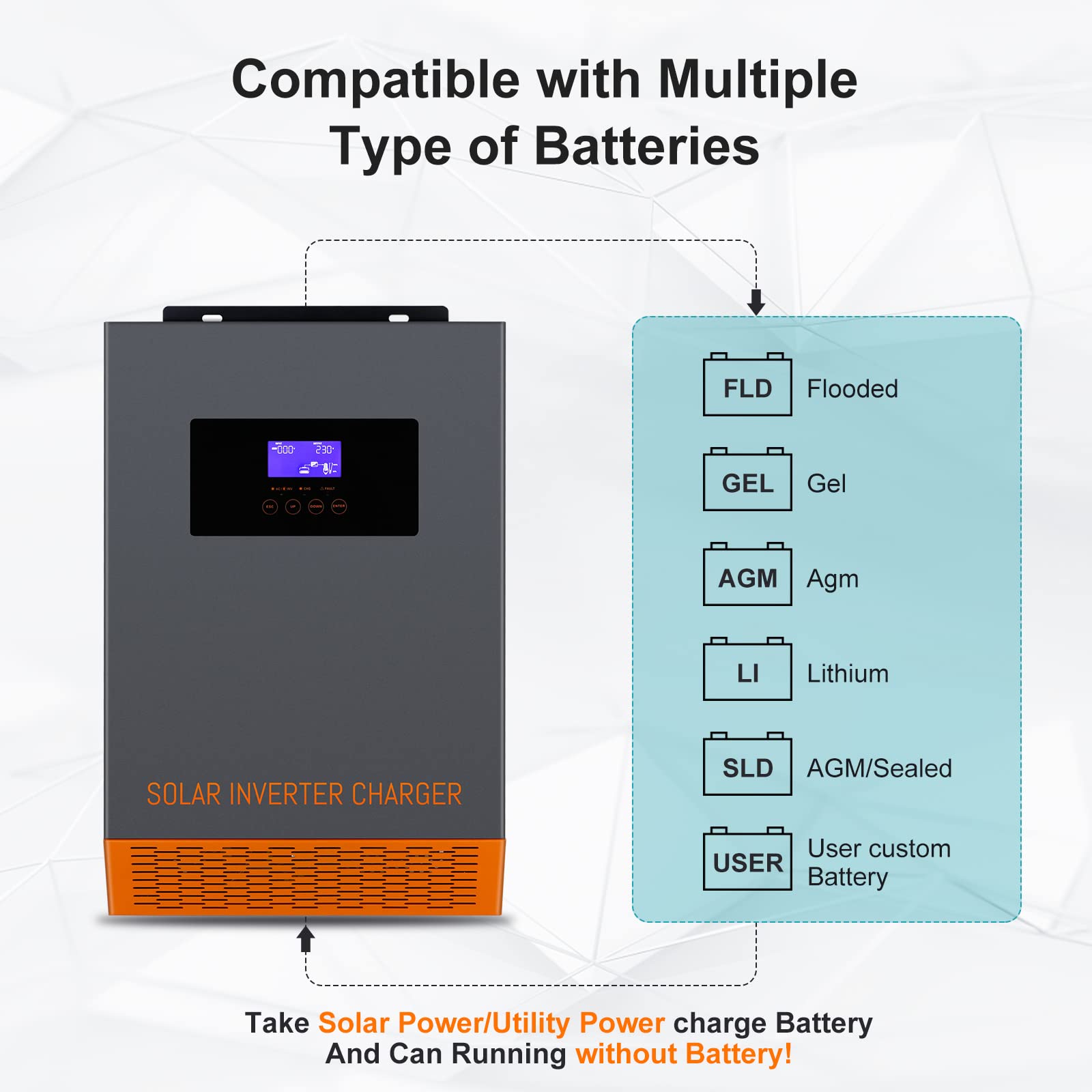

Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries
To European Union Countries:
You also can choose from China we will help you send from the EU warehouse if we have stock in the EU warehouse, that it can help you don't need to pay the additional fees. when you order before, please contact us first, thank you.
PowMr Hybrid Solar Inverter MPPT 5.5KW&3.5KW 48V/24V 230VAC Pure Sine Inverter With 110A Battery Charger Work for Solar Panels
Overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Introducing PowMr's all-in-one hybrid solar inverter, perfect for complete solar power systems. This MPPT inverter supports battery-free operation and can power various household and office loads. With its built-in 110A charger, you can efficiently charge your batteries.
Features:
1.Pure sine wave output.
2.Output power factor 1.0.
3.Programmable supply priority for PV,battery or Grid.
4.User-adjustable charge current and voltage.
5.Wide PV input range (120Vdc-500Vdc), 110A MPPT SCC6.
6.Working without batteries in sunny day.
7.WiFi Monitoring Function (optional).
8.Anti-dusk kit for harsh environment(optional).
9.LCD remote control with 10 meters wire(optional).
10.PV and electricity complementary.
11.Use with lithium batteries.
12.Set utility voltage.
13.Uniform charging function.
Specification comparison:
Model |
POW-HVM-3.5H-24V |
POW-HVM-5.5H-48V |
Rated Power |
3500VA/3500W |
5500VA/5500W |
Input | ||
Voltage |
230VAC |
|
Selectable Voltage Range |
170～280VAC(For Personal Computers) |
|
90～280VAC(For Home Appliances) | ||
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
Output | ||
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
|
Surge Power |
7000VA |
11000VA |
Efficienc(Peak)PV to INV |
97% |
|
Efficienc(Peak)Battery to INV |
94% |
|
Transfer Time |
10ms(For Pensonal Computers);
20ms(For Home Appliances)
|
|
Battery & AC Charger | ||
Battery Voltage |
24VDC |
48VDC |
Floating Charge Voltage |
27VDC |
54VDC |
Overcharge Protection |
33VDC |
63VDC |
Maximum Charge Current |
80A |
80A |
Solar Charger | ||

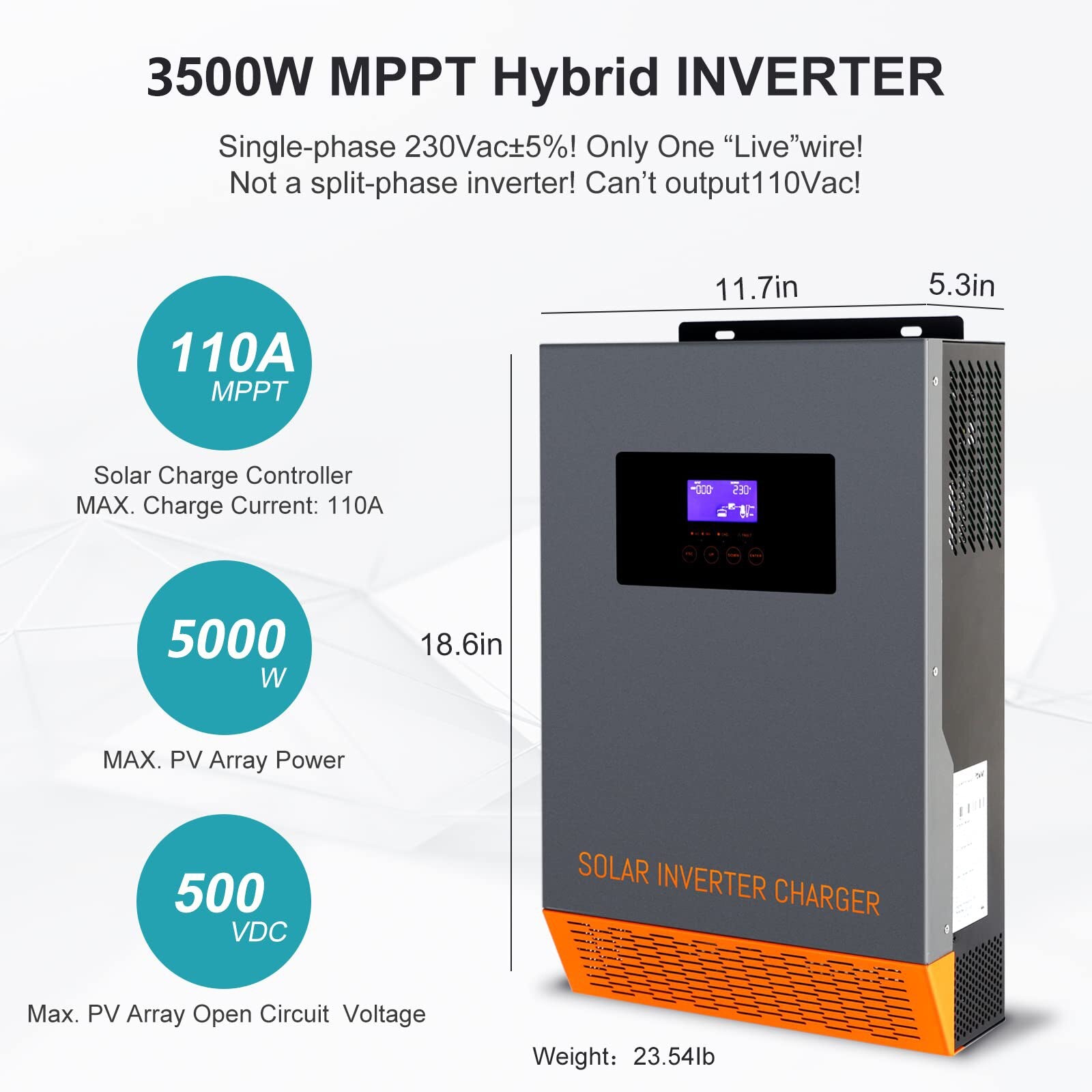

Maximum PV Array Power |
5000W |
6000W |
MPPT Range @ Operating Voltage |
120～450VDC |
|
Maximum PV Array Open Circuit Voltage |
500VDC |
|
Maximum Charging Current |
110A |
110A |
Maximum Efficiency |
98% |
|
Physical | ||
Dimension,D*W*H(mm) |
472*297*129 |
|
Net Weight(kgs) |
13 |
14 |
Communication Interface |
RS485/RS232 (Standard)
LCD remote/WIFI (Optional)
|
|
Operating Environment | ||
Humidity |
5% to 95% Relative Humidity(Non～condensing) |
|
Operating Temperature |
0℃～55℃ |
|
Storage Temperature |
-15℃～60℃ |
|
Product Overview:
Take the 5.5kw inverter model as an example.

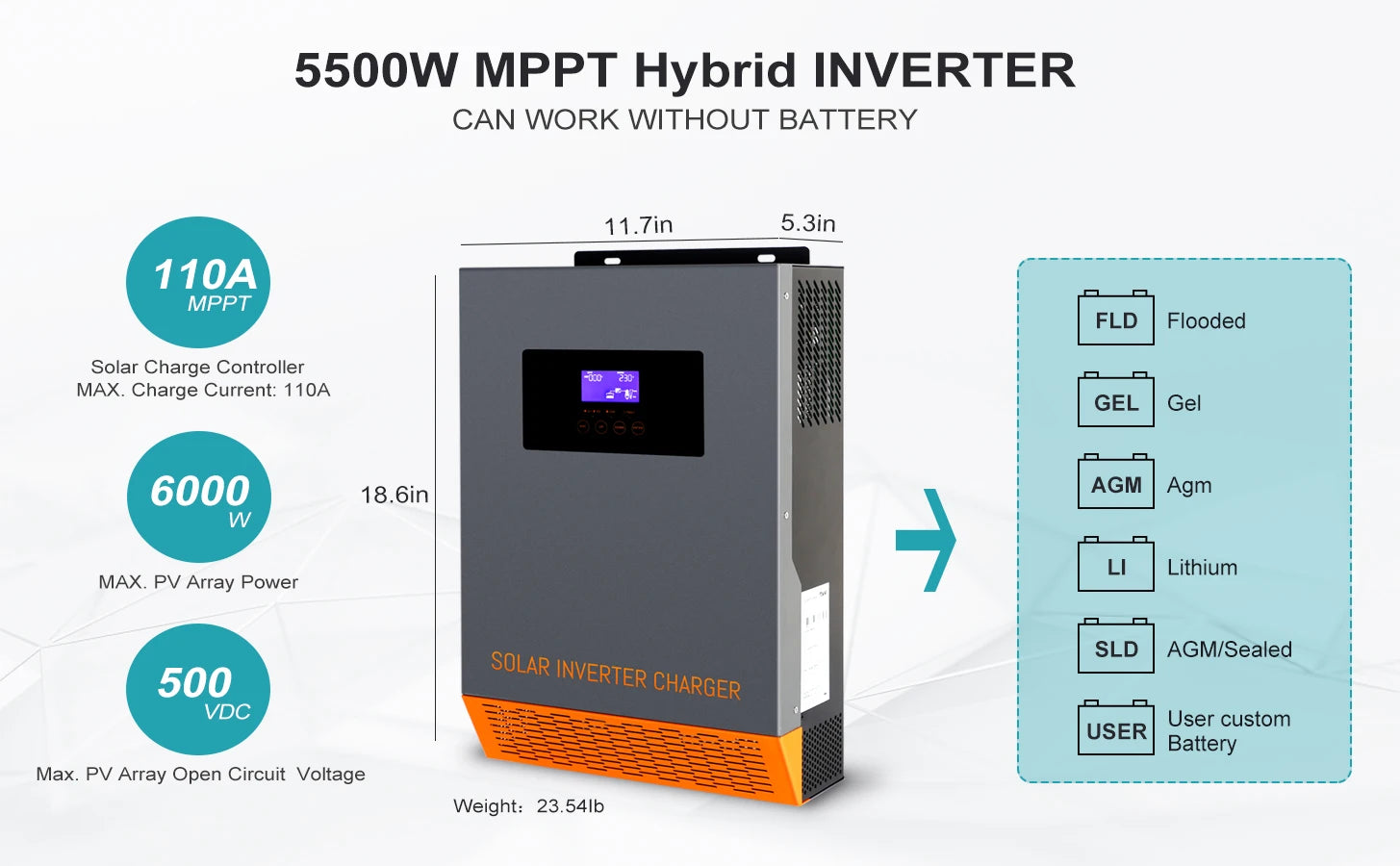

PowMr Hybrid Solar Inverter MPPT 5.5KW/3.5KW features a pure sine wave output, 110A battery charger, and supports solar panels without a battery. It has an MPPT charge controller with a maximum power point tracking function for efficient energy harvesting.

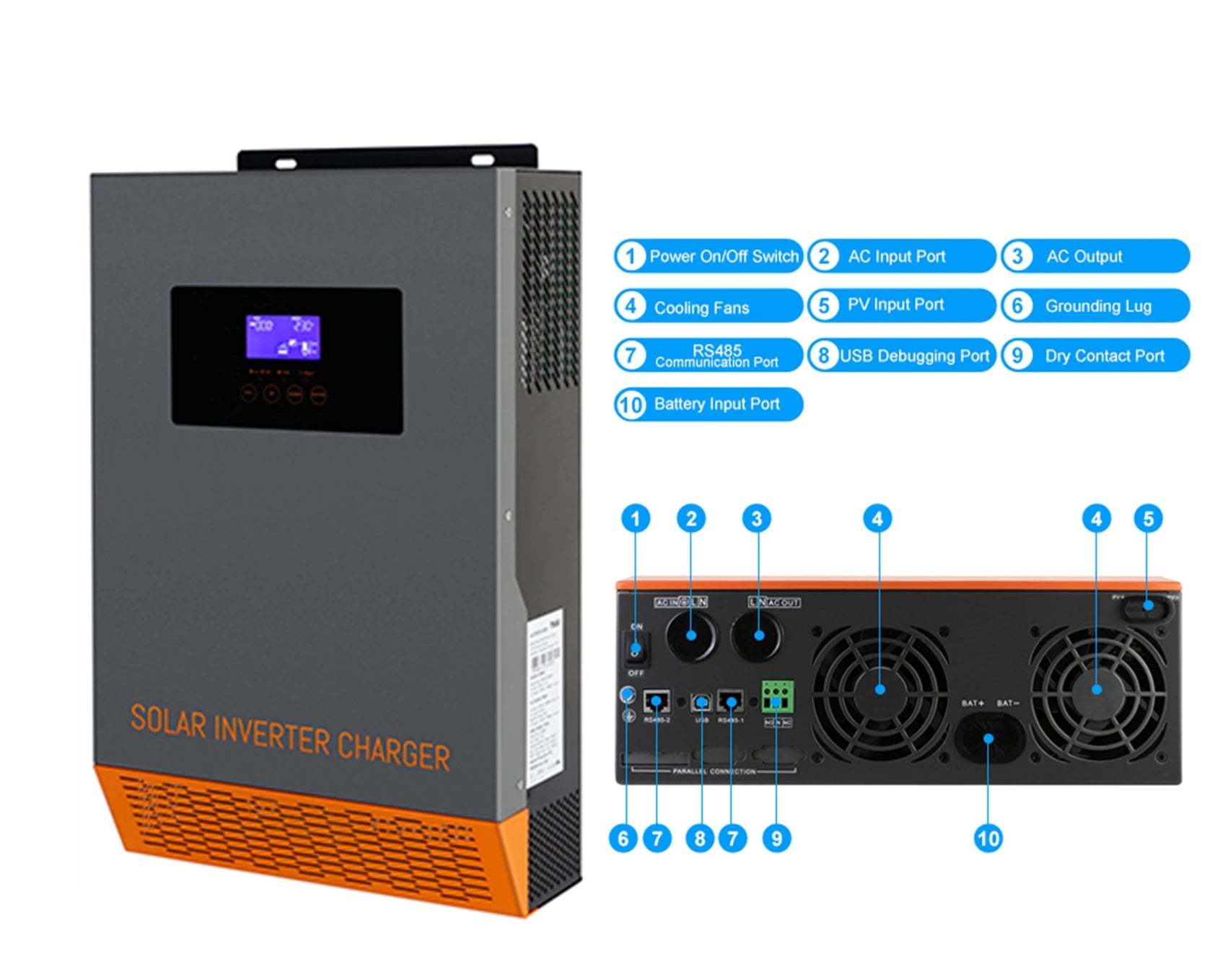

PowMr Hybrid Solar Inverter features multiple ports, including Power On/Off, AC input/output, grounding lug, and USB debugging port. It also includes a battery charger with adjustable current (2-5-8A).

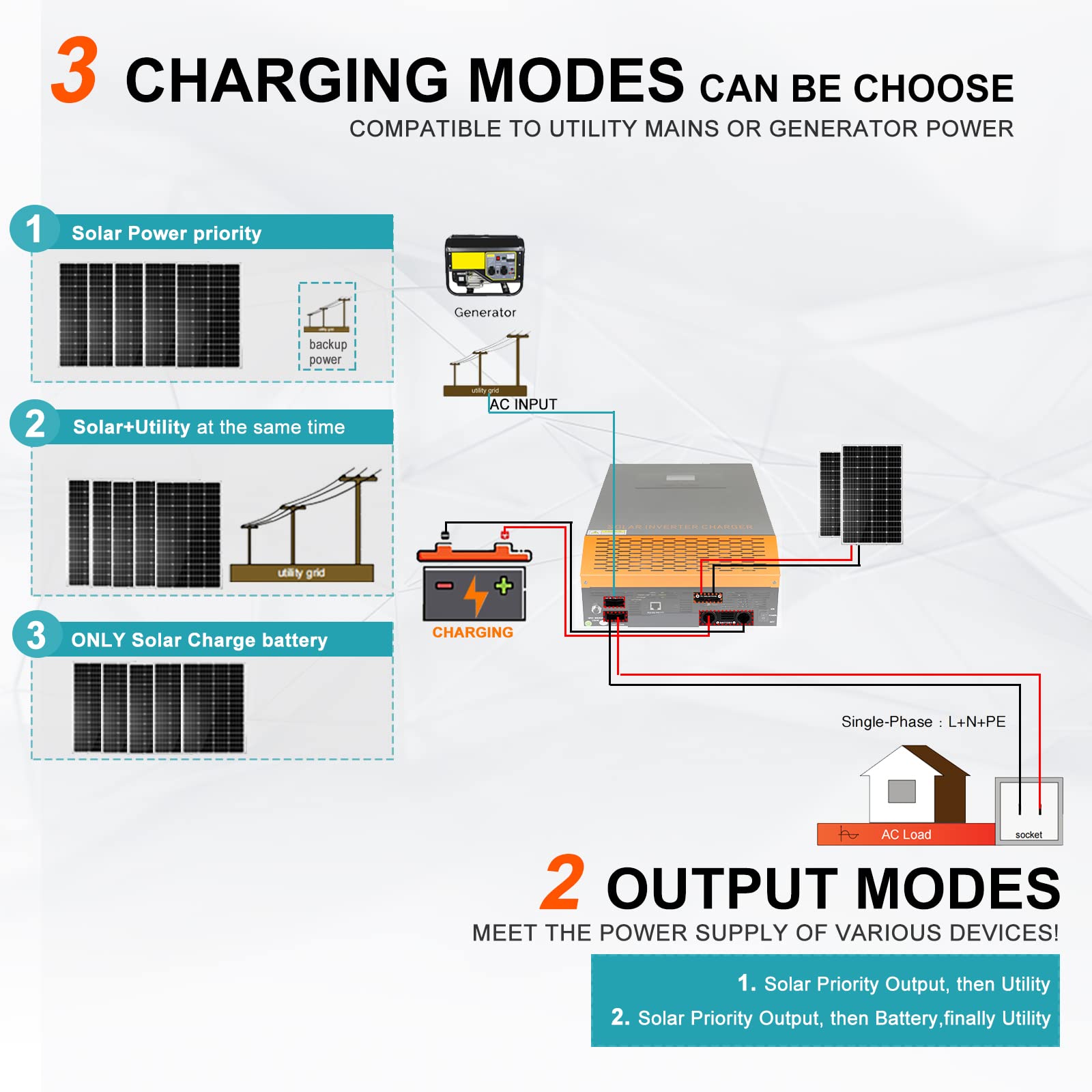

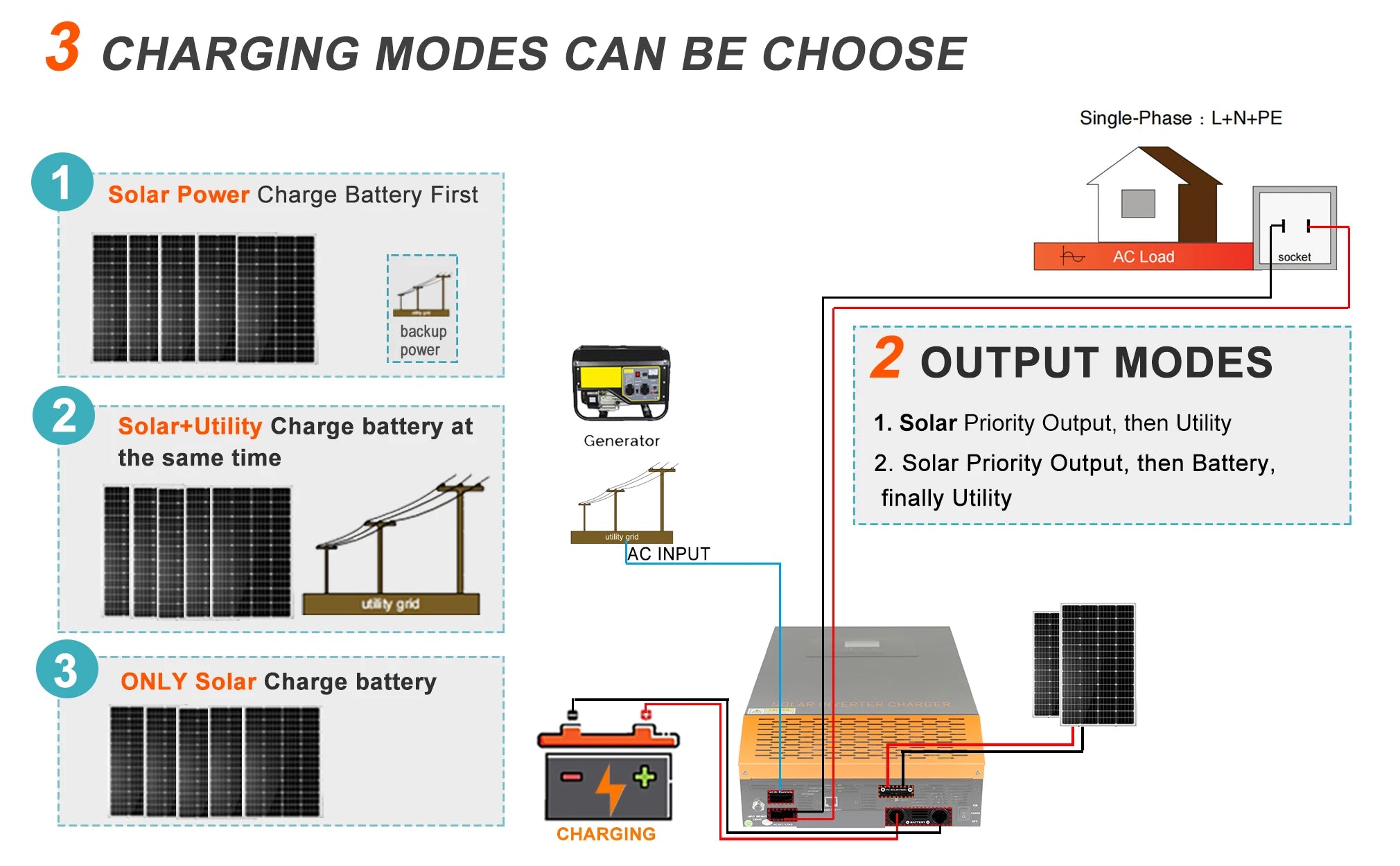

Choose from three charging modes: single-phase solar power charging with priority output to AC load or socket backup, or charge battery simultaneously with utility power. Two output modes are available: prioritize solar power and then utility, or prioritize solar power and then battery, finally using utility as needed. Supports AC input and grid charging.

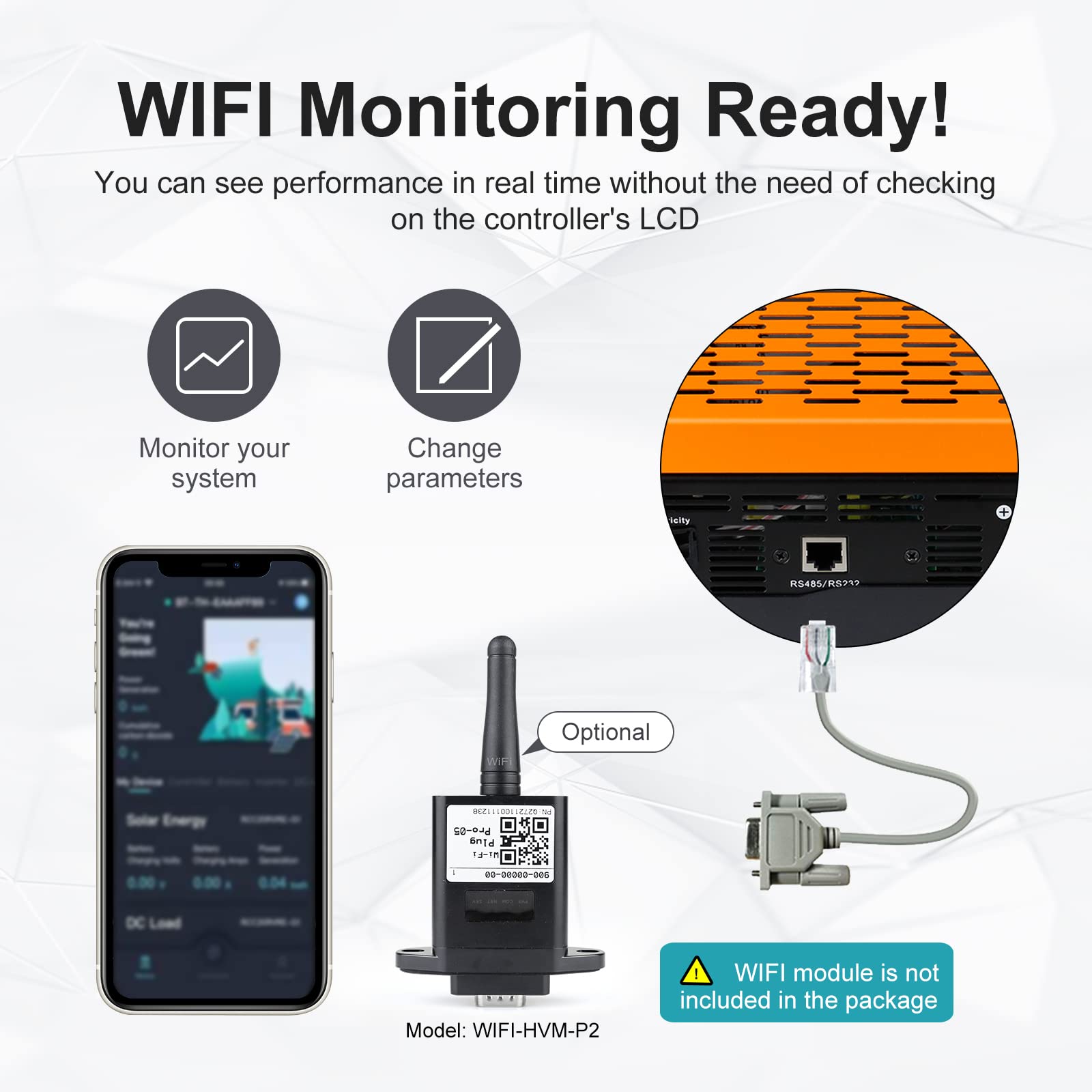

Monitor performance in real-time with WiFi connectivity, eliminating the need for LCD monitoring. Adjust system parameters and receive updates via RS485/RS232 (optional) or our EZ4 WiFi module (not included).
Product Picture:

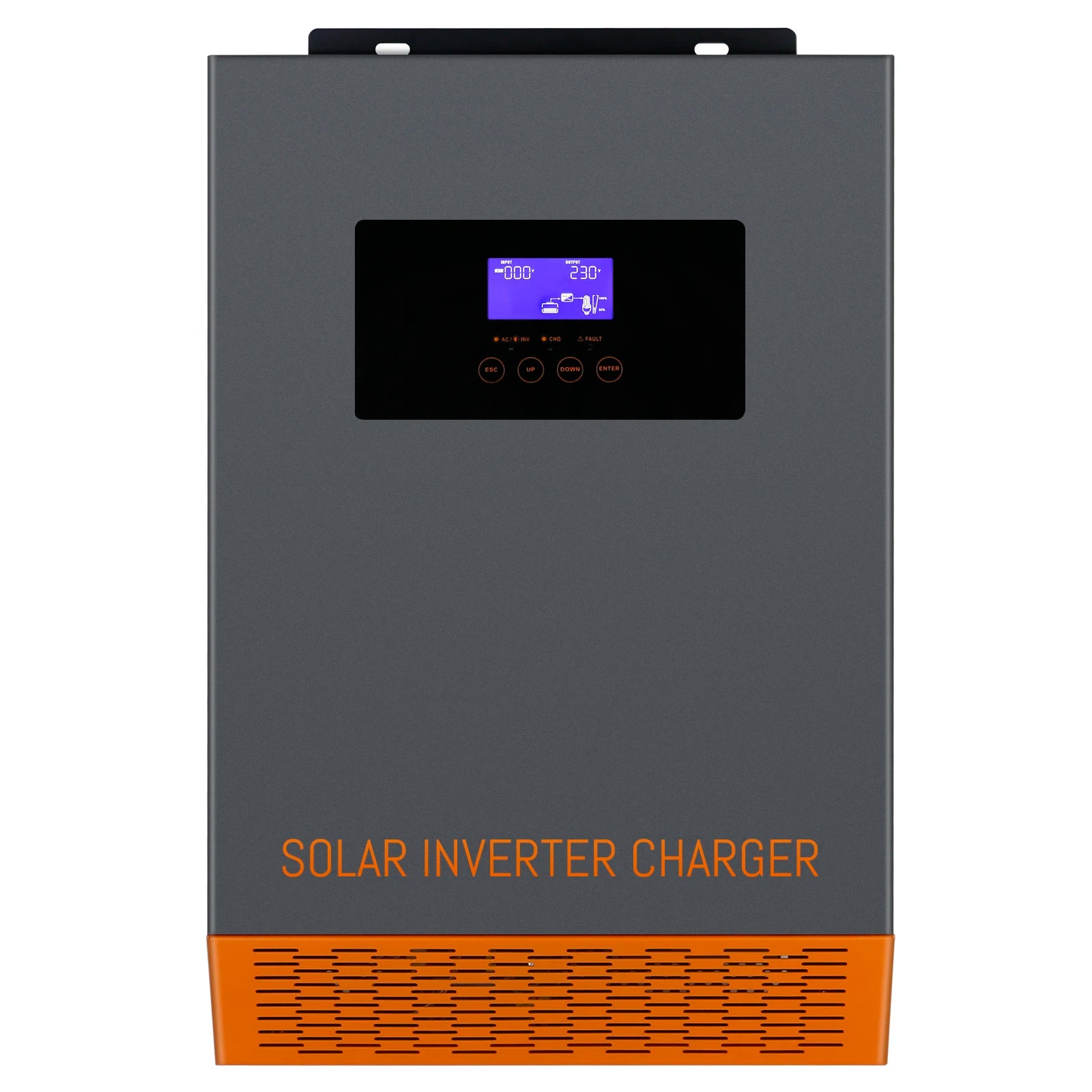

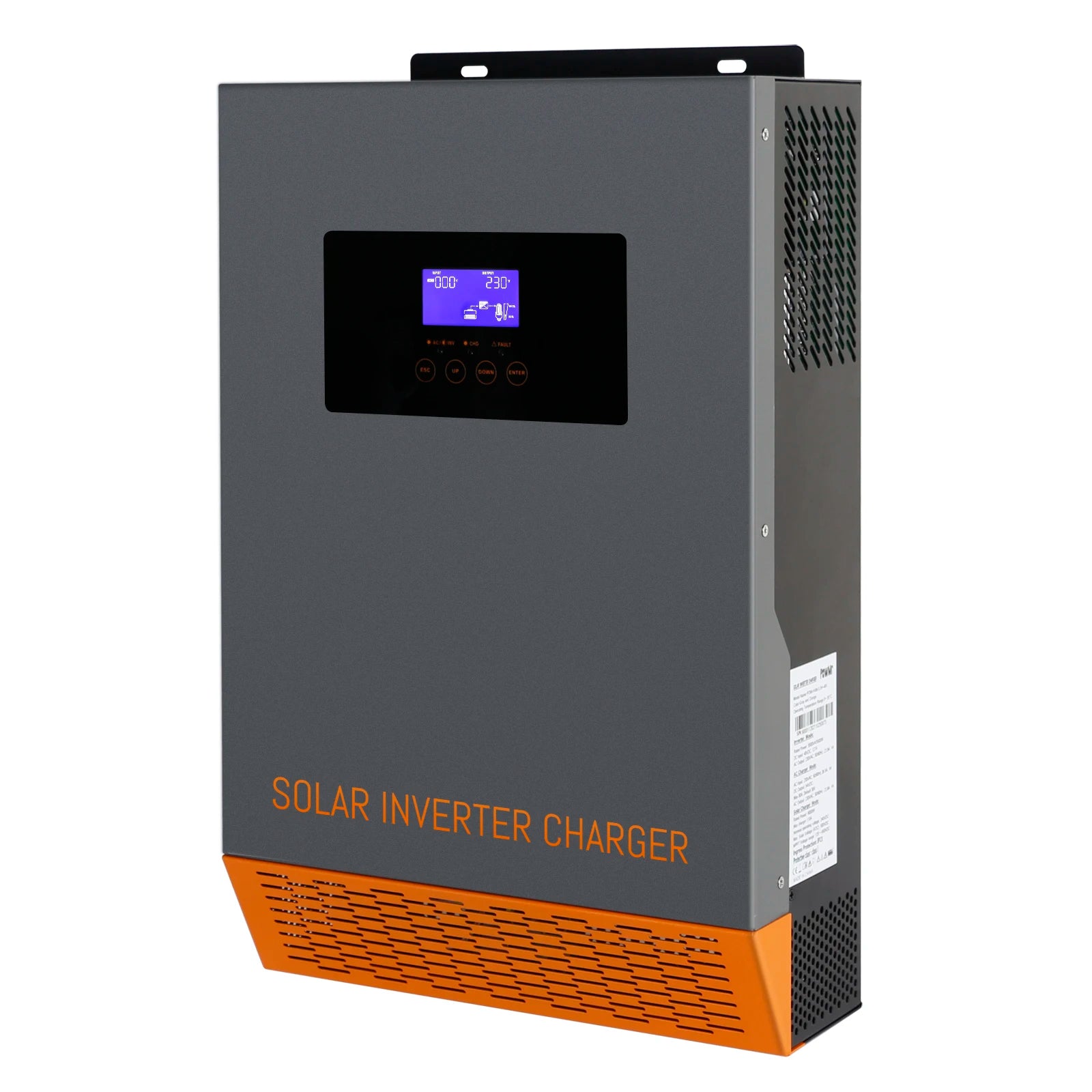

Pure Sine Inverter with MPPT technology and 110A battery charger for solar panels, producing 230VAC output.

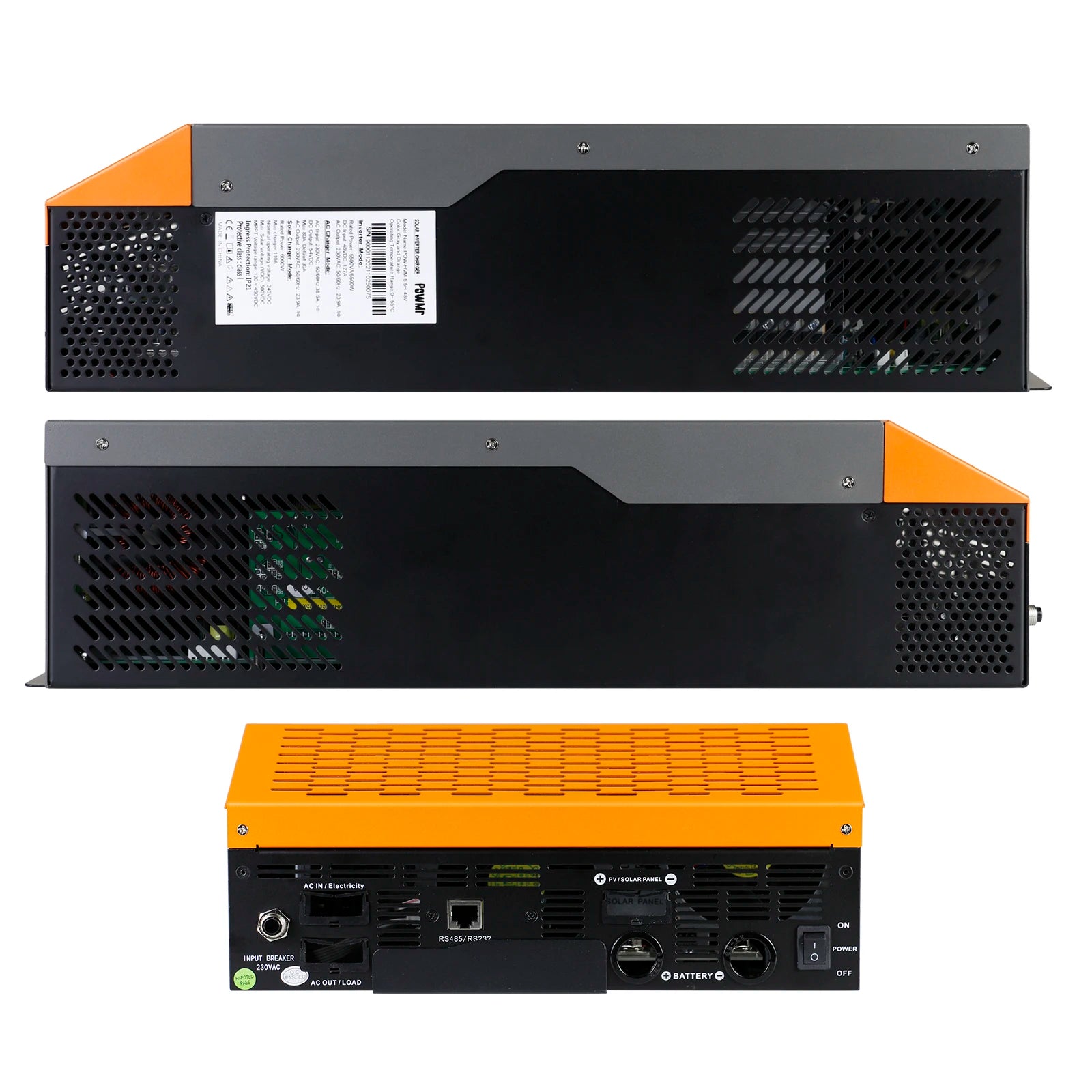

PowMr Hybrid Solar Inverter MPPT 5.5KW/3.5KW with pure sine output, battery charger, and 110A charging capacity for solar panels.
