PowMr Hybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine Wave
PowMr Hybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine Wave
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 6KG
Type 2: Solar Inverter Hybrid
Type 1: Inverter Pure Sine Wave
System Configuration: Hybrid Solar Inverter 24V 3KW MPPT
Size: 348X270X95mm
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz(Auto sensing)
Output Current: 80A
Origin: Mainland China
Optional: WiFi Connection
Model Number 3: POW-HVM-3.2H-24V
Model Number 1: POW-HVM-1.5H-12V
Model Number: POW-HVM-H Series
Max. PV Array Power: 2000W 3000W
Is Smart Device: YES
Feature 9: inversor hibrido
Feature 8: inverter ibrido
Feature 7: hybrid wechselrichter
Feature 6: inverter ibrido fotovoltaico
Feature 5: inversor senoidal pura
Feature 4: onduleur solaire hybride
Feature 3: inwerter hybrydowy
Feature 2: 220V 230V 240V
Feature 10: inverter solare fotovoltaico
Feature 1: Off Grid
DC Input Voltage: 12V 24V
Charging Current: MPPT 80A

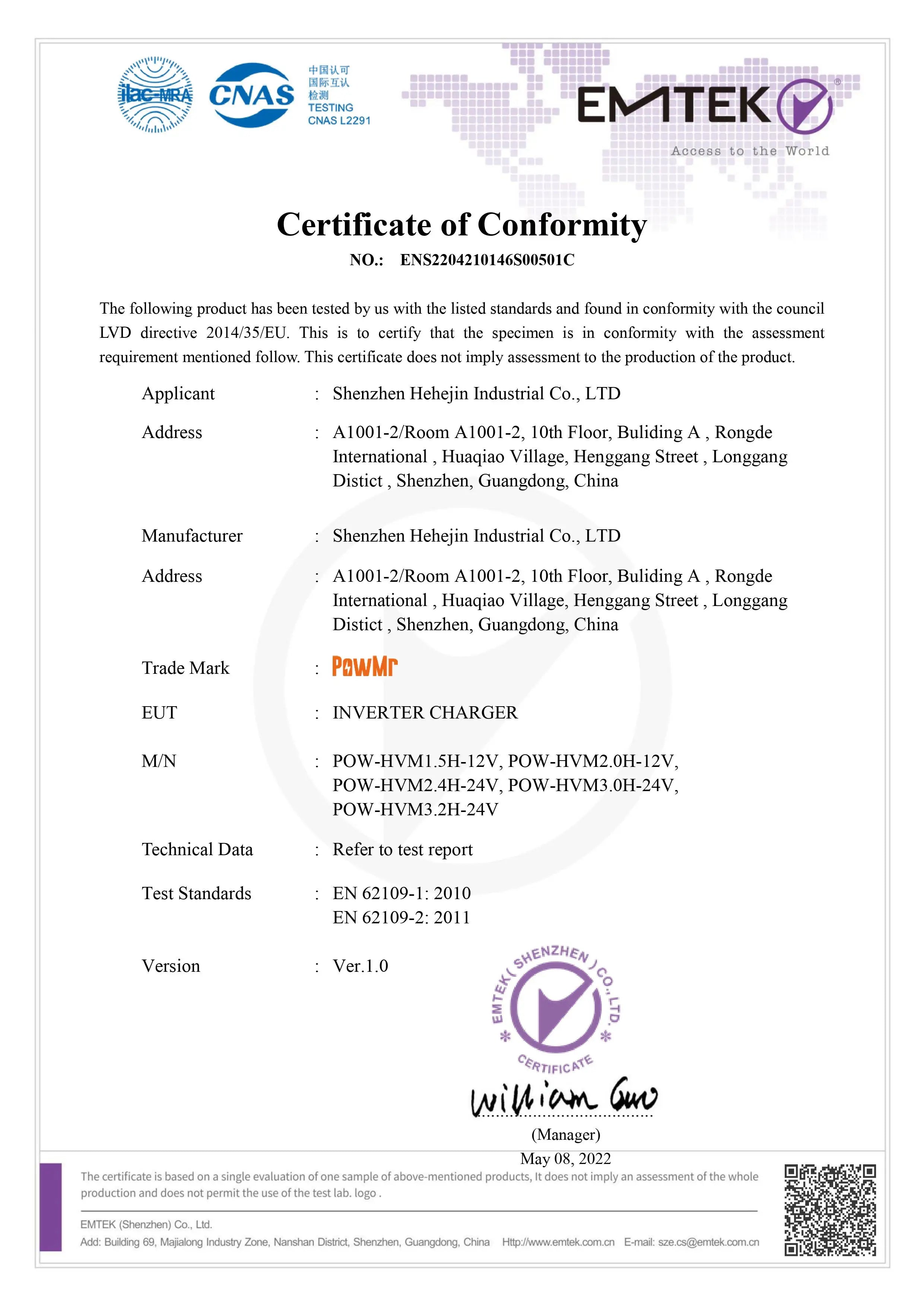

Certification: CE,FCC,RoHS
Brand Name: PowMr
AC Charging Current: MPPT 60A
uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,
AC/solar charger priority, and acceptable input voltage based on different applications.
Notice
- 1.5KW hybrid inverter is for 12V Battery
- 2.4KW & 3.2KVA/3KW hybrid inverter is for 24V Battery
- 2.4KW was stopped producing, pls choose 3.2KVA/3KW 24V.
- Message to Ukraine Customer
Features
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS(Option)
• Can connect to lithium battery

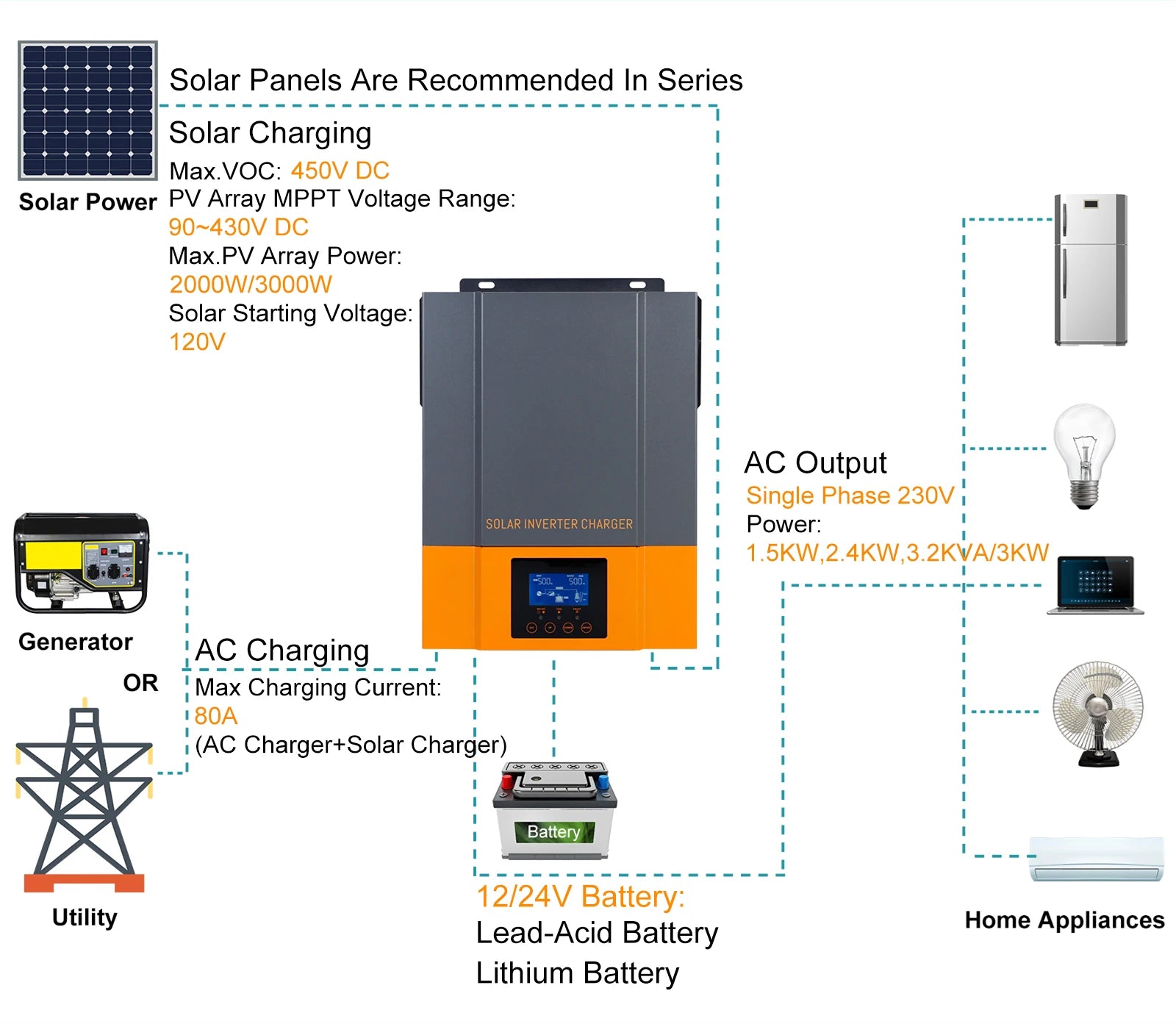

Basic System Architecture
The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
• Generator or Utility.
• PV modules
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
Recommended for solar panels in series, this MPPT charger supports up to 450V DC input. It features a max PV power output of 2000W/3000W and a starting voltage of 120V AC. The inverter charger offers three power options: 1.5KW, 2.4KW, or 3.2KVA. It also features an AC charging option with a maximum current of 80A, compatible with 12V/24V lead-acid, lithium-ion, and other battery types.
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Rated Output Power |
1.5KW |
2.4KW |
3200VA/3000W |
Output Voltage Waveform |
Pure Sine Wave |
||
Output Voltage Regulation |
230Vac±5% |
||
Utility Charging Mode | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Charging Algorithm |
3-Step |
||
AC Charging Current (Max) |
60 Amp |
||
Bulk Charging Voltage | |||
Flooded Battery |
14.6 |
29.2 |
|
AGM / Gel Battery |
14.1 |
28.2 |
|
Floating Charging Voltage |
13.5Vdc |
27.0Vdc |
|
MPPT Solar Charging Mode | |||
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
|
Max. PV Array Power |
2000W |
3000W |
3000W |
Nominal PV Voltage |
240Vdc |
||
PV Array MPPT Voltage Range |
90~430Vdc |
||
Max. PV Array Open Circuit Voltage |
450Vdc |
||
Max Charging Current (AC charger+solar charger) |
80Amp |
||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Safety Certification |
CE |
||
Operating Temperature Range |
-10°C to 50°C |
||
Storage temperature |
-15°C~ 60° C |
||
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
||
Input Voltage Waveform |
Sinusoidal (utility or generator) |
||
Nominal Input Voltage |
230Vac |
||
Low Loss Voltage |
170Vac±7V (UPS); 90Vac±7V (Appliances) |
||
Low Loss Return Voltage |
180Vac±7V (UPS); |
||
100Vac±7V (Appliances) | |||
High Loss Voltage |
280Vac±7V |
||
High Loss Return Voltage |
270Vac±7V |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Low Loss Frequency |
40±Hz |
||
Low Loss Return Frequency |
42±Hz |
||
High Loss Frequency |
65±Hz |
||
High Loss Return Frequency |
63±Hz |
||
Output Short Circuit Protection |
Circuit Breaker |
||
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
||
Transfer Time |
10ms typical (UPS); |
||
20ms typical (Appliances) | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Output Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Peak Efficiency |
91% |
94% |
|
Overload Protection |
5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad |
||
Surge Capacity |
2* rated power for 5 seconds |
||
Nominal DC Input Voltage |
12Vdc |
24Vdc |
|
Cold Start Voltage |
11.5Vdc |
23.0Vdc |
|
Low DC Warning Voltage | |||
@ Io ad < 50>% |
11.0Vdc |
22.0Vdc |
|
@ load >50% |
10.5Vdc |
21.0Vdc |
|
Low DC Warning Return Voltage | |||
@ load < 50% |
11.5Vdc |
22.5Vdc |
|
@ load >50% |
11.0Vdc |
22.0Vdc |
|
Low DC Cut off Voltage | |||
@ load < 50% |
10.2Vdc |
20.5Vdc |
|
@ load >50% |
9.6Vdc |
20.0Vdc |
|
High DC Recovery Voltage |
14.0Vdc |
32Vdc |
|
High DC Cut-off Voltage |
16.0Vdc |
33Vdc |
|
No Load Power Consumption |
<25W |
<30W |
<35W |
Suitable for various applications: hybrid energy systems, solar stations, home systems, RVs, and backup power supplies.

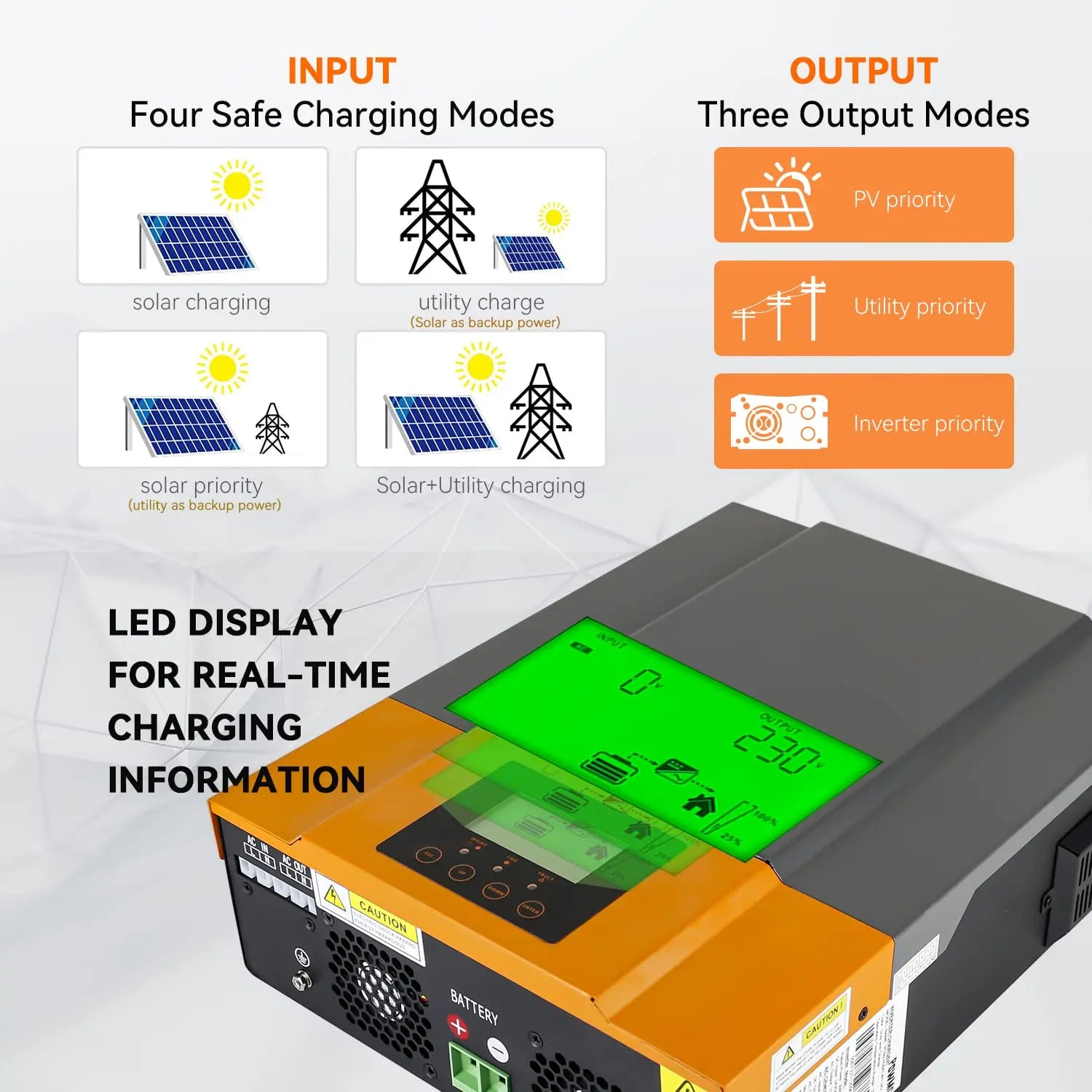

Features four safe charging modes, three output modes, and real-time charging information display. Modes include PV priority, utility priority, solar+utility charging, and inverter priority. The LED display shows battery autotune, with a maximum input voltage of 230V and output power up to 3kW.

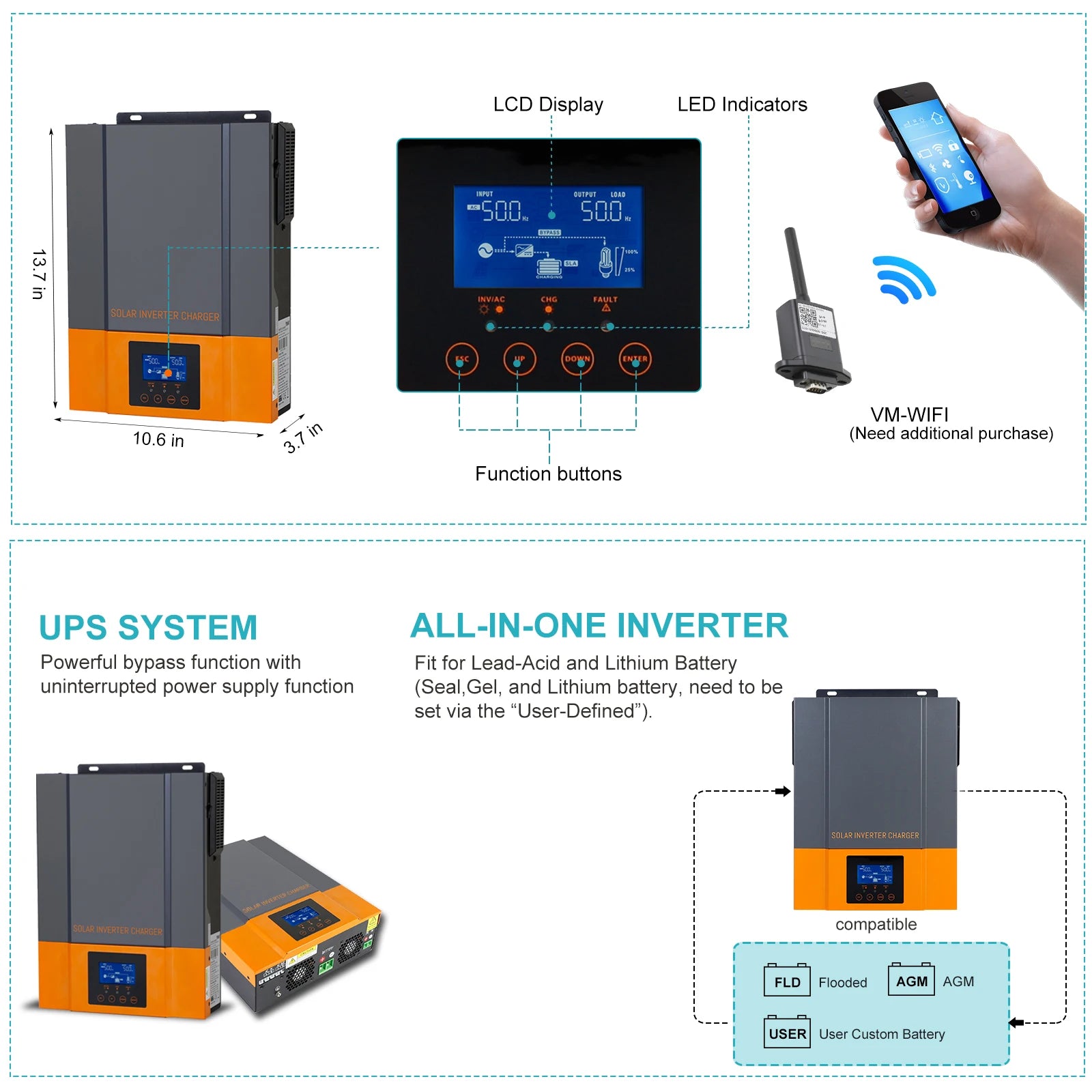

Product Overview: The PowMr Hybrid Solar Inverter offers a powerful and efficient solution for charging batteries and providing an uninterrupted power supply. Features include LCD display, LED indicators, and a user-customizable system for Lead-Acid and Lithium battery types. Additionally, it has a bypass function and is compatible with various battery types, including Flooded, AGM, and Sealed Lead-Acid.

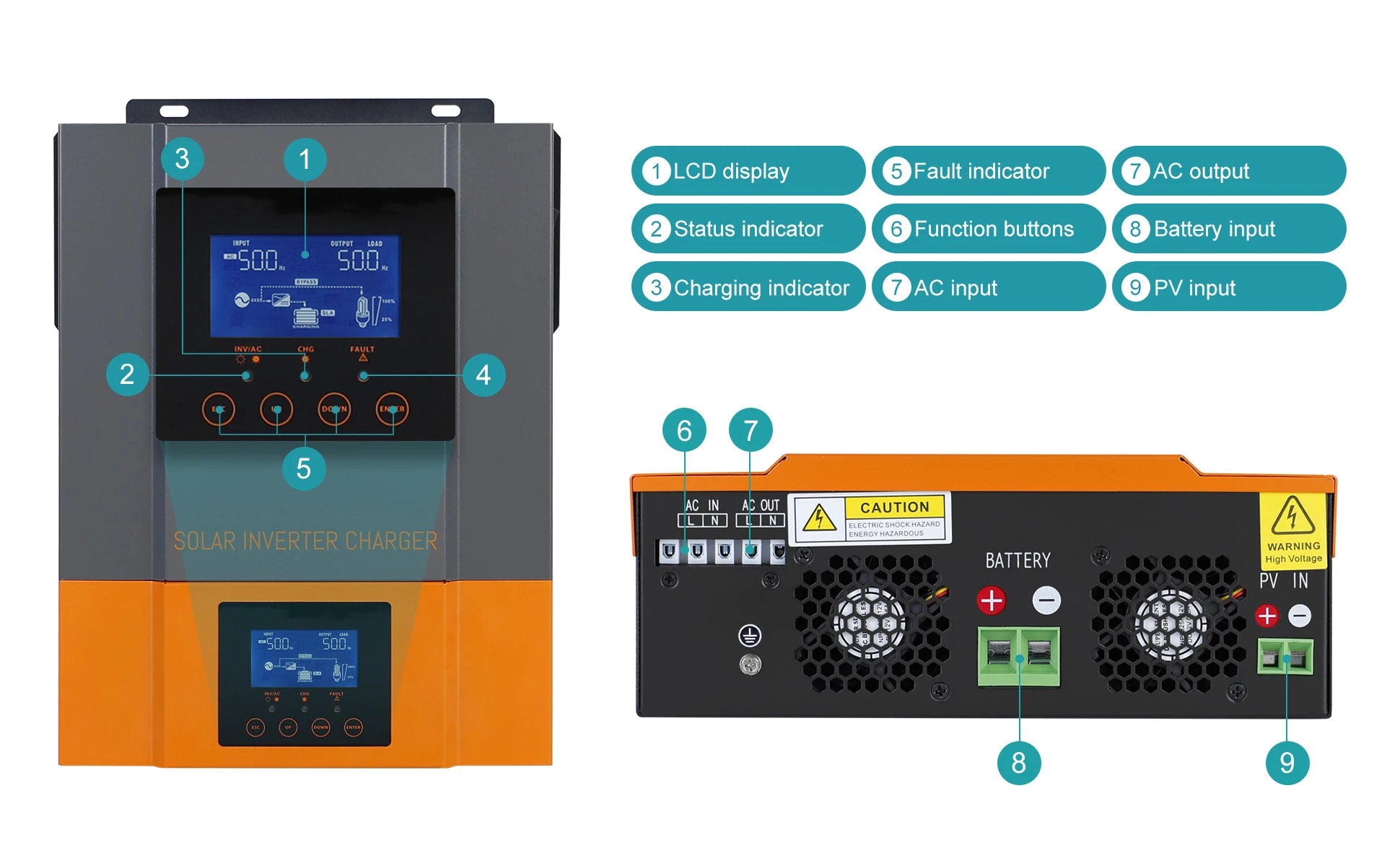

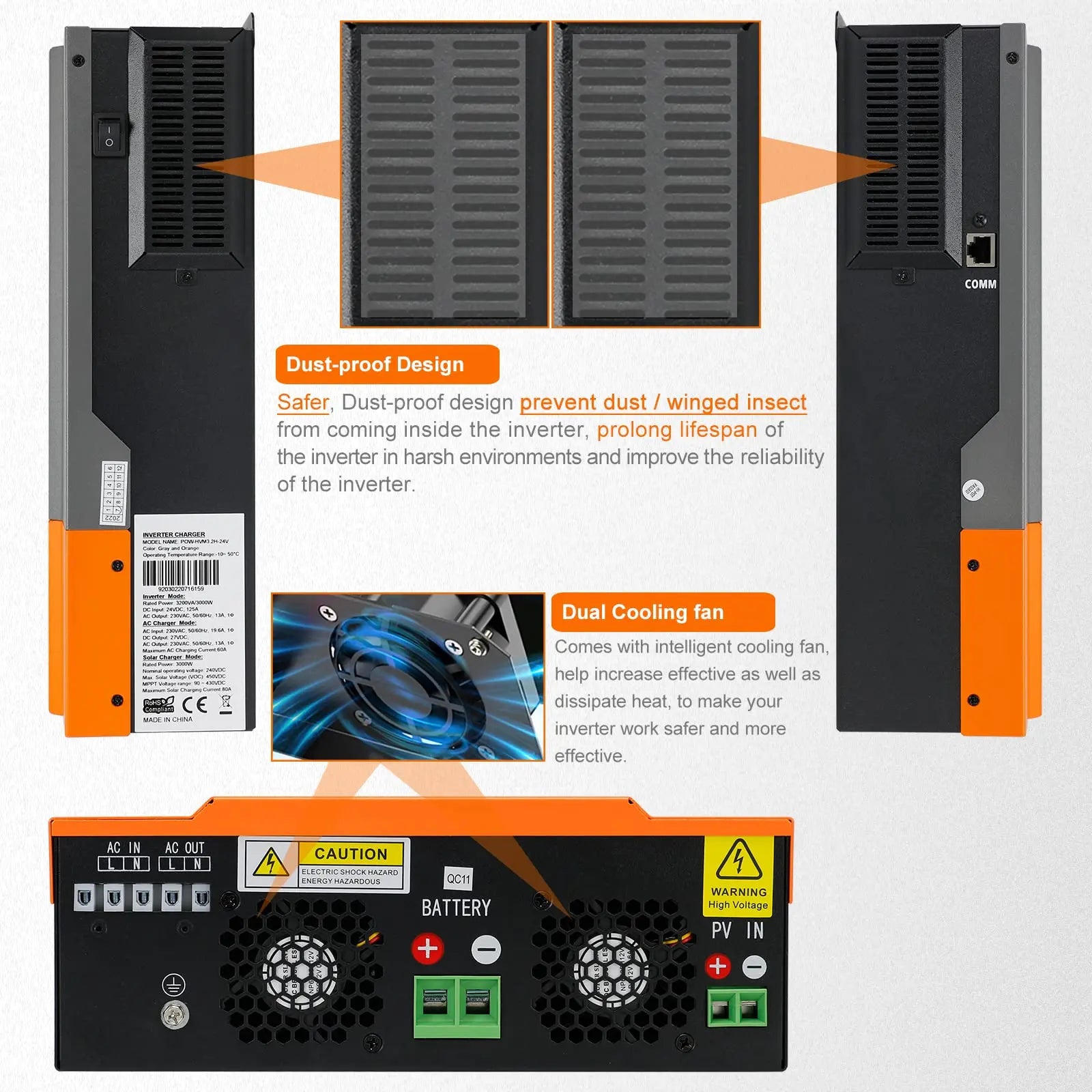

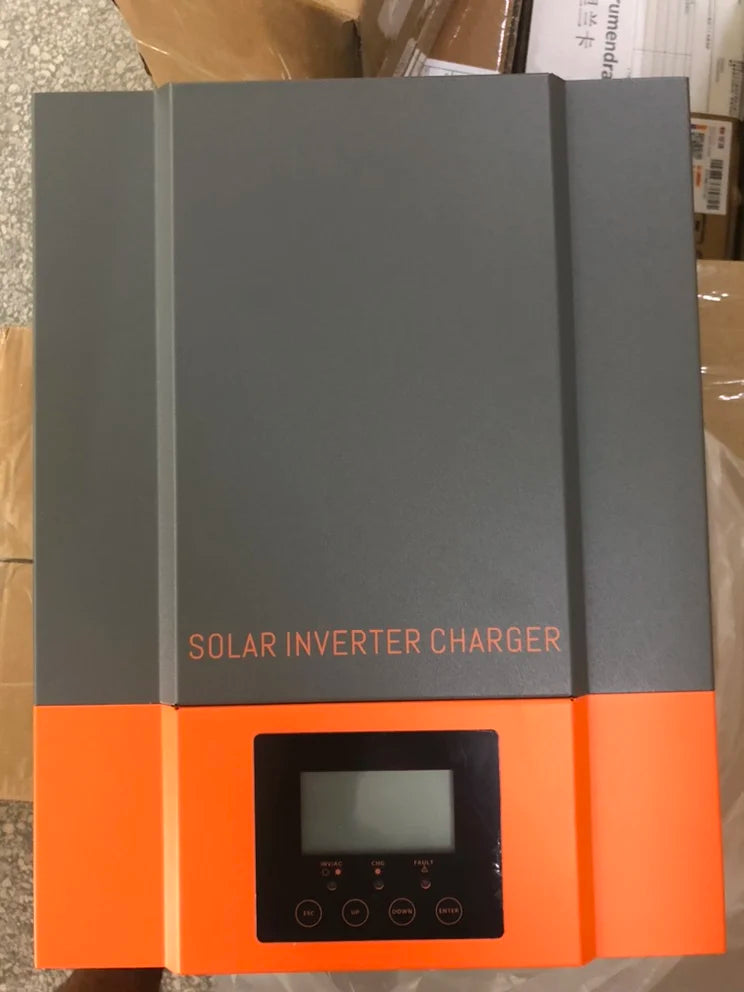

This solar inverter features a 3-inch LCD display, 5 fault indicators, and function buttons. The unit also has status indicators for AC output and battery input. Additionally, it includes charging, PV input, and high voltage warning lights.
Monitor your system performance in real-time using WiFi. No need to check the LCD monitor. Adjust parameters on the go. Optional WiFi module not included.

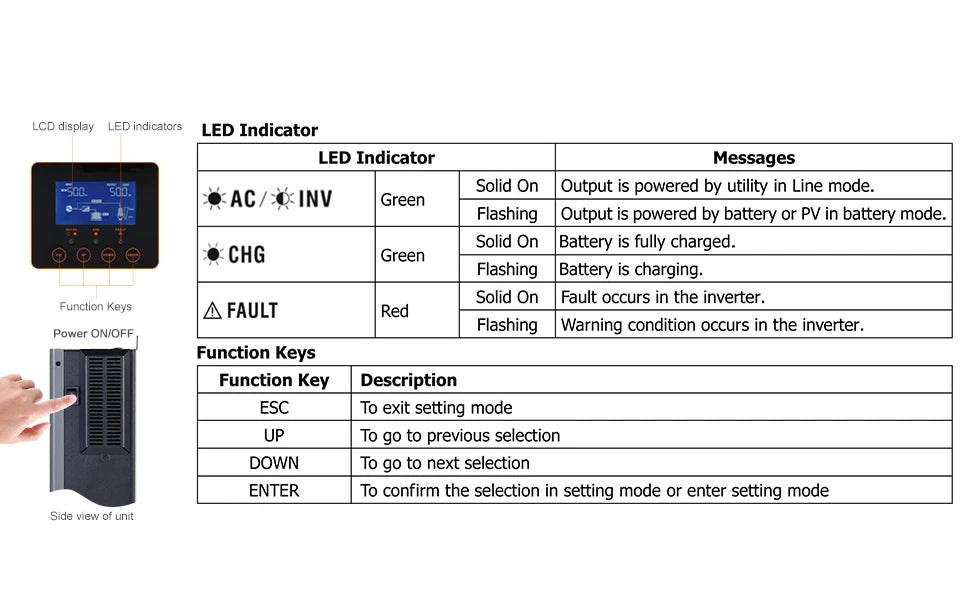

Hybrid Solar Inverter Features: * LCD display with LED indicators for easy monitoring * Indicators show: + Solid On: Utility power or PV/battery power (green flashing) + Battery fully charged (solid on, green) + Battery charging (green flashing) + Fault occurs (red, flashing) + Warning condition (function keys flash) Function Keys: * ESC: Exit setting mode * UP/DOWN: Navigate settings * ENTER: Confirm selection or enter setting mode

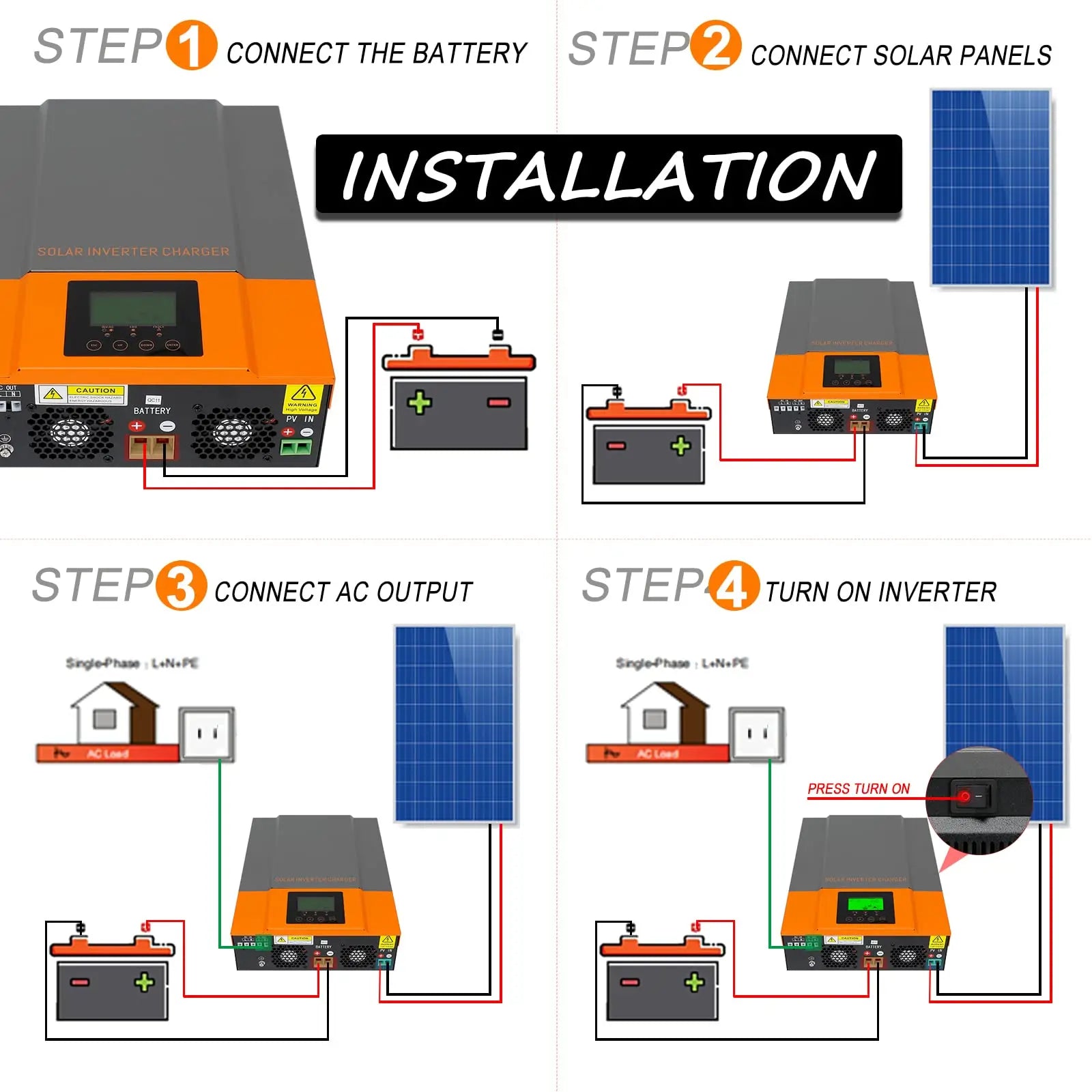

Connect the battery, then solar panels, and install the inverter charger. Note: Out of caution, turn off the DC power source before turning on the inverter.

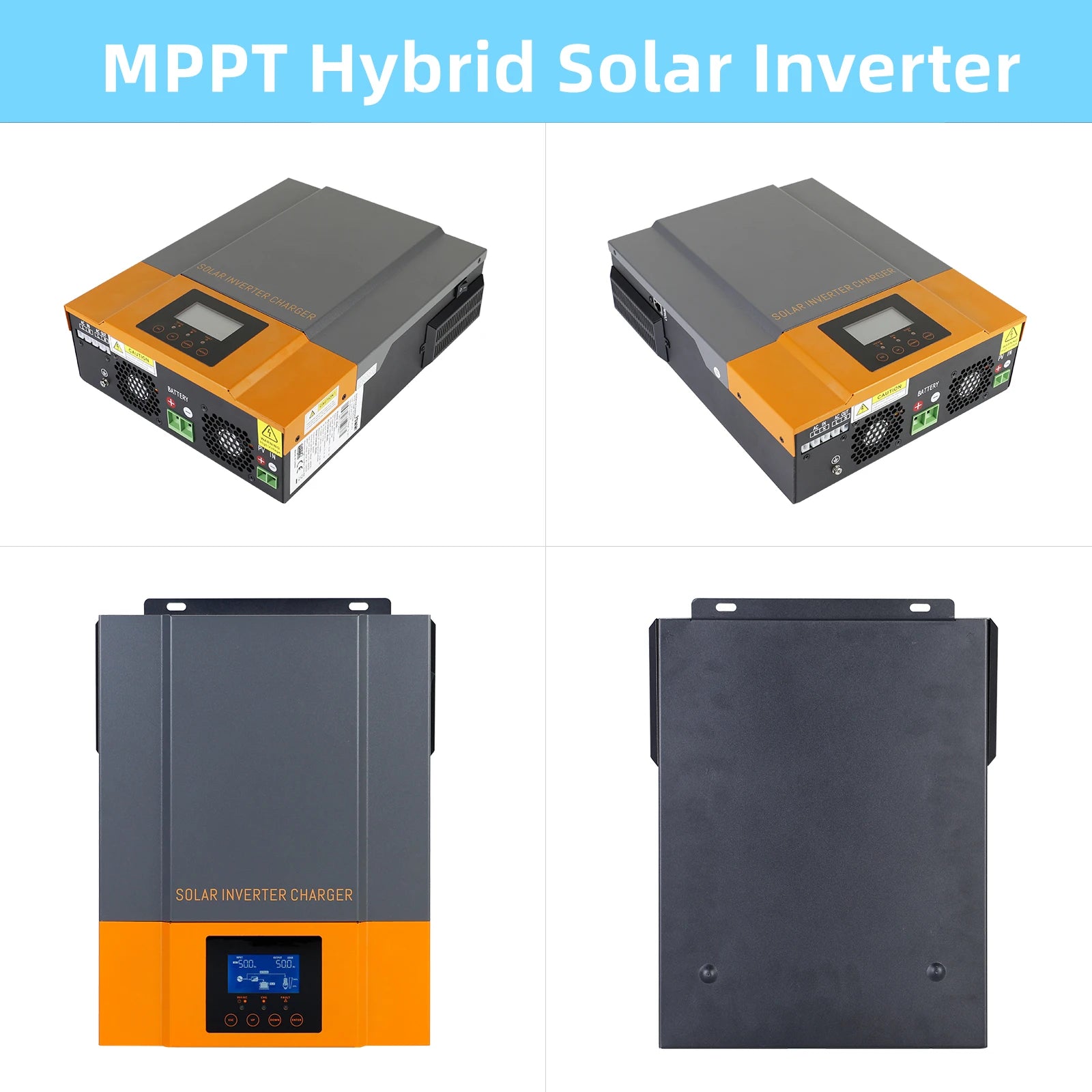

PowMr Hybrid Solar Inverter: A 12V/24V solar inverter with MPPT technology, capable of charging lithium, lead-acid, and pure sine wave battery types. Output power: 3KW, 2KW, or 1.5KW at 220V/230V.
PowMr Hybrid Solar Inverter charges 12V/24V batteries with pure sine wave output for lithium, lead-acid, and other battery types.

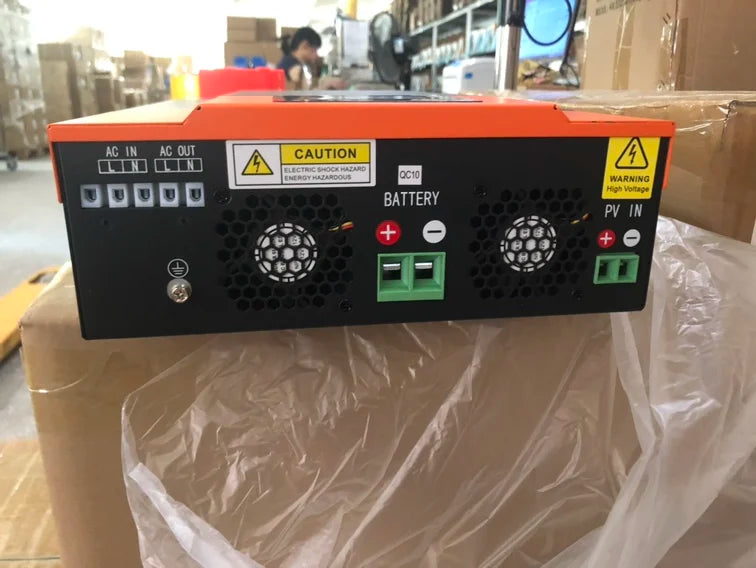

Warning: Do not use with unapproved batteries or PV modules. Consult manufacturer before installation.
