PowMr MPPT 20A 30A 40A Solar Charger Controller 12V 24V Max PV 50V 75V 100V LCD Display Fit Seal, GEL, Flooded, LifePO4 Battery
PowMr MPPT 20A 30A 40A Solar Charger Controller 12V 24V Max PV 50V 75V 100V LCD Display Fit Seal, GEL, Flooded, LifePO4 Battery
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Voltage range of battery: 8-32V
System rated voltage: 12V/24V Auto work
Protection class: IP30
Origin: Mainland China
Model Number: POW-Keeper1220/1230/1240
Maximum Current: MPPT 20A/30A/40A
Is Smart Device: YES
High voltage disconnection(HVD): 16V(24V*2)
Feature 3: MPPT 20A 30A 40A Solar Controller
Feature 2: MPPT Solar Charger
Feature 1: Support PC monitor
Duration of absorption charging: 2Hours
Certification: CE
Brand Name: PowMr
Battery type: User default,Sealed,Flooded,GEL,LiFePO4
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
PowMr MPPT 20A 30A 40A Solar Charger Controller 12V 24V Max PV 50V 75V 100V LCD Display Fit Seal, GEL, Flooded, LifePO4 Battery
Thank you for selecting MPPT series solar charge controller with the most advanced MPPT control algorithm and the maximum power point of the pv array can be quickly tracked in any environment so that it can get the maximum energy from the solar panel and significantly improve the utilization of energy in solar system. The machine has the dual display function of LCD and Remote header (optional) and standard communication interface, convenient for user extension application and satisfy different monitoring needs to the maximum extent. It can be used in communication base station, home power supply system, traffic light, solar street lamp, courtyard lamp systems, etc.
●Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.
●High quality components are used to improve the system performance, and the maximum conversion efficiency can reach97%.
● Super fast maximum power tracking speed while ensuring tracking efficiency.
● Accurate identification and tracking of the maximum power point of multi-wave peak.
● Reliable maximum input power of pv array to ensure the safety of equipment.
● Wide pv array maximum power point operating voltage range.
12/24v automatic voltage identification
● The LCD is designed to dynamically display the operation data and working status of the equipment.

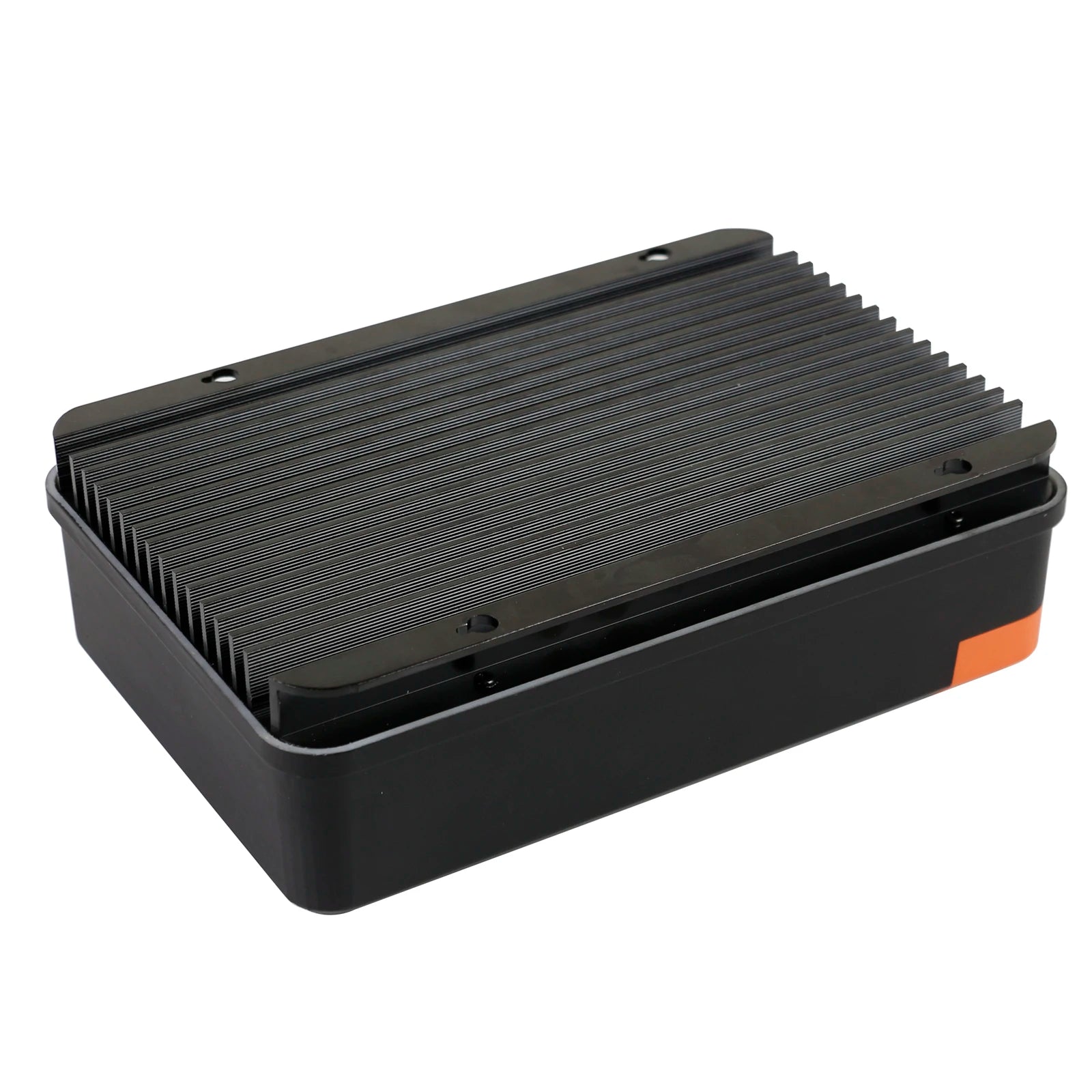

● Various load control modes: general mode, light control mode, dual time mode, pure charger mode and timing mode.
● Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process can be selected.
● The function of battery temperature compensation.
● Power statistics recording function.

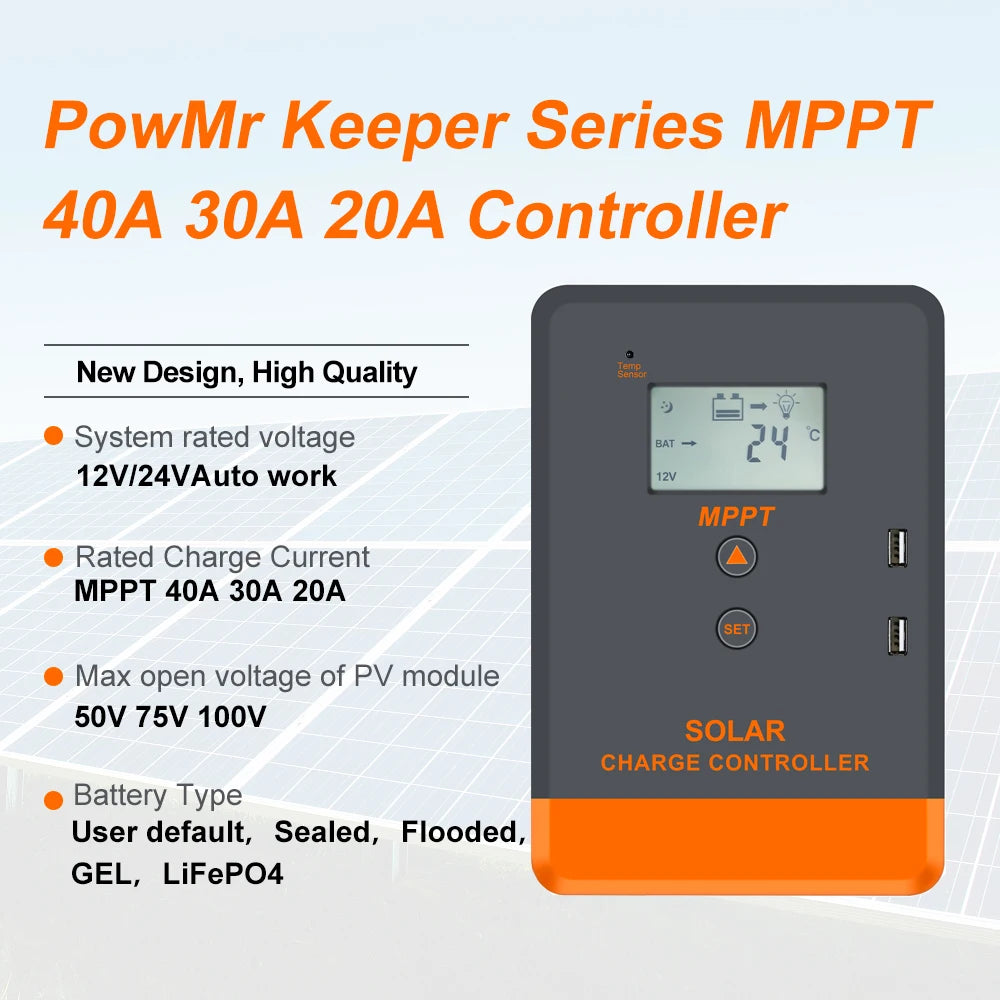

Introducing PowMr's Keeper Series MPPT solar charger controller. With high-quality sensors and a rated voltage of 12V/24V, this device supports auto-start for 12V systems. It features a maximum open voltage of 50V/75V/100V and is suitable for sealed, flooded, GEL, or LifePO4 batteries.

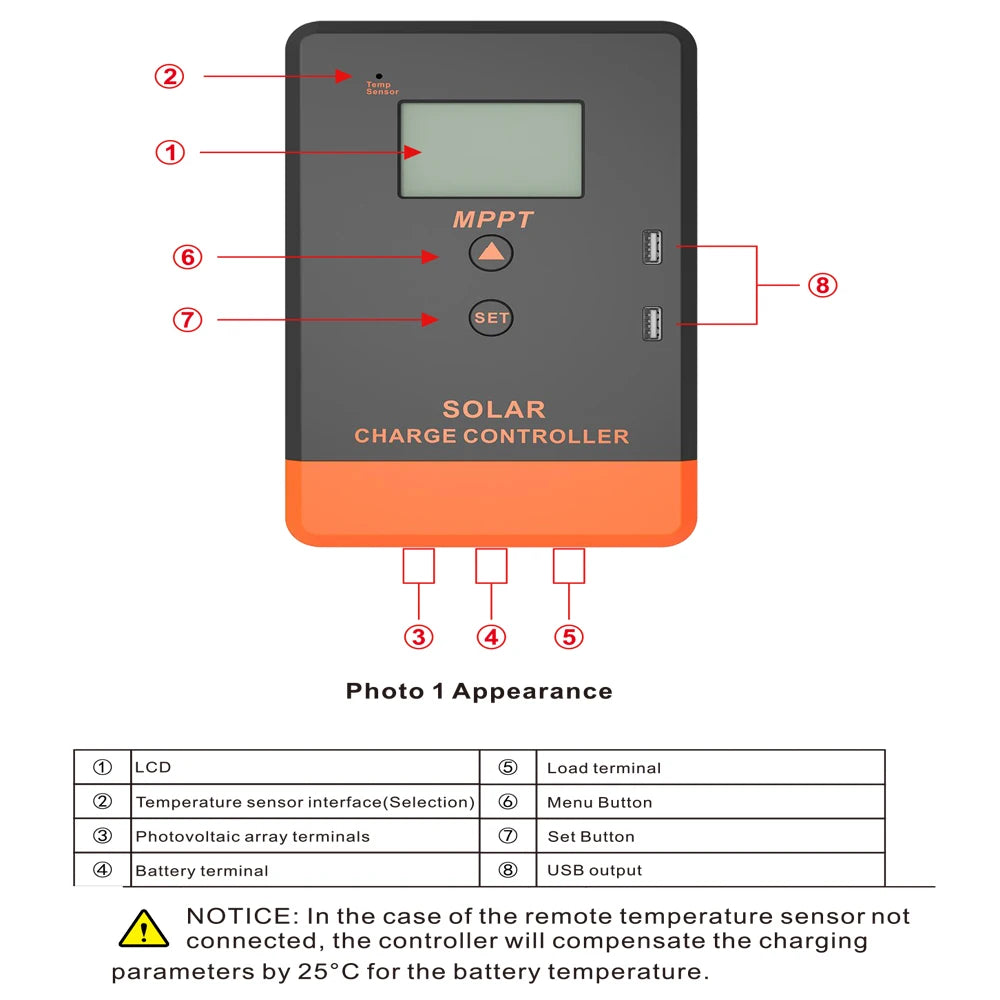

PowMr's MPPT solar charger controller features an LCD display, menu button, and photovoltaic array terminals. It also includes USB output and a temperature sensor interface for monitoring and setting charging parameters. If no remote temperature sensor is connected, the controller will automatically adjust for a 25°C battery temperature compensation.
MPPT Solar Charger Controller Instructions: 1. Connect PV array and load. 2. Power on the controller. 3. Connect battery (ensure correct polarity). 4. Check display for voltage reading and brightness. If issues arise or display malfunctions, refer to Section 6 for troubleshooting. Important Notes: - This MPPT series is a common positive-polarity controller; ensure batteries are grounded at the same time. - When using an inverter or high-startup current load, connect directly to battery, not through the controller's load terminal.
Rated Charge Current |
20A |
30A |
40A |
System rated voltage |
12V/24VAuto work |
||
Voltage range of battery |
8-32V |
||
Max open voltage of PV module |
50V |
75V |
100V |
Battery Type |
User default,Sealed,Flooded,GEL,LiFePO4 |
||
Equalized charging voltage |
Maintenance-fee lead acid battery 14.6V, GEL: No; Lead acid flooded battery:14.8V |
||
Absorption charging voltage |
Maintenance-fee lead acid battery 14.4V, GEL:14.2; Lead acid flooded battery:14.6V |
||
Floating charging voltage |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:13.8V |
||
Low voltage re-connection(LVR) |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:12.6V |
||
Low voltage disconnection(LVD) |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:10.8V |
||
Static loss |
≤9.2mA 12V; ≤11.7mA24V |
||
High voltage disconnection(HVD) |
16V(24V×2) |
||
Duration of absorption charging |
2 Hours |
||
Light control voltage |
5V |
||
Charge loop voltage drop |
≤0.29V |
||
LCD Temperature |
-20℃~+70℃ |
||
Operating Temperature |
-20℃~+55℃(To run at full rated current continuously) |
||
Working humidity |
≤95% No condensation |
||
Protection class |
IP30 |
||
Dimension(LxWxH)mm |
123×178×48 |
133×195×55 |
150×220×67 |
Installation hole size(LxW)mm |
108×120ȼ5 |
116×140ȼ5 |
132×130ȼ5 |

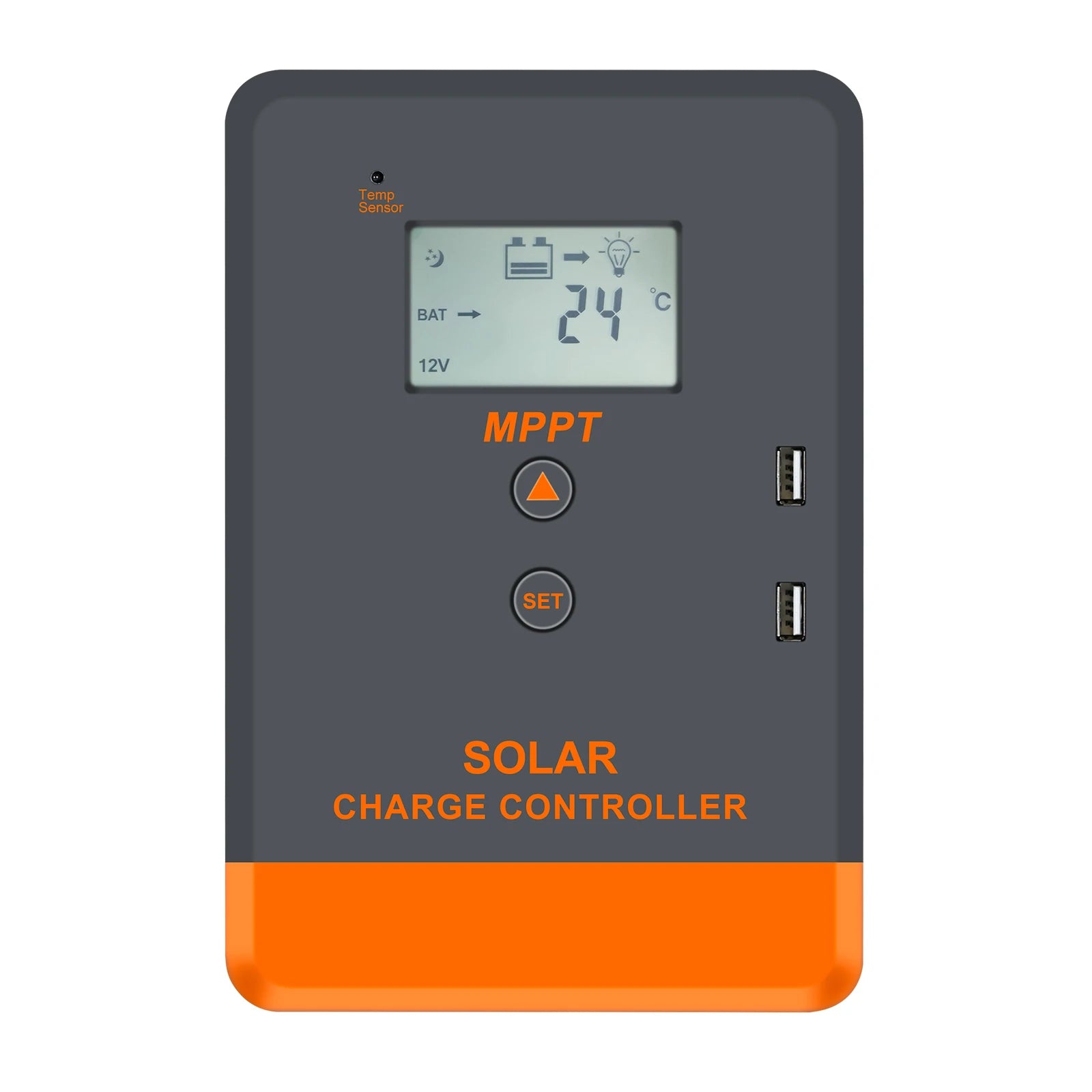

Temperature-Sensing MPPT Solar Charge Controller for 12V Batteries
MPPT solar charger controller with temperature sensor for charging sealed, gel, flooded, or lithium-ion batteries.
