PowMr MPPT Solar Charge Controller 60A LCD Display 12V 24V 36V 48 Auto Solar Panel Battery Charge Regulator for Max 190VDC Input
PowMr MPPT Solar Charge Controller 60A LCD Display 12V 24V 36V 48 Auto Solar Panel Battery Charge Regulator for Max 190VDC Input
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
type: mppt solar charge controller
name: mppt solar charge controller 60a
is_customized: Yes
Voltage: 12V,24V,36V,48V
The maximum PV input voltage (Voc): DC160V
The maximum PV input power: 12V system (720W) 24V system (14
Size (mm): 214x115x50
Rated output current: 60A
PV utilization: ≥99% For 100% MPPT Technology
Origin: Mainland China
Net weight(Kg): 1.38
Model Number: MPPT-60A
Maximum Current: 60A
Maximum Current: MPPT 60A
Item: PowMr MPPT Solar Charge Controller 60A
Is Smart Device: YES
Feature6: Mppt charge controller
Feature5: Charge controller
Feature4: Controlador mppt
Feature3: Mppt
Feature2: Solar controller
Feature1: Solar charge controller
Enclosure: IP21
Dispaly: Backlight LCD Controller
Cooling way: Forced Air Cooling
Charging mode: MPPT Maximum power point tracking
Certification: CE
Brand Name: PowMr
Battery type(default is Sealed): Vented/ Sealed / Gel / NiCd / Lithiu
Auto Solar Panel Battery Charge Regulator: LCD Display Solar Charge Controller
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
PowMr MPPT 60A LCD Display Solar Charge Controller 12V - 48V Auto Solar Panel Battery Charge Regulator For Max 160V DC Input HHJ-60A
MPPT 60A This machine uses MPPT point tracking technology, MPPT series solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed,dedicated to the soalr system,the charge controller conversion efficiency up to 97%.
InverterUse Note：

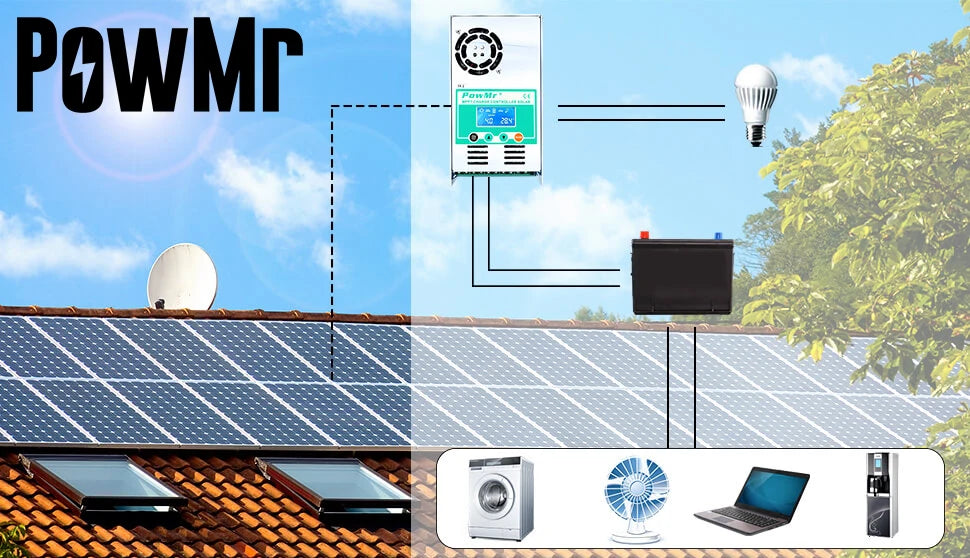

1、The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements Of The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.
2、For Details, Please Refer To The Manual Recommendation Or Consult Online Customer Service.PowMr Will Serve For You Everywhere！
3、About the Product We have optimized Warehouses and Overseas warehouses
And the delivery speed is faster than before.
Feature：
❶MPPT30A/40A/50A/60A solar charge controller
❷100% MPPT technology
❸Built-in DSP controller with high performance
❹Automatic switch for 12V/24V/36V/48Vbattery bank
❺3-stage charging optimizes battery performance

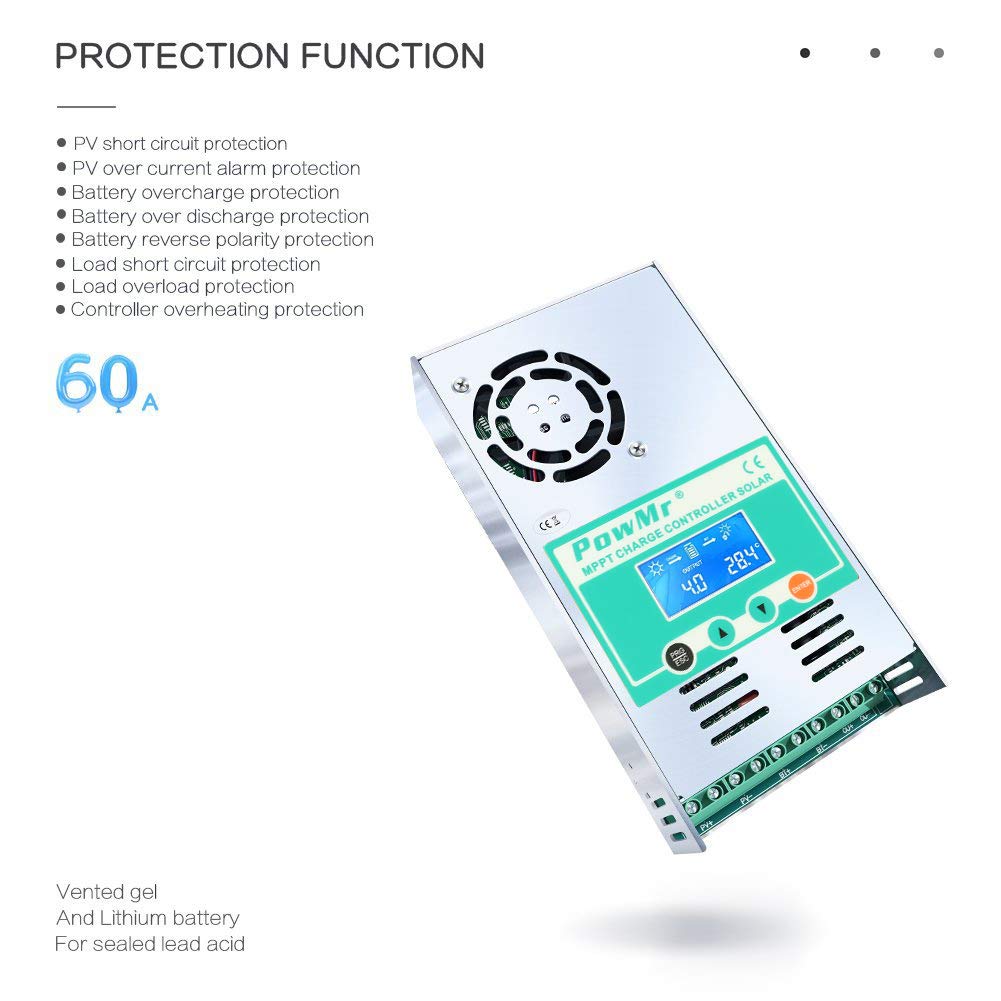

❻Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
Over-temperature protection
❼Troubleshooting promotion function.
❽Suitable for battery types such as sealed lead acid, vented gel and lithium battery, etc
❾Easy to be mounted

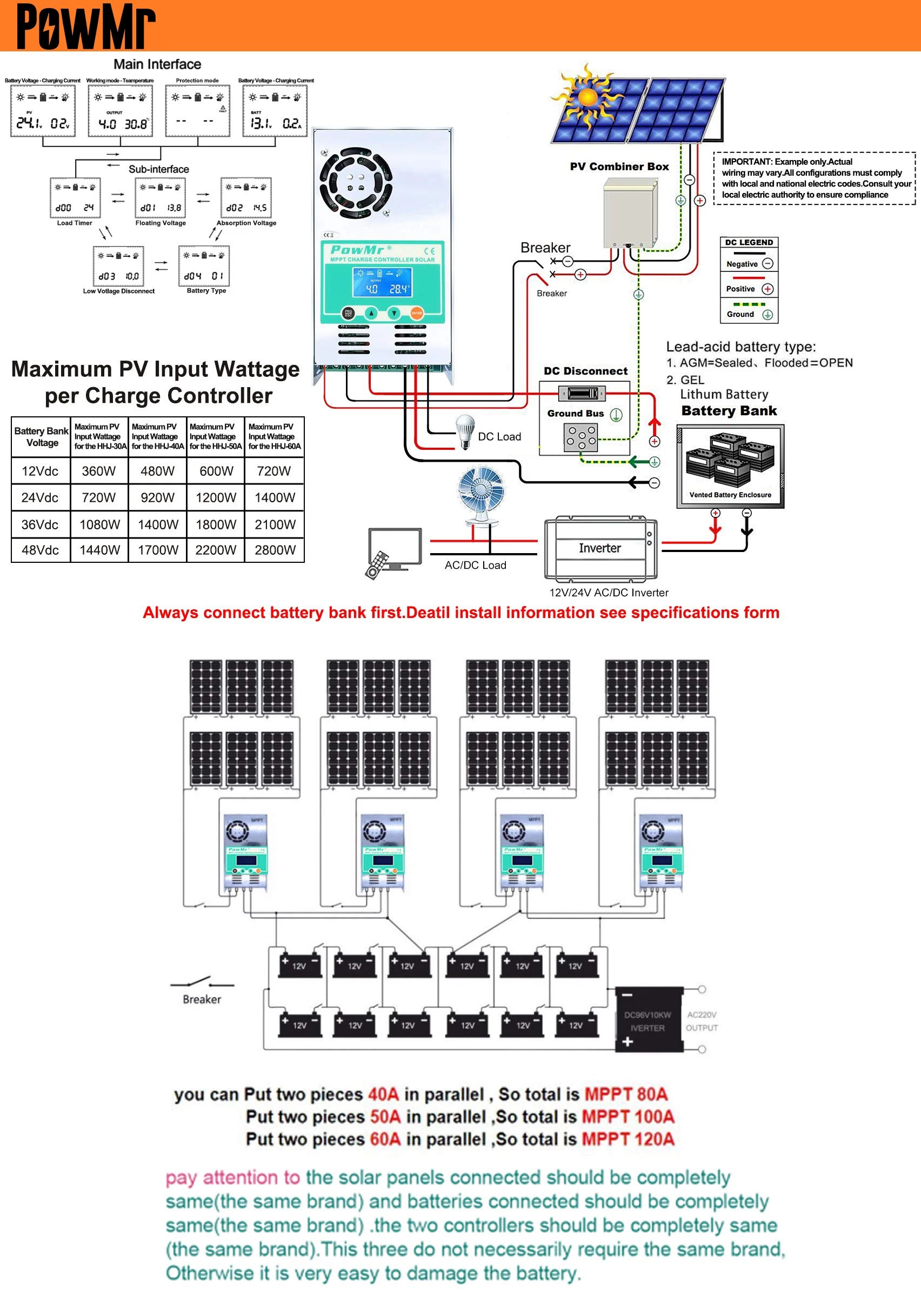

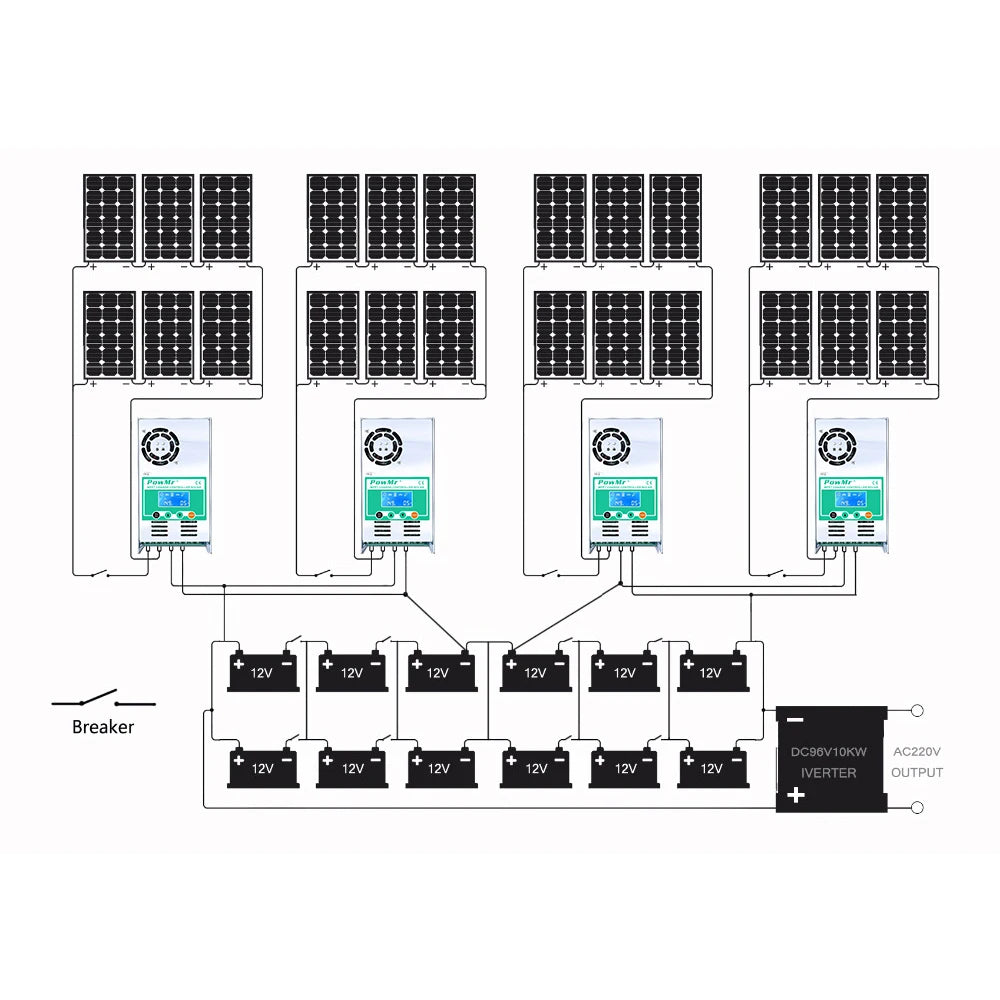

you can Put two pieces 60A in parallel, So total is MPPT 120A
Support unlimited parallel connection
Notes:The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

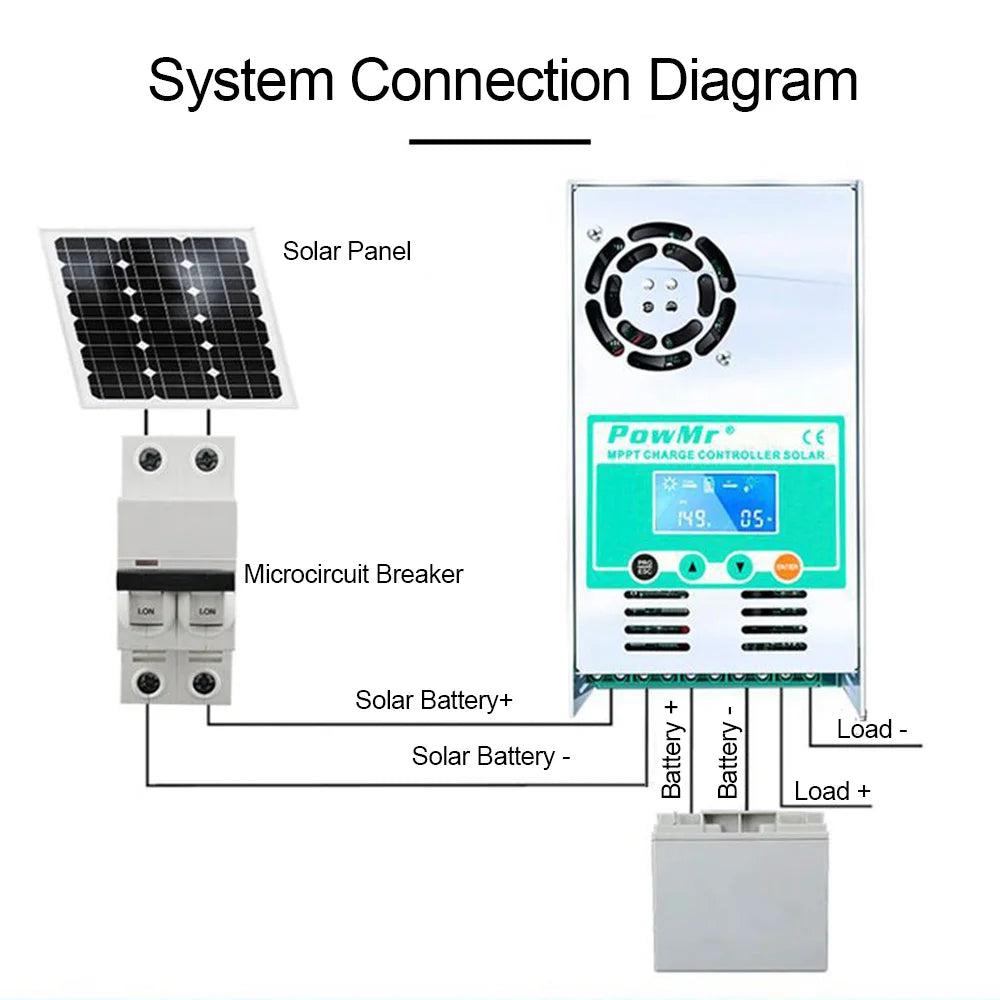

PowMr's solar charge controller connects to solar panels, batteries, and loads. Diagram shows connections: solar panel → MPPT controller → battery + load.

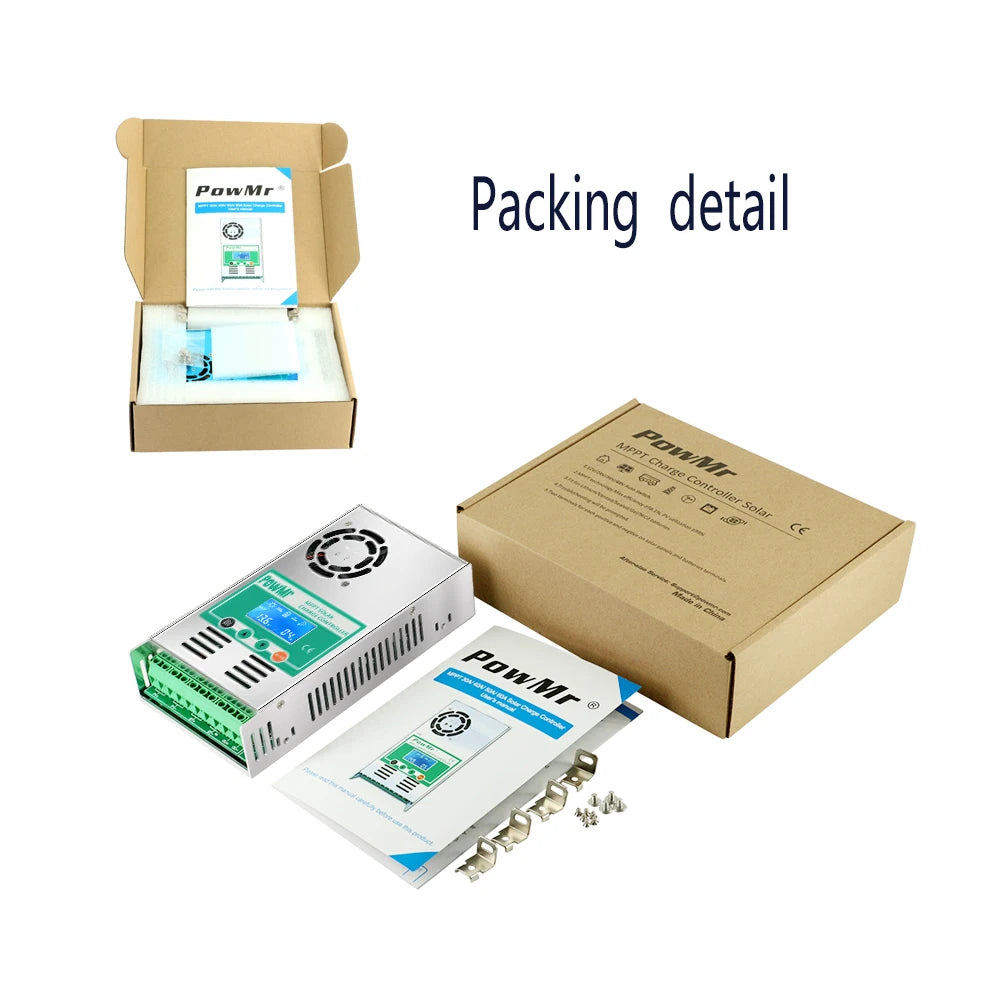

Package Including：
1PCS MPPT Solar Controller 60A
1PCS User Manual (English)
Product Parameter：
Model Name |
MPPT-30A |
MPPT-40A |
MPPT-50A |
MPPT-60A |
Charging mode |
MPPT Maximum power point tracking automatically |
|||
Charging |
3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge |
|||
System type |
DC12V/24V/36V/48V Recognition automatically |
|||
System voltage automatic recognition |
12V system (DC9V-DC15V) |
|||
24V system (DC18V-DC29V) | ||||
36V system (DC30V-DC39V) | ||||
48V system (DC40V~DC60V) | ||||
Soft start time |
≤1S |
|||
Dynamic response and recovery time |
≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) |
|||
PV utilization |
≥99% |
|||
Input specification | ||||
Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. ) |
12V system (DC20V~DC80V) |
|||
24V system (DC37V~DC105V) | ||||
36V system (DC50V~DC160V) | ||||
48V system (DC72V~DC160V) | ||||
The maximum PV input voltage (Voc) |
DC160V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.) |
|||
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.) |
12V system (360W) |
12V system (480W) |
12V system (600W) |
12V system (720W) |
24V system (720W) |
24V system (960W) |
24V system (1200W) |
24V system (1440W) |
|
36V system (1080W) |
36V system (1400W) |
36V system (1800W) |
36V system (2100W) |
|
48V system (1440W) |
48V system (1700W) |
48V system (2200W) |
48V system (2800W) |
|
Output specification | ||||
Selectable battery type(default is Sealed) |
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) |
|||
Absorption Charging Voltage |
Refer to Batteries charging reference |
|||
Floating Charging Voltage |
Refer to Batteries charging reference |
|||
Overcharging protection voltage |
12V system (15V) |
|||
24V system (30V) | ||||
36V system (45V) | ||||
48V system (60V) | ||||
Rated output current |
30A |
40A |
50A |
60A |
Temperature Coefficient |
±0.02%/ centi-degree |
|||
utomatic temperature compensation |
14.2V-(Max temperature-25 centi-degree)*0.3 |
|||
Output voltage ripple-peak |
100mV |
|||
Output voltage accurac |
≤±1% |
|||
Input Anti-intrusion protection |
yes |
|||
Temperature Protection |
75°C |
|||
Temperature increased protection |
Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C |
|||
Fan-on temperature |
>40 °C |
|||
Fan-off temperature |
<35 °C |
|||
Acoustic noise |
≤40dB |
|||
Cooling way |
Forced air cooling |
|||
Components |
Imported materials, Accord to EU standards, Industrial grade range. |
|||
Environmental requirements |
Meet 2002/95/EC; No cadmium, hydrides and fluorides |
|||
Security Level |
Accord to CE, PSE, FCC, EMC, EN60950 |
|||
Electromagnetic Compatibility |
Accord to EN61000, EN55022, EN55024 |
|||
Enclosure |
IP21 |
|||
Net weight(Kg) |
1.1 |
|||
Gross weight(Kg) |
1.2 |
|||
Product Pictures：
|

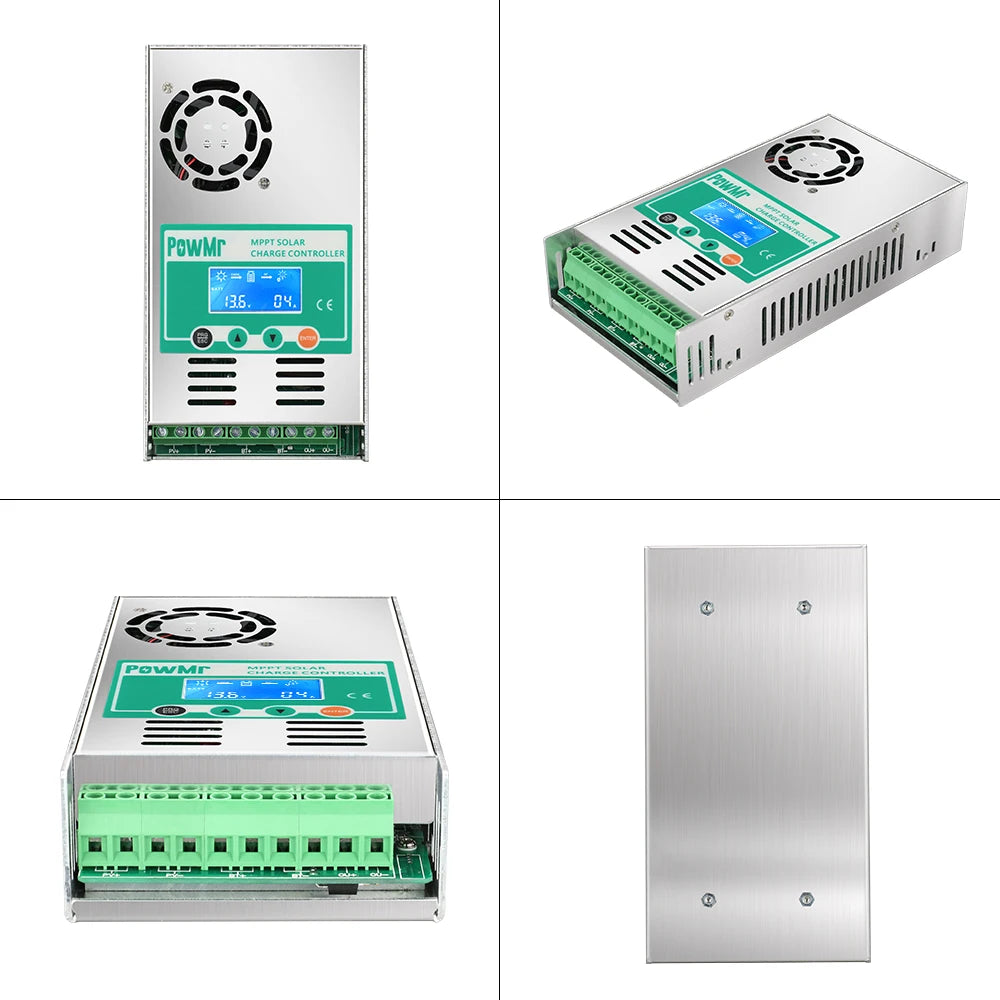

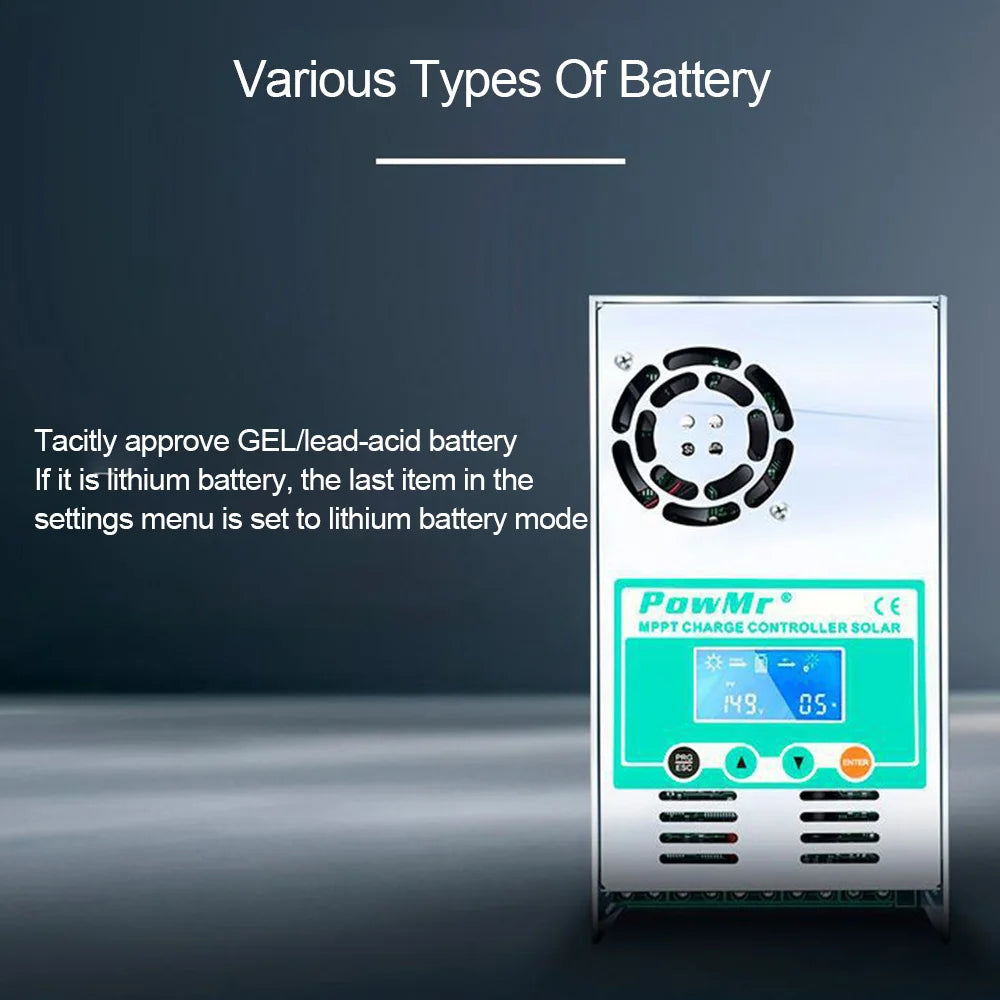

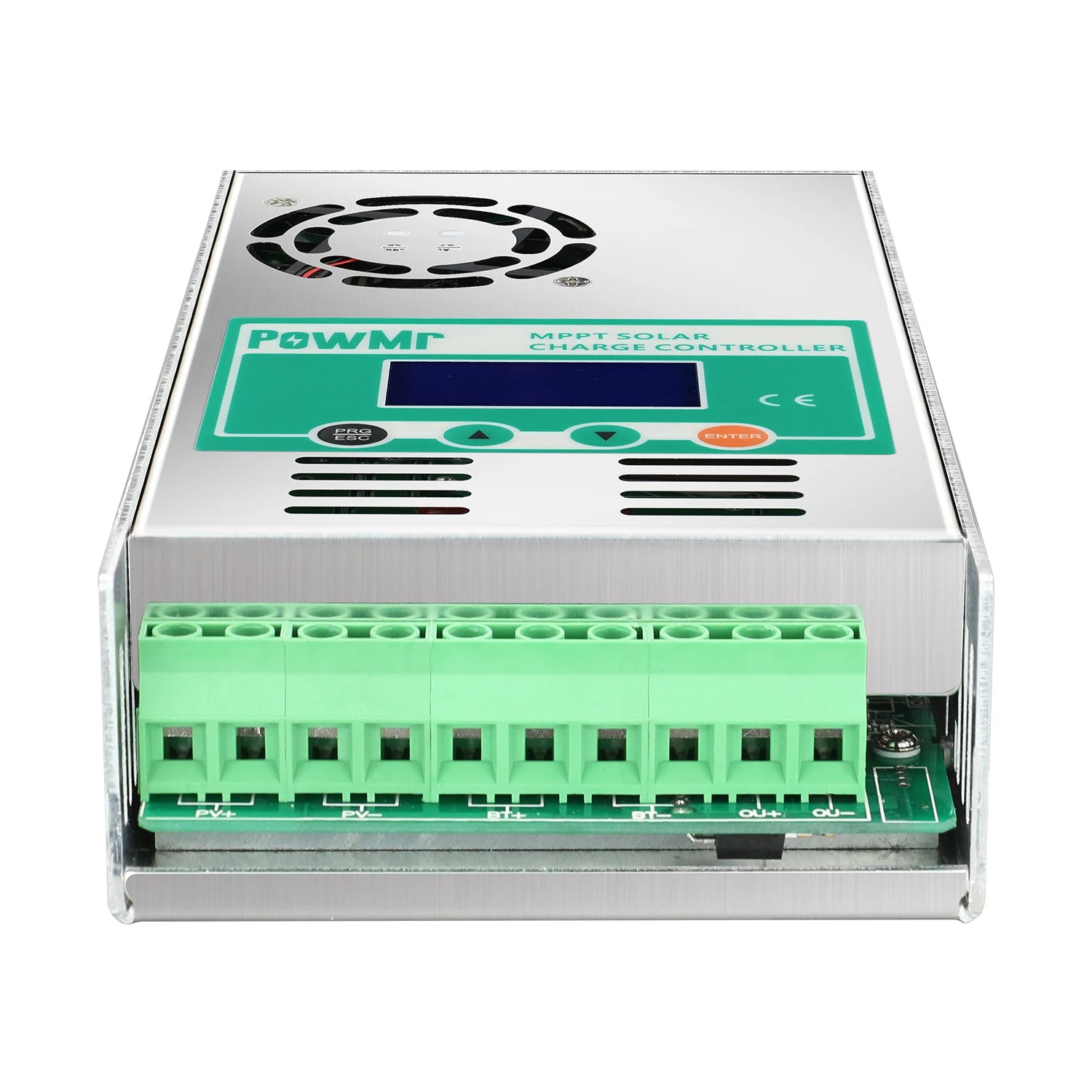

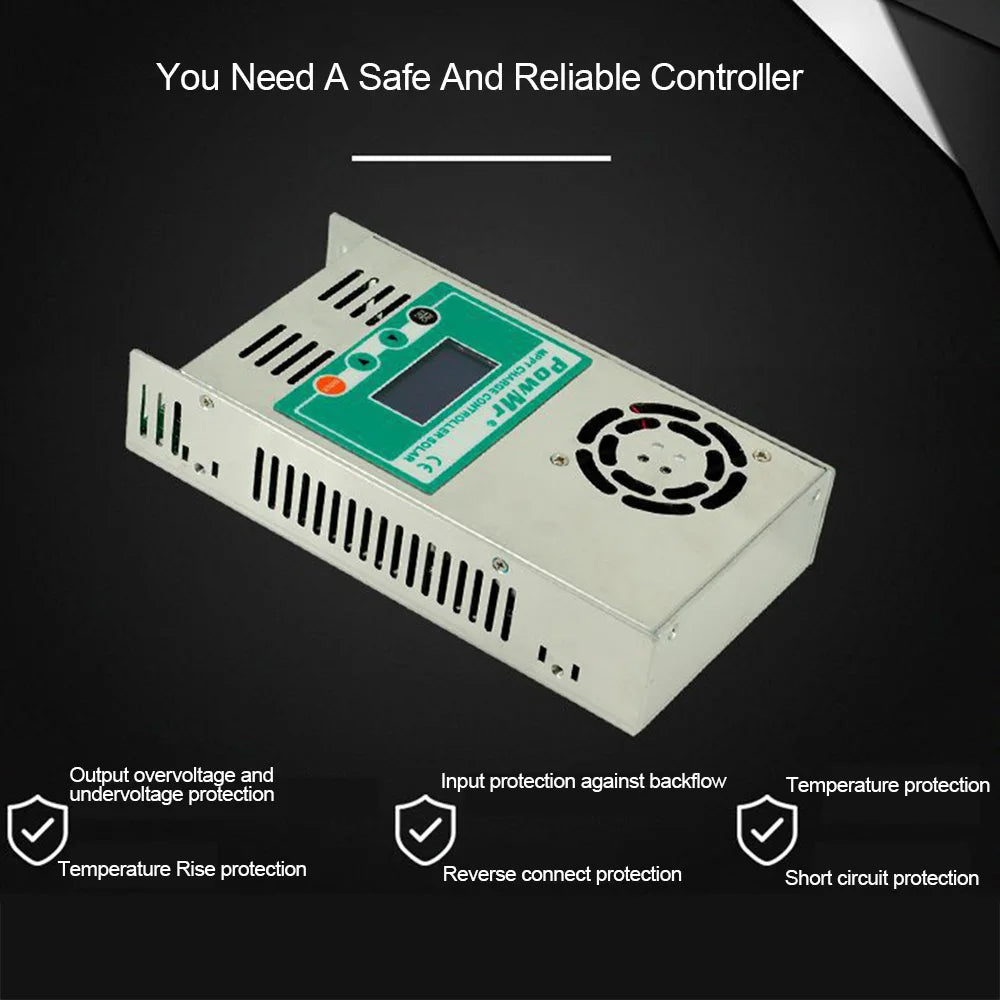

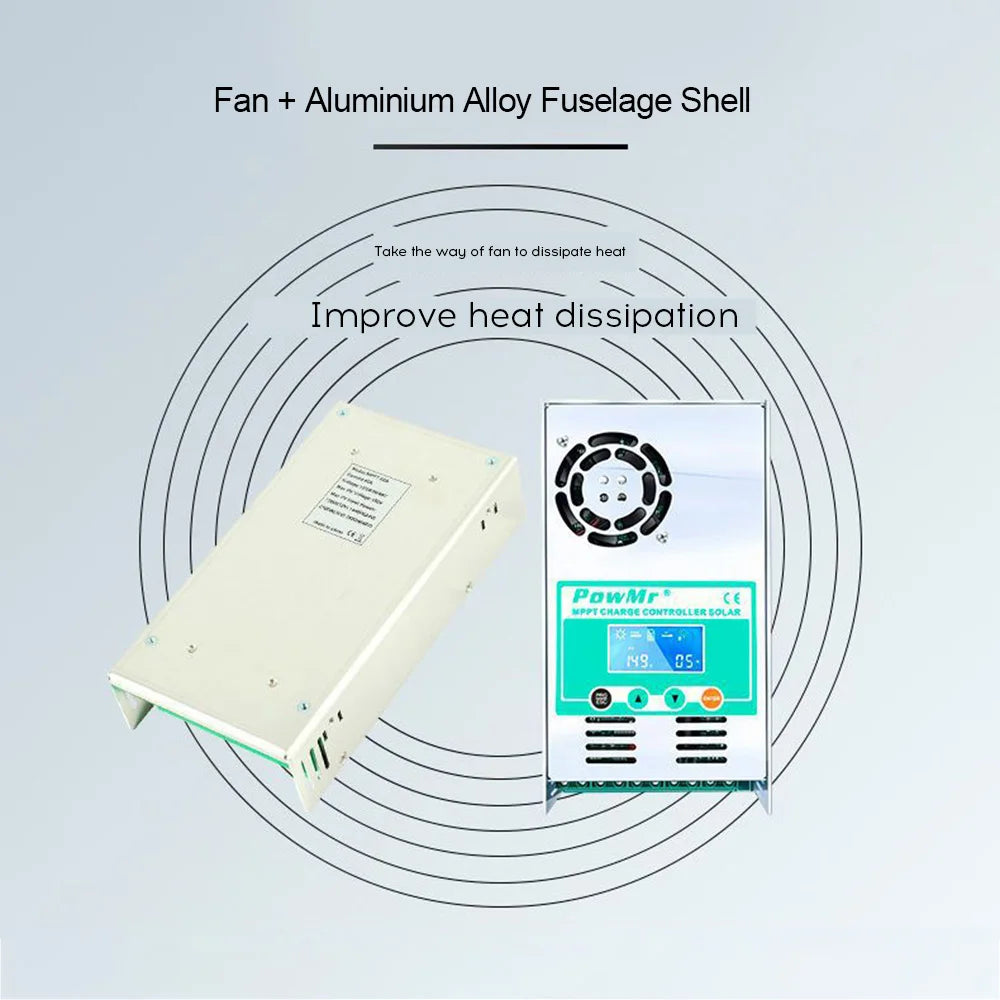

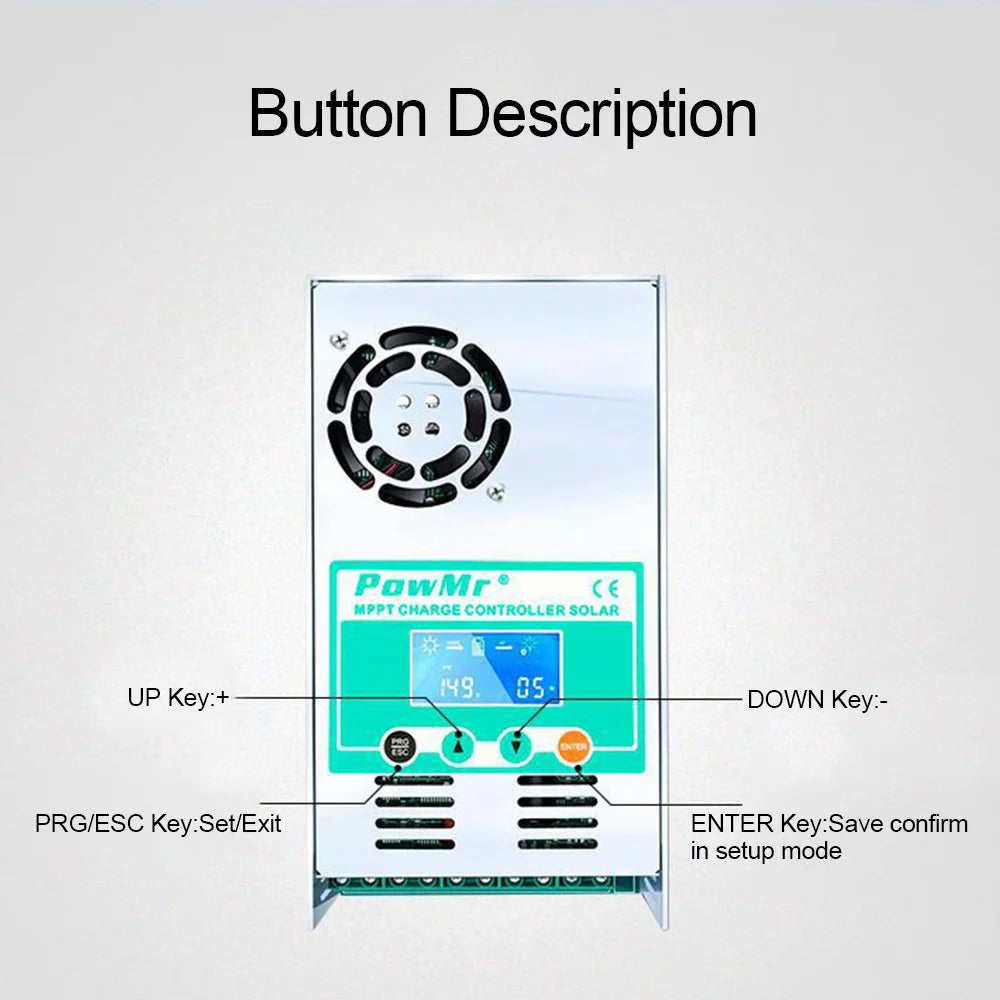

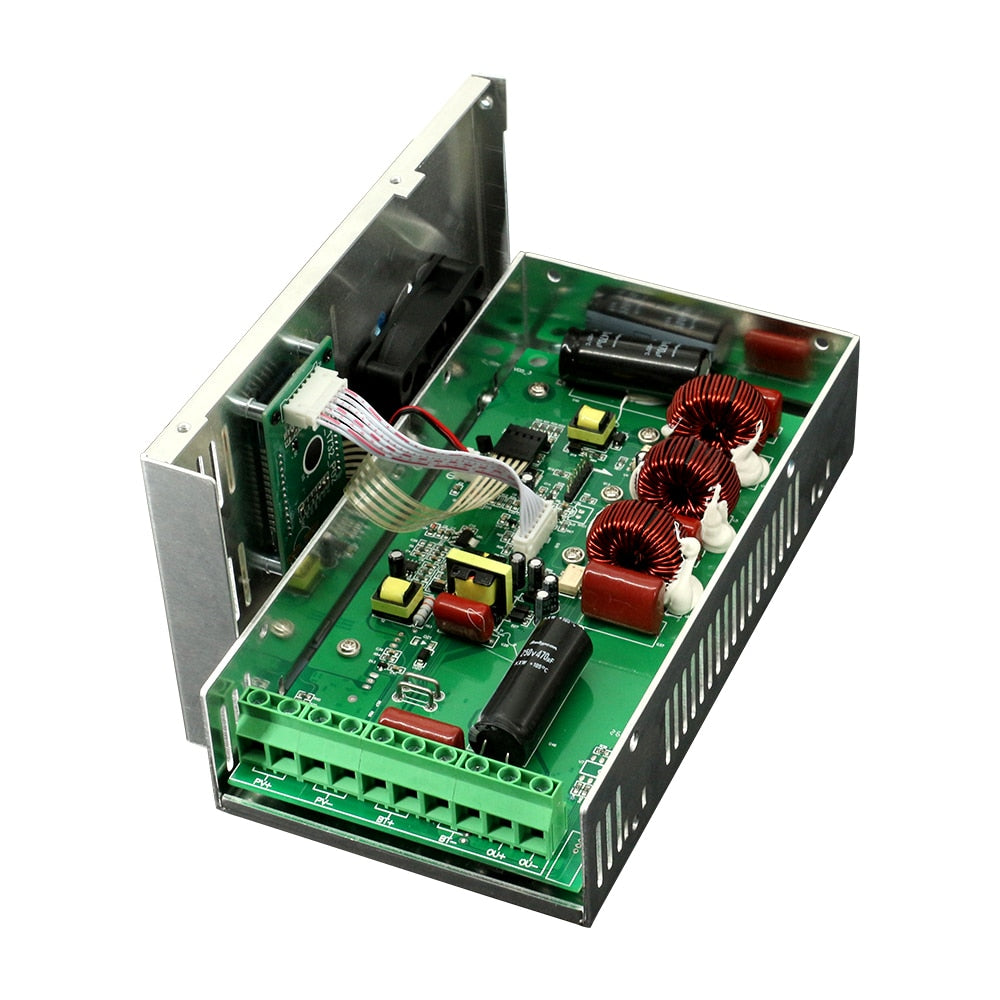

PowMr MPPT Solar Charge Controller: 60A LCD Display for 12V/24V/36V/48V Auto Solar Panel Battery Charging Regulator with Max 190VDC Input.  PowMr MPPT Solar Charge Controller with LCD display, suitable for 12V/24V/36V/48V battery charging, max input 190VDC.  PowMr MPPT Solar Charge Controller with LCD display for 12V, 24V, or 48V battery charging up to 190VDC input.  Operate PowMr's MPPT solar charge controller with buttons: + (adjust), - (down), SET/EXIT (exit or save changes), and ENTER (confirm).  Ensure safe and reliable operation with this controller, featuring overvoltage and input protection, temperature monitoring, and safeguards against short circuits, reverse connections, and undervoltage.  PowMr's MPPT solar charge controller features an aluminum fuselage shell with a fan-assisted heat dissipation system, improving cooling efficiency.  Compatible with various batteries, including gel and lead-acid types. For lithium batteries, set the last option in the settings menu to 'Lithium'. |
This solar charge controller has an LCD display, suitable for 12V, 24V, or 36V batteries. It can handle up to 190VDC input and features auto shutdown protection.
