PowMr PWM 10A 20A 30A Solar Charge Controller 12V 24V Auto Battery Charger Solar Panel Regulator with Dual USB 5V Z Series
PowMr PWM 10A 20A 30A Solar Charge Controller 12V 24V Auto Battery Charger Solar Panel Regulator with Dual USB 5V Z Series
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Voltage of open light: solar panel 8V
USB: Dual USB Output 5V/2.5V(Max)
Origin: Mainland China
Model Number: Z10/Z20/Z30
Maximum Current: 10A/20A/30A
Max Solar Panel Input: Max 23V(12V system) Max 46V(24V System)
Low Voltage Reconnect Voltage (LRD): 12.6V(default.adjustable)
Low Voltage Disconnect Voltage(LVD): 10.7V(default,adjustable)
LCD: Back-light LCD
Float Charge: 13.7V(default,adjustable)
Equalization: 14.4V
Discharging Current: 10A/20A/30A
Charging Current: 10A/20A/30A
Certification: CE
Brand Name: PowMr
Application: Lighting Controller,Solar System Controller,Charger Controller,Solar Working Station,Voltage Controller,Other
For Z10 10A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
For Z20 20A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
For Z30 30A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)

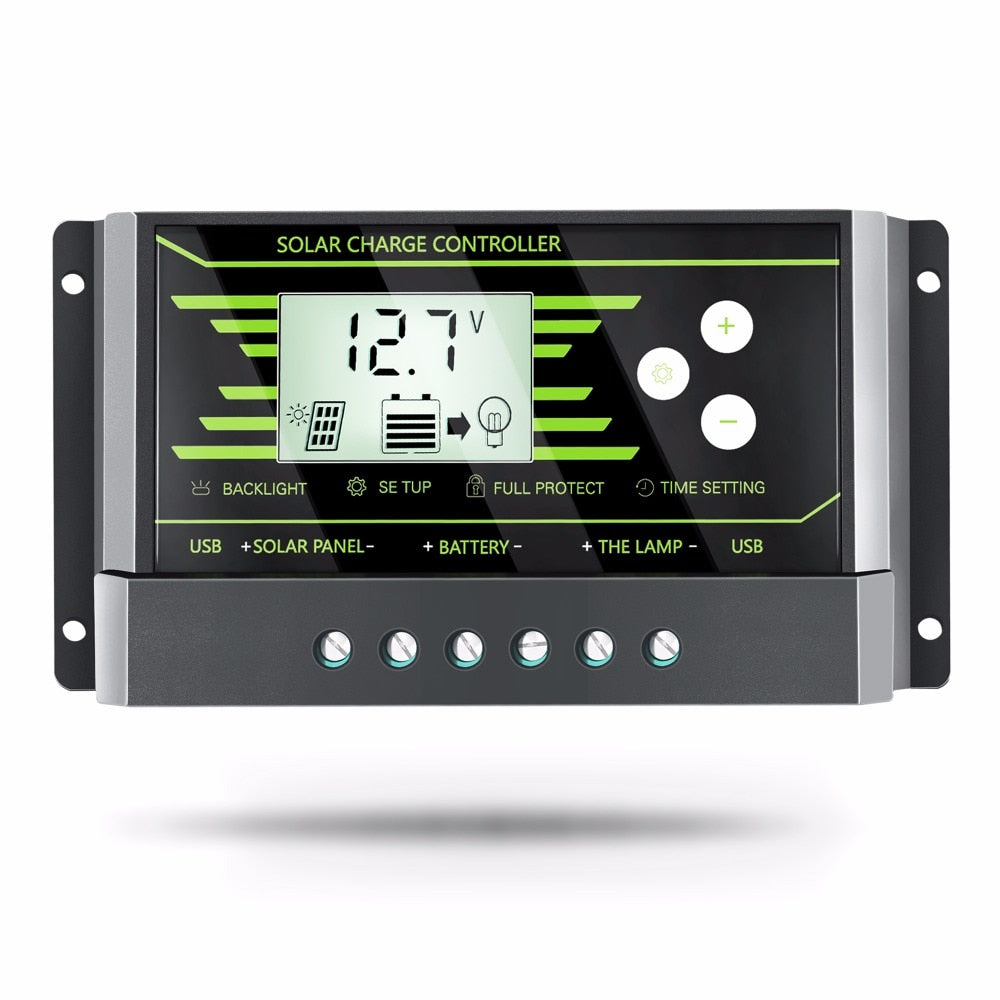

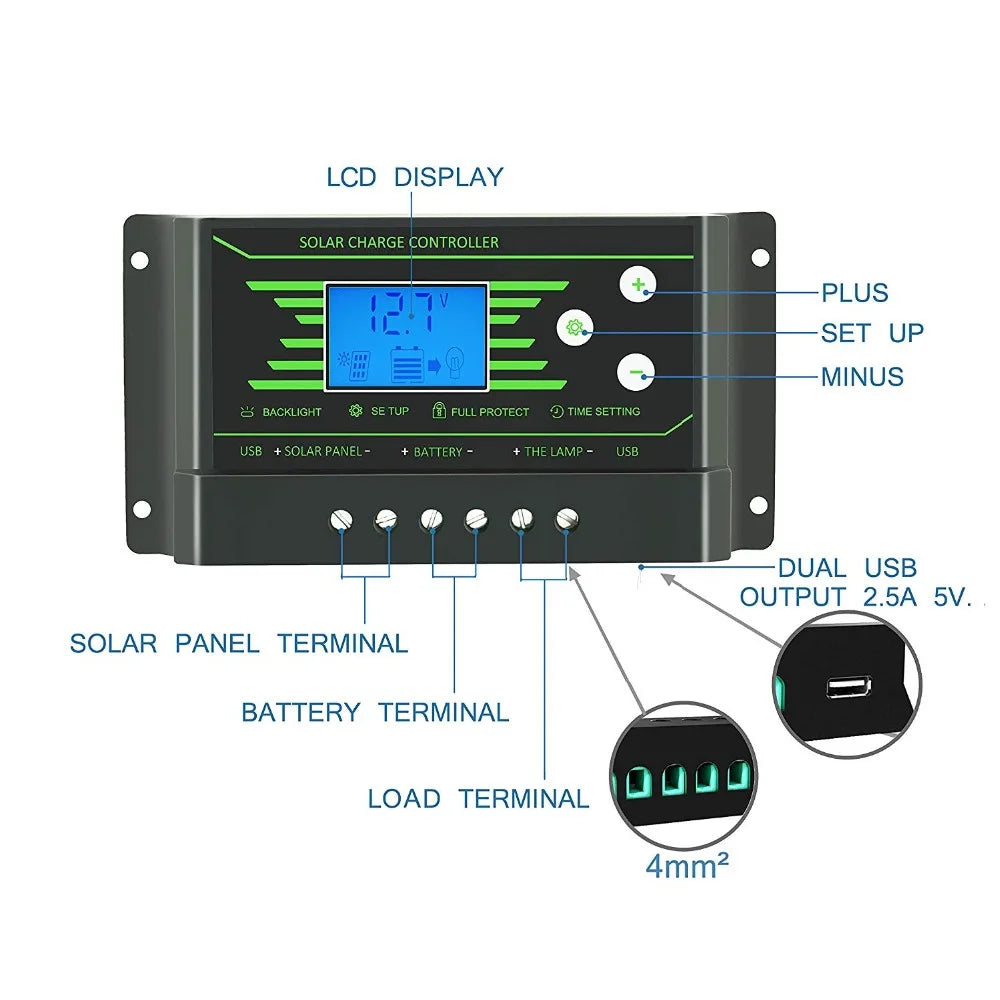

PowMr PWM Solar Charge Controller features an LCD display, setting up and backup functions, full-protect time settings, dual USB outputs (2.5A, 5V), and terminals for solar panel, battery, and load connections.

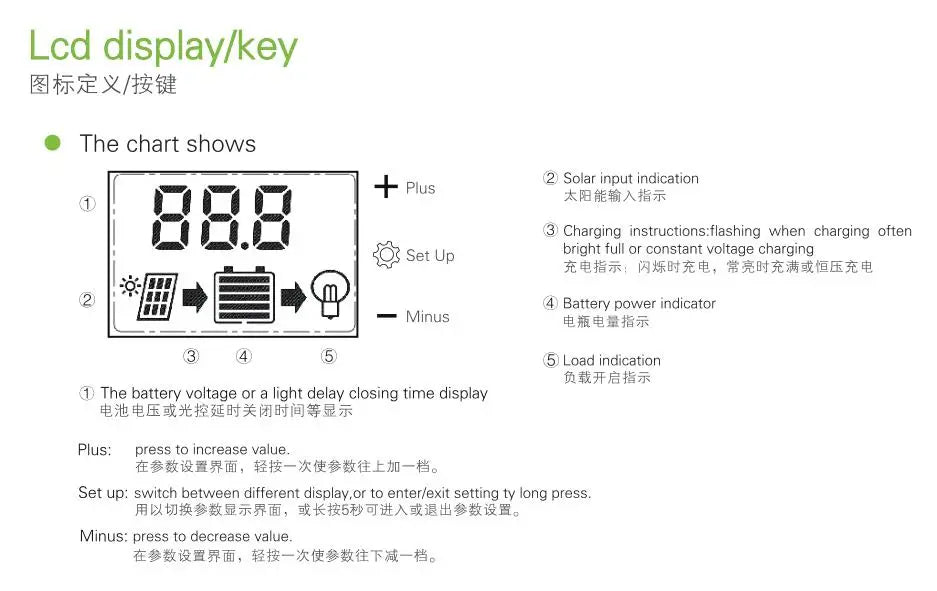

Display Modes: LCD shows solar input, battery power, and load indicators. Plus (-) button increases value, while minus (-) decreases. Long press to switch between display modes or enter/exi settings. The display also indicates charging status, with flashing lights for constant voltage charging.

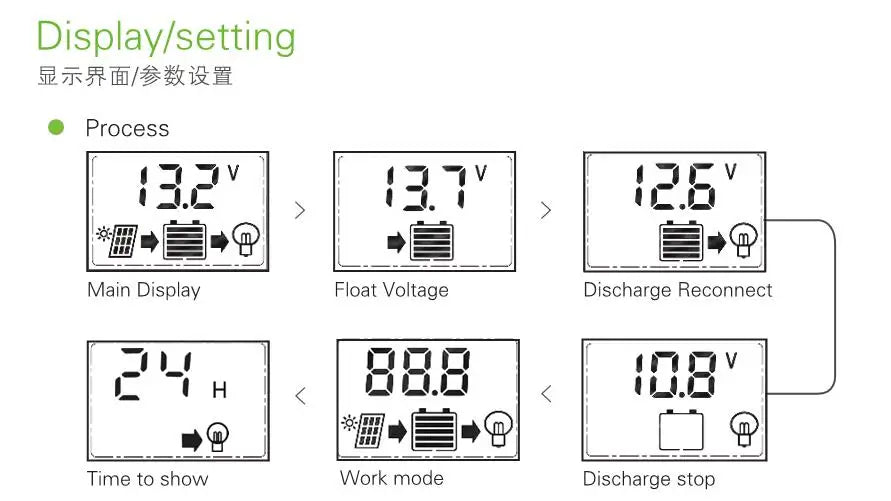

Main display shows float voltage, discharge time, reconnect time, and work mode; displays can be set to 12V or 24V.

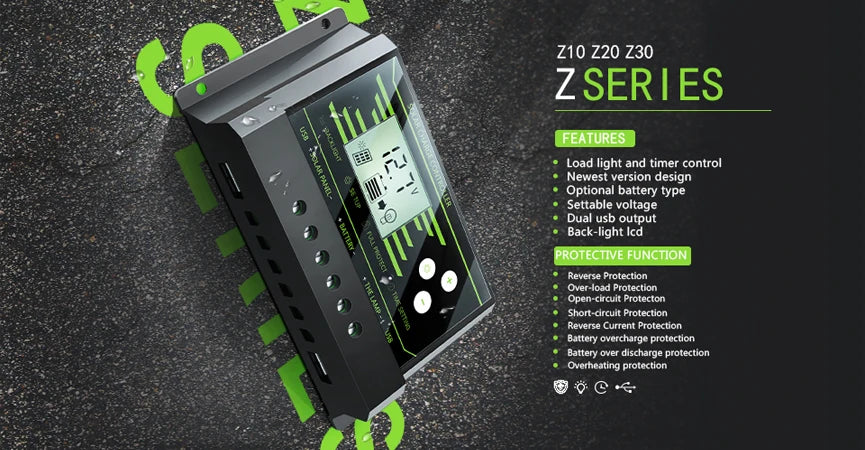

Features：
* build-in industrial micro controller
* Large screen LCD display ,charge and discharge parameter can be adjusted ,with power off memory function
* Screen with backlight,even more high-grade
* Dual USB output ,the maximum current of 2.5A,to support mobile phone charging
* Fully 3-stage PWM charge management
* Build-in-short-circuit protection,open-circuit protection,reverse protection ,over-load protection
* Reverse current protection ,low heat production
Data:
Model |
Z10 |
Z20 |
Z30 |
Battery Voltage |
12V/24V Auto |
||
Charge current |
10A |
20A |
30A |
Discharge current |
10A |
10A |
10A |
Max Solar Panel Input |
Max 23V(12V) ,Max 46V(24V) |
||
Equalization |
14.4V |
||
Float Voltage |
13.7V(Default,adjustable) |
||
Discharge stop |
10.7V(Default,adjustable) |
||
Discharge reconnect |
12.6V(Default,adjustable) |
||
Charge reconnect |
13V |
||
Voltage of oepn light |
Solar Panel 8V |
||
USB output |
Dual USB output 5vV/2.5A(Max) |
||
Self-consume |
<10mA |
||
Operating temperature |
-35°C~60°C |
||
all red color voltage x2 when using 24V system
Pictures:

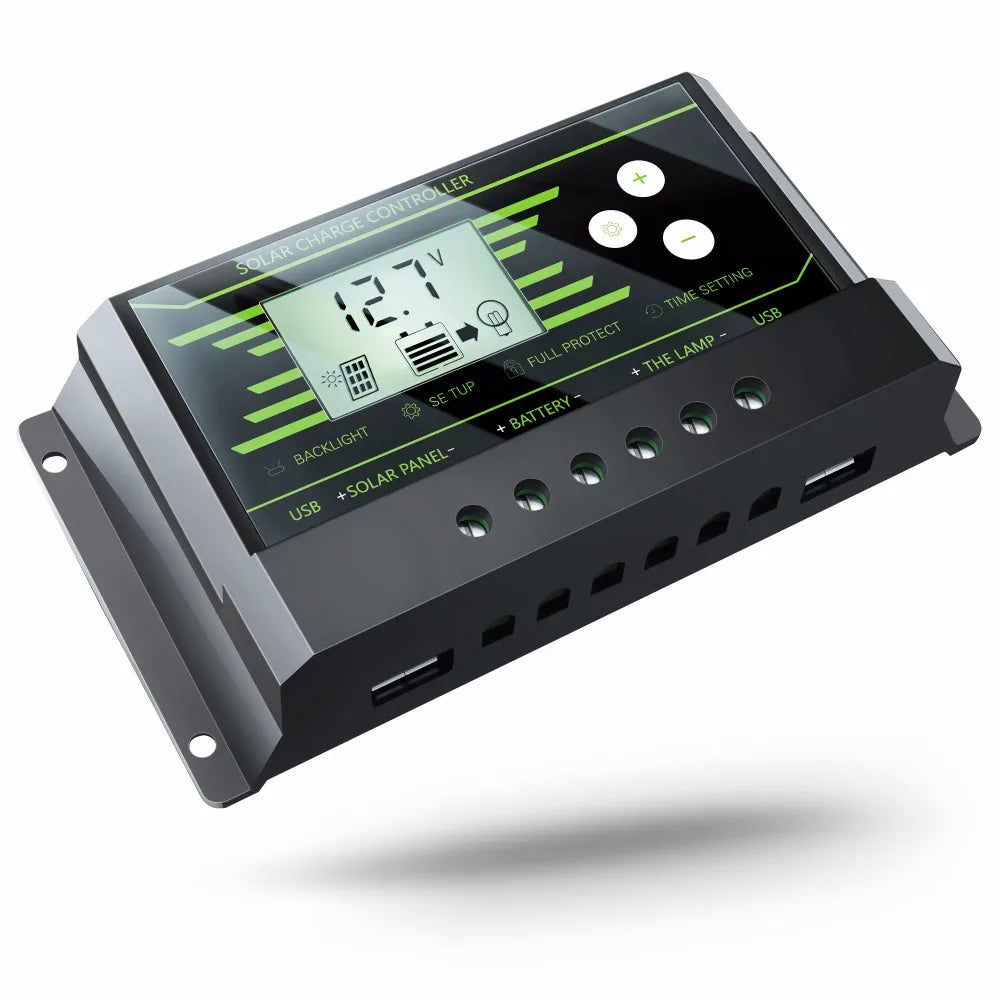

Powerful solar charge controller with PWM technology for 10A, 20A, or 30A charging capacity. Includes dual USB ports and features automatic setting, timer, overcharge protection, and full backlight panel.

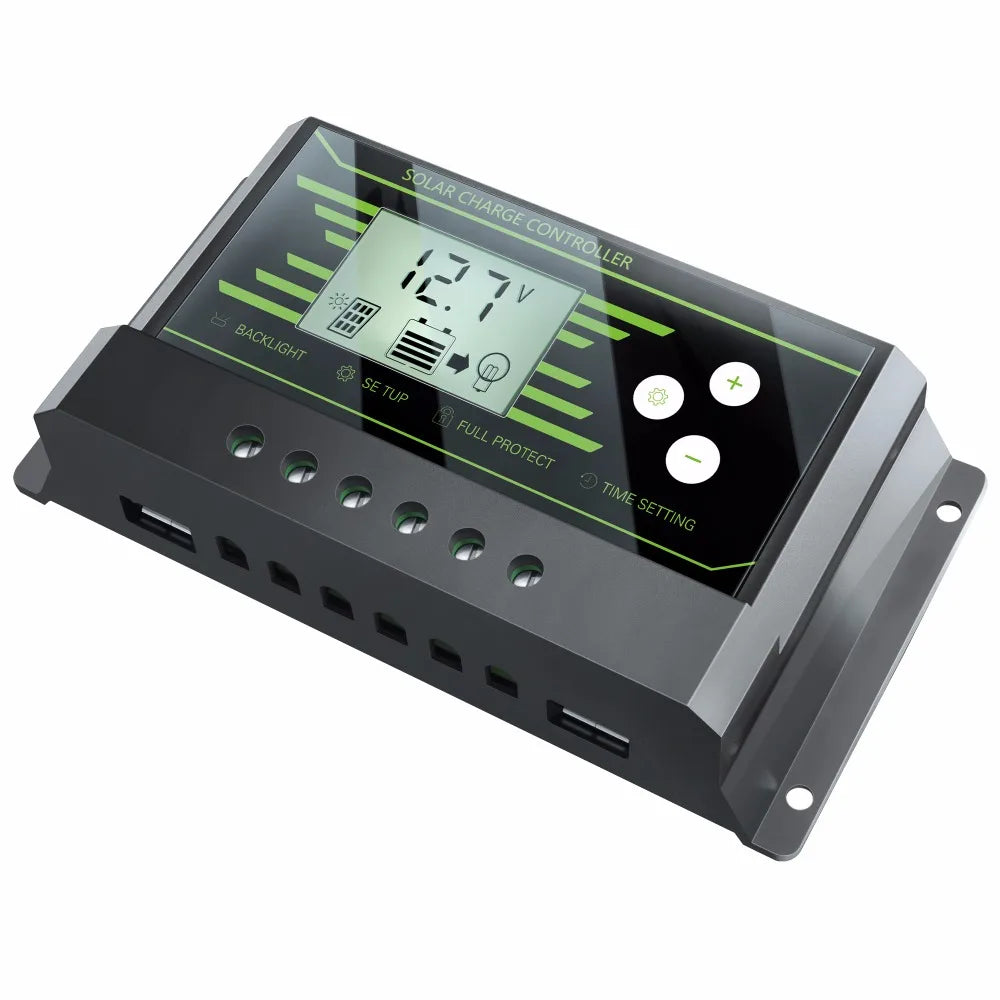

Solar Charge Controller with Backlight, Full Protection, and Time Setting

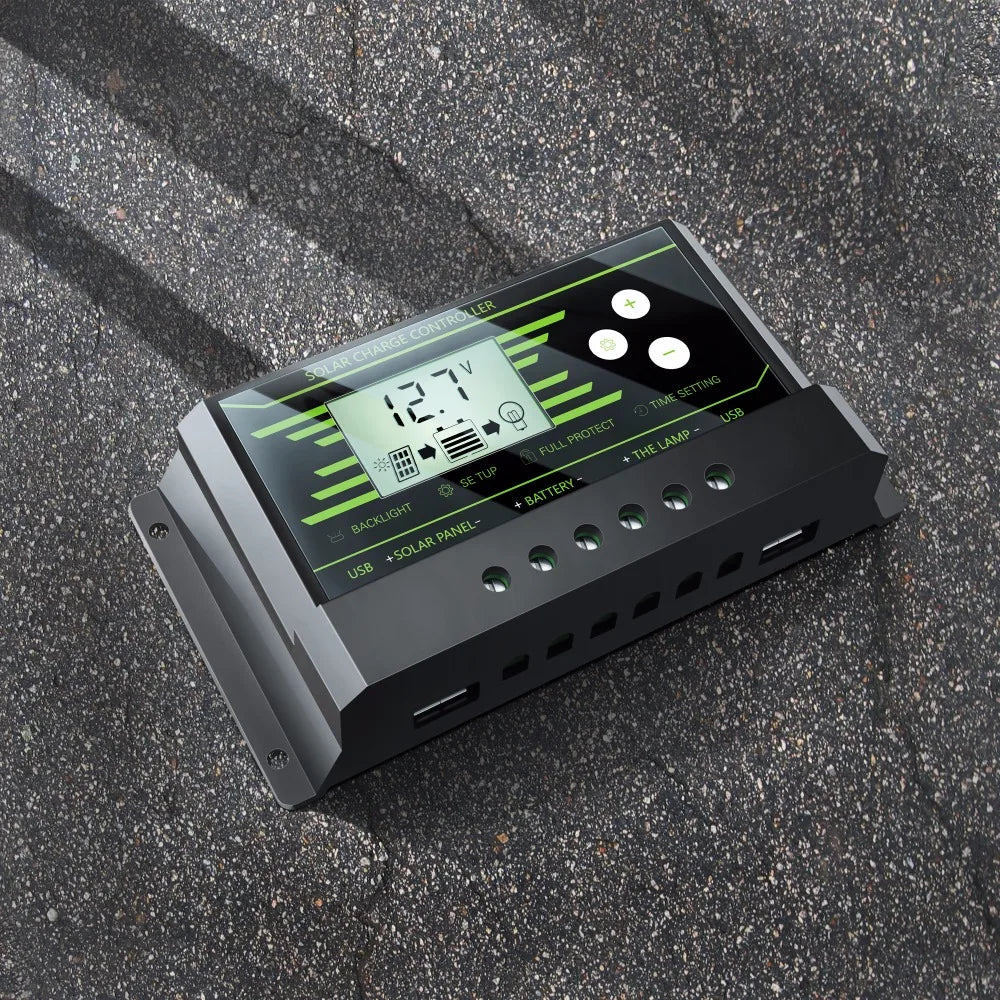

Control solar settings and battery backup with dual USB ports. Protect your lamp's power and monitor setup status, including panel brightness and battery level.
