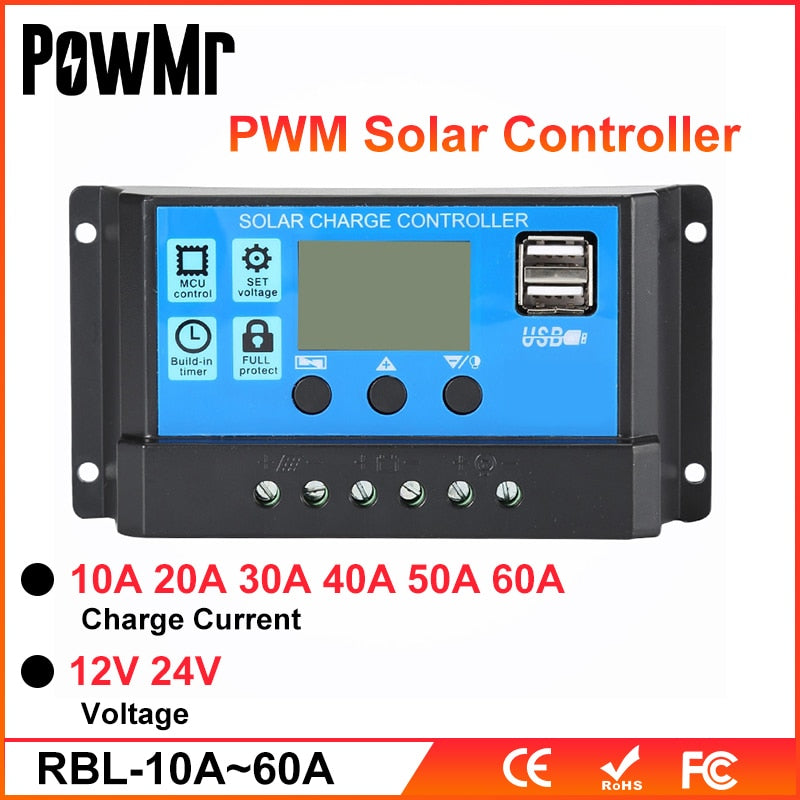

PowMr PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW

PowMr PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW

Regular price $19.52 USD
Regular price Sale price $19.52 USD
Sale Sold out
Shipping calculated at checkout.
Current

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

USB output: 5V/3A(Total)

Origin: Mainland China

Model Number: RBL Series

Maximum Current: 10A/20A/30A/40A/50A/60A

Max solar panel input: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge: 13.7V(defaul,adjustable)

Equalization: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Discharge stop: 10.7V(defaul,adjustable)

Discharge reconnect: 12.6V(defaul,adjustable)

Charging Mode: PWM

Certification: CE

Brand Name: PowMr

Battery Voltage: 12V 24V Auto

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Application: solar energy

PowMr PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW

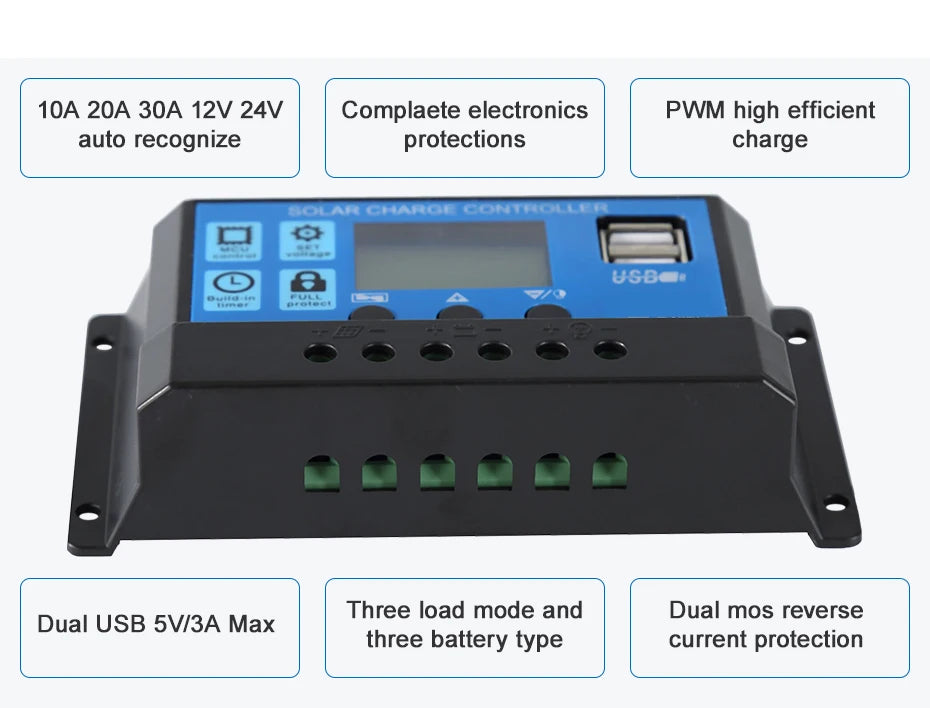

Efficient electronics with PWM technology, featuring USB ports, load modes, and reverse current protection.

Complete electronics with PWM technology, offering high efficiency and automatic recognition. Features include dual USB ports, three load modes, and dual MOSFETs for reverse current protection, suitable for max 3 battery types.



Introduction:

This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid ,Gel,Sealed,Flooded,AGM Batteries.It can fully meet your home Photovoltaic system(including home lighting system )requirements

There are optional 10A 20A 30A 40A 50A 60A model


Product Model:

RBL-10A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 120W (12V), 240W (24V);

RBL-20A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 240W (12V), 480W (24V);

RBL-30A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 360W (12V), 720W (24V);

RBL-40A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 520W (12V), 1040W (24V);

RBL-50A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 650W (12V), 1300W (24V);

RBL-60A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 780W (12V), 1560W (24V);

Recently there are many similar products on the market, they have different prices and many sales, but please note that only Y-SOLAR Store's products are 100% genuine and highest quality, we can provide permanent after-sales service, if you are reseller, We can give you free samples and competitive price !!!

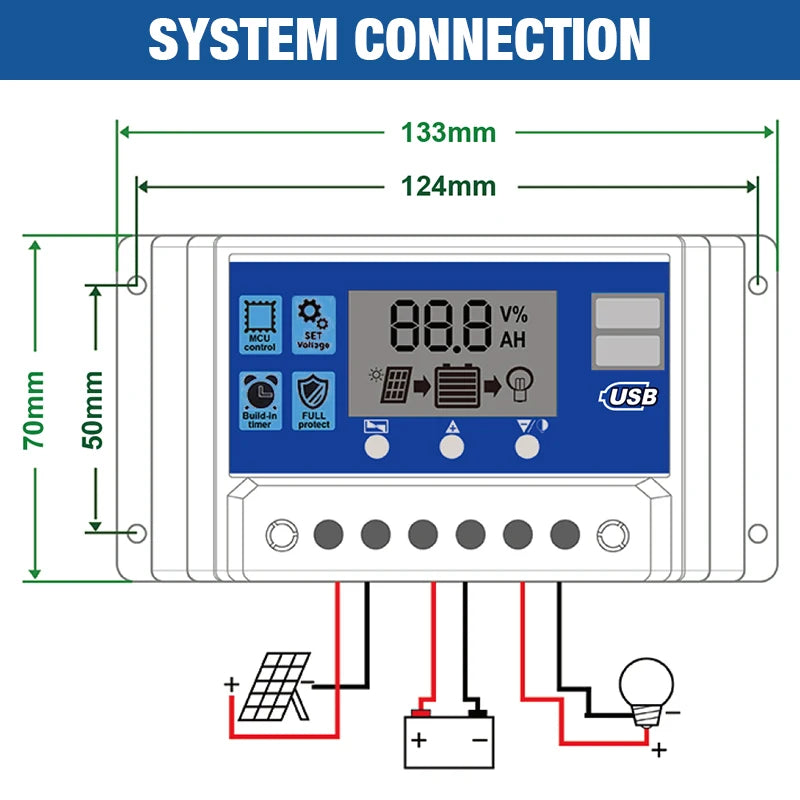

System connection device with LCD display, USB ports, and MCU for solar charging/discharging.

Feature:

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.


Product Parameter:


MODEL

RBL-10A

RBL-20A

RBL-30A

RBL-40A

RBL-50A

RBL-60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

48V(for 24V battery) 24V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm



Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!


Product Picture:

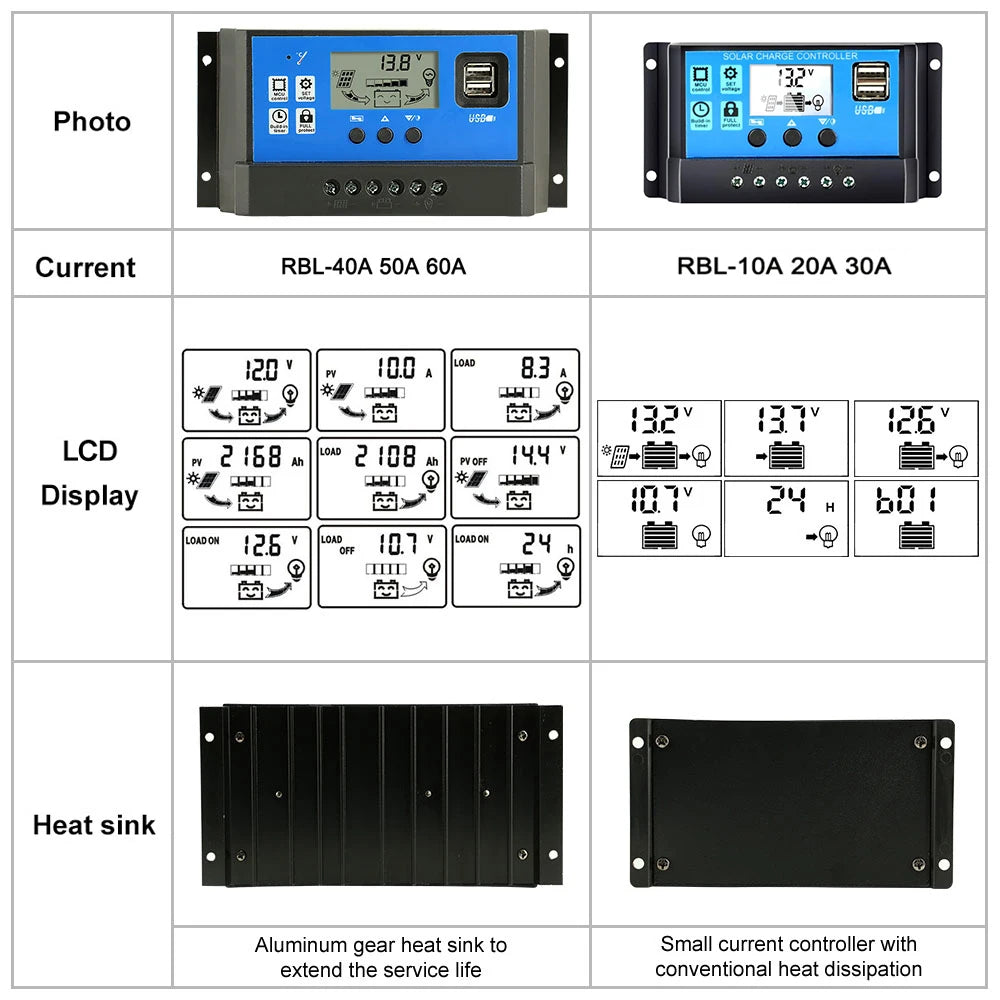

Difference between 10A 20A 30A and 40A 50A 60A

Solar power controller for regulating charge and discharge, featuring USB outputs, adjustable limits, and efficient heat dissipation.

PowMr PWM Solar Charge and Discharge Controller: Regulate your solar power system's charge and discharge with this 12V/24V auto LCD controller. Features include dual USB outputs (5V), adjustable current limits (10A-60A), and a heat sink design for extended service life. The aluminum gear ensures efficient heat dissipation, while the small current controller provides precise control over your solar system's performance. Monitor your system with the intuitive LCD display and enjoy reliable operation.


RBL 10A 20A 30A


Solar charge/discharge controller with LCD display, USB ports, and timer for 12V or 24V systems.

PowMr PWM solar charge and discharge controller for 12V or 24V systems, featuring LCD display, dual USB ports, and built-in full-charge timer.

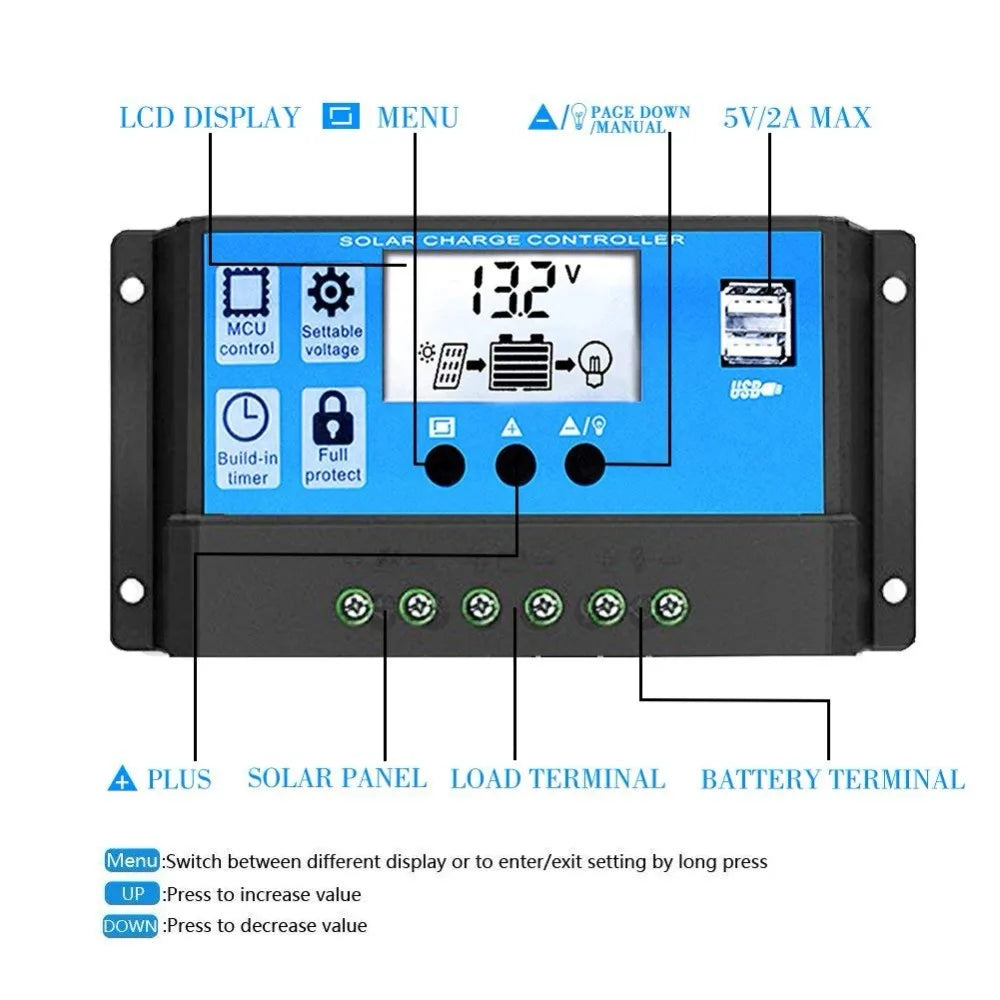

Controller with LCD display for solar charge control, USB charging, and terminal connections.

Features an LCD display with menu options for solar charge control. The MCU-based controller has selectable voltage, overload protection, and built-in full discharge protection. It also includes USB charging ports, battery terminals, and load terminals. Navigation is easy via long press or short press buttons (+/-) to adjust settings.

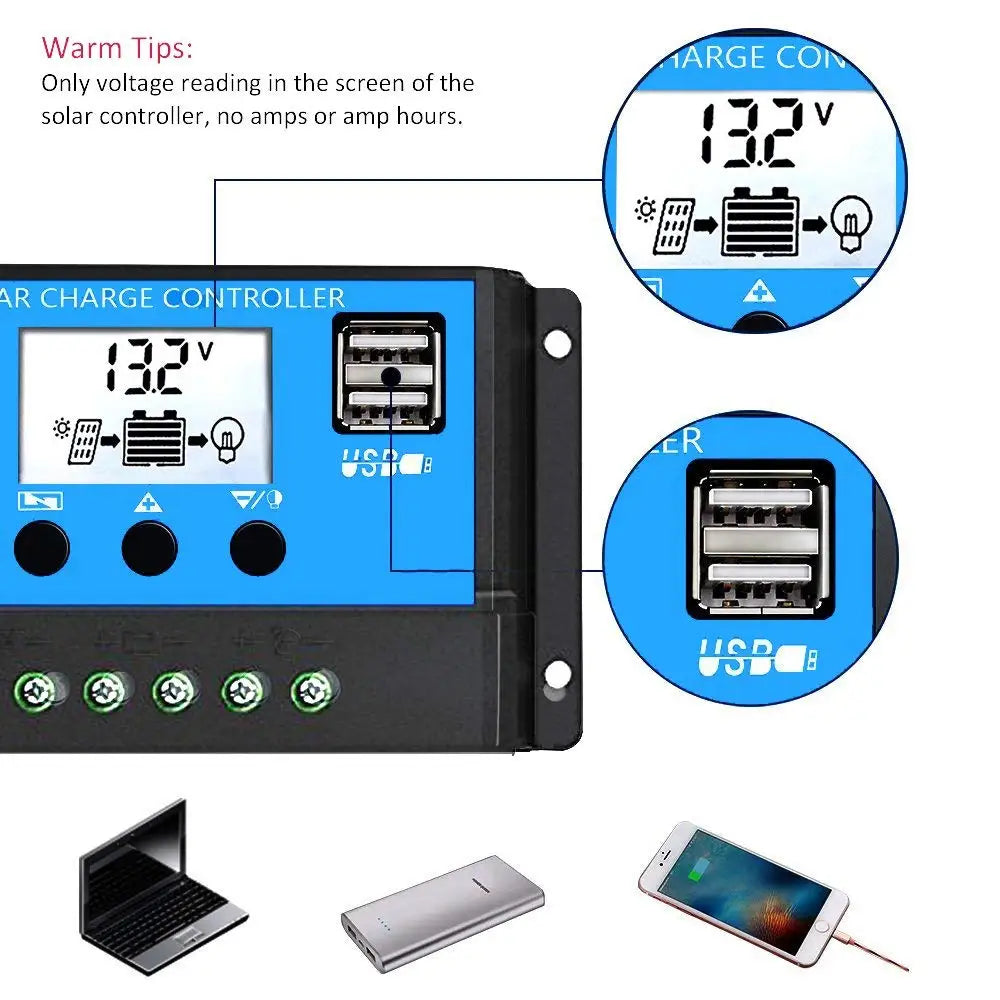

Voltage readings displayed, no amperage or amp-hour values, with dual USB charging ports.

Note: The display shows only voltage readings; no amperage or amp-hour values are available on the LCD screen. Dual USB charging ports included.

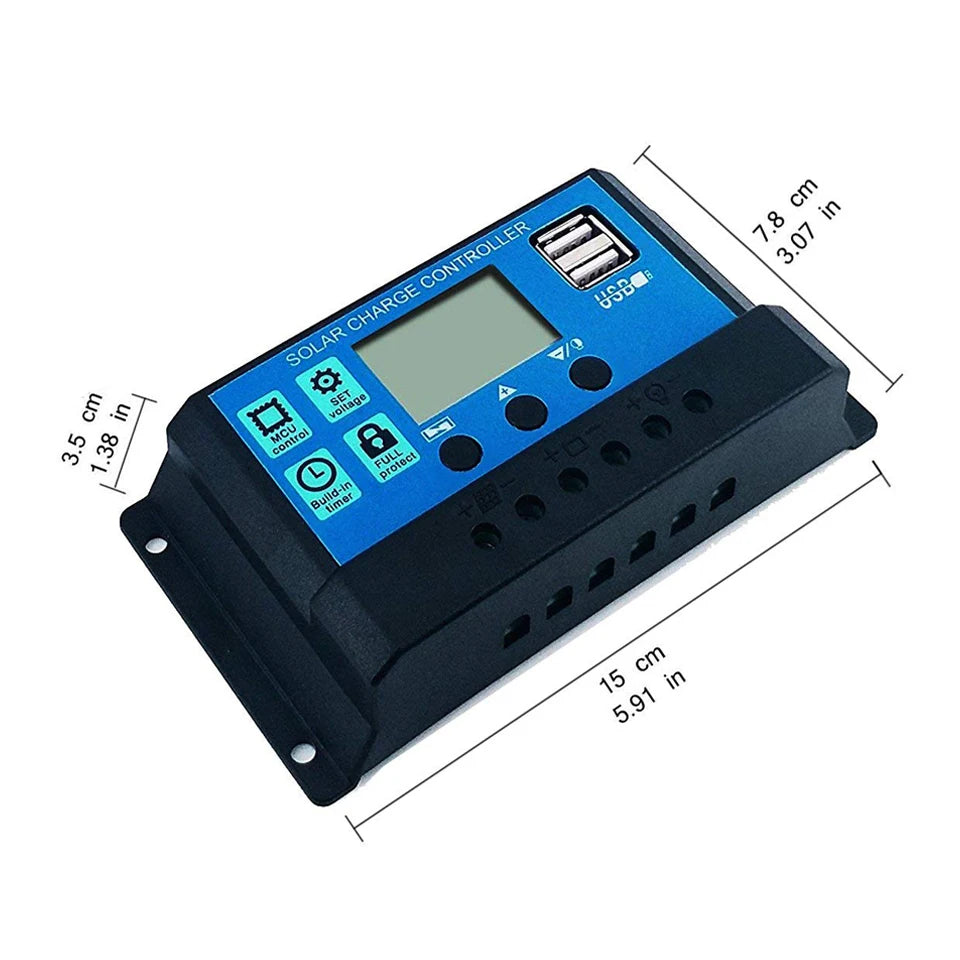

Solar charge and discharge controller with dual USB ports for charging devices on the go.

RBL 40A 50A 60A

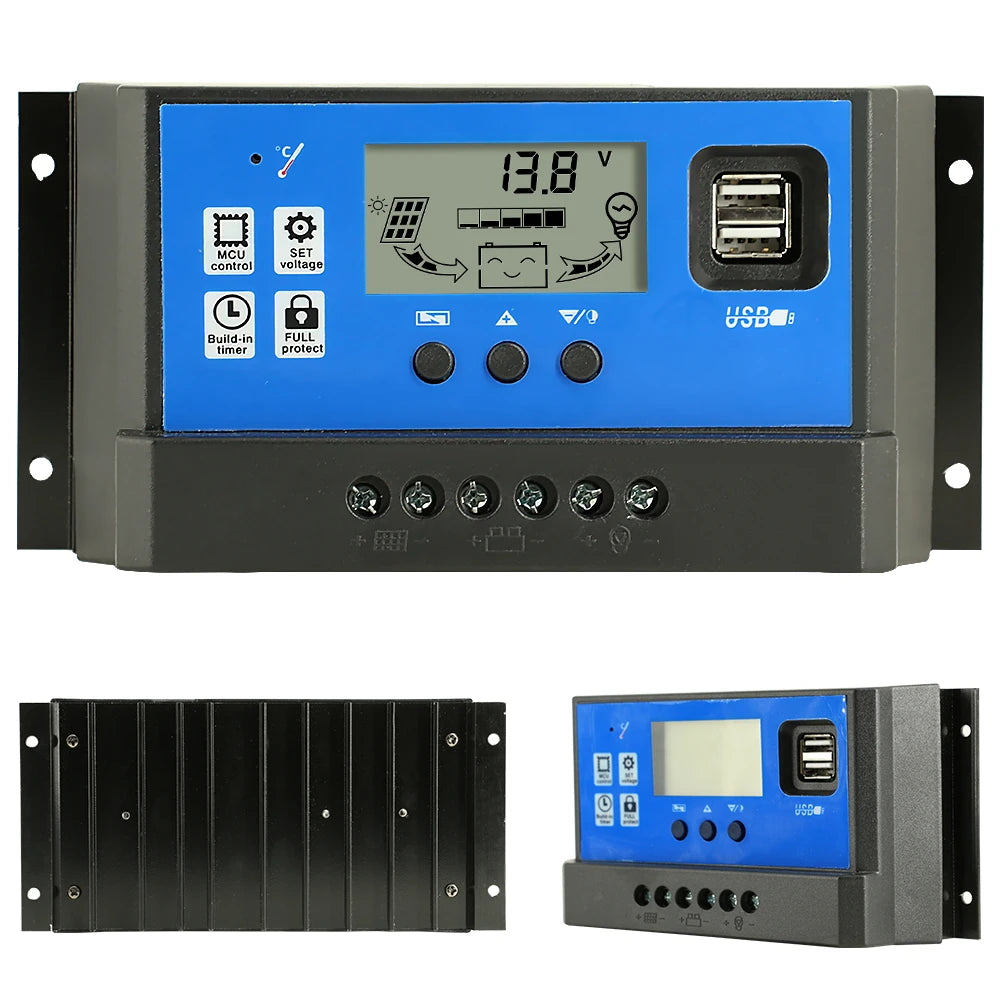

Controller with built-in overcharge protection and full safeguards for safe charging/discharging.

Microcontroller-based controller with built-in overcharge protection and full protections for safe charging and discharging.

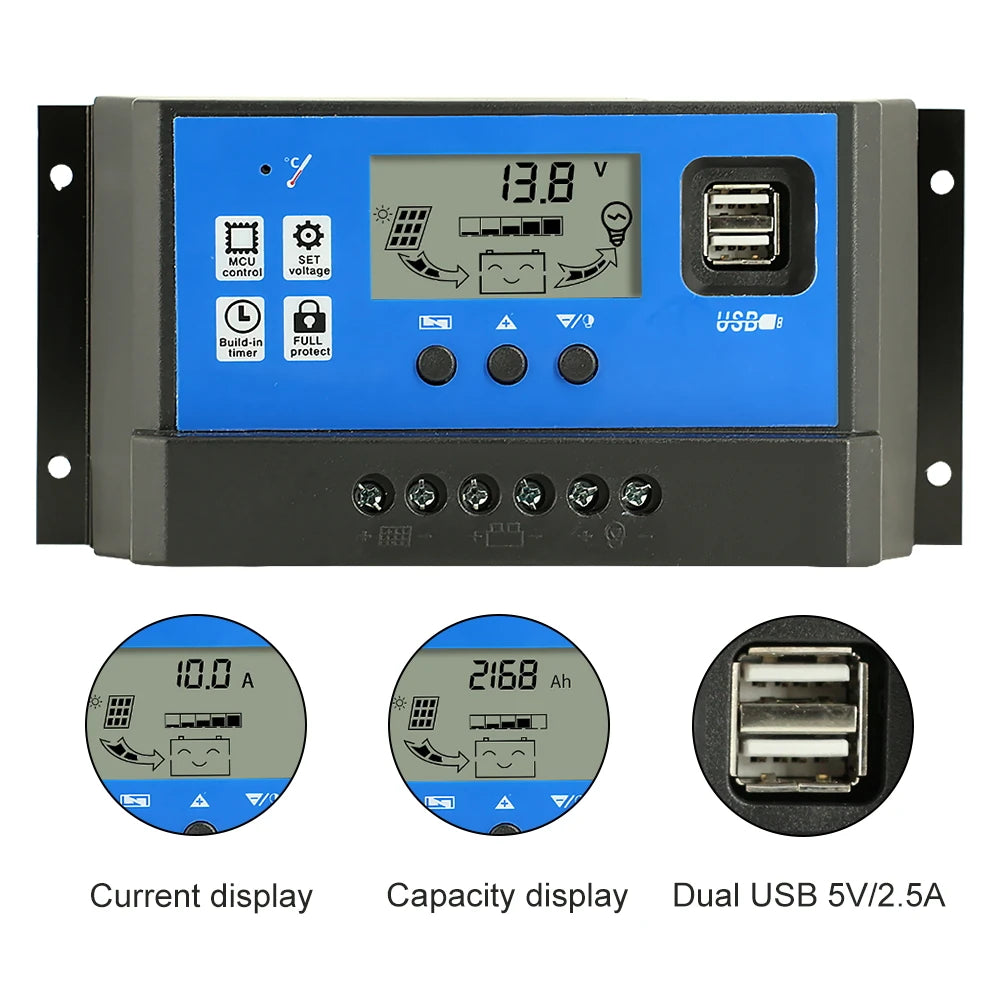

Controlled solar charger with LCD display, voltage regulation, and dual USB ports for charging devices.

Microcontroller-controlled solar charge and discharge controller with built-in LCD display, featuring voltage regulation, current capacity display, and dual USB ports with 5V and 2.5A output.

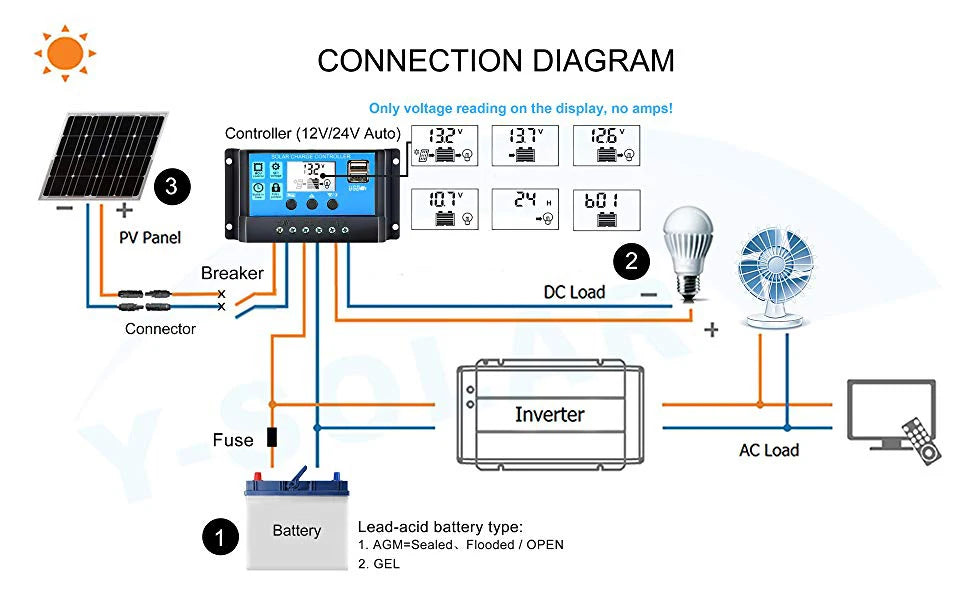

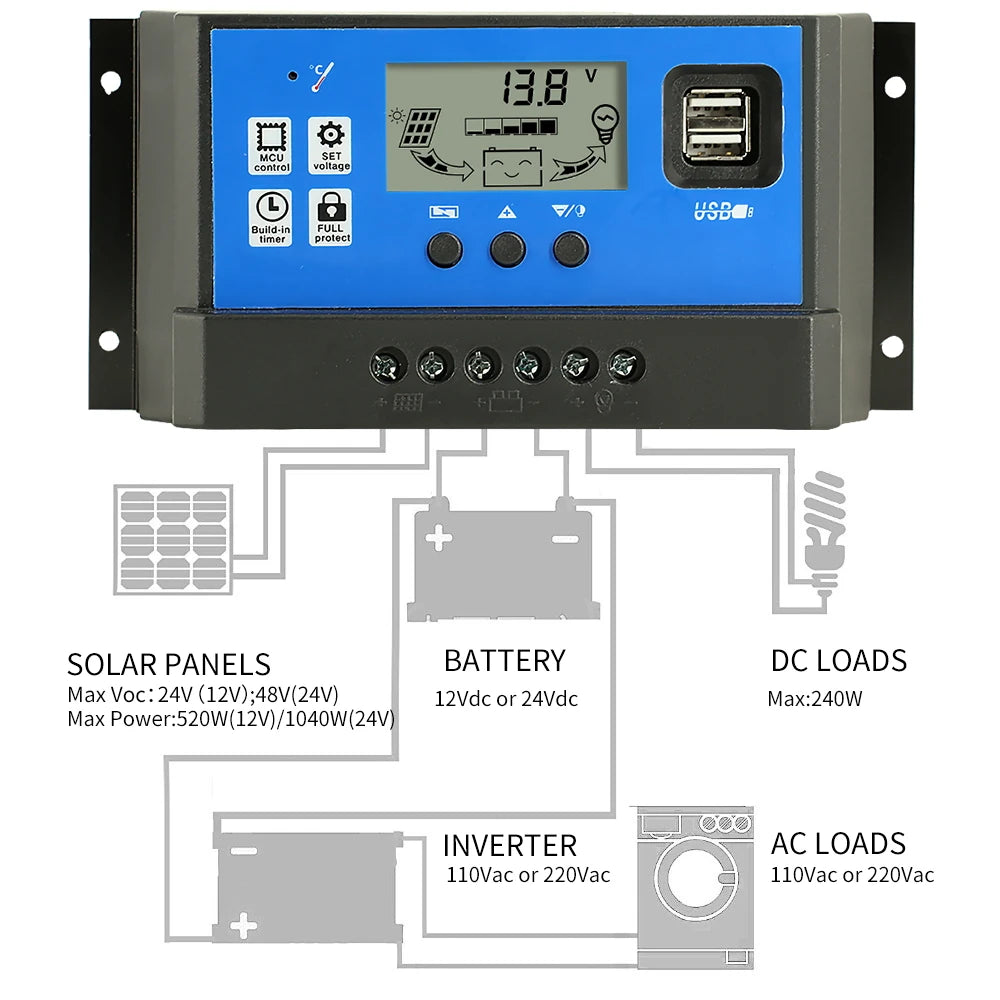

Solar charge/discharge controller for 12V or 24V systems, regulating power flow with LCD display and dual USB ports.Auto controller shows voltage, suitable for lead-acid batteries, with PV panel and DC load connectors.

Connection Diagram: This 12V/24V auto controller displays only voltage, not amps. Features include PV panel breaker, DC load connector, inverter fuse, and AC load. Suitable for lead-acid batteries (AGM-sealed, flooded, or GEL).

Industrial microcontroller with built-in features.PWM controller connects to 12V/24V systems, features LCD display, dual USB ports, and regulates charging/discharging.

Connect to 12V/24V systems with this PWM controller, featuring LCD display, dual USB ports, and auto charge/discharge regulation.

Controller for solar system with LCD display, USB ports, and adjustable settings for 12V or 24V systems.

Product description: Power your solar system with PowMr's PWM controller, suitable for 12V or 24V systems. This controller features auto LCD display, dual USB ports (5V), and adjustable charge/discharge settings (10A-60A). Perfect for monitoring and managing your solar power needs.

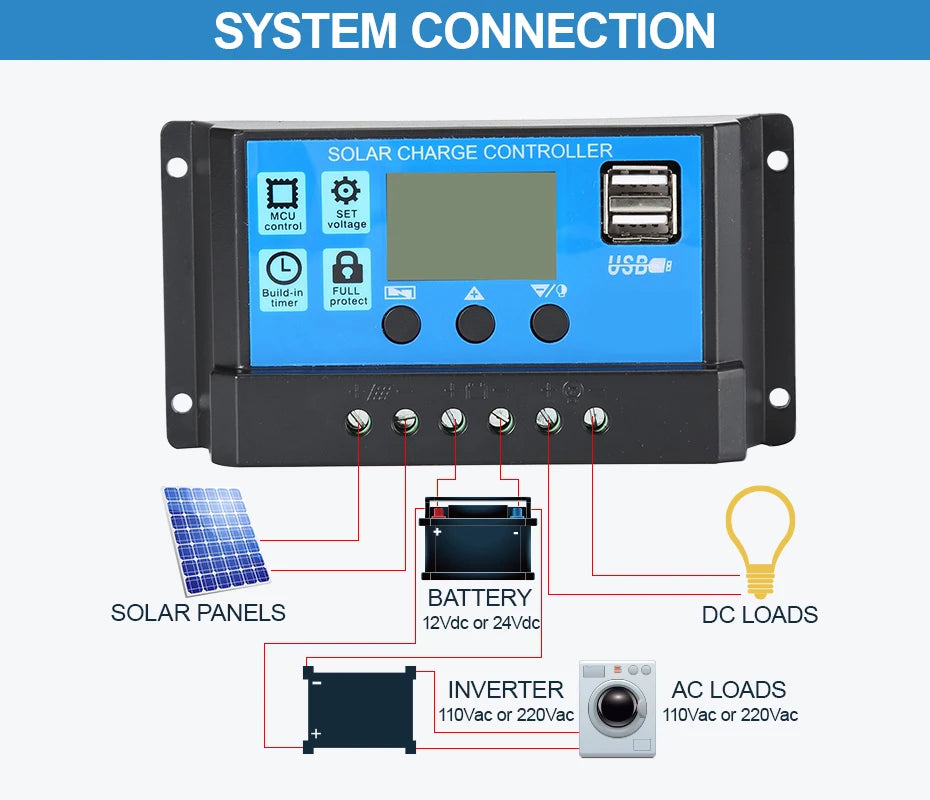

Solar charge controller with MCU-based system, connecting solar panels to batteries and loads.

PowMr PWM Solar Charge and Discharge Controller features MCU-based system connection for solar panels, 12Vdc/24Vdc batteries, DC loads, and inverter AC loads. It includes built-in full home protection, USB ports, and overload protection.

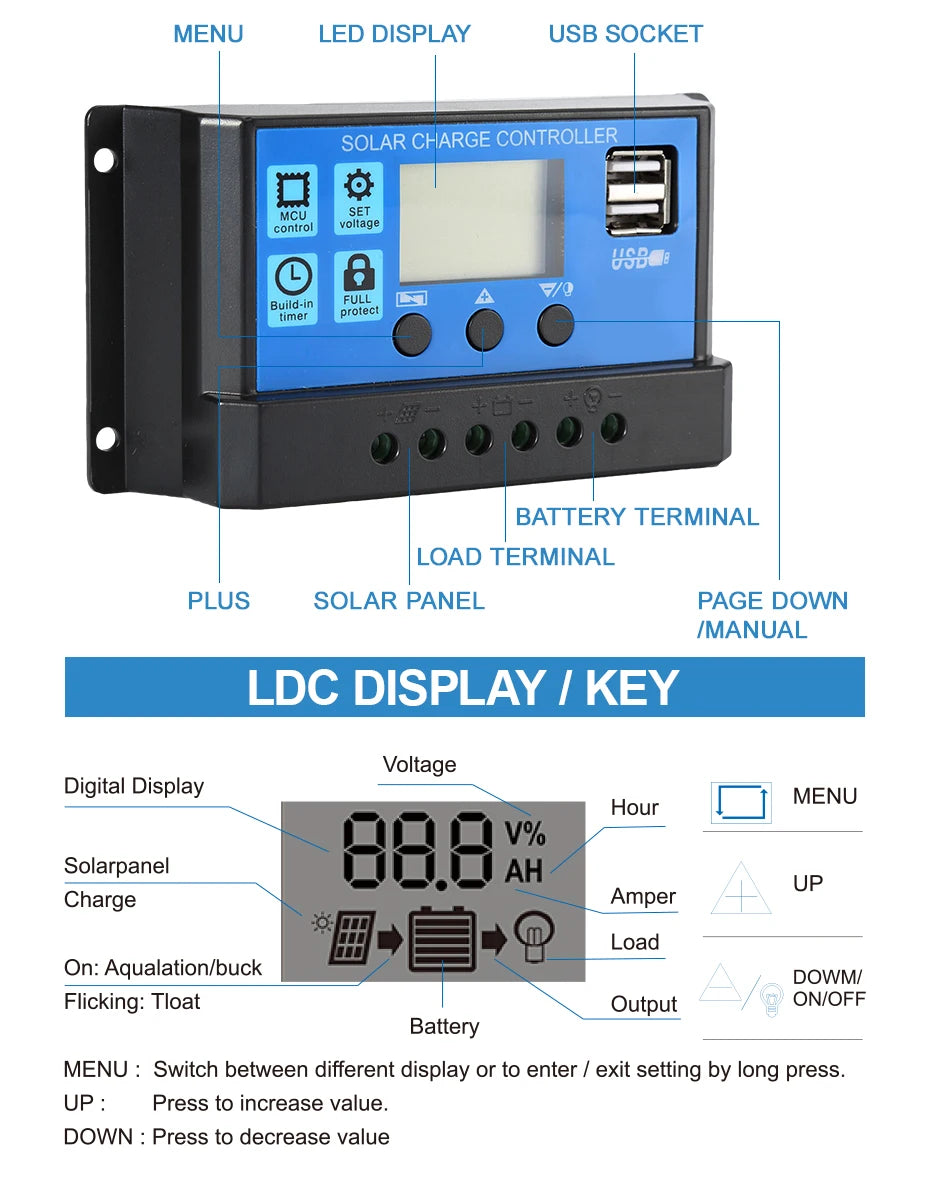

View menu using LED display with USB and solar charge controller features.

View menu using LED display, featuring USB socket, solar charge controller with 12V/24V auto LCD regulator and dual 5V USB ports. The MCU set includes voltage, full-build-in meln protection, battery terminal, load terminal, plus solar panel page down and up functions. Use UP/DOWN buttons to adjust values and navigate settings.

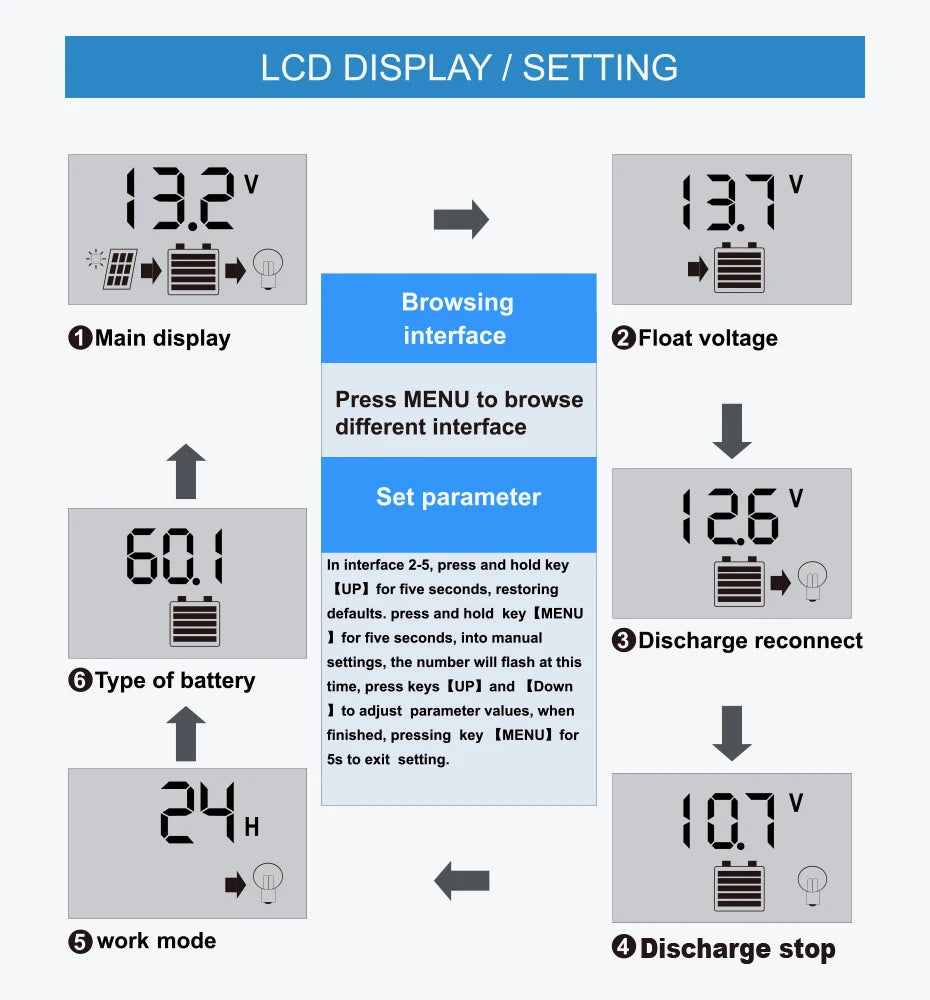

LCD Display Settings: Adjust display options and battery settings using menu buttons.

LCD Display Settings: Main display interface available. Float voltage settings: Press MENU to browse options. In interfaces 2-5, hold [UP] for 5 seconds to reset defaults or [MENU] for 5 seconds to enter manual discharge reconnect settings. Flashing numbers indicate battery type. Adjust parameter values using [UP] and [Down] keys. To exit setting mode, press [MENU] for 5 seconds. Operating Modes: 1. 12V/24V Auto 2. Discharge Stop
