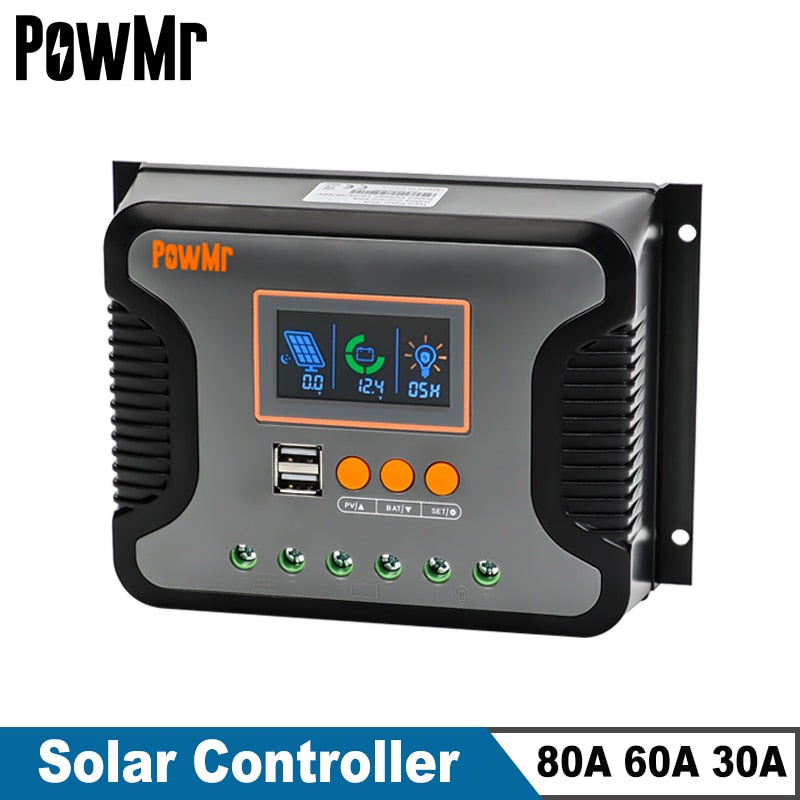

PowMr PWM 80A 60A 30A Solar Charge Controller 12V 24V 36V 48V Lead-Acid Lithium Battery Charger Max PV 100V Dual Control Mode

PowMr PWM 80A 60A 30A Solar Charge Controller 12V 24V 36V 48V Lead-Acid Lithium Battery Charger Max PV 100V Dual Control Mode

Regular price $52.39 USD
Regular price Sale price $52.39 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

USB Interface:: 5V/2A*2

Self-consumption:: ≤20mA

Rated Output Current:: 20A 35A 50A

Origin: Mainland China

Model Number: POW-PSTAR

Maximum Current: PWM 30A 60A 80A

Max Open Voltage of PV Module:: 100V

Certification: CE

Brand Name: PowMr

Application: Charger Controller

PowMr PWM 80A 60A 30A Solar Charge Controller 12V 24V 36V 48V Lead-Acid Lithium Battery Charger Max PV 100V Dual Control Mode


Features:


* Compatible with lithium-ion and lead-acid battery, support user-defined batteries.
* Automatic identification of 12V/24V/36V/48V system voltage.
* A variety of protection functions to ensure the normal operation of the device and extend the
battery life.
* Natural air cooling heat dissipation, to achieve totally silent operation
* The LCD screen enables real-time monitoring and parameter configuration.
* Small size, light weight, easy and quick installation.
* Built-in 2 USB ports with output of 5V and 2A.
* User friendly setup, fast and easy commissioning via front panel LCD.

Note: Do not charge Li-iron batteries if the battery temperature is below 0°C.


Model

Pstar-30A

Pstar-60A

Pstar-80A

PV Input

Max Open Voltage of PV Module

100V

PV Operation Voltage Range

>System voltage and ≤100V

Max. Input Power:
For 12V system
For 24V system
For 36V system
For 48V system

≤360W
≤720W
≤1080W
≤1440W

≤720W
≤1440W
≤2160W
≤2880W

≤960W
≤1920W
≤2880W
≤3840W

Charge Mode

Charging technology

PWM

Charge Algorithm

3-Stages

Self-consumption

≤20mA

Nominal System Voltage

12V/24V/36V/48V

Rated Charging Current

30A

60A

80A

DC output

Rated Output Current

20A

35A

50A

USB Interface

5V/2A*2

Environment

Operating Temperature Range

-20℃~+55℃

Humidity Range

≤90%,Non-condensing

General Specification

Protection Class

IP30

Dimension

187*94*49mm

187*132*60mm

187*132*60mm

Net weight

0.49kg

0.7kg

0.725kg

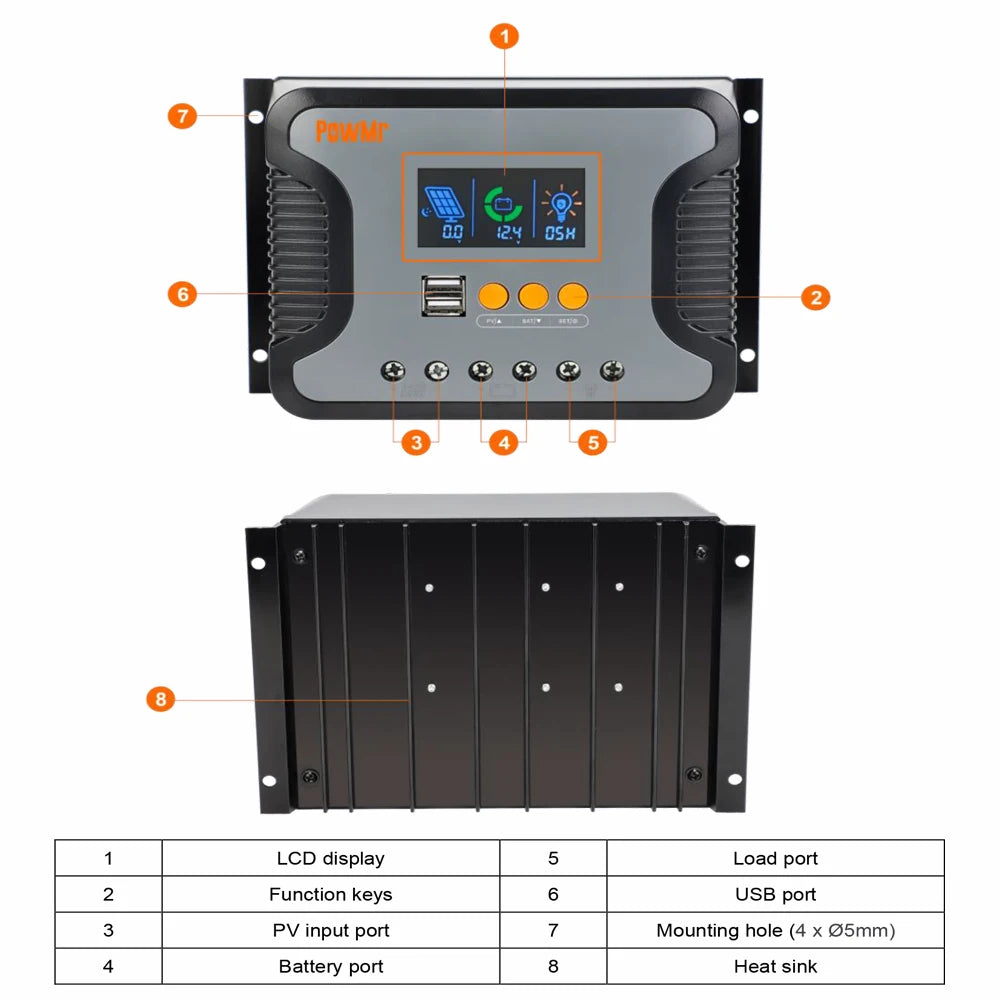

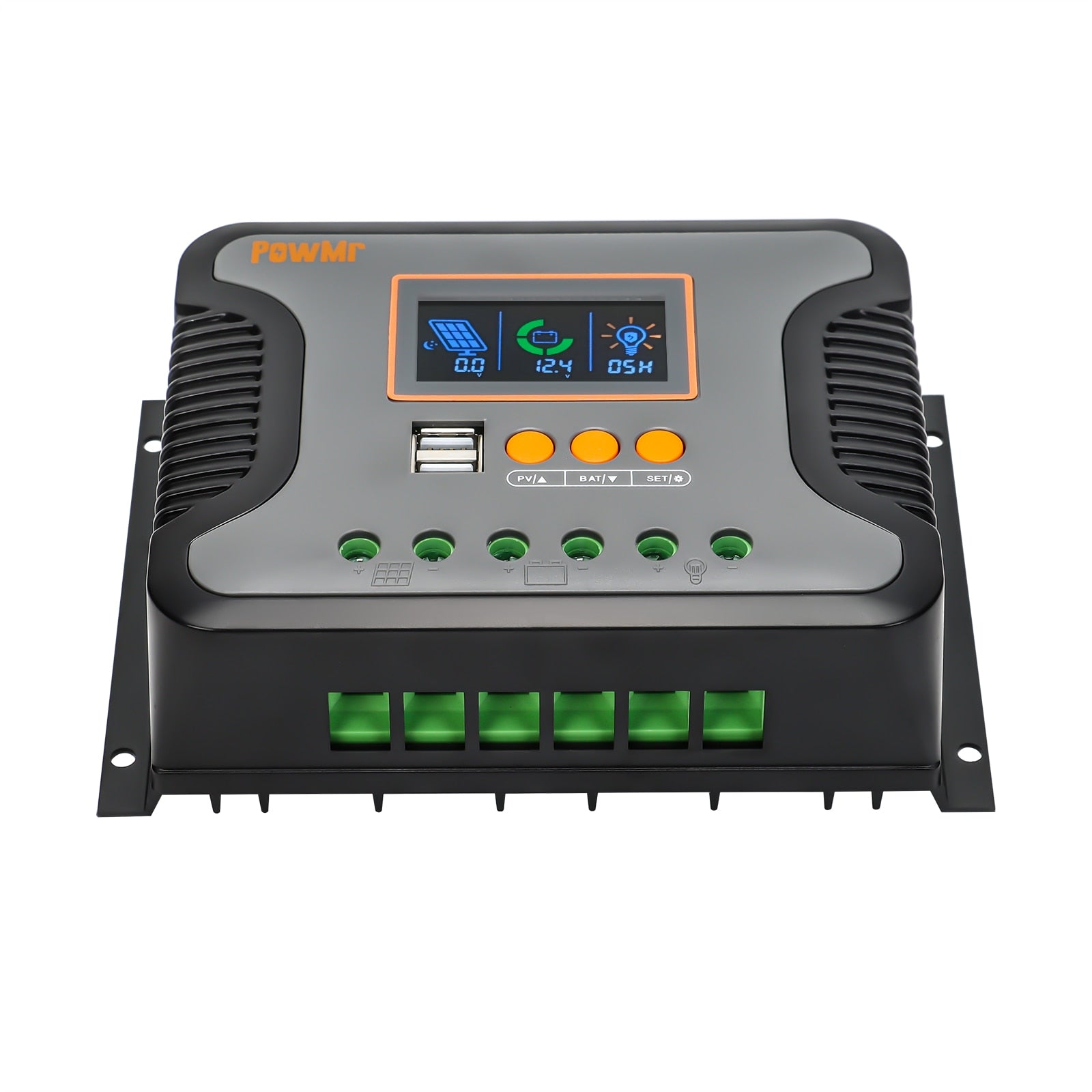

PowMr PWM 80A 60A 30A Solar Charge Controller, Control panel with LCD display, load port, function keys, USB port, PV input, and mounting holes.

Features include an LCD display, load port, function keys, USB port, PV input port, and mounting holes (4 x 5.6mm).

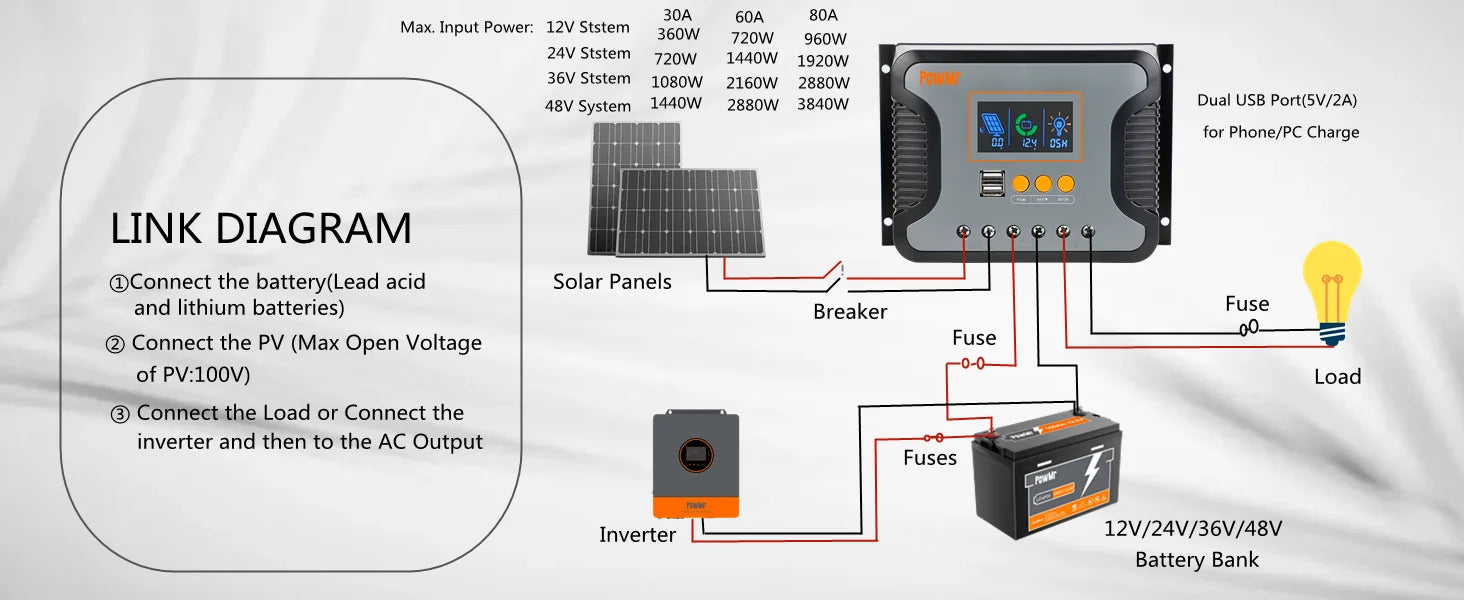

PowMr PWM 80A 60A 30A Solar Charge Controller, PowMr PWM Solar Charge Controller for lead-acid and lithium batteries, compatible with 12-48V systems.

PowMr PWM Solar Charge Controller: 30A, 60A, or 80A max input power. Compatible with 12V, 24V, 36V, and 48V lead-acid and lithium batteries. Features dual USB ports (2A each) for charging phones and PCs. Diagram shows connections: battery (lead acid/solar panels/lithium), PV, breaker/fuse, load/inverter, and AC output fuses. Max open voltage of PV: LOOV. Charge your 12V/24V/36V/48V battery bank with this controller.


UPGRADED SOLAR CHARGE CONTROLLER:

Auto detect 12V 24V 36V 48V system, Max PV input voltage 100 volts, Max. Input Power: 720W-2880W;Compatible with lithium-ion and lead-acid battery, support user-defined batteries, Built-in Dual USB output 5V/2.5A (max), charging for your mobile phone, tablet, PC.

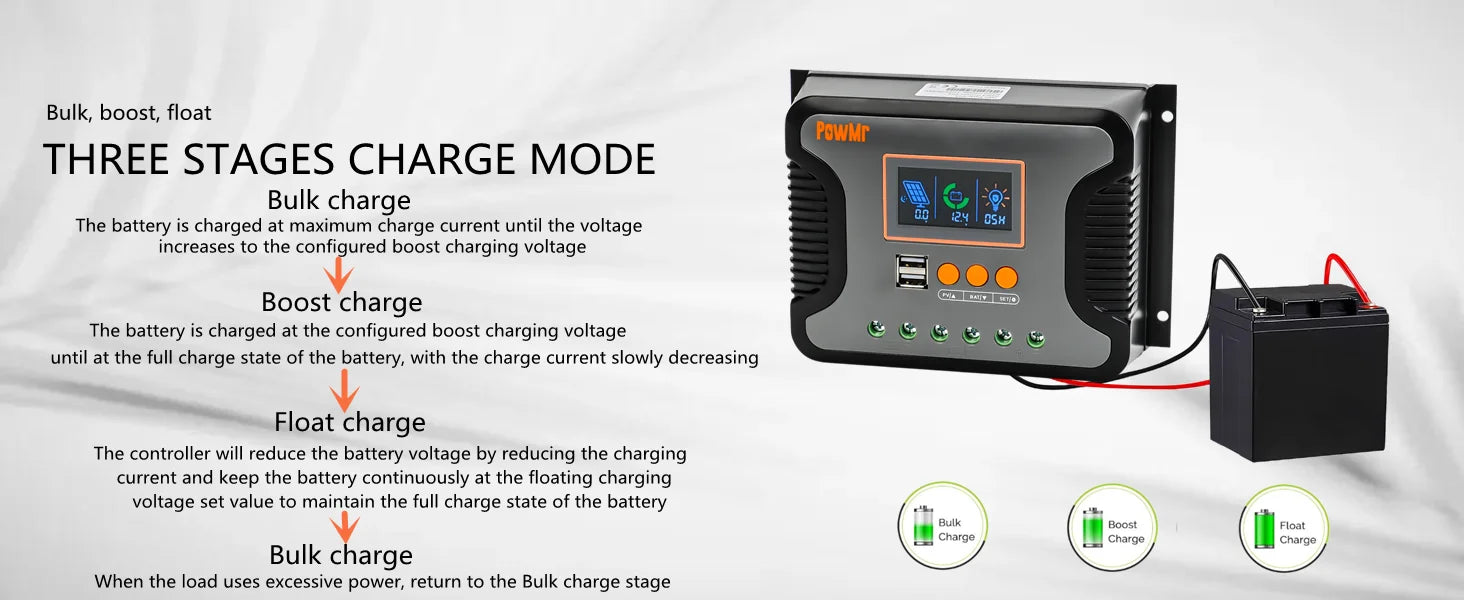

PowMr PWM 80A 60A 30A Solar Charge Controller, Three-stage solar charge controller for efficient and safe battery charging.

This solar charge controller features three stages: bulk charging, boost charging, and float charging. In the bulk stage, the battery is rapidly charged at maximum current until reaching the set voltage. The boost stage continues charging at the same voltage until full capacity is reached. The float stage maintains a constant voltage to keep the battery fully charged while reducing charge current.


3-STAGE PWM Technology:

The controller is equipped with advanced smart PWM technology with high charging efficiency, through three stages charge modes(Bulk, boost, float), fast, efficientand safe battery charge, effectively extend the battery life; combination of solar light control and time control, freely adjust the load enable duration.

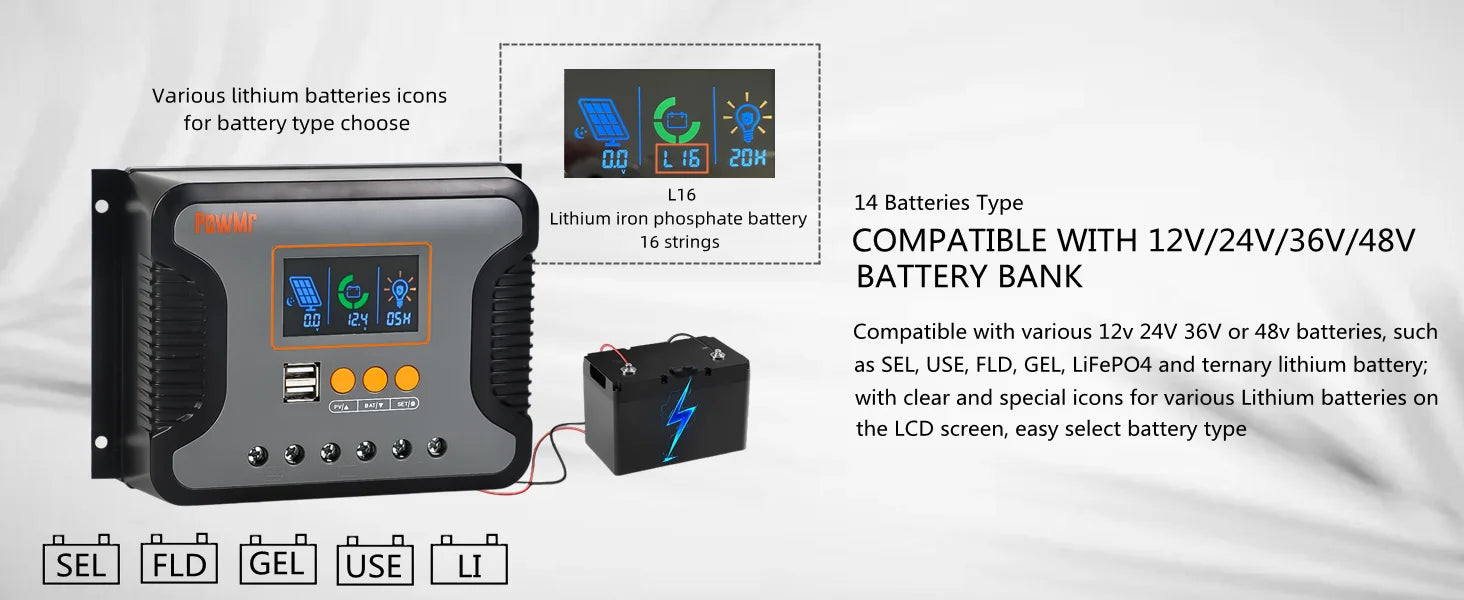

PowMr PWM 80A 60A 30A Solar Charge Controller, Multi-battery charger with clear LCD display for various lithium and lead-acid types.

This charger supports various lithium battery types, including 12V/24V/36V/48V Lead-Acid and Lithium Iron Phosphate (LiFePO4) batteries. A clear LCD screen displays icons for different battery types, such as SEL, FLD, GEL, USE, and LiFePO4, making it easy to select the correct type.


14 TYPE BATTERY COMPATIBILITY :

Compatible with various 12v 24V 36V or 48v batteries, such as SEL, USE, FLD, GEL, LiFePO4 and ternary lithium battery; with clear and special icons for various Lithium batteries on the LCD screen, easy select battery type; support user-defined batteries and calibrate battery voltage.

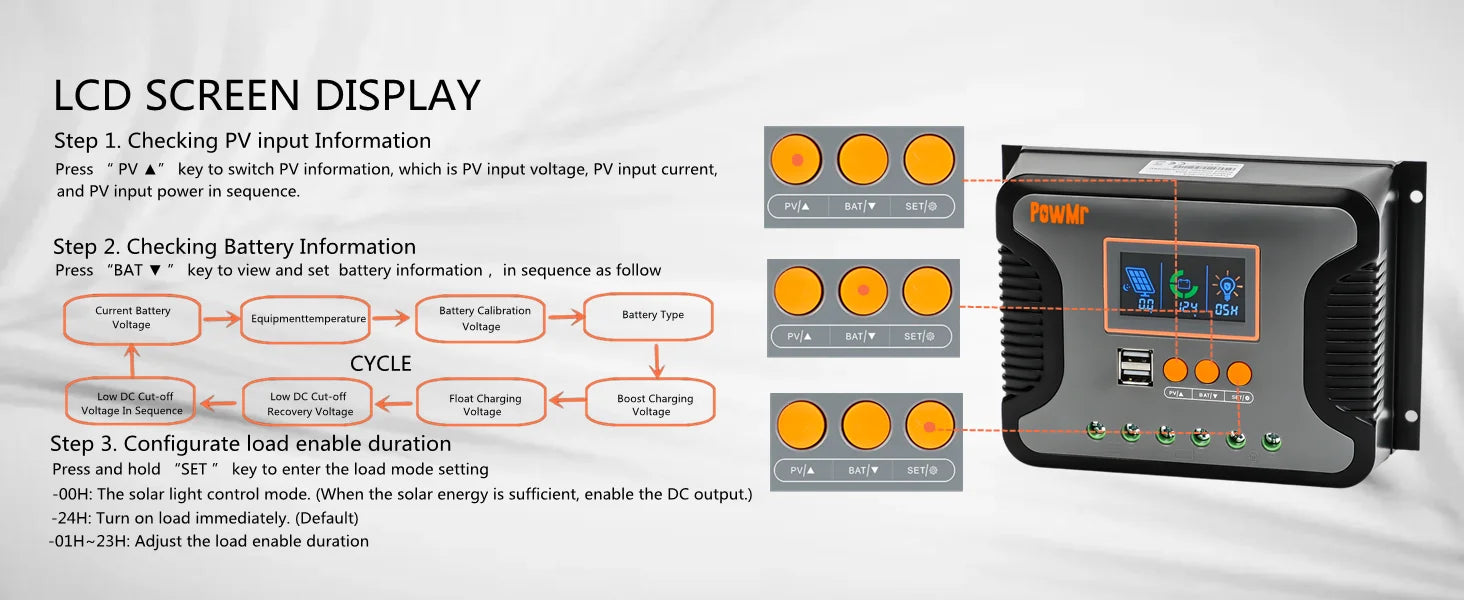

PowMr PWM 80A 60A 30A Solar Charge Controller, Solar charge controller for lead-acid and lithium batteries, 12V to 48V, with dual control mode.


EASY-READ BACKLIT DISPLAY:

Built-in Backlight LCD Screen, real-time monitor and control charging: charging current, generated energy, temperature, battery voltage, and error codes, fast and easy set and commiss parameter; No matter how users switch display screen, it will automatically return to default display screen after no button is pressed for 100 seconds.

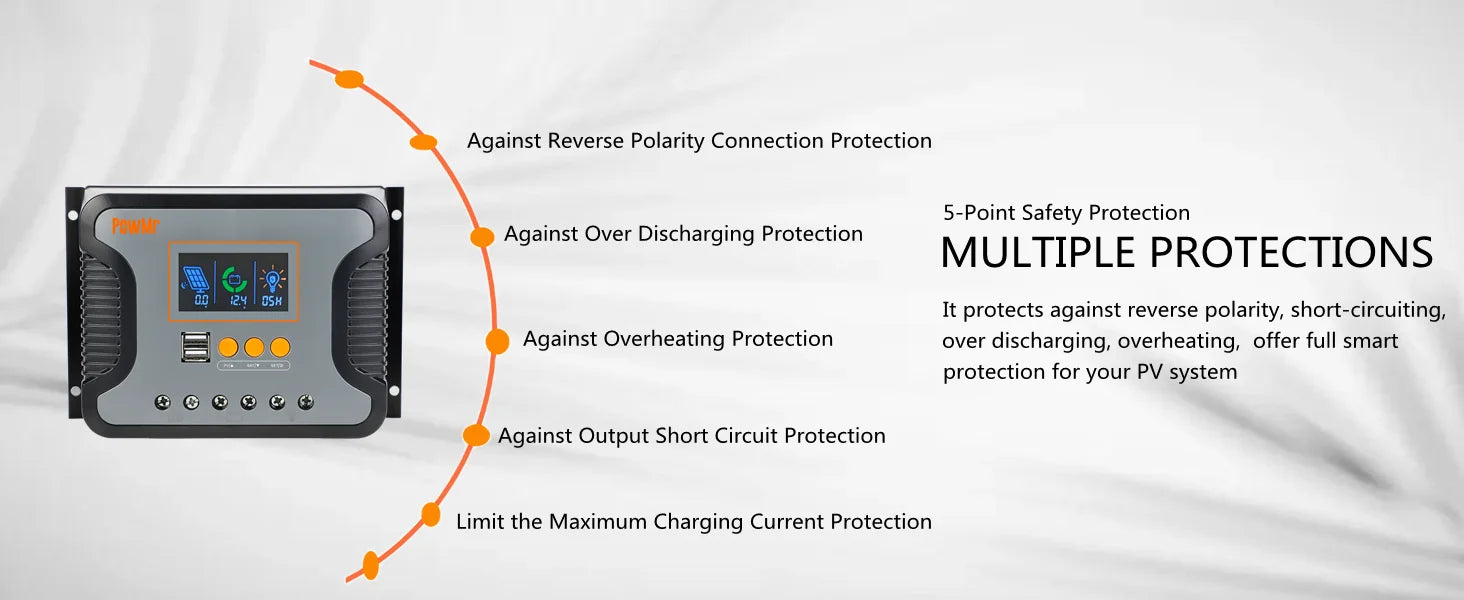

PowMr PWM 80A 60A 30A Solar Charge Controller, Multi-protection solar charge controller ensures safe charging with reverse polarity, short circuit, over-discharge, overheating, and output short protections.

This solar charge controller features multiple protections to ensure safe charging. It safeguards against reverse polarity, short circuits, over-discharge, overheating, and output shorts. Additionally, it limits the maximum charging current for full smart protection of your PV system.


MULTIPLE PROTECTIONS:

Equipped with against overheating, automatically stops charging, against output short circuit, against over discharging, against reverse polarity connection and Limit the maximum charging current protection, ensure safe to use; natural convection, cool air heat dissipation, complete silence.

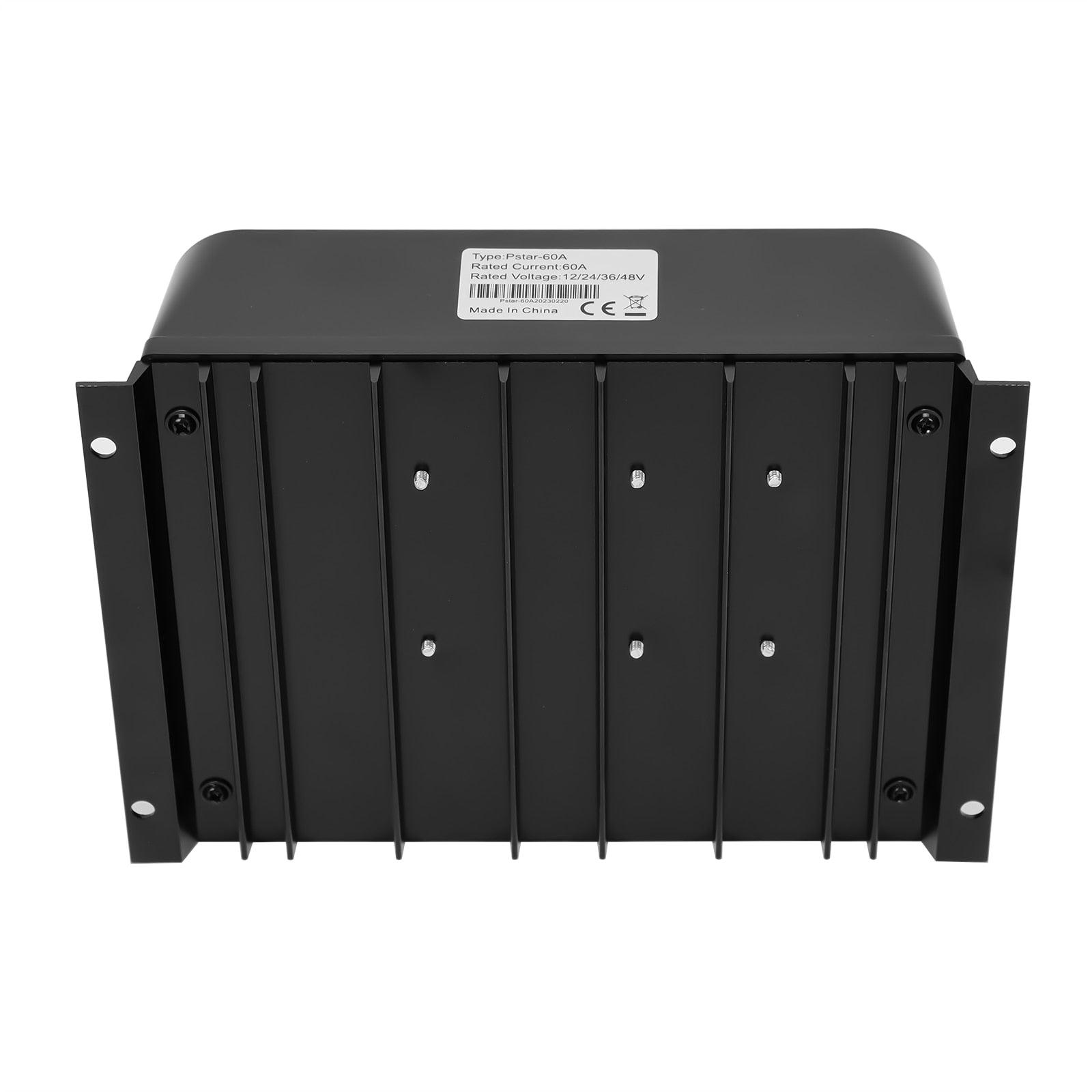

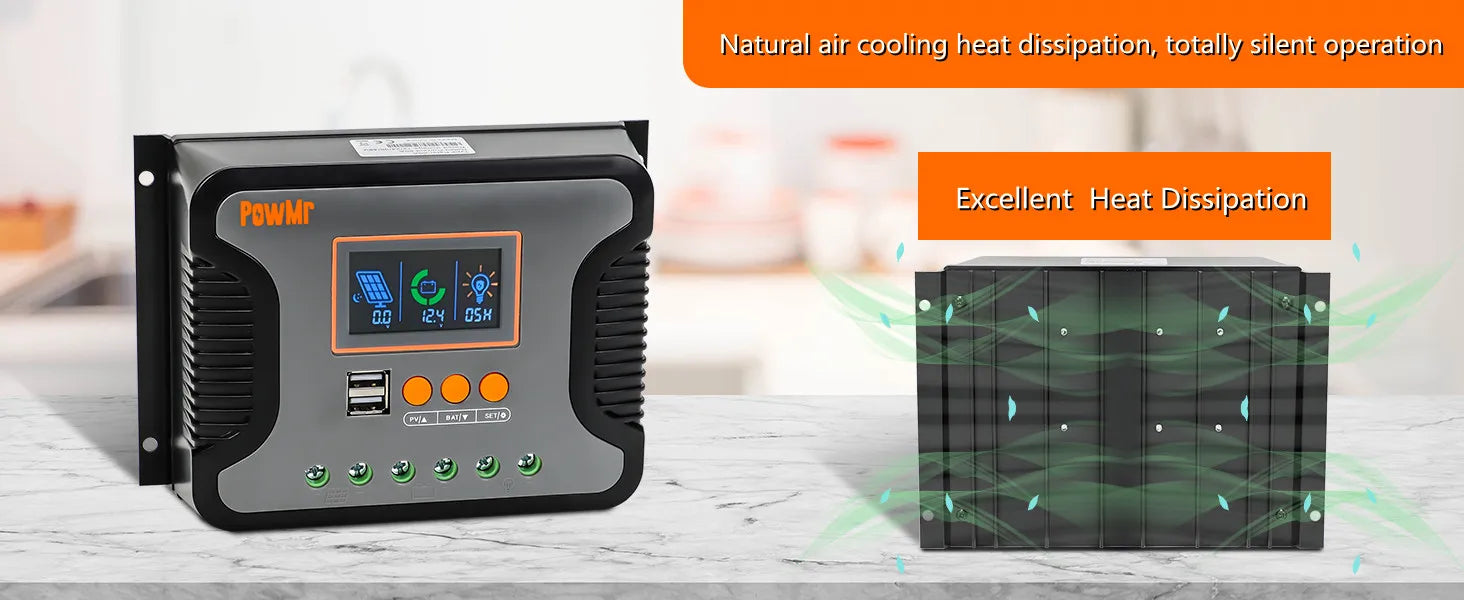

PowMr PWM 80A 60A 30A Solar Charge Controller, Natural air cooling for efficient heat dissipation and quiet operation.

Features natural air cooling for efficient heat dissipation and silent operation, ensuring reliable performance.

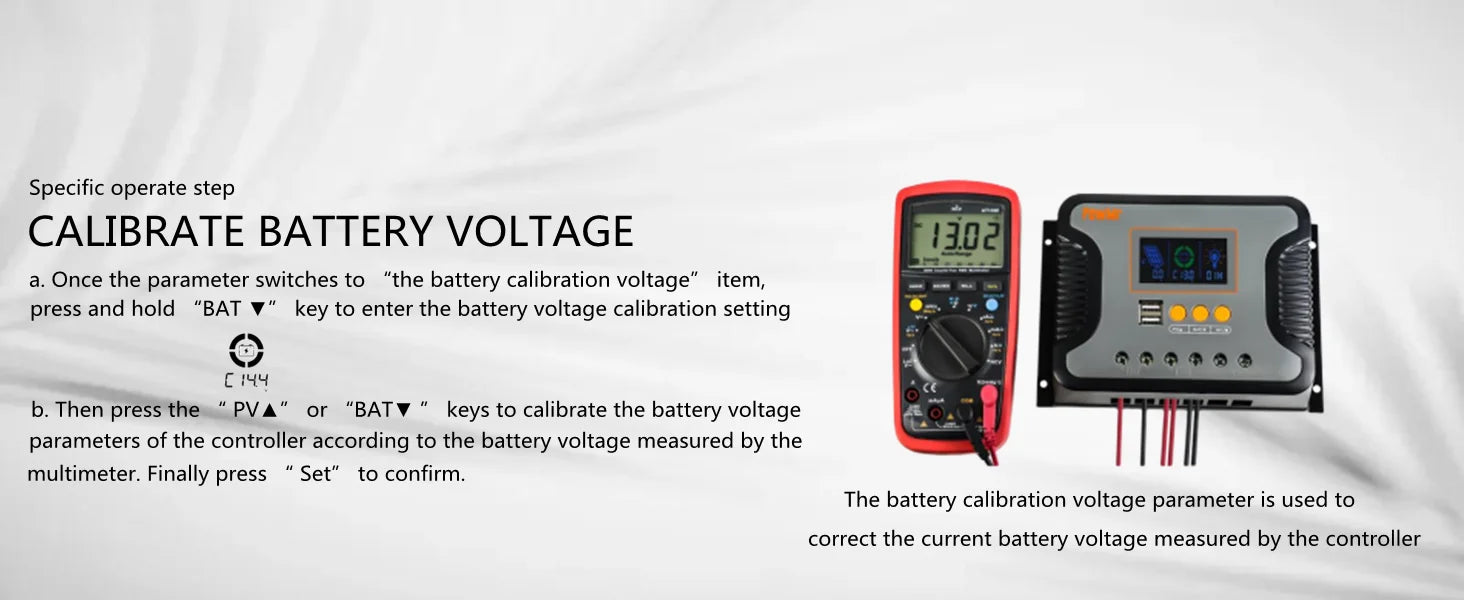

PowMr PWM 80A 60A 30A Solar Charge Controller, To calibrate the battery voltage, switch to the

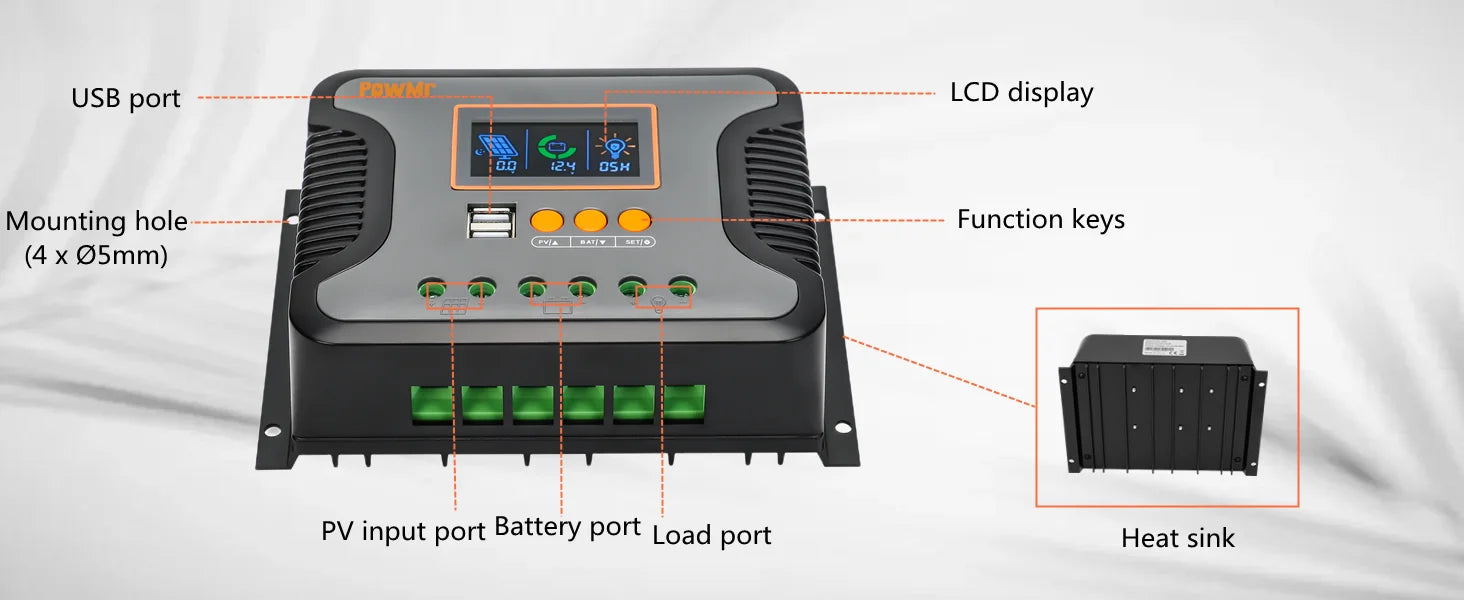

PowMr PWM 80A 60A 30A Solar Charge Controller, Built-in backlight LCD screen displays charging data, including current, energy, temp, voltage, and error codes.

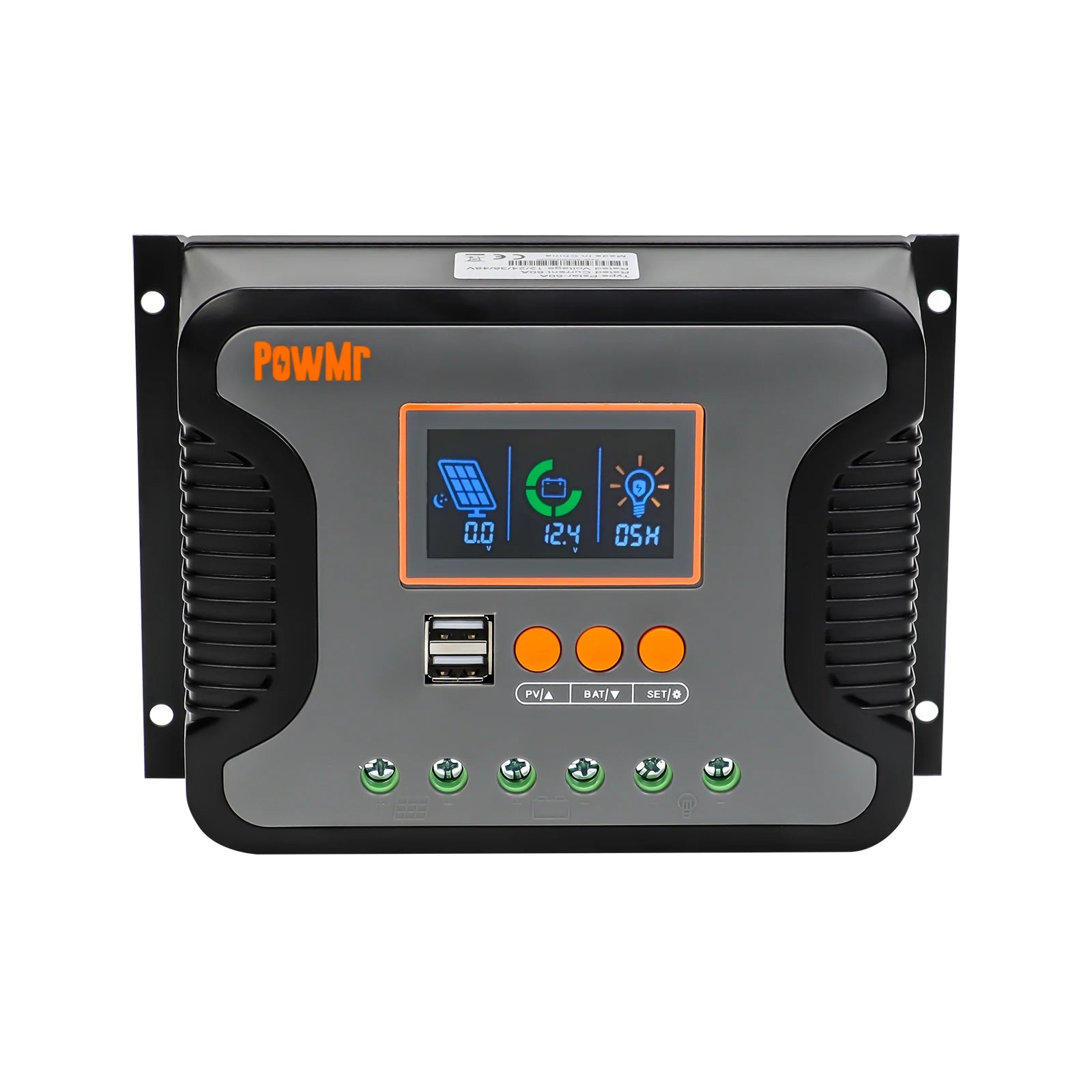

PowMr PWM 80A 60A 30A Solar Charge Controller, PowMr PWM Solar Charge Controller for 12V/24V/36V/48V Lead-Acid or Lithium Batteries, Max PV Input Voltage: 100V.

PowMr PWM 80A solar charge controller charges 12V/24V/36V/48V lead-acid or lithium batteries with max PV input voltage at 100V.

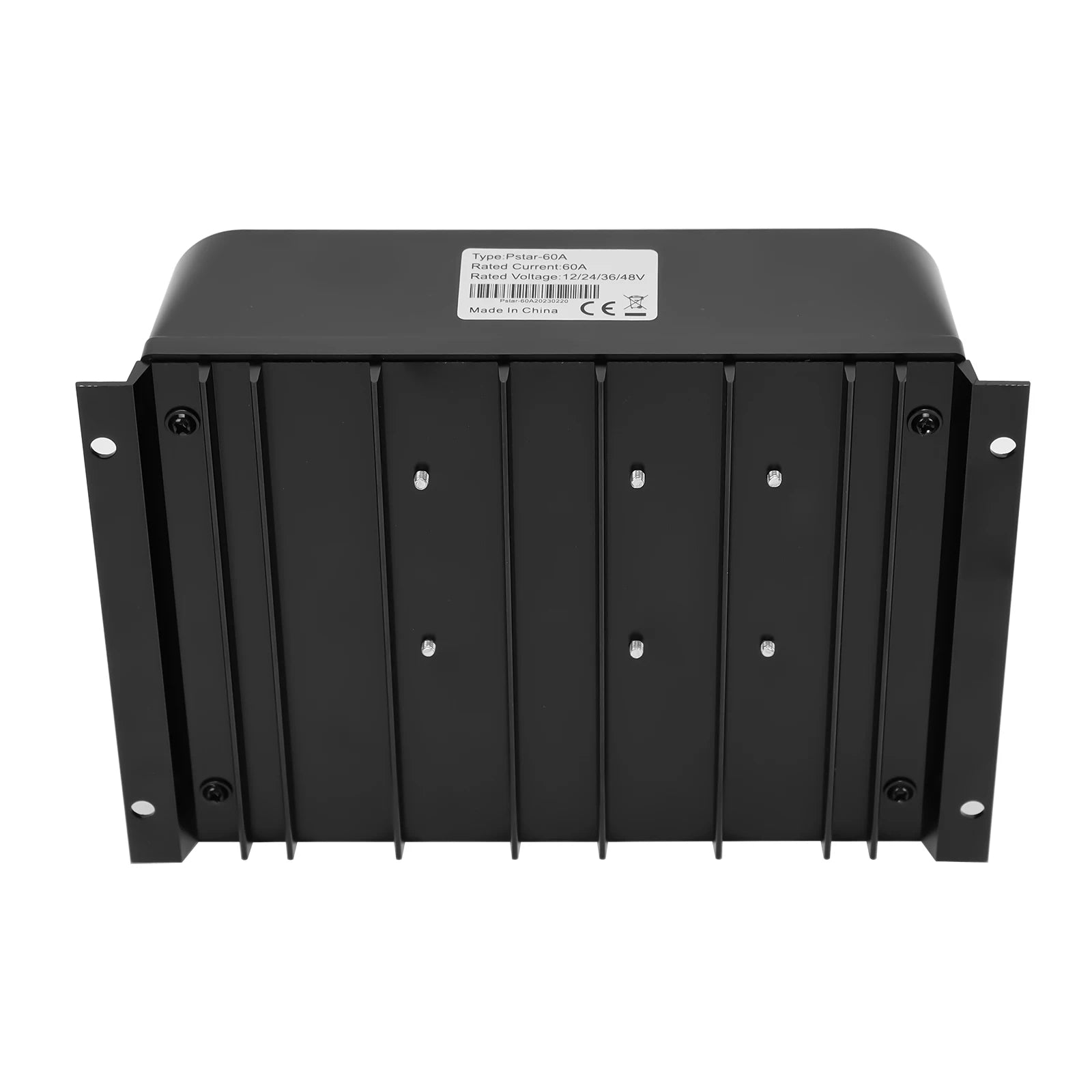

PowMr PWM 80A 60A 30A Solar Charge Controller, Charge controller for lead-acid or lithium batteries, dual mode control, max 100V PV input.

PowMr PWM 80A charge controller for 12/24/36/48V lead-acid or lithium batteries, made in China, with dual control mode and max PV input voltage of 100V.

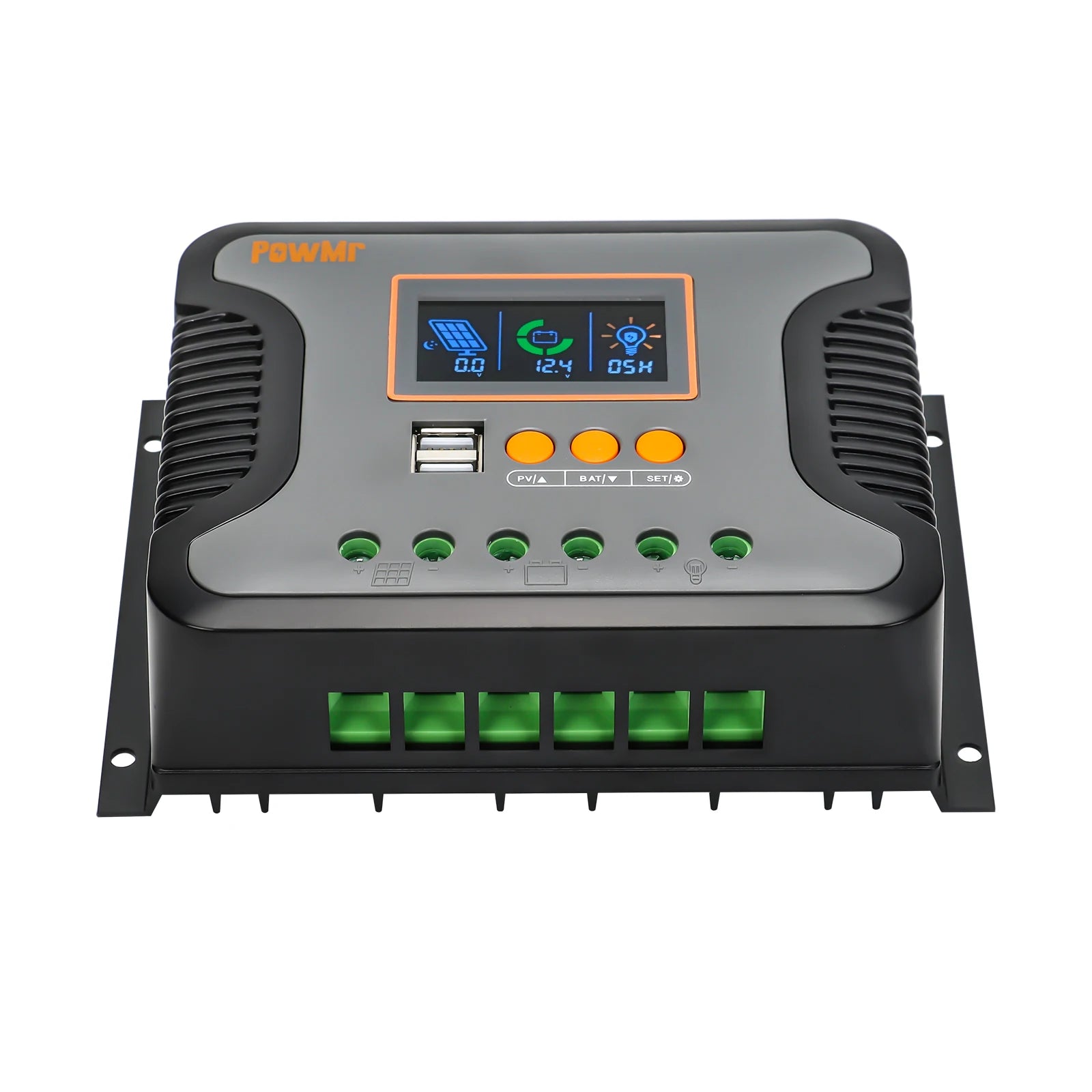

PowMr PWM 80A 60A 30A Solar Charge Controller, Charge Limitation: Temperature Below 0°CPowMr PWM 80A 60A 30A Solar Charge Controller, Automatically identifies and displays system voltage as 12V, 24V, 36V, or 48V.
