PowMr Solar Inverter Hybrid 24V MPPT 150A 80A Battery Converter Pure Sine Wave PV Panel Max Power 6KW 3KW

PowMr Solar Inverter Hybrid 24V MPPT 150A 80A Battery Converter Pure Sine Wave PV Panel Max Power 6KW 3KW

$369.14 USD
$369.14 USD
Sale Sold out
Shipping calculated at checkout.
Color
Input Voltage
Output Voltage|Ships From

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Output Type: single

Output Power: 1 - 200KW

Output Frequency: 50/60HZ

Output Current: MPPT 150A 80A

Origin: Mainland China

Is Smart Device: YES

Certification: CE,FCC,RoHS

Brand Name: PowMr

PowMr Solar Inverter, High-power solar inverter with charge controller and MPPT/PWM options for efficient energy harvesting.

3kW hybrid solar inverter with built-in 24V DC charge controller, MPPT and PWM options. Maximum charging current: up to 80A. Pure sine wave output. Available for immediate purchase from EU stock.

PowMr Solar Inverter, Hybrid solar inverter with 48V, 30A rating, 5500W power, and WiFi option for remote monitoring.

PowMr Hybrid Solar Inverter: A 48V, 30A device with built-in MPPT charge controller, rated power of 5500W, and max PV input of 450Vdc. WiFi connectivity optional.

PowMr Solar Inverter, Grid Tie Hybrid Solar Inverter with built-in charge controller and high-power conversion capabilities.

Grid Tie Hybrid Solar Inverter, built-in 160A/80A 48V MPPT charge controller, rated power 8.2kW, max PV input 600Vdc, two load output power options.


Note:

3.2KVA/3KW 24V Details pls check the link attached:

https://www.aliexpress.com/item/1005004631059136.html



INVERTER MODEL

3.2KVA/3KW 24V

4.5KVA/4.5KW 24V

Rated Output Power

3200VA/3000W

4500VA/4500W

Output Voltage Waveform

Pure Sine Wave

Output Voltage Regulation

230Vac±5%

Utility Charging Mode

INVERTER MODEL

3.2KVA/3KW 24V

4.5KVA/4.5KW 24V

Charging Algorithm

3-Step


AC Charging Current (Max)

60 Amp

80A

Bulk Charging Voltage



Flooded Battery

29.2

29.2

AGM / Gel Battery

28.2

28.2

Floating Charging Voltage

27.0Vdc

27Vdc

MPPT Solar Charging Mode

INVERTER MODEL

3.2KVA/3KW 24V

4.5KVA/4.5KW 24V

Max. PV Array Power

3000W

6000W

PV Array MPPT Voltage Range

90~430Vdc

120-450Vdc

Max. PV Array Open Circuit Voltage

450Vdc

450Vdc

Max Charging Current (AC charger+solar charger)

80Amp

150A

INVERTER MODEL

3.2KVA/3KW 24V

4.5KVA/4.5KW 24V

Safety Certification

CE

Operating Temperature Range

-10℃~50℃

Storage temperature

-15℃~ 60℃

Humidity

5% to 95% Relative Humidity (Non-condensing)

Input Voltage Waveform

Sinusoidal (utility or generator)

Nominal Input Voltage

230Vac

Low Loss Voltage

170Vac±7V (UPS)90Vac±7V (Appliances)

Low Loss Return Voltage

180Vac±7V (UPS);100Vac±7V (Appliances)

High Loss Voltage

280Vac±7V

High Loss Return Voltage

270Vac±7V

Max AC Input Voltage

300Vac

Nominal Input Frequency

50Hz/ 60Hz (Auto-detection)

Low Loss Frequency

40±1Hz

Low Loss Return Frequency

42±1Hz

High Loss Frequency

65±1Hz

High Loss Return Frequency

63±1Hz

Efficiency (Line Mode)

>95% ( Rated R load, battery full charged )

Transfer Time

10ms typical (UPS);20ms typical (Appliances)

INVERTER MODEL

3.2KVA/3KW 24V

4.5KVA/4.5KW 24V

Output Frequency

50Hz/ 60Hz (Auto-detection)

Peak Efficiency

94%

Overload Protection

5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad

Surge Capacity

2* rated power for 5 seconds

Nominal DC Input Voltage

24Vdc

Cold Start Voltage

23.0Vdc

High DC Recovery Voltage

32Vdc

29Vdc

High DC Cut-off Voltage

33Vdc

31Vdc

No Load Power Consumption

<35W

<35W


Features-4.5KVA/4.5KW 24V




1.120~500Vdc wide voltage range for PV access.

2.Built-in 150A MPPT (Max. PV) solar charger.
3.Built-in lithium battery automatic activation.
4.Unique Glass Top Cover design(6.25inch LCD Display).
5.Compatible with 24V lithium-iron and lead-acid battery.
6.Higher output power up to 4500W, output power factor of 1.0.
7.No derating when the AC input Voltage is greater than 170V.
8. Max. solar charging efficiency up to 98%.
9. Standby power consumption is only 2W.
10.Communication with RS232/RS485

11.WiFi monitoring function(optional)

12.Restore default Settings with one click

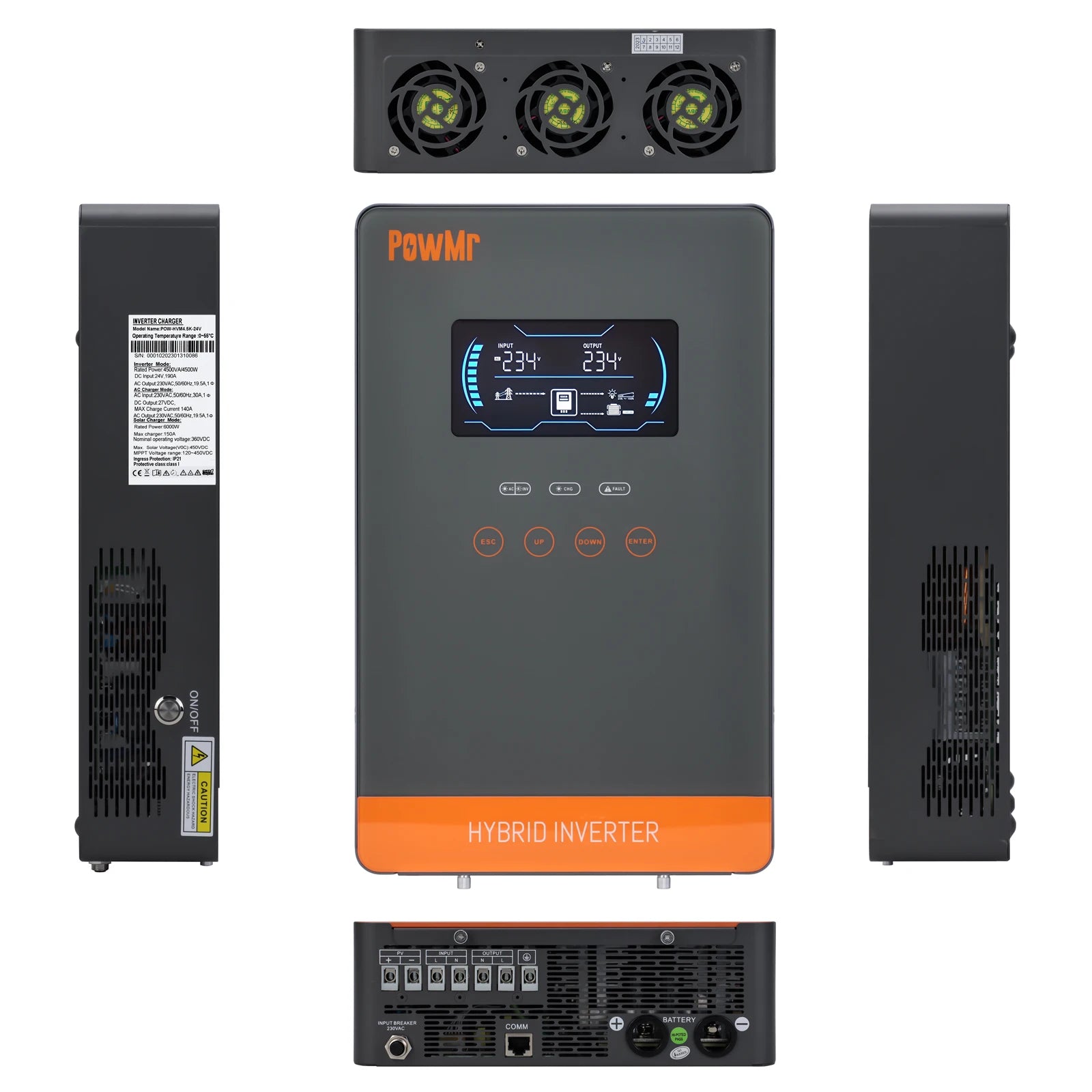

PowMr Solar Inverter, PowMr Solar Hybrid Inverter: Charges batteries from solar panels and converts DC to AC power.

PowMr Solar Hybrid Inverter: A pure sine wave 6kW/3kW device that charges batteries from solar panels (150A MPPT) and converts DC power to AC (24V). Features include hybrid inverter technology, battery management, and overcharge protection. Output voltage range is 120-240VAC.

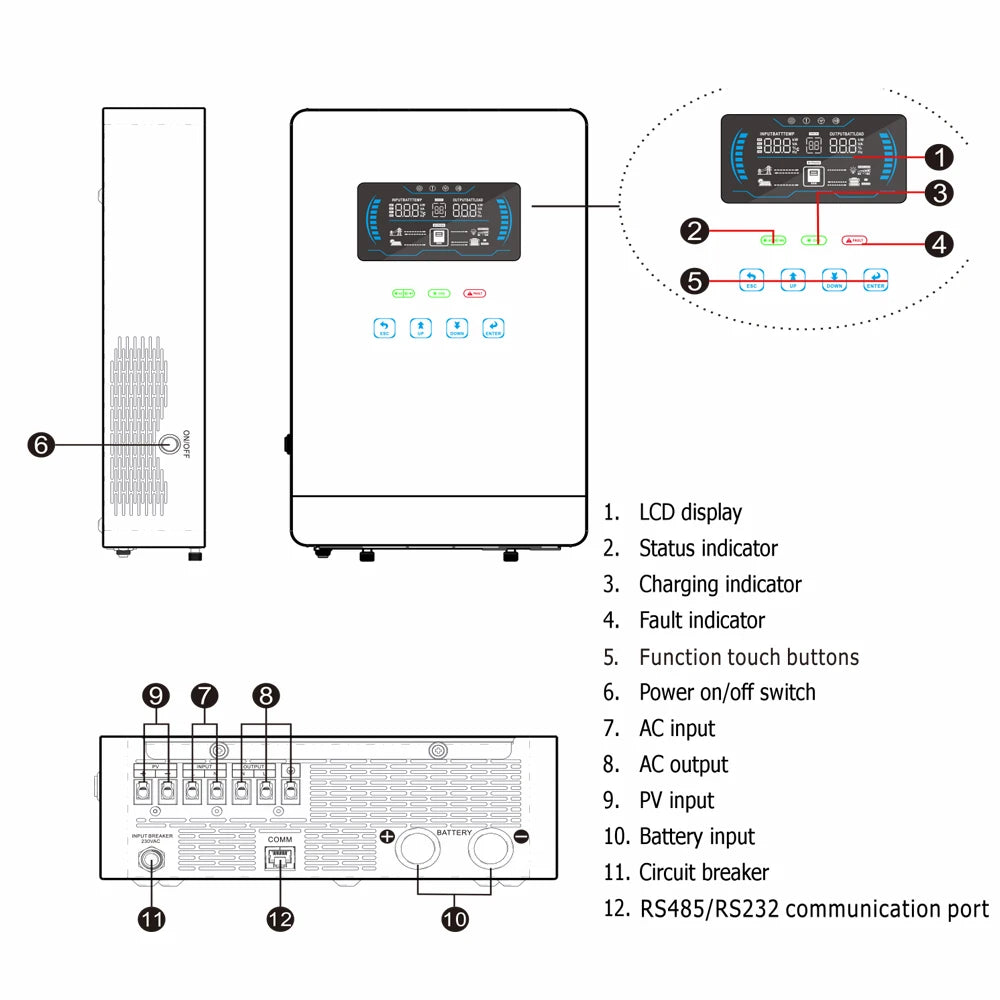

PowMr Solar Inverter, Panel mount display with status indicators, touch buttons, and various ports for connectivity.

Features: LCD display, 4 status indicators (charging, fault, etc.), touch buttons for function control, power switch, and ports for AC input/output, PV input, battery input, and RS-48S/RS232 communication.

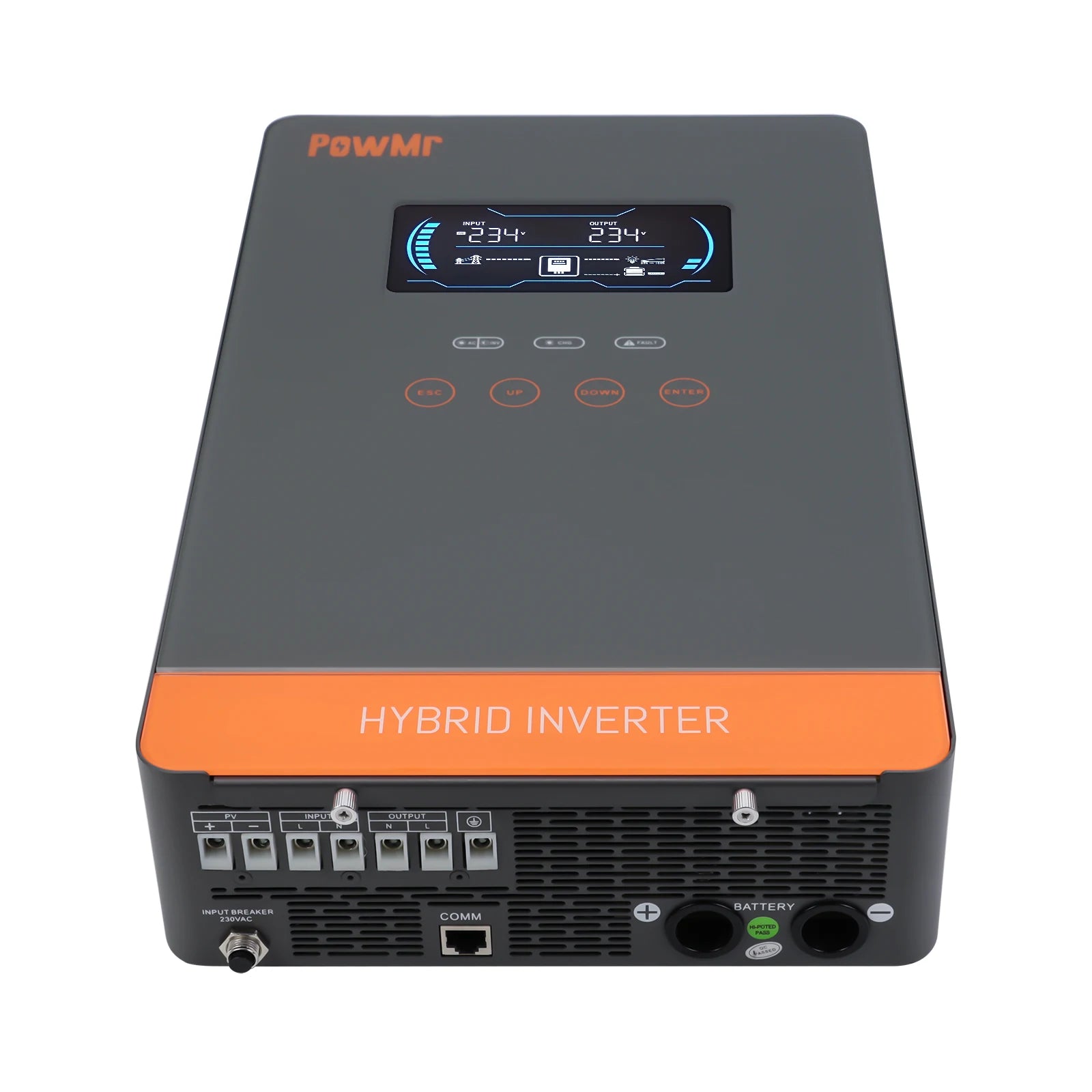

PowMr Solar Inverter, PowMr's solar hybrid inverter converts DC power to pure sine wave AC, suitable for grid-tied or off-grid use.

PowMr's Solar Hybrid Inverter converts DC power from PV panels into pure sine wave AC, with max output power of 6KW and battery charge/discharge capabilities. Ideal for grid-tied systems or off-grid applications.

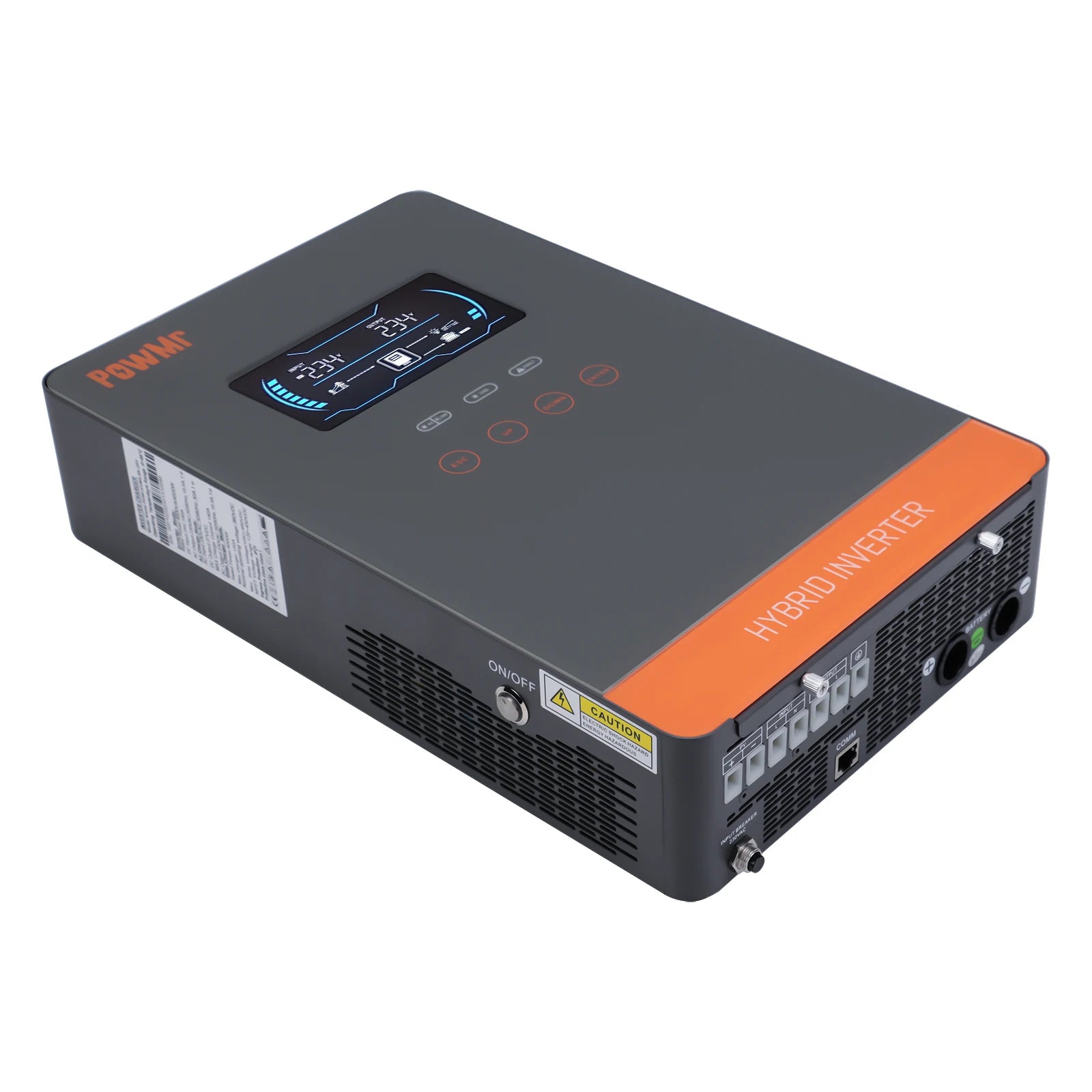

PowMr Solar Inverter, Converts solar power to usable energy, max 6kW output and 3kW battery charging.

PowMr Solar Inverter Hybrid converts solar power into usable energy, with a max output of 6kW and battery charging capacity of 3kW.

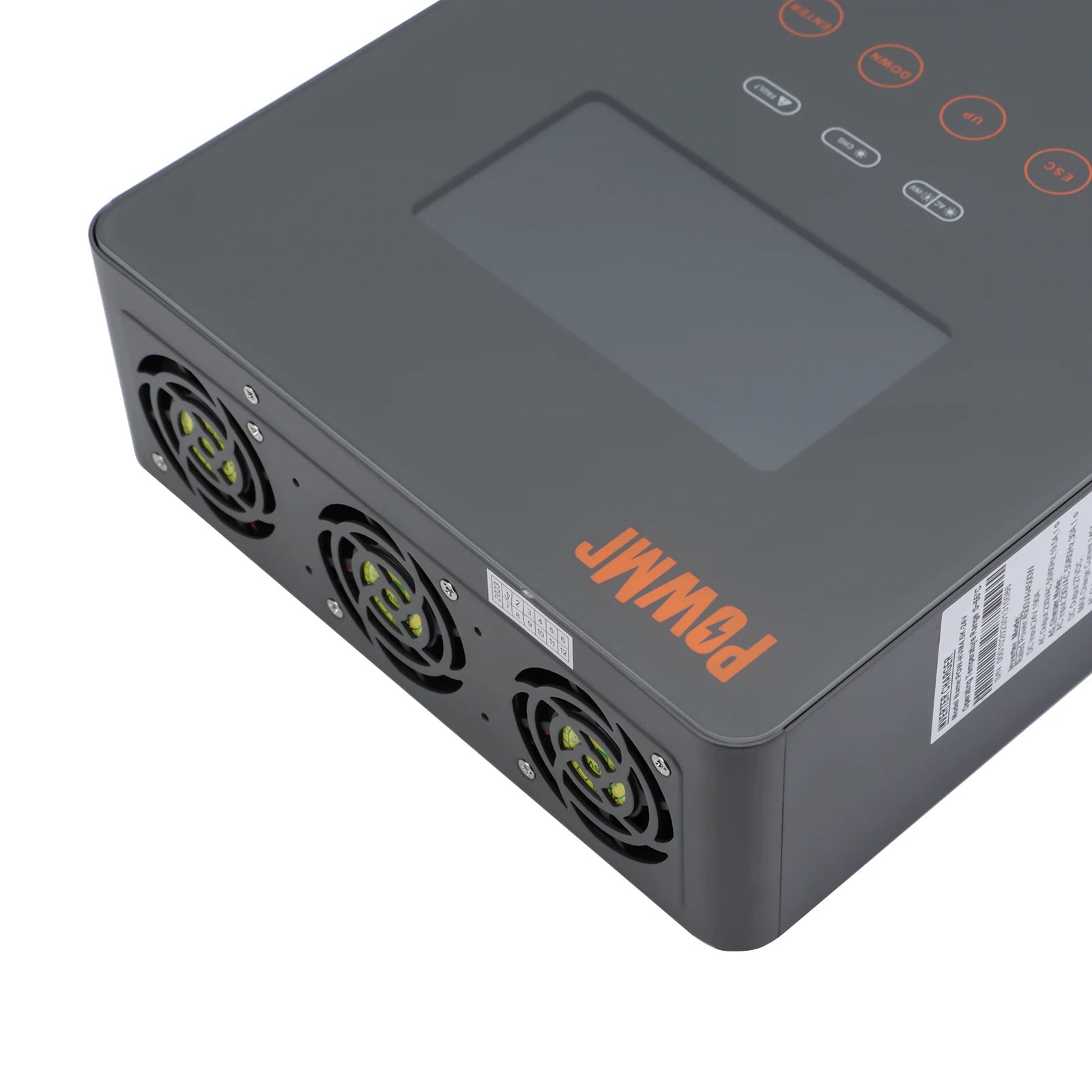

PowMr Solar Inverter, High-power electronic device with output power up to 4500W and unity power factor (1.0)
