PowMr Solar Inverter WIFI Module Wireless Device For OFF-GRID Inversors Android And IPhone App
PowMr Solar Inverter WIFI Module Wireless Device For OFF-GRID Inversors Android And IPhone App
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
ommunication Distance:: 100 meters
is_customized: Yes
Working Mode:: AP/STA
Weight: 0.30KG
Software WatchDog:: Yes
Size: 19.3*16*7.50cm
Output Type: single
Output Power: 1 - 200KW
Output Frequency: -
Output Current: -
Origin: Mainland China
Model Number: POW-WIFI
Maximum Transmit Rate:: 72Mbps
Maximum Transmit Power:: 18.5dbm (70mW)
MODEL:: WIFI Module
Local Communication Interface: RS232
Is Smart Device: YES
Hardware Encryption:: WEP, WPA/WPA2Operation
External Power Input:: 5V-12V
Certification: CE
Brand Name: PowMr
PowMr Solar Inverter WIFI Module Wireless Device For OFF-GRID inverters Android And IPhone App
Only Use For:
POW-MKS III-5K-48V-P
POW-KING II-5KW-48V
POW-VM3K2:Click
POW-VP3K2:Click
POW-MAX-7.2KW-48V-230V:Click
POW-VM3K-III:Click
POW-VM5K-III:Click
For WiFi Module
1.the module contains four strong magnetics backing and can be easily be placed on the side of the inverter.

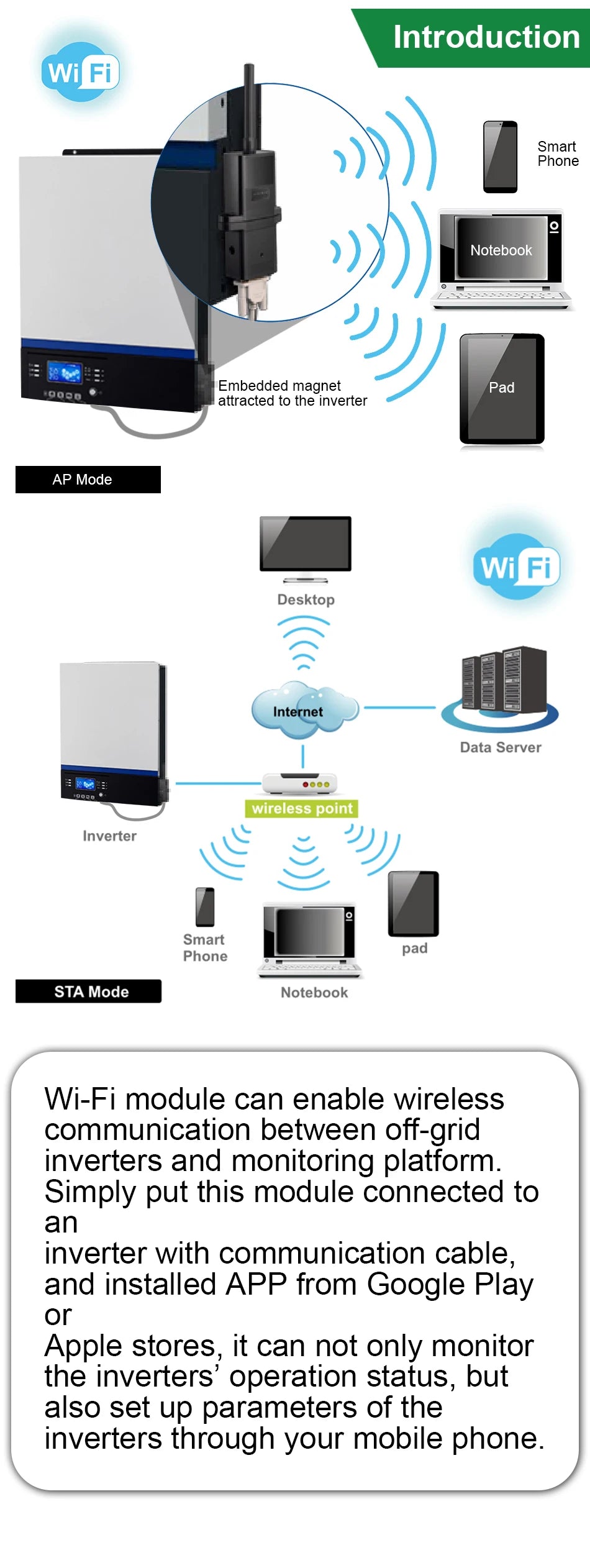

2.The Wi-Fi module can enable wireless communication between off-grid inverters and monitoring platform. Simply put this module connected to an inverter with communication cable, and installed APP from Google Play or Apple stores, it can not only monitor the inverters' operation status, but also set up parameters of the inverters through your mobile phone.
Remotely monitoring inverter(s) data through your smart phone at any time
Support Android and iPhone APP
Change and program setting from APP
MODEL |
Pow Wi-Fi Module |
Wifi Communication Protocol |
802.11 b/g/n |
Hardware Encryption |
WEP, WPA/WPA2 |
Wifi Operation Frequency |
2.4G |
Wifi Wireless Gain |
2.5dBi |
Wifi Communication Distance |
100 meters (open environment) |
Maximum Transmit Rate of Wifi |
72Mbps |
Maximum Transmit Power of Wifi |
18.5dbm (70mW) |
Software WatchDog |
Yes |
Local Communication Interface |
RS232 |
Network Layer Communication Protocol |
Modbus TCP |
Working Mode |
AP/STA |
Parameter Setting Way |
Mobile APP |
External Power Input |
5V-12V |
Power Consumption |
2 watt (max.) |
Operating Temperature |
-20°C ~ 75°C |
Operating Humidity |
0 ~ 95% |
Storage Temperature |
-30°C ~ 80°C |
Dimension, D x W x H (mm) |
28 x 46 x 172 |
Net Weight (g) |
290g |

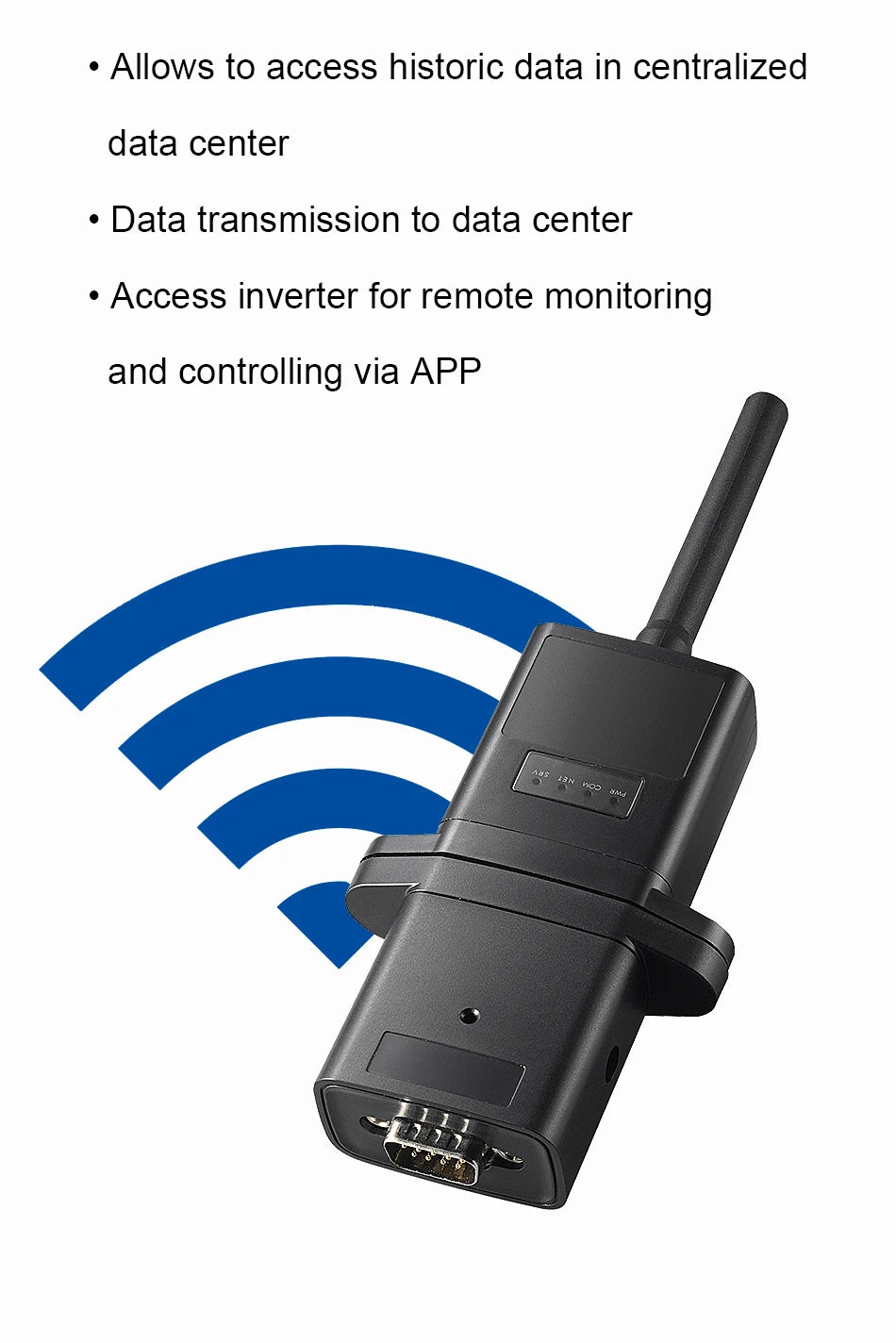

Monitor and control your off-grid solar inverter remotely through our APP, accessing historical data and transmitting updates to a central data center.
Introducing Wi-Fi Smart Inverter Module (9020) - a wireless device that enables remote monitoring and control of off-grid inverters. This module connects to an inverter via a communication cable, allowing you to monitor its operation status and adjust settings using your smartphone or tablet through our dedicated app available on Google Play Store or Apple App Store.

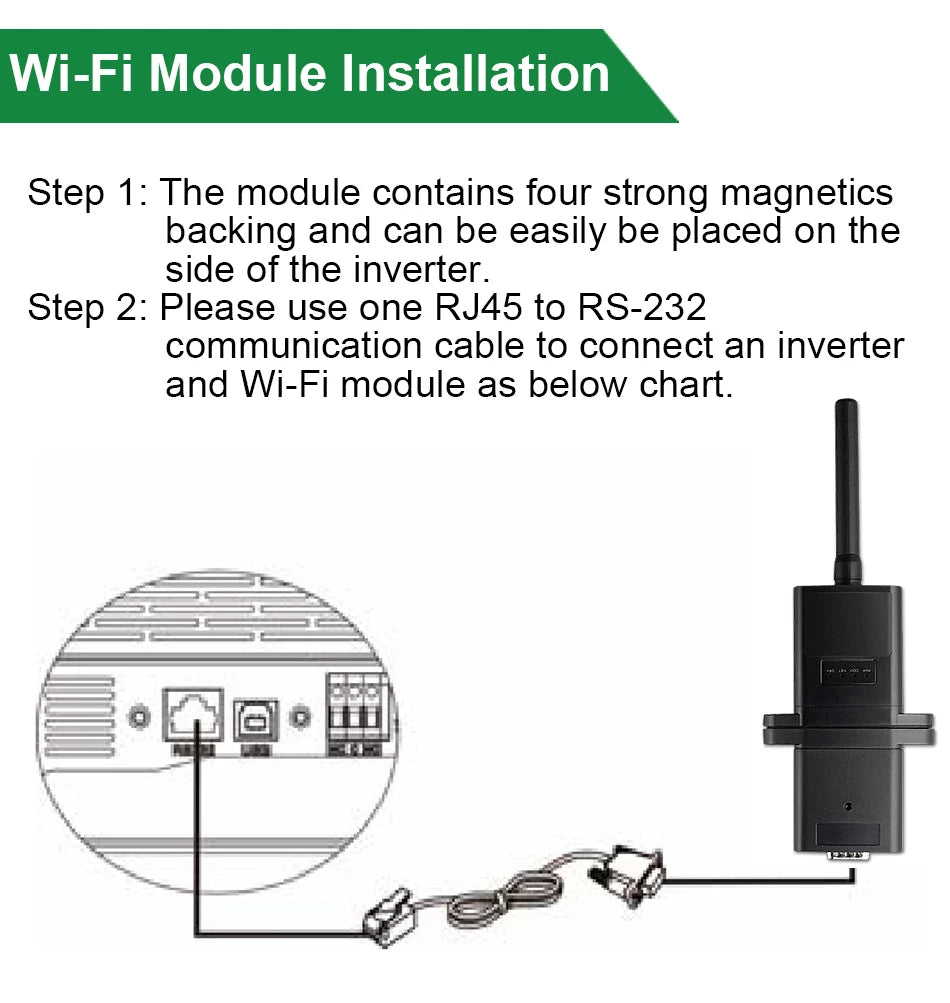

Easy Installation: The Wi-Fi module has four strong magnets, allowing it to be easily attached to the inverter's side. Next, simply connect the inverter to the module using an RJ45 to RS-232 cable, as illustrated in the chart below.

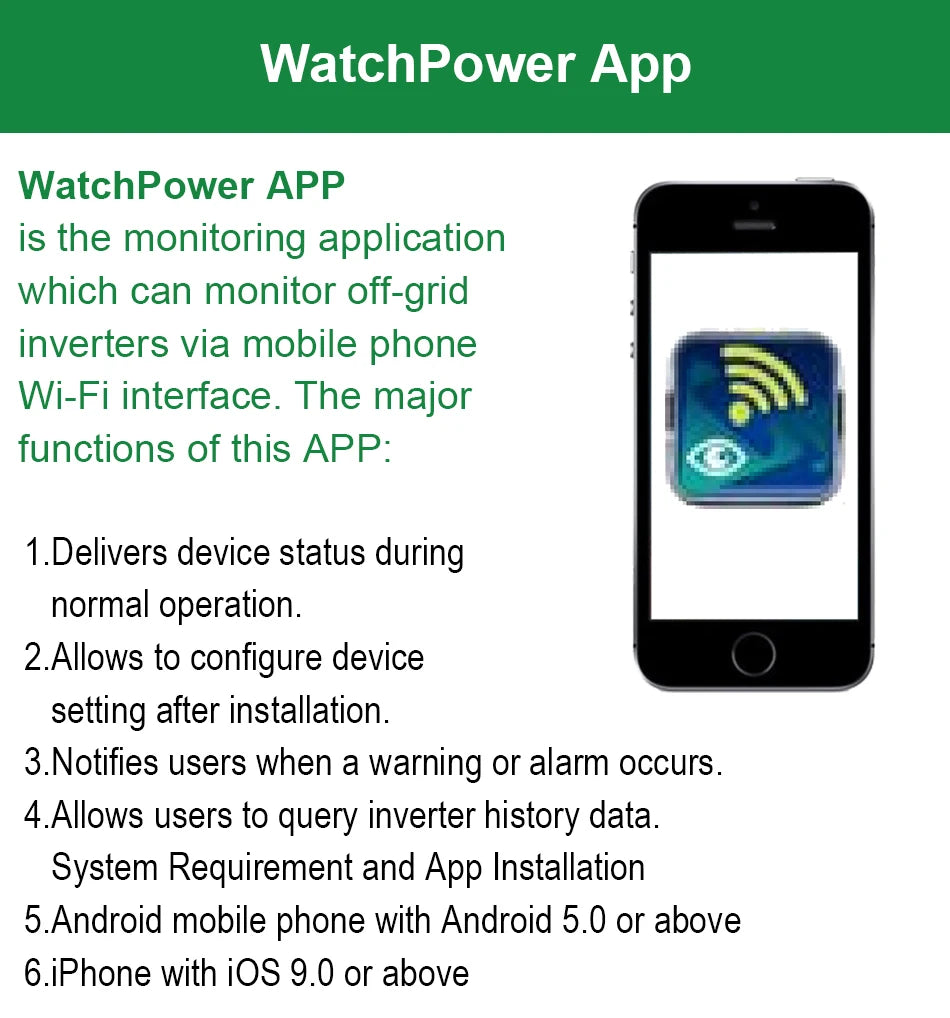

Monitor your off-grid inverters remotely using the WatchPower app, accessible via Wi-Fi on Android (5.0+) and iPhone (iOS 9.0+). The app provides real-time device status, lets you configure settings after installation, sends alerts for warnings or alarms, and allows data querying from the inverter's history.
Compact module for wireless connectivity to solar inverter systems; suitable for off-grid applications with Android and iPhone app control.
Shipping Information: This product ships from multiple locations including China (AliExpress Standard Shipping) on April 22, 2021, and Poland (CAINIAO Warehouse Express Shipping) on May 9, 2021. Estimated delivery dates are April 15, 2021, for China shipping and June 22, 2021, for Poland shipping.
EPEVER and PowMr/Y-Solar official store. This is our advanced workshop for professionals, featuring products like the 50964 IL storage room office solution. Order now with confidence.
CERTIFICATIONS: ECT, SGS, Canada, CE, ECCE, and RoHS. The product meets international safety standards, including certifications from ECT, SGS, and Canada.
