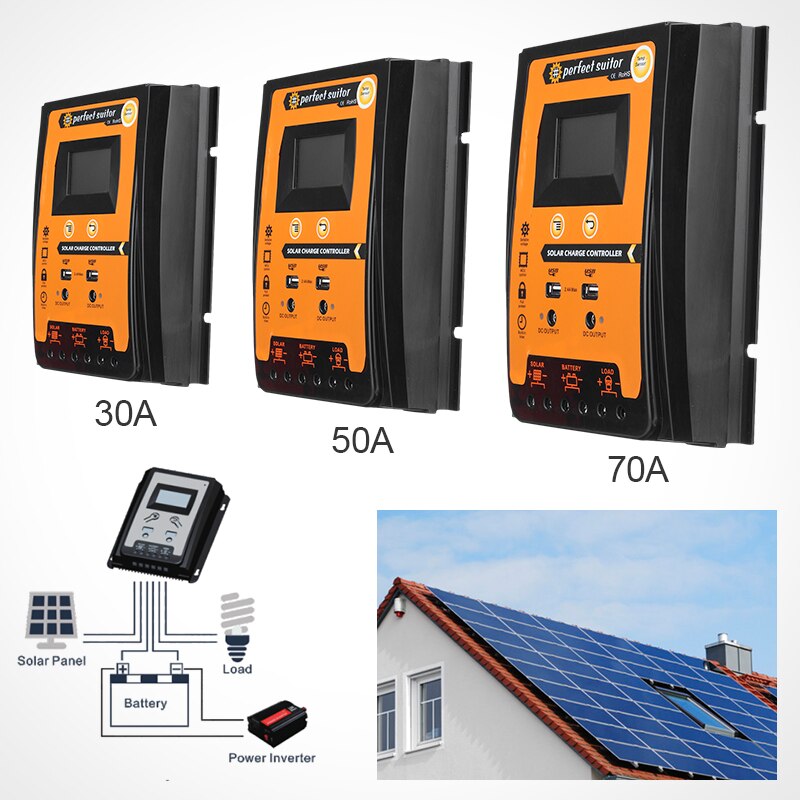

PowMr Solar Panel MPPT Solar Charge Controller 30A 50A 70A Solar Controller Solar Battery Solar Station Dual USB 5V LCD Display
PowMr Solar Panel MPPT Solar Charge Controller 30A 50A 70A Solar Controller Solar Battery Solar Station Dual USB 5V LCD Display
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Waterproof grade: IP32
USB output: 5V 2.1A
Size (mm): 285x237x95
Self-consume: ≤10mA
Product: 30A 50A 70A MPPT solar charge controller
Origin: Mainland China
Net weight(Kg): 0.5/1/1.5
Model Number: PVSC-30A 50A 70A
Maximum Current: 70A/50A/30A
Max. Input Voltage of sola panel: 55V
Item: MPPT Solar Charge Controller 30A 50A 70A
Is Smart Device: YES
For home: Easy to be mounted with Overcharge protection, Input PV polarity reverse protection, Output limited current protection
Float Voltage: 13.8V
Dispaly: Backlight LCD Controller
DC output: 2V / 24V

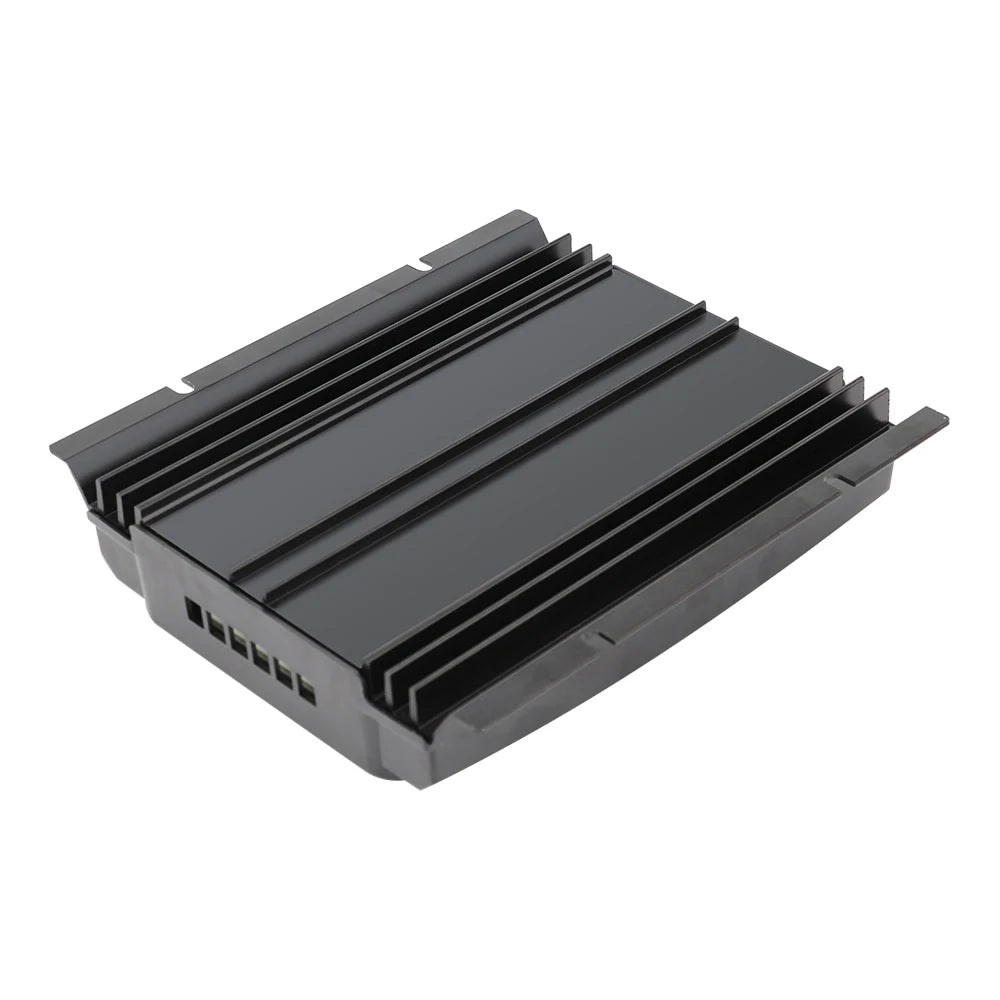

Cooling way: Forced air cooling
Charging current: 30A/50A/70A
Certification: CE
Brand Name: PowMr
Battery Ovev Voltage Protection: 16.5V
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
PowMr Solar Panel MPPT Solar Charge Controller 30A 50A 70A Solar Controller Solar Battery Solar Station Dual USB 5V LCD Display
Features:
1.Automatic identification system voltage, 12/24V auto recognition;
2.Humanized LCD displaying and double button operation of man-machine interface;
3.Completed technical data for setup and modify;
4.High efficiency intelligent MPPT 3-stage charging mode;
5.The load control mode can be selected;
6.the timer function can be reset for street light at night;
7.Discharge capacity control;
8.Discharge counter of ampere hour;
9.Working storage function: record the total run time of system, record timers of error during running time, record times of full charged battery.
Battery protection:
Reliable over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection.

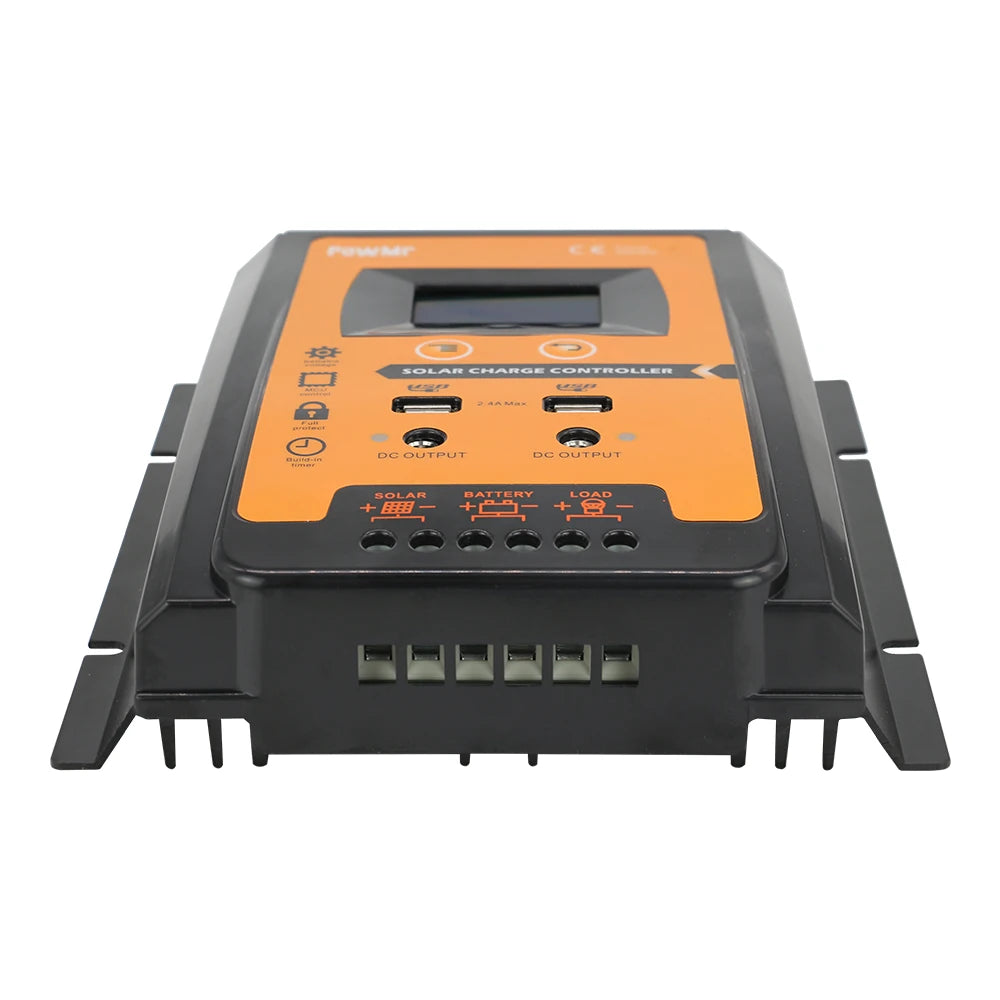

Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime.
Roundly reverse connected protection;

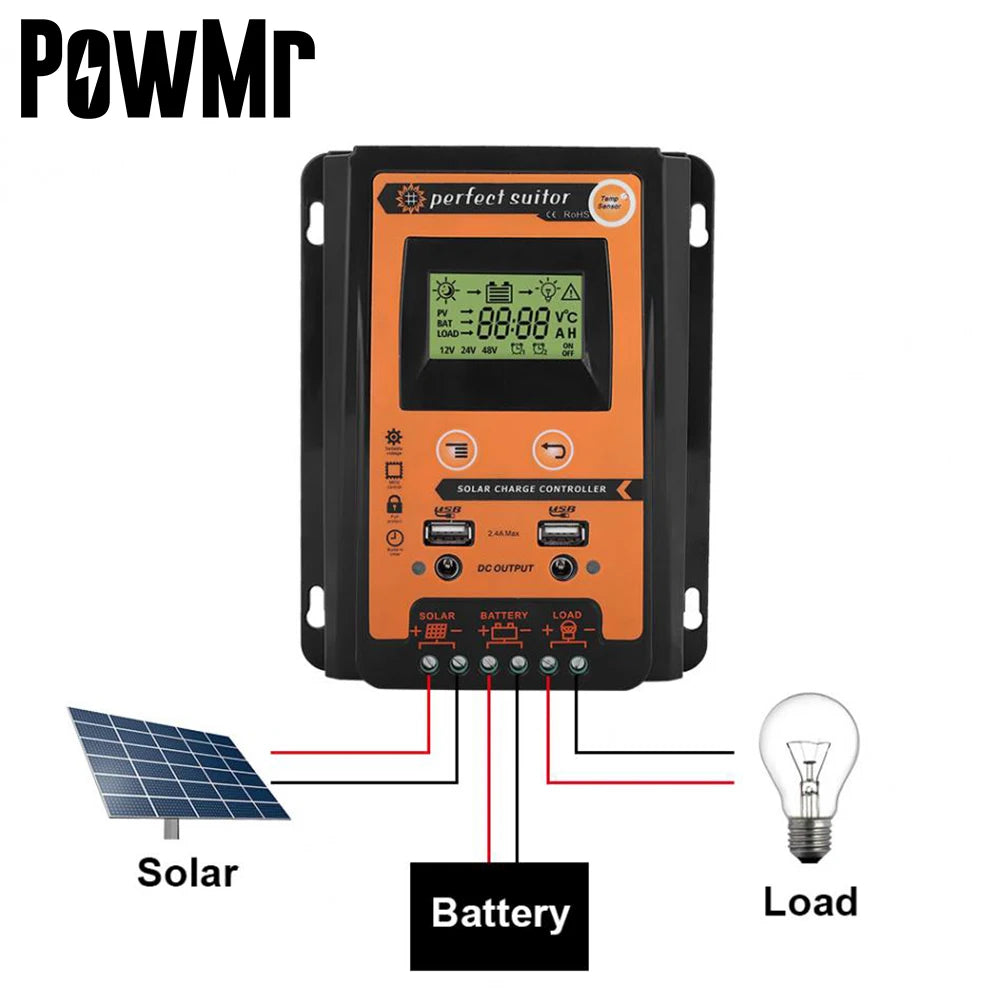

Solar panels, battery, solar charge controller positive poles are all connected together, adopting negative MOSFET in series control circuit.
Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT.
Please contact us for checking more details if needed.
Thank you.
Specifications:
Rated Voltage: 12/24V
USB Output: 2.4A x2
Display: LCD Display
Charging Type: MPPT+PWM
Material: Plastic
Color: Black + Orange
Package Weight:0.5/1.0/1.5KG

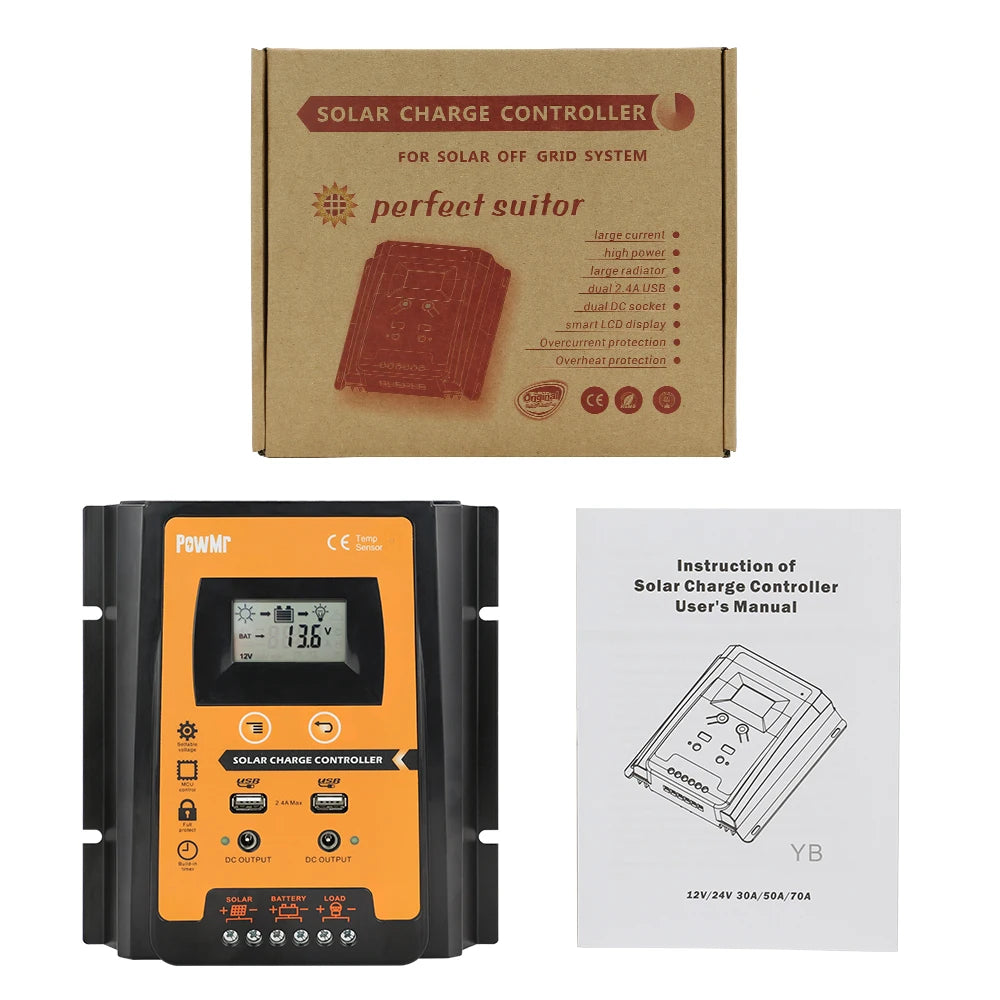

Package List:
1x Solar Charge Controller
1x User Manual
Product Details:
Model |
PVSC-30A |
PVSC-50A |
PVSC-70A |
System Voltage |
12V / 24V |
||
Max. Input Voltage of sola panel |
55V |
||
Self-consumptlon |
≤10mA |
||
Max. charge current |
30A |
50A |
70A |
Max. discharge current |
|||
LVD |
11.0V ADJ 9V ┈ 12V; ×2/24V |
||
LVR |
12.6V ADJ 11V ┈ 13.5V; ×2/24V |
||
Float Voltage |
13.8V ADJ 11V ┈ 13V; ×2/24V |
||
Boost charging |
14.4V; ×2/24V Batler Voltage less than 12V start boost charging 2 hours |
||
Battery Ovev Voltage Protection |
16.5V;×2/24V |
||
Reverse Connection Protection |
yes |
||
Load Over Current Protection |
Yes,each two minutes restart once |
||
Temperature Compensation |
-24 mV/℃ for 12V system;×2/24V |
||
Working Temperature |
-20℃ ┈ +55℃ |
||
Waterproof grade |
IP32 |
||
DC output (12/24/36/48V) |
Lead-acid battery/Gel battery |
||
MAX.PV Input power |
360W(12v) |
600W(12v) |
840W(12v) |
720W(24v) |
1200W(24v) |
1680(24v) |
|
Size (mm) |
175.9×139×40.1 |
209.3×191.7×52.9 |
229.4×201×54.7 |
USB |
5V 2.1A |
||
DC output |
12V / 24V |
||
Net weight (kg) |
0.38 |
0.75 |
1.16 |
PowMr's solar charge controller features MPPT technology, dual USB ports, and a 5V LCD display. It's suitable for charging solar batteries with loads up to 70A.

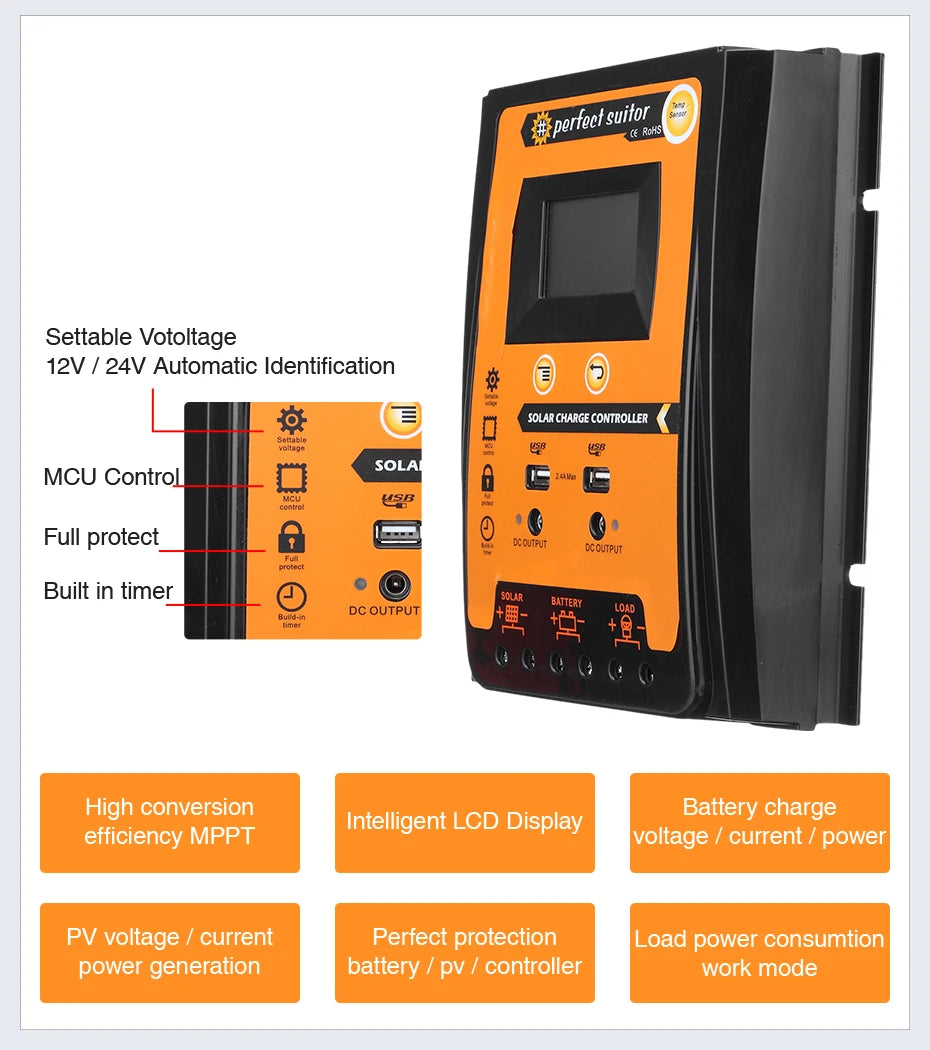

PowMr Solar Panel's MPPT Charge Controller features automatic identification for 12V or 24V systems. It includes a built-in timer, overload protection, and LCD display showing voltage, current, power, and PV data. The controller also has perfect battery charging efficiency with high conversion rates. It can work in various modes, including load control and timer functions.

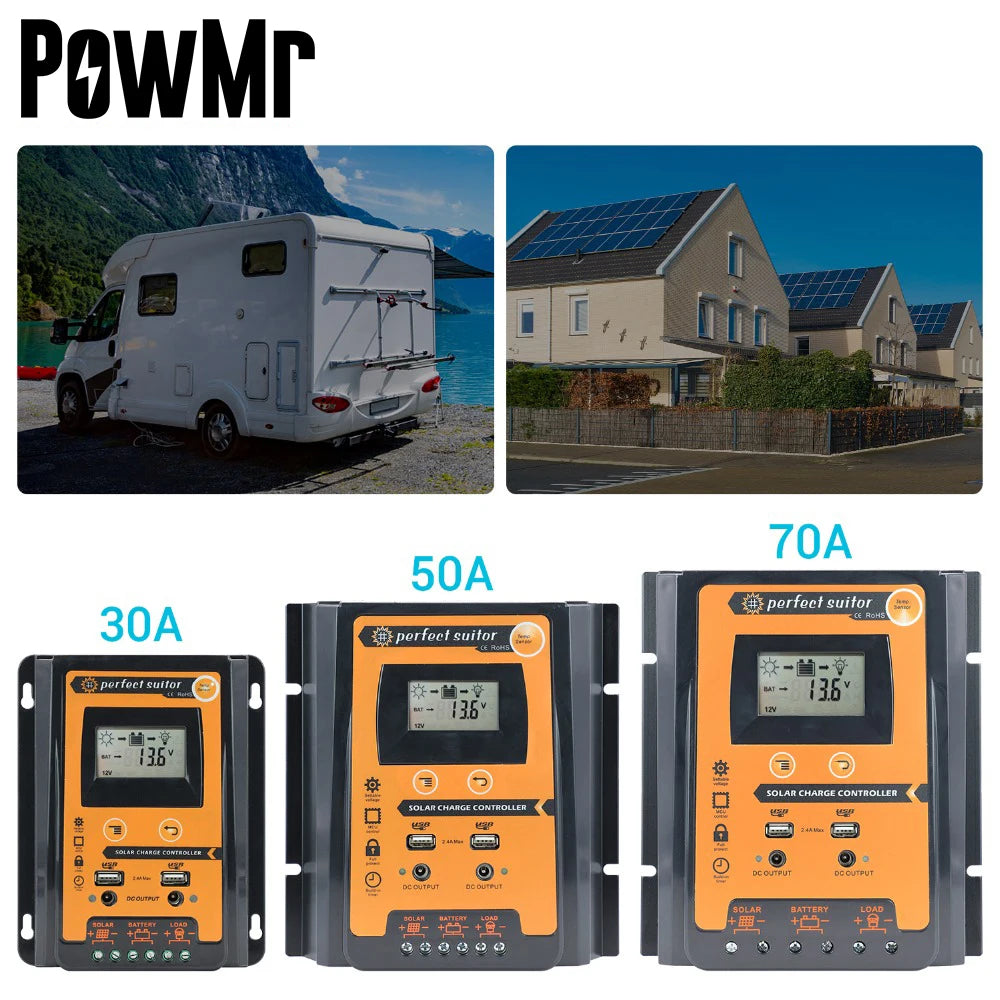

PowMr's solar panel MPPT charge controller offers adjustable power levels (30A, 50A, or 70A) with dual USB ports and a 5V LCD display for monitoring battery performance. Perfect for off-grid systems, RVs, or small-scale applications.

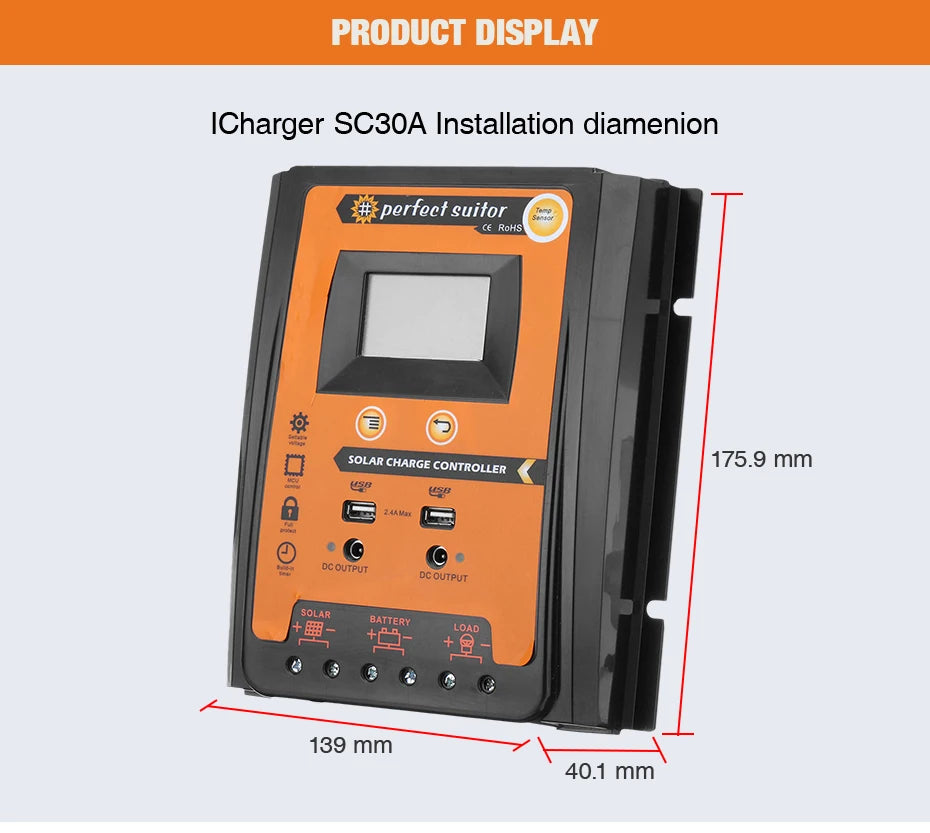

Product Display: Perfect Suit for RoHS Compliant Applications. Installation Dimension: 175.9mm x 14v DC Output, Compatible with Solar Battery (139mm x 40.1mm) and Load Requirements.
PowMr's Solar Charge Controller features a compact design with dimensions of 209.3mm (D) and a RoHS-compliant build, offering a 7V DC output and supporting solar battery charging and load applications.

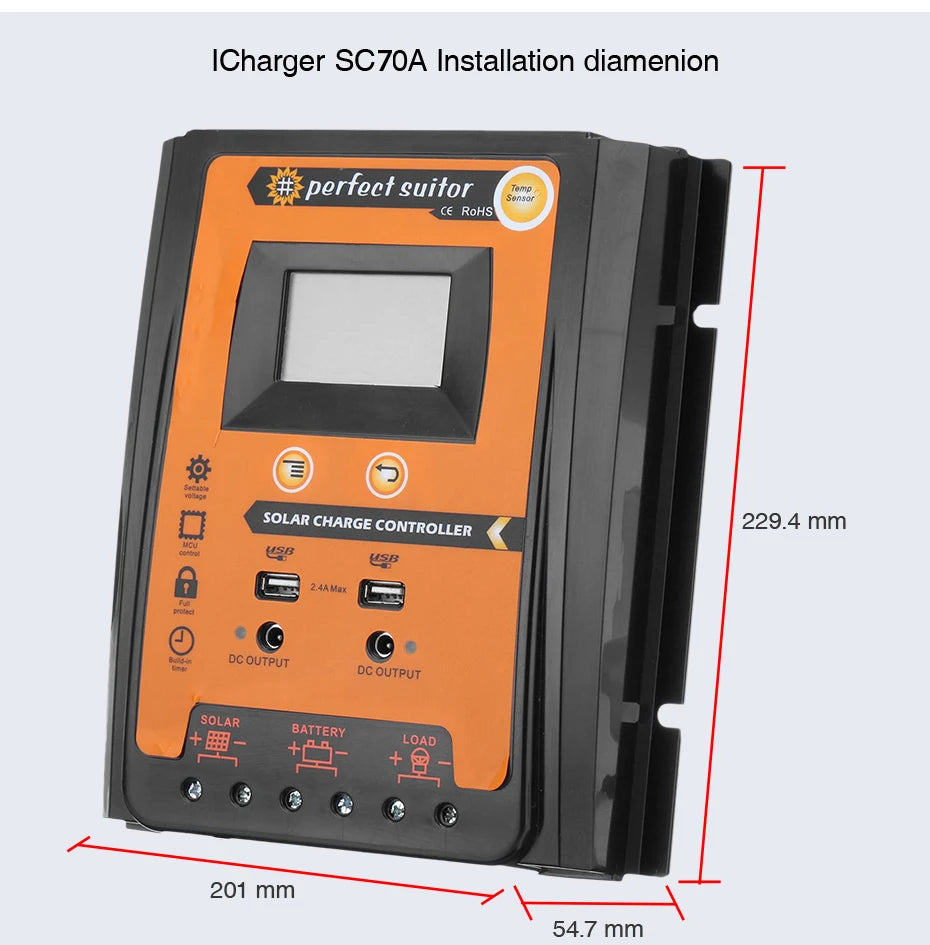

Product details: PowMr Solar Panel MPPT charge controller features a compact design, measuring 229.4mm x 54.7mm x 201mm, with a maximum DC output of 70A and solar battery charging capabilities. The controller also includes dual USB ports and a 5V LCD display.

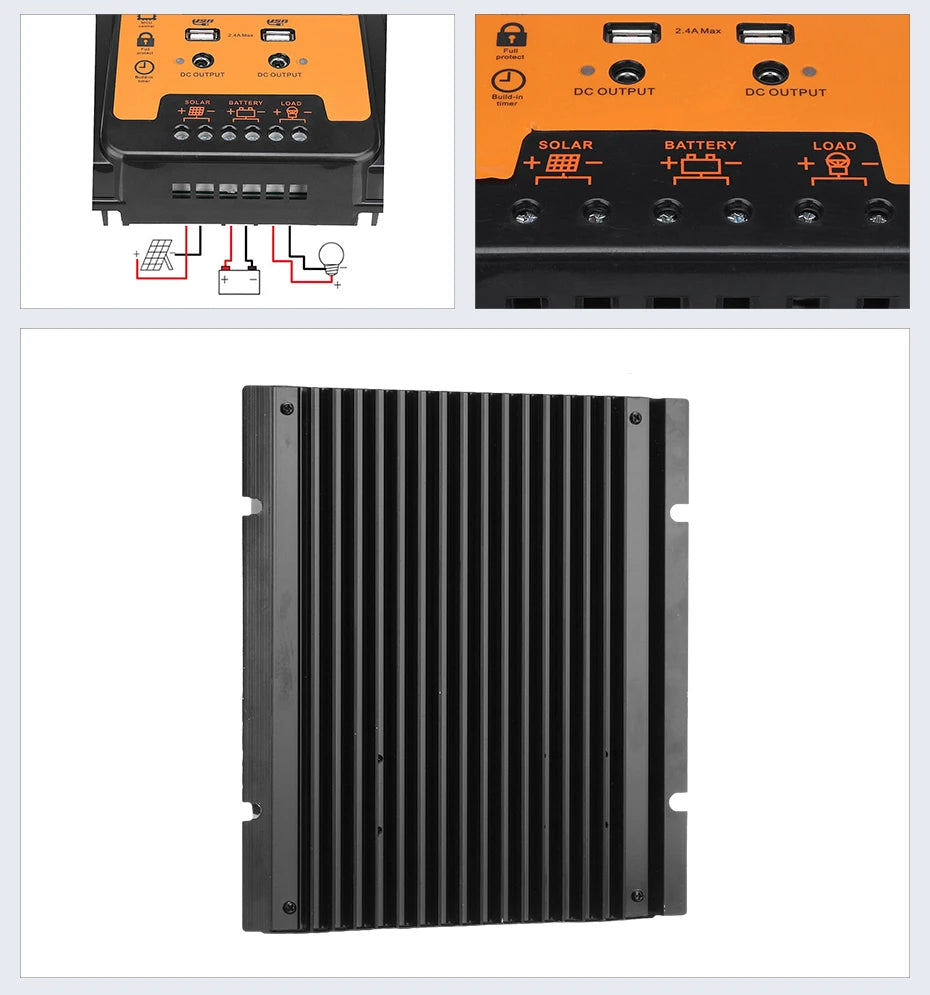

PowMr Solar Panel's MPPT charge controller features dual USB ports, a 5V LCD display, and adjustable output current from 30A to 70A for solar battery charging.

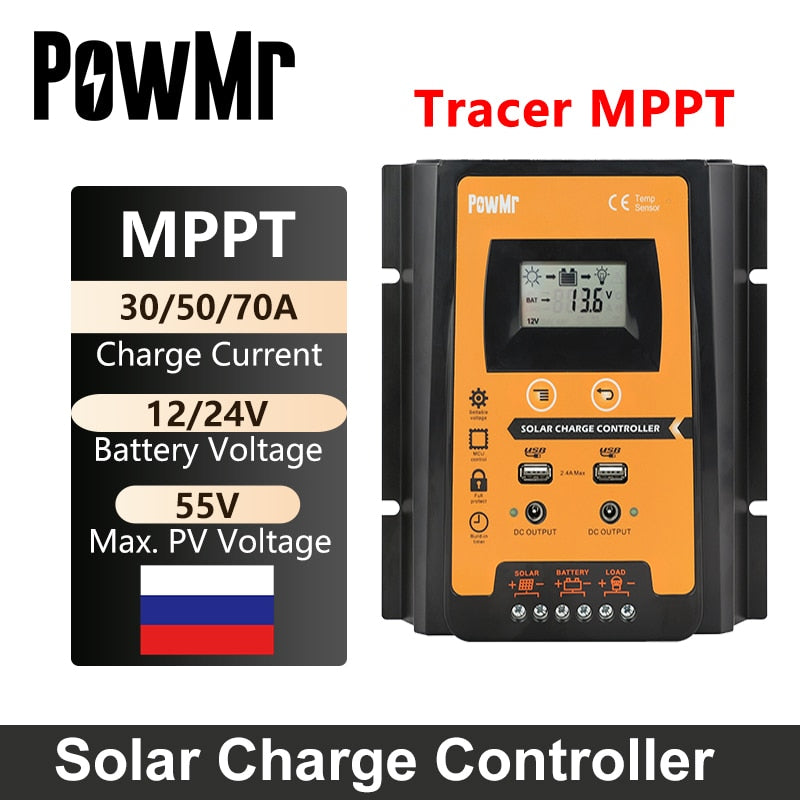

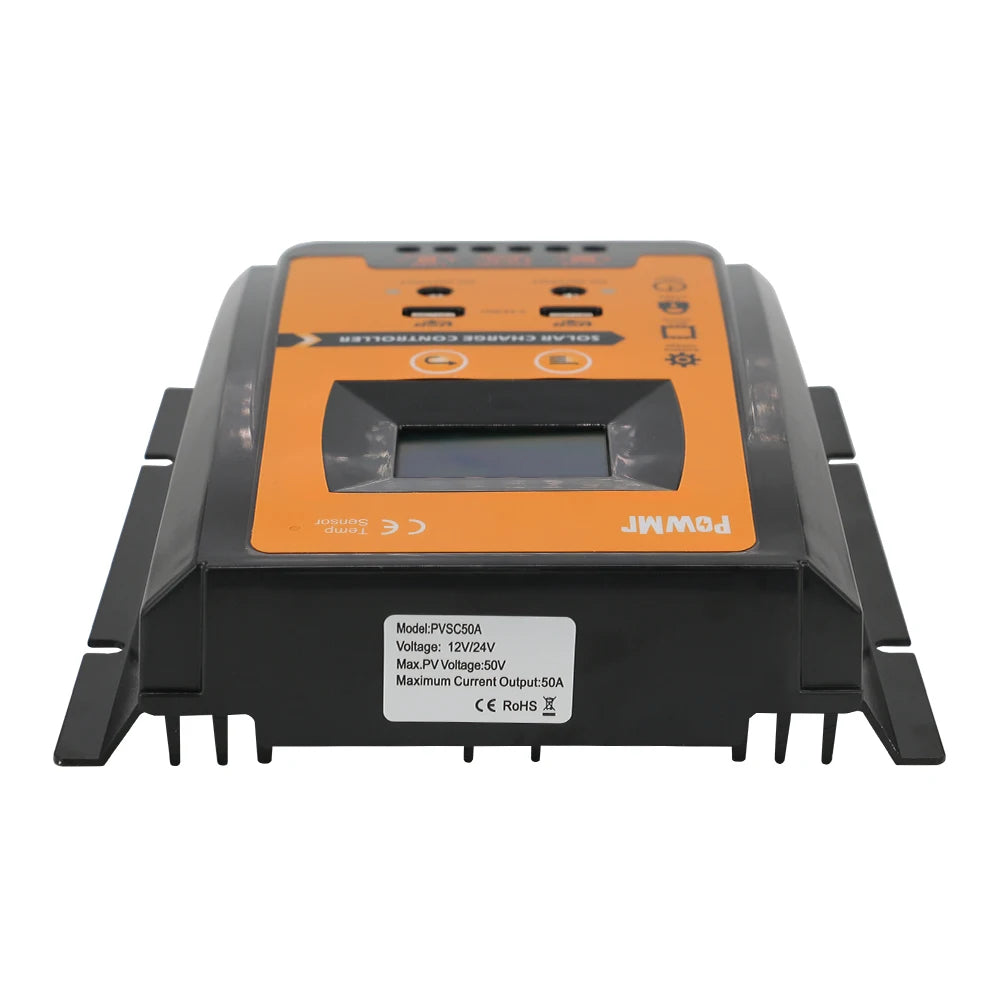

Product: PowMr Solar Panel MPPT Charge Controller. Features: 12V/24V input, max PV voltage 50V, and maximum current output 70A. Dual USB ports with 5V display.
