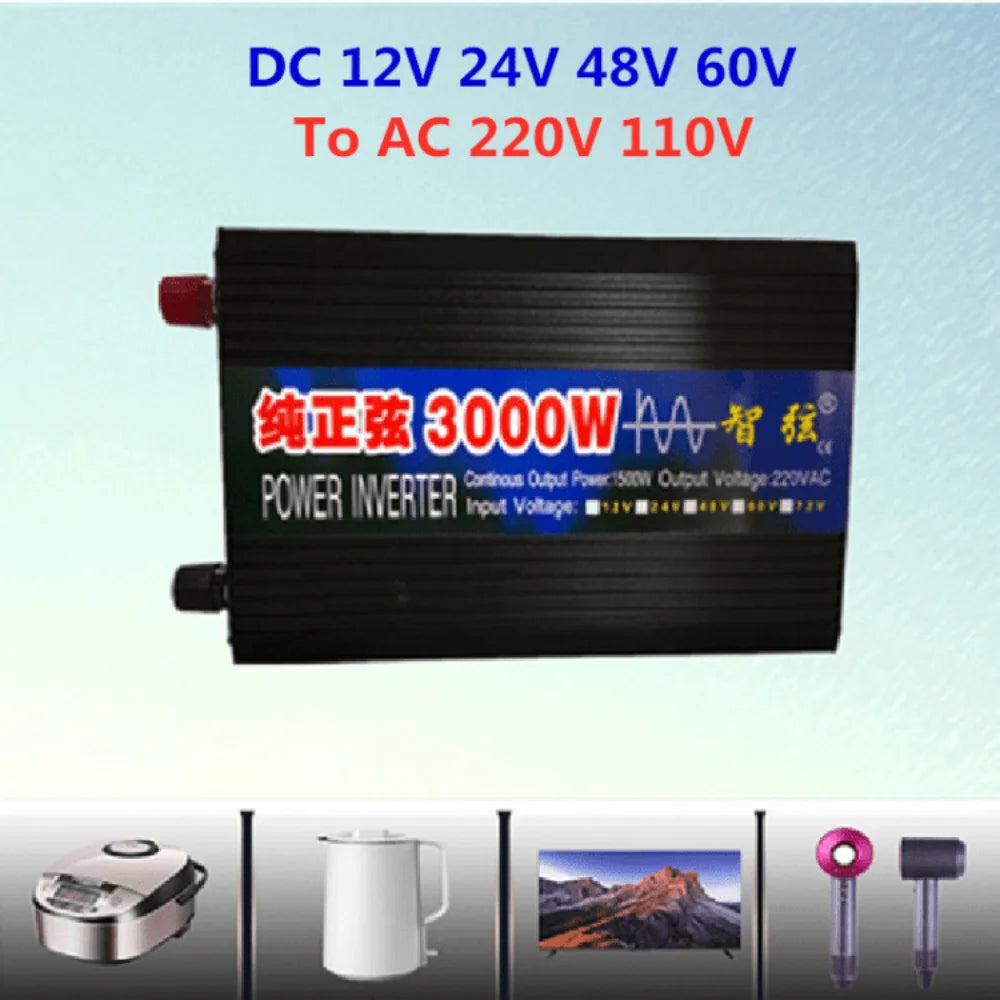

This pure sine wave inverter converts DC power from 12V, 24V, or 48V/60V to AC power for 220V or 110V at 60Hz, with continuous output powers of 1000W, 1600W, or 3000W.

Pure Sine Wave Inverter for DC 12V/24V/48V/60V inputs to AC 110V/220V outputs at 60Hz. Available in three power levels: 1000W, 1600W, and 2000W/3000W options suitable for car or home use, solar inverters, and other applications.

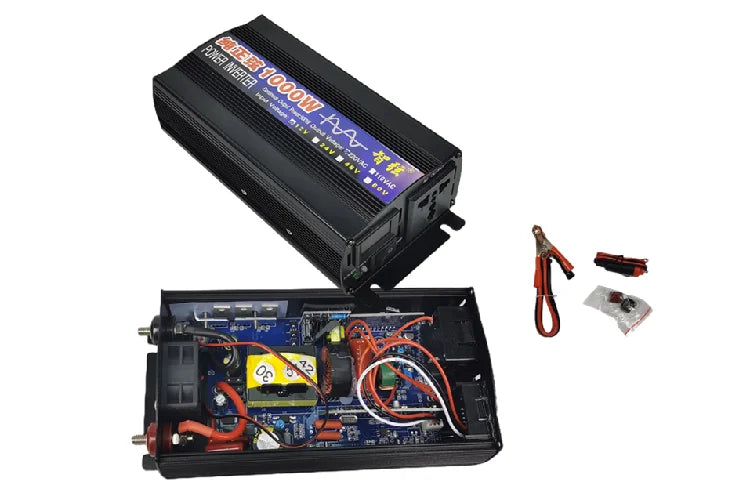

Model: 1000W

Peak power: 1000W

Continuous power: 500W

Input voltage: 12V/24V/48V/60V

Output voltage: 220V/110V

Frequency: 50HZ/60HZ

Output waveform: pure sine wave

Size: 17.5×10.4×5.8 (CM)

Net weight: about 0.8KG

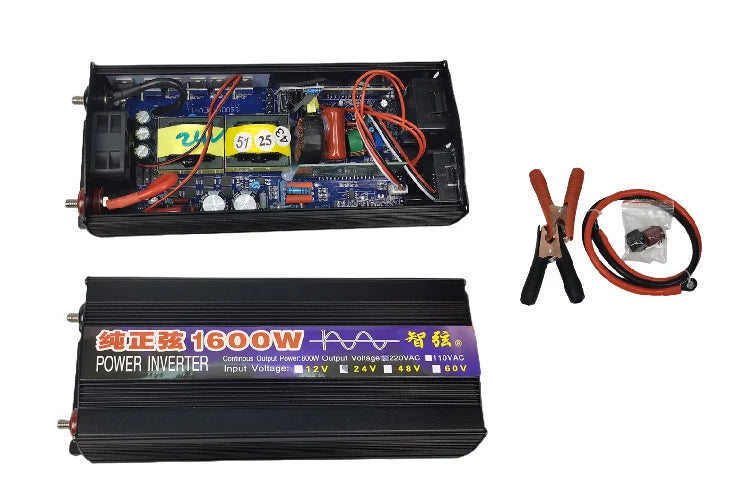

Model: 1600W

Peak power: 1600W

Continuous power: 800W

Input voltage: 12V/24V/48V/60V

Output waveform: pure sine wave

Size: 21.3×10.4×5.8 (CM)

Net weight: about 1KG

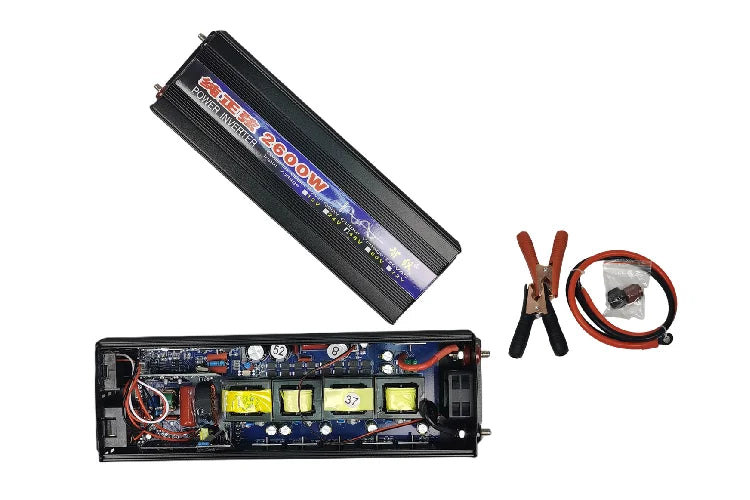

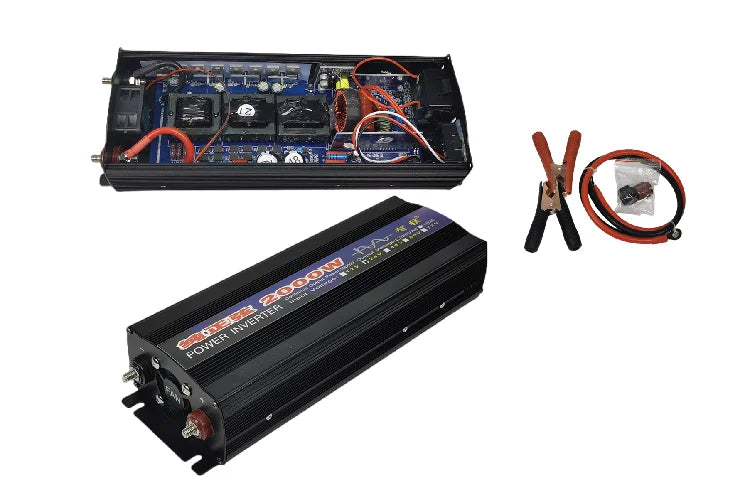

Model: 2000W

Peak power: 2000W

Continuous power: 1000W

Input voltage: 12V/24V/48V/60V

Output waveform: pure sine wave

Size: 25.3×10.4×5.8 (CM)

Net weight: about 1.2KG

Model: 2600W

Peak power: 2600W

Continuous power: 1300W

Input voltage: 12V/2V/48V/60V

Output waveform: pure sine wave

Size: 33×10.3×6 (CM)

Net weight: about 1.4KG

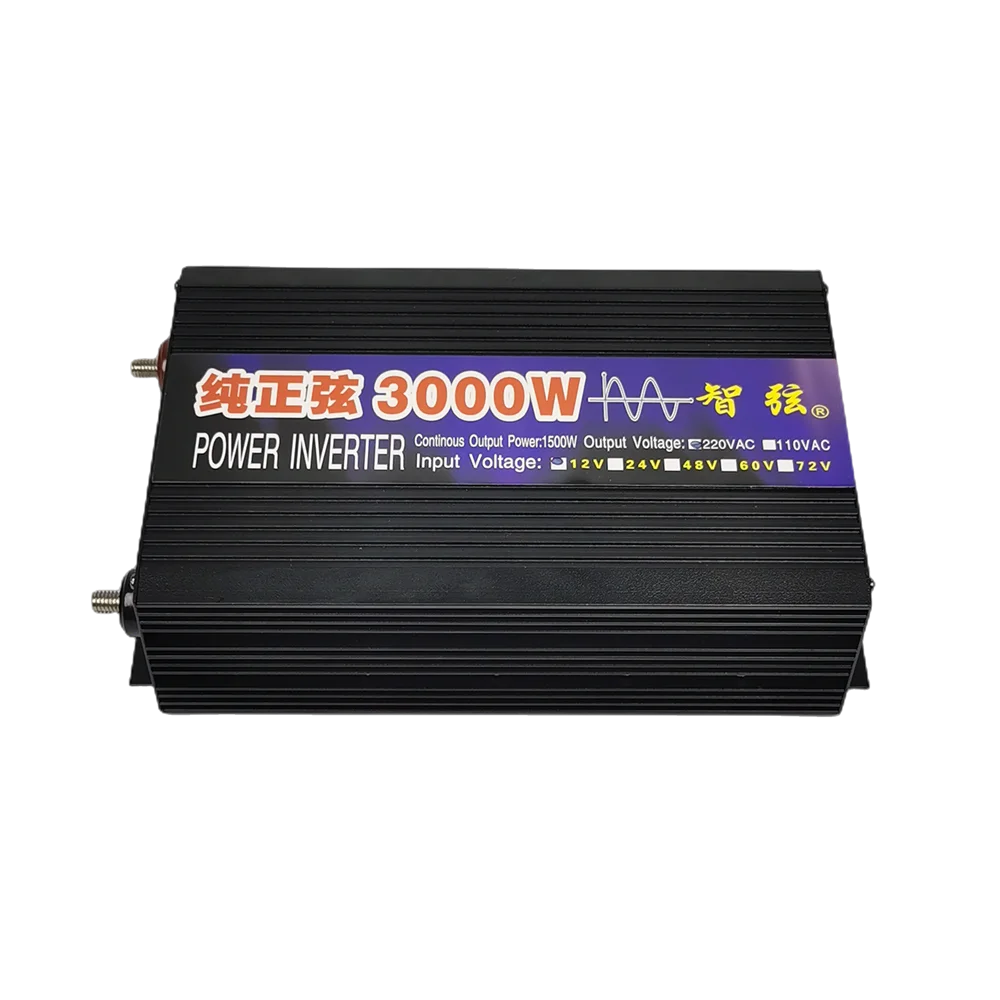

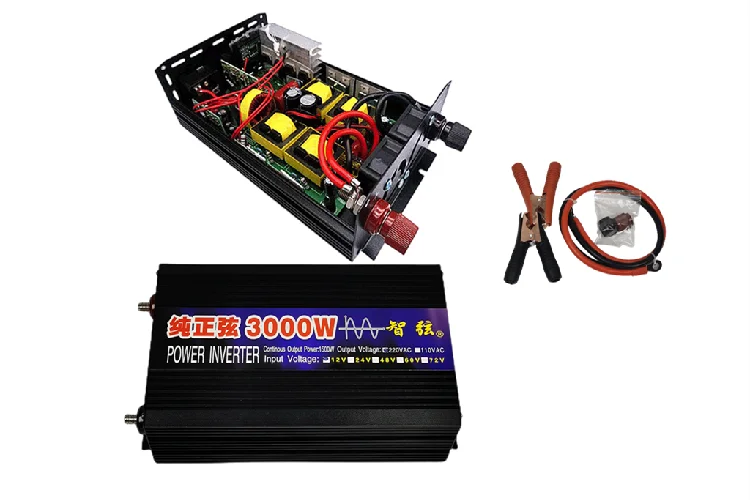

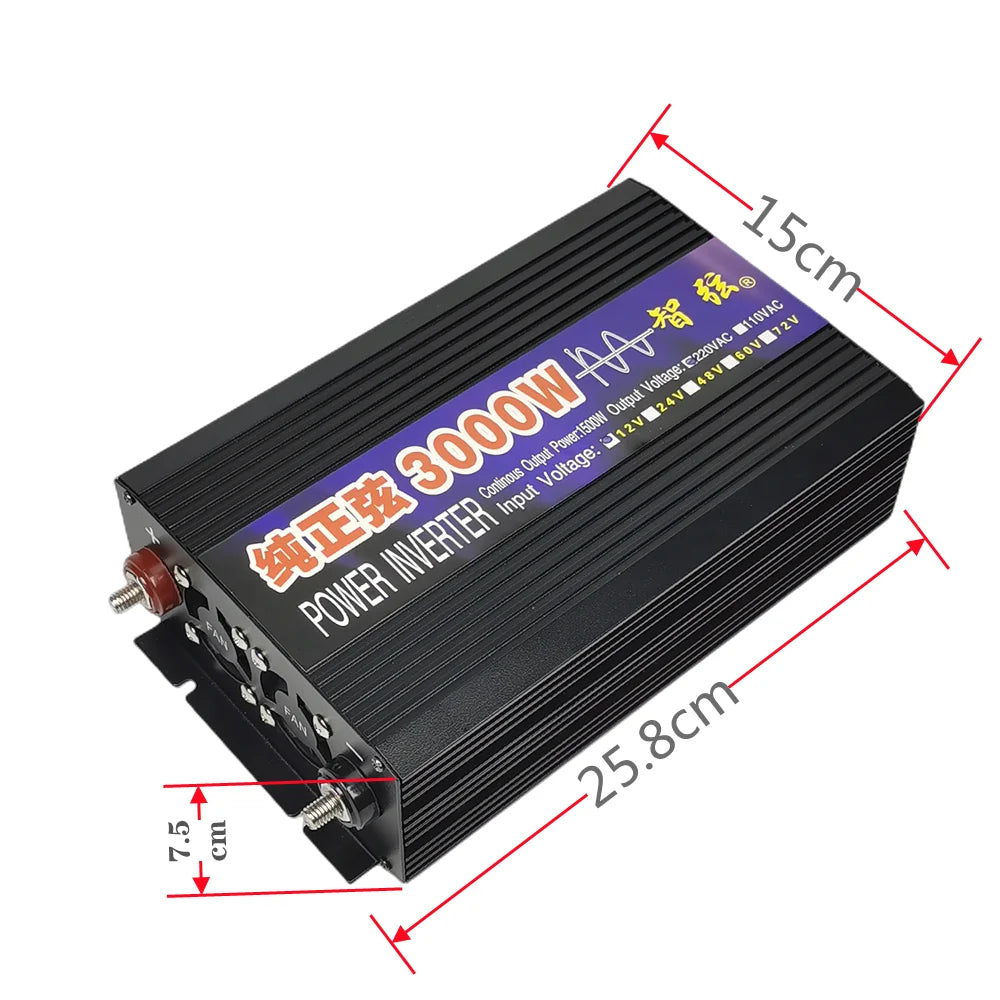

Model: 3000W

Peak power: 3000W

Continuous power: 1500W

Input voltage: 12V/24V/48V/60V

Output voltage: 220V/110V

Frequency: 50HZ/60HZ

Output waveform: pure sine wave

Size: 25.8×15×7.5 (CM)

Net weight: about 2KG

This pure sine wave inverter converts DC power from 12V to 48V and AC power from 220V to 110V with frequencies up to 60Hz, suitable for cars or homes.

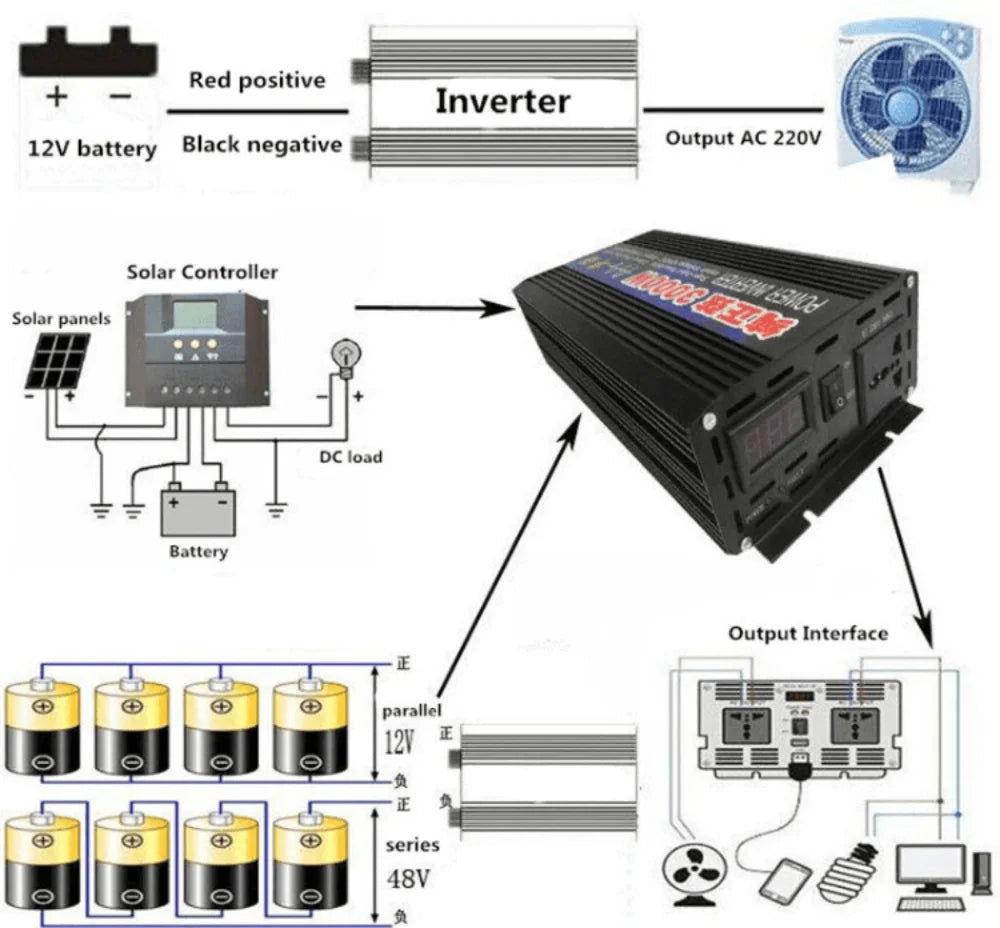

Pure sine wave inverter converts 12V/24V/48V/60V DC to AC 220V/110V, suitable for car or home use with solar panels and compatible with most loads up to 3000W.

TroubleshootingTroubleshooting

1 Inverter does not work

a. Check whether the plug is inserted in place and whether it is loose.

b. Whether the inverter switch is turned on.

C. Whether the car cigarette lighter jack has voltage output (such as external lead, polarity

is it right or not)

2. Insufficient output power of the inverter can only drive low-power electrical appliances

a, the battery capacity is too small (need to replace or reduce the use of electrical appliances

b. The battery voltage is too low (need to be charged or replaced)

C. If the inverter is used in other cars, the inverter is normal, and you need to

The professional repair shop bolds the lead of the car cigarette lighter jack (use the cigarette lighter jack

No more than 150W load)No more than 150W load)

d. If the battery is connected externally (the lead wire must be thickened to shorten the lead length)

3. The inverter does not work and the FALT light is off

a. The electrical power used exceeds the nominal power, causing protection (reduce the use of

Electrical power is sufficient)

b. The battery voltage is too low (the battery must be charged or replaced)

C. Reduce the use of power appliancesC. Reduce the use of power appliances

4. High case temperature

a. It is a normal phenomenon within 65℃ (with temperature protection included)

Precautions for use

1. The inverter cannot be connected to the power grid, and the AC output line cannot be touched by hand. Inverter1. The inverter cannot be connected to the power grid, and the AC output line cannot be touched by hand. Inverter

Equipped with a battery can provide more power than the actual power consumption of the appliance, when the battery line is lengthened

At the same time, the corresponding wire diameter should be doubled. 《For example: 12V2000W inverter

Factory configuration battery line 10 square 50CM long line, in actual use may use 100

If the CM is long, the wire diameter should be added to 20 square, that is, use a 20 square 100 CM wire. "

2. Both of the inverter outputs are live wires, so there is no problem of picking up the ground. Do not connect any2. Both of the inverter outputs are live wires, so there is no problem of picking up the ground. Do not connect any

The root is used as a ground wire, and it is not connected to the earth.

3. Connect the inverter to the load, do not connect any air switch or leakage protection in the middle

Switch and hard operation will not only fail to protect, but will damage the inverter in turn.
