SPECIFICATIONS

is_customized: Yes

Weight: 2.5kg(3000W),2.8kg(4000W)

Type: DC/AC Inverters

Type: DC/AC Inverters

Size: 35*22*15cm(3000W),40*22*15cm(4000W)

Peak Power: 3000W / 4000W

Output Waveform: Pure Sine Wave

Output Voltage: AC 110V/120V/220V/230V/240V

Output Type: single

Output Power: 3000W/4000W

Output Frequency: 50Hz,60Hz

Origin: Mainland China

Model Number: FOC-007

Input Voltage: DC 12V/24V/48V/60V/72V

Features 5: Inverter 48v 220v

Features 4: Inverter 24V 220V

Features 3: Inverter 12V 220V

Features 2: Pure Sine Wave Inverter

Features 1: Inverter

Display type: Multi-Function Display

Continuous Power: 1500W / 2000W

Certification: CE

Hello Friends, If You Can't Find The Product You Need on This Page, You Can Go To The Link Below To Find It. The Products In This Store Have Inverters with A Power of 300W-12000W, or Contact Us, Our Engineers Will Help You with The Product That Suits You Best, Thank You

Specifications:

Type: Pure Sine Wave Inverter

Display type:Multi-Function Display

Output voltage waveform: Pure sine wave

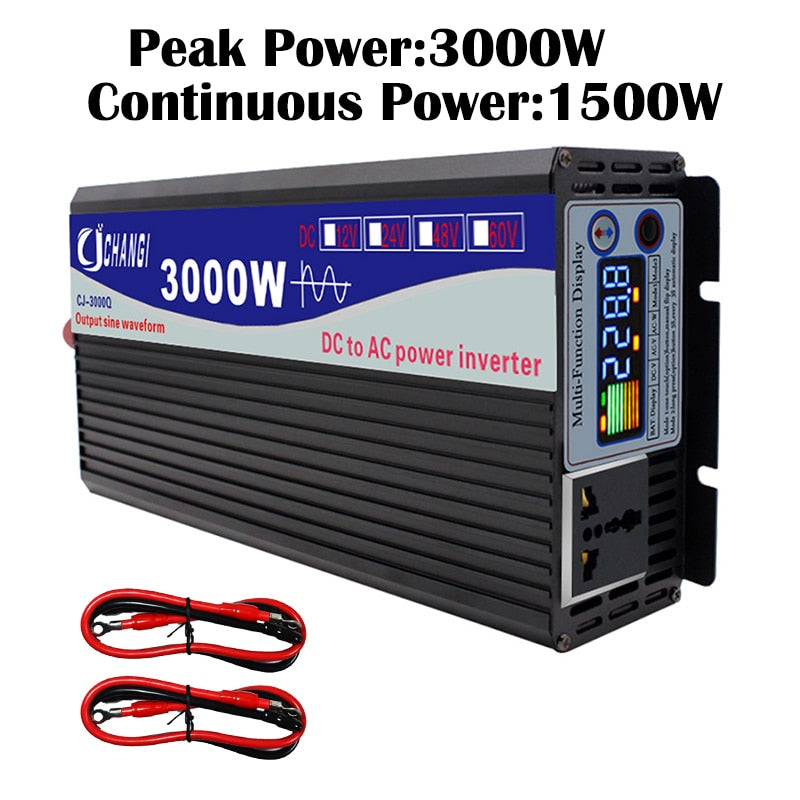

Peak Power: 3000W / 4000W

Continuous powe:1500W / 2000W

Output voltage:110V,120V,220V,230V,240V(±10%)

Input voltage: 12V/24V/48V/60V/72V

Output frequency: 50Hz±2H/ 60Hz±2H

Socket: Universal(Commonly used in sockets in all countries)

Conversion Efficiency: >90%

Over Thermal:Shut Off Output Automatically

Input low voltage protection : 20Vdc±0.3V

Input high voltage protection: 30Vdc±0.3V

Recovery voltage : 24V(25.5V±0.3)

Over temperature protect: 80°±5°

Start :Soft Start

Fuses:Short Circuit

Protection:Overload, Short Circuit, Overtemp, Reverse Polarity, Under/Over Voltage

• Package included:

• 1 x Inverter

• 2 x Crimper

• 1xUser Manual

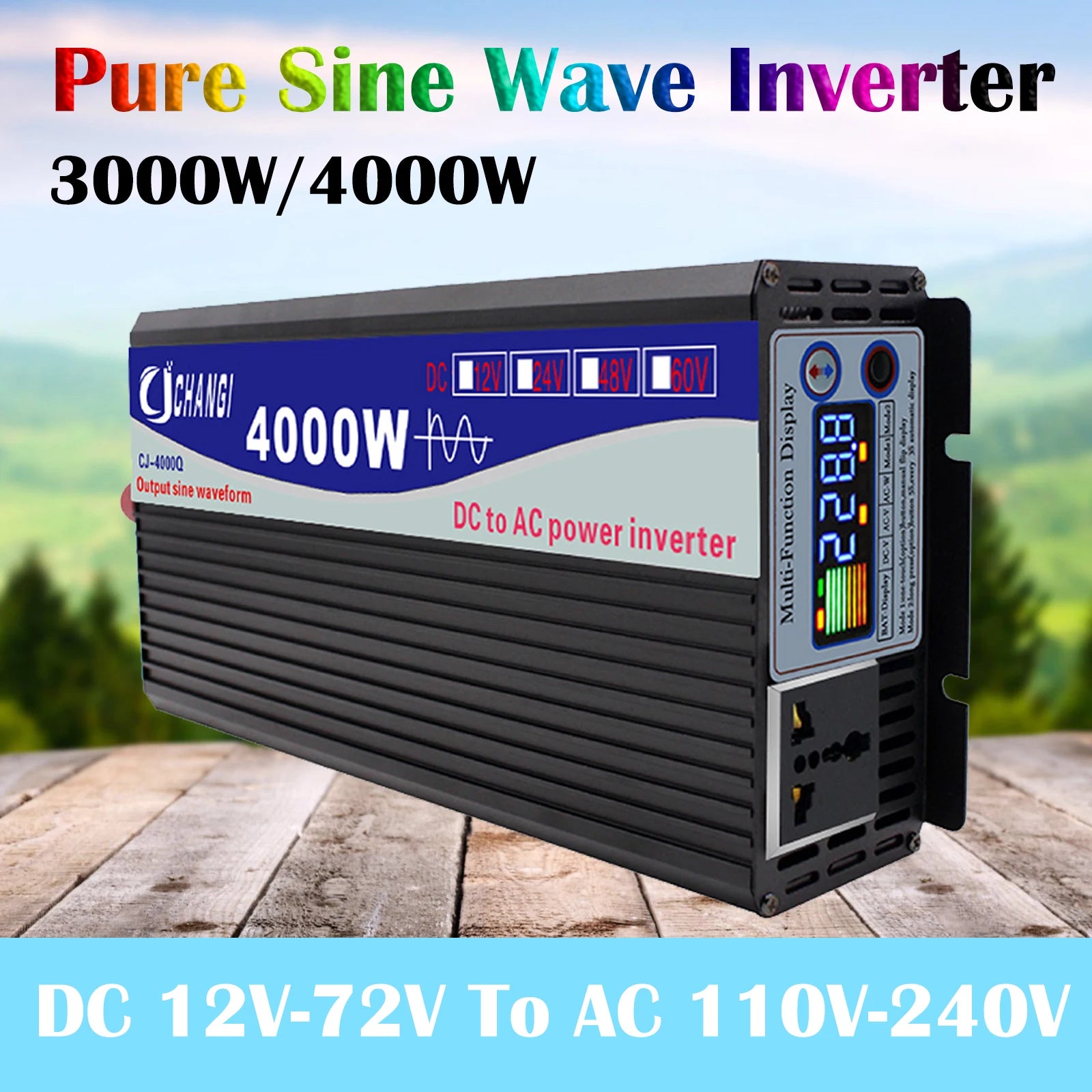

Pure Sine Wave Inverter: A high-quality converter that transforms DC power from 12V to 72V into pure sine wave AC power for 110V-240V appliances. With a maximum power output of 3000W or 4000W, it's suitable for solar systems, cars, and RVs. The inverter features multiple functions, including overcharge protection and short-circuit prevention.

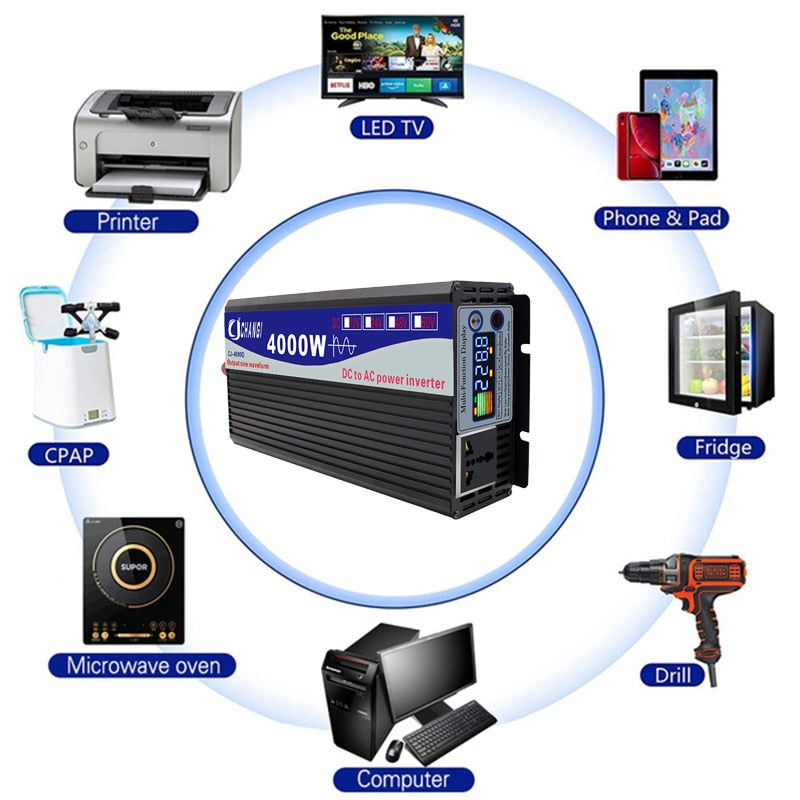

Pure Sine Wave Inverter converts 12V/24V DC power to 110V/220V AC, suitable for TV, printer, phone, pad, CPAP, fridge, microwave, drill, computer, and other devices up to 4000W.

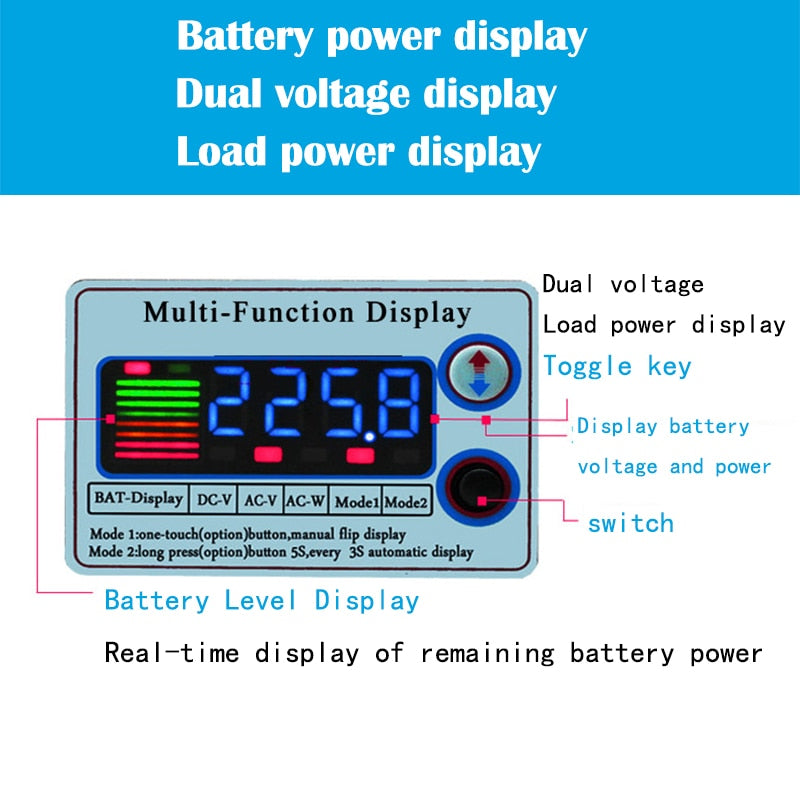

The Pure Sine Wave Inverter features a multi-function display that shows:

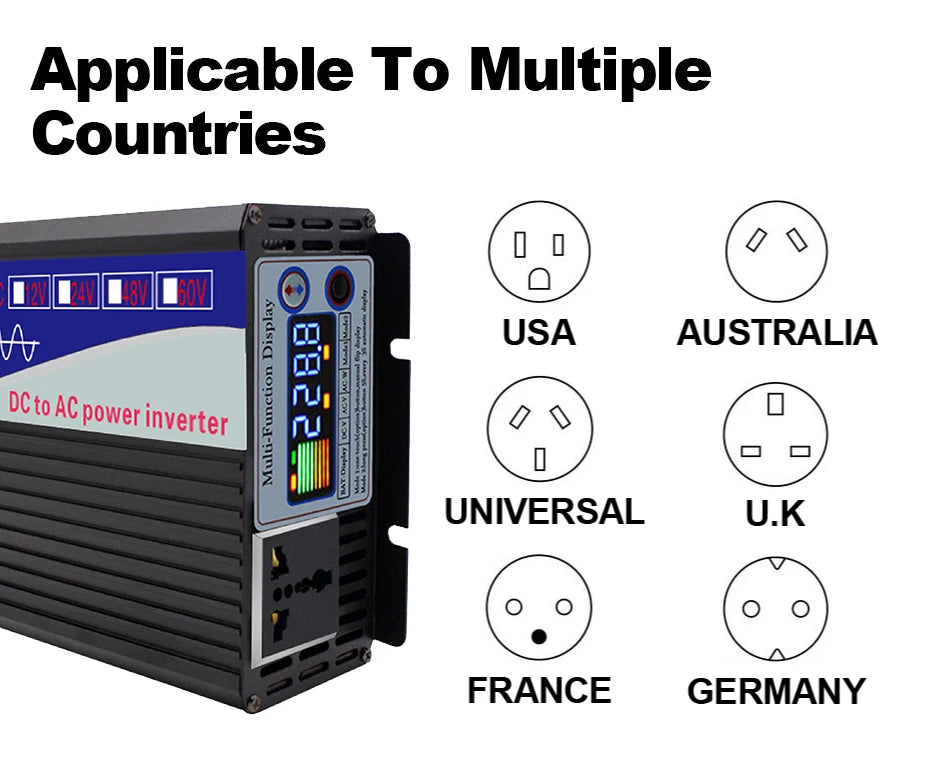

Suitable for various countries, including USA, Australia, UK, France, and Germany, this inverter converts DC power to AC power universally.

Note:

1.When using 12V / 24V to connect the cigarette lighter wire in the car, please do not exceed 300W (12V car). 400W (24V truck).

If this power is exceeded, please connect the battery output to the inverter, otherwise the car fuse will blow.

2.Please ensure that the rated power is higher than the appliance you want to apply.

3.If you want to run several devices at the same time, you should refer to the total wattage.

4.If you want to run the inductive load for a long time, choose the Pure sine wave inverter .

5.Please use the standard battery cables we sent, or a full power output may not be guaranteed. And the spare fuses in the package are just used when the original ones are burned by accident.

6.Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.

7.Please do not overload. If your applications are inductive loads, please choose the inverters whose continuous power is 3-7 times higher than the watts of your appliances. such as fridge, icebox, drill, washing machine, water pump, microwave oven, oven, vacuum cleaner, hair dryer, etc. with motor inside. Please make sure the constant power of our inverter meets your need before order, or consult us for more details.

12V inverter can only connect to 12V batteries (working voltage range: 10.5V~15.5V)

24V inverter can only connect to 24V batteries (working voltage range: 19.5V~28V)

48V inverter can only connect to 48V batteries (working voltage range: 42V~53V)

60V inverter can only connect to 60V batteries (working voltage range: 57V~70V)

72V inverter can only connect to 72V batteries (working voltage range: 69V~80V)

When the voltage exceeds the working voltage range, the inverter will automatically turn off the inverter because the voltage is too low or too high. The purpose is to avoid over voltage damage to the inverter or over discharge to damage the battery.

The input voltage of 12V inverter and 24V inverter cannot be universal. If the wrong input voltage is selected, the inverter will not work. If you don't understand anything, please contact customer service, we will reply you as soon as after we see the information. Thank you!

Provides power for camping, motorhomes, travel, and work during sudden outages or blackouts.

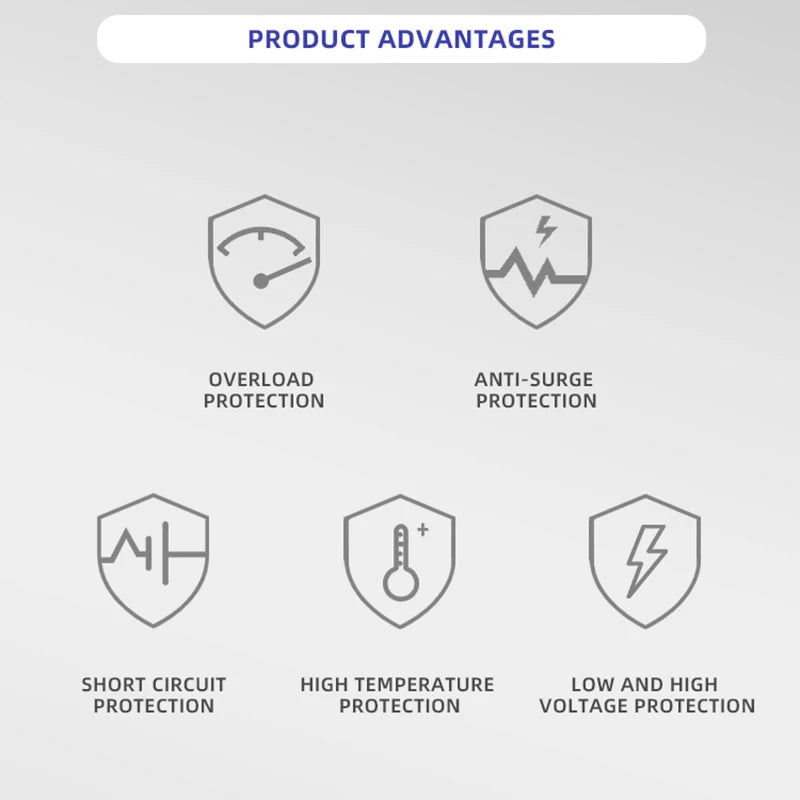

Advantages include overload protection, anti-surge protection, short circuit protection, high/low voltage protection, and temperature range protection for safe and reliable operation.

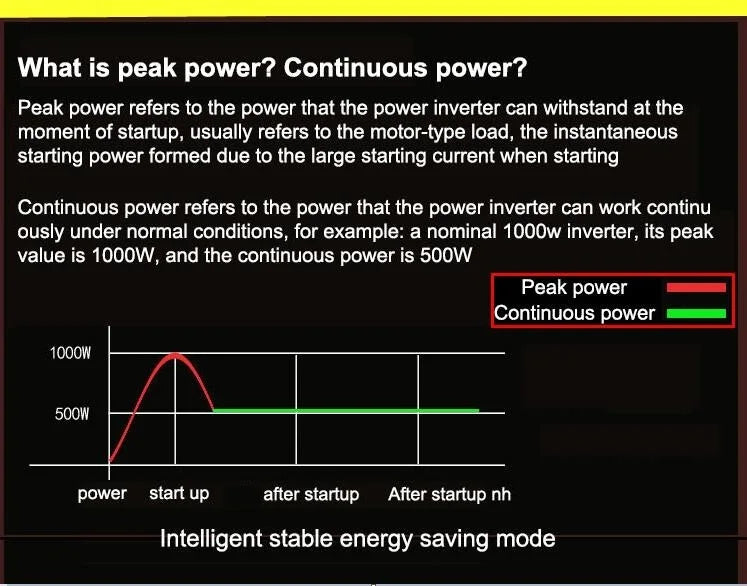

This product features two types of power: peak and continuous. Peak power refers to the maximum power output at startup, typically for motor-type loads. Continuous power, on the other hand, represents the steady-state power output under normal conditions. For example, a 1000W inverter may have a peak power of 1000W and a continuous power of 500W. After startup, it operates in intelligent energy-saving mode to ensure stable performance.

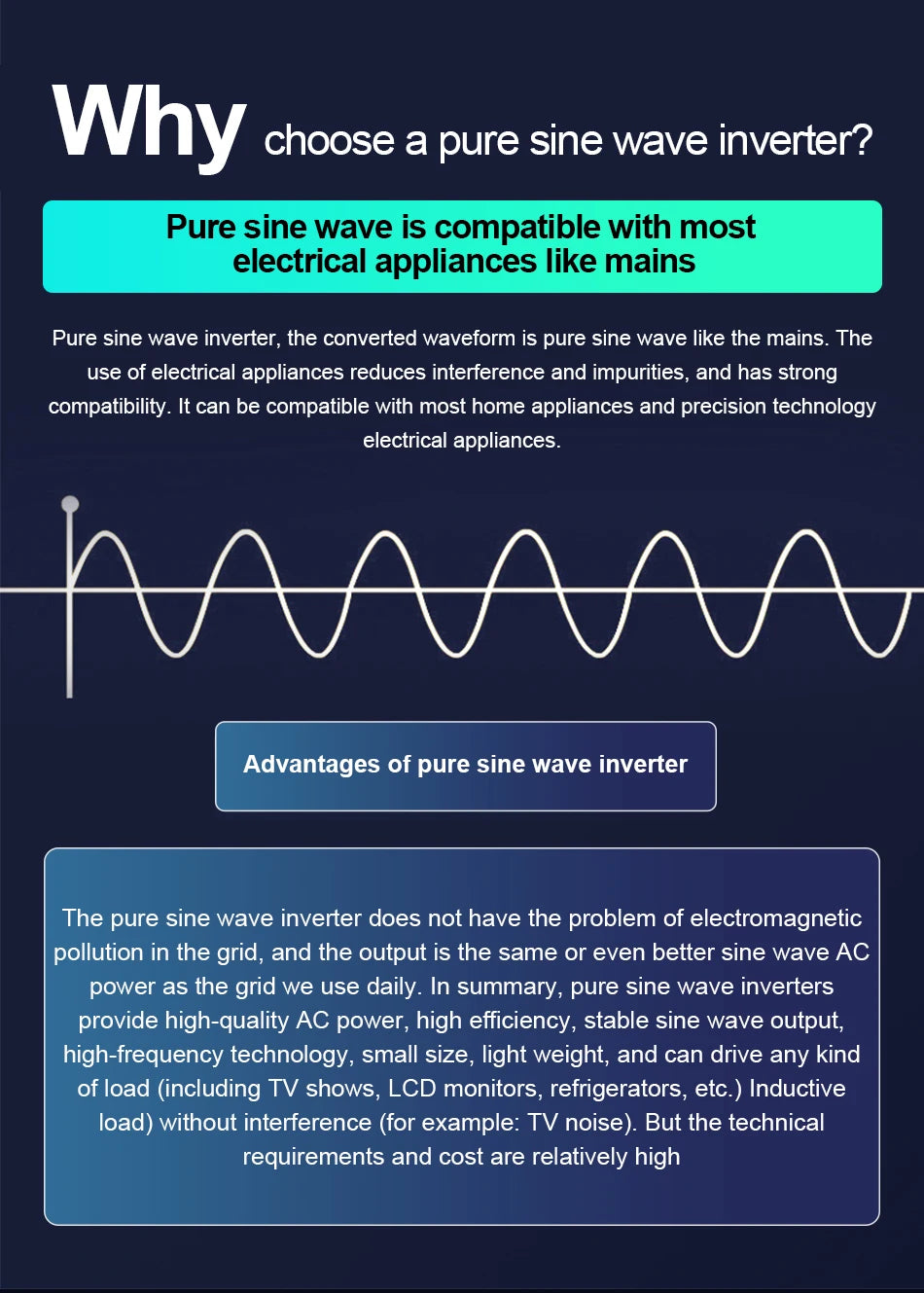

Choose a pure sine wave inverter for its superior compatibility with most appliances. Unlike modified sine wave inverters, pure sine wave converters produce a clean, continuous waveform that's identical to mains power. This results in reduced interference and impurities, making it ideal for sensitive electronics like TVs and refrigerators. With high-quality AC power, efficiency, and stability, this inverter is perfect for driving loads without noise or distortion.

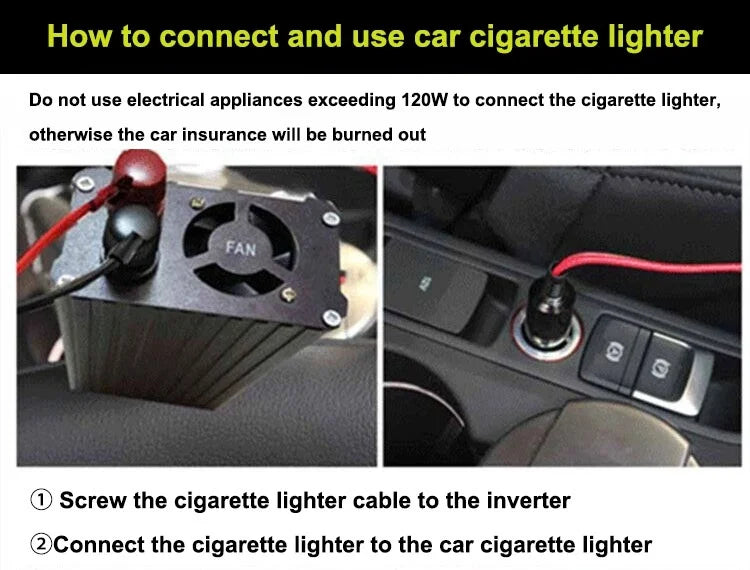

To connect and use, plug the cigarette lighter adapter into your car's 12V outlet. Limit power usage to 120W or below to avoid damaging the adapter. Screw the adapter cable into the inverter and connect it to your car's cigarette lighter.

Pure Sine Wave Inverter Converts 12V/24V DC Power to AC 110V/220V, 3000W/4000W, 50/60Hz, Suitable for Solar, Car, and Multi-Function Applications.

When buying an inverter, you must first understand the voltage and frequency used in your country. Purchasing an inverter according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any questions, please contact us before purchasing. Thank you!

Country / voltage / frequency
Korea: 220V / 60Hz
Australia: 230V / 50Hz
Brazil: 110V / 220V / 60Hz
Chile: 220V / 50Hz
Colombia: 110V / 60Hz
Denmark: 230V / 5oHz
Finland: 230V / 50Hz
France: 230V / 50Hz
Israel: 230V / 50Hz
Italy: 230V / 50Hz
Russia: 220V / 50Hz
United States: 120V / 220V / 60Hz
Turkey: 230V / 50Hz
Spain: 230V / 50Hz
Mexico: 127V / 60Hz
PuertoRico: 120v60hz
Saudi arabia: 127V / 220V / 60Hz
South africa: 220V / 230V50Hz
Sweden: 230V / 50Hz
Switzerland: 230V / 50Hz
United kingdom: 230V / 50Hz

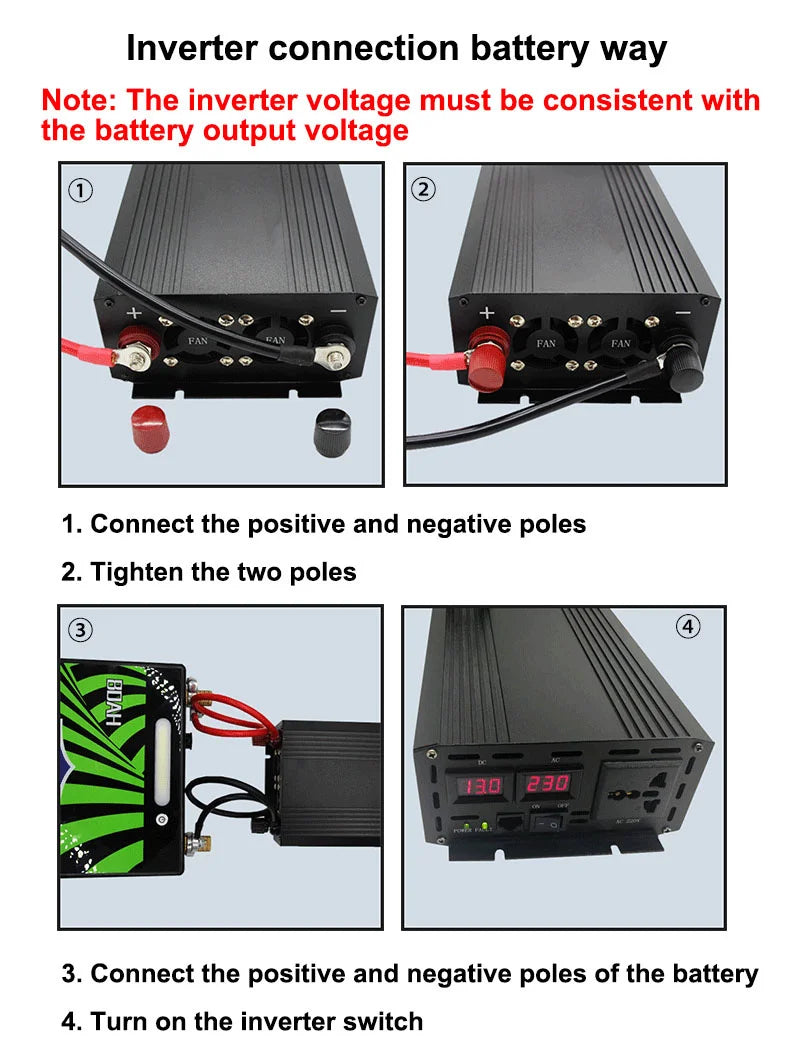

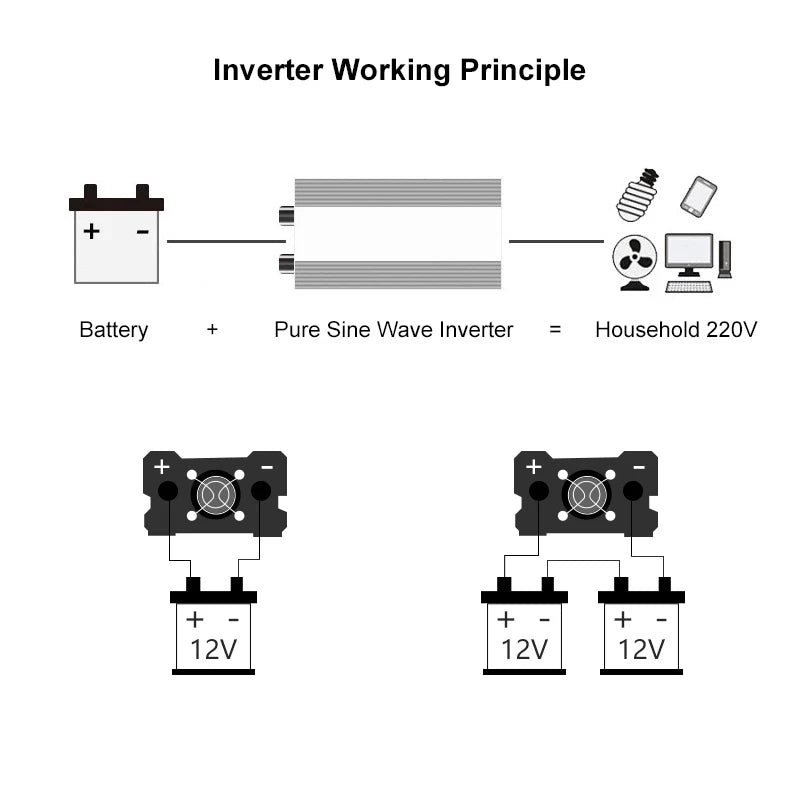

Connect the inverter to your battery: ensure voltage matches, attach positive and negative terminals securely, and turn on the inverter switch. Pure sine wave inverter converts 12V/24V battery power to household AC 110V/220V, suitable for home appliances and solar systems.

Troubleshooting:

1. The inverter is not working.
A. Check whether the plug is inserted in place and whether it is loose.
B. Whether the inverter switch is turned on.
C. Whether the car cigarette lighter jack has voltage output, such as external leads, and whether the polarity is correct.

2. Insufficient output power of the inverter can only drive low-power electrical appliances
A. The capacity of the battery is too small, and electrical appliances must be replaced or reduced.
B. The battery voltage is too low and must be charged or replaced.
C. If you change to another car, the inverter is normal, and you need to go to a professional repair shop to thicken the car cigarette lighter jack cable. The use of the cigarette lighter socket shall not exceed a load of 150W.
D. If it is an external battery, thicken the lead to shorten the lead length

3. The inverter does not work and the FALT light is off
A. The electrical power used exceeds the nominal power, causing protection. Reduce the use of electrical power
B. The battery voltage is too low, the battery must be charged or replaced
C. Reduce the use of power appliances

How to choose a suitable battery for inverter

Working time = U (voltage payment) × I (battery capacity) × 0.8 × 0.9 ÷ electrical power

Example: a 12V 50AH battery with a 220V 100W bulb

Working time=12Vx50AH×0.8×0.9÷100W=4.32(hours)

Note: 0.8 is the battery discharge coefficient (constant) 0.9 is the conversion efficiency of the inverter (constant)

How long it can be used is also related to the new and old performance of your battery
