PWM 10A 20A 30A Auto Backlight LCD Solar Controller 12V 24V Solar Panel Charger with Dual USB 5V Z Series Solar Regulator Newest

PWM 10A 20A 30A Auto Backlight LCD Solar Controller 12V 24V Solar Panel Charger with Dual USB 5V Z Series Solar Regulator Newest

Regular price $19.74 USD
Regular price Sale price $19.74 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Current

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Voltage of open light: solar panel 8V

USB: Dual USB Output 5V/2.5V(Max)

Solar Panel Charger: Z Series Solar Regulator Newest

Solar Controller: 12V 24V

Origin: Mainland China

Model Number: Z10A Z20A Z30A

Maximum Current: 10A/20A/30A

Max Solar Panel Input: Max 23V(12V system) Max 46V(24V System)

Low Voltage Reconnect Voltage (LRD): 12.6V(default.adjustable)

Low Voltage Disconnect Voltage(LVD): 10.7V(default,adjustable)

LCD: Back-light LCD

Is Smart Device: YES

Float Charge: 13.7V(default,adjustable)

Equalization: 14.4V

Discharging Current: 10A/20A/30A

Charging Current: 10A/20A/30A

Certification: CE

Brand Name: PowMr

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

PWM 10A 20A 30A Auto Backlight LCD Solar Controller 12V 24V Solar Panel Charger with Dual USB 5V Z Series Solar Regulator Newest

InverterUse Note

1、The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements Of The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.

2、For Details, Please Refer To The Manual Recommendation Or Consult Online Customer Service.PowMr Will Serve For You Everywhere!

3、About the Product We have optimized Warehouses and Overseas warehouses

And the delivery speed is faster than before.


For Z10 10A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)

For Z20 20A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)

For Z30 30A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)


Features:

build-in industrial micro controller

Large screen  LCD display ,charge and discharge parameter can be adjusted ,with power off memory function

Screen with backlight,even more high-grade

Dual USB output ,the maximum current of 2.5A,to support mobile phone charging

Fully 3-stage PWM charge management

Build-in-short-circuit protection,open-circuit protection,reverse protection ,over-load protection

Reverse current protection ,low heat production



Product Parameter:

Model

Z10

Z20

Z30

Battery Voltage

12V/24V Auto

Charge current

10A

20A

30A

Discharge current

10A

10A

10A

Max Solar Panel Input

Max 23V(12V) ,Max 46V(24V)

Equalization

14.4V

Float Voltage

13.7V(Default,adjustable)

Discharge stop

10.7V(Default,adjustable)

Discharge reconnect

12.6V(Default,adjustable)

Charge reconnect

13V

Voltage of oepn light

Solar Panel 8V

USB output

Dual USB output 5vV/2.5A(Max)

Self-consume

<10mA

Operating temperature

-35°C~60°C



Product Pictures:

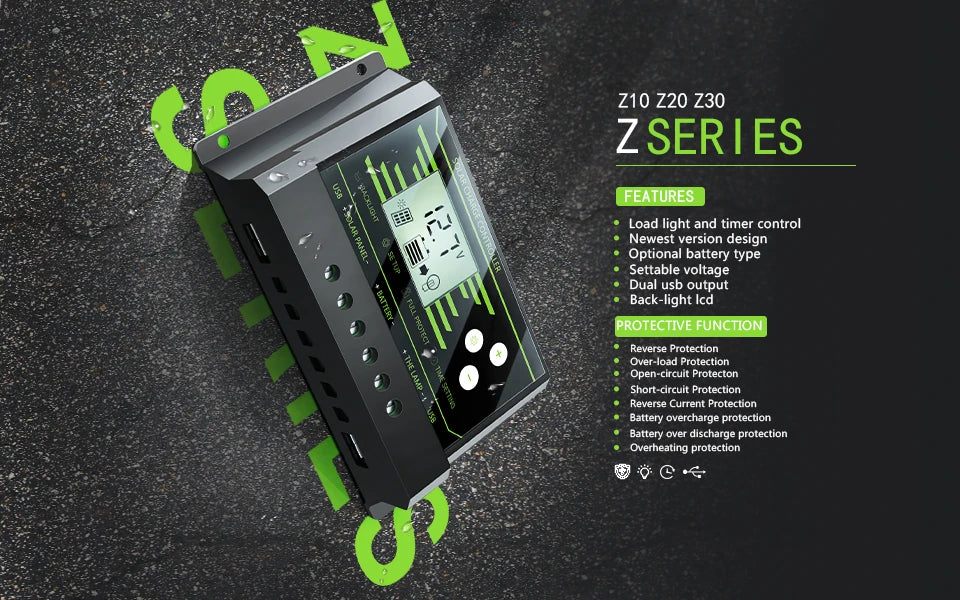

Advanced features: load lighting, timer control, dual USB ports, LCD display, and multiple protections for safe battery charging.

The Z-Series features load lighting and timer control, with optional battery type settings. It also includes dual USB outputs and backlit LCD display. Protections include reverse current, overload, open-circuit, short-circuit, and overheating protection.

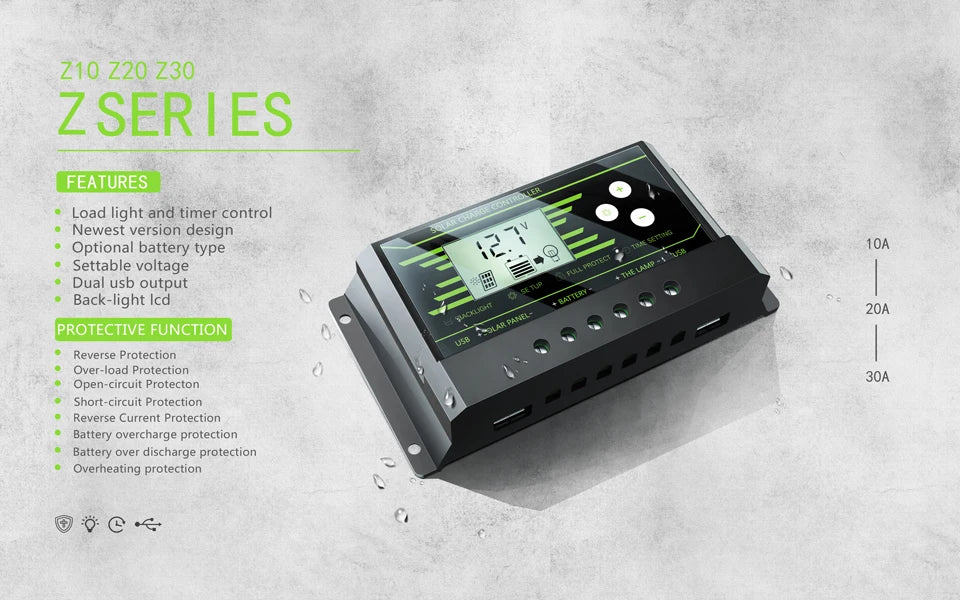

Z20 charger features: settable voltage, dual USB output, LCD display, and advanced protection functions.

Z20 Series Features: Load light and timer control, newest design. Key benefits include: * Settable voltage * Dual USB output * Backlight LCD display * 10A-30A protection functions: + Reverse protection + Overload protection + Short-circuit protection + Reverse current protection + Battery overcharge and discharge protection + Overheating protection

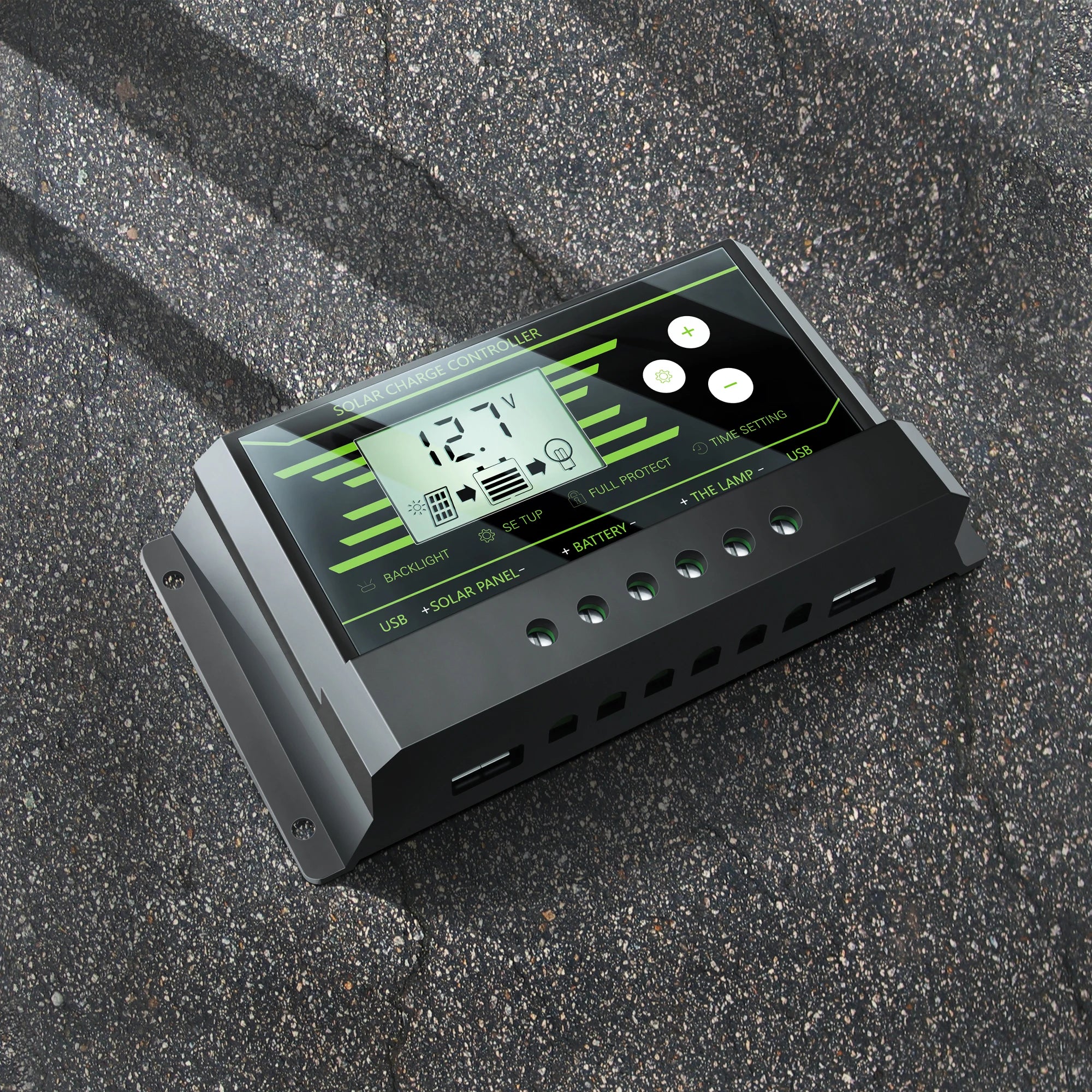

Portable solar power system with automatic start, charging, and back-up features.

Solar panel controller charges battery and backs up LCD with auto-start, featuring dual USB ports, time setting, lamp protection, and full battery backup.

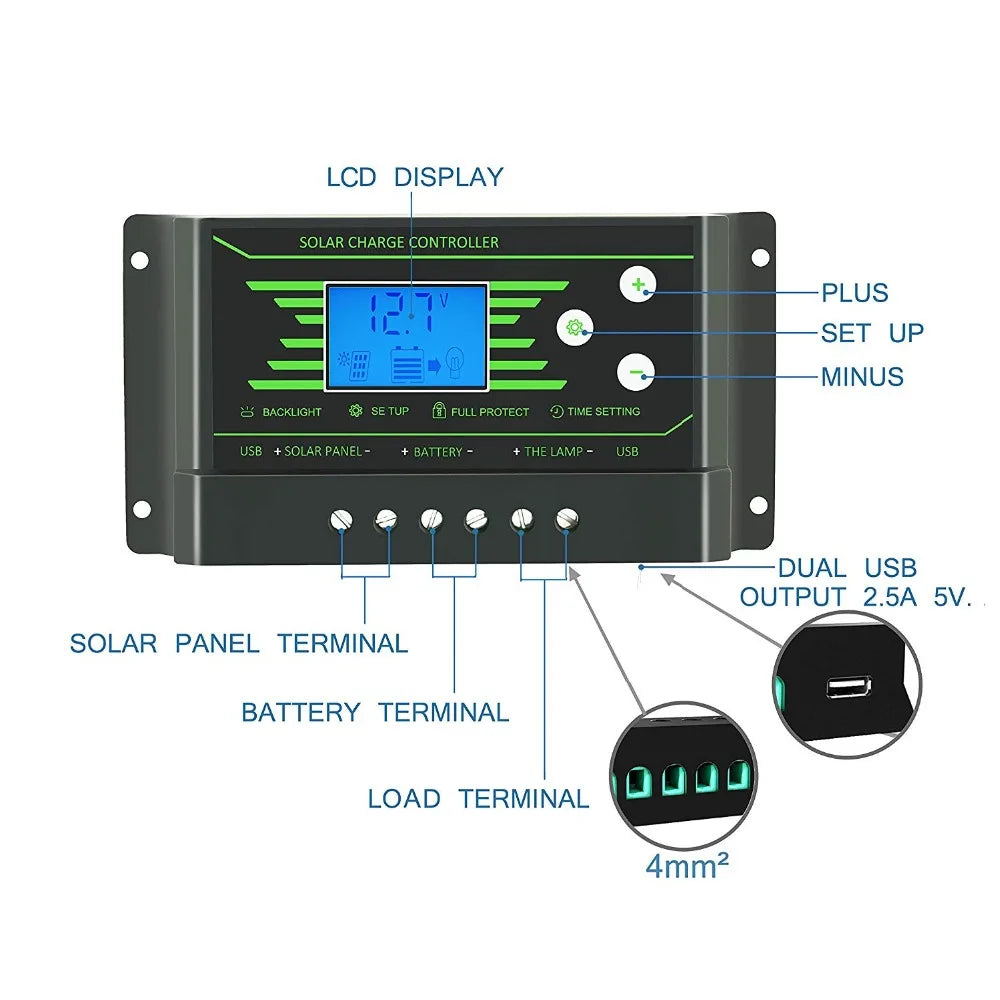

Solar-powered system controller with LCD display, auto backlight, and adjustable settings for charging and power management.

Control your solar-powered systems with this LCD display controller, featuring auto backlight, full protection, and USB output. Set up to 2.5A at 5V or charge batteries via solar panel terminals. Adjustable settings include backup time and load priority.

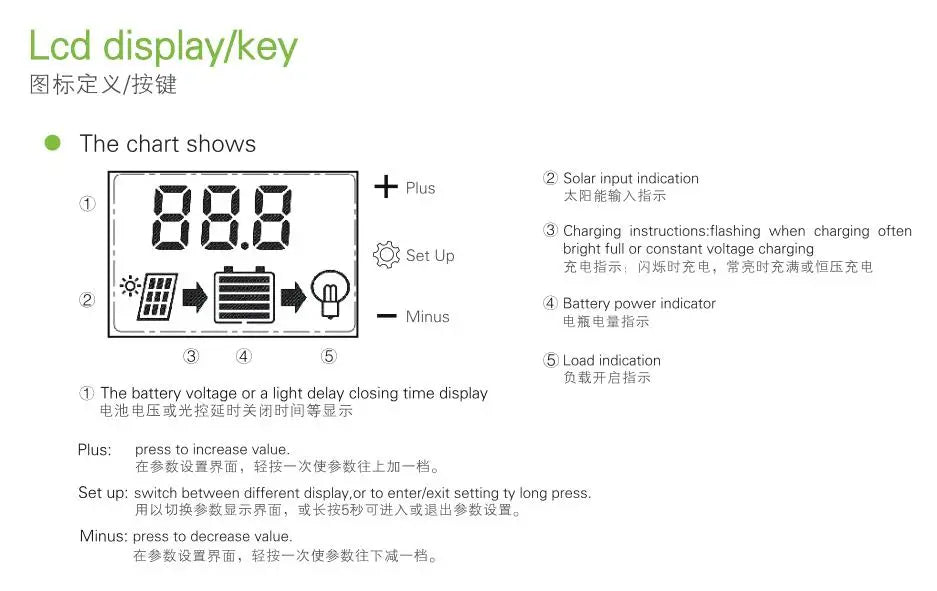

LCD display shows charging status and power level with adjustable settings via plus/minus buttons.

View LCD display with filters: solar input indication, charging instructions (flashing when charging), and battery power indicator. Plus button increases values; minus button decreases. Pressing plus/minus buttons adjusts settings. Switch between displays or enter/exist settings by long-pressing the button.

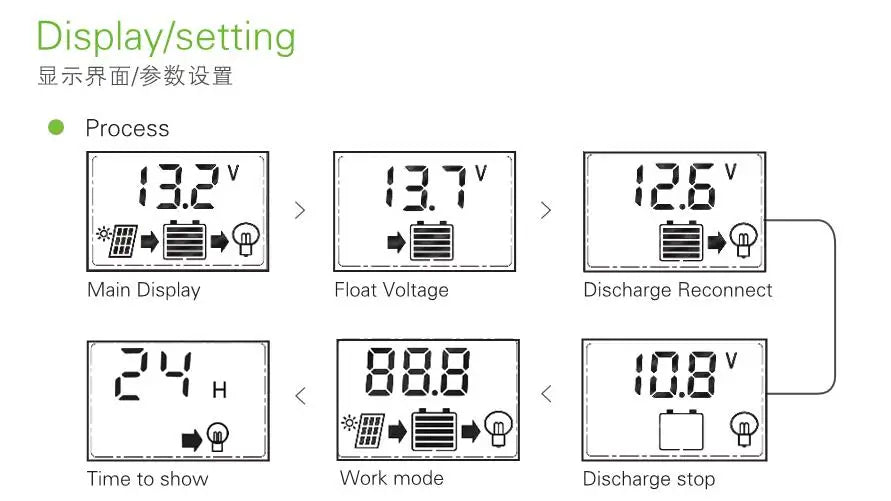

Displays show float voltage, discharge/reconnect times, and modes, with alerts for stopped discharge.

Main display shows float voltage, discharge reconnect time, and work mode; displays also indicate when discharge stops.

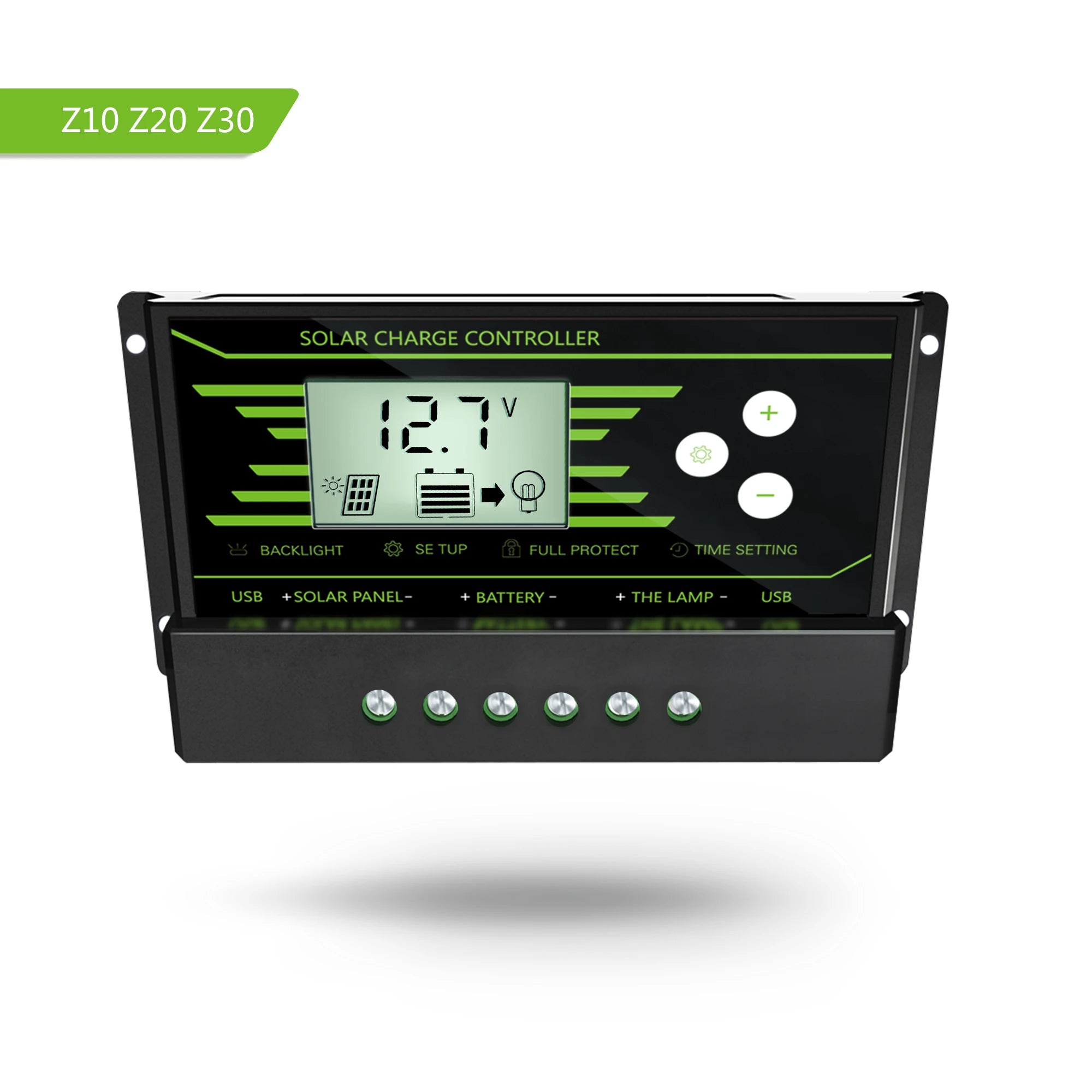

Solar charge controllers with backlight settings, protection, and USB output for charging devices and powering lamps.

Z10, Z20, and Z30 solar charge controllers with backlight settings, full-time protection, and USB output for charging devices and powering lamps from solar panels or batteries.

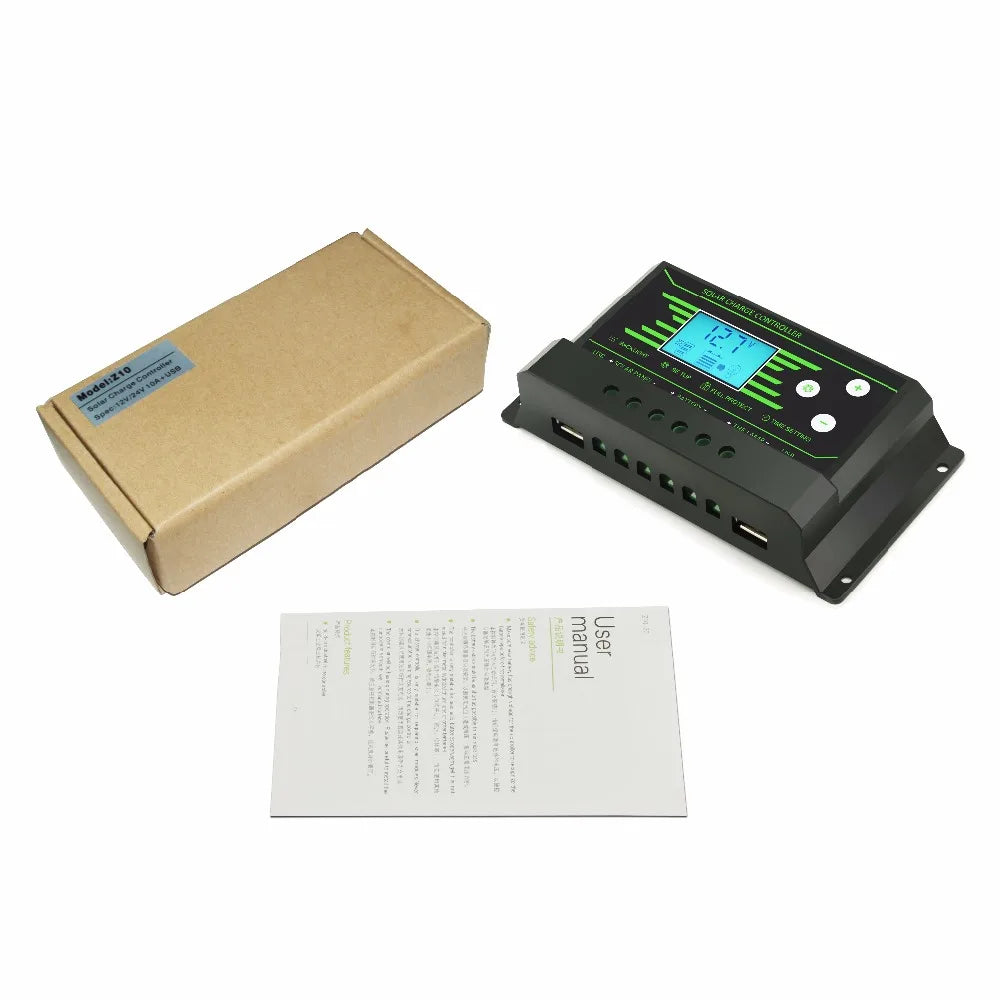

Order details: refer to manual or online support; fast international shipping from optimized warehouses.Solar controller with LCD display, USB output, and protection features for Z10, Z20, and Z30 models.
