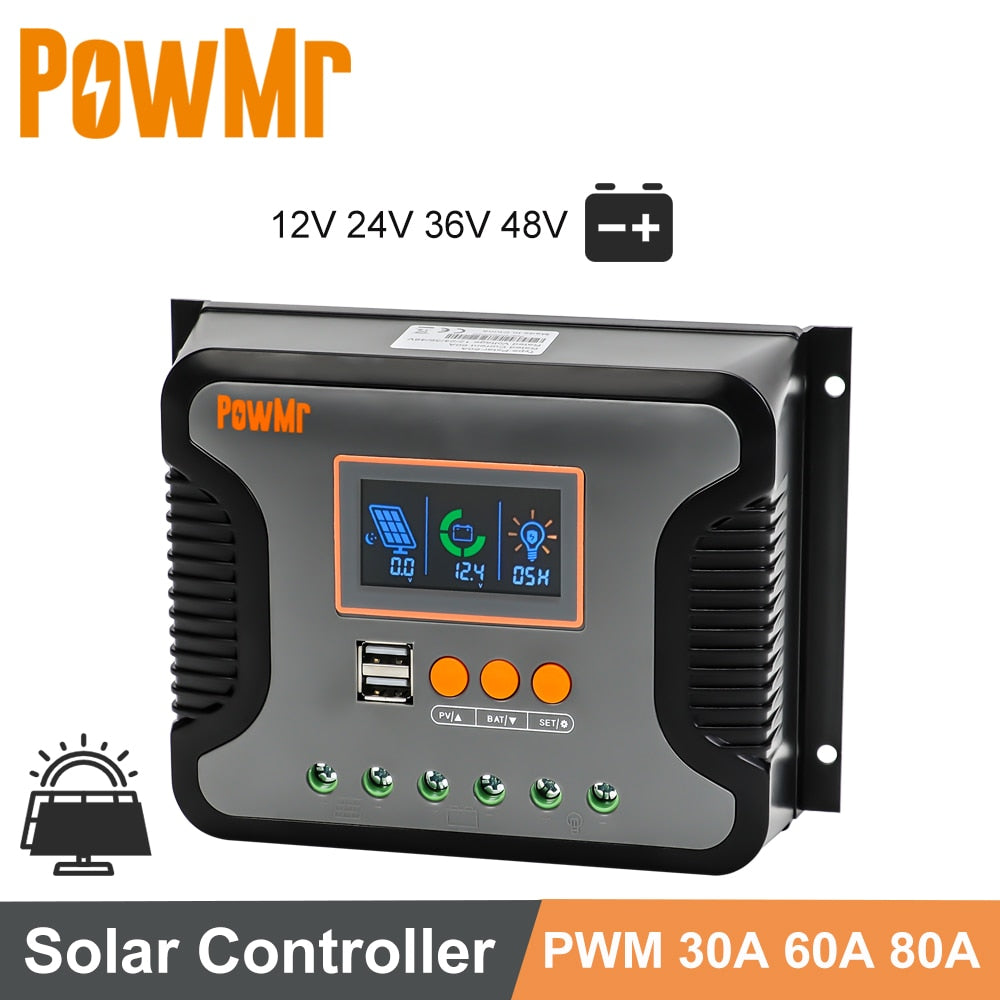

PWM 80A 60A 30A Solar Charger Controller 12V 24V 36V 48V Auto Max PV 100V 24 hour Settable Work Time Fit for Light and RV System

$52.52 USD

Sale Sold out

Shipping calculated at checkout.

Ships From China

Current 30A 60A 80A

Rated Voltage 12V 24V 48V Auto

Quantity

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

Free Shipping：Ships within 3days, arrives within 9-15 days
Paid Express: Ships within 2days,arrives within 5-8 days
Money back guarantee: Quality problems, return and exchange within 30 days
12-month warranty, long-term after-sales service
No need to register account, Order tracking url will send to your email
More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

USB Interface: 5V/2A*2

Self-consumption: ≤20mA

Rated Output Current: 20A/35A/50A

Origin: Mainland China

Nominal System Voltage: 12V/24V/36V/48V

Model Number: Pstar Series

Maximum Current: PWM 30A 60A 80A

Max Open Voltage of PV Module: 100V

Charging technology: PWM

Charge Algorithm: 3-Stages

Certification: CE

Brand Name: PowMr

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

PWM 80A 60A 30A Solar Charger Controller 12V 24V 36V 48V Auto Max PV 100V 24 hour Settable Work Time Fit for Light and RV System

PWM 80A 60A 30A Solar Charger Controller, Silent operation with natural air cooling and real-time monitoring/configuration for total control.

Thank you for choosing the Pstar Series of Solar Power Controllers. The controller uses numerical control technology design, LCD display, automatic operation. Its pulse-width modulation (PWM) type battery charging mode, as well as control technology, will greatly extend the battery life.

This controller is suitable for the solar energy system (independent system), control the charging and discharging process automatically. The battery charging and discharging process of the controller is optimized, which can prolong the battery life and improve the system performance. Its self-test function and electronic protection function can avoid controller damage due to installation errors and system failures.

PWM 80A 60A 30A Solar Charger Controller, Solar Energy System Controller: Automatic charging and discharging for independent systems.

1.Compatible with lithium-ion and lead-acid battery, support user-defined batteries.

2.Automatic identification of 12V/24V/36V/48V system voltage.

3.A variety of protection functions to ensure the normal operation of the device and extend the

battery life.

4.Natural air cooling heat dissipation, to achieve totally silent operation

5.The LCD screen enables real-time monitoring and parameter configuration.

6.Small size, light weight, easy and quick installation.

7.Built-in 2 USB ports with output of 5V and 2A.

8.User friendly setup, fast and easy commissioning via front panel LCD.

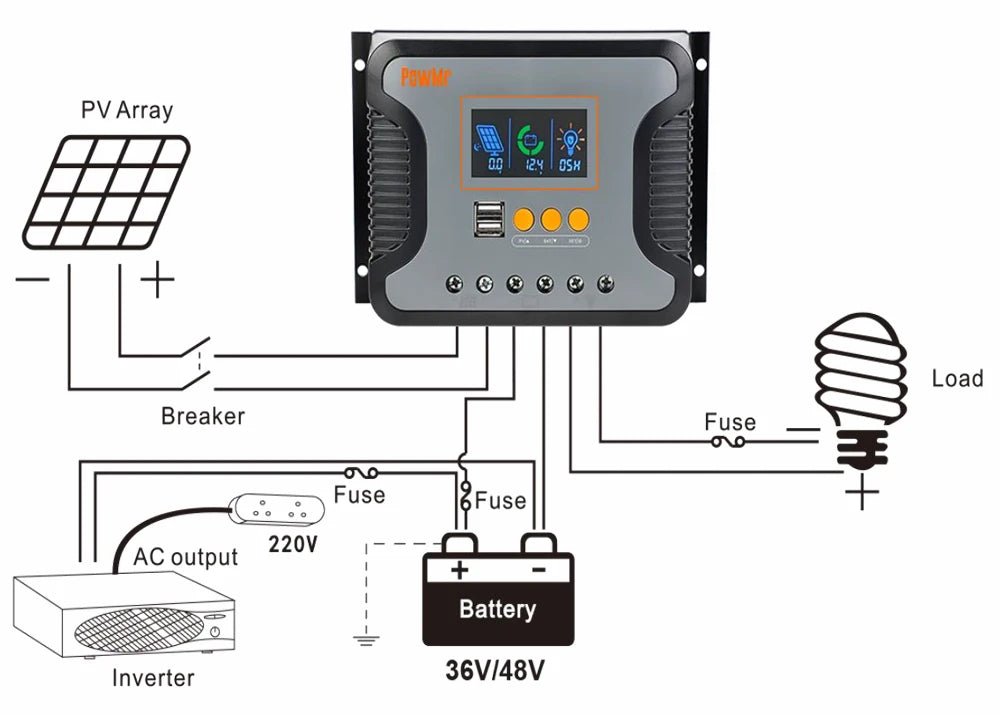

PWM 80A 60A 30A Solar Charger Controller, Solar charger controller for light and RV systems with PWM tech, adjustable charging time.

Solar charger controller for light and RV systems, featuring PWM technology, 80A/60A/30A charge rates, and adjustable work time up to 24 hours.

●Multi-stage charge algorithm

The multi-stage charge algorithm is specifically engineered to optimise each recharge cycle and

charge maintenance over extended periods.

●Silent operation

Almost silent operation since there is no cooling fan or moving parts, cooling is via natural convection.

●Lithium battery compatible

Compatible with Li-ion (LiFePO₄) batteries; when the battery type parameter is set to Lithium battery the charge cycle settings are altered to suit.

Warning: Do not charge Li-ion batteries if the battery temperature is below 0°C.

PWM 80A 60A 30A Solar Charger Controller, Two USB ports with 5V and 2A output, perfect for charging small devices.

Model	Pstar-30A	Pstar-60A	Pstar-80A
PV Input
Max Open Voltage of PV Module	100V
PV Operation Voltage Range	>System voltage and ≤100V
Max. Input Power: For 12V system For 24V system For 36V system For 48V system	≤360W ≤720W ≤1080W ≤1440W	≤720W ≤1440W ≤2160W ≤2880W	≤960W ≤1920W ≤2880W ≤3840W
Charge Mode
Charging technology	PWM
Charge Algorithm	3-Stages
Self-consumption	≤20mA
Nominal System Voltage	12V/24V/36V/48V
Rated Charging Current	30A	60A	80A
DC output
Rated Output Current	20A	35A	50A
USB Interface	5V/2A*2
Environment
Operating Temperature Range	-20℃~+55℃
Humidity Range	≤90%，Non-condensing
General Specification
Protection Class	IP30
Dimension	1879449mm	18713260mm	18713260mm
Net weight	0.49kg	0.7kg	0.75kg

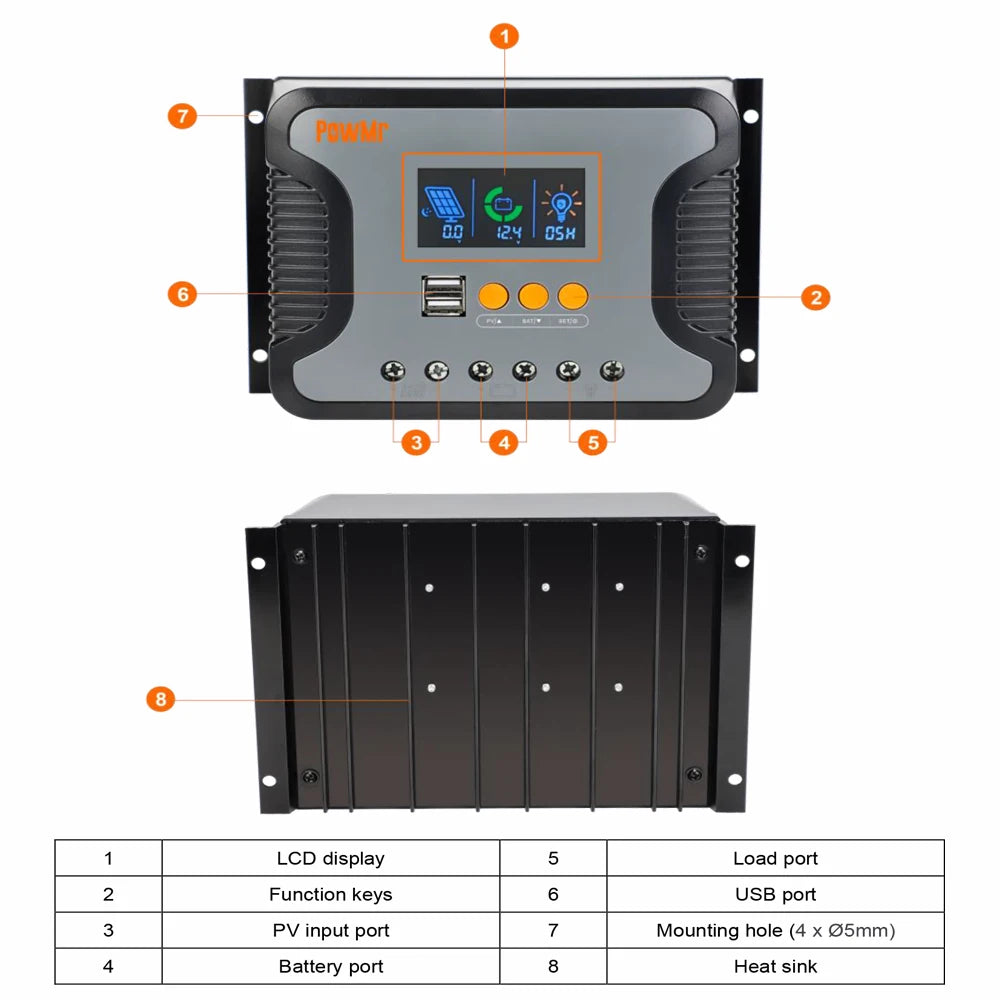

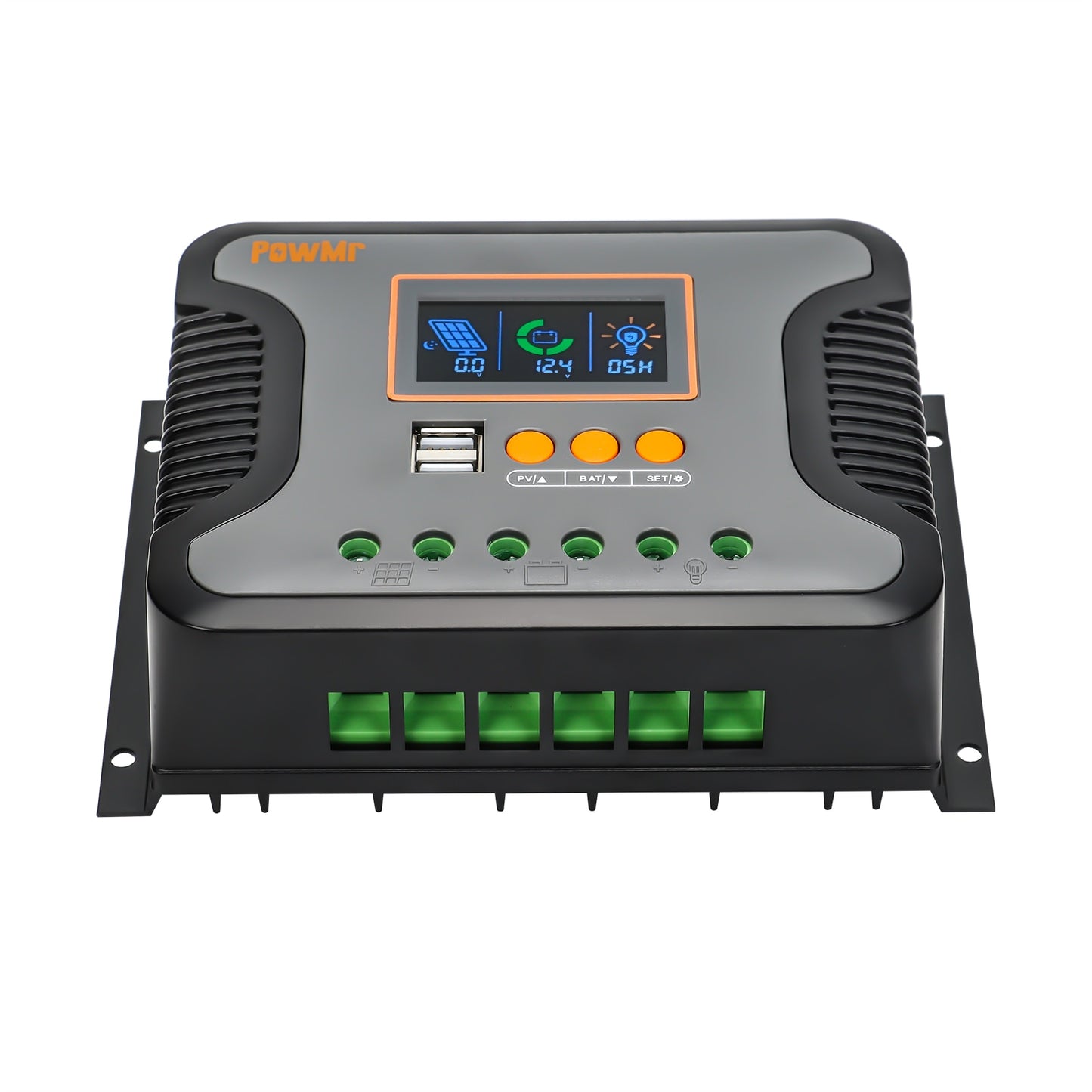

PWM 80A 60A 30A Solar Charger Controller, Display device with LCD screen, ports, and mounting options for easy installation.

Features an 88/124 LCD display, load port, function keys, USB port, PV input port, and mounting holes with heat sink and battery ports for easy installation.

PWM 80A 60A 30A Solar Charger Controller, Versatile power solution for various applications: villas, outdoor use, RVs, yachts, solar billboards, and street lights.

Suitable for various applications: villas, outdoor use, RVs, yachts, solar billboards, and street lights, making it a versatile power solution.

PWM 80A 60A 30A Solar Charger Controller, Optimized recharge cycles for long-term performance.

PWM 80A 60A 30A Solar Charger Controller, Solar charger controller for 12V/24V/36V/48V systems, max power 80A, settable working time up to 24 hours.

PWM Solar Charger Controller for 12V/24V/36V/48V systems, with max power 80A, settable work time up to 24 hours.

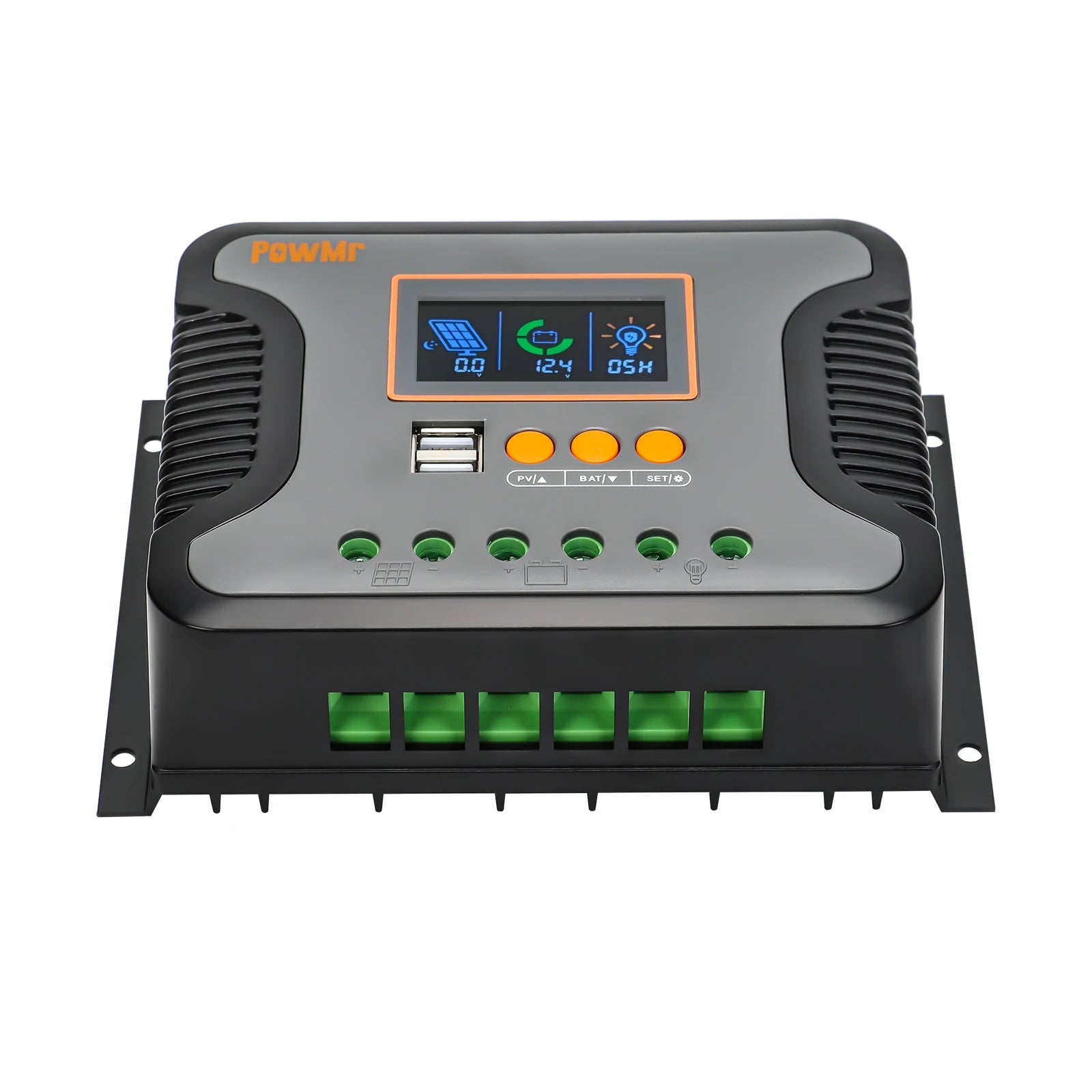

PWM 80A 60A 30A Solar Charger Controller, Compact, lightweight, and easy to install

PWM 80A 60A 30A Solar Charger Controller, Charging Li-ion batteries below 0°C can be hazardous, so ensure temperature above freezing before charging.

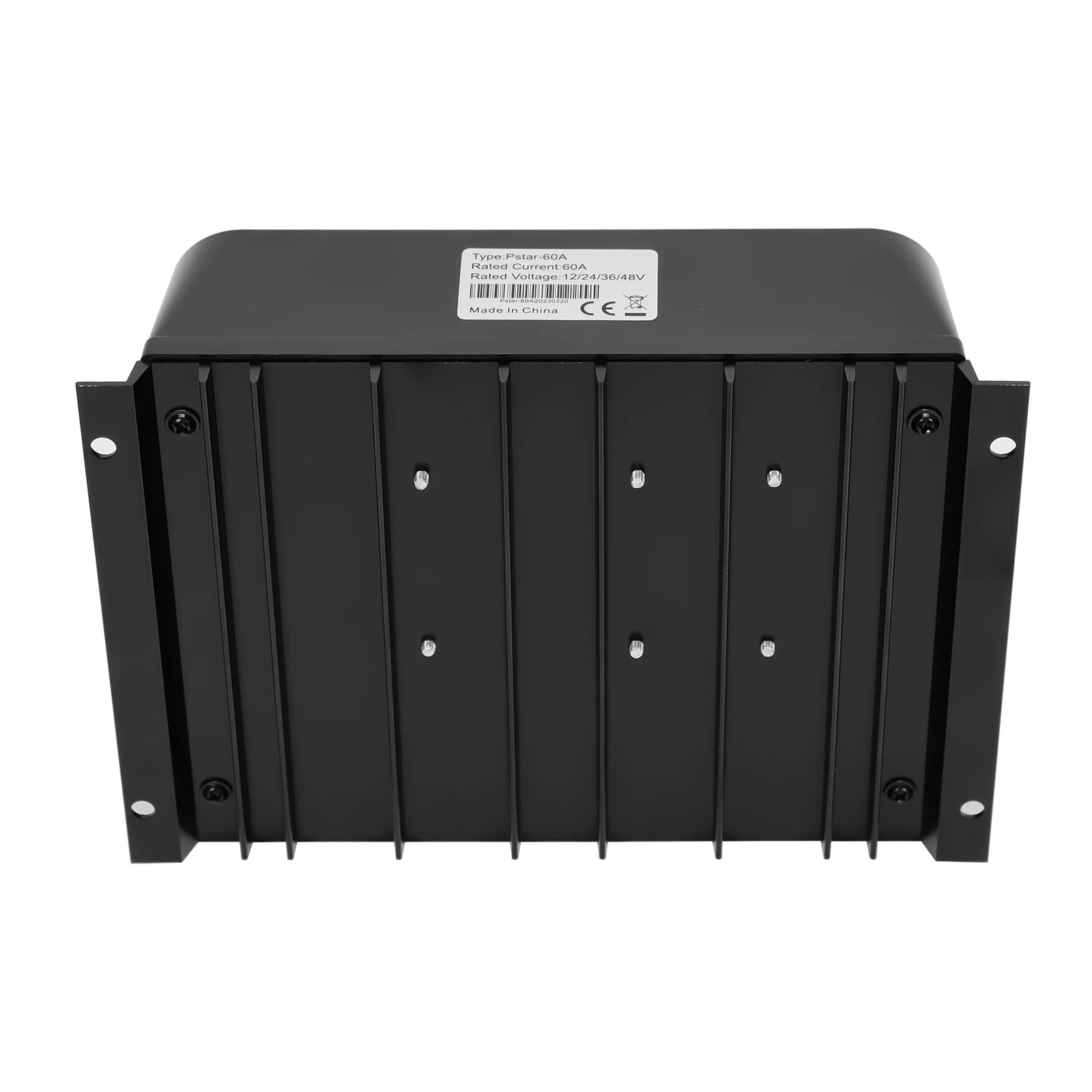

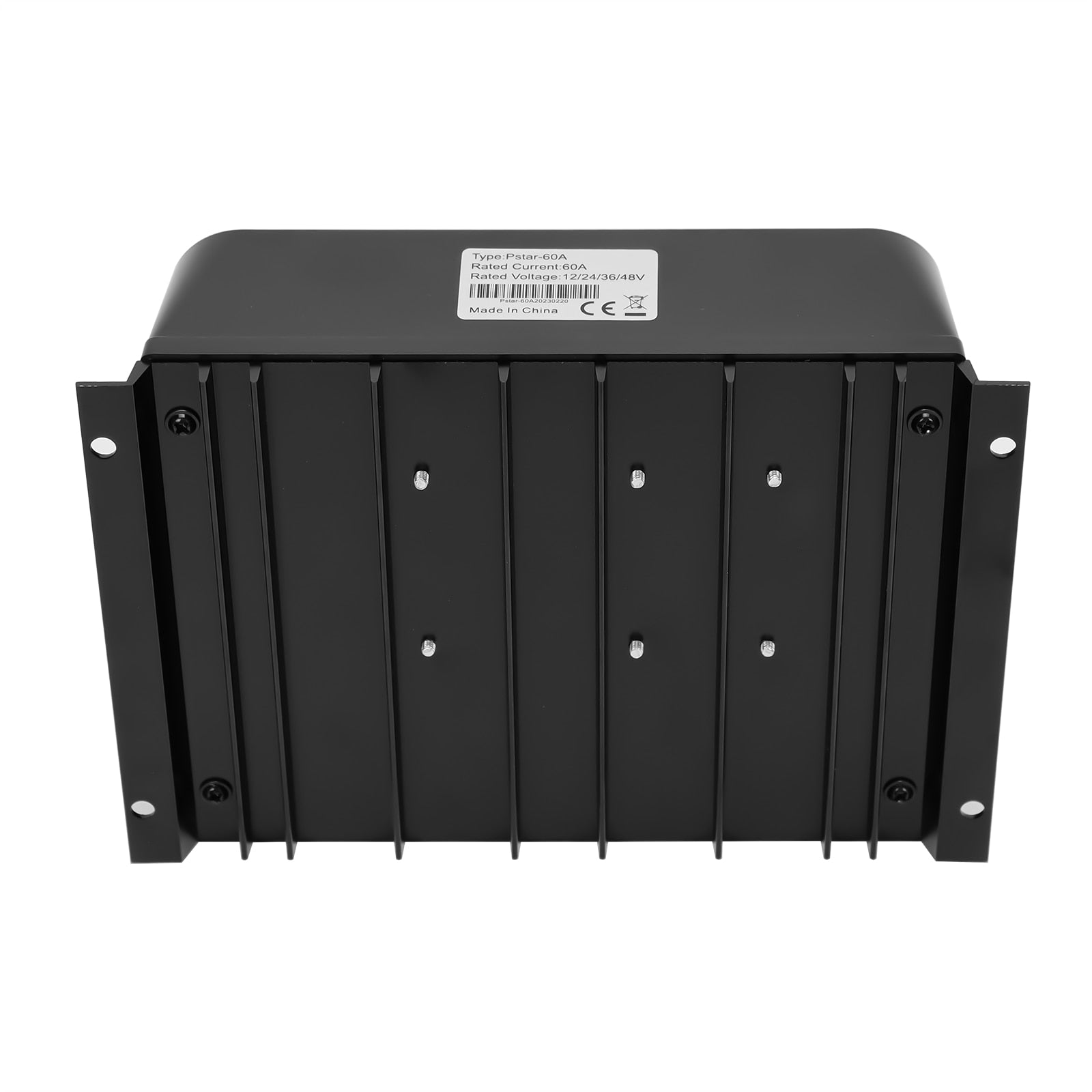

PWM 80A 60A 30A Solar Charger Controller, Chinese-made PSTAR-GOA power supply with multiple ratings for current (80A, 60A, 30A) and voltage (12V, 24V, 36V, 48V)

PSTAR-GOA rated current and voltage: 80A, 60A, 30A; 12V, 24V, 36V, 48V; made in China.
