PWM Solar Charge Controller12V 14V 10A/20A/30A Solar Controller Solar Panel Battery Regulator LCD Display Dual USB 5V Output

Description:

Type: PWM

Work Time (h):24H

Battery type 2:Lithium iron phosphate battery /LIT2/ b03

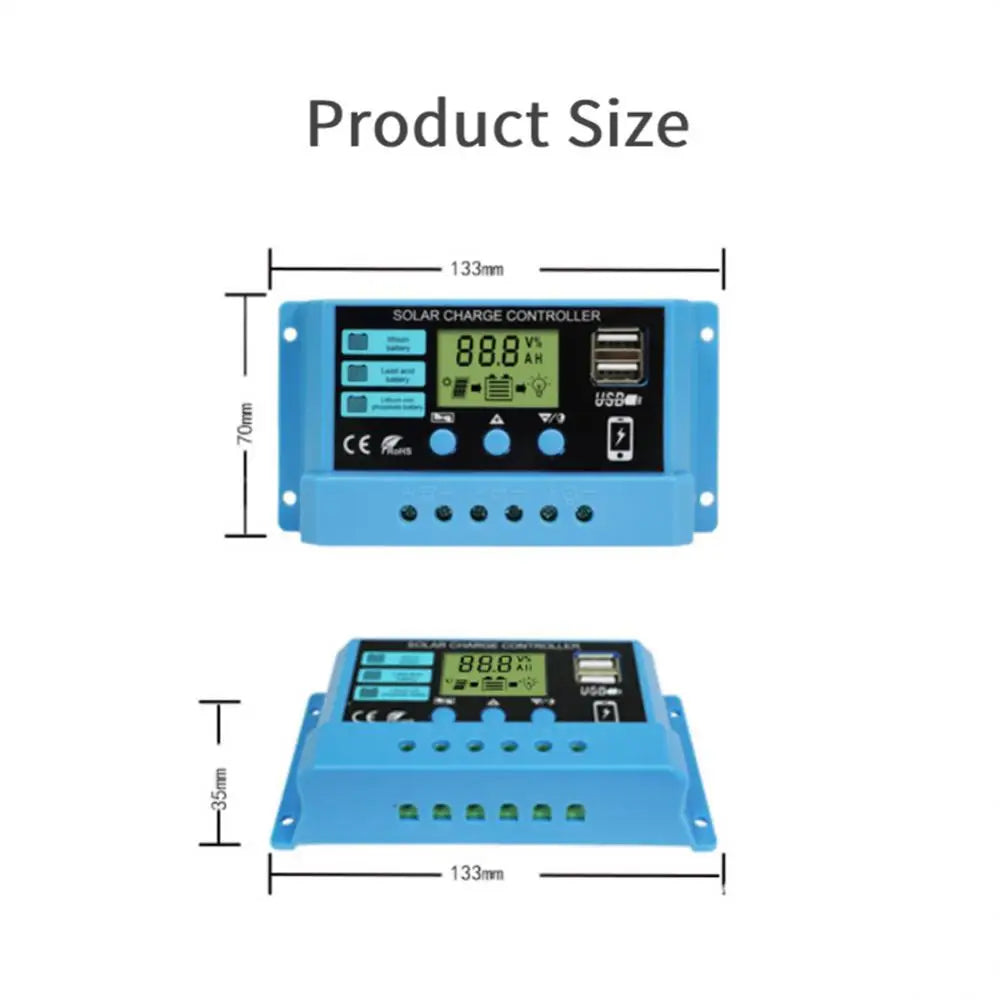

Size:133x70x35mm

Protection Function:Overcharge/ Overdischarge/ Overload/ Shortcircuit Protection

Charge way: Charge Under Sun power solar panels

USB output:2 USB-5V/2A MAX

Operating temperature:-35~ 60℃

Waterproof level: IP32

Material: Plastic

LVD:10.7V/21.4V/42.8V

LVR:12.6V/25.2V/50.4V

Rateddischarge current: 10A/20A/30A optional

USB output voltage: 5V

Battery voltage: 12V/24V automatically selectable.

Battery type: lead-acid battery, lithium iron phosphate battery, lithium battery.

Specifications:

1. The control chip has a large-screen LCD display, and the charging and discharging parameters are adjustable.

2. Wide range of applications: suitable for solar power generation systems, smart homes, solar chargers, solar ventilation systems, solar light boxes, solar billboards, solar warning lights, etc.

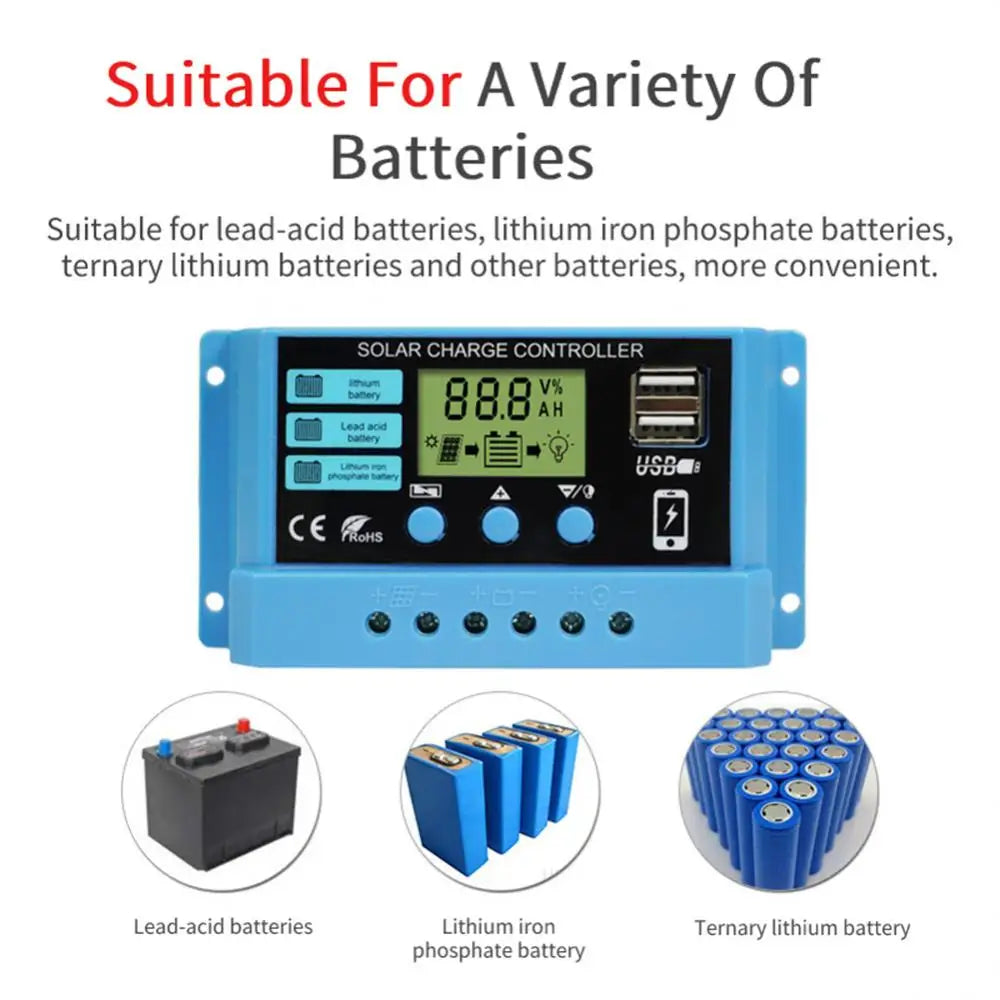

3. Applicable to a variety of batteries: suitable for lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries and other batteries, more convenient.

4. Multiple protections: built-in overcurrent, short-circuit protection, reverse connection protection, open-circuit protection, all of which are automatically restored without damage to the control

5. Light control time control: This controller has light control time control, which can control the discharge through sunlight and time

6. Three-stage PwM-regulated charging: adopt three-stage Pm-regulated charging methods of direct charging, boosting charging, and floating charging. Use the controller to achieve efficient and fast intelligent charging, and effectively prolong the service life of the battery

Package Included:

1 * Solar Charge Controller

Suitable for various applications: rooftop solar power generation, home lighting, traffic signals, railway signaling, RV power, and garden automation.

Indication Settings: Voltage (88.8V) is displayed digitally. The solar panel symbol indicates charging status. A five-segment battery level indicator shows the charge state. The menu allows parameter settings. Long press the menu key to enter/exit settings or flip down for manual mode. Scroll up/down to adjust parameters by one step.

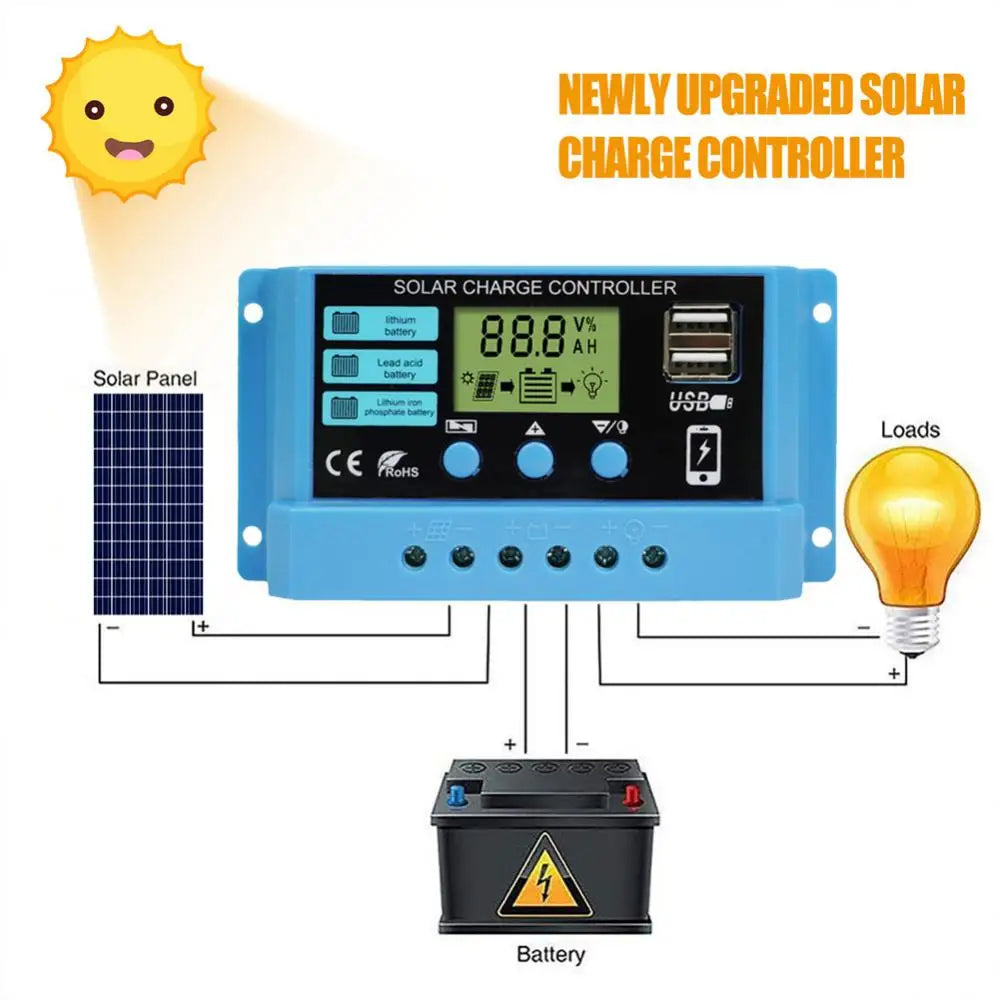

Connection Diagram: Follow these steps to connect your solar charge controller: 1. Attach the battery's positive and negative poles to the controller, which will automatically detect the battery voltage. 2. Connect the load's positive and negative poles to the controller, ensuring they are not reversed. 3. Link the solar panel to the controller according to the diagram.

This solar charge controller automatically detects 12V/24V inputs and regulates charging for up to 30A. It features an LCD display, dual USB outputs (5V), and supports various battery types including lead-acid and lithium-ion.

This PWM solar charge controller supports 12V-24V systems and handles up to 30A. It features LCD display, dual 5V USB outputs, and compatible with various battery types including lithium-ion, lead-acid, and phosphate.

This solar charge controller is suitable for various types of batteries, including lead-acid, lithium iron phosphate, and ternary lithium batteries. It's convenient to use with different battery types.

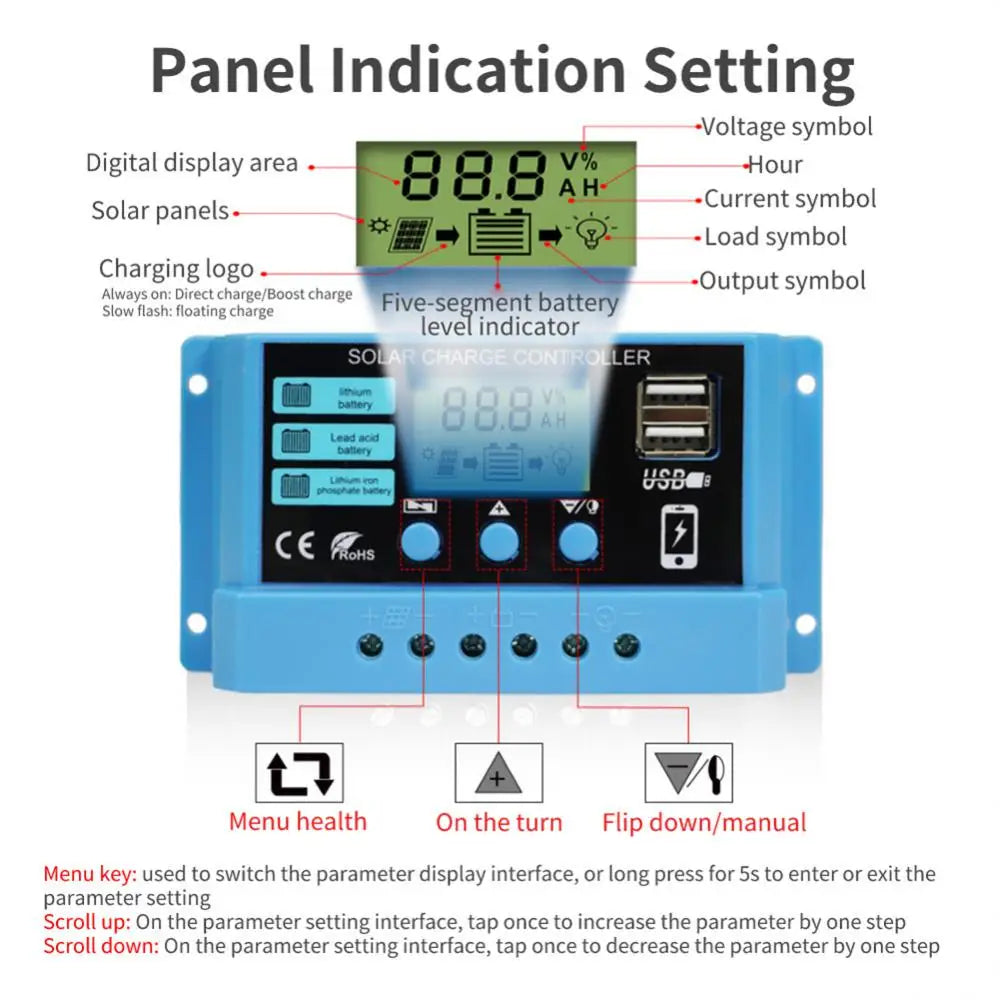

Panel Indication Settings: • Voltage symbol: Digital display (88.8V%) • Hour/AH indicator • Current symbol: Solar panels charged at 0 • Load symbol: Charging output always on • Indicator lights: + Always on: Direct/Boost charging, Slow flash: Float charge + 5-segment battery level indicator Menu Functions: + On/Off toggle (or long press to enter/exit settings) + Scroll up/down to adjust parameters

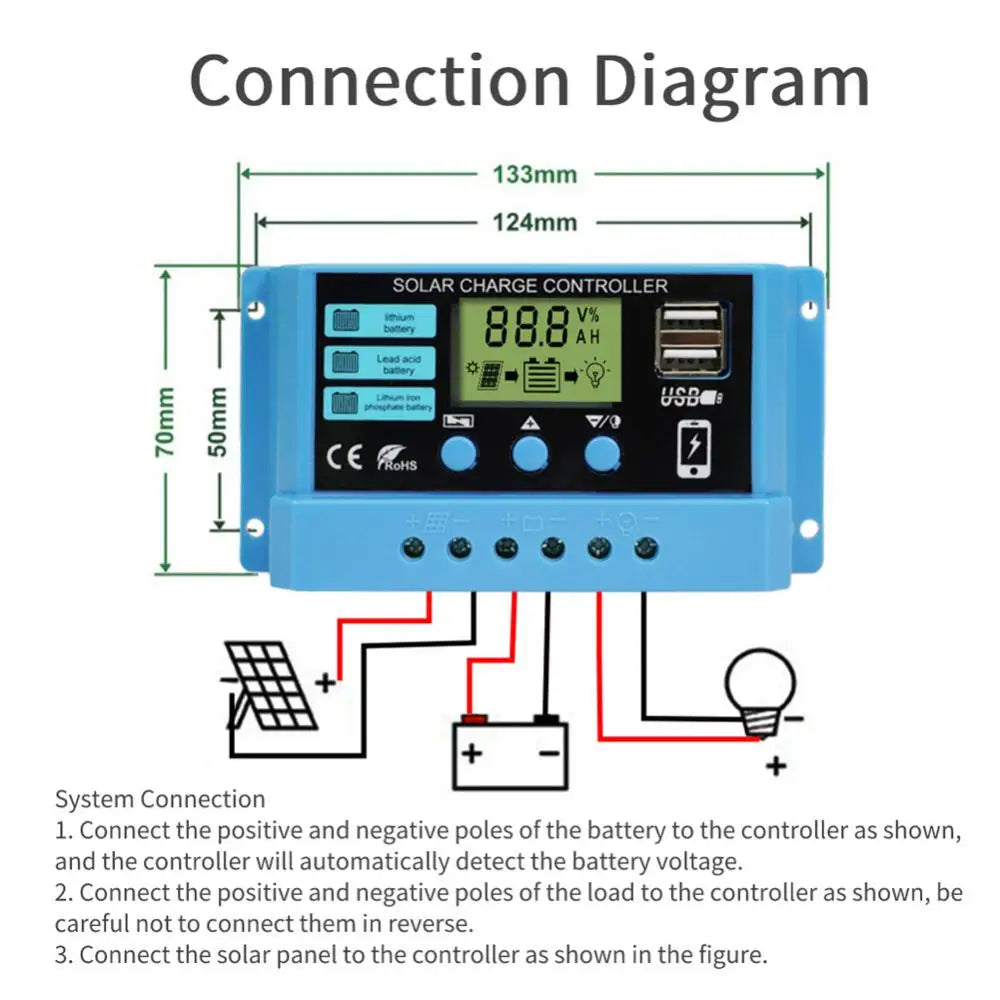

Solar Charge Controller Connection Diagram: 1. Connect battery (+) and (-) terminals to the controller. 2. Connect load (+) and (-) terminals to the controller, ensuring correct polarity. 3. Connect solar panel to the controller as shown in the diagram.

Solar Charge Controller suitable for various applications, including rooftop power generation, home lighting, traffic/Railway signal supplies, RV power controller, and garden automatic watering systems.

Newly Upgraded Solar Charge Controller: Regulate and charge your solar panel battery with this upgraded controller, featuring dual USB outputs (5V), LCD display, and adjustable charging speeds (10A/20A/30A).

Product size: 13.3cm; solar charge controller with LCD display, dual USB output and 10A/20A/30A charging capacity.
