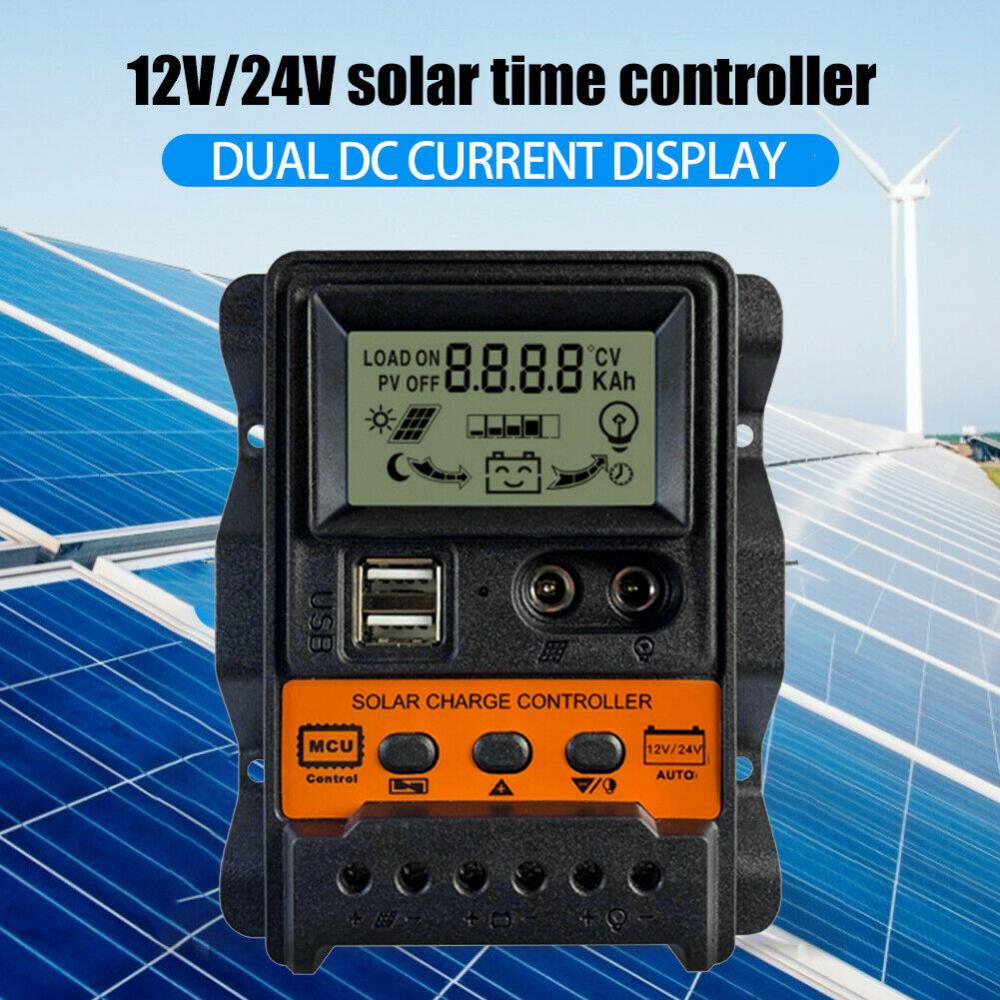

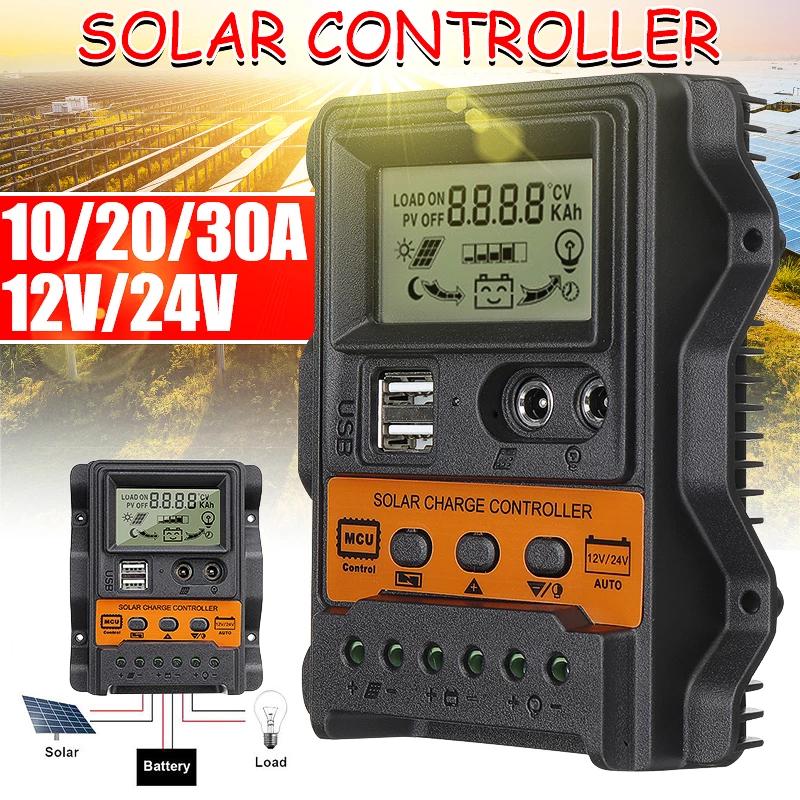

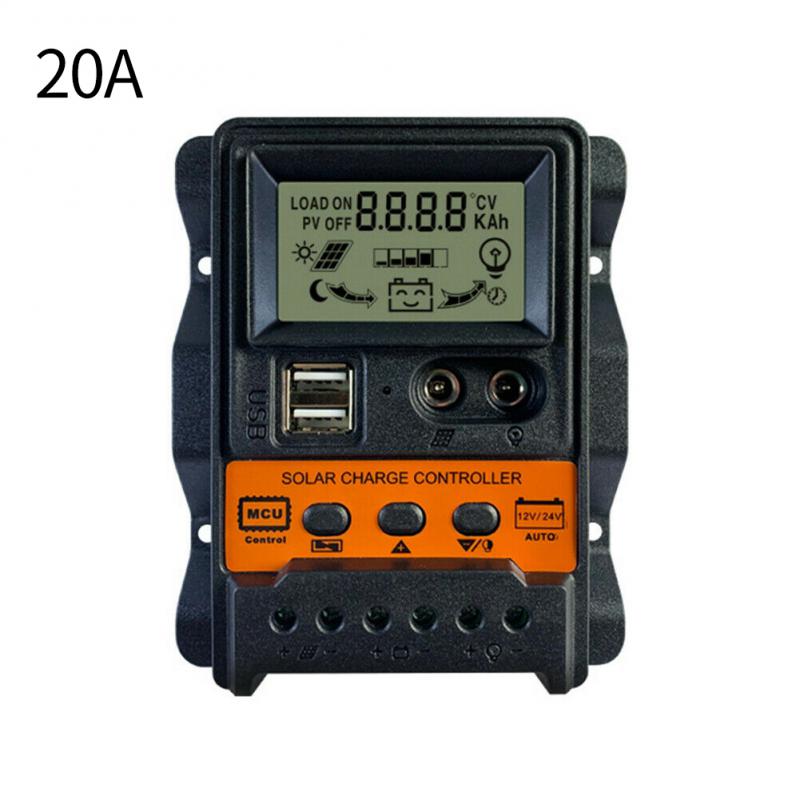

Solar Charge Controller PWM Controller With LCD Display 10A 20A 30A 12V 24V Dual USB 5V Output Solar Panel Charger Regulator
Solar Charge Controller PWM Controller With LCD Display 10A 20A 30A 12V 24V Dual USB 5V Output Solar Panel Charger Regulator
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Working temperature: -35 to and 60 degrees
USB output: 5V/2.5A
Support: Dropshipping Wholesale
Standby current: <10mA
Size: 4.9x3.9x1.1in(12.5x10x3cm)
Rated discharge current: 10A/20A/30A
Rated charging current: 10A/20A/30A,10A/20A/30A
Rated Voltage: 12V/24V
Rated Current: 20A,20A
Origin: Mainland China
Ncrease charging voltage: 14.4V (sealed type)
Model Number: Solar Charge Controller
Maximum Current: 30A
Max.PV Voltage: 50V
Max.PV Input Power: 260W(12V)520W(24V)
Is Smart Device: YES
Floating charge voltage: 13.7V (default, adjustable)
Discharge recovery voltage: 12.6V (default, adjustable)
Discharge cut-off voltage: 10.7V (default, adjustable)
Certification: CE
Application: Thermal Controller
Solar Charge Controller PWM Controller With LCD Display 10A 20A 30A 12V 24V Dual USB 5V Output Solar Panel Charger Regulator
Description:
-Industrial-grade master chip, sampling accuracy, temperature, charging current, Discharge current accurate real-time display, power generation at a glance.
- Automatic focusing ,tracking charging, high charging efficiency, non-stop detection
During charging, bidirectional focusing tracking.
-Large-screen LCD display, adjustable charging and discharging parameters. When the output is off, the time.Can be adjusted, which is more convenient.
-Acomplete three-phase charge management, effectively protect the battery, the battery is more Durable.
-Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection.Protection,when the fault is eliminated, the controller automatically recovers, does not damage.
Specifications:
Size:4.9x3.9x1.1in(12.5x10x3cm)
USB output: 5V/2.5A
Standby current: <10mA
Rated Voltage:12V/24V
Rated Current:20A
Max.PV Voltage:50V
Max.PV Input Power:260W(12V)520W(24V)
Rated charging current: 10A/20A/30A
Rated discharge current: 10A/20A/30A
Working temperature: -35 to 60 degrees
Ncrease charging voltage: 14.4V (sealed type)
Floating charge voltage: 13.7V (default, adjustable)
Discharge cut-off voltage: 10.7V (default, adjustable)
Discharge recovery voltage: 12.6V (default, adjustable)
Package Included:
1 x Solar Panel Battery Regulator Charge Controller
1 X User Manual
Notes:
Note:
1. Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.
2. The colors may have different as the difference display, please understand.
Solar Charge Controller with LCD Display: 10A, 20A, or 30A PWM controller for 12V or 24V solar panels. Features auto-source switching and dual USB 5V output. Regulates charge and discharge of solar batteries.
Solar Charge Controller with LCD Display, suitable for 12V or 24V systems. Features dual USB outputs (5V), automatic charge control, and displays current load.
Solar Charge Controller features a user-friendly interface with an LCD display, dual USB outputs, and adjustable load control for solar panels and batteries.

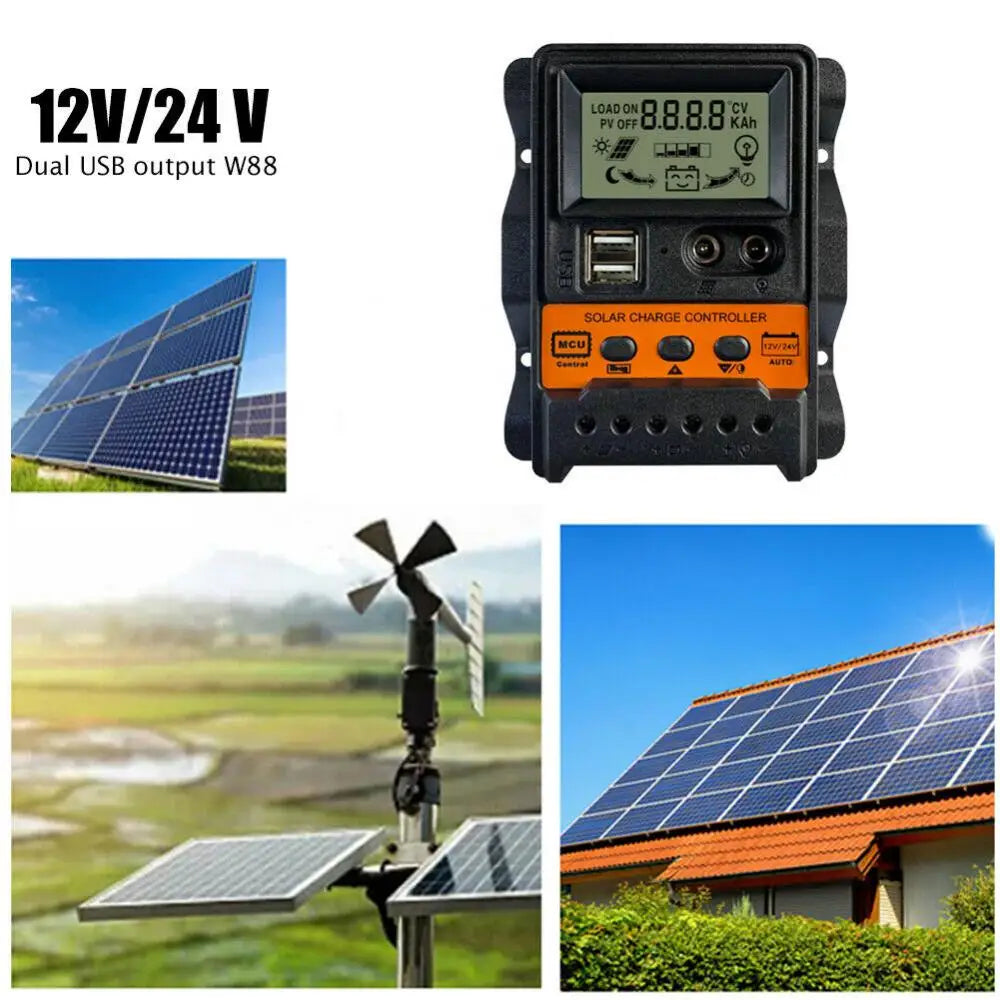

12V/24V Solar Charge Controller with dual USB outputs and LCD display, suitable for solar panel charging applications.
Suitable for various applications, including homes, industries, businesses, cars, and motorcycles, to charge batteries.

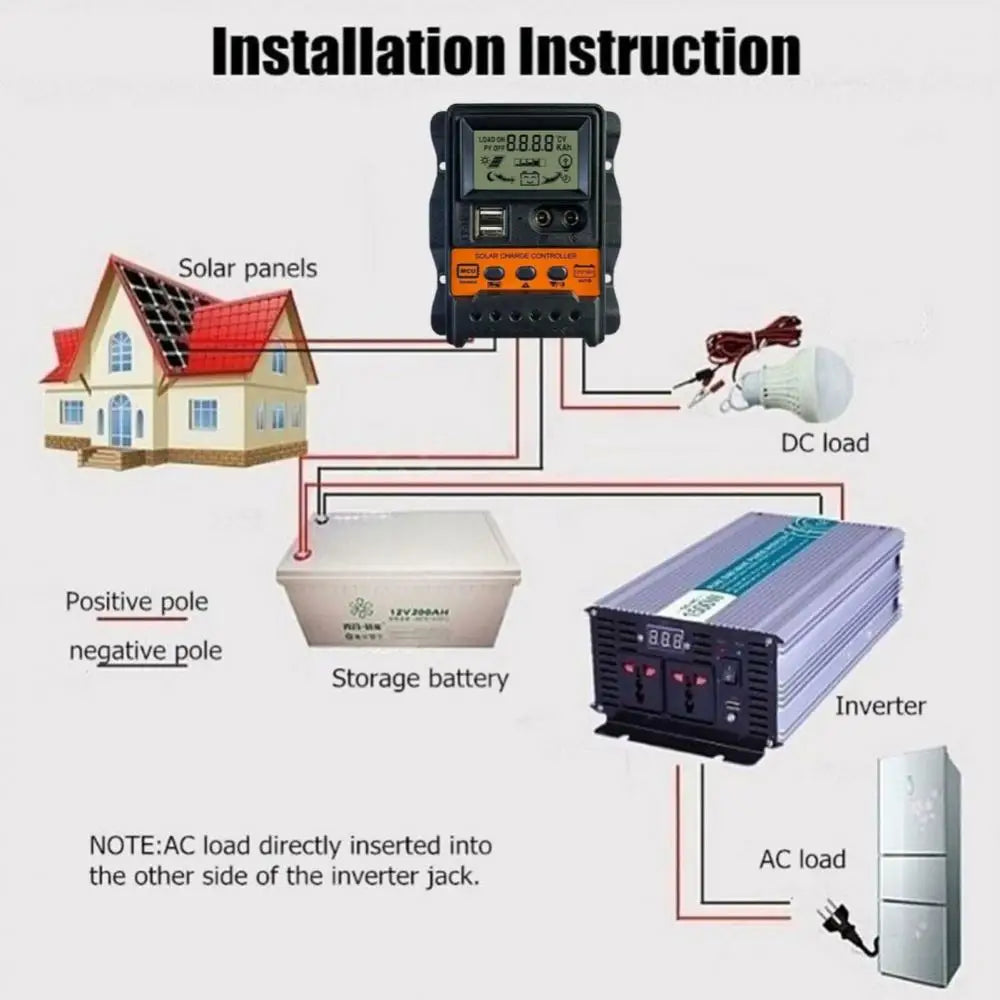

Install solar panels DC-side positive and negative poles to storage batteries. Connect AC loads through an inverter, plugging them into the AC output jack.

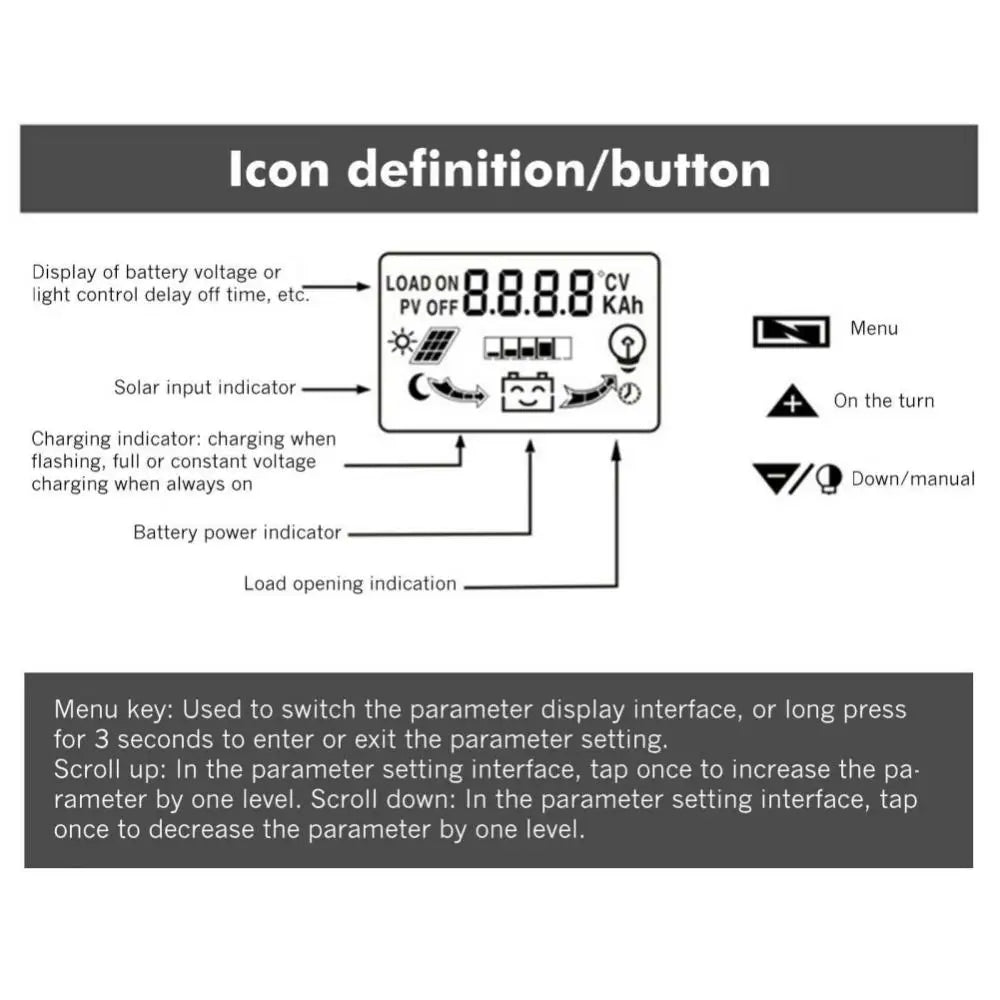

Icon functions include displaying battery voltage or load status, with options for CV light control delay and off time. The Pv OFF indicator shows solar input. Charging indicators flash during charging and stay constant when full. A menu allows switching between display interfaces or entering parameter settings by long-pressing the icon. In settings, tap once to adjust parameters up or down, or hold for 3 seconds to exit.

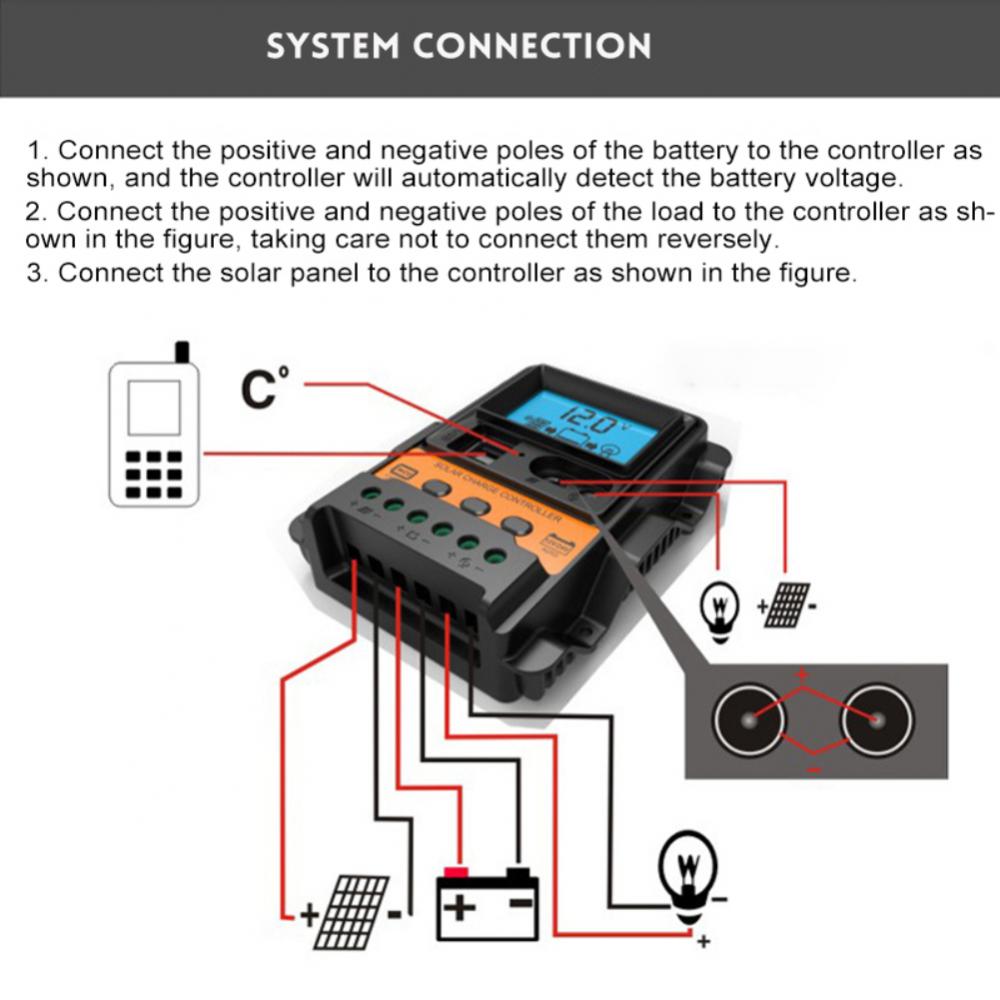

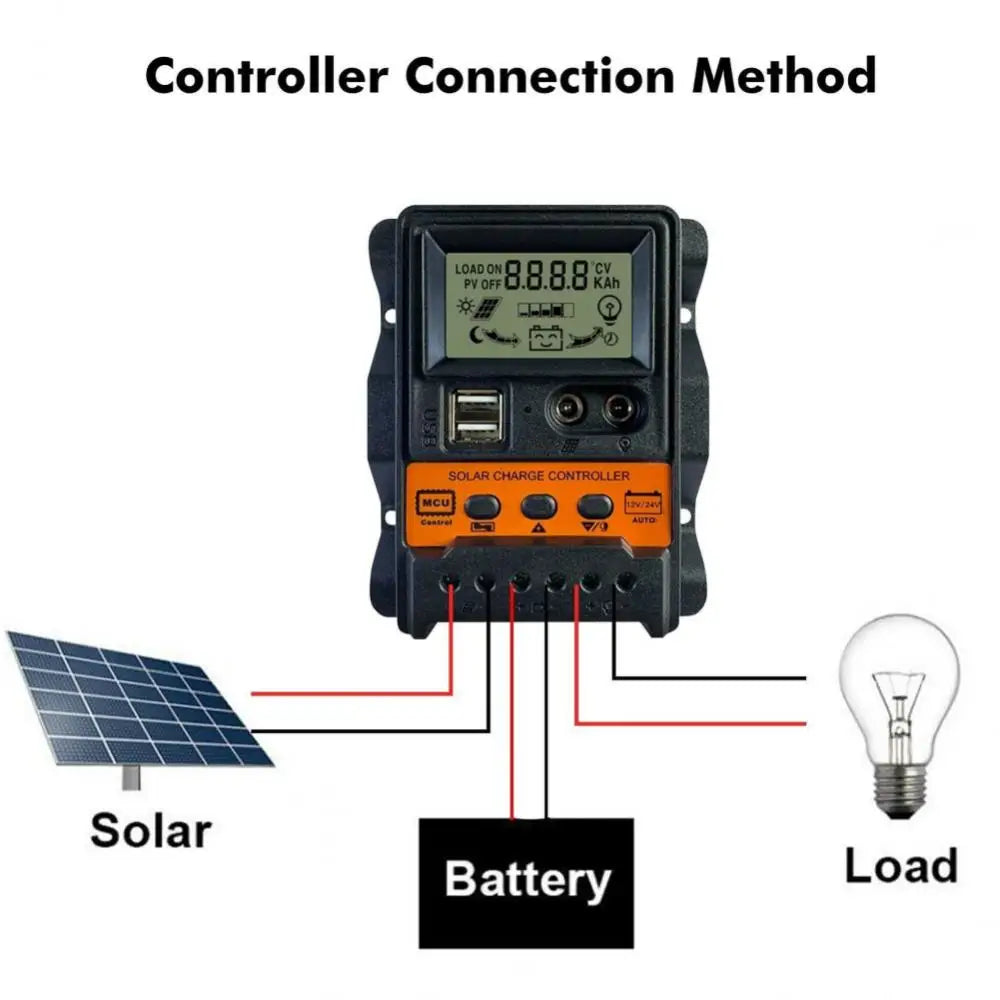

Connect the battery's positive and negative terminals to the controller, which will automatically detect the voltage. Then, link your load's positive and negative poles to the controller, ensuring they're not reversed. Finally, connect your solar panel to the controller as shown.

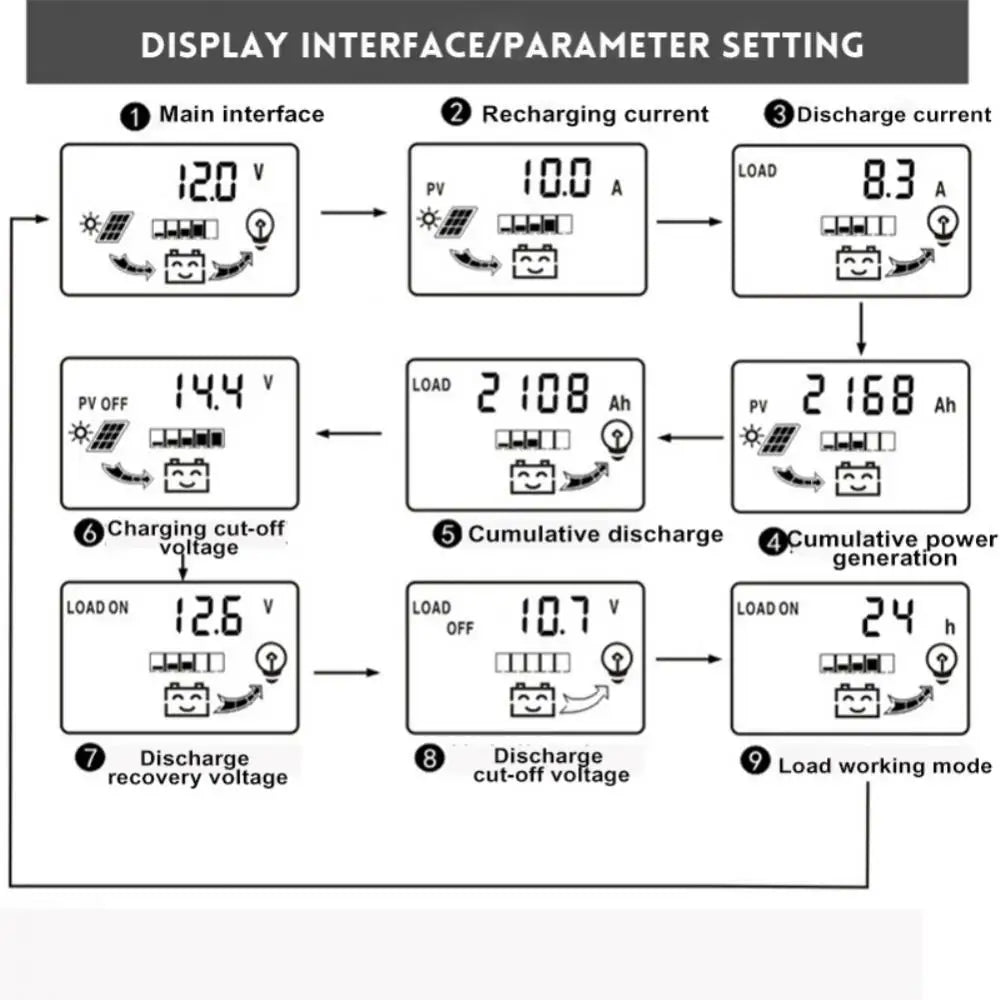

The main interface displays parameters for setting and monitoring. It shows recharging current, discharge current, and load status. The LCD screen also indicates PV power (8.3V or 28V), off-load current, cumulative discharge capacity, and cumulative power generation. Additionally, it shows load working mode, including ON/OFF status and recharge/discharge cut-off levels.
