Solar Charge Controller 30A 20A 10A PWM 12V 24V Regulator Solar Panel PV Home Battery Charger LCD Dual USB 5V Output
Solar Charge Controller 30A 20A 10A PWM 12V 24V Regulator Solar Panel PV Home Battery Charger LCD Dual USB 5V Output
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
USB: Dual USB 5V 3A (Total)
PWM: Home Solar System
Origin: Mainland China
Model Number: RBL
Maximum Current: 10A 20A 30A 40A 50A 60
Max Solar Panel input: 50V(for 24V battery) 25V(for 12V battery
Max Power: 780W (12V), 1560W (24V)
Float charge: 13.7V(defaul,adjustable)
Discharge stop: 10.7V(defaul,adjustable)
Discharge reconnect: 12.6V(defaul,adjustable)
Conroller: Solar charge controller
Charging Mode: PWM
Certification: CE
Brand Name: Y&H
Battery Voltage: 12V 24V Auto Work
Application: Lighting Controller,Solar System Controller,Solar Working Station
Application: Home Solar System
Solar Charge Controller 30A 20A 10A PWM 12V 24V Regulator Solar Panel PV Home Battery Charger LCD Dual USB 5V Output
RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)
Features
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.

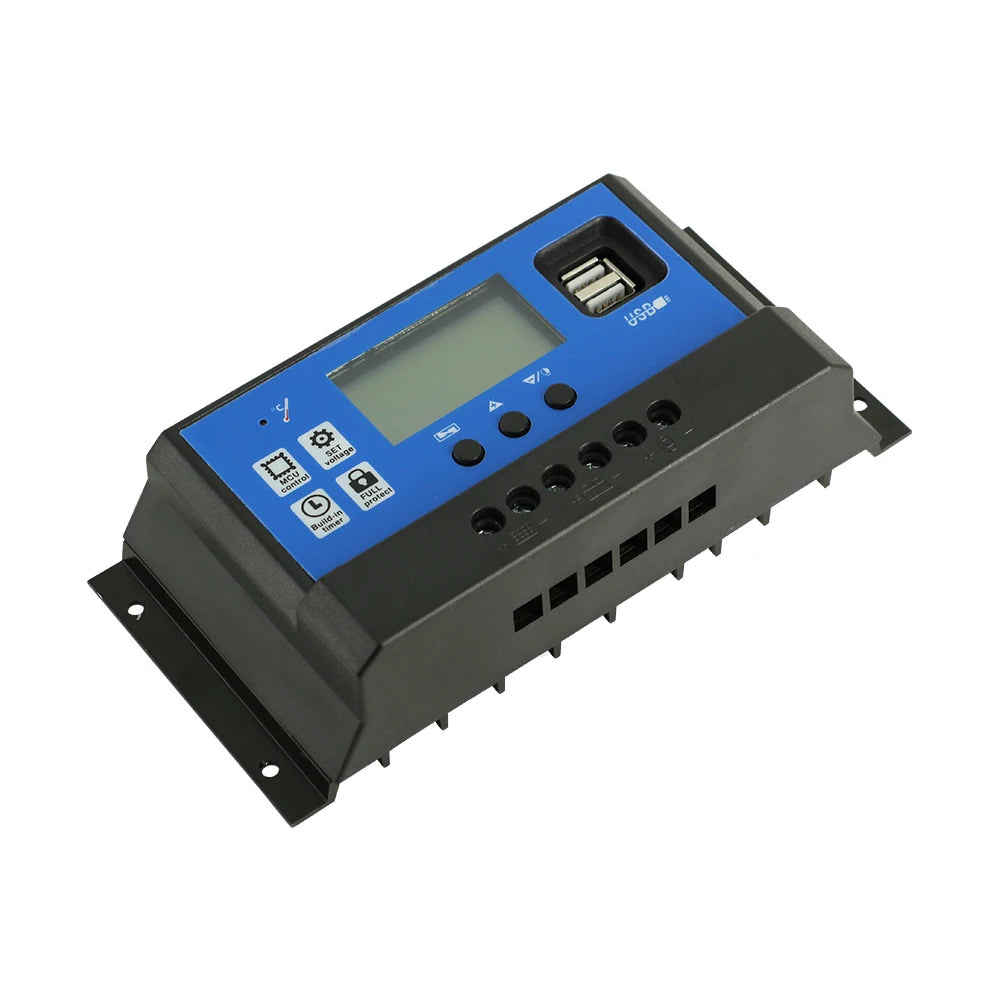

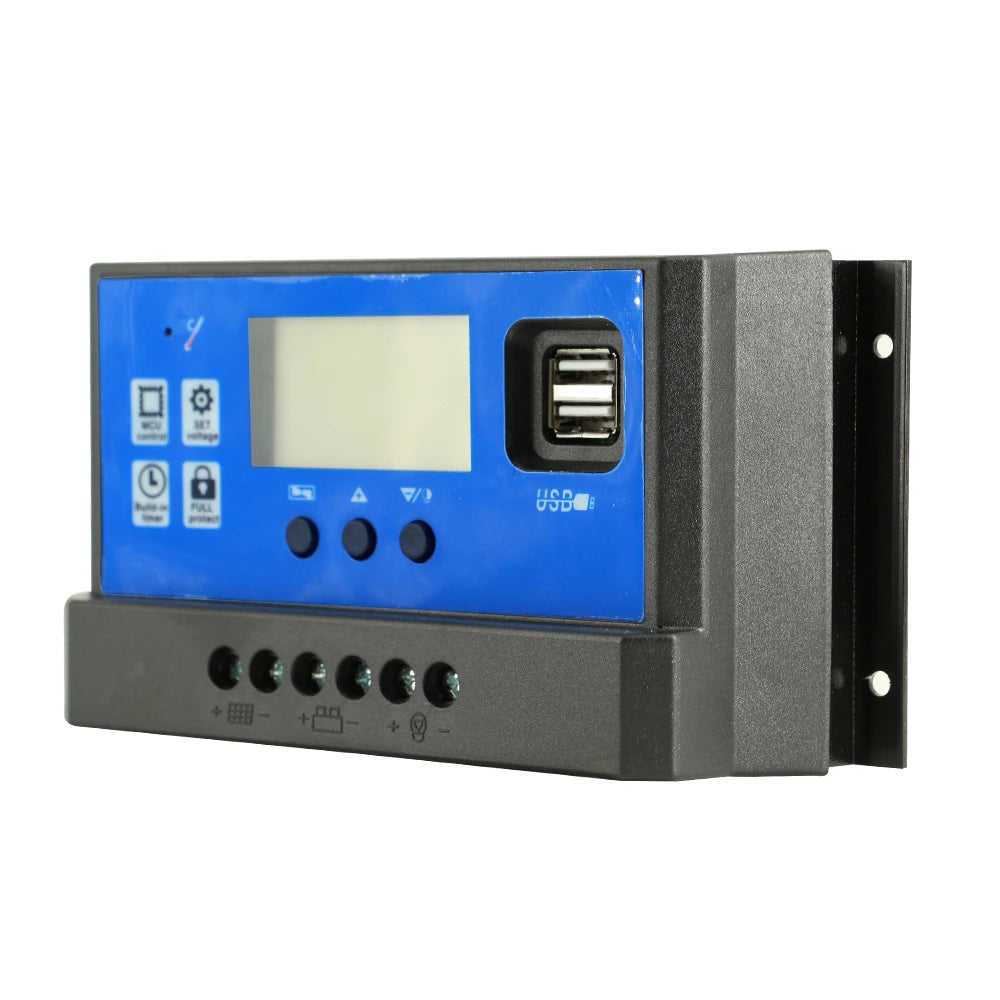

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection. 5.Dual mosfet Reverse current protection ,low heat production.
Product Specification:
MODEL |
RBL-10A |
RBL-20A |
RBL-30A |
RBL-40A |
RBL-50A |
RBL-60A |
Battery Voltage |
12V 24V Auto |
|||||
Charging Current |
10A |
20A |
30A |
40A |
50A |
60A |
Discharging Current |
10A |
10A |
10A |
20A |
30A |
30A |
Max Solar input |
48V(for 24V battery) 24V(for 12V battery) |
|||||
Equalization |
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) |
|||||
Float charge |
13.7V(defaul,adjustable) |
|||||
Discharge stop |
10.7V(defaul,adjustable) |
|||||
Discharge reconnect |
12.6V(defaul,adjustable) |
|||||
Charge reconnect |
13V |
|||||
Voltage of open light |
Solar Panel8V(Light lights delay) |
|||||
Voltage of close light |
Solar Panel8V(Light off delay) |
|||||
USB output |
5V/3A |
|||||
Self-consume |
<10mA |
|||||
Operating temperature |
-35°C~+60°C |
|||||

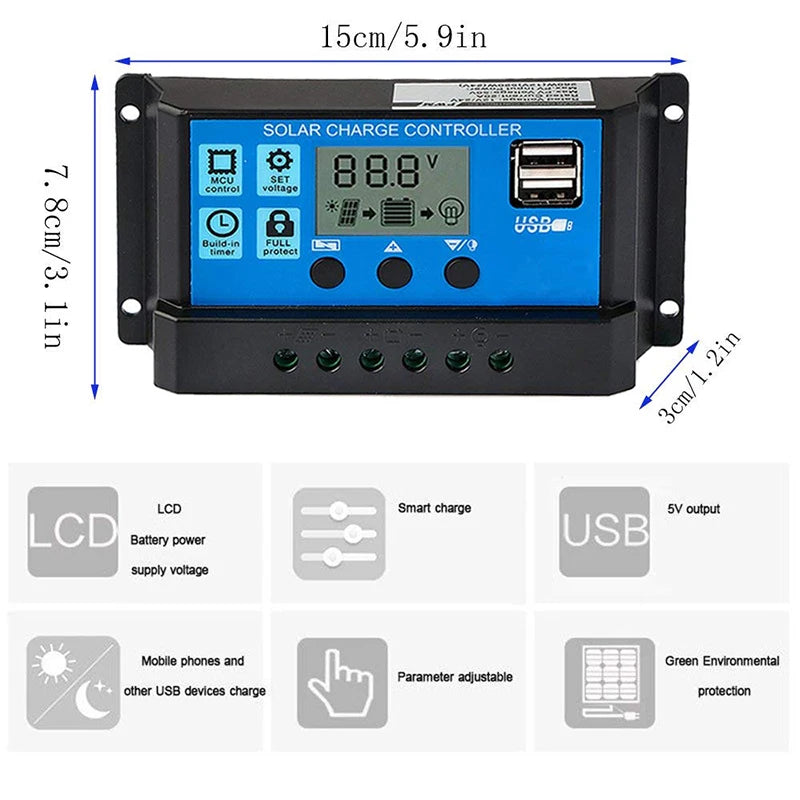

Size |
133.5*70*35mm |
188*90*47mm |
||||

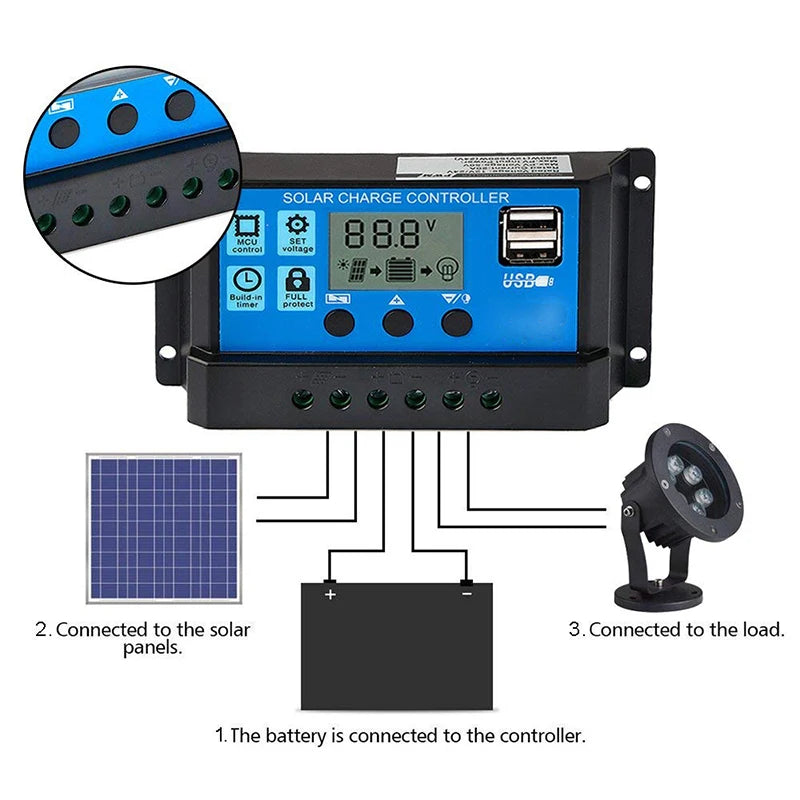

Connection
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus. The reverse order applies when deinstalling! An improper sequence order can damage the controller!

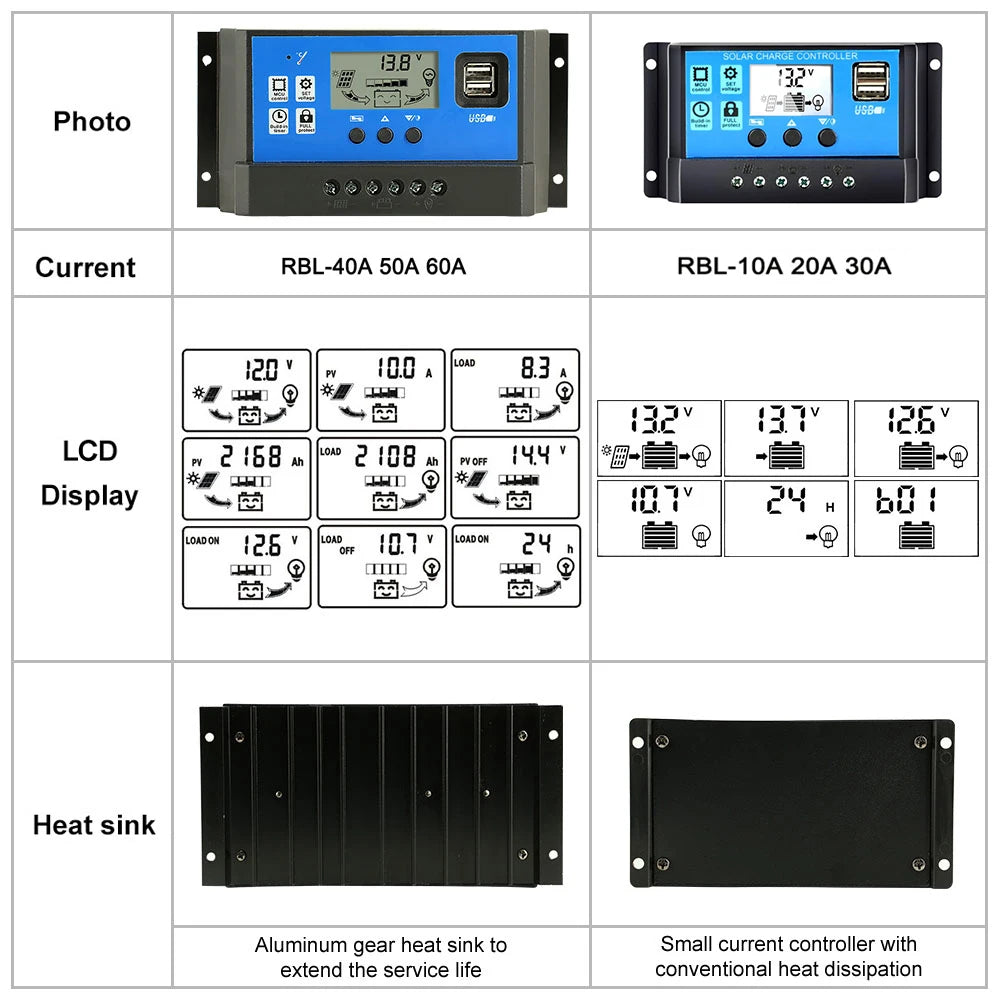

Introducing the Solar Charge Controller, a PWM regulator that efficiently charges your solar panel system. With a maximum charge current of 30A, 20A, or 10A, it can handle 12V or 24V systems. The LCD display shows real-time charging status and output voltage. Two USB ports provide 5V power for devices. The aluminum heat sink ensures extended lifespan and reliable performance.

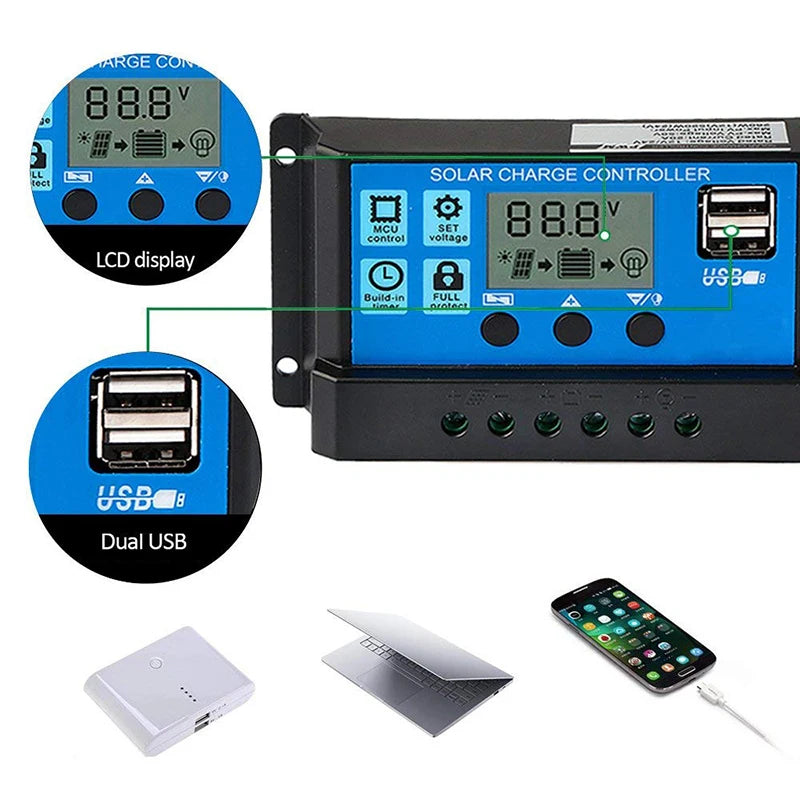

Solar Charge Controller with LCD display, built-in full-range USB (5V) output and dual USB ports for charging multiple devices simultaneously.

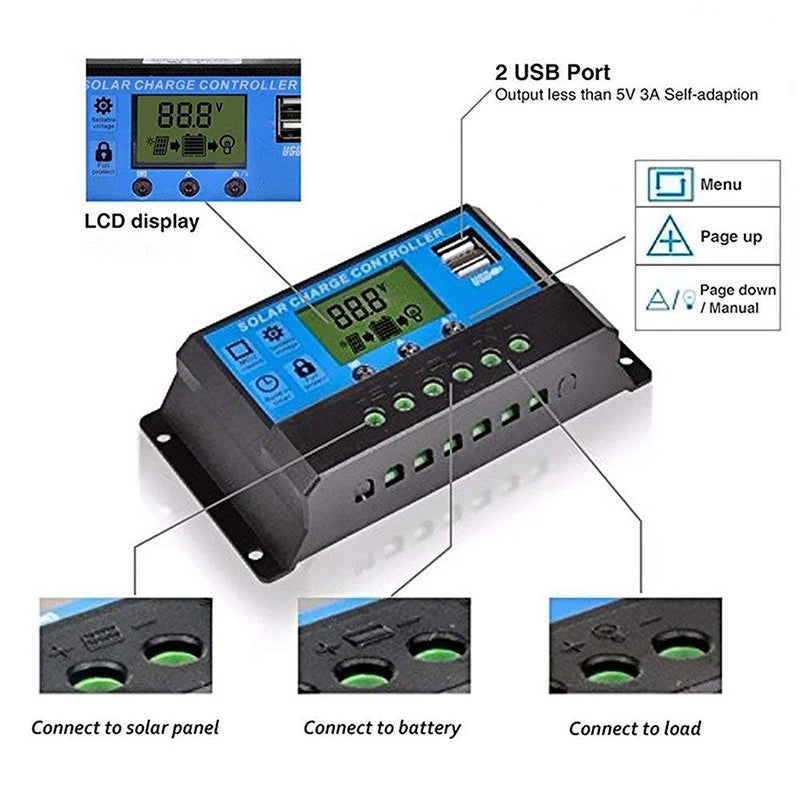

Solar Charge Controller features 2 USB ports with less than 5V output, self-adaptive technology, and an LCD display. Menu options include page up/down, manual settings for solar panel, battery, and load connections.
Solar charge controller with 30A, 20A, and 10A PWM regulators for 12V or 24V systems. It features an LCD display, dual USB 5V outputs, and charges batteries from solar panels while providing power to connected loads.
Solar Charge Controller: 30A, 20A, or 10A PWM regulator for 12V or 24V systems. Features LCD display, dual USB outputs (5V), and adjustable parameters for charging protection. Suitable for solar panels, home battery chargers, and powering mobile devices.

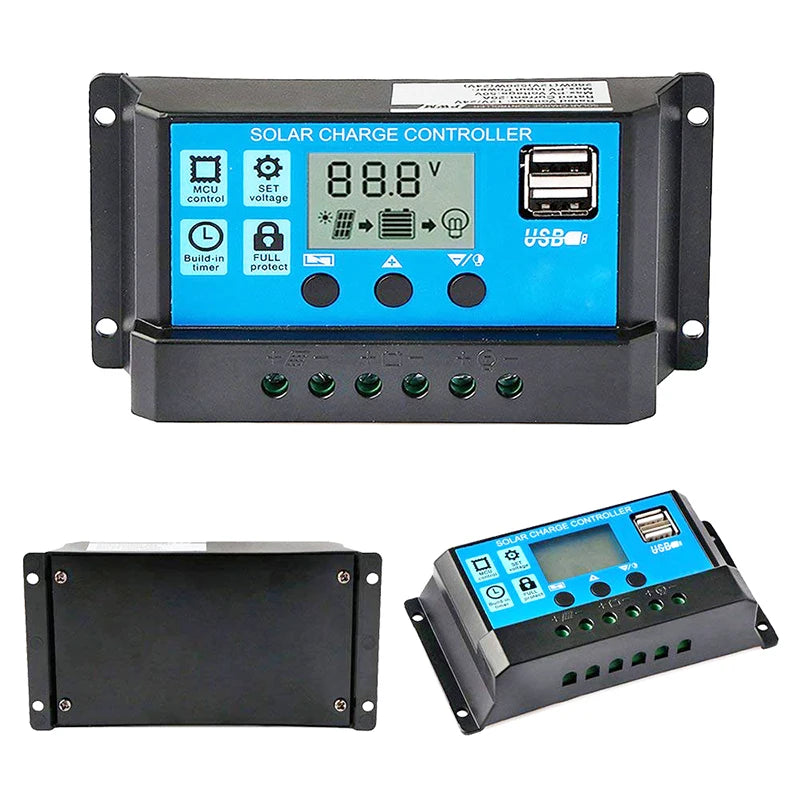

Solar Charge Controller with built-in full-wave protection and overcharge prevention for safe charging of 12V/24V solar panels and batteries, with LCD display and dual USB ports.
Built-in full-scale current protection with 3.8 MCU set control and adjustable voltage up to 8S80.
Solar Charge Controller: Regulate Power from Solar Panels to Home Battery Charger. This 30A, 20A, and 10A PWM controller charges your home battery with solar power. It features LCD display, dual USB 5V output, and supports 12V/24V systems. Perfect for off-grid homes, RVs, or cabins.
Solar Charge Controller 30A/20A/10A PWM Regulator for 12V/24V Solar Panels with Dual USB 5V Output, LCD Display, and Home Battery Charger Function.
