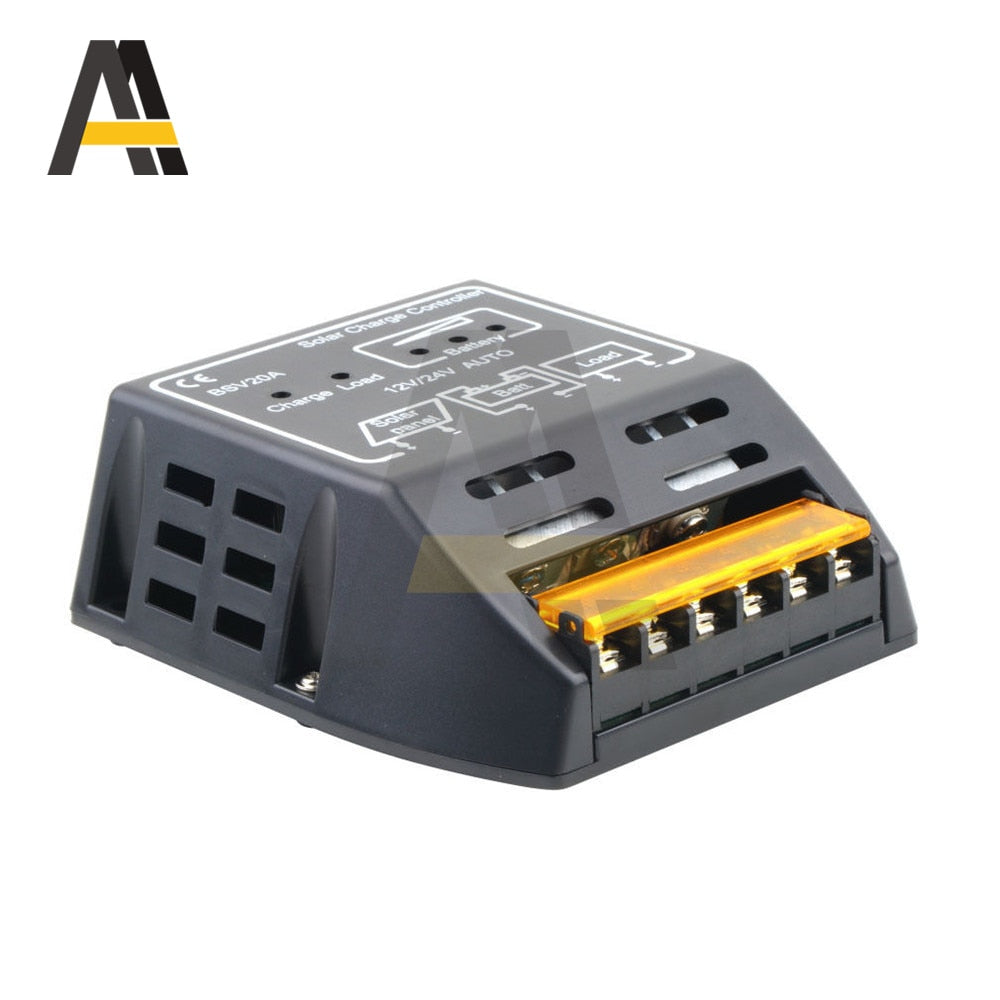

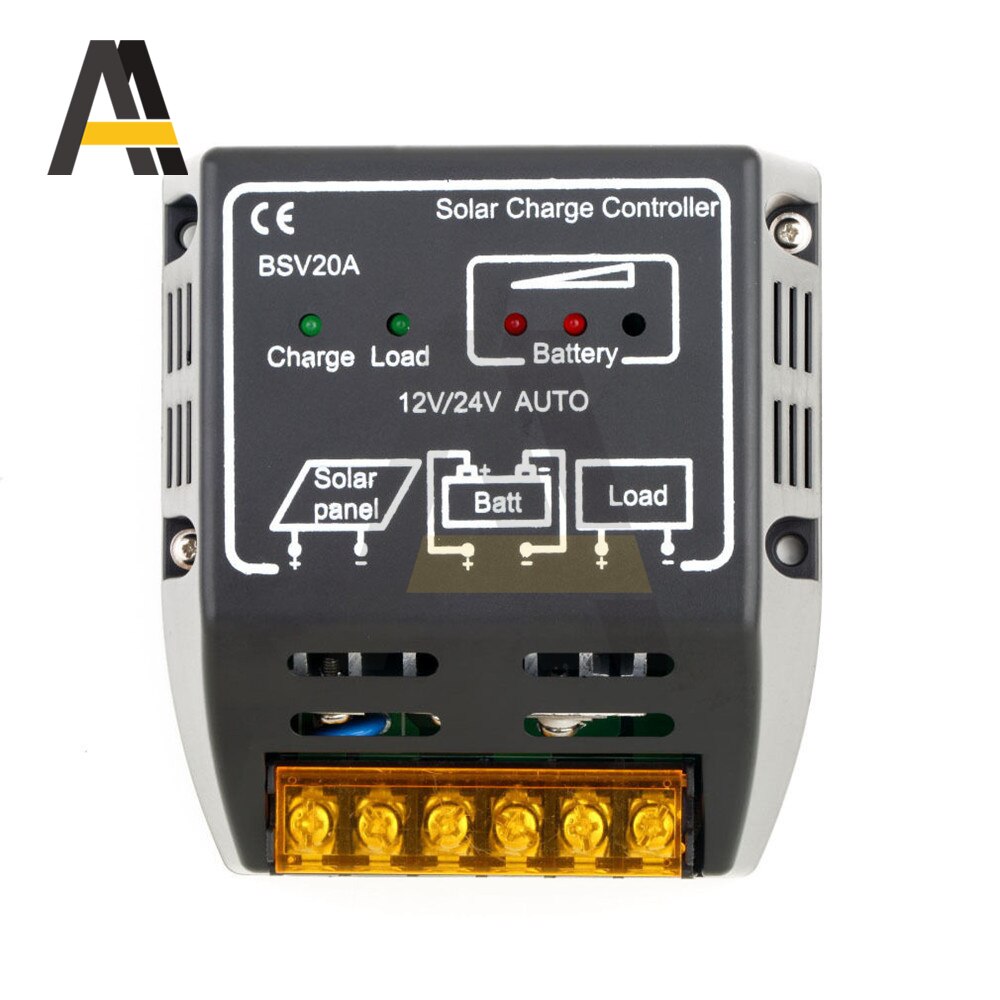

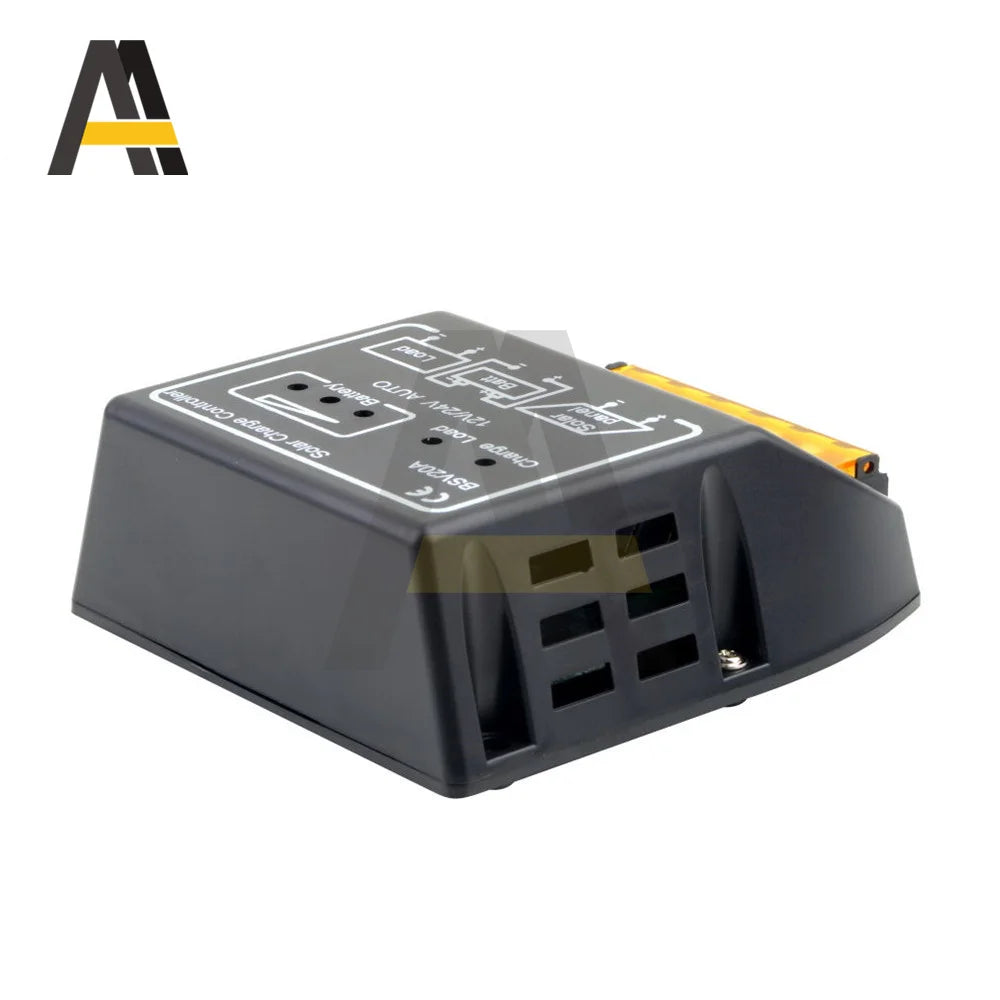

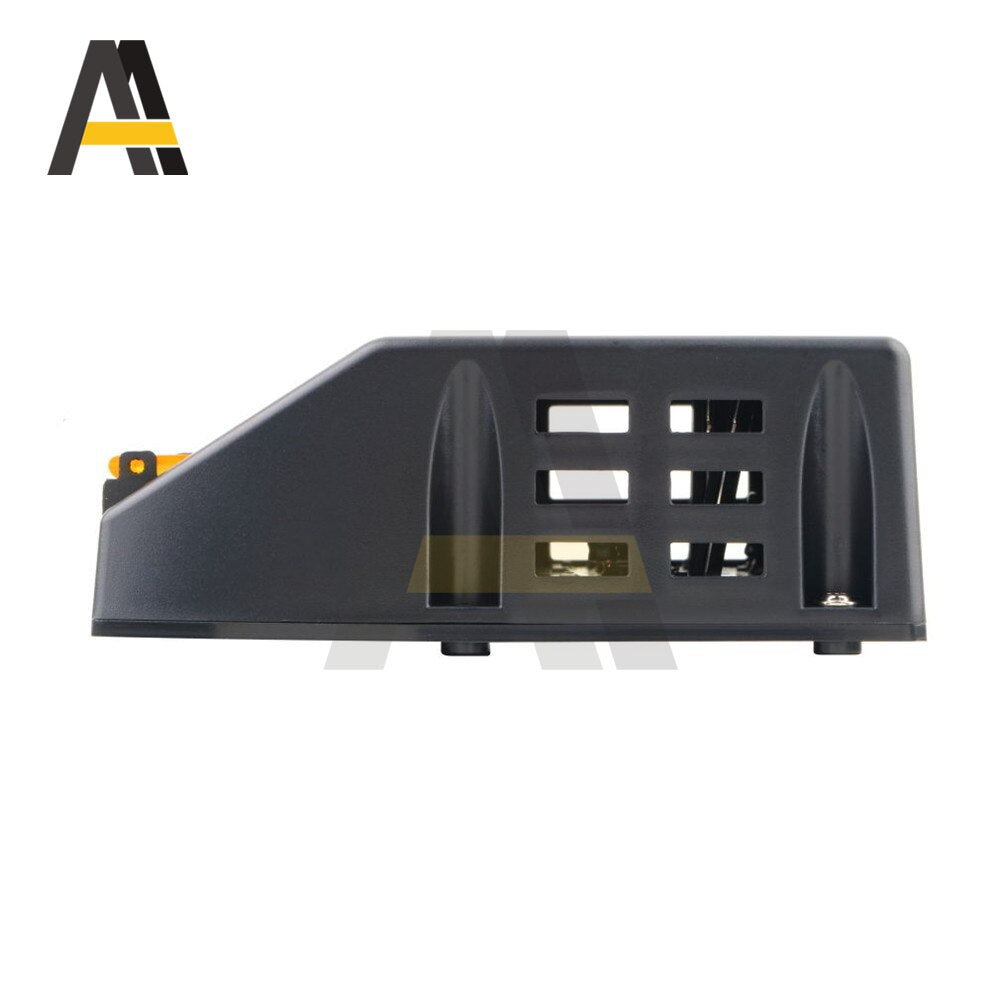

Solar Charge Regulator 10A 12V 24V Voltage settable Solar Battery Protection PWM Charge Mode Solar Controller Overcharge

Solar Charge Regulator 10A 12V 24V Voltage settable Solar Battery Protection PWM Charge Mode Solar Controller Overcharge

Regular price $8.30 USD
Regular price Sale price $8.30 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Model Number: Solar Charge Regulator 10A 12V 24V Voltage settable Solar Battery Prot

Maximum Current: Solar Charge Regulator 10A 12V 24V Voltage settable Solar Battery Prot

Is Smart Device: No

Certification: CE

Brand Name: Aideepen

Application: Charger Controller,Voltage Controller

Solar controller with 10A current, 12V/24V voltage, and PWM charge mode for solar battery protection.
Aideepen Solar Charge Regulator, 10A, 12/24V, settable voltage, battery protection, PWM charge mode.
Regulate solar charge, prevent overcharging and protect batteries with this 10A, 12/24V solar controller.
Solar charge regulator for 10A, 12V/24V solar panels with adjustable voltage and overcharge protection.
Optimize battery performance and reduce wear.
Regulates solar charge to prevent overcharging and protects batteries with adjustable voltage settings.
Solar charge regulator with customizable voltage, 10A current and protection features for solar battery charging.
Solar charge regulator for 12V/24V batteries with 10A max charge, protects from overcharging and undercharging.
Charge controller regulates solar power, protects batteries from overcharging, and ensures safe charging.


Solar Charge Regulator 10A 12V 24V Voltage settable Solar Battery Protection PWM Charge Mode Solar Controller Overcharge Overdischarge



Features:

1. Lightning protection.

2. Easy to install and operate.

3. Suitable for small solar systems.

4. Overload and short circuit protection.

5. Extend battery life and keep loads well.

6. Undervoltage and overcharge protection.

7. Reverse discharge and reverse polarity protection.

8. Automatically manage the work of solar panels and solar cells.





Specification:

Colour: Black

Voltage: DC 12V/24V

Rated load current: 20A

Self-consumption: 10MA

Rated charging current: 20A

Working temperature: -20℃-50℃

Size: 10.2*9.5*3.8cm / 4*3.7*1.5in

Maximum open circuit voltage of solar panel: 25V/36V




Overcharge:

Protection: 14.4V/28.8V

Float: 13.5V / 27V

Recovery: 13.2V/26.4V



Overdischarge:

Protection: 10.8V/21.6V

Recovery: 12.3V/24.6V



Load overvoltage:

Protection: 16.5V/34V

Recovery: 15V/30V





Package Included:

1 X Solar Charge Controller

Solar charge regulator with adjustable voltage, protects batteries from overcharge and provides PWM charging mode.Regulates battery charging from solar panels, ensuring safe and efficient power transfer.

Solar charge controller regulates 12V or 24V battery charging from solar panels, automatically managing load and preventing overcharge.

Solar charge regulator for 12V/24V solar panels, sets voltage and protects batteries from overcharging.Reliable Power Source: Extend Battery Life and Keep Loads WellSolar charge regulator with 10A output, suitable for 12V and 24V solar battery systems.
