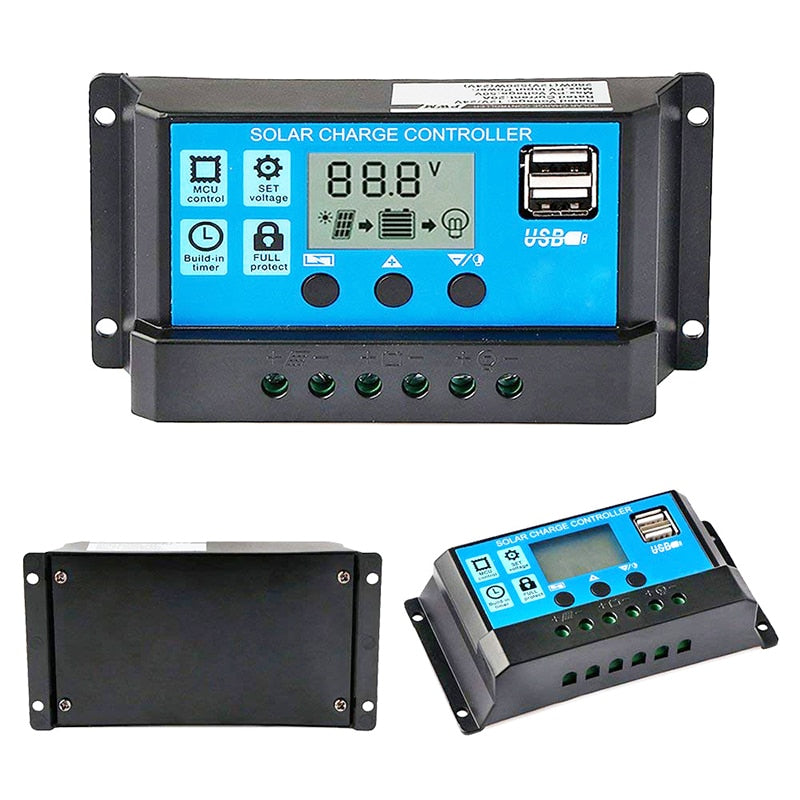

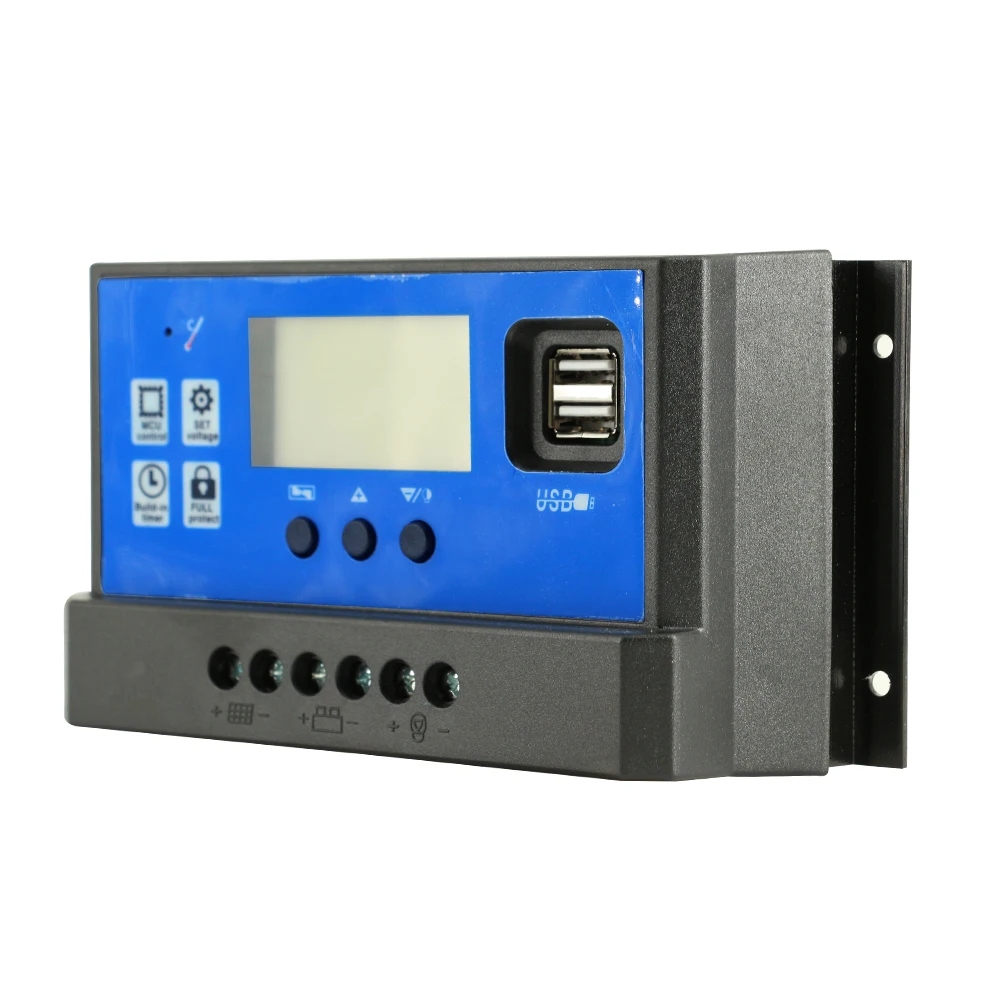

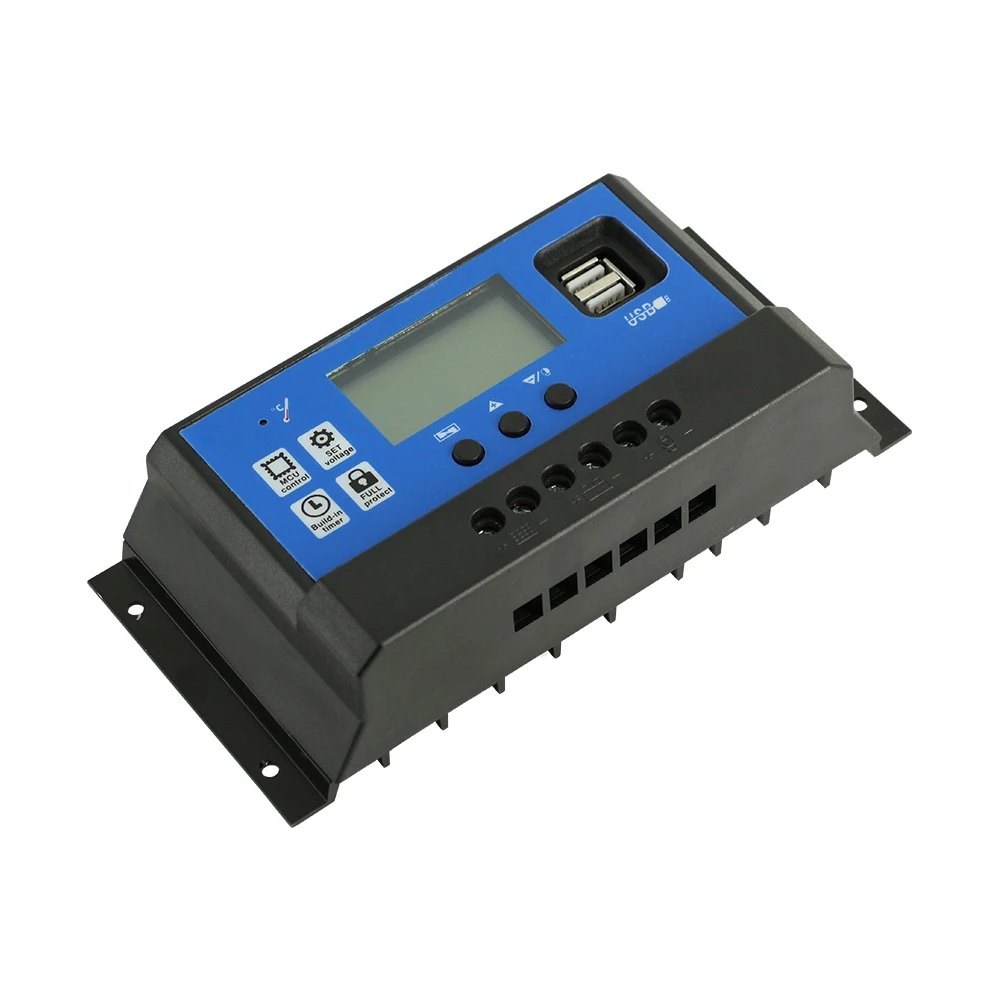

Solar Controller 12V/24V 30A 20A 10A Solar Regulator PWM Battery Charger LCD Display Dual USB 5V Output
Solar Controller 12V/24V 30A 20A 10A Solar Regulator PWM Battery Charger LCD Display Dual USB 5V Output
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Origin: Mainland China
Model Number: Solar Charge Controller
Maximum Current: 10A 20A 30A 40A 50A 60A
Is Smart Device: YES
Certification: CE
Brand Name: Y&H
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
Application: Charger Controller,Solar System Controller,Collector Controller,Solar Working Station

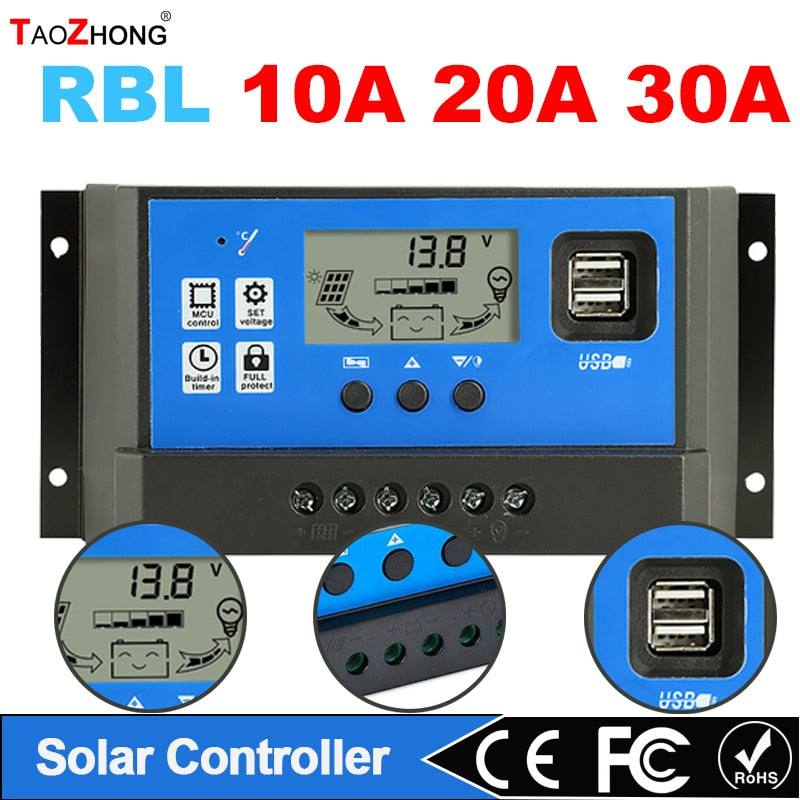

Solar Controller 30A 20A 10A 12V/24V LCD PWM Voltage Battery PV Cell Panel Charger Regulator Lamp 100W 200W 300W 400W 500W
This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid ,Gel,Sealed,Flooded,AGM Batteries.It can fully meet your home Photovoltaic system(including home lighting system )requirements
RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)
Features
1.Build-in industrial micro controller.

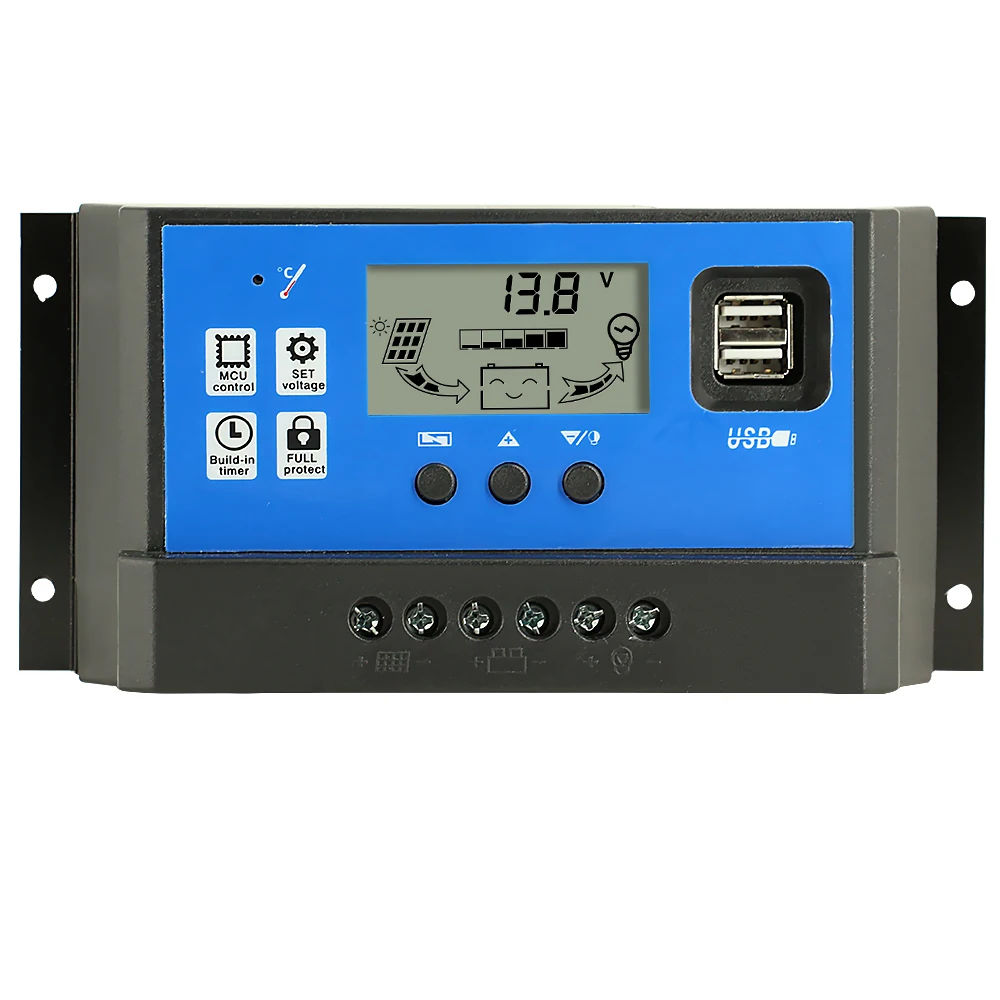

2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
Recently, there are many similar products on the market, their prices are different, and the sales volume are also large, but please note that only Yong Hui Store products are 100% authentic and the highest quality. If you are a distributor, we can provide permanent after-sales Service, we can provide you with free samples and competitive prices!

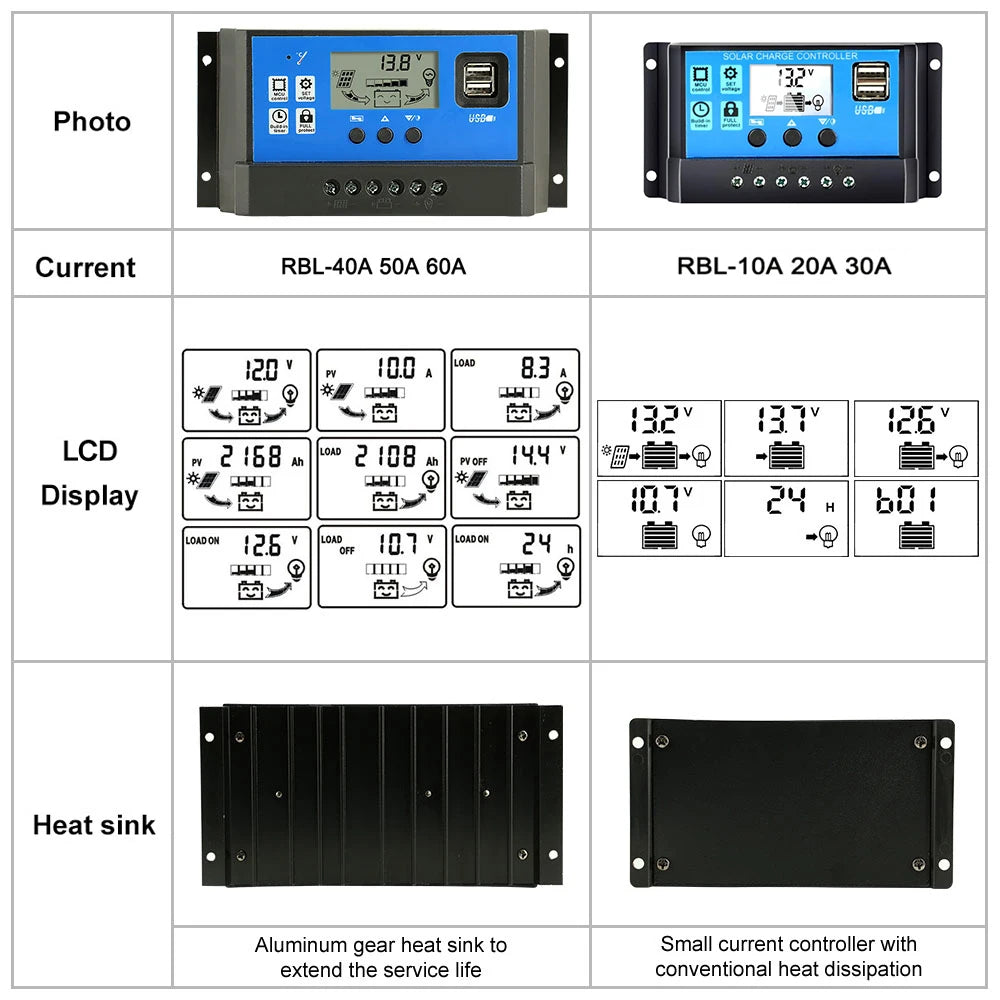

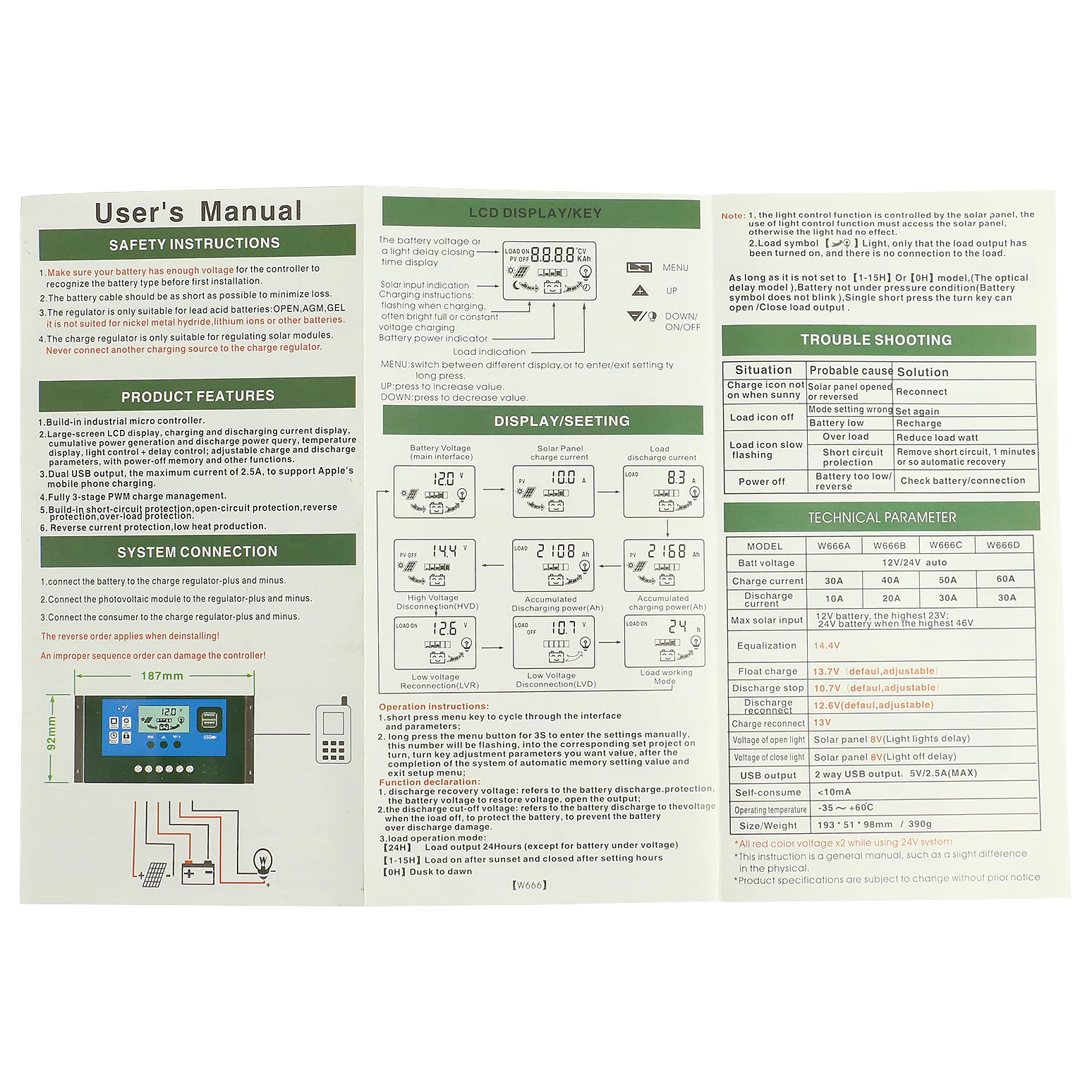

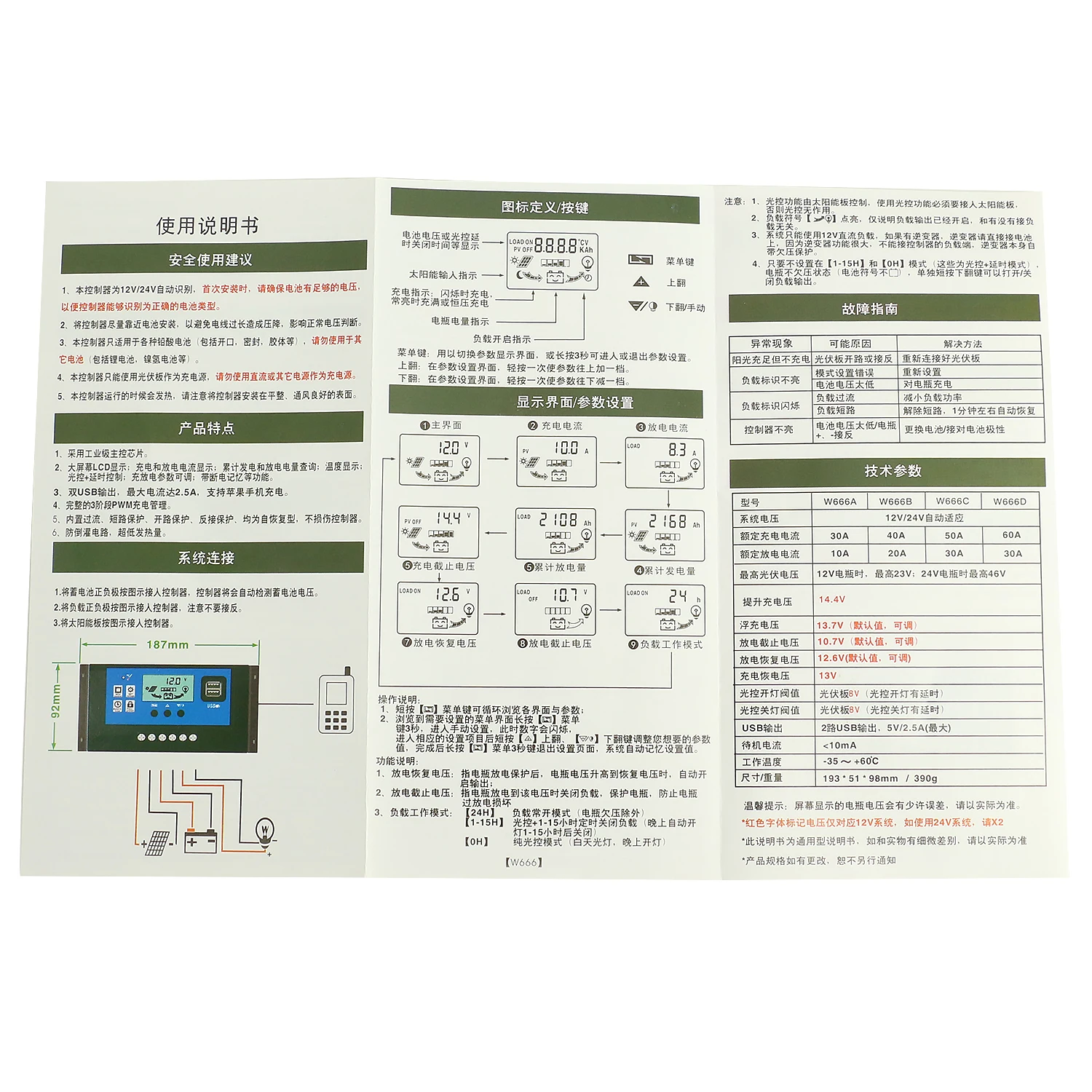

Product Specification:
MODEL |
RBL-10A |
RBL-20A |
RBL-30A |
RBL-40A |
RBL-50A |
RBL-60A |
Battery Voltage |
12V 24V Auto |
|||||
Charging Current |
10A |
20A |
30A |
40A |
50A |
60A |
Discharging Current |
10A |
10A |
10A |
20A |
30A |
30A |
Max Solar input |
48V(for 24V battery) 24V(for 12V battery) |
|||||
Equalization |
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) |
|||||
Float charge |
13.7V(defaul,adjustable) |
|||||
Discharge stop |
10.7V(defaul,adjustable) |
|||||
Discharge reconnect |
12.6V(defaul,adjustable) |
|||||
Charge reconnect |
13V |
|||||
Voltage of open light |
Solar Panel8V(Light lights delay) |
|||||
Voltage of close light |
Solar Panel8V(Light off delay) |
|||||

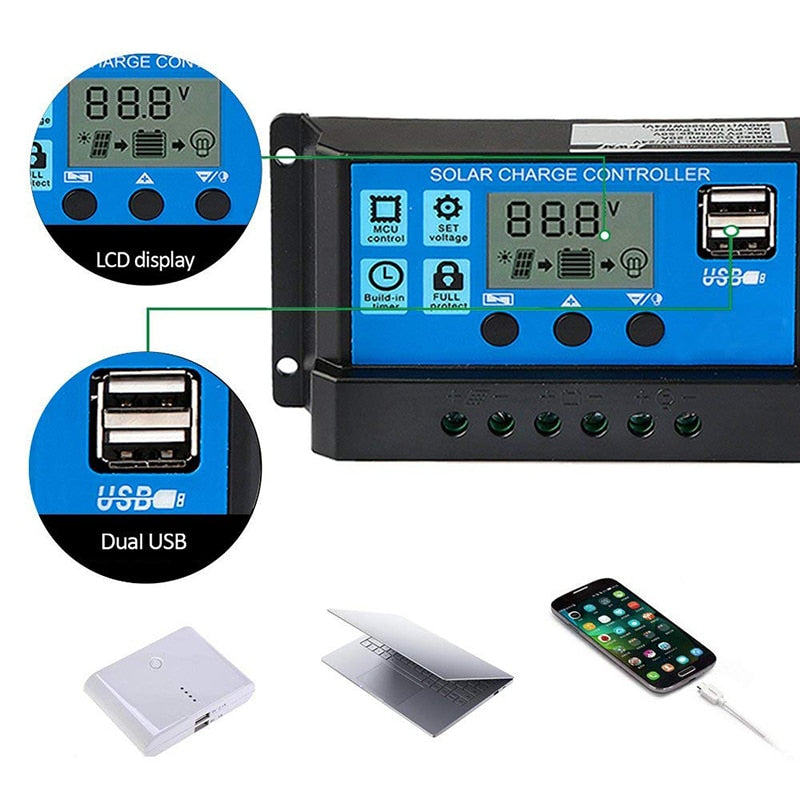

USB output |
5V/3A |
|||||
Self-consume |
<10mA |
|||||
Operating temperature |
-35°C~+60°C |
|||||

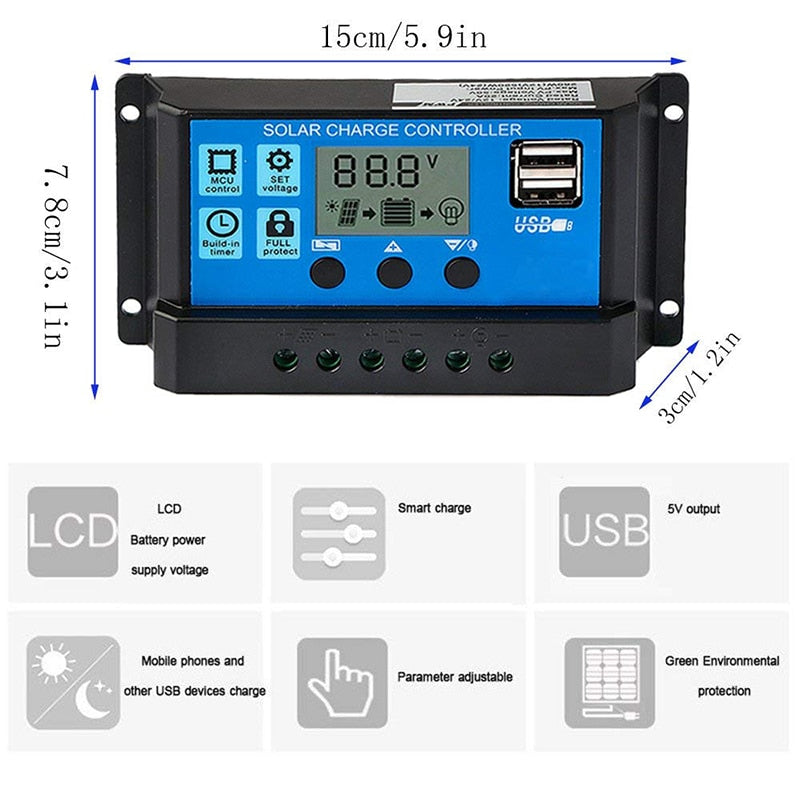

Size |
133.5*70*35mm |
188*90*47mm |
||||
*all red color voltage X2 ,while using 24V system.

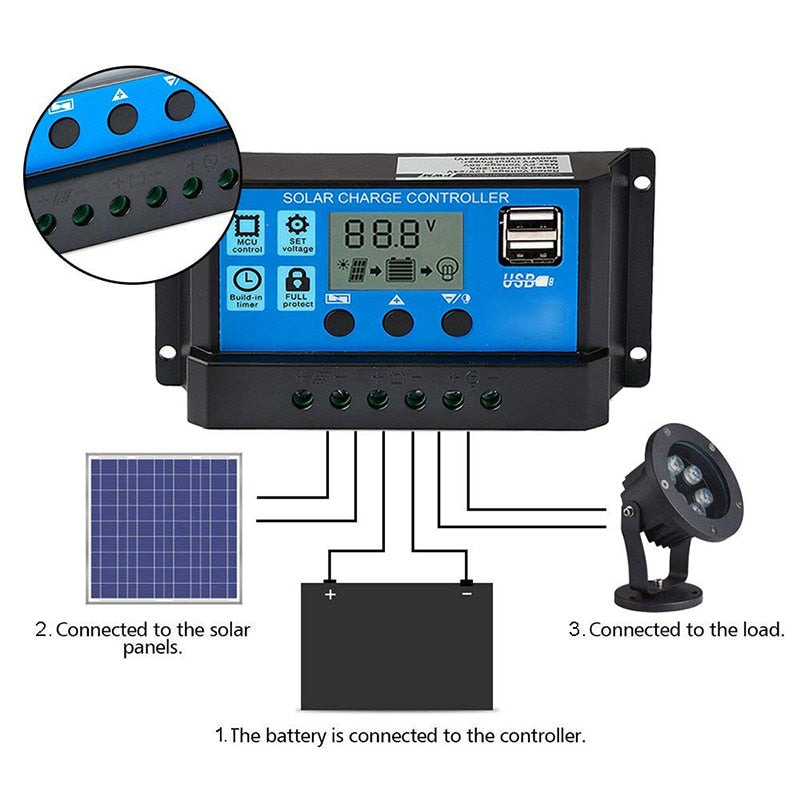

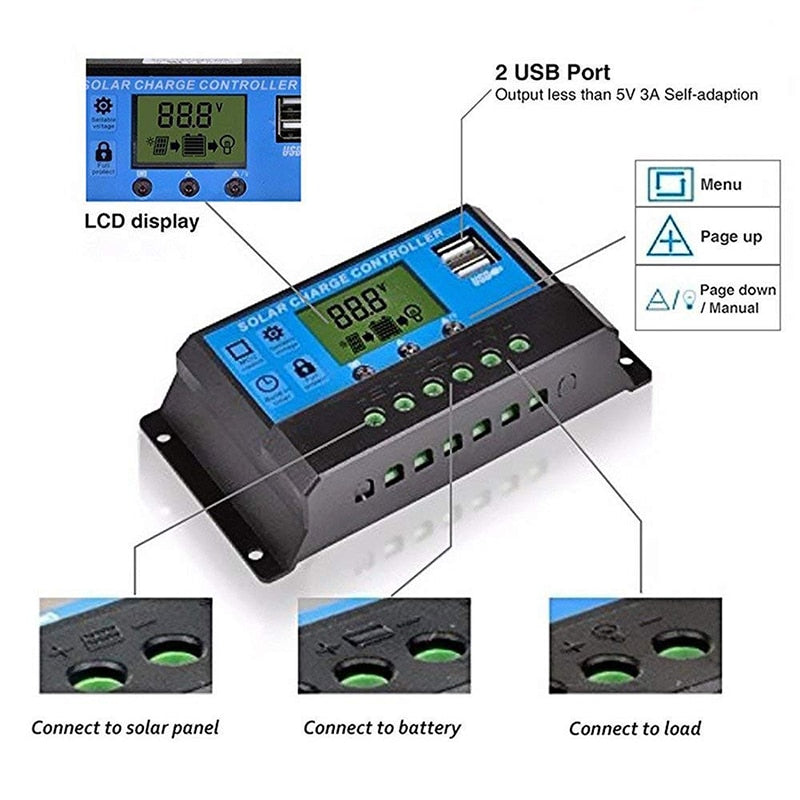

Connection
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!

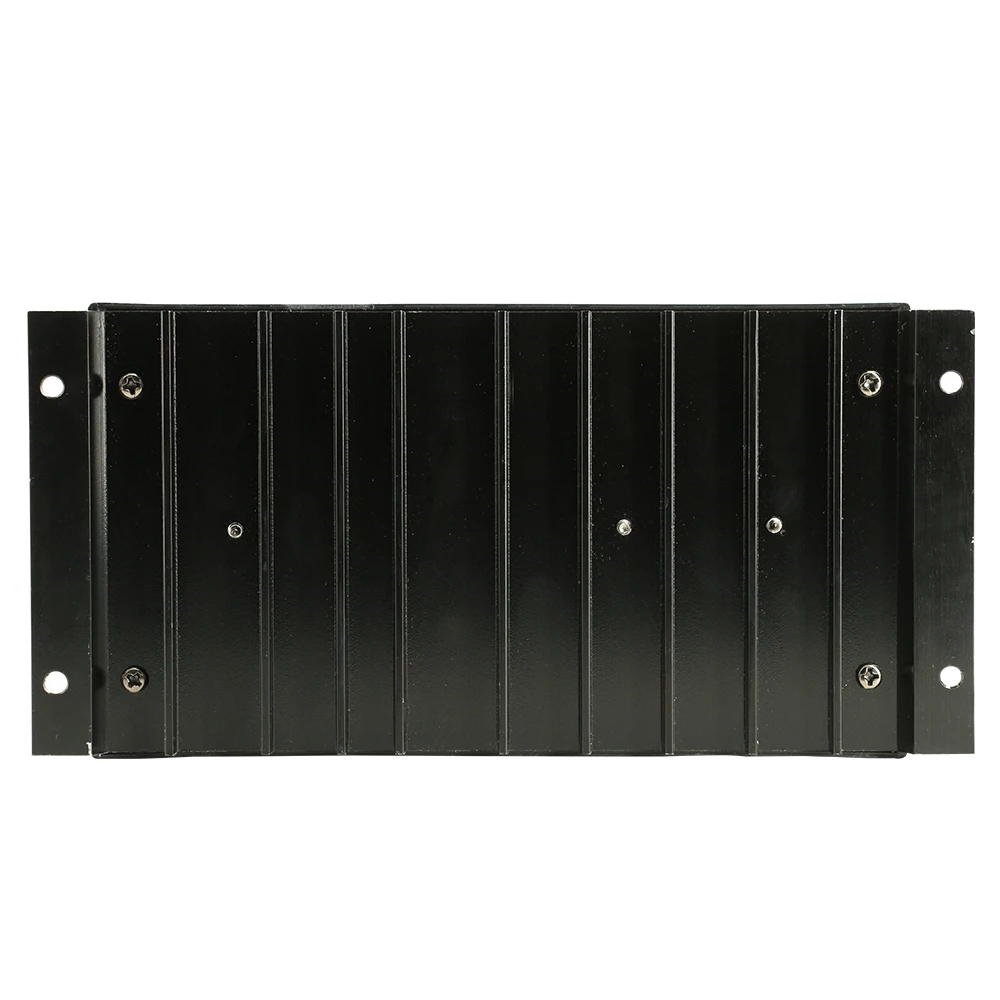

Solar Charge Controller, 12V/24V, 30A, 20A, 10A. Features PWM battery charger, LCD display, and dual USB 5V outputs. Includes aluminum heat sink for efficient cooling. Suitable for charging solar panels and extending their service life.

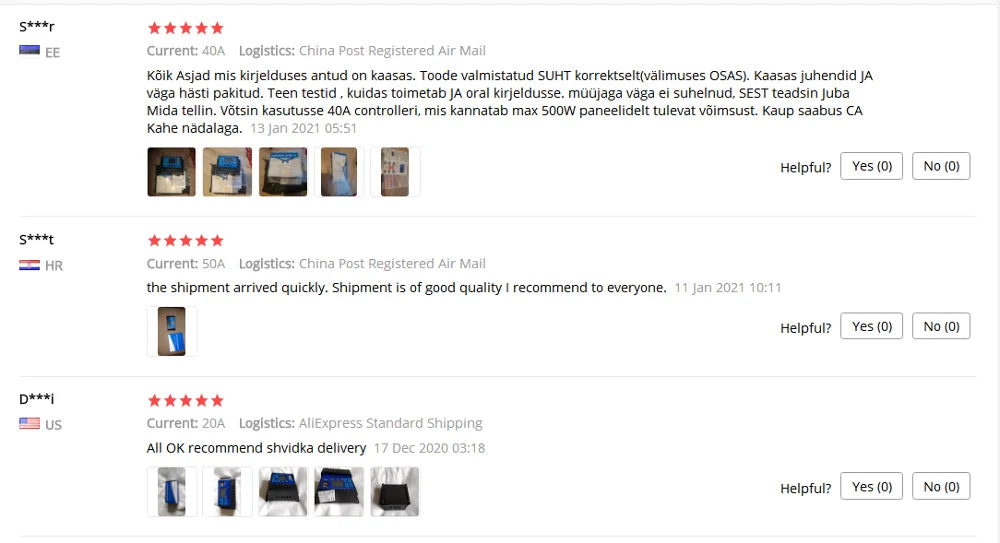

Shipment arrived quickly with China Post Registered Air Mail. The product is of good quality and I recommend it to everyone. It's suitable for using with 40A controllers that can handle maximum power from solar panels.
