Solar Controller 12V/24V 60A 50A 40A 30A 20A 10A Solar Regulator PWM Battery Charger LCD Display Dual USB 5V Output
Solar Controller 12V/24V 60A 50A 40A 30A 20A 10A Solar Regulator PWM Battery Charger LCD Display Dual USB 5V Output
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
Origin: Mainland China
Model Number: PWM-E
Maximum Current: 10A 20A 30A
Is Smart Device: No
Application: Charger Controller
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!

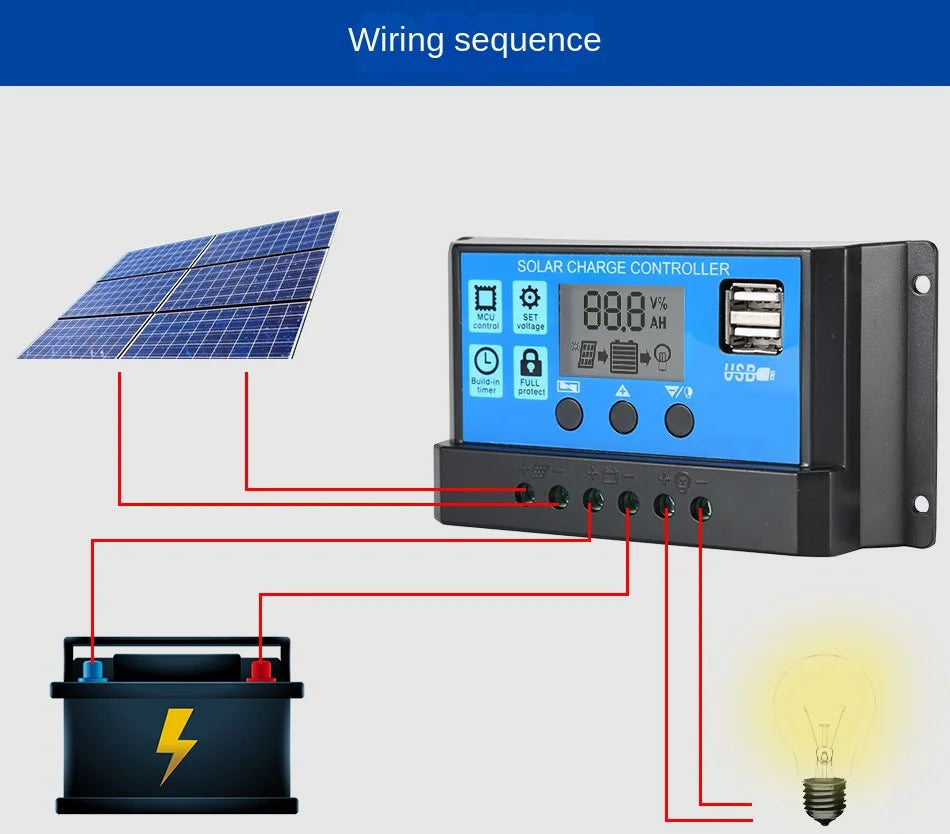

Connection
1.Connect the battery to the charge regulator - plus and minus,double check the connection is right or not
2.Connect the photovoltaic module to the regulator - plus and minus.
double check the connection is right
3. Connect the consumer to the charge regulator - plus and minus.
double check the connection is right
Deinstalling
1.Disonnect the consumer to the charge regulator - plus and minus.
2.Disconnect the photovoltaic module to the regulator - plus and minus.
3.Disconnect the battery to the charge regulator - plus and minus
MODEL |
PWM-E-10A |
PWM-E-20A |
PWM-E-30A |
PWM-E-40A |
PWM-E-50A |
PWM-E-60A |
Battery Voltage |
12V 24V Auto |
|||||
Charging Current |
10A |
20A |
30A |
40A |
50A |
60A |
Discharging Current |
10A |
10A |
10A |
20A |
30A |
30A |
Max Solar input |
48V(for 24V battery) 24V(for 12V battery) |
|||||
Equalization |
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) |
|||||
Float charge |
13.7V(defaul,adjustable) |
|||||
Discharge stop |
10.7V(defaul,adjustable) |
|||||
Discharge reconnect |
12.6V(defaul,adjustable) |
|||||
Charge reconnect |
13V |
|||||
Voltage of open light |
Solar Panel8V(Light lights delay) |
|||||
Voltage of close light |
Solar Panel8V(Light off delay) |
|||||
USB output |
5V/3A |
|||||
Self-consume |
<10mA |
|||||
Operating temperature |
-35°C~+60°C |
|||||
Size |
133.5*70*35mm |
188*90*47mm |
||||
*all red color voltage X2 ,while using 24V system.
this solar controller is not waterproof, please install it in indoor or out of the rain
Features
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid ,Gel,Sealed,Flooded,AGM Batteries.It can fully meet your home Photovoltaic system(including home lighting system )requirements
PWM-E-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
PWM-E-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
PWM-E-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
PWM-E-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
PWM-E-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
PWM-E-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)

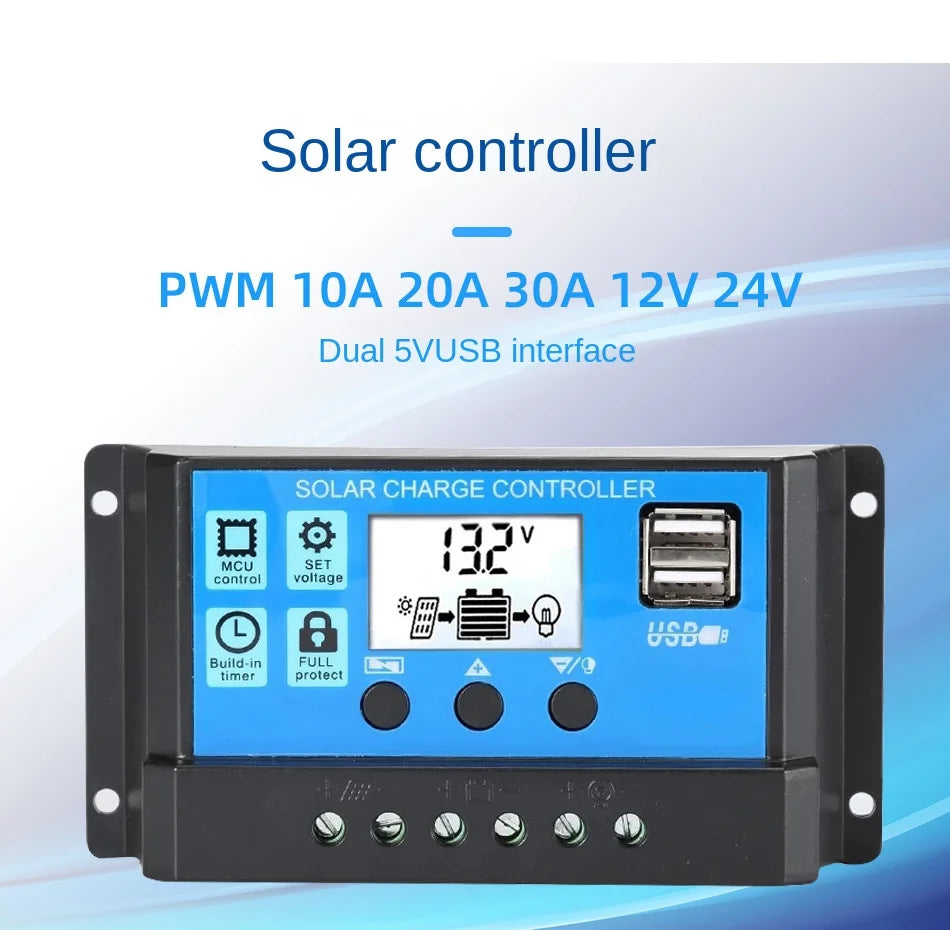

This solar controller regulates 12V/24V power, offering adjustable currents (10A to 60A) and featuring a PWM charge controller, LCD display, and dual USB ports for charging devices.

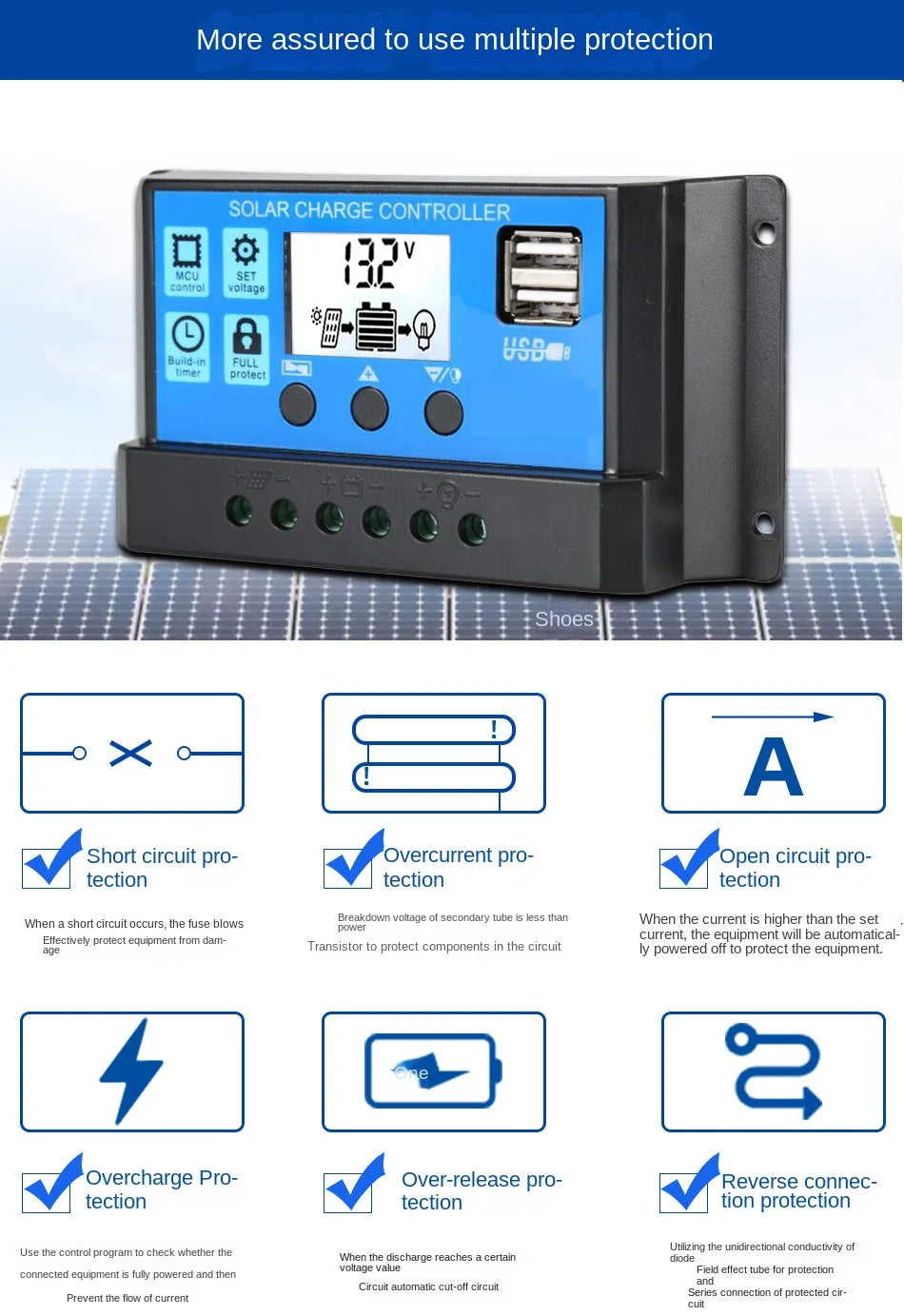

Equipped with multiple protections, this solar charge controller ensures safe and efficient charging. It features short-circuit protection, overcurrent protection, open-circuit protection, and breakdown voltage protection. In case of an anomaly, the controller automatically powers off to prevent equipment damage. Additionally, it includes overcharge protection, over-release protection, and reverse connection protection to safeguard against power surges.

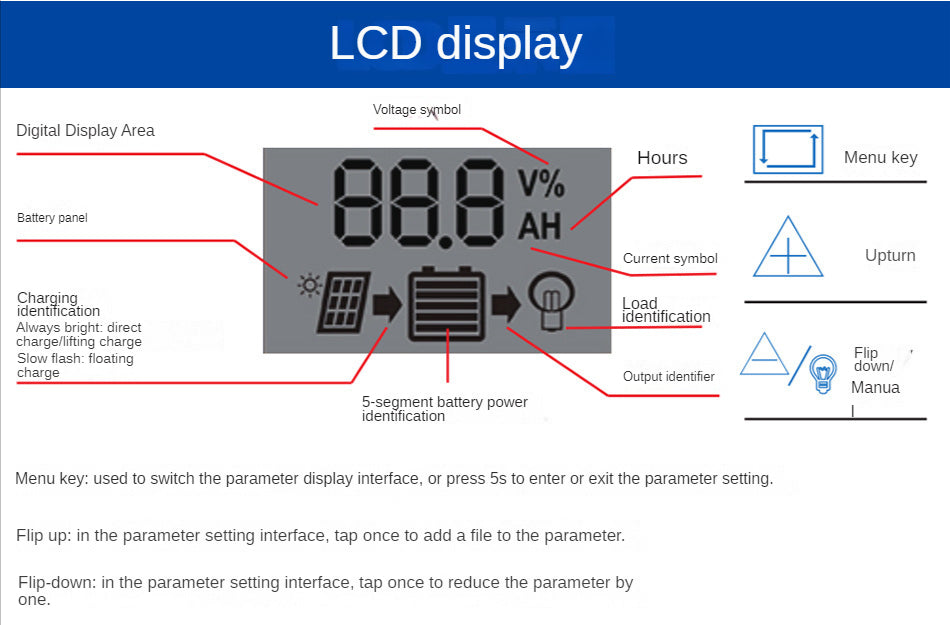

This solar controller features an LCD display with voltage and digital displays. The menu key allows you to switch between parameters or enter/exiting settings. Tap the up/down arrows to adjust values. The 'Always Bright' indicator shows direct charging, while slow flashing indicates floating charge mode. A manual 5-segment battery power identification is also available.

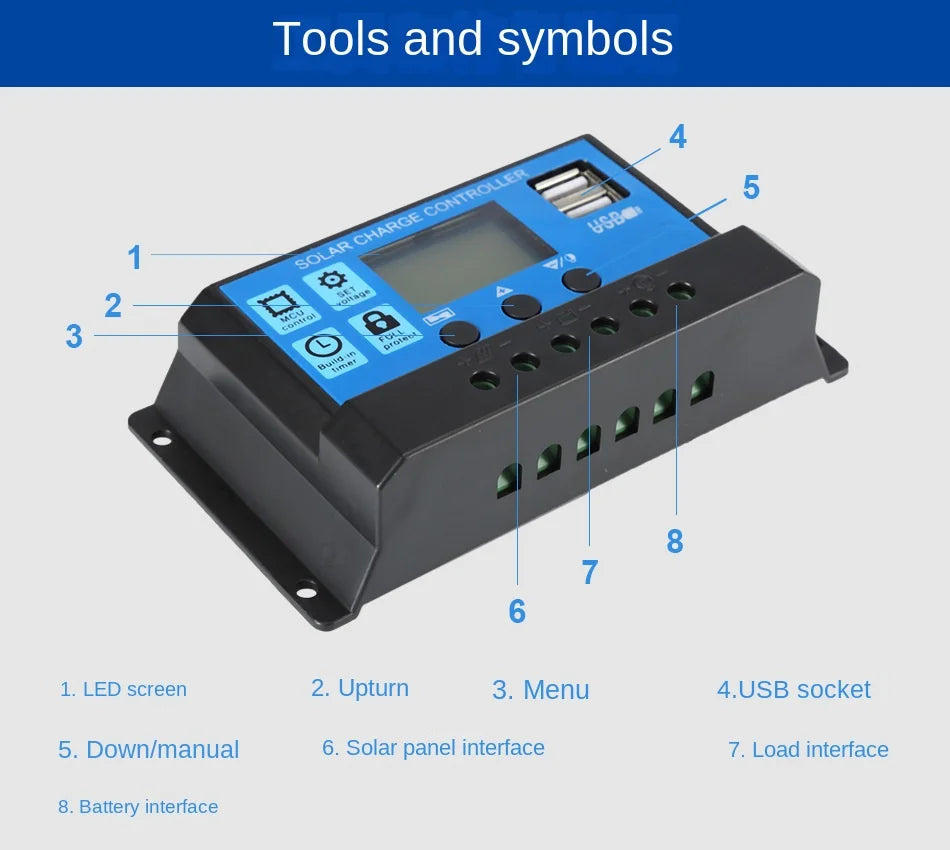

Featuring an LED screen, menu navigation, and USB charging port, this solar controller regulates power from 12V/24V solar panels to charge batteries or devices, with options for load and battery interfaces.
Solar Charge Controller for 12V/24V systems, features PWM charging, LCD display, and dual USB output.

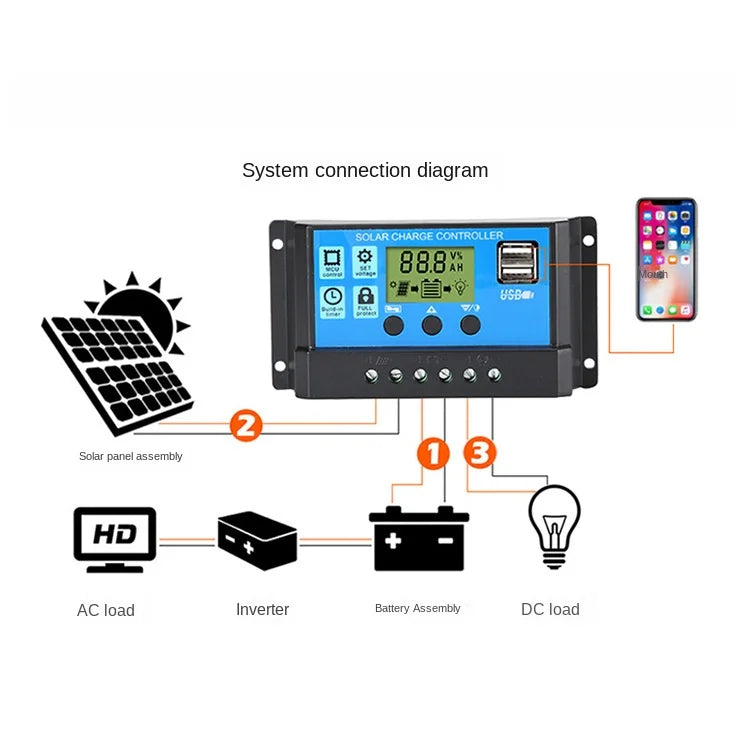

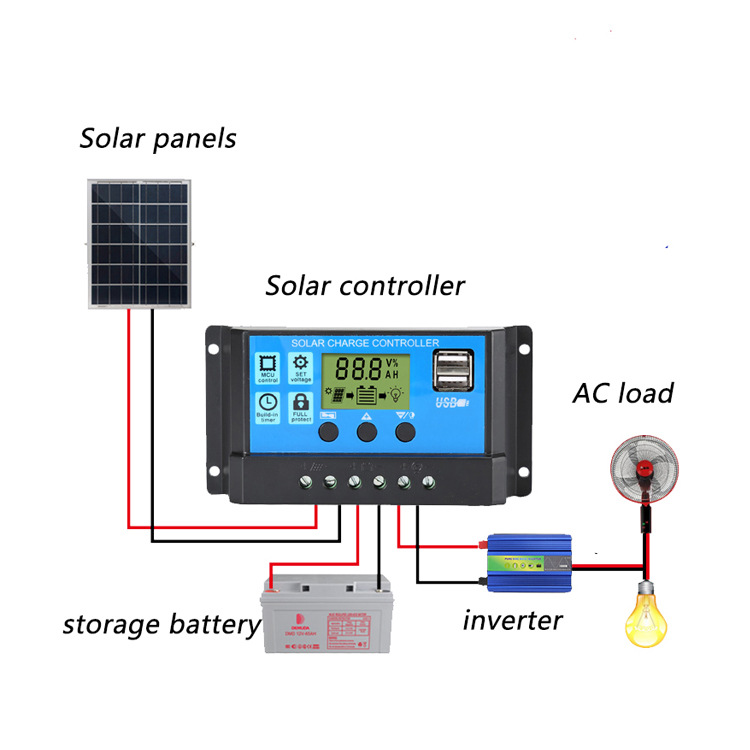

Solar charge controller connects solar panels to batteries, AC loads, and inverter, with dual 5V USB outputs and display for monitoring.

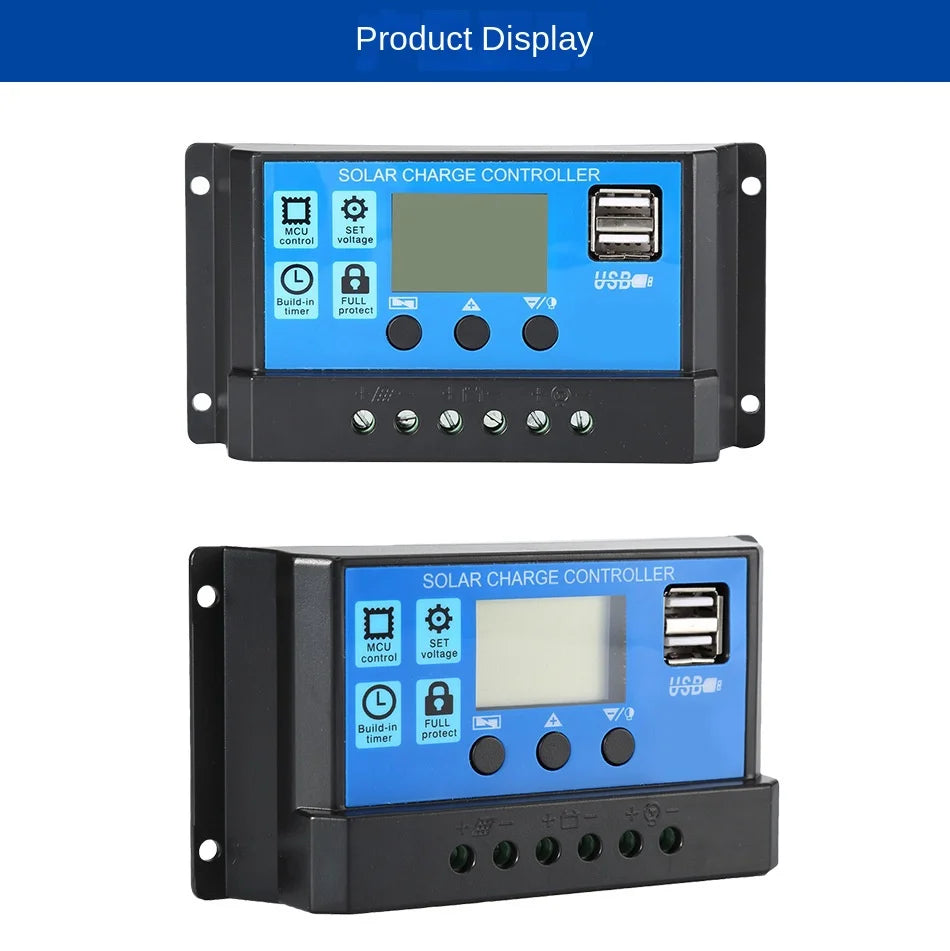

Solar Charge Controller: Microcomputer-controlled, built-in full protection, with dual USB outputs and LCD display. Supports solar panel voltages of 12V/24V and charge currents up to 60A.
