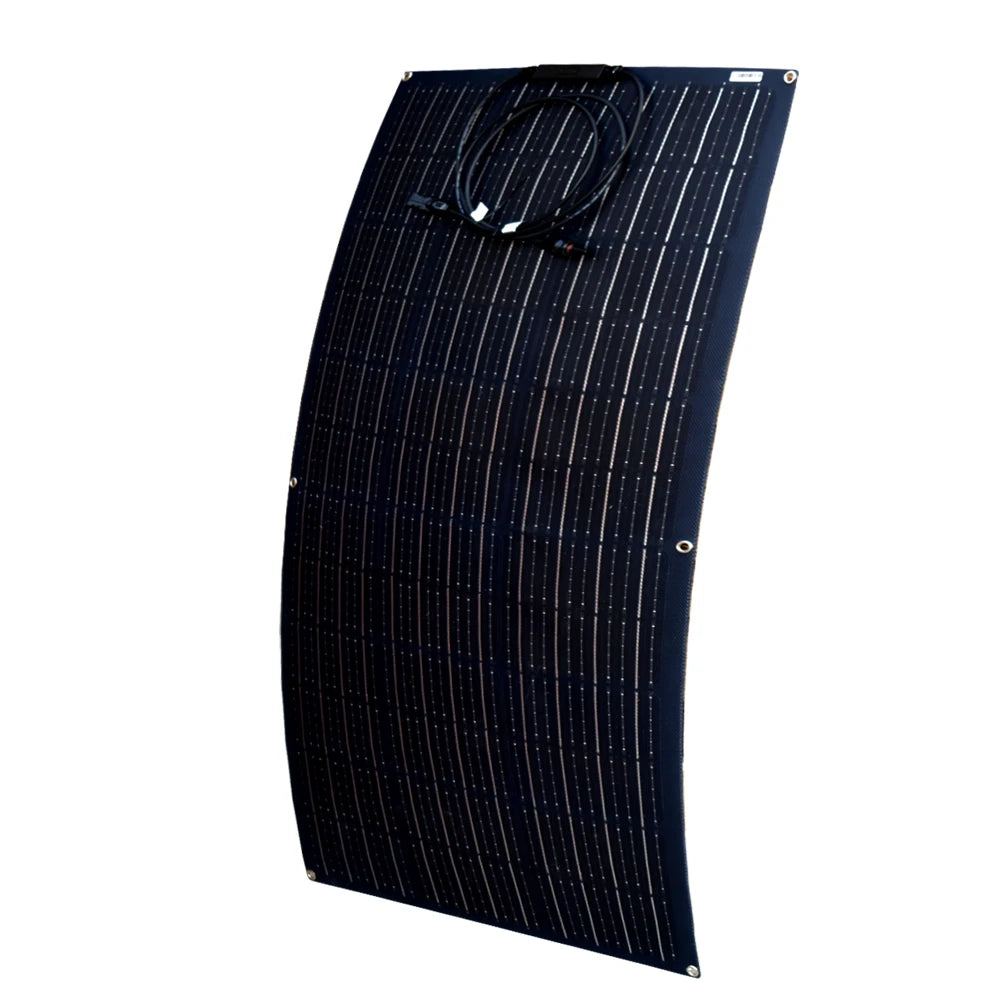

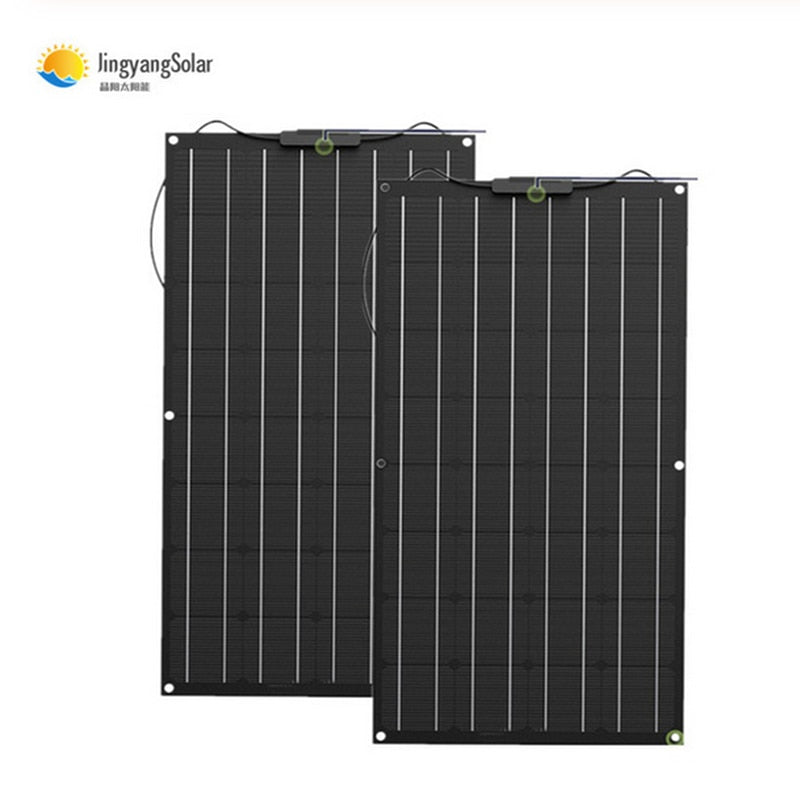

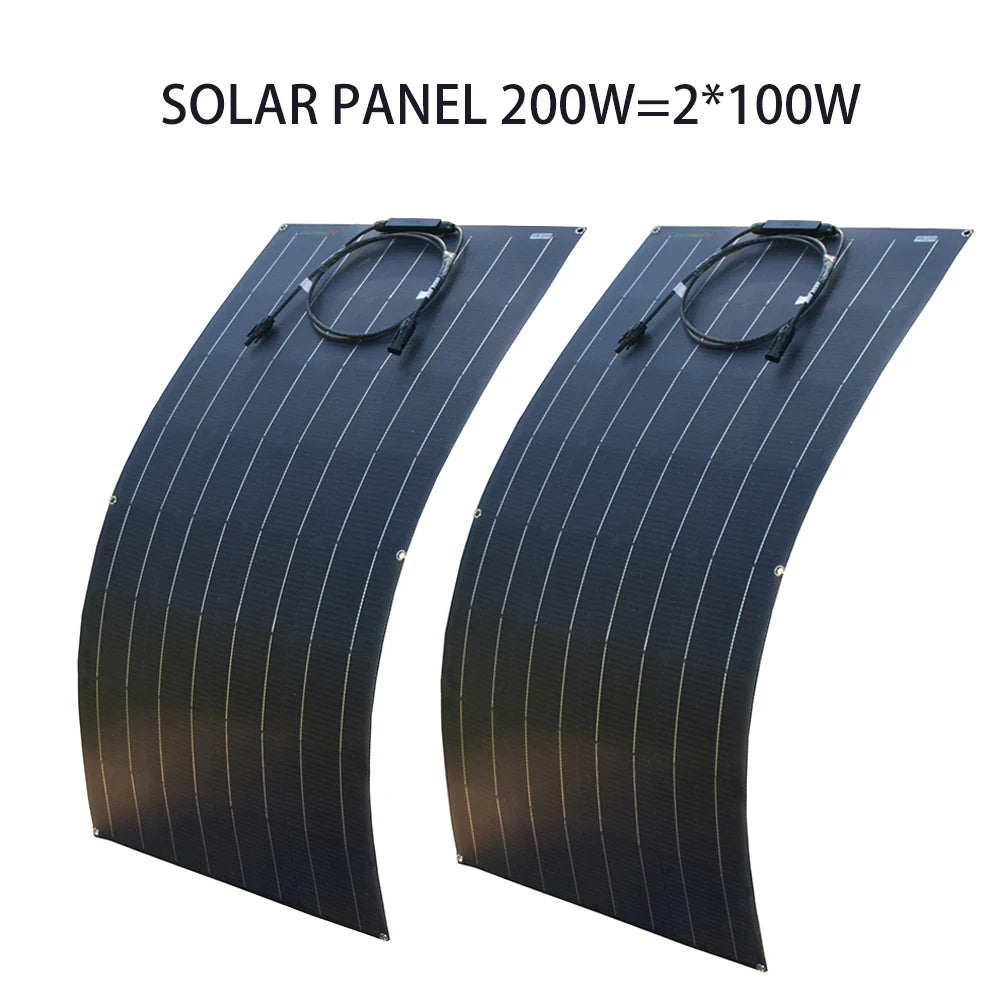

Solar Panel 200w 100w ETFE PET 110W 100W Flexible Panel Solar Monocrystalline Cell For 12V/24V Battery Charger 1000W System Kits
Solar Panel 200w 100w ETFE PET 110W 100W Flexible Panel Solar Monocrystalline Cell For 12V/24V Battery Charger 1000W System Kits
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Type: Solar Panel
Size: 1050X540X2.5mm
Origin: Mainland China
Number of Panels: 1
Number of Cells: 32
Nominal Capacity: 100w
Model Number: JY100WF
Max. Power: 100w
Material: Monocrystalline Silicon
Foldable Solar Panel: Yes
Flexible solar panel: color: white
Flexible Solar Panel: Yes
Certification: CE
Cell efficiency: 21.3%: Voc(V): 21.70, Isc(A): 6.10
Brand Name: JINGYANGPV
18v solar panel: mono solar cell
Shipping Information
1, For Europe Memeber Countries Client: Ship from Spain or Czech Or German Or France or Poland Warehouse, 2-7 Working days arrival via DHL or Correos or GLS or PPL.
2, For Russia: Ship from Moscow Warehouse, Fast arrival via Russia Post.
More Oversea Warehouse will open later.

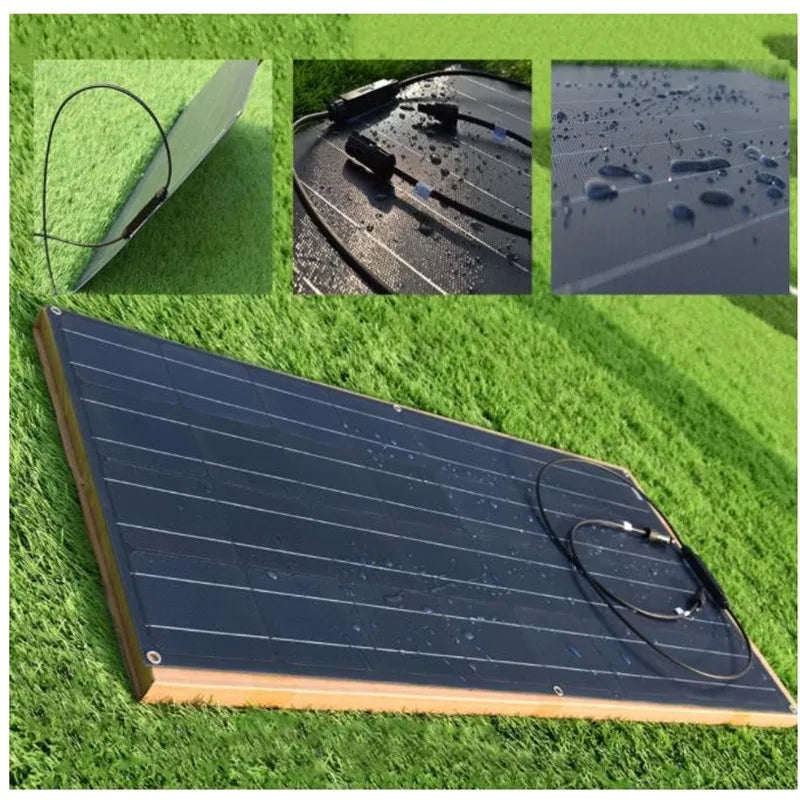

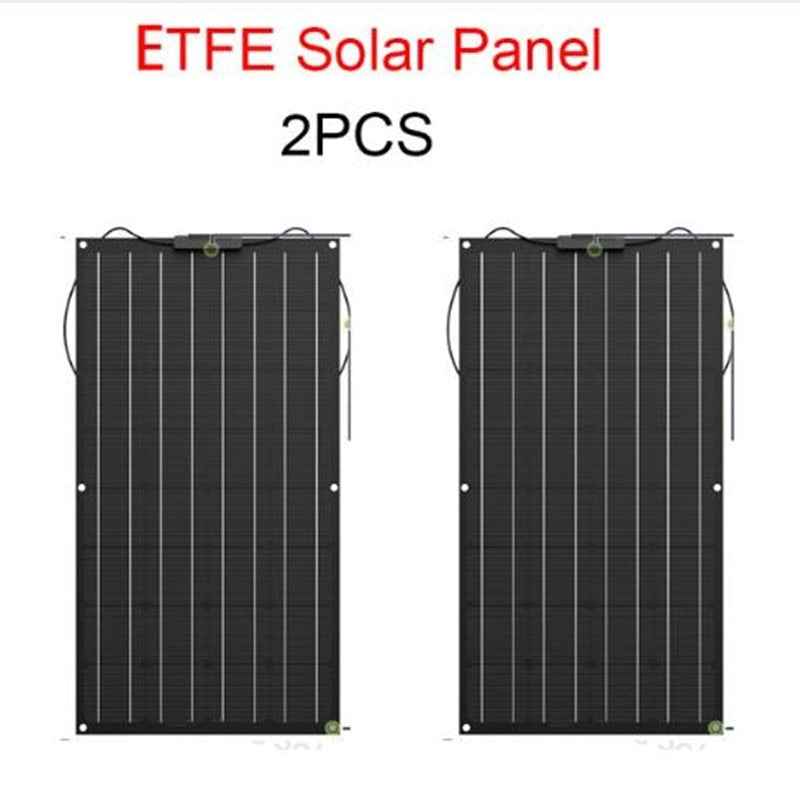

Advantages of JINGYANG ETFE Solar Panels:
Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.
Japan ETFE Film Coating is corrosion resistant, Bear Higher Temperature; Higher Efficiency and is suitable for both indoor and outdoor use.
With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
Product description:
The surface is Total Japan ETFE Film Coating, waterproof, snowproof, resistant to small hail.
By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM
The back has 6 drill holes that can be quickly installed.
Model: ETFE 32-100W
Material: Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.55A
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Dimension:1050MM(L)*540MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.26inch(W)*0.09inch(H)
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

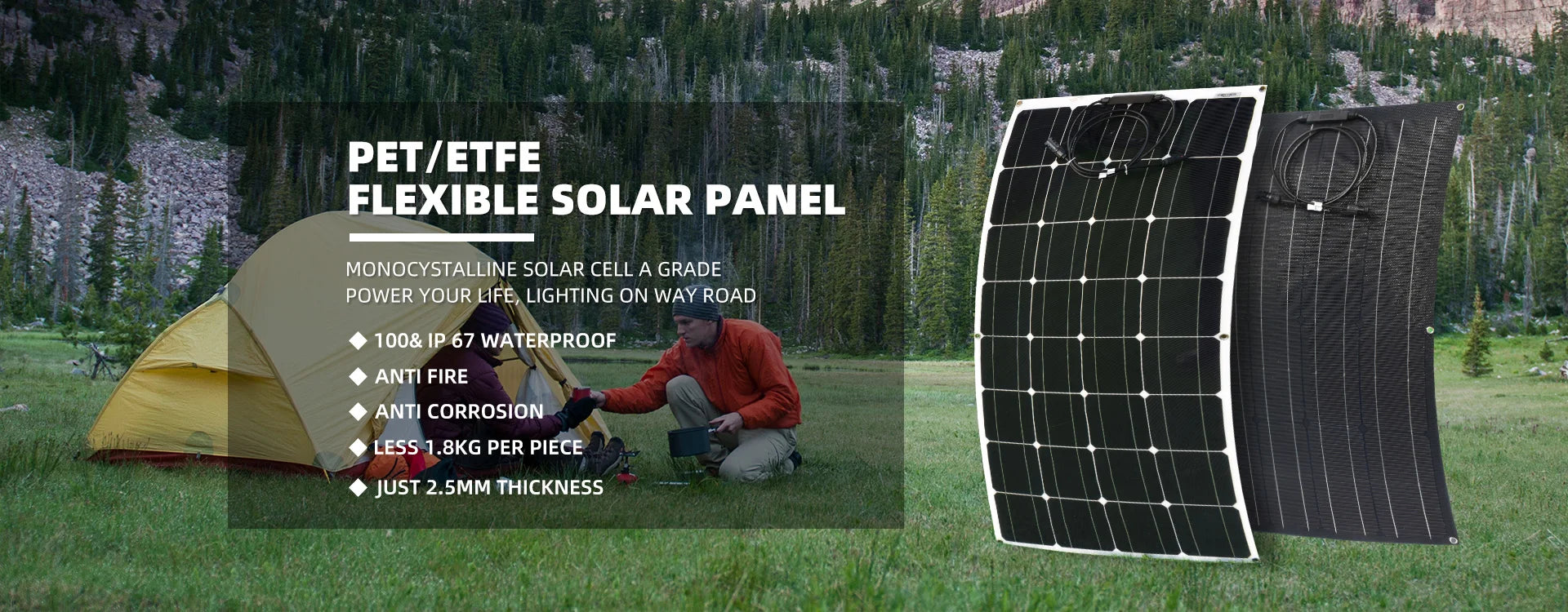

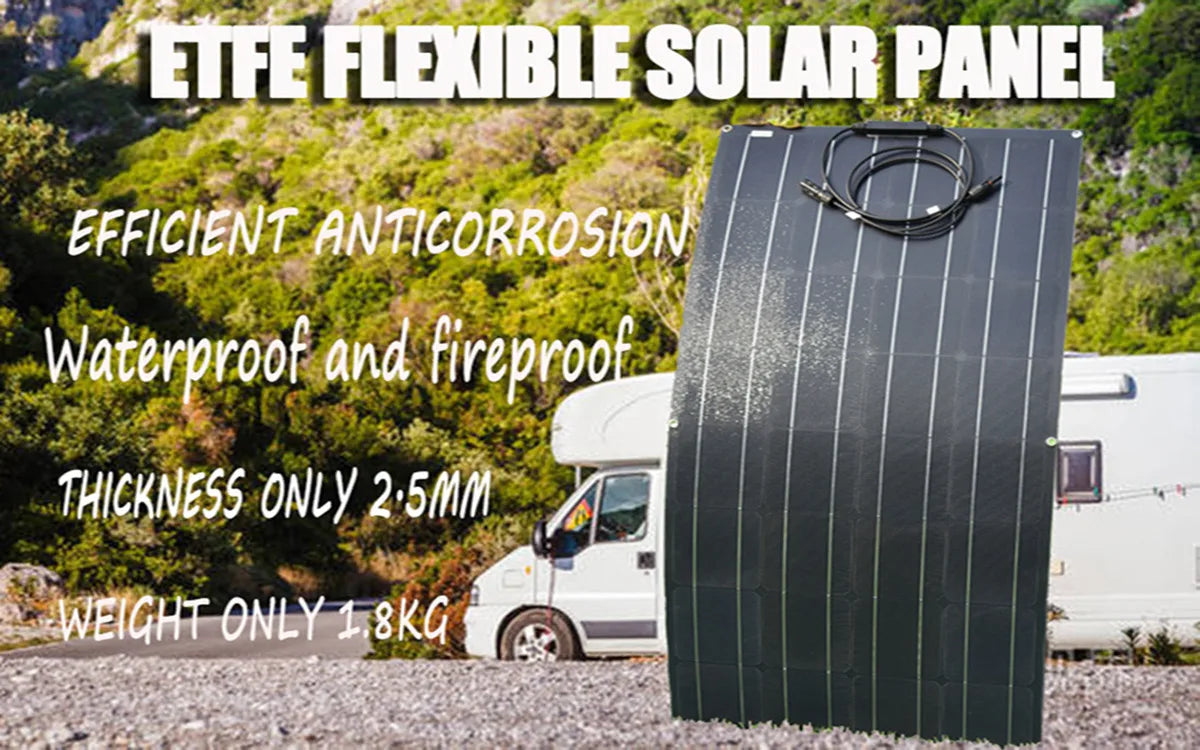

Efficient, waterproof, and fire-resistant. Features thickened PET material with only 2.5mm thickness and weighs just 1.8kg for easy handling.

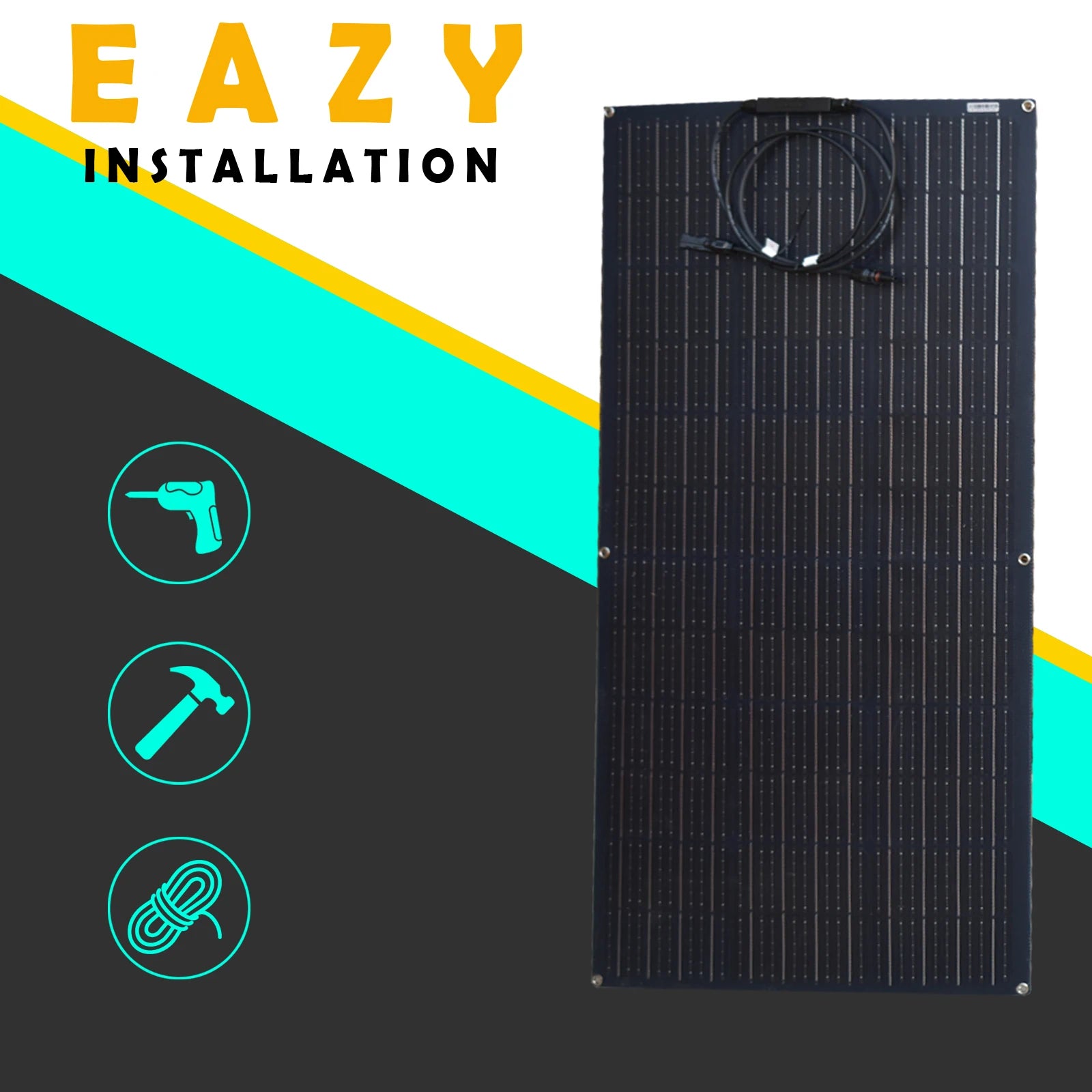

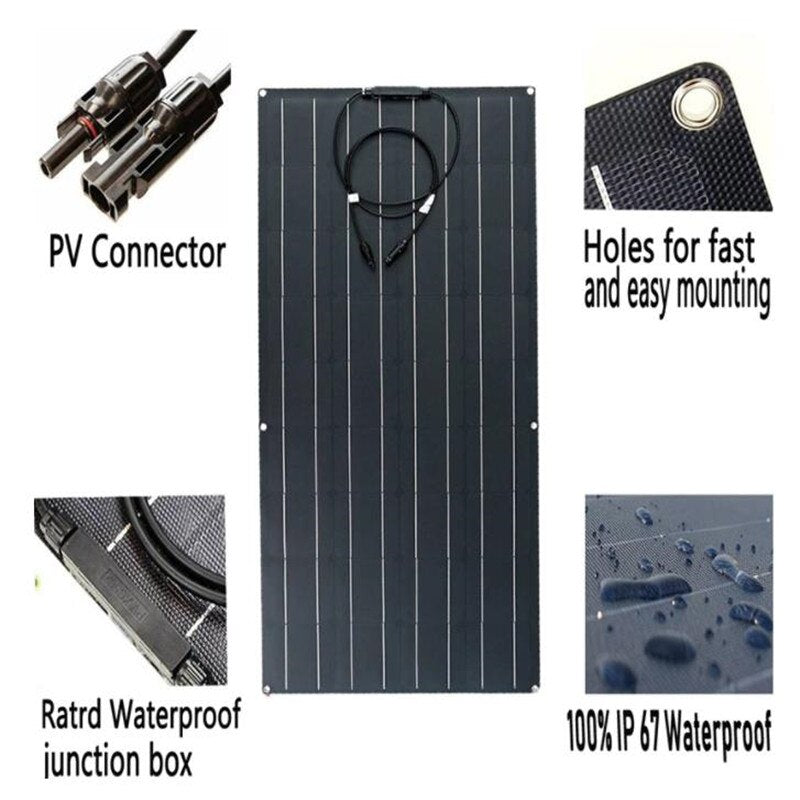

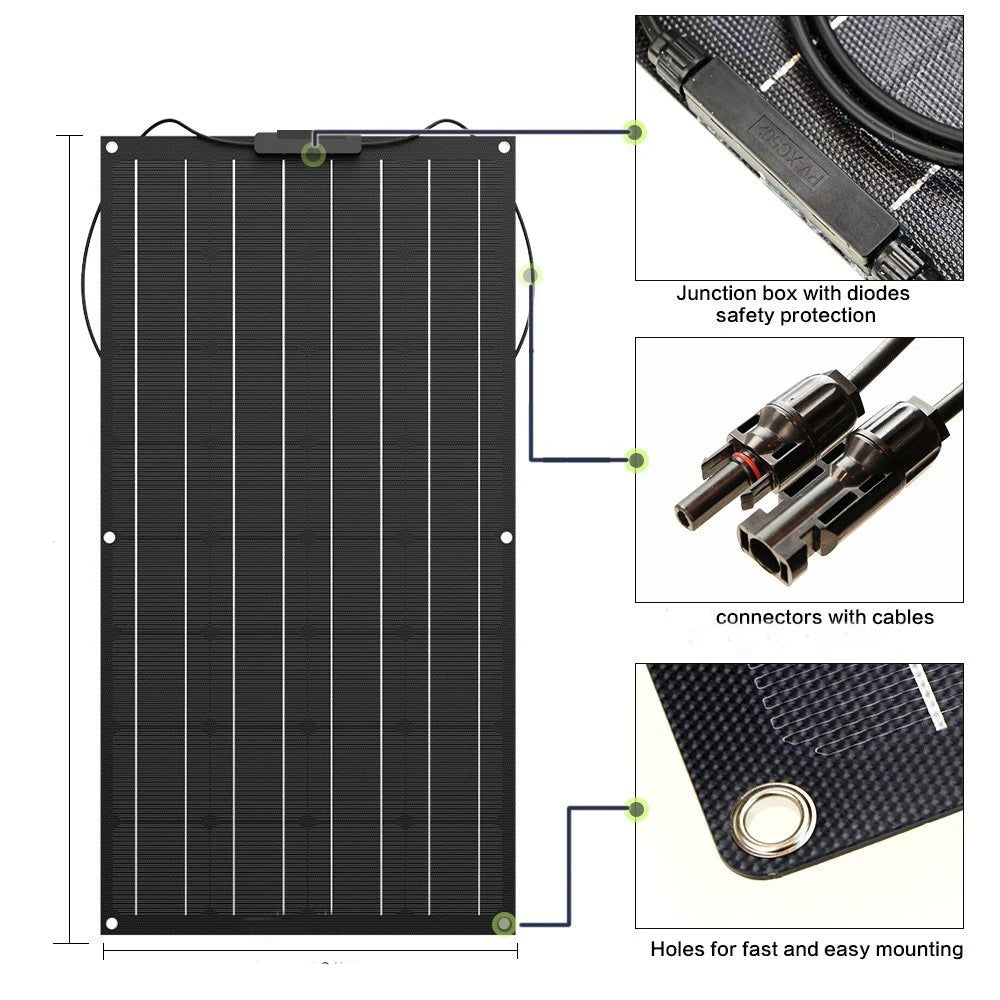

Quickly mountable junction box features diode-protected connectors, cables, and holes for secure and convenient connections.

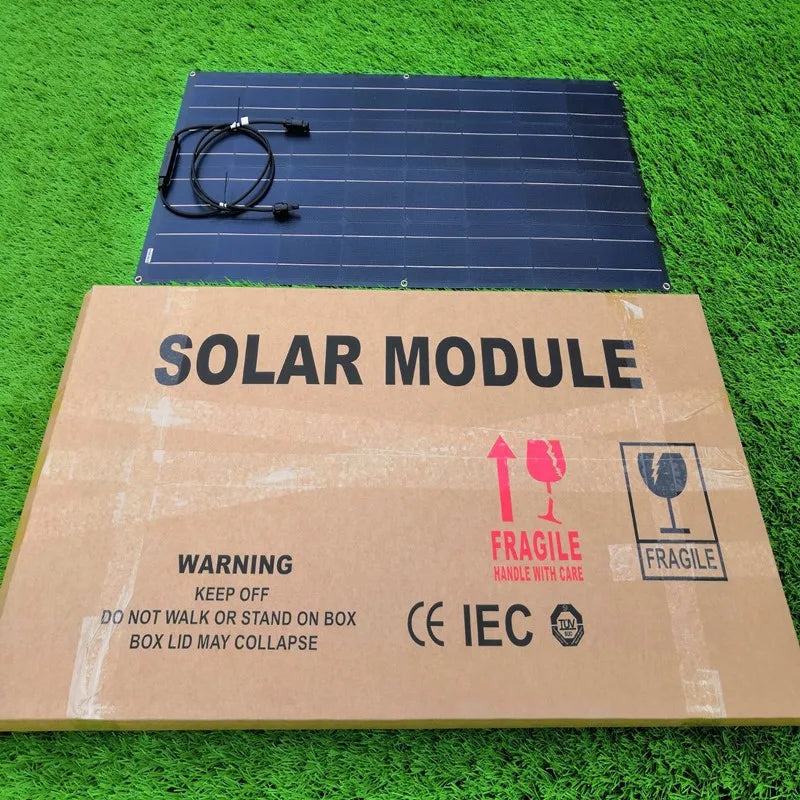

**Warning:** Handle with care. Keep off box. Do not walk or stand on it. Box lid may collapse.

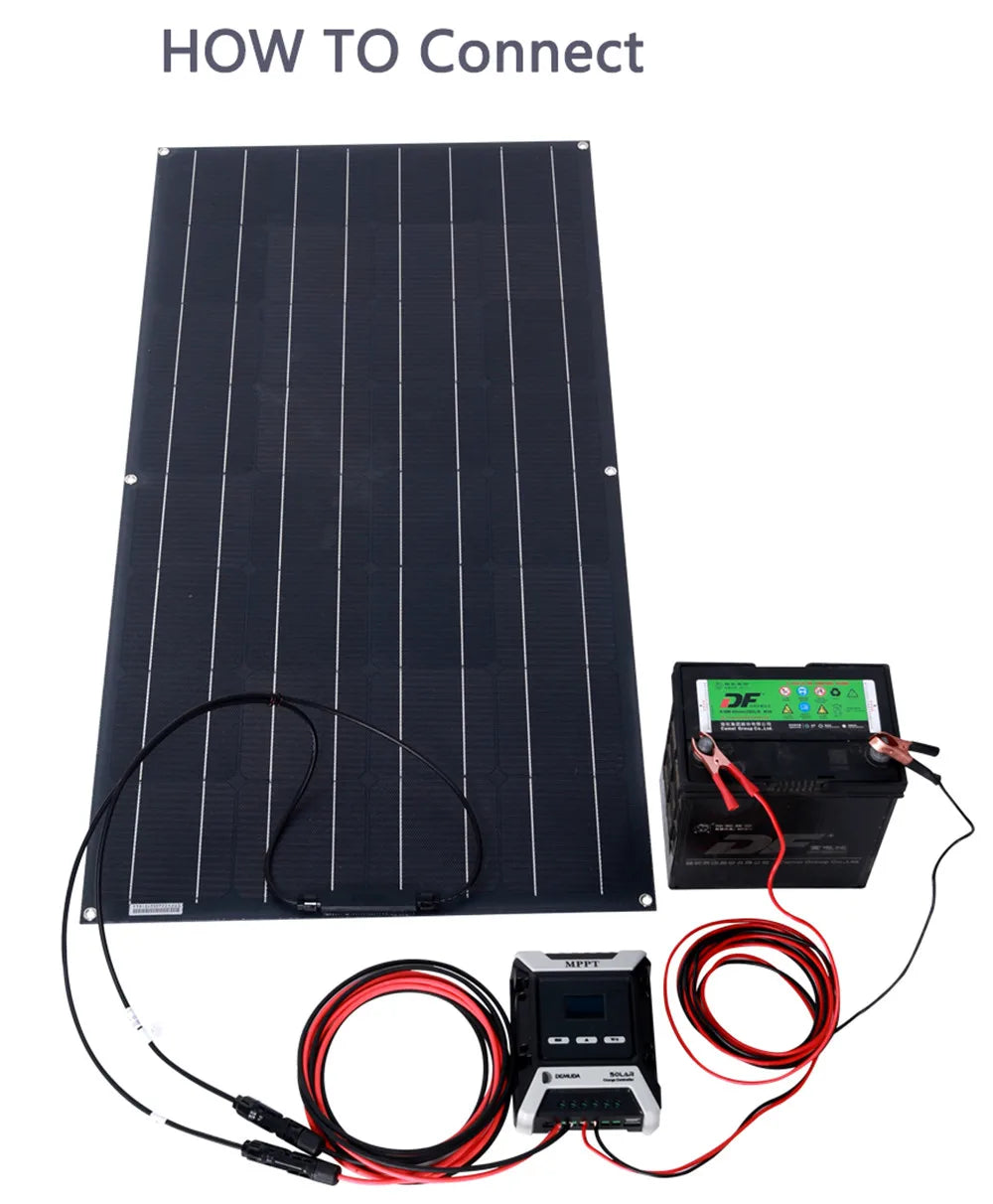

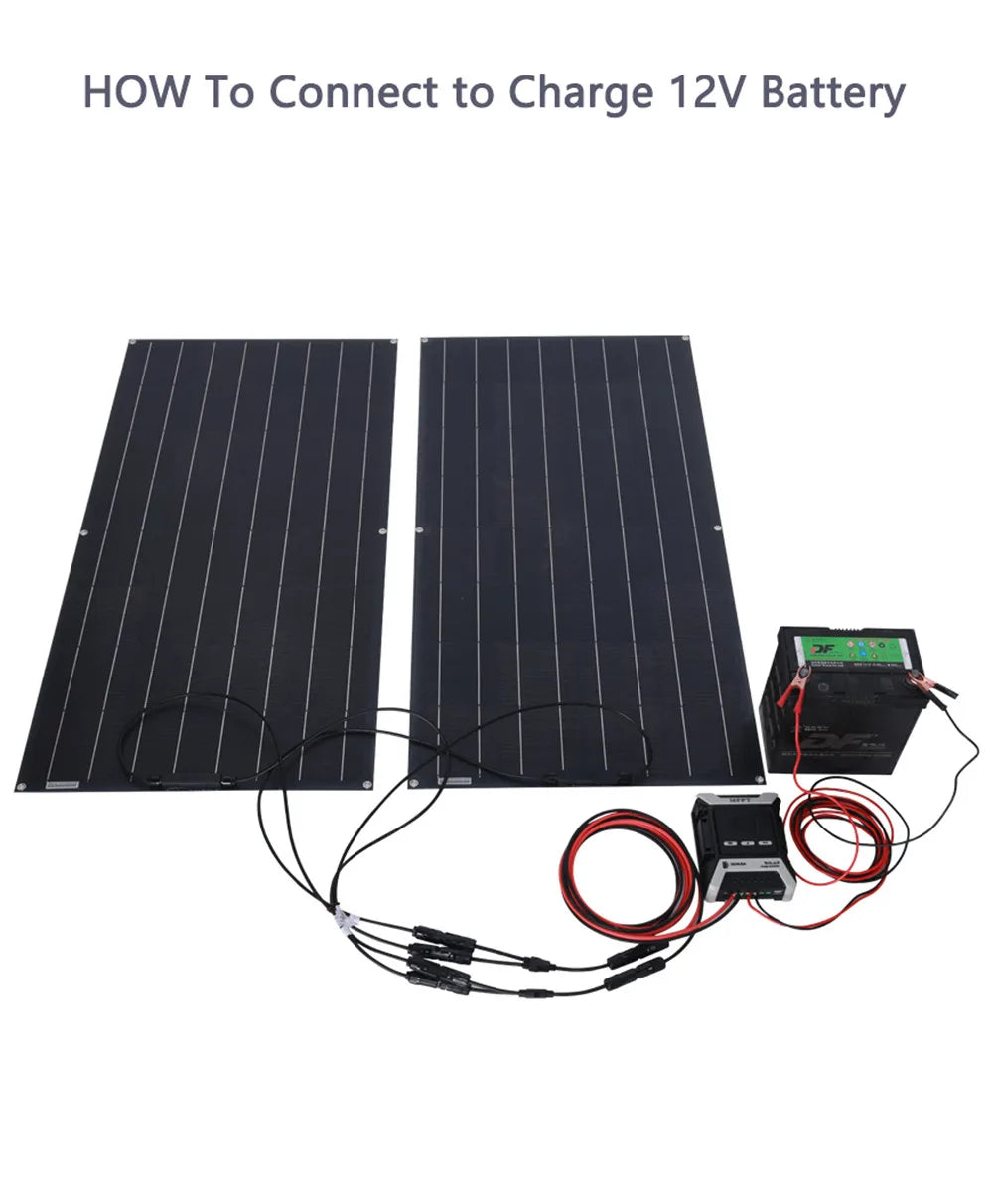

Connect Solar Panel to 12V battery charger for efficient charging.

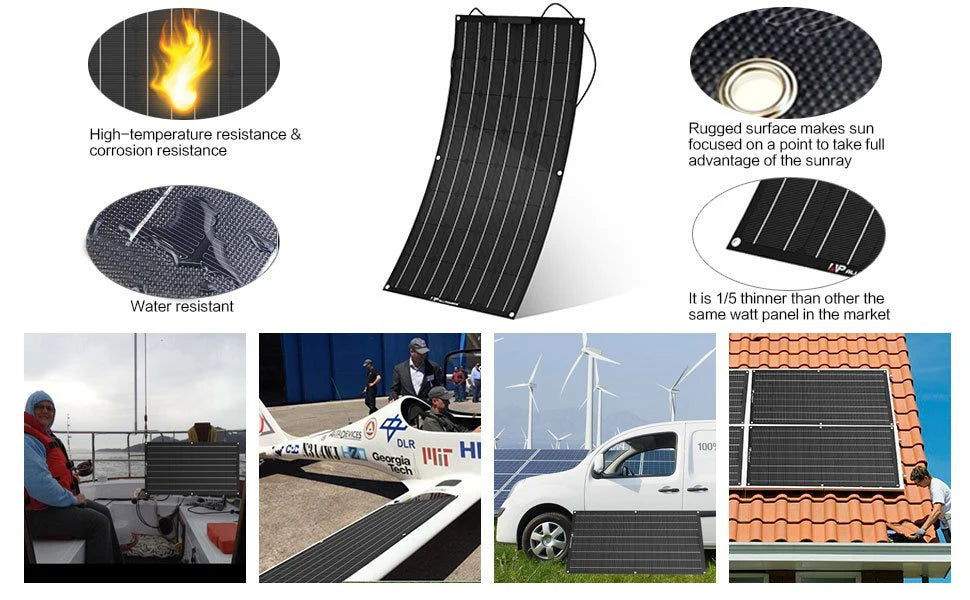

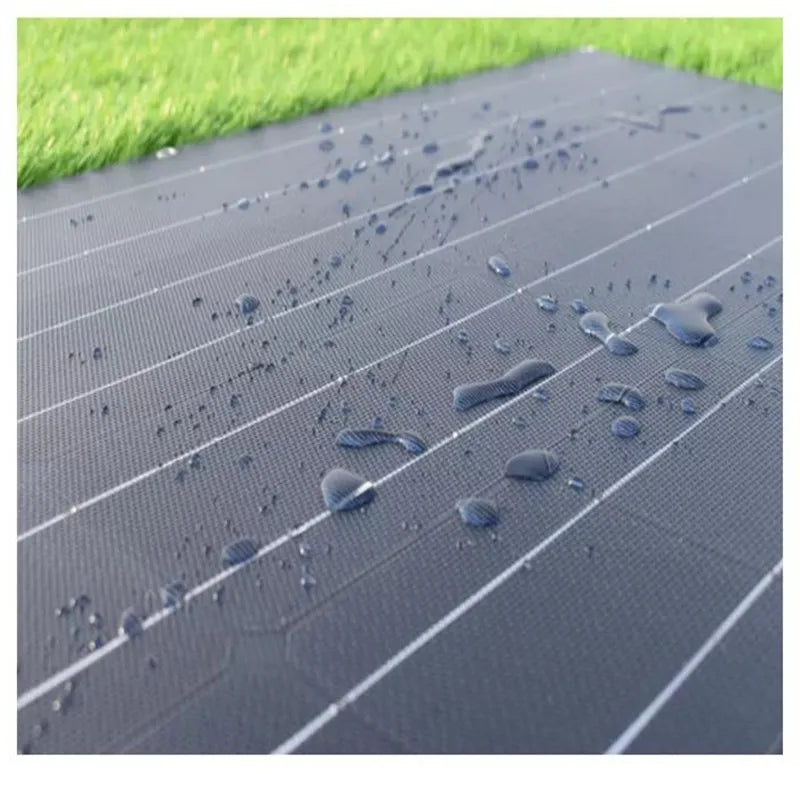

This solar panel features high-temperature resistance and a rugged surface, allowing it to efficiently harness sunlight while resisting corrosion. Its thin profile means it can withstand water exposure, making it a durable option for outdoor use.
Versatile application for boats, camping, homes, RVs, water pumping, and grasslands.

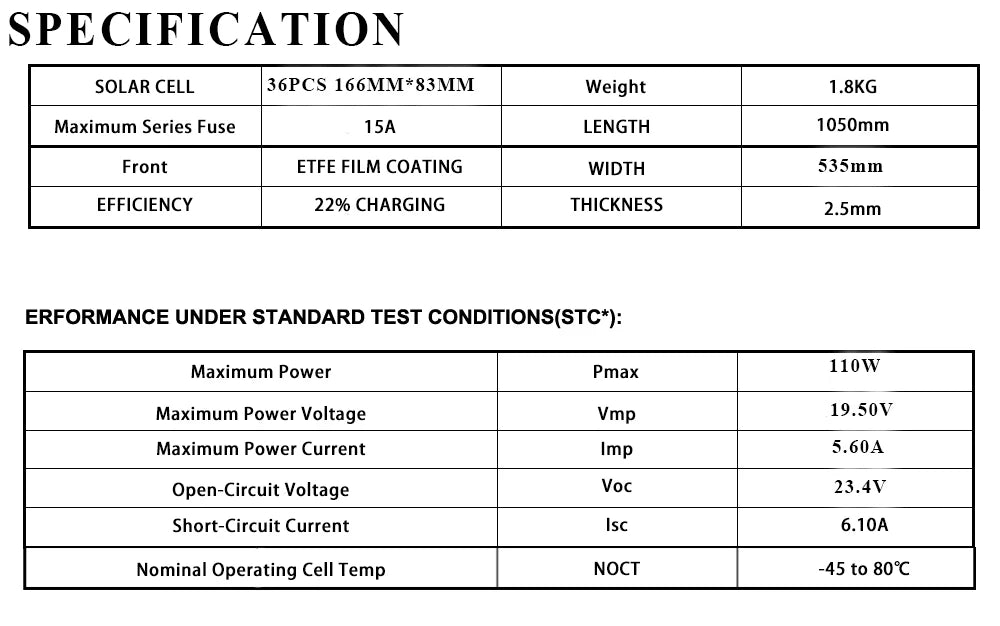

Model: ETFE 32-110
Material: Monocrystalline silicon
Maximum Power(Pmax):110W±3%
Maximum Power Voltage(Vmp):19.50V
Maximum Power Current (Imp):5.60A
Open-Circuit Voltage (Voc): 23.4V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Solar Cell: 36pcs 166mm*83mm; 12BB Solar Cell
Dimension:1050MM(L)*535MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.06inch(W)*0.09inch(H)
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

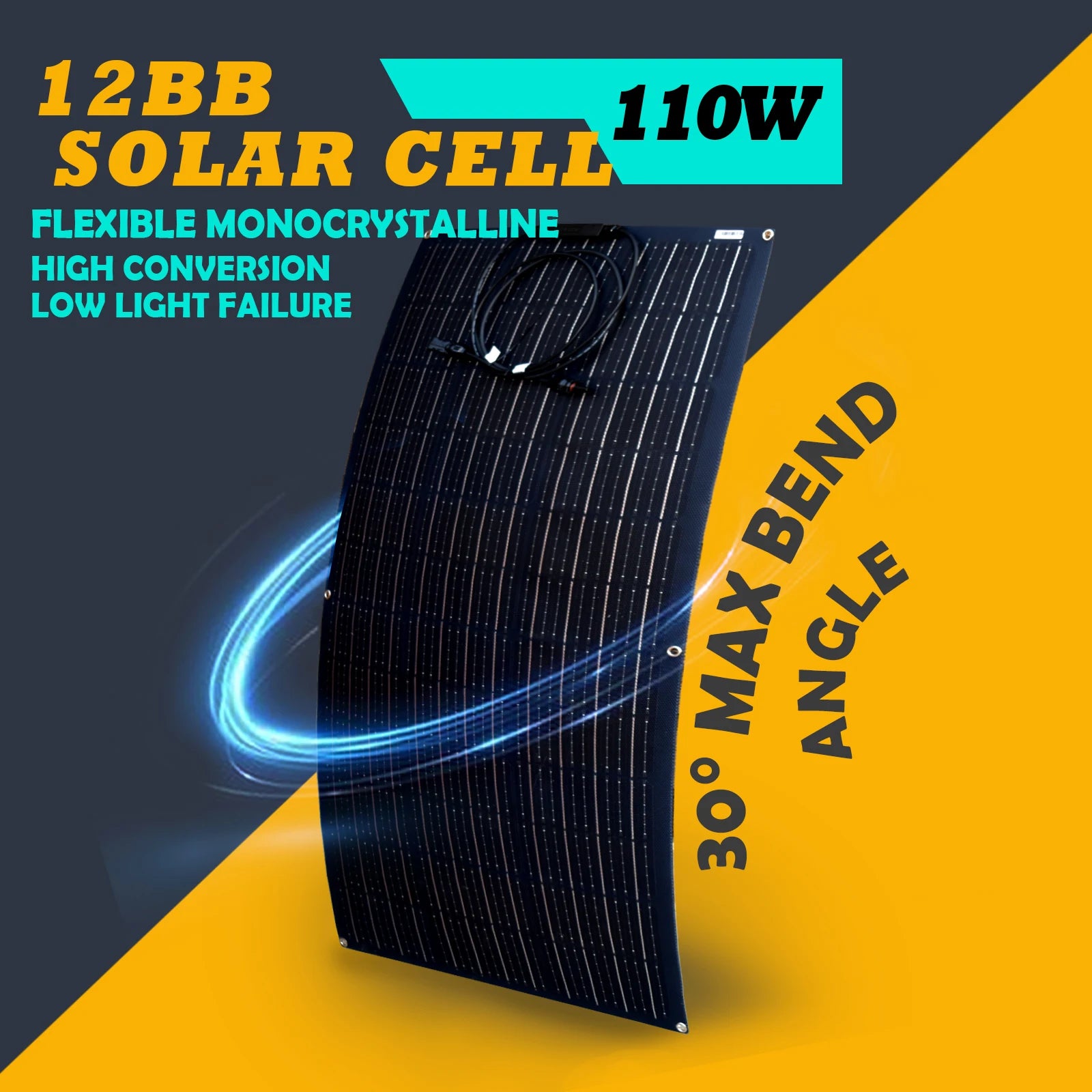

High-efficiency 110W flexible monocrystalline solar cell with high conversion and low light failure, suitable for 12V/24V battery charging systems.

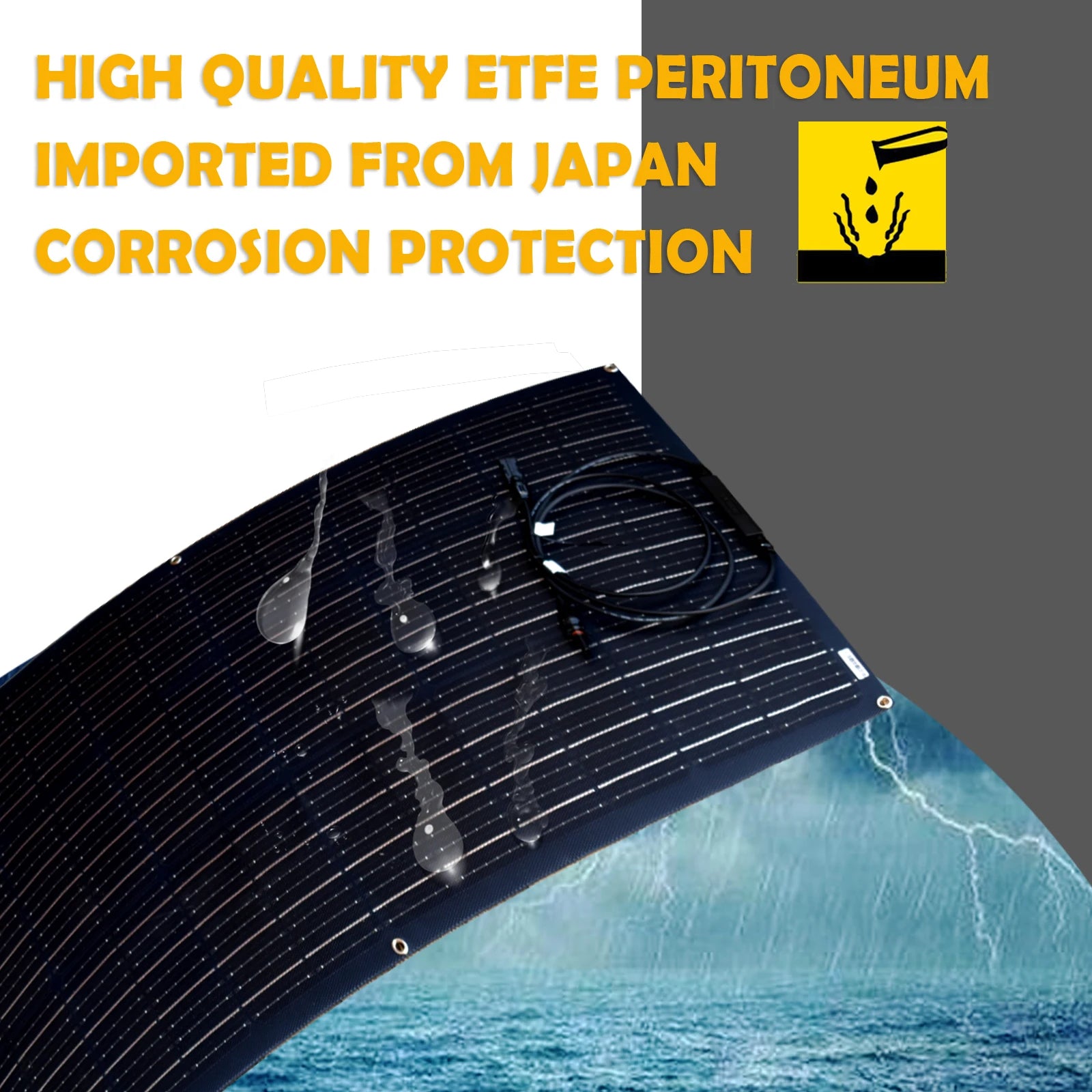

High-quality ETFE PET film imported from Japan for corrosion protection and durability.

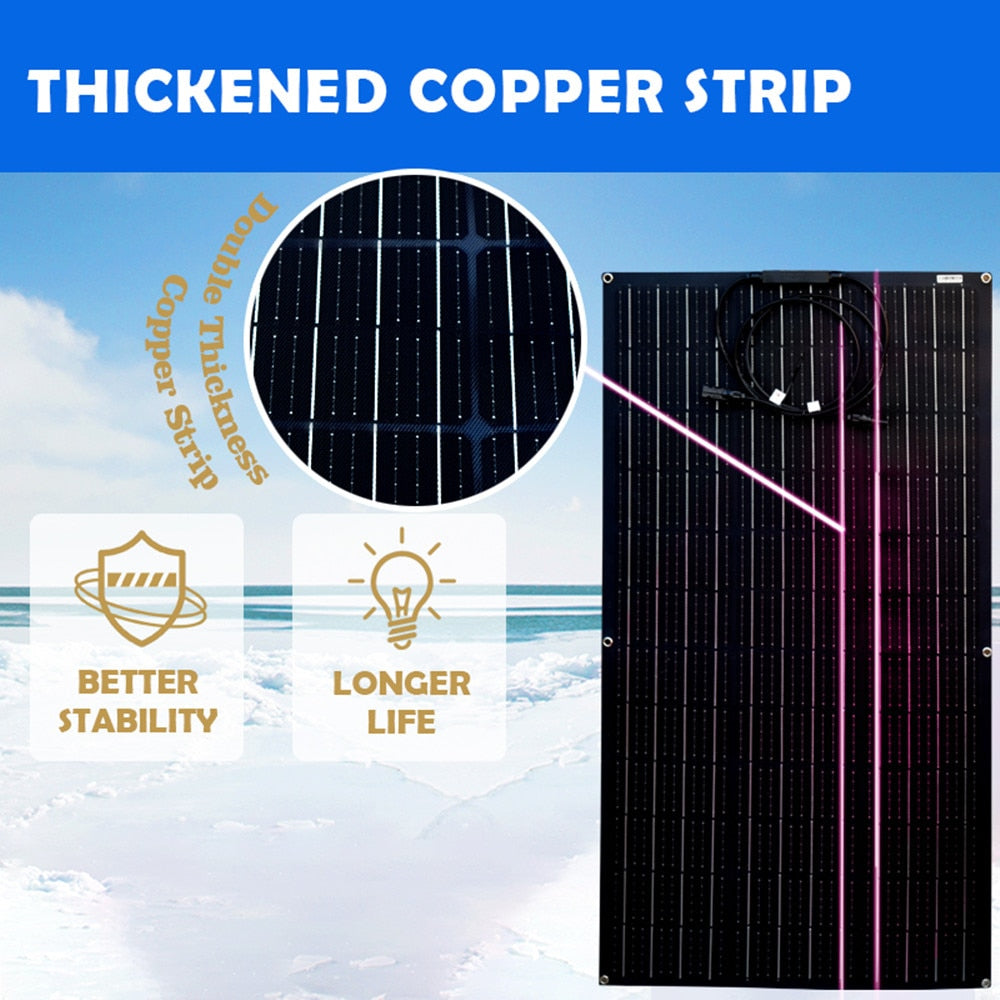

Thickened copper strip ensures better long-term stability and lifespan.

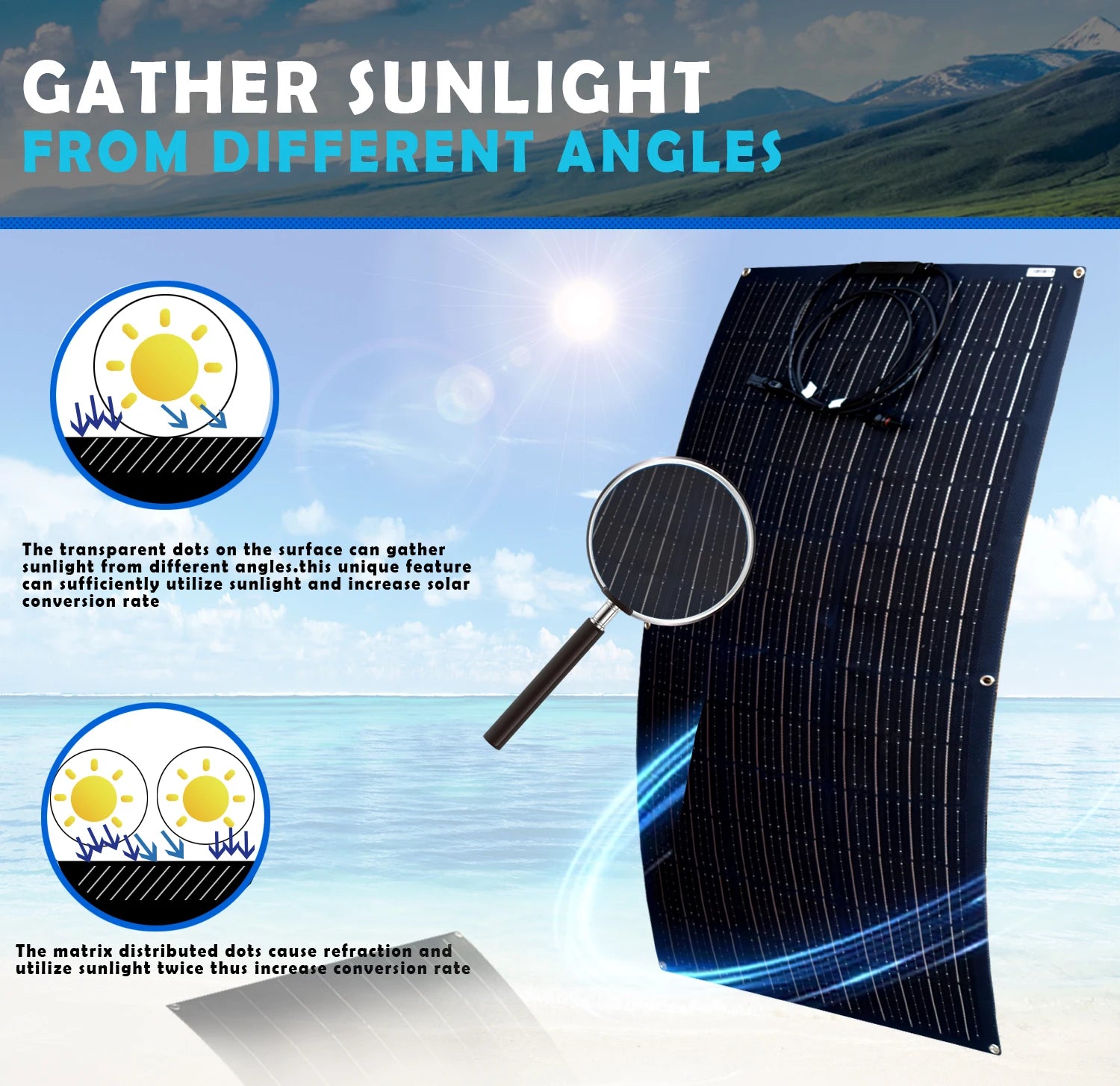

The transparent dots on the surface allow for flexible angle adjustments, maximizing sunlight capture and increasing energy conversion rates by refracting light twice.

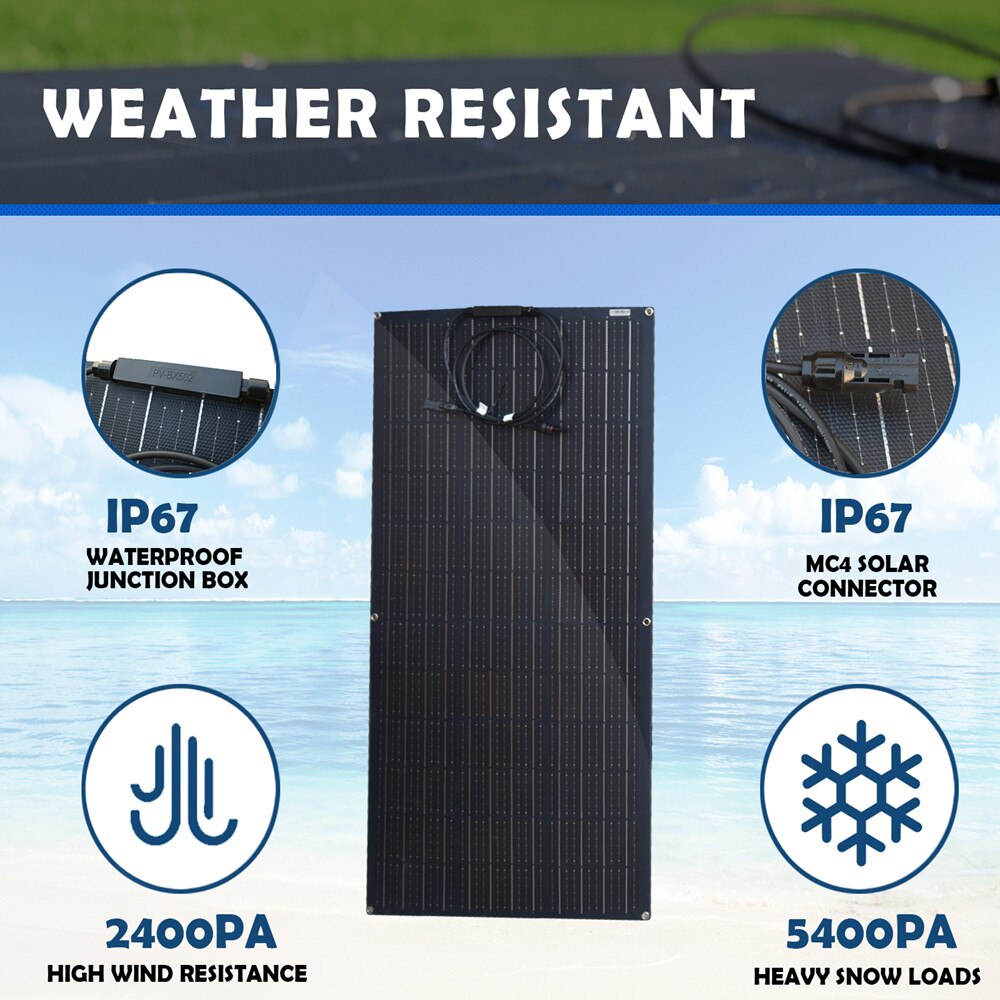

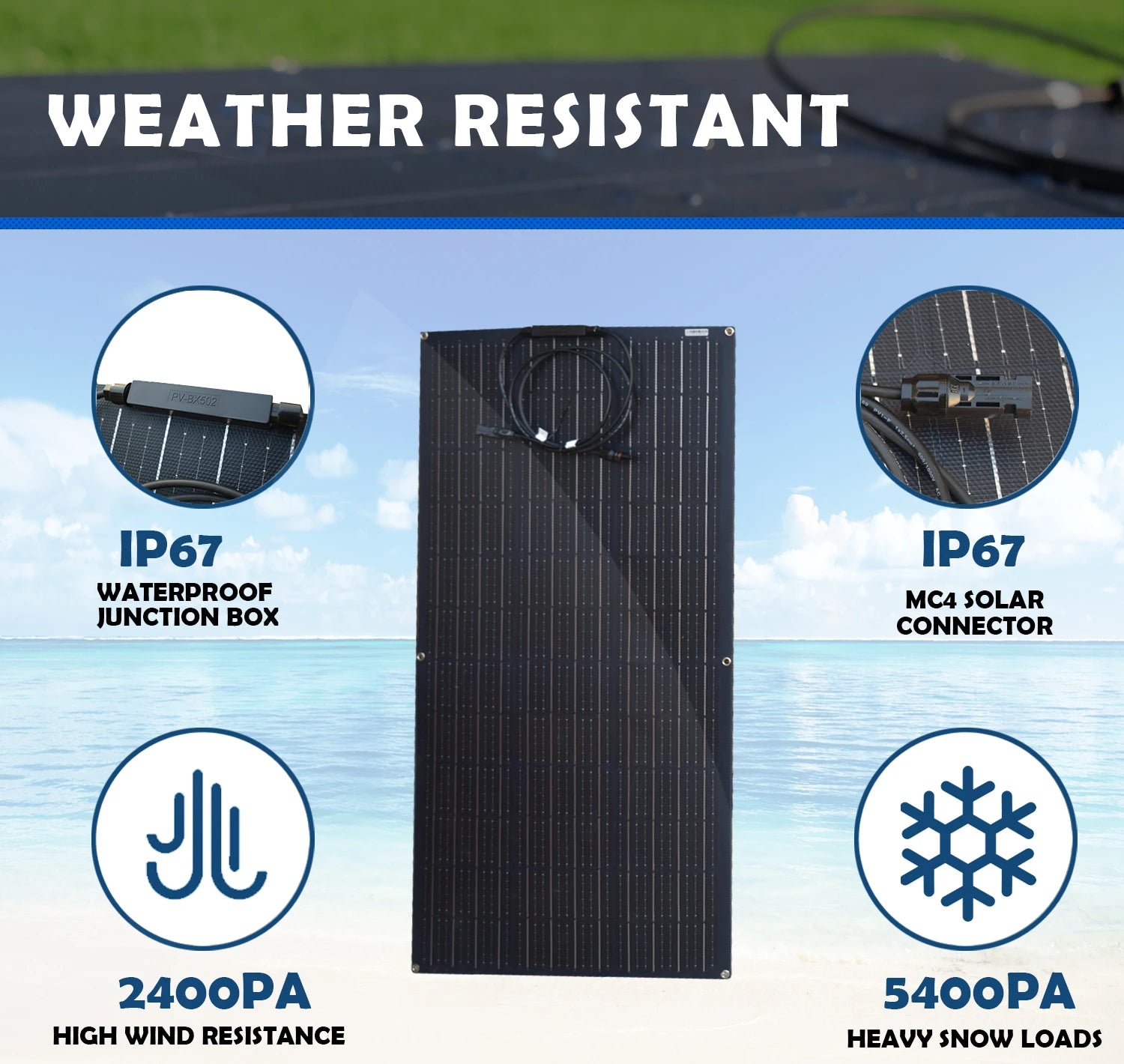

Rugged IP68 waterproof solar junction box with MC4 connector, suitable for harsh weather conditions, high winds, and heavy snow loads.

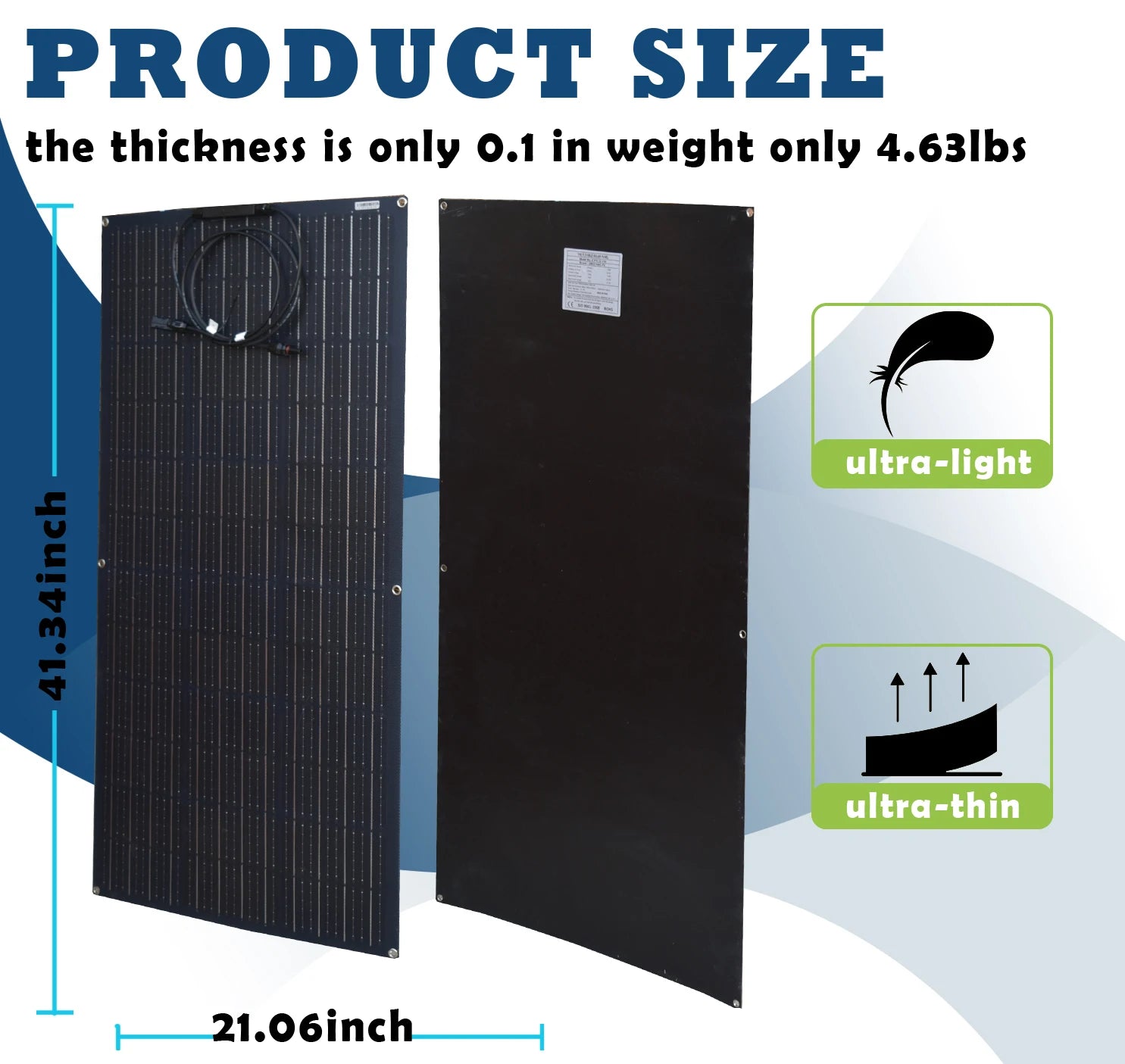

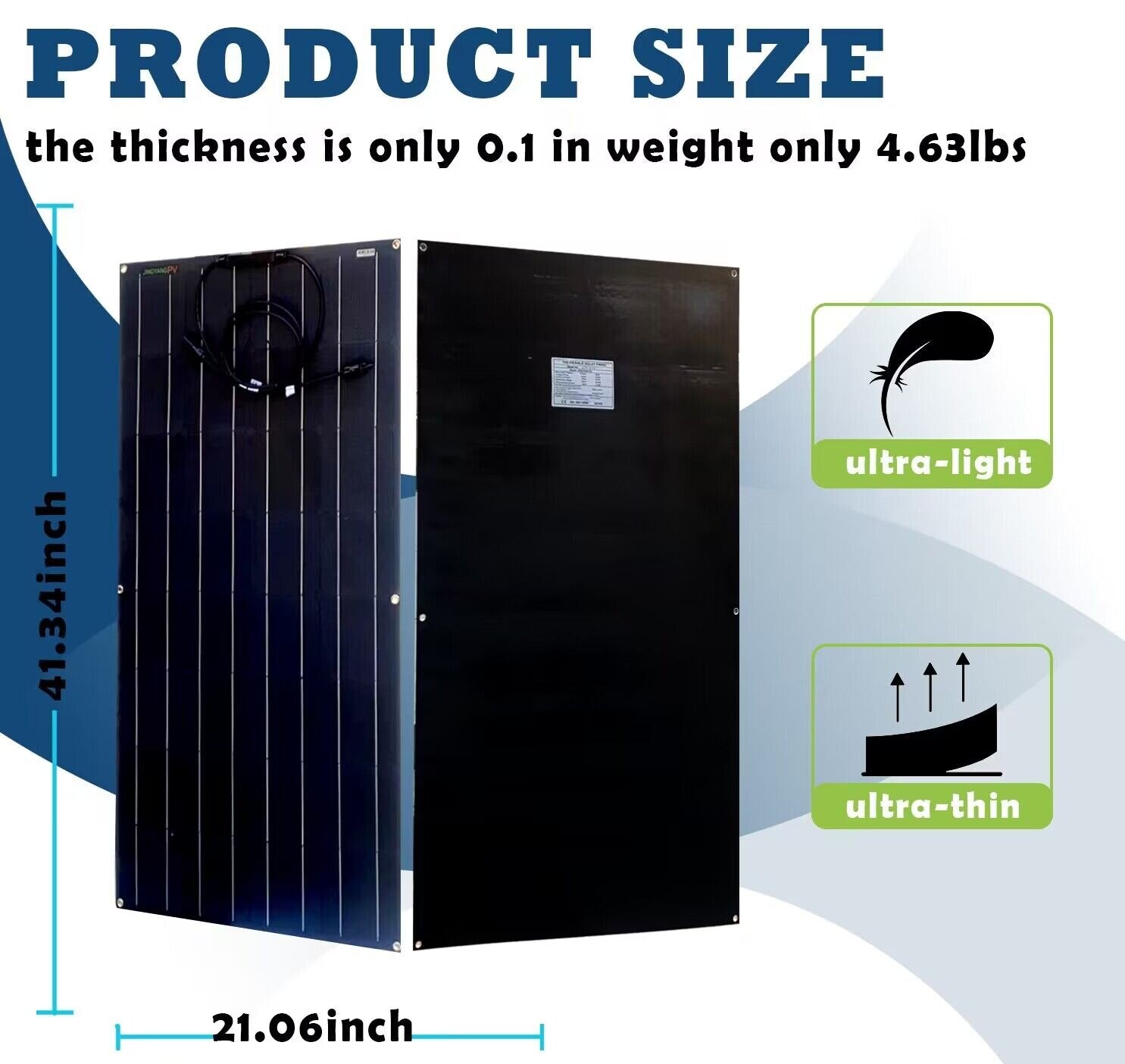

Product size: Ultra-light and thin, measuring 21.06 inches long and weighing only 4.63lbs, with a thickness of just 0.1 inch.

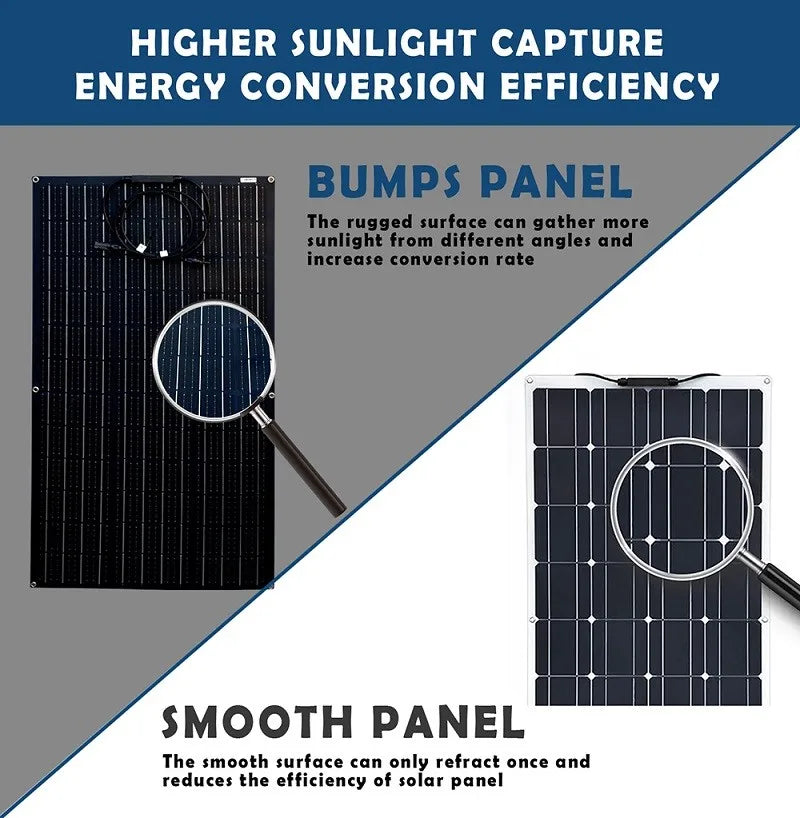

This solar panel features a rugged surface that captures energy efficiently, gathering sunlight from various angles. In contrast, its smooth surface has limited light refraction, reducing conversion rate.

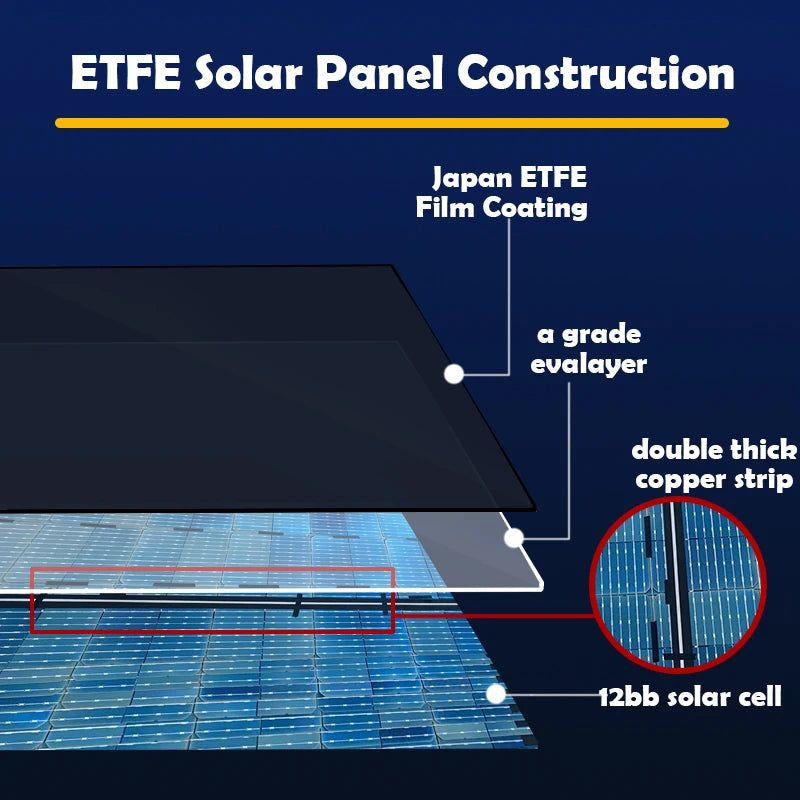

Featuring ETFE film coating and Japanese construction, this solar panel boasts a double-thick copper strip and 12BB monocrystalline cells for reliable energy harvesting.
Advantages of JINGYANG PET Solar Panels:
Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.
With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
Product description:

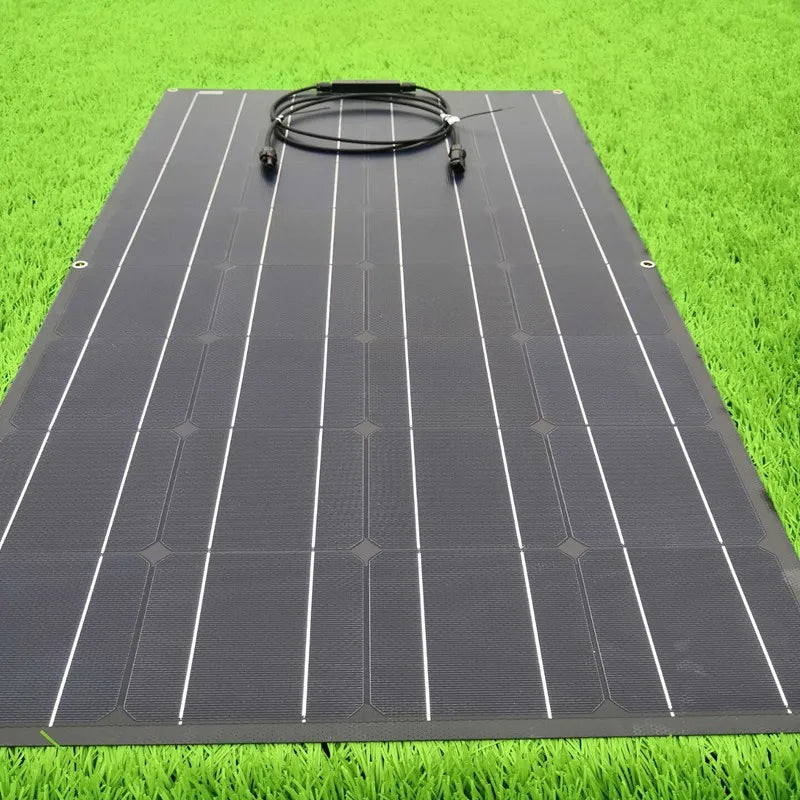

The surface is Plstic Cover Film Coating And Four EVA Layers, waterproof, snowproof, resistant to small hail.
By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM
The back Sidehas 6 drill holes that can be quickly installed.
Model: PET Solar Panel BSP 32-100
Material: Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.55A
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Dimension:1050MM(L)*540MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.26inch(W)*0.09inch(H)
Package Weight:1.85kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point

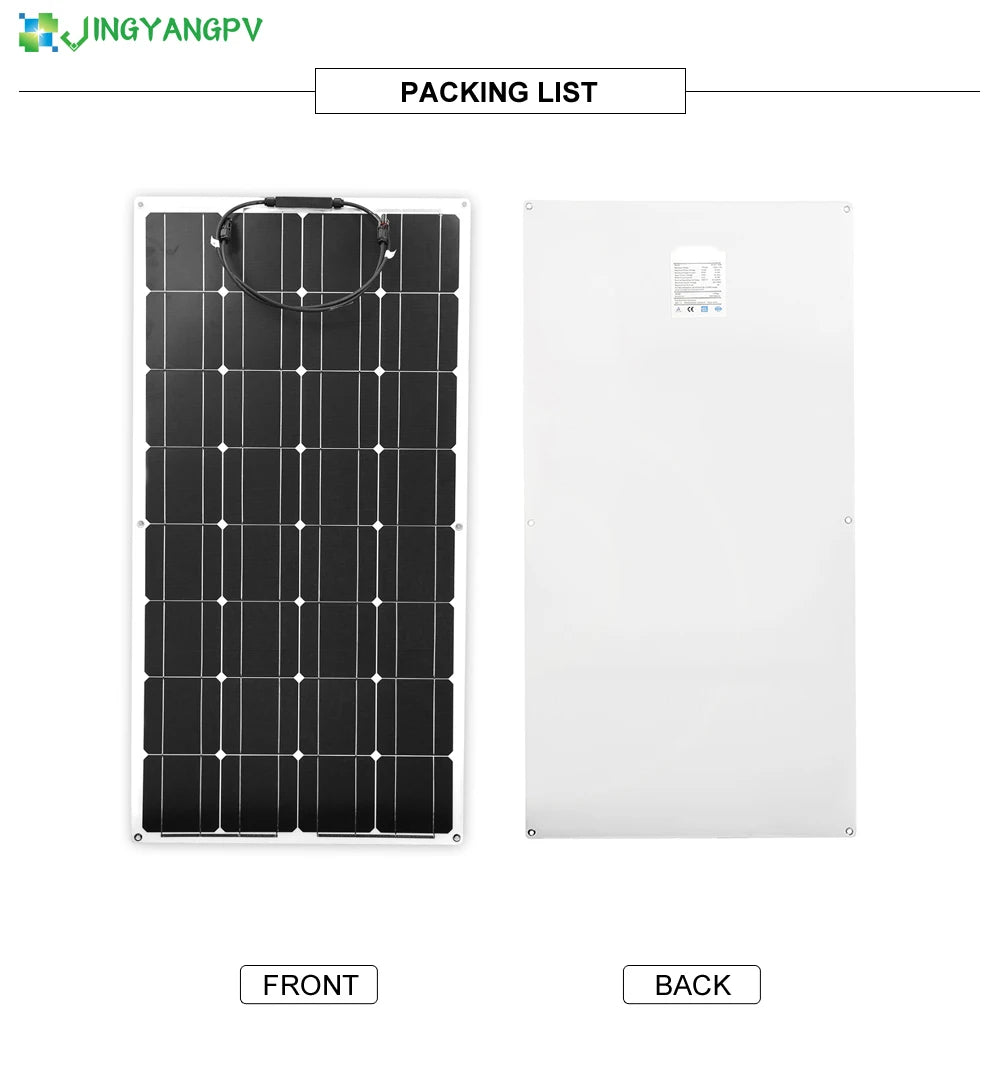

Contains front and back panels for solar panel installation, as part of the JINGYANGPV system kit.

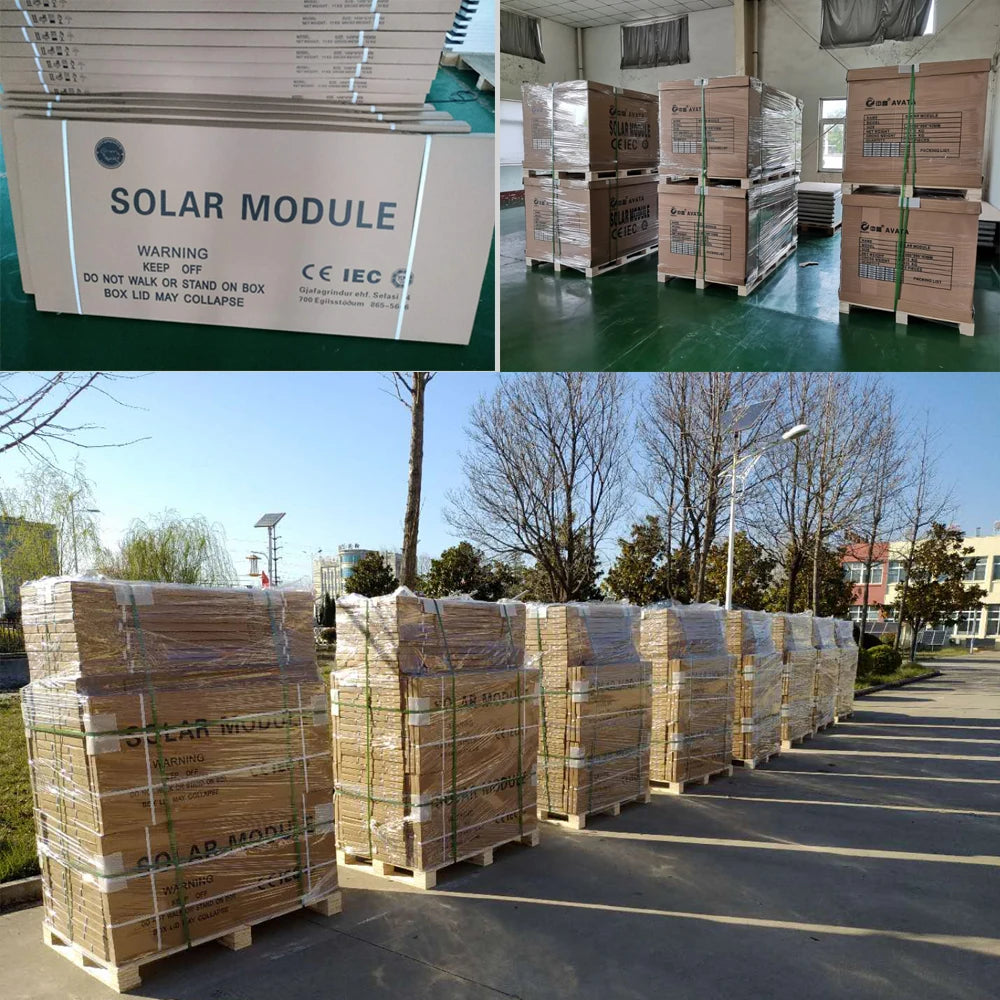

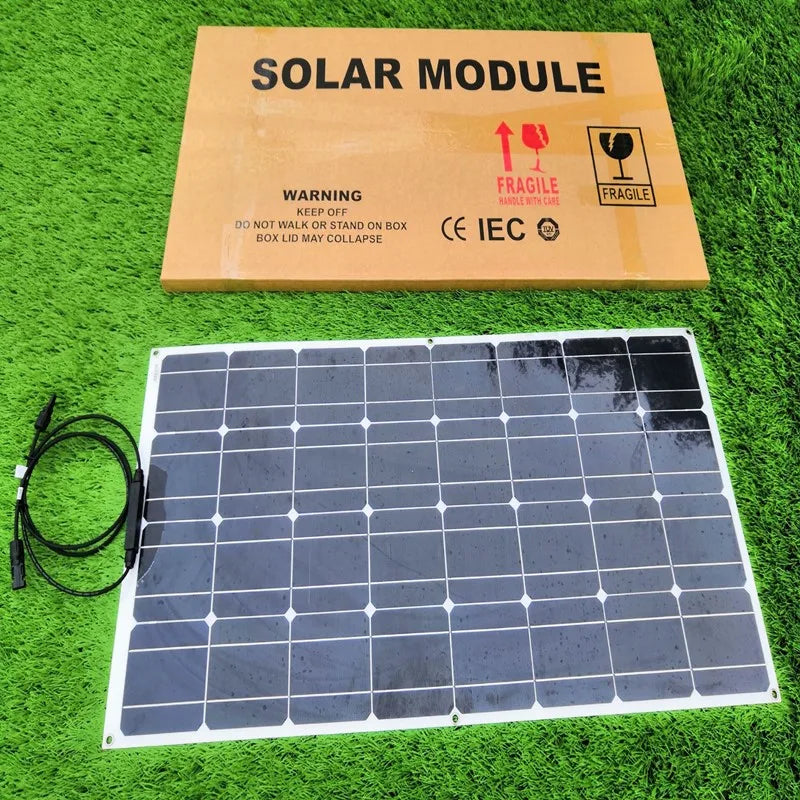

Warning: Fragile. Handle with care. Do not walk or stand on box. IEC box lid may collapse.

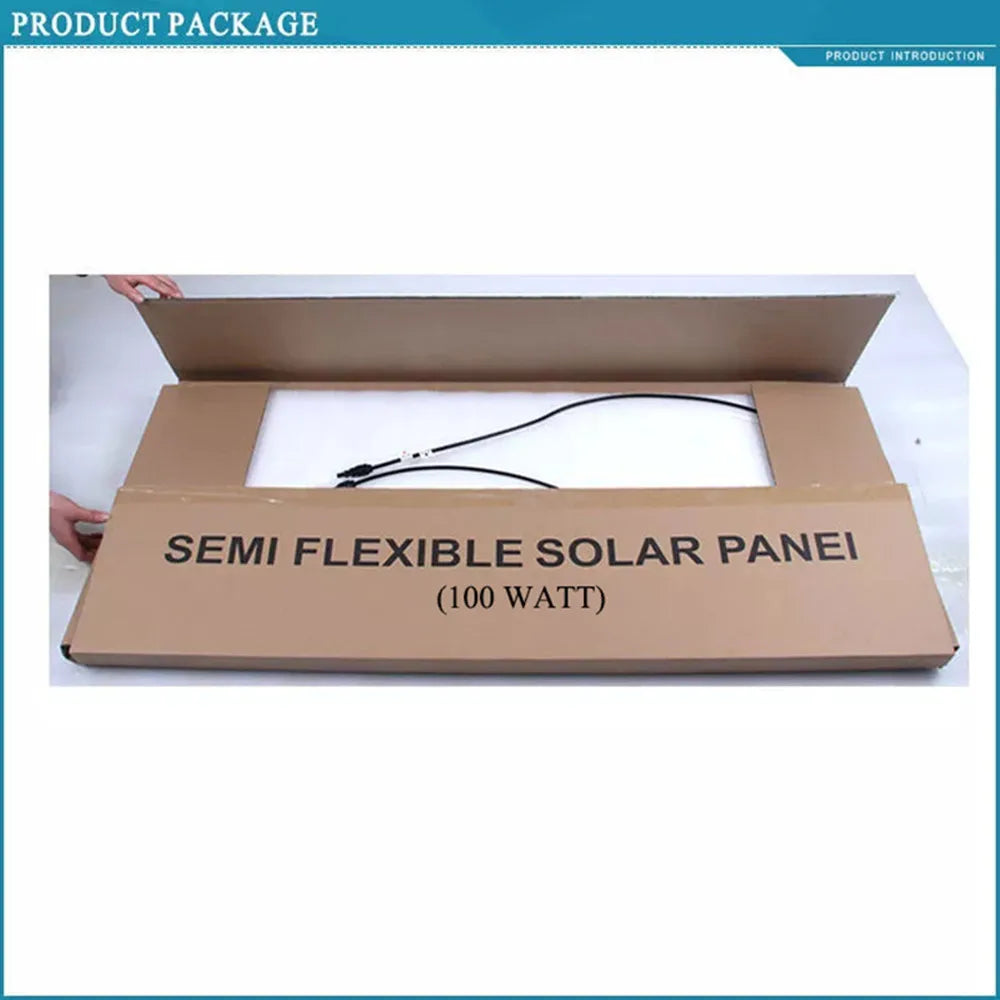

Package and delivery:
Company Information

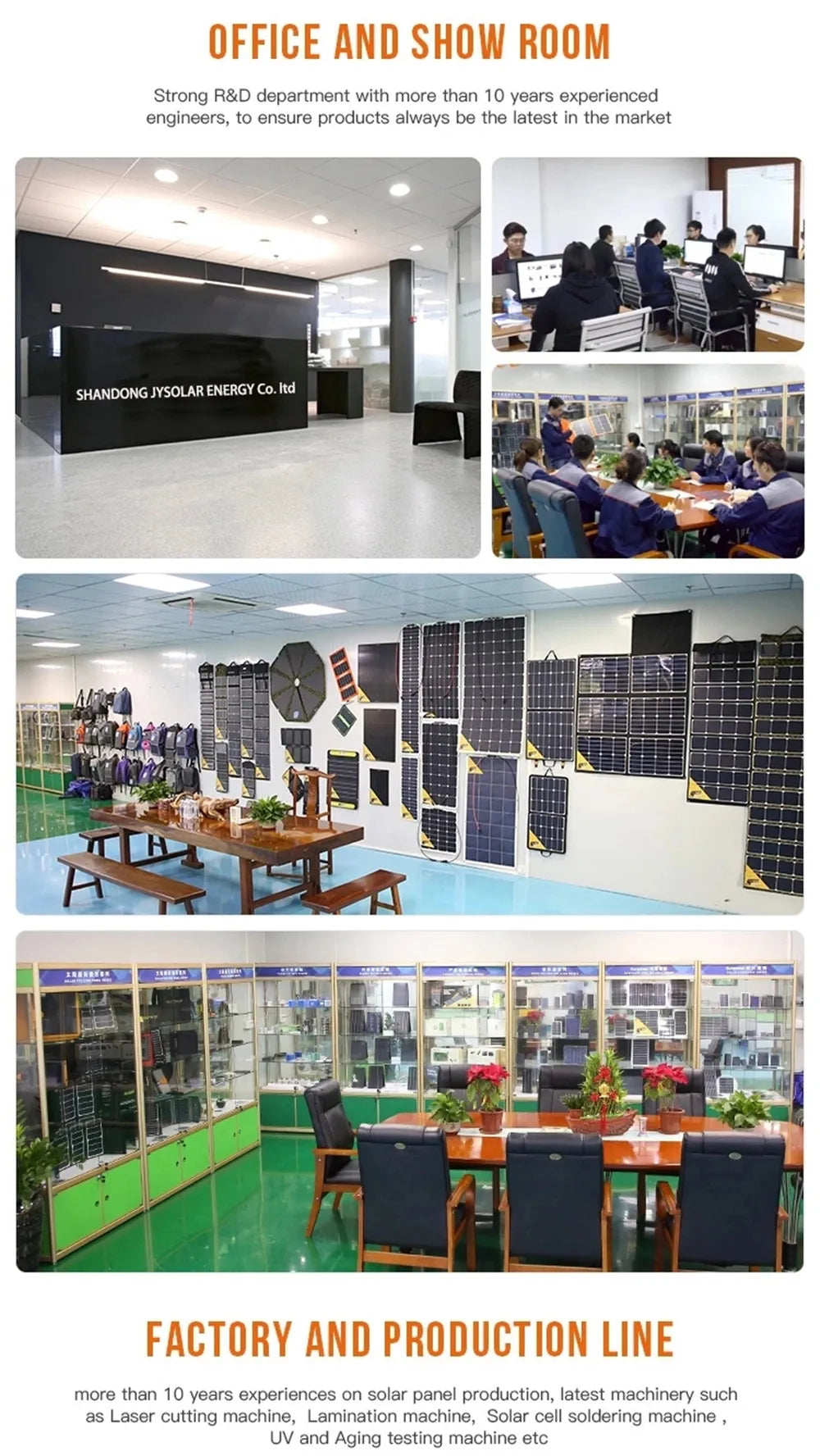

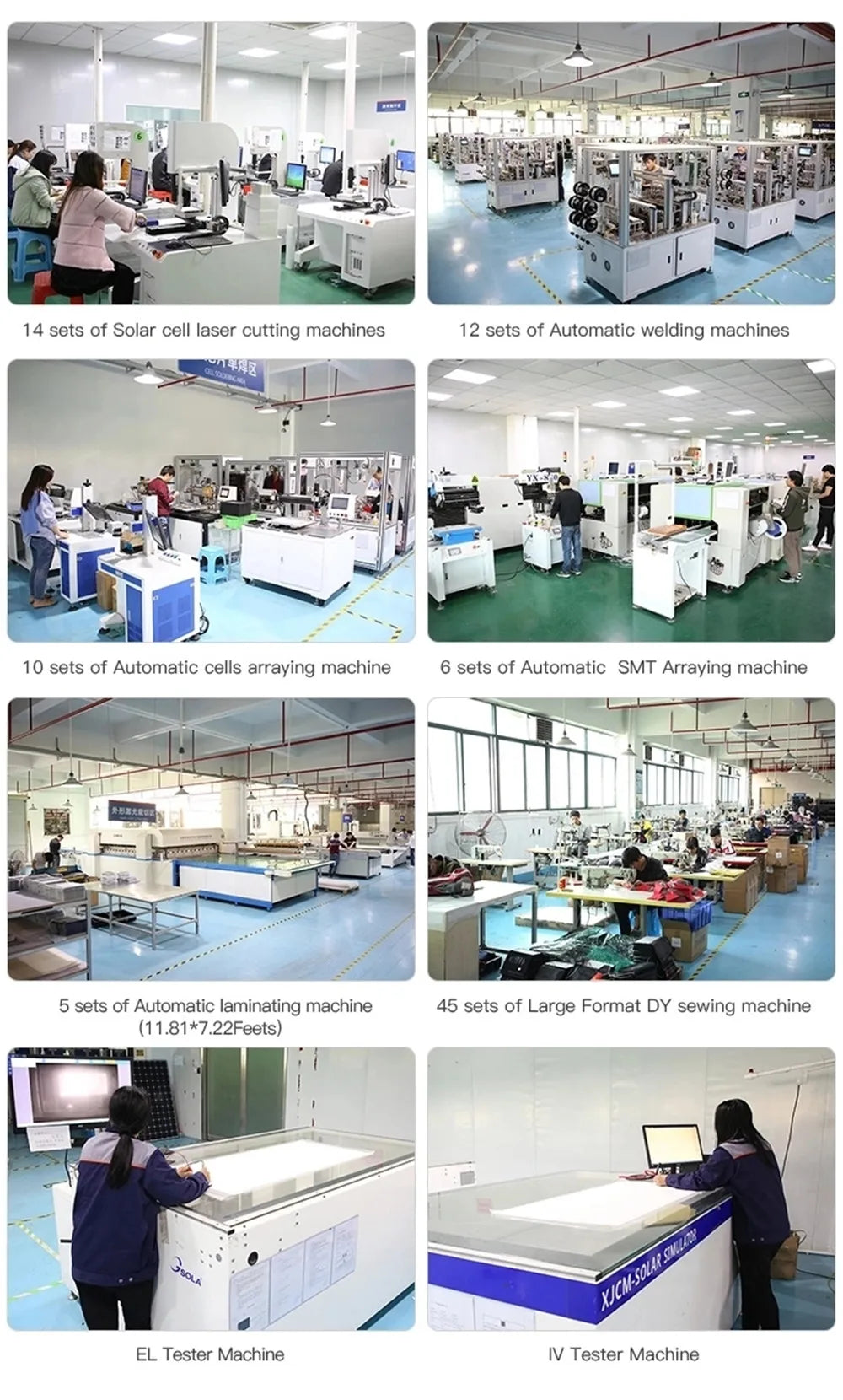

Shandong JySolar Energy Co., Ltd. boasts a strong R&D department with over 10 years of experience from engineers to ensure our products stay ahead of the market curve. Our factory has over 10 years of production experience, utilizing advanced machinery like laser cutting and solar cell soldering machines to produce high-quality solar panels.

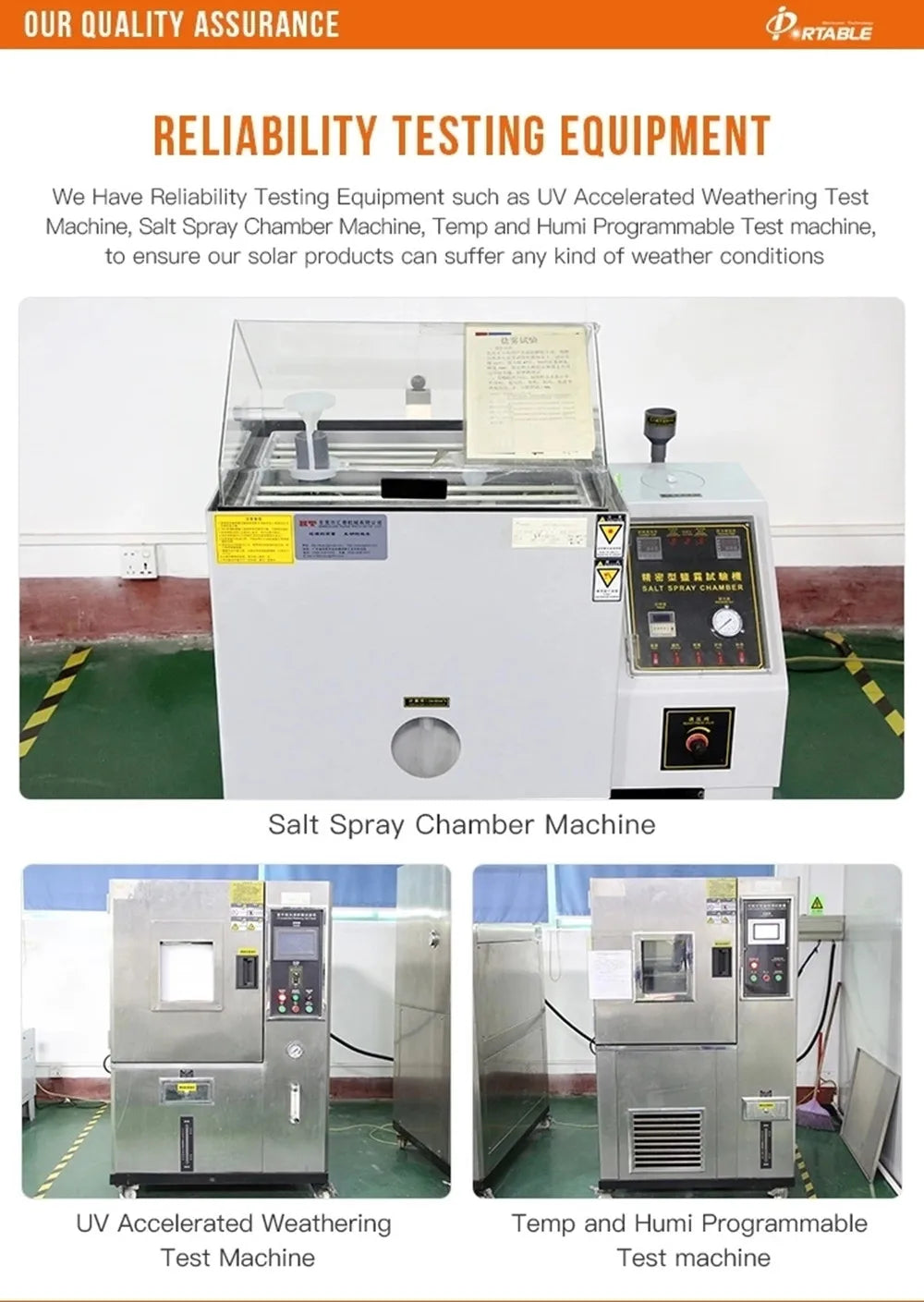

Ensuring quality and reliability, we utilize advanced testing equipment such as UV accelerated weathering test machines, salt spray chambers, and temperature and humidity programmable testers to simulate various weather conditions and guarantee our solar products can withstand any environmental stress.

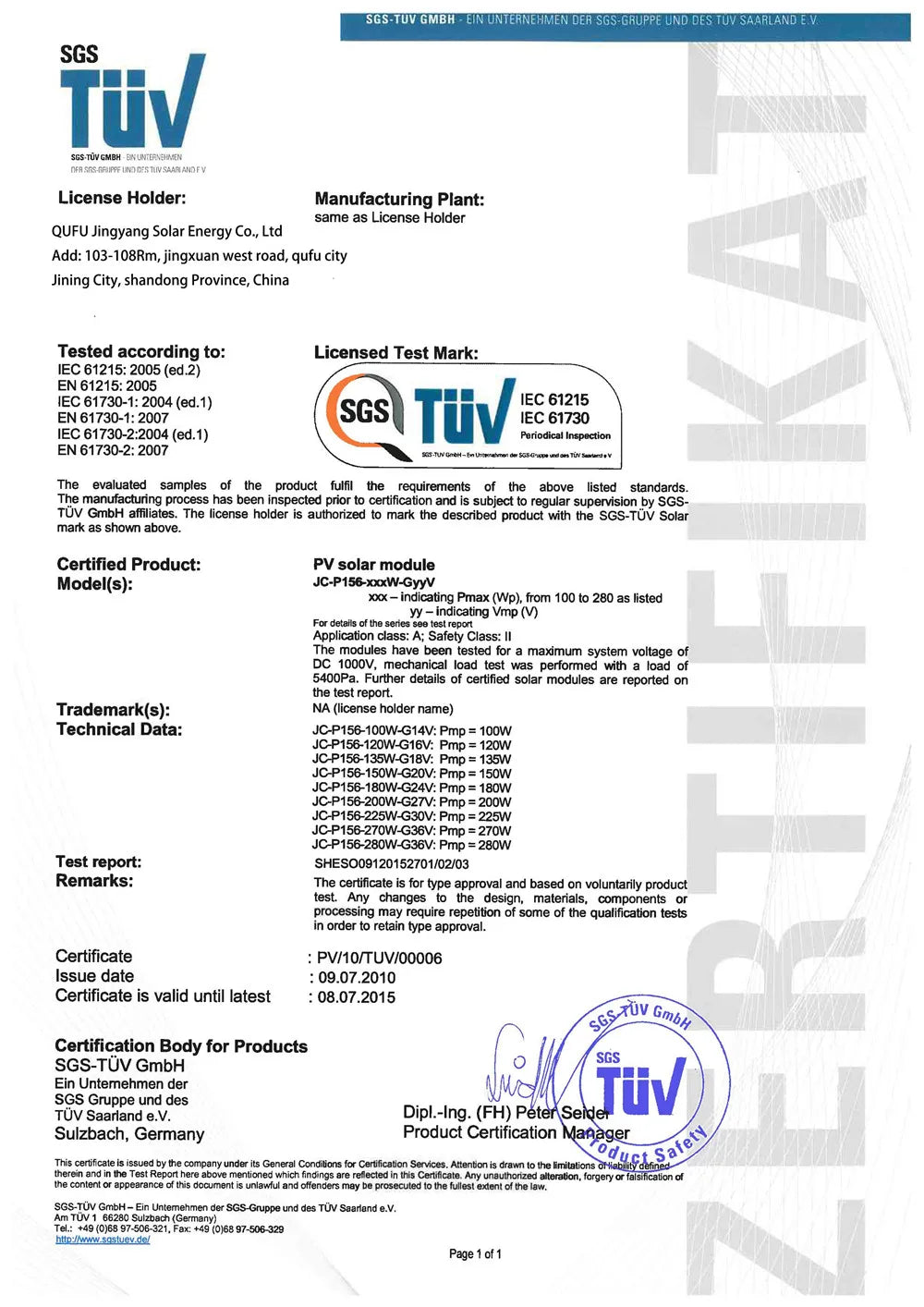

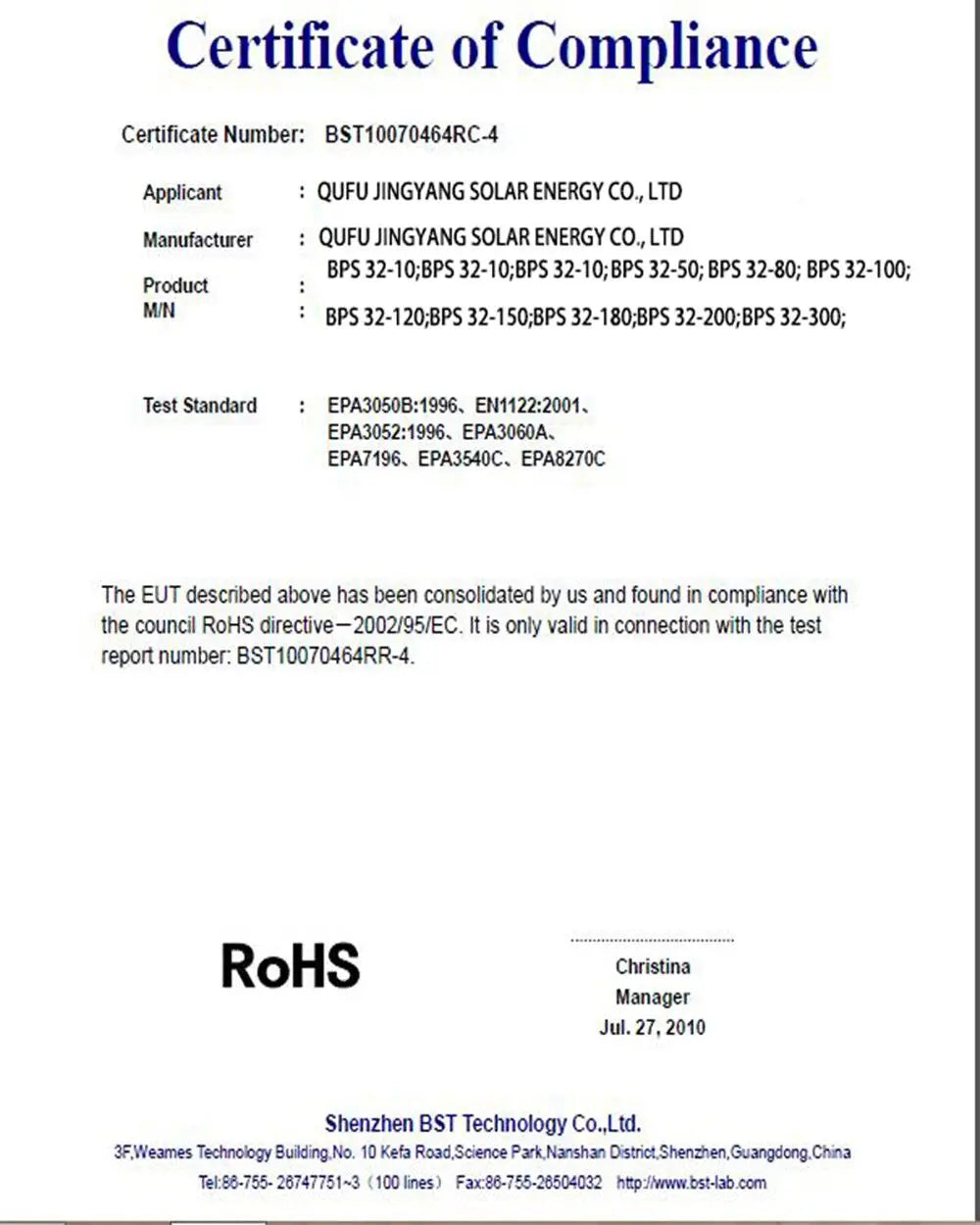

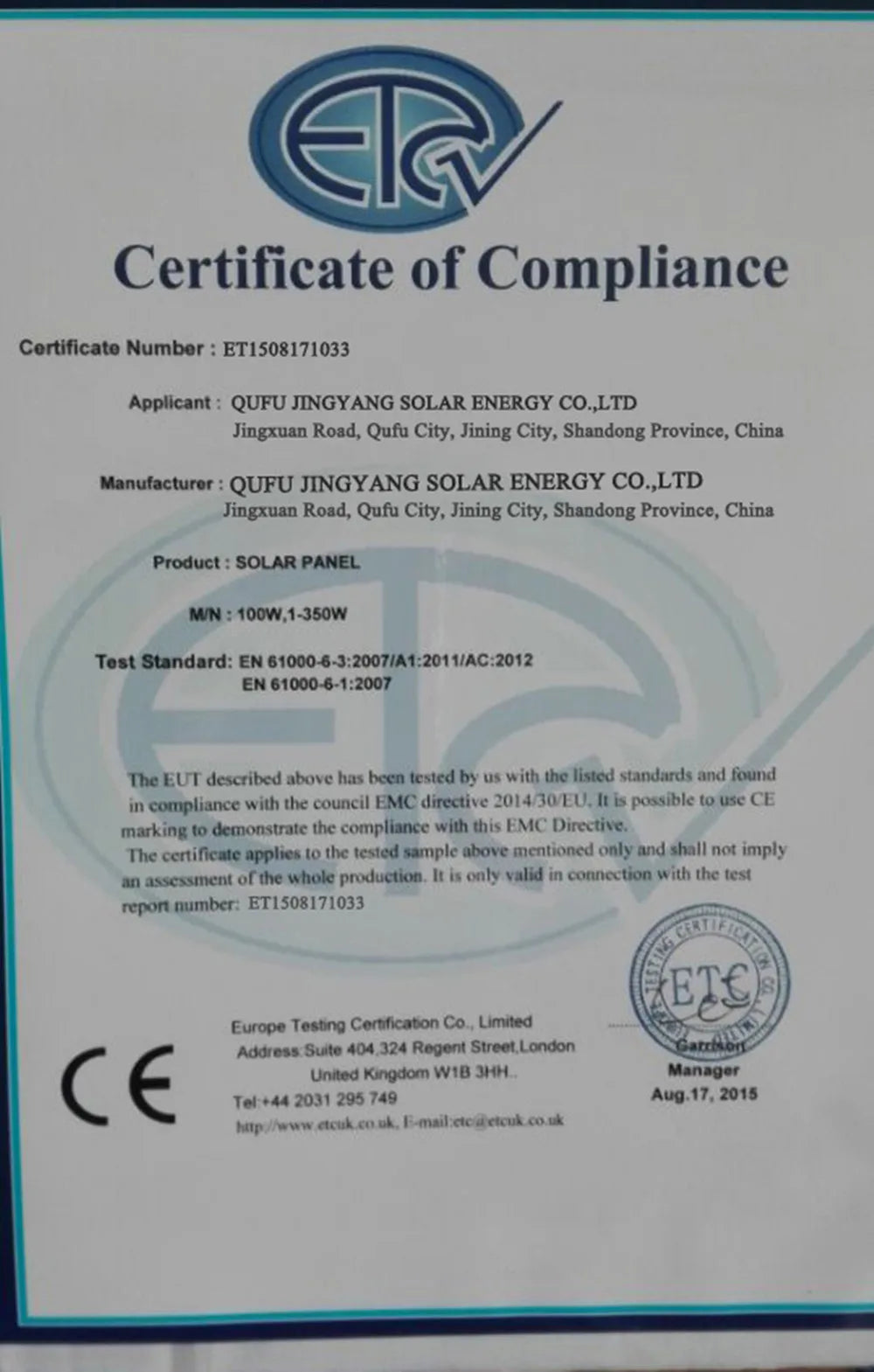

We hold reliable certifications including patents, CE/ROHS, ISO 9001/14001, and EC declarations of conformity. Our products undergo rigorous quality control to ensure compliance with international standards. This commitment to quality management has earned us multiple certifications, guaranteeing our customers' satisfaction.
We participate in international exhibitions such as CES, HK Electronics Fair, and All-Energy Australia. Notable events include CES 2019 and All-Energy 2018.
