Solar Panel Controller 3.2V 3.7V 6V 12V 1A Light Control Solar Lawn Lamp Circuit Controller Solar Landscape Lamp Controller

Solar Panel Controller 3.2V 3.7V 6V 12V 1A Light Control Solar Lawn Lamp Circuit Controller Solar Landscape Lamp Controller

Regular price $1.56 USD
Regular price Sale price $1.56 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Model Number: Solar Panel Controller

Maximum Current: 1A

Is Smart Device: No

Certification: CE

Brand Name: Dmyond



Solar Panel Controller 3.2V 3.7V 6V 12V 1A Light Control Solar Lawn Lamp Circuit Controller Solar Landscape Lamp Controller

Solar Panel Controller 3.2V 3.7V 6V 12V 1A Light Control Solar Lawn Lamp Circuit Controller Solar Landscape Lamp Controller

Product selling point:

1: Wide range of applications

2: The circuit board is small in size

3: Simple to use

4: stable performance

5: Charge during the day and automatically light up at night

This circuit board has no overcharge and overdischarge protection

The battery must have its own protective plate, otherwise the battery will be damaged by overcharging or overdischarging

Product parameters:

Compatible battery voltage: batteries between 3.7V-24V

Input the required voltage of the solar panel: the voltage of the connected battery X1.5 times is the voltage of the solar panel to be matched

Output voltage: how many V is connected to the battery output is how much V.

Maximum charging current: <3A

Maximum output current: <1A

Control method: light control control (after connecting the solar panel, the light does not light during the day. It will automatically light up when it is dark)

Size: 25*15mm

Transparent for solar lawn lamps, solar column head lamps, solar landscape decorative lamps, solar wall lamps and other low-power solar products control

Note:

1. The output end of this circuit board cannot be connected to various types of boost circuits;

2. Do not use the LED lamp bead directly, it needs to be connected to a step-down driver (or a suitable resistor in series to limit the current);

3. The battery must be protected by a protective plate, otherwise the battery will be damaged by overcharging or overdischarging

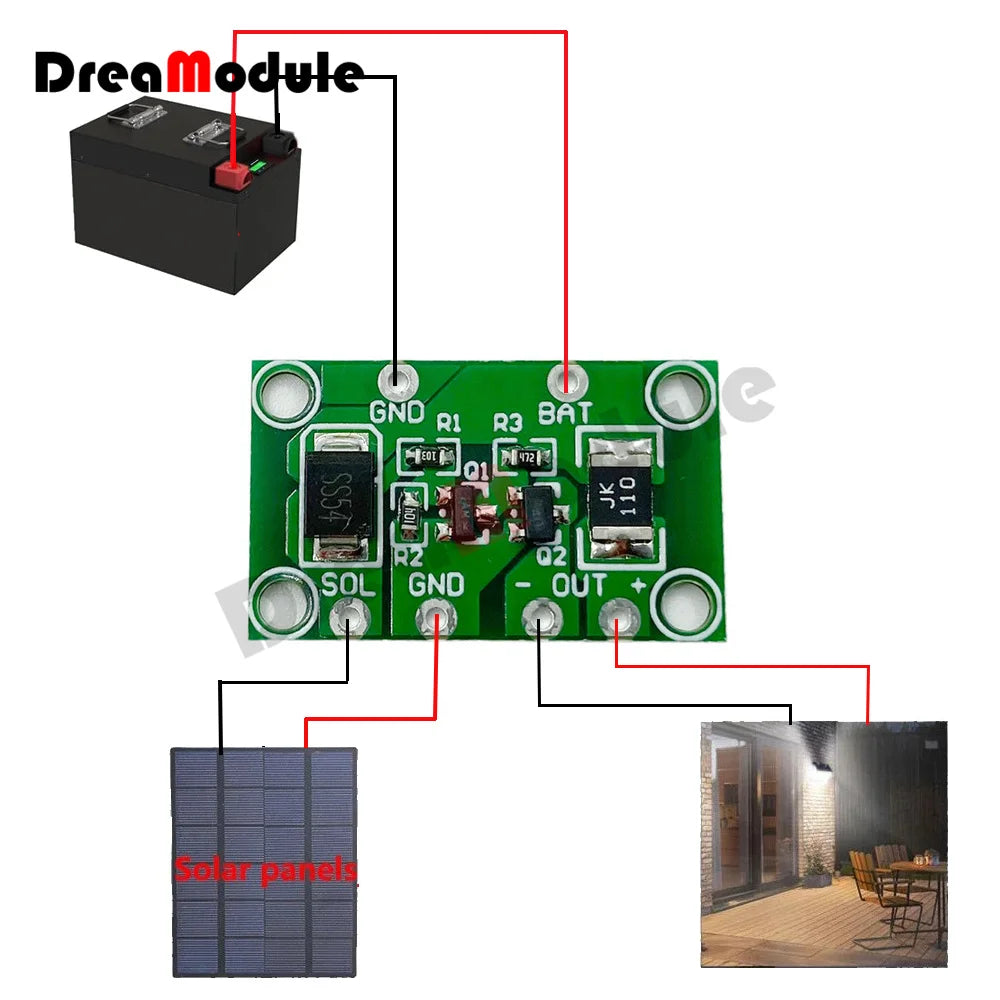

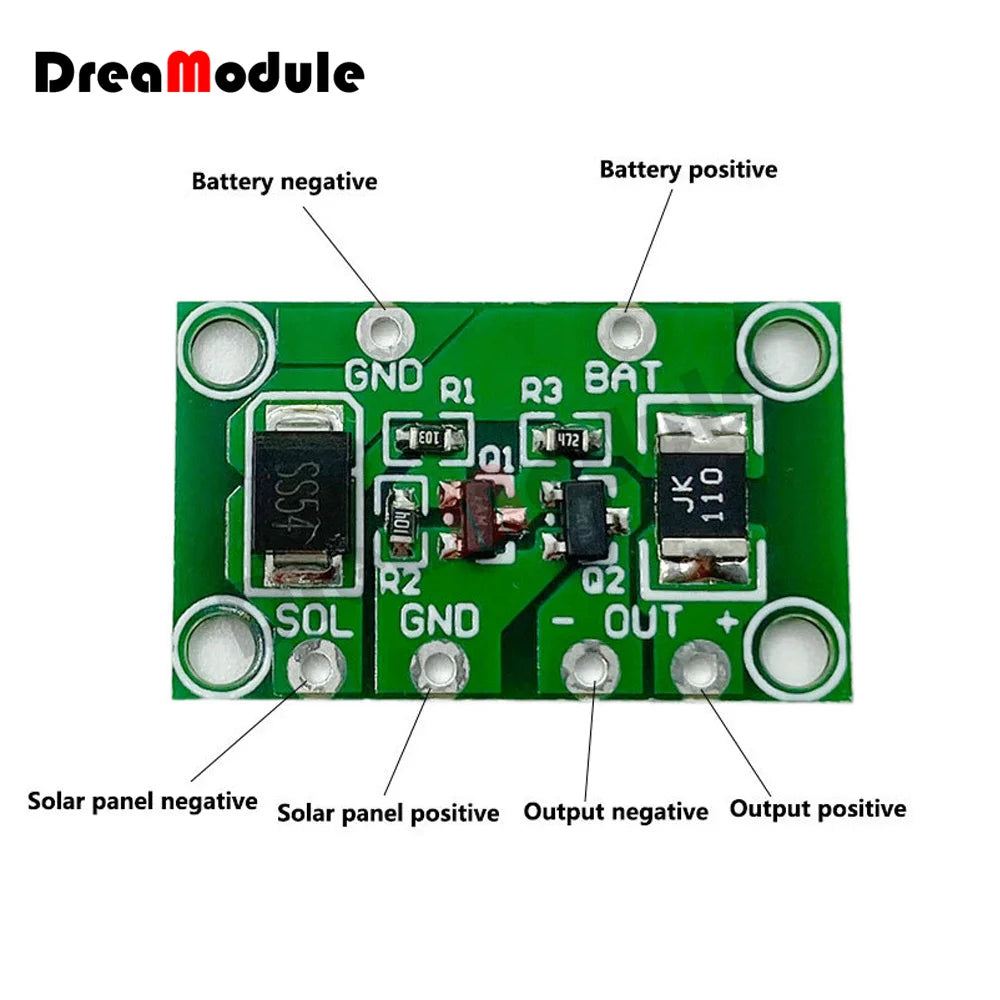

Please connect the battery first. Then connect the LED light. Finally connect the solar panel

Package list:

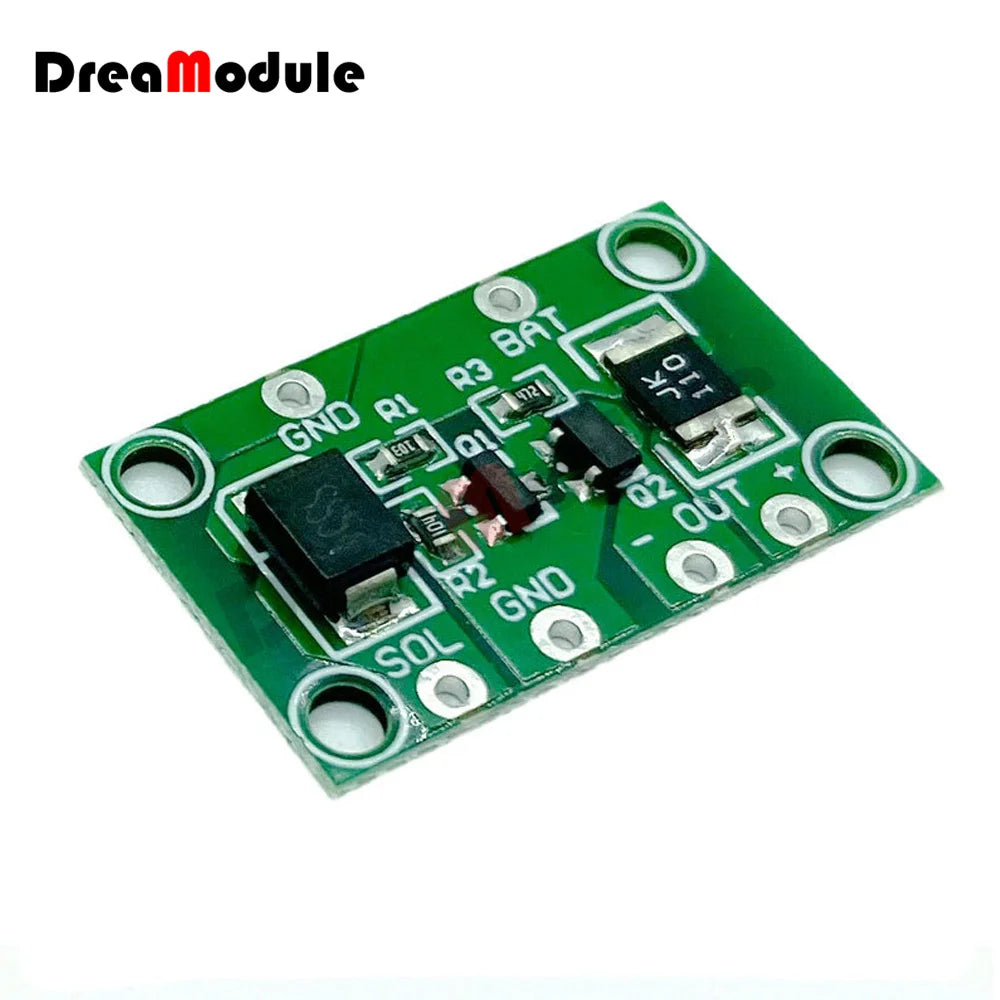

1* Solar lawn light circuit control board

Solar Panel Controller, Connecting solar panels to a controller board, enabling energy harvesting and lighting.Solar Panel Controller, Connect LED lamp to step-down driver or resistor to prevent overheating.Solar Panel Controller, Output end not compatible with various boost circuits.Solar Panel Controller, Connect battery first to protect it from damage due to overcharging/overdischarging.Solar Panel Controller, Connect LED lamp to step-down driver or resistor to limit current.Solar Panel Controller, Connect solar panels to a circuit control board to power lawn lights.Solar panel controller for lighting systems, regulating voltage and current for efficient solar-powered lamp operation.Solar Panel Controller, Controller board for outdoor lighting systems, supports up to 3A charging, compatible with lead-acid and lithium batteries.

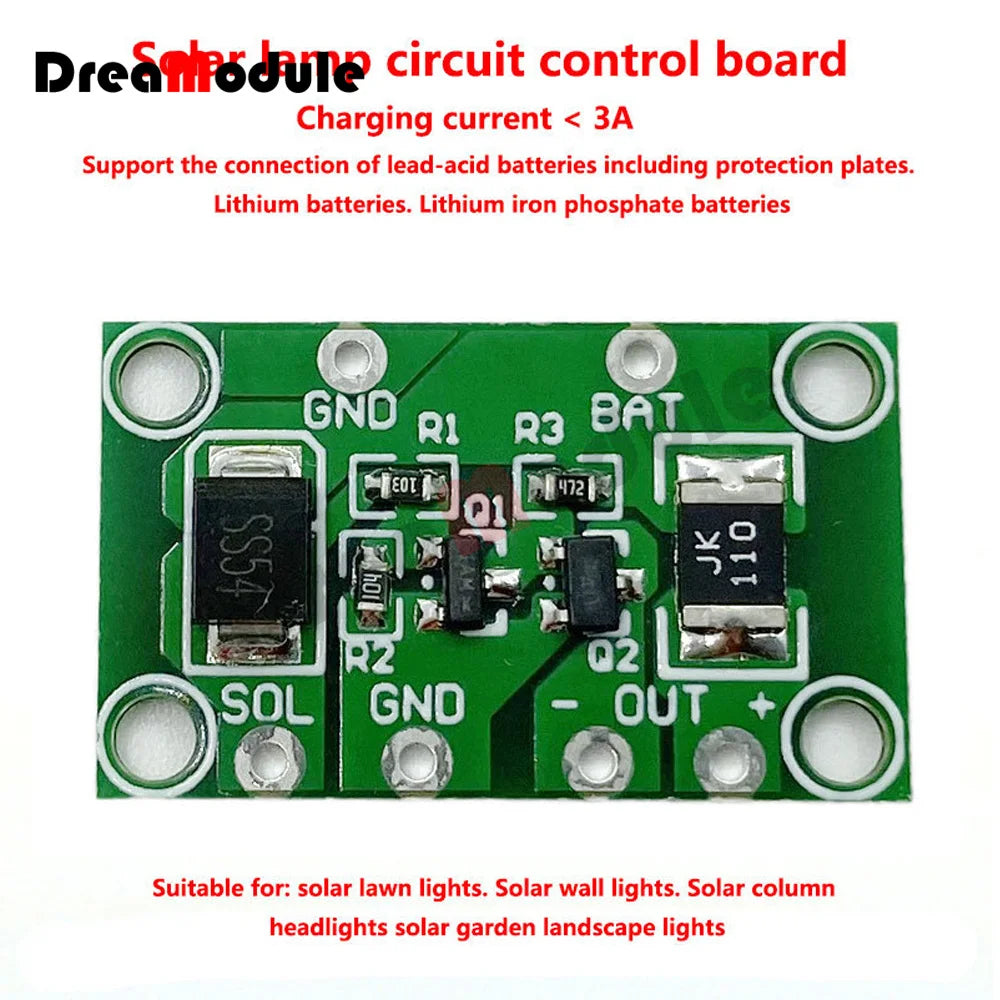

This controller board supports charging currents up to 3A and features protection plates for lead-acid batteries, as well as compatibility with lithium phosphate batteries. It's suitable for solar-powered lawn lights, wall lights, column headlights, and garden landscape lights.

Solar Panel Controller, Controller for solar-powered lawn lamps, regulating voltage (3.2-12V) and current (up to 1A).

Solar panel controller for solar lawn lamps, controlling output voltage from 3.2V to 12V and current up to 1A.

Solar Panel Controller, Controller for solar-powered lamps, regulating voltage and current for safe and efficient lighting.
