solar panel kit and 300w 200w 100w flexible solar panels 12v 24v high efficiency battery charger module
solar panel kit and 300w 200w 100w flexible solar panels 12v 24v high efficiency battery charger module
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 1.9KG
Type: Solar Panel
Size: 1050*530*2.5mm
Short Circuit Current: 6.68A
Origin: Mainland China
Open Circuit Voltage: 19.2V
Number of Panels: >20
Model Number: RGN32-100
Max. Power: 100w/pcs
Max Power voltage: 16v
Max Power Current: 6.25A
Max Power: 100w
Material: Monocrystalline Silicon
Foldable Solar Panel: No
Flexible Solar Panel: Yes
Certification: CE,RoHS
Brand Name: dgsunlight

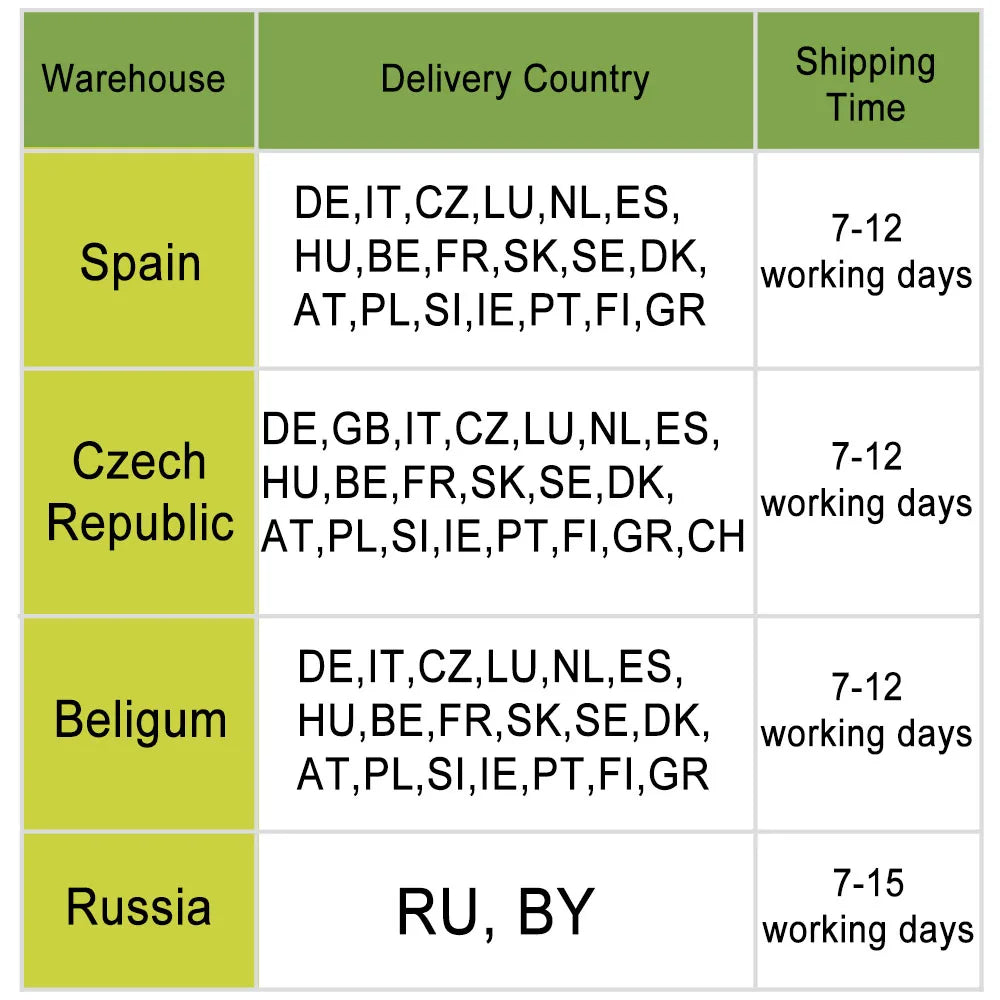

This product we set up warehouse in Spain, Czech Republic and Belgium,When you buy it,if you are in EU,we will ship to your country and it will be fast delivery.
However,
the zip code in Spain that starts with 35, 38, 51, 52.
the zip code in France that starts with 97
the zip code in Portugal that starts with 9.
Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain or Belgium.we will not ship to above zone,please not place order with above address,thanks.
Solar panel packing list

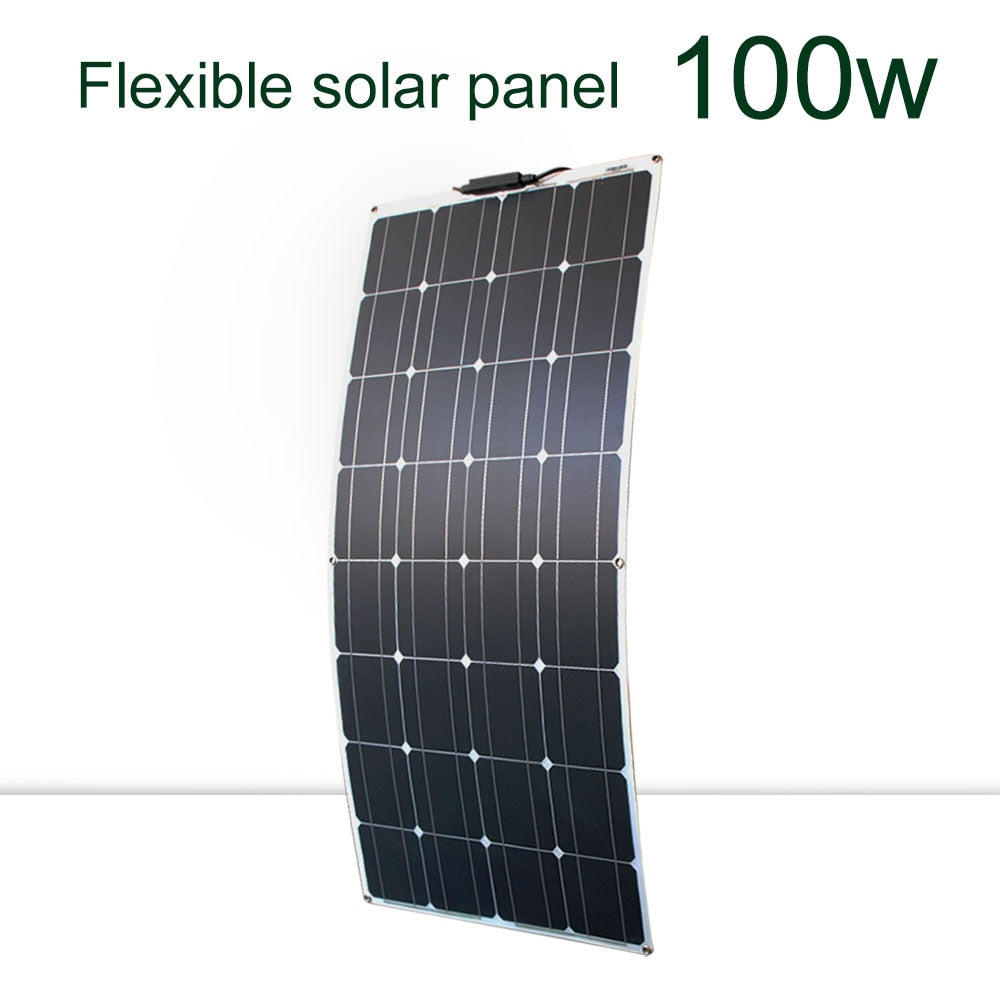

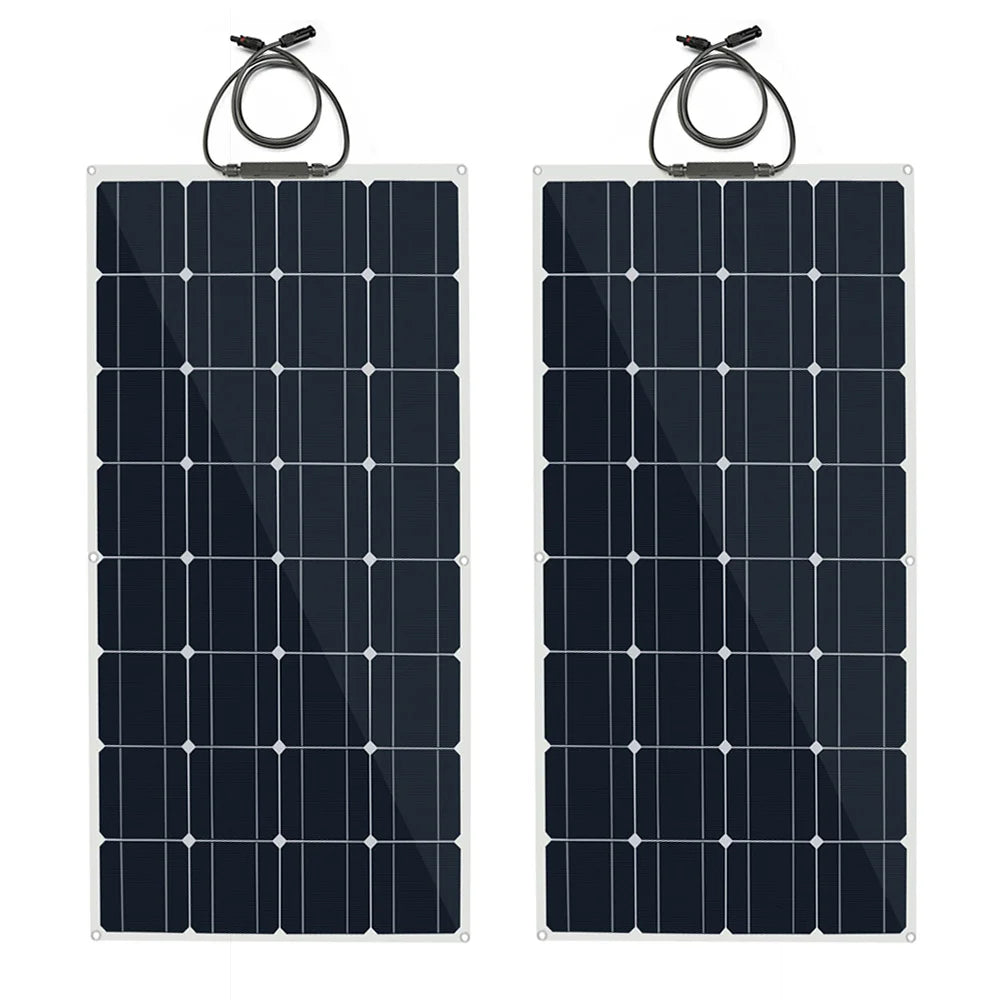

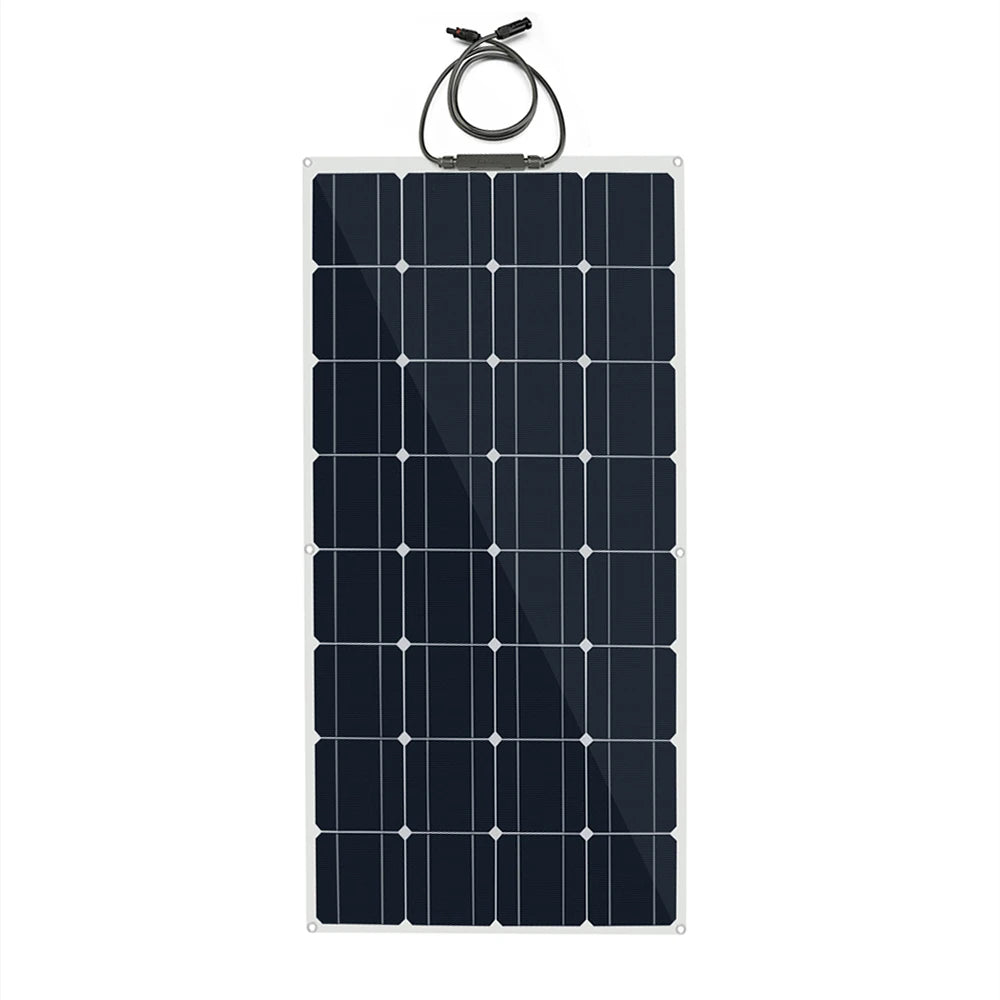

100w solar panel= 1pcs 100w 12v flexible solar panel(solar panel only)

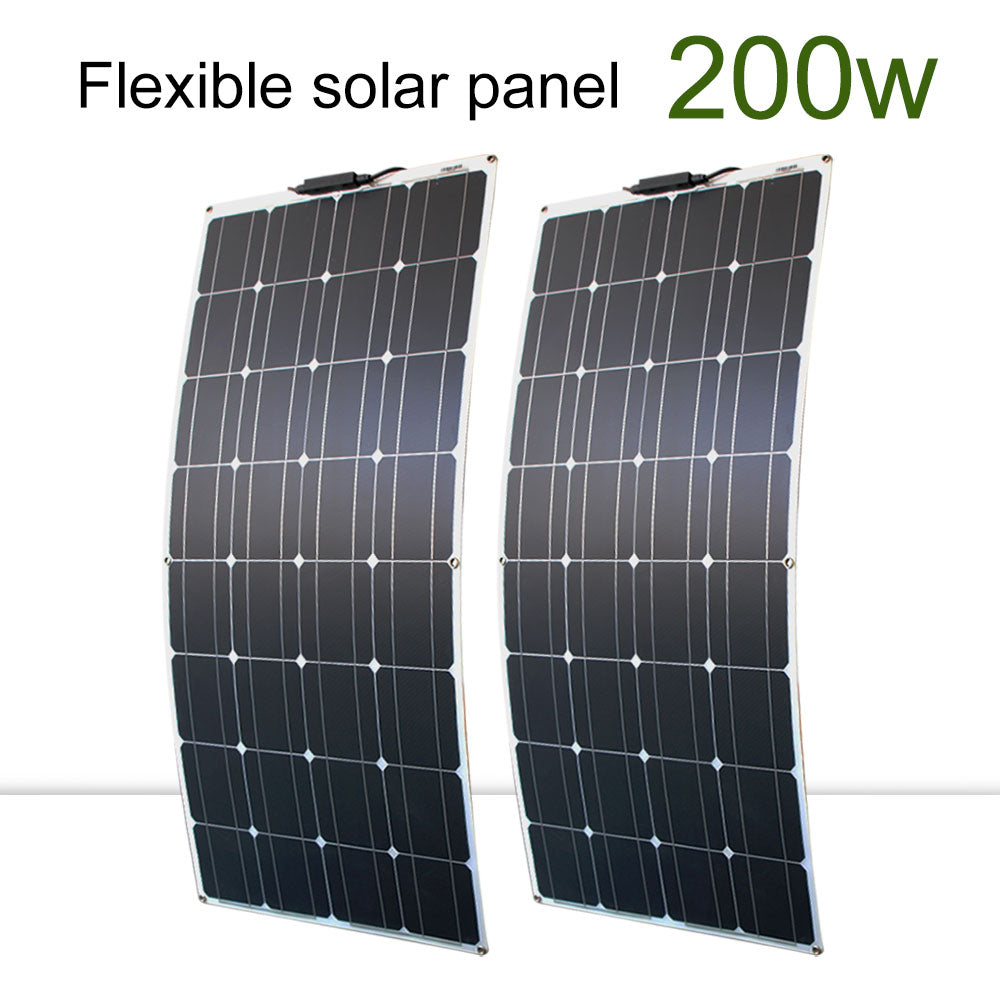

200w solar panel= 2pcs 100w 12v flexible solar panels(solar panel only)

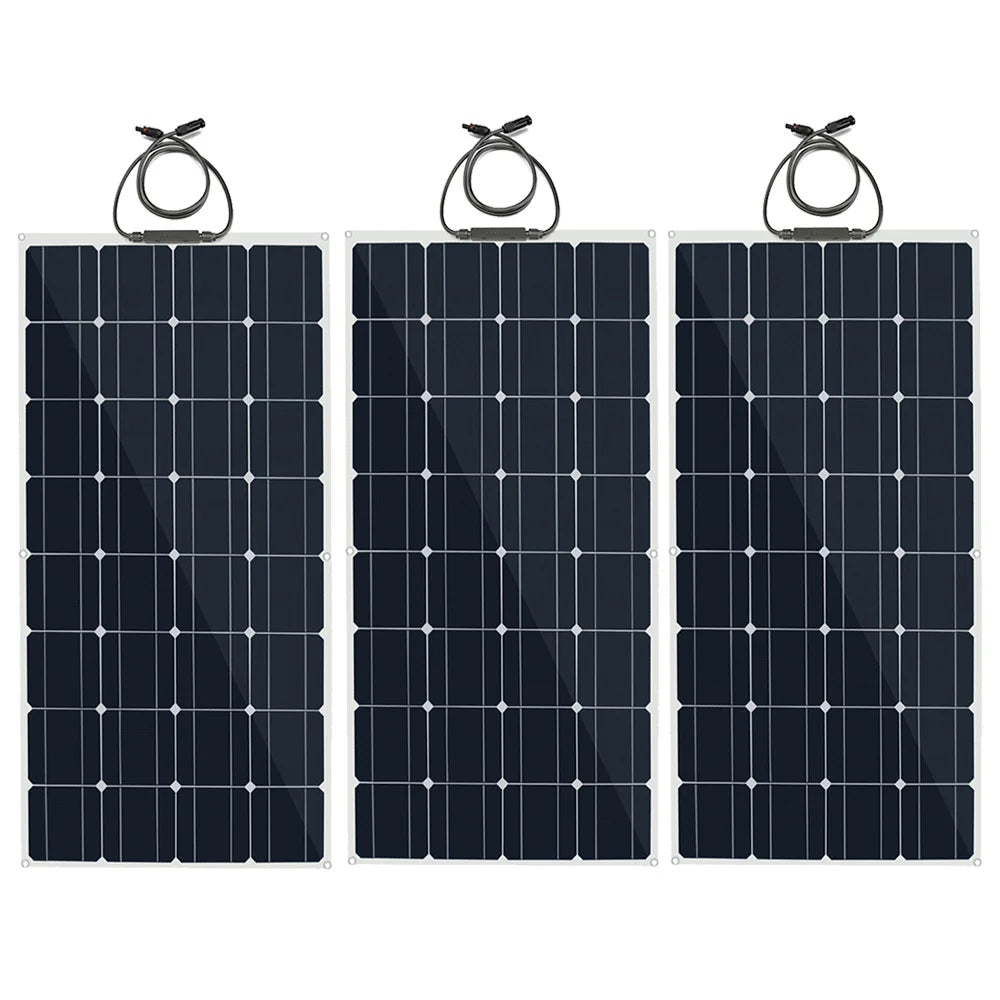

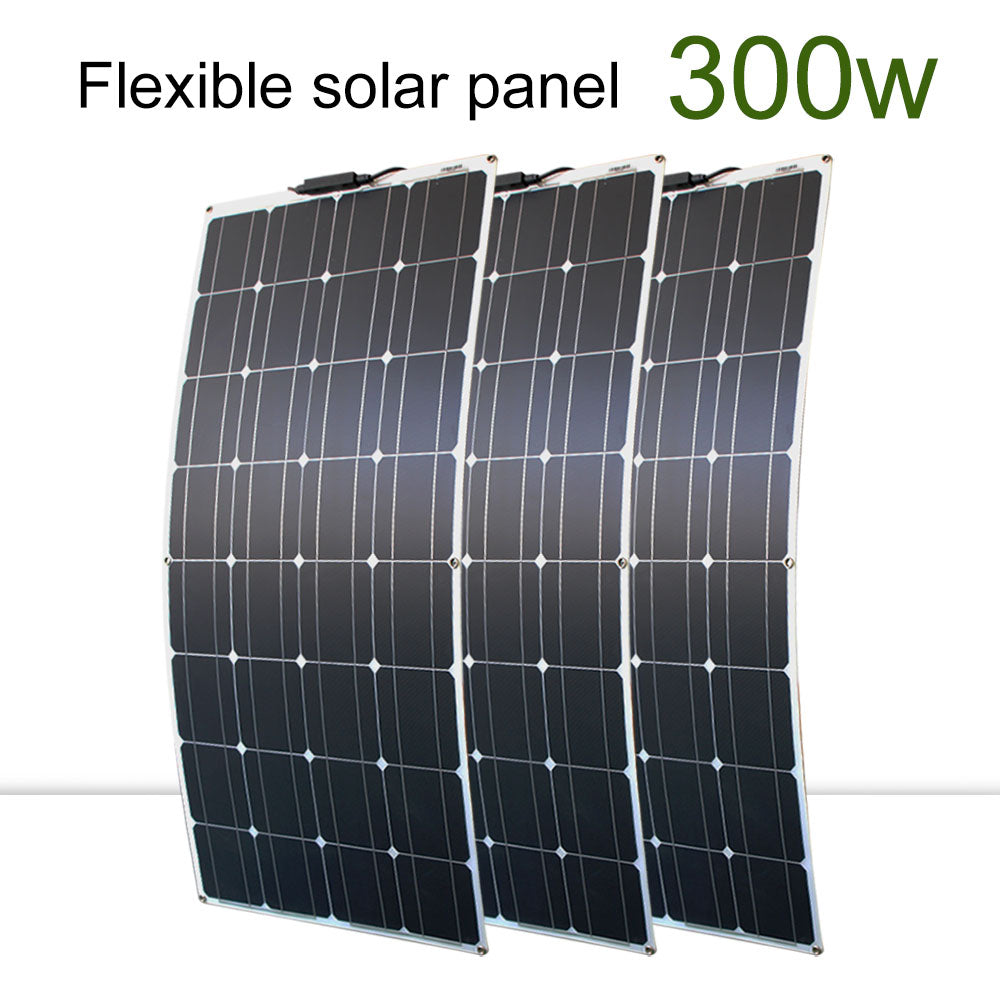

300w solar panel= 3pcs 100w 12v flexible solar panels(solar panel only)

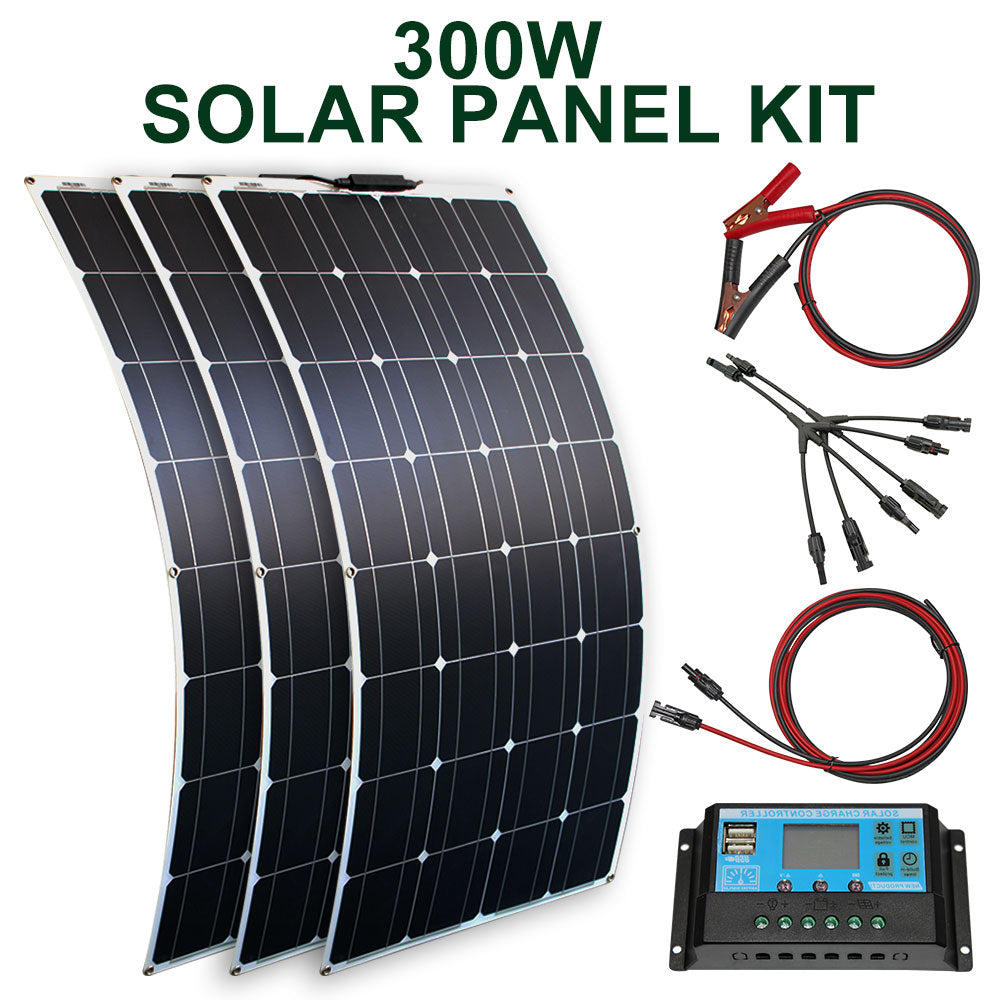

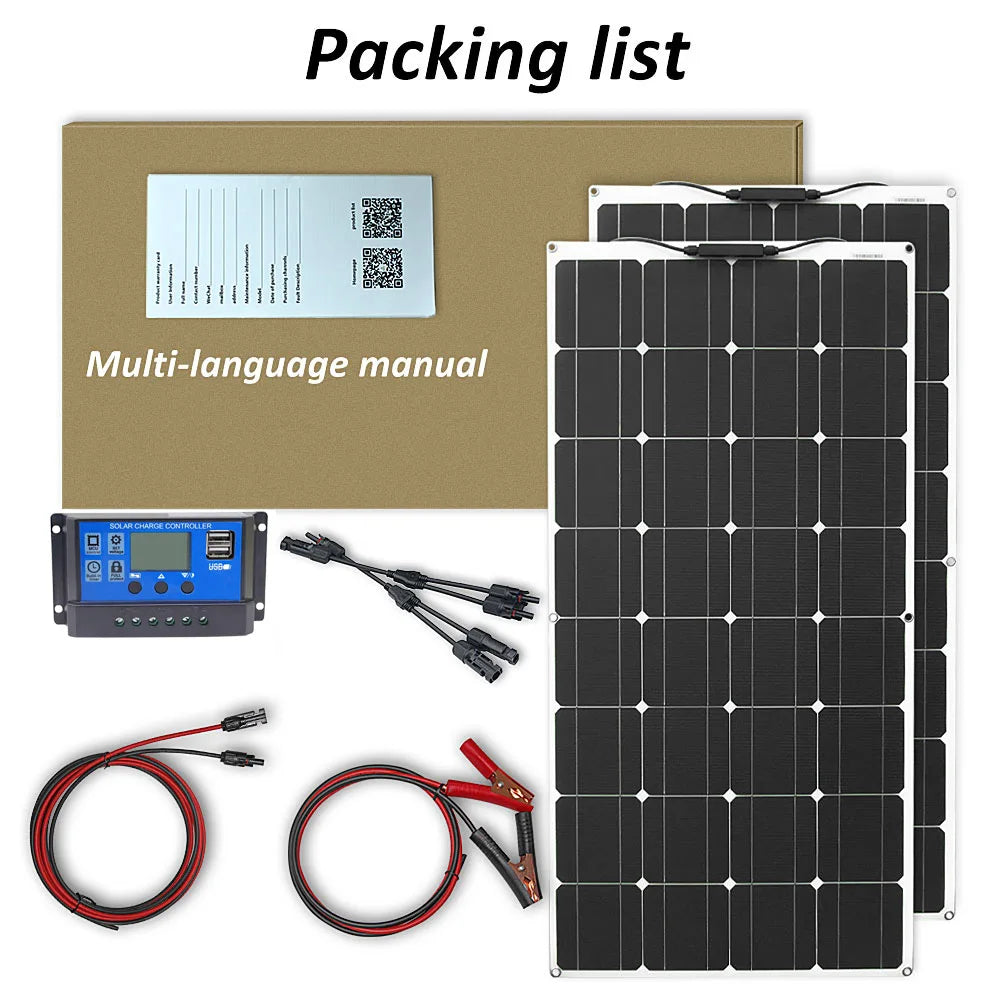

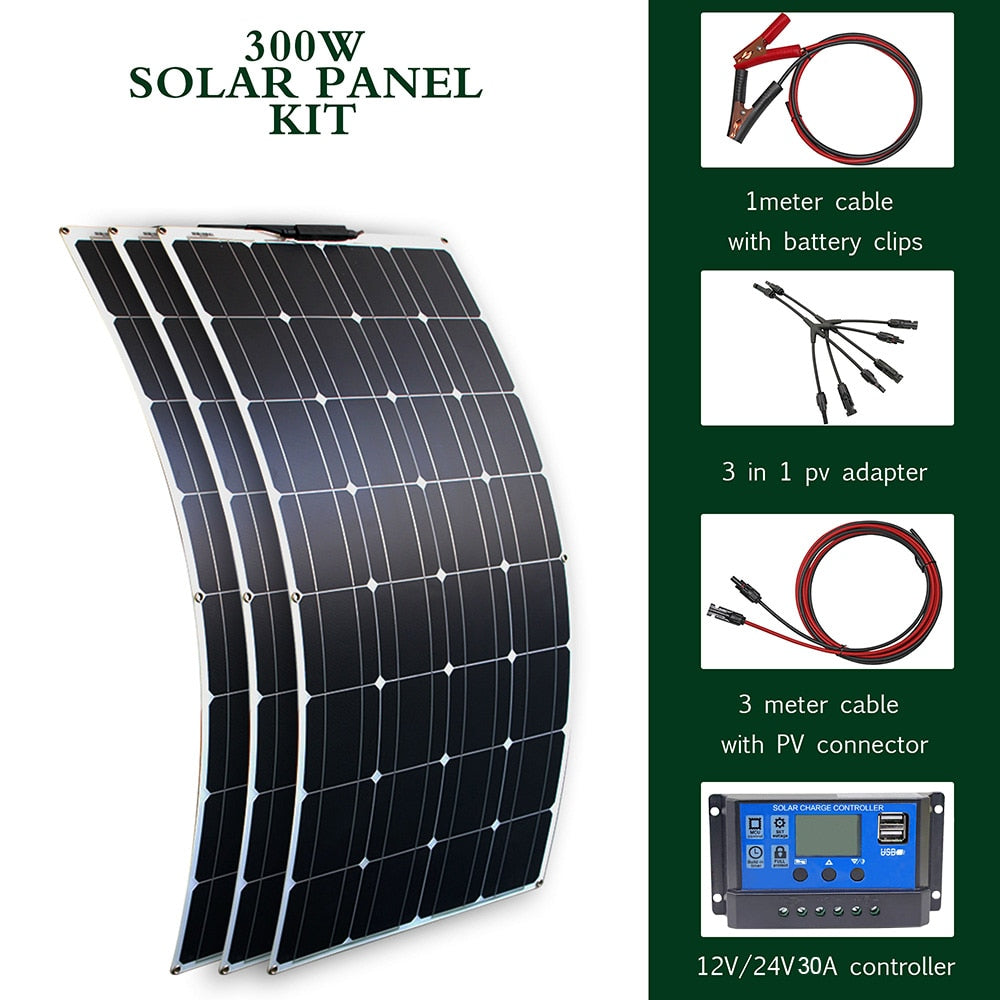

300W solar panel system packing listing
3*100W solar panel

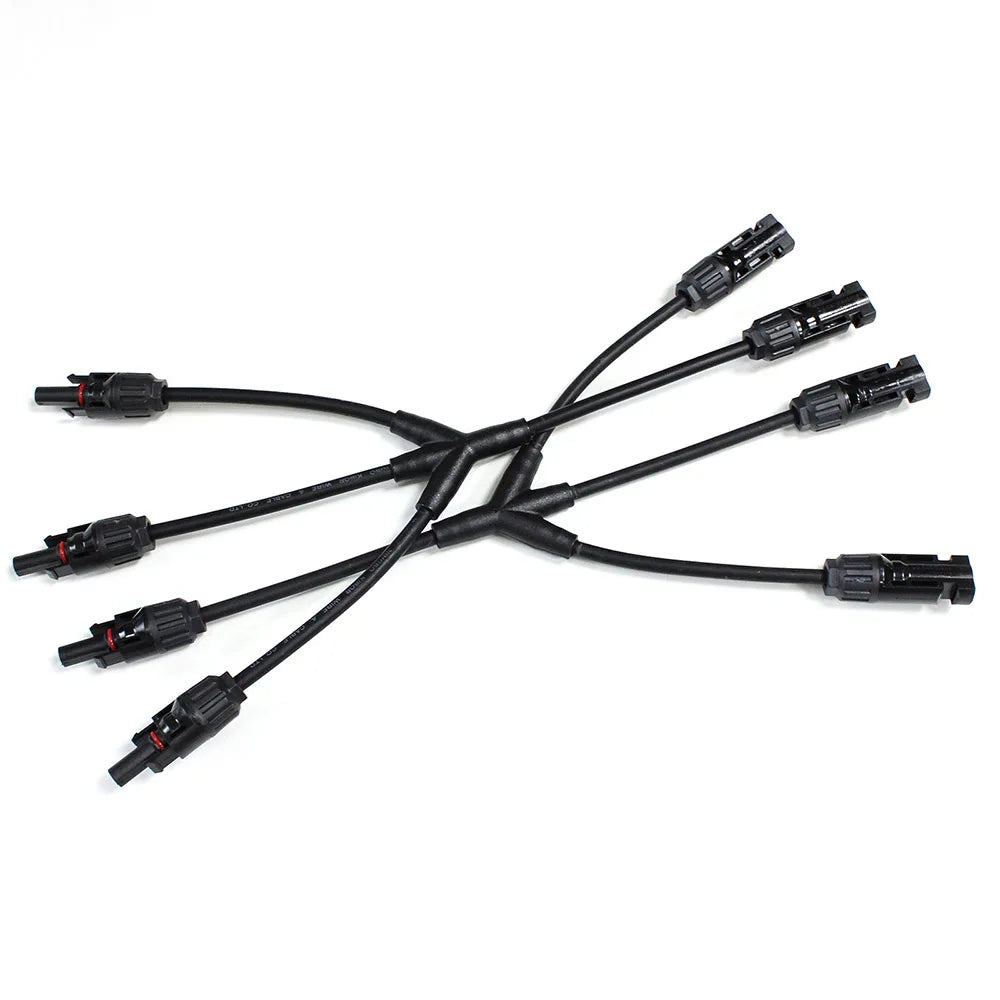

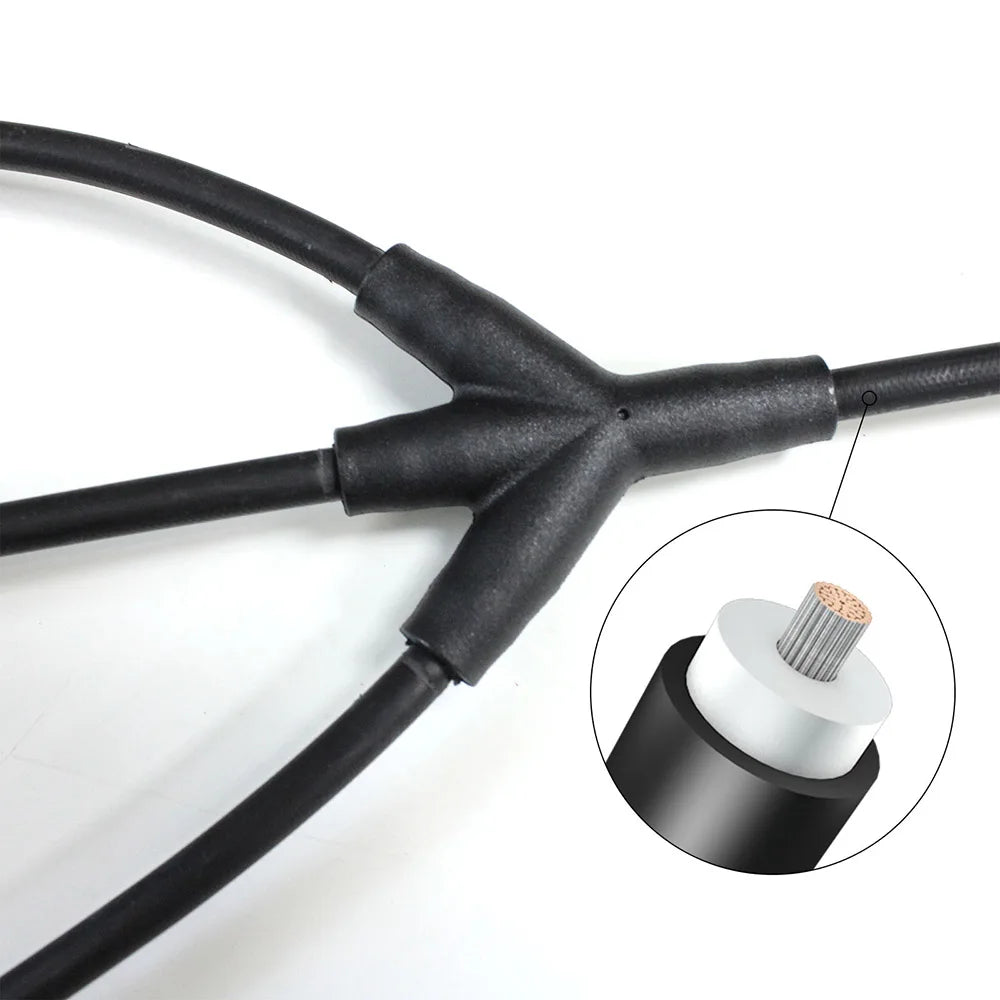

1 *3 in 1 adapter

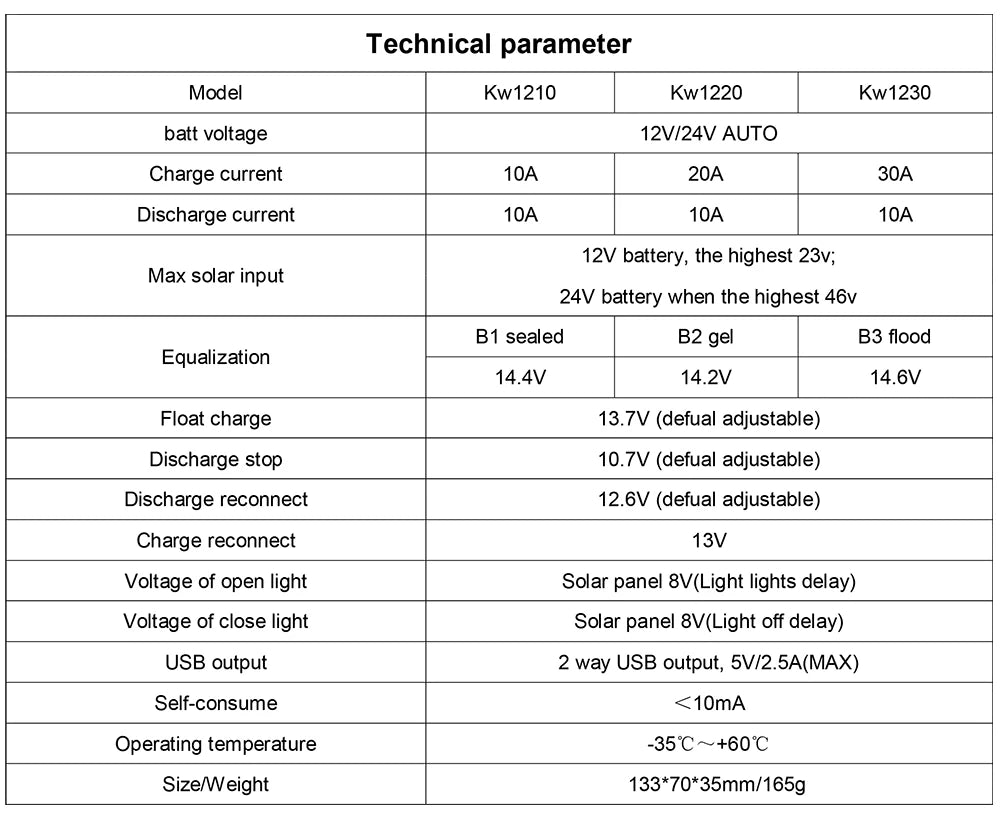

1*12V/24V 30A solar charger controller

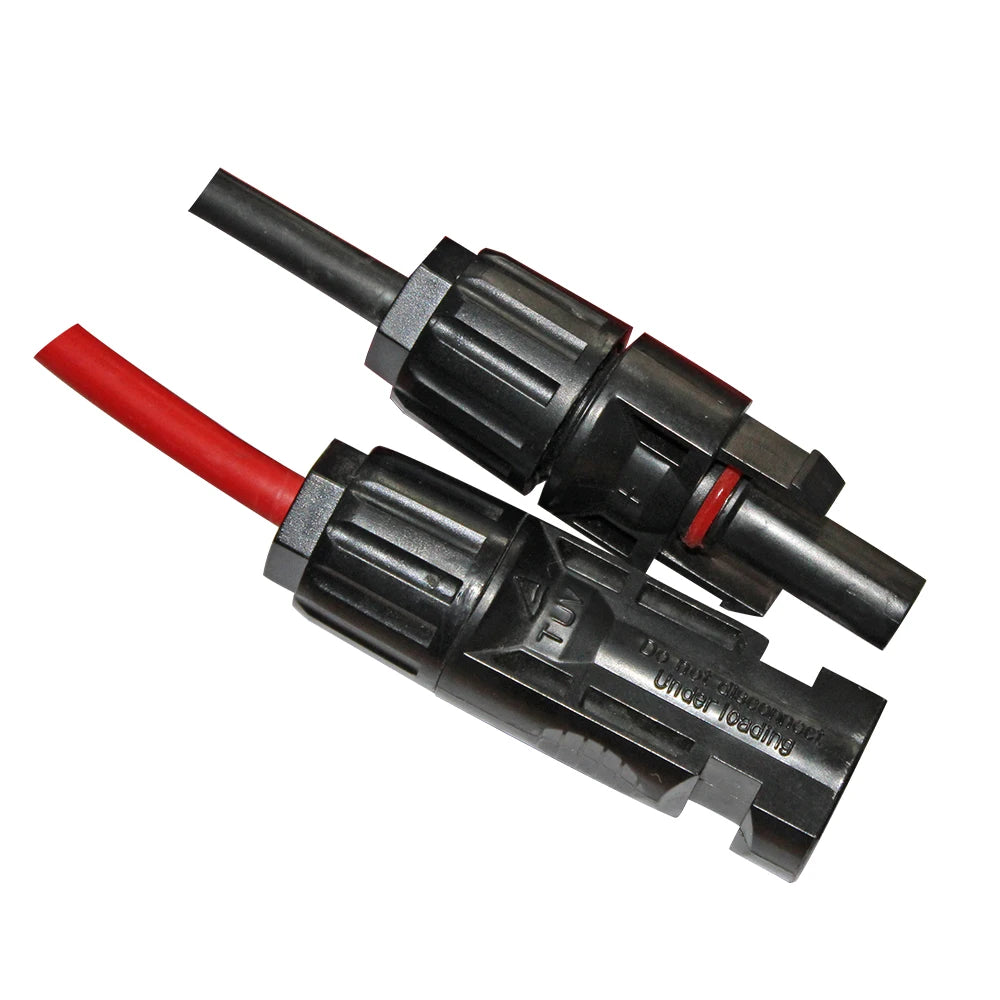

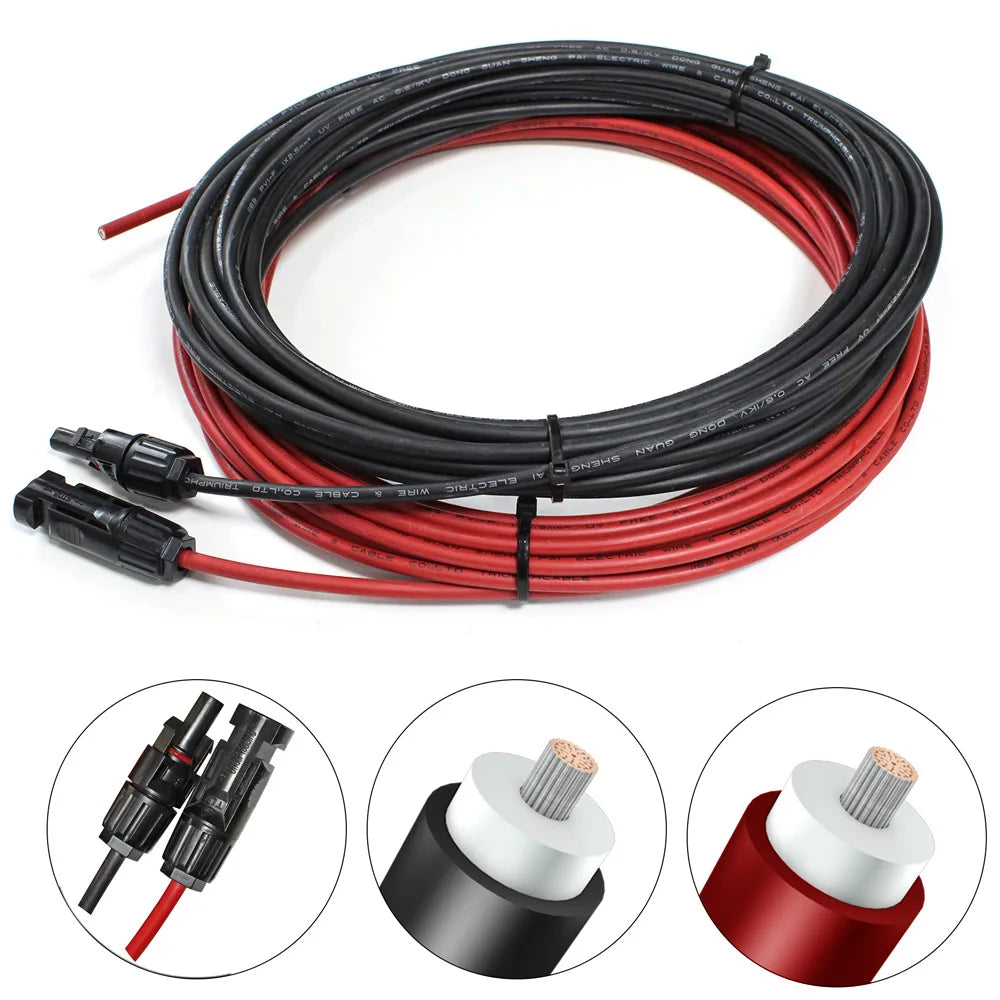

1*3 meters cable with PV connector

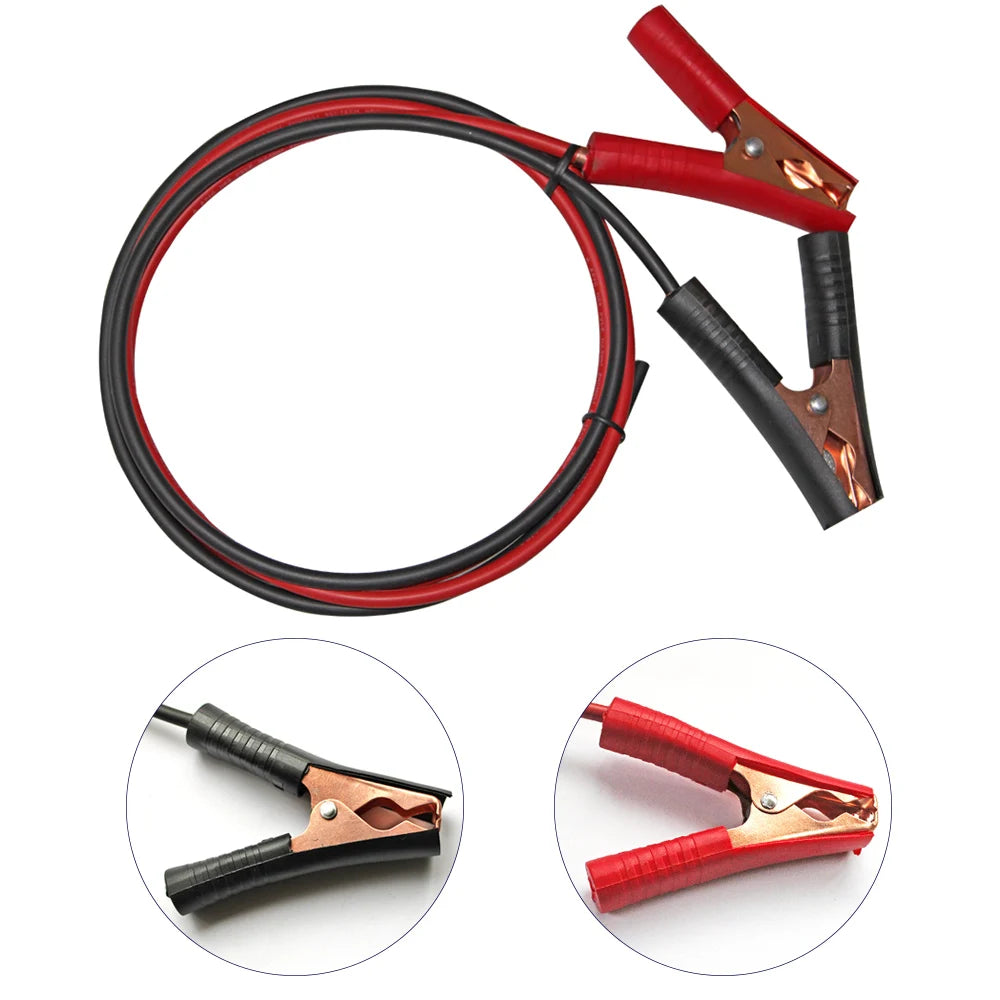

1*1 meter cable with Alligator clip
Kit includes solar panel, manual, and battery charger module. Multilingual instructions included.

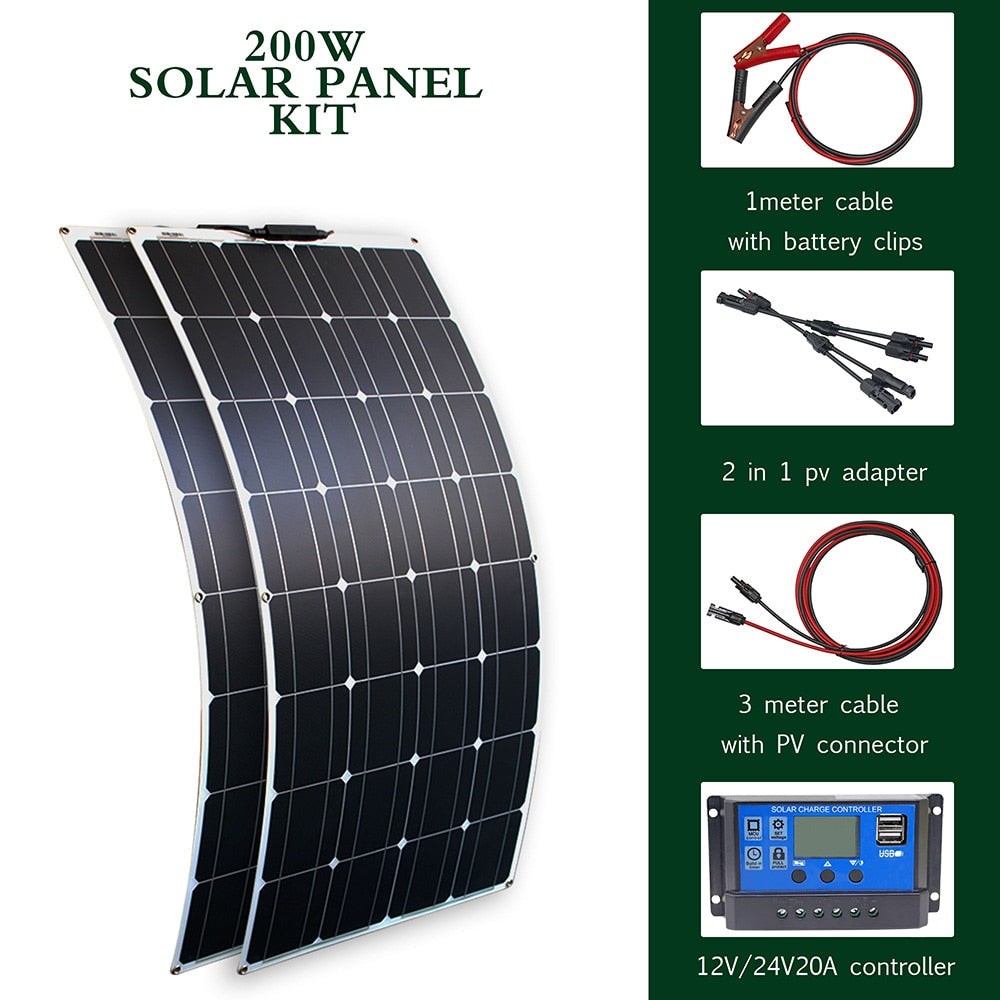

200W solar panel system packing listing
2*100W solar panel
1 *2 in 1 adapter
1*12V/24V 20A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip
Packaging includes a multilingual user manual for the solar panel kit and charger module, ensuring easy setup and operation.

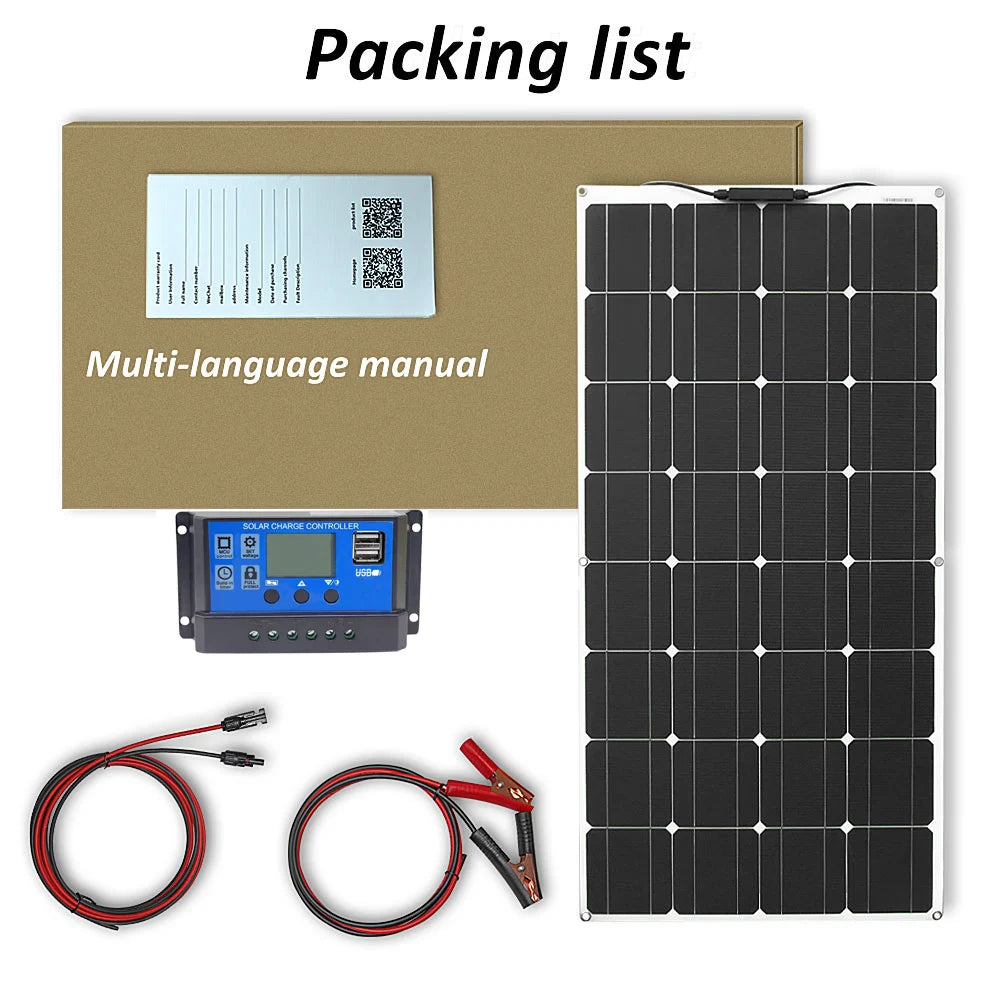

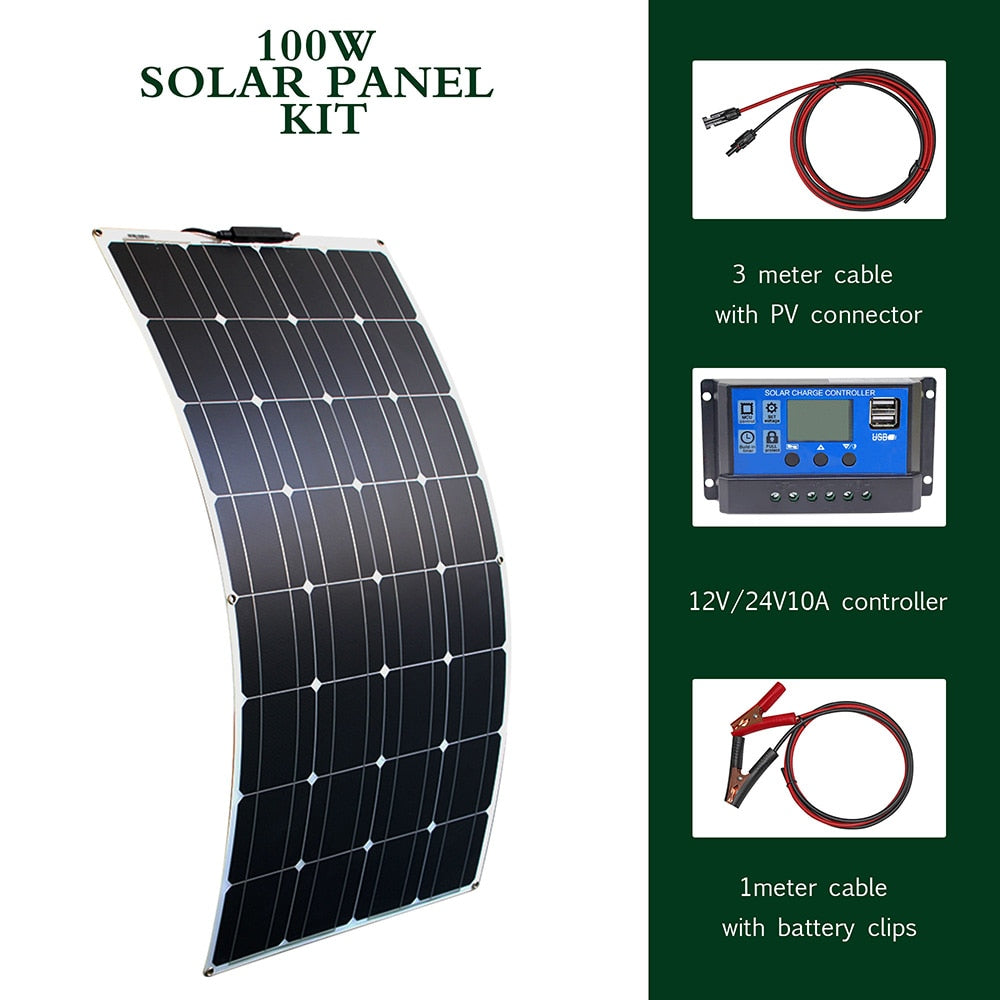

100W solar panel system packing listing
1*100W solar panel
1*12V/24V 10A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip
Packing List Includes: Multi-Language Manual, Solar Charger Controller, and USB Cable.

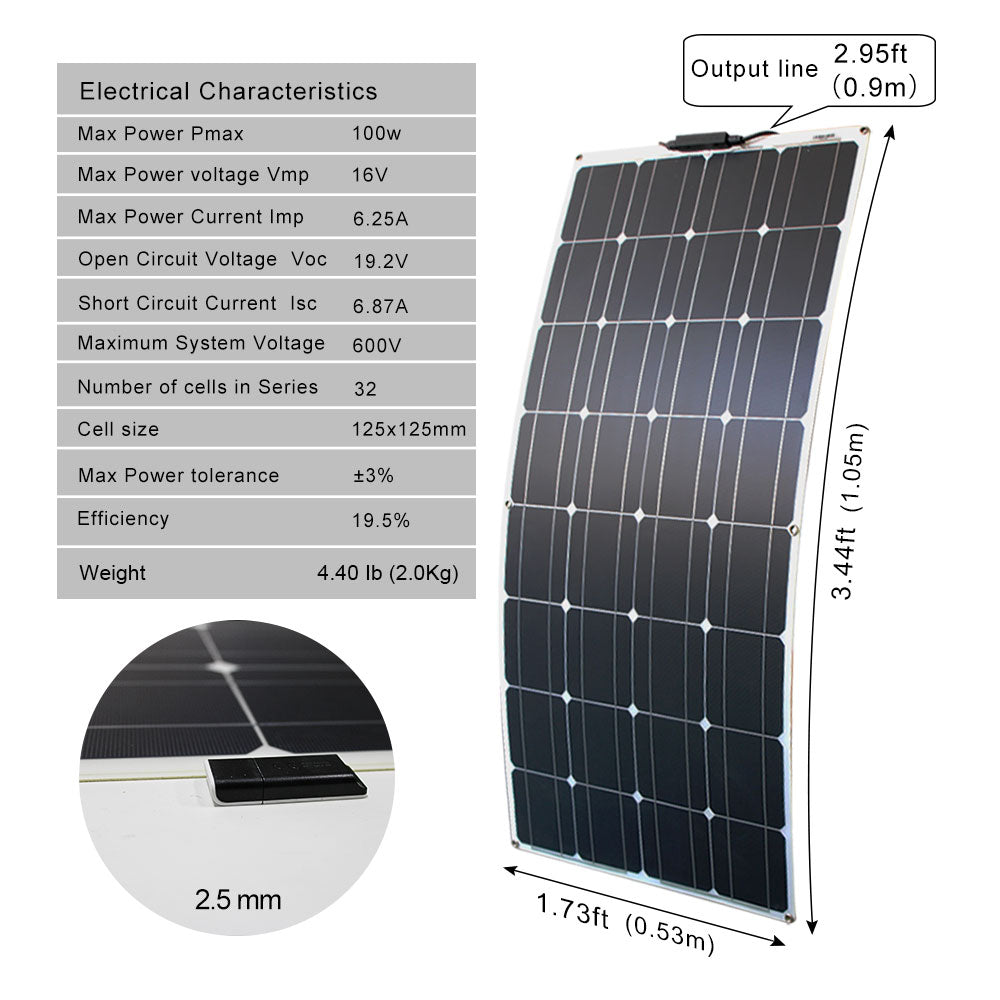

Electrical Characteristics
Max Power 100 W
Max Power voltage 16 V
Max Power Current 6.25 A
Open Circuit Voltage 19.2 V
Short Circuit Current 6.68 A
Number of cells in Series 32
Cell size 125X125 mm
Mechanical Characteristics

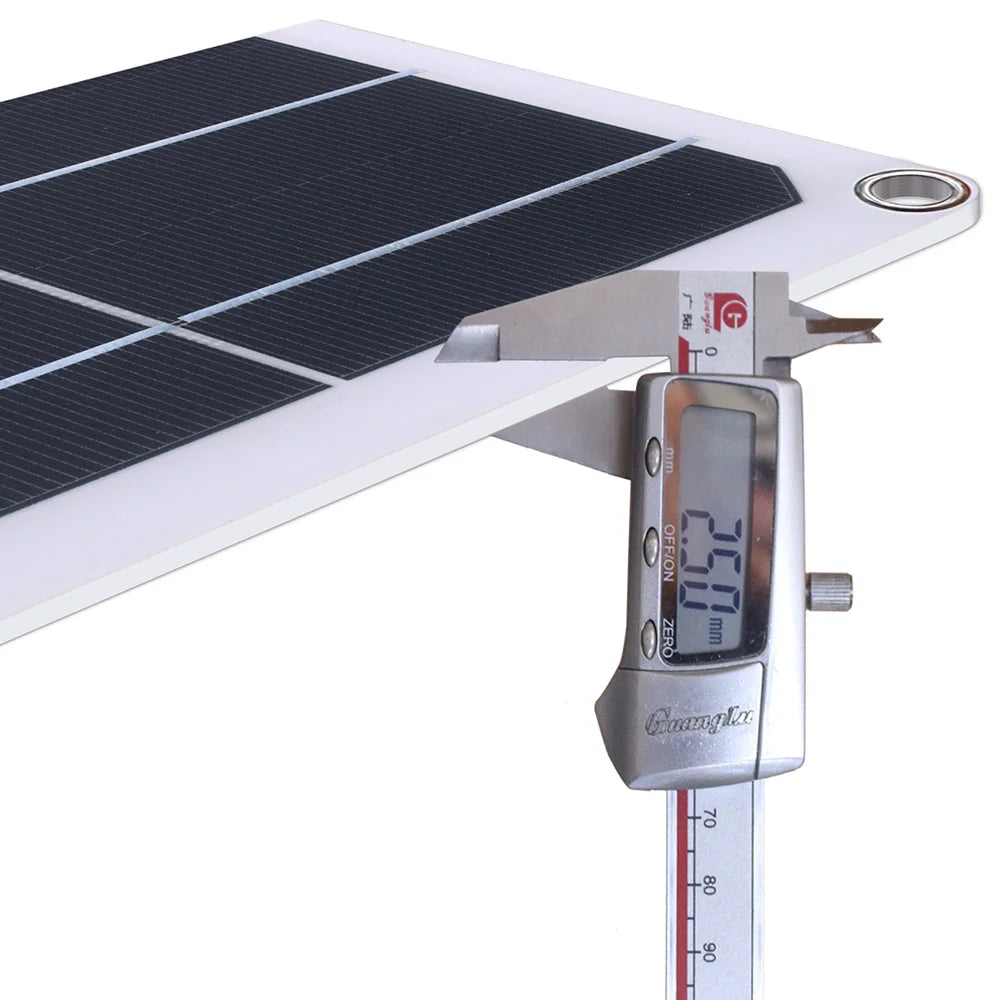

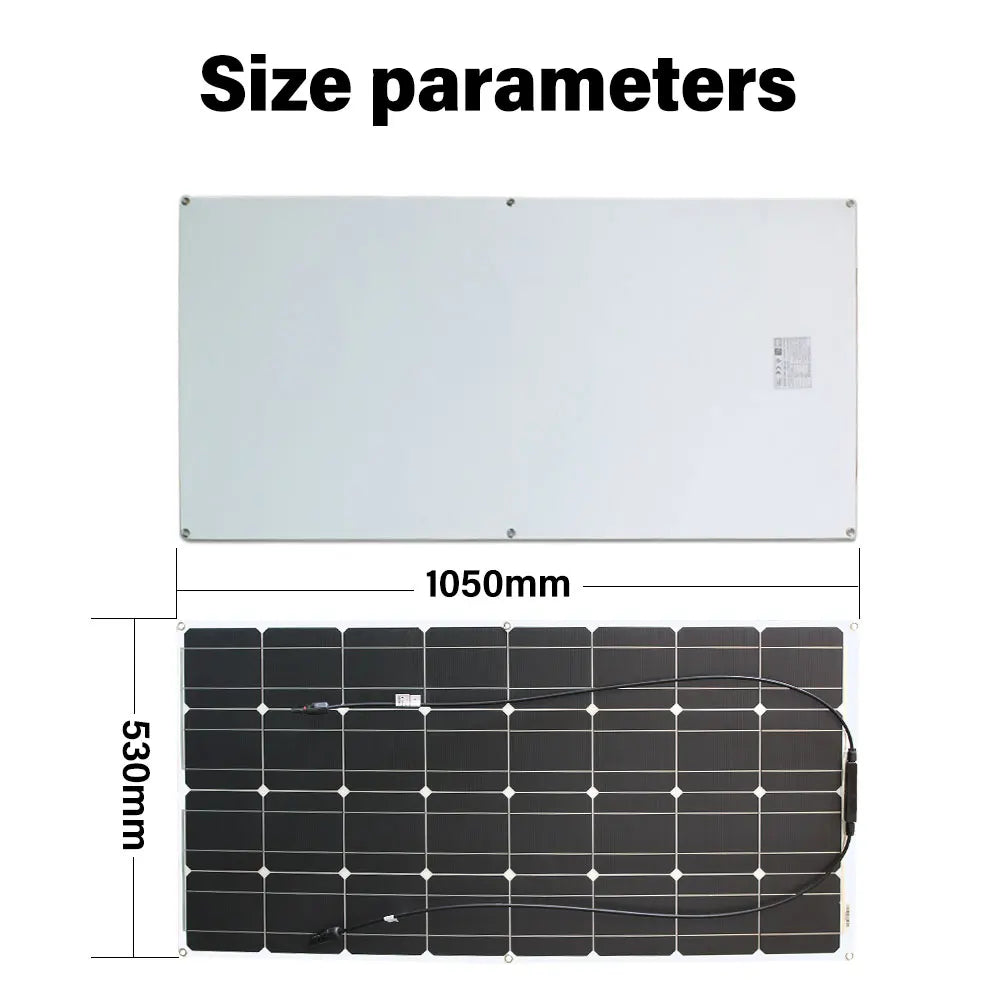

Dimension 1050X530X2.5mm
Weight 1.9kg(±0.1kg)

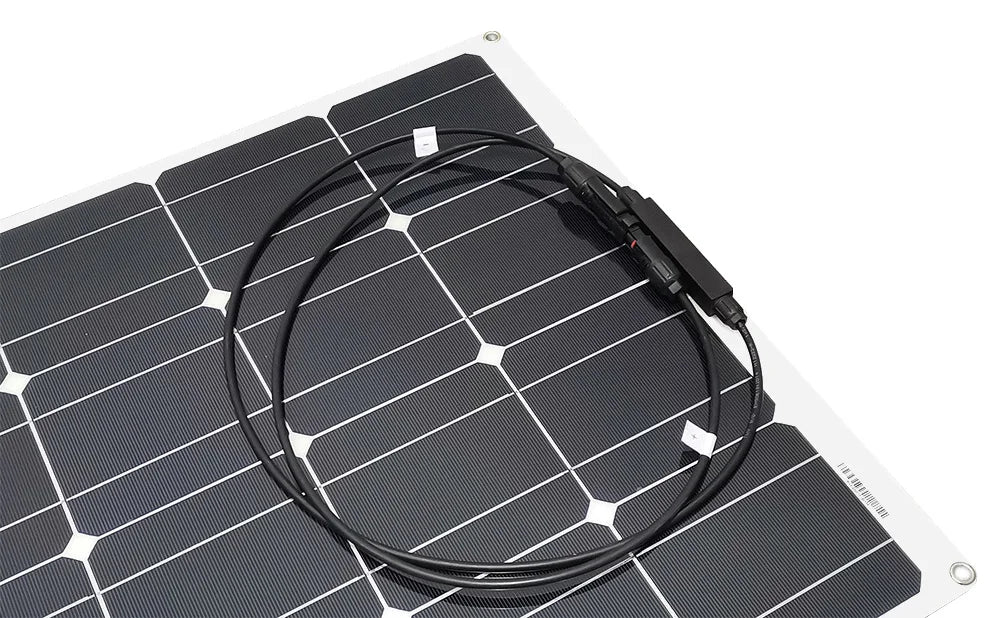

Cable 0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax -0.38%/℃
Temperature coefficient of Voc -60.5mV/℃
Temperature coefficient of Isc 2.2mA/℃
NOTC 47℃+/-2℃
Operating Temperature -20℃ - +65℃

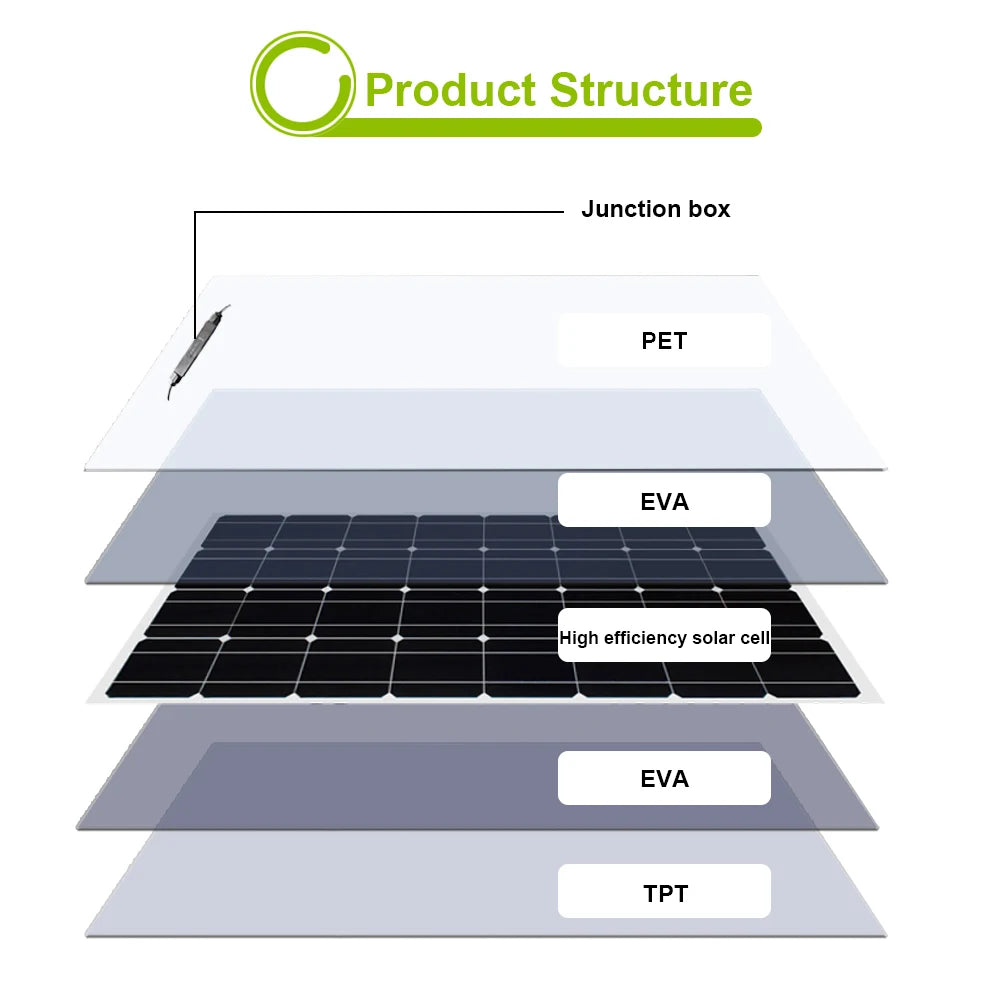

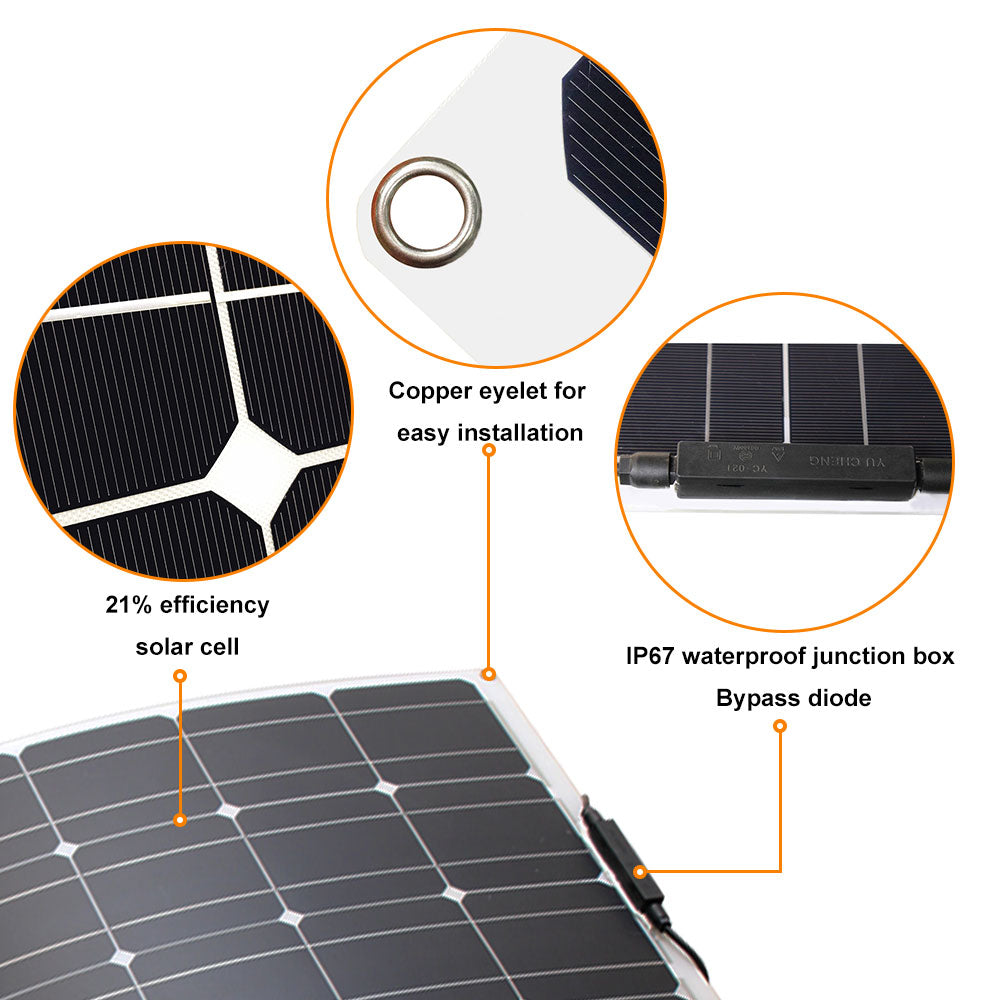

Comprising a junction box, PET film, EVA layer, high-efficiency solar cells, and TPT layer for enhanced performance.

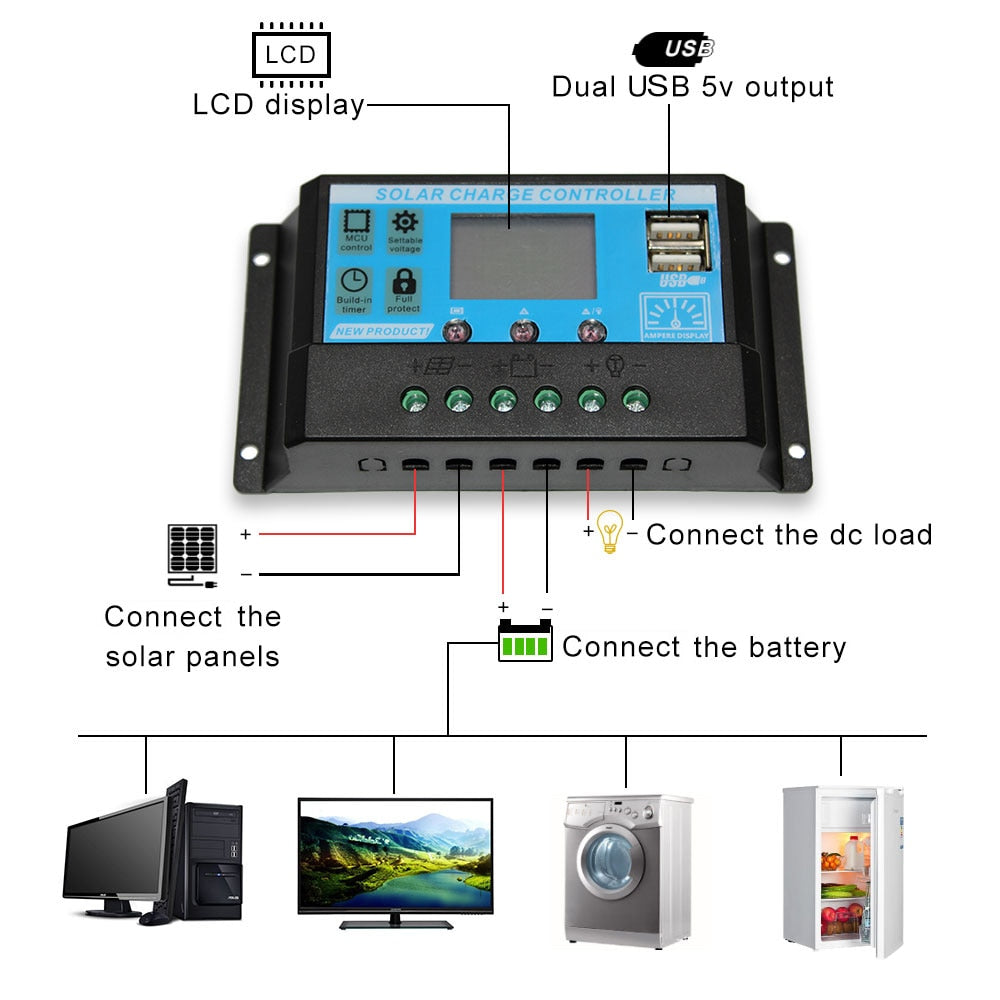

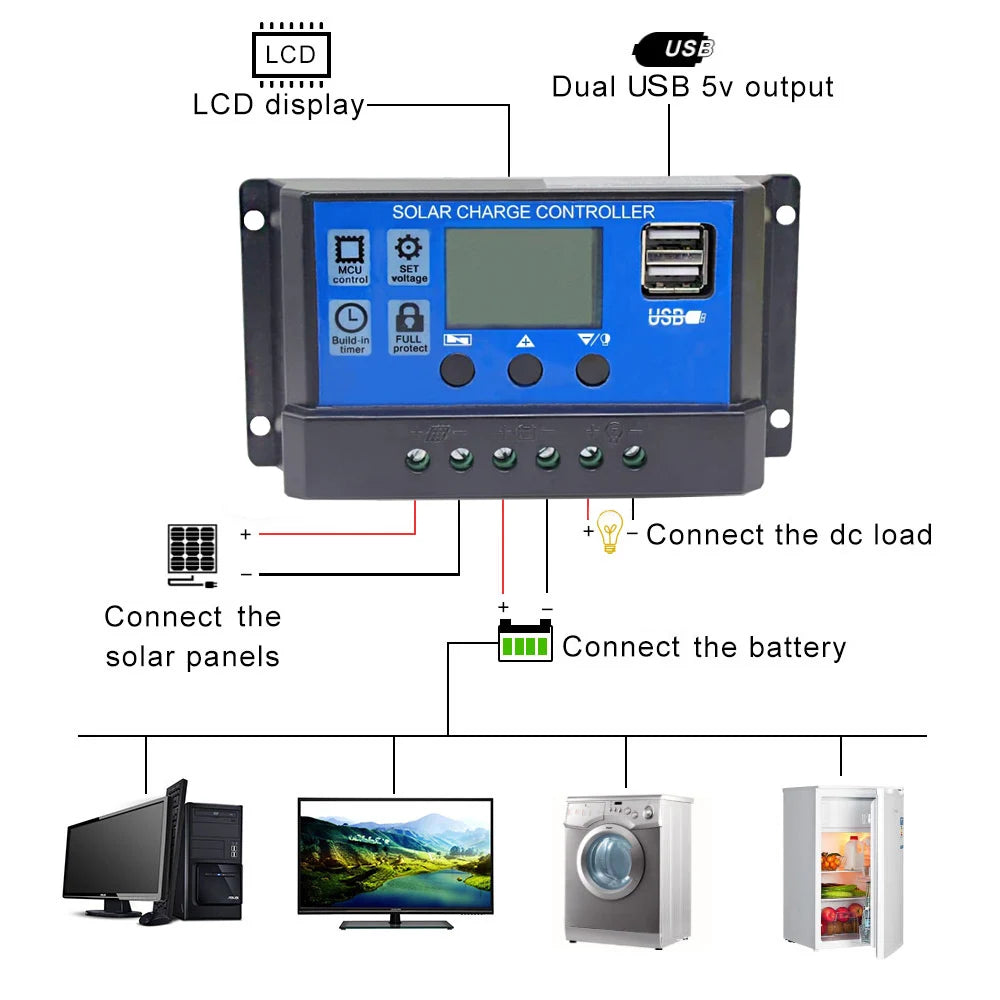

Solar Charge Controller Kit: Monitor charge levels with an LCD display and control voltage output. Connect to USB devices, DC loads, or solar panels. Includes MCU set and built-in full-featured connector for easy integration.
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

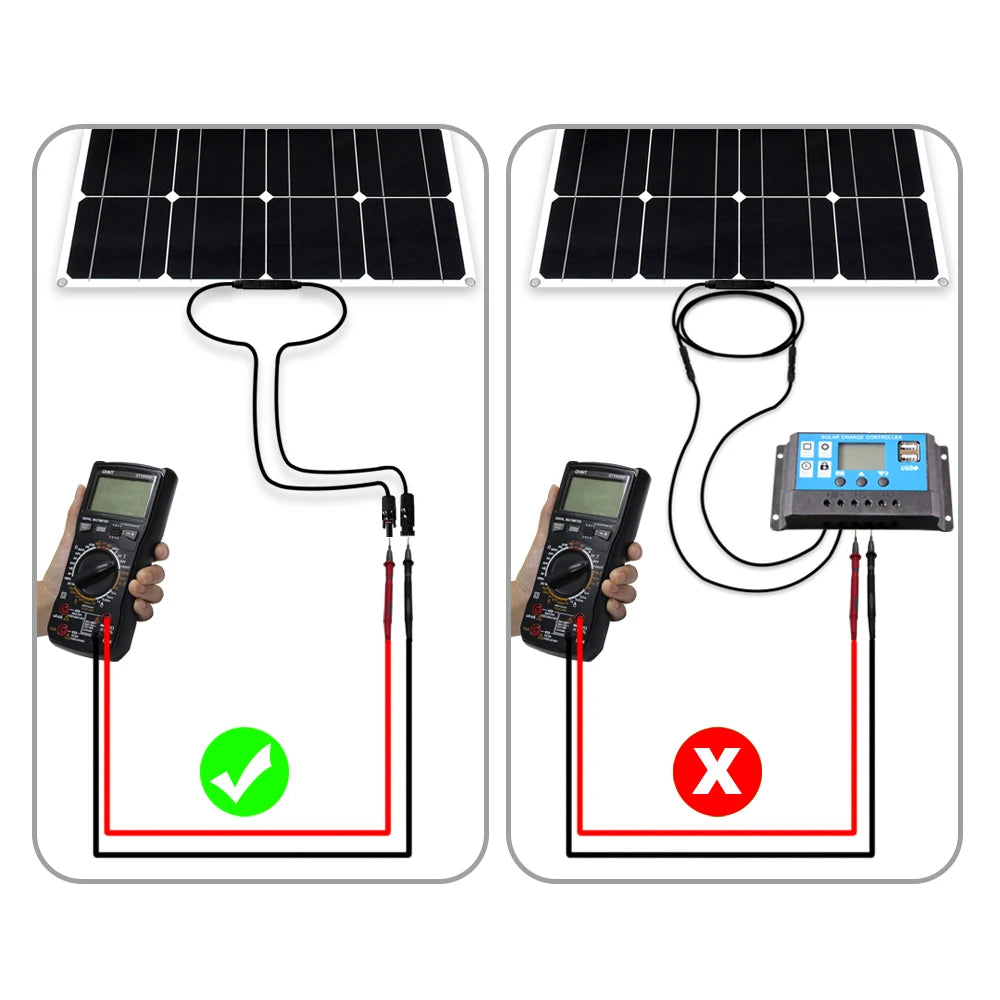

2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

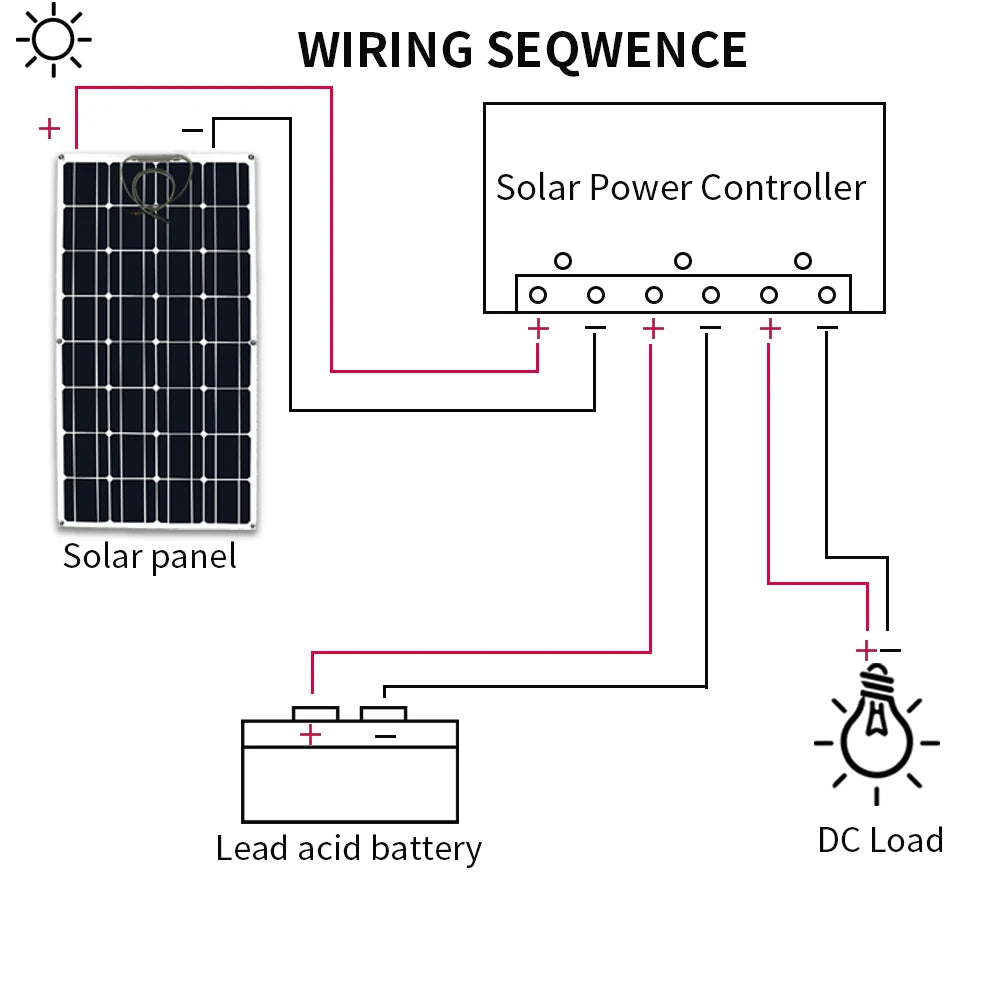

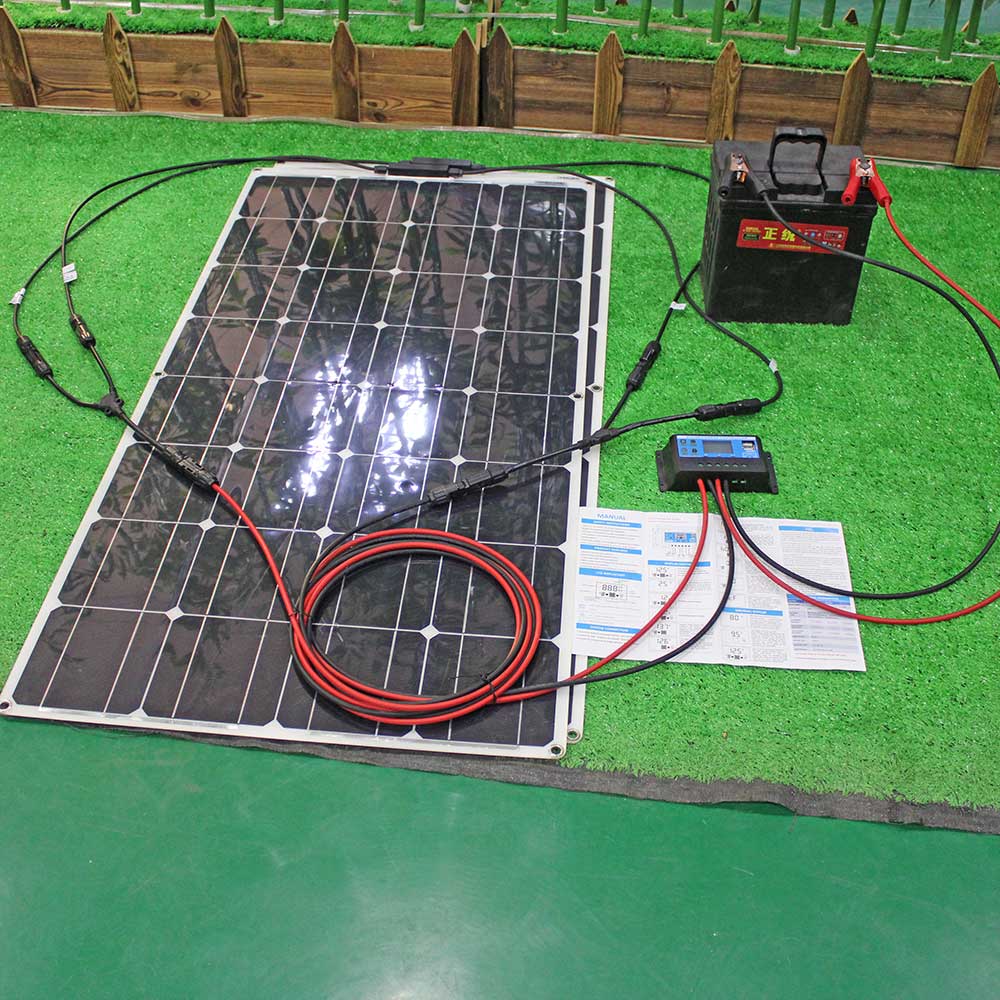

System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
