Solar PV Charge Controller 30A/20A/10A 12V 24V with LCD display and double USB PWM Solar PV Regulators Battery Chargers 30Amps

Solar PV Charge Controller 30A/20A/10A 12V 24V with LCD display and double USB PWM Solar PV Regulators Battery Chargers 30Amps

Regular price $15.32 USD
Regular price Sale price $15.32 USD
Sale Sold out
Shipping calculated at checkout.
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Model Number: 10/20/30A

Maximum Current: 10/20/30A

Is Smart Device: No

Certification: CE,RoHS

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller

 Solar PV Charge Controller 30A/20A/10A 12V 24V with LCD display and double USB PWM Solar PV Regulators Battery Chargers 30Amps

This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recongize 12V and 24V Lead acid ,Gel battery automatically.

There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V  120W

if your battery is 24V ,the max solar panel input is 50V  240W

20A:

if your battery is 12V, the max solar panel input is 25V   240W

if your battery is 24V, the max solar panel input is 50V   480W

30A

if your battery is 12V ,the max solar panel input is 25V   360W

if your battery is 24V ,the max solar panel input is 50V   720W
Features:

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.
Parameter:

MODEL

PWM 1210

PWM 1220

PWM 1230


Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A


Discharging Current

10A

10A

10A


Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

*all red color voltage X2 ,while using 24V system.


Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

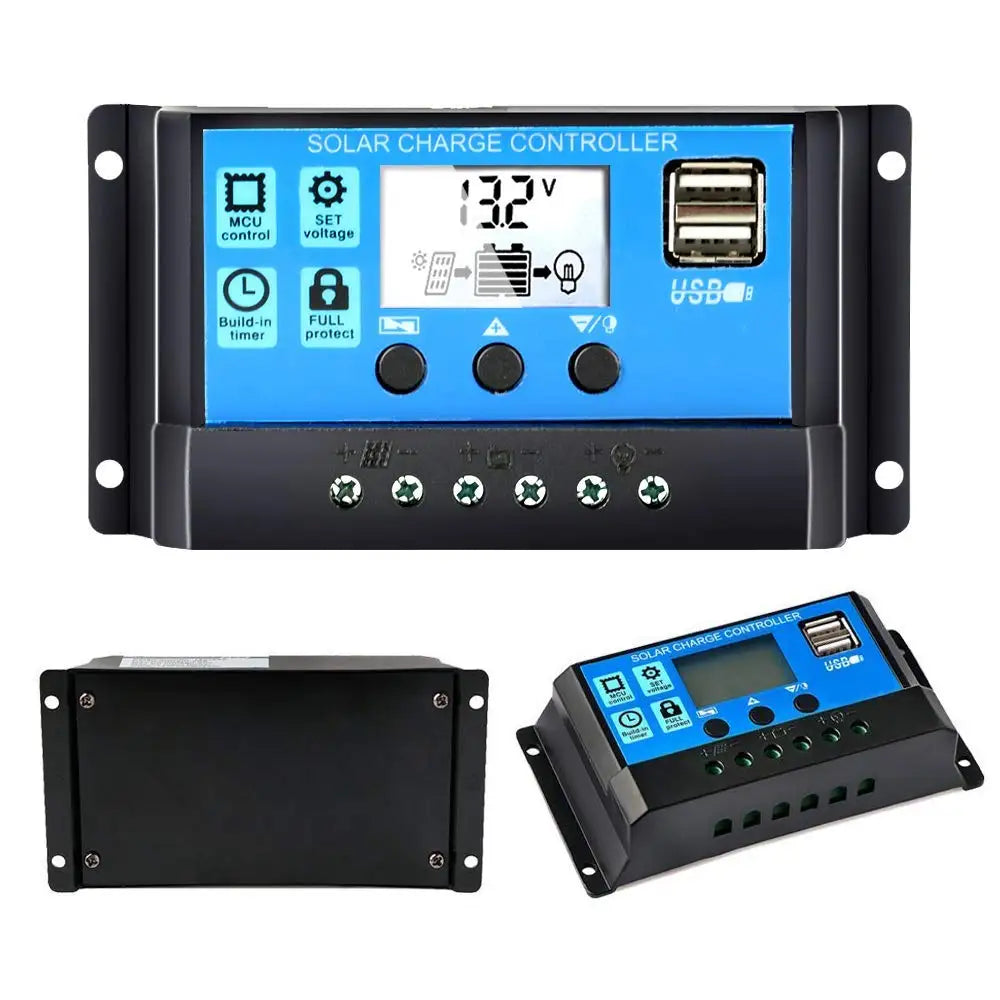

Solar PV Charge Controller, Solar power controller with LCD display, dual USB ports, and advanced charging features for 12V or 24V systems.

Solar PV Charge Controller with LCD display and double USB ports, suitable for 12V/24V systems, featuring full-time tracking and built-in 6-stage charge control.

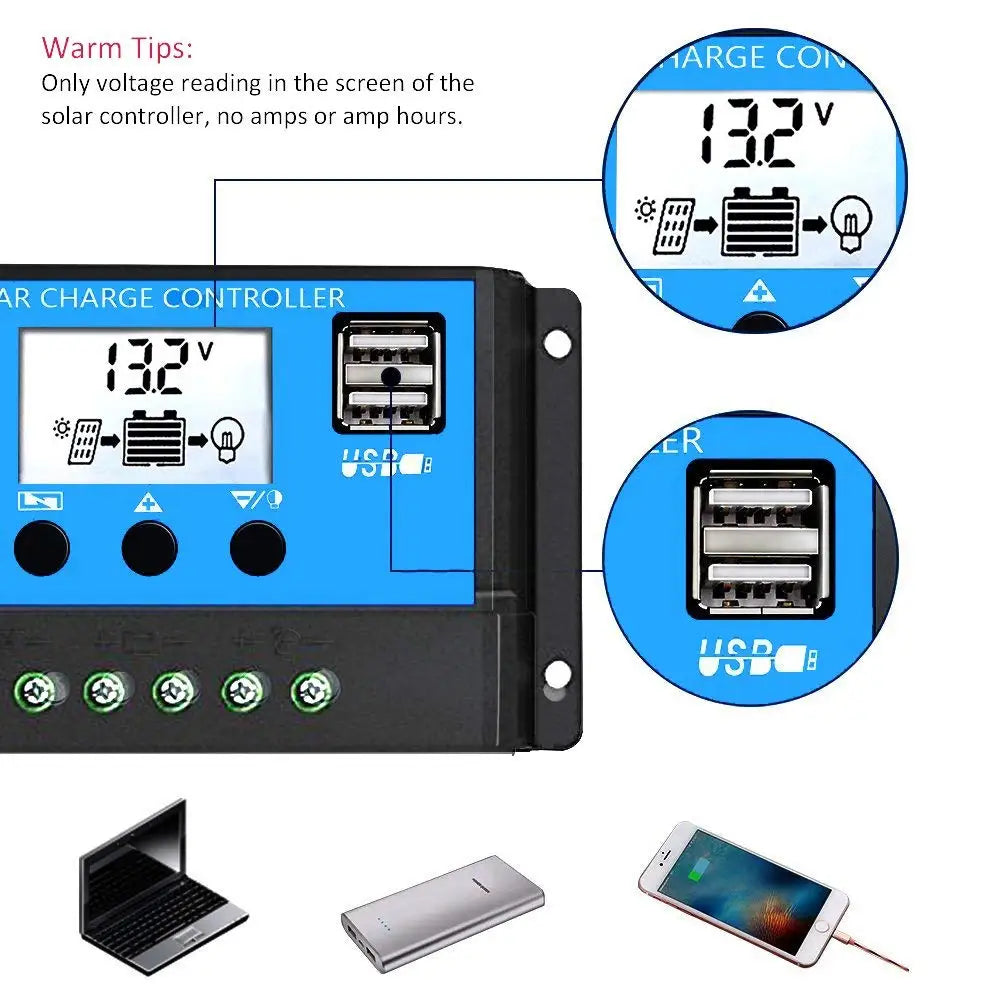

Solar PV Charge Controller, LCD display shows only voltage readings, no amp or amp-hour data available.

Note: The LCD display shows only voltage readings; amp and amp-hour values are not available.

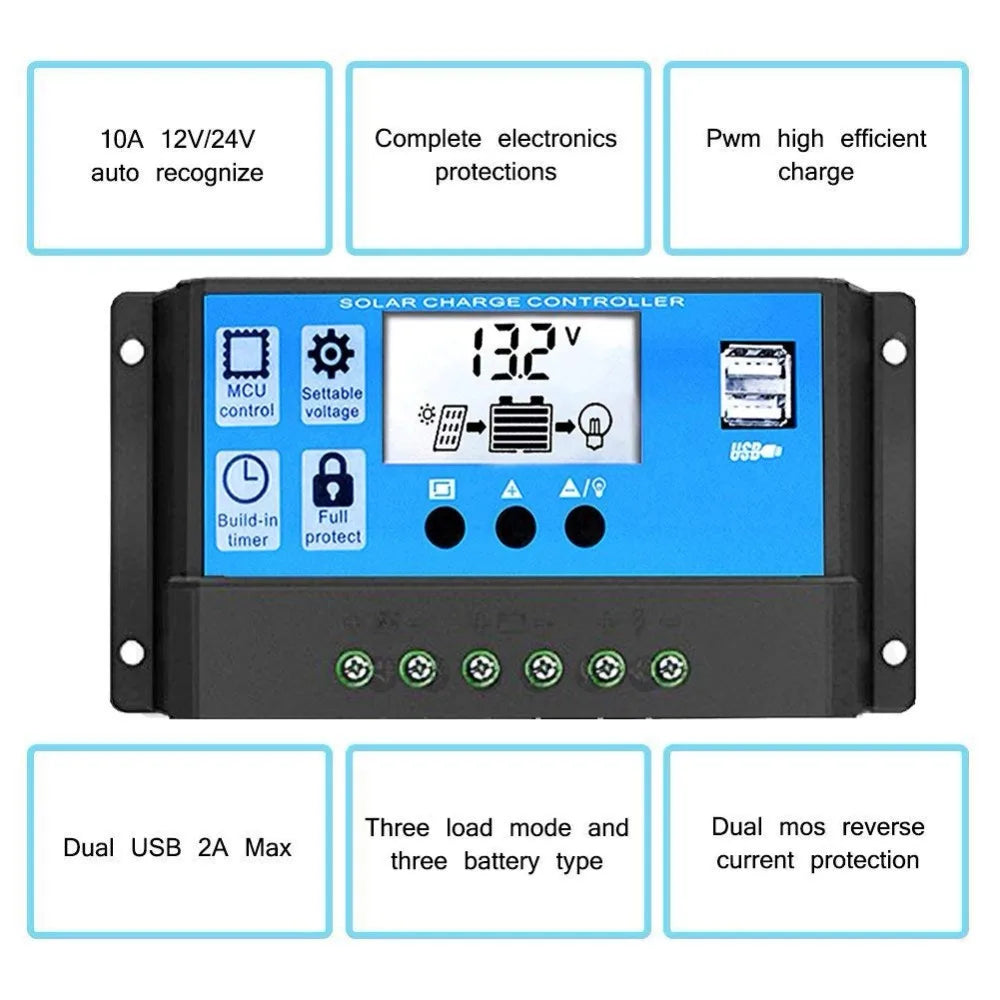

Solar PV Charge Controller, Advanced solar charge controller with LCD display and auto-protections for efficient charging and power management.

Solar PV Charge Controller with LCD display, featuring auto-recognize protections, high efficiency, and built-in full-load protection. It supports three load modes and dual USB outputs up to 2A, with current protection for multiple battery types.

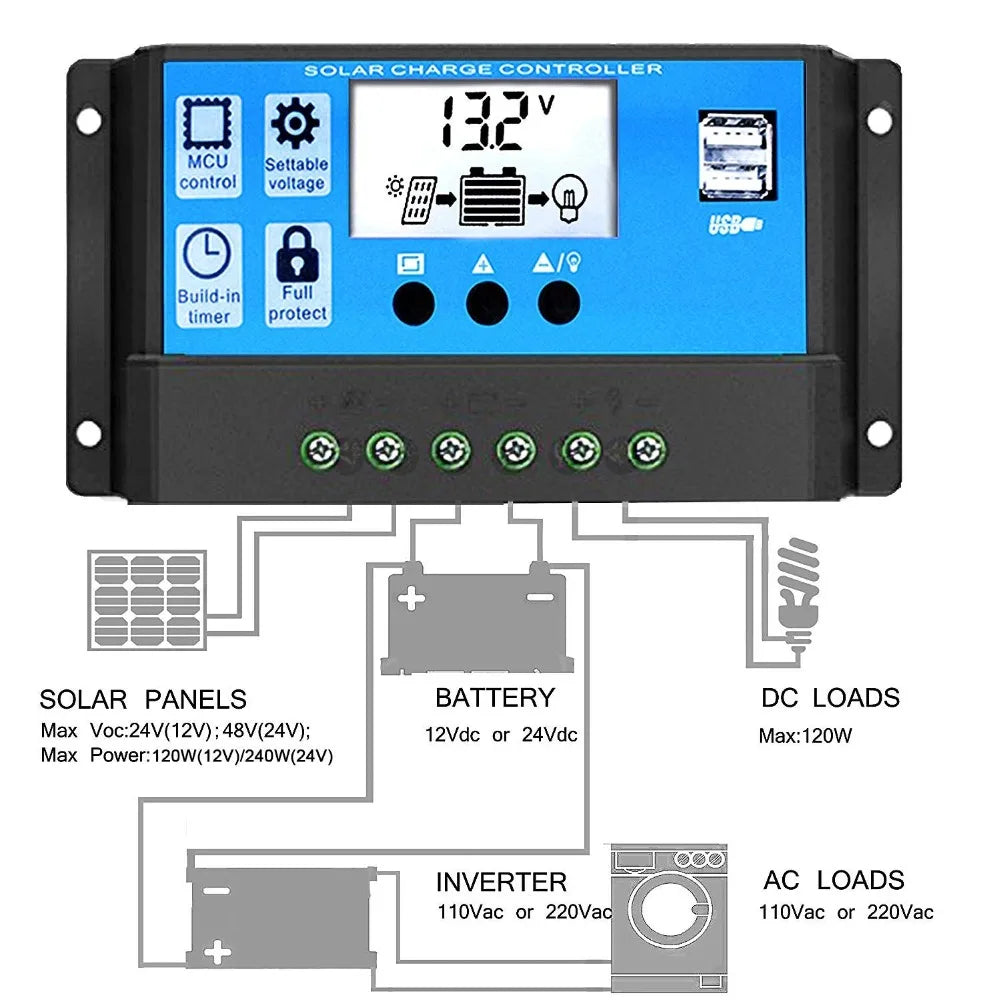

Solar PV Charge Controller, Solar charge controller for 3 panels, battery, and DC/AC loads, with MCU-settable control and built-in protections.

Solar Charge Controller: MCU-settable control for 3 solar panels, battery, and DC loads. Compatible with 12V/24V systems. Max voltage: 24V (12V). Max power: 120W (12V) or 240W (24V). Includes built-in full-featured protections. Supports USB charging and AC loads up to 110Vac or 220Vac.

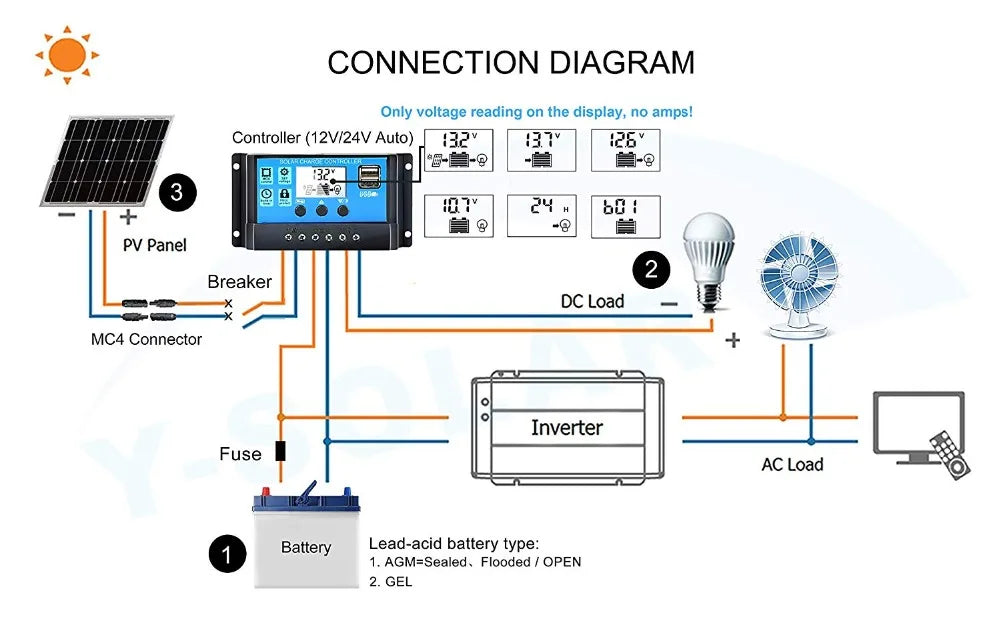

Solar PV Charge Controller, Solar charge controller displays voltage readings, compatible with 12V/24V systems and various battery types.

This solar charge controller displays only voltage readings, with auto-adjusting voltage for 12V/24V systems. Key components include: PV panel, breaker, DC load, MC4 connector, inverter fuse, AC load, and battery leads (compatible with AGM-Sealed, Flooded, or GEL lead-acid batteries).

Solar PV Charge Controller, Rugged lighting solutions for farms, streets, patios, billboards, campsites, and ships.

Suitable for various applications including farm solar systems, street lights, patio lights, billboards, and outdoor camping or shipping solutions.

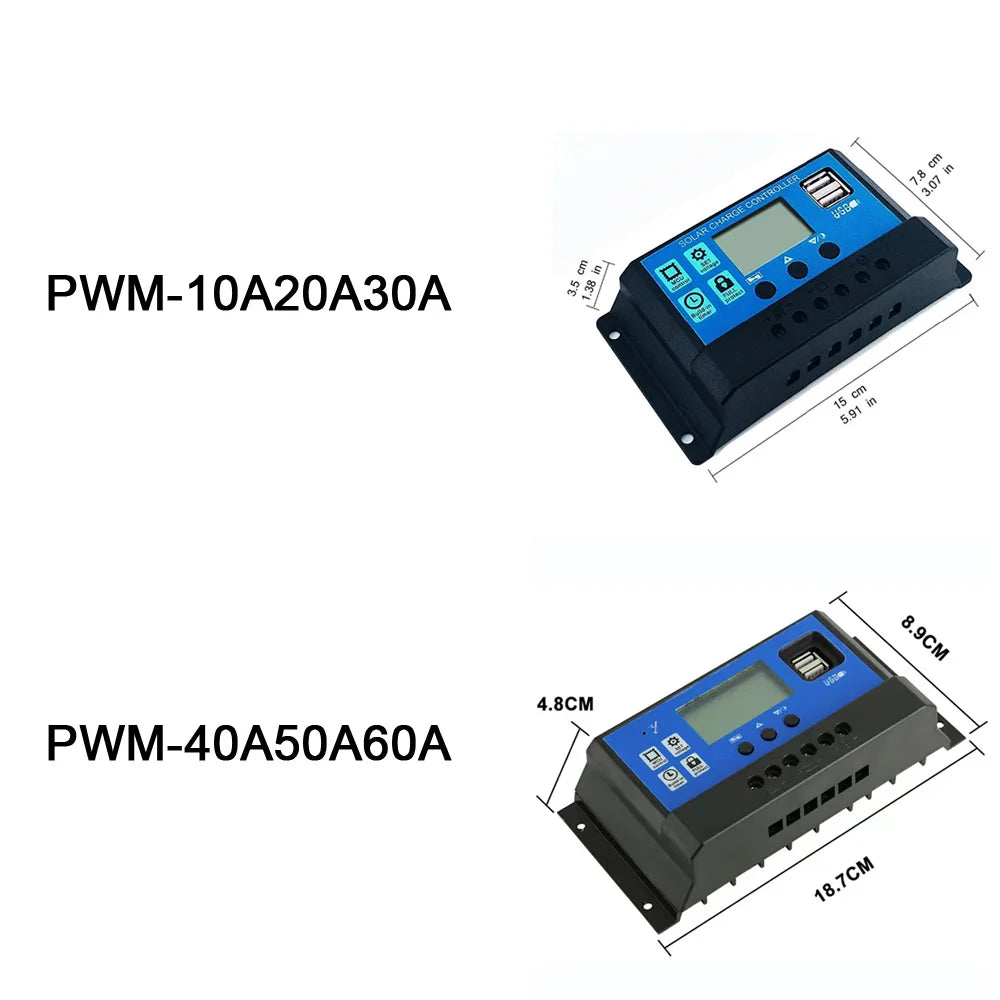

Solar PV Charge Controller, Solar power controller with LCD display, dual USB ports, and PWM charger for 12V/24V batteries up to 30A.

Product features: Solar PV charge controller with LCD display, double USB ports, and PWM regulator for charging 12V or 24V batteries up to 30A.

Solar PV Charge Controller, Solar charge and discharge controller with LCD display, 10/20/30A max current, suitable for various applications.Solar PV Charge Controller 30A/20A/10A 12V 24V with LCD display and double USB PWM Solar PV Regulators Battery Chargers 30AmpsSolar PV Charge Controller, Solar charge controller for up to 30A, 12V/24V, LCD display, dual USB ports.

Solar PV Charge Controller: 30A/20A/10A, 12V or 24V, with LCD display and double USB ports, regulates solar power charging for batteries up to 30 amps.

Solar PV Charge Controller, Charge controller with LCD display, dual USB ports, and PWM tech charges batteries up to 30A.

Solar PV Charge Controller with LCD display, double USB ports, and PWM technology for charging batteries up to 30A.

Solar PV Charge Controller, Place order, choose payment method (Alipay, VISA, PayPal, etc.), and receive shipped item.

Ordering Information: To place an order, choose product, add to cart, and select payment method. We accept various payment options, including Alipay, VISA, PayPal, Mastercard, and more. If necessary, payment verification may be required. After purchase, your item will be shipped via Hongkong Post Express or FedEx. If you have any dissatisfaction with our service, please contact us and we'll provide a perfect solution.
