Solar PV Charge Controller 30A/20A/10A 12V 24V with LCD display and double USB PWM Solar PV Regulators Battery Chargers home use

Solar PV Charge Controller 30A/20A/10A 12V 24V with LCD display and double USB PWM Solar PV Regulators Battery Chargers home use

Regular price $4.20 USD
Regular price Sale price $4.20 USD
Sale Sold out
Shipping calculated at checkout.
Color
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

USB: Dual USB 5V 2.5A Max

Origin: Mainland China

Model Number: 10/20/30A

Maximum Current: 30A/20A/10A

Max Solar Panel input: 50V(for 24V battery) 25V(for 12V battery)

Is Smart Device: No

Float charge: 13.7V (defaul,adjustable)

Discharge stop: 10.7V (defaul,adjustable)

Discharge reconnect: 12.6V (defaul,adjustable)

Charging current: 30A 20A 10A

Application 6: solar energy

Application 5: Lighting Controller

Application 4: Solar Working Station

Application 3: Voltage Controller

Application 2: Solar System Controller

Application 1: Charger Controller


30A/20A/10A Solar Charger Controller 12V 24V Auto PWM Controllers LCD Display 5V Dual USB Output Controller


This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24VLead acid ,Gel batteryautomatically

If you want to use other type battery,you need to set up.Such as Lithium battery charging,full protection 12.2V,discharge 9.5V,restart 11.5V.


There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V  120W

if your battery is 24V ,the max solar panel input is 50V  240W

20A:

If your battery is 12V, the max solar panel input is 25V  240W

if your battery is 24V, the max solar panel input is 50V  480W

30A:

if your battery is 12V ,the max solar panel input is 25V  360W

if your battery is 24V ,the max solar panel input is 50V  720W


Features:

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

MODEL

PWM 10A

PWM 20A

PWM 30A

PWM 40A

PWM 50A

PWM 60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

Solar Panel8V(Light lights delay)

Voltage of close light

Solar Panel8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

133.5*70*35mm


*all red color voltage X2 ,while using 24V system.

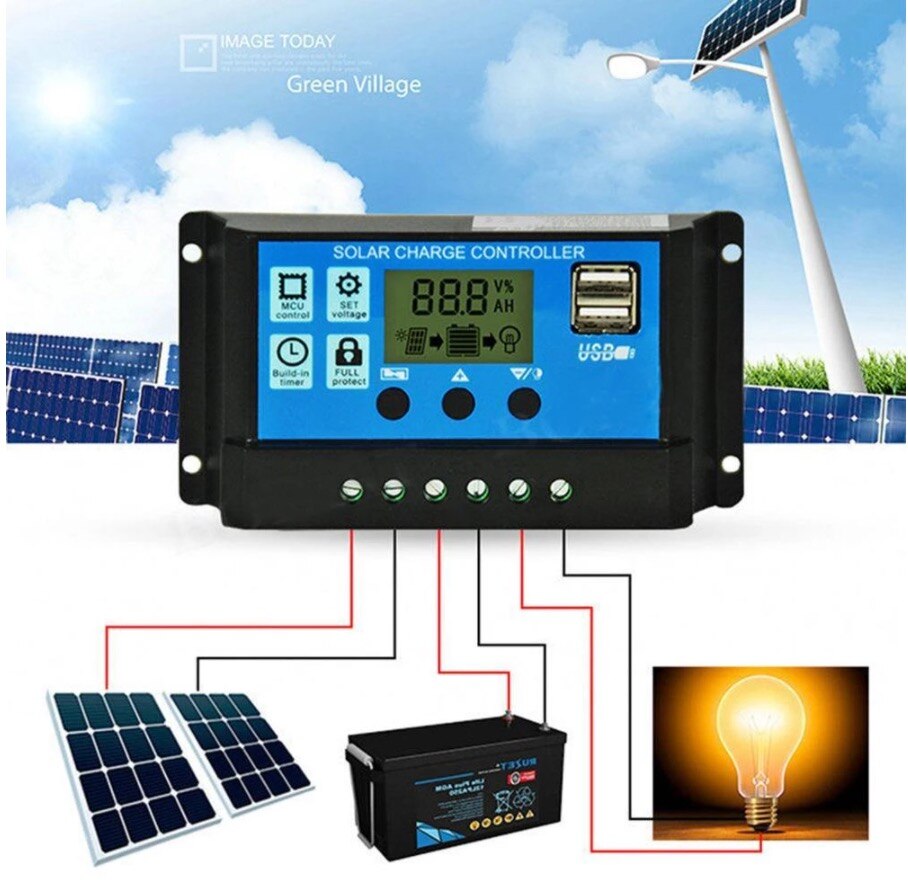

Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

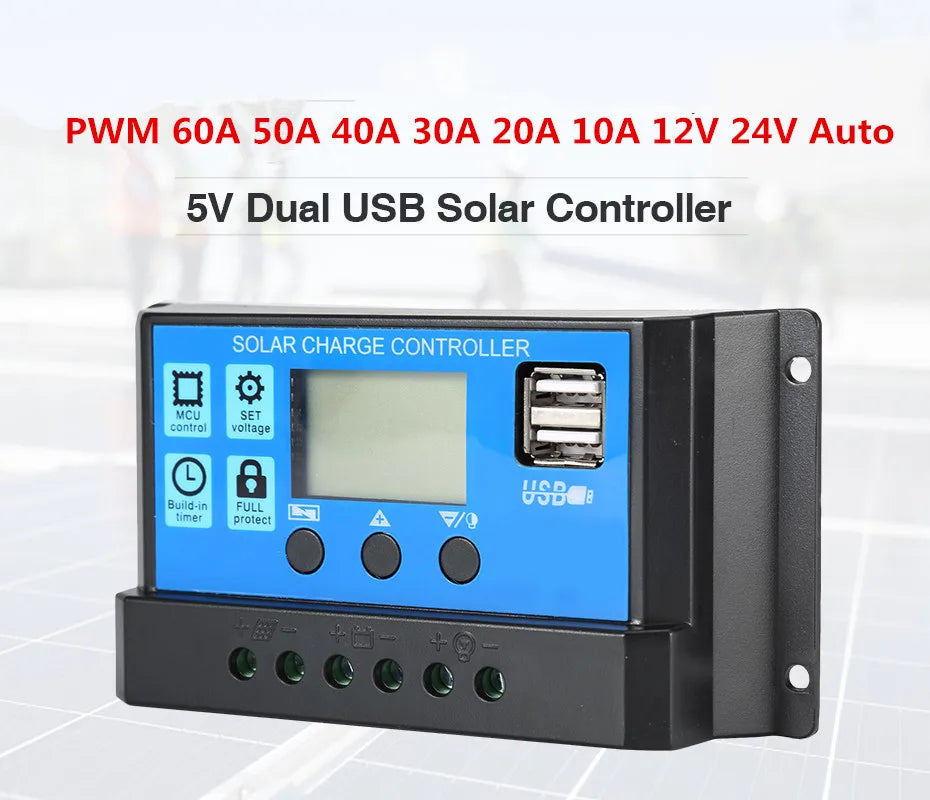

Solar PV Charge Controller, Solar charge controller with PWM tech, suitable for 10A/20A/30A apps, with USB ports and safety features.

MCU-based solar charge controller with PWM technology, suitable for 10A/20A/30A applications, compatible with 12V and 24V systems. Features dual USB ports, automatic voltage build-in, and full-protected output.

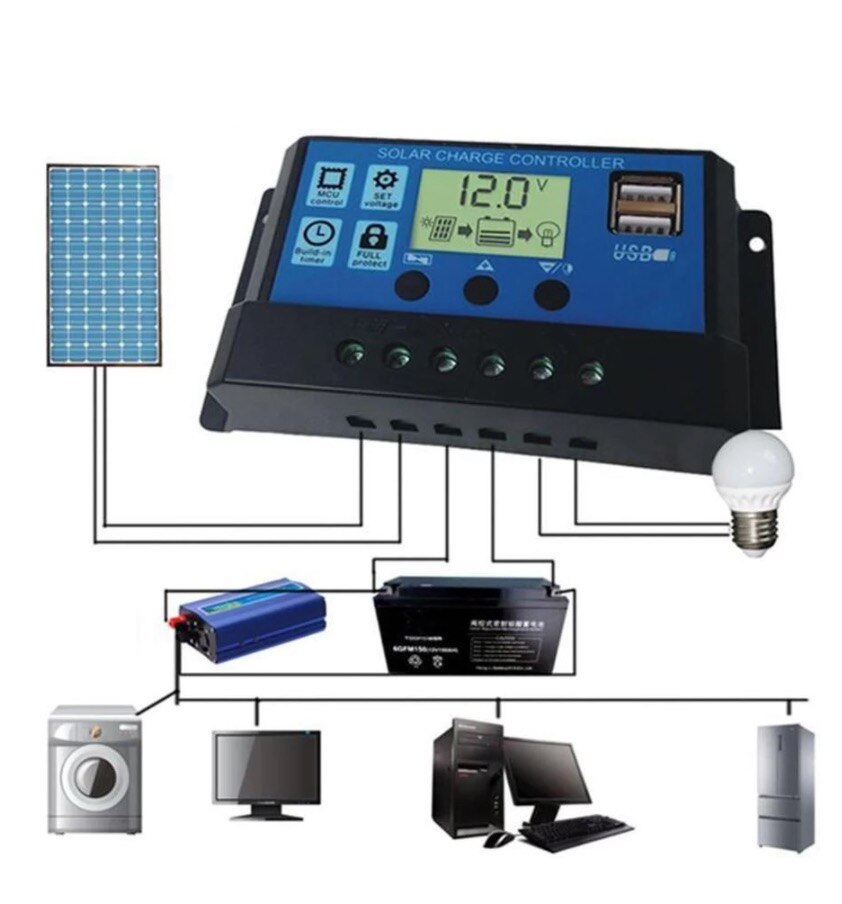

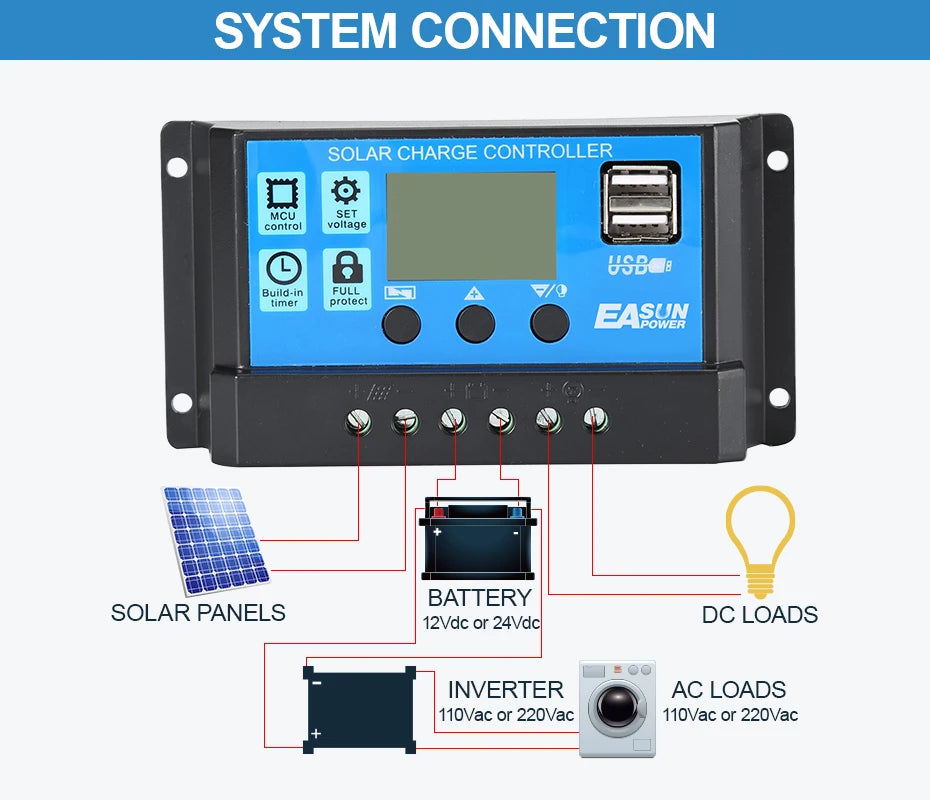

Solar PV Charge Controller, Solar charge controller with MCU settings, built-in protection, and EASUN battery compatibility.

Solar charge controller with MCU set controls voltage, featuring built-in full-home protection and EASUN battery compatibility. Suitable for 12Vdc/24Vdc solar panels and DC loads, with USB output for devices. Also compatible with inverters and AC loads (11OVac or 220Vac).

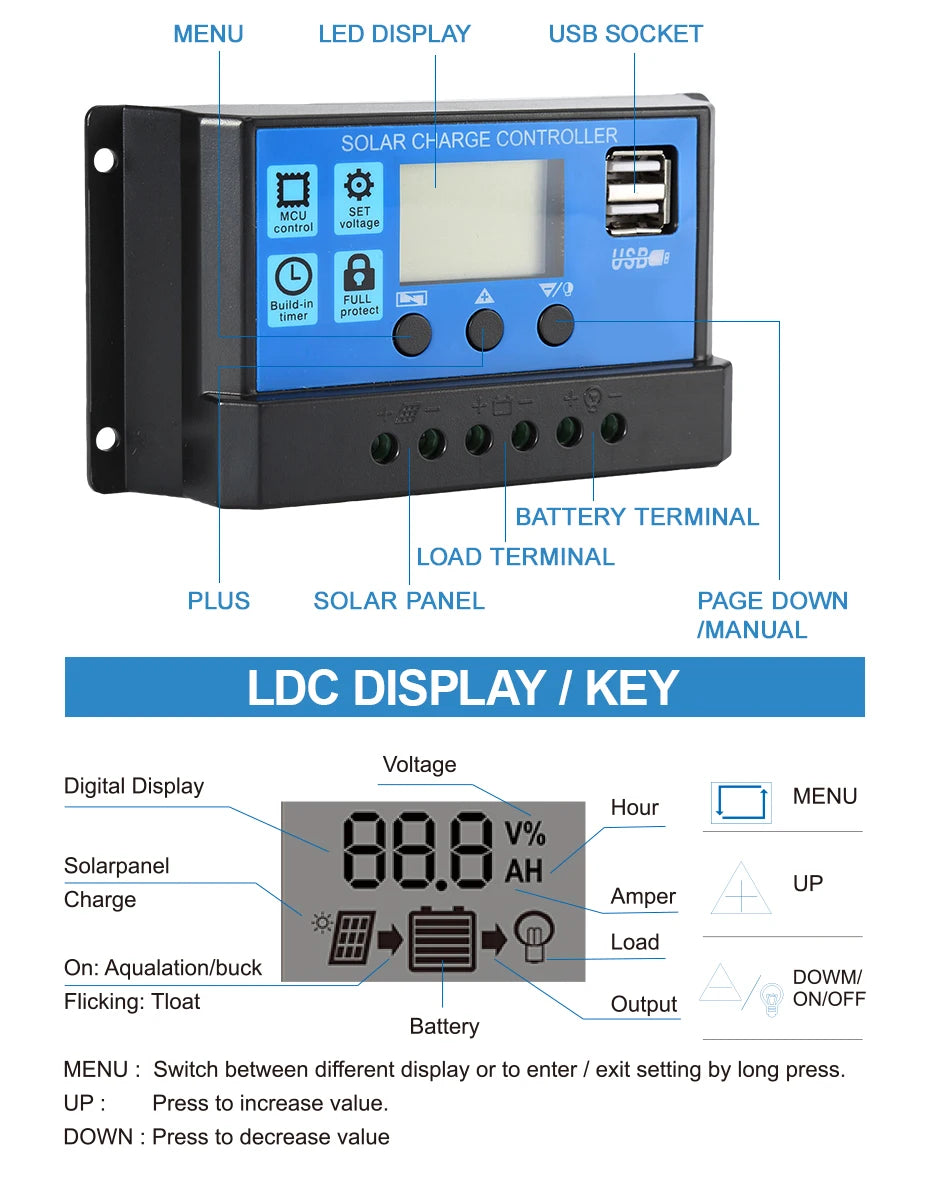

Solar PV Charge Controller, Advanced solar charger with LCD display, dual USB ports, and control features.

Solar Charge Controller with LCD Display and Dual USB Ports: Features MCU control, voltage protection, and built-in manual/automatic switching. Displays solar panel input, battery charge, and load status. Menu options include setting voltage, displaying hour meters, and controlling charging amperage. Navigation is through up/down arrow keys, with long presses for value changes.

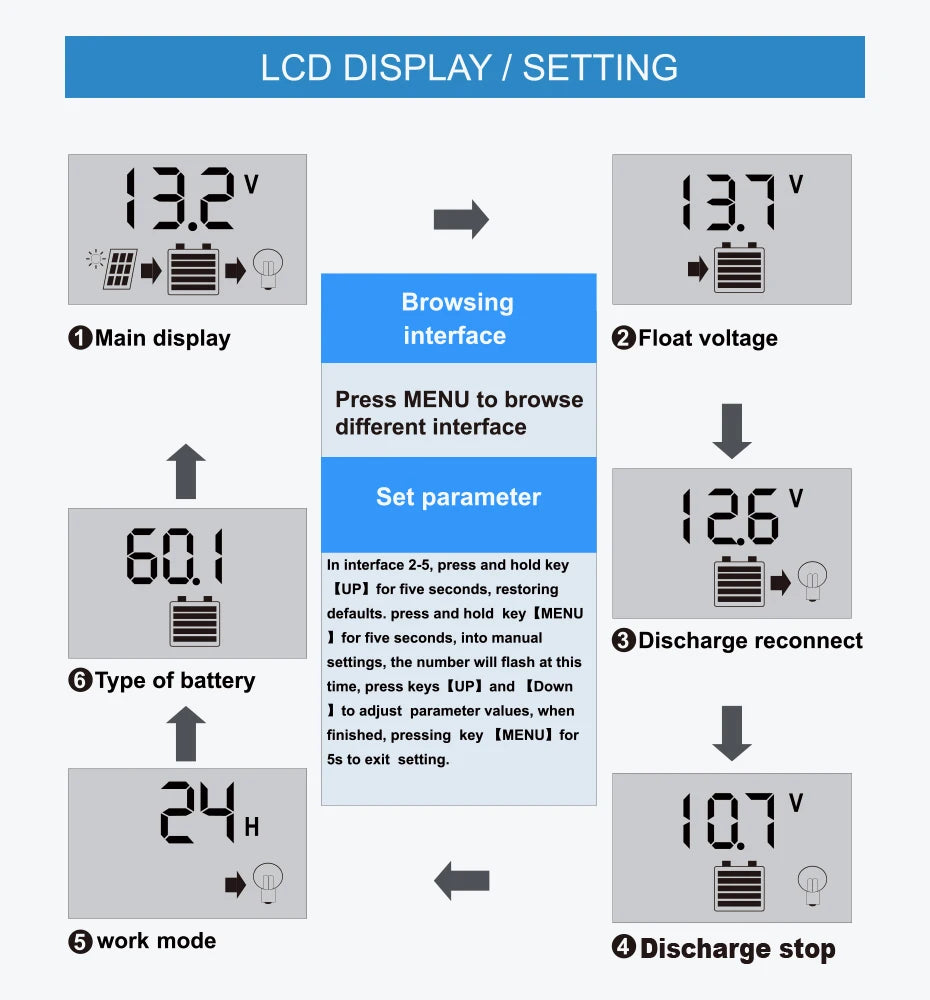

Solar PV Charge Controller, Solar charge controller with LCD display and dual USB ports for charging batteries at home.

Configure your Solar PV Charge Controller using the LCD display. To set parameters, navigate to interface 2-5 and press [UP] for 5 seconds to restore defaults or [MENU] for 5 seconds to enter manual mode. Adjust parameter values by pressing [UP] or [DOWN], then exit settings by pressing [MENU] again.

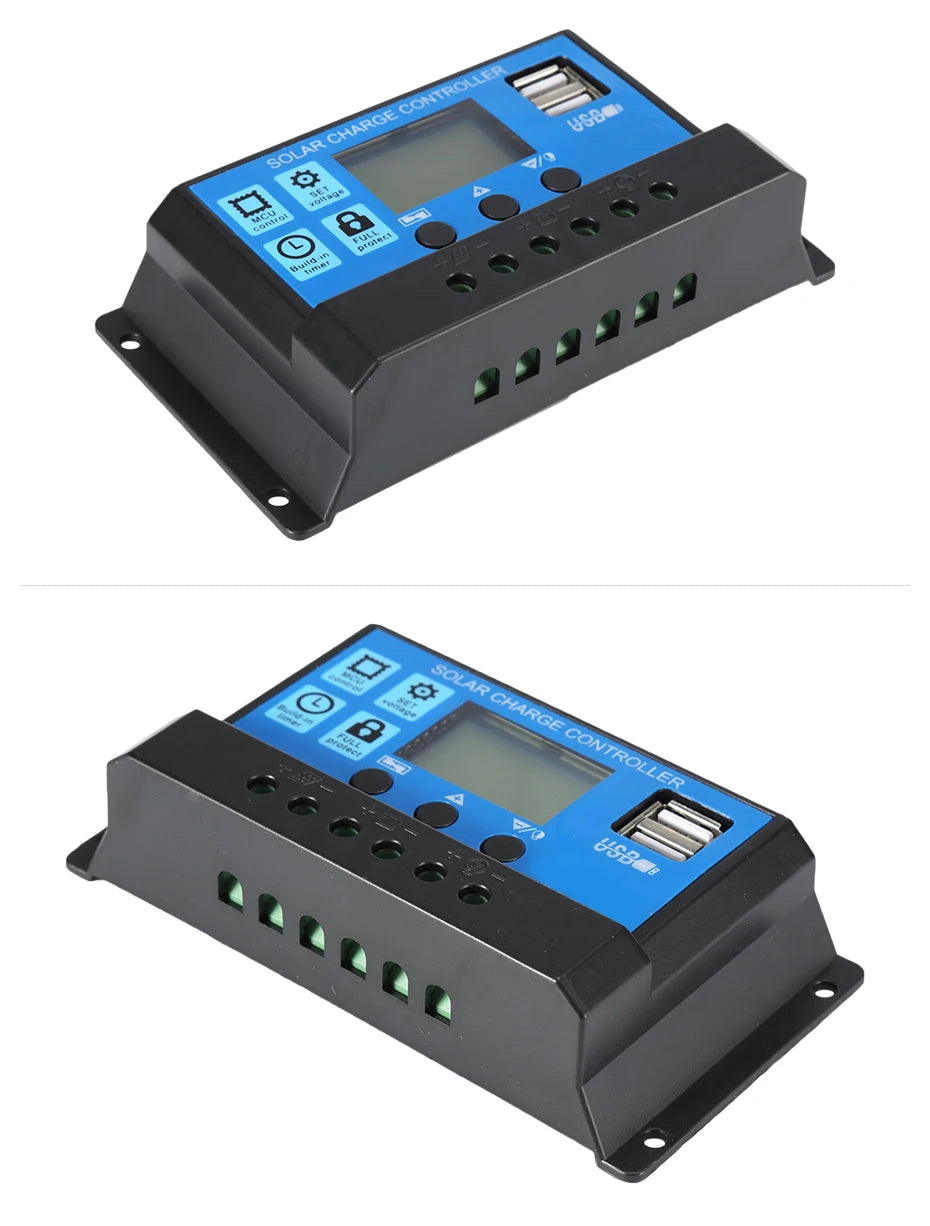

Solar PV Charge Controller, User guide for solar power system's charge controller, ensuring efficient charging and monitoring.

Solar PV Charge Controller - User Guide for 8580 SOLAR Power System, providing efficient charge control and monitoring features.

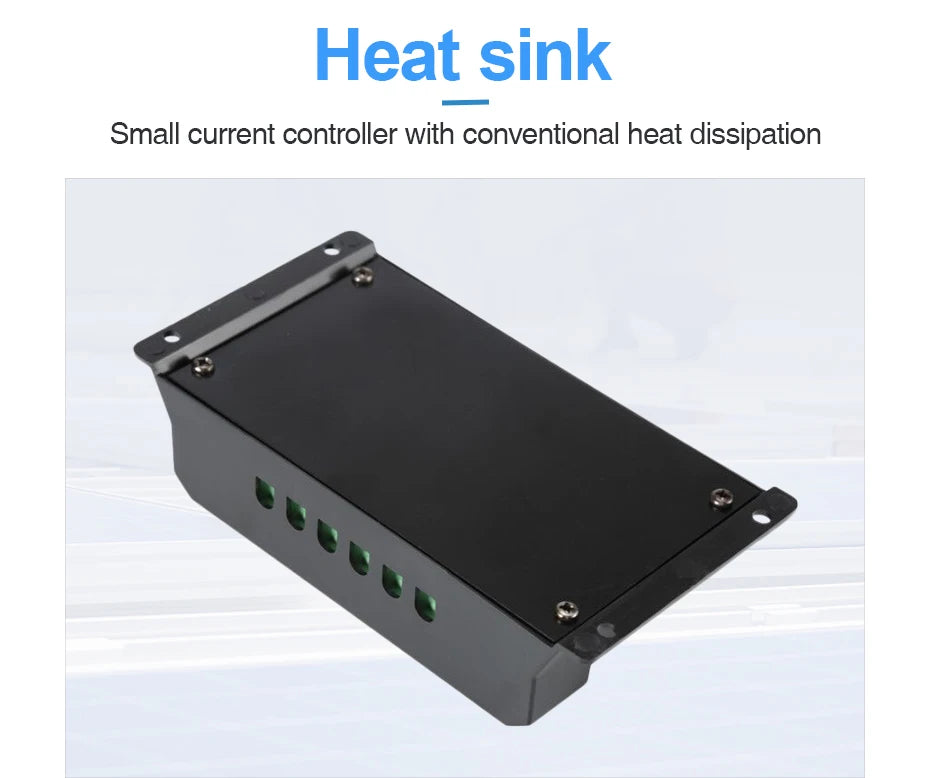

Solar PV Charge Controller, Compact heat-sink design for efficient heat dissipation in small current controllers.

Compact heat-sink design for efficient heat dissipation in small current controllers.

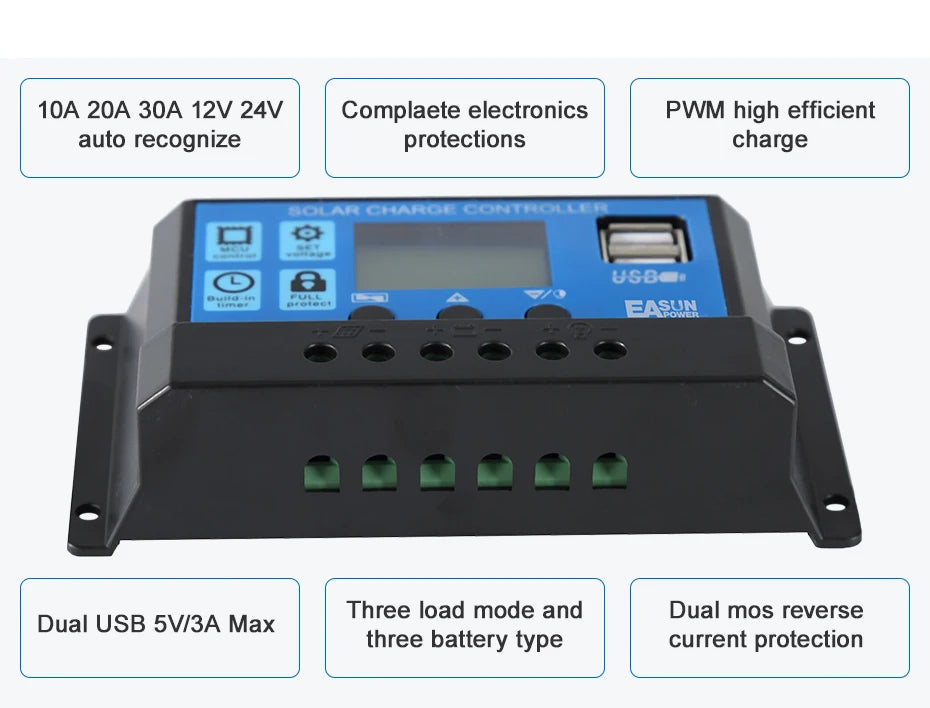

Solar PV Charge Controller, Solar charge controller with PWM tech, auto-protections, and multiple load modes for 12V or 24V systems.

This solar PV charge controller (10A/20A/30A) supports 12V or 24V systems, featuring PWM technology, auto-recognize protections, and high efficiency. It has three load modes, dual USB ports, and max current protection for up to three battery types.

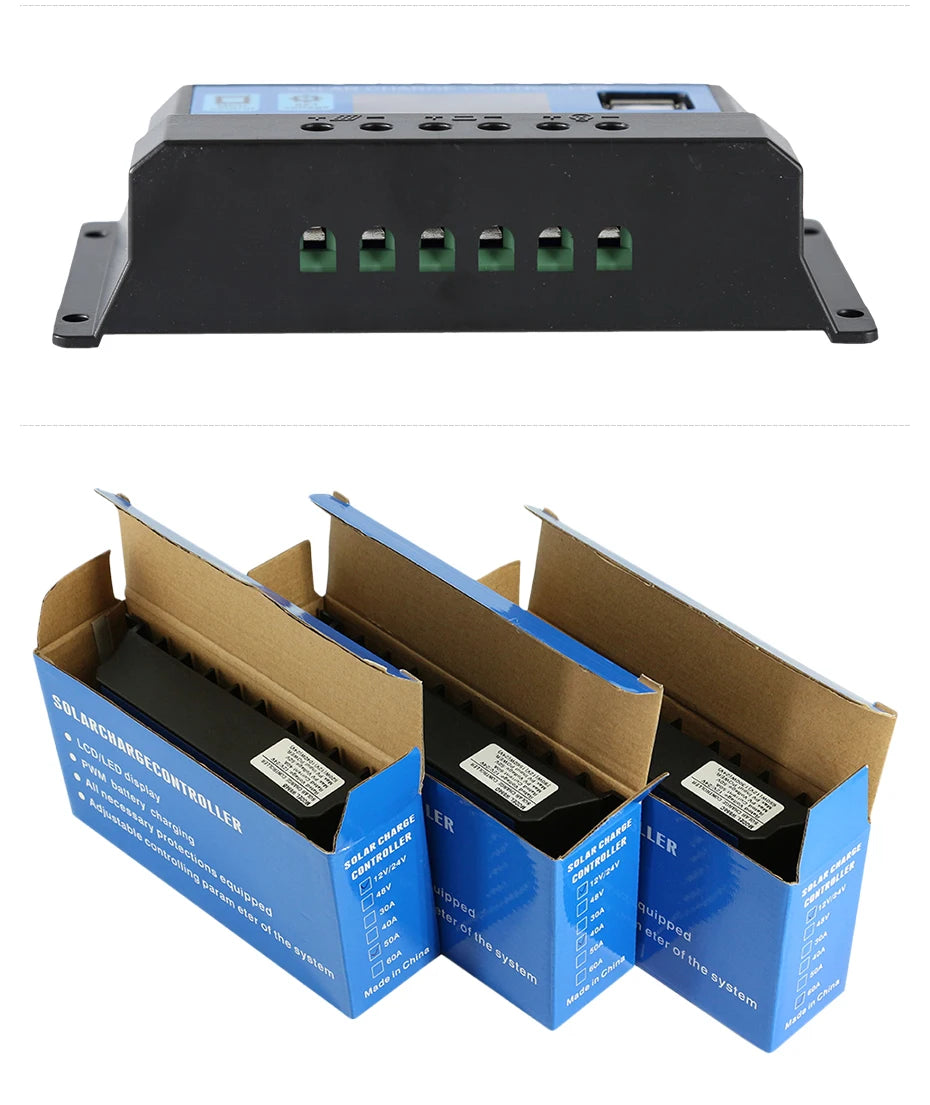

Solar PV Charge Controller, Charge controller for solar power systems with LCD display and USB ports.

Solar PV Charge Controller: Regulate and charge your solar power system with this controller, featuring an LCD display and double USB ports. Perfect for home use, it supports up to 30A/20A/10A current output at 12V or 24V voltage. Easily monitor your charging process and enjoy reliable performance from this PWM solar PV regulator and battery charger.


WARRANTY/QUALITY:

  • CE certified.

  • 100% QC before shipment.

  • Standard 1 year product warranty

  • Warranty will cover only items that are deemed to fail under normal usage. Accidental damage due to environmental causes or incorrect usage and installation will not be covered in warranty (but still serviceable

  • Contact us directly for warranty issue.
