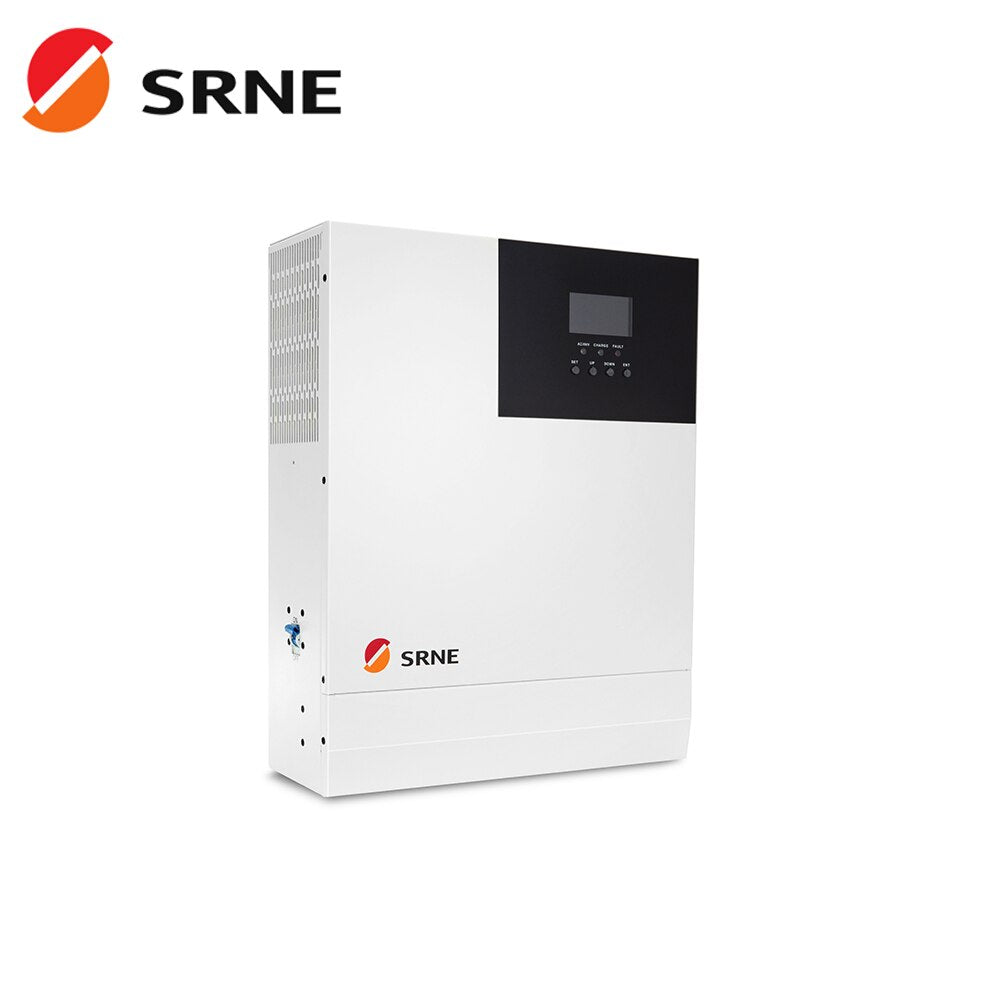

SRNE 3000W 24V 110V/120VAC 50Hz/60Hz Pure Sine Wave Off-Grid Hybrid Inverter MPPT 60A Solar Charger Max PV Input Voltage 100VDC

SRNE 3000W 24V 110V/120VAC 50Hz/60Hz Pure Sine Wave Off-Grid Hybrid Inverter MPPT 60A Solar Charger Max PV Input Voltage 100VDC

Regular price $520.40 USD
Regular price Sale price $520.40 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color
Input Voltage|Output Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Weight: 8KG

Type: DC/AC Inverters

Solar Charge Current: 60A

Size: 440*350*176mm

Peak power: 6000VA

PV operation voltage range: 30-100Vdc

Output Voltage Waveform: Pure SIne Wave

Output Type: single

Output Power: 1 - 200KW

Output Frequency: 50Hz/60Hz

Output Current: MPPT 60A

Origin: Mainland China

Model Number: HF0430U60-100

Max.PV Input: 100VDC

Max.PV Array Power: 1400W

Max charger current(can be set): 0-100A

Feature2: Off-Grid Hybrid Inverter

Feature1: Support WIFI Function

Efficiency: >92%

DC Input Voltage: 24VDC

Charge current range of solar energy (settable): 0-60A

Certification: CE,RoHS

Brand Name: SRNE

Battery type: Lead acid or lithium battery

AC Output Voltage: 110VAC

SRNE 3000W 24V 110V/120VAC 50Hz/60Hz Pure Sine Wave Off-Grid Hybrid Inverter MPPT 60A Solar Charger Max PV Input Voltage 100VDC Support WIFI Module HF2430U60-100


Note :The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.


SRNE HF2430U60 all-in-one solar hybrid inverter with WiFi connectivity and various priority settings.


Introduction:

1、HF series is a new hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrialstandard. Four charging modes are optional,i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available,i.e. Inverter and Mains, to meet different application requirements. The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time.

 2、Through a state of the art control algorithm, the AC-DC charging module realizes fully digitalvoltage and current double closed loop control, with high control precision in a small volume.

 3、Wide AC voltage input range and complete input/output protections are designed for stable and reliable battery charging and protection.

 4、Based on full-digital intelligent design, the DC-AC inverter module employs advanced SPWM technology and outputs pure sine wave to convert DC into AC. It is ideal for AC loads such as household appliances, power tools, industrial equipment, and electronic audio and video equipment. The product comes with a segment LCD display design whichlallows real-time display of the operating data and status of the system. Comprehensive electronic protections keep the entire system safer and more stable.


Feature:


1.Rated power: 3000W,24VDC

2.MPPT PV ranges:30V~100VDC,PV Max. Input:100VDC

3.Maximum PV ChargeCurrent :60A

4.High frequency inverter with small size and light weight

5.Pure sine wave AC output

6.Full digital voltage and current double closed loop control, advanced SPWM technology,
output of pure sine wave.
7.To output modes: mains bypass and inverter output; uninterrupted power supply.
8. Available in 4 charging modes: Only Solar, Utility Priority, PV Priority, Utility & Solar hybrid
charging.
9. Advanced MPPT technology with an efficiency of 99.9%.

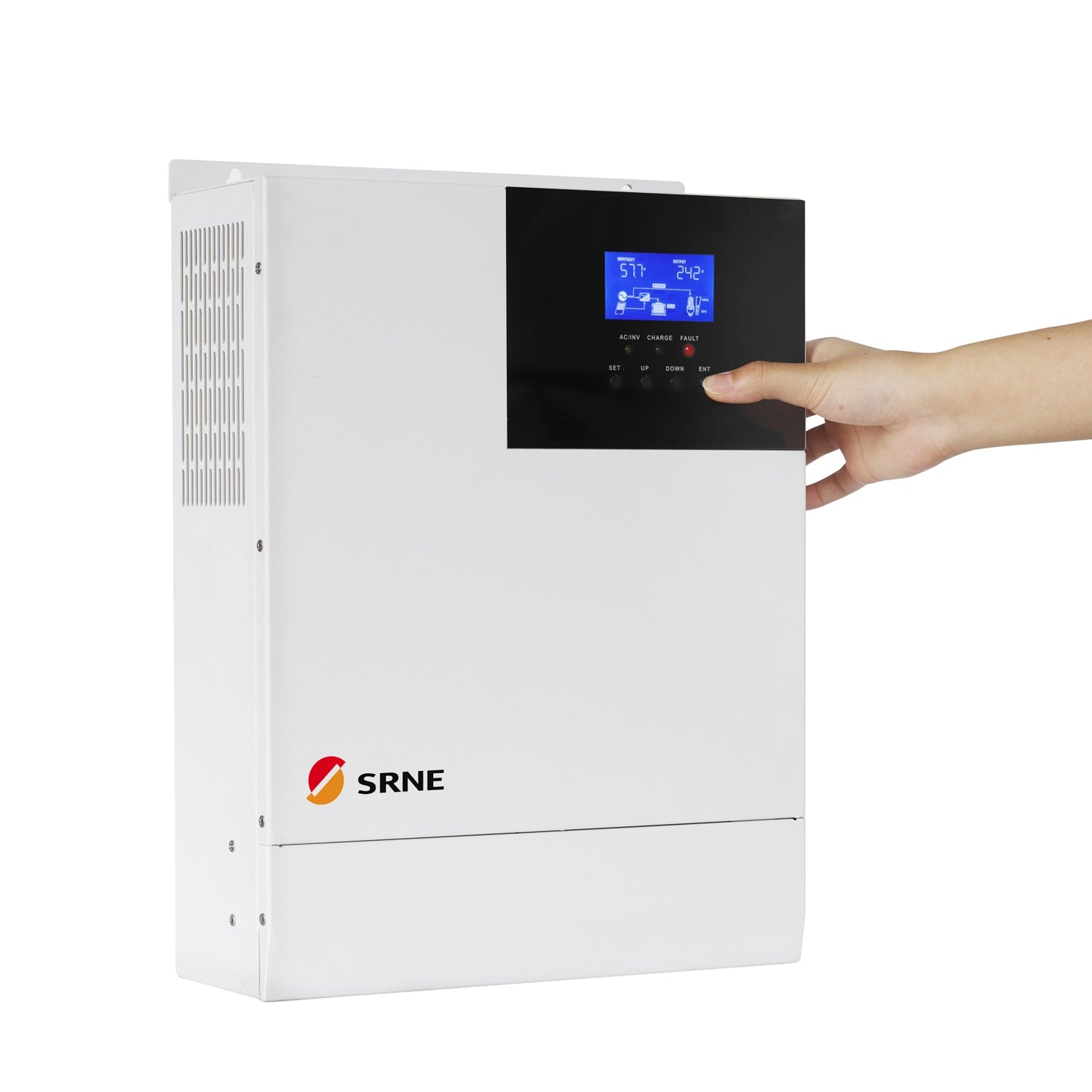

10.Designed with a LCD screen and 3 LED indicators for dynamic display of system data and
operating status.
11. Manual ON/OFF switch controlling AC output.
12.Power saving mode available to reduce empty load loss.
13. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
14. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and
lithium battery.

15.Complete protections, including short circuit protection, over voltage and under voltage
protection, overload protection, reverse protection, etc.


Overview:

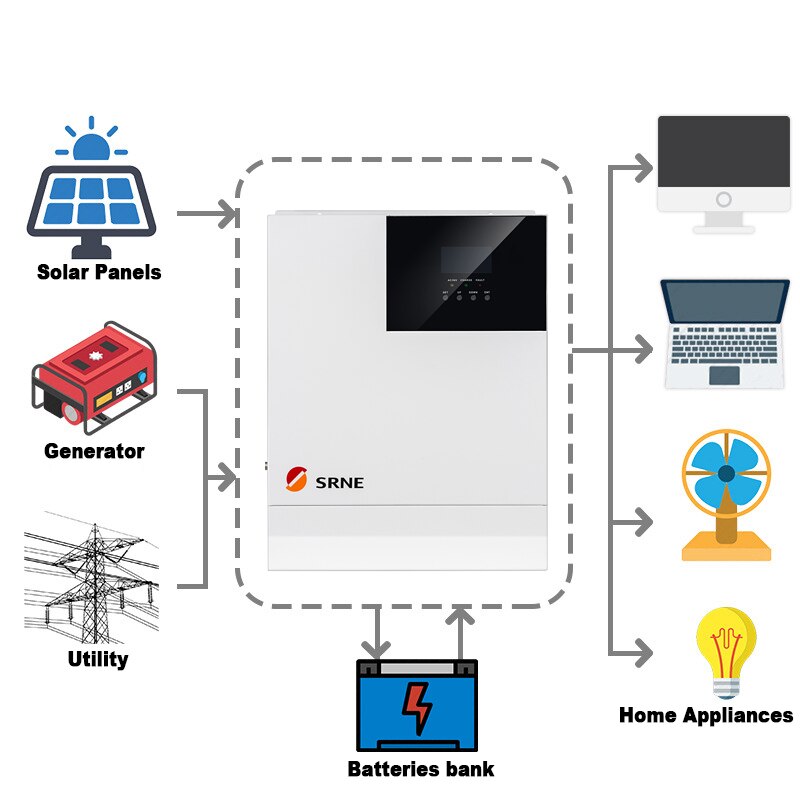

Hybrid inverter charges solar panels, batteries, and powers home appliances.

SRNE's hybrid inverter charges solar panels, batteries, and powers home appliances and utilities.

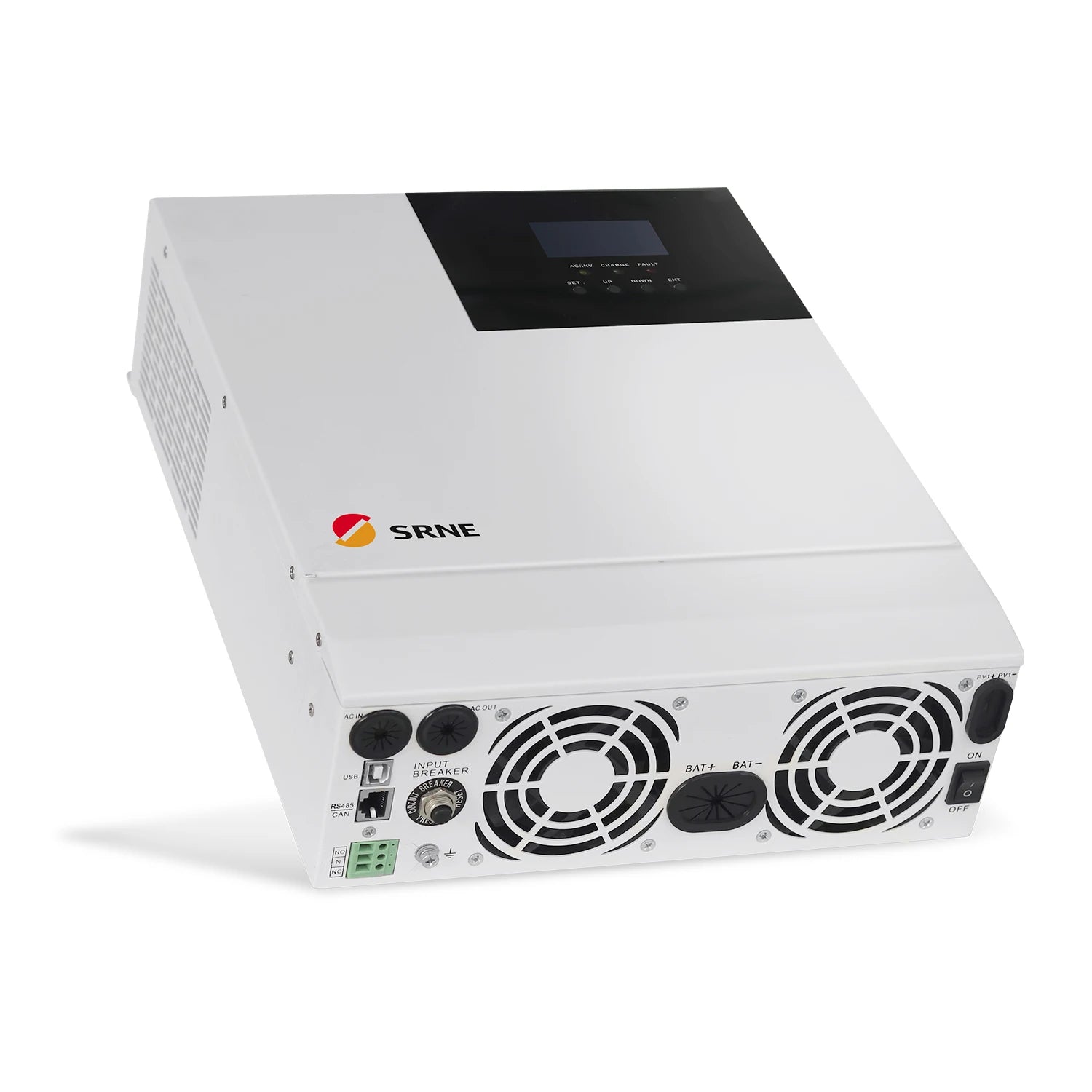

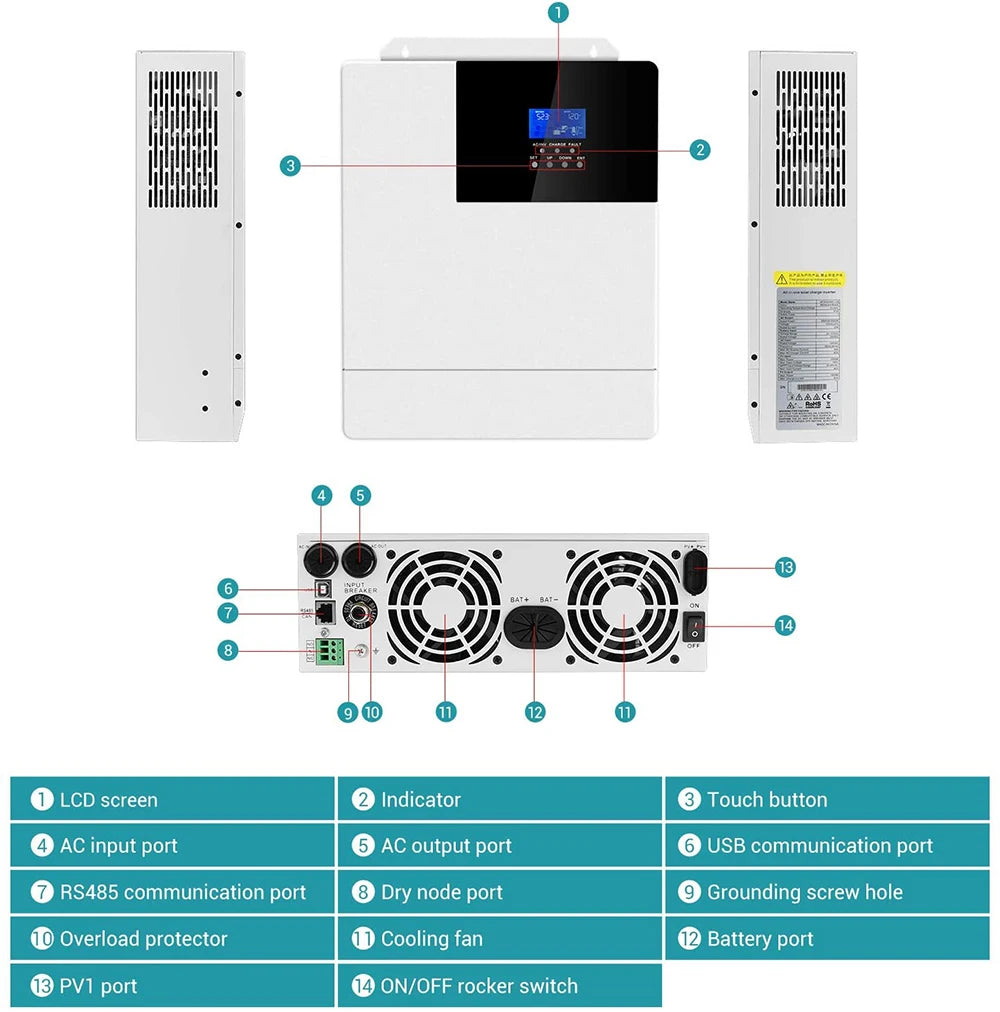

Inverter with LCD display, touch controls, and various connectors for power management and monitoring.

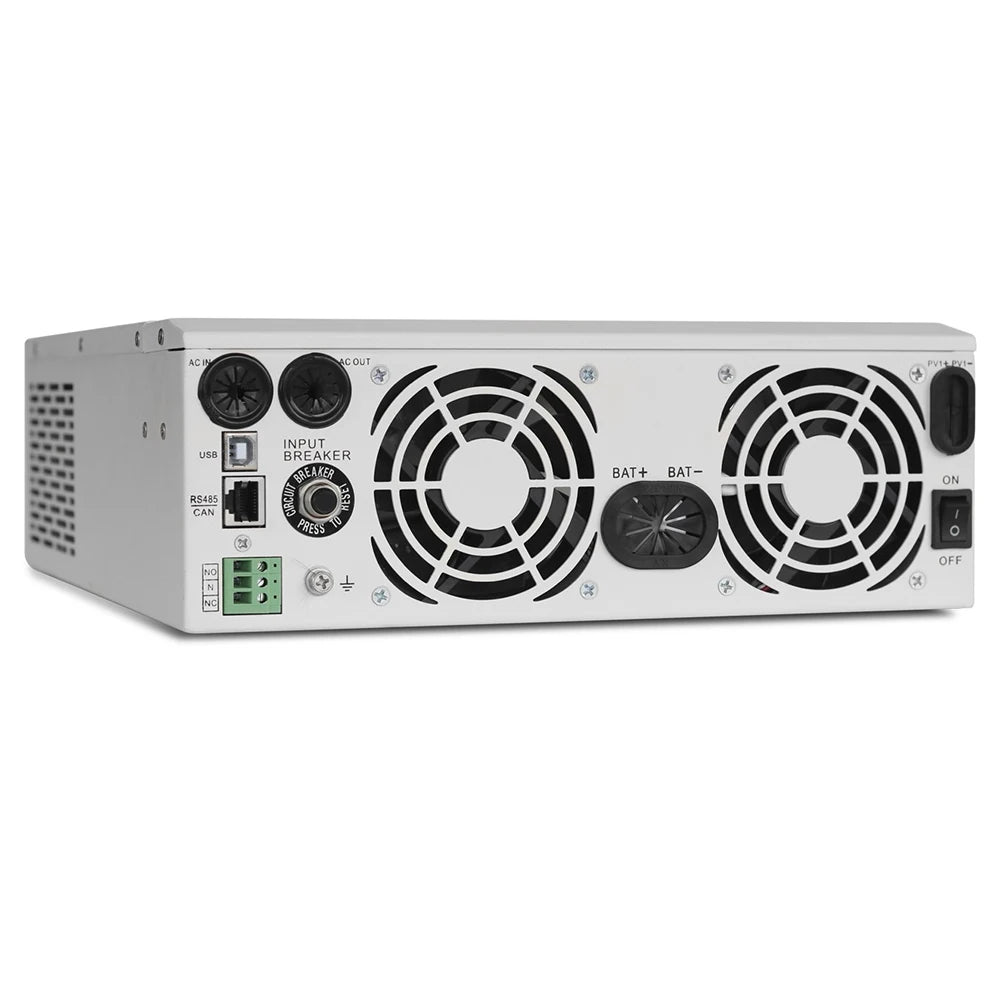

This inverter features an LCD display, touch buttons, and multiple ports for AC input/output, USB, RS485, and battery connectivity, with overload protection, cooling fans, and a grounding screw hole.


Sepecification:


Model

HF2430S60-100

HF2430U60-100

AC mode


Rated input voltage

220Vac/230Vac

110/120Vac

Input voltage range

(170Vac~280Vac) ±2%;(90Vac-280Vac) ±2%

(90Vac-140Vac) ±2%

Frequency

50Hz/ 60Hz (auto-sensing)

Frequency Range

47±0.3Hz-55±0.3Hz (50Hz)/57±0.3Hz-65±0.3Hz (60Hz);

Overload/short circuit protection

Circuit breaker

Efficiency

>95%

Conversion time (bypass and inverter)

10ms (Typical value)

AC reverse protection

yes

Maximum bypass overload current

30A

40A

Inverting mode


Output voltage waveform

Pure sine wave

Rated output power(VA)

3000

3000

Rated output power(W)

3000

3000

Power factor

1

Rated output voltage (Vac)

230VAC

120VAC

Output voltage error

±5%

Output frequency range (Hz)

50Hz ± 0.3Hz/60Hz ± 0.3Hz

Efficiency

>92%

Overload protection

(102%<load<110%) ±10%: reporting error and turn off the output after 5 minutes;                    (110%<load<125%) ±10%: reporting error and turn off the output after 10 seconds;
      Load>125% ±10%: reporting error and turn off the output after 5 seconds;

Peak power

6000VA

6000VA

Loaded motor capacity

2HP

2HP

Output short-circuit protection

Breaker

Specification of bypass breaker

40A

Rated battery input voltage

24V (minimum start voltage 22V)

Battery voltage range

Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage
recovery... settable on LCD screen)

Power saving mode

Load ≤50W

AC charge


Battery type

Lead acid or lithium battery

Maximum charge current

0-80A

0-40A

Charge current error

± 5Adc

Charge voltage range

20~33Vdc

Short-circuit protection

Breaker and blown fuse

Breaker specification

30A

40A

Overcharge protection

Alarm and turn off charging after 1 minute

Solar charge


Maximum PV opencircuit voltage

100Vdc

PV operation voltage range

30-100Vdc

MPPT voltage range

30-85Vdc

Battery voltage range

20 –33Vdc

Maximum output power

1400W

Charge current range of solar energy (settable)

0-60A

Charge short-circuit protection

Blown fuse

Wiring protection

Reverse polarity protection

Hybrid charging Max charger current specifications (AC charger+PV charger)

Max charger current(can be
set)

0-140A

0-100A

Authentication specification


Specification authentication

CE(IEC 62109-1)

EMC authentication grade

EN61000,C2

Operation temperature range

-15°C to 55°C

Storage temperature range

-25°C ~ 60°C

Humidity range

5% to 95% (Conformal coating protection)

Noise

≤60dB

Thermal dissipation

Forced cooling with adjustable air speed

Communication interface

USB/RS485 (WiFi/GPRS)/dry node control

Dimension (L*W*D)

378mm*280mm*103mm

Weight (kg)

6.2

6.8

Link

Click

Click

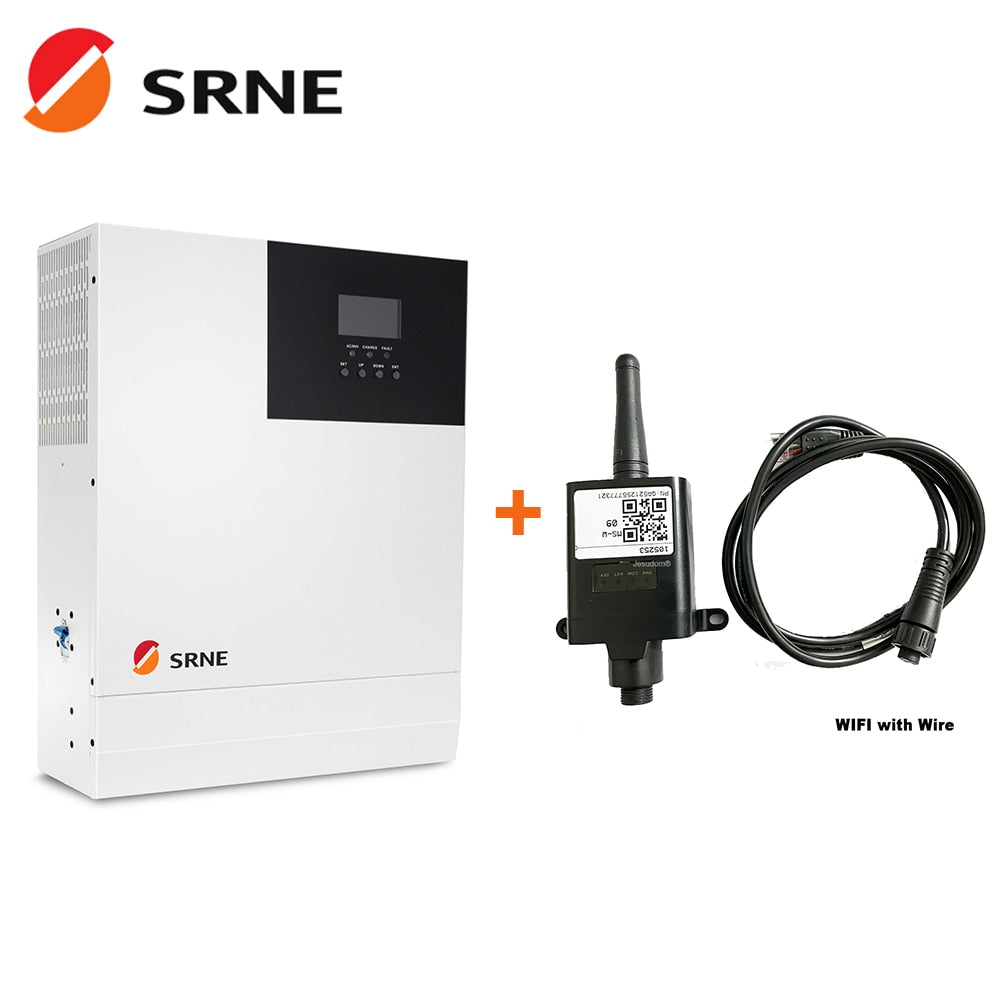

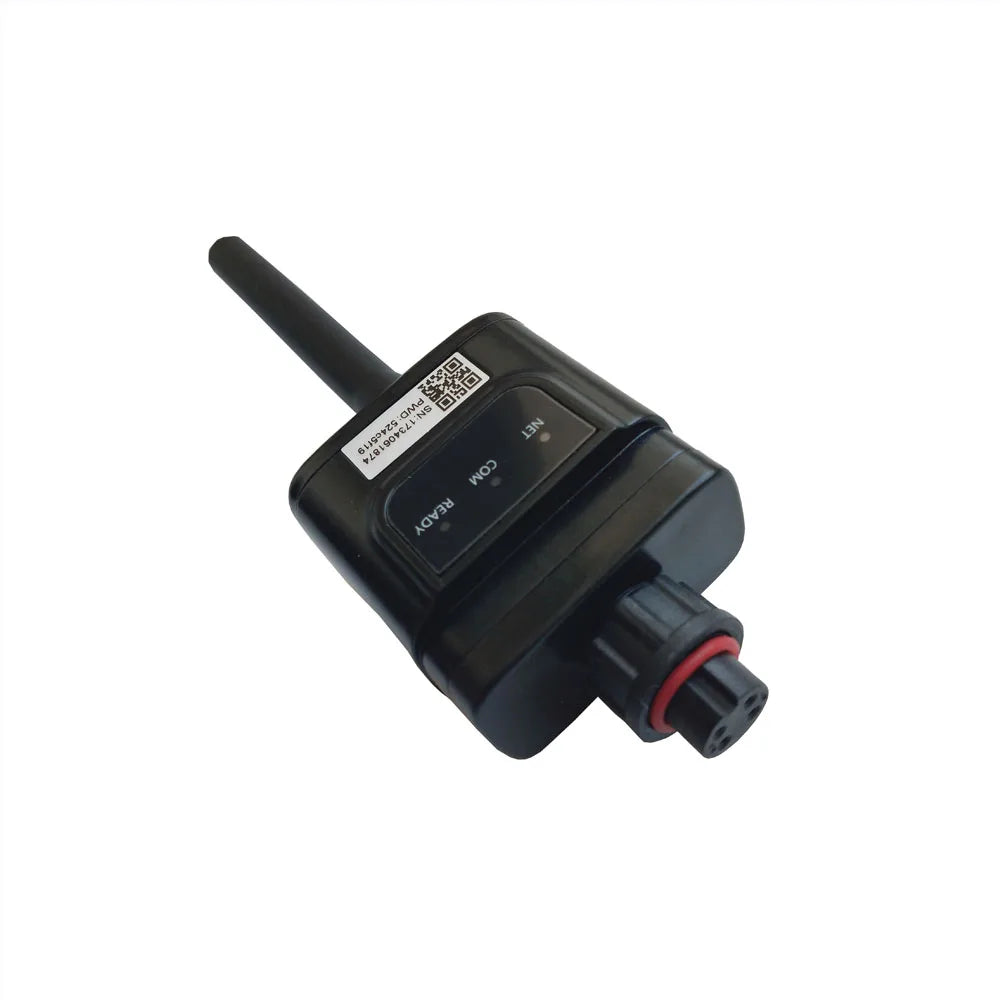

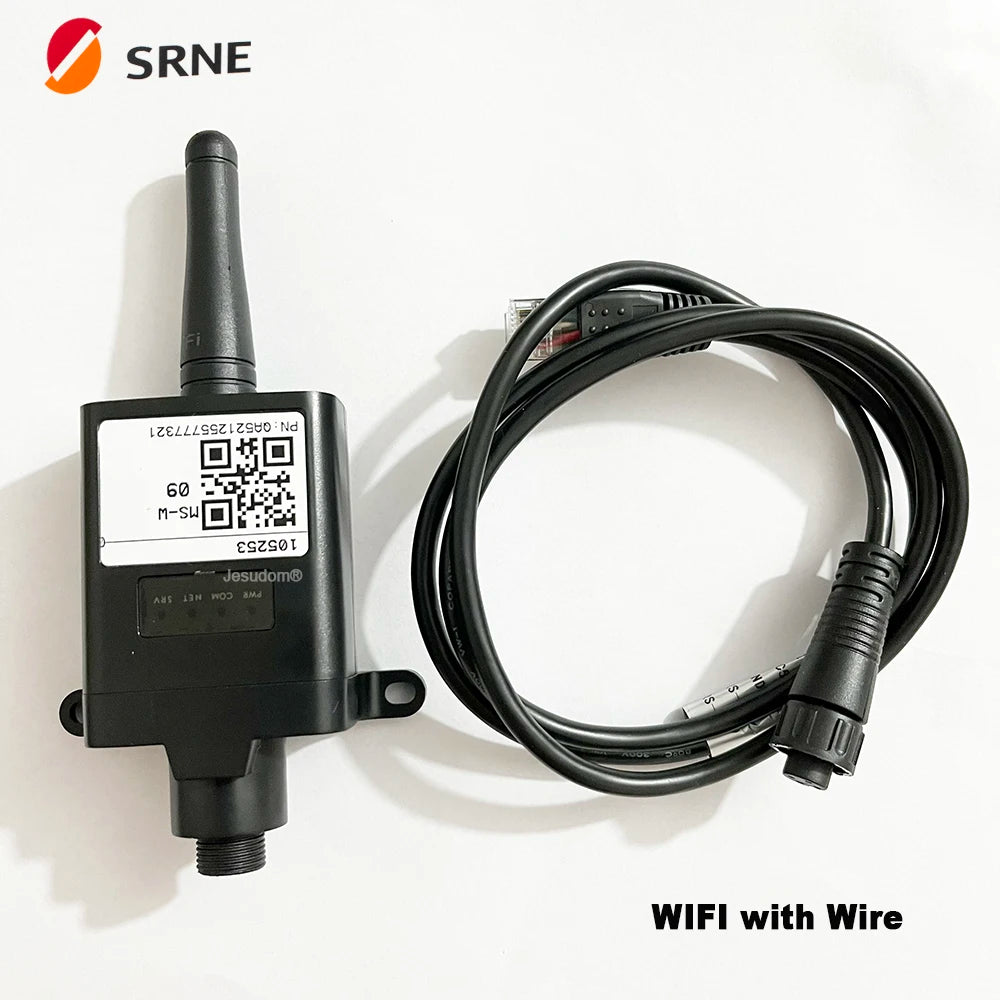

WIFI Module:

Off-grid hybrid inverter for solar charging with WiFi and wire connectivity.

SRNE 3000W off-grid hybrid inverter for solar charging, max PV input voltage 100VDC, supports WiFi and wire communication.

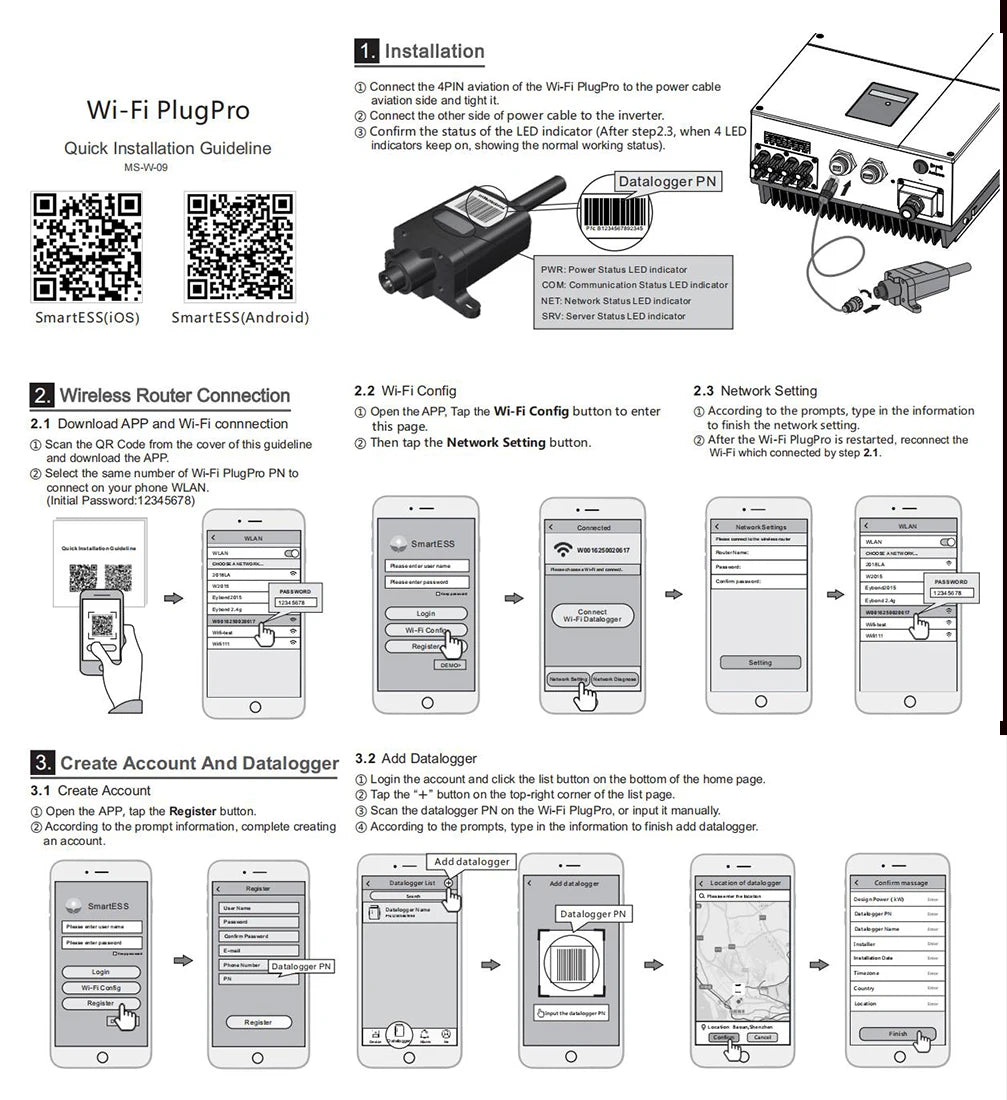

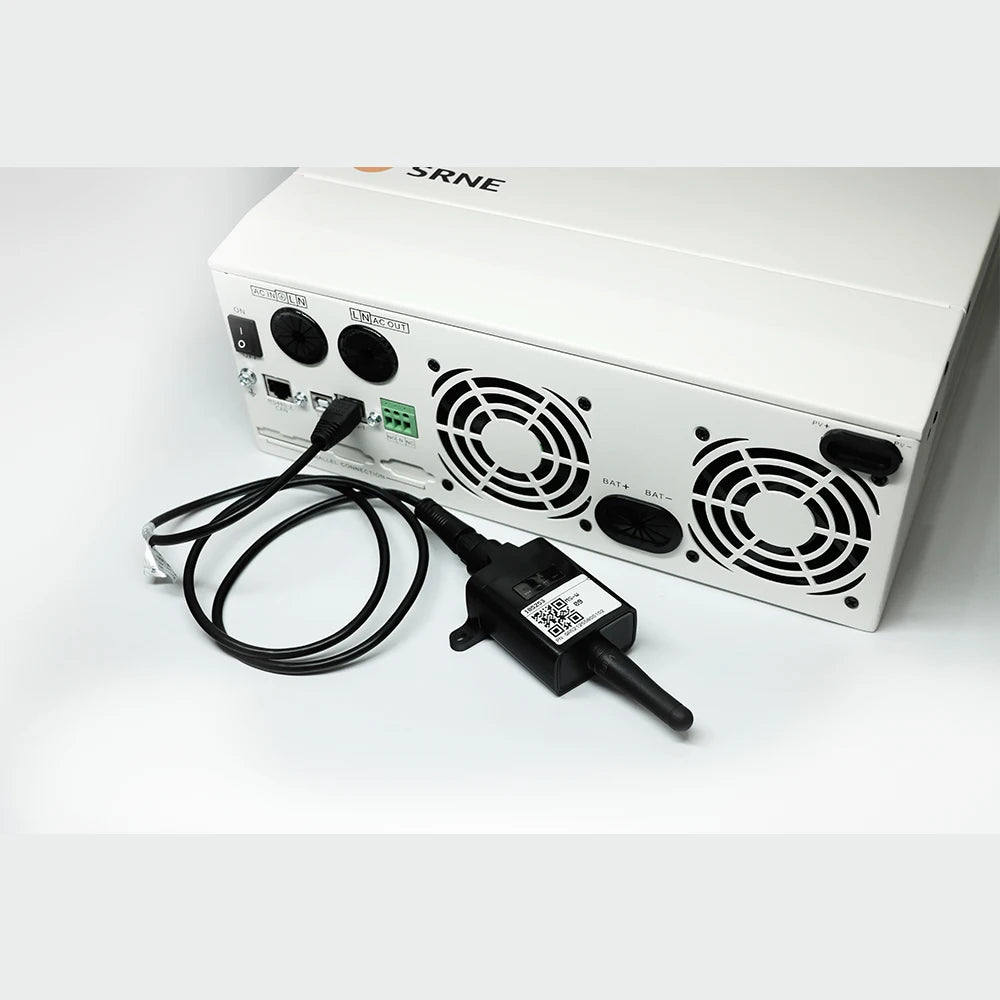

AC load stabilizer for home appliances, power tools, industrial gear, and audio/video devices.High-efficiency solar panel with MPPT technology, boasting an impressive 99.9% efficiency.Register




Item Pictures:

Four charging modes: Solar, Priority, Hybrid, and UtilityOff-grid hybrid inverter fault: unable to charge system due to low solar panel input voltage.

SRNE Off-Grid Hybrid Inverter Fault: Unable to Charge System Due to Low PV Input Voltage.

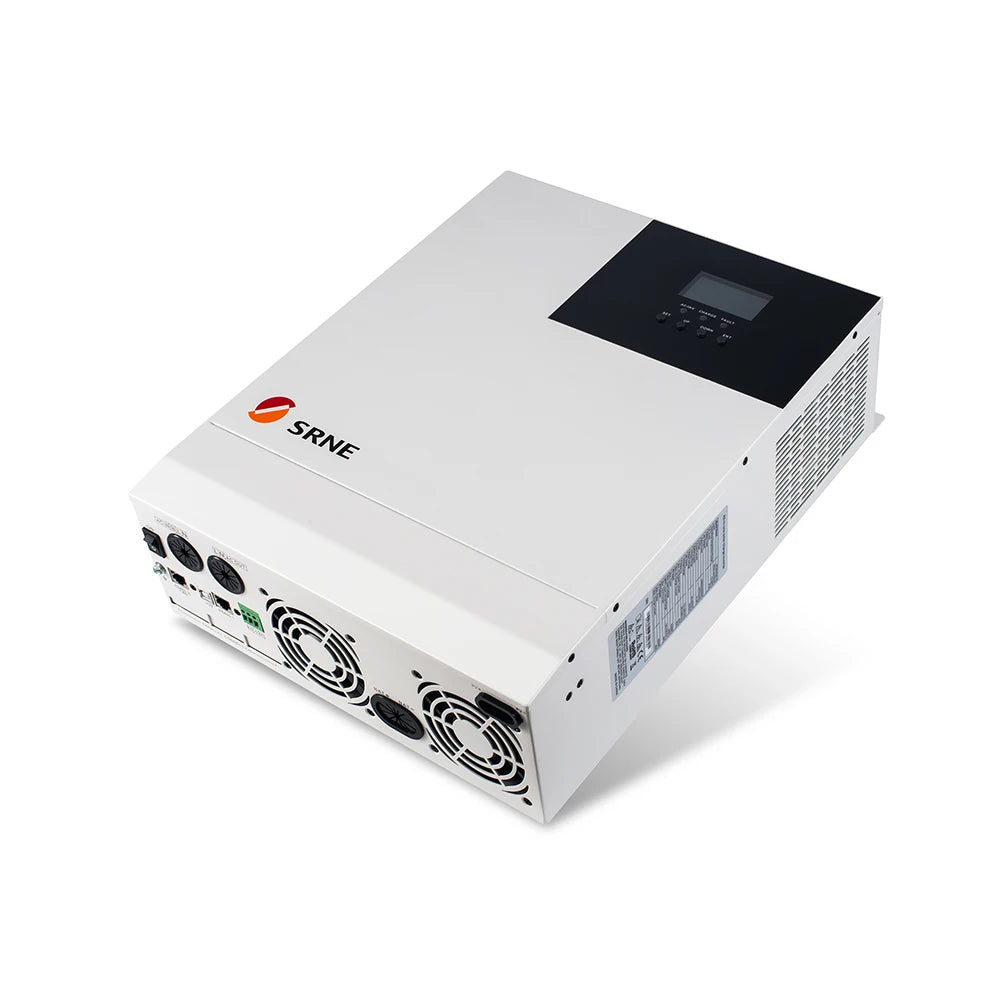

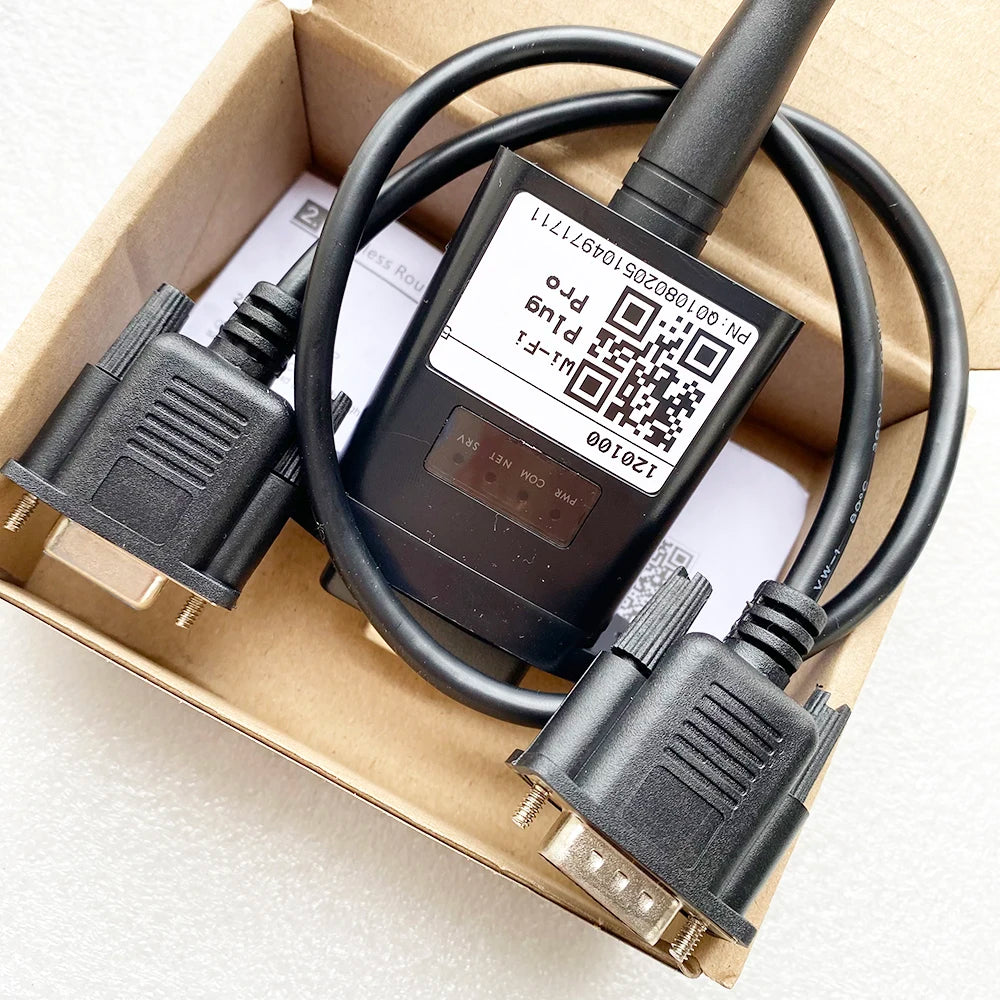

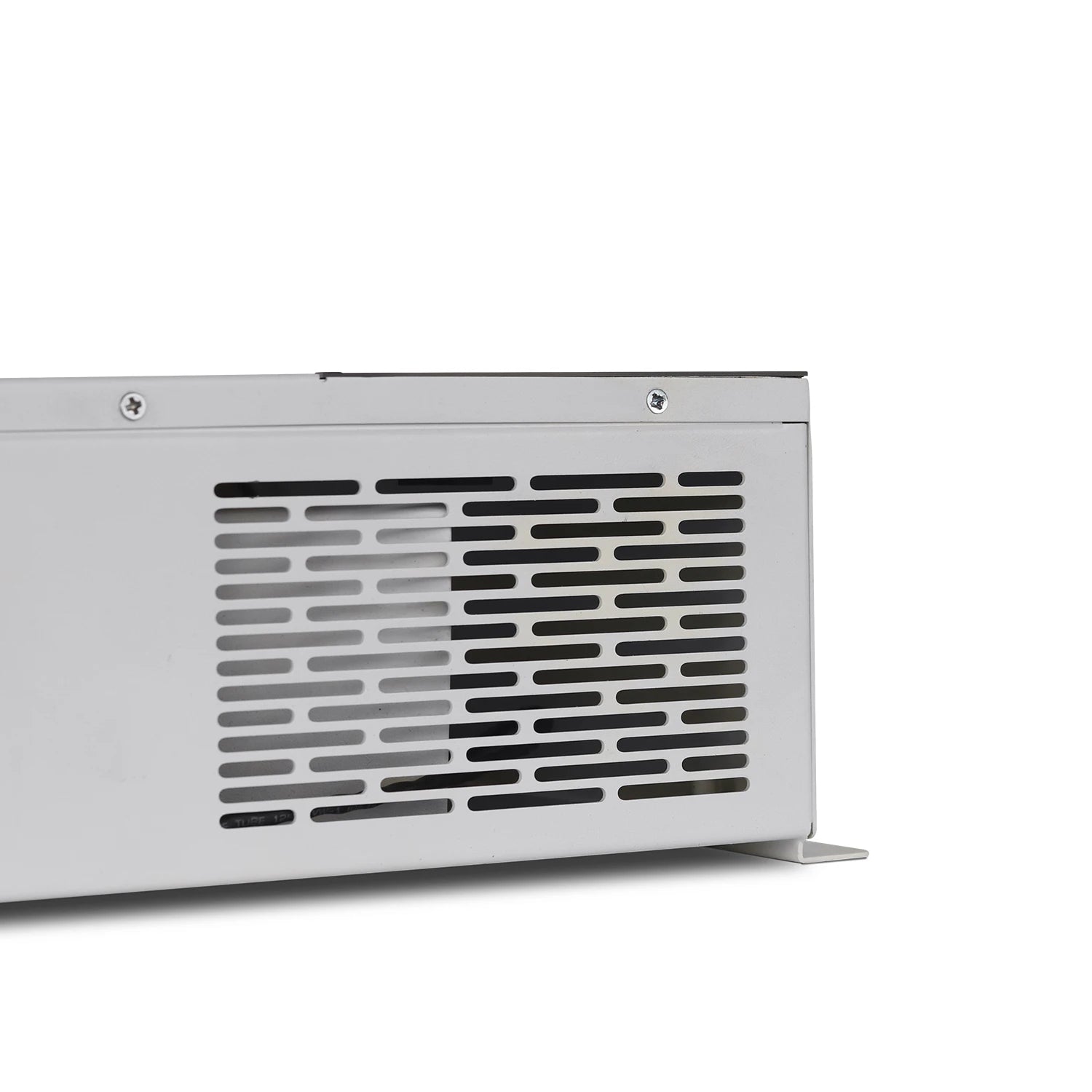

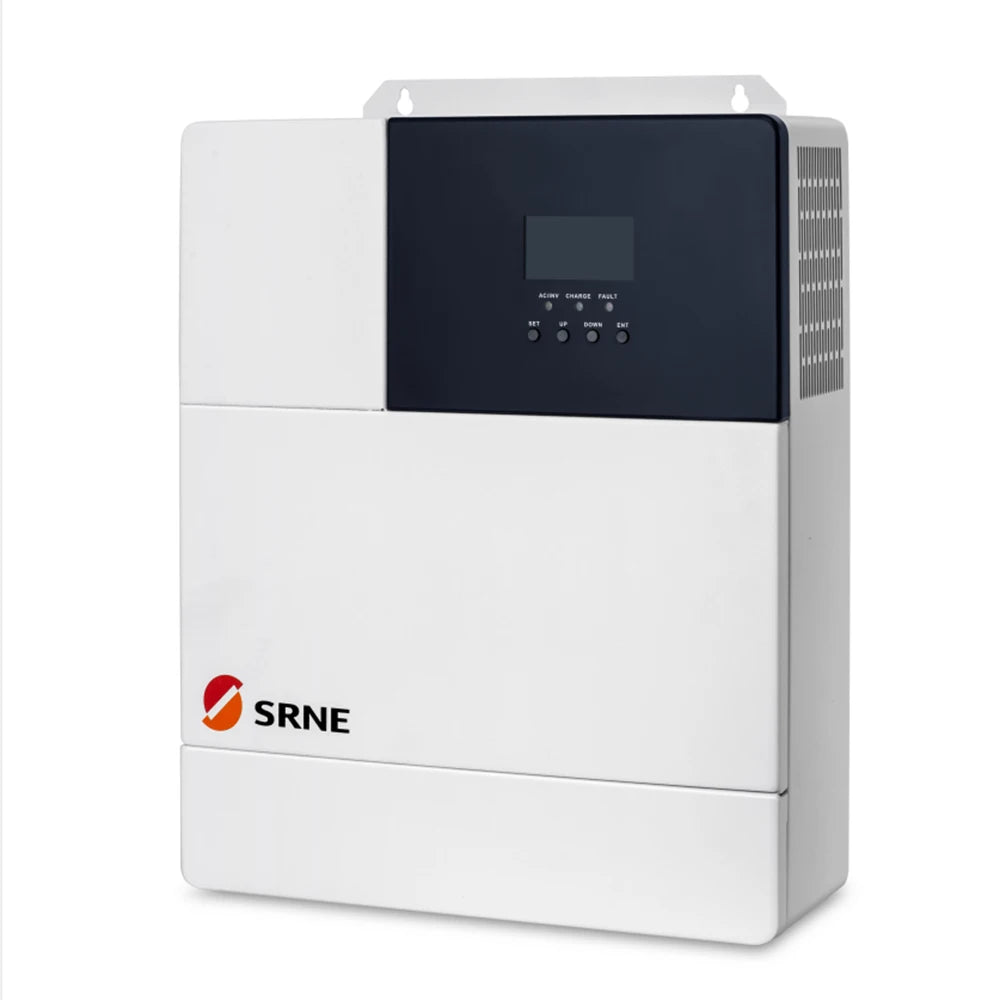

Ensure comprehensive electrical protections: short circuit, over/under voltage, overload, and reverse current protection.Off-grid hybrid inverter with pure sine wave, solar charging and max 60A output.Off-grid solar charger with pure sine wave inverter and 3000W power.Control Panel SwitchSmart fan to dissipate heat efficiently and prolong system life.Hybrid solar charger inverter with solar energy storage and AC output.Pure sine wave inverter for off-grid systems with 24V output, MPPT charging, and 100VDC maximum input.

SRNE 3000W pure sine wave inverter features 24V output, max PV input voltage of 100VDC, and supports off-grid hybrid system. It also includes an MPPT solar charger with 60A capacity.
