SRNE 5000W 48V Hybrid Inversor SPECIFICATIONS
is_customized: Yes
Wiring Protection: Reverse Polarity
Weight: 12KG
Waveform: Pure sine wave
Size: 486mm*408mm*201mm
Recommended PV Max: 500Vdc
Rated output power: 5000W
Rated input voltage: 110/120Vac
Rated Battery Voltage: 48V (minimum start-up voltage 44V)
Peak power: 7000VA
Overload / Short circuit Protection: Breaker
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz ± 0.3Hz/60Hz ± 0.3Hz
Output Current: 80A
Output AC Voltage: 120Vac(100/105/110Vac Settable)
Origin: Mainland China
Model Number: HF4850U80-H
Maximum Charging Current (AC): 40A
Is Smart Device: YES
IP Grade: IP 20
Feature2: Solar Hybird Inverter
Feature1: Support Wifi Module
Efficiency: >95%
Certification: CE,RoHS
Battery type: Lead Acid or Lithium
SRNE 5000W 48V Hybrid Inversor Built-in 80A MPPT Solar Charger 110-120Vac PV 500VDC 50Hz/ 60Hz 40A Battey Charger Support WIFI Module HF4850U80-H
Note :The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
Introduction：
1、HF series is a new hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrialstandard. Four charging modes are optional,i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available,i.e. Inverter and Mains, to meet different application requirements. The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time.
2、Through a state of the art control algorithm, the AC-DC charging module realizes fully digitalvoltage and current double closed loop control, with high control precision in a small volume.
3、Wide AC voltage input range and complete input/output protections are designed for stable and reliable battery charging and protection.
4、Based on full-digital intelligent design, the DC-AC inverter module employs advanced SPWM technology and outputs pure sine wave to convert DC into AC. It is ideal for AC loads such as household appliances, power tools, industrial equipment, and electronic audio and video equipment. The product comes with a segment LCD display design whichlallows real-time display of the operating data and status of the system. Comprehensive electronic protections keep the entire system safer and more stable.
Feature：
1.Full digital voltage and current double closed loop control, advanced SPWM technology,
output of pure sine wave.
2.Two output modes: mains bypass and inverter output; uninterrupted power supply.
3. Available in 4 charging modes: Only Solar, Utility Priority, PV Priority, Utility & Solar hybrid
charging.
4. Advanced MPPT technology with an efficiency of 99.9%.
5.Designed with a LCD screen and 3 LED indicators for dynamic display of system data and
operating status.
6. Manual ON/OFF switch controlling AC output.
7.Power saving mode available to reduce empty load loss.
8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
9. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and
lithium battery.
10.Complete protections, including short circuit protection, over voltage and under voltage
protection, overload protection, reverse protection, etc.
Overview：

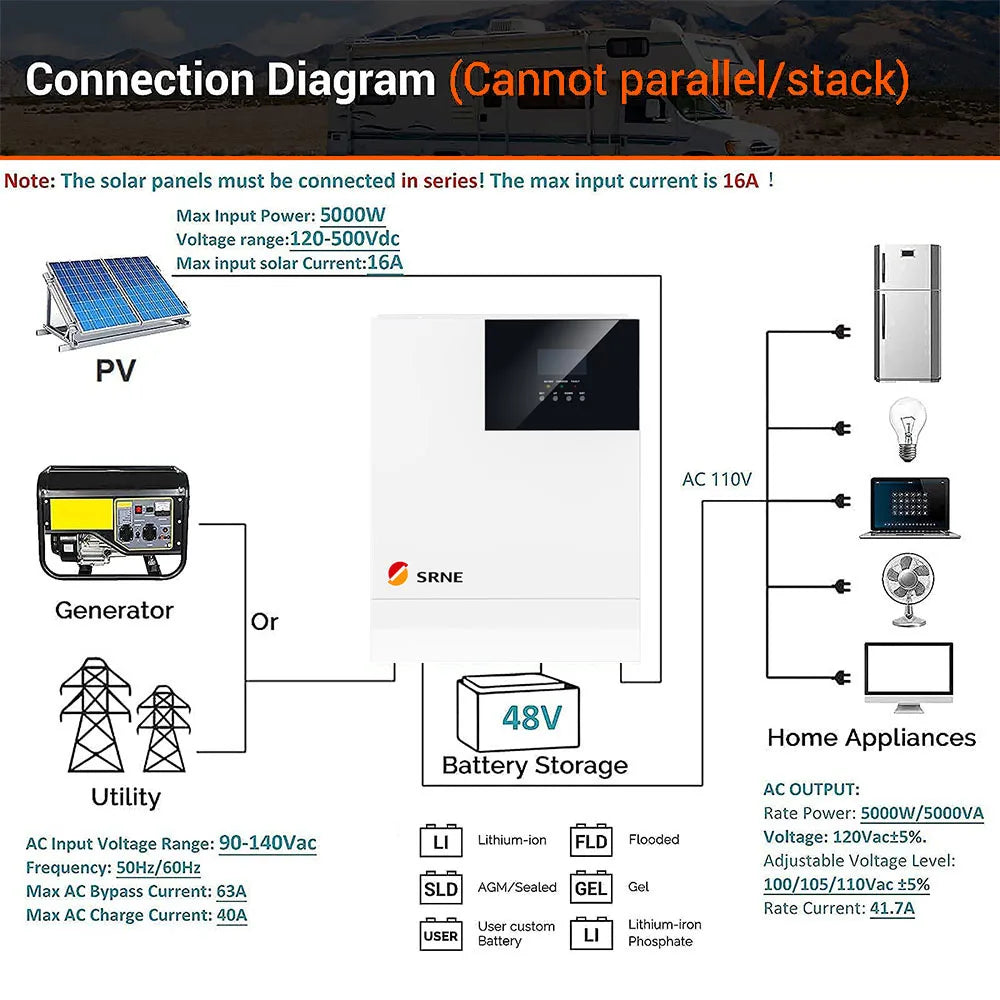

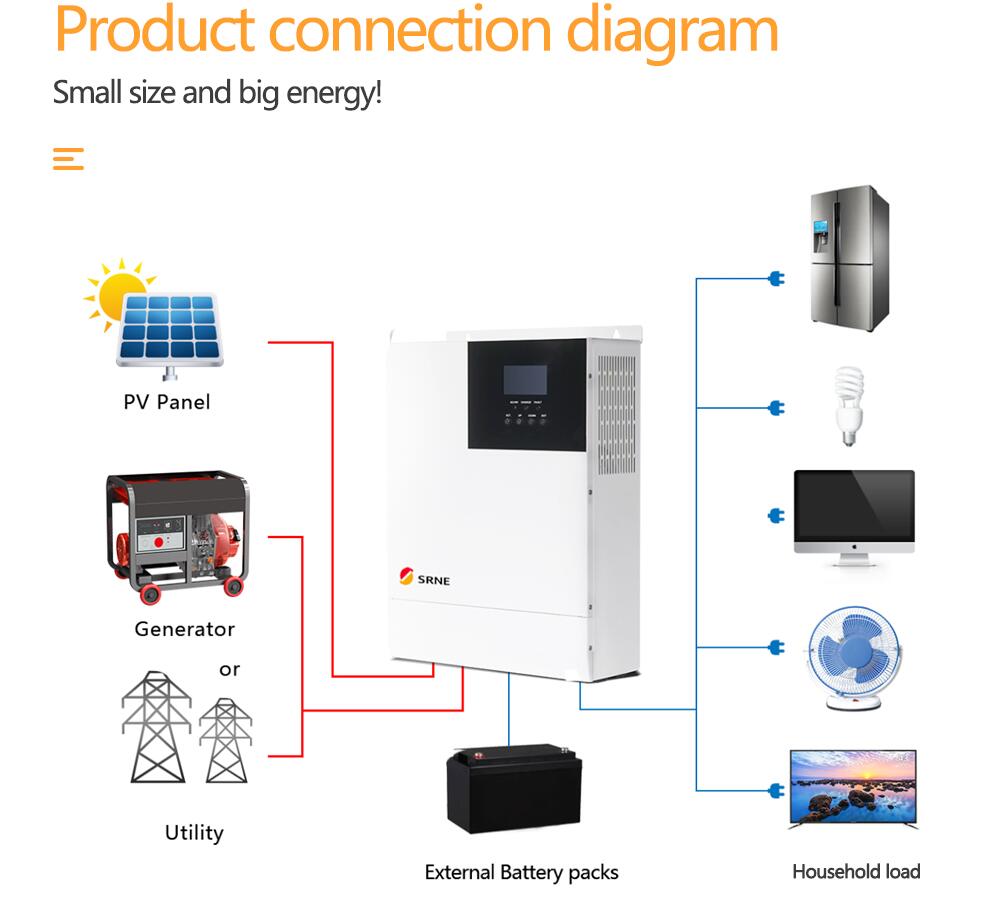

Compact system connects to solar panels, generator, utility grid, or battery packs, powering household loads.
SRNE's 5000W hybrid inverter converts 48V DC to 110Vac AC with a built-in MPPT solar charger and supports up to 80A battery charging. It features advanced SPWM technology, pure sine wave output, and full digital voltage and current control. Maximum input is 16A, and the utility charge current is 40A.

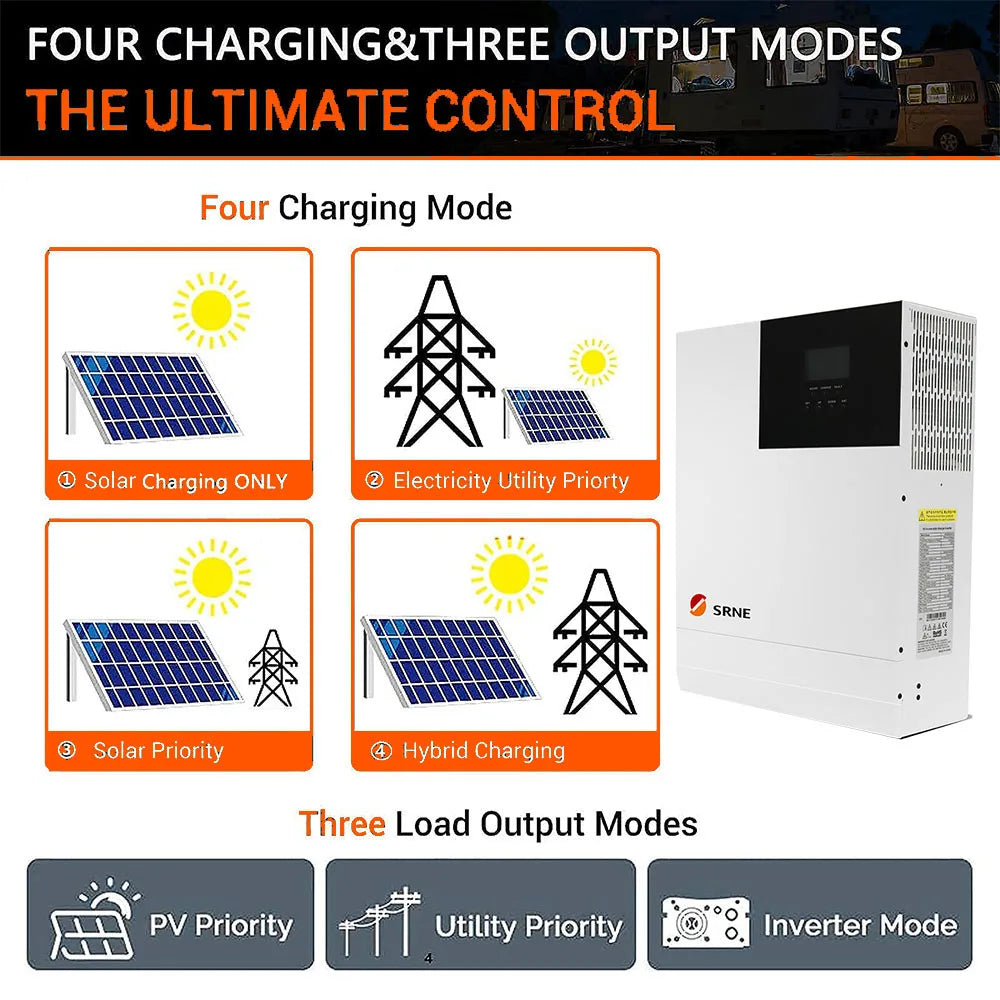

Control four charging modes and three output modes with the SRNE 5000W. Features include solar priority, utility priority, and hybrid charging, as well as inverter mode for flexible power use.

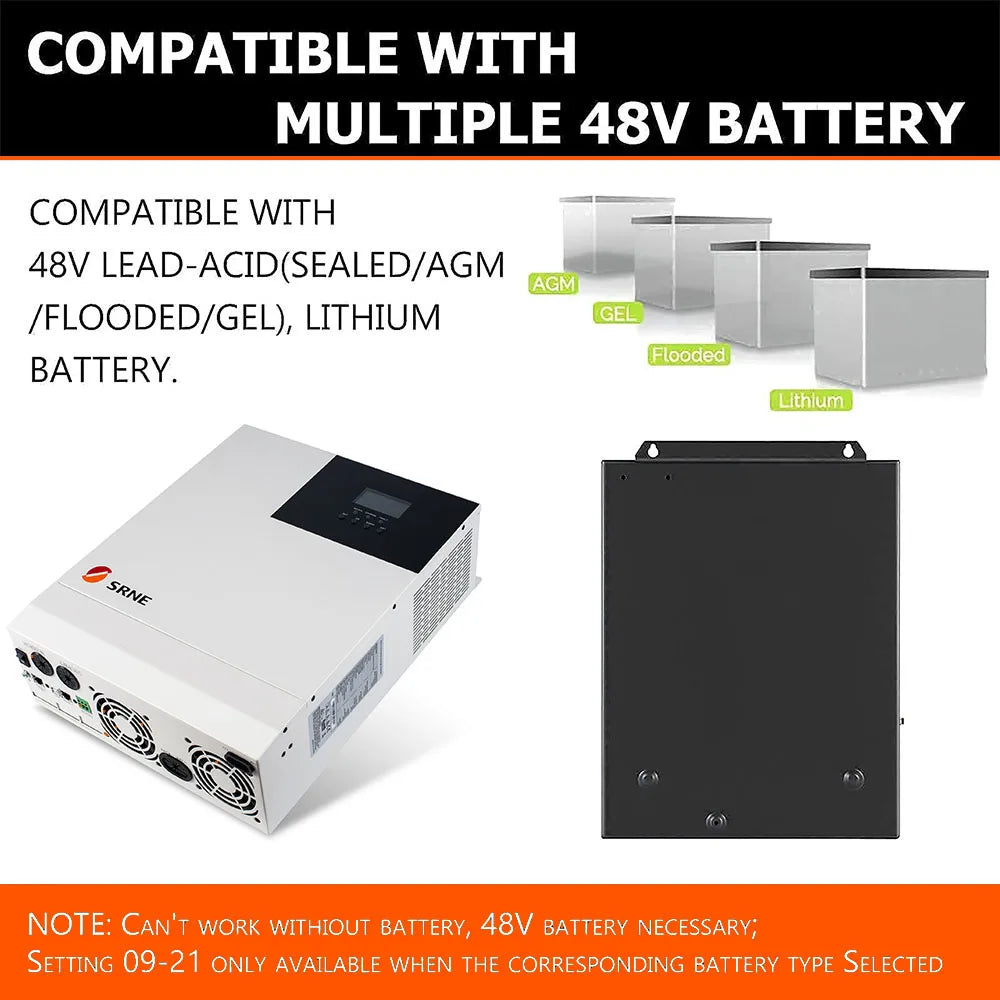

This product is compatible with multiple 48V battery types, including lead-acid (sealed, AGM, flooded, or gel) and lithium batteries. Note: This device requires a 48V battery to function and will not work without one. The setting option '09-21' is only available when the corresponding battery type is selected.
Sepecification：
|
Model |
HF4835U60-H |
HF4850U80-H |
|
AC mode |
|
|
|
Rated input voltage |
110Vac/120Vac |
|
|
Input voltage range |
(90Vac-140Vac) ±2% |
|
|
Frequency |
50Hz/ 60Hz (auto-sensing) |
|
|
Frequency Range |
47±0.3Hz-55±0.3Hz (50Hz)/57±0.3Hz-65±0.3Hz (60Hz); |
|
|
Overload/short circuit protection |
Breaker |
|
|
Efficiency |
>95% |
|
|
Conversion time (bypass and inverter) |
10ms (Typical value) |
|
|
AC reverse protection |
Yes |
|
|
Maximum bypass overload current |
40A |
63A |
|
Inverting mode |
|
|
|
Output voltage waveform |
Pure sine wave |
|
|
Rated output power(VA) |
3500(2900/3000/3200) |
5000(4100/4300/4500) |
|
Rated output power(W) |
3500(2900/3000/3200) |
5000(4100/4300/4500) |
|
Power factor |
1 |
|
|
Rated output voltage (Vac) |
120Vac(100/105/110Vac settable) |
|
|
Output voltage error |
±5% |
|
|
Output frequency range (Hz) |
50Hz ± 0.3Hz/60Hz ± 0.3Hz |
|
|
Efficiency |
>90% |
|
|
Overload protection |
(102%<load<110%) ±10%: reporting error and turn off the output after 5 minutes; (110%<load<125%) ±10%: reporting error and turn off the output after 10 seconds; |
|
|
Peak power |
7000VA |
10000VA |
|
Loaded motor capacity |
2HP |
4HP |
|
Output short-circuit protection |
Breaker |
|
|
Specification of bypass breaker |
40A |
63A |
|
Rated battery input voltage |
48V (minimum start voltage 44V) |
|
|
Battery voltage range |
40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm/turnoff voltage/overvoltage alarm/overvoltage restoration…settable LCD screen) |
|
|
Power saving mode |
Load ≤50W |
|
|
AC charge |
|
|
|
Battery type |
Lead acid or lithium battery |
|
|
Maximum charge current |
40A |
|
|
Charge current error |
± 5Adc |
|
|
Charge voltage range |
40~60Vdc |
|
|
Short-circuit protection |
Breaker and blown fuse |
|
|
Breaker specification |
40A |
63A |
|
Overcharge protection |
Turn off charge after 1min alarm |
|
|
Solar charge |
|
|
|
Maximum PV opencircuit voltage |
450Vdc |
500Vdc |
|
PV operation voltage range |
120-450Vdc |
120-500Vdc |
|
MPPT voltage range |
120-430Vdc |
120-450Vdc |
|
Battery voltage range |
40-60Vdc |
|
|
Maximum output power |
4200W |
5000W |
|
Charge current range of solar energy (settable) |
0-60A |
0-80A |
|
Charge short-circuit protection |
Blown fuse |
|
|
Wiring protection |
Inverse wiring protection |
|
|
Authentication specification |
|
|
|
Specification authentication |
CE(IEC 62109-1)/CETL(UL 1741/CSA C22.2 NO.107.1) |
|
|
EMC authentication grade |
EN61000 |
|
|
Operation temperature range |
-15°C to 55°C |
|
|
Storage temperature range |
-25°C ~ 60°C |
|
|
Humidity range |
5% to 95% (Conformal coating protection) |
|
|
Noise |
≤60dB |
|
|
Thermal dissipation |
Forced cooling with adjustable air speed |
|
|
Communication interface |
USB/RS485 (WiFi/GPRS)/dry node control |
|
|
Dimension (L*W*D) |
426mm*322mm*126mm |
|
|
Weight (kg) |
10.9 |
11.6 |
|
Link |
Click |
Click |

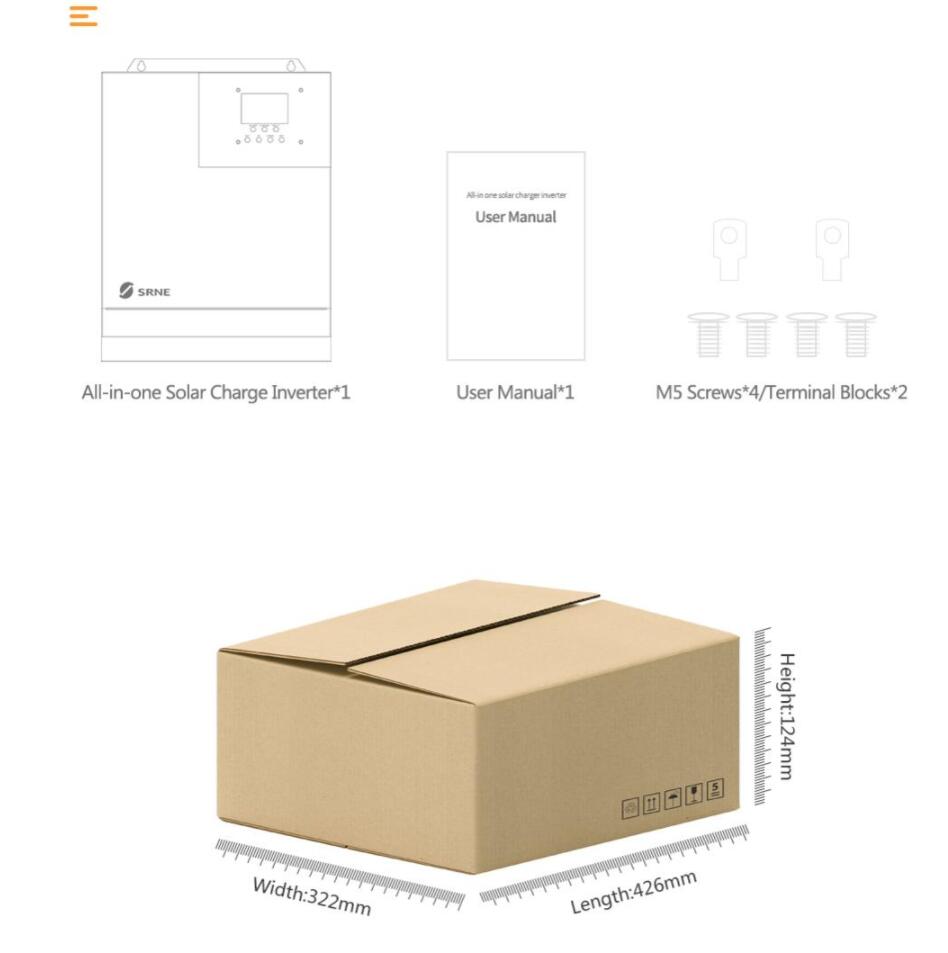

Package Include：
·All-in-one Solar Charge Inverter*1
·User Manual *1
·M5 Screws *4
·Terminal Blocks *2
Item Pictures：
Fault set for AC/DC inversion. SRNE charge indicator indicates fault.
Indoor Use Only: This all-in-one solar charger inverter, SRNE 5000W, is not suitable for outdoor use. Follow safety guidelines to avoid overheating, electrical shock, and fire hazards. CAUTION: Made in China. Please follow instructions for safe usage and maintenance.

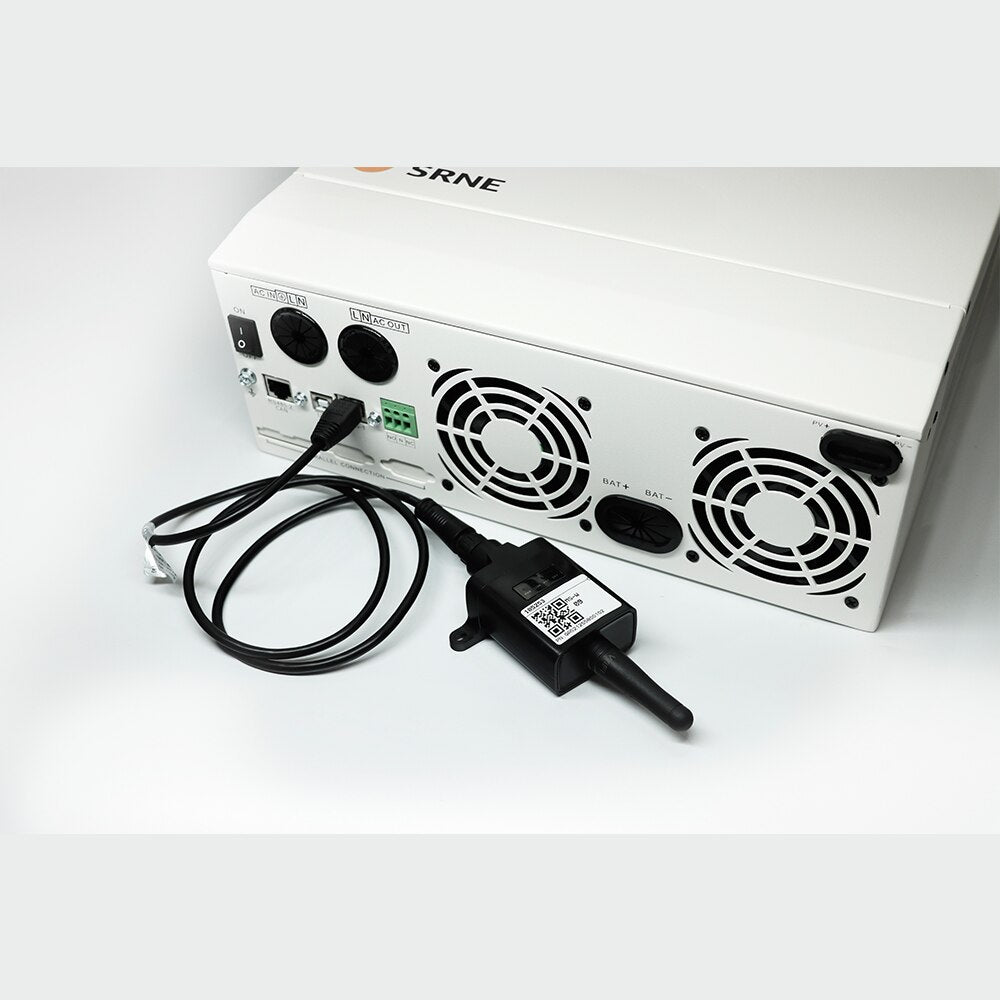

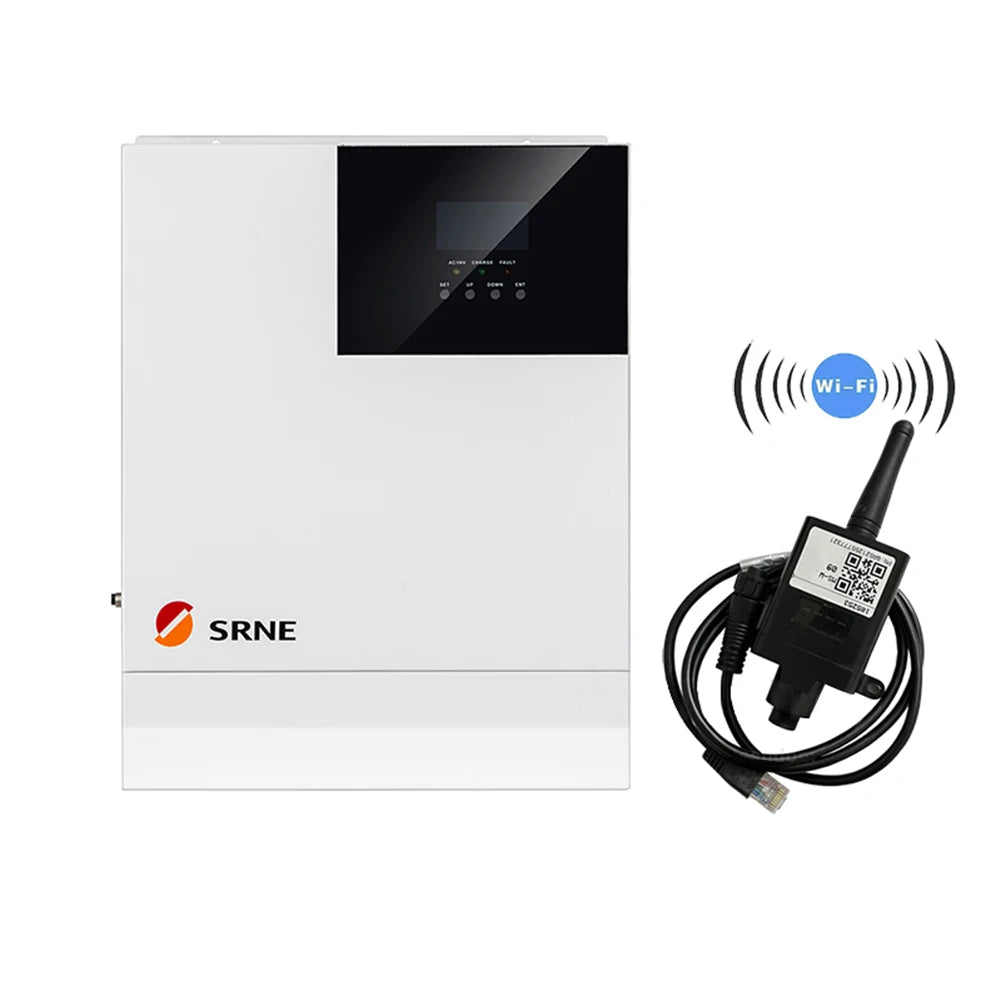

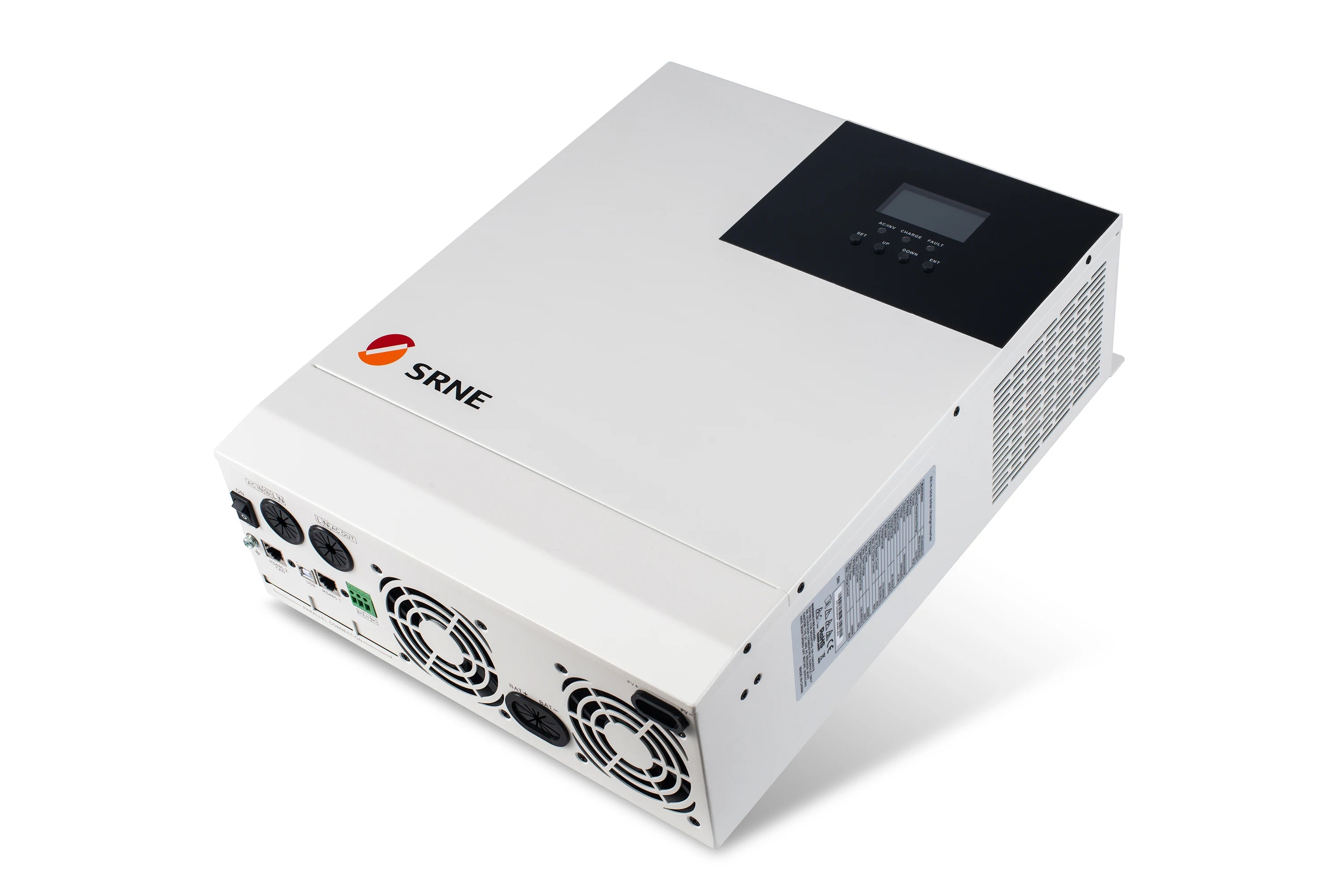

Srnoe 5000w hybrid inverter with built-in MPPT solar charger. Supports 48V DC input and output. Includes Wi-Fi connectivity.

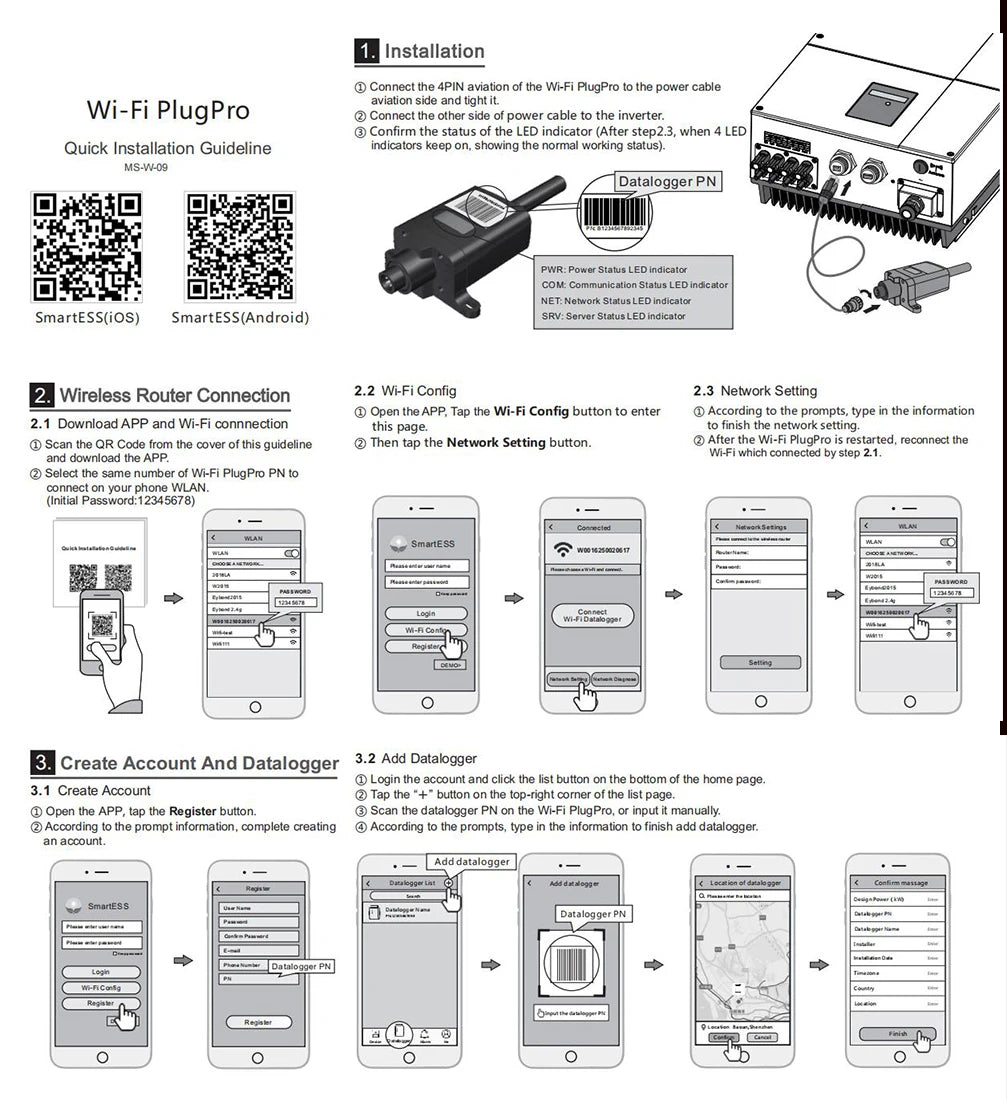

SRNE 5000W Hybrid Inverter user manual: A comprehensive guide to the 48V, 80A MPPT solar charger with built-in battery charger and support for Wi-Fi connectivity. Product dimensions: 426mm x 322mm.
