SRNE 8/10KW Max PV 500V 48V To 110/240VAC Hybrid Solar Inverter Suppor Split-phase/single-phase Dual MPPT Max 22A Charge Current
SRNE 8/10KW Max PV 500V 48V To 110/240VAC Hybrid Solar Inverter Suppor Split-phase/single-phase Dual MPPT Max 22A Charge Current
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 29KG
Warranty: 2 Years
Type: DC/AC Inverters
Type: mppt solar inversor
Size: 620*435*130mm
Rated Output Voltage: 120/240Vac(split phase/single phase)
Rated Output Power: 8000W/10000W
Product Name: SRNE hybrid solar inverter
Output Voltage Waveform: Pure Sine Wave
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ/60HZ
Output Current: MPPT 200A Dual
Origin: Mainland China
Num. of MPP Trackers: 2
Model Number: ASF4880U180-H/ASF48100U200-H
Max.Voltage of Open Circuit: 500VDC
Max.Peak Power: 16000W/20000W
Max.PV array power: 11,000W
Max.MPPT Charging Current: 180A/200A
Feature6: Time-slot Setting Function
Feature5: Support Wifi Function
Feature4: 8000W/16000W solar inverter
Feature3: off-grid solar inverter hybrid
Feature2: inversor 48v 110v
Feature1: SRNE hybrid inverter
Cooling Method: Internal Fan
Certification: CE,RoHS
Brand Name: SRNE
Battery type: Li-ion / Lead-Acid / User Defined
Battery Voltage: 48V

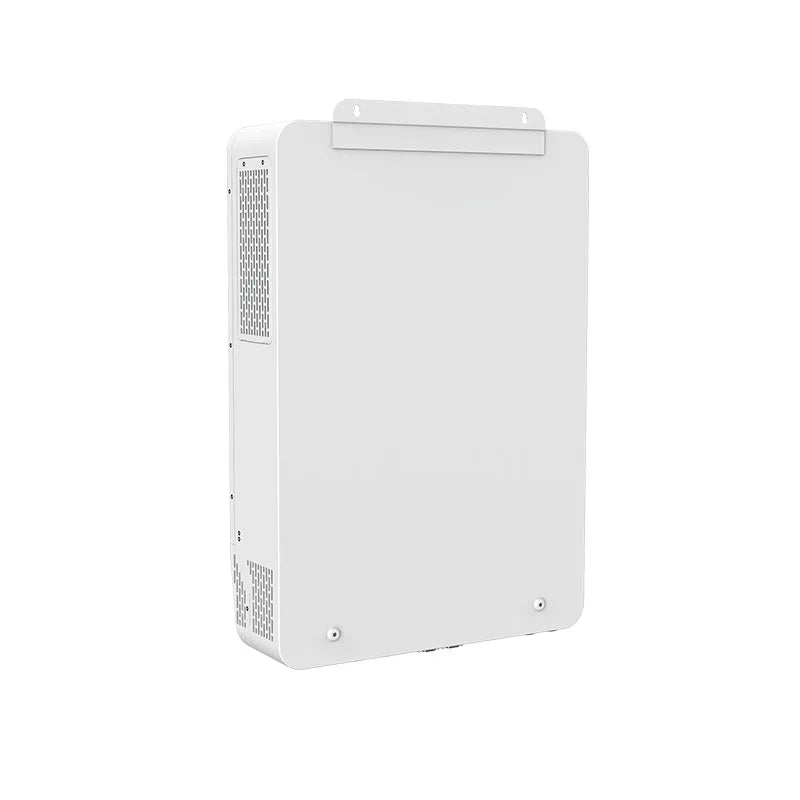

SRNE 8/10KW Max PV 500V 48V To 110/240VAC Hybrid Solar Inverter Support Split-phase/single-phase Dual MPPT Max 22A Charge Current ASF4880U180-H/ASF48100U200-H
SRNE's Best Quality ASF Series AII-in-One Solar Charger Inverter features 120/200V output, 8-10kW max power, and supports split-phase/single-phase systems. It also includes dual MPPTs with a maximum charge current of 22A.
Note :
The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
Introduction:
ASF series is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility
charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed, reliability, and industrial standard through an advanced control algorithm.
Features:
• Supports lead acid battery and li-ion battery connections.
• With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply
access can trigger the activation of the li-ion battery.

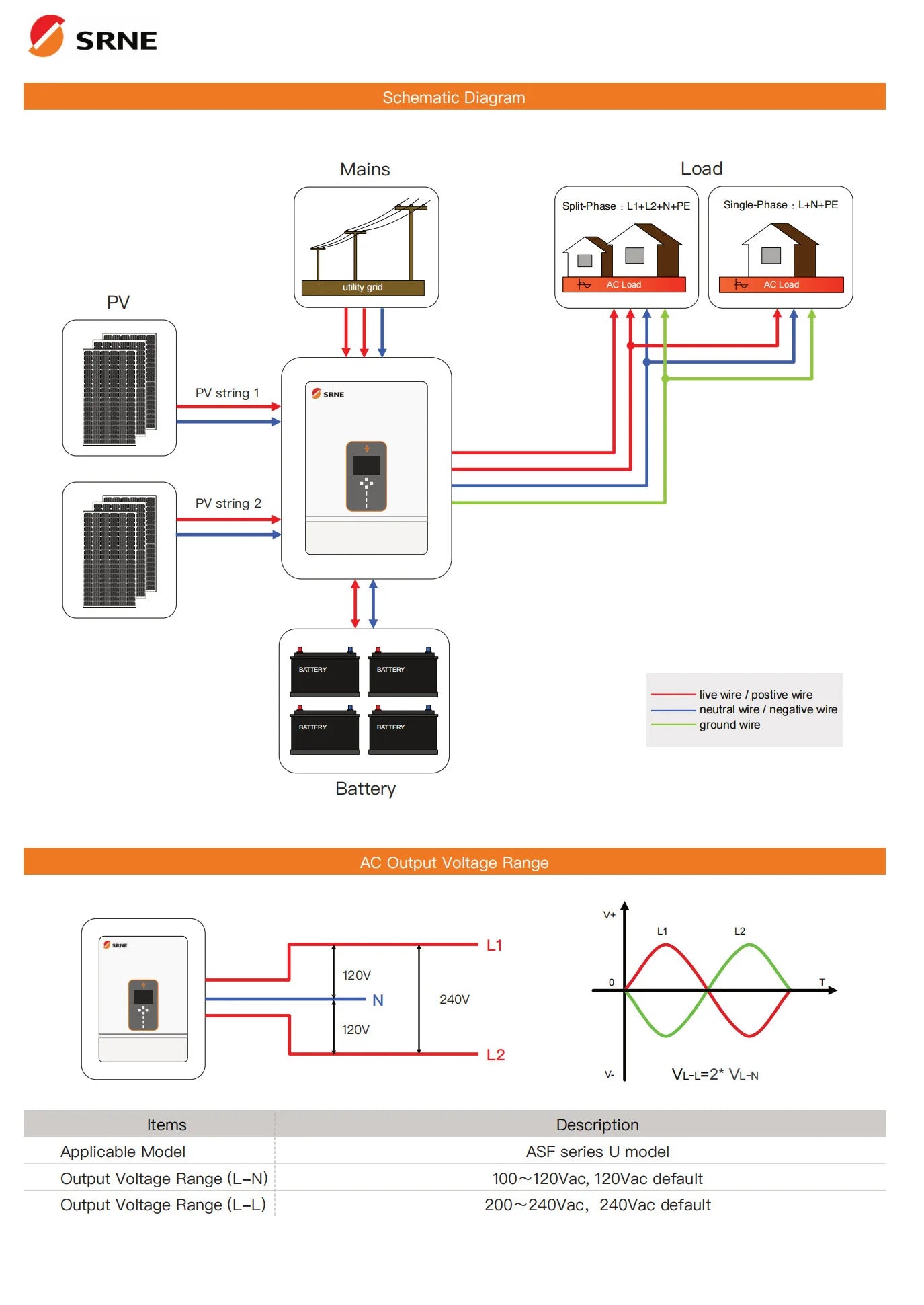

• Support split-phase and single-phase pure sine wave output.
• Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
• Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.
• Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

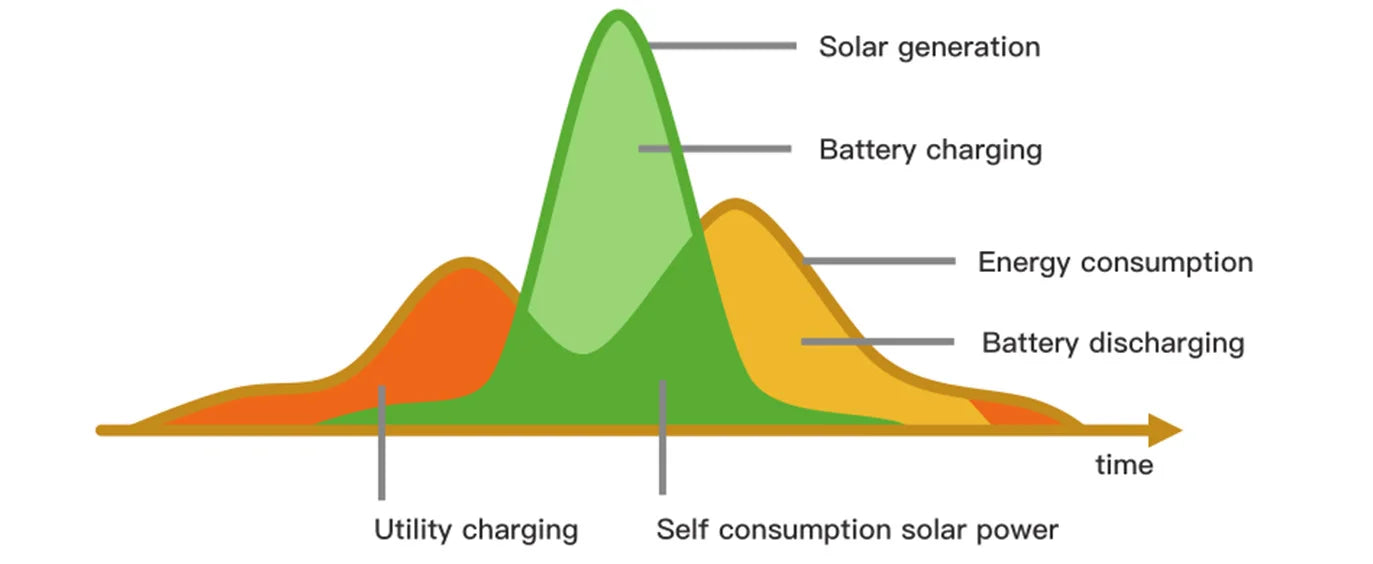

• 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
• With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.
• Energy saving mode function to reduce no-load energy losses.
• With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
• LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.
• 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.
• Support CAN, USB, and RS485 communication.

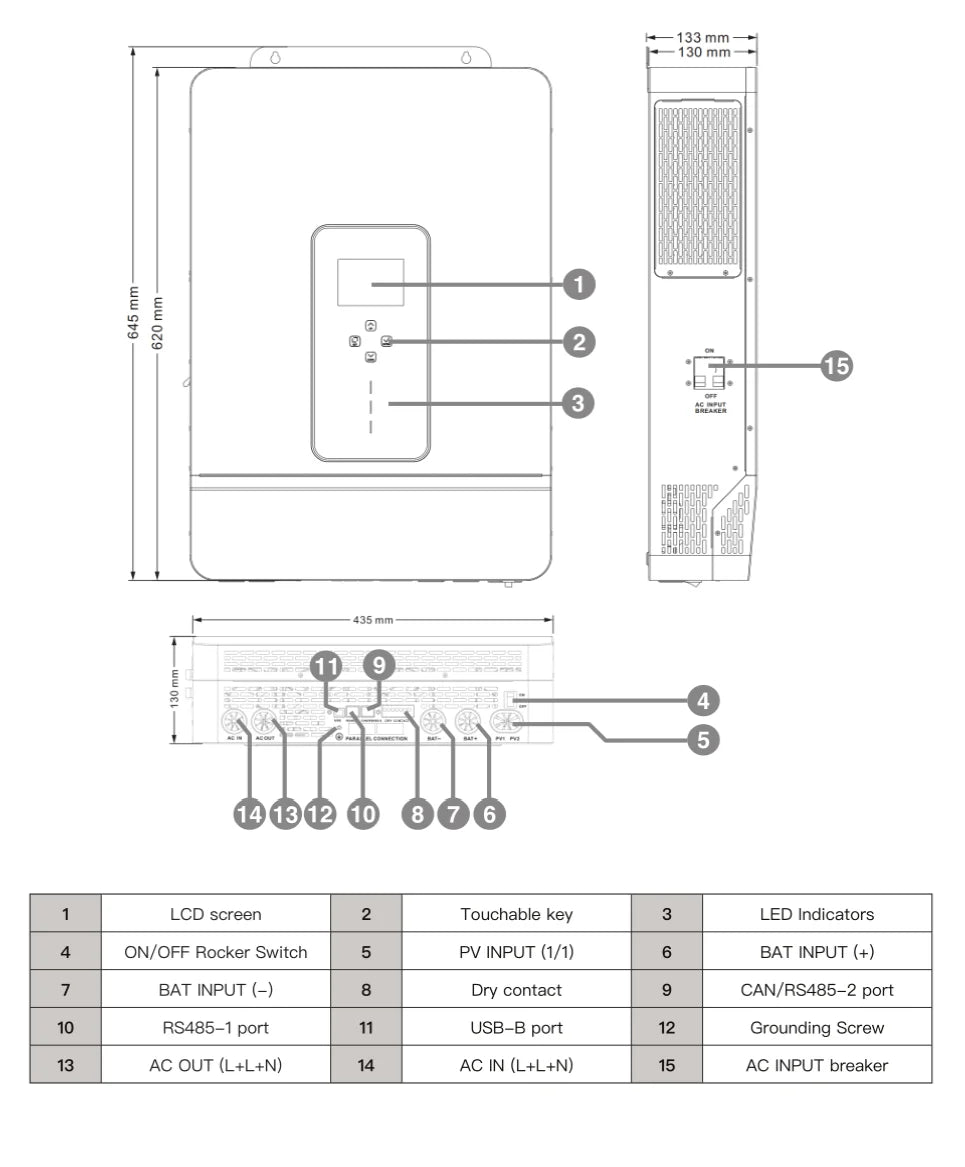

Overview:

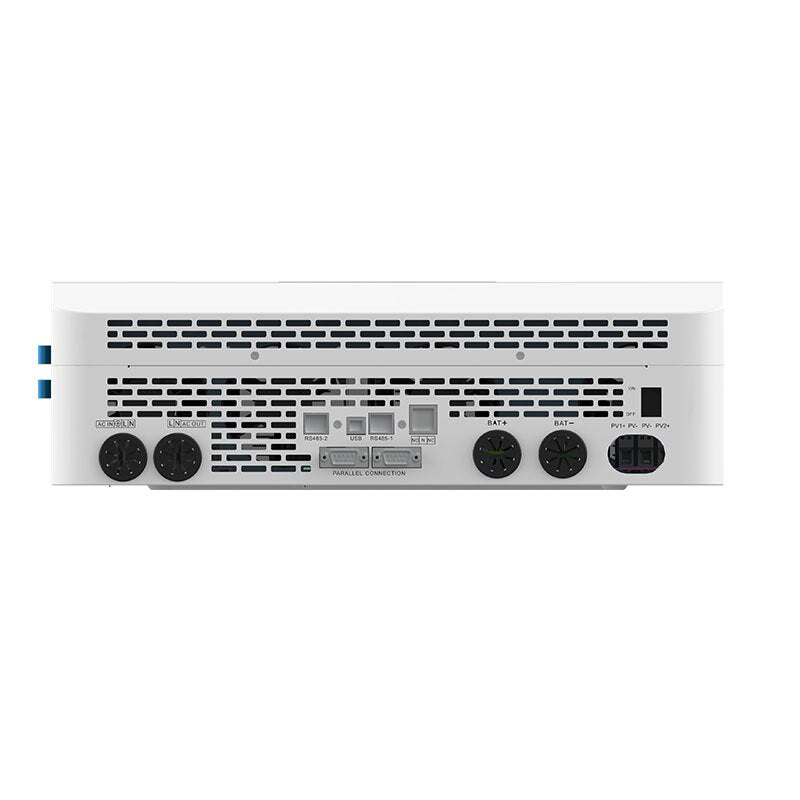

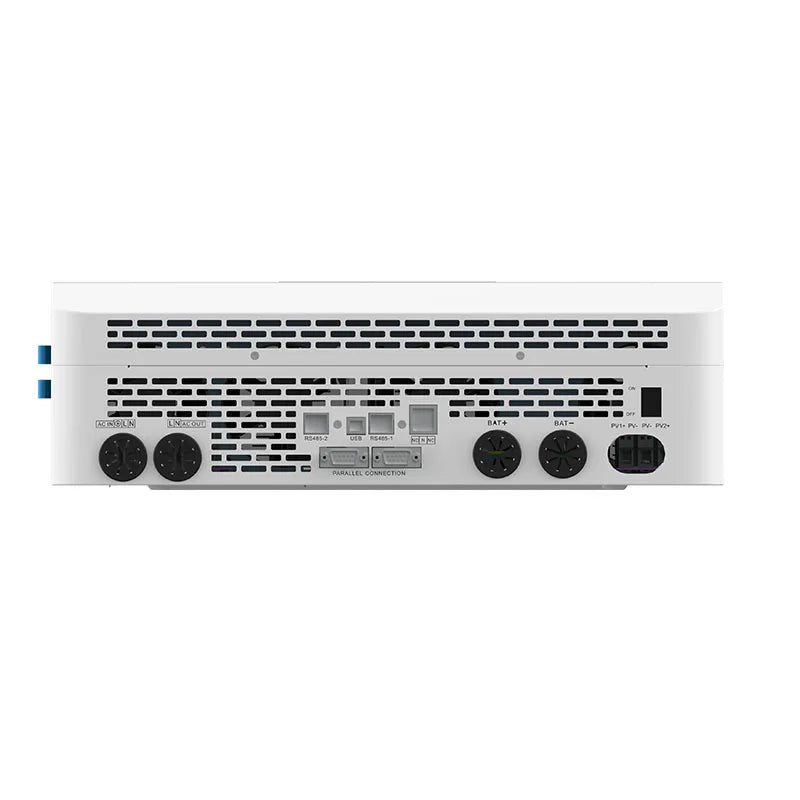

Features include an LCD screen, touchable keys, LED indicators, and an ON/OFF rocker switch. The inverter has PV and battery input connections, along with dry contacts and CAN/RS485 ports for communication. Additionally, it features a USB-B port, grounding screw, AC output, and AC input with a breaker port.
Sepecification:
MODEL |
ASF4880U180-H |
ASF48100U200-H |
Adjustable |
INVERTER OUTPUT | |||
Rated Output Power |
8,000W |
10,000W |
|
Max.Peak Power |
16,000W |
20,000W |
|
Rated Output Voltage |
120/240Vac(L1/L2/N/PE split phase) |
√ |
|
Load Capacity of Motors |
5HP |
6HP |
|
Rated AC Frequency |
50/60Hz |
√ |
|
Waveform |
Pure Sine Wave |
||
Switch Time |
10ms(typical) |
||
Parallel capacity |
/ |
||
BATTERY | |||
Battery Type |
Li-ion / Lead-Acid / User Defined |
√ |
|
Rated Battery Voltage |
48Vdc |
||
Voltage Range |
40-60Vdc |
√ |
|
Max.MPPT Charging Current |
200A |
√ |
|
Max.Mains/Generator Charging Current |
100A |
120A |
√ |
Max.Hybrid Charging Current |
180A |
200A |
√ |
PV INPUT |
|||
Num. of MPP Trackers |
2 |
||
Max.PV array power |
11,000W |
||
Max.input current |
22/22A |
||
Max.Voltage of Open Circuit |
500Vdc |
||
MPPT Voltage Range |
125-425Vdc |
||
MAINS / GENERATOR INPUT | |||
Input Voltage Range |
90-140Vac |
||
Frequency Range |
50/60Hz |
||
Bypass Overload Current |
63A |
||
EFFICIENCY | |||
MPPT Tracking Efficiency |
99.90% |
||
Max. Battery Inverter Efficiency |
92% |
||
GENERAL | |||
Dimensions |
620*435*130mm(2*1.4*0.4ft) |
||
Weight |
20kg(44lb) |
21kg(46.3lb) |
|
Protection Degree |
IP20,Indoor Only |
||
Operating Temperature Range |
-15~55℃,>45℃ derated(5~131℉,>113℉ derated) |
||
Noise |
<60dB |
||
Cooling Method |
Internal Fan |
||
Warranty |
2 Years |
||
COMMUNICATION | |||
Embedded Interfaces |
RS485 / CAN / USB / Dry contact |
√ |
|
External Modules (Optional) |
Wi-Fi / GPRS |
√ |
|
CERTIFICATION | |||
Safety |
IEC62109-1, IEC62109-2,UL1741 |
||
EMC |
EN61000-6-1, EN61000-6-3, FCC 15 class B |
||
RoHS |
Yes |
Package:
SRNE Coreicor User Manual: All-in-one solar charge inverter manual. Dimensions: width 750mm, length 570mm.
Item Pictures:
