T40 Solar Charger Regulator Fit for Street Light System with 12V 24V Auto LCD Display Controller with Load Dual Timer Control
T40 Solar Charger Regulator Fit for Street Light System with 12V 24V Auto LCD Display Controller with Load Dual Timer Control
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Work for: Solar panel system
Voltage: 12V 24V auto work
Origin: Mainland China
Model Number: MPPT T40
Maximum Current: 40A
Max input power: 480W(12V) 960W(24V)
Load Control mode: Dual Timer
Installation Line(AWG): 6(AWG)
Installation Lin(mm2): 12mm2
Indicator: Big LCD display
Certification: CE
Brand Name: PowMr
Battery float voltage: 13.8V(12V system)/27.6V(24V system)
Battery (under voltage) recovery voltage: 12.6V(12V system)/25.2V(24V system)
Battery (under voltage) protection: 10.6V(12V system)/21.2V(24V system)
Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station,Lighting Controller,Thermal Controller,PV system
MPPT T40 40A Solar Charge Regulator 12V 24V Auto LCD Display Controller with Load Dual Timer Control for Street Light System
Note:
It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
Please contact us for checking more details if needed.
Thank you.

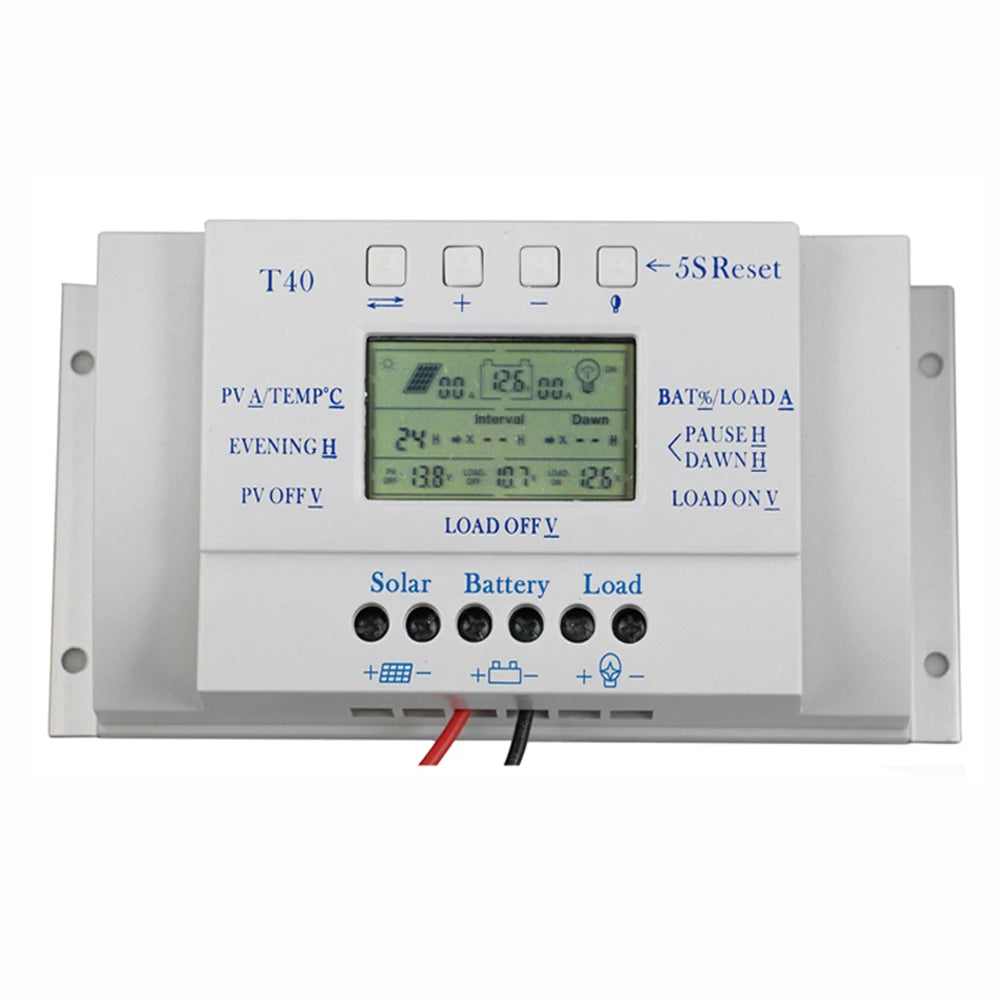

40A T40Solar Charge Controller Dual timer

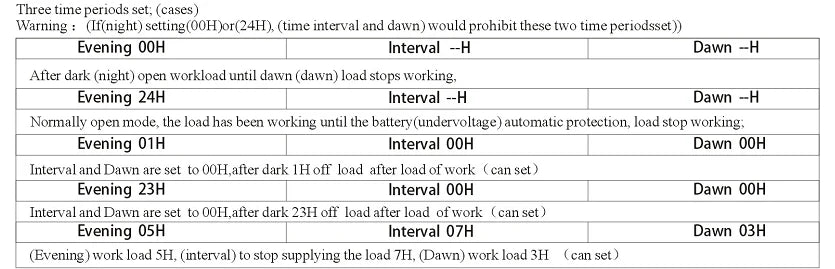

This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time.
A:time(evening working) B:time(pause working) C:time(dawn working)
LCD screen display |
Battery reverse discharge protection |
Easy operation interface |
Battery reverse polarity protection |
MPPT+ PWM charging mode |
Battery under voltage protection |
Parameter user can reset Overload |
Short-circuit protection |
A key to restore the factory settings |
USB 5V charging ( 500mA(White) 1500mA(Sliver) for mobile phone |
A key to open and close the load |
Automatic temperature compensation function |
For Wholesale,please feel free to contact us via aliexpress message!!!()
Package list
1. 1x 40A solar controller T40
2. 1x user manual
3. 1x temp sensor
White:
Silver:

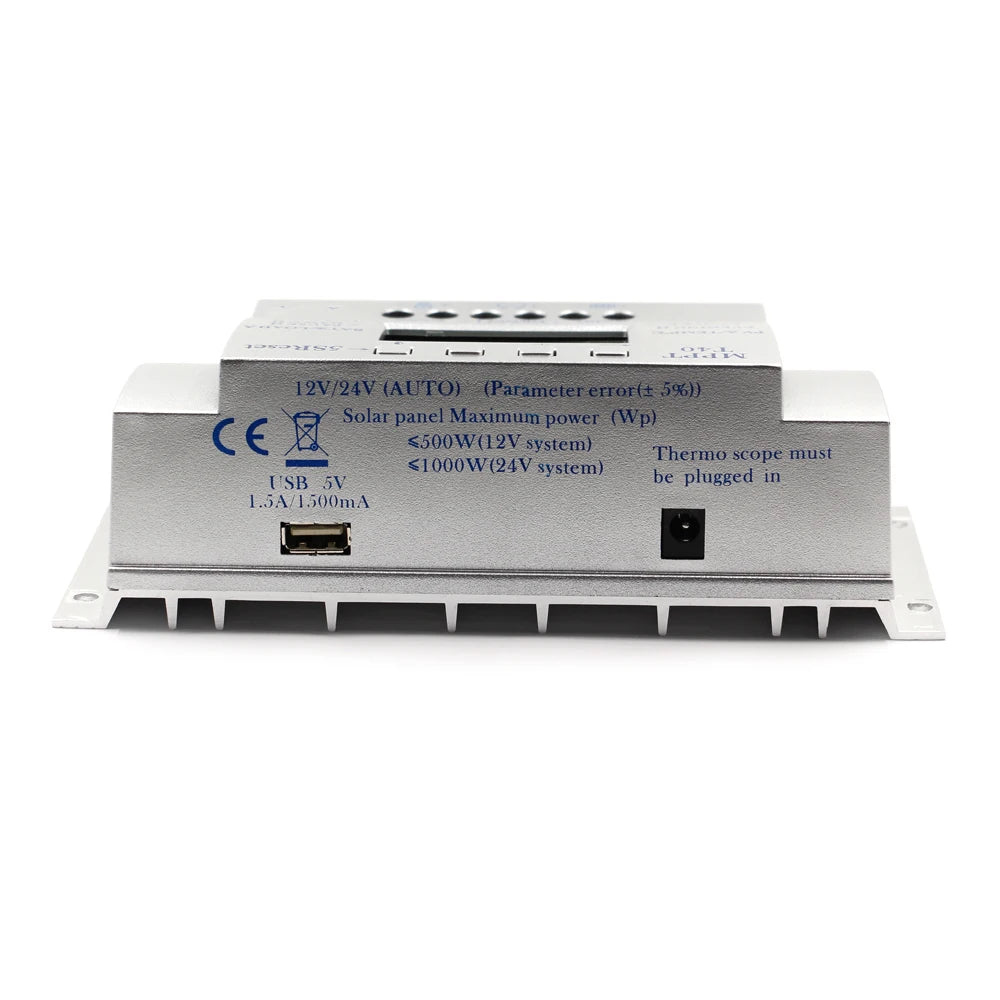

This solar charger regulator suits street light systems, with auto detection for 12V or 24V power. It handles up to 500W (12V) and 1000W (24V) maximum power. A USB port allows for data transfer.

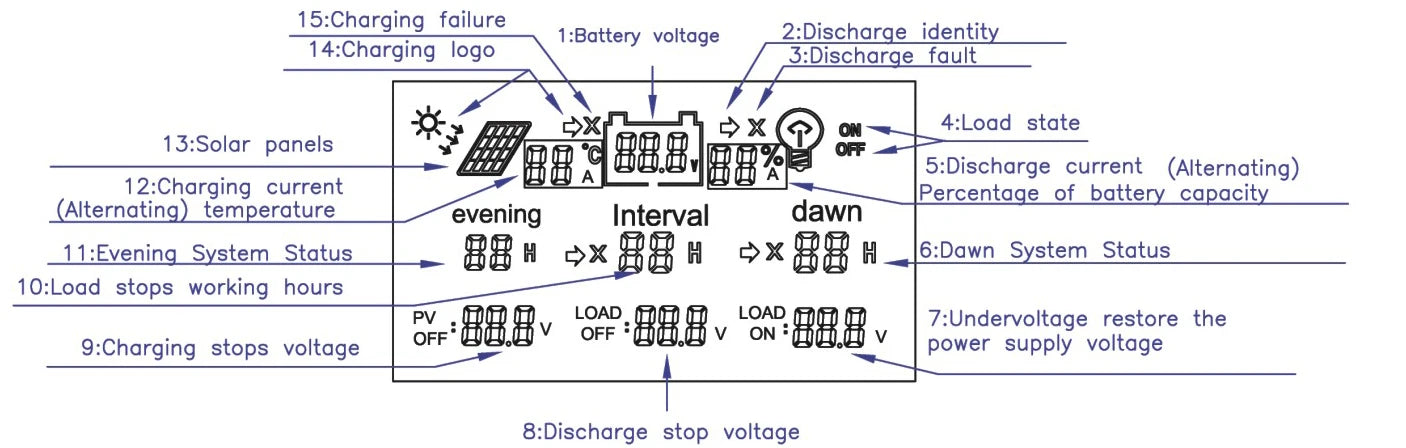

Display shows battery voltage, charging status, and load state. It also displays solar panel output percentage, discharge current, and temperature. Additionally, it indicates system status, including charging failure, undervoltage restore, and power supply OFF/ON.
Parameters / Model |
T10 |
T20 |
T30 |
T40 |
||
Maximum power current |
12A |
20A |
30A |
40A |
||
Installation Lin(mm2) |
4mm2 |
8mm2 |
10mm2 |
12mm2 |
||
Installation Line(AWG) |
10(AWG) |
8(AWG) |
7(AWG) |
6(AWG) |
||
Weight |
280g |
300g |
475g |
480g |
||
Dimensions |
143×89×46(mm) |
187*97*61(mm) |
||||
System load loss |
≤13mA |
|||||
Loop Buck |
≤100mV |
|||||
Battery float voltage |
13.8V(12V system)/27.6V(24V system) |
|||||
Battery (under voltage) protection |
10.6V(12V system)/21.2V(24V system) |
|||||
Battery (under voltage) recovery voltage |
12.6V(12V system)/25.2V(24V system) |
|||||
Charge mode |
MPPT+PWM MODE |
|||||
Operating Temperature |
-10°C~60°C |
|||||
Storage Temperature |
-30°C~70°C |
|||||
Humidity requirements |
≤90%, No condensation |
|||||
Temperature compensation |
-4mV/Cell/°C |
|||||
Temperature Probe (built components) |
NTC 100K thermistats |
|||||
Maximum open circuit voltage of the solar panel |
18V-24V(12V system)36V-48V(24V system) |
|||||
Solar panels maximum open circuit voltage (V) |
≤48V |
(Cases) 12V system standard configuration
