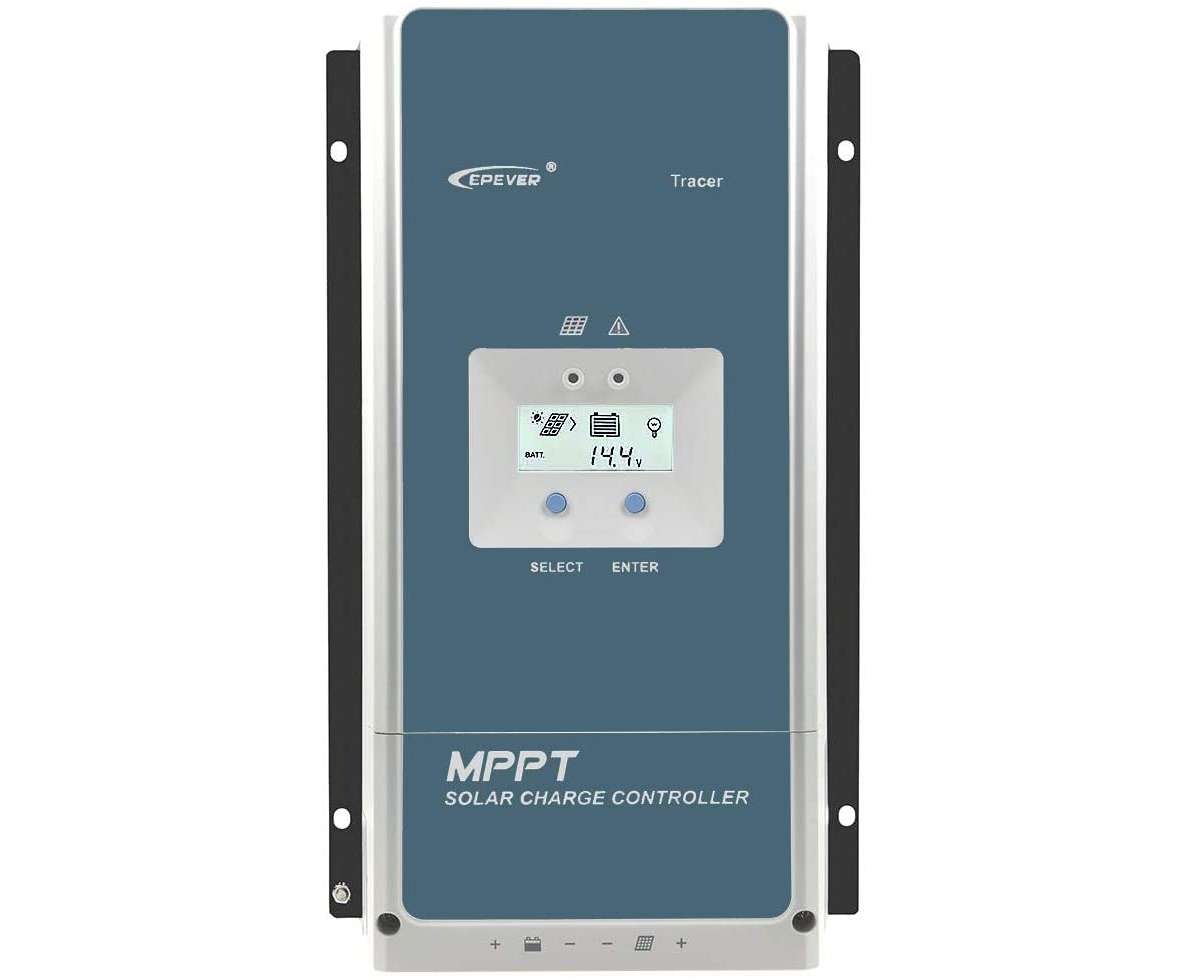

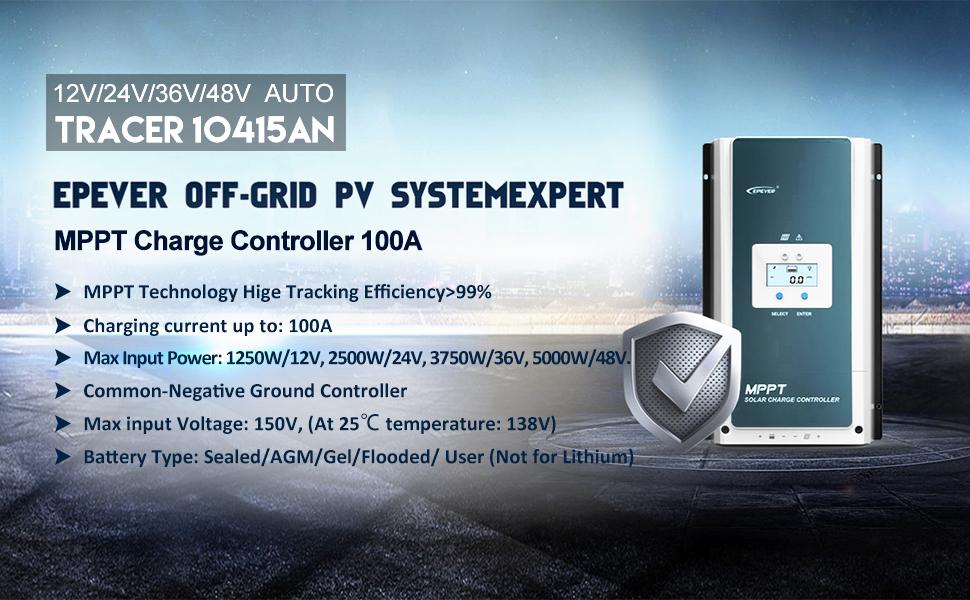

Tracer10415AN - EPever 100A MPPT Solar Charge Controller



EPever 100A MPPT Solar Charge Controller Quick Info

Brand: EPever

Lithium Battery Activation: Active Lithium Batteries

Battery Voltage: 12V, 24V, 36V, 48V

Battery Type: Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM Batteries, User Mode

Charging Current: 100 Amps

Ground Type: Netagive Ground

Solar Panel Max Input Power: 3000W-5000W

Solar Panel Max Input Voltage: 150V



EPever 100A MPPT Solar Charge Controller 150V 200V Max PV Input 12V 24V 36V 48V Auto Solar Regulator LCD Display Tracer10415AN Tracer10420AN EPsolar

Specification:

• High quality & low failure rate components of ST and Infineon to ensure the product’s life
• Advanced MPPT technology & ultra-fast tracking speed is up to 99.5%.
• Maximum DC/DC transfer efficiency is as high as 98.7%
• Auto control system to limit the charging power & current goes over the rated value.
• Real-time energy recording and statistical function
• Battery temperature compensation function.
• Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
• Support up to 8 units in parallel to expand the system
• PV short circuit / PV reverse polarity /Battery over voltage
• Battery over-discharge / Battery reverse polarity / Load overload protection

Package List:

• 1 X Tracer 10415AN Solar Charge Controller
• 1 X MT50 remote meter
• 1 X RS485-150U communication cable
• 2 X Use Manual
•

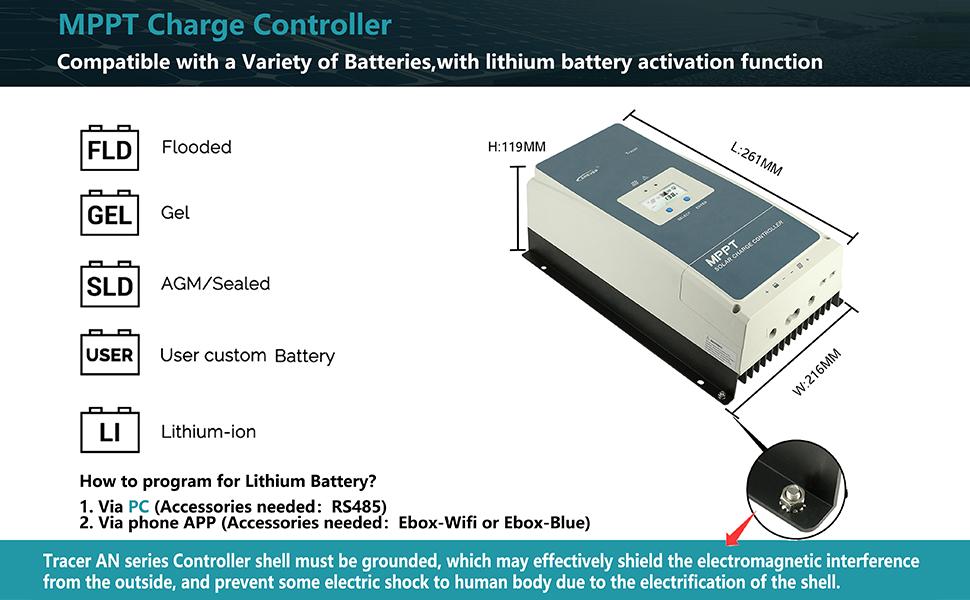

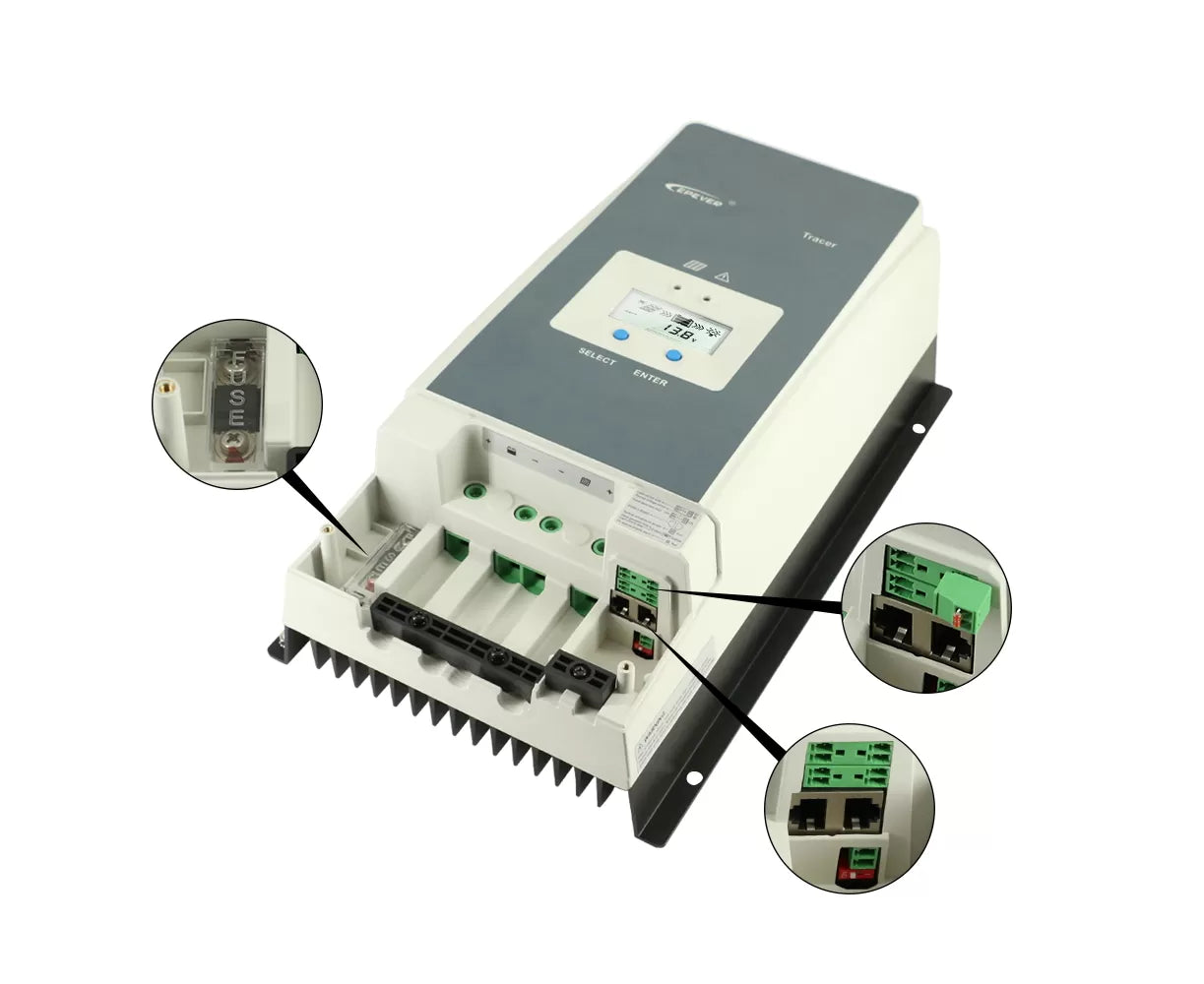

  Tracer10415AN 100A MPPT Solar Charge Controller supports various battery types, including lithium-ion. For lithium battery activation, follow these steps: 1. Connect to PC via RS485 (accessory required). 2. Use phone APP with Ebox-WiFi or Ebox-Blue (accessory required). Note: Ground the controller shell to prevent electromagnetic interference and electrical shock.

Warm tips：

Features:

• Product Brand: Epever
• Product Model: Tracer10415AN
• CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)High quality & low failure rate components of ST and Infineon to ensure the product’s life
• Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
• Maximum DC/DC transfer efficiency is as high as 98.7%
• Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
• The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
• The wider range of MPP operating voltage
• Auto control system to limit the charging power & current go over the rated value
• Support 4 charging options: Sealed, Gel, Flooded, and User
• Battery temperature compensation function
• Real-time energy recording and statistical function
• Automatic over-temperature power reduction function
• Hundred percent full load operation in working environment temperature range within charging & discharging
• Support up to 8 units in parallel to expand the system
• Load relay control external load switch signal to realize diversified load work modes
• The first and the second disconnection of load control, contain two relay’s contact
• Auto-control of utility and generator relay design
• Utility or generator auto-control relays make it easy to compose the hybrid power system
• The remote temperature and the voltage sensor design will collect accurate data on battery temperature and voltage
• Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
• To monitor or set the parameters by using the phone Apps or PC software

Electronic protections:

• PV over current/power protection
• PV short circuit protection
• PV reverse polarity protection
• Night reverse charging protection
• Battery over-voltage protection
• Battery over-discharge protection
• Battery overheating protection
• Controller overheating protection
• TVS high voltage transients protection

Specification:

Rated charge current: 100A

Rated discharge current: 100A

Battery input voltage range: 8-68V

Max. PV open circuit voltage: 150V

Rated charge power: 1250W(12V);2500W(24V);3750W(36V);5000W(48V)

Self-consumption: 98mA/12V;60mA/24V;50mA/36V;46mA/48V

Temperature compensate coefficient: -3mV/℃/2V(Default)

Dimension: 394×242×143mm

Power terminals: 2AWG(35mm²)

Net weight:7.4kg

Enclosure: IP20

Warm tips：

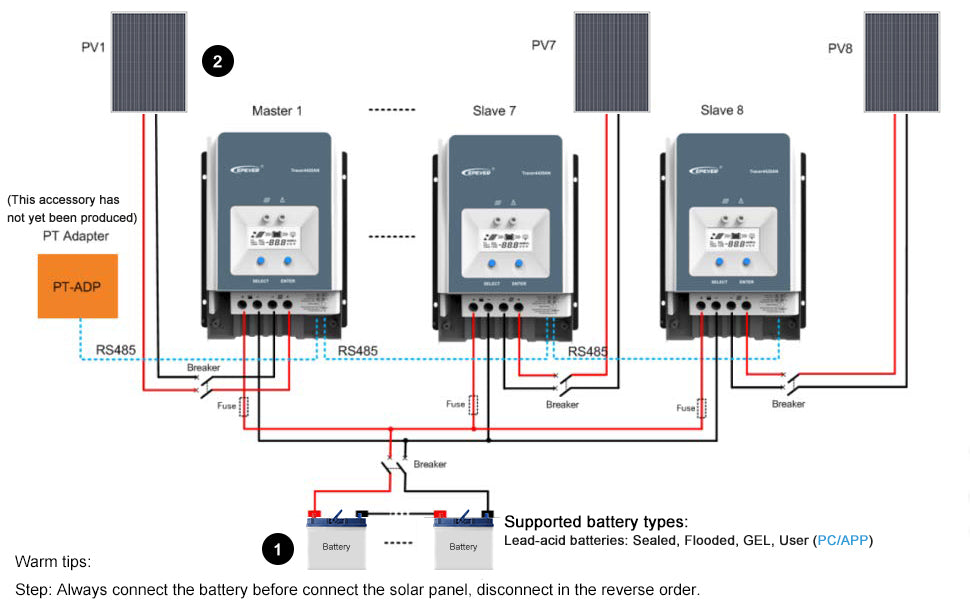

Step: Connect the system in the order of 1. battery--> 2. load-->3. PV array, and disconnect the system in the reverse order 3. 2. 1.

• The battery must be connected first !!!
• Never connect the solar panel array to the controller Without / Before a Battery.
• DO NOT connect any inverter/ wind/Alternator or Charger into the charge controller!
• WARNING: Do not reverse the polarity of the batteries. Reverse polarity will damage the charge controller permanently！！！
• If the remote temperature sensor is not connected to the controller, the default setting for battery charging or discharging temperature is 25 °C without temperature compensation.

MT50 Remote Meter:

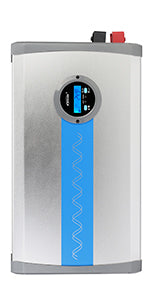

• >span class="a-list-item">Compatible with EPever Tracer-A/AN/BN, LS-B/BP, VS-BN series controllers
• With attached extension cable, it will show the operational data and working status of the connected MPPT charge controller.

RS485-150U Cable(1.5m):

• used to monitor each controller on the network using Solar Station PC software and update the firmware.

Remote Temperature Sensor（TS-R，3m）：

• Obtain battery temperature for temperature compensation of control parameters

Rated input voltage	24V	24V
Output voltage	230V	110V
Output power	2000W	3000W



EPever 100A MPPT Solar Charge Controller DataSheet

Please confirm the specification before install



User Manual--- (EPever_Tracer-AN_50-100A__User_Manual.pdf, 1,189 Kb) [Download]
