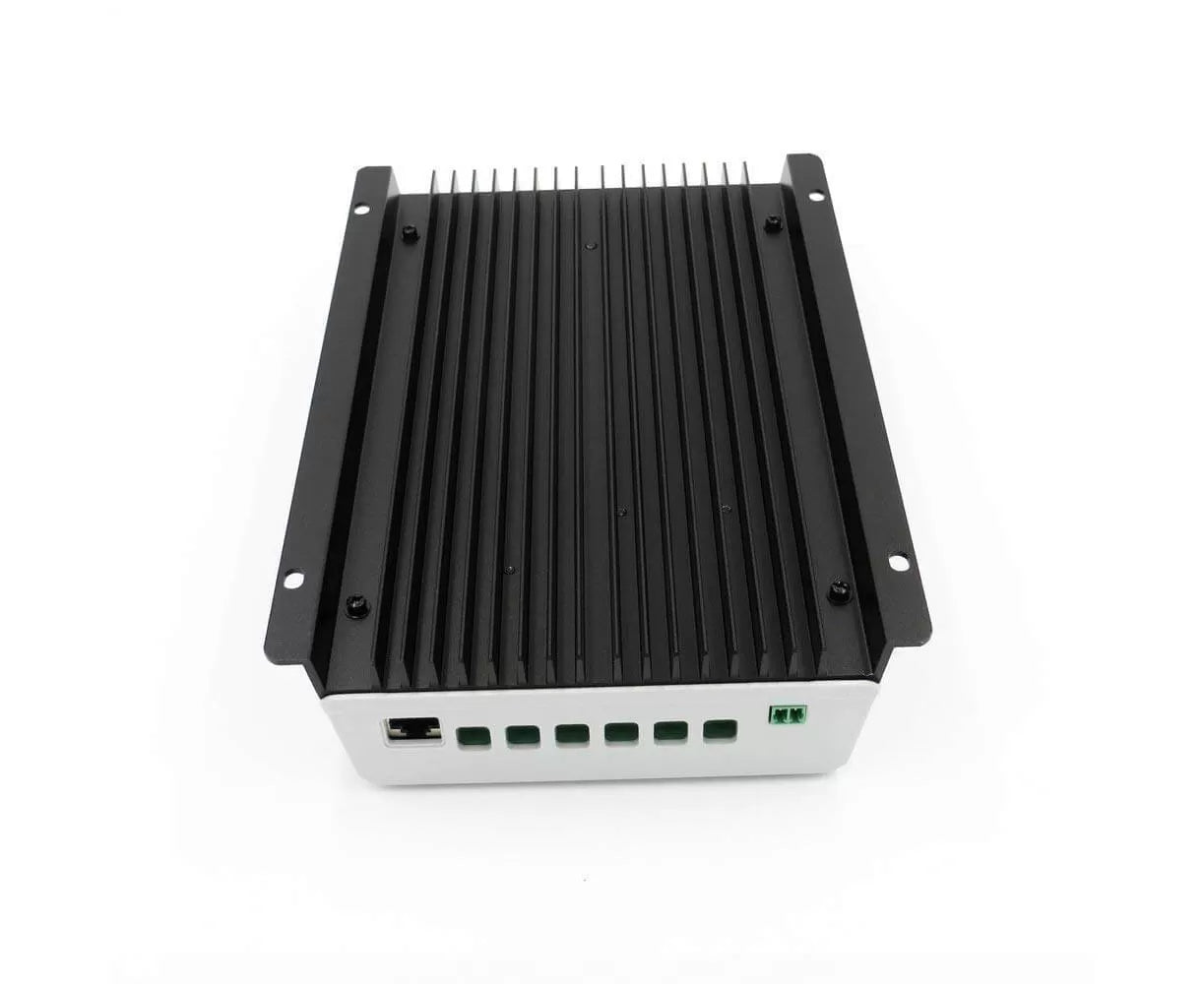

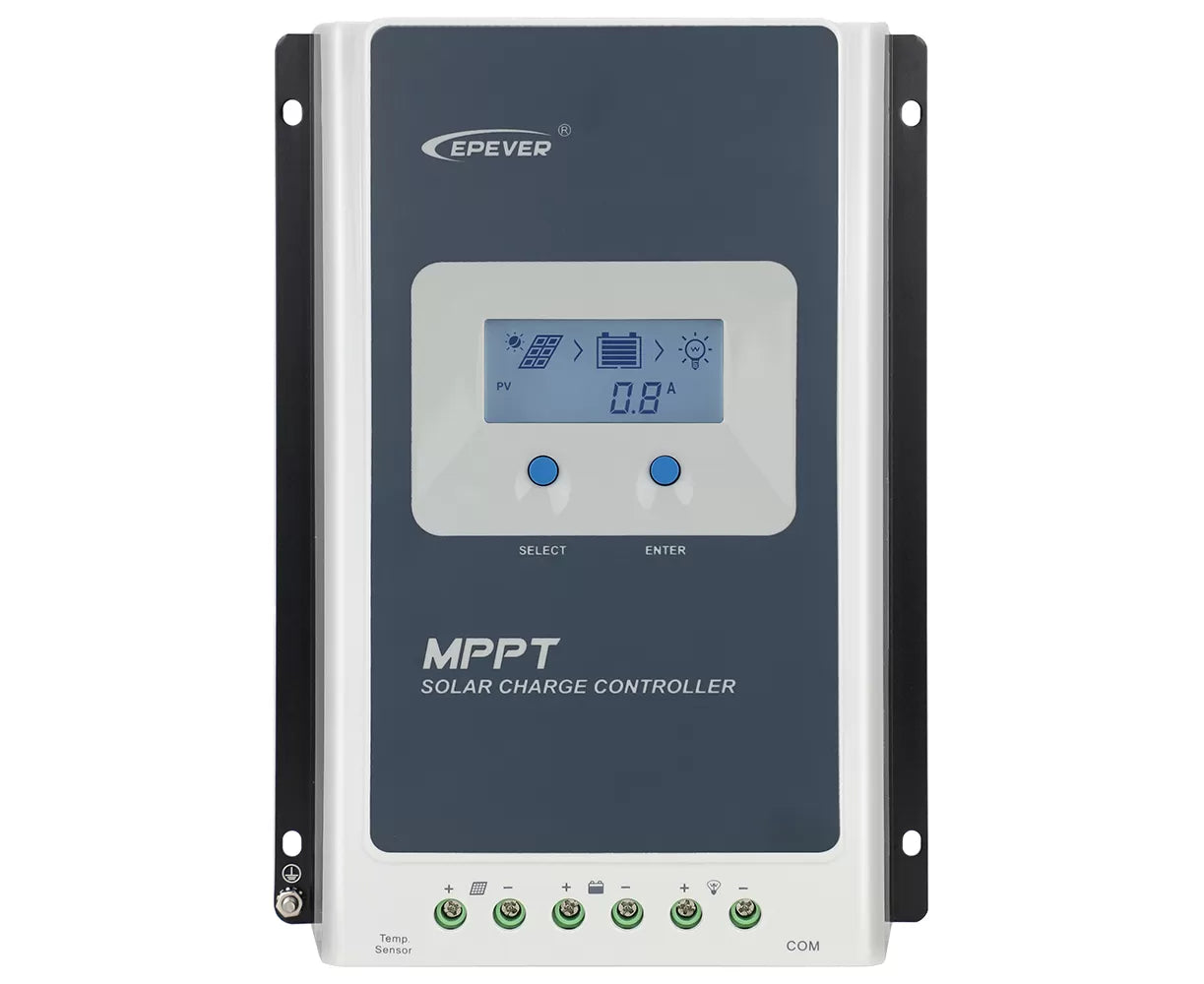

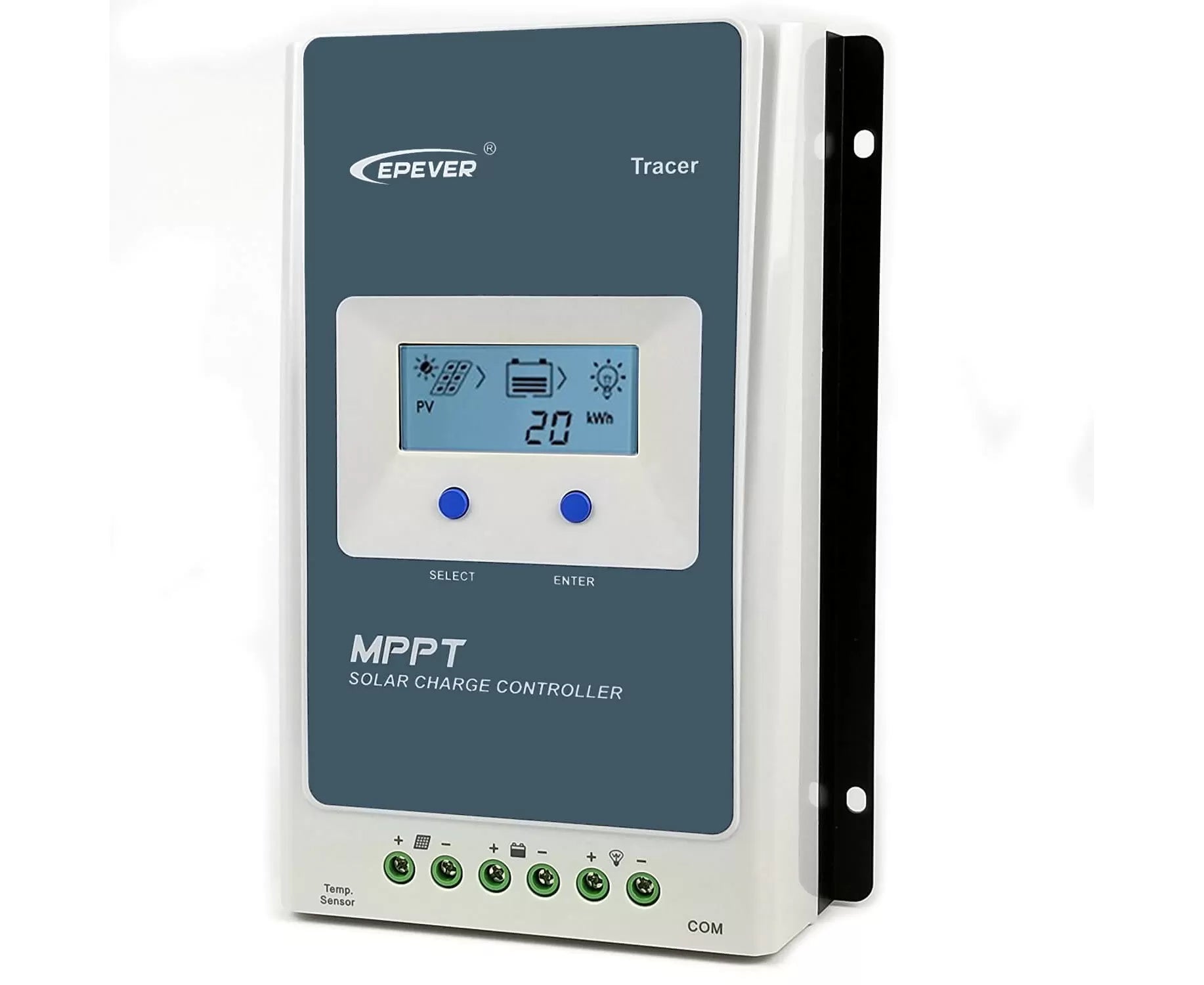

Tracer2210AN - EPever 20A MPPT Solar Charge Controller



EPever 20A MPPT Solar Charge Controller Quick Info

Brand: EPever

Lithium Battery Activation: Active Lithium Batteries

Battery Voltage: 12V, 24V

Battery Type: Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM Batteries, User Mode

Charging Current: 20 Amps

Ground Type: Netagive Ground

Solar Panel Max Input Power: 500W-1000W

Solar Panel Max Input Voltage: 100V



EPever MPPT Solar Charge Controller 20A LCD Display 12V 24V Auto Solar Panel System Regulator Tracer2210AN

Welcome to buy 20a epever solar charge controller

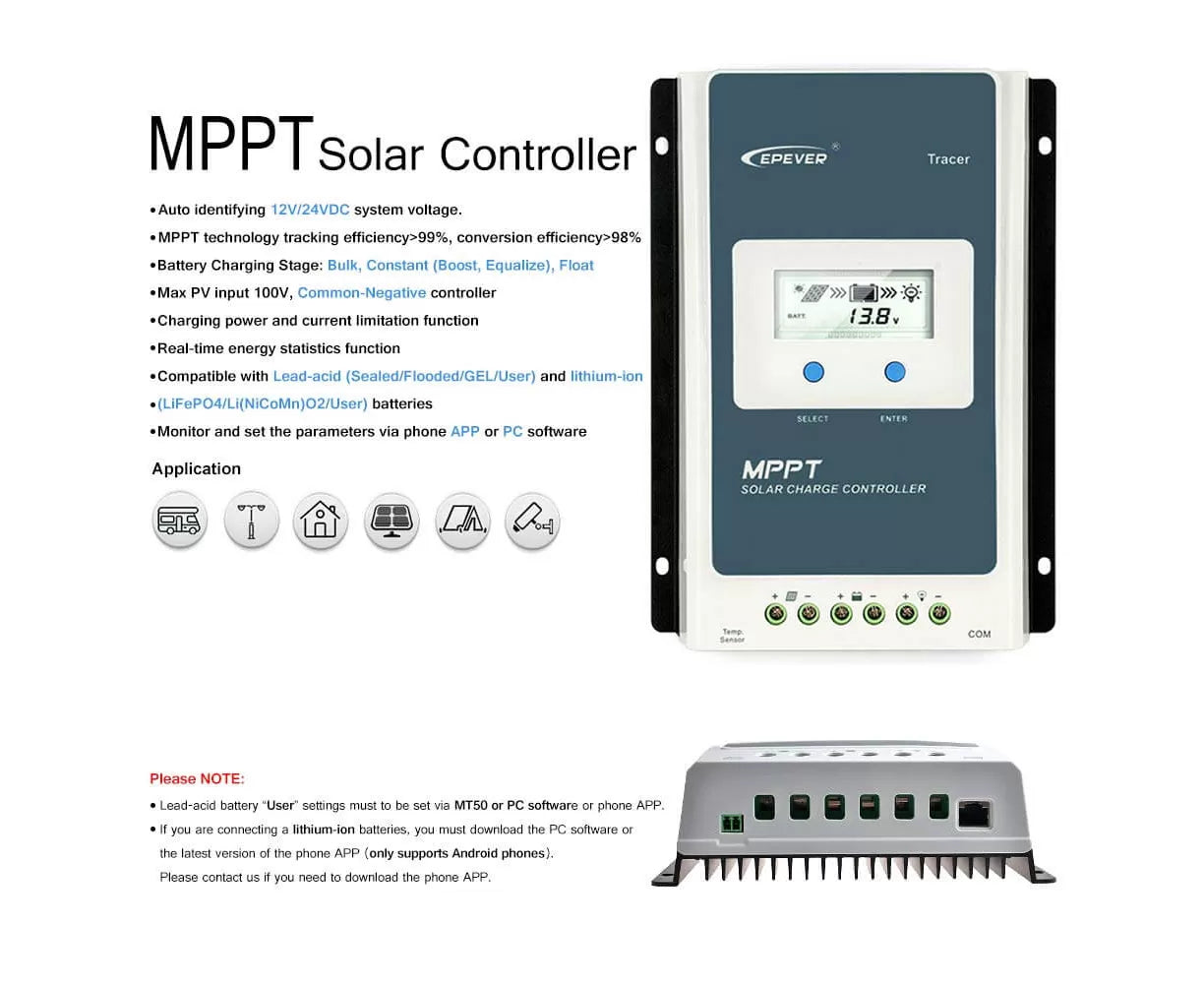

Tracer series MPPT Controller is suitable for various off-grid solar applications.

It protects the battery from being over-charged by the solar modules and over-discharged by the loads.

The automatic limit for maximum PV input power. Should the PV input exceed the rating, the solar charge controller will simply limit the throughput to the rated level.

Specification:

• Multiple load control modes: manual control, lighting ON / OFF, light On+Timer
• Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%

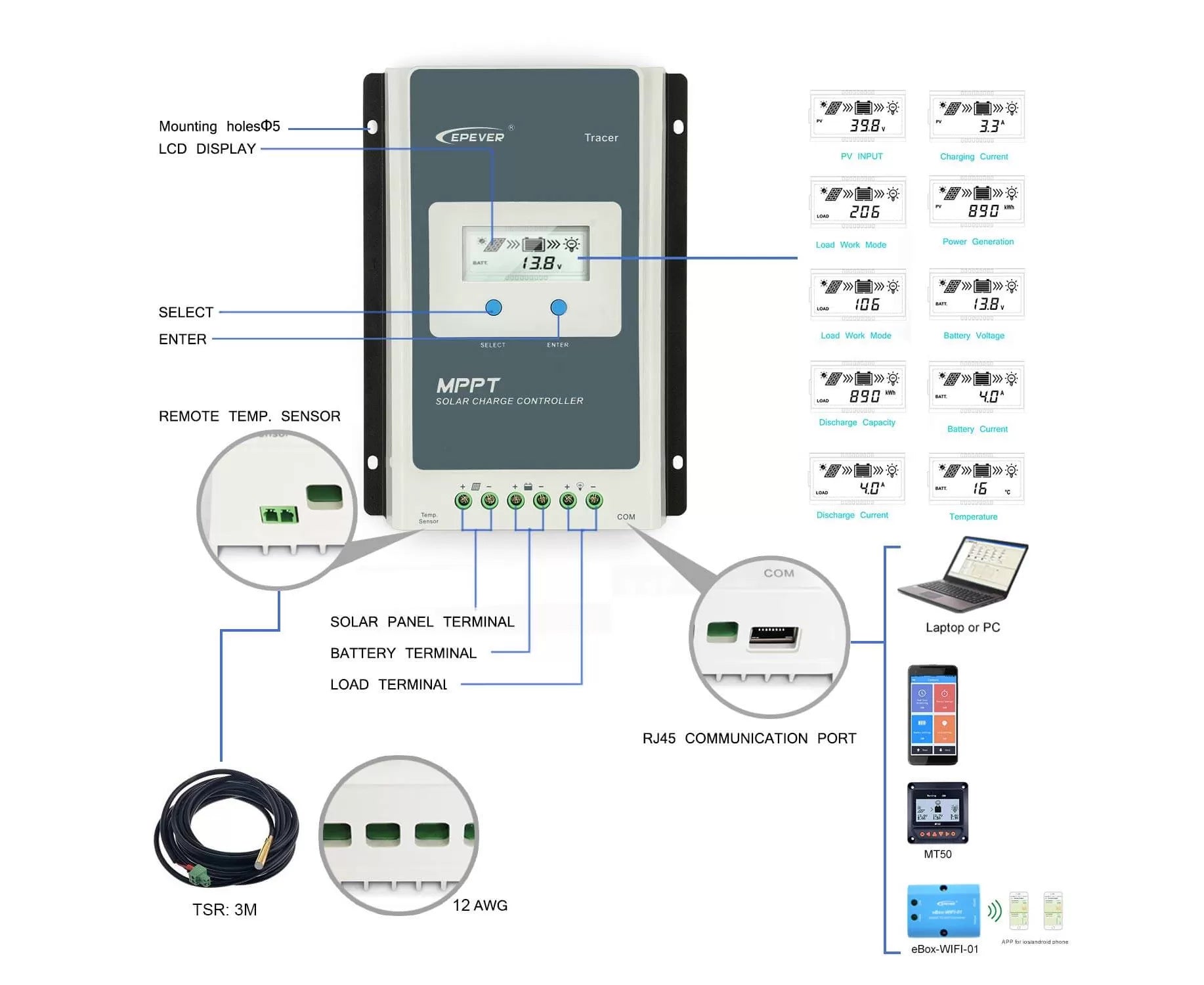

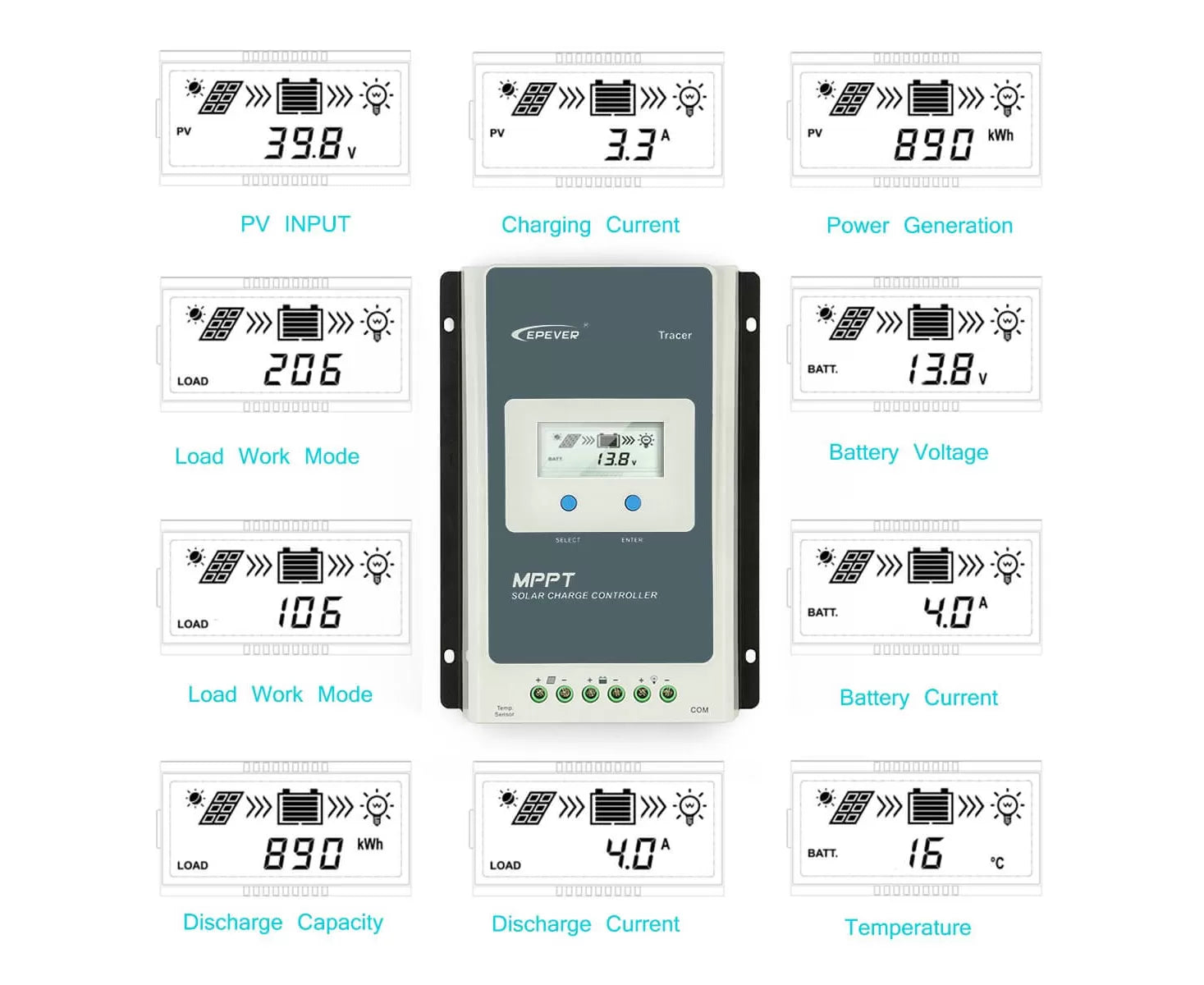

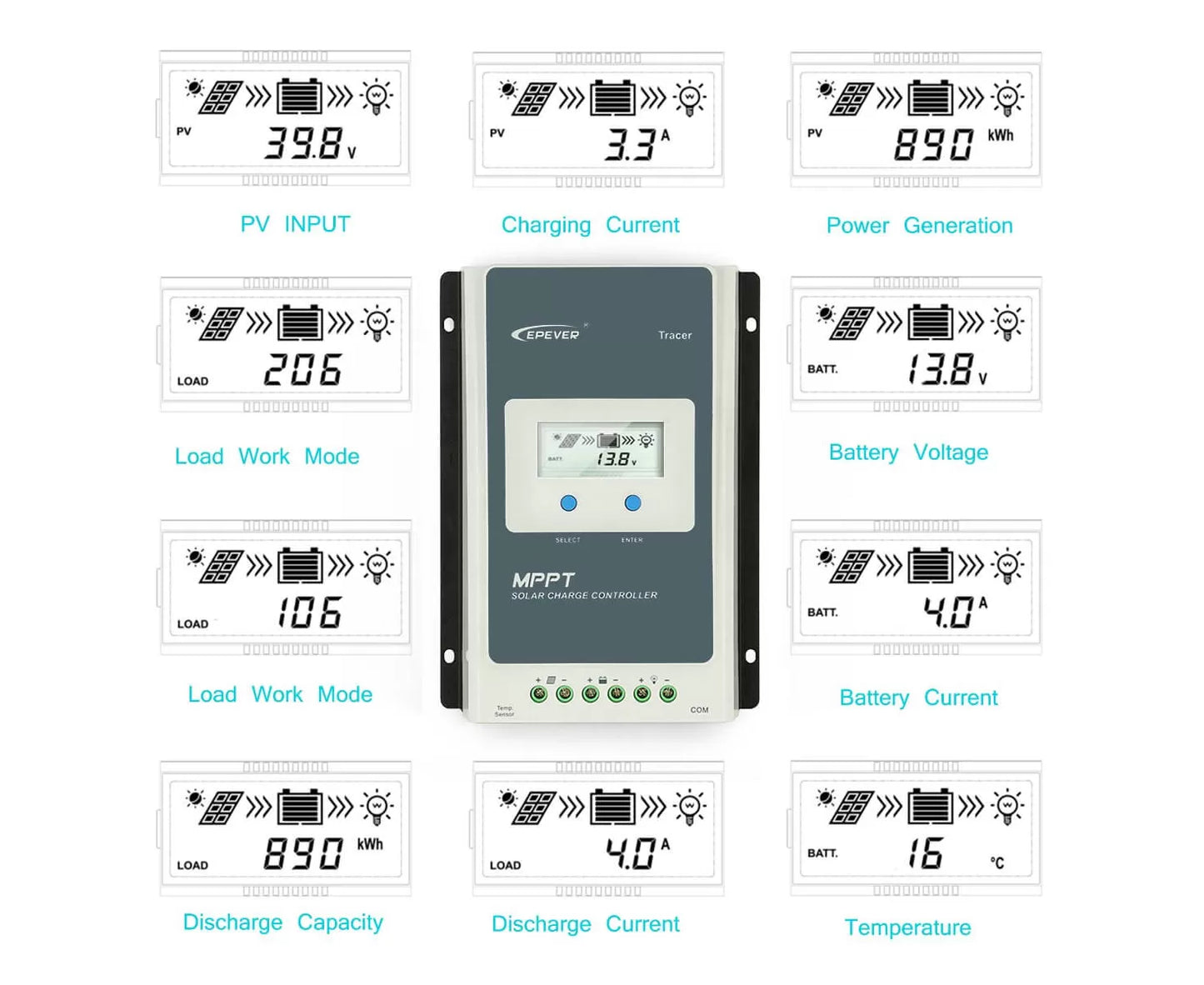

• LCD display design, dynamically displaying tool's operating data and working condition
• Available for PC monitoring and external display realizing real-time data checking and parameters setting
• Charging Power and Current Limitation Function
• User is programmable for battery types, load control, etc.
• Accurately recognizing and tracking multiple PowerPoint
• PV short circuit / PV reverse polarity /Battery over voltage
• Battery over-discharge / Battery reverse polarity / Load overload protection

Added Features（than Tracer A）:

Blacklight LCD Display / Common Negative Ground / Support lithium Battery / More Safety Protection

Package List: 1 x Tracer 2210AN Solar Charge Controller / 1 x Use Manual

Tracer 2210AN MPPT Charge Controller 12V / 24V DC Auto Rated charge current: 20A Max Input Power:12V @ 260W | 24V @ 520W The maximum power of the PV array DO NOT greater than 1.5 x the rated charging power of the controller! Max.PV open circuit voltage:100VDC (92V at 25℃ temperature) Battery type: lead-acid (Gel, Sealed, Flooded) and Lithium Battery voltage range: 9V~32V C Common-Negatived Ground Controller Charging Power and Current Limitation Function Working environment temperature:-25℃～+50℃

Features:

* User programmable for battery types, load control, etc.

* Multiple load control modes: manual control, light ON/OFF, light On+Timer, and test mode.

* LCD display design, dynamically displaying tool's operating data and working condition.

* 3-Stage charge with PWM output

* Battery temperature compensation function.

* Real-time energy statistics function.

* Common positive grounding design

* RS485 port with industrial standard MODBUS open architecture

* Fully available for PC monitoring and external display unit connecting like MT50 and so on, realizing real-time data checking and parameters setting. Features

* Support software upgrade.

* Warranty: lifelong warranty

Electronic protections:

• PV reverse polarity protection

• PV short circuit protection

• PV over current alarm protection

• Battery overcharge protection

• Battery over-discharge protection

• Battery reverse polarity protection

• Load short circuit protection

• Load overload protection

• Overheating protection

Warm tips：

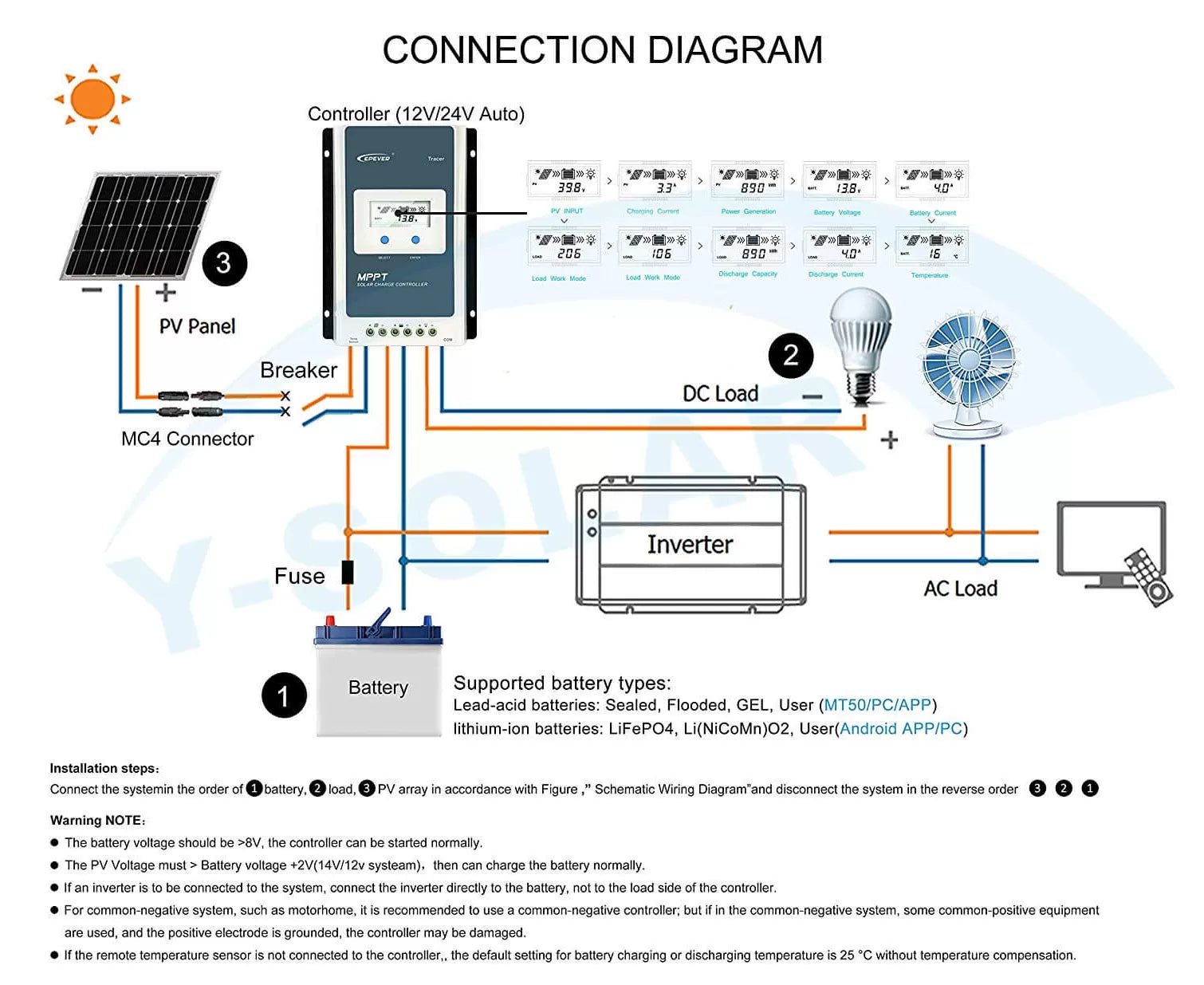

Step: Connect the system in the order of 1. battery-->2. load-->3.PV array, and disconnect the system in the reverse order 3. 2. 1.

• The battery must be connected first !!!
• Never connect the solar panel array to the controller Without/Before a Battery.
• DO NOT connect any inverter/ wind/Alternator or Charger into the charge controller!
• If the remote temperature sensor is not connected to the controller, the default setting for battery charging or discharging temperature is 25 °C without temperature compensation.
• The wire size is only for reference. If there is a long distance between the PV array and the controller or between the controller and the battery, larger wires can be used to reduce the voltage drop and improve performance.



EPever 20A MPPT Solar Charge Controller DataSheet

Tracer2210AN  DataSheet



Certificate--- (EPever_Tracer-AN_10-40A__CE_Certificate.pdf, 44 Kb) [Download]

Datasheet--- (EPever_Tracer-AN_10-40A__Datasheet.pdf, 283 Kb) [Download]

Certificate--- (EPever_Tracer-AN_10-40A__ROHS_Certificate.pdf, 742 Kb) [Download]

User Manual--- (EPever_Tracer-AN_10-40A__User_Manual.pdf, 1,901 Kb) [Download]



FAQ

Question:	can I hook up 3 100 watt panels to the 20A mppt controller?
Answer:	YES. 300W is ok for 20A controller
Question:	Can it handle 4 12v 100W solar panels in paralell??????
Answer:	Sorry for the delay reply. Yes. you can use 40 amps contrtoller.
